This document provides an overview of Earth's atmosphere and its layers. It begins by defining an atmosphere and noting that Earth's protects the planet from extreme temperatures and harmful solar radiation. The five main layers of Earth's atmosphere are then described in more detail, including the gases present and how temperature varies with altitude. Key functions of the atmosphere such as the greenhouse effect and atmospheric circulation driven by uneven solar heating are also summarized.

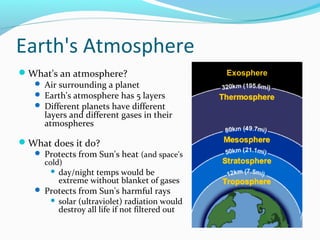

2. Earth's Atmosphere
What's an atmosphere?
Air surrounding a planet
Earth's atmosphere has 5 layers
Different planets have different
layers and different gases in their
atmospheres
What does it do?
Protects from Sun's heat (and space's
cold)
day/night temps would be
extreme without blanket of gases
Protects from Sun's harmful rays
solar (ultraviolet) radiation would
destroy all life if not filtered out
Exosphere
Thermosphere
Mesosphere
Stratosphere
Troposphere

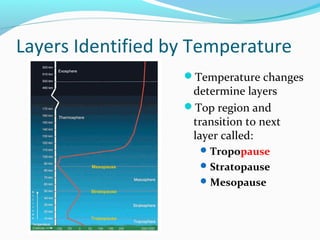

3. Layers Identified by Temperature
Temperature changes
determine layers
Top region and
transition to next
layer called:
Tropopause
Mesopause
Stratopause
Mesopause
Stratopause
Tropopause
4. Earth's atmosphere, a mixture of gases:
• N2, O2, Ar, CO2, and others gases plus water vapor, dust, etc.
•Earth's gravity holds more air molecules near it's surface than in
the upper atmosphere where gravitational forces are weaker

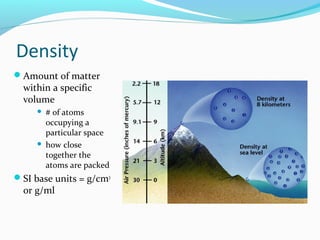

6. Density
Amount of matter
within a specific
volume
# of atoms
occupying a
particular space
how close
together the
atoms are packed
SI base units = g/cm3
or g/ml
7. Altitude & Density
As air pressure decreases,
density of air also
decreases
Air particles are not
squashed together as
tightly the higher one
goes (because of gravity)
Air at sea level and 8km
both have 21% oxygen
But 21% of 100 = 21,
while 21% of 10 is only 2!
At 8km there are fewer
molecules per cubic cm,
so you take in less
oxygen with each

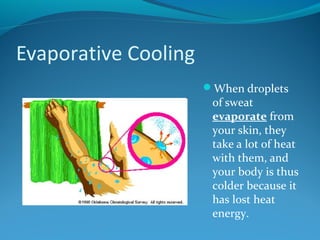

8. Evaporative Cooling
When droplets
of sweat
evaporate from
your skin, they
take a lot of heat
with them, and
your body is thus
colder because it
has lost heat
energy.

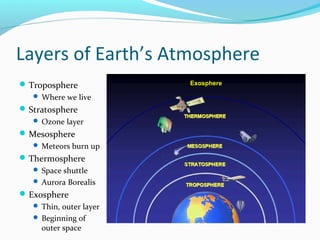

9. Layers of Earth’s Atmosphere
Troposphere
Where we live
Stratosphere
Ozone layer
Mesosphere
Meteors burn up
Thermosphere
Space shuttle
Aurora Borealis
Exosphere
Thin, outer layer
Beginning of
outer space
Exosphere

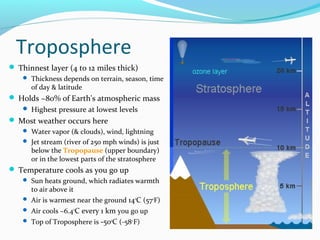

10. Troposphere
Thinnest layer (4 to 12 miles thick)
Thickness depends on terrain, season, time
of day & latitude
Holds ~80% of Earth's atmospheric mass
Highest pressure at lowest levels
Most weather occurs here
Water vapor (& clouds), wind, lightning
Jet stream (river of 250 mph winds) is just
below the Tropopause (upper boundary)
or in the lowest parts of the stratosphere
Temperature cools as you go up
Sun heats ground, which radiates warmth
to air above it
Air is warmest near the ground
Air cools ~6.4oC
14oC (57oF)
every 1 km you go up
Top of Troposphere is -50oC (-58o F)

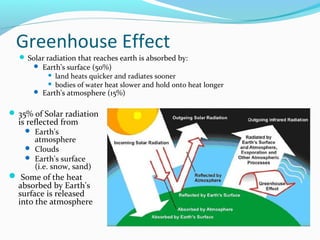

11. Greenhouse Effect
Solar radiation that reaches earth is absorbed by:
Earth's surface (50%)
land heats quicker and radiates sooner
bodies of water heat slower and hold onto heat longer
Earth's atmosphere (15%)
35% of Solar radiation
is reflected from
Earth's
atmosphere
Clouds
Earth's surface
(i.e. snow, sand)
Some of the heat
absorbed by Earth's
surface is released
into the atmosphere

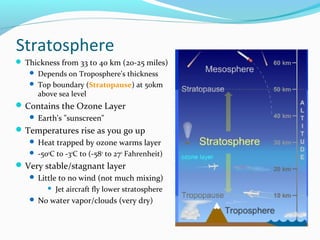

13. Stratosphere
Thickness from 33 to 40 km (20-25 miles)
Depends on Troposphere's thickness
Top boundary (Stratopause) at 50km
above sea level
Contains the Ozone Layer
Earth's "sunscreen"
Temperatures rise as you go up
Heat trapped by ozone warms layer
-50oC to -3oC to (-58o to 27o Fahrenheit)
Very stable/stagnant layer
Little to no wind (not much mixing)
Jet aircraft fly lower stratosphere
No water vapor/clouds (very dry)
15. "Hole" in the Ozone Layer
Chlorine & Bromine bind to
oxygen & deplete ozone
Mostly at the south pole where
Artic winds carry Cl & Br up into
the Stratosphere
Localized & seasonal "thinning"
- not a complete "hole"
CFCs in refrigerants
Montreal Protocol
Studies now show reversal
Some models predict reversal
will increase global warming

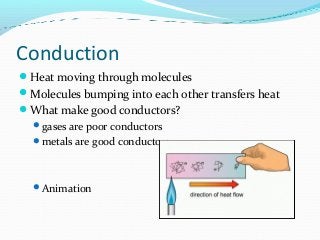

20. Conduction
Heat moving through molecules
Molecules bumping into each other transfers heat
What make good conductors?
gases are poor conductors
metals are good conductors
Animation
21. Convection
Heat moves with the
molecules as they flow
- Warmer
molecules move faster
and push each other
apart
- Less dense particle masses
rise up, leaving space
- As molecules lose heat,
they sink back down,
creating a circular flow
Gas and liquids only
Animation
22. Radiation
Does not involve
matter (atoms)
Can travel through
space (vacuum)
Electromagnetic
waves carry heat
Different
wavelengths
visible light
infrared light
ultraviolet light
Sun, flame, light
bulb or other heat
source
23.

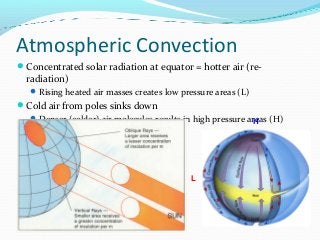

24. Atmospheric Convection
Concentrated solar radiation at equator = hotter air (re-
radiation)
Rising heated air masses creates low pressure areas (L)
Cold air from poles sinks down
Denser (colder) air molecules results in high pressure areas (H)
H
L

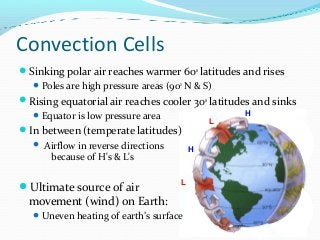

25. Convection Cells
Sinking polar air reaches warmer 60o latitudes and rises
Poles are high pressure areas (90o N & S)
Rising equatorial air reaches cooler 30o latitudes and sinks
Equator is low pressure area
L
In between (temperate latitudes)
Airflow in reverse directions
H
because of H's & L's
Ultimate source of air
L
movement (wind) on Earth:
Uneven heating of earth’s surface
H

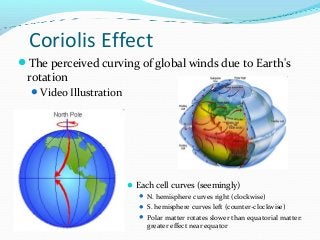

26. Coriolis Effect
The perceived curving of global winds due to Earth's
rotation
Video Illustration
Each cell curves (seemingly)
N. hemisphere curves right (clockwise)
S. hemisphere curves left (counter-clockwise)
Polar matter rotates slower than equatorial matter:
greater effect near equator

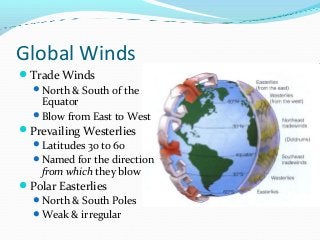

27. Global Winds
Trade Winds
North & South of the
Equator
Blow from East to West
Prevailing Westerlies
Latitudes 30 to 60
Named for the direction
from which they blow
Polar Easterlies
North & South Poles
Weak & irregular

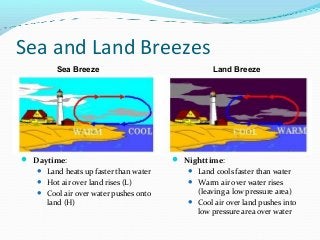

28. Sea and Land Breezes
Sea Breeze
Daytime:
Land heats up faster than water
Hot air over land rises (L)
Cool air over water pushes onto
land (H)
Land Breeze
Nighttime:
Land cools faster than water
Warm air over water rises
(leaving a low pressure area)
Cool air over land pushes into
low pressure area over water
29. Jet Streams
High up in
atmosphere
Upper Troposphere
Lower Stratosphere
Form between cold &
warm air masses
bigger temperature
difference = faster jet
stream winds
Flow west to east
around the globe
Editor's Notes
Average lung capacity is 5,000 cm3
Average lung capacity is 5,000 cm3
At one time, automobiles were a huge source of carbon monoxide pollution. Automobiles require so much energy that they burn gasoline at a very fast rate. The gasoline is burned so quickly that there is just not enough time to supply it with plenty of oxygen. As a result, incomplete combustion occurs and carbon monoxide is produced. In 1977, however, the U.S. government required car manufacturers to install catalytic (kat' uh lih tik) converters in all new cars. These devices convert more than 95% of the carbon monoxide produced by automobiles into carbon dioxide. After the government mandated this change in automobile manufacturing, the concentration of carbon monoxide in the air began to decline rapidly.
The stratosphere is very dry; air there contains little water vapor. Because of this, few clouds are found in this layer; almost all clouds occur in the lower, more humid troposphere. Polar stratospheric clouds (PSCs) are the exception. PSCs appear in the lower stratosphere near the poles in winter. They are found at altitudes of 15 to 25 km (9.3 to 15.5 miles) and form only when temperatures at those heights dip below -78° C. They appear to help cause the formation of the infamous holes in the ozone layer by "encouraging" certain chemical reactions that destroy ozone. PSCs are also called nacreous clouds.
Due to the lack of vertical convection in the stratosphere, materials that get into the stratosphere can stay there for long times. Such is the case for the ozone-destroying chemicals called CFCs (chlorofluorocarbons). Large volcanic eruptions and major meteorite impacts can fling aerosol particles up into the stratosphere where they may linger for months or years, sometimes altering Earth's global climate. Rocket launches inject exhaust gases into the stratosphere, producing uncertain consequences.
