MOLECULARMODEL
JONALYN M. SHENTON
Theory
Linus Pauling became the champion of the valence bond model,
which is easier to visualize and use.

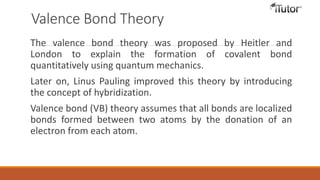

Valence Bond Theory
The valence bond theory was proposed by Heitler and
London to explain the formation of covalent bond
quantitatively using quantum mechanics.
Later on, Linus Pauling improved this theory by introducing
the concept of hybridization.
Valence bond (VB) theory assumes that all bonds are localized
bonds formed between two atoms by the donation of an
electron from each atom.
Valence Bond Theory
Valence Bond theory describes covalent bond formation as
well as the electronic structure of molecules.
The theory assumes that electrons occupy atomic orbital's of
individual atoms within a molecule, and that the electrons of
one atom are attracted to the nucleus of another atom.

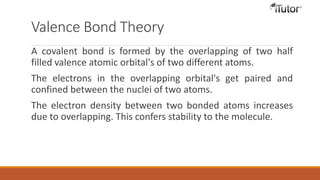

Valence Bond Theory
A covalent bond is formed by the overlapping of two half
filled valence atomic orbital's of two different atoms.
The electrons in the overlapping orbital's get paired and
confined between the nuclei of two atoms.
The electron density between two bonded atoms increases
due to overlapping. This confers stability to the molecule.

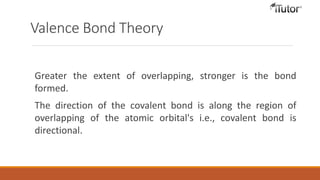

Valence Bond Theory
Greater the extent of overlapping, stronger is the bond
formed.
The direction of the covalent bond is along the region of
overlapping of the atomic orbital's i.e., covalent bond is
directional.
Valence Bond
Theory
BY: LINUS PAULING
JONALYN M. SHENTON

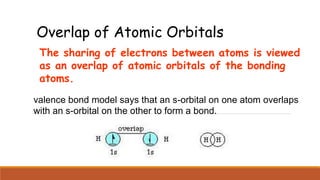

Overlap of Atomic Orbitals
The sharing of electrons between atoms is viewed
as an overlap of atomic orbitals of the bonding
atoms.
valence bond model says that an s-orbital on one atom overlaps
with an s-orbital on the other to form a bond.
Valence Bond Theory

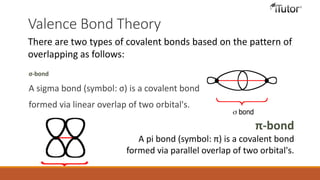

σ-bond
A sigma bond (symbol: σ) is a covalent bond
formed via linear overlap of two orbital's.
π-bond
A pi bond (symbol: π) is a covalent bond
formed via parallel overlap of two orbital's.
There are two types of covalent bonds based on the pattern of
overlapping as follows:
Π bond

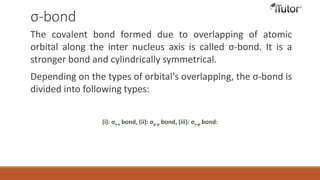

σ-bond
The covalent bond formed due to overlapping of atomic
orbital along the inter nucleus axis is called σ-bond. It is a
stronger bond and cylindrically symmetrical.
Depending on the types of orbital's overlapping, the σ-bond is
divided into following types:
(i): σs-s bond, (ii): σp-p bond, (iii): σs-p bond:
Sigma and Pi Bonds
Sigma bond: A covalent bond resulting from the formation of a
molecular orbital by the end-to-end overlap of atomic orbitals,
denoted by the symbol σ.
For example, the C-C sigma bond in ethane is formed by the head-on overlap of
two sp3 orbitals. The C-H sigma bonds are formed by s-sp3 overlap.
A double bond contains one sigma bond and one pi bond (side-on overlap of p
orbitals).
σ-bond

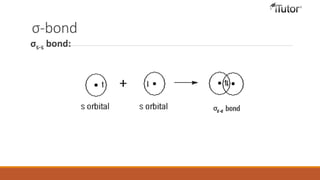

σs-s bond:

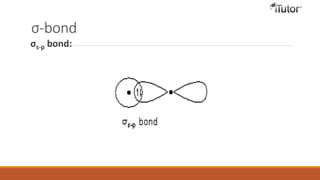

σ-bond
σs-p bond:

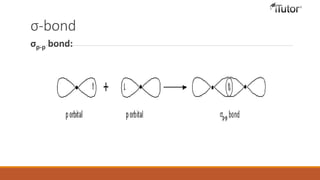

σ-bond
σp-p bond:

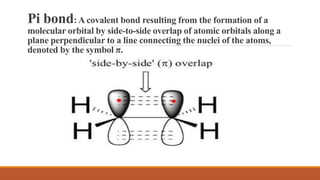

Pi bond: A covalent bond resulting from the formation of a
molecular orbital by side-to-side overlap of atomic orbitals along a
plane perpendicular to a line connecting the nuclei of the atoms,
denoted by the symbol π.

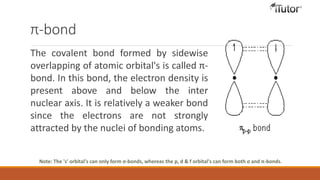

π-bond
The covalent bond formed by sidewise
overlapping of atomic orbital's is called π-
bond. In this bond, the electron density is
present above and below the inter
nuclear axis. It is relatively a weaker bond
since the electrons are not strongly
attracted by the nuclei of bonding atoms.
Note: The 's' orbital's can only form σ-bonds, whereas the p, d & f orbital's can form both σ and π-bonds.
In ethylene, the C=C double bond consists of a sigma bond and a pi bond. The sigma bond is formed by
the head-on overlap of two sp2 orbitals. The pi bond is formed by the side-on overlap of two 2p orbitals.
Illustration

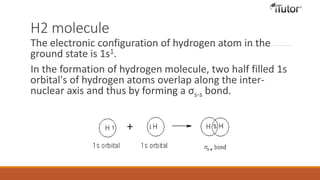

H2 molecule
The electronic configuration of hydrogen atom in the
ground state is 1s1.
In the formation of hydrogen molecule, two half filled 1s
orbital's of hydrogen atoms overlap along the inter-
nuclear axis and thus by forming a σs-s bond.

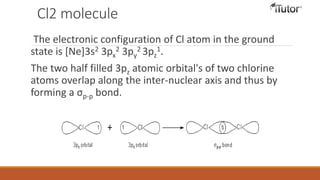

Cl2 molecule
The electronic configuration of Cl atom in the ground
state is [Ne]3s2 3px
2 3py
2 3pz
1.
The two half filled 3pz atomic orbital's of two chlorine
atoms overlap along the inter-nuclear axis and thus by
forming a σp-p bond.

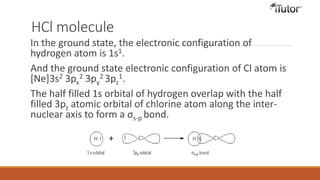

HCl molecule
In the ground state, the electronic configuration of
hydrogen atom is 1s1.
And the ground state electronic configuration of Cl atom is
[Ne]3s2 3px
2 3py
2 3pz
1.
The half filled 1s orbital of hydrogen overlap with the half
filled 3pz atomic orbital of chlorine atom along the inter-
nuclear axis to form a σs-p bond.

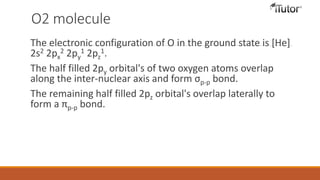

O2 molecule
The electronic configuration of O in the ground state is [He]
2s2 2px
2 2py
1 2pz
1.
The half filled 2py orbital's of two oxygen atoms overlap
along the inter-nuclear axis and form σp-p bond.
The remaining half filled 2pz orbital's overlap laterally to
form a πp-p bond.

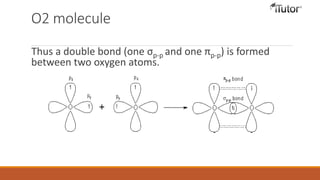

O2 molecule
Thus a double bond (one σp-p and one πp-p) is formed
between two oxygen atoms.

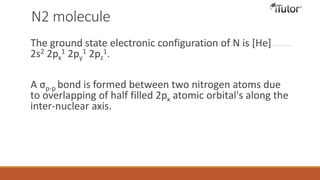

N2 molecule
The ground state electronic configuration of N is [He]
2s2 2px
1 2py
1 2pz
1.
A σp-p bond is formed between two nitrogen atoms due
to overlapping of half filled 2px atomic orbital's along the
inter-nuclear axis.

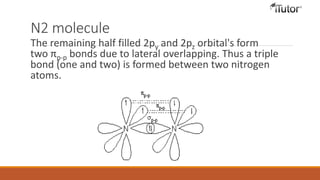

N2 molecule
The remaining half filled 2py and 2pz orbital's form
two πp-p bonds due to lateral overlapping. Thus a triple
bond (one and two) is formed between two nitrogen
atoms.

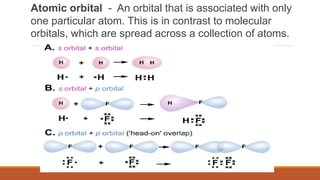

Atomic orbital - An orbital that is associated with only
one particular atom. This is in contrast to molecular
orbitals, which are spread across a collection of atoms.

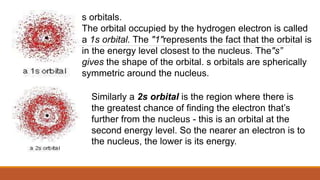

Similarly a 2s orbital is the region where there is
the greatest chance of finding the electron that’s
further from the nucleus - this is an orbital at the
second energy level. So the nearer an electron is to
the nucleus, the lower is its energy.
s orbitals.
The orbital occupied by the hydrogen electron is called
a 1s orbital. The "1"represents the fact that the orbital is
in the energy level closest to the nucleus. The"s”
gives the shape of the orbital. s orbitals are spherically
symmetric around the nucleus.
The p orbitals
A p orbital is rather like 2 identical balloons tied together at the
nucleus.
Since p orbitals occupy space in this manner, they can be said to have certain directions as well. The
two lobes can be pointing in any possible direction opposite to each other as the atom tumbles around in
space. This means that at any one energy level it is also possible to have three absolutely equivalent p
orbitals pointing at right angles to each other which can be in the x,y and z axis. Therefore p orbitals can
have directions px, py and pz as show in the illustration below.
SIGMA AND PI BOND

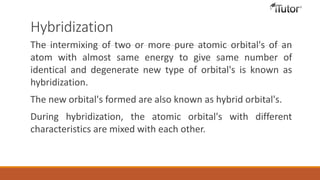

Hybridization
The intermixing of two or more pure atomic orbital's of an
atom with almost same energy to give same number of
identical and degenerate new type of orbital's is known as
hybridization.
The new orbital's formed are also known as hybrid orbital's.
During hybridization, the atomic orbital's with different
characteristics are mixed with each other.

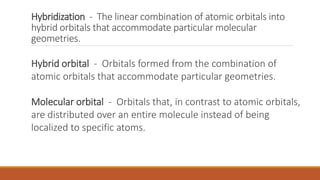

Hybridization - The linear combination of atomic orbitals into
hybrid orbitals that accommodate particular molecular
geometries.
Hybrid orbital - Orbitals formed from the combination of
atomic orbitals that accommodate particular geometries.
Molecular orbital - Orbitals that, in contrast to atomic orbitals,
are distributed over an entire molecule instead of being
localized to specific atoms.

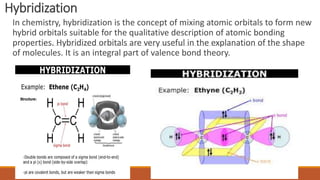

Hybridization
In chemistry, hybridization is the concept of mixing atomic orbitals to form new
hybrid orbitals suitable for the qualitative description of atomic bonding
properties. Hybridized orbitals are very useful in the explanation of the shape
of molecules. It is an integral part of valence bond theory.

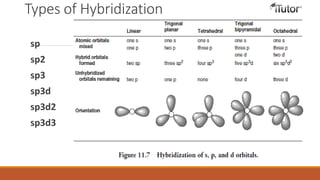

Types of Hybridization
sp
sp2
sp3
sp3d
sp3d2
sp3d3
sp Hybridization
Intermixing of one 's' and one 'p' orbital's of
almost equal energy to give two identical
and degenerate hybrid orbital's is called 'sp'
hybridization.
These sp-hybrid orbital's are arranged
linearly at by making 180 ⁰ of angle.
They possess 50% 's' and 50% 'p' character.

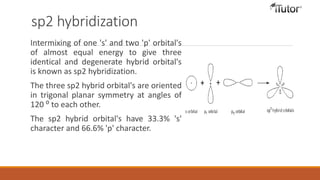

sp2 hybridization
Intermixing of one 's' and two 'p' orbital's
of almost equal energy to give three
identical and degenerate hybrid orbital's
is known as sp2 hybridization.
The three sp2 hybrid orbital's are oriented
in trigonal planar symmetry at angles of
120 ⁰ to each other.
The sp2 hybrid orbital's have 33.3% 's'
character and 66.6% 'p' character.

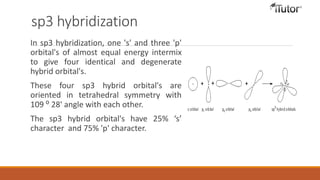

sp3 hybridization
In sp3 hybridization, one 's' and three 'p'
orbital's of almost equal energy intermix
to give four identical and degenerate
hybrid orbital's.
These four sp3 hybrid orbital's are
oriented in tetrahedral symmetry with
109 ⁰ 28' angle with each other.
The sp3 hybrid orbital's have 25% ‘s’
character and 75% 'p' character.

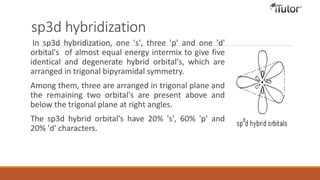

sp3d hybridization
In sp3d hybridization, one 's', three 'p' and one 'd'
orbital's of almost equal energy intermix to give five
identical and degenerate hybrid orbital's, which are
arranged in trigonal bipyramidal symmetry.
Among them, three are arranged in trigonal plane and
the remaining two orbital's are present above and
below the trigonal plane at right angles.
The sp3d hybrid orbital's have 20% 's', 60% 'p' and
20% 'd' characters.

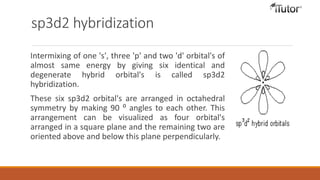

sp3d2 hybridization
Intermixing of one 's', three 'p' and two 'd' orbital's of
almost same energy by giving six identical and
degenerate hybrid orbital's is called sp3d2
hybridization.
These six sp3d2 orbital's are arranged in octahedral
symmetry by making 90 ⁰ angles to each other. This
arrangement can be visualized as four orbital's
arranged in a square plane and the remaining two are
oriented above and below this plane perpendicularly.

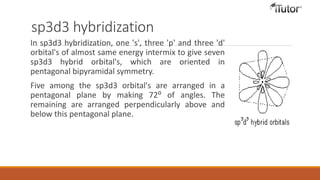

sp3d3 hybridization
In sp3d3 hybridization, one 's', three 'p' and three 'd'
orbital's of almost same energy intermix to give seven
sp3d3 hybrid orbital's, which are oriented in
pentagonal bipyramidal symmetry.
Five among the sp3d3 orbital's are arranged in a
pentagonal plane by making 72⁰ of angles. The
remaining are arranged perpendicularly above and
below this pentagonal plane.

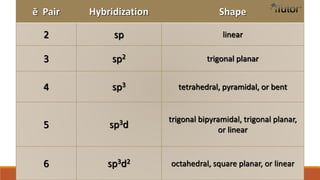

ē Pair Hybridization Shape
2 sp linear
3 sp2 trigonal planar
4 sp3 tetrahedral, pyramidal, or bent
5 sp3d
trigonal bipyramidal, trigonal planar,
or linear
6 sp3d2 octahedral, square planar, or linear

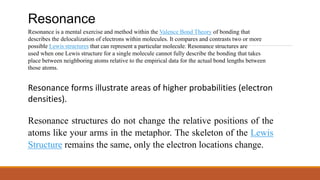

Resonance
Resonance is a mental exercise and method within the Valence Bond Theory of bonding that
describes the delocalization of electrons within molecules. It compares and contrasts two or more
possible Lewis structures that can represent a particular molecule. Resonance structures are
used when one Lewis structure for a single molecule cannot fully describe the bonding that takes
place between neighboring atoms relative to the empirical data for the actual bond lengths between
those atoms.
Resonance forms illustrate areas of higher probabilities (electron
densities).
Resonance structures do not change the relative positions of the
atoms like your arms in the metaphor. The skeleton of the Lewis
Structure remains the same, only the electron locations change.

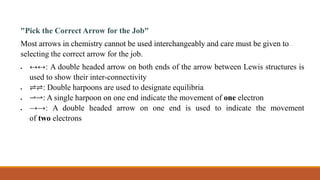

"Pick the Correct Arrow for the Job"
Most arrows in chemistry cannot be used interchangeably and care must be given to
selecting the correct arrow for the job.
 ↔↔: A double headed arrow on both ends of the arrow between Lewis structures is
used to show their inter-connectivity
 ⇌⇌: Double harpoons are used to designate equilibria
 ⇀⇀: A single harpoon on one end indicate the movement of one electron
 →→: A double headed arrow on one end is used to indicate the movement
of two electrons

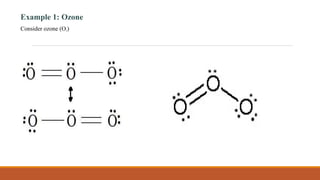

Example 1: Ozone
Consider ozone (O3)

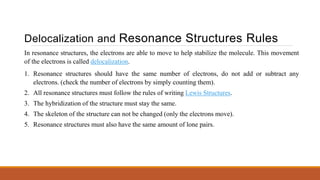

Delocalization and Resonance Structures Rules
In resonance structures, the electrons are able to move to help stabilize the molecule. This movement
of the electrons is called delocalization.
1. Resonance structures should have the same number of electrons, do not add or subtract any
electrons. (check the number of electrons by simply counting them).
2. All resonance structures must follow the rules of writing Lewis Structures.
3. The hybridization of the structure must stay the same.
4. The skeleton of the structure can not be changed (only the electrons move).
5. Resonance structures must also have the same amount of lone pairs.

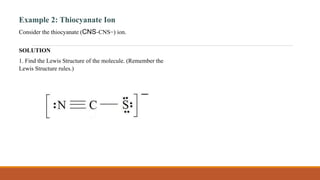

Example 2: Thiocyanate Ion
Consider the thiocyanate (CNS−CNS−) ion.
SOLUTION
1. Find the Lewis Structure of the molecule. (Remember the
Lewis Structure rules.)

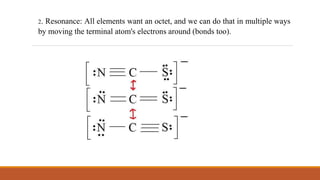

2. Resonance: All elements want an octet, and we can do that in multiple ways
by moving the terminal atom's electrons around (bonds too).

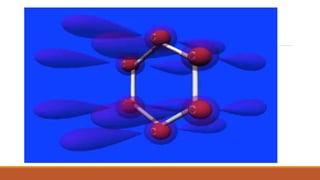

Molecular model
Molecular model

More Related Content

What's hot

Valence Bond Theory (VBT)
  Valence  Bond Theory  (VBT)  Valence  Bond Theory  (VBT)
Valence Bond Theory (VBT)
AnzaDar3

Resonance ,inductive effect -----(Organic )
Resonance ,inductive  effect -----(Organic )Resonance ,inductive  effect -----(Organic )
Resonance ,inductive effect -----(Organic )
Soft-Learners

HYBRIDIZATION IN MOLECULE
HYBRIDIZATION IN MOLECULEHYBRIDIZATION IN MOLECULE
HYBRIDIZATION IN MOLECULE
milandhaduk2

Valence Bond theory & Hybridization
Valence Bond theory & HybridizationValence Bond theory & Hybridization
Valence Bond theory & Hybridization
itutor

Presentation on Benzene
Presentation on BenzenePresentation on Benzene
Presentation on Benzene
Salim Azad

Bent rule
Bent ruleBent rule
Bent rule
Aman Kumar

Mot
MotMot
Molecular Orbital Theory (MOT)
Molecular Orbital Theory (MOT)Molecular Orbital Theory (MOT)
Molecular Orbital Theory (MOT)
Tushar Swami

Valence Bond Theory
Valence Bond TheoryValence Bond Theory
Valence Bond Theory
Chris Sonntag

Molecular Orbital Theory
Molecular Orbital TheoryMolecular Orbital Theory
Molecular Orbital Theory
Dr. Nandkishor Telkapalliwar

Aromaticity
AromaticityAromaticity
Aromaticity
Ravi Balaskar

Covalent bond
Covalent bondCovalent bond
Covalent bond
soni khan

Molecular orbital theory
Molecular orbital theoryMolecular orbital theory
Molecular orbital theory
Pallavi Kumbhar

Inorganic reaction mechanism pdf.pdf
Inorganic reaction mechanism pdf.pdfInorganic reaction mechanism pdf.pdf
Inorganic reaction mechanism pdf.pdf
VikasThakur896480

Chemical Bonds
Chemical BondsChemical Bonds
Chemical Bonds
Seenam Iftikhar

Valence Bond Theory PPTX
Valence Bond Theory PPTXValence Bond Theory PPTX
Valence Bond Theory PPTX
chem.dummy

Isomerism of Transition Metal Complex
Isomerism of Transition Metal ComplexIsomerism of Transition Metal Complex
Isomerism of Transition Metal Complex
ArijitDhali

Chapter 1 introduction to organic chemistry
Chapter 1 introduction to organic chemistryChapter 1 introduction to organic chemistry
Chapter 1 introduction to organic chemistry
Sangidha Jagatheesan

VSEPR Theory and molecular geometries
VSEPR Theory and molecular geometriesVSEPR Theory and molecular geometries
VSEPR Theory and molecular geometries
shumailamunawar1

Ionic strength principle
Ionic strength principleIonic strength principle
Ionic strength principle
MayurMarvaniya1


What's hot (20)

Valence Bond Theory (VBT)
  Valence  Bond Theory  (VBT)  Valence  Bond Theory  (VBT)
Valence Bond Theory (VBT)

Resonance ,inductive effect -----(Organic )
Resonance ,inductive  effect -----(Organic )Resonance ,inductive  effect -----(Organic )
Resonance ,inductive effect -----(Organic )

HYBRIDIZATION IN MOLECULE
HYBRIDIZATION IN MOLECULEHYBRIDIZATION IN MOLECULE
HYBRIDIZATION IN MOLECULE

Valence Bond theory & Hybridization
Valence Bond theory & HybridizationValence Bond theory & Hybridization
Valence Bond theory & Hybridization

Presentation on Benzene
Presentation on BenzenePresentation on Benzene
Presentation on Benzene

Bent rule
Bent ruleBent rule
Bent rule

Mot
MotMot
Mot

Molecular Orbital Theory (MOT)
Molecular Orbital Theory (MOT)Molecular Orbital Theory (MOT)
Molecular Orbital Theory (MOT)

Valence Bond Theory
Valence Bond TheoryValence Bond Theory
Valence Bond Theory

Molecular Orbital Theory
Molecular Orbital TheoryMolecular Orbital Theory
Molecular Orbital Theory

Aromaticity
AromaticityAromaticity
Aromaticity

Covalent bond
Covalent bondCovalent bond
Covalent bond

Molecular orbital theory
Molecular orbital theoryMolecular orbital theory
Molecular orbital theory

Inorganic reaction mechanism pdf.pdf
Inorganic reaction mechanism pdf.pdfInorganic reaction mechanism pdf.pdf
Inorganic reaction mechanism pdf.pdf

Chemical Bonds
Chemical BondsChemical Bonds
Chemical Bonds

Valence Bond Theory PPTX
Valence Bond Theory PPTXValence Bond Theory PPTX
Valence Bond Theory PPTX

Isomerism of Transition Metal Complex
Isomerism of Transition Metal ComplexIsomerism of Transition Metal Complex
Isomerism of Transition Metal Complex

Chapter 1 introduction to organic chemistry
Chapter 1 introduction to organic chemistryChapter 1 introduction to organic chemistry
Chapter 1 introduction to organic chemistry

VSEPR Theory and molecular geometries
VSEPR Theory and molecular geometriesVSEPR Theory and molecular geometries
VSEPR Theory and molecular geometries

Ionic strength principle
Ionic strength principleIonic strength principle
Ionic strength principle


Viewers also liked

Molecular modelling
Molecular modellingMolecular modelling
Molecular modelling
Dr. sreeremya S

Chemistry- JIB Topic 8 Bonding
Chemistry- JIB Topic 8 BondingChemistry- JIB Topic 8 Bonding
Chemistry- JIB Topic 8 Bonding
Sam Richard

Potential energy
Potential energyPotential energy
Potential energy
mstf mstf

Csonn t3 chemical bonding
Csonn t3 chemical bondingCsonn t3 chemical bonding
Csonn t3 chemical bonding
cheeshengonn

Computer aided drug design
Computer aided drug designComputer aided drug design
Computer aided drug design
Ali Ahsan

Ab initio training Ab-initio Architecture
Ab initio training Ab-initio ArchitectureAb initio training Ab-initio Architecture
Ab initio training Ab-initio Architecture
Sandeep Sharma IIMK Smart City,IoT,Bigdata,Cloud,BI,DW

Conformational analysis
Conformational analysisConformational analysis
Conformational analysis
Pinky Vincent

Pharmacophore identification
Pharmacophore identificationPharmacophore identification
Pharmacophore identification
Prasanthperceptron

Hybridization
HybridizationHybridization
Hybridization
Akshay Sharma

Molecular modelling
Molecular modelling Molecular modelling
Molecular modelling
Pharmaceutical

Review On Molecular Modeling
Review On Molecular ModelingReview On Molecular Modeling
Review On Molecular Modeling
ankishukla000

methods for protein structure prediction
methods for protein structure predictionmethods for protein structure prediction
methods for protein structure prediction
karamveer prajapat

protein sturcture prediction and molecular modelling
protein sturcture prediction and molecular modellingprotein sturcture prediction and molecular modelling
protein sturcture prediction and molecular modelling
Dileep Paruchuru

Computer Aided Drug Design ppt
Computer Aided Drug Design pptComputer Aided Drug Design ppt
Computer Aided Drug Design ppt
Hanumant Suryawanshi

Pharmacophore Modeling in Drug Designing
Pharmacophore Modeling in Drug DesigningPharmacophore Modeling in Drug Designing
Pharmacophore Modeling in Drug Designing
Vinod Tonde

Molecular docking
Molecular dockingMolecular docking
Molecular docking
Rahul B S


Viewers also liked (16)

Molecular modelling
Molecular modellingMolecular modelling
Molecular modelling

Chemistry- JIB Topic 8 Bonding
Chemistry- JIB Topic 8 BondingChemistry- JIB Topic 8 Bonding
Chemistry- JIB Topic 8 Bonding

Potential energy
Potential energyPotential energy
Potential energy

Csonn t3 chemical bonding
Csonn t3 chemical bondingCsonn t3 chemical bonding
Csonn t3 chemical bonding

Computer aided drug design
Computer aided drug designComputer aided drug design
Computer aided drug design

Ab initio training Ab-initio Architecture
Ab initio training Ab-initio ArchitectureAb initio training Ab-initio Architecture
Ab initio training Ab-initio Architecture

Conformational analysis
Conformational analysisConformational analysis
Conformational analysis

Pharmacophore identification
Pharmacophore identificationPharmacophore identification
Pharmacophore identification

Hybridization
HybridizationHybridization
Hybridization

Molecular modelling
Molecular modelling Molecular modelling
Molecular modelling

Review On Molecular Modeling
Review On Molecular ModelingReview On Molecular Modeling
Review On Molecular Modeling

methods for protein structure prediction
methods for protein structure predictionmethods for protein structure prediction
methods for protein structure prediction

protein sturcture prediction and molecular modelling
protein sturcture prediction and molecular modellingprotein sturcture prediction and molecular modelling
protein sturcture prediction and molecular modelling

Computer Aided Drug Design ppt
Computer Aided Drug Design pptComputer Aided Drug Design ppt
Computer Aided Drug Design ppt

Pharmacophore Modeling in Drug Designing
Pharmacophore Modeling in Drug DesigningPharmacophore Modeling in Drug Designing
Pharmacophore Modeling in Drug Designing

Molecular docking
Molecular dockingMolecular docking
Molecular docking


Similar to Molecular model

Valence bond therory.pptx
Valence bond therory.pptxValence bond therory.pptx
Valence bond therory.pptx
IlhamGandapur2

Vbt and hybridization
Vbt and hybridizationVbt and hybridization
Vbt and hybridization
Slides by Asma Khalil

000valence bond.pdf
000valence bond.pdf000valence bond.pdf
000valence bond.pdf
Tincymolck

Nature of Bonding in Organic Molecules - Sahana Kamath
Nature of Bonding in Organic Molecules - Sahana KamathNature of Bonding in Organic Molecules - Sahana Kamath
Nature of Bonding in Organic Molecules - Sahana Kamath
Bebeto G

HYBRIDIZATION (1).pdf
HYBRIDIZATION (1).pdfHYBRIDIZATION (1).pdf
HYBRIDIZATION (1).pdf
Nikhilkumar988318

Chapter 9 Lecture- Molecular Geometry
Chapter 9 Lecture- Molecular GeometryChapter 9 Lecture- Molecular Geometry
Chapter 9 Lecture- Molecular Geometry
Mary Beth Smith

Vsepr theory & hybridization
Vsepr theory & hybridizationVsepr theory & hybridization
Vsepr theory & hybridization
Sauhard Singhal

chemical bonding and molecular structure
chemical bonding and molecular structure chemical bonding and molecular structure
chemical bonding and molecular structure
Akarshik Banerjee

B.sc(microbiology and biotechnology and biochemistry) ii inorganic chemistry ...
B.sc(microbiology and biotechnology and biochemistry) ii inorganic chemistry ...B.sc(microbiology and biotechnology and biochemistry) ii inorganic chemistry ...
B.sc(microbiology and biotechnology and biochemistry) ii inorganic chemistry ...
Rai University

Chemical bonding (ncert)
Chemical bonding (ncert)Chemical bonding (ncert)
Chemical bonding (ncert)
barry allen

Ch09 outline
Ch09 outlineCh09 outline
Ch09 outline
AP_Chem

AP Chemistry Chapter 9 Outline
AP Chemistry Chapter 9 OutlineAP Chemistry Chapter 9 Outline
AP Chemistry Chapter 9 Outline
Jane Hamze

Valence bond theory (1).pdf in inorganic chemistry
Valence bond theory (1).pdf in inorganic chemistryValence bond theory (1).pdf in inorganic chemistry
Valence bond theory (1).pdf in inorganic chemistry
ajibolaakorede2021

Molecular orbital theory
Molecular orbital theoryMolecular orbital theory
Molecular orbital theory
Noor Fatima

Valence bond theory VBT (Full explanation) # Inorganic Chemistry #Chemistry D...
Valence bond theory VBT (Full explanation) # Inorganic Chemistry #Chemistry D...Valence bond theory VBT (Full explanation) # Inorganic Chemistry #Chemistry D...
Valence bond theory VBT (Full explanation) # Inorganic Chemistry #Chemistry D...
Yo yo Nody khan

Hybridization of orbitals, 11 (1)
Hybridization of orbitals, 11 (1)Hybridization of orbitals, 11 (1)
Hybridization of orbitals, 11 (1)
K. Shahzad Baig

Hybridization Principles of Organic compounds
Hybridization Principles of Organic compoundsHybridization Principles of Organic compounds
Hybridization Principles of Organic compounds
Dr. Rajasekhar reddy Alavala

Ap chapter 9
Ap chapter 9Ap chapter 9
Ap chapter 9
Ryan Hoegler

LOCALIZED COVALENT BONDING (2).pptx
LOCALIZED COVALENT BONDING (2).pptxLOCALIZED COVALENT BONDING (2).pptx
LOCALIZED COVALENT BONDING (2).pptx
SurbhiChopra16

chemical bonding ##@ Abhay
chemical bonding ##@ Abhaychemical bonding ##@ Abhay
chemical bonding ##@ Abhay
Abhay Shah


Similar to Molecular model (20)

Valence bond therory.pptx
Valence bond therory.pptxValence bond therory.pptx
Valence bond therory.pptx

Vbt and hybridization
Vbt and hybridizationVbt and hybridization
Vbt and hybridization

000valence bond.pdf
000valence bond.pdf000valence bond.pdf
000valence bond.pdf

Nature of Bonding in Organic Molecules - Sahana Kamath
Nature of Bonding in Organic Molecules - Sahana KamathNature of Bonding in Organic Molecules - Sahana Kamath
Nature of Bonding in Organic Molecules - Sahana Kamath

HYBRIDIZATION (1).pdf
HYBRIDIZATION (1).pdfHYBRIDIZATION (1).pdf
HYBRIDIZATION (1).pdf

Chapter 9 Lecture- Molecular Geometry
Chapter 9 Lecture- Molecular GeometryChapter 9 Lecture- Molecular Geometry
Chapter 9 Lecture- Molecular Geometry

Vsepr theory & hybridization
Vsepr theory & hybridizationVsepr theory & hybridization
Vsepr theory & hybridization

chemical bonding and molecular structure
chemical bonding and molecular structure chemical bonding and molecular structure
chemical bonding and molecular structure

B.sc(microbiology and biotechnology and biochemistry) ii inorganic chemistry ...
B.sc(microbiology and biotechnology and biochemistry) ii inorganic chemistry ...B.sc(microbiology and biotechnology and biochemistry) ii inorganic chemistry ...
B.sc(microbiology and biotechnology and biochemistry) ii inorganic chemistry ...

Chemical bonding (ncert)
Chemical bonding (ncert)Chemical bonding (ncert)
Chemical bonding (ncert)

Ch09 outline
Ch09 outlineCh09 outline
Ch09 outline

AP Chemistry Chapter 9 Outline
AP Chemistry Chapter 9 OutlineAP Chemistry Chapter 9 Outline
AP Chemistry Chapter 9 Outline

Valence bond theory (1).pdf in inorganic chemistry
Valence bond theory (1).pdf in inorganic chemistryValence bond theory (1).pdf in inorganic chemistry
Valence bond theory (1).pdf in inorganic chemistry

Molecular orbital theory
Molecular orbital theoryMolecular orbital theory
Molecular orbital theory

Valence bond theory VBT (Full explanation) # Inorganic Chemistry #Chemistry D...
Valence bond theory VBT (Full explanation) # Inorganic Chemistry #Chemistry D...Valence bond theory VBT (Full explanation) # Inorganic Chemistry #Chemistry D...
Valence bond theory VBT (Full explanation) # Inorganic Chemistry #Chemistry D...

Hybridization of orbitals, 11 (1)
Hybridization of orbitals, 11 (1)Hybridization of orbitals, 11 (1)
Hybridization of orbitals, 11 (1)

Hybridization Principles of Organic compounds
Hybridization Principles of Organic compoundsHybridization Principles of Organic compounds
Hybridization Principles of Organic compounds

Ap chapter 9
Ap chapter 9Ap chapter 9
Ap chapter 9

LOCALIZED COVALENT BONDING (2).pptx
LOCALIZED COVALENT BONDING (2).pptxLOCALIZED COVALENT BONDING (2).pptx
LOCALIZED COVALENT BONDING (2).pptx

chemical bonding ##@ Abhay
chemical bonding ##@ Abhaychemical bonding ##@ Abhay
chemical bonding ##@ Abhay


More from jonalyn shenton

IDENTIFYING AND DESCRIBING TRIANGLES ACCORDING TO SIDES AND ANGLE
IDENTIFYING AND DESCRIBING TRIANGLES ACCORDING TO SIDES AND ANGLEIDENTIFYING AND DESCRIBING TRIANGLES ACCORDING TO SIDES AND ANGLE
IDENTIFYING AND DESCRIBING TRIANGLES ACCORDING TO SIDES AND ANGLE
jonalyn shenton

Employee Empowerment jonshen-2021
Employee Empowerment jonshen-2021Employee Empowerment jonshen-2021
Employee Empowerment jonshen-2021
jonalyn shenton

Personality development jonzshen
Personality development jonzshenPersonality development jonzshen
Personality development jonzshen
jonalyn shenton

Code of ethics jona
Code of ethics jonaCode of ethics jona
Code of ethics jona
jonalyn shenton

Deforestation
Deforestation Deforestation
Deforestation
jonalyn shenton

Why social advocacy
Why social advocacyWhy social advocacy
Why social advocacy
jonalyn shenton

Special senses
Special senses Special senses
Special senses
jonalyn shenton

Role of motivation
Role of motivationRole of motivation
Role of motivation
jonalyn shenton

Psychological principles and concepts of education jona
Psychological principles and concepts of education  jonaPsychological principles and concepts of education  jona
Psychological principles and concepts of education jona
jonalyn shenton

Individual differences
Individual differencesIndividual differences
Individual differences
jonalyn shenton

Personality development jonzshen
Personality development jonzshenPersonality development jonzshen
Personality development jonzshen
jonalyn shenton

Vertebrates
VertebratesVertebrates
Vertebrates
jonalyn shenton

Invertebrates
InvertebratesInvertebrates
Invertebrates
jonalyn shenton

Animal defenssive adaptation
Animal defenssive adaptationAnimal defenssive adaptation
Animal defenssive adaptation
jonalyn shenton

Animal Handling and Restraint
 Animal Handling and Restraint Animal Handling and Restraint
Animal Handling and Restraint
jonalyn shenton

Ecosystem impact and planning
Ecosystem impact and planningEcosystem impact and planning
Ecosystem impact and planning
jonalyn shenton


More from jonalyn shenton (16)

IDENTIFYING AND DESCRIBING TRIANGLES ACCORDING TO SIDES AND ANGLE
IDENTIFYING AND DESCRIBING TRIANGLES ACCORDING TO SIDES AND ANGLEIDENTIFYING AND DESCRIBING TRIANGLES ACCORDING TO SIDES AND ANGLE
IDENTIFYING AND DESCRIBING TRIANGLES ACCORDING TO SIDES AND ANGLE

Employee Empowerment jonshen-2021
Employee Empowerment jonshen-2021Employee Empowerment jonshen-2021
Employee Empowerment jonshen-2021

Personality development jonzshen
Personality development jonzshenPersonality development jonzshen
Personality development jonzshen

Code of ethics jona
Code of ethics jonaCode of ethics jona
Code of ethics jona

Deforestation
Deforestation Deforestation
Deforestation

Why social advocacy
Why social advocacyWhy social advocacy
Why social advocacy

Special senses
Special senses Special senses
Special senses

Role of motivation
Role of motivationRole of motivation
Role of motivation

Psychological principles and concepts of education jona
Psychological principles and concepts of education  jonaPsychological principles and concepts of education  jona
Psychological principles and concepts of education jona

Individual differences
Individual differencesIndividual differences
Individual differences

Personality development jonzshen
Personality development jonzshenPersonality development jonzshen
Personality development jonzshen

Vertebrates
VertebratesVertebrates
Vertebrates

Invertebrates
InvertebratesInvertebrates
Invertebrates

Animal defenssive adaptation
Animal defenssive adaptationAnimal defenssive adaptation
Animal defenssive adaptation

Animal Handling and Restraint
 Animal Handling and Restraint Animal Handling and Restraint
Animal Handling and Restraint

Ecosystem impact and planning
Ecosystem impact and planningEcosystem impact and planning
Ecosystem impact and planning


Recently uploaded

Evidence of Jet Activity from the Secondary Black Hole in the OJ 287 Binary S...
Evidence of Jet Activity from the Secondary Black Hole in the OJ 287 Binary S...Evidence of Jet Activity from the Secondary Black Hole in the OJ 287 Binary S...
Evidence of Jet Activity from the Secondary Black Hole in the OJ 287 Binary S...
Sérgio Sacani

fermented food science of sauerkraut.pptx
fermented food science of sauerkraut.pptxfermented food science of sauerkraut.pptx
fermented food science of sauerkraut.pptx
ananya23nair

Candidate young stellar objects in the S-cluster: Kinematic analysis of a sub...
Candidate young stellar objects in the S-cluster: Kinematic analysis of a sub...Candidate young stellar objects in the S-cluster: Kinematic analysis of a sub...
Candidate young stellar objects in the S-cluster: Kinematic analysis of a sub...
Sérgio Sacani

Immersive Learning That Works: Research Grounding and Paths Forward
Immersive Learning That Works: Research Grounding and Paths ForwardImmersive Learning That Works: Research Grounding and Paths Forward
Immersive Learning That Works: Research Grounding and Paths Forward
Leonel Morgado

Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf
Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdfMending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf
Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf
Selcen Ozturkcan

Male reproduction physiology by Suyash Garg .pptx
Male reproduction physiology by Suyash Garg .pptxMale reproduction physiology by Suyash Garg .pptx
Male reproduction physiology by Suyash Garg .pptx
suyashempire

Mechanisms and Applications of Antiviral Neutralizing Antibodies - Creative B...
Mechanisms and Applications of Antiviral Neutralizing Antibodies - Creative B...Mechanisms and Applications of Antiviral Neutralizing Antibodies - Creative B...
Mechanisms and Applications of Antiviral Neutralizing Antibodies - Creative B...
Creative-Biolabs

MICROBIAL INTERACTION PPT/ MICROBIAL INTERACTION AND THEIR TYPES // PLANT MIC...
MICROBIAL INTERACTION PPT/ MICROBIAL INTERACTION AND THEIR TYPES // PLANT MIC...MICROBIAL INTERACTION PPT/ MICROBIAL INTERACTION AND THEIR TYPES // PLANT MIC...
MICROBIAL INTERACTION PPT/ MICROBIAL INTERACTION AND THEIR TYPES // PLANT MIC...
ABHISHEK SONI NIMT INSTITUTE OF MEDICAL AND PARAMEDCIAL SCIENCES , GOVT PG COLLEGE NOIDA

IMPORTANCE OF ALGAE AND ITS BENIFITS.pptx
IMPORTANCE OF ALGAE  AND ITS BENIFITS.pptxIMPORTANCE OF ALGAE  AND ITS BENIFITS.pptx
IMPORTANCE OF ALGAE AND ITS BENIFITS.pptx
OmAle5

Farming systems analysis: what have we learnt?.pptx
Farming systems analysis: what have we learnt?.pptxFarming systems analysis: what have we learnt?.pptx
Farming systems analysis: what have we learnt?.pptx
Frédéric Baudron

BIOTRANSFORMATION MECHANISM FOR OF STEROID
BIOTRANSFORMATION MECHANISM FOR OF STEROIDBIOTRANSFORMATION MECHANISM FOR OF STEROID
BIOTRANSFORMATION MECHANISM FOR OF STEROID
ShibsekharRoy1

Discovery of An Apparent Red, High-Velocity Type Ia Supernova at 𝐳 = 2.9 wi...
Discovery of An Apparent Red, High-Velocity Type Ia Supernova at  𝐳 = 2.9  wi...Discovery of An Apparent Red, High-Velocity Type Ia Supernova at  𝐳 = 2.9  wi...
Discovery of An Apparent Red, High-Velocity Type Ia Supernova at 𝐳 = 2.9 wi...
Sérgio Sacani

Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...
Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...
Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...
frank0071

Compexometric titration/Chelatorphy titration/chelating titration
Compexometric titration/Chelatorphy titration/chelating titrationCompexometric titration/Chelatorphy titration/chelating titration
Compexometric titration/Chelatorphy titration/chelating titration
Vandana Devesh Sharma

Signatures of wave erosion in Titan’s coasts
Signatures of wave erosion in Titan’s coastsSignatures of wave erosion in Titan’s coasts
Signatures of wave erosion in Titan’s coasts
Sérgio Sacani

Direct Seeded Rice - Climate Smart Agriculture
Direct Seeded Rice - Climate Smart AgricultureDirect Seeded Rice - Climate Smart Agriculture
Direct Seeded Rice - Climate Smart Agriculture
International Food Policy Research Institute- South Asia Office

Gadgets for management of stored product pests_Dr.UPR.pdf
Gadgets for management of stored product pests_Dr.UPR.pdfGadgets for management of stored product pests_Dr.UPR.pdf
Gadgets for management of stored product pests_Dr.UPR.pdf
PirithiRaju

AJAY KUMAR NIET GreNo Guava Project File.pdf
AJAY KUMAR NIET GreNo Guava Project File.pdfAJAY KUMAR NIET GreNo Guava Project File.pdf
AJAY KUMAR NIET GreNo Guava Project File.pdf
AJAY KUMAR

Methods of grain storage Structures in India.pdf
Methods of grain storage Structures in India.pdfMethods of grain storage Structures in India.pdf
Methods of grain storage Structures in India.pdf
PirithiRaju

LEARNING TO LIVE WITH LAWS OF MOTION .pptx
LEARNING TO LIVE WITH LAWS OF MOTION .pptxLEARNING TO LIVE WITH LAWS OF MOTION .pptx
LEARNING TO LIVE WITH LAWS OF MOTION .pptx
yourprojectpartner05


Recently uploaded (20)

Evidence of Jet Activity from the Secondary Black Hole in the OJ 287 Binary S...
Evidence of Jet Activity from the Secondary Black Hole in the OJ 287 Binary S...Evidence of Jet Activity from the Secondary Black Hole in the OJ 287 Binary S...
Evidence of Jet Activity from the Secondary Black Hole in the OJ 287 Binary S...

fermented food science of sauerkraut.pptx
fermented food science of sauerkraut.pptxfermented food science of sauerkraut.pptx
fermented food science of sauerkraut.pptx

Candidate young stellar objects in the S-cluster: Kinematic analysis of a sub...
Candidate young stellar objects in the S-cluster: Kinematic analysis of a sub...Candidate young stellar objects in the S-cluster: Kinematic analysis of a sub...
Candidate young stellar objects in the S-cluster: Kinematic analysis of a sub...

Immersive Learning That Works: Research Grounding and Paths Forward
Immersive Learning That Works: Research Grounding and Paths ForwardImmersive Learning That Works: Research Grounding and Paths Forward
Immersive Learning That Works: Research Grounding and Paths Forward

Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf
Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdfMending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf
Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf

Male reproduction physiology by Suyash Garg .pptx
Male reproduction physiology by Suyash Garg .pptxMale reproduction physiology by Suyash Garg .pptx
Male reproduction physiology by Suyash Garg .pptx

Mechanisms and Applications of Antiviral Neutralizing Antibodies - Creative B...
Mechanisms and Applications of Antiviral Neutralizing Antibodies - Creative B...Mechanisms and Applications of Antiviral Neutralizing Antibodies - Creative B...
Mechanisms and Applications of Antiviral Neutralizing Antibodies - Creative B...

MICROBIAL INTERACTION PPT/ MICROBIAL INTERACTION AND THEIR TYPES // PLANT MIC...
MICROBIAL INTERACTION PPT/ MICROBIAL INTERACTION AND THEIR TYPES // PLANT MIC...MICROBIAL INTERACTION PPT/ MICROBIAL INTERACTION AND THEIR TYPES // PLANT MIC...
MICROBIAL INTERACTION PPT/ MICROBIAL INTERACTION AND THEIR TYPES // PLANT MIC...

IMPORTANCE OF ALGAE AND ITS BENIFITS.pptx
IMPORTANCE OF ALGAE  AND ITS BENIFITS.pptxIMPORTANCE OF ALGAE  AND ITS BENIFITS.pptx
IMPORTANCE OF ALGAE AND ITS BENIFITS.pptx

Farming systems analysis: what have we learnt?.pptx
Farming systems analysis: what have we learnt?.pptxFarming systems analysis: what have we learnt?.pptx
Farming systems analysis: what have we learnt?.pptx

BIOTRANSFORMATION MECHANISM FOR OF STEROID
BIOTRANSFORMATION MECHANISM FOR OF STEROIDBIOTRANSFORMATION MECHANISM FOR OF STEROID
BIOTRANSFORMATION MECHANISM FOR OF STEROID

Discovery of An Apparent Red, High-Velocity Type Ia Supernova at 𝐳 = 2.9 wi...
Discovery of An Apparent Red, High-Velocity Type Ia Supernova at  𝐳 = 2.9  wi...Discovery of An Apparent Red, High-Velocity Type Ia Supernova at  𝐳 = 2.9  wi...
Discovery of An Apparent Red, High-Velocity Type Ia Supernova at 𝐳 = 2.9 wi...

Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...
Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...
Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...

Compexometric titration/Chelatorphy titration/chelating titration
Compexometric titration/Chelatorphy titration/chelating titrationCompexometric titration/Chelatorphy titration/chelating titration
Compexometric titration/Chelatorphy titration/chelating titration

Signatures of wave erosion in Titan’s coasts
Signatures of wave erosion in Titan’s coastsSignatures of wave erosion in Titan’s coasts
Signatures of wave erosion in Titan’s coasts

Direct Seeded Rice - Climate Smart Agriculture
Direct Seeded Rice - Climate Smart AgricultureDirect Seeded Rice - Climate Smart Agriculture
Direct Seeded Rice - Climate Smart Agriculture

Gadgets for management of stored product pests_Dr.UPR.pdf
Gadgets for management of stored product pests_Dr.UPR.pdfGadgets for management of stored product pests_Dr.UPR.pdf
Gadgets for management of stored product pests_Dr.UPR.pdf

AJAY KUMAR NIET GreNo Guava Project File.pdf
AJAY KUMAR NIET GreNo Guava Project File.pdfAJAY KUMAR NIET GreNo Guava Project File.pdf
AJAY KUMAR NIET GreNo Guava Project File.pdf

Methods of grain storage Structures in India.pdf
Methods of grain storage Structures in India.pdfMethods of grain storage Structures in India.pdf
Methods of grain storage Structures in India.pdf

LEARNING TO LIVE WITH LAWS OF MOTION .pptx
LEARNING TO LIVE WITH LAWS OF MOTION .pptxLEARNING TO LIVE WITH LAWS OF MOTION .pptx
LEARNING TO LIVE WITH LAWS OF MOTION .pptx


Molecular model

  • 2. Theory Linus Pauling became the champion of the valence bond model, which is easier to visualize and use.
  • 3. Valence Bond Theory The valence bond theory was proposed by Heitler and London to explain the formation of covalent bond quantitatively using quantum mechanics. Later on, Linus Pauling improved this theory by introducing the concept of hybridization. Valence bond (VB) theory assumes that all bonds are localized bonds formed between two atoms by the donation of an electron from each atom.
  • 4. Valence Bond Theory Valence Bond theory describes covalent bond formation as well as the electronic structure of molecules. The theory assumes that electrons occupy atomic orbital's of individual atoms within a molecule, and that the electrons of one atom are attracted to the nucleus of another atom.
  • 5. Valence Bond Theory A covalent bond is formed by the overlapping of two half filled valence atomic orbital's of two different atoms. The electrons in the overlapping orbital's get paired and confined between the nuclei of two atoms. The electron density between two bonded atoms increases due to overlapping. This confers stability to the molecule.
  • 6. Valence Bond Theory Greater the extent of overlapping, stronger is the bond formed. The direction of the covalent bond is along the region of overlapping of the atomic orbital's i.e., covalent bond is directional.
  • 7. Valence Bond Theory BY: LINUS PAULING JONALYN M. SHENTON Overlap of Atomic Orbitals The sharing of electrons between atoms is viewed as an overlap of atomic orbitals of the bonding atoms. valence bond model says that an s-orbital on one atom overlaps with an s-orbital on the other to form a bond.
  • 8. Valence Bond Theory σ-bond A sigma bond (symbol: σ) is a covalent bond formed via linear overlap of two orbital's. π-bond A pi bond (symbol: π) is a covalent bond formed via parallel overlap of two orbital's. There are two types of covalent bonds based on the pattern of overlapping as follows: Π bond
  • 9. σ-bond The covalent bond formed due to overlapping of atomic orbital along the inter nucleus axis is called σ-bond. It is a stronger bond and cylindrically symmetrical. Depending on the types of orbital's overlapping, the σ-bond is divided into following types: (i): σs-s bond, (ii): σp-p bond, (iii): σs-p bond:
  • 10. Sigma and Pi Bonds Sigma bond: A covalent bond resulting from the formation of a molecular orbital by the end-to-end overlap of atomic orbitals, denoted by the symbol σ. For example, the C-C sigma bond in ethane is formed by the head-on overlap of two sp3 orbitals. The C-H sigma bonds are formed by s-sp3 overlap. A double bond contains one sigma bond and one pi bond (side-on overlap of p orbitals).
  • 14. Pi bond: A covalent bond resulting from the formation of a molecular orbital by side-to-side overlap of atomic orbitals along a plane perpendicular to a line connecting the nuclei of the atoms, denoted by the symbol π.
  • 15. π-bond The covalent bond formed by sidewise overlapping of atomic orbital's is called π- bond. In this bond, the electron density is present above and below the inter nuclear axis. It is relatively a weaker bond since the electrons are not strongly attracted by the nuclei of bonding atoms. Note: The 's' orbital's can only form σ-bonds, whereas the p, d & f orbital's can form both σ and π-bonds.
  • 16.
  • 17. In ethylene, the C=C double bond consists of a sigma bond and a pi bond. The sigma bond is formed by the head-on overlap of two sp2 orbitals. The pi bond is formed by the side-on overlap of two 2p orbitals.
  • 19. H2 molecule The electronic configuration of hydrogen atom in the ground state is 1s1. In the formation of hydrogen molecule, two half filled 1s orbital's of hydrogen atoms overlap along the inter- nuclear axis and thus by forming a σs-s bond.
  • 20. Cl2 molecule The electronic configuration of Cl atom in the ground state is [Ne]3s2 3px 2 3py 2 3pz 1. The two half filled 3pz atomic orbital's of two chlorine atoms overlap along the inter-nuclear axis and thus by forming a σp-p bond.
  • 21. HCl molecule In the ground state, the electronic configuration of hydrogen atom is 1s1. And the ground state electronic configuration of Cl atom is [Ne]3s2 3px 2 3py 2 3pz 1. The half filled 1s orbital of hydrogen overlap with the half filled 3pz atomic orbital of chlorine atom along the inter- nuclear axis to form a σs-p bond.
  • 22. O2 molecule The electronic configuration of O in the ground state is [He] 2s2 2px 2 2py 1 2pz 1. The half filled 2py orbital's of two oxygen atoms overlap along the inter-nuclear axis and form σp-p bond. The remaining half filled 2pz orbital's overlap laterally to form a πp-p bond.
  • 23. O2 molecule Thus a double bond (one σp-p and one πp-p) is formed between two oxygen atoms.
  • 24. N2 molecule The ground state electronic configuration of N is [He] 2s2 2px 1 2py 1 2pz 1. A σp-p bond is formed between two nitrogen atoms due to overlapping of half filled 2px atomic orbital's along the inter-nuclear axis.
  • 25. N2 molecule The remaining half filled 2py and 2pz orbital's form two πp-p bonds due to lateral overlapping. Thus a triple bond (one and two) is formed between two nitrogen atoms.
  • 26.
  • 27. Atomic orbital - An orbital that is associated with only one particular atom. This is in contrast to molecular orbitals, which are spread across a collection of atoms.
  • 28. Similarly a 2s orbital is the region where there is the greatest chance of finding the electron that’s further from the nucleus - this is an orbital at the second energy level. So the nearer an electron is to the nucleus, the lower is its energy. s orbitals. The orbital occupied by the hydrogen electron is called a 1s orbital. The "1"represents the fact that the orbital is in the energy level closest to the nucleus. The"s” gives the shape of the orbital. s orbitals are spherically symmetric around the nucleus.
  • 29. The p orbitals A p orbital is rather like 2 identical balloons tied together at the nucleus. Since p orbitals occupy space in this manner, they can be said to have certain directions as well. The two lobes can be pointing in any possible direction opposite to each other as the atom tumbles around in space. This means that at any one energy level it is also possible to have three absolutely equivalent p orbitals pointing at right angles to each other which can be in the x,y and z axis. Therefore p orbitals can have directions px, py and pz as show in the illustration below.
  • 30. SIGMA AND PI BOND
  • 31. Hybridization The intermixing of two or more pure atomic orbital's of an atom with almost same energy to give same number of identical and degenerate new type of orbital's is known as hybridization. The new orbital's formed are also known as hybrid orbital's. During hybridization, the atomic orbital's with different characteristics are mixed with each other.
  • 32. Hybridization - The linear combination of atomic orbitals into hybrid orbitals that accommodate particular molecular geometries. Hybrid orbital - Orbitals formed from the combination of atomic orbitals that accommodate particular geometries. Molecular orbital - Orbitals that, in contrast to atomic orbitals, are distributed over an entire molecule instead of being localized to specific atoms.
  • 33.
  • 34. Hybridization In chemistry, hybridization is the concept of mixing atomic orbitals to form new hybrid orbitals suitable for the qualitative description of atomic bonding properties. Hybridized orbitals are very useful in the explanation of the shape of molecules. It is an integral part of valence bond theory.
  • 36. sp Hybridization Intermixing of one 's' and one 'p' orbital's of almost equal energy to give two identical and degenerate hybrid orbital's is called 'sp' hybridization. These sp-hybrid orbital's are arranged linearly at by making 180 ⁰ of angle. They possess 50% 's' and 50% 'p' character.
  • 37. sp2 hybridization Intermixing of one 's' and two 'p' orbital's of almost equal energy to give three identical and degenerate hybrid orbital's is known as sp2 hybridization. The three sp2 hybrid orbital's are oriented in trigonal planar symmetry at angles of 120 ⁰ to each other. The sp2 hybrid orbital's have 33.3% 's' character and 66.6% 'p' character.
  • 38. sp3 hybridization In sp3 hybridization, one 's' and three 'p' orbital's of almost equal energy intermix to give four identical and degenerate hybrid orbital's. These four sp3 hybrid orbital's are oriented in tetrahedral symmetry with 109 ⁰ 28' angle with each other. The sp3 hybrid orbital's have 25% ‘s’ character and 75% 'p' character.
  • 39. sp3d hybridization In sp3d hybridization, one 's', three 'p' and one 'd' orbital's of almost equal energy intermix to give five identical and degenerate hybrid orbital's, which are arranged in trigonal bipyramidal symmetry. Among them, three are arranged in trigonal plane and the remaining two orbital's are present above and below the trigonal plane at right angles. The sp3d hybrid orbital's have 20% 's', 60% 'p' and 20% 'd' characters.
  • 40. sp3d2 hybridization Intermixing of one 's', three 'p' and two 'd' orbital's of almost same energy by giving six identical and degenerate hybrid orbital's is called sp3d2 hybridization. These six sp3d2 orbital's are arranged in octahedral symmetry by making 90 ⁰ angles to each other. This arrangement can be visualized as four orbital's arranged in a square plane and the remaining two are oriented above and below this plane perpendicularly.
  • 41. sp3d3 hybridization In sp3d3 hybridization, one 's', three 'p' and three 'd' orbital's of almost same energy intermix to give seven sp3d3 hybrid orbital's, which are oriented in pentagonal bipyramidal symmetry. Five among the sp3d3 orbital's are arranged in a pentagonal plane by making 72⁰ of angles. The remaining are arranged perpendicularly above and below this pentagonal plane.
  • 42. ē Pair Hybridization Shape 2 sp linear 3 sp2 trigonal planar 4 sp3 tetrahedral, pyramidal, or bent 5 sp3d trigonal bipyramidal, trigonal planar, or linear 6 sp3d2 octahedral, square planar, or linear
  • 43.
  • 44. Resonance Resonance is a mental exercise and method within the Valence Bond Theory of bonding that describes the delocalization of electrons within molecules. It compares and contrasts two or more possible Lewis structures that can represent a particular molecule. Resonance structures are used when one Lewis structure for a single molecule cannot fully describe the bonding that takes place between neighboring atoms relative to the empirical data for the actual bond lengths between those atoms. Resonance forms illustrate areas of higher probabilities (electron densities). Resonance structures do not change the relative positions of the atoms like your arms in the metaphor. The skeleton of the Lewis Structure remains the same, only the electron locations change.
  • 45. "Pick the Correct Arrow for the Job" Most arrows in chemistry cannot be used interchangeably and care must be given to selecting the correct arrow for the job.  ↔↔: A double headed arrow on both ends of the arrow between Lewis structures is used to show their inter-connectivity  ⇌⇌: Double harpoons are used to designate equilibria  ⇀⇀: A single harpoon on one end indicate the movement of one electron  →→: A double headed arrow on one end is used to indicate the movement of two electrons
  • 47. Delocalization and Resonance Structures Rules In resonance structures, the electrons are able to move to help stabilize the molecule. This movement of the electrons is called delocalization. 1. Resonance structures should have the same number of electrons, do not add or subtract any electrons. (check the number of electrons by simply counting them). 2. All resonance structures must follow the rules of writing Lewis Structures. 3. The hybridization of the structure must stay the same. 4. The skeleton of the structure can not be changed (only the electrons move). 5. Resonance structures must also have the same amount of lone pairs.
  • 48. Example 2: Thiocyanate Ion Consider the thiocyanate (CNS−CNS−) ion. SOLUTION 1. Find the Lewis Structure of the molecule. (Remember the Lewis Structure rules.)
  • 49. 2. Resonance: All elements want an octet, and we can do that in multiple ways by moving the terminal atom's electrons around (bonds too).
