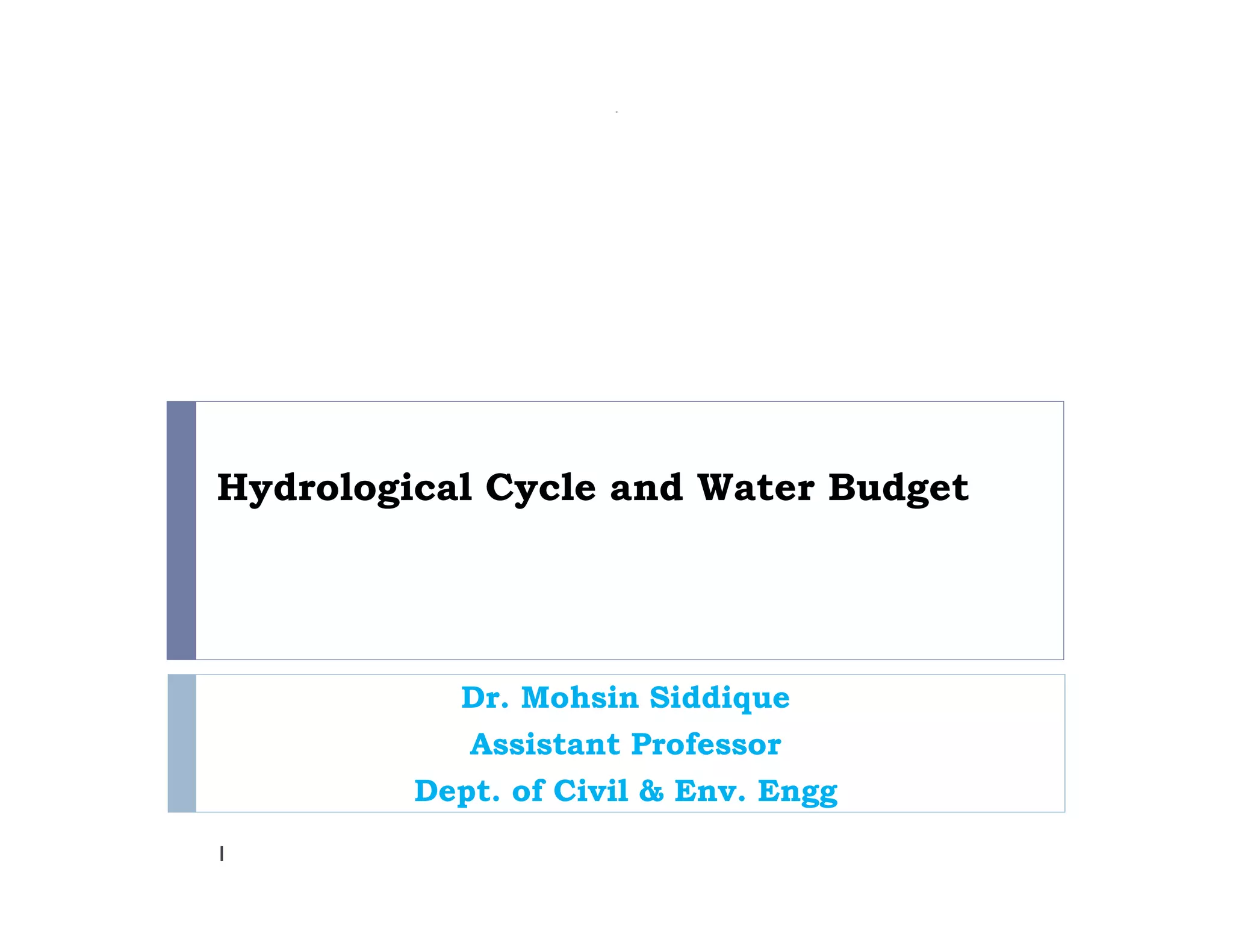

1. Hydrological Cycle and Water Budget
Dr. Mohsin Siddique
Assistant Professor
Dept. of Civil & Env. Engg
1

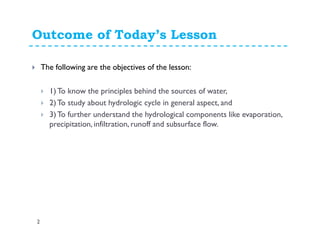

2. Outcome of Today’s Lesson
2
The following are the objectives of the lesson:
1)To know the principles behind the sources of water,
2)To study about hydrologic cycle in general aspect, and
3)To further understand the hydrological components like evaporation,
precipitation, infiltration, runoff and subsurface flow.
4. Global Water Usage:
4
Types/Categories of water uses
Domestic water demand
Public water use
Commercial water use
Industrial water use
Irrigation water demand
Losses and wastes
9. Global Water Usage:
Water availability
9
http://en.wikipedia.org/wiki/Water_resources
By the year 2025 nearly 2 billion people will live in regions or countries with
absolute water scarcity, even allowing for high levels of irrigation efficiency.

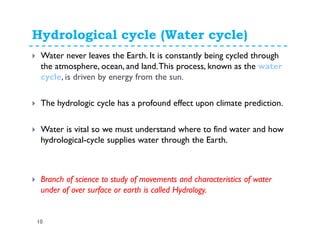

10. Hydrological cycle (Water cycle)
10
Water never leaves the Earth. It is constantly being cycled through
the atmosphere, ocean, and land.This process, known as the water
cycle, is driven by energy from the sun.
The hydrologic cycle has a profound effect upon climate prediction.
Water is vital so we must understand where to find water and how
hydrological-cycle supplies water through the Earth.
Branch of science to study of movements and characteristics of water
under of over surface or earth is called Hydrology.

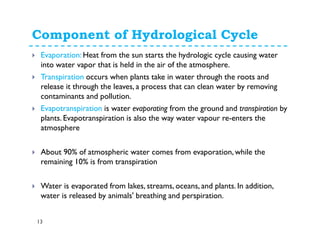

13. Component of Hydrological Cycle
13
Evaporation: Heat from the sun starts the hydrologic cycle causing water
into water vapor that is held in the air of the atmosphere.
Transpiration occurs when plants take in water through the roots and
release it through the leaves, a process that can clean water by removing
contaminants and pollution.
Evapotranspiration is water evaporating from the ground and transpiration by
plants. Evapotranspiration is also the way water vapour re-enters the
atmosphere
About 90% of atmospheric water comes from evaporation, while the
remaining 10% is from transpiration
Water is evaporated from lakes, streams, oceans, and plants. In addition,
water is released by animals' breathing and perspiration.
14. Component of Hydrological Cycle
14
Evapotranspiration is water
evaporating from the ground and
transpiration by plants.
Evapotranspiration is also the
way water vapor re-enters the
atmosphere

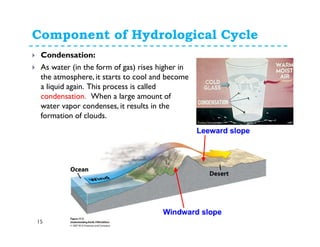

15. Component of Hydrological Cycle
15
Condensation:
As water (in the form of gas) rises higher in
the atmosphere, it starts to cool and become
a liquid again. This process is called
condensation. When a large amount of
water vapor condenses, it results in the
formation of clouds.
16. Component of Hydrological Cycle
16
Condensation can form fog, dew, and clouds
Fog: Fog forms when air near the surface is cold and nearly saturated
with water. Now when water from the ground evaporates, it condenses
immediately forming tiny water droplets that create a low-lying cloud we
call fog.
Dew: Dew forms at night when air becomes saturated with water vapor.
When this saturated air comes in contact with plants or other objects it
condenses, leaving tiny water droplets behind on the object.
Clouds: When the air containing water vapor is heated by the sun, it
rises into the atmosphere by convection.The water vapor in the air is then
cooled by the colder air higher in the atmosphere causing the relative
humidity to increase. As the relative humidity increases, the air eventually
becomes saturated. The water vapor then condenses into tiny water
droplets around particles of dust or salt in the air. These tiny water
droplets make up clouds.
17. Precipitation
17
When the water in the clouds gets too heavy, the water falls back to the
earth. This is called precipitation.
Types of Precipitation:
Drizzle
Rain
Freezing rain
Sleet
Snow
Hail

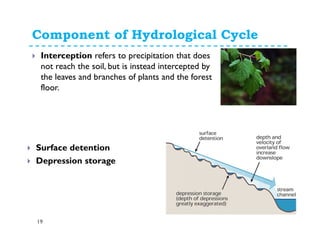

19. Component of Hydrological Cycle
19
Interception refers to precipitation that does
not reach the soil, but is instead intercepted by
the leaves and branches of plants and the forest
floor.
Surface detention
Depression storage

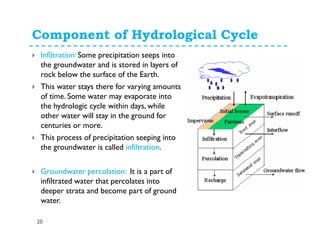

20. Component of Hydrological Cycle
20
Infiltration: Some precipitation seeps into
the groundwater and is stored in layers of
rock below the surface of the Earth.
This water stays there for varying amounts
of time. Some water may evaporate into
the hydrologic cycle within days, while
other water will stay in the ground for
centuries or more.
This process of precipitation seeping into
the groundwater is called infiltration.
Groundwater percolation: It is a part of
infiltrated water that percolates into
deeper strata and become part of ground
water.

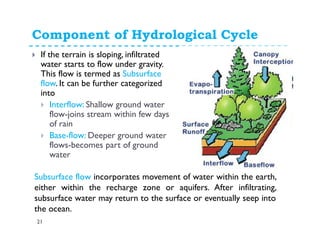

21. Component of Hydrological Cycle
21
If the terrain is sloping, infiltrated
water starts to flow under gravity.
This flow is termed as Subsurface
flow. It can be further categorized
into
Interflow: Shallow ground water
flow-joins stream within few days
of rain
Base-flow: Deeper ground water
flows-becomes part of ground
water
Subsurface flow incorporates movement of water within the earth,
either within the recharge zone or aquifers. After infiltrating,
subsurface water may return to the surface or eventually seep into
the ocean.
22. Component of Hydrological Cycle
22
On hard or frozen ground, most of the precipitation is unable to seep
below ground.This precipitation then flows down slopes and hills,
eventually stopping in rivers, lakes, streams, and oceans.
Some of this water will then evaporate and rejoin the hydrologic cycle,
while other water will remain in the body of water.
This process of water traveling over the ground and collecting in a body of
water is called surface runoff.
23. Component of Hydrological Cycle
23
Storage:
Natural lakes or man-made reservoirs or ground water
Lake Geneva or Lake Léman is a lake in Switzerland and France

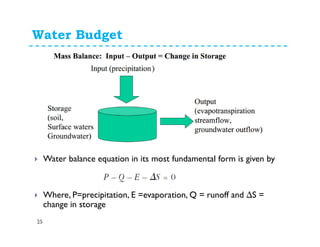

25. Water Budget
25
Water balance equation in its most fundamental form is given by
Where, P=precipitation, E =evaporation, Q = runoff and ∆S =
change in storage
26. Example Long Term Water Balance
for Estimating Evapotranspiration
26
For the Embarras River at Camargo 1978 to 1998, precipitation (P) = 40
in/yr, average stream flow (Q) = 188 ft3/sec, and the watershed area = 186
mi2. Estimate the average annual evapotranspiration for this watershed and
this period, assuming net groundwater flows and changes in storage are
negligible, and the density of water is constant. Because water volume is
mass divided by density, if density is constant, a volume balance is
equivalent to a mass balance.
Solution: We can only add or subtract items of the same type, or items
with common units.The depth of annual precipitation input can be
converted to a volume by multiplying the depth by the watershed area.

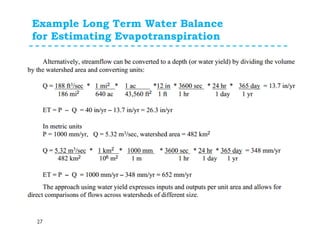

27. Example Long Term Water Balance
for Estimating Evapotranspiration
27

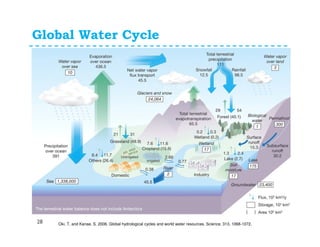

28. Global Water Cycle
28 Oki, T. and Kanae, S. 2006. Global hydrological cycles and world water resources. Science, 313, 1068-1072.

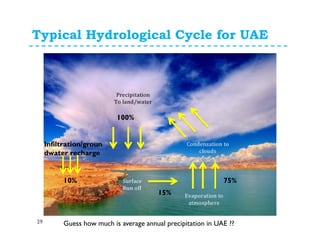

29. Typical Hydrological Cycle for UAE
29
100%
75%
15%
Infiltration/groun
dwater recharge
10%
Guess how much is average annual precipitation in UAE ??
