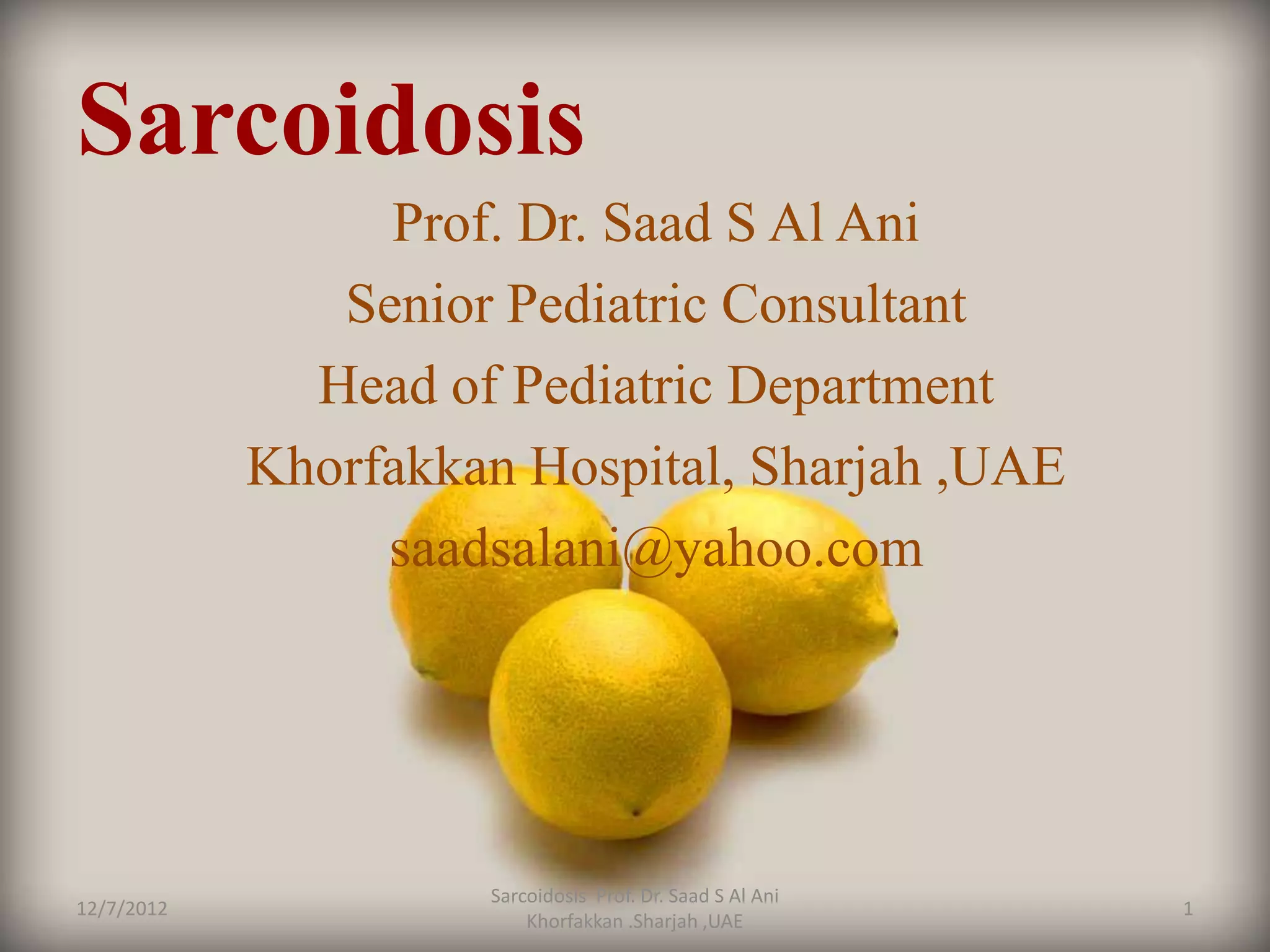

Sarcoidosis
                 Prof. Dr. Saad S Al Ani
               Senior Pediatric Consultant
              Head of Pediatric Department
            Khorfakkan Hospital, Sharjah ,UAE
                 saadsalani@yahoo.com




                     Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                                  1
                         Khorfakkan .Sharjah ,UAE

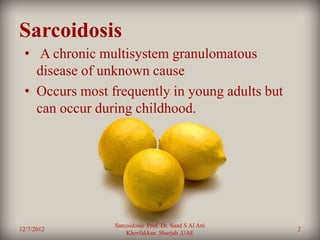

Sarcoidosis
 • A chronic multisystem granulomatous
   disease of unknown cause
 • Occurs most frequently in young adults but
   can occur during childhood.




                Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                             2
                    Khorfakkan .Sharjah ,UAE

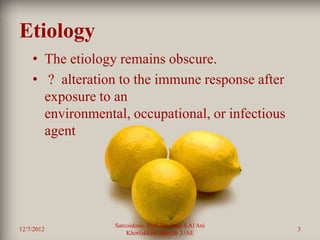

Etiology
    • The etiology remains obscure.
    • ? alteration to the immune response after
      exposure to an
      environmental, occupational, or infectious
      agent




                  Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                               3
                      Khorfakkan .Sharjah ,UAE

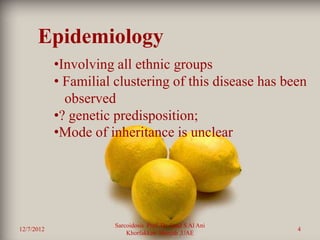

Epidemiology
            •Involving all ethnic groups
            • Familial clustering of this disease has been
              observed
            •? genetic predisposition;
            •Mode of inheritance is unclear




                       Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                                    4
                           Khorfakkan .Sharjah ,UAE

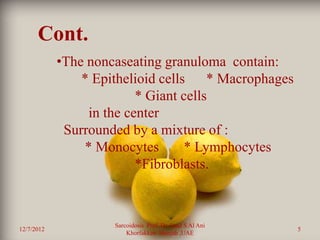

Cont.
            •The noncaseating granuloma contain:
                * Epithelioid cells * Macrophages
                          * Giant cells
                 in the center
             Surrounded by a mixture of :
                * Monocytes        * Lymphocytes
                          *Fibroblasts.



                     Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                                  5
                         Khorfakkan .Sharjah ,UAE
Cont.
             •Activated lymphocytes and macrophages
             within the granulomas release various
             mediators including :
                   * Interleukin-1 (IL-1), IL-2
                   * Interferon
                   * Other cytokines
              to promote and maintain granulomatous
             lesions

                     Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                                  6
                         Khorfakkan .Sharjah ,UAE

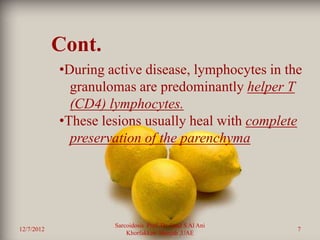

Cont.
            •During active disease, lymphocytes in the
              granulomas are predominantly helper T
              (CD4) lymphocytes.
            •These lesions usually heal with complete
              preservation of the parenchyma




                     Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                                  7
                         Khorfakkan .Sharjah ,UAE

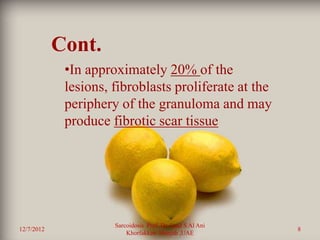

Cont.
             •In approximately 20% of the
             lesions, fibroblasts proliferate at the
             periphery of the granuloma and may
             produce fibrotic scar tissue




                      Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                                   8
                          Khorfakkan .Sharjah ,UAE
Cont.
            •Macrophages within sarcoidosis granulomas
            produce and secrete 1,25-(OH)2-D3,
            •Excess vitamin D results in hypercalcemia
            and hypercalciuria in patients with
            sarcoidosis.




                     Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                                  9
                         Khorfakkan .Sharjah ,UAE

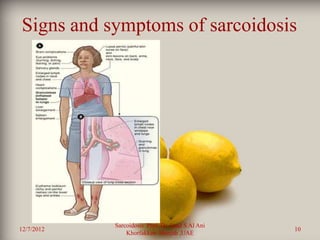

Signs and symptomsof sarcoidosis
Signs  and symptoms of sarcoidosis
            •




                Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                             10
                    Khorfakkan .Sharjah ,UAE

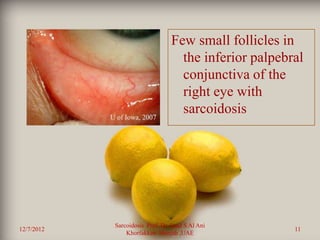

Few small follicles in
            •
                                       the inferior palpebral
                                       conjunctiva of the
                                       right eye with
                                       sarcoidosis




                Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                                  11
                    Khorfakkan .Sharjah ,UAE
Pulmonary involvement
               * Parenchymal infiltrates
               * Miliary nodules
               * Hilar and paratracheal
                 lymphadenopathy




                   Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                                12
                       Khorfakkan .Sharjah ,UAE

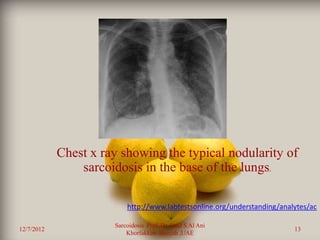

Chest x ray showing the typical nodularity of
                sarcoidosis in the base of the lungs.

                          http://www.labtestsonline.org/understanding/analytes/ac

                      Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                                                 13
                          Khorfakkan .Sharjah ,UAE
Sarcoidosis in a white 10-yr-old girl
                          There are:
                          1.Widely disseminated
                            peribronchial infiltrations
                          2.Multiple small nodular
                            densities
                          3.Hyperaeration of the lungs
                          4.Hilar lymphadenopathy.



            Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                          14
                Khorfakkan .Sharjah ,UAE

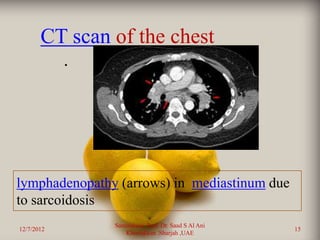

CT scan of the chest
            •




lymphadenopathy (arrows) in mediastinum due
to sarcoidosis
                Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                             15
                    Khorfakkan .Sharjah ,UAE

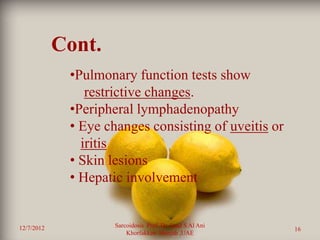

Cont.
             •Pulmonary function tests show
                restrictive changes.
             •Peripheral lymphadenopathy
             • Eye changes consisting of uveitis or
               iritis
             • Skin lesions
             • Hepatic involvement


12/7/2012            Sarcoidosis Prof. Dr. Saad S Al Ani
                                                           16
                         Khorfakkan .Sharjah ,UAE

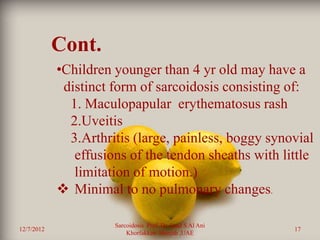

Cont.
            •Children younger than 4 yr old may have a
             distinct form of sarcoidosis consisting of:
              1. Maculopapular erythematosus rash
              2.Uveitis
              3.Arthritis (large, painless, boggy synovial
               effusions of the tendon sheaths with little
               limitation of motion.)
             Minimal to no pulmonary changes.

                      Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                                   17
                          Khorfakkan .Sharjah ,UAE

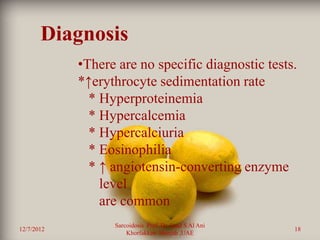

Diagnosis
            •There are no specific diagnostic tests.
            *↑erythrocyte sedimentation rate
              * Hyperproteinemia
              * Hypercalcemia
              * Hypercalciuria
              * Eosinophilia
              * ↑ angiotensin-converting enzyme
                level
                are common
                  Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                               18
                      Khorfakkan .Sharjah ,UAE

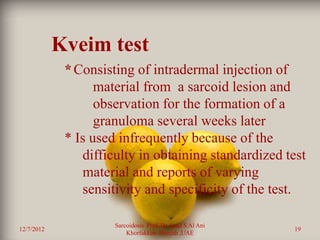

Kveim test
             * Consisting of intradermal injection of
                   material from a sarcoid lesion and
                   observation for the formation of a
                   granuloma several weeks later
             * Is used infrequently because of the
                difficulty in obtaining standardized test
                material and reports of varying
                sensitivity and specificity of the test.

                      Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                                   19
                          Khorfakkan .Sharjah ,UAE

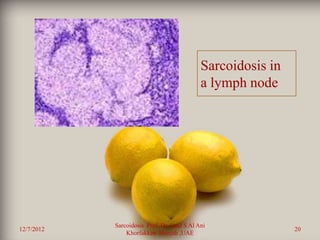

Sarcoidosis in
                                             a lymph node




            Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                                     20
                Khorfakkan .Sharjah ,UAE
Asteroid body
                                             in sarcoidosis




            Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                                     21
                Khorfakkan .Sharjah ,UAE

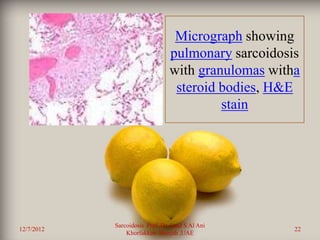

Micrograph showing
                                 pulmonary sarcoidosis
                                 with granulomas witha
                                  steroid bodies, H&E
                                          stain




            Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                            22
                Khorfakkan .Sharjah ,UAE

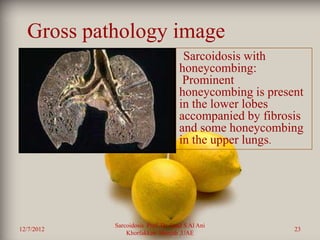

Gross pathology image
                                      Sarcoidosis with
                                     honeycombing:
                                      Prominent
                                     honeycombing is present
                                     in the lower lobes
                                     accompanied by fibrosis
                                     and some honeycombing
                                     in the upper lungs.




            Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                                 23
                Khorfakkan .Sharjah ,UAE

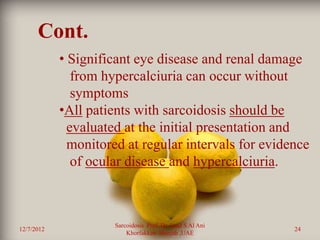

Cont.
            • Significant eye disease and renal damage
               from hypercalciuria can occur without
               symptoms
            •All patients with sarcoidosis should be
              evaluated at the initial presentation and
              monitored at regular intervals for evidence
               of ocular disease and hypercalciuria.



                      Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                                   24
                          Khorfakkan .Sharjah ,UAE

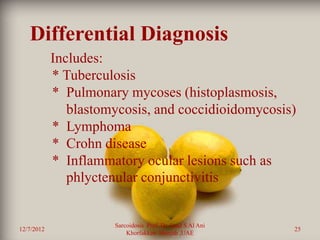

Differential Diagnosis
            Includes:
            * Tuberculosis
            * Pulmonary mycoses (histoplasmosis,
               blastomycosis, and coccidioidomycosis)
            * Lymphoma
            * Crohn disease
            * Inflammatory ocular lesions such as
               phlyctenular conjunctivitis


                      Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                                   25
                          Khorfakkan .Sharjah ,UAE

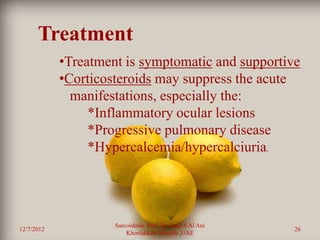

Treatment
            •Treatment is symptomatic and supportive
            •Corticosteroids may suppress the acute
              manifestations, especially the:
                 *Inflammatory ocular lesions
                 *Progressive pulmonary disease
                 *Hypercalcemia/hypercalciuria.




                     Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                                  26
                         Khorfakkan .Sharjah ,UAE
Cont.
            •Methotrexate may be considered in severe
             cases that are unresponsive to corticosteroid
             therapy
            •Eye involvement may lead to blindness;
             therefore, therapy with topical corticosteroids
             with careful monitoring is warranted.



                         Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                                      27
                             Khorfakkan .Sharjah ,UAE

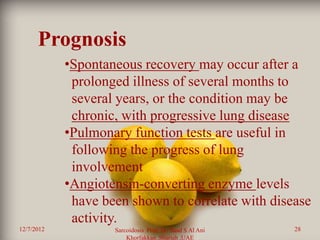

Prognosis
            •Spontaneous recovery may occur after a
             prolonged illness of several months to
             several years, or the condition may be
             chronic, with progressive lung disease
            •Pulmonary function tests are useful in
             following the progress of lung
             involvement
            •Angiotensin-converting enzyme levels
             have been shown to correlate with disease
             activity.
12/7/2012           Sarcoidosis Prof. Dr. Saad S Al Ani   28
                        Khorfakkan .Sharjah ,UAE

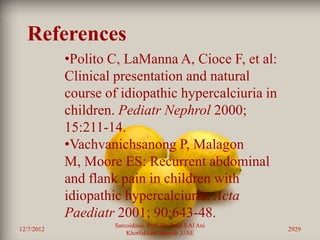

References
            •Polito C, LaManna A, Cioce F, et al:
            Clinical presentation and natural
            course of idiopathic hypercalciuria in
            children. Pediatr Nephrol 2000;
            15:211-14.
            •Vachvanichsanong P, Malagon
            M, Moore ES: Recurrent abdominal
            and flank pain in children with
            idiopathic hypercalciuria. Acta
            Paediatr 2001; 90:643-48.
                     Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                                  2929
                         Khorfakkan .Sharjah ,UAE

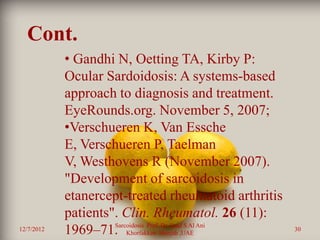

Cont.
            • Gandhi N, Oetting TA, Kirby P:
            Ocular Sardoidosis: A systems-based
            approach to diagnosis and treatment.
            EyeRounds.org. November 5, 2007;
            •Verschueren K, Van Essche
            E, Verschueren P, Taelman
            V, Westhovens R (November 2007).
            "Development of sarcoidosis in
            etanercept-treated rheumatoid arthritis
            patients". Clin. Rheumatol. 26 (11):
                     Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012   1969–71. Khorfakkan .Sharjah ,UAE              30

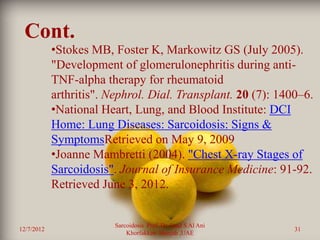

Cont.
            •Stokes MB, Foster K, Markowitz GS (July 2005).
            "Development of glomerulonephritis during anti-
            TNF-alpha therapy for rheumatoid
            arthritis". Nephrol. Dial. Transplant. 20 (7): 1400–6.
            •National Heart, Lung, and Blood Institute: DCI
            Home: Lung Diseases: Sarcoidosis: Signs &
            SymptomsRetrieved on May 9, 2009
            •Joanne Mambretti (2004). "Chest X-ray Stages of
            Sarcoidosis". Journal of Insurance Medicine: 91-92.
            Retrieved June 3, 2012.


                         Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                                      31
                             Khorfakkan .Sharjah ,UAE
Sarcoidosis Prof. Dr. Saad S Al Ani
12/7/2012                                         32
                Khorfakkan .Sharjah ,UAE

Sarcoidosis

  • 1.
    Sarcoidosis Prof. Dr. Saad S Al Ani Senior Pediatric Consultant Head of Pediatric Department Khorfakkan Hospital, Sharjah ,UAE saadsalani@yahoo.com Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 1 Khorfakkan .Sharjah ,UAE
  • 2.
    Sarcoidosis • Achronic multisystem granulomatous disease of unknown cause • Occurs most frequently in young adults but can occur during childhood. Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 2 Khorfakkan .Sharjah ,UAE
  • 3.
    Etiology • The etiology remains obscure. • ? alteration to the immune response after exposure to an environmental, occupational, or infectious agent Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 3 Khorfakkan .Sharjah ,UAE
  • 4.
    Epidemiology •Involving all ethnic groups • Familial clustering of this disease has been observed •? genetic predisposition; •Mode of inheritance is unclear Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 4 Khorfakkan .Sharjah ,UAE
  • 5.
    Cont. •The noncaseating granuloma contain: * Epithelioid cells * Macrophages * Giant cells in the center Surrounded by a mixture of : * Monocytes * Lymphocytes *Fibroblasts. Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 5 Khorfakkan .Sharjah ,UAE
  • 6.
    Cont. •Activated lymphocytes and macrophages within the granulomas release various mediators including : * Interleukin-1 (IL-1), IL-2 * Interferon * Other cytokines to promote and maintain granulomatous lesions Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 6 Khorfakkan .Sharjah ,UAE
  • 7.
    Cont. •During active disease, lymphocytes in the granulomas are predominantly helper T (CD4) lymphocytes. •These lesions usually heal with complete preservation of the parenchyma Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 7 Khorfakkan .Sharjah ,UAE
  • 8.
    Cont. •In approximately 20% of the lesions, fibroblasts proliferate at the periphery of the granuloma and may produce fibrotic scar tissue Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 8 Khorfakkan .Sharjah ,UAE
  • 9.
    Cont. •Macrophages within sarcoidosis granulomas produce and secrete 1,25-(OH)2-D3, •Excess vitamin D results in hypercalcemia and hypercalciuria in patients with sarcoidosis. Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 9 Khorfakkan .Sharjah ,UAE
  • 10.
    Signs and symptomsofsarcoidosis Signs and symptoms of sarcoidosis • Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 10 Khorfakkan .Sharjah ,UAE
  • 11.
    Few small folliclesin • the inferior palpebral conjunctiva of the right eye with sarcoidosis Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 11 Khorfakkan .Sharjah ,UAE
  • 12.
    Pulmonary involvement * Parenchymal infiltrates * Miliary nodules * Hilar and paratracheal lymphadenopathy Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 12 Khorfakkan .Sharjah ,UAE
  • 13.
    Chest x rayshowing the typical nodularity of sarcoidosis in the base of the lungs. http://www.labtestsonline.org/understanding/analytes/ac Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 13 Khorfakkan .Sharjah ,UAE
  • 14.
    Sarcoidosis in awhite 10-yr-old girl There are: 1.Widely disseminated peribronchial infiltrations 2.Multiple small nodular densities 3.Hyperaeration of the lungs 4.Hilar lymphadenopathy. Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 14 Khorfakkan .Sharjah ,UAE
  • 15.
    CT scan ofthe chest • lymphadenopathy (arrows) in mediastinum due to sarcoidosis Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 15 Khorfakkan .Sharjah ,UAE
  • 16.
    Cont. •Pulmonary function tests show restrictive changes. •Peripheral lymphadenopathy • Eye changes consisting of uveitis or iritis • Skin lesions • Hepatic involvement 12/7/2012 Sarcoidosis Prof. Dr. Saad S Al Ani 16 Khorfakkan .Sharjah ,UAE
  • 17.
    Cont. •Children younger than 4 yr old may have a distinct form of sarcoidosis consisting of: 1. Maculopapular erythematosus rash 2.Uveitis 3.Arthritis (large, painless, boggy synovial effusions of the tendon sheaths with little limitation of motion.)  Minimal to no pulmonary changes. Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 17 Khorfakkan .Sharjah ,UAE
  • 18.
    Diagnosis •There are no specific diagnostic tests. *↑erythrocyte sedimentation rate * Hyperproteinemia * Hypercalcemia * Hypercalciuria * Eosinophilia * ↑ angiotensin-converting enzyme level are common Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 18 Khorfakkan .Sharjah ,UAE
  • 19.
    Kveim test * Consisting of intradermal injection of material from a sarcoid lesion and observation for the formation of a granuloma several weeks later * Is used infrequently because of the difficulty in obtaining standardized test material and reports of varying sensitivity and specificity of the test. Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 19 Khorfakkan .Sharjah ,UAE
  • 20.
    Sarcoidosis in a lymph node Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 20 Khorfakkan .Sharjah ,UAE
  • 21.
    Asteroid body in sarcoidosis Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 21 Khorfakkan .Sharjah ,UAE
  • 22.
    Micrograph showing pulmonary sarcoidosis with granulomas witha steroid bodies, H&E stain Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 22 Khorfakkan .Sharjah ,UAE
  • 23.
    Gross pathology image Sarcoidosis with honeycombing: Prominent honeycombing is present in the lower lobes accompanied by fibrosis and some honeycombing in the upper lungs. Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 23 Khorfakkan .Sharjah ,UAE
  • 24.
    Cont. • Significant eye disease and renal damage from hypercalciuria can occur without symptoms •All patients with sarcoidosis should be evaluated at the initial presentation and monitored at regular intervals for evidence of ocular disease and hypercalciuria. Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 24 Khorfakkan .Sharjah ,UAE
  • 25.
    Differential Diagnosis Includes: * Tuberculosis * Pulmonary mycoses (histoplasmosis, blastomycosis, and coccidioidomycosis) * Lymphoma * Crohn disease * Inflammatory ocular lesions such as phlyctenular conjunctivitis Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 25 Khorfakkan .Sharjah ,UAE
  • 26.
    Treatment •Treatment is symptomatic and supportive •Corticosteroids may suppress the acute manifestations, especially the: *Inflammatory ocular lesions *Progressive pulmonary disease *Hypercalcemia/hypercalciuria. Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 26 Khorfakkan .Sharjah ,UAE
  • 27.
    Cont. •Methotrexate may be considered in severe cases that are unresponsive to corticosteroid therapy •Eye involvement may lead to blindness; therefore, therapy with topical corticosteroids with careful monitoring is warranted. Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 27 Khorfakkan .Sharjah ,UAE
  • 28.
    Prognosis •Spontaneous recovery may occur after a prolonged illness of several months to several years, or the condition may be chronic, with progressive lung disease •Pulmonary function tests are useful in following the progress of lung involvement •Angiotensin-converting enzyme levels have been shown to correlate with disease activity. 12/7/2012 Sarcoidosis Prof. Dr. Saad S Al Ani 28 Khorfakkan .Sharjah ,UAE
  • 29.
    References •Polito C, LaManna A, Cioce F, et al: Clinical presentation and natural course of idiopathic hypercalciuria in children. Pediatr Nephrol 2000; 15:211-14. •Vachvanichsanong P, Malagon M, Moore ES: Recurrent abdominal and flank pain in children with idiopathic hypercalciuria. Acta Paediatr 2001; 90:643-48. Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 2929 Khorfakkan .Sharjah ,UAE
  • 30.
    Cont. • Gandhi N, Oetting TA, Kirby P: Ocular Sardoidosis: A systems-based approach to diagnosis and treatment. EyeRounds.org. November 5, 2007; •Verschueren K, Van Essche E, Verschueren P, Taelman V, Westhovens R (November 2007). "Development of sarcoidosis in etanercept-treated rheumatoid arthritis patients". Clin. Rheumatol. 26 (11): Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 1969–71. Khorfakkan .Sharjah ,UAE 30
  • 31.
    Cont. •Stokes MB, Foster K, Markowitz GS (July 2005). "Development of glomerulonephritis during anti- TNF-alpha therapy for rheumatoid arthritis". Nephrol. Dial. Transplant. 20 (7): 1400–6. •National Heart, Lung, and Blood Institute: DCI Home: Lung Diseases: Sarcoidosis: Signs & SymptomsRetrieved on May 9, 2009 •Joanne Mambretti (2004). "Chest X-ray Stages of Sarcoidosis". Journal of Insurance Medicine: 91-92. Retrieved June 3, 2012. Sarcoidosis Prof. Dr. Saad S Al Ani 12/7/2012 31 Khorfakkan .Sharjah ,UAE
  • 32.

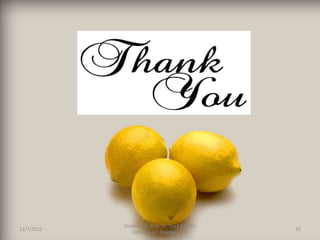

    Sarcoidosis Prof. Dr.Saad S Al Ani 12/7/2012 32 Khorfakkan .Sharjah ,UAE
