This document discusses the clinical presentation and manifestations of sarcoidosis. It notes that sarcoidosis is characterized by non-caseating granulomas that can affect multiple organs, most commonly the lungs. It describes the typical involvement of the lungs, eyes, skin, joints, liver and lymph nodes. Musculoskeletal involvement and arthritis are also common. Radiographic findings include hilar lymphadenopathy and small nodules in a perilymphatic distribution. Fibrosis can develop in advanced disease. Differential diagnoses include other granulomatous diseases like tuberculosis.

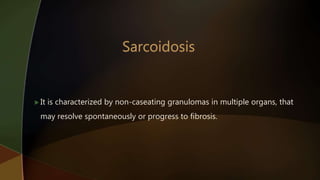

2.  It is characterized by non-caseating granulomas in multiple organs, that
may resolve spontaneously or progress to fibrosis.

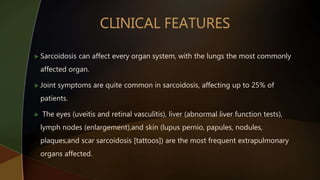

3.  Sarcoidosis can affect every organ system, with the lungs the most commonly
affected organ.
 Joint symptoms are quite common in sarcoidosis, affecting up to 25% of
patients.
 The eyes (uveitis and retinal vasculitis), liver (abnormal liver function tests),
lymph nodes (enlargement),and skin (lupus pernio, papules, nodules,
plaques,and scar sarcoidosis [tattoos]) are the most frequent extrapulmonary
organs affected.

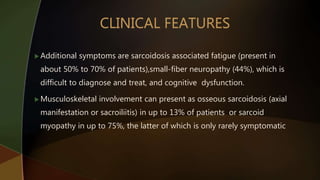

4.  Additional symptoms are sarcoidosis associated fatigue (present in
about 50% to 70% of patients),small-fiber neuropathy (44%), which is
difficult to diagnose and treat, and cognitive dysfunction.
 Musculoskeletal involvement can present as osseous sarcoidosis (axial
manifestation or sacroiliitis) in up to 13% of patients or sarcoid
myopathy in up to 75%, the latter of which is only rarely symptomatic

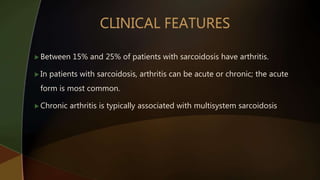

5.  Between 15% and 25% of patients with sarcoidosis have arthritis.
 In patients with sarcoidosis, arthritis can be acute or chronic; the acute
form is most common.
 Chronic arthritis is typically associated with multisystem sarcoidosis

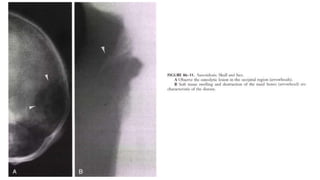

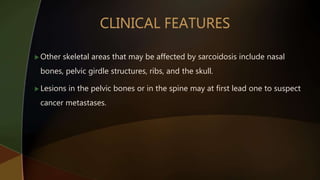

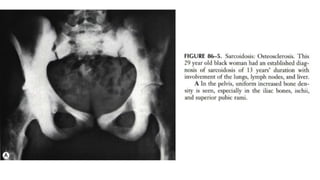

6.  Other skeletal areas that may be affected by sarcoidosis include nasal
bones, pelvic girdle structures, ribs, and the skull.
 Lesions in the pelvic bones or in the spine may at first lead one to suspect
cancer metastases.

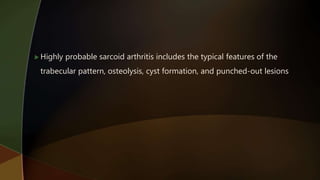

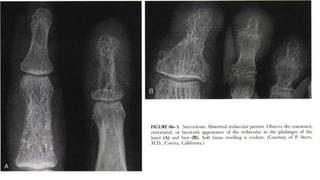

8.  Highly probable sarcoid arthritis includes the typical features of the
trabecular pattern, osteolysis, cyst formation, and punched-out lesions

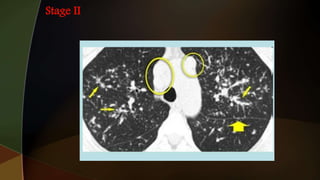

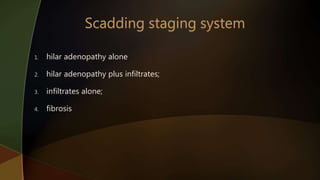

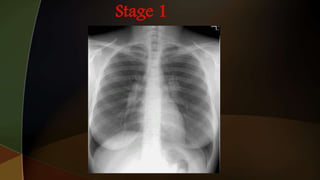

10. 1. hilar adenopathy alone
2. hilar adenopathy plus infiltrates;
3. infiltrates alone;

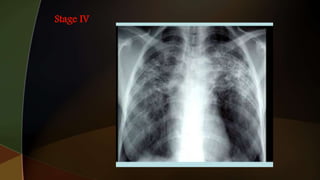

4. fibrosis

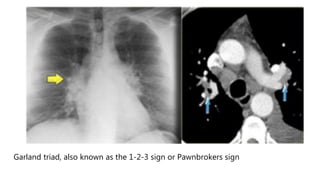

12. Garland triad, also known as the 1-2-3 sign or Pawnbrokers sign

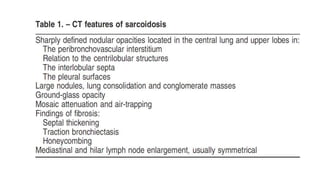

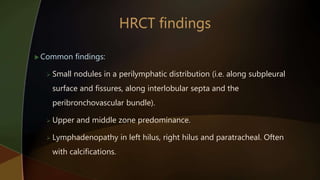

19.  Common findings:
 Small nodules in a perilymphatic distribution (i.e. along subpleural
surface and fissures, along interlobular septa and the
peribronchovascular bundle).
 Upper and middle zone predominance.
 Lymphadenopathy in left hilus, right hilus and paratracheal. Often
with calcifications.

20.  Uncommon findings:
 Conglomerate masses in a perihilar location.
 Larger nodules (> 1cm in diameter, in Grouped nodules or coalescent nodlues
surrounded by multiple satellite nodules (Galaxy sign)
 Nodules so small and dense that they appear as ground glass or even as
consolidations (alveolar sarcoidosis)

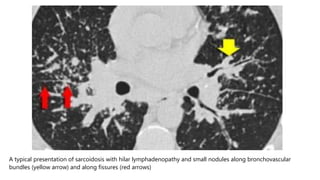

21. A typical presentation of sarcoidosis with hilar lymphadenopathy and small nodules along bronchovascular
bundles (yellow arrow) and along fissures (red arrows)

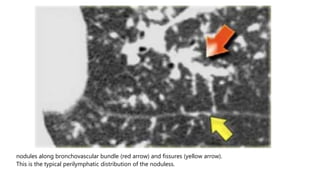

22. nodules along bronchovascular bundle (red arrow) and fissures (yellow arrow).
This is the typical perilymphatic distribution of the noduless.

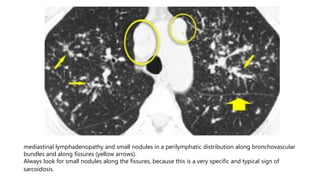

23. mediastinal lymphadenopathy and small nodules in a perilymphatic distribution along bronchovascular
bundles and along fissures (yellow arrows).
Always look for small nodules along the fissures, because this is a very specific and typical sign of
sarcoidosis.

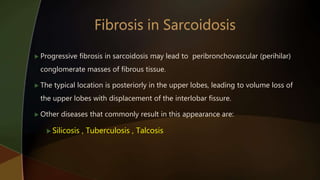

24.  Progressive fibrosis in sarcoidosis may lead to peribronchovascular (perihilar)
conglomerate masses of fibrous tissue.
 The typical location is posteriorly in the upper lobes, leading to volume loss of
the upper lobes with displacement of the interlobar fissure.
 Other diseases that commonly result in this appearance are:
 Silicosis , Tuberculosis , Talcosis

25. conglomerate masses of fibrous tissue

26. Alveolar Sarcoidosis. In this case the appearance resembles a ground glass
attenuation, but with a close look you may appreciate that the increased attenuation is
the result of many tiny grouped nodules.
Also notice the hilar lymphadenopathy.

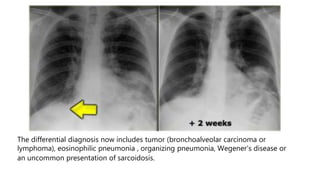

27. The differential diagnosis now includes tumor (bronchoalveolar carcinoma or
lymphoma), eosinophilic pneumonia , organizing pneumonia, Wegener's disease or
an uncommon presentation of sarcoidosis.

28. There is only one clue to the diagnosis and that is the presence of
small nodules

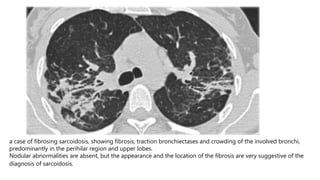

29. a case of fibrosing sarcoidosis, showing fibrosis, traction bronchiectases and crowding of the involved bronchi,
predominantly in the perihilar region and upper lobes.
Nodular abnormalities are absent, but the appearance and the location of the fibrosis are very suggestive of the
diagnosis of sarcoidosis.

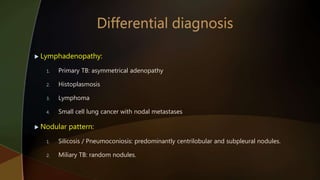

30.  Lymphadenopathy:
1. Primary TB: asymmetrical adenopathy
2. Histoplasmosis
3. Lymphoma
4. Small cell lung cancer with nodal metastases
 Nodular pattern:
1. Silicosis / Pneumoconiosis: predominantly centrilobular and subpleural nodules.
2. Miliary TB: random nodules.

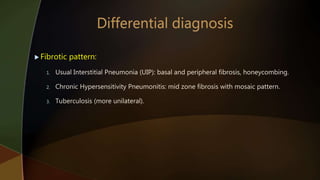

31.  Fibrotic pattern:
1. Usual Interstitial Pneumonia (UIP): basal and peripheral fibrosis, honeycombing.
2. Chronic Hypersensitivity Pneumonitis: mid zone fibrosis with mosaic pattern.
3. Tuberculosis (more unilateral).

32. Hypersensitivity pneumonitis: ill defined centrilobular nodules.

33. Miliary TB: random nodules of the same size.

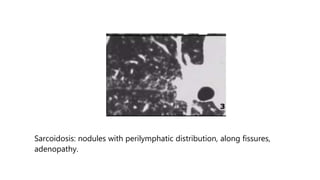

34. Sarcoidosis: nodules with perilymphatic distribution, along fissures,
adenopathy.

35. Hypersensitivity pneumonitis: centrilobular nodules, notice
sparing of the subpleural area.

36. TB: Tree-in-bud appearance in a patient with active TB.

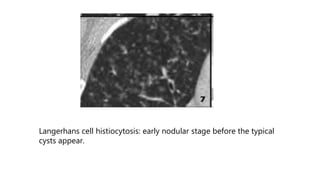

37. Langerhans cell histiocytosis: early nodular stage before the typical
cysts appear.

38. Respiratory bronchiolitis: ill defined centrilobular nodules of ground-
glass opacity.

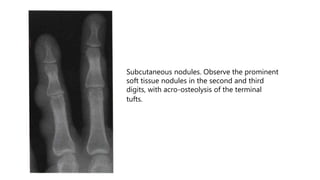

42. Subcutaneous nodules. Observe the prominent
soft tissue nodules in the second and third
digits, with acro-osteolysis of the terminal
tufts.
