DTM/DEM Generation
SUG541

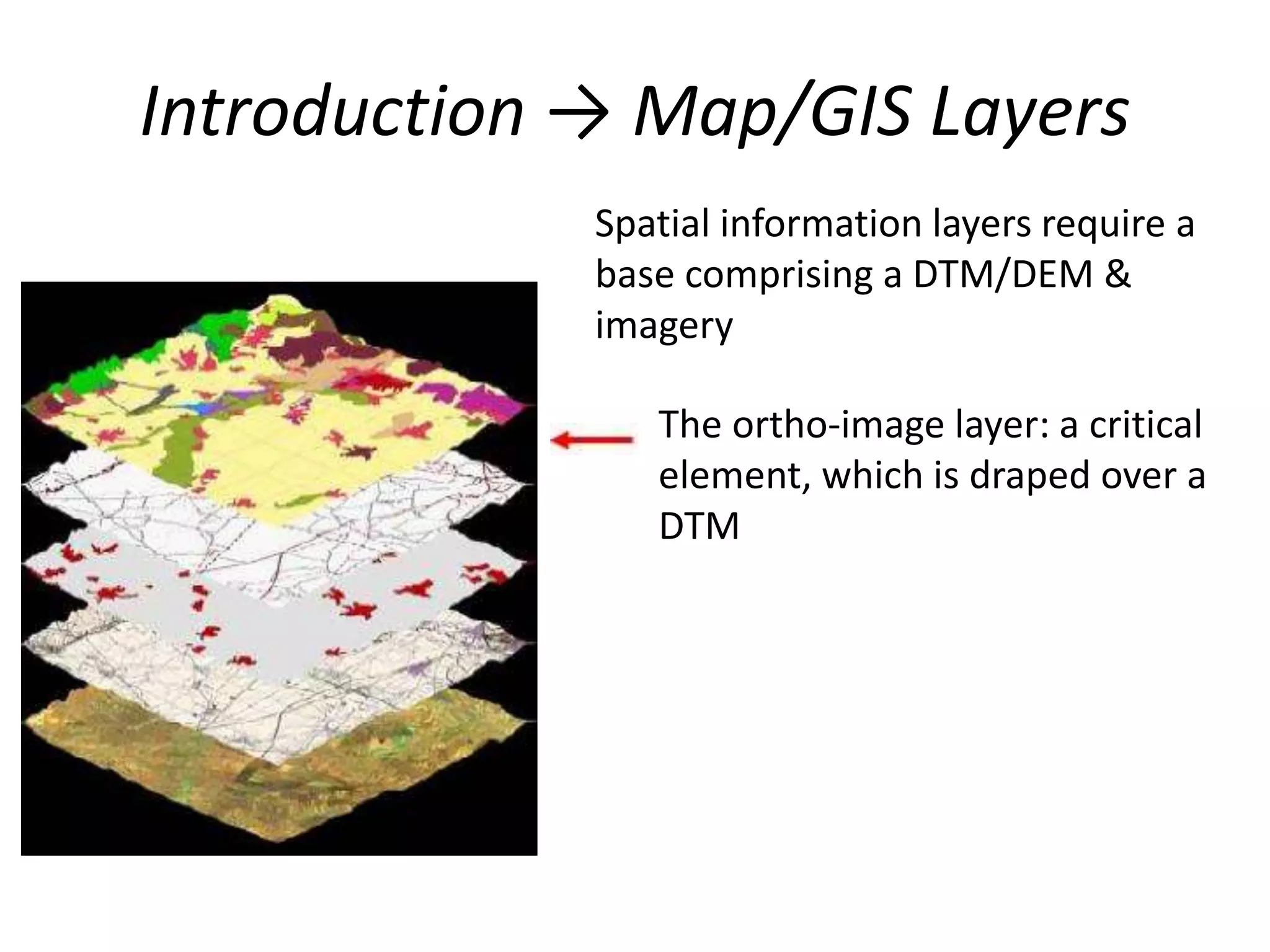

Introduction → Map/GIS Layers
Spatial information layers require a
base comprising a DTM/DEM &
imagery
The ortho-image layer: a critical
element, which is draped over a
DTM

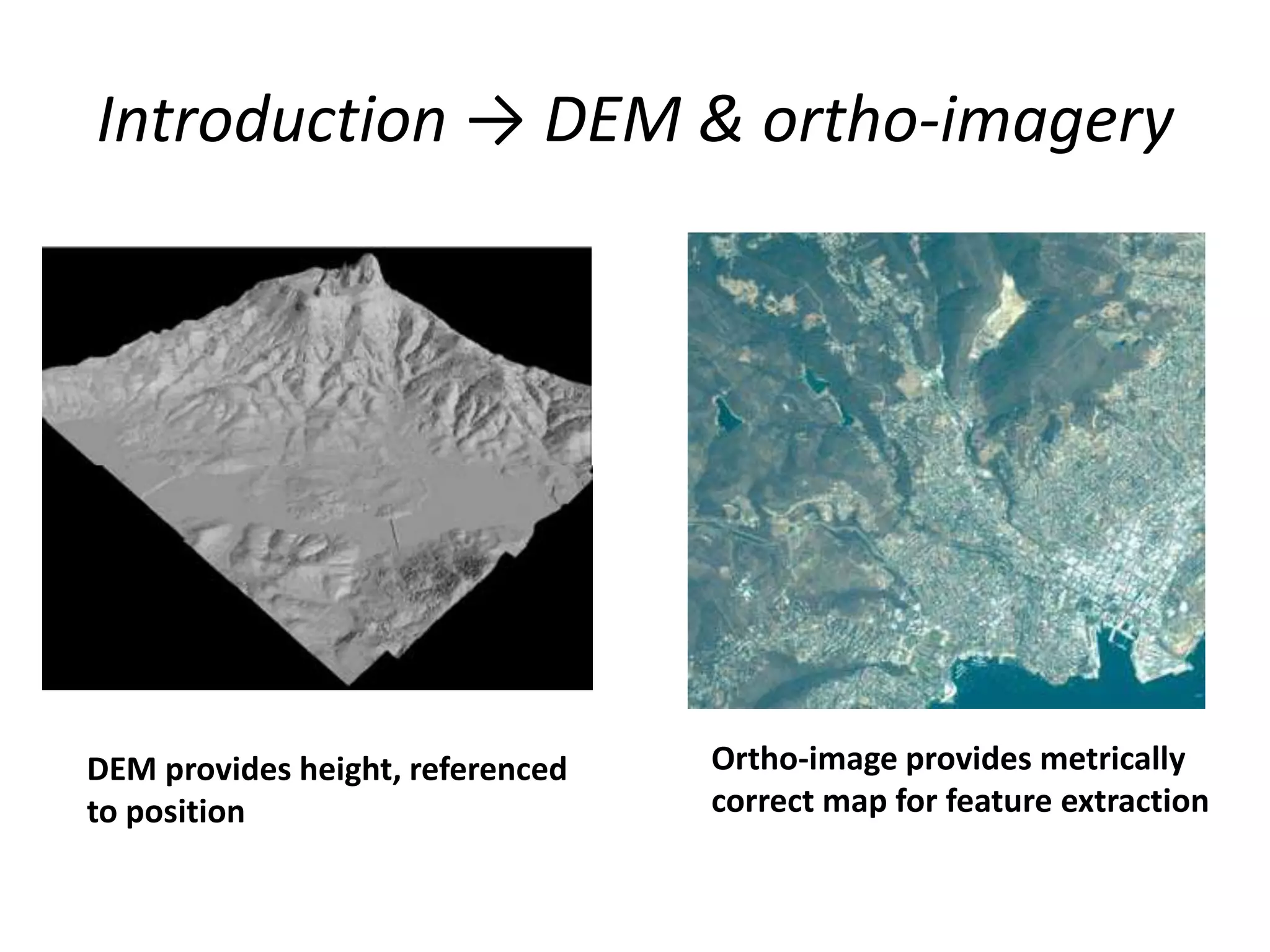

Introduction → DEM & ortho-imagery
DEM provides height, referenced
to position
Ortho-image provides metrically
correct map for feature extraction

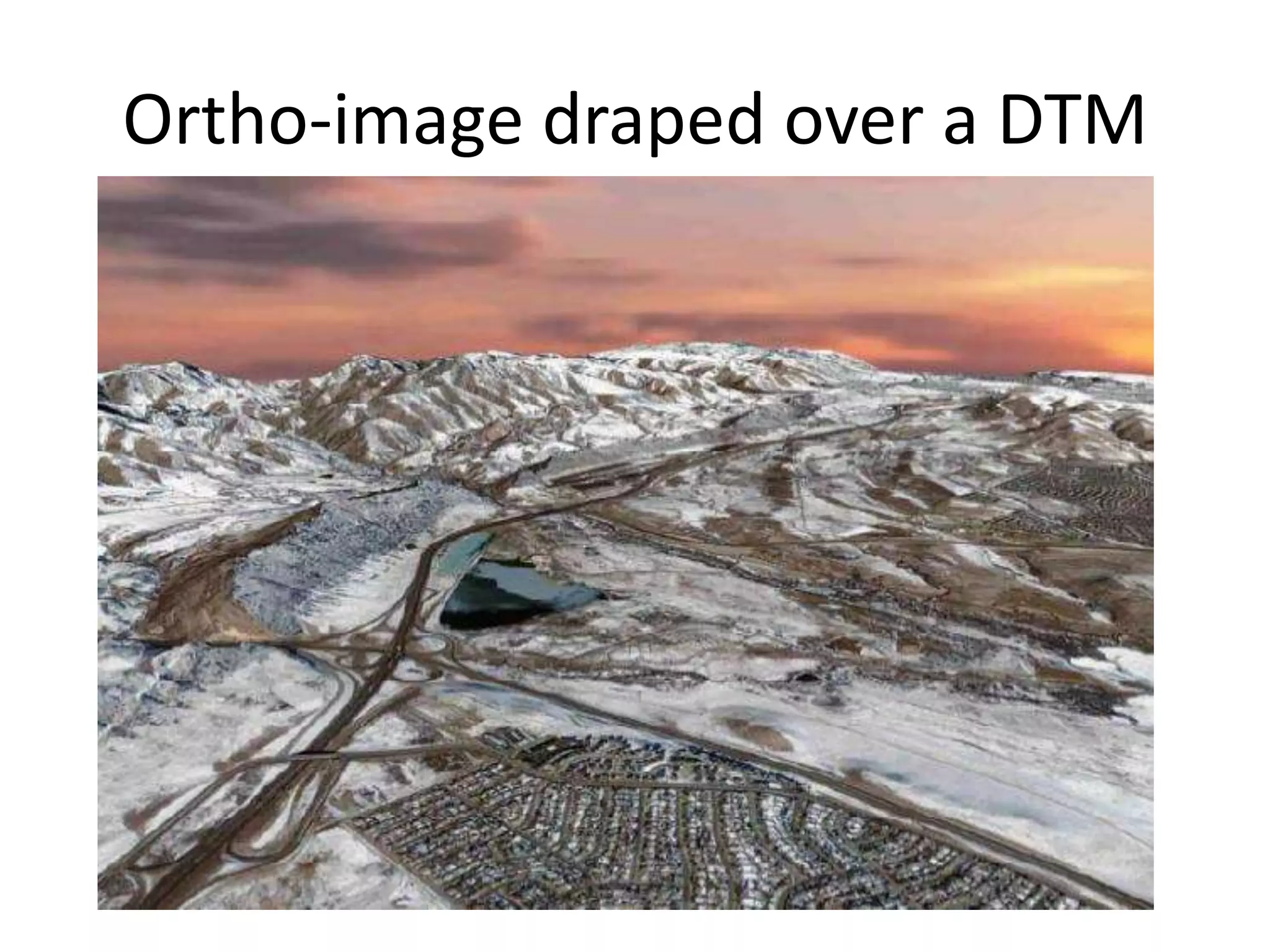

Ortho-image draped over a DTM

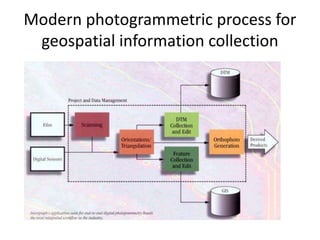

Modern photogrammetric process for
geospatial information collection

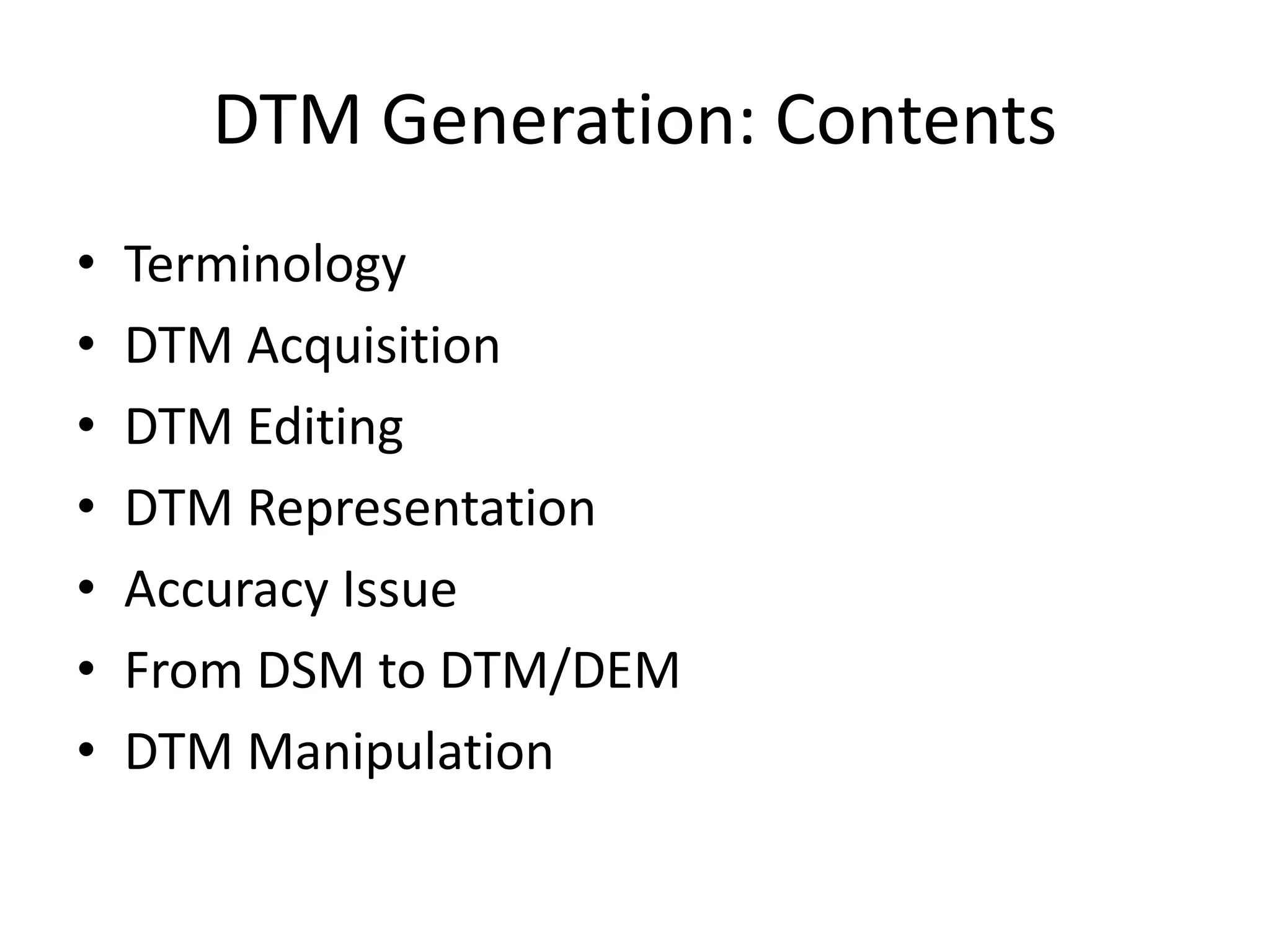

DTM Generation: Contents
• Terminology
• DTM Acquisition
• DTM Editing
• DTM Representation
• Accuracy Issue
• From DSM to DTM/DEM
• DTM Manipulation

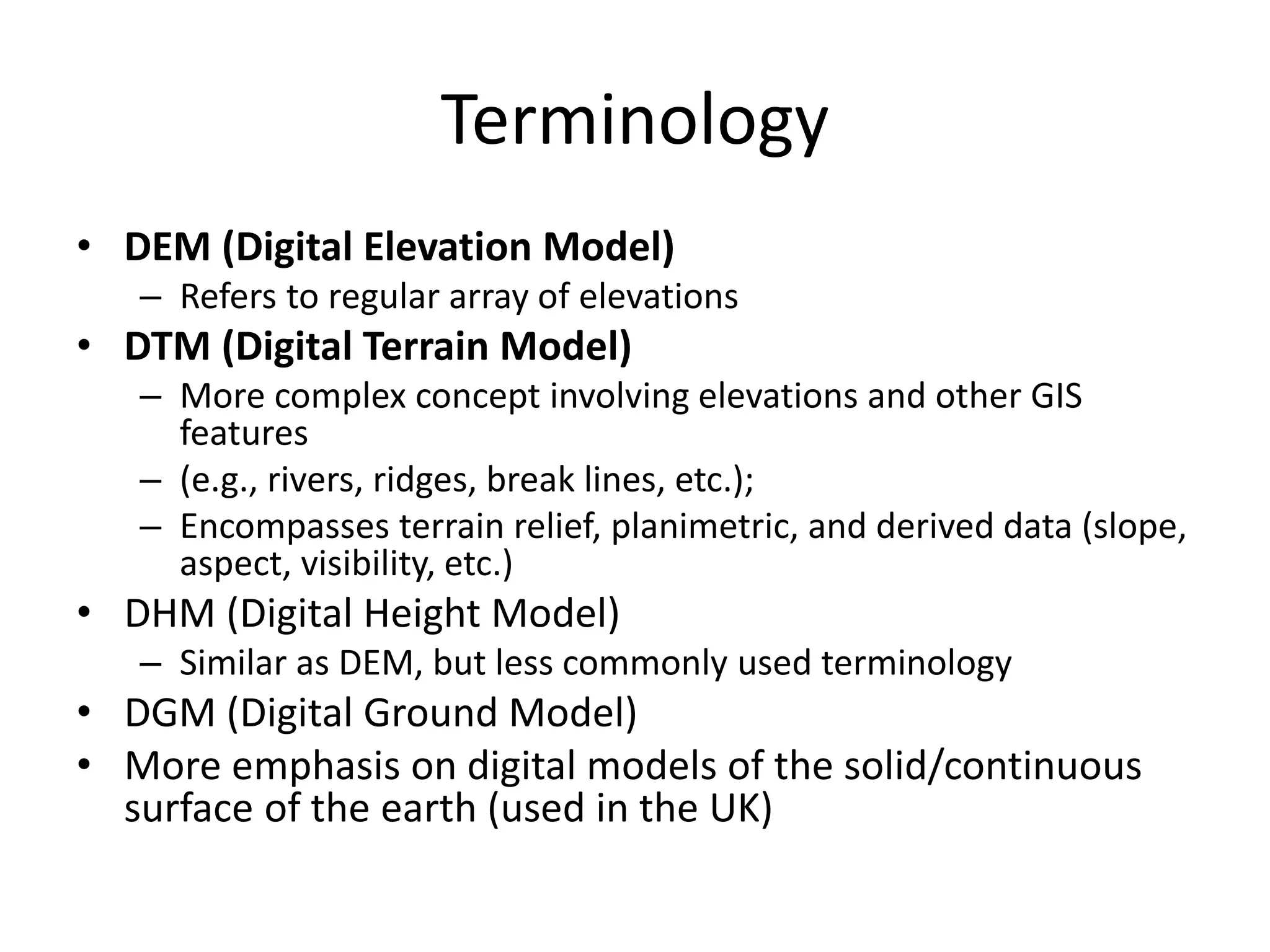

Terminology
• DEM (Digital Elevation Model)
– Refers to regular array of elevations
• DTM (Digital Terrain Model)
– More complex concept involving elevations and other GIS
features
– (e.g., rivers, ridges, break lines, etc.);
– Encompasses terrain relief, planimetric, and derived data (slope,
aspect, visibility, etc.)
• DHM (Digital Height Model)
– Similar as DEM, but less commonly used terminology
• DGM (Digital Ground Model)
• More emphasis on digital models of the solid/continuous
surface of the earth (used in the UK)

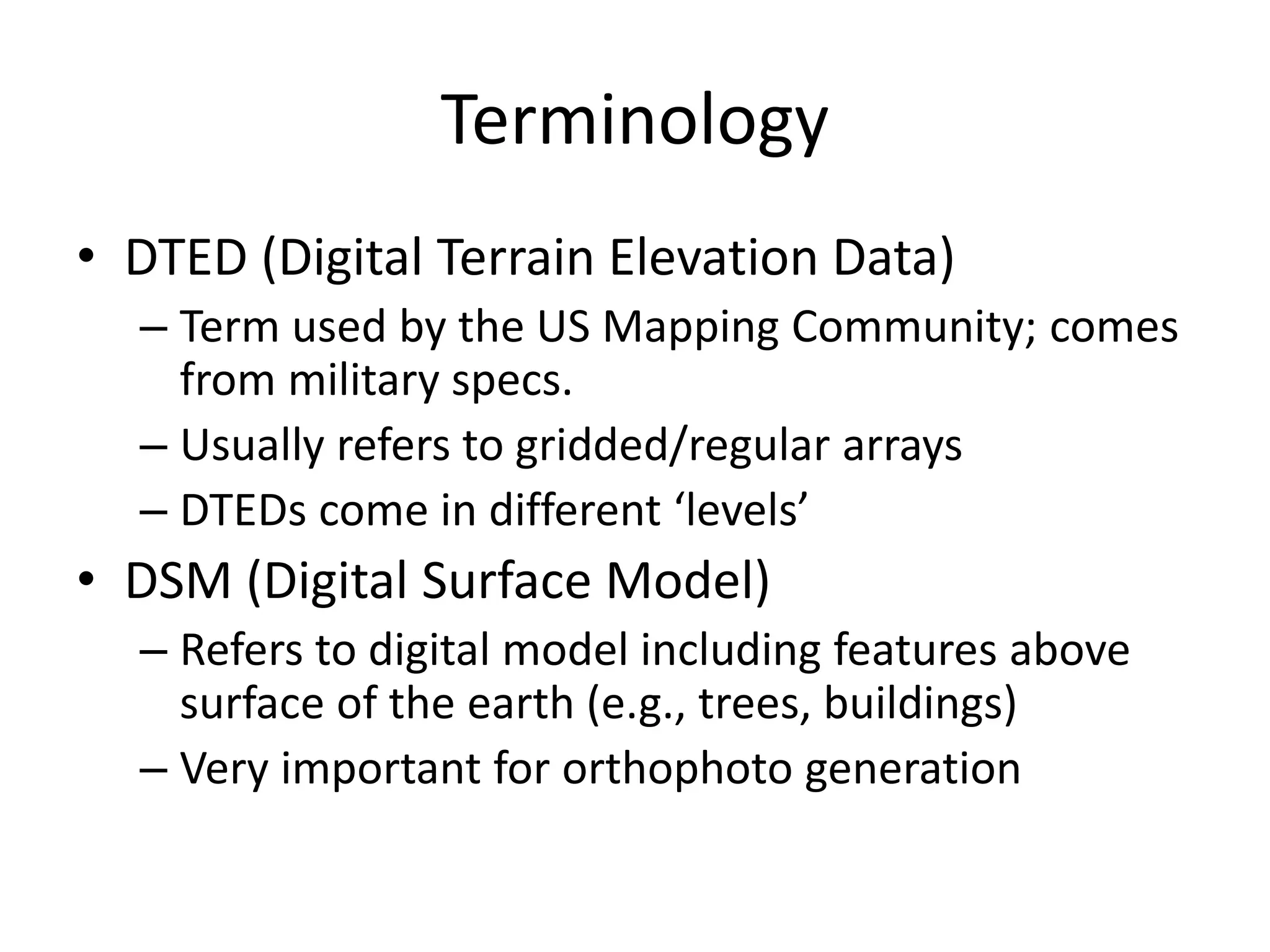

Terminology
• DTED (Digital Terrain Elevation Data)
– Term used by the US Mapping Community; comes
from military specs.
– Usually refers to gridded/regular arrays
– DTEDs come in different ‘levels’
• DSM (Digital Surface Model)
– Refers to digital model including features above
surface of the earth (e.g., trees, buildings)
– Very important for orthophoto generation

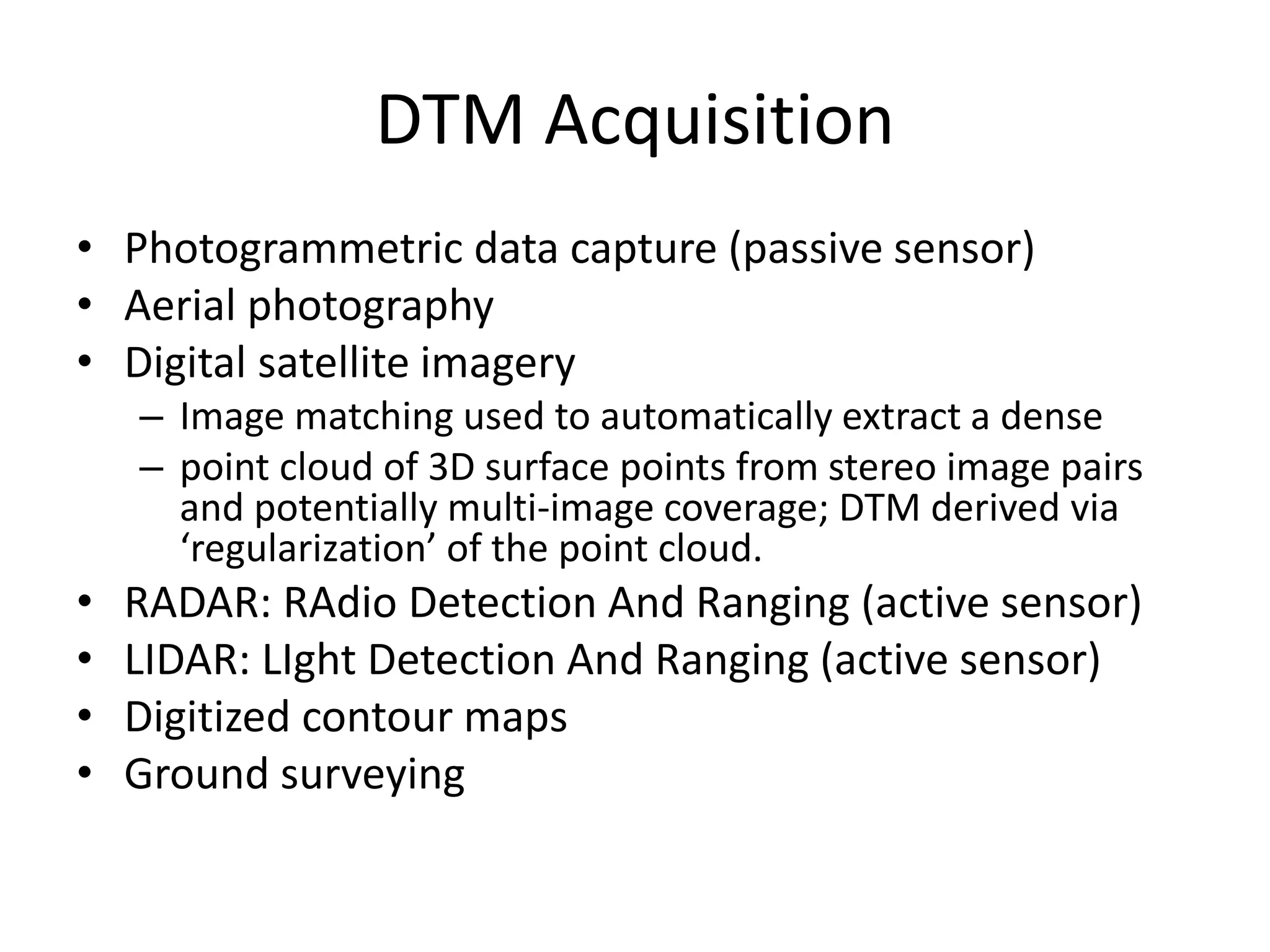

DTM Acquisition
• Photogrammetric data capture (passive sensor)
• Aerial photography
• Digital satellite imagery
– Image matching used to automatically extract a dense
– point cloud of 3D surface points from stereo image pairs
and potentially multi-image coverage; DTM derived via
‘regularization’ of the point cloud.
• RADAR: RAdio Detection And Ranging (active sensor)
• LIDAR: LIght Detection And Ranging (active sensor)
• Digitized contour maps
• Ground surveying

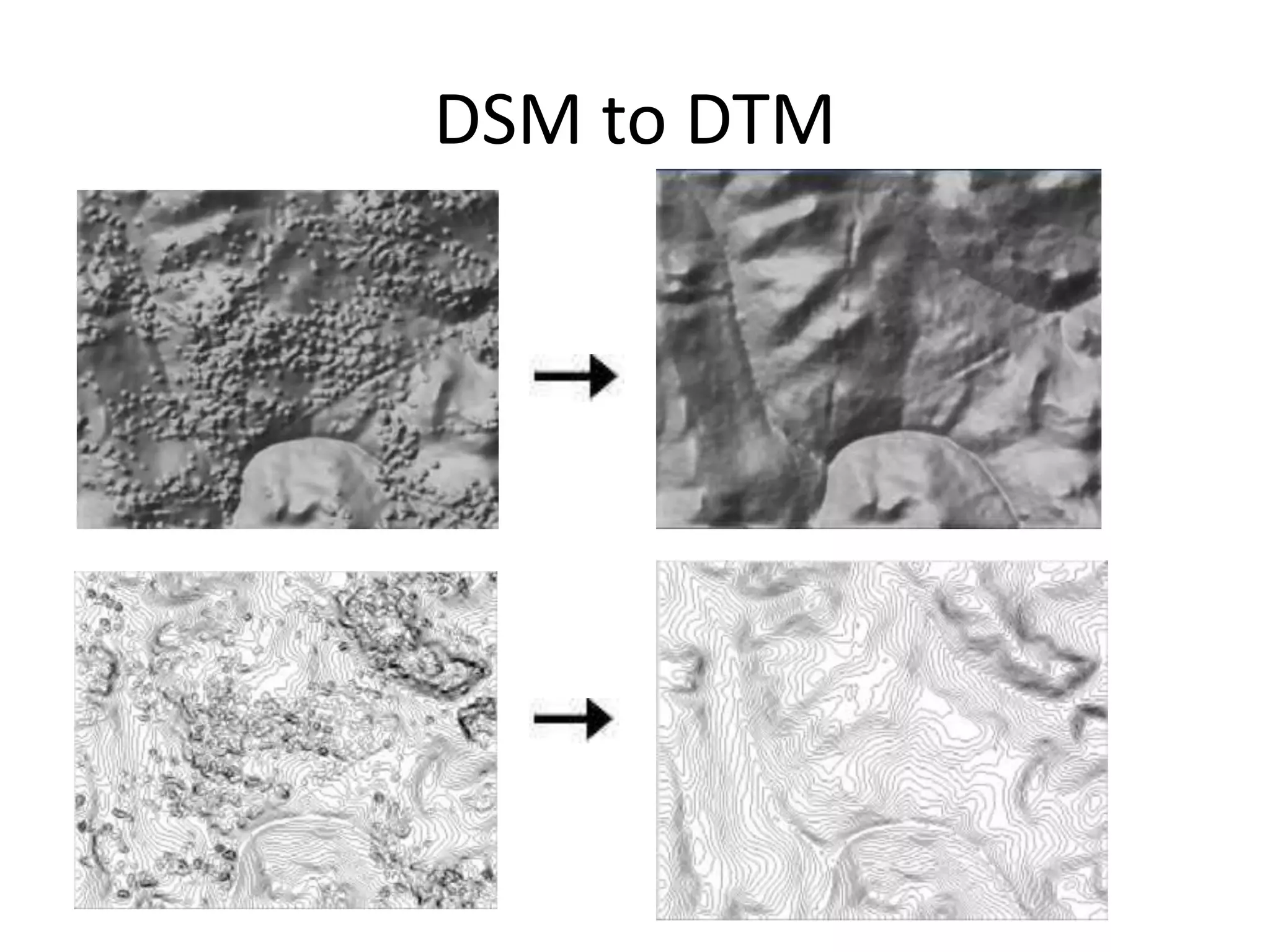

DSM to DTM

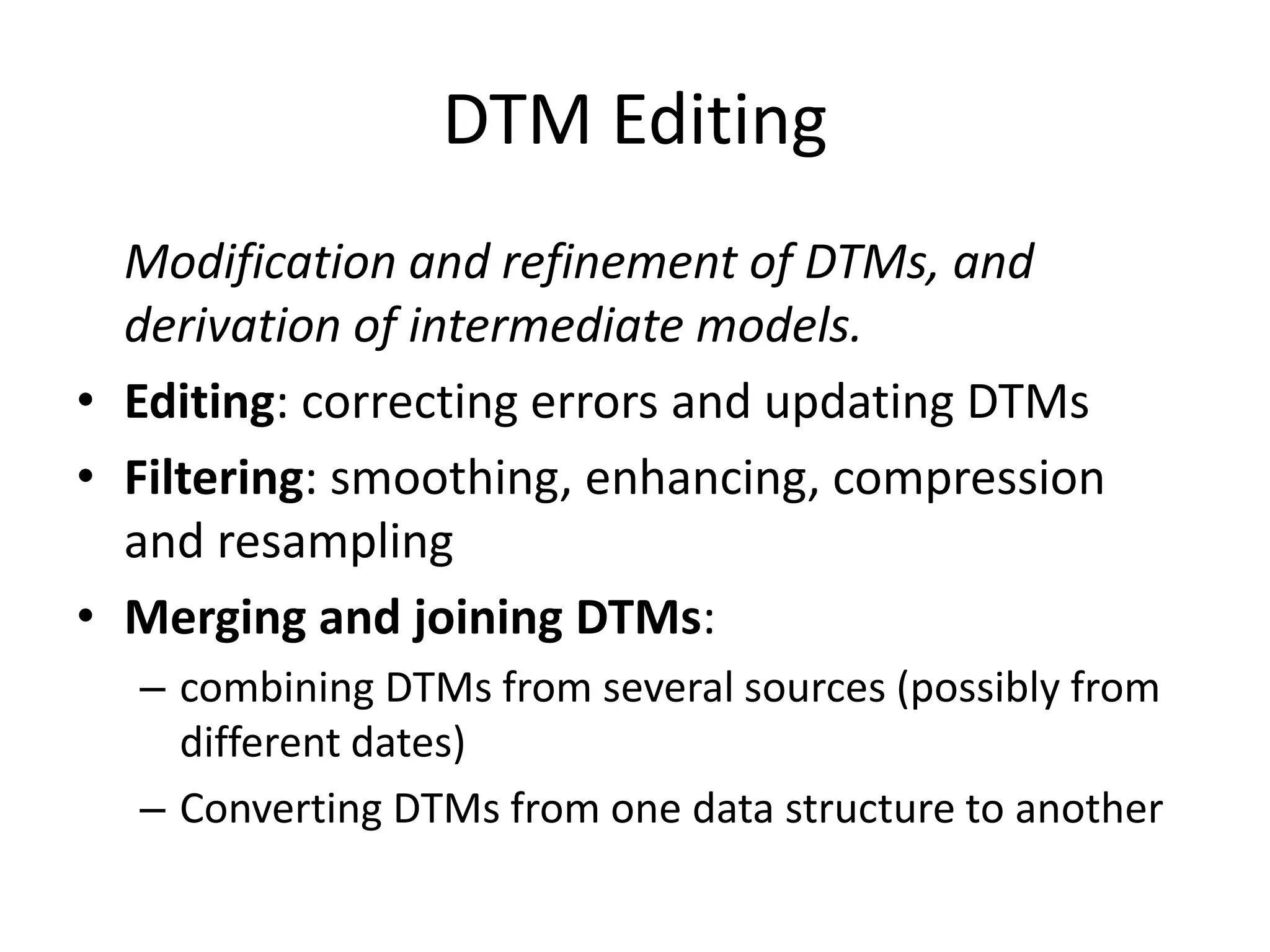

DTM Editing
Modification and refinement of DTMs, and
derivation of intermediate models.
• Editing: correcting errors and updating DTMs
• Filtering: smoothing, enhancing, compression
and resampling
• Merging and joining DTMs:
– combining DTMs from several sources (possibly from
different dates)
– Converting DTMs from one data structure to another

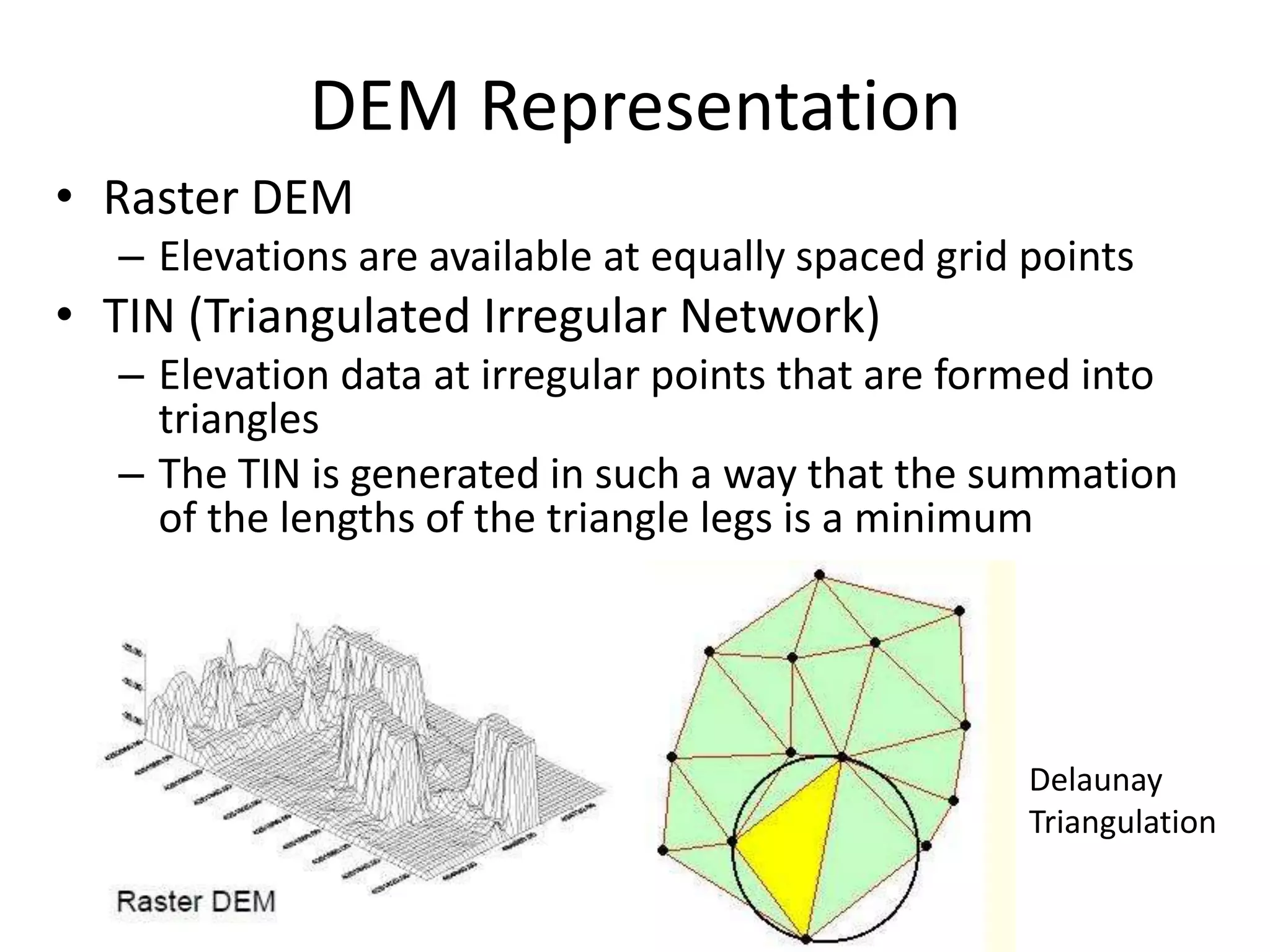

DEM Representation
• Raster DEM
– Elevations are available at equally spaced grid points
• TIN (Triangulated Irregular Network)
– Elevation data at irregular points that are formed into
triangles
– The TIN is generated in such a way that the summation
of the lengths of the triangle legs is a minimum
Delaunay
Triangulation

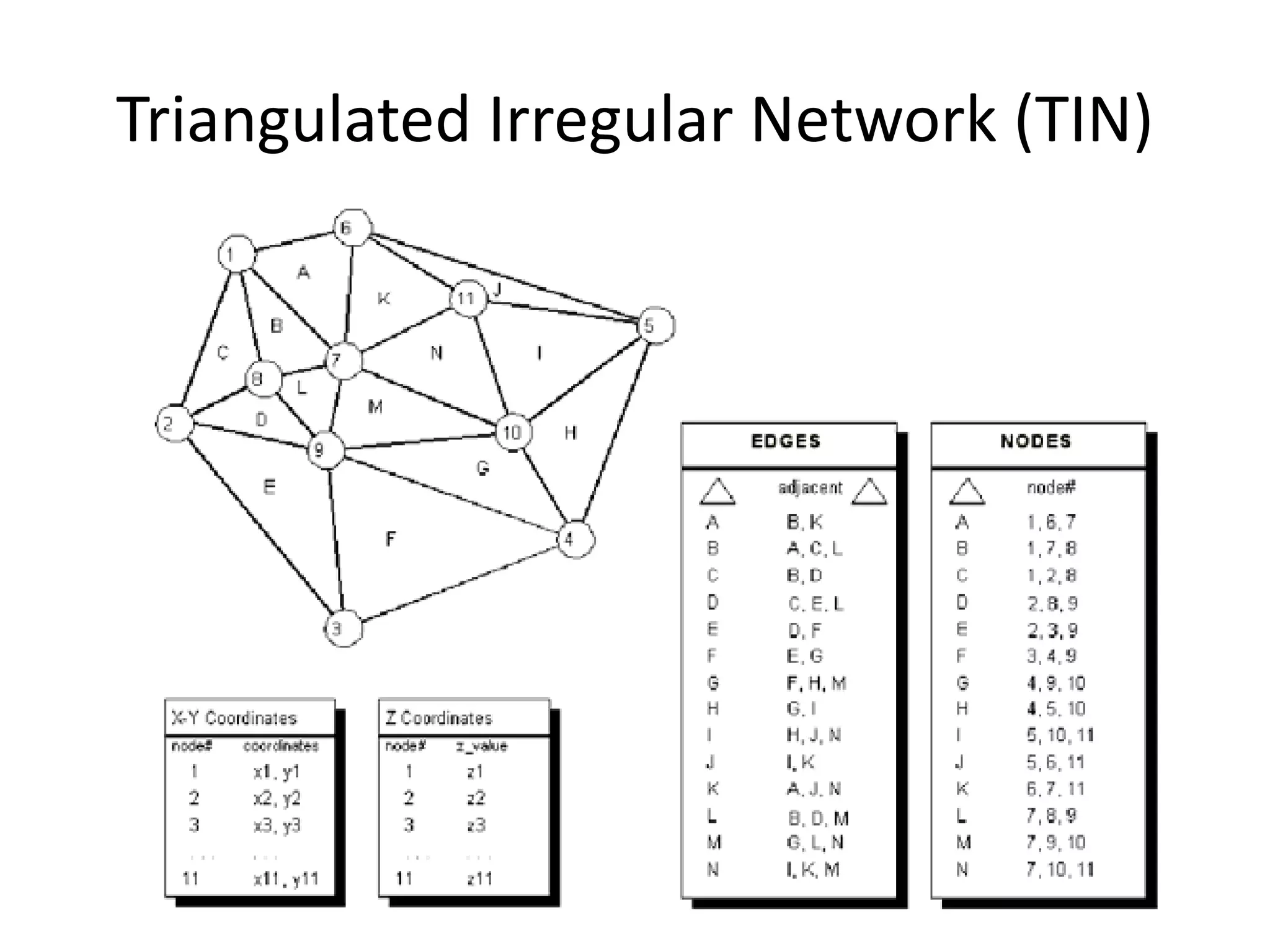

Triangulated Irregular Network (TIN)

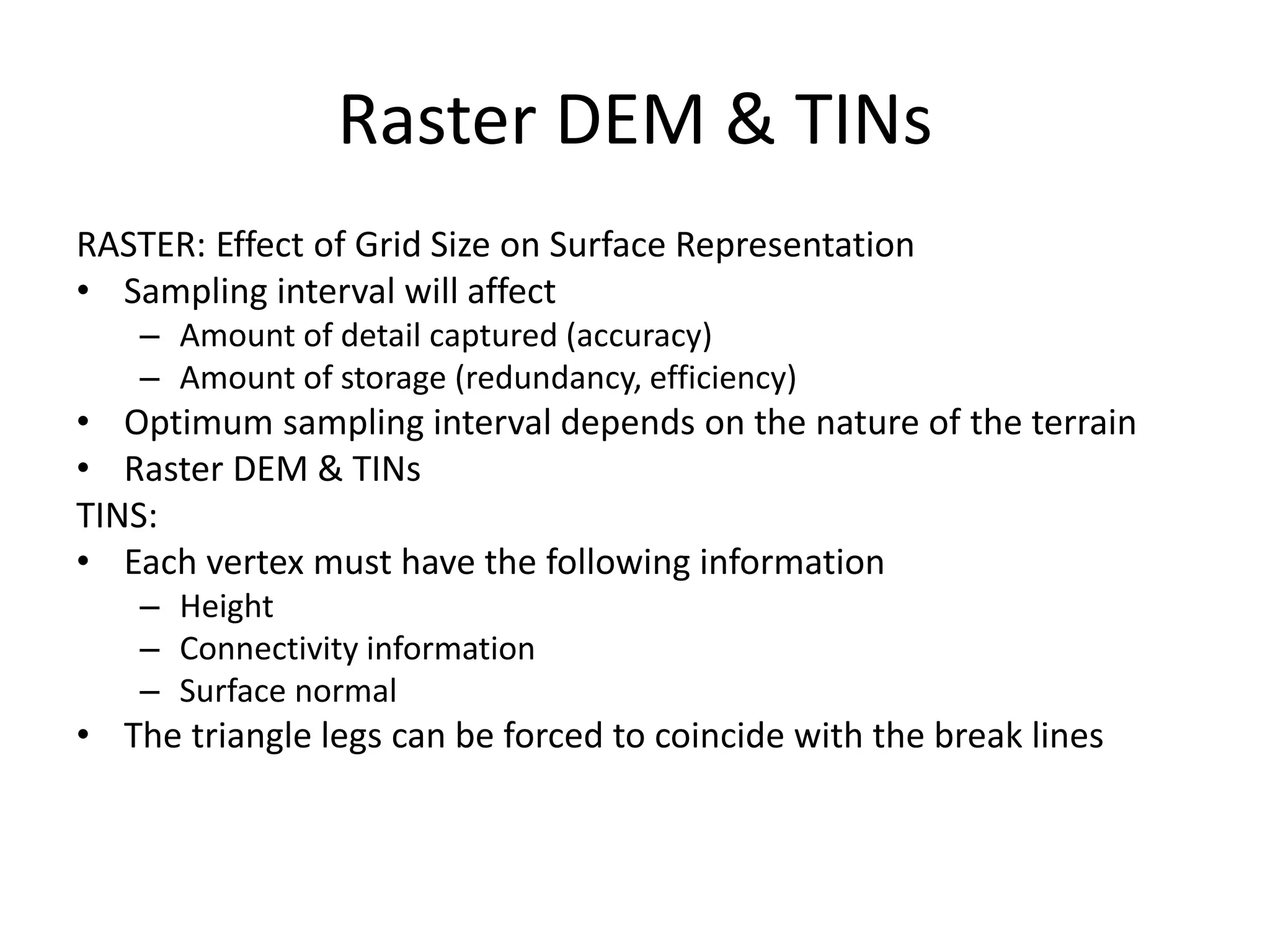

Raster DEM & TINs
RASTER: Effect of Grid Size on Surface Representation
• Sampling interval will affect
– Amount of detail captured (accuracy)
– Amount of storage (redundancy, efficiency)
• Optimum sampling interval depends on the nature of the terrain
• Raster DEM & TINs
TINS:
• Each vertex must have the following information
– Height
– Connectivity information
– Surface normal
• The triangle legs can be forced to coincide with the break lines

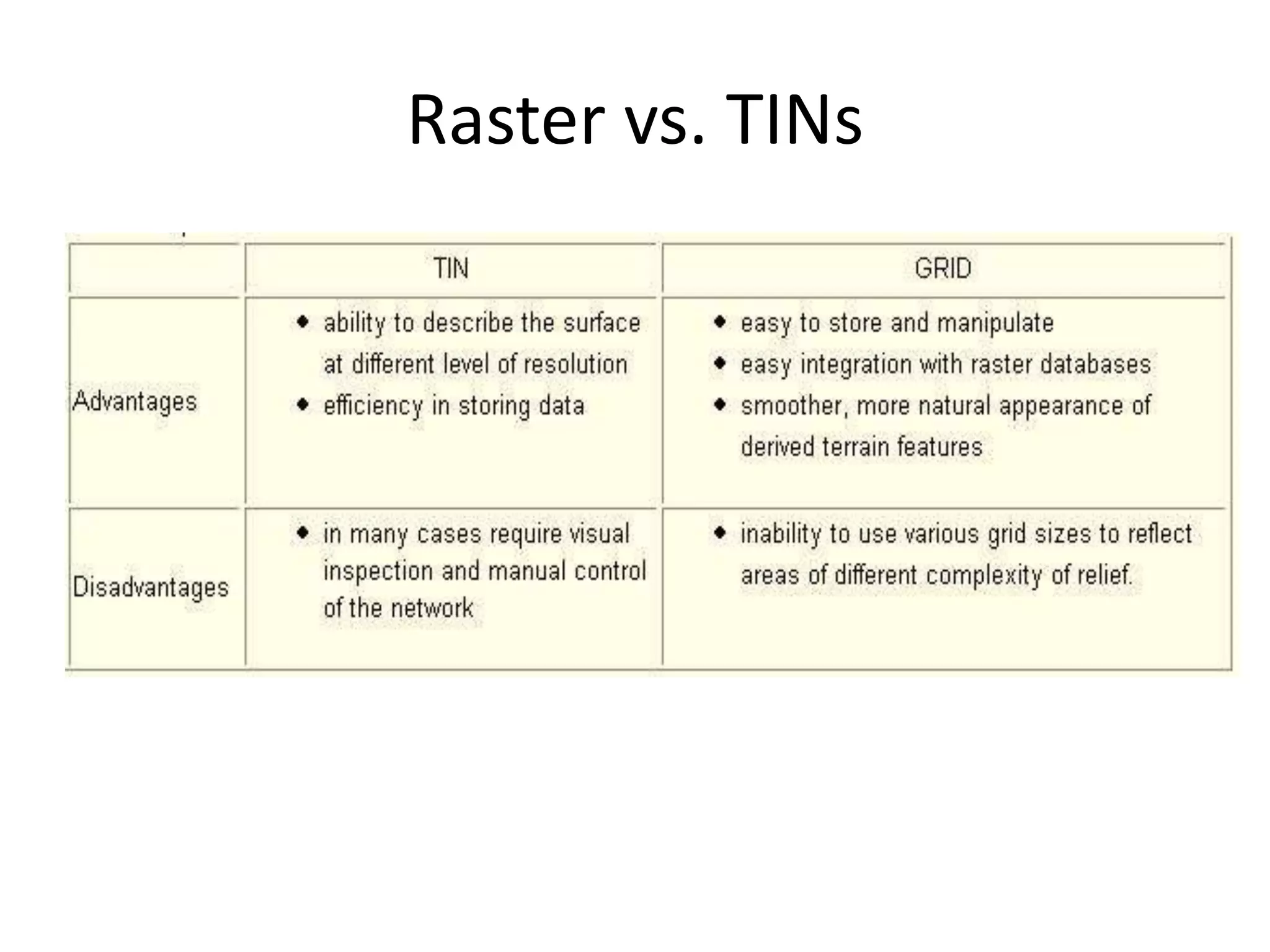

Raster vs. TINs

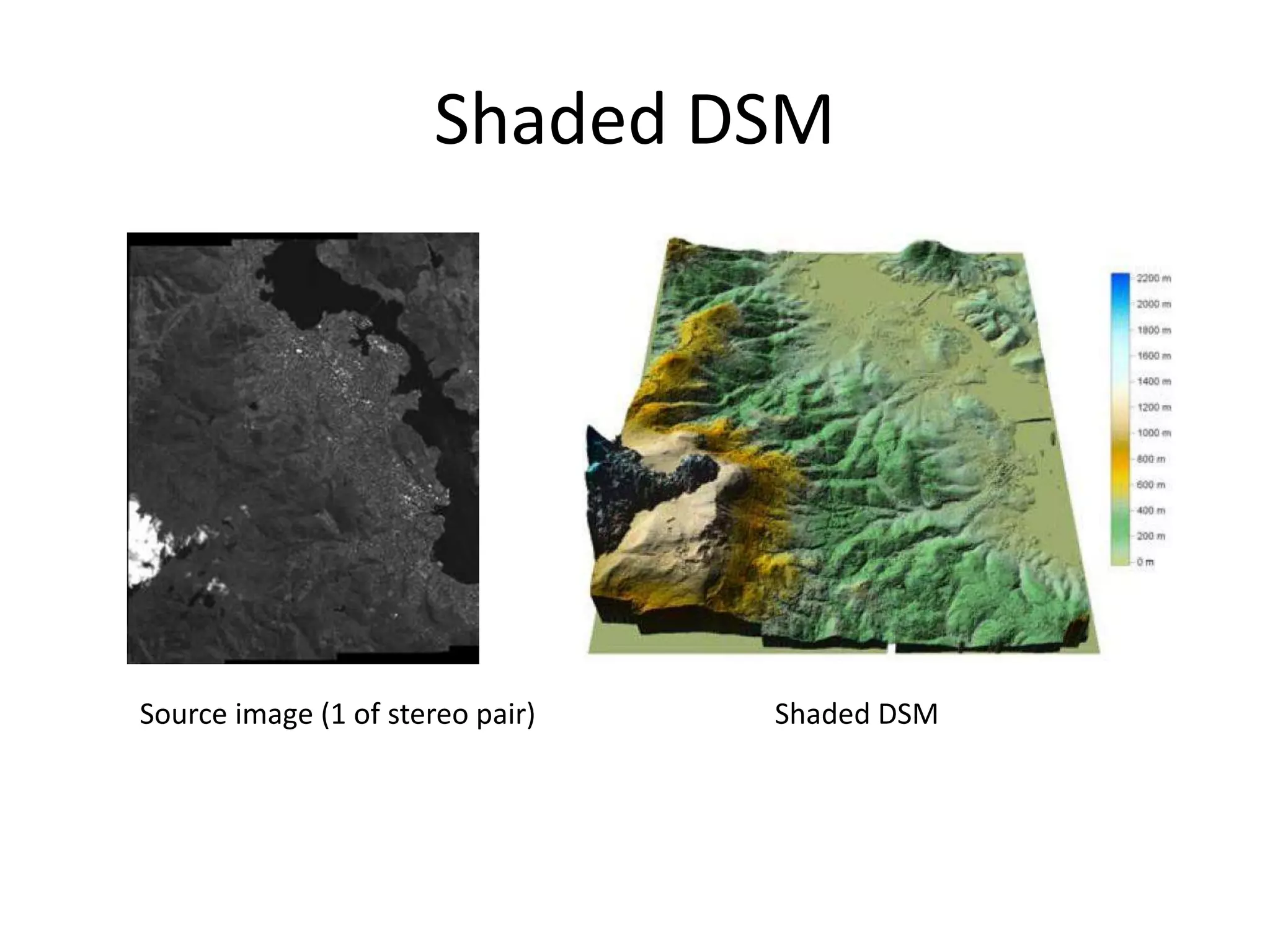

Shaded DSM
Source image (1 of stereo pair) Shaded DSM

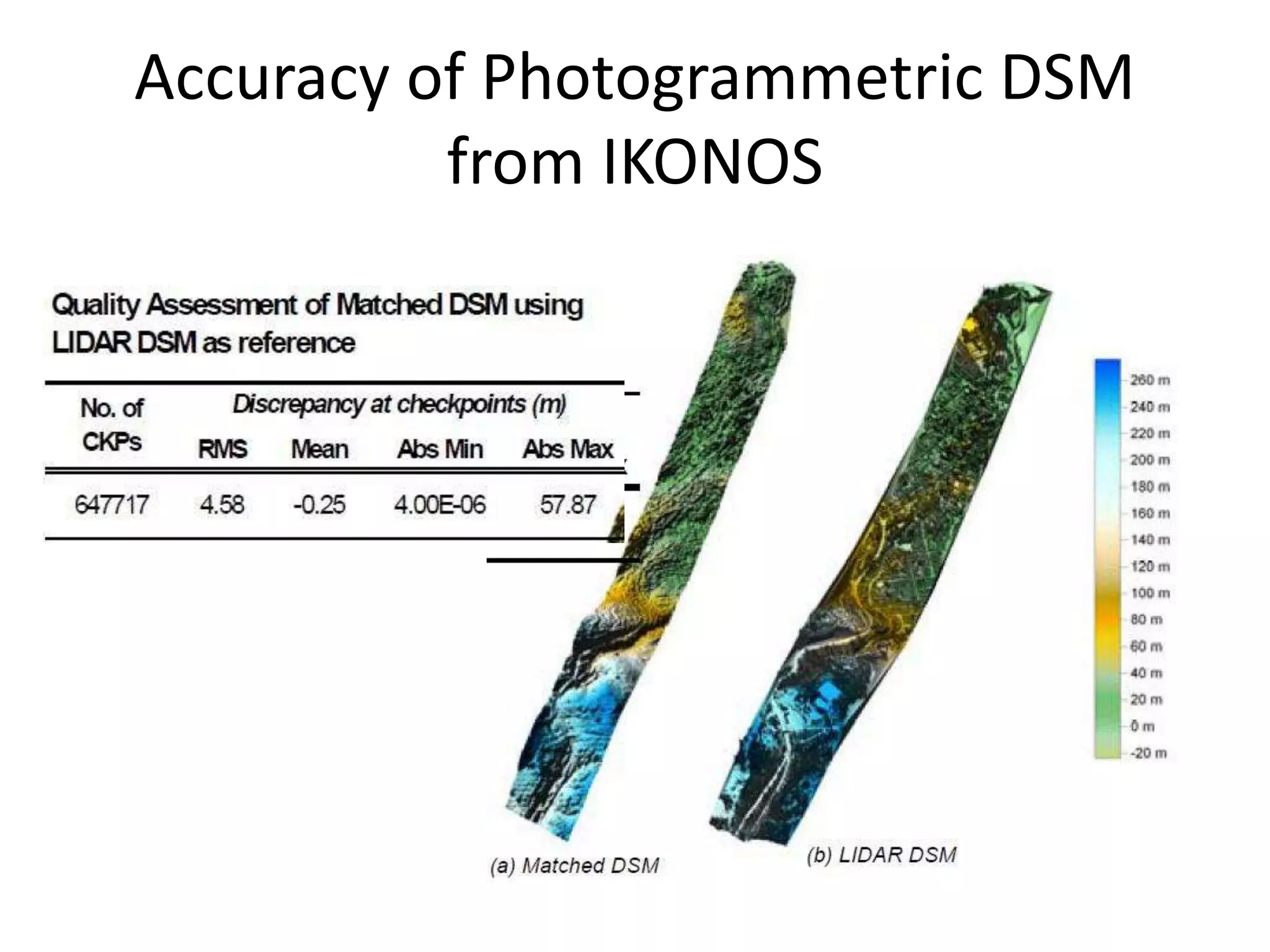

Accuracy of Photogrammetric DSM
from IKONOS

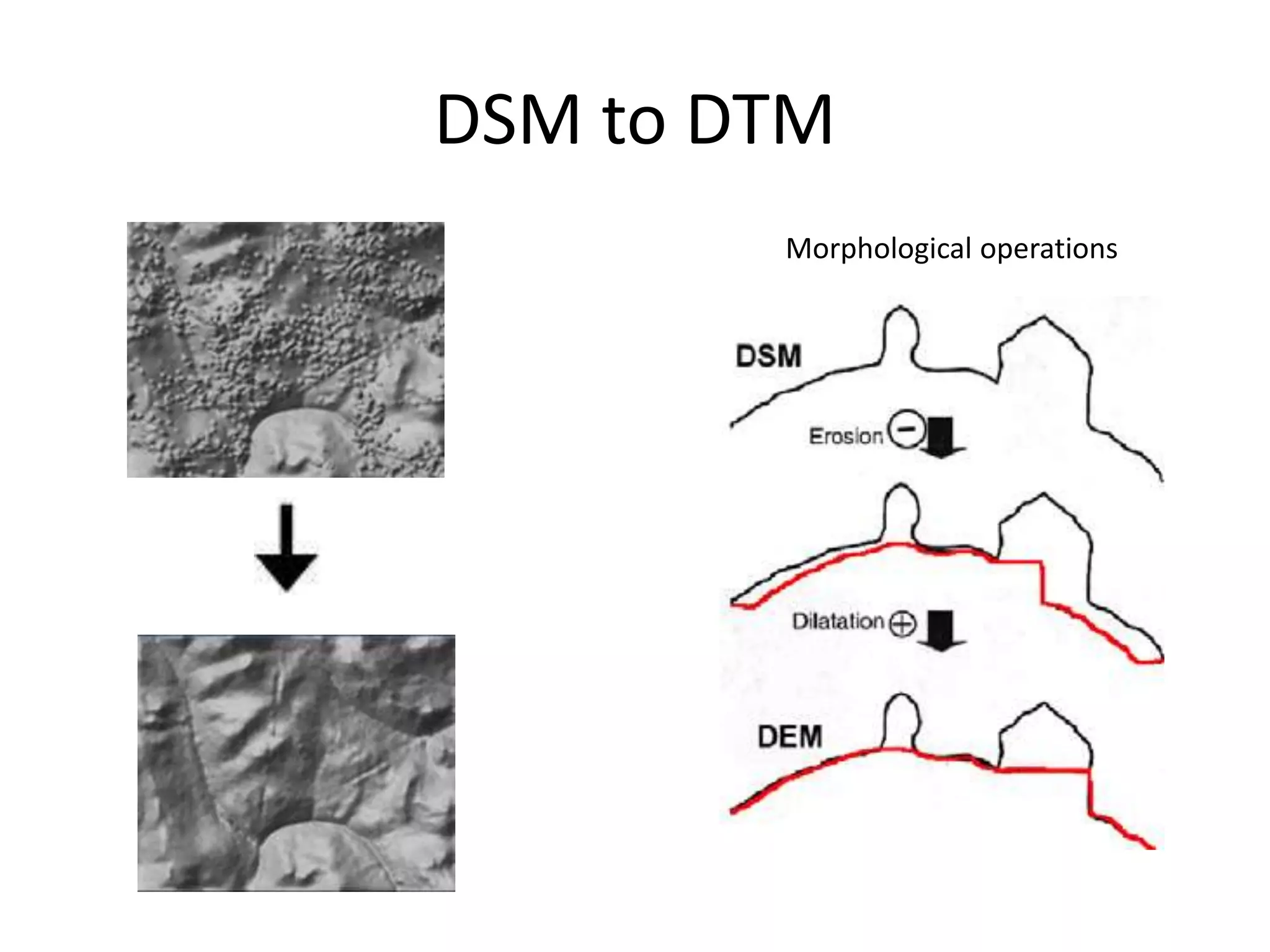

DSM to DTM
Morphological operations

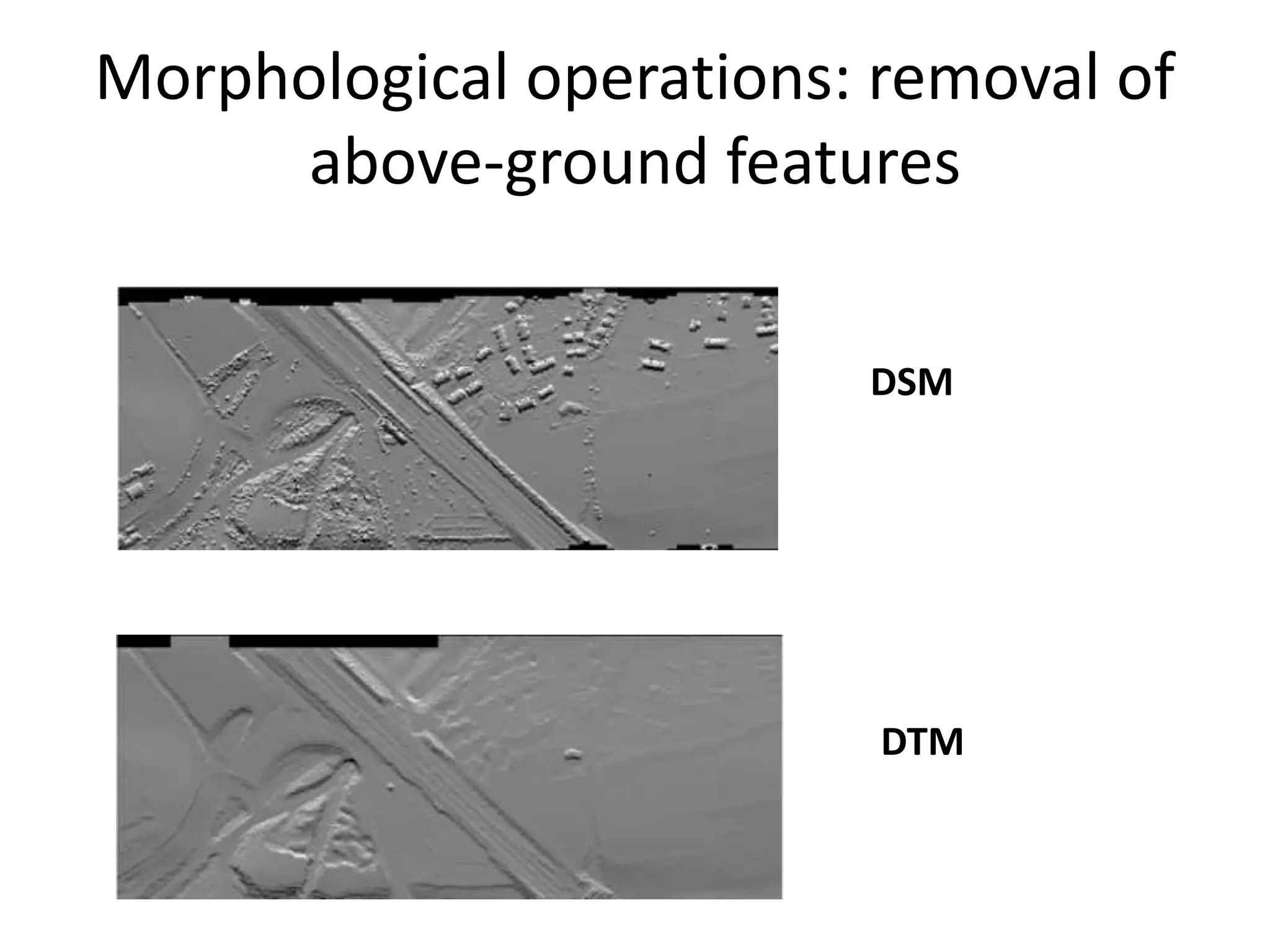

Morphological operations: removal of
above-ground features
DSM
DTM

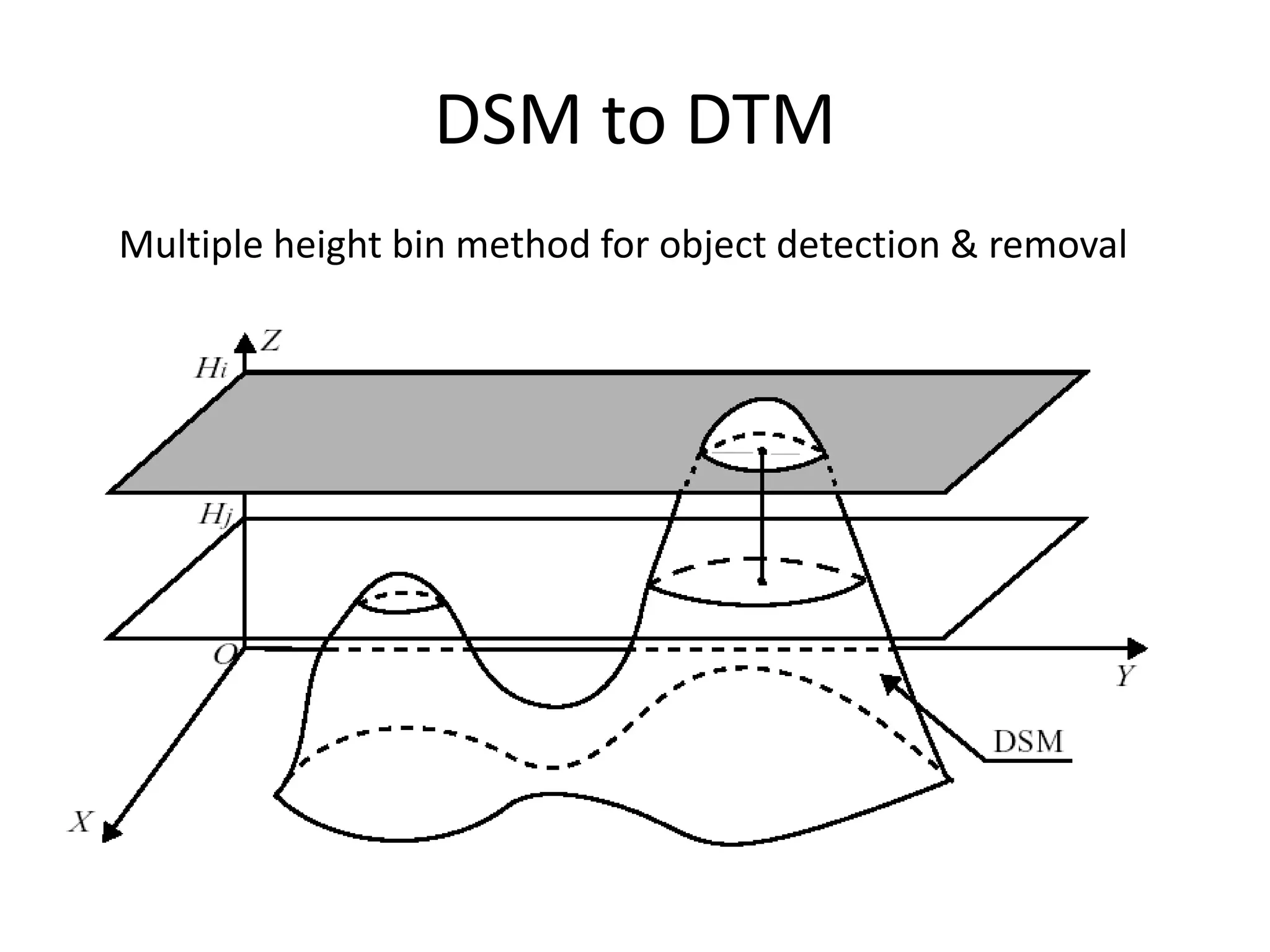

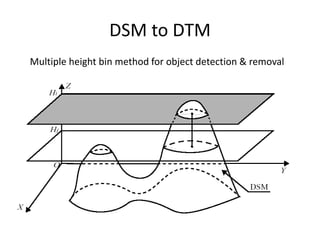

DSM to DTM
Multiple height bin method for object detection & removal

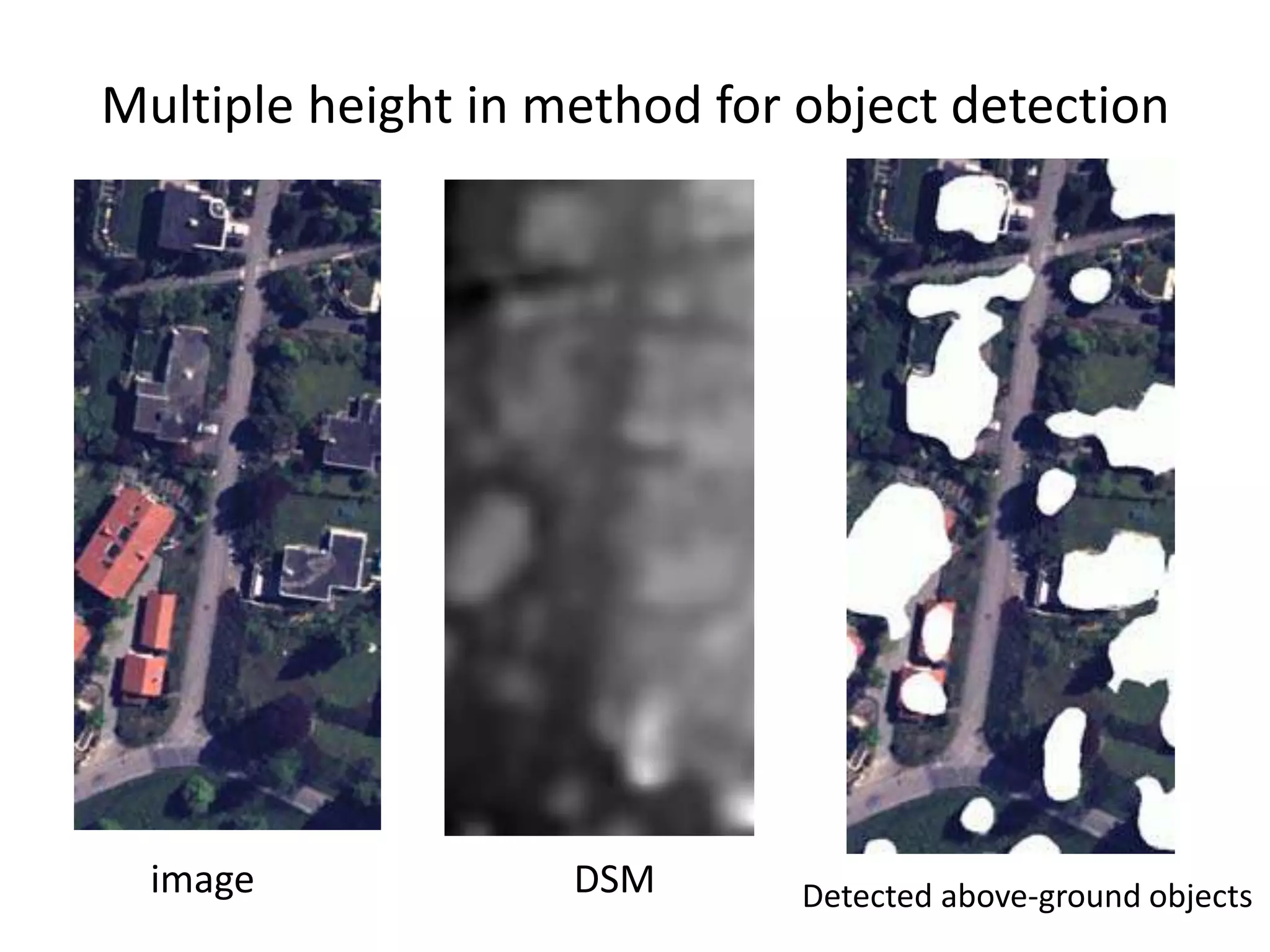

Multiple height in method for object detection
image DSM Detected above-ground objects

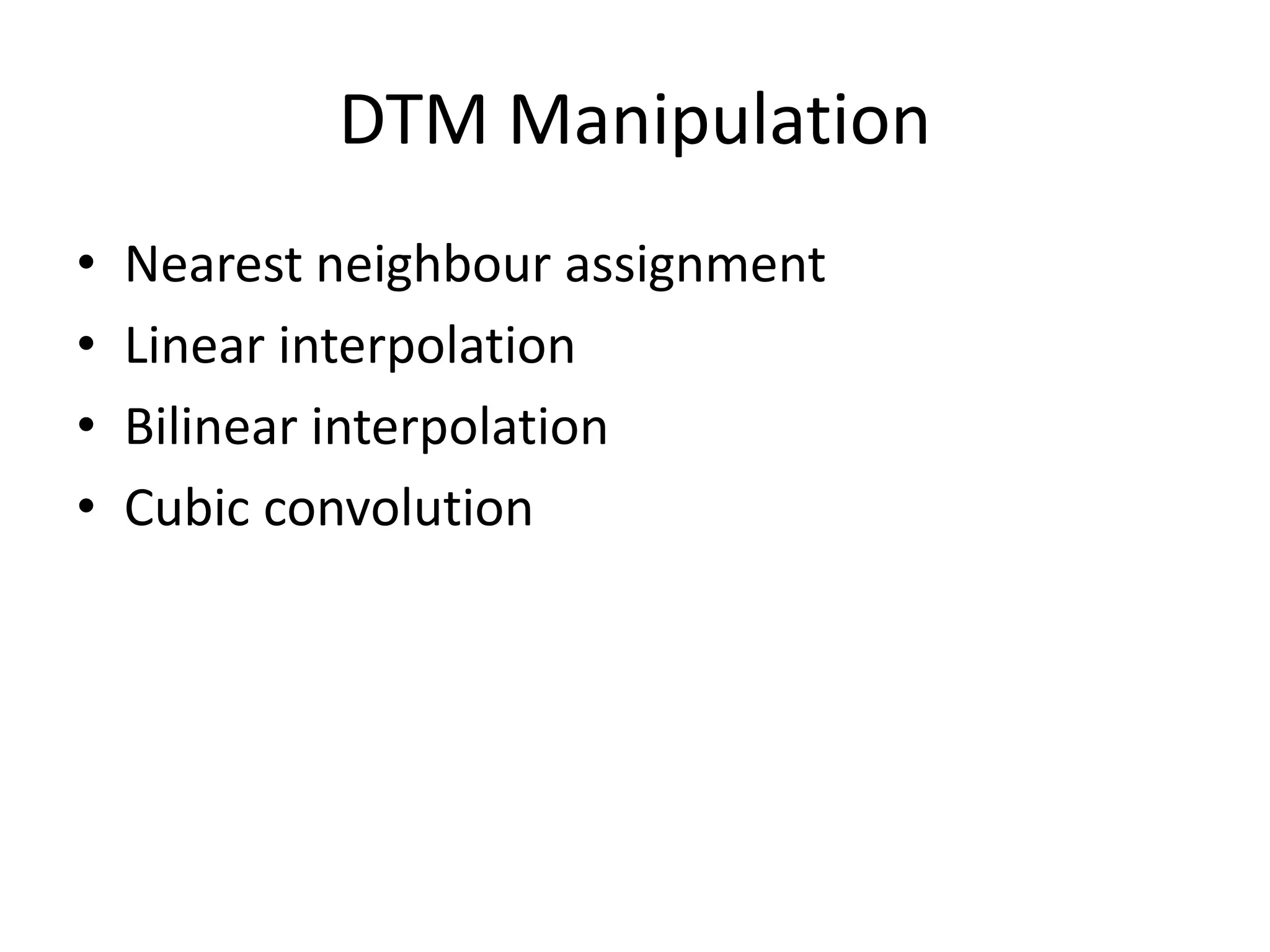

DTM Manipulation
• Nearest neighbour assignment
• Linear interpolation
• Bilinear interpolation
• Cubic convolution

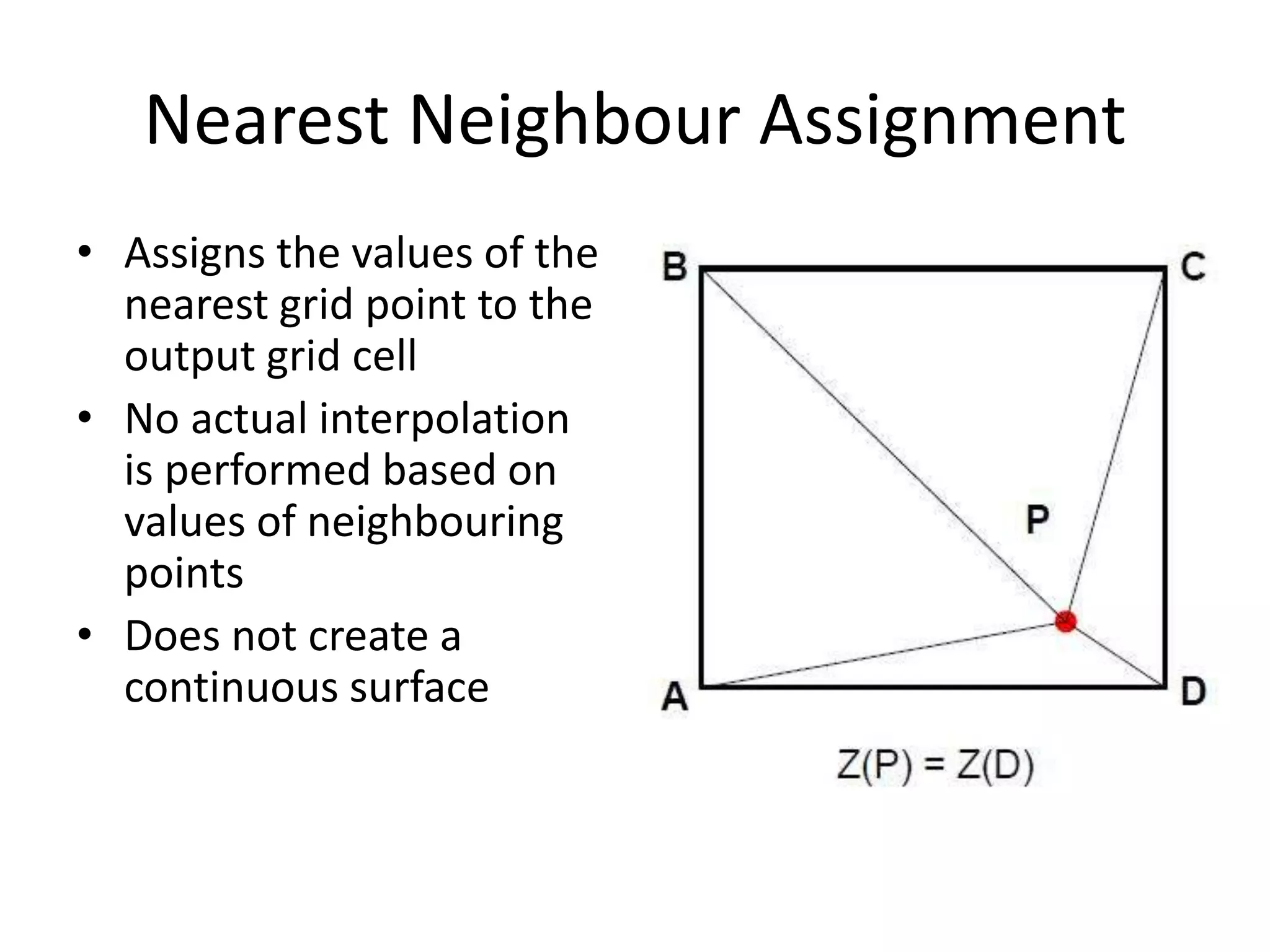

Nearest Neighbour Assignment
• Assigns the values of the
nearest grid point to the
output grid cell
• No actual interpolation
is performed based on
values of neighbouring
points
• Does not create a
continuous surface

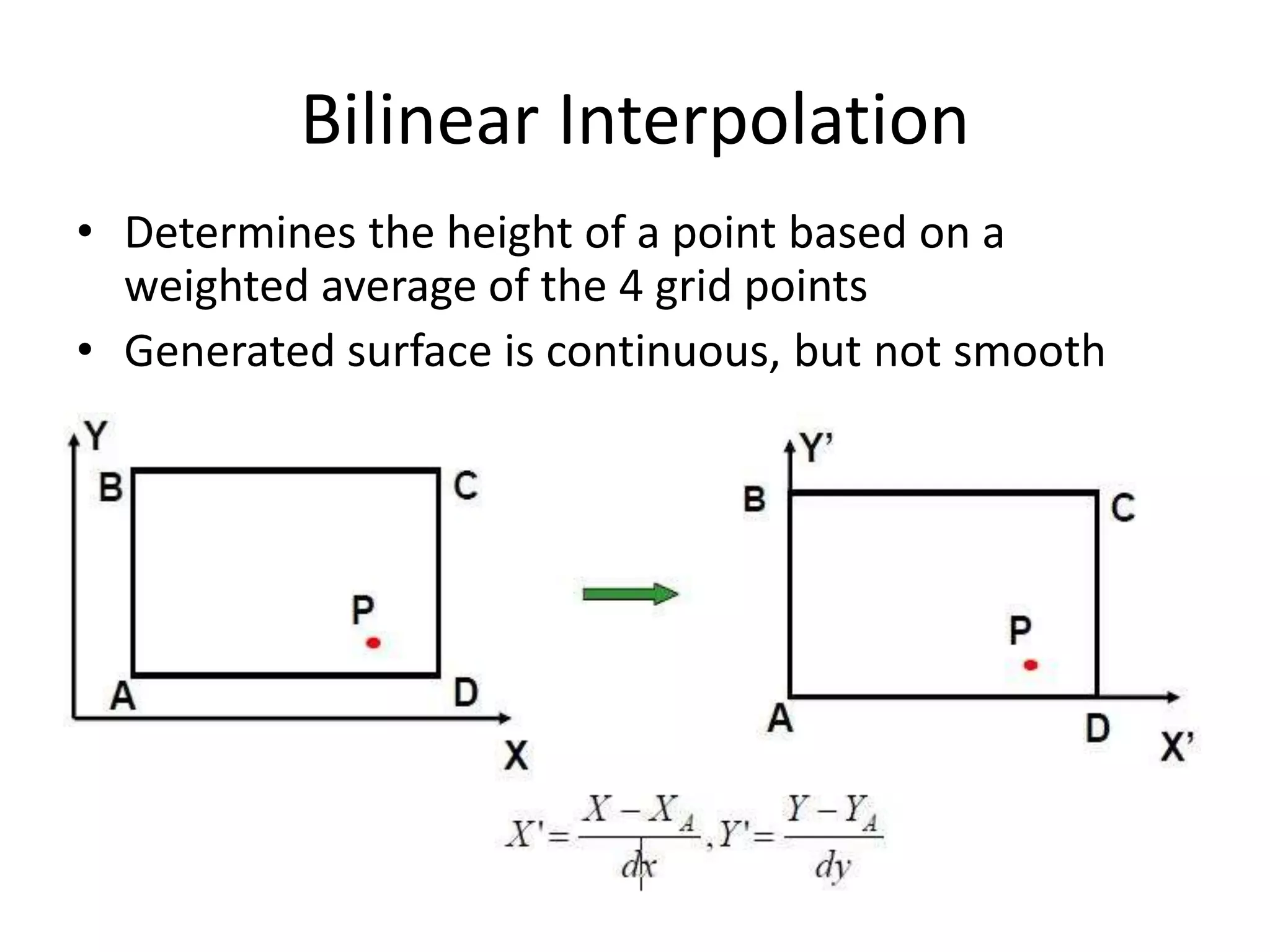

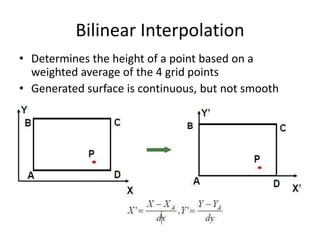

Bilinear Interpolation
• Determines the height of a point based on a
weighted average of the 4 grid points
• Generated surface is continuous, but not smooth

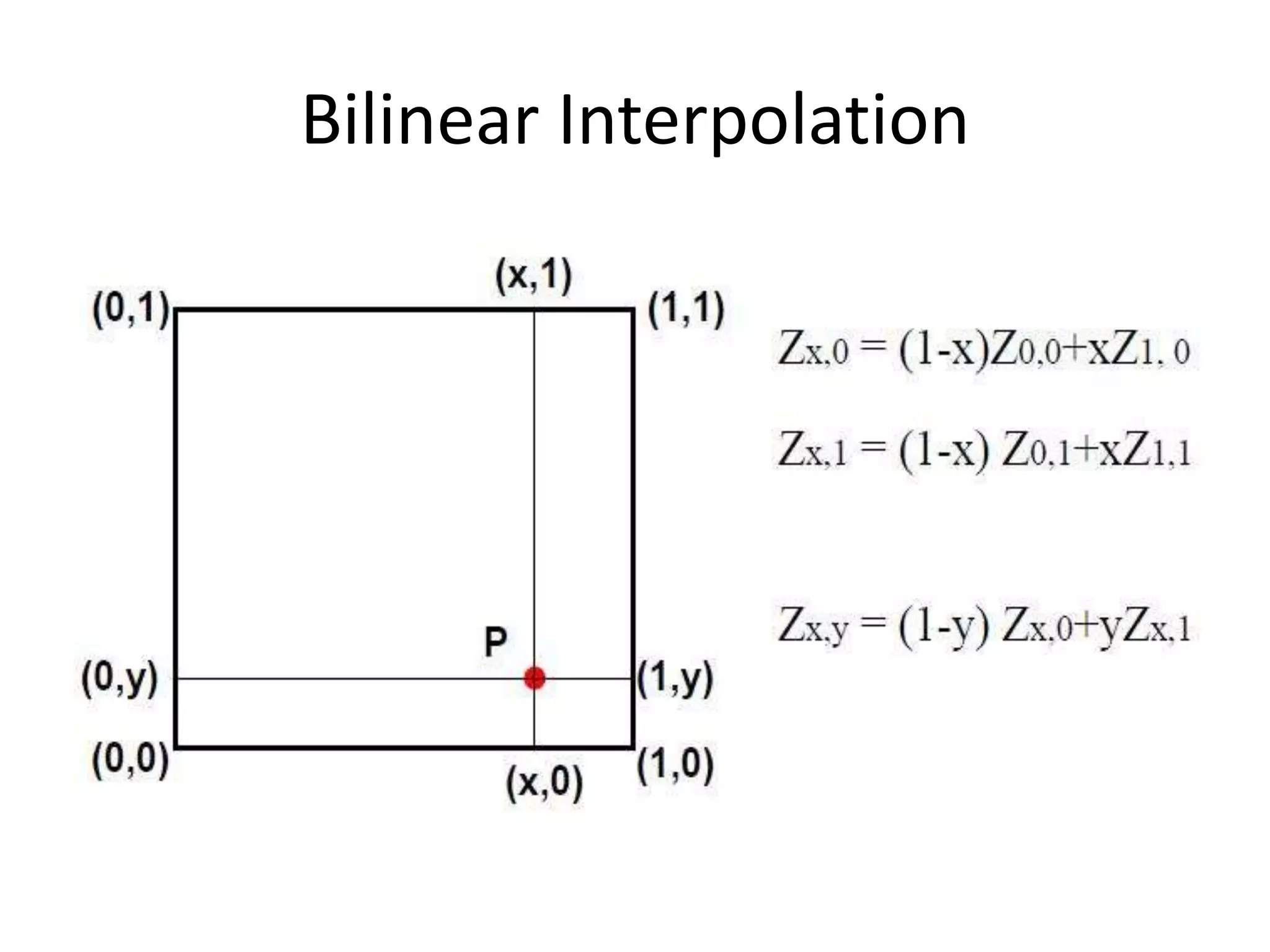

Bilinear Interpolation

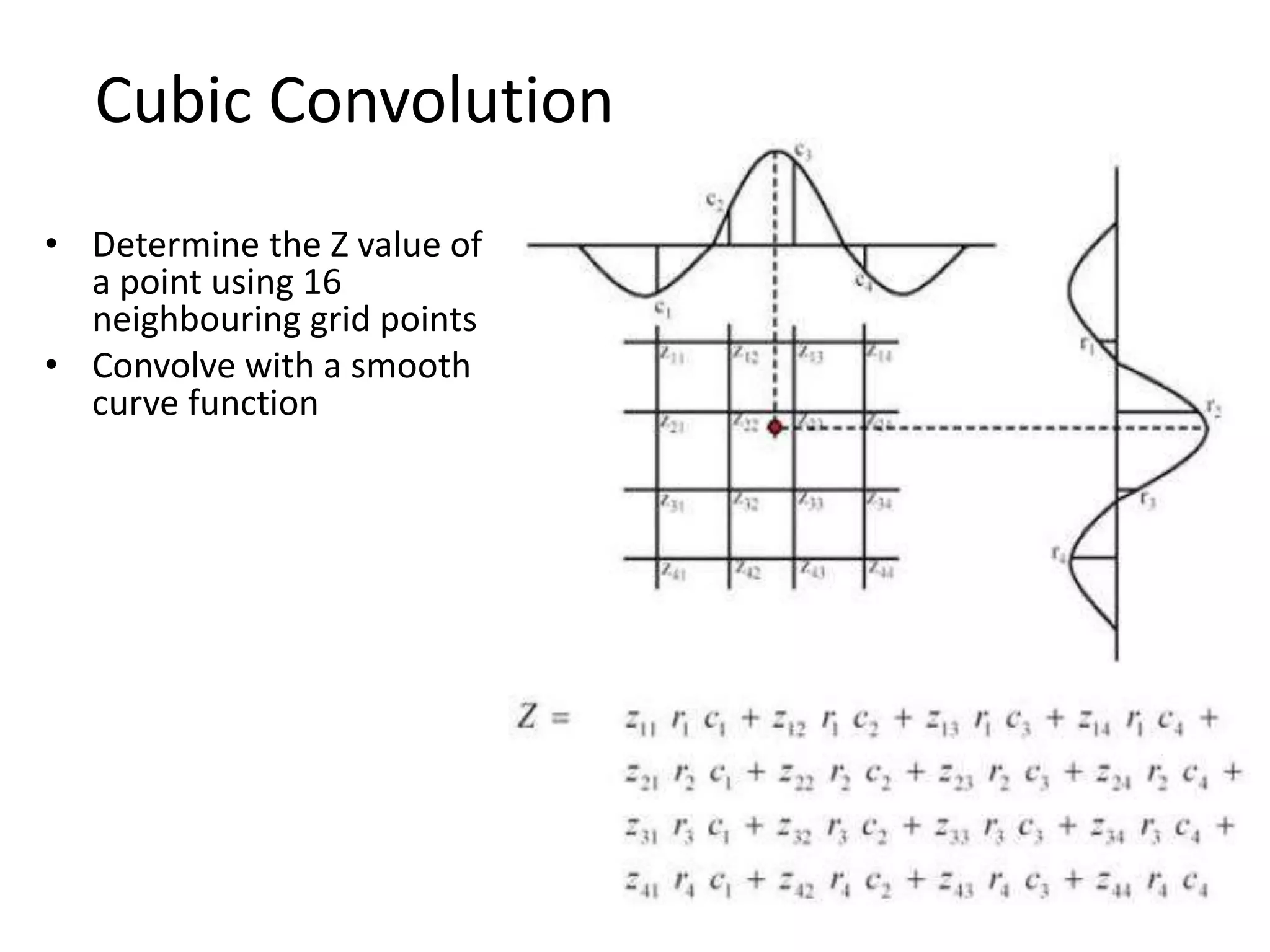

Cubic Convolution
• Determine the Z value of
a point using 16
neighbouring grid points
• Convolve with a smooth
curve function
