Combinational Logic Circuits

of 21
*DTE (17333) NOTES BY Er. Swapnil V. Kaware (svkaware@yahoo.co.in)*

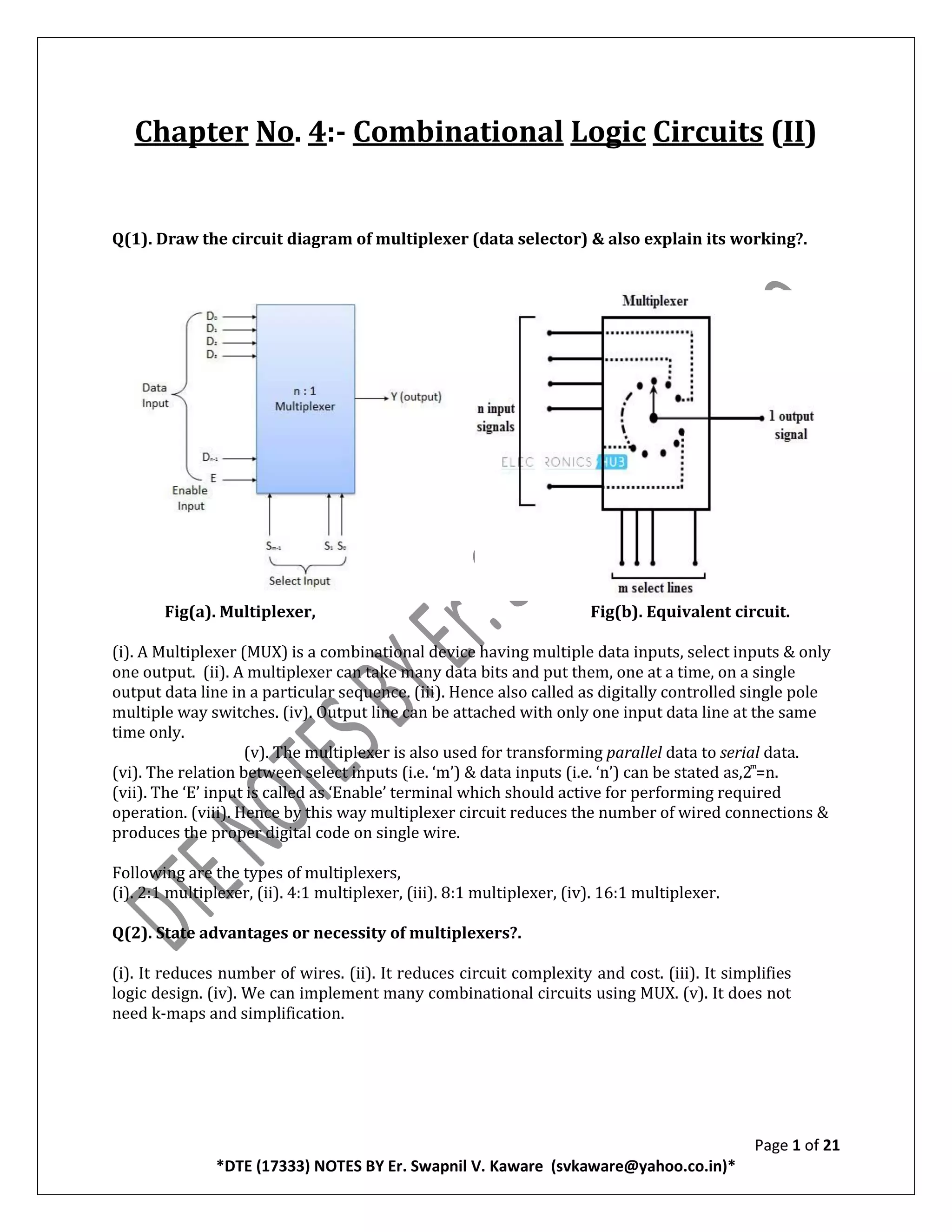

Chapter No. 4:- Combinational Logic Circuits (II)
Q(1). Draw the circuit diagram of multiplexer (data selector) & also explain its working?.
Fig(a). Multiplexer, Fig(b). Equivalent circuit.
(i). A Multiplexer (MUX) is a combinational device having multiple data inputs, select inputs & only
one output. (ii). A multiplexer can take many data bits and put them, one at a time, on a single
output data line in a particular sequence. (iii). Hence also called as digitally controlled single pole
multiple way switches. (iv). Output line can be attached with only one input data line at the same
time only.
(v). The multiplexer is also used for transforming parallel data to serial data.
(vi). The relation between select inputs (i.e. ‘m’) & data inputs (i.e. ‘n’) can be stated as,2 ͫ=n.
(vii). The ‘E’ input is called as ‘Enable’ terminal which should active for performing required
operation. (viii). Hence by this way multiplexer circuit reduces the number of wired connections &
produces the proper digital code on single wire.
Following are the types of multiplexers,
(i). 2:1 multiplexer, (ii). 4:1 multiplexer, (iii). 8:1 multiplexer, (iv). 16:1 multiplexer.
Q(2). State advantages or necessity of multiplexers?.
(i). It reduces number of wires. (ii). It reduces circuit complexity and cost. (iii). It simplifies
logic design. (iv). We can implement many combinational circuits using MUX. (v). It does not
need k-maps and simplification.

of 21

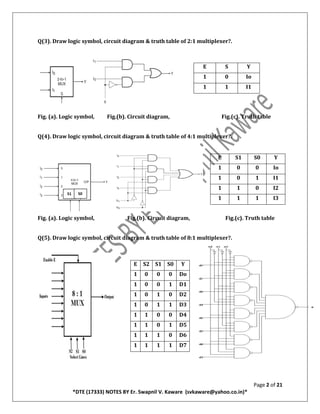

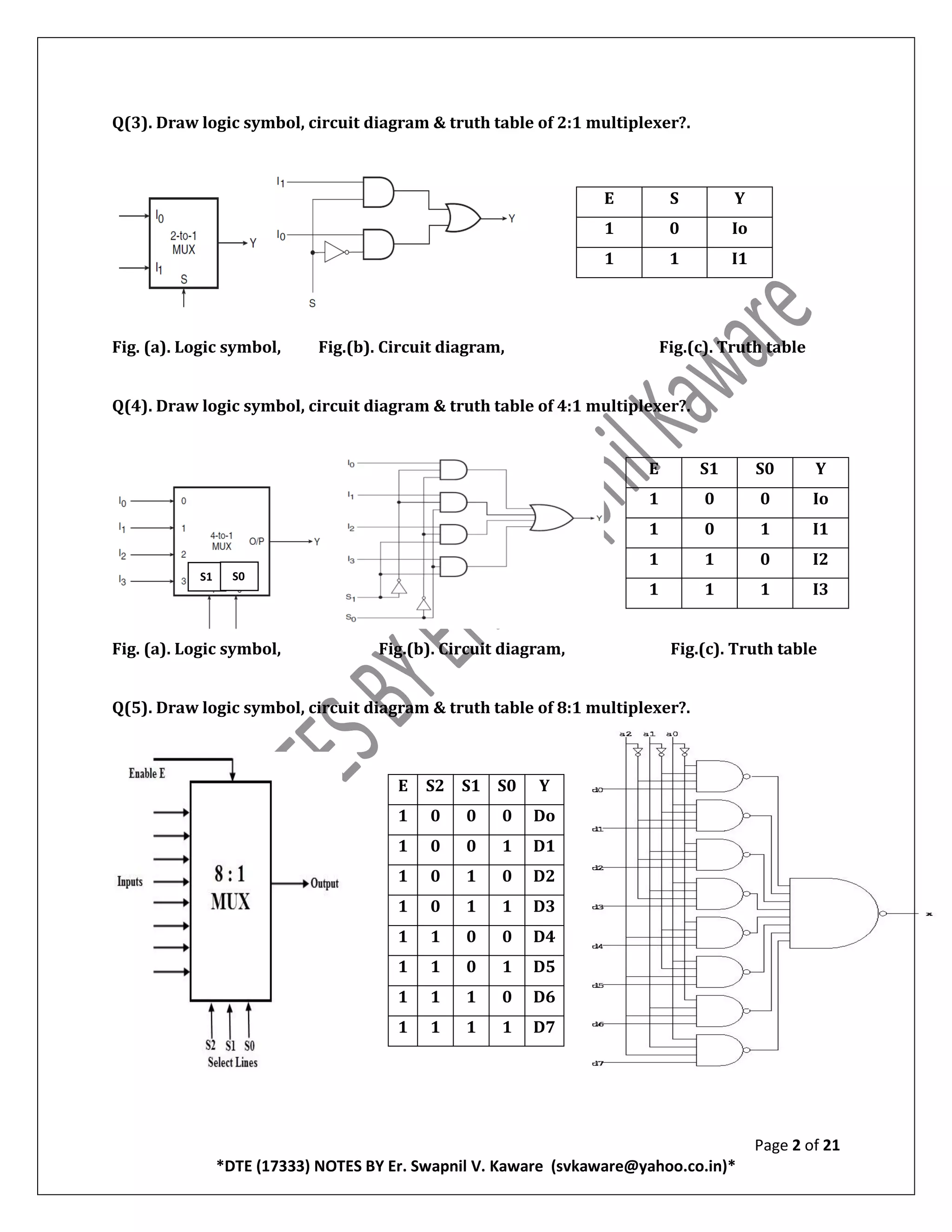

Q(3). Draw logic symbol, circuit diagram & truth table of 2:1 multiplexer?.
Fig. (a). Logic symbol, Fig.(b). Circuit diagram, Fig.(c). Truth table
E S Y
1 0 Io
1 1 I1
E S1 S0 Y
1 0 0 Io
1 0 1 I1
1 1 0 I2
1 1 1 I3
E S2 S1 S0 Y
1 0 0 0 Do
1 0 0 1 D1
1 0 1 0 D2
1 0 1 1 D3
1 1 0 0 D4
1 1 0 1 D5
1 1 1 0 D6
1 1 1 1 D7
S1 S0

of 21

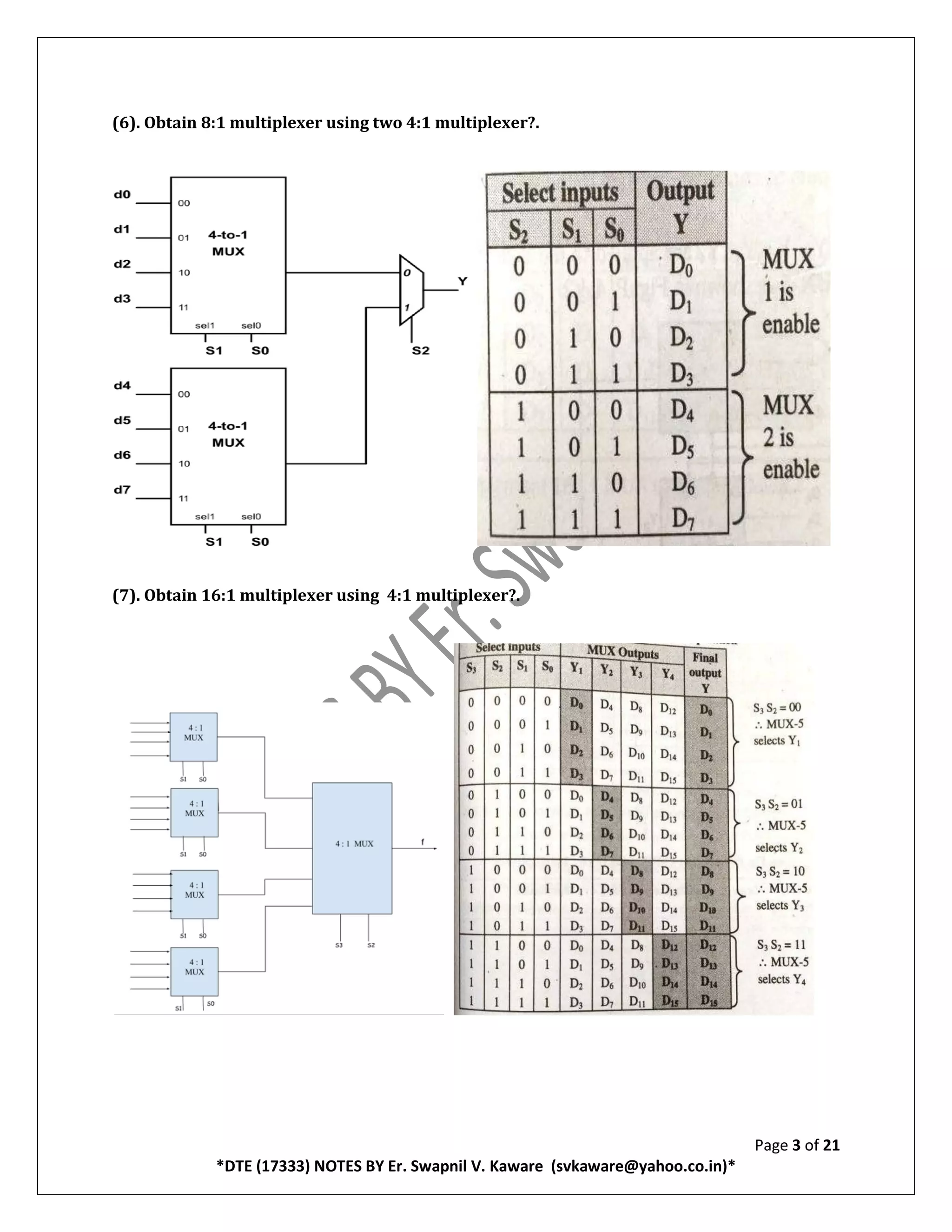

(6). Obtain 8:1 multiplexer using two 4:1 multiplexer?.
(7). Obtain 16:1 multiplexer using 4:1 multiplexer?.

of 21

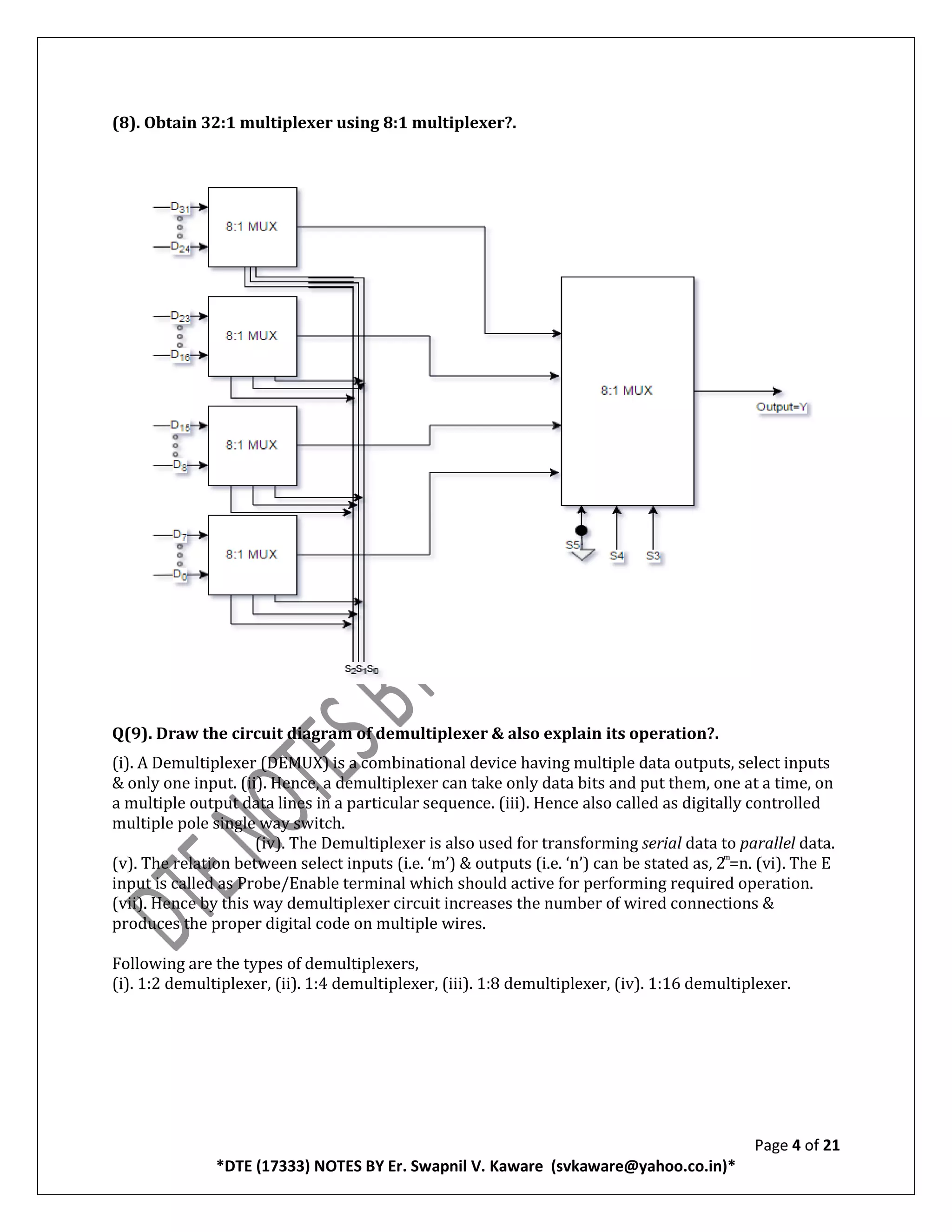

(8). Obtain 32:1 multiplexer using 8:1 multiplexer?.
Q(9). Draw the circuit diagram of demultiplexer & also explain its operation?.
(i). A Demultiplexer (DEMUX) is a combinational device having multiple data outputs, select inputs
& only one input. (ii). Hence, a demultiplexer can take only data bits and put them, one at a time, on
a multiple output data lines in a particular sequence. (iii). Hence also called as digitally controlled
multiple pole single way switch.
(iv). The Demultiplexer is also used for transforming serial data to parallel data.
(v). The relation between select inputs (i.e. ‘m’) & outputs (i.e. ‘n’) can be stated as, 2 ͫ=n. (vi). The E
input is called as Probe/Enable terminal which should active for performing required operation.
(vii). Hence by this way demultiplexer circuit increases the number of wired connections &
produces the proper digital code on multiple wires.
Following are the types of demultiplexers,
(i). 1:2 demultiplexer, (ii). 1:4 demultiplexer, (iii). 1:8 demultiplexer, (iv). 1:16 demultiplexer.

of 21

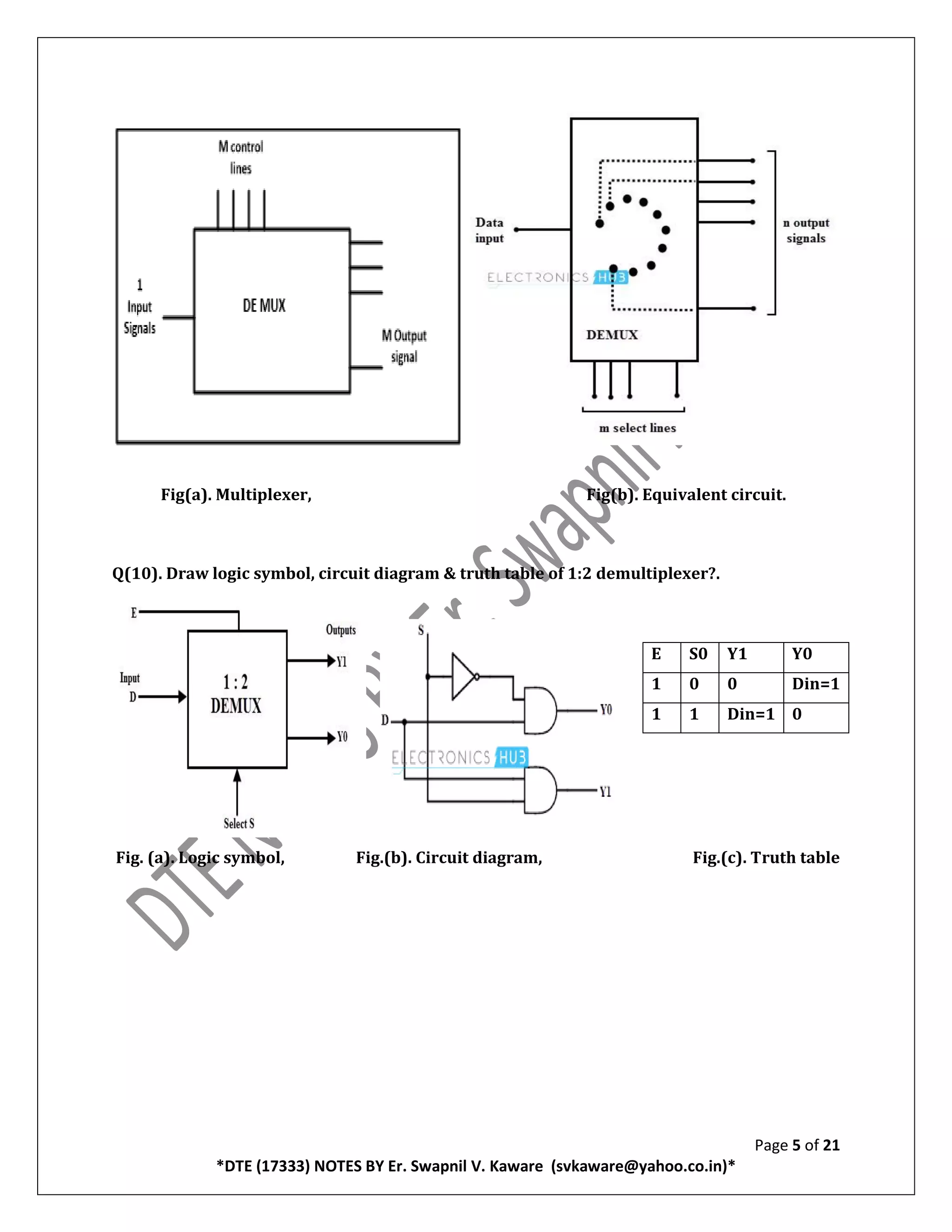

Fig(a). Multiplexer, Fig(b). Equivalent circuit.
Q(10). Draw logic symbol, circuit diagram & truth table of 1:2 demultiplexer?.
E S0 Y1 Y0
1 0 0 Din=1
1 1 Din=1 0

of 21
Fig. (a). Logic symbol, Fig.(b). Circuit diagram,

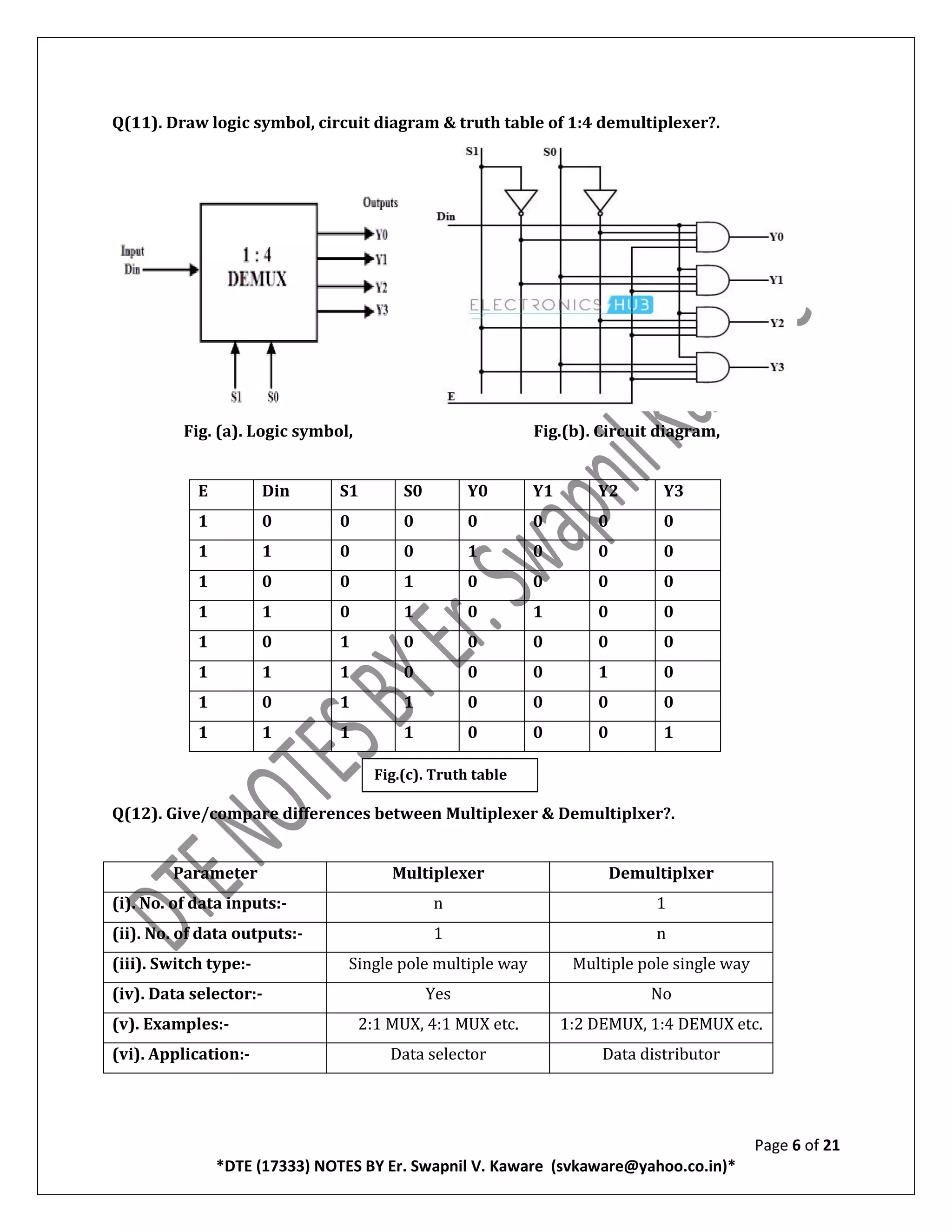

Q(12). Give/compare differences between Multiplexer & Demultiplxer?.
Parameter Multiplexer Demultiplxer
(i). No. of data inputs:- n 1
(ii). No. of data outputs:- 1 n
(iii). Switch type:- Single pole multiple way Multiple pole single way
(iv). Data selector:- Yes No
(v). Examples:- 2:1 MUX, 4:1 MUX etc. 1:2 DEMUX, 1:4 DEMUX etc.
(vi). Application:- Data selector Data distributor
E Din S1 S0 Y0 Y1 Y2 Y3
1 0 0 0 0 0 0 0
1 1 0 0 1 0 0 0
1 0 0 1 0 0 0 0
1 1 0 1 0 1 0 0
1 0 1 0 0 0 0 0
1 1 1 0 0 0 1 0
1 0 1 1 0 0 0 0
1 1 1 1 0 0 0 1
Fig.(c). Truth table

of 21

of 21

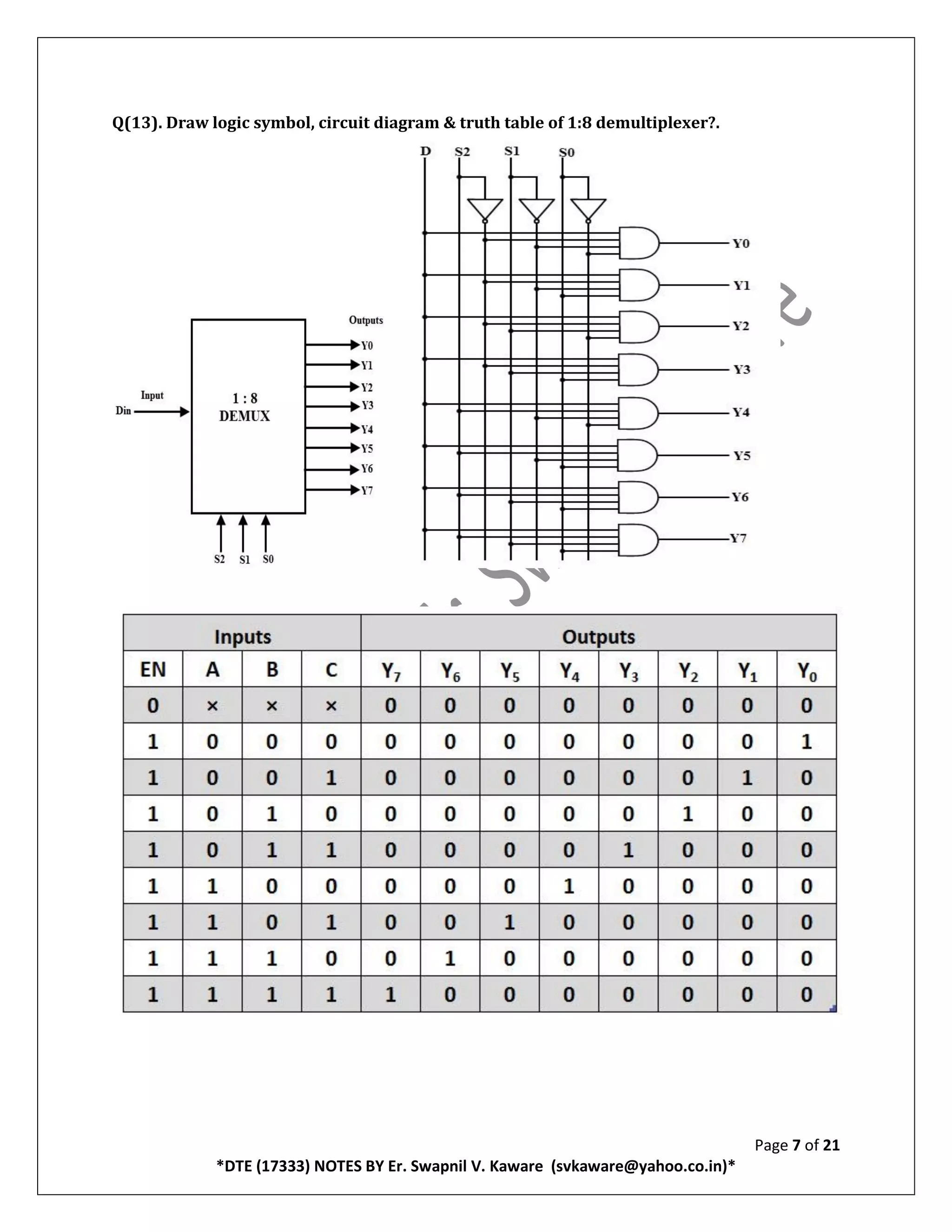

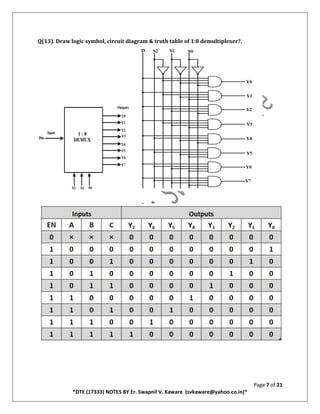

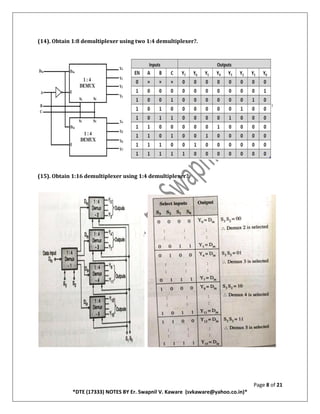

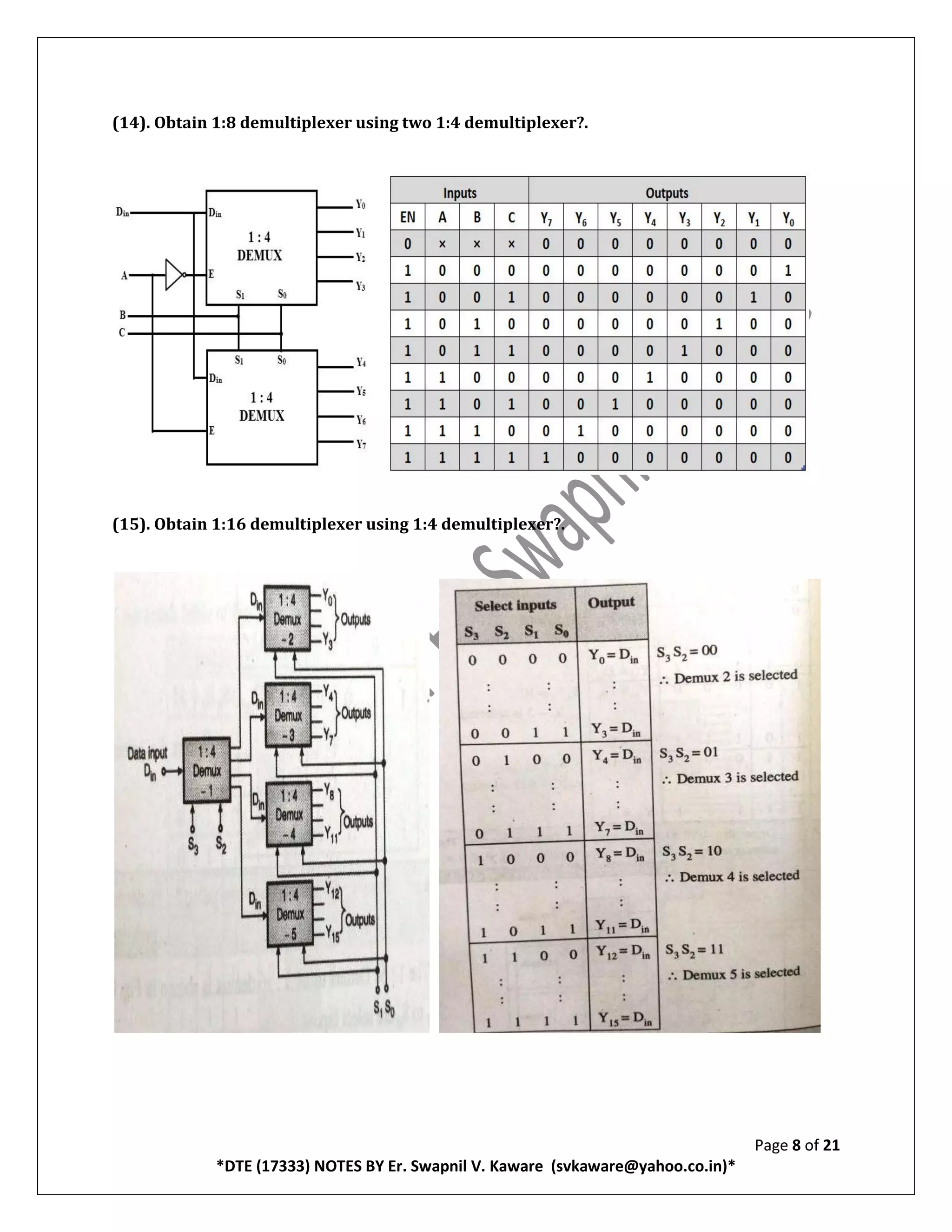

(14). Obtain 1:8 demultiplexer using two 1:4 demultiplexer?.
(15). Obtain 1:16 demultiplexer using 1:4 demultiplexer?.

of 21

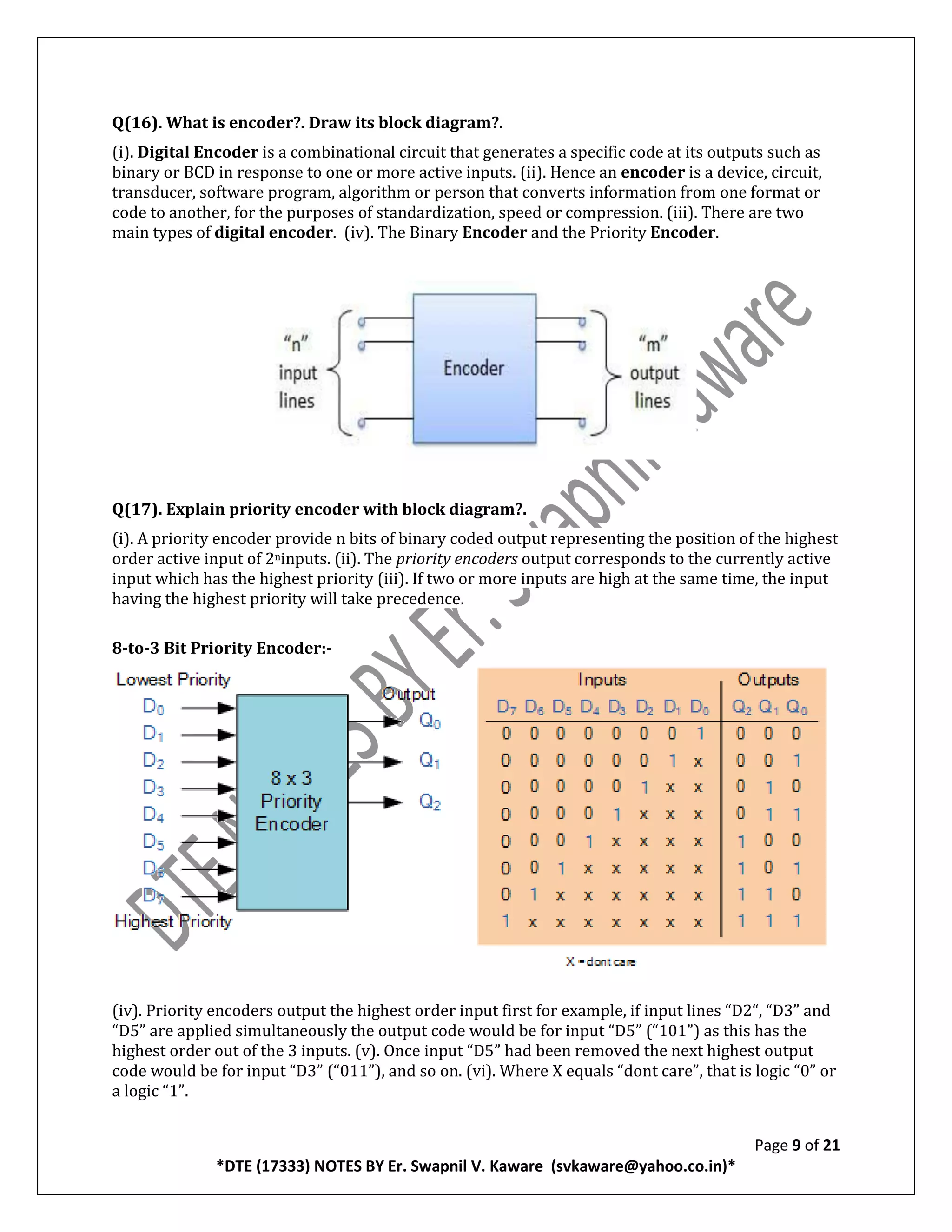

Q(16). What is encoder?. Draw its block diagram?.
(i). Digital Encoder is a combinational circuit that generates a specific code at its outputs such as
binary or BCD in response to one or more active inputs. (ii). Hence an encoder is a device, circuit,
transducer, software program, algorithm or person that converts information from one format or
code to another, for the purposes of standardization, speed or compression. (iii). There are two
main types of digital encoder. (iv). The Binary Encoder and the Priority Encoder.
Q(17). Explain priority encoder with block diagram?.
(i). A priority encoder provide n bits of binary coded output representing the position of the highest
order active input of 2ninputs. (ii). The priority encoders output corresponds to the currently active
input which has the highest priority (iii). If two or more inputs are high at the same time, the input
having the highest priority will take precedence.
8-to-3 Bit Priority Encoder:-
(iv). Priority encoders output the highest order input first for example, if input lines “D2“, “D3” and
“D5” are applied simultaneously the output code would be for input “D5” (“101”) as this has the
highest order out of the 3 inputs. (v). Once input “D5” had been removed the next highest output
code would be for input “D3” (“011”), and so on. (vi). Where X equals “dont care”, that is logic “0” or
a logic “1”.

of 21
Output Q0
Output Q1
Output Q2
Then the final Boolean expression for the priority encoder including the zero inputs is defined as:
Digital Encoder using Logic Gates

of 21

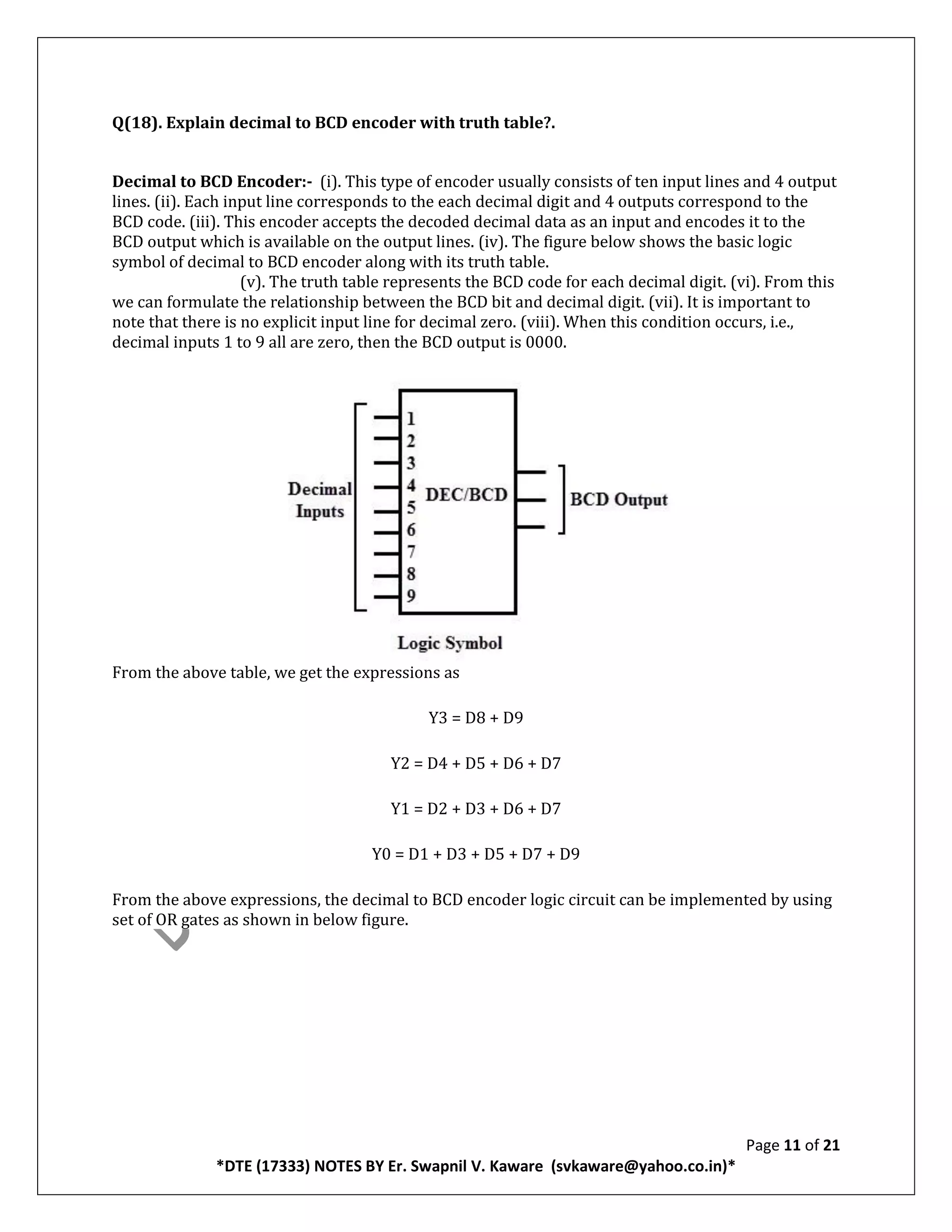

Q(18). Explain decimal to BCD encoder with truth table?.
Decimal to BCD Encoder:- (i). This type of encoder usually consists of ten input lines and 4 output
lines. (ii). Each input line corresponds to the each decimal digit and 4 outputs correspond to the
BCD code. (iii). This encoder accepts the decoded decimal data as an input and encodes it to the
BCD output which is available on the output lines. (iv). The figure below shows the basic logic
symbol of decimal to BCD encoder along with its truth table.
(v). The truth table represents the BCD code for each decimal digit. (vi). From this
we can formulate the relationship between the BCD bit and decimal digit. (vii). It is important to
note that there is no explicit input line for decimal zero. (viii). When this condition occurs, i.e.,
decimal inputs 1 to 9 all are zero, then the BCD output is 0000.
From the above table, we get the expressions as
Y3 = D8 + D9
Y2 = D4 + D5 + D6 + D7
Y1 = D2 + D3 + D6 + D7
Y0 = D1 + D3 + D5 + D7 + D9
From the above expressions, the decimal to BCD encoder logic circuit can be implemented by using
set of OR gates as shown in below figure.

of 21
Back to top

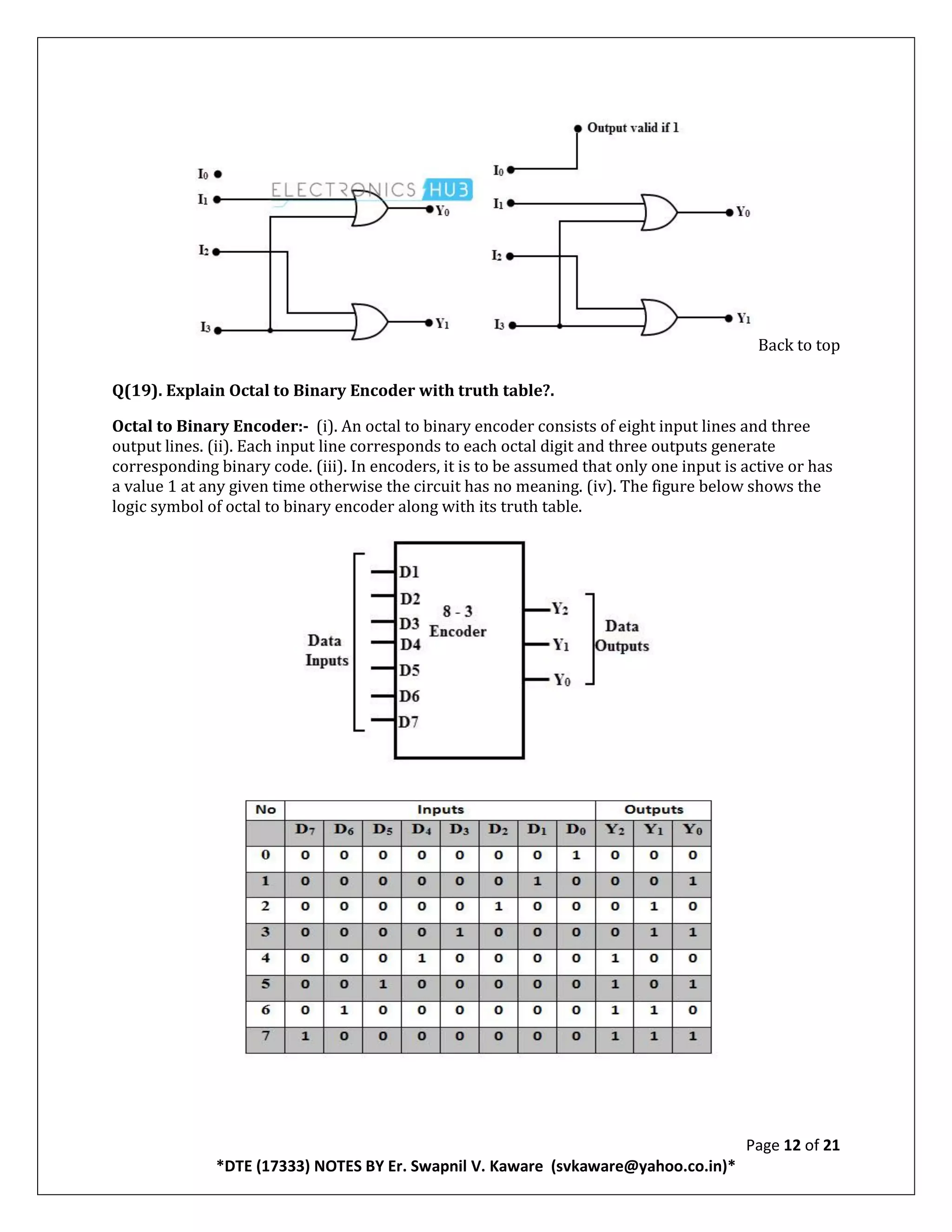

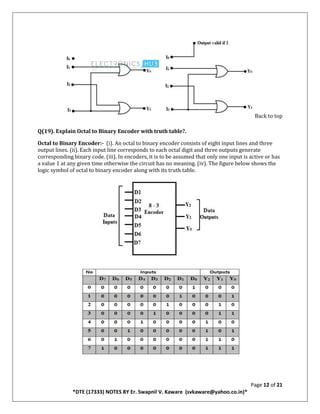

Q(19). Explain Octal to Binary Encoder with truth table?.
Octal to Binary Encoder:- (i). An octal to binary encoder consists of eight input lines and three
output lines. (ii). Each input line corresponds to each octal digit and three outputs generate
corresponding binary code. (iii). In encoders, it is to be assumed that only one input is active or has
a value 1 at any given time otherwise the circuit has no meaning. (iv). The figure below shows the
logic symbol of octal to binary encoder along with its truth table.

of 21

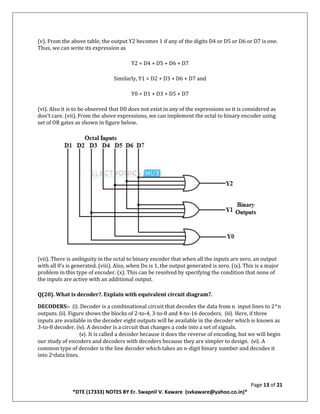

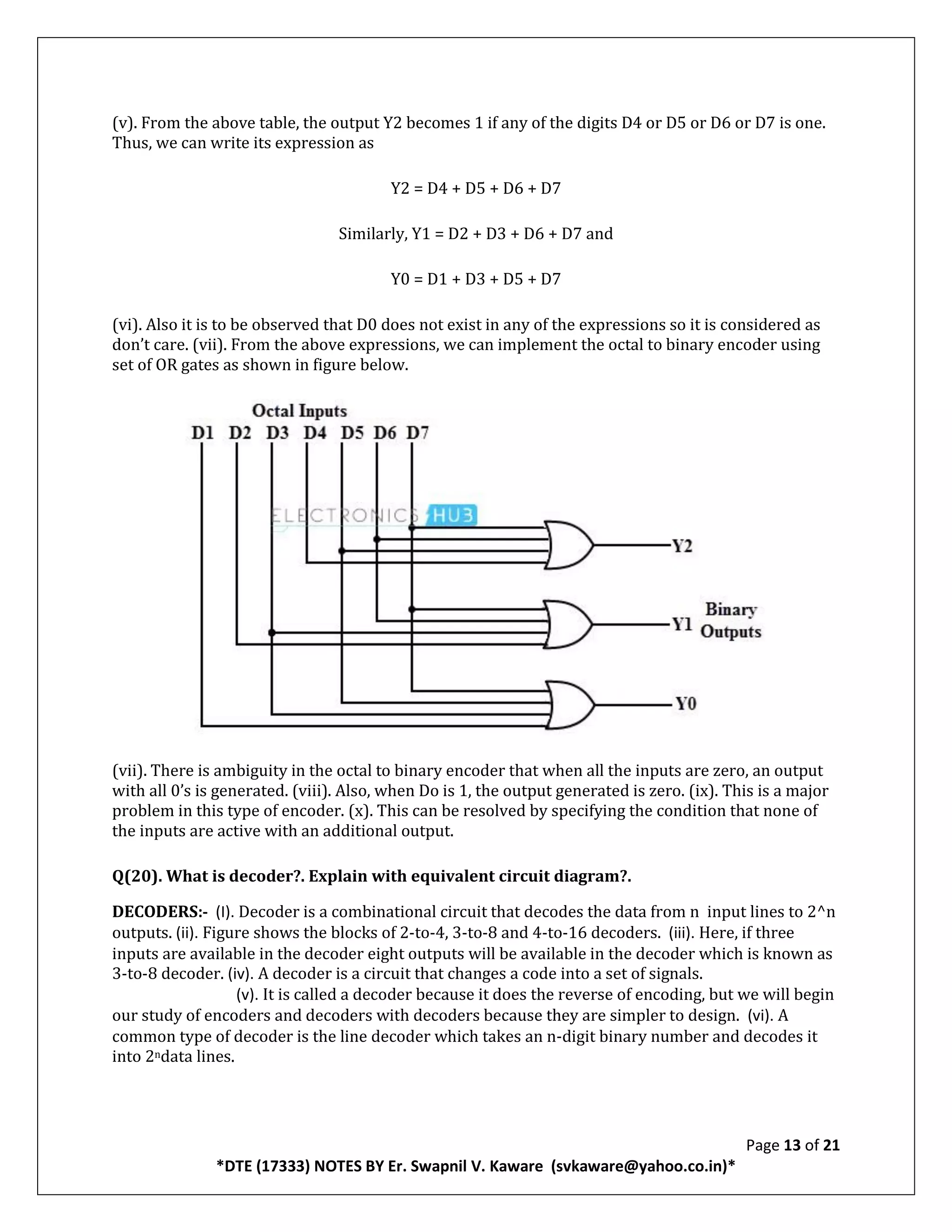

(v). From the above table, the output Y2 becomes 1 if any of the digits D4 or D5 or D6 or D7 is one.
Thus, we can write its expression as
Y2 = D4 + D5 + D6 + D7
Similarly, Y1 = D2 + D3 + D6 + D7 and
Y0 = D1 + D3 + D5 + D7
(vi). Also it is to be observed that D0 does not exist in any of the expressions so it is considered as
don’t care. (vii). From the above expressions, we can implement the octal to binary encoder using
set of OR gates as shown in figure below.
(vii). There is ambiguity in the octal to binary encoder that when all the inputs are zero, an output
with all 0’s is generated. (viii). Also, when Do is 1, the output generated is zero. (ix). This is a major
problem in this type of encoder. (x). This can be resolved by specifying the condition that none of
the inputs are active with an additional output.
Q(20). What is decoder?. Explain with equivalent circuit diagram?.
DECODERS:- (I). Decoder is a combinational circuit that decodes the data from n input lines to 2^n
outputs. (ii). Figure shows the blocks of 2-to-4, 3-to-8 and 4-to-16 decoders. (iii). Here, if three
inputs are available in the decoder eight outputs will be available in the decoder which is known as
3-to-8 decoder. (iv). A decoder is a circuit that changes a code into a set of signals.
(v). It is called a decoder because it does the reverse of encoding, but we will begin
our study of encoders and decoders with decoders because they are simpler to design. (vi). A
common type of decoder is the line decoder which takes an n-digit binary number and decodes it
into 2ndata lines.

of 21
Q(21). Draw the logic symbol, circuit diagram & truth table of 3:8 decoder?.
Fig. (a). Logic symbol, Fig.(b). Circuit diagram,
Fig.(c). Truth table.

of 21

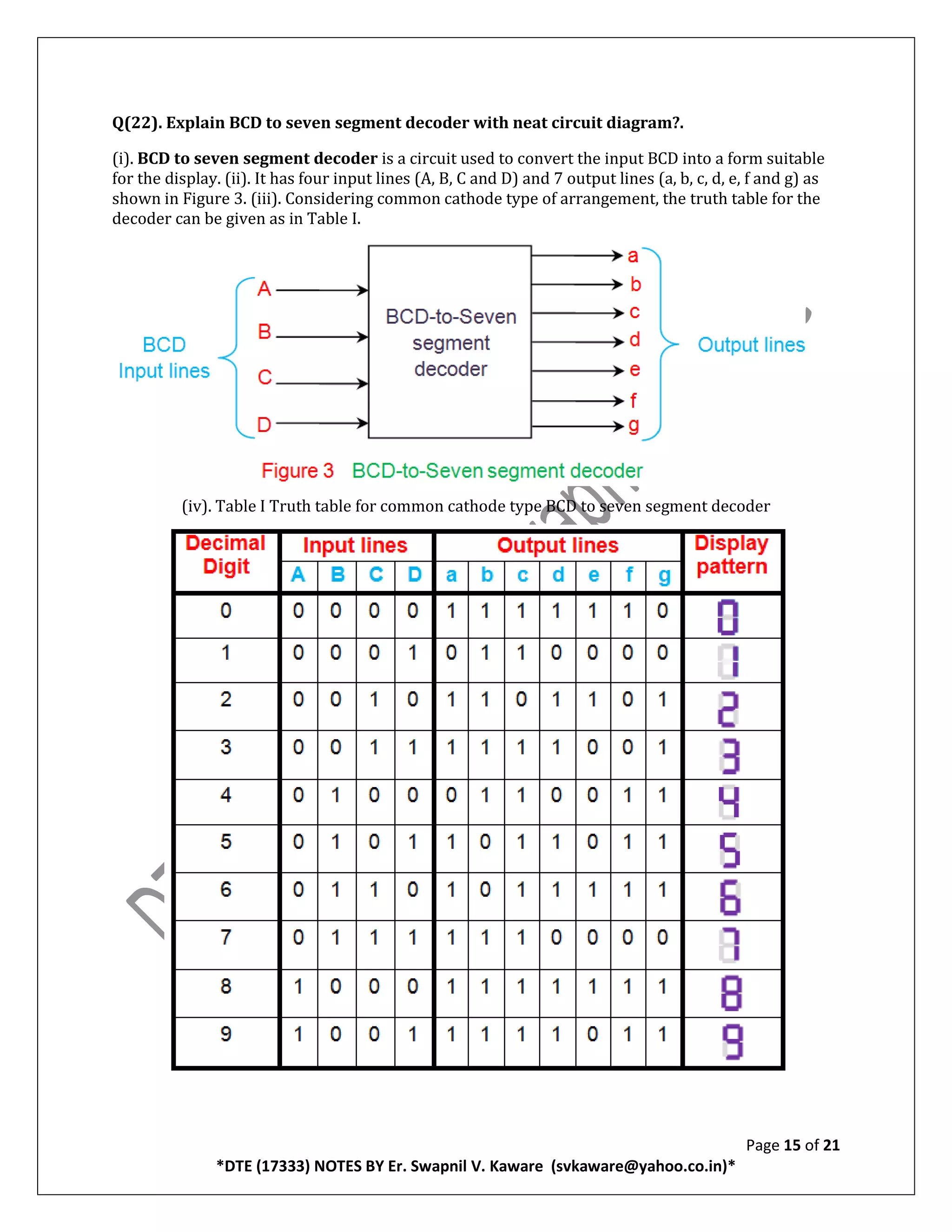

Q(22). Explain BCD to seven segment decoder with neat circuit diagram?.
(i). BCD to seven segment decoder is a circuit used to convert the input BCD into a form suitable
for the display. (ii). It has four input lines (A, B, C and D) and 7 output lines (a, b, c, d, e, f and g) as
shown in Figure 3. (iii). Considering common cathode type of arrangement, the truth table for the
decoder can be given as in Table I.
(iv). Table I Truth table for common cathode type BCD to seven segment decoder

of 21

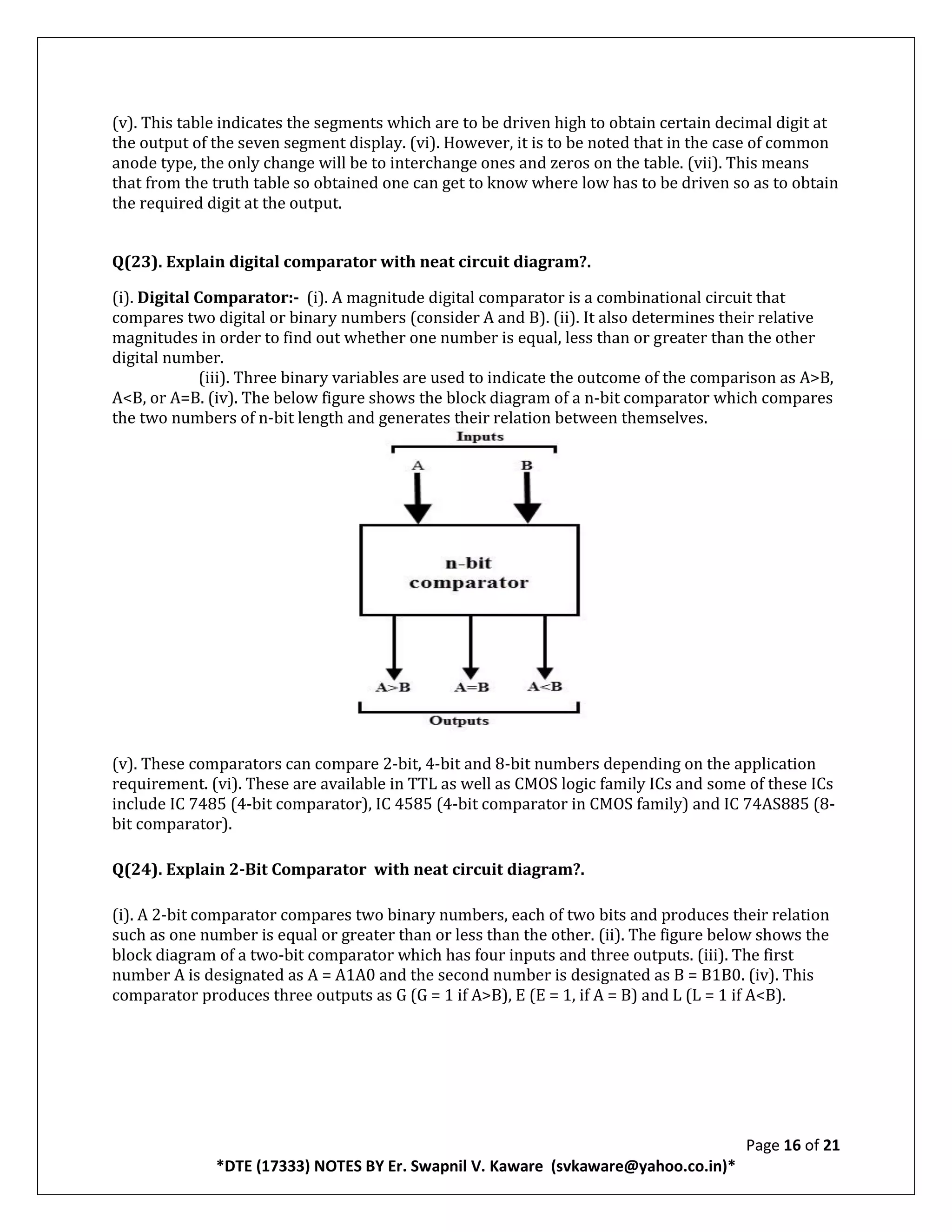

(v). This table indicates the segments which are to be driven high to obtain certain decimal digit at
the output of the seven segment display. (vi). However, it is to be noted that in the case of common
anode type, the only change will be to interchange ones and zeros on the table. (vii). This means
that from the truth table so obtained one can get to know where low has to be driven so as to obtain
the required digit at the output.
Q(23). Explain digital comparator with neat circuit diagram?.
(i). Digital Comparator:- (i). A magnitude digital comparator is a combinational circuit that
compares two digital or binary numbers (consider A and B). (ii). It also determines their relative
magnitudes in order to find out whether one number is equal, less than or greater than the other
digital number.
(iii). Three binary variables are used to indicate the outcome of the comparison as A>B,
A<B, or A=B. (iv). The below figure shows the block diagram of a n-bit comparator which compares
the two numbers of n-bit length and generates their relation between themselves.
(v). These comparators can compare 2-bit, 4-bit and 8-bit numbers depending on the application
requirement. (vi). These are available in TTL as well as CMOS logic family ICs and some of these ICs
include IC 7485 (4-bit comparator), IC 4585 (4-bit comparator in CMOS family) and IC 74AS885 (8-
bit comparator).
Q(24). Explain 2-Bit Comparator with neat circuit diagram?.
(i). A 2-bit comparator compares two binary numbers, each of two bits and produces their relation
such as one number is equal or greater than or less than the other. (ii). The figure below shows the
block diagram of a two-bit comparator which has four inputs and three outputs. (iii). The first
number A is designated as A = A1A0 and the second number is designated as B = B1B0. (iv). This
comparator produces three outputs as G (G = 1 if A>B), E (E = 1, if A = B) and L (L = 1 if A<B).

of 21

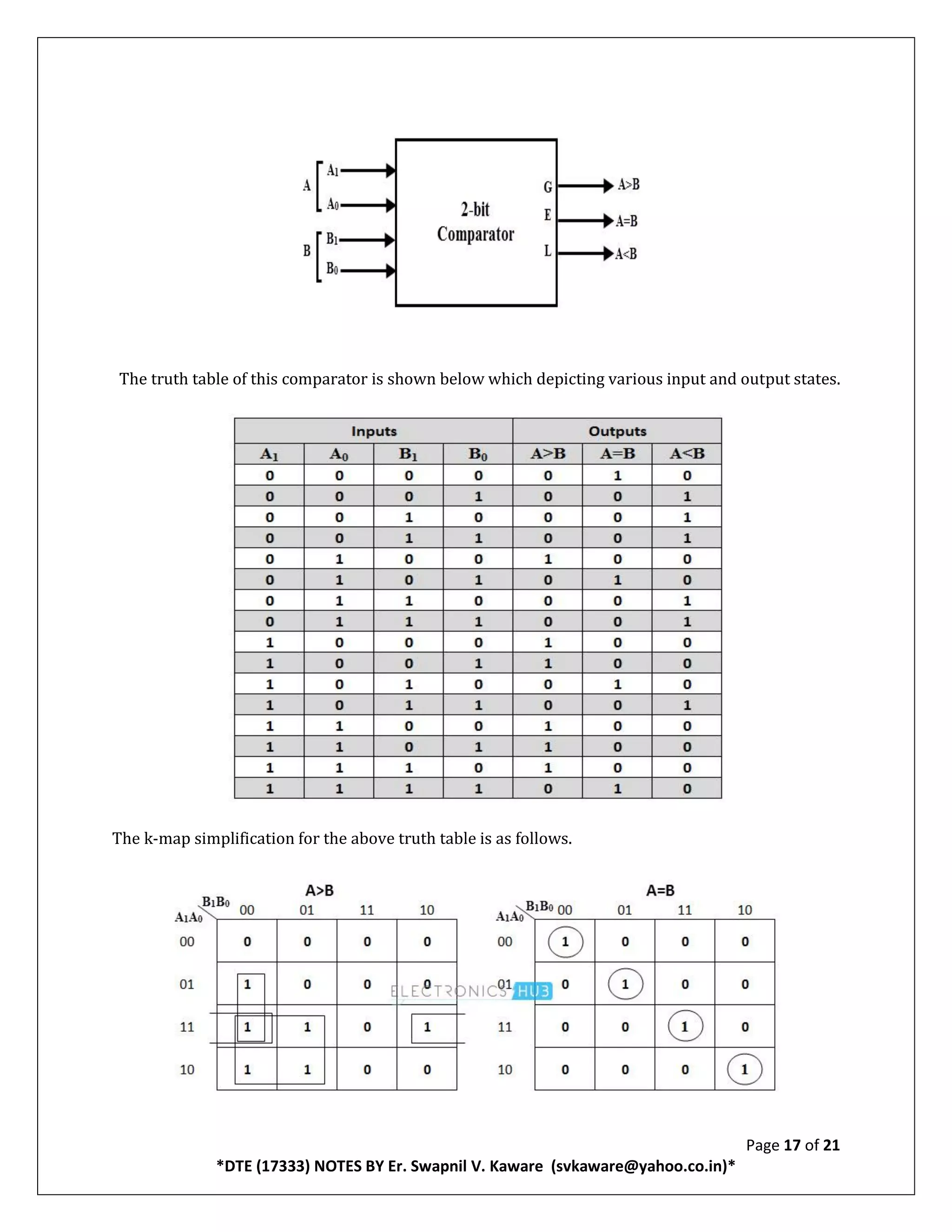

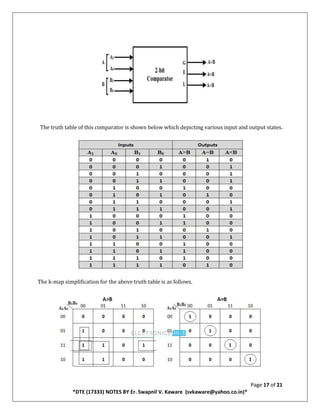

The truth table of this comparator is shown below which depicting various input and output states.
The k-map simplification for the above truth table is as follows.

of 21

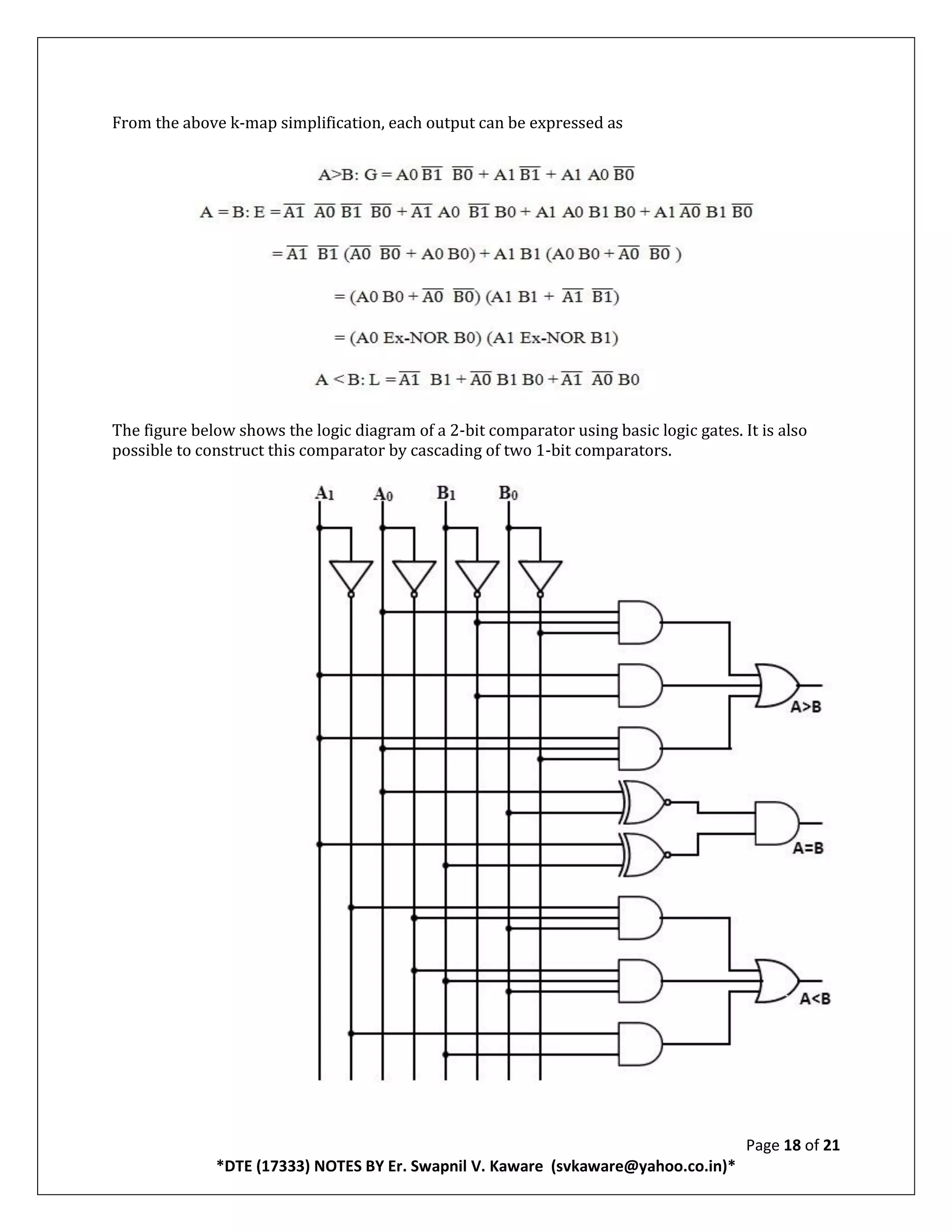

From the above k-map simplification, each output can be expressed as
The figure below shows the logic diagram of a 2-bit comparator using basic logic gates. It is also
possible to construct this comparator by cascading of two 1-bit comparators.

of 21

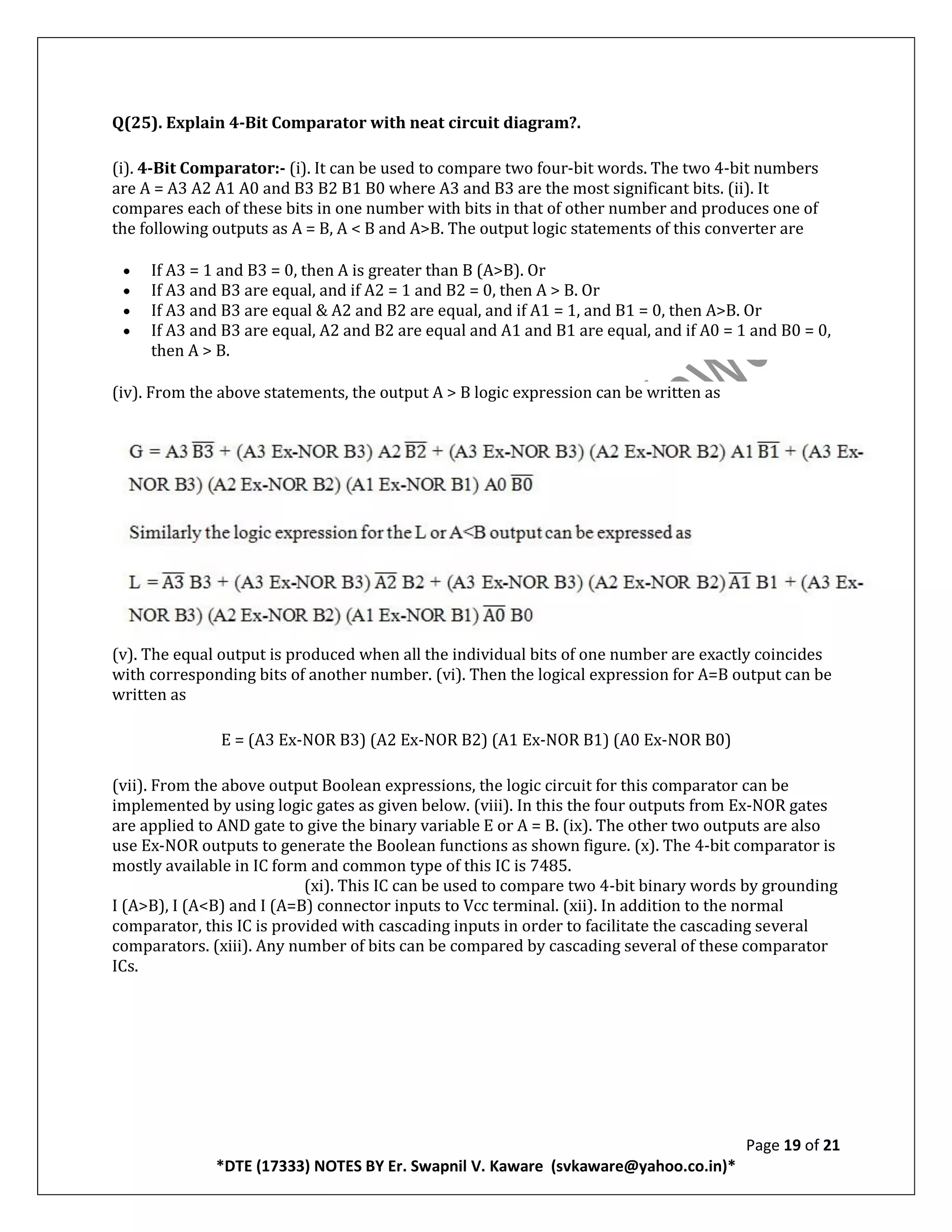

(i). 4-Bit Comparator:- (i). It can be used to compare two four-bit words. The two 4-bit numbers
are A = A3 A2 A1 A0 and B3 B2 B1 B0 where A3 and B3 are the most significant bits. (ii). It
compares each of these bits in one number with bits in that of other number and produces one of
the following outputs as A = B, A < B and A>B. The output logic statements of this converter are
 If A3 = 1 and B3 = 0, then A is greater than B (A>B). Or
 If A3 and B3 are equal, and if A2 = 1 and B2 = 0, then A > B. Or
 If A3 and B3 are equal & A2 and B2 are equal, and if A1 = 1, and B1 = 0, then A>B. Or
 If A3 and B3 are equal, A2 and B2 are equal and A1 and B1 are equal, and if A0 = 1 and B0 = 0,
then A > B.
(iv). From the above statements, the output A > B logic expression can be written as
(v). The equal output is produced when all the individual bits of one number are exactly coincides
with corresponding bits of another number. (vi). Then the logical expression for A=B output can be
written as
E = (A3 Ex-NOR B3) (A2 Ex-NOR B2) (A1 Ex-NOR B1) (A0 Ex-NOR B0)
(vii). From the above output Boolean expressions, the logic circuit for this comparator can be
implemented by using logic gates as given below. (viii). In this the four outputs from Ex-NOR gates
are applied to AND gate to give the binary variable E or A = B. (ix). The other two outputs are also
use Ex-NOR outputs to generate the Boolean functions as shown figure. (x). The 4-bit comparator is
mostly available in IC form and common type of this IC is 7485.
(xi). This IC can be used to compare two 4-bit binary words by grounding
I (A>B), I (A<B) and I (A=B) connector inputs to Vcc terminal. (xii). In addition to the normal
comparator, this IC is provided with cascading inputs in order to facilitate the cascading several
comparators. (xiii). Any number of bits can be compared by cascading several of these comparator
ICs.

of 21

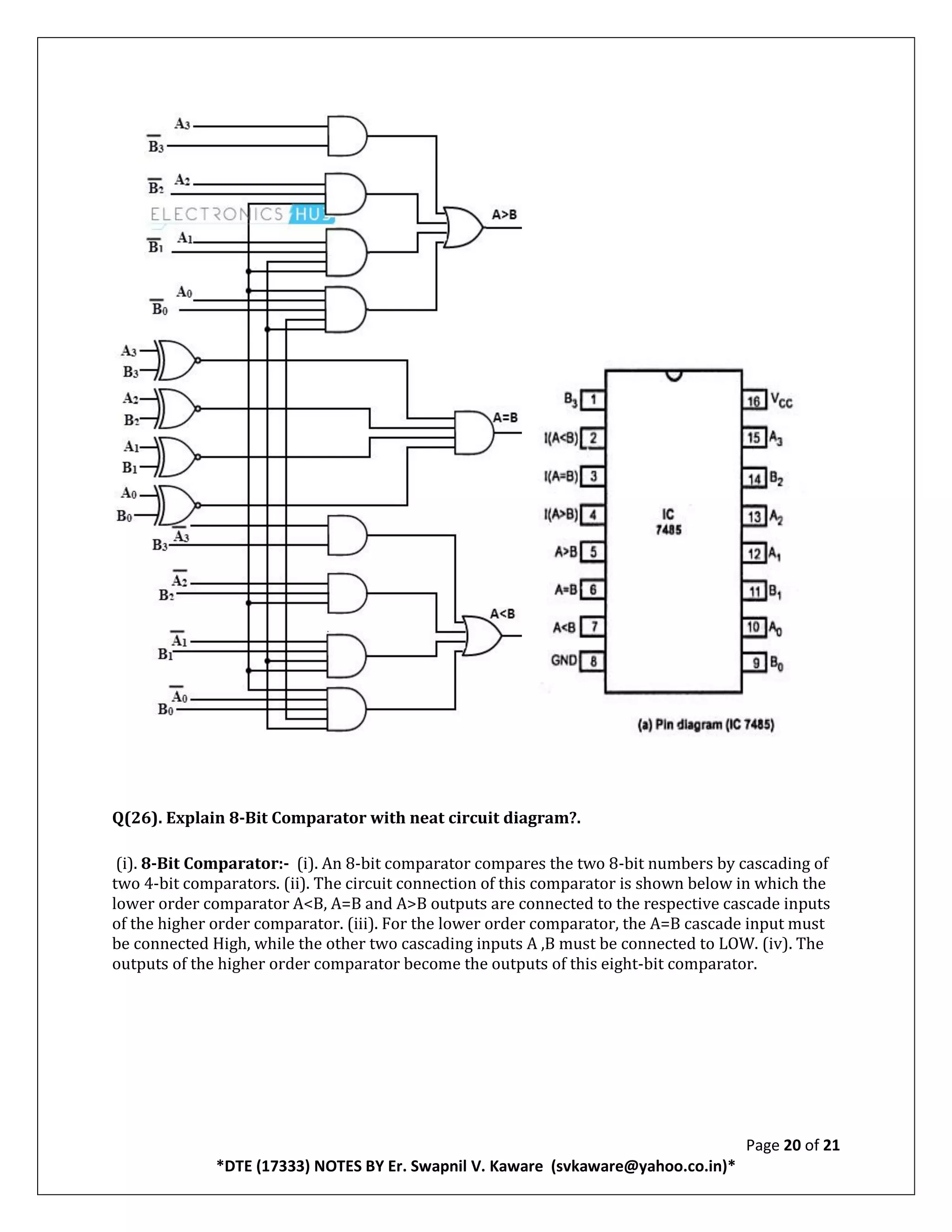

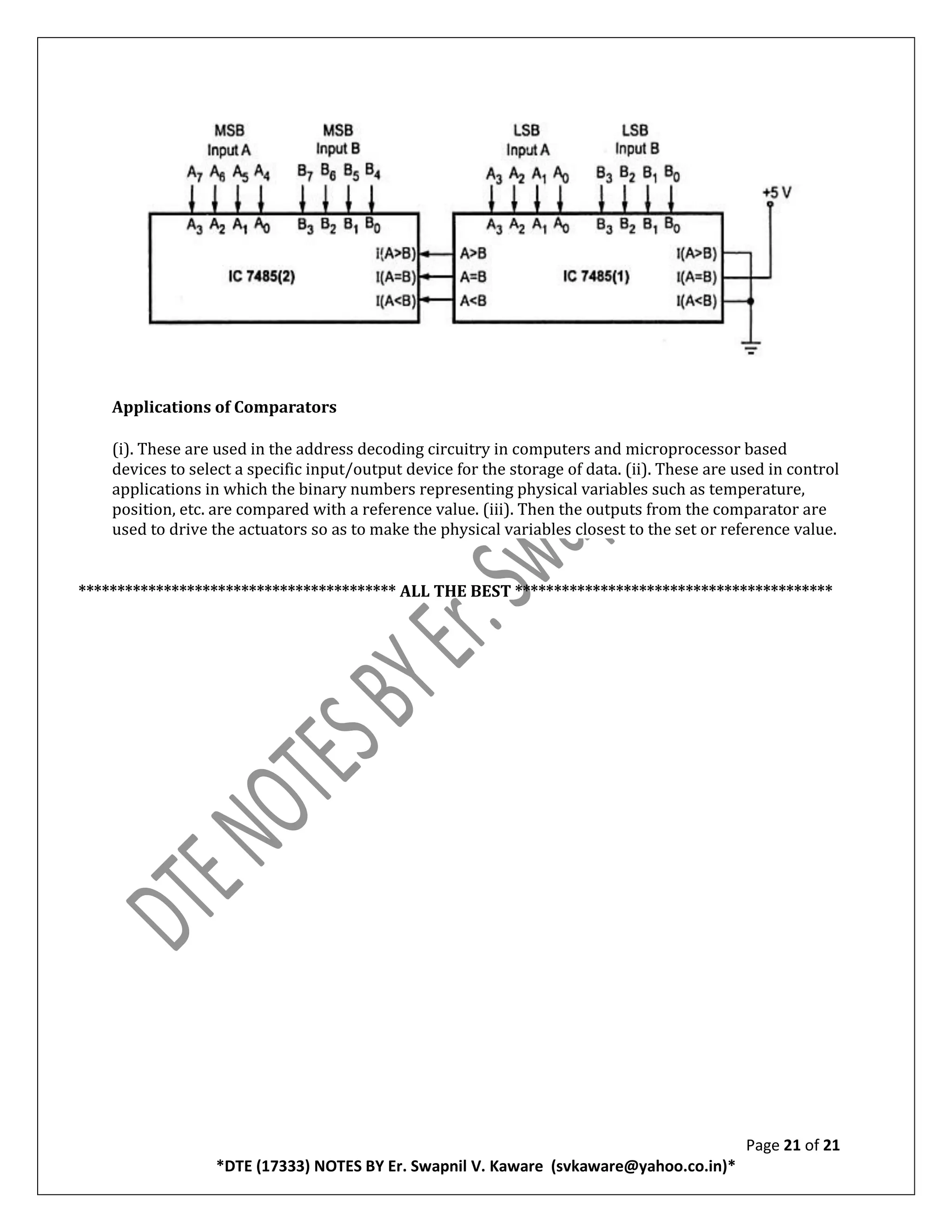

(i). 8-Bit Comparator:- (i). An 8-bit comparator compares the two 8-bit numbers by cascading of
two 4-bit comparators. (ii). The circuit connection of this comparator is shown below in which the
lower order comparator A<B, A=B and A>B outputs are connected to the respective cascade inputs
of the higher order comparator. (iii). For the lower order comparator, the A=B cascade input must
be connected High, while the other two cascading inputs A ,B must be connected to LOW. (iv). The
outputs of the higher order comparator become the outputs of this eight-bit comparator.

of 21
Applications of Comparators
(i). These are used in the address decoding circuitry in computers and microprocessor based
devices to select a specific input/output device for the storage of data. (ii). These are used in control
applications in which the binary numbers representing physical variables such as temperature,
position, etc. are compared with a reference value. (iii). Then the outputs from the comparator are
used to drive the actuators so as to make the physical variables closest to the set or reference value.
***************************************** ALL THE BEST *****************************************

Combinational Logic Circuits

More Related Content

What's hot

Similar to Combinational Logic Circuits

More from Prof. Swapnil V. Kaware

Recently uploaded

Combinational Logic Circuits
