Private VLANs allow splitting a regular VLAN into multiple "subdomains" to provide isolation between hosts at layer 2. The domains are isolated broadcast domains that require layer 3 forwarding to communicate. Primary, isolated, and community ports are defined for the sub-VLANs. Primary VLANs deliver frames downstream, isolated VLANs carry frames upstream, and community VLANs allow communication within the same group and to promiscuous ports. The configuration binds VLANs into a private VLAN domain, maps host ports to secondary VLANs, and maps a promiscuous port to all secondary VLANs to allow inter-subnet communication.

1. PRIVATE
VLANS
www.netprotocolxpert.in

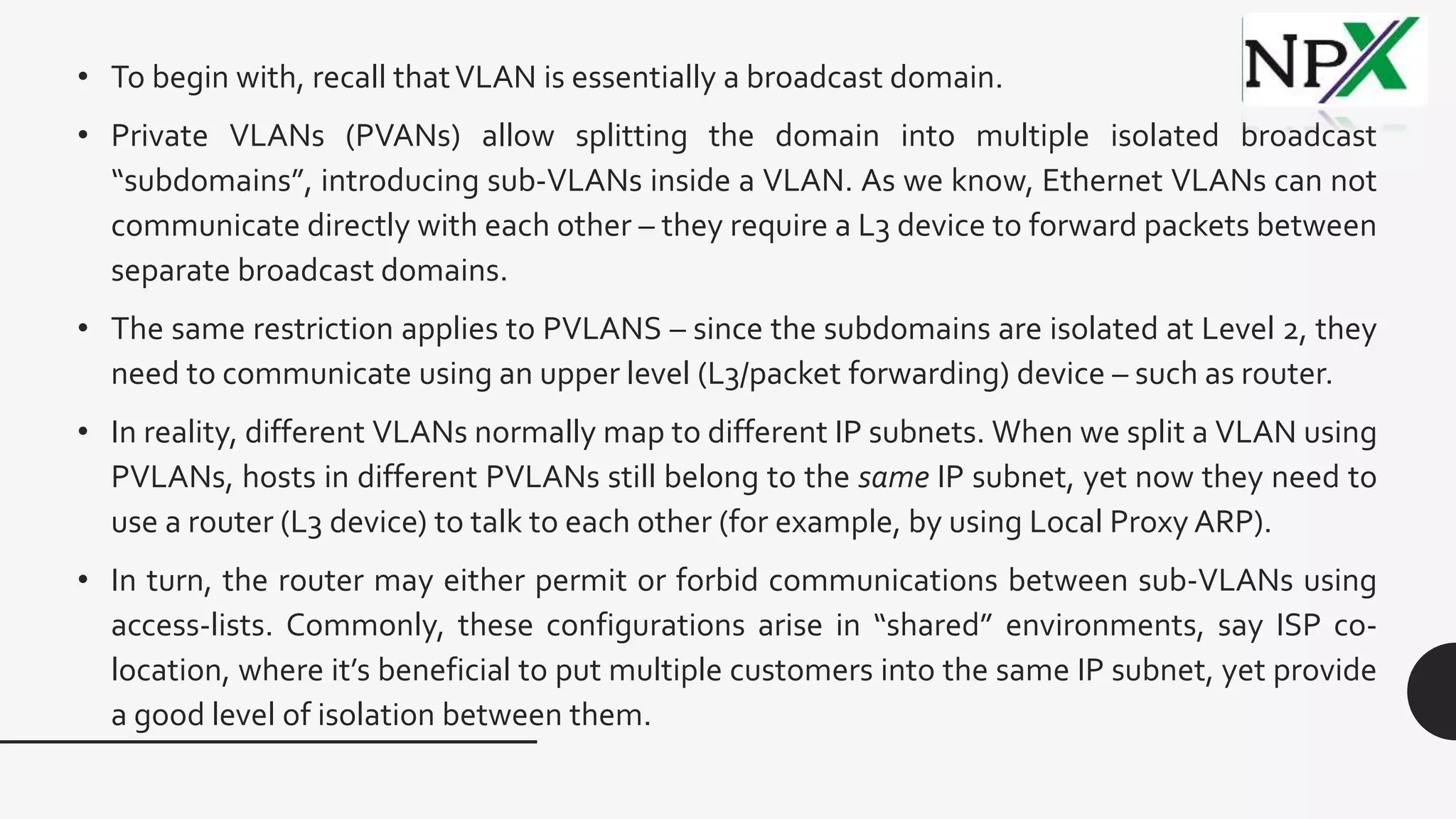

2. • To begin with, recall thatVLAN is essentially a broadcast domain.
• Private VLANs (PVANs) allow splitting the domain into multiple isolated broadcast
“subdomains”, introducing sub-VLANs inside a VLAN. As we know, Ethernet VLANs can not
communicate directly with each other – they require a L3 device to forward packets between
separate broadcast domains.
• The same restriction applies to PVLANS – since the subdomains are isolated at Level 2, they
need to communicate using an upper level (L3/packet forwarding) device – such as router.
• In reality, different VLANs normally map to different IP subnets. When we split a VLAN using
PVLANs, hosts in different PVLANs still belong to the same IP subnet, yet now they need to
use a router (L3 device) to talk to each other (for example, by using Local Proxy ARP).
• In turn, the router may either permit or forbid communications between sub-VLANs using
access-lists. Commonly, these configurations arise in “shared” environments, say ISP co-
location, where it’s beneficial to put multiple customers into the same IP subnet, yet provide
a good level of isolation between them.

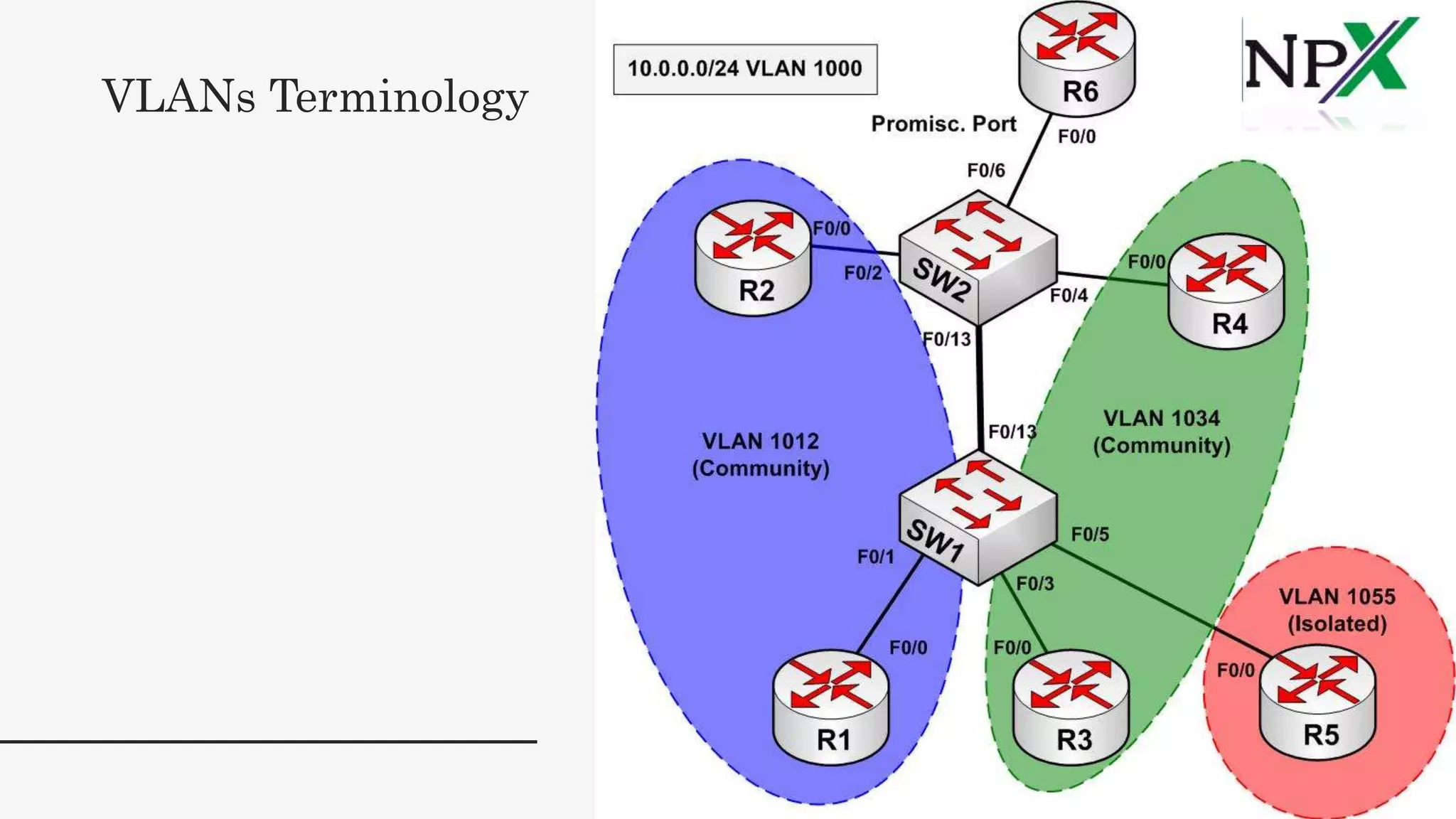

3. VLANs Terminology

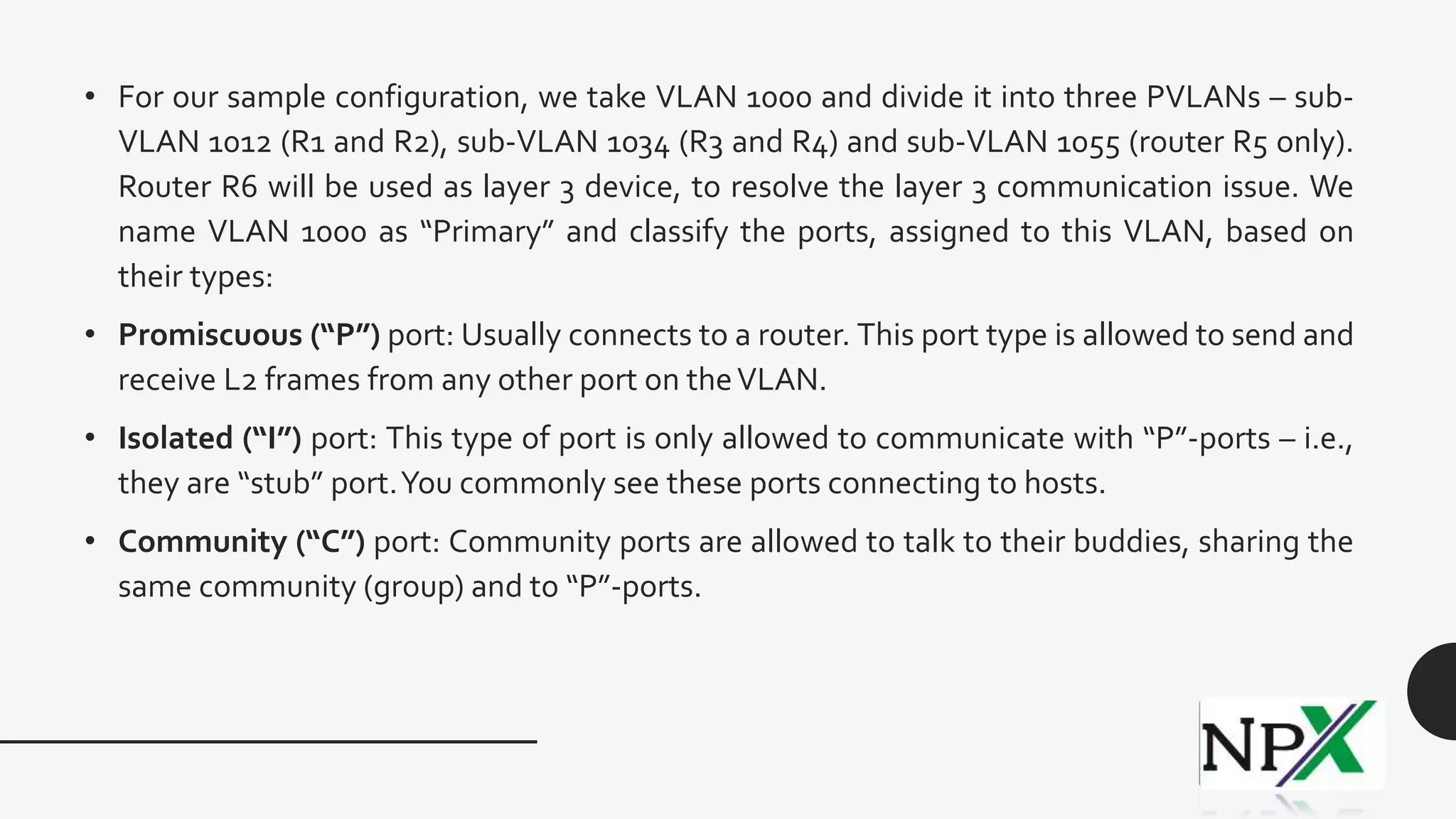

4. • For our sample configuration, we take VLAN 1000 and divide it into three PVLANs – sub-
VLAN 1012 (R1 and R2), sub-VLAN 1034 (R3 and R4) and sub-VLAN 1055 (router R5 only).
Router R6 will be used as layer 3 device, to resolve the layer 3 communication issue. We
name VLAN 1000 as “Primary” and classify the ports, assigned to this VLAN, based on
their types:
• Promiscuous (“P”) port: Usually connects to a router. This port type is allowed to send and
receive L2 frames from any other port on theVLAN.
• Isolated (“I”) port: This type of port is only allowed to communicate with “P”-ports – i.e.,
they are “stub” port.You commonly see these ports connecting to hosts.
• Community (“C”) port: Community ports are allowed to talk to their buddies, sharing the
same community (group) and to “P”-ports.

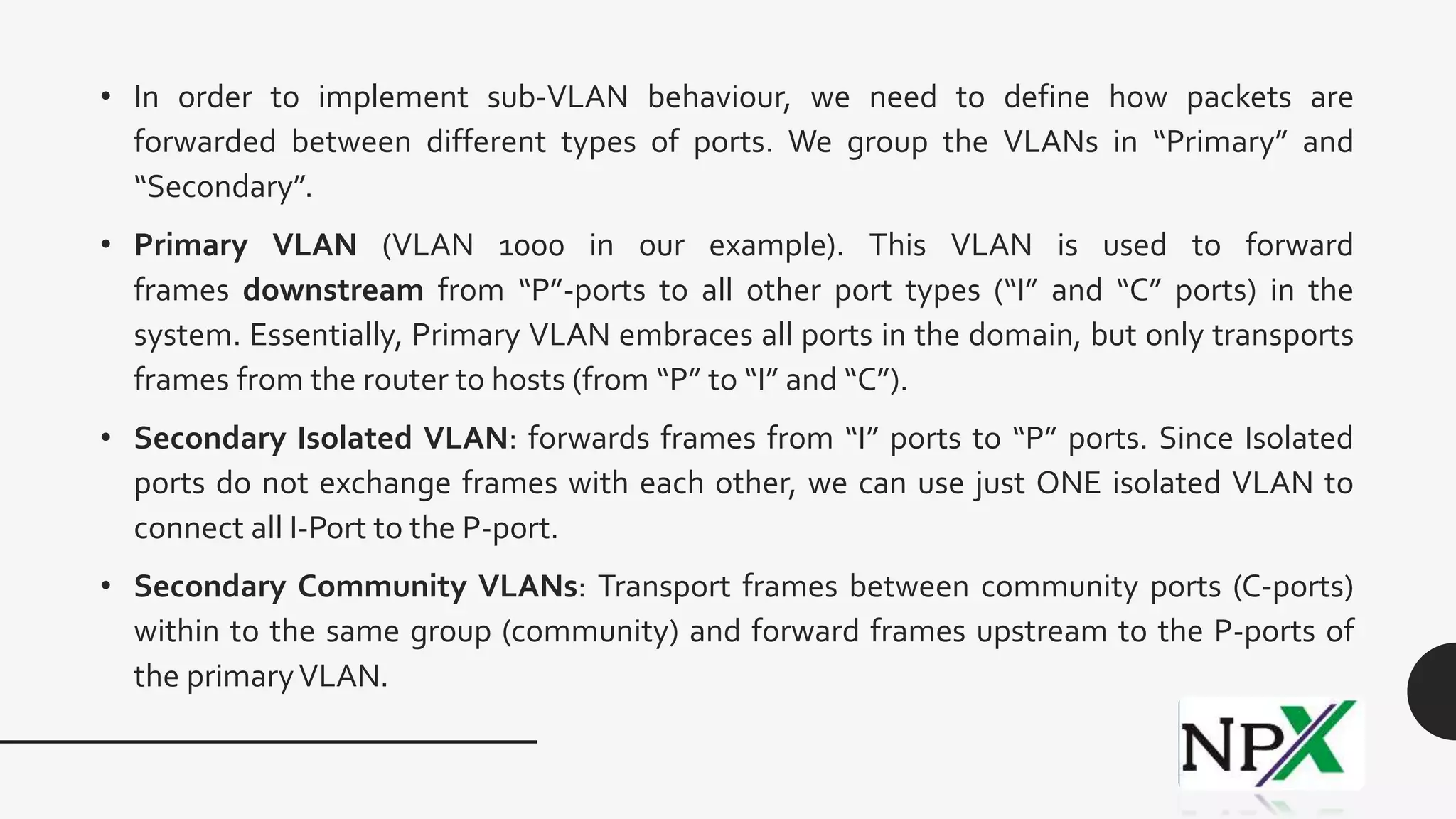

5. • In order to implement sub-VLAN behaviour, we need to define how packets are
forwarded between different types of ports. We group the VLANs in “Primary” and
“Secondary”.
• Primary VLAN (VLAN 1000 in our example). This VLAN is used to forward
frames downstream from “P”-ports to all other port types (“I” and “C” ports) in the
system. Essentially, Primary VLAN embraces all ports in the domain, but only transports
frames from the router to hosts (from “P” to “I” and “C”).
• Secondary Isolated VLAN: forwards frames from “I” ports to “P” ports. Since Isolated
ports do not exchange frames with each other, we can use just ONE isolated VLAN to
connect all I-Port to the P-port.
• Secondary Community VLANs: Transport frames between community ports (C-ports)
within to the same group (community) and forward frames upstream to the P-ports of
the primaryVLAN.

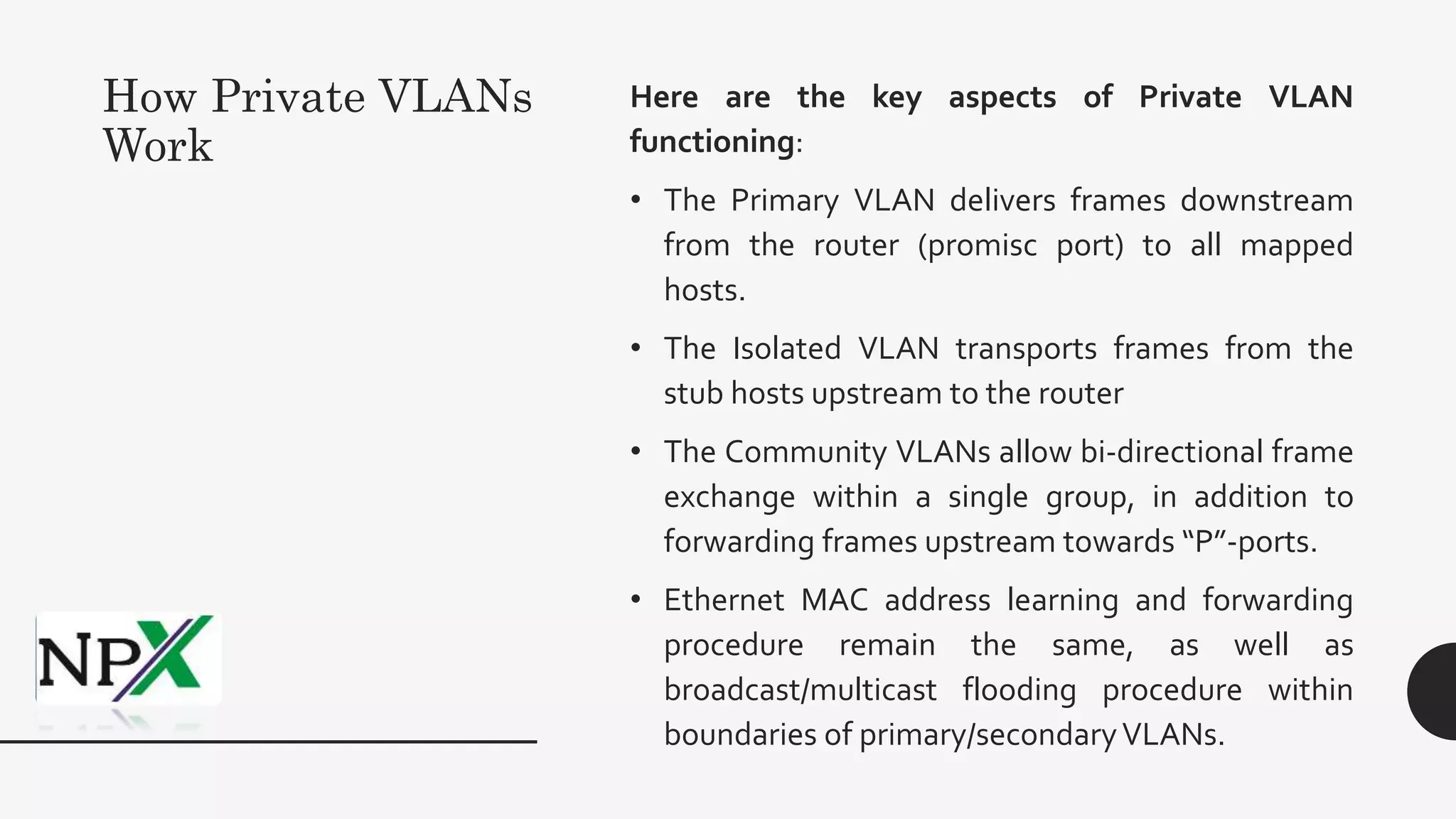

6. How Private VLANs
Work
Here are the key aspects of Private VLAN
functioning:
• The Primary VLAN delivers frames downstream
from the router (promisc port) to all mapped
hosts.
• The Isolated VLAN transports frames from the
stub hosts upstream to the router
• The Community VLANs allow bi-directional frame
exchange within a single group, in addition to
forwarding frames upstream towards “P”-ports.
• Ethernet MAC address learning and forwarding
procedure remain the same, as well as
broadcast/multicast flooding procedure within
boundaries of primary/secondaryVLANs.

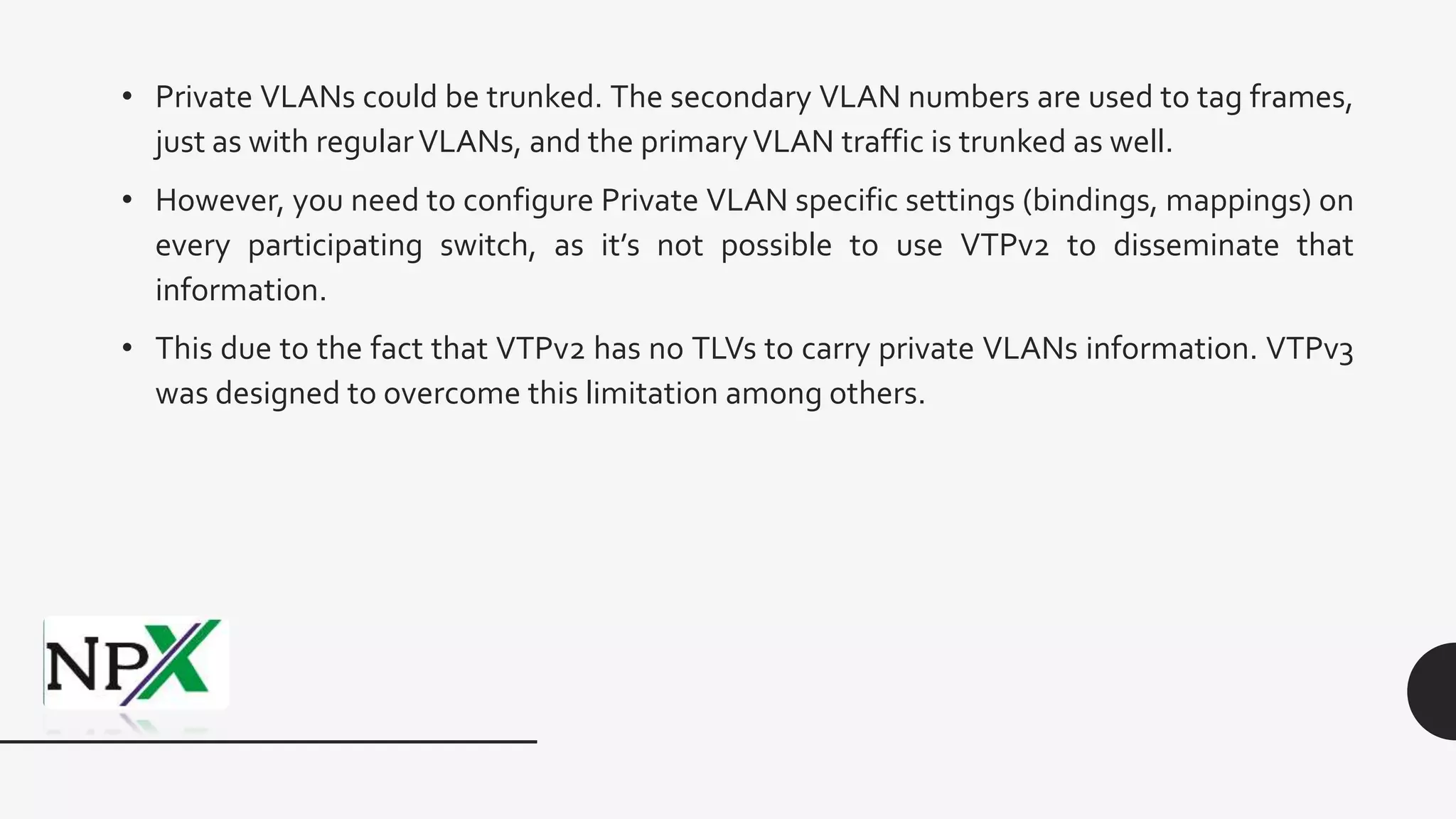

7. • Private VLANs could be trunked. The secondary VLAN numbers are used to tag frames,
just as with regularVLANs, and the primaryVLAN traffic is trunked as well.
• However, you need to configure Private VLAN specific settings (bindings, mappings) on
every participating switch, as it’s not possible to use VTPv2 to disseminate that
information.
• This due to the fact that VTPv2 has no TLVs to carry private VLANs information. VTPv3
was designed to overcome this limitation among others.

8. Configuring Private
VLANs
We have primary VLAN
1000,
Isolated VLAN 1005 (R5)
Community VLAN 1012
(R1, R2) and
Community VLAN 1034
(R3, R4).
Step 1:
• First, disable VTP, i.e. enable VTP transparent mode. After
disabling VTP, create Primary and Secondary VLANs and bind
them into PVLAN domain:
• SW1:
• vtp mode transparent
• !
• ! Creating primaryVLAN, which is shared among secondary’s
• !
• vlan 1000
• private-vlan primary

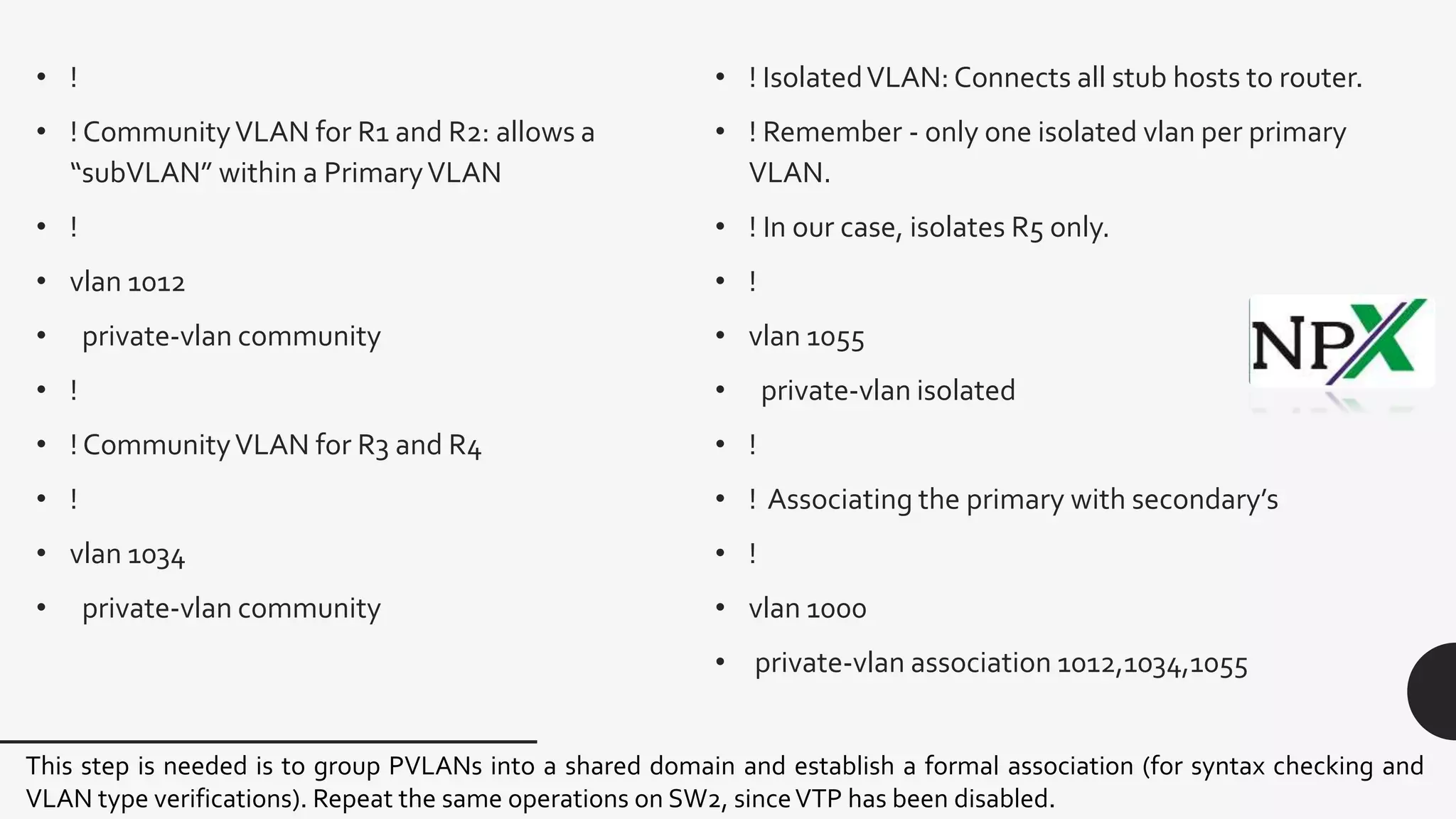

9. • !
• ! CommunityVLAN for R1 and R2: allows a
“subVLAN” within a PrimaryVLAN
• !
• vlan 1012
• private-vlan community
• !
• ! CommunityVLAN for R3 and R4
• !
• vlan 1034
• private-vlan community
• ! IsolatedVLAN: Connects all stub hosts to router.
• ! Remember - only one isolated vlan per primary
VLAN.
• ! In our case, isolates R5 only.
• !
• vlan 1055
• private-vlan isolated
• !
• ! Associating the primary with secondary’s
• !
• vlan 1000
• private-vlan association 1012,1034,1055
This step is needed is to group PVLANs into a shared domain and establish a formal association (for syntax checking and
VLAN type verifications). Repeat the same operations on SW2, sinceVTP has been disabled.

10. • ! Community port (links R3 to R4 and “P”-ports)
• !
• interface FastEthernet0/3
• description == R3
• switchport private-vlan host-association 1000 1034
• switchport mode private-vlan host
• spanning-tree portfast
• !
• ! Isolated port (uses isolatedVLAN to talk to “P”-ports)
• !
• interface FastEthernet0/5
• description == R5
• switchport private-vlan host-association 1000 1055
• switchport mode private-vlan host
• spanning-tree portfast

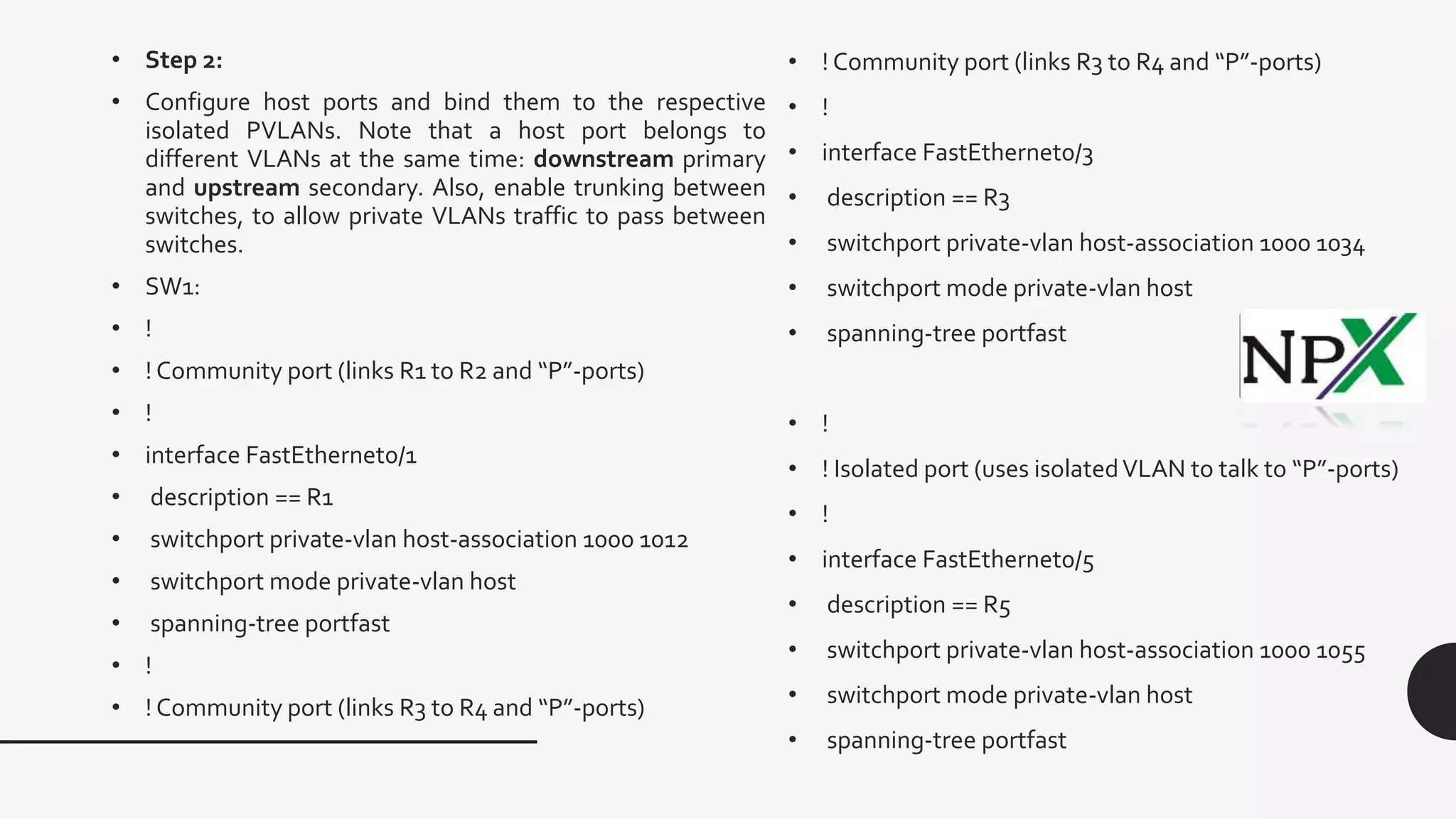

• Step 2:
• Configure host ports and bind them to the respective
isolated PVLANs. Note that a host port belongs to
different VLANs at the same time: downstream primary
and upstream secondary. Also, enable trunking between
switches, to allow private VLANs traffic to pass between
switches.
• SW1:
• !
• ! Community port (links R1 to R2 and “P”-ports)
• !
• interface FastEthernet0/1
• description == R1
• switchport private-vlan host-association 1000 1012
• switchport mode private-vlan host
• spanning-tree portfast
• !
• ! Community port (links R3 to R4 and “P”-ports)

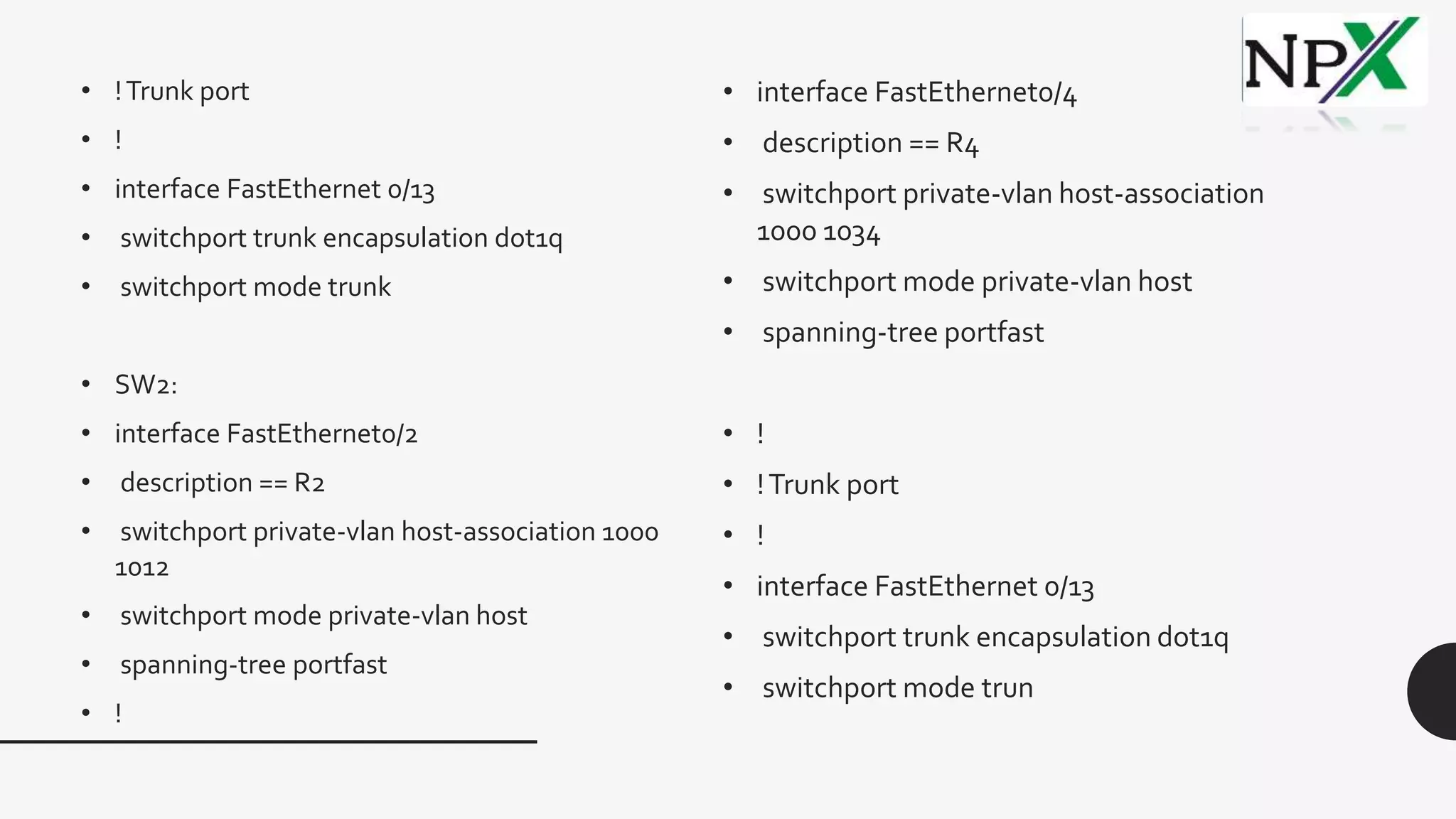

11. • !Trunk port
• !
• interface FastEthernet 0/13
• switchport trunk encapsulation dot1q
• switchport mode trunk
• SW2:
• interface FastEthernet0/2
• description == R2
• switchport private-vlan host-association 1000
1012
• switchport mode private-vlan host
• spanning-tree portfast
• !
• interface FastEthernet0/4
• description == R4
• switchport private-vlan host-association
1000 1034
• switchport mode private-vlan host
• spanning-tree portfast
• !
• !Trunk port
• !
• interface FastEthernet 0/13
• switchport trunk encapsulation dot1q
• switchport mode trun

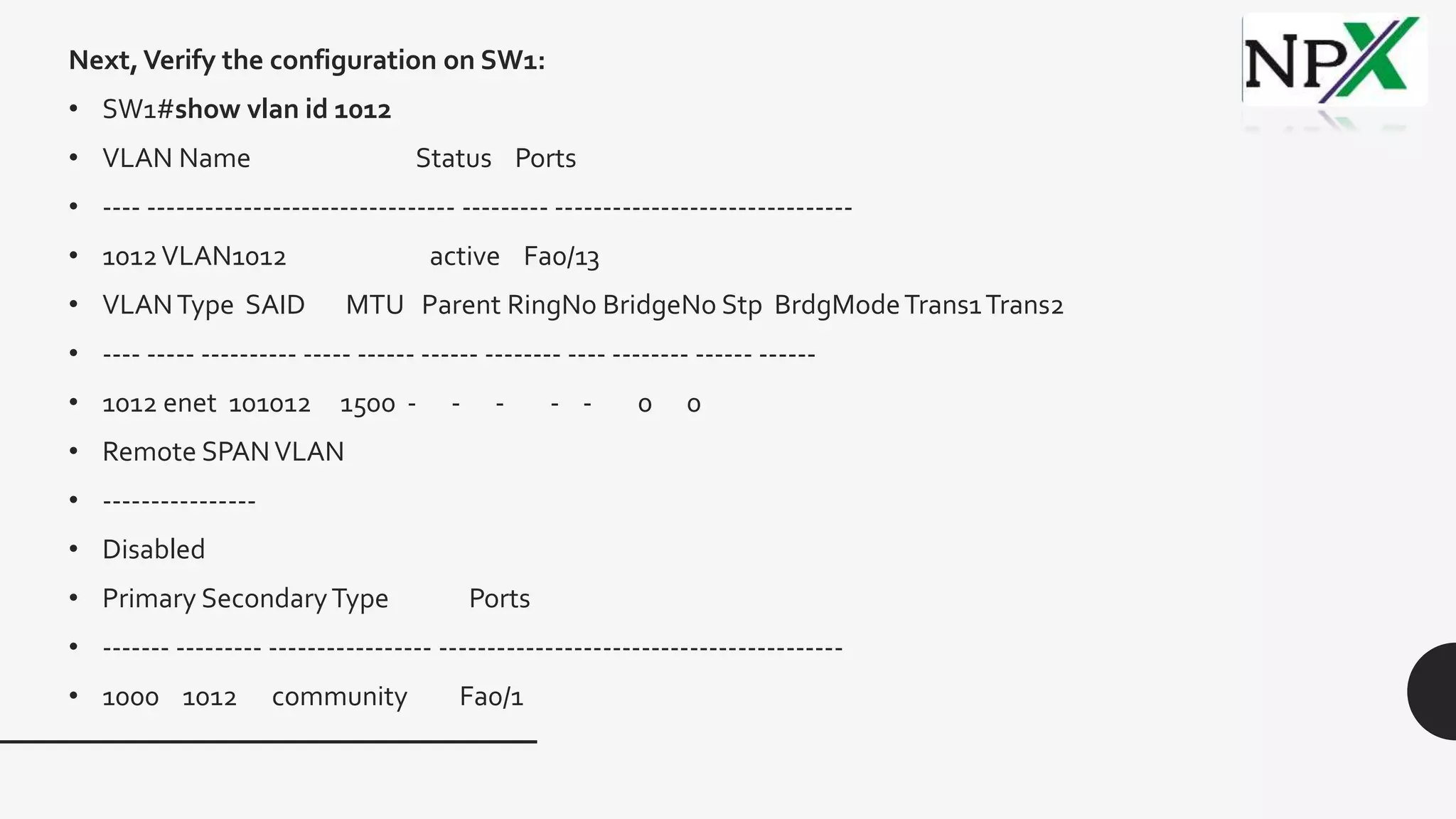

12. Next,Verify the configuration on SW1:
• SW1#show vlan id 1012
• VLAN Name Status Ports
• ---- -------------------------------- --------- -------------------------------
• 1012VLAN1012 active Fa0/13
• VLANType SAID MTU Parent RingNo BridgeNo Stp BrdgModeTrans1Trans2
• ---- ----- ---------- ----- ------ ------ -------- ---- -------- ------ ------
• 1012 enet 101012 1500 - - - - - 0 0
• Remote SPANVLAN
• ----------------
• Disabled
• Primary SecondaryType Ports
• ------- --------- ----------------- ------------------------------------------
• 1000 1012 community Fa0/1

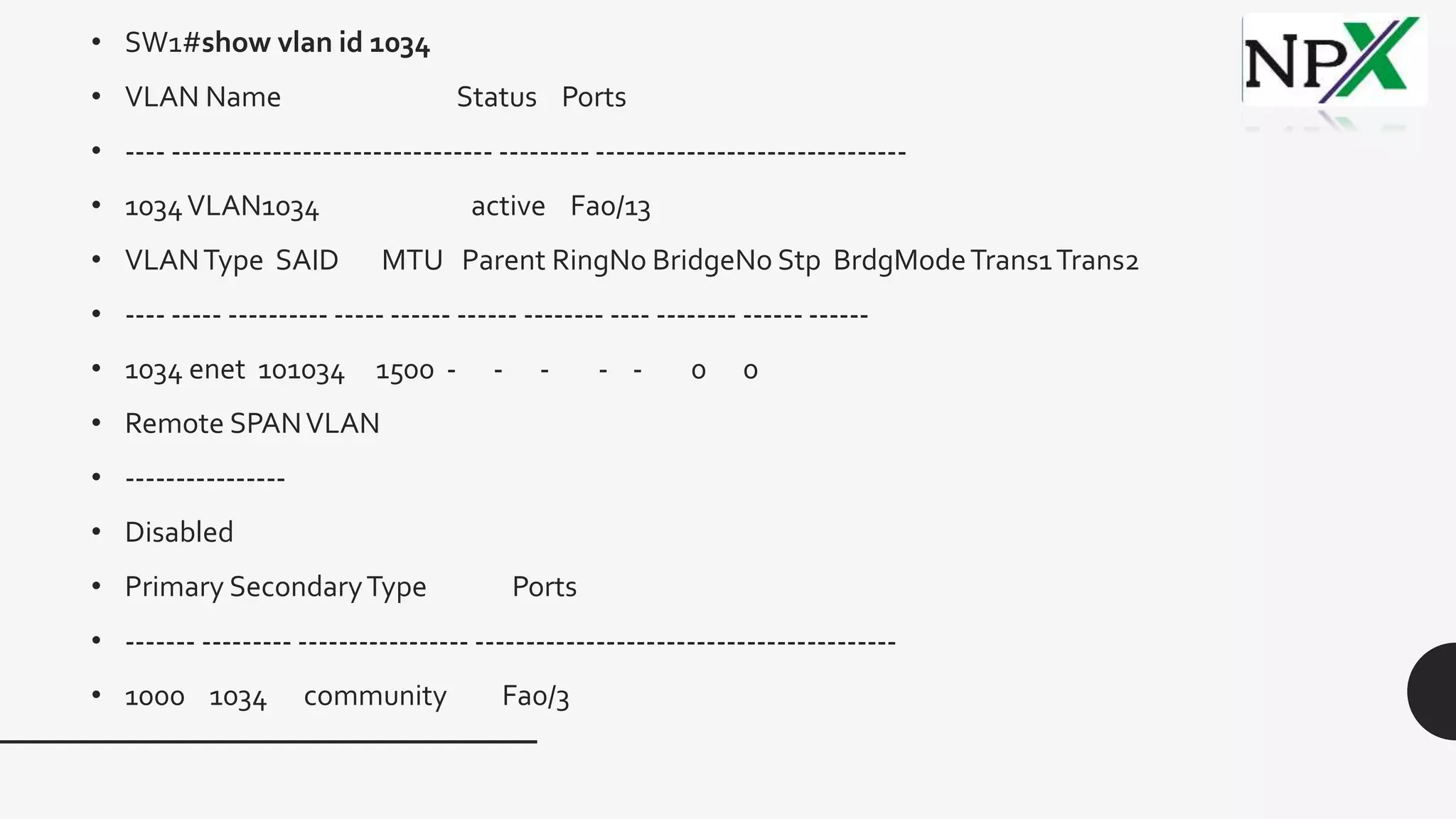

13. • SW1#show vlan id 1034
• VLAN Name Status Ports
• ---- -------------------------------- --------- -------------------------------
• 1034VLAN1034 active Fa0/13
• VLANType SAID MTU Parent RingNo BridgeNo Stp BrdgModeTrans1Trans2
• ---- ----- ---------- ----- ------ ------ -------- ---- -------- ------ ------
• 1034 enet 101034 1500 - - - - - 0 0
• Remote SPANVLAN
• ----------------
• Disabled
• Primary SecondaryType Ports
• ------- --------- ----------------- ------------------------------------------
• 1000 1034 community Fa0/3

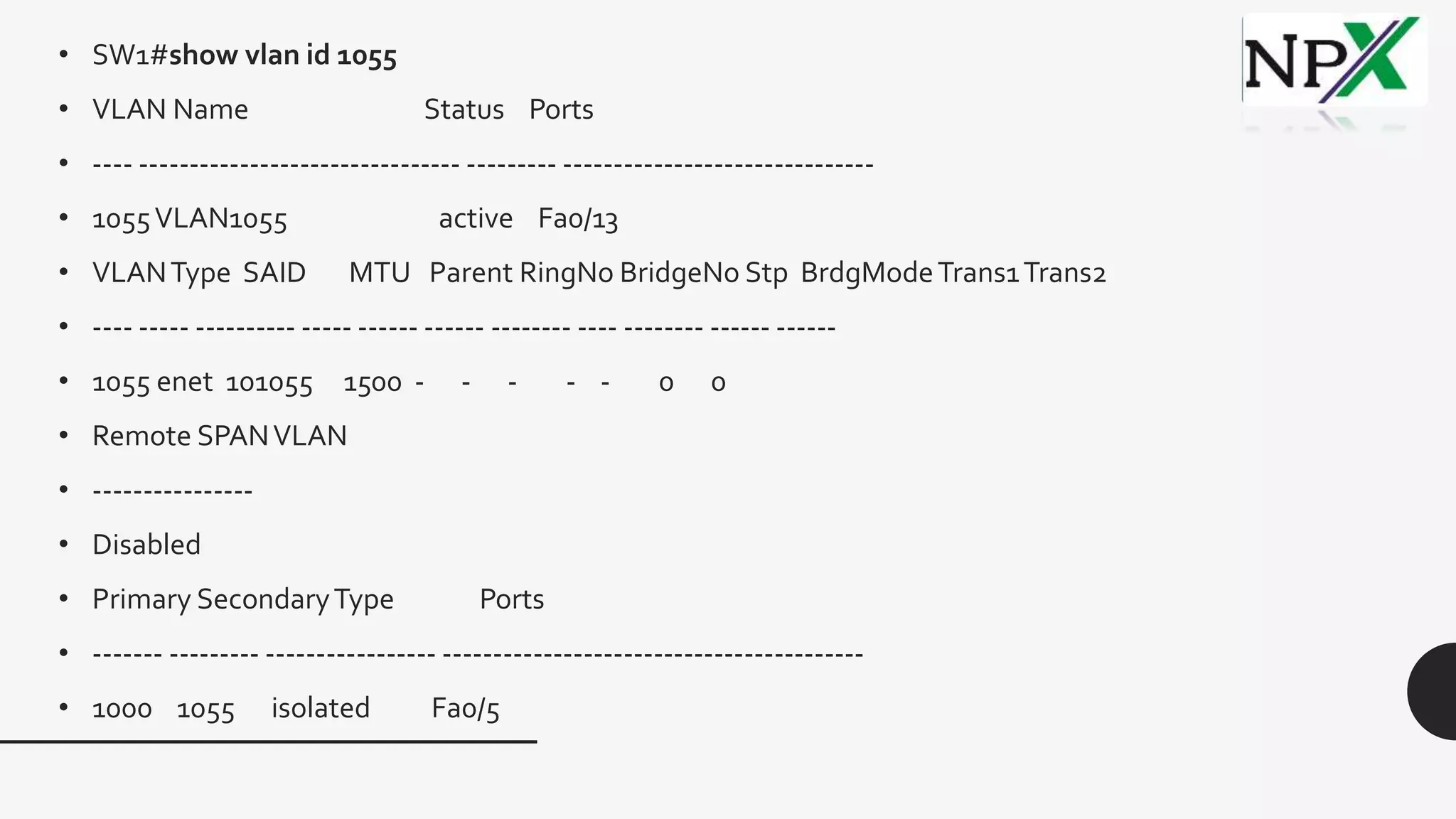

14. • SW1#show vlan id 1055
• VLAN Name Status Ports
• ---- -------------------------------- --------- -------------------------------
• 1055VLAN1055 active Fa0/13
• VLANType SAID MTU Parent RingNo BridgeNo Stp BrdgModeTrans1Trans2
• ---- ----- ---------- ----- ------ ------ -------- ---- -------- ------ ------
• 1055 enet 101055 1500 - - - - - 0 0
• Remote SPANVLAN
• ----------------
• Disabled
• Primary SecondaryType Ports
• ------- --------- ----------------- ------------------------------------------
• 1000 1055 isolated Fa0/5

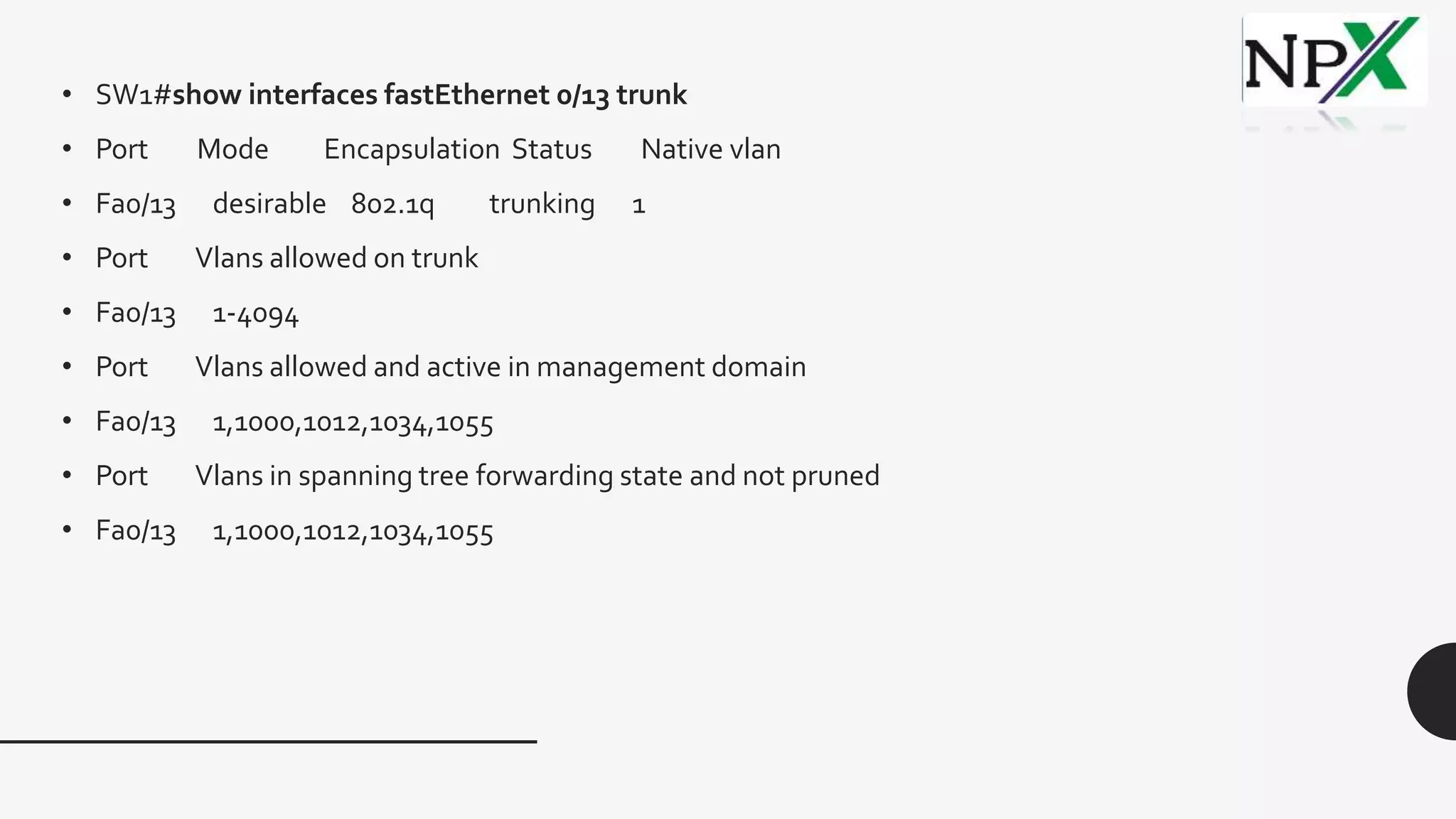

15. • SW1#show interfaces fastEthernet 0/13 trunk
• Port Mode Encapsulation Status Native vlan
• Fa0/13 desirable 802.1q trunking 1
• Port Vlans allowed on trunk
• Fa0/13 1-4094
• Port Vlans allowed and active in management domain
• Fa0/13 1,1000,1012,1034,1055
• Port Vlans in spanning tree forwarding state and not pruned
• Fa0/13 1,1000,1012,1034,1055

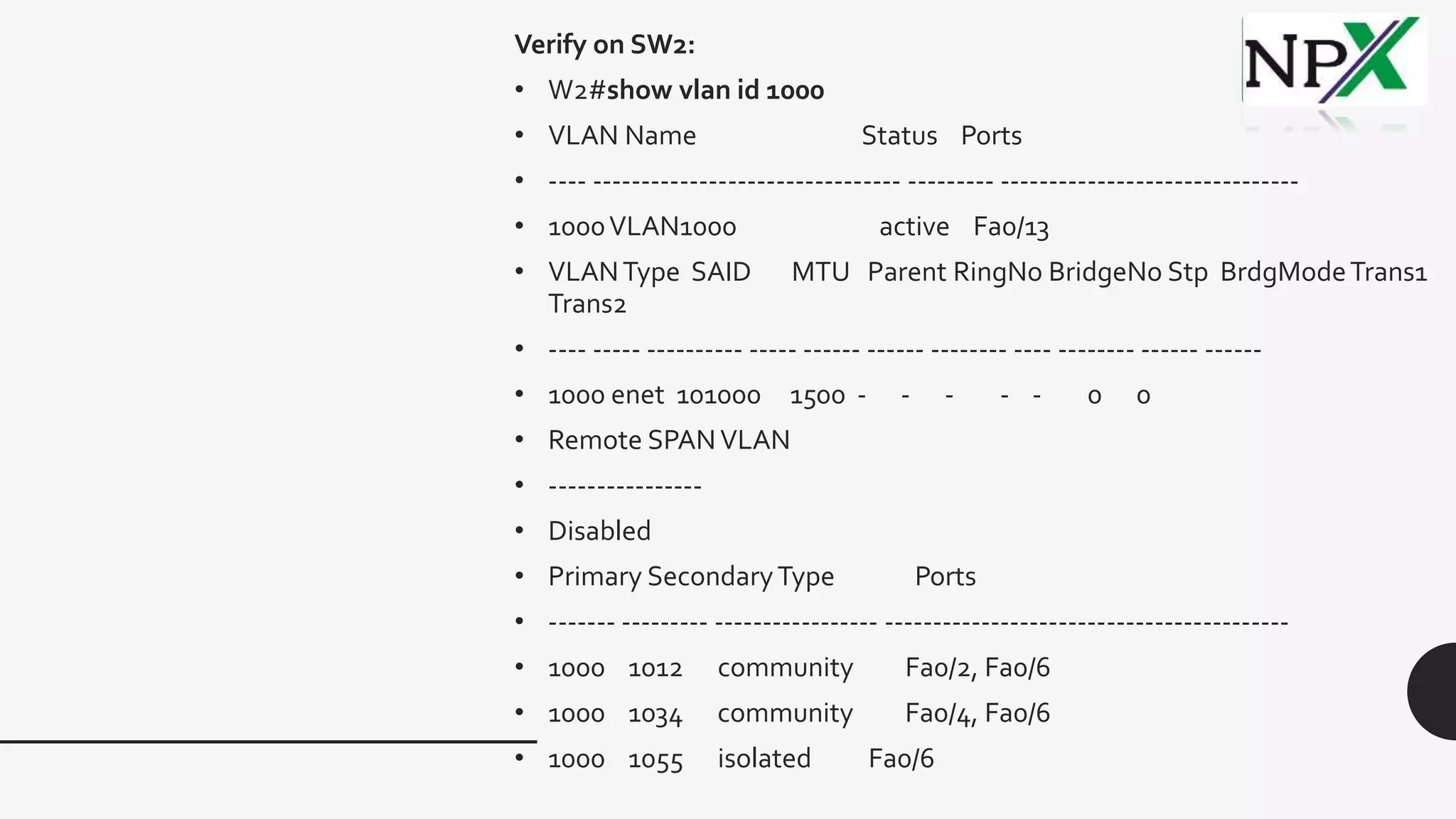

16. Verify on SW2:
• W2#show vlan id 1000
• VLAN Name Status Ports
• ---- -------------------------------- --------- -------------------------------
• 1000VLAN1000 active Fa0/13
• VLANType SAID MTU Parent RingNo BridgeNo Stp BrdgModeTrans1
Trans2
• ---- ----- ---------- ----- ------ ------ -------- ---- -------- ------ ------
• 1000 enet 101000 1500 - - - - - 0 0
• Remote SPANVLAN
• ----------------
• Disabled
• Primary SecondaryType Ports
• ------- --------- ----------------- ------------------------------------------
• 1000 1012 community Fa0/2, Fa0/6
• 1000 1034 community Fa0/4, Fa0/6
• 1000 1055 isolated Fa0/6

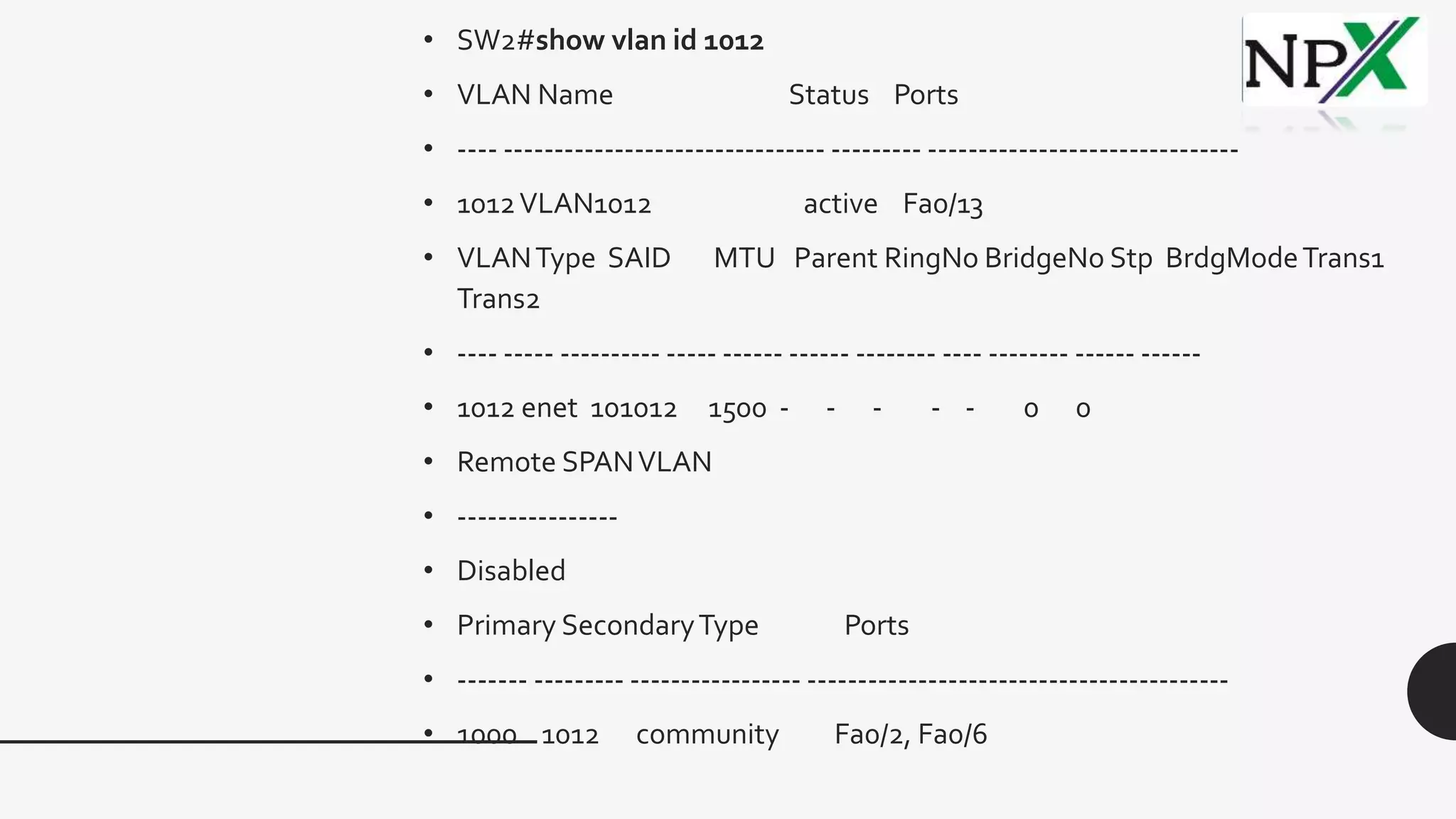

17. • SW2#show vlan id 1012
• VLAN Name Status Ports
• ---- -------------------------------- --------- -------------------------------
• 1012VLAN1012 active Fa0/13
• VLANType SAID MTU Parent RingNo BridgeNo Stp BrdgModeTrans1
Trans2
• ---- ----- ---------- ----- ------ ------ -------- ---- -------- ------ ------
• 1012 enet 101012 1500 - - - - - 0 0
• Remote SPANVLAN
• ----------------
• Disabled
• Primary SecondaryType Ports
• ------- --------- ----------------- ------------------------------------------
• 1000 1012 community Fa0/2, Fa0/6

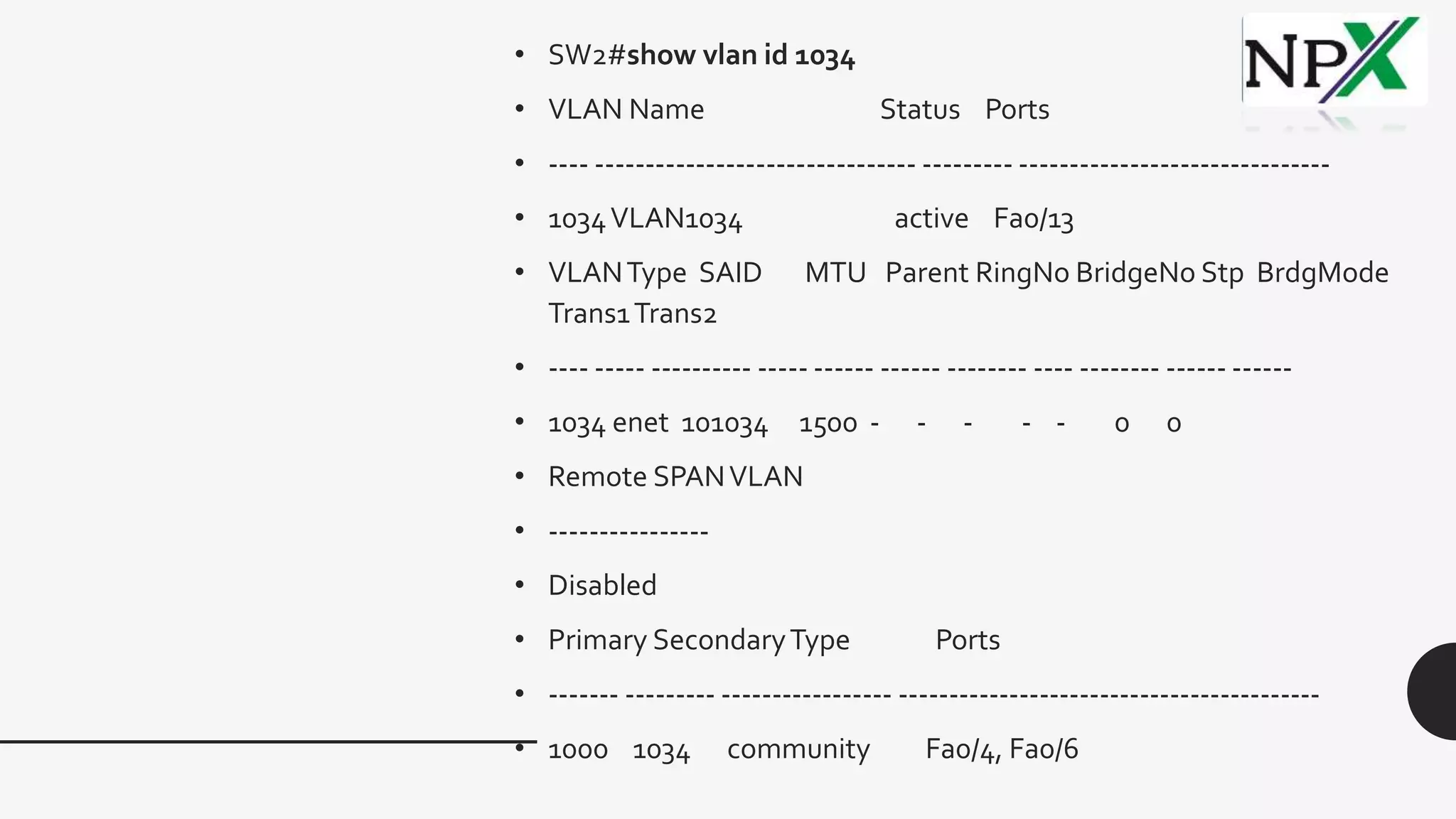

18. • SW2#show vlan id 1034
• VLAN Name Status Ports
• ---- -------------------------------- --------- -------------------------------
• 1034VLAN1034 active Fa0/13
• VLANType SAID MTU Parent RingNo BridgeNo Stp BrdgMode
Trans1Trans2
• ---- ----- ---------- ----- ------ ------ -------- ---- -------- ------ ------
• 1034 enet 101034 1500 - - - - - 0 0
• Remote SPANVLAN
• ----------------
• Disabled
• Primary SecondaryType Ports
• ------- --------- ----------------- ------------------------------------------
• 1000 1034 community Fa0/4, Fa0/6

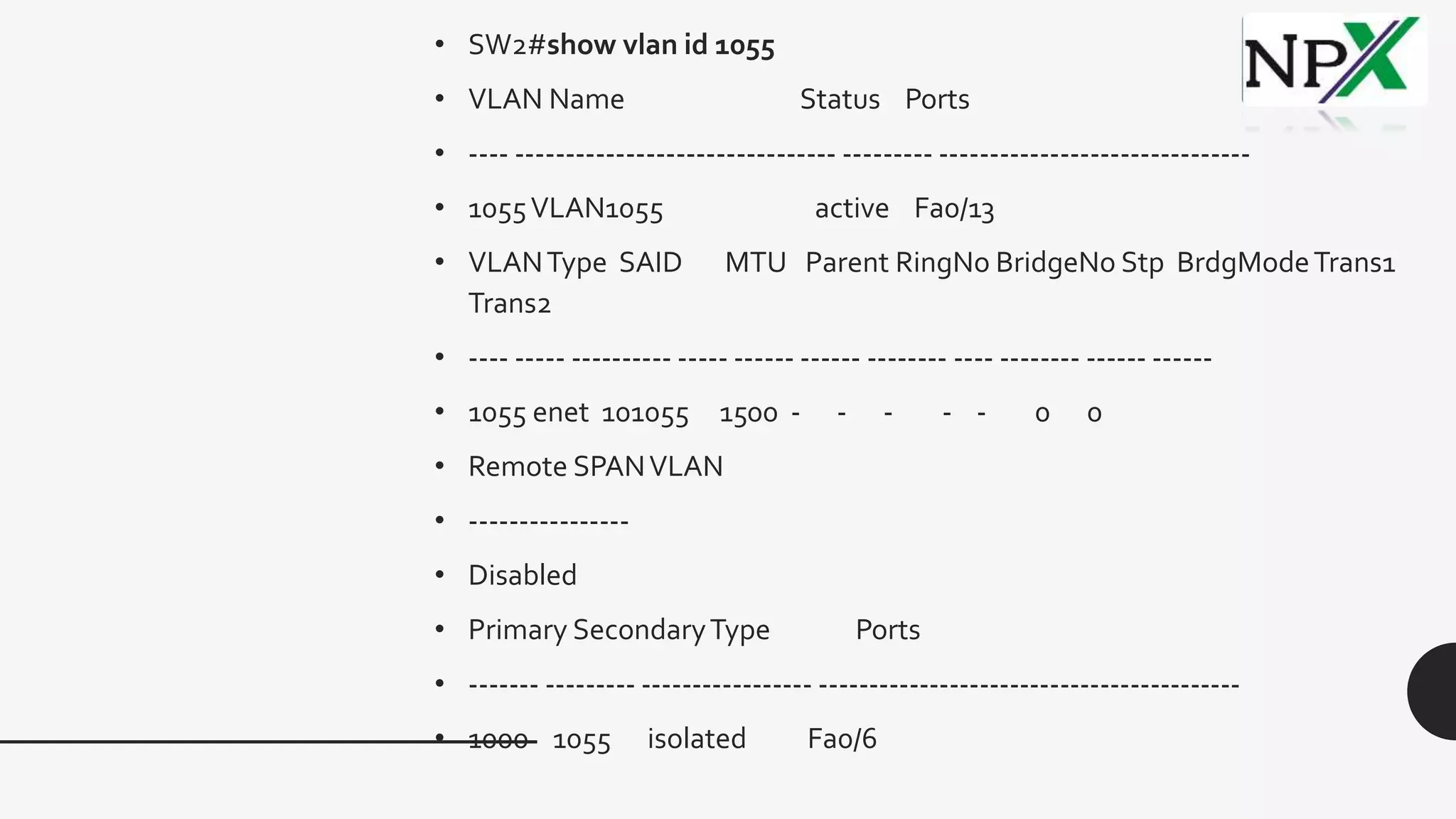

19. • SW2#show vlan id 1055
• VLAN Name Status Ports
• ---- -------------------------------- --------- -------------------------------
• 1055VLAN1055 active Fa0/13
• VLANType SAID MTU Parent RingNo BridgeNo Stp BrdgModeTrans1
Trans2
• ---- ----- ---------- ----- ------ ------ -------- ---- -------- ------ ------
• 1055 enet 101055 1500 - - - - - 0 0
• Remote SPANVLAN
• ----------------
• Disabled
• Primary SecondaryType Ports
• ------- --------- ----------------- ------------------------------------------
• 1000 1055 isolated Fa0/6

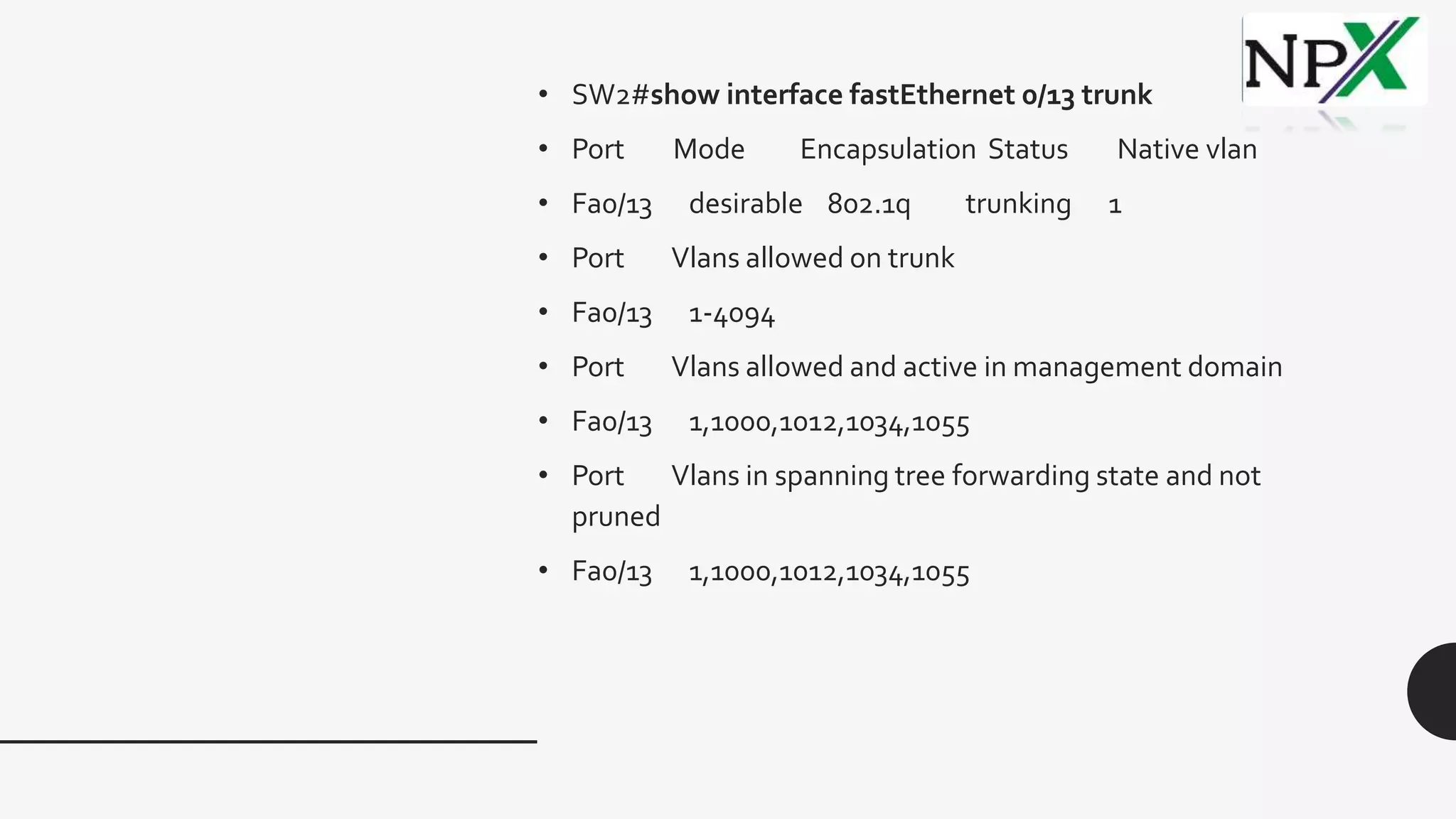

20. • SW2#show interface fastEthernet 0/13 trunk
• Port Mode Encapsulation Status Native vlan
• Fa0/13 desirable 802.1q trunking 1
• Port Vlans allowed on trunk
• Fa0/13 1-4094
• Port Vlans allowed and active in management domain
• Fa0/13 1,1000,1012,1034,1055
• Port Vlans in spanning tree forwarding state and not
pruned
• Fa0/13 1,1000,1012,1034,1055

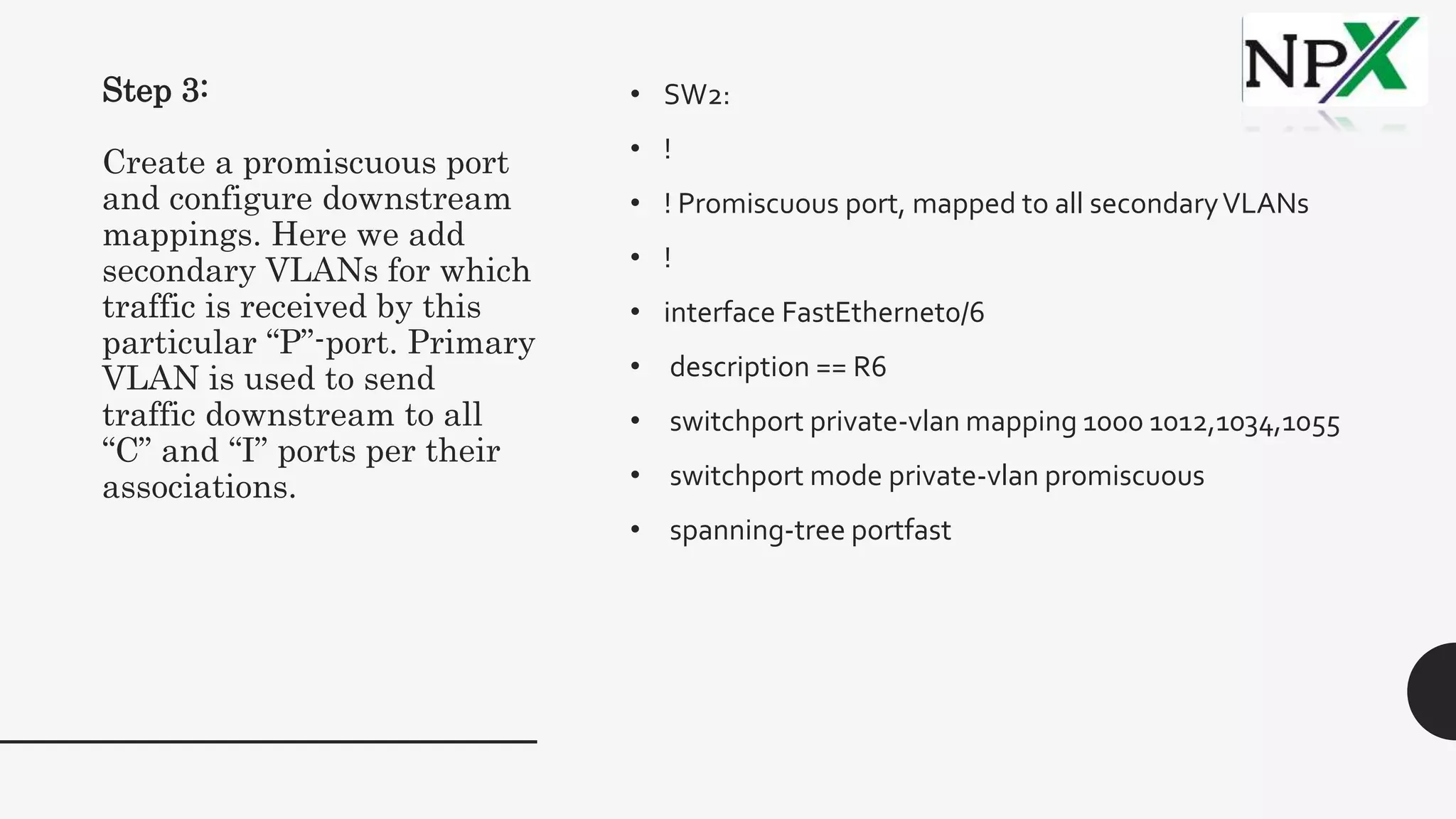

21. Step 3:
Create a promiscuous port
and configure downstream
mappings. Here we add
secondary VLANs for which
traffic is received by this
particular “P”-port. Primary
VLAN is used to send
traffic downstream to all
“C” and “I” ports per their
associations.
• SW2:
• !
• ! Promiscuous port, mapped to all secondaryVLANs
• !
• interface FastEthernet0/6
• description == R6
• switchport private-vlan mapping 1000 1012,1034,1055
• switchport mode private-vlan promiscuous
• spanning-tree portfast

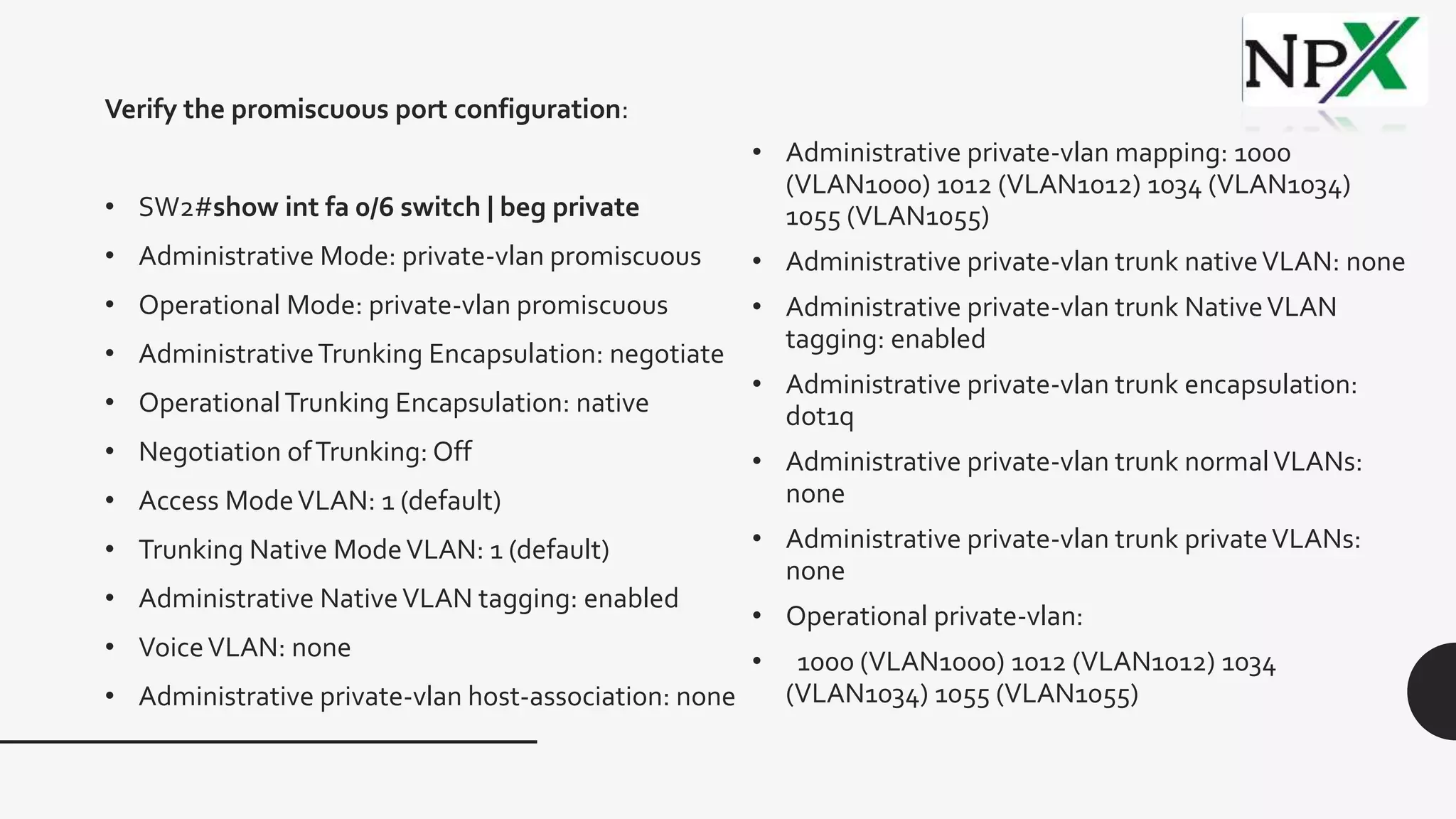

22. • Administrative private-vlan mapping: 1000
(VLAN1000) 1012 (VLAN1012) 1034 (VLAN1034)
1055 (VLAN1055)
• Administrative private-vlan trunk nativeVLAN: none
• Administrative private-vlan trunk NativeVLAN
tagging: enabled
• Administrative private-vlan trunk encapsulation:
dot1q
• Administrative private-vlan trunk normalVLANs:
none
• Administrative private-vlan trunk privateVLANs:
none
• Operational private-vlan:
• 1000 (VLAN1000) 1012 (VLAN1012) 1034
(VLAN1034) 1055 (VLAN1055)
Verify the promiscuous port configuration:
• SW2#show int fa 0/6 switch | beg private
• Administrative Mode: private-vlan promiscuous
• Operational Mode: private-vlan promiscuous
• AdministrativeTrunking Encapsulation: negotiate
• OperationalTrunking Encapsulation: native
• Negotiation ofTrunking: Off
• Access ModeVLAN: 1 (default)
• Trunking Native ModeVLAN: 1 (default)
• Administrative NativeVLAN tagging: enabled
• VoiceVLAN: none
• Administrative private-vlan host-association: none

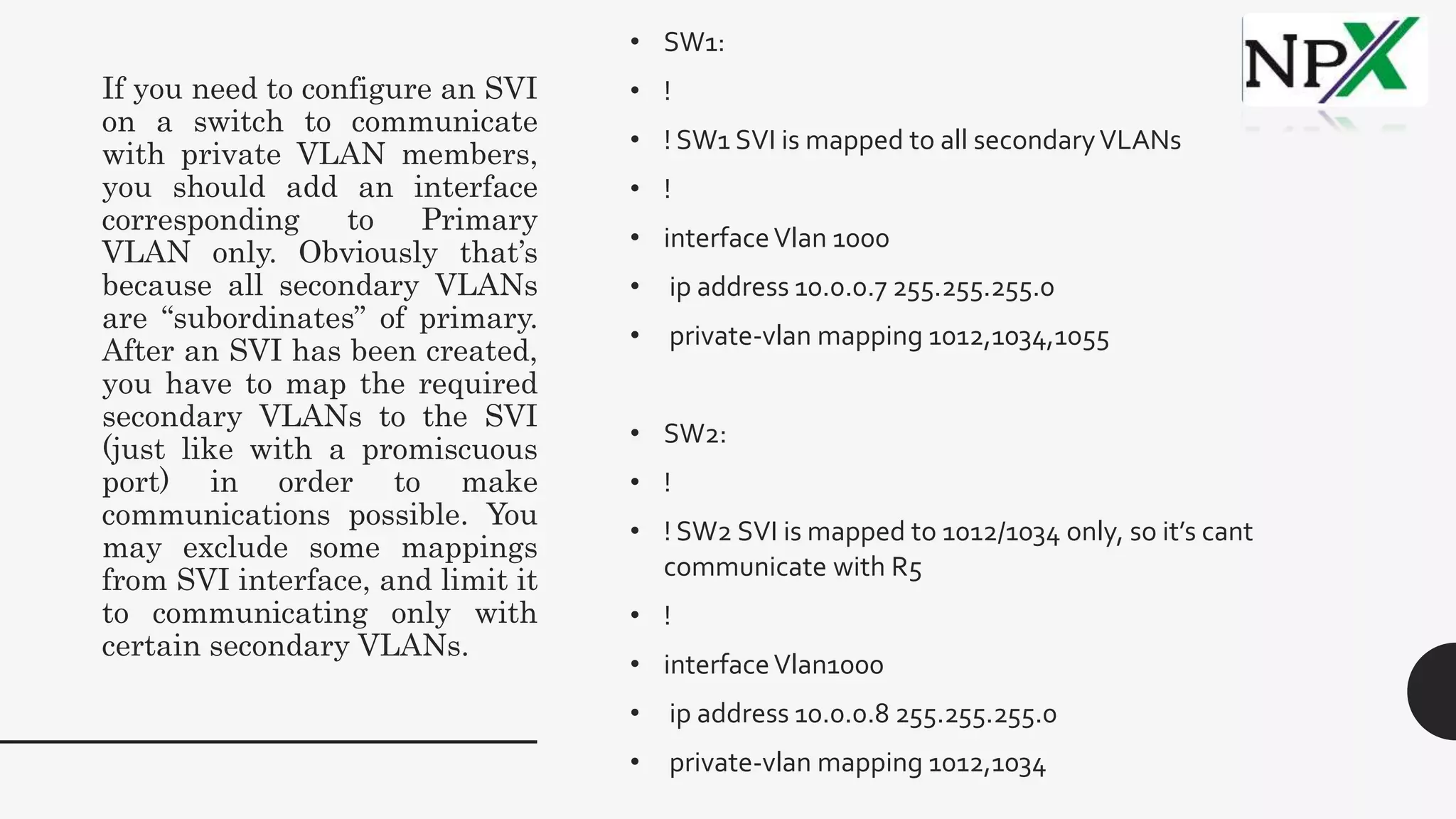

23. If you need to configure an SVI
on a switch to communicate
with private VLAN members,
you should add an interface
corresponding to Primary
VLAN only. Obviously that’s
because all secondary VLANs
are “subordinates” of primary.
After an SVI has been created,
you have to map the required
secondary VLANs to the SVI
(just like with a promiscuous
port) in order to make
communications possible. You
may exclude some mappings
from SVI interface, and limit it
to communicating only with
certain secondary VLANs.
• SW1:
• !
• ! SW1 SVI is mapped to all secondaryVLANs
• !
• interfaceVlan 1000
• ip address 10.0.0.7 255.255.255.0
• private-vlan mapping 1012,1034,1055
• SW2:
• !
• ! SW2 SVI is mapped to 1012/1034 only, so it’s cant
communicate with R5
• !
• interfaceVlan1000
• ip address 10.0.0.8 255.255.255.0
• private-vlan mapping 1012,1034

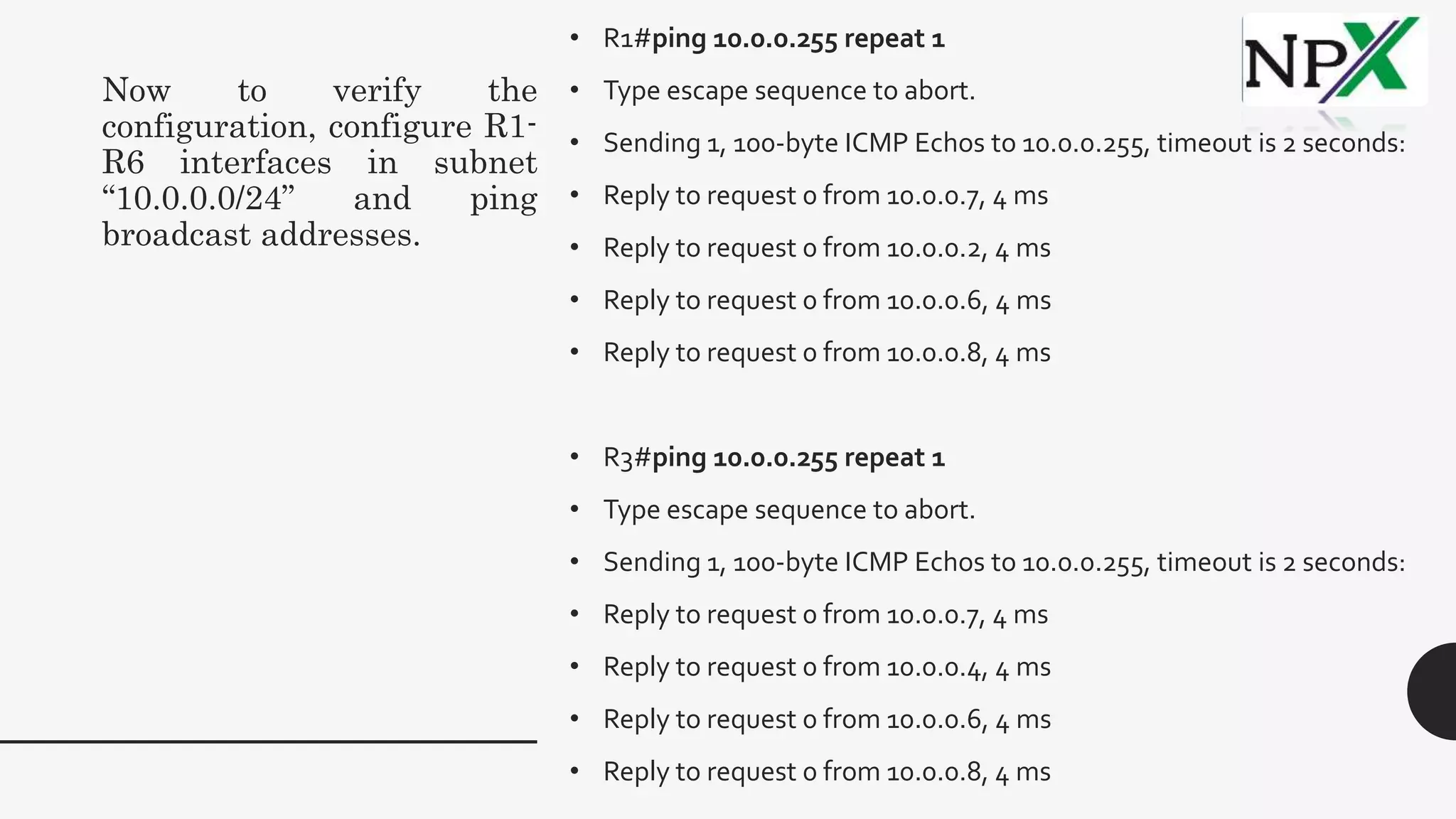

24. Now to verify the
configuration, configure R1-
R6 interfaces in subnet
“10.0.0.0/24” and ping
broadcast addresses.
• R1#ping 10.0.0.255 repeat 1
• Type escape sequence to abort.
• Sending 1, 100-byte ICMP Echos to 10.0.0.255, timeout is 2 seconds:
• Reply to request 0 from 10.0.0.7, 4 ms
• Reply to request 0 from 10.0.0.2, 4 ms
• Reply to request 0 from 10.0.0.6, 4 ms
• Reply to request 0 from 10.0.0.8, 4 ms
• R3#ping 10.0.0.255 repeat 1
• Type escape sequence to abort.
• Sending 1, 100-byte ICMP Echos to 10.0.0.255, timeout is 2 seconds:
• Reply to request 0 from 10.0.0.7, 4 ms
• Reply to request 0 from 10.0.0.4, 4 ms
• Reply to request 0 from 10.0.0.6, 4 ms
• Reply to request 0 from 10.0.0.8, 4 ms

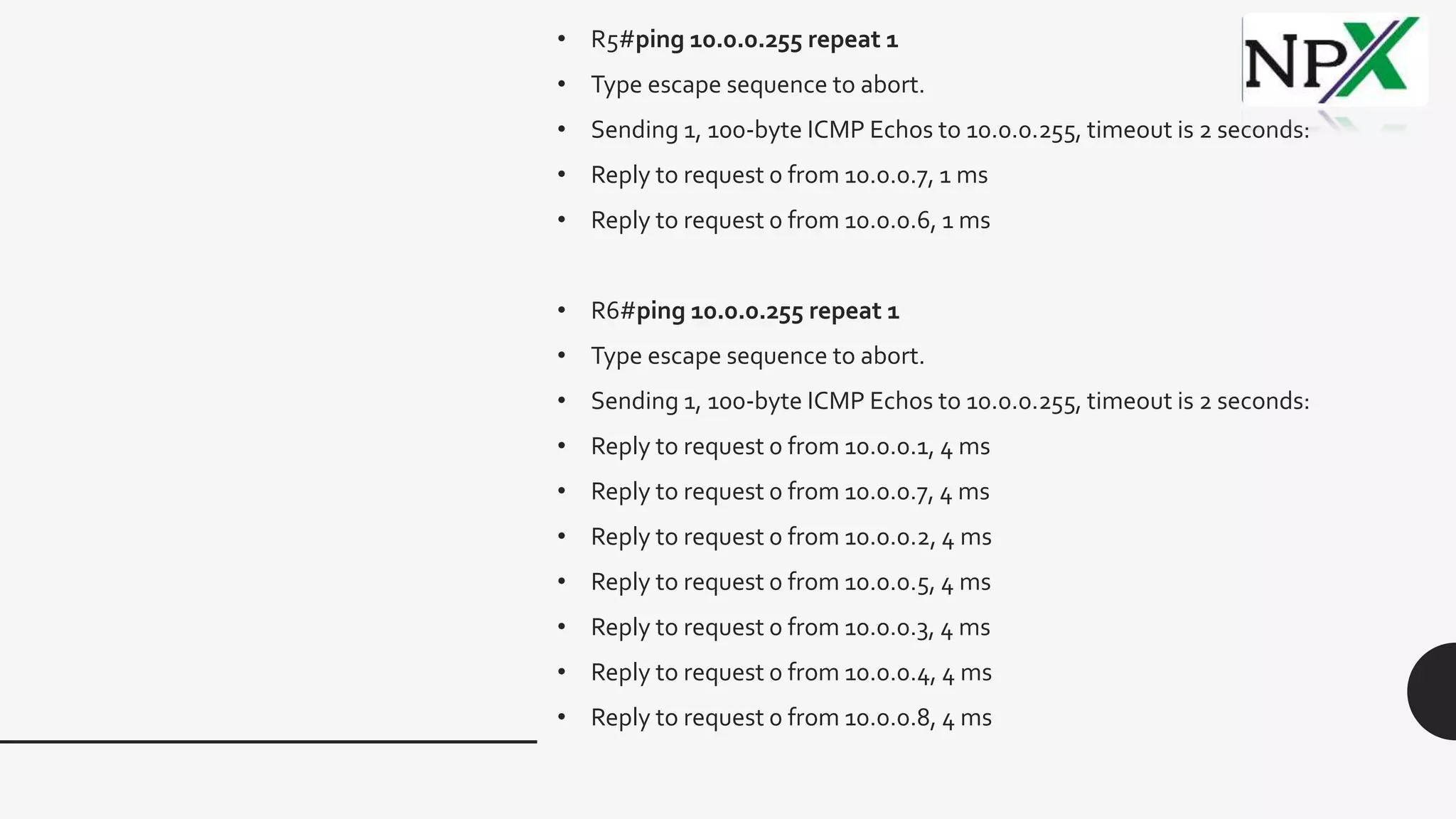

25. • R5#ping 10.0.0.255 repeat 1
• Type escape sequence to abort.
• Sending 1, 100-byte ICMP Echos to 10.0.0.255, timeout is 2 seconds:
• Reply to request 0 from 10.0.0.7, 1 ms
• Reply to request 0 from 10.0.0.6, 1 ms
• R6#ping 10.0.0.255 repeat 1
• Type escape sequence to abort.
• Sending 1, 100-byte ICMP Echos to 10.0.0.255, timeout is 2 seconds:
• Reply to request 0 from 10.0.0.1, 4 ms
• Reply to request 0 from 10.0.0.7, 4 ms
• Reply to request 0 from 10.0.0.2, 4 ms
• Reply to request 0 from 10.0.0.5, 4 ms
• Reply to request 0 from 10.0.0.3, 4 ms
• Reply to request 0 from 10.0.0.4, 4 ms
• Reply to request 0 from 10.0.0.8, 4 ms

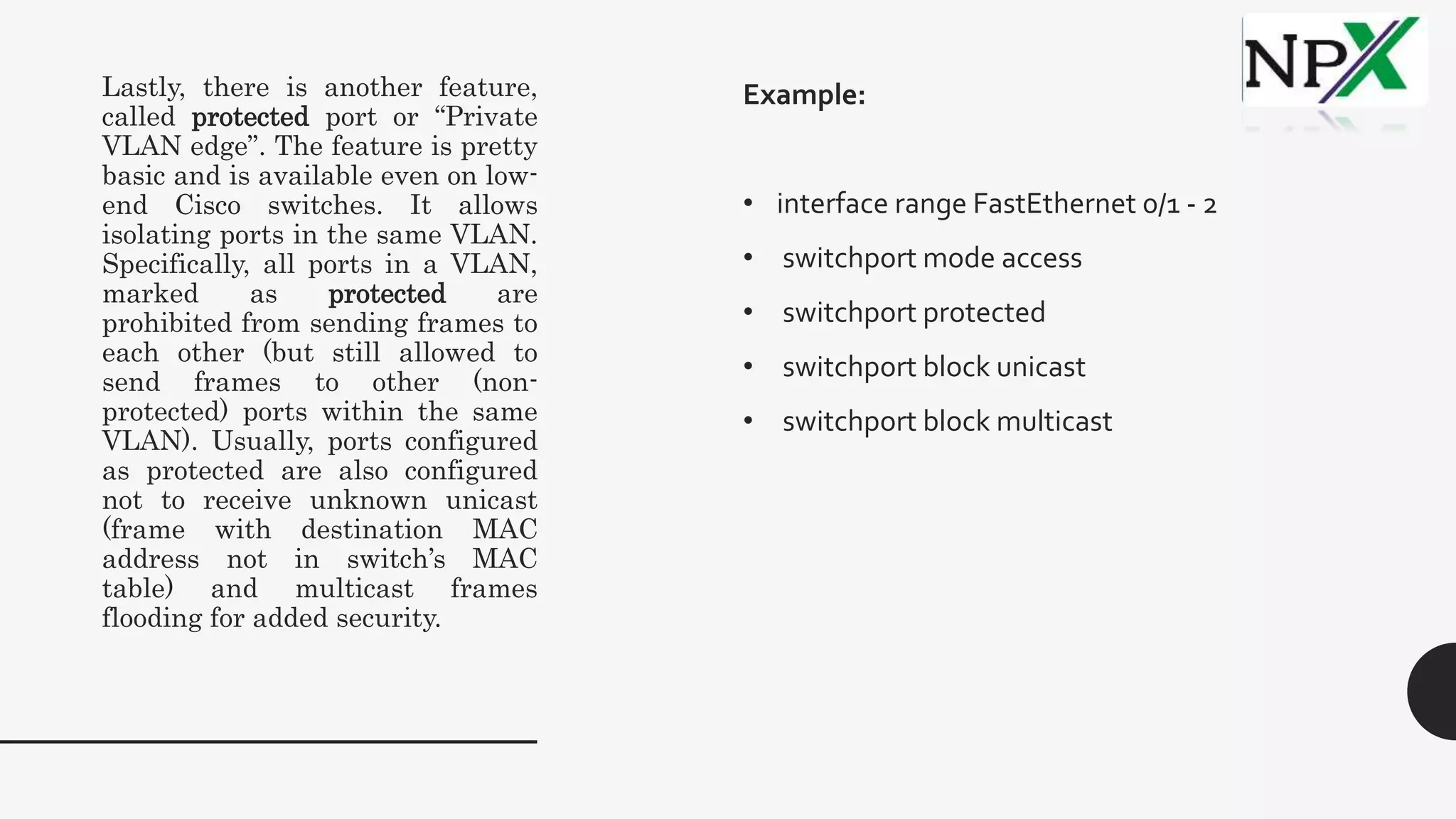

26. Lastly, there is another feature,
called protected port or “Private
VLAN edge”. The feature is pretty
basic and is available even on low-
end Cisco switches. It allows
isolating ports in the same VLAN.
Specifically, all ports in a VLAN,
marked as protected are
prohibited from sending frames to
each other (but still allowed to
send frames to other (non-
protected) ports within the same
VLAN). Usually, ports configured
as protected are also configured
not to receive unknown unicast
(frame with destination MAC
address not in switch’s MAC
table) and multicast frames
flooding for added security.
Example:
• interface range FastEthernet 0/1 - 2
• switchport mode access
• switchport protected
• switchport block unicast
• switchport block multicast
