1. Data Transfer Mechanisms

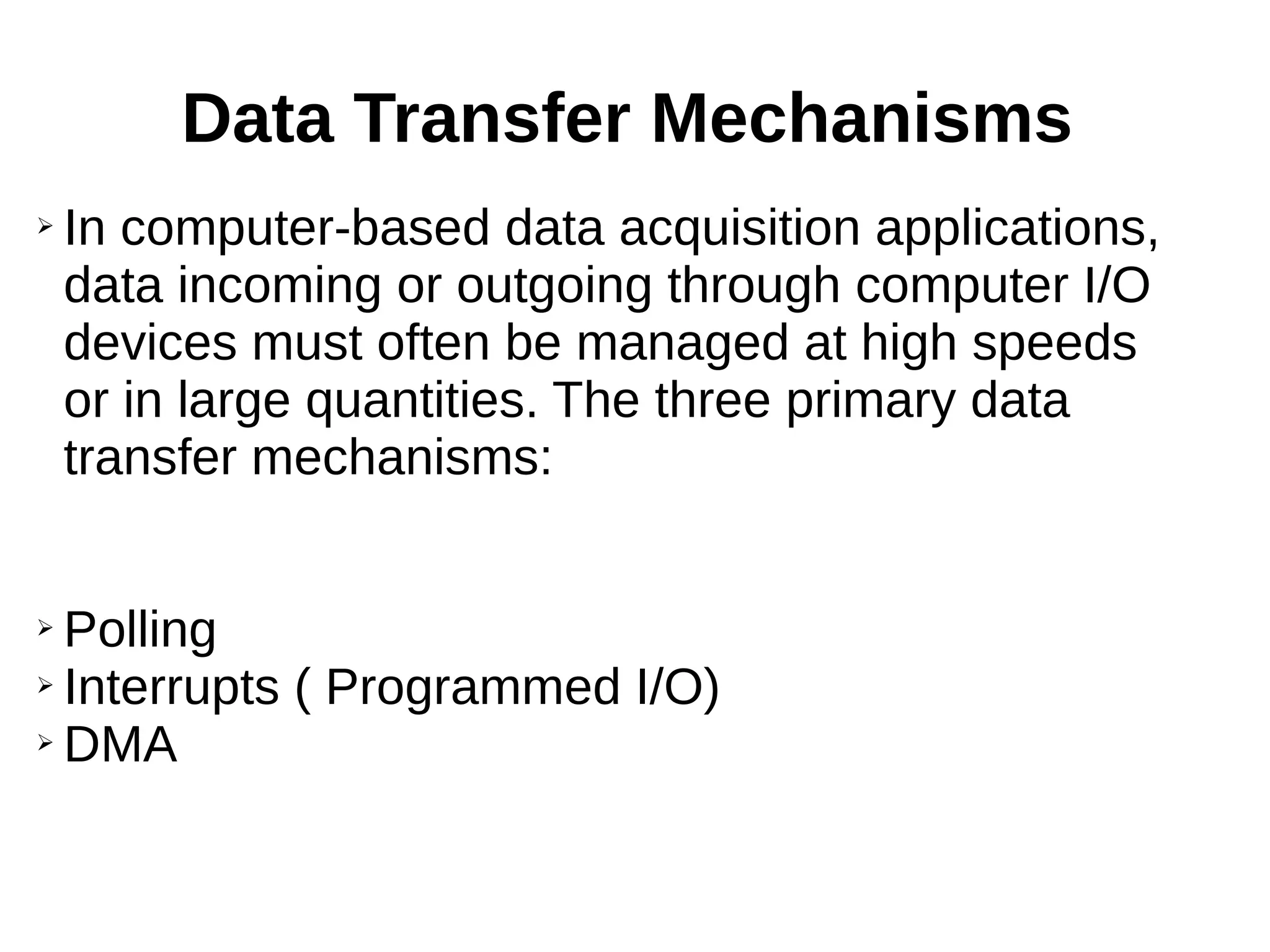

➢ In computer-based data acquisition applications,
data incoming or outgoing through computer I/O
devices must often be managed at high speeds
or in large quantities. The three primary data
transfer mechanisms:
➢ Polling
➢ Interrupts ( Programmed I/O)
➢ DMA

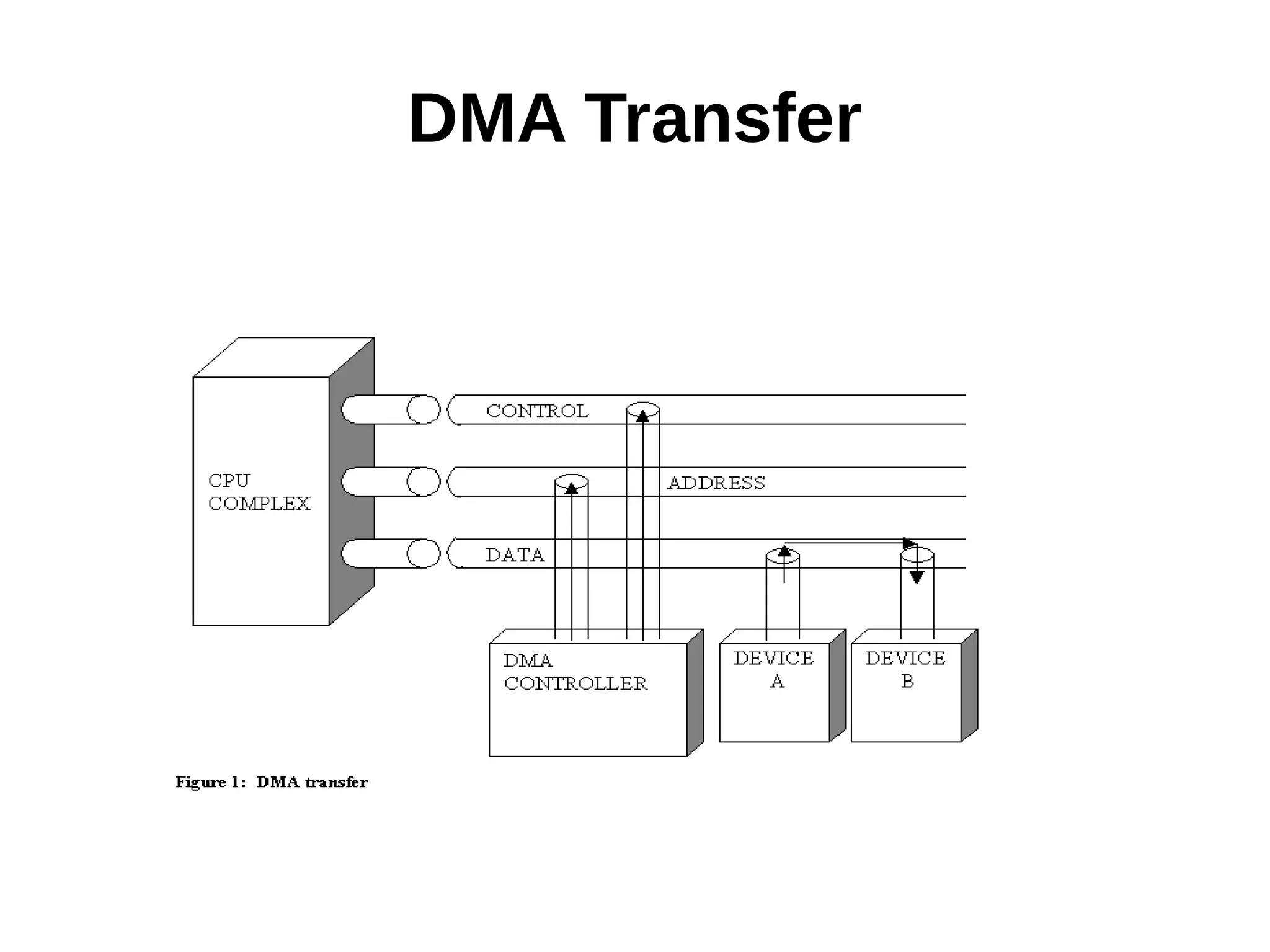

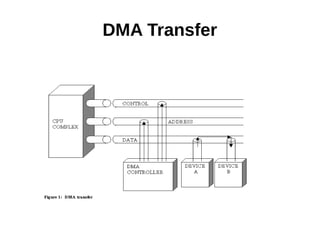

2. DMA Transfer

3. DMA Controller

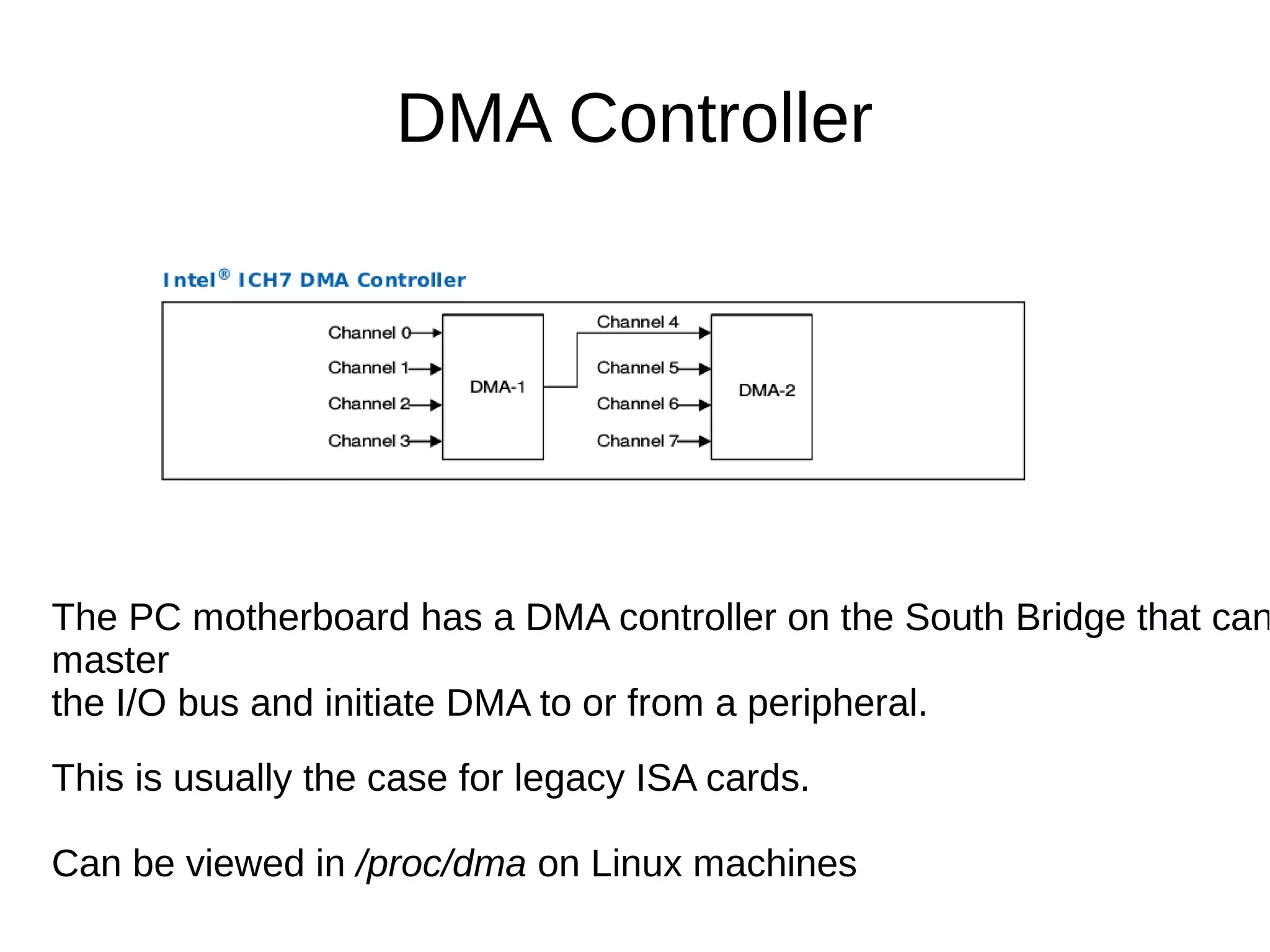

The PC motherboard has a DMA controller on the South Bridge that can
master
the I/O bus and initiate DMA to or from a peripheral.
This is usually the case for legacy ISA cards.
Can be viewed in /proc/dma on Linux machines

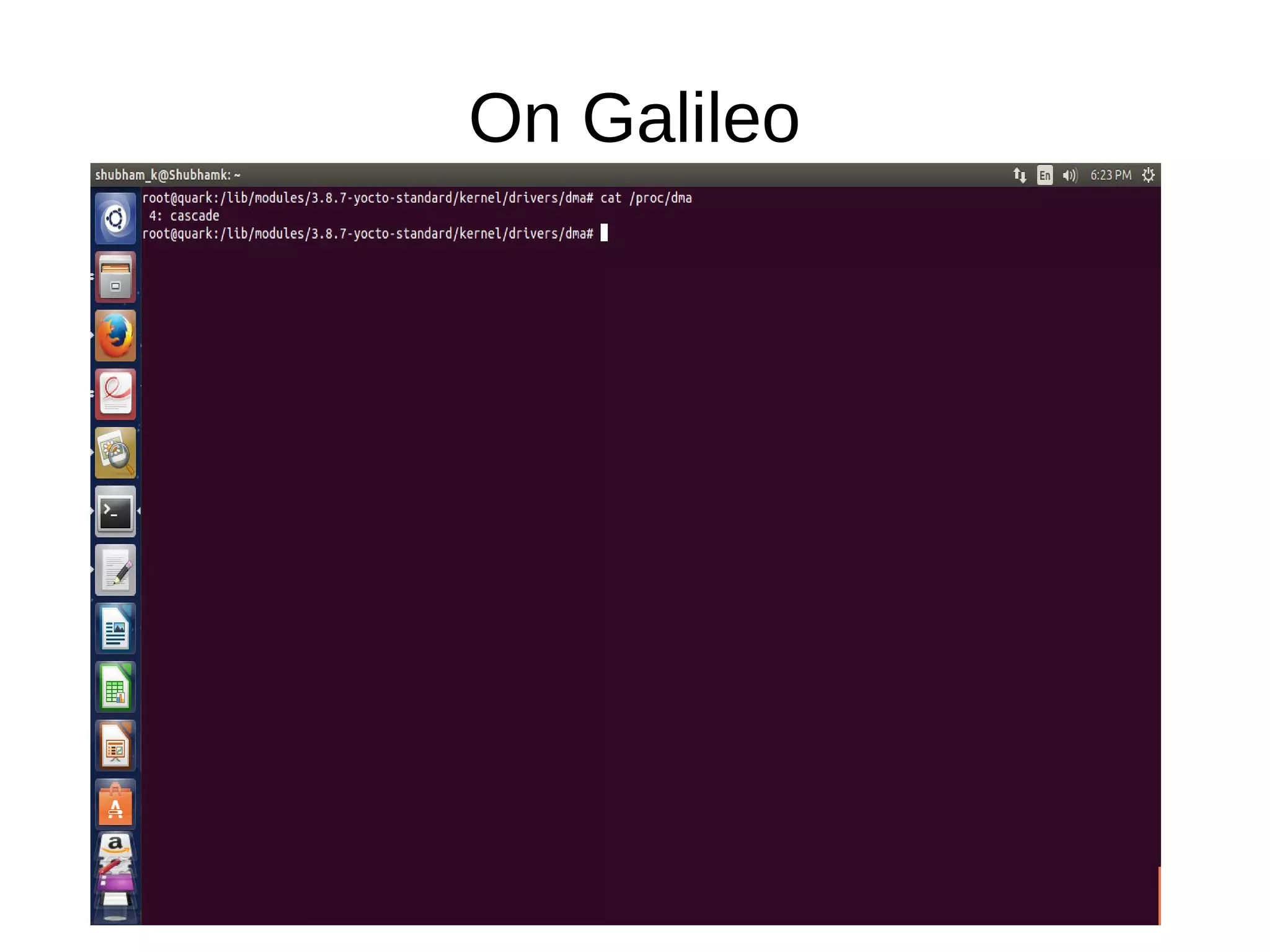

4. On Galileo

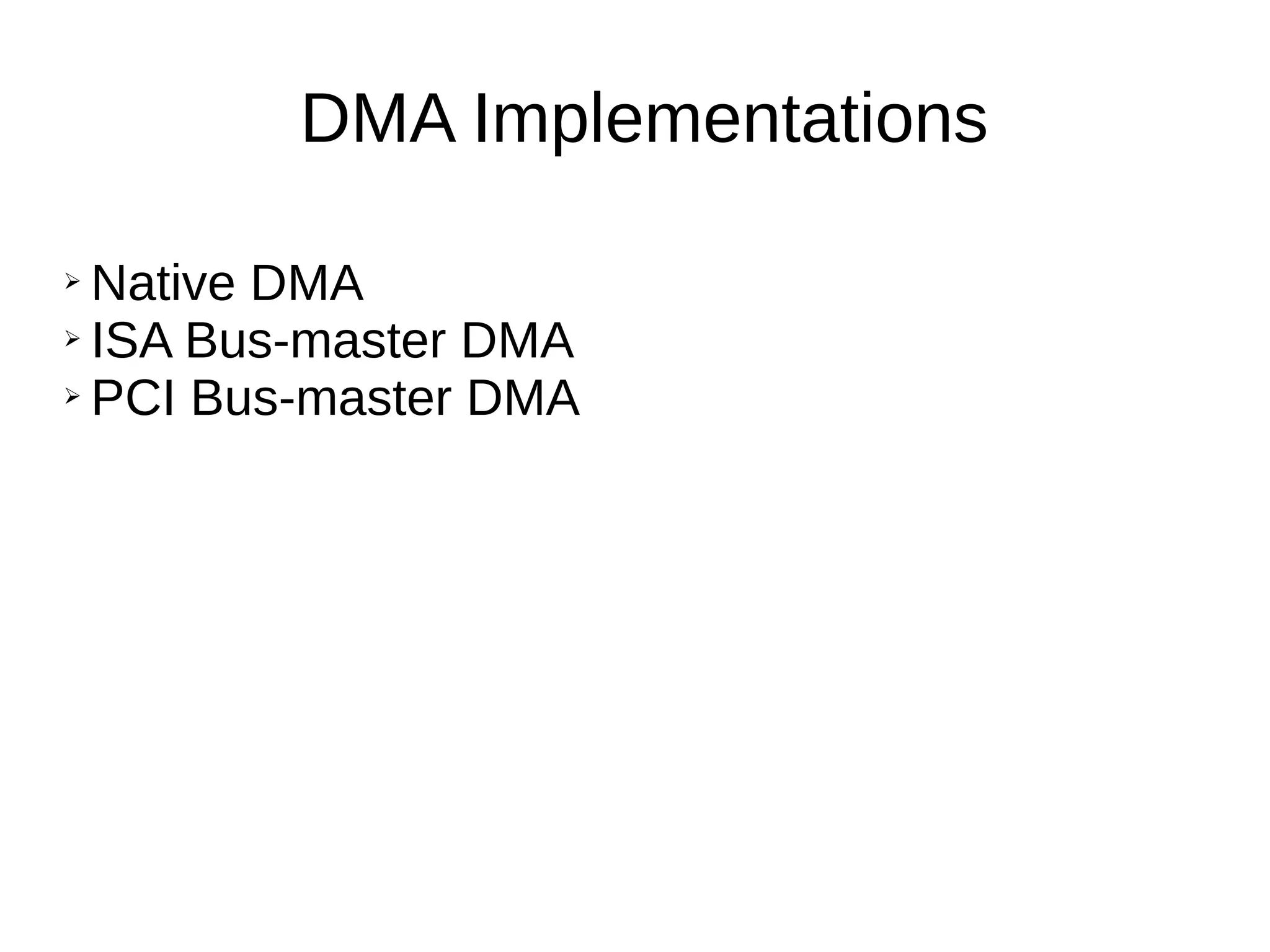

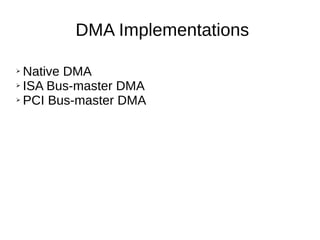

5. DMA Implementations
➢ Native DMA
➢ ISA Bus-master DMA
➢ PCI Bus-master DMA

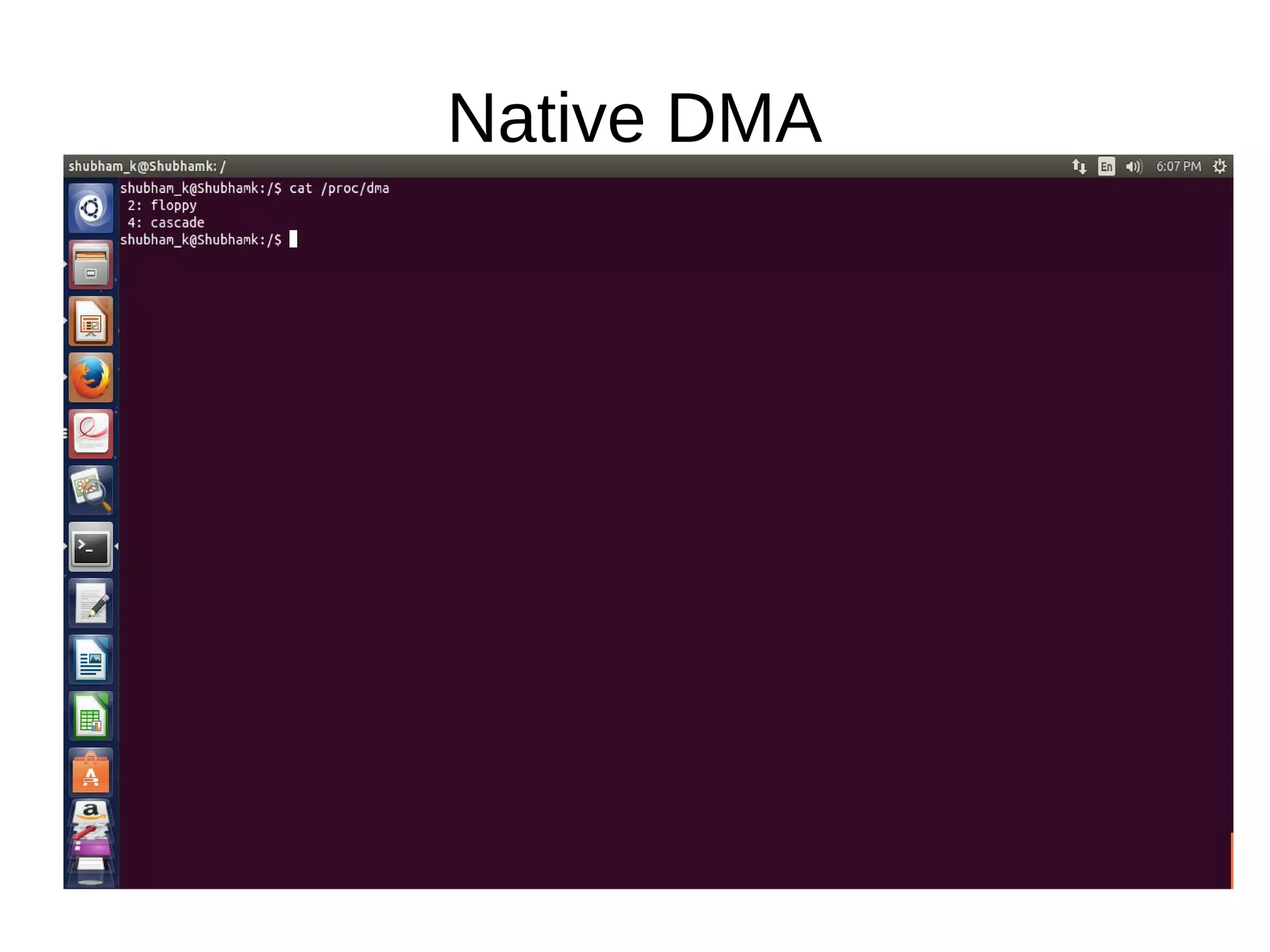

6. Native DMA

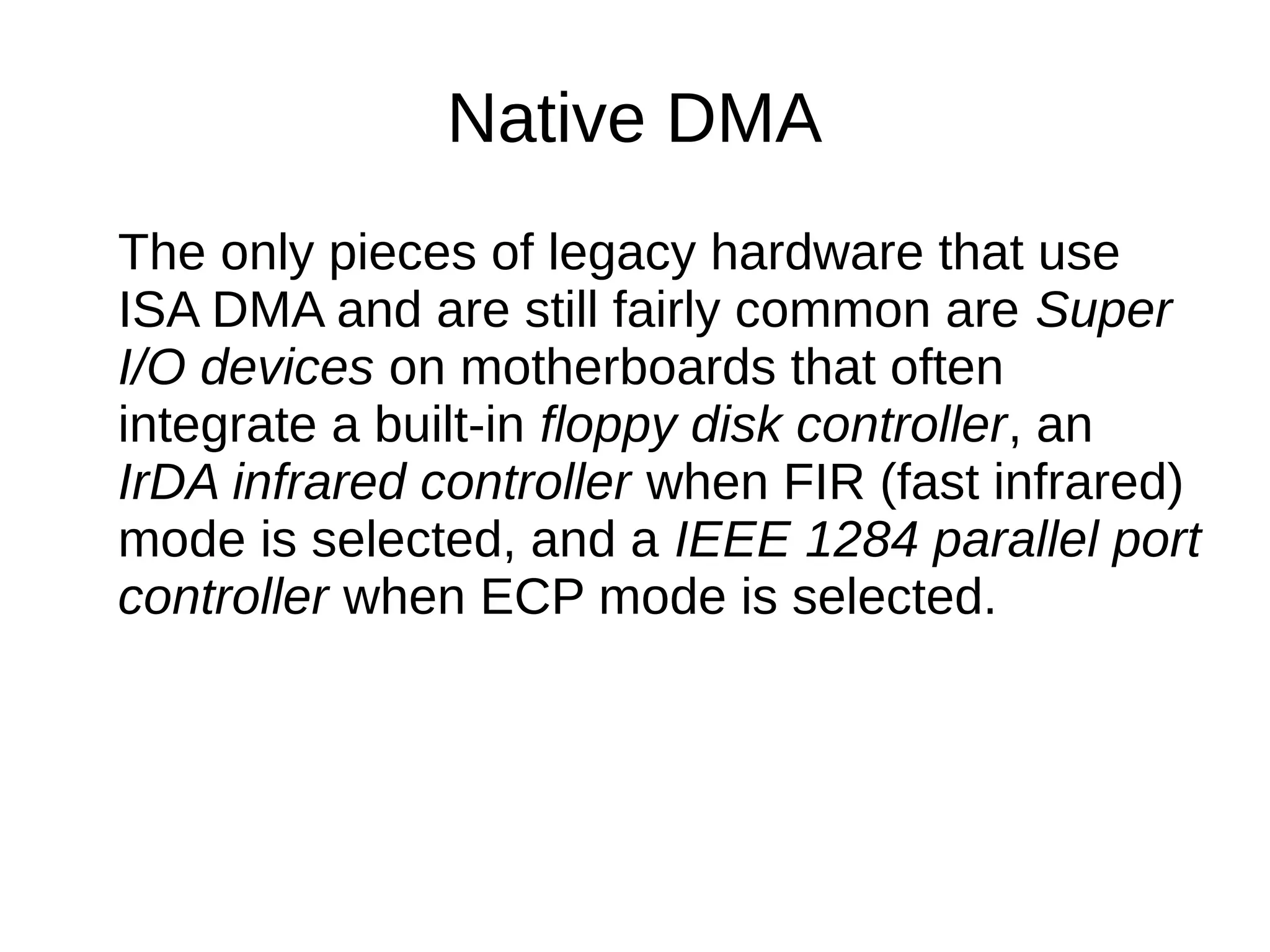

The only pieces of legacy hardware that use
ISA DMA and are still fairly common are Super
I/O devices on motherboards that often
integrate a built-in floppy disk controller, an
IrDA infrared controller when FIR (fast infrared)
mode is selected, and a IEEE 1284 parallel port
controller when ECP mode is selected.

7. Native DMA

8. ISA Bus-master DMA

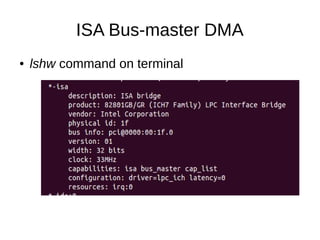

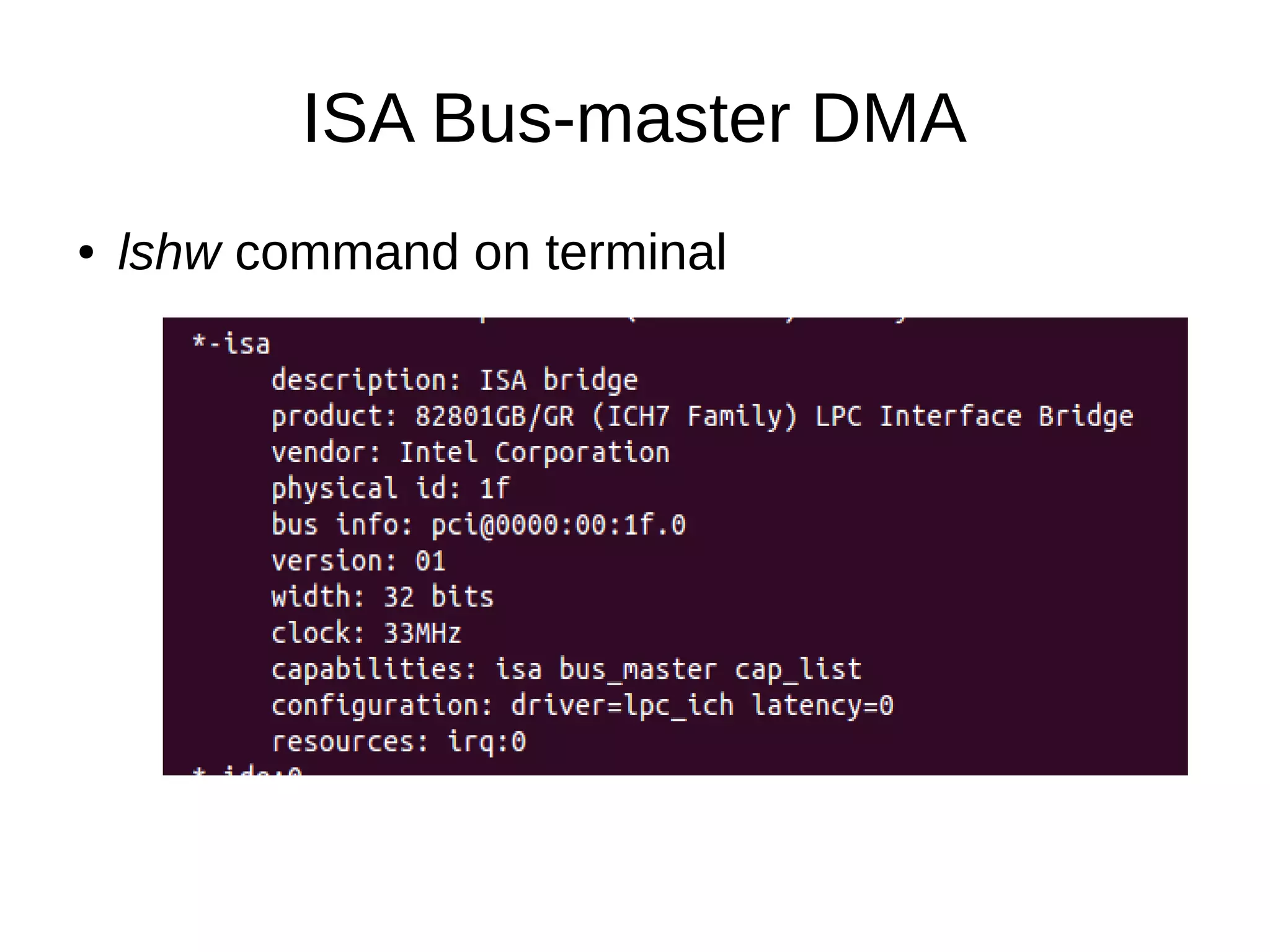

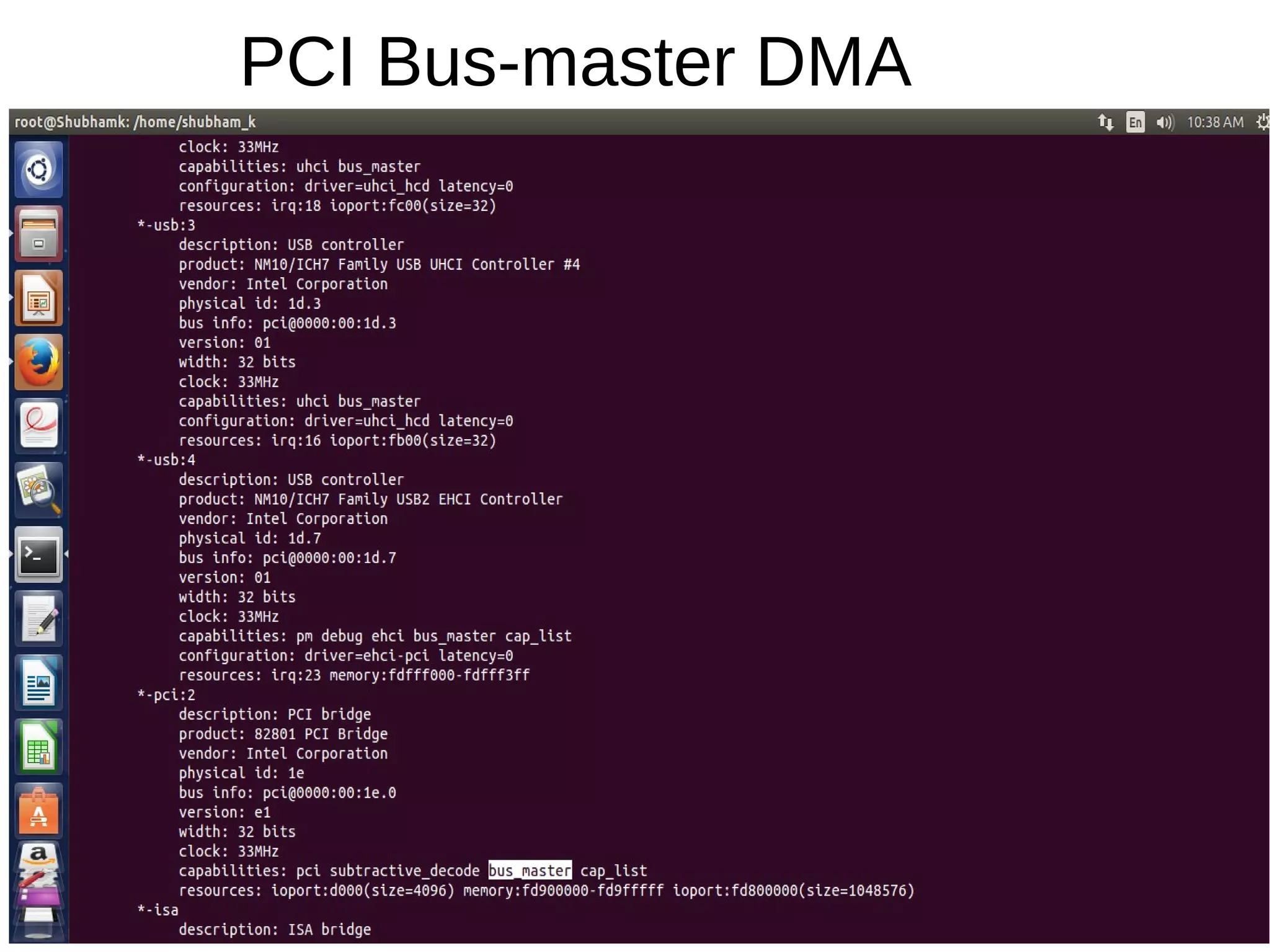

● lshw command on terminal

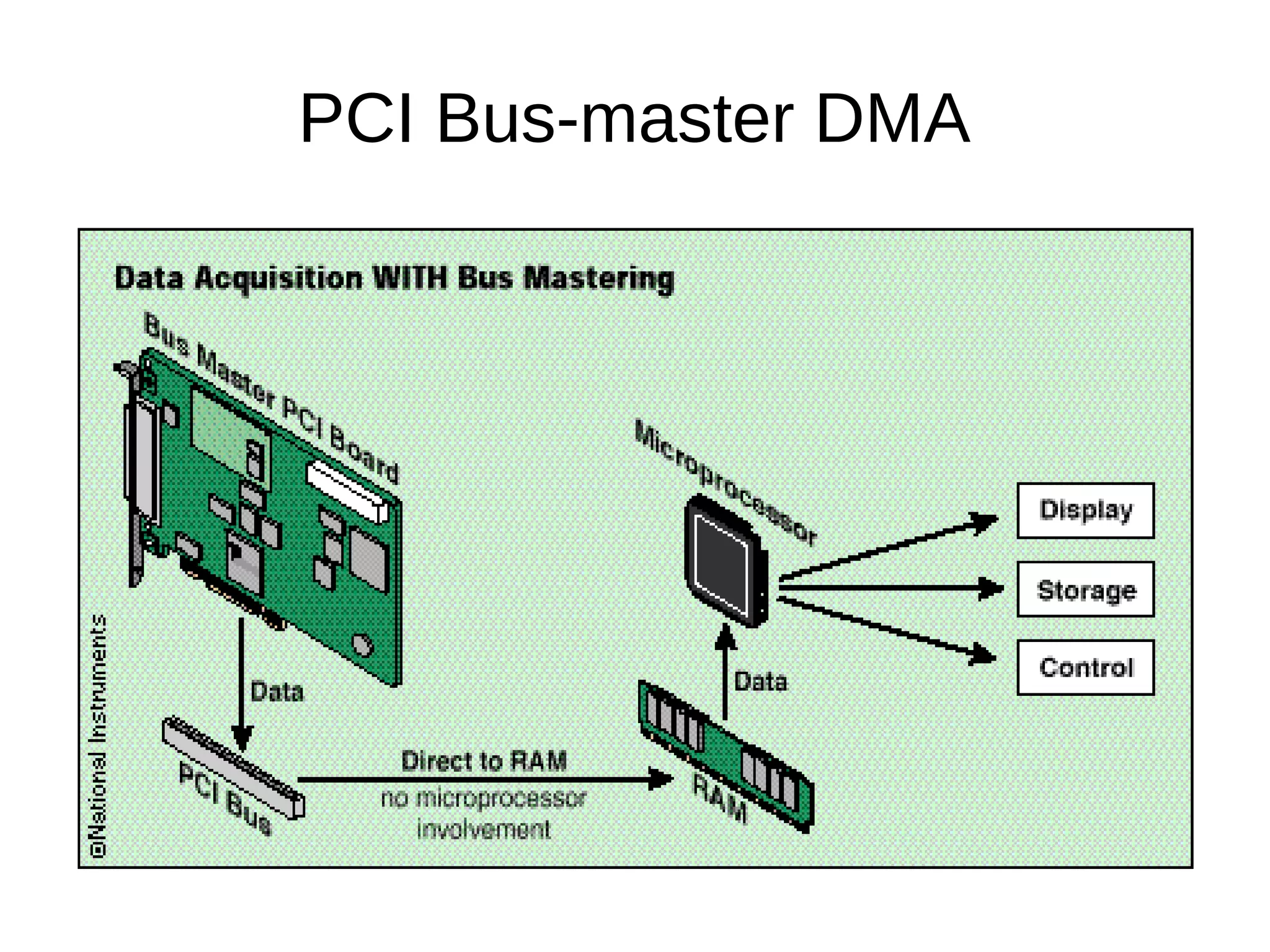

9. PCI Bus-master DMA

10. PCI Bus-master DMA

11. PCI IDE Bus-mastering

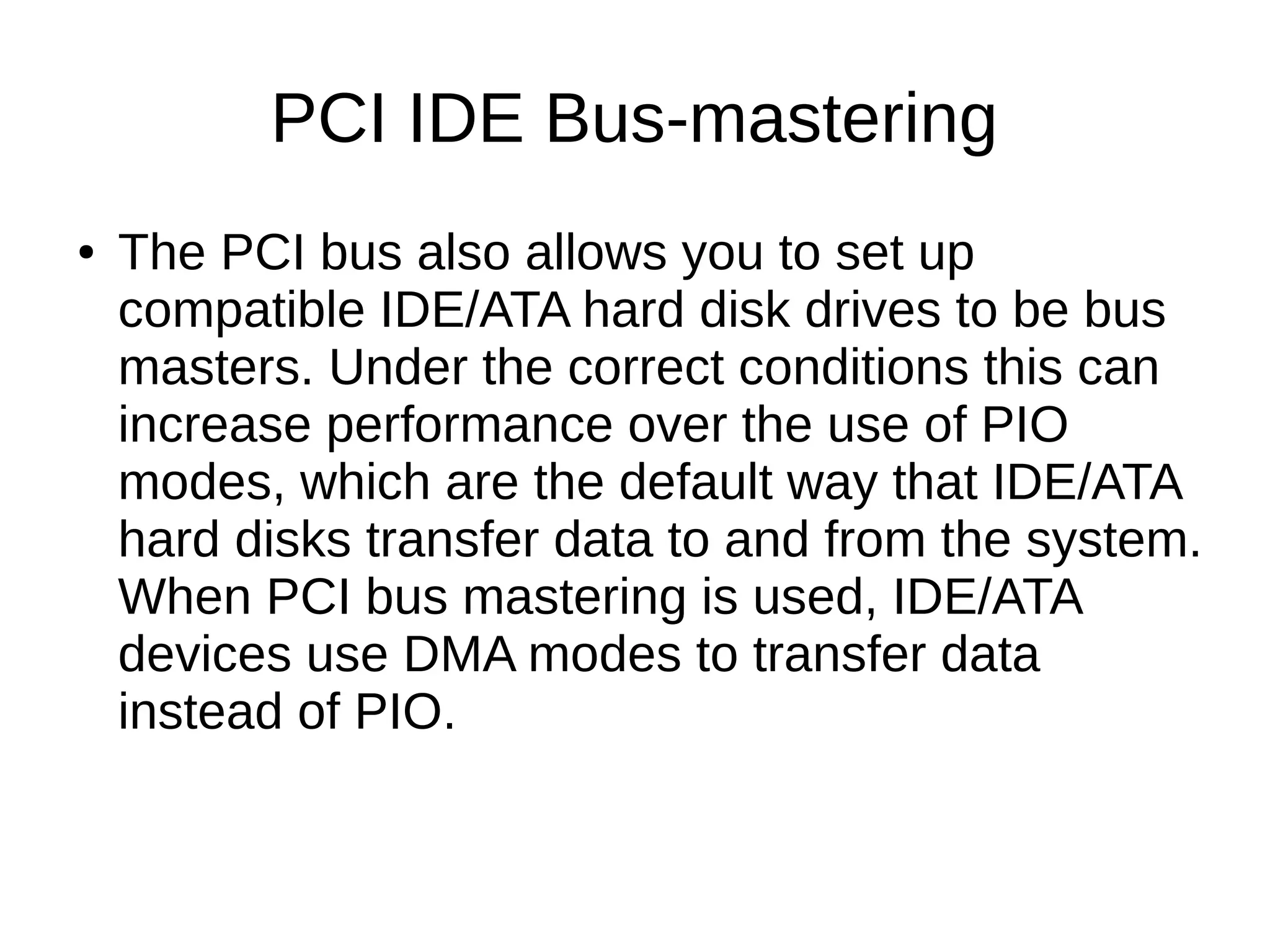

● The PCI bus also allows you to set up
compatible IDE/ATA hard disk drives to be bus
masters. Under the correct conditions this can
increase performance over the use of PIO
modes, which are the default way that IDE/ATA
hard disks transfer data to and from the system.
When PCI bus mastering is used, IDE/ATA
devices use DMA modes to transfer data
instead of PIO.

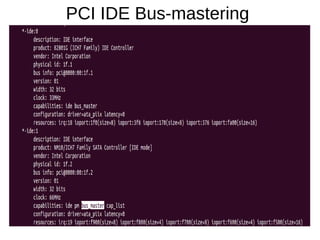

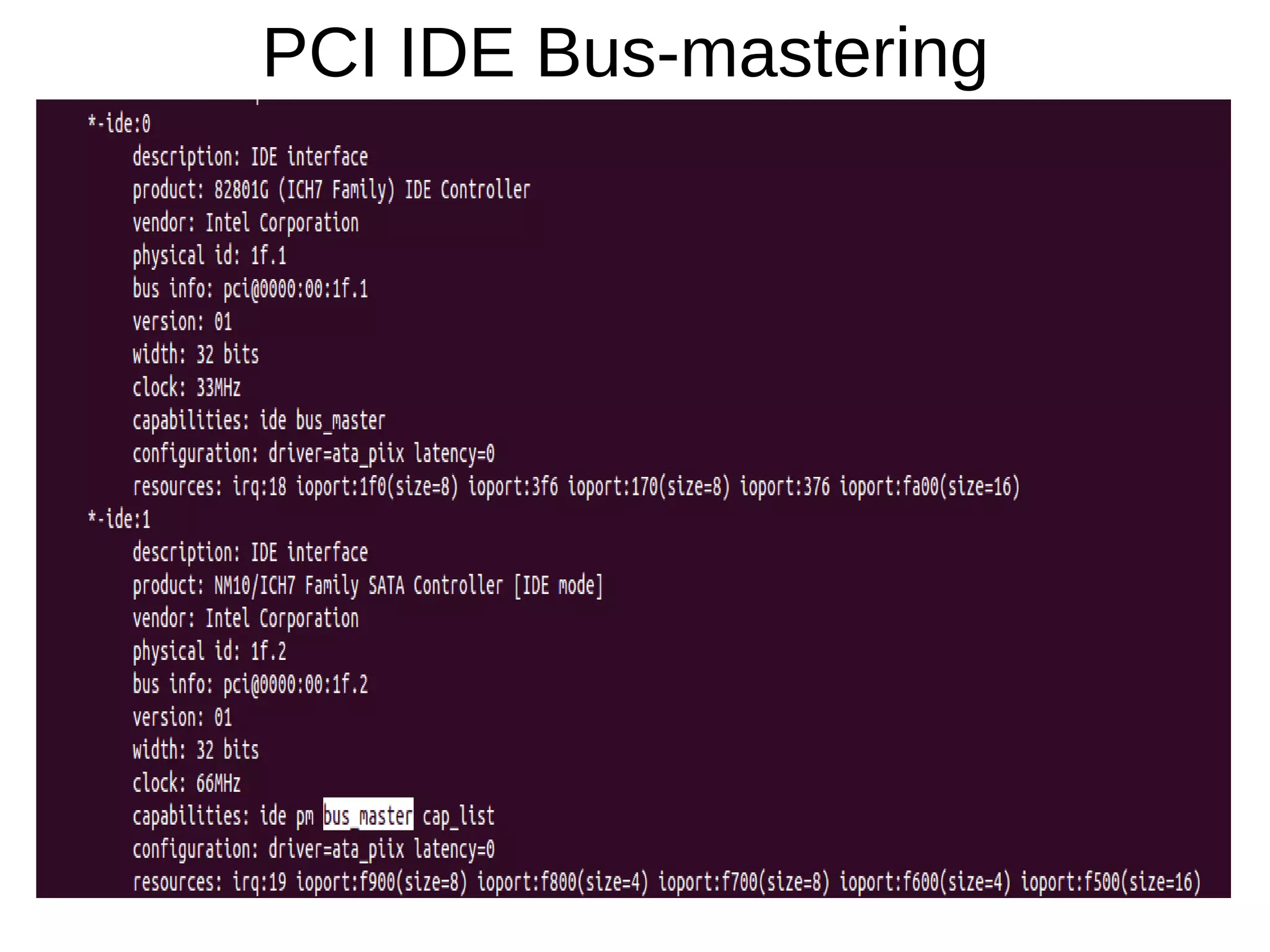

12. PCI IDE Bus-mastering

13. PCI IDE Bus-mastering

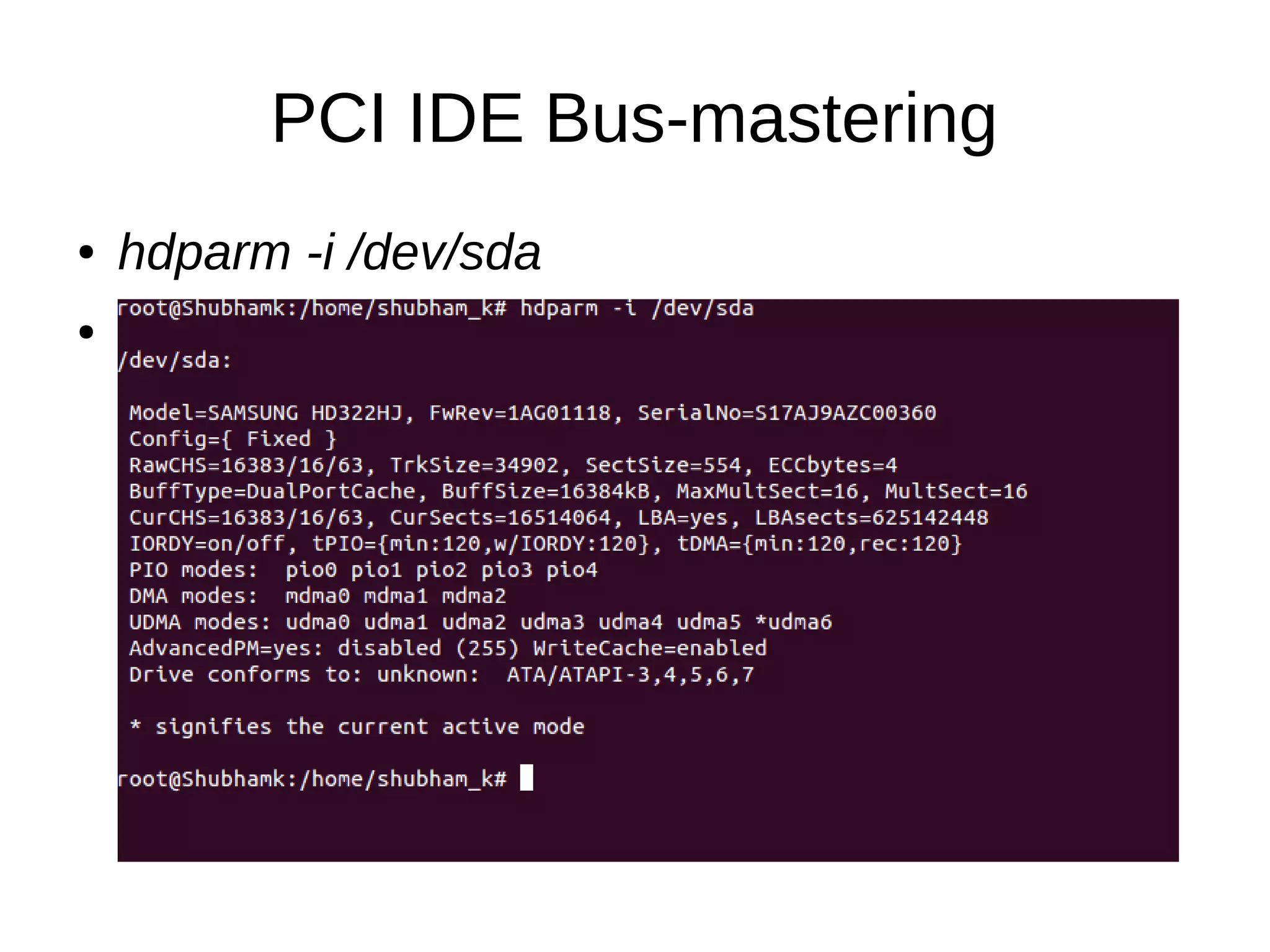

● hdparm -i /dev/sda
●

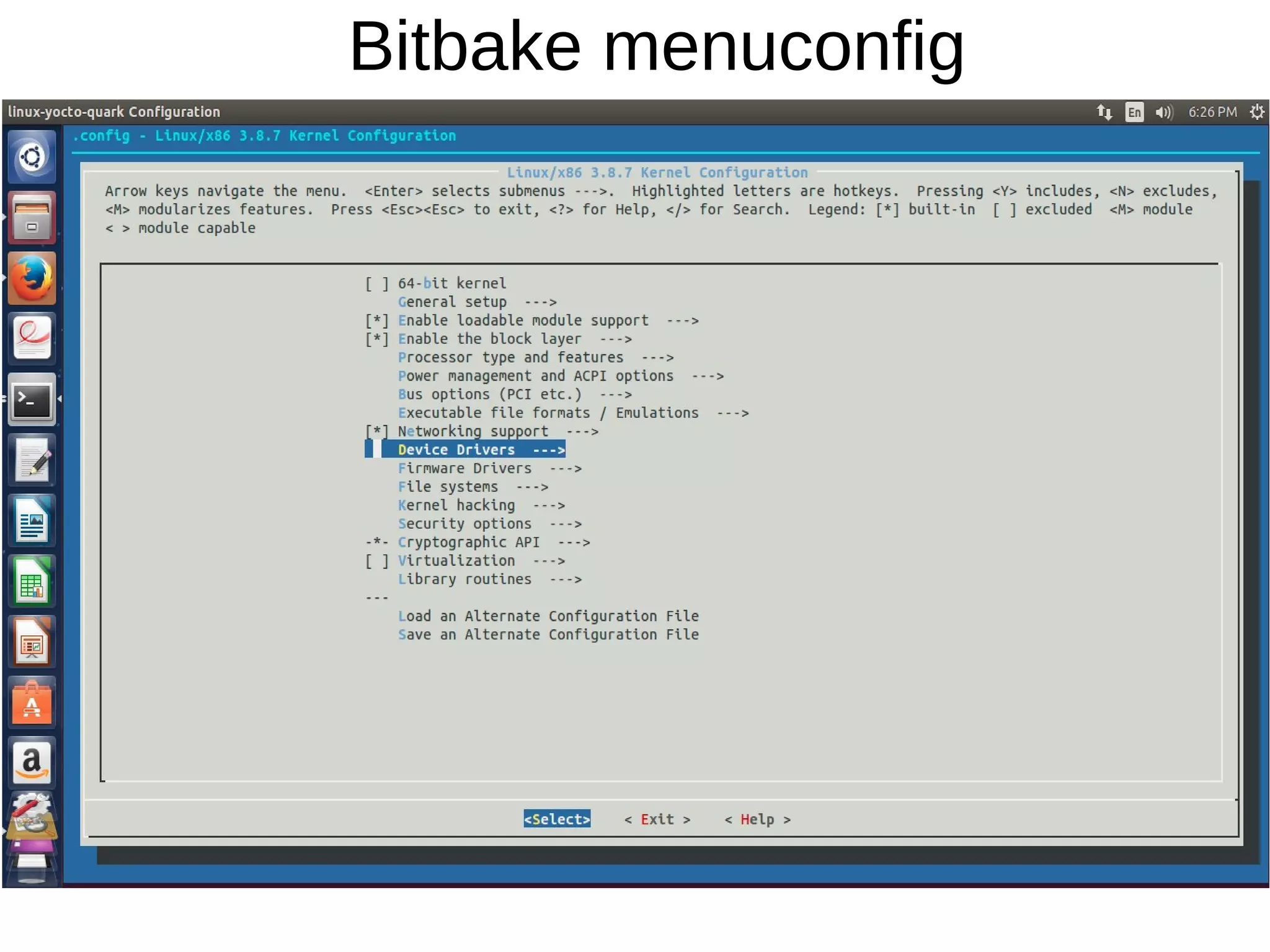

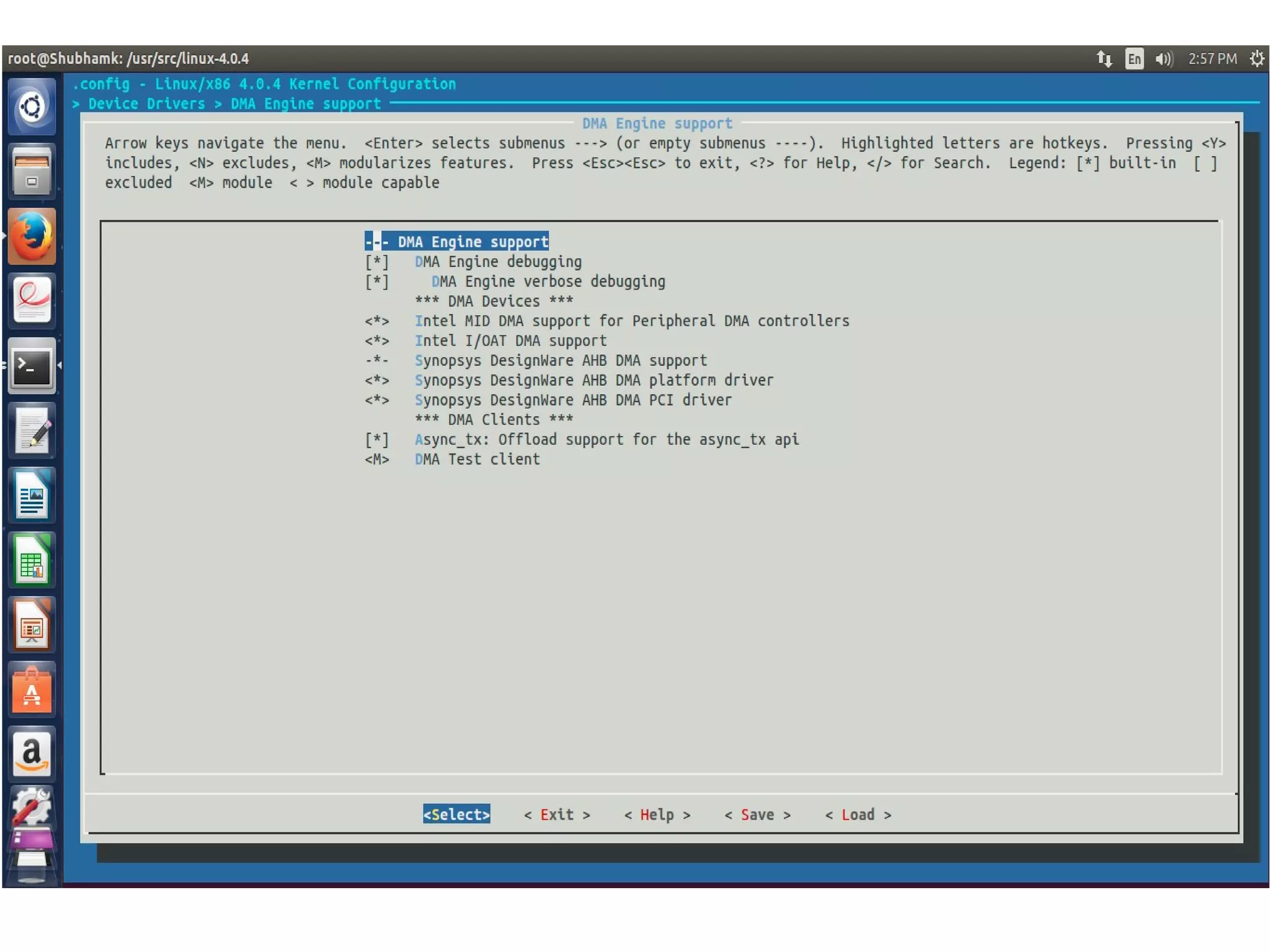

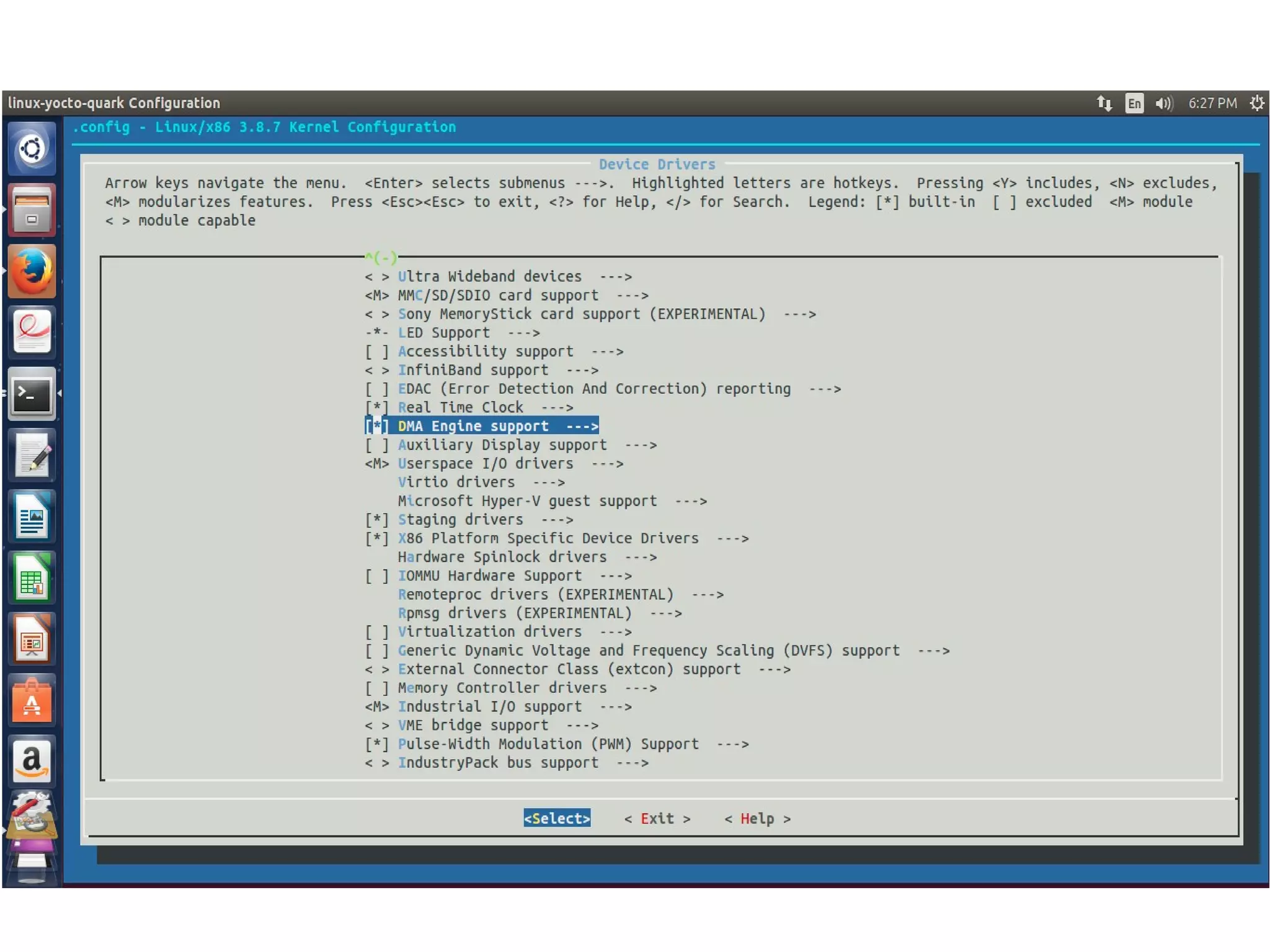

14. Bitbake menuconfig

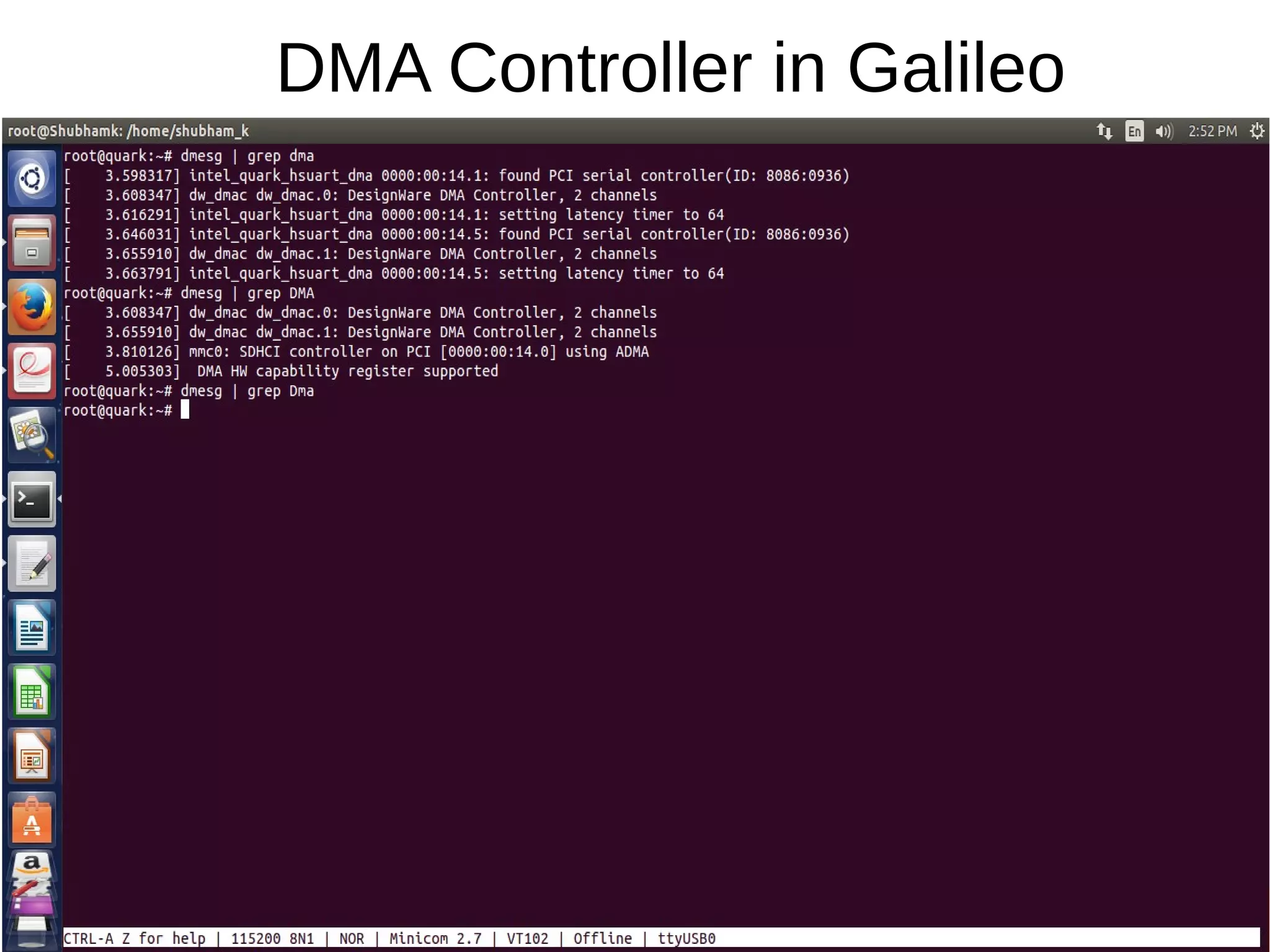

17. DMA Controller in Galileo

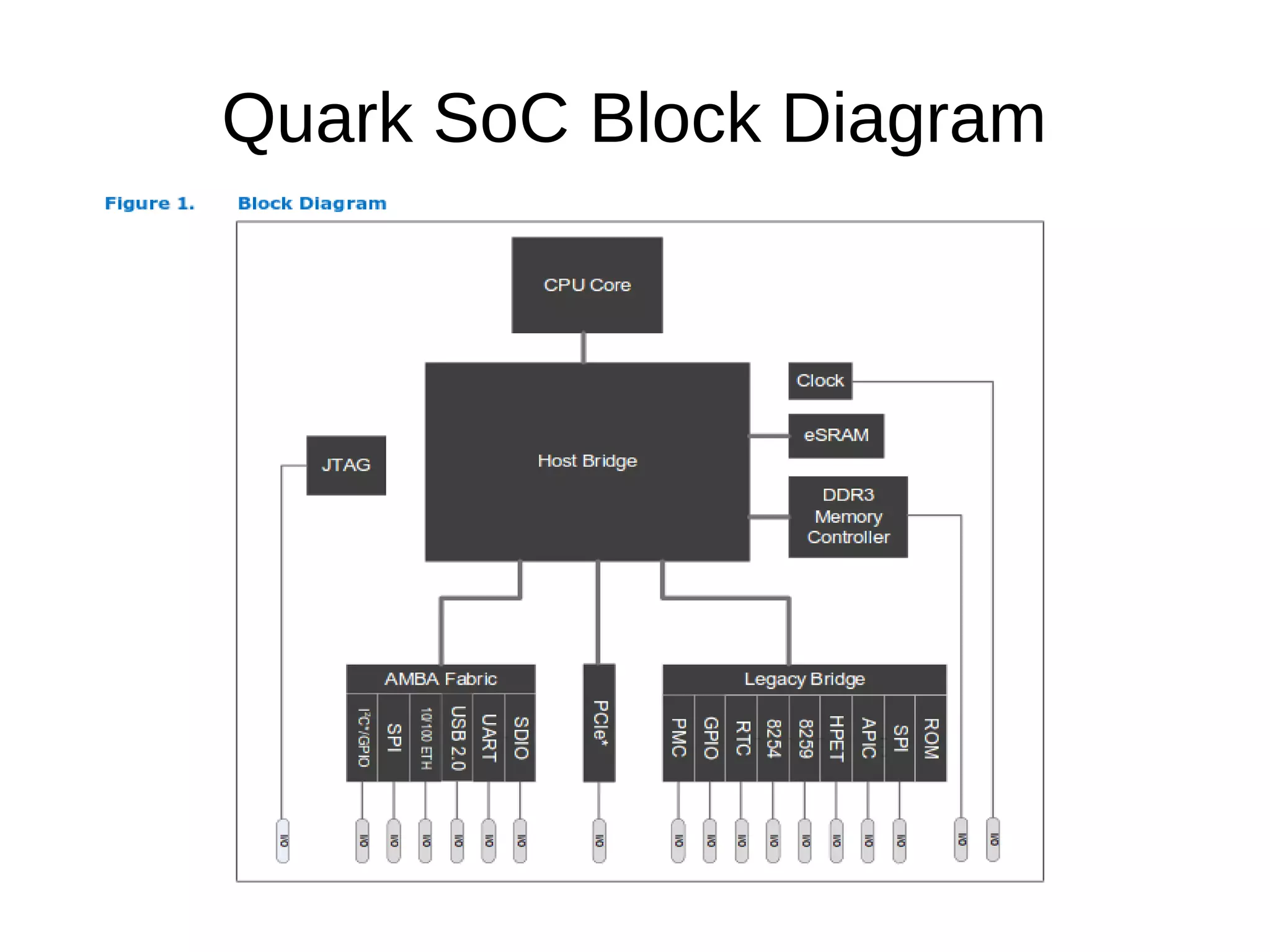

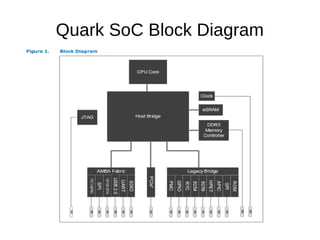

18. Quark SoC Block Diagram

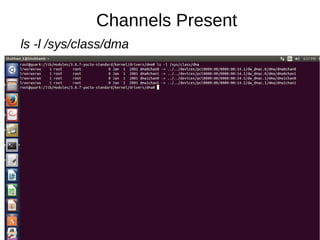

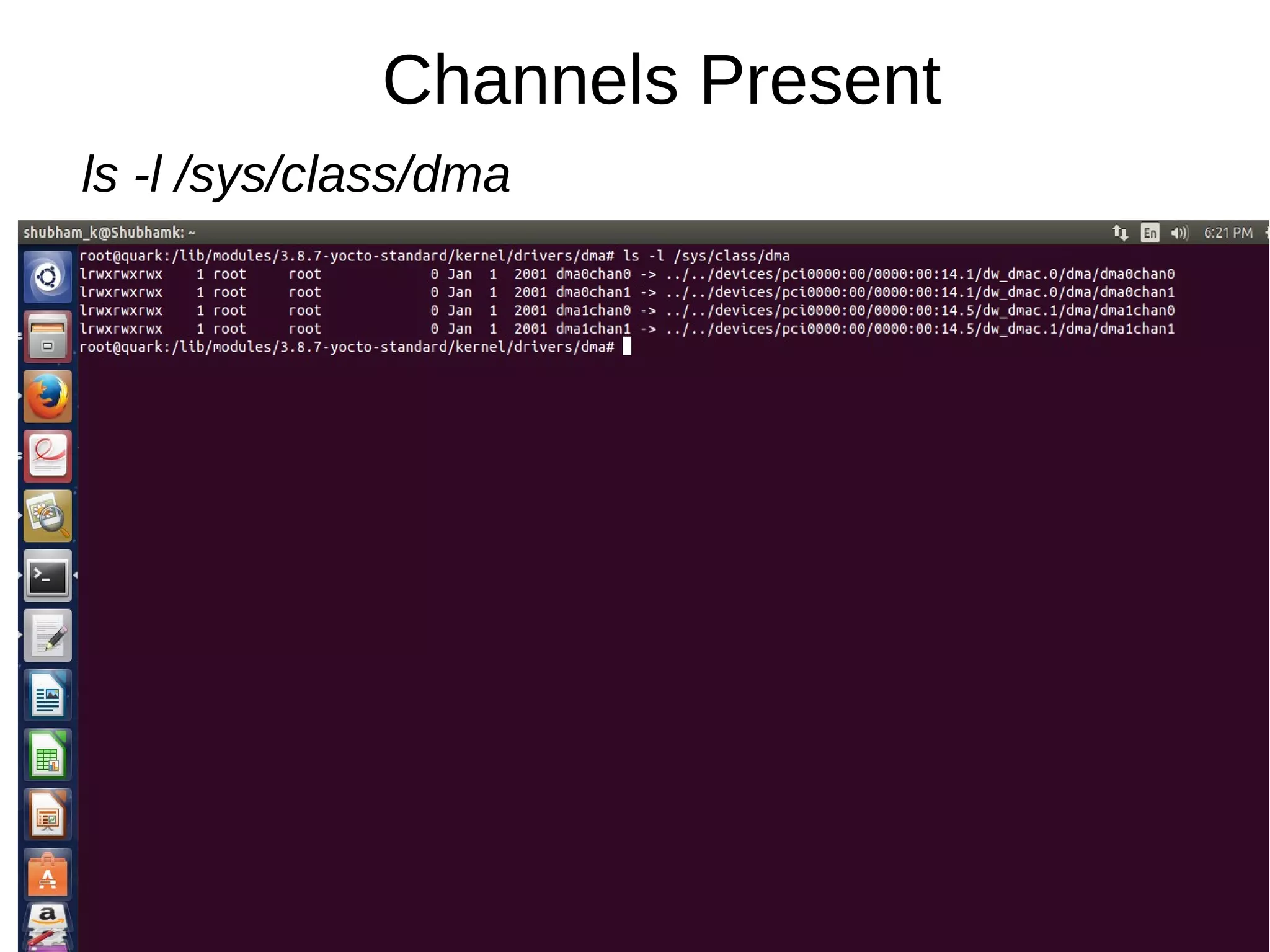

19. Channels Present
ls -l /sys/class/dma

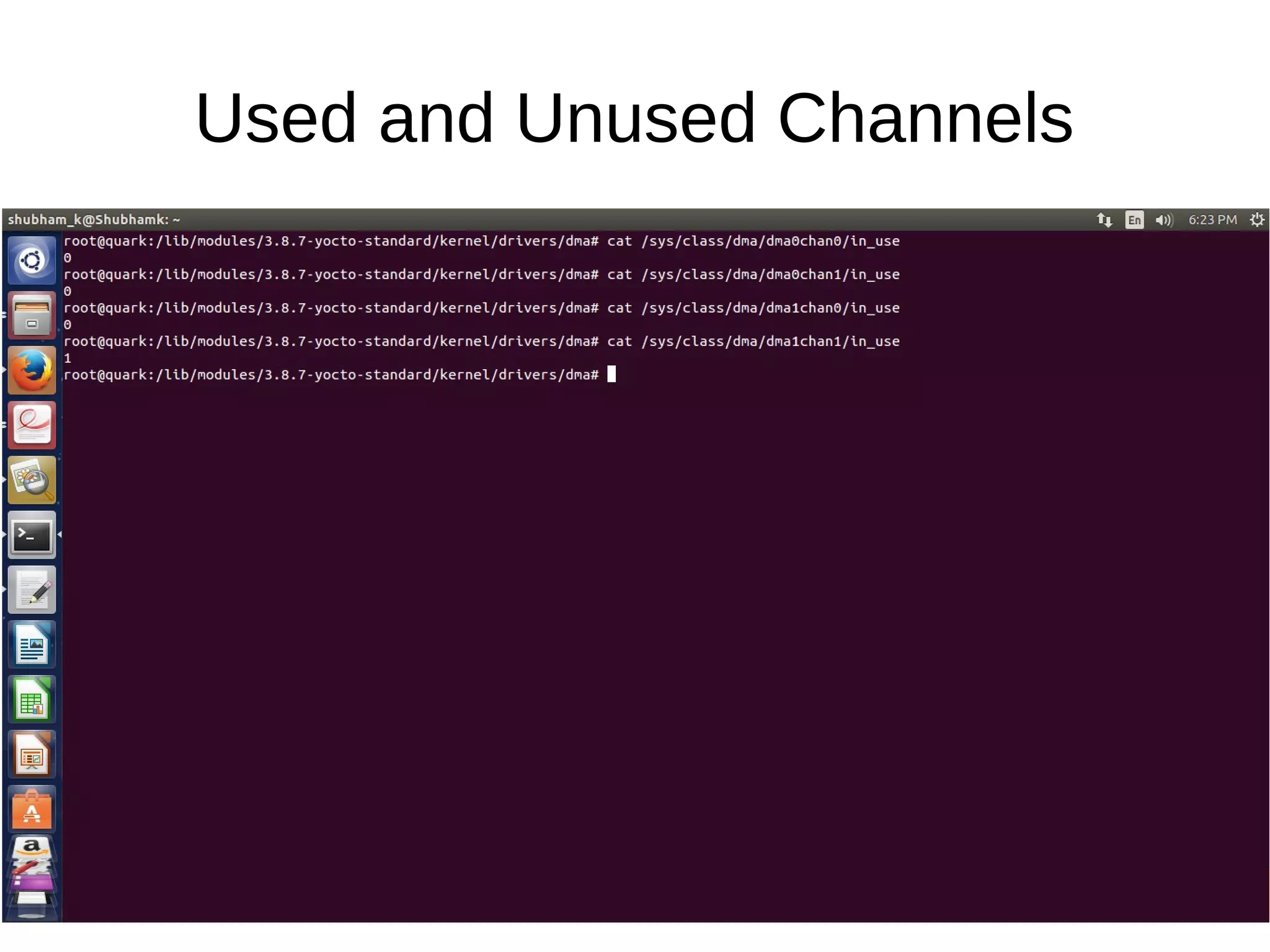

20. Used and Unused Channels

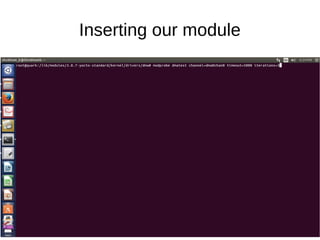

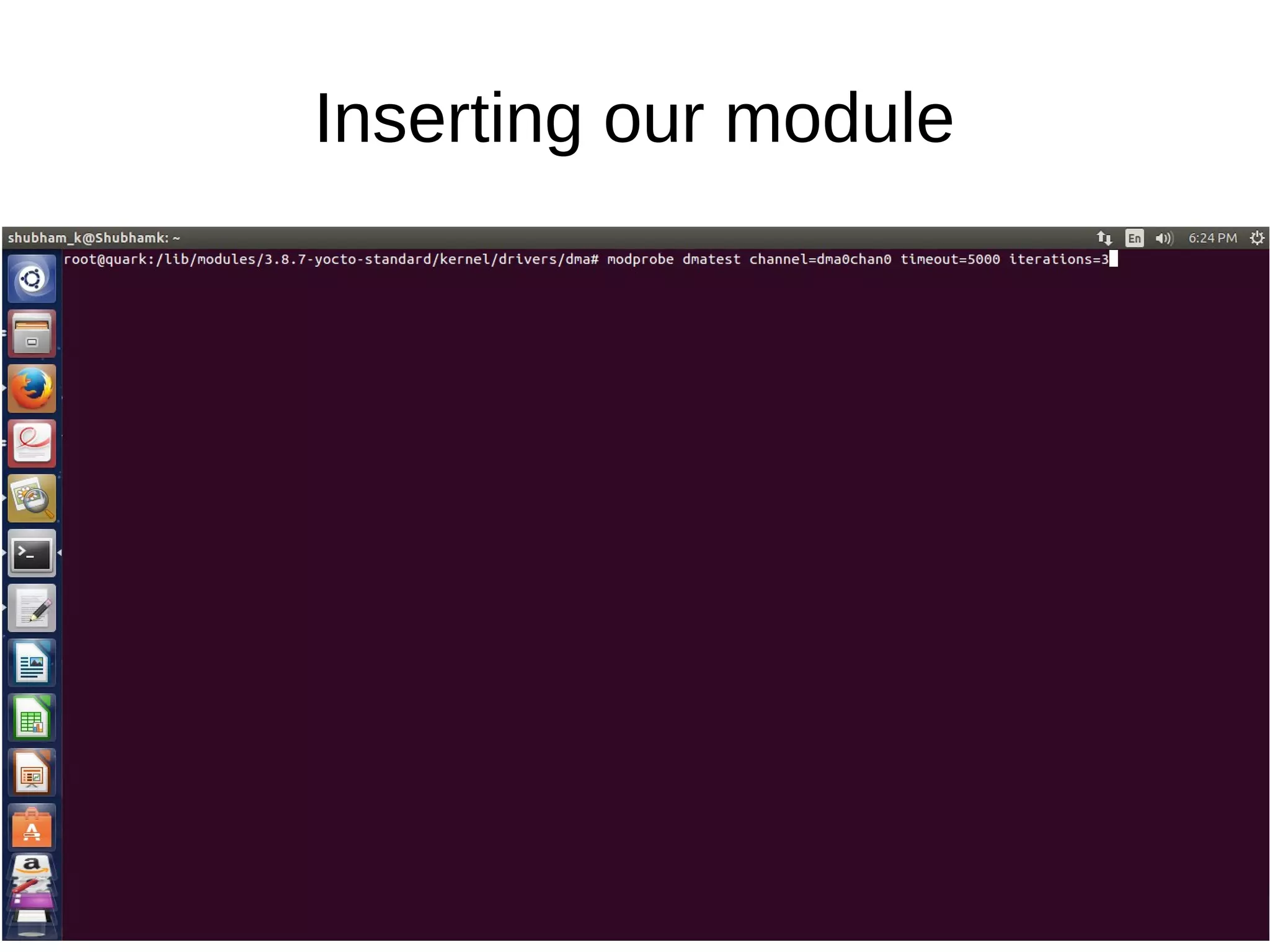

21. Inserting our module

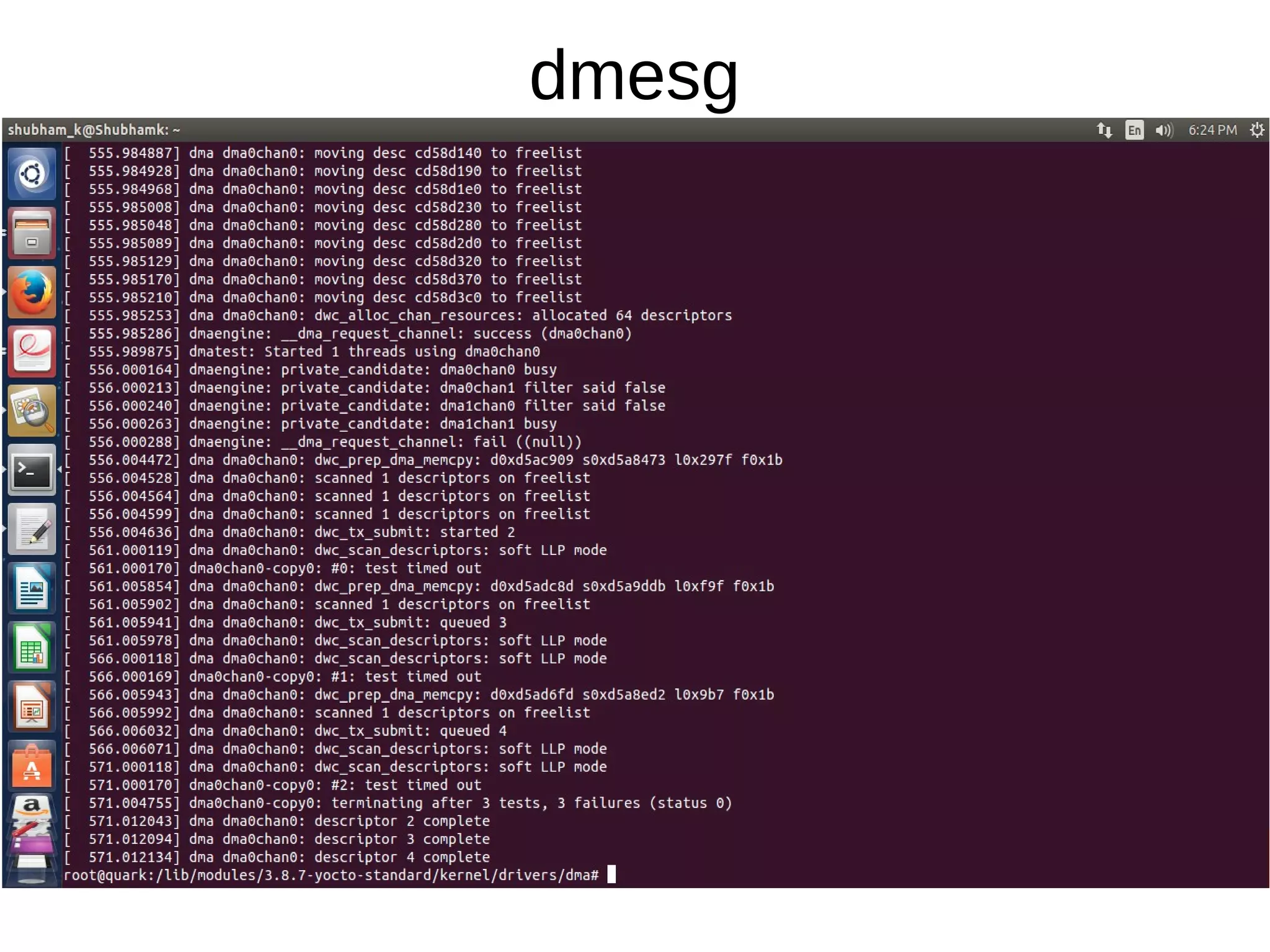

22. dmesg

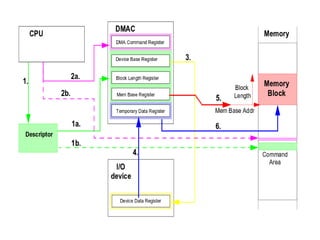

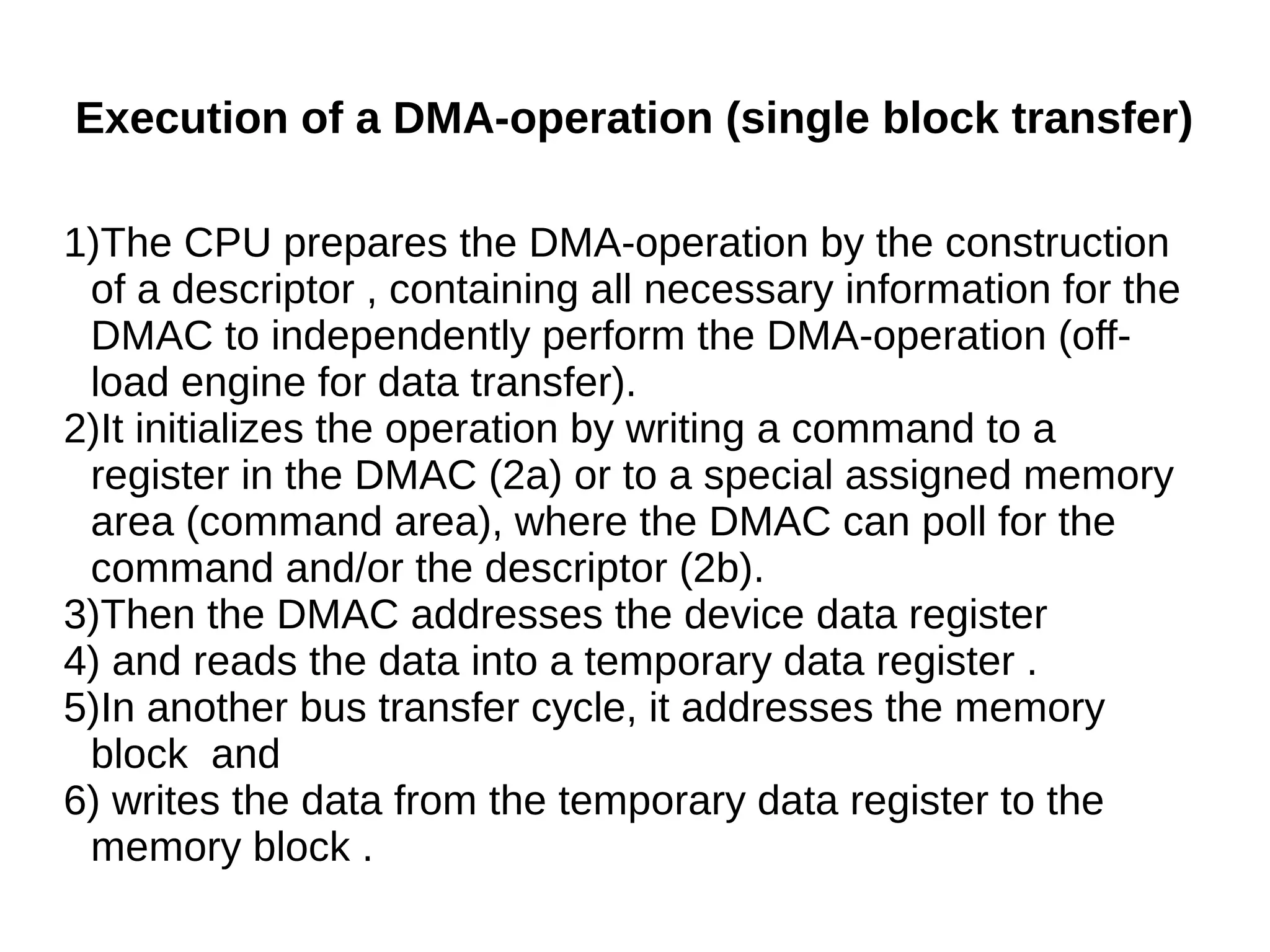

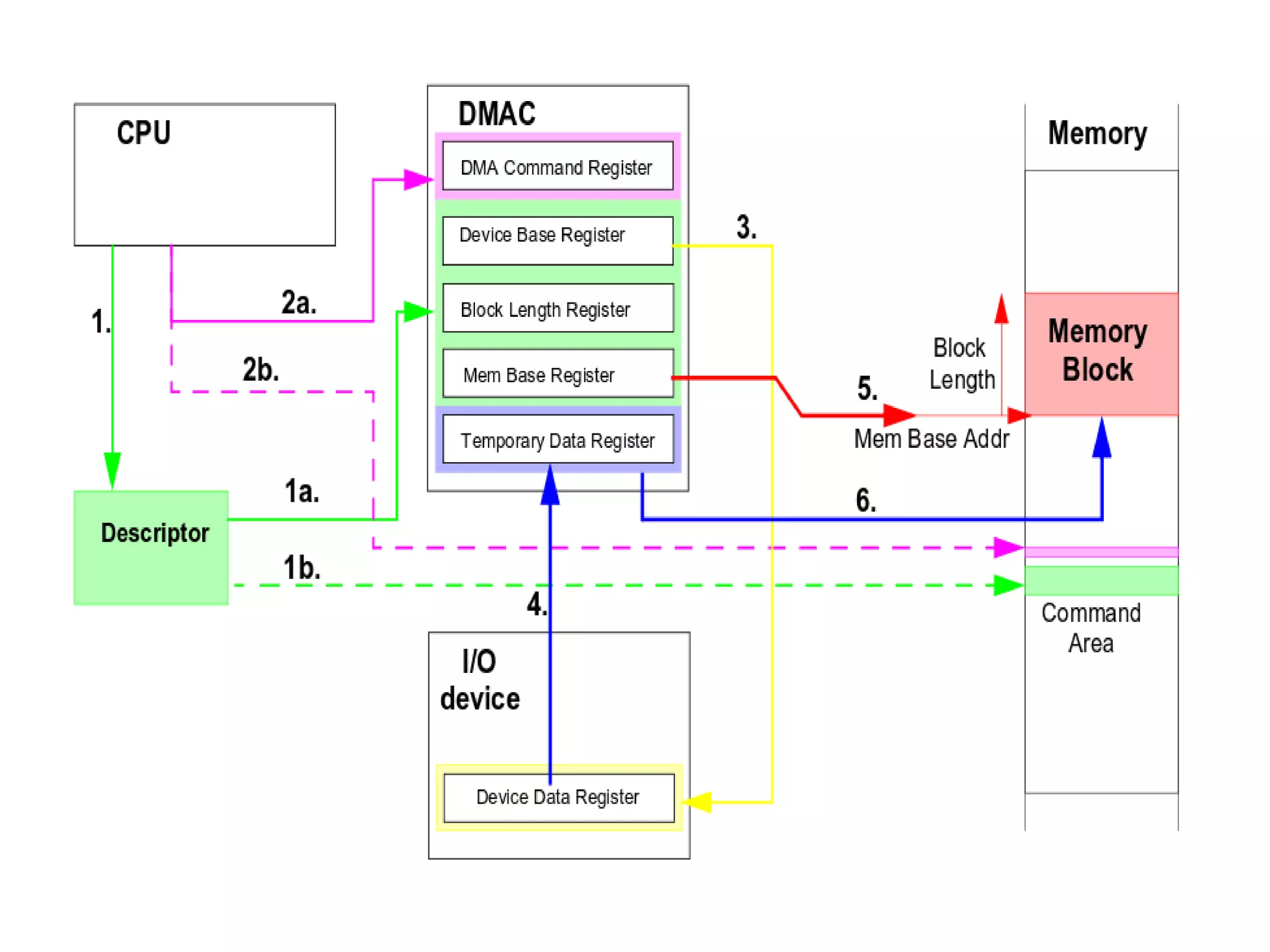

23. Execution of a DMA-operation (single block transfer)
1)The CPU prepares the DMA-operation by the construction
of a descriptor , containing all necessary information for the
DMAC to independently perform the DMA-operation (off-
load engine for data transfer).
2)It initializes the operation by writing a command to a
register in the DMAC (2a) or to a special assigned memory
area (command area), where the DMAC can poll for the
command and/or the descriptor (2b).
3)Then the DMAC addresses the device data register
4) and reads the data into a temporary data register .
5)In another bus transfer cycle, it addresses the memory
block and
6) writes the data from the temporary data register to the
memory block .

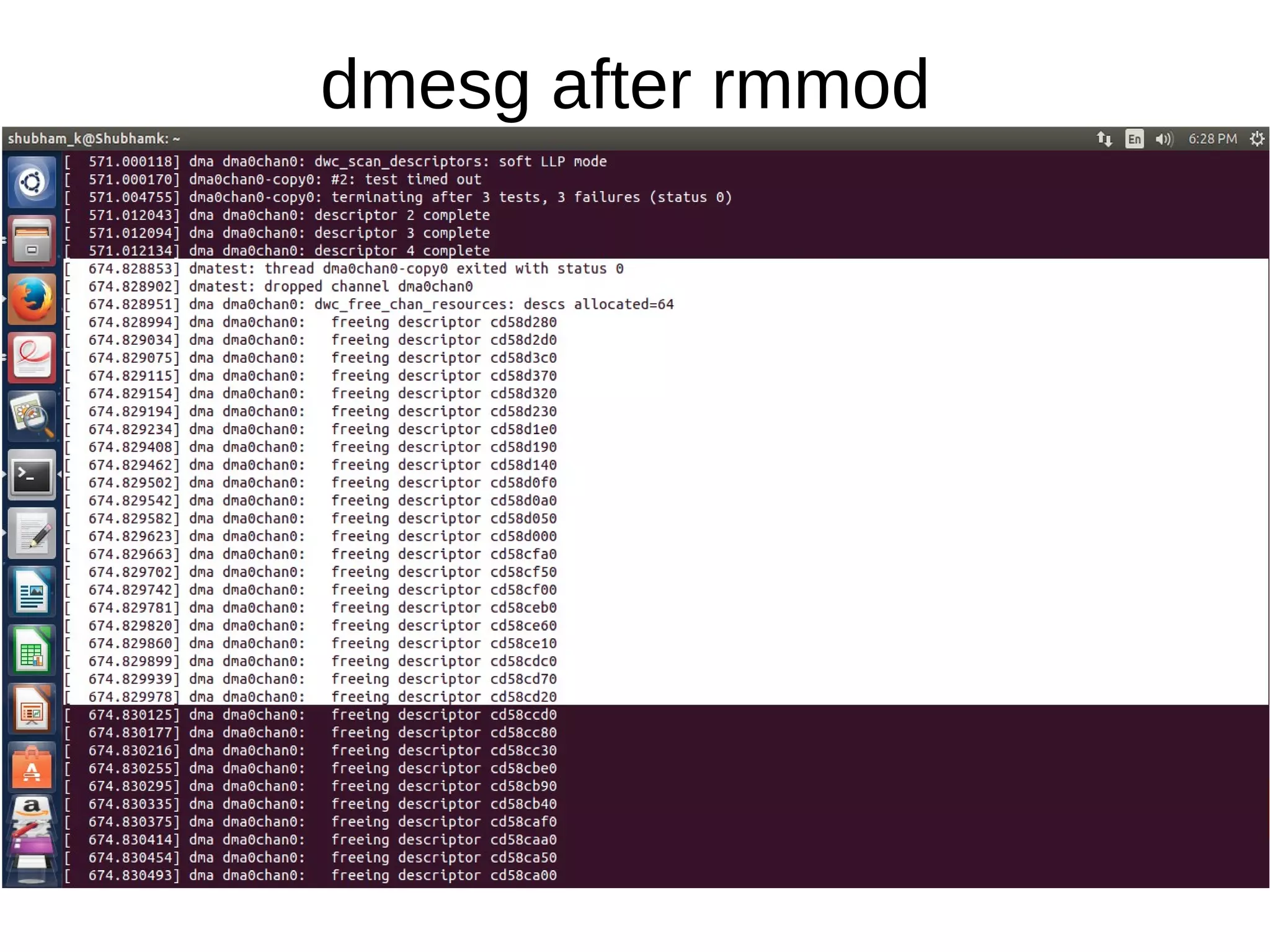

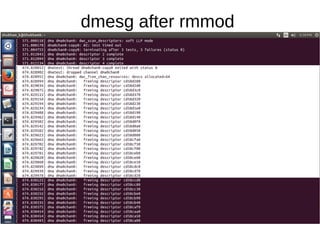

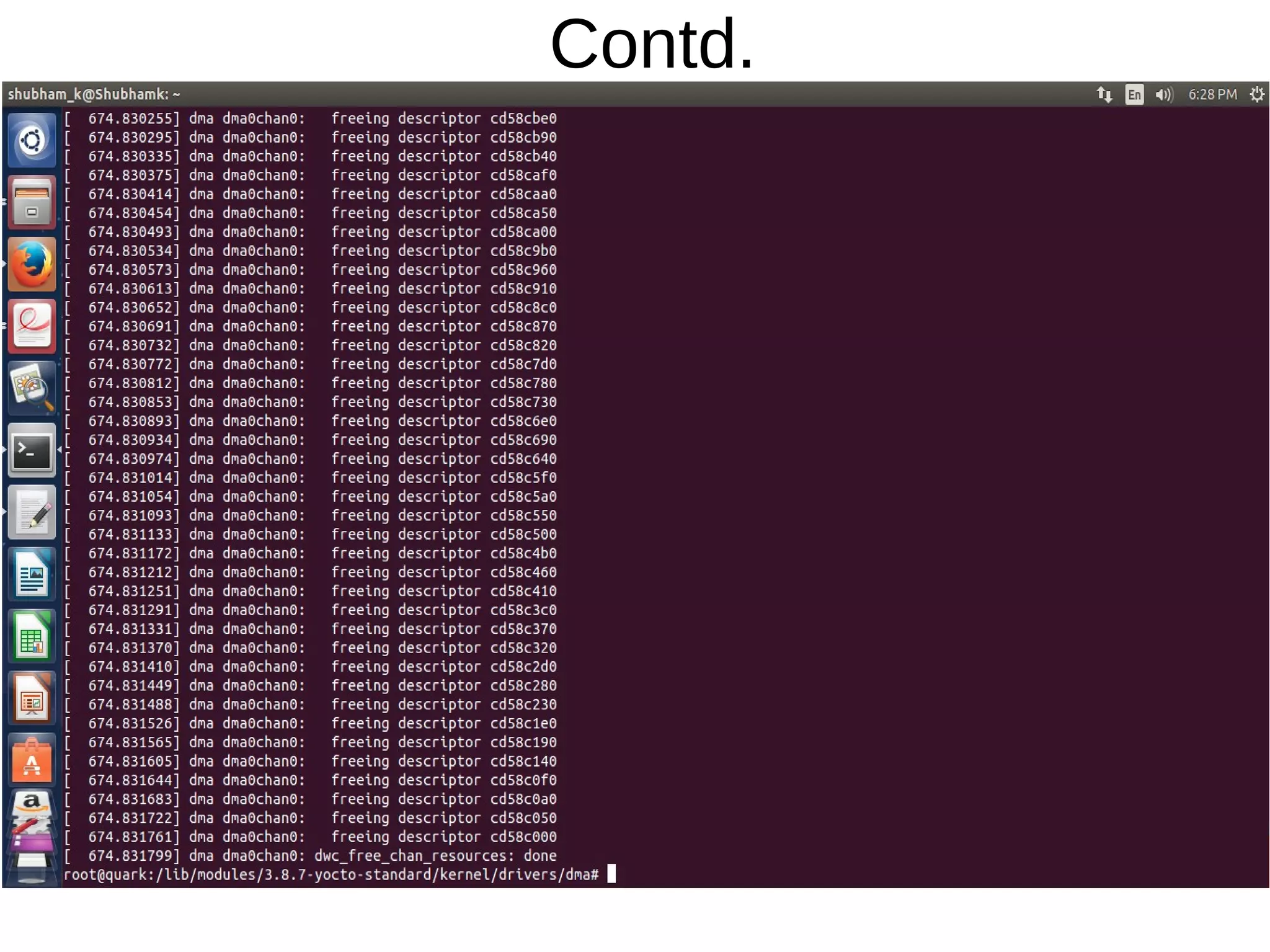

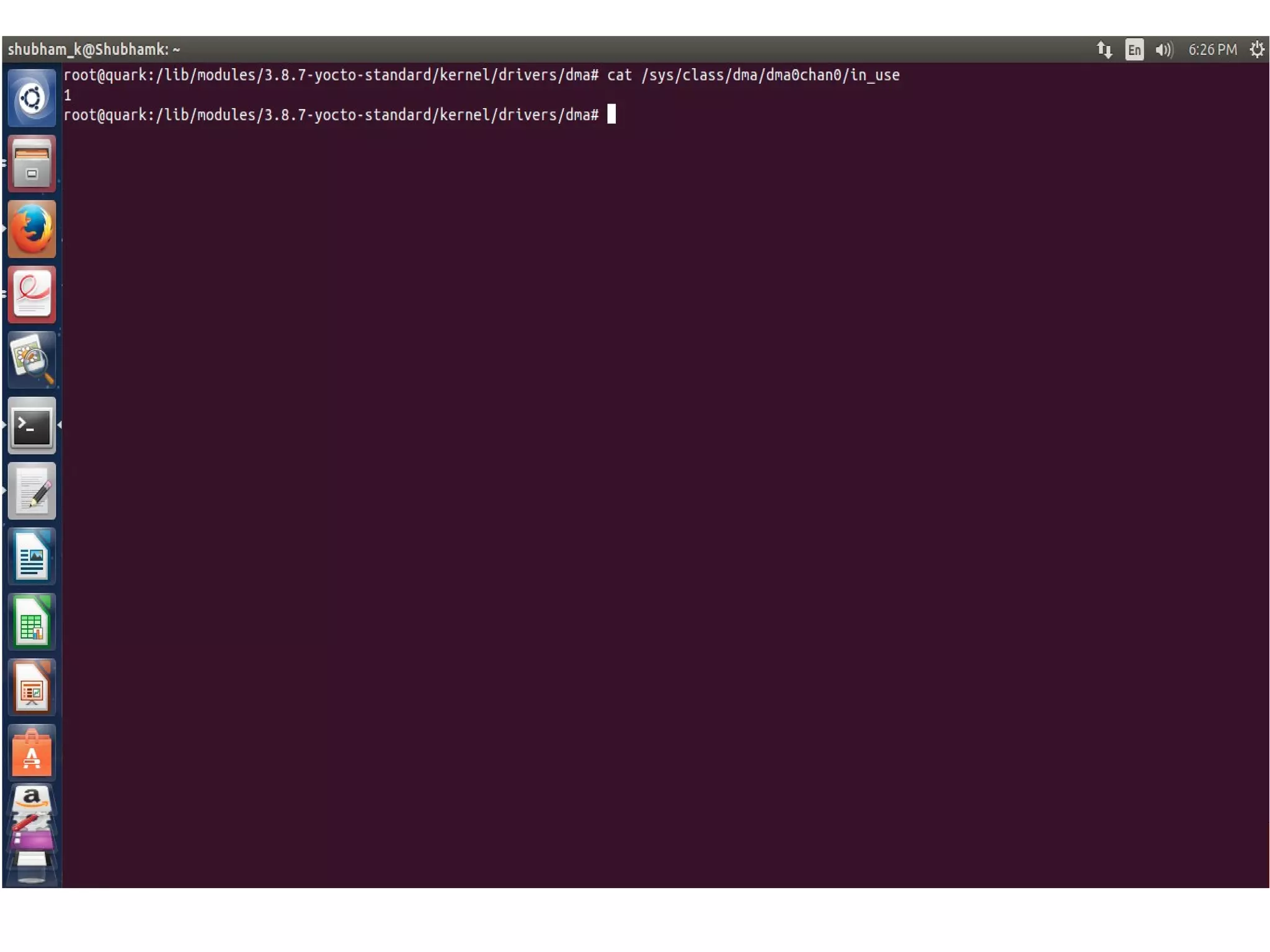

26. dmesg after rmmod

27. Contd.

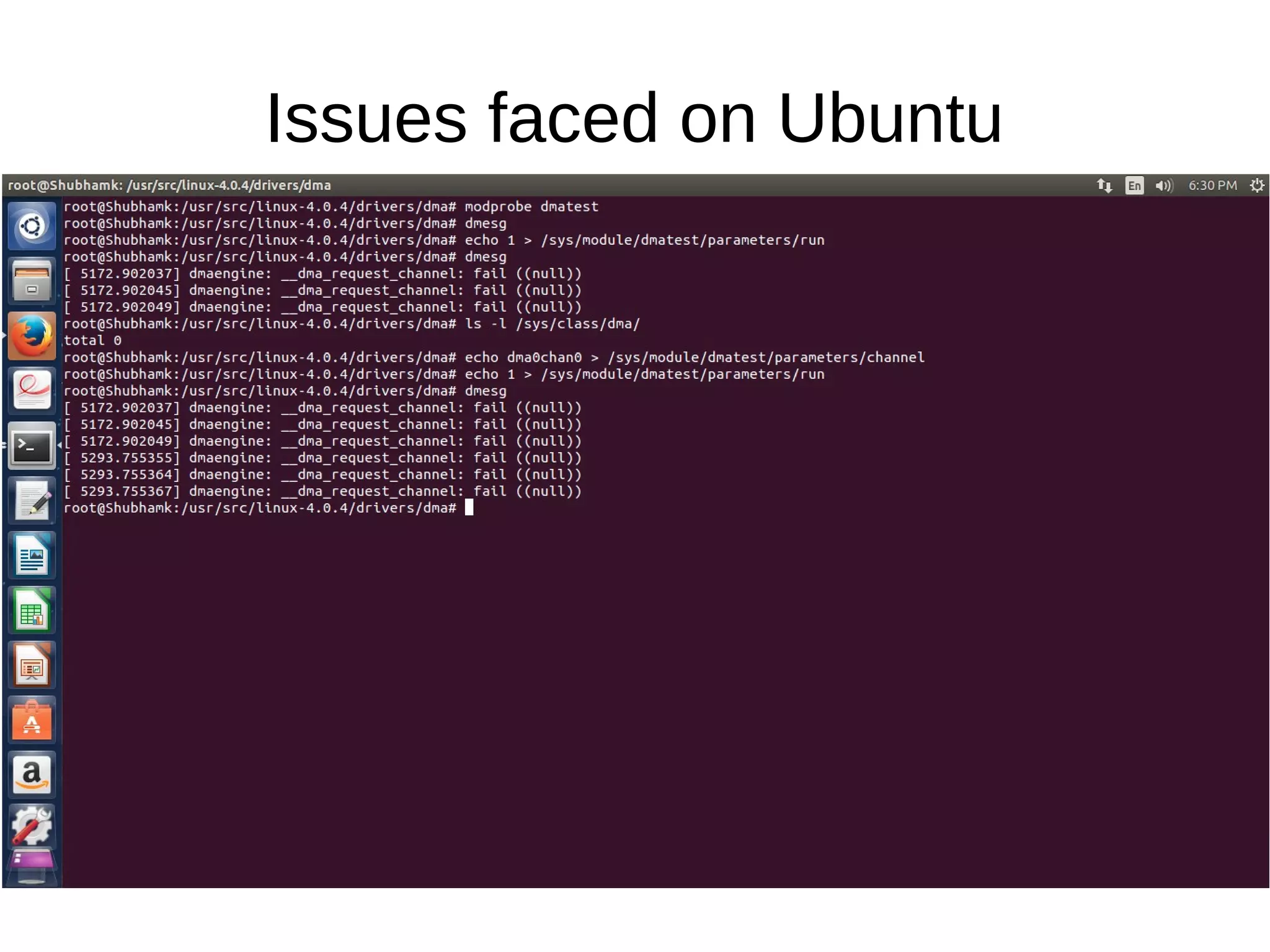

28. Issues faced on Ubuntu

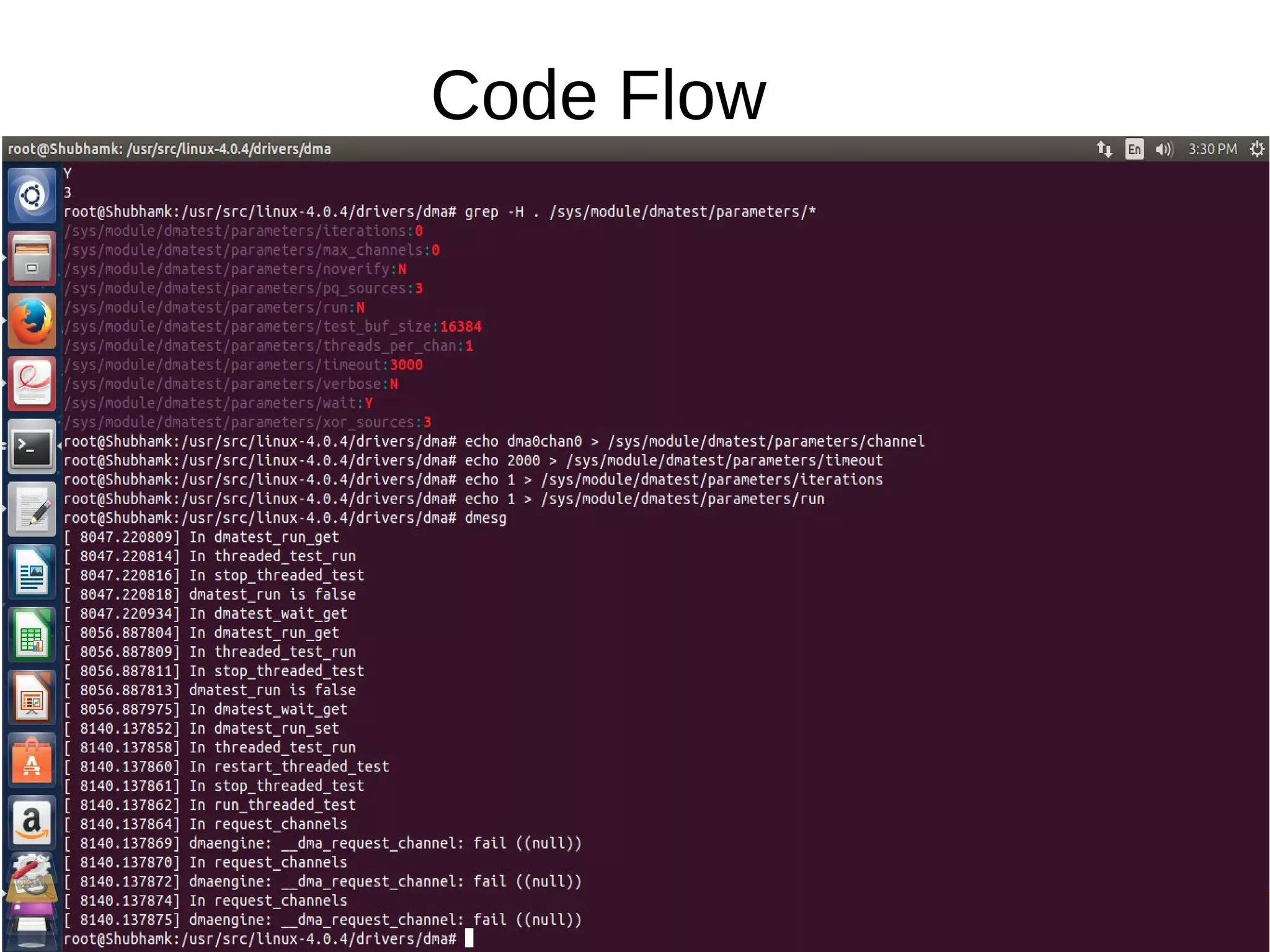

29. Code Flow

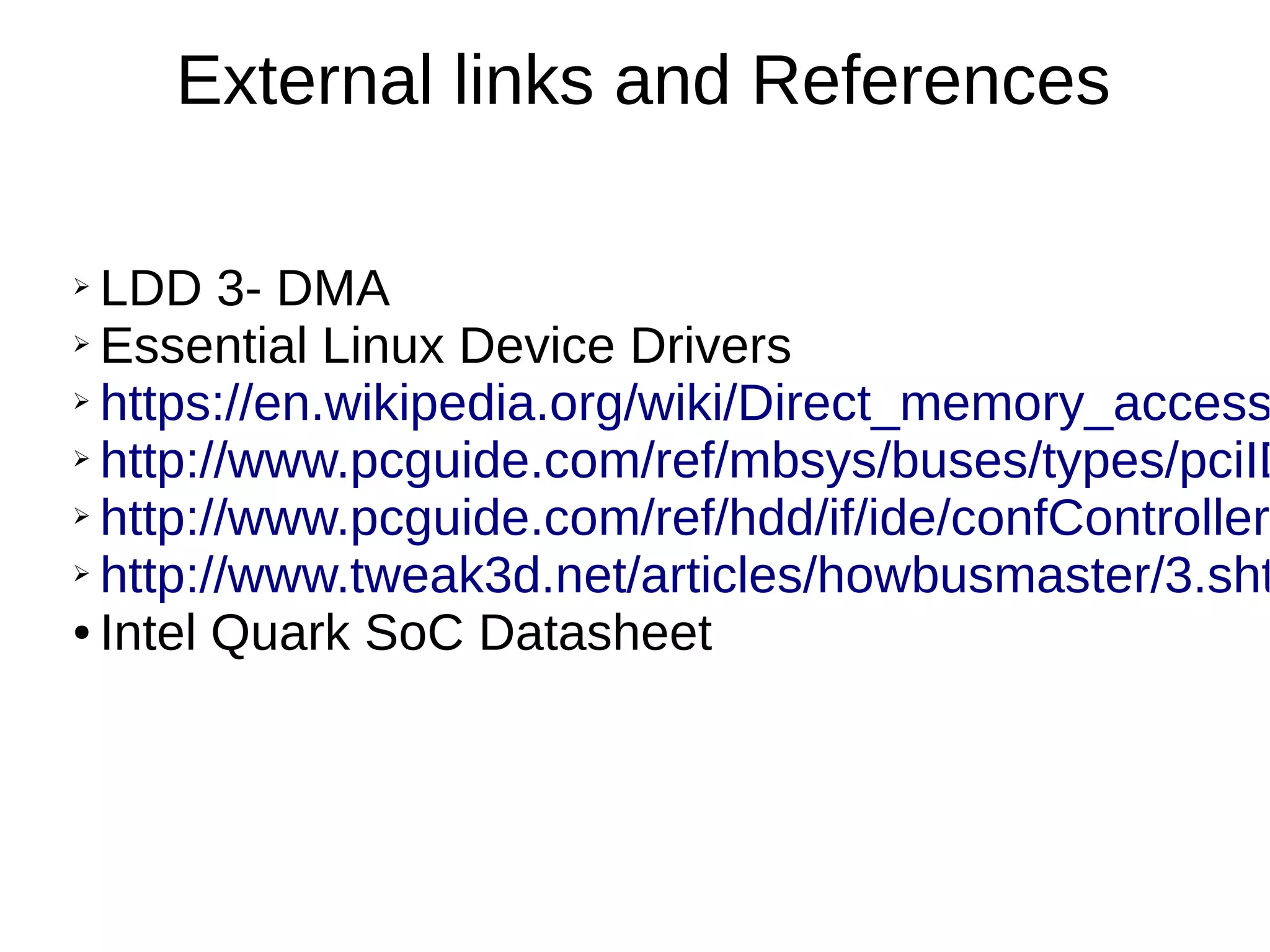

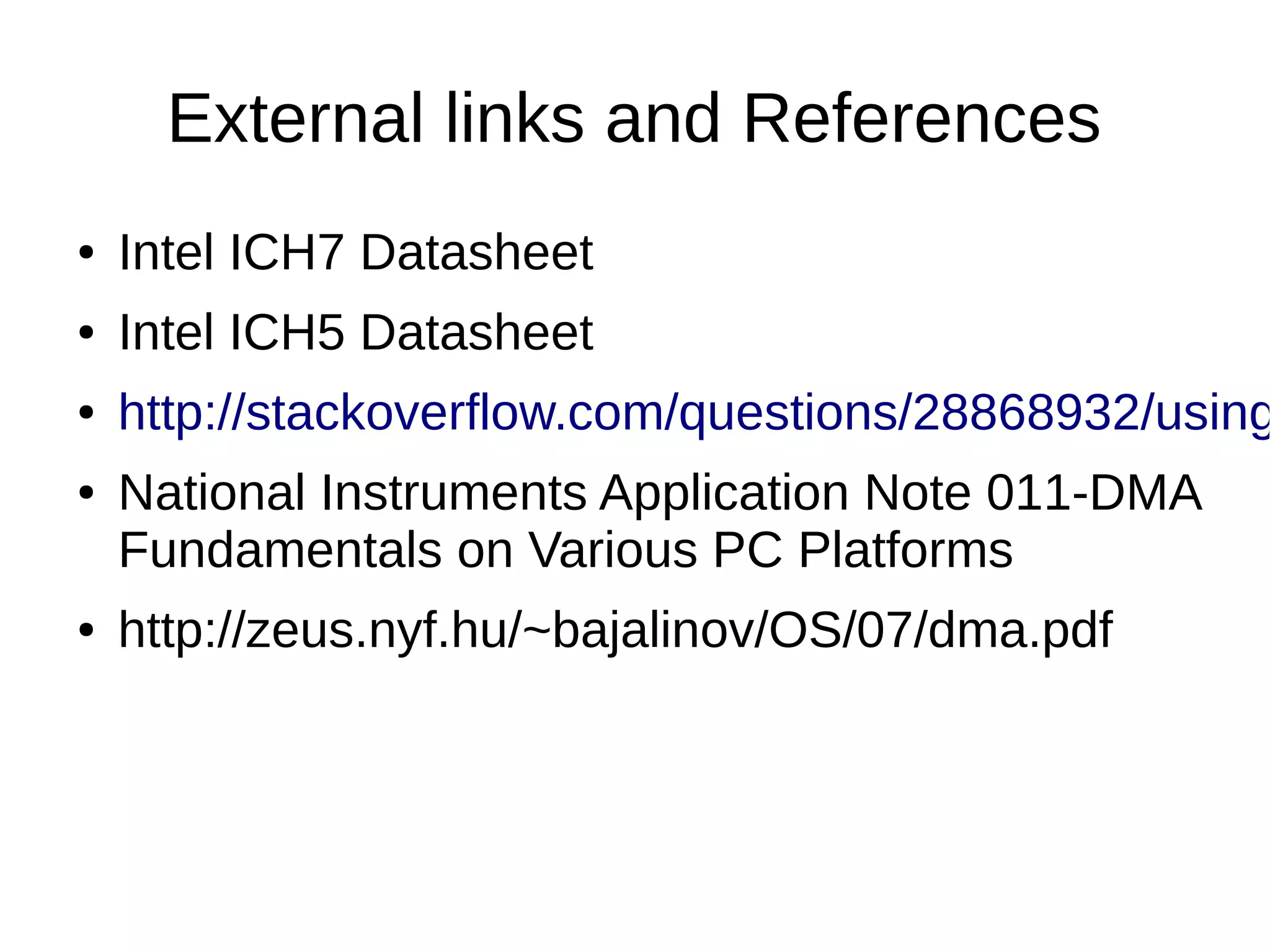

30. External links and References
➢ LDD 3- DMA
➢ Essential Linux Device Drivers
➢ https://en.wikipedia.org/wiki/Direct_memory_access
➢ http://www.pcguide.com/ref/mbsys/buses/types/pciID
➢ http://www.pcguide.com/ref/hdd/if/ide/confControllers
➢ http://www.tweak3d.net/articles/howbusmaster/3.sht
● Intel Quark SoC Datasheet

31. External links and References
● Intel ICH7 Datasheet
● Intel ICH5 Datasheet
● http://stackoverflow.com/questions/28868932/using
● National Instruments Application Note 011-DMA
Fundamentals on Various PC Platforms
● http://zeus.nyf.hu/~bajalinov/OS/07/dma.pdf
