This document describes a development board that contains an ATMega-8 microcontroller and L293D H-Bridge motor driver. It uses 3 LDR sensors and a comparator IC to obtain digital light intensity readings from analog sensor outputs. An Embedded C program controls the motor driver outputs based on the sensor readings to drive the bot straight, left or right. The bot completes two runs through an obstacle course, scoring points based on time taken and obstacles reached.

1. This dev. Board contains-
.ATMega-8 microcontroller
.L293D H-Bridge motor driver

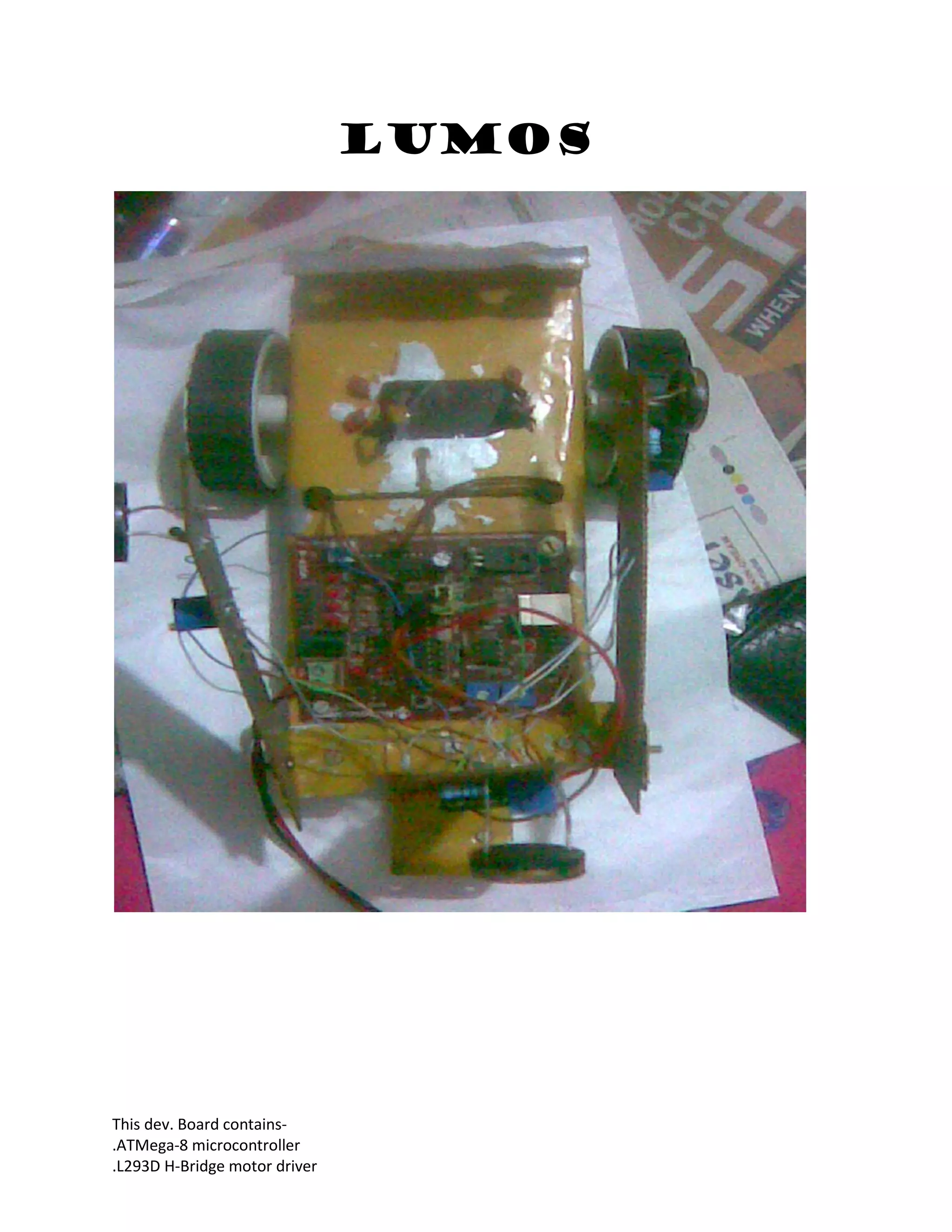

LUMOS

2. This dev. Board contains-
.ATMega-8 microcontroller
.L293D H-Bridge motor driver

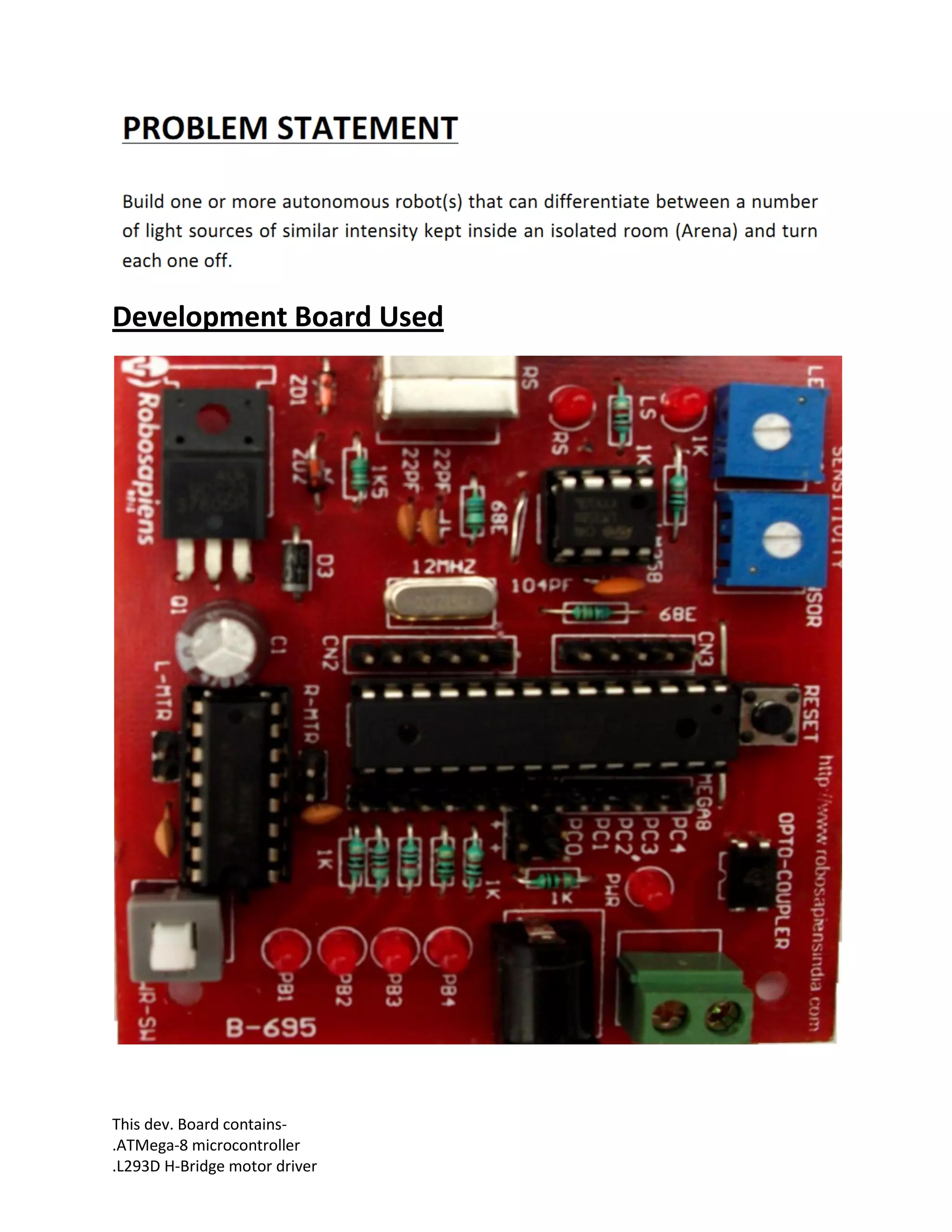

Development Board Used

3. This dev. Board contains-
.ATMega-8 microcontroller
.L293D H-Bridge motor driver

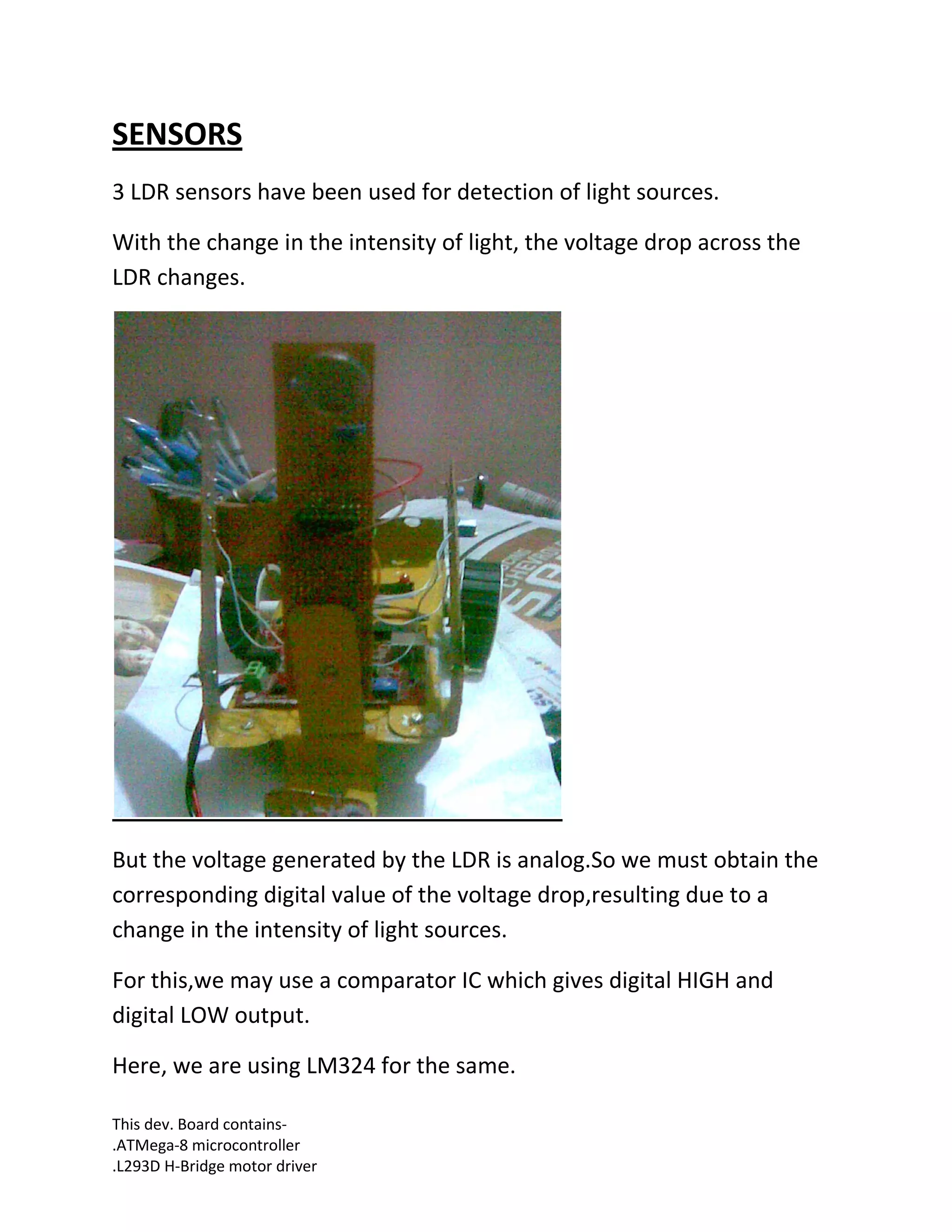

SENSORS
3 LDR sensors have been used for detection of light sources.
With the change in the intensity of light, the voltage drop across the
LDR changes.
But the voltage generated by the LDR is analog.So we must obtain the
corresponding digital value of the voltage drop,resulting due to a
change in the intensity of light sources.

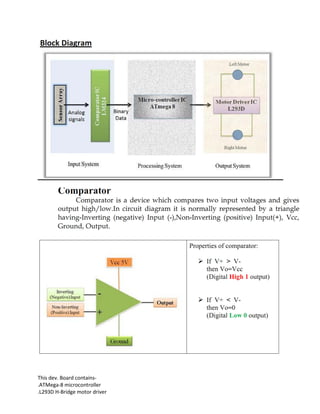

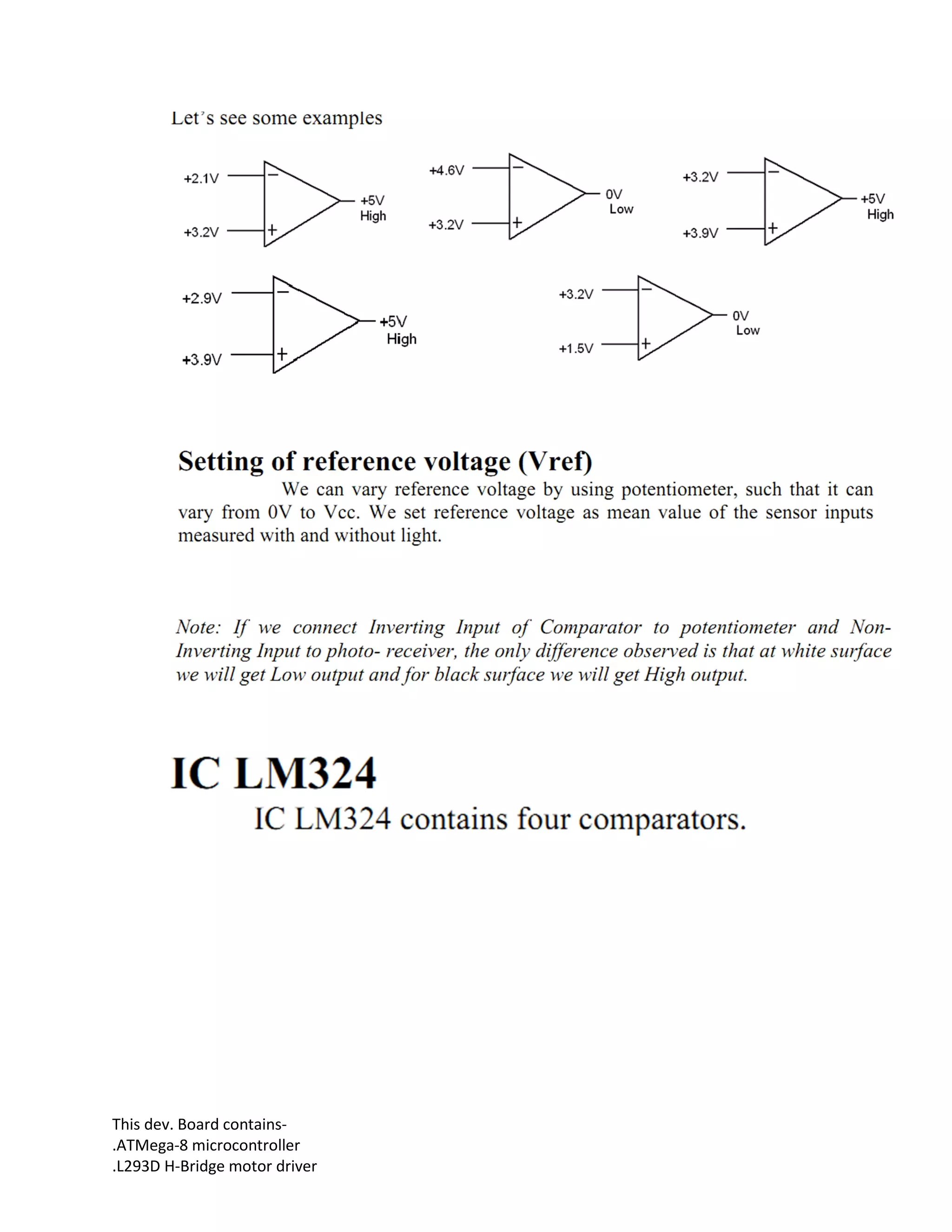

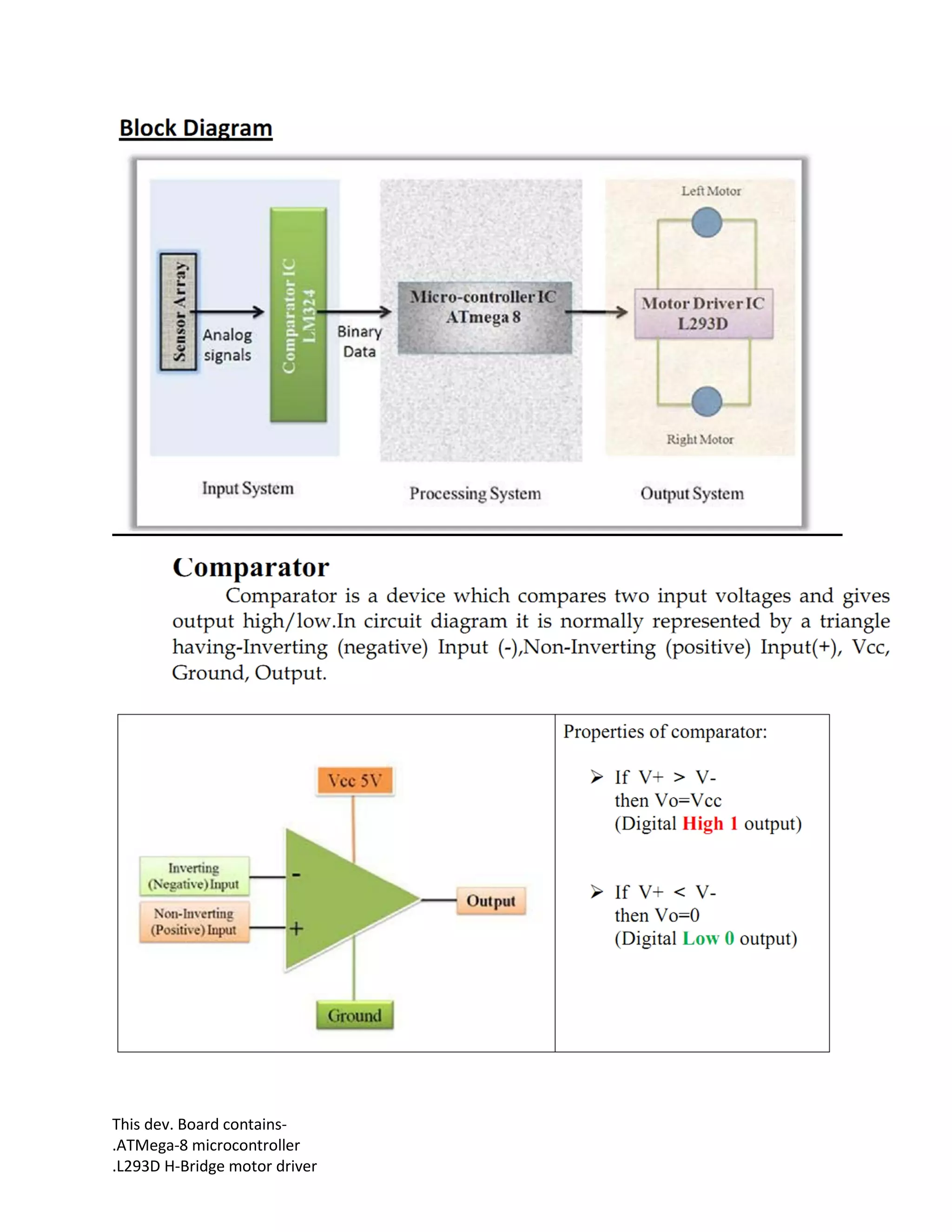

For this,we may use a comparator IC which gives digital HIGH and
digital LOW output.

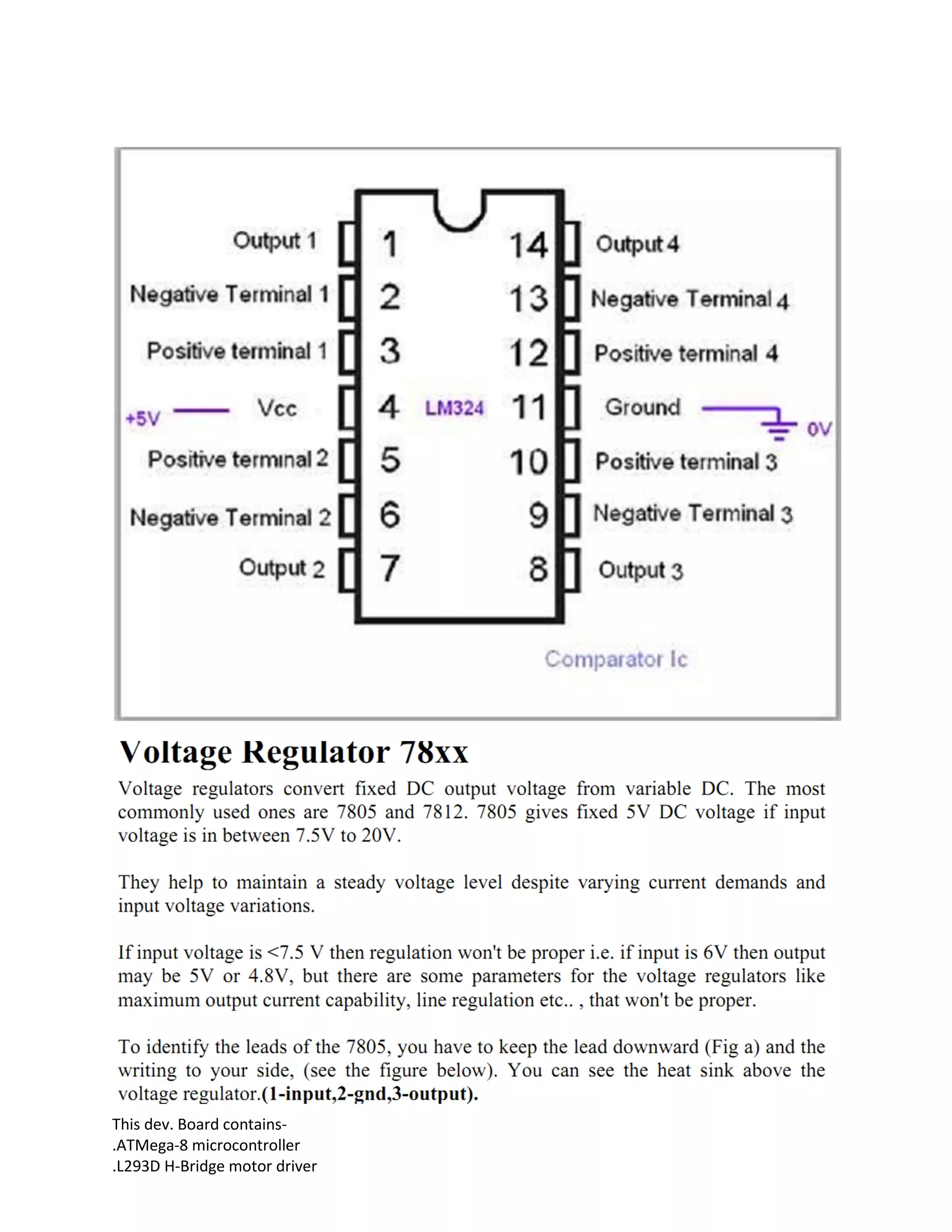

Here, we are using LM324 for the same.

4. This dev. Board contains-
.ATMega-8 microcontroller
.L293D H-Bridge motor driver

5. This dev. Board contains-
.ATMega-8 microcontroller
.L293D H-Bridge motor driver

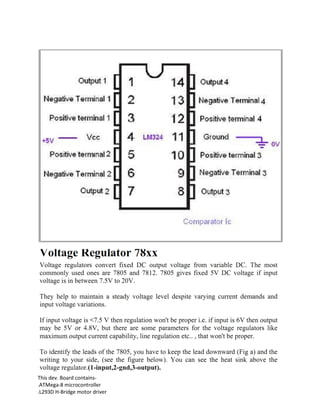

6. This dev. Board contains-
.ATMega-8 microcontroller
.L293D H-Bridge motor driver

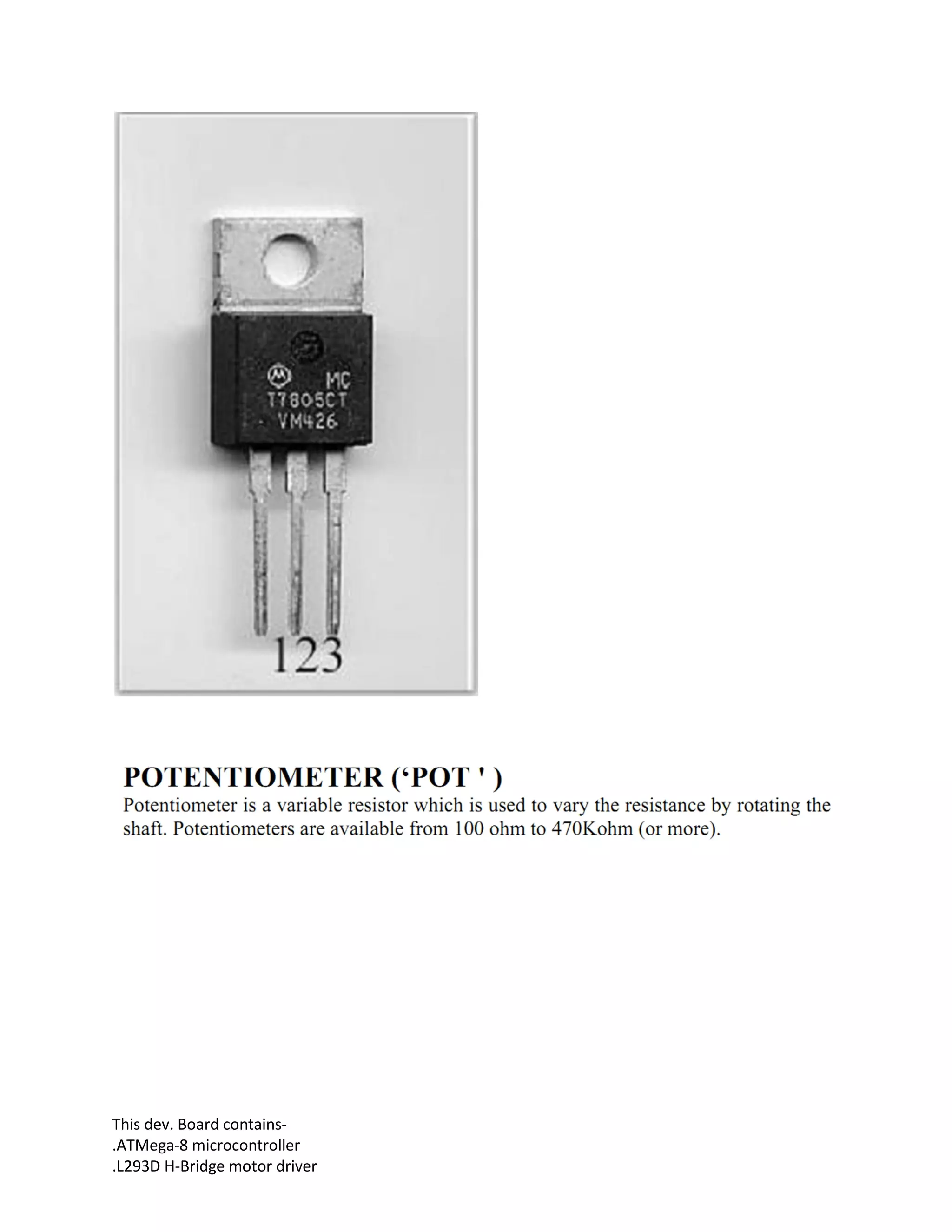

7. This dev. Board contains-
.ATMega-8 microcontroller
.L293D H-Bridge motor driver

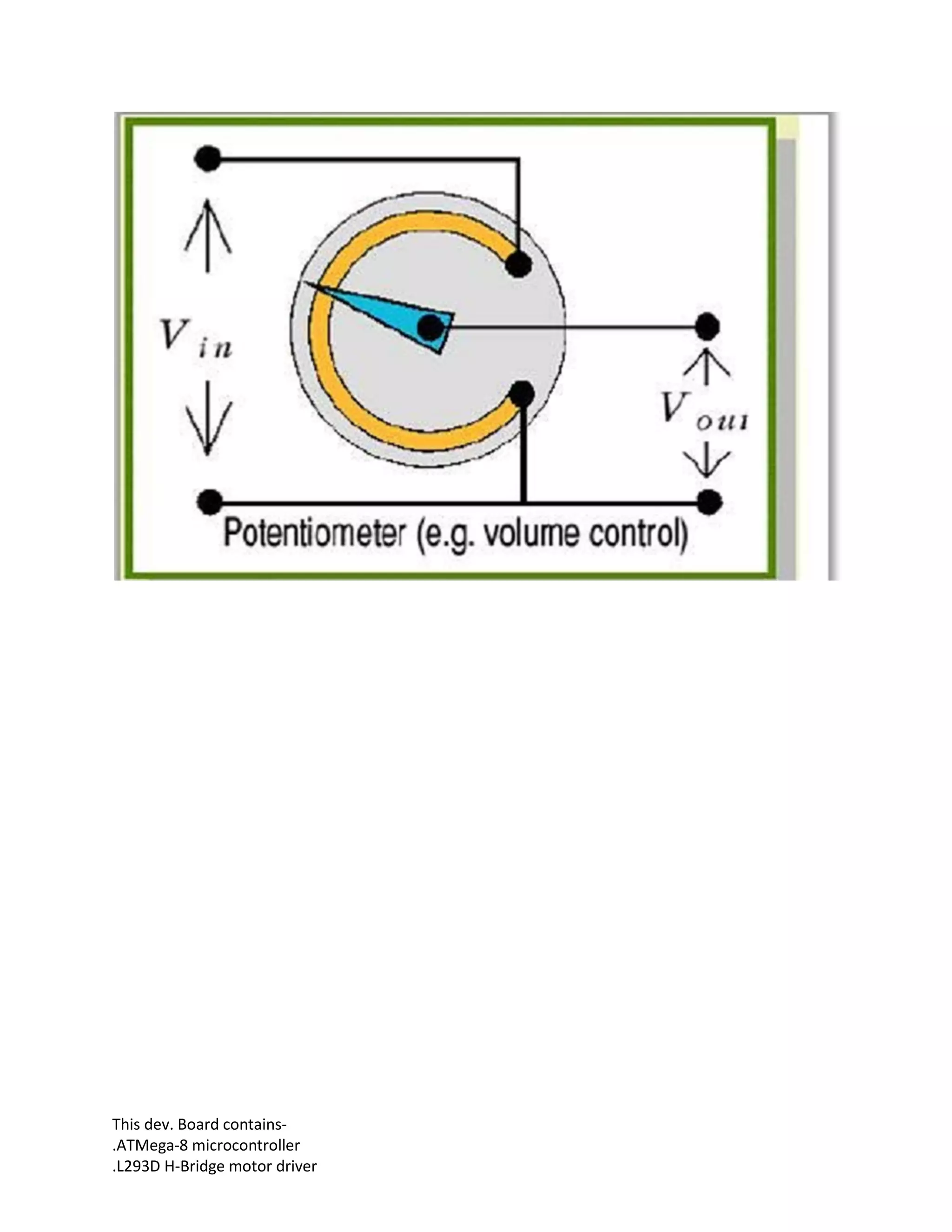

8. This dev. Board contains-
.ATMega-8 microcontroller
.L293D H-Bridge motor driver

9. This dev. Board contains-
.ATMega-8 microcontroller
.L293D H-Bridge motor driver

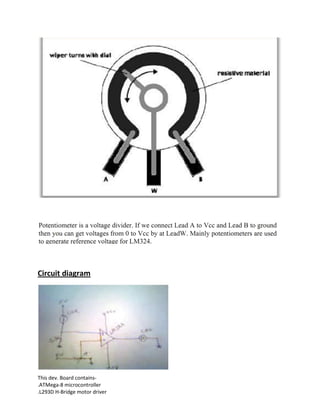

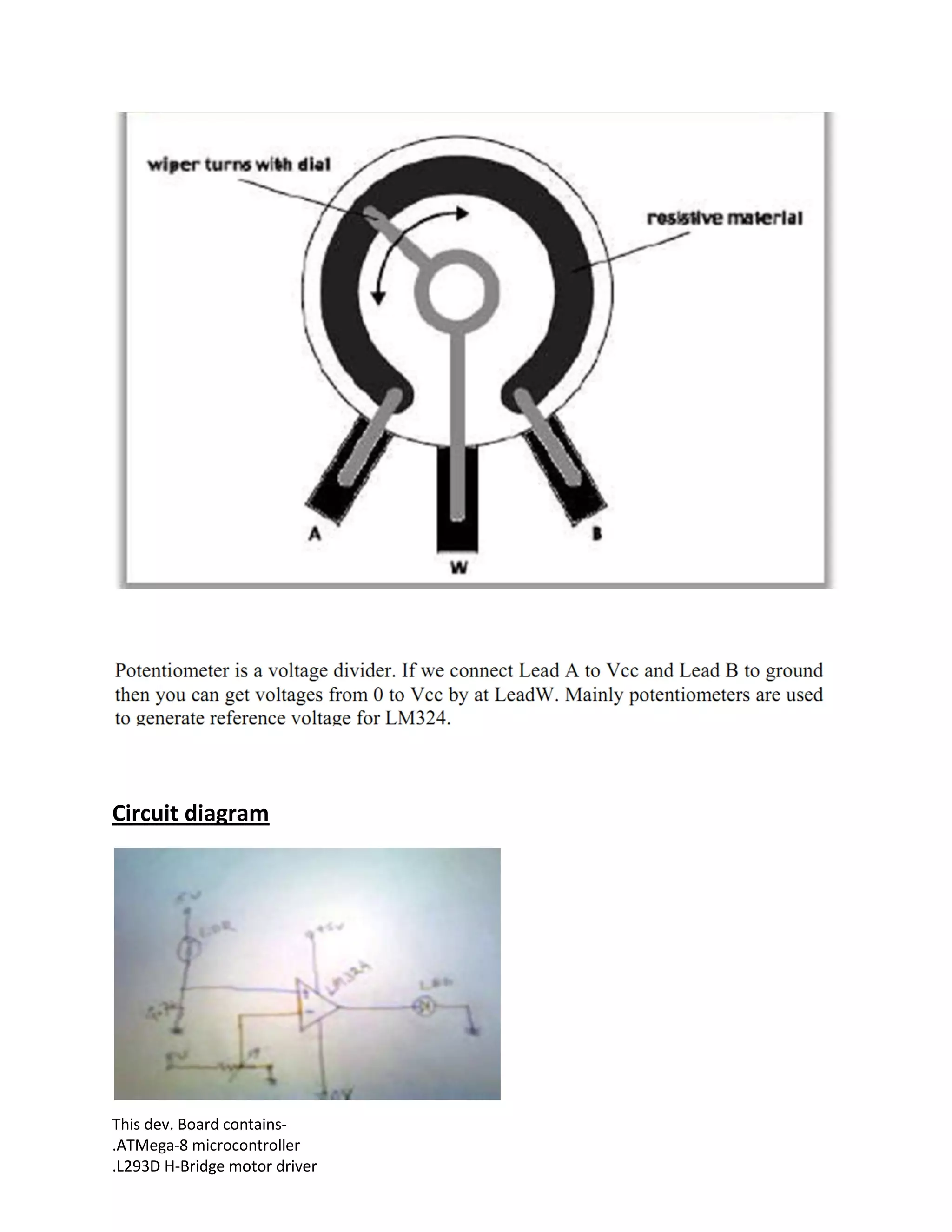

Circuit diagram

10. This dev. Board contains-
.ATMega-8 microcontroller
.L293D H-Bridge motor driver

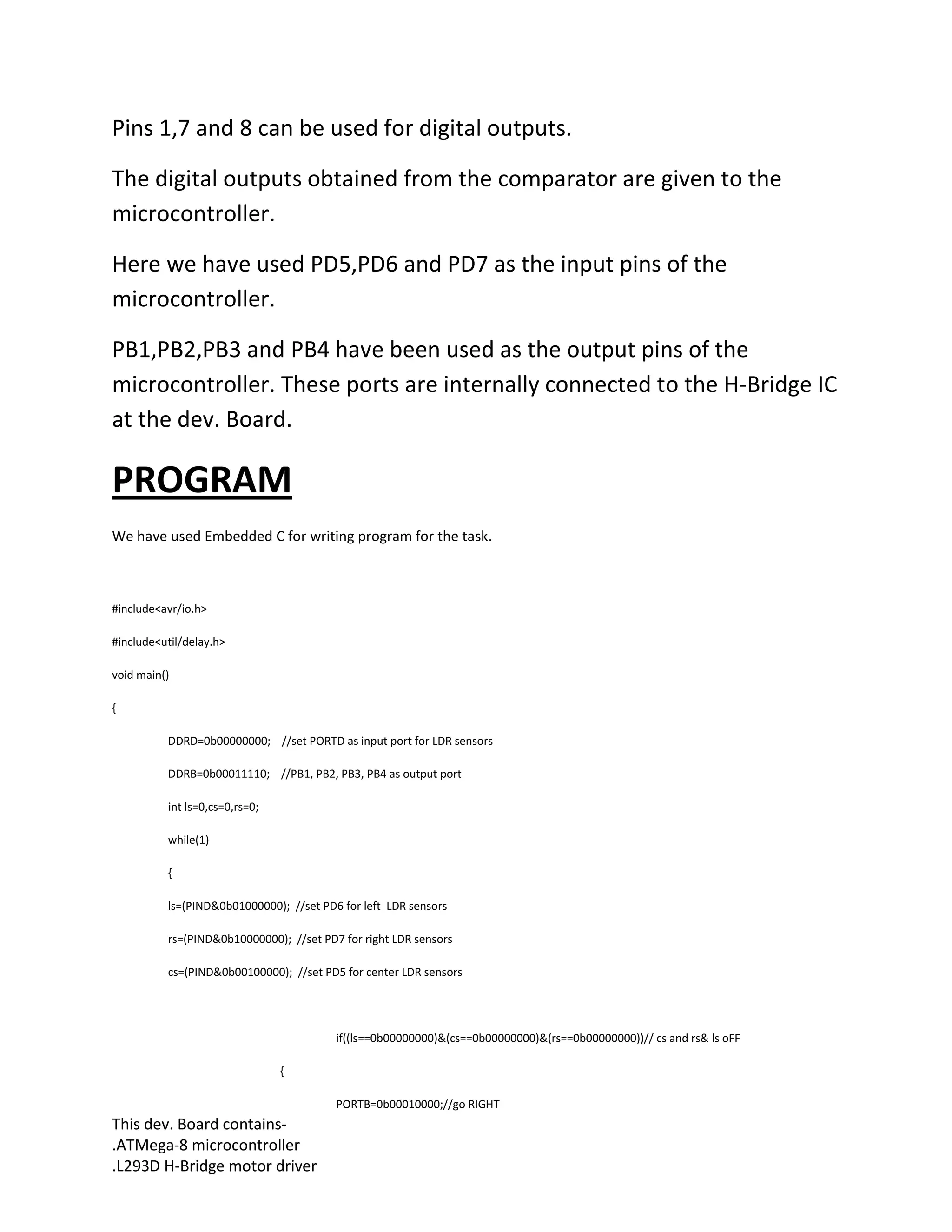

Pins 1,7 and 8 can be used for digital outputs.
The digital outputs obtained from the comparator are given to the
microcontroller.
Here we have used PD5,PD6 and PD7 as the input pins of the
microcontroller.
PB1,PB2,PB3 and PB4 have been used as the output pins of the
microcontroller. These ports are internally connected to the H-Bridge IC
at the dev. Board.
PROGRAM
We have used Embedded C for writing program for the task.
#include<avr/io.h>
#include<util/delay.h>
void main()
{
DDRD=0b00000000; //set PORTD as input port for LDR sensors
DDRB=0b00011110; //PB1, PB2, PB3, PB4 as output port
int ls=0,cs=0,rs=0;
while(1)
{
ls=(PIND&0b01000000); //set PD6 for left LDR sensors
rs=(PIND&0b10000000); //set PD7 for right LDR sensors
cs=(PIND&0b00100000); //set PD5 for center LDR sensors
if((ls==0b00000000)&(cs==0b00000000)&(rs==0b00000000))// cs and rs& ls oFF
{
PORTB=0b00010000;//go RIGHT

11. This dev. Board contains-
.ATMega-8 microcontroller
.L293D H-Bridge motor driver

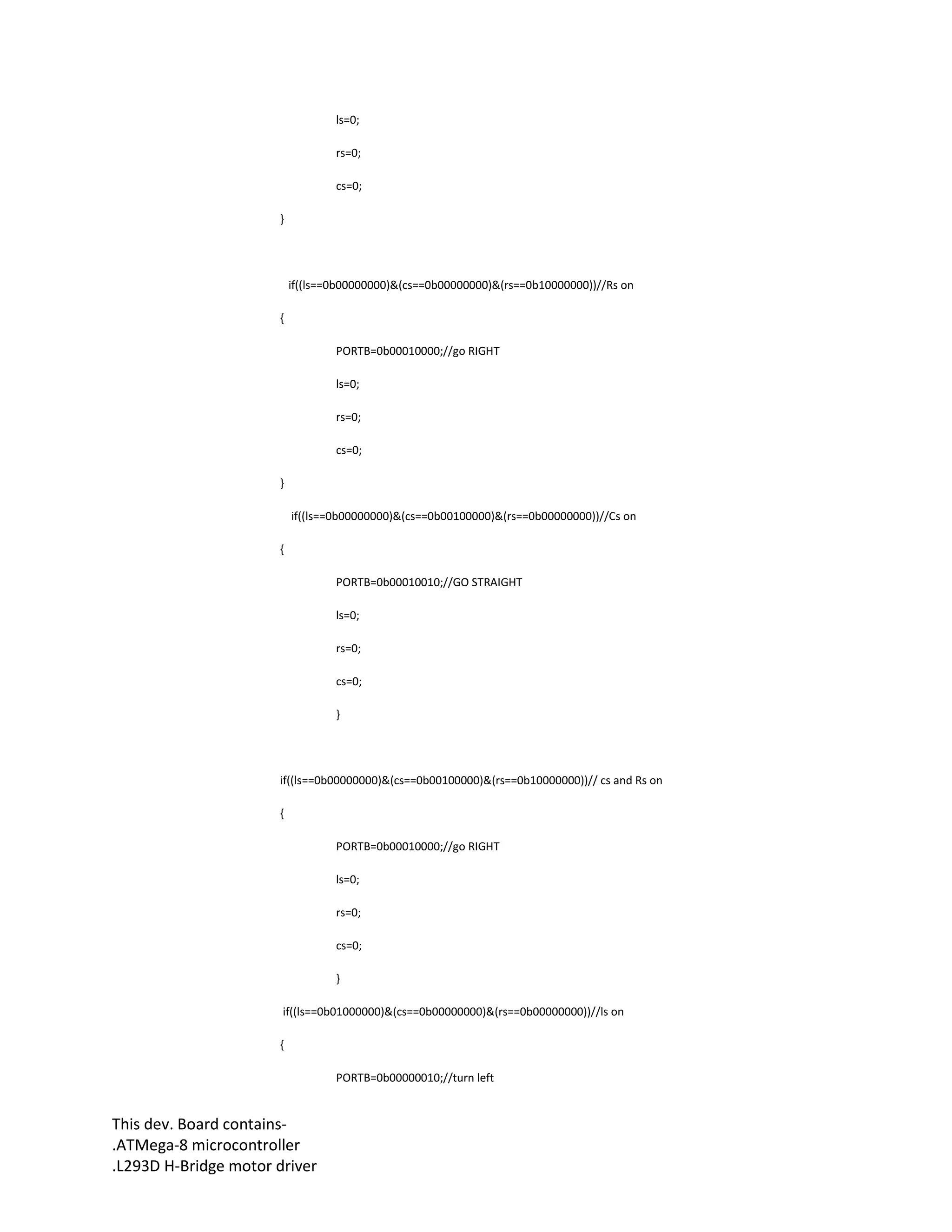

ls=0;
rs=0;
cs=0;
}
if((ls==0b00000000)&(cs==0b00000000)&(rs==0b10000000))//Rs on
{
PORTB=0b00010000;//go RIGHT
ls=0;
rs=0;
cs=0;
}
if((ls==0b00000000)&(cs==0b00100000)&(rs==0b00000000))//Cs on
{
PORTB=0b00010010;//GO STRAIGHT
ls=0;
rs=0;
cs=0;
}
if((ls==0b00000000)&(cs==0b00100000)&(rs==0b10000000))// cs and Rs on
{
PORTB=0b00010000;//go RIGHT
ls=0;
rs=0;
cs=0;
}
if((ls==0b01000000)&(cs==0b00000000)&(rs==0b00000000))//ls on
{
PORTB=0b00000010;//turn left

12. This dev. Board contains-
.ATMega-8 microcontroller
.L293D H-Bridge motor driver

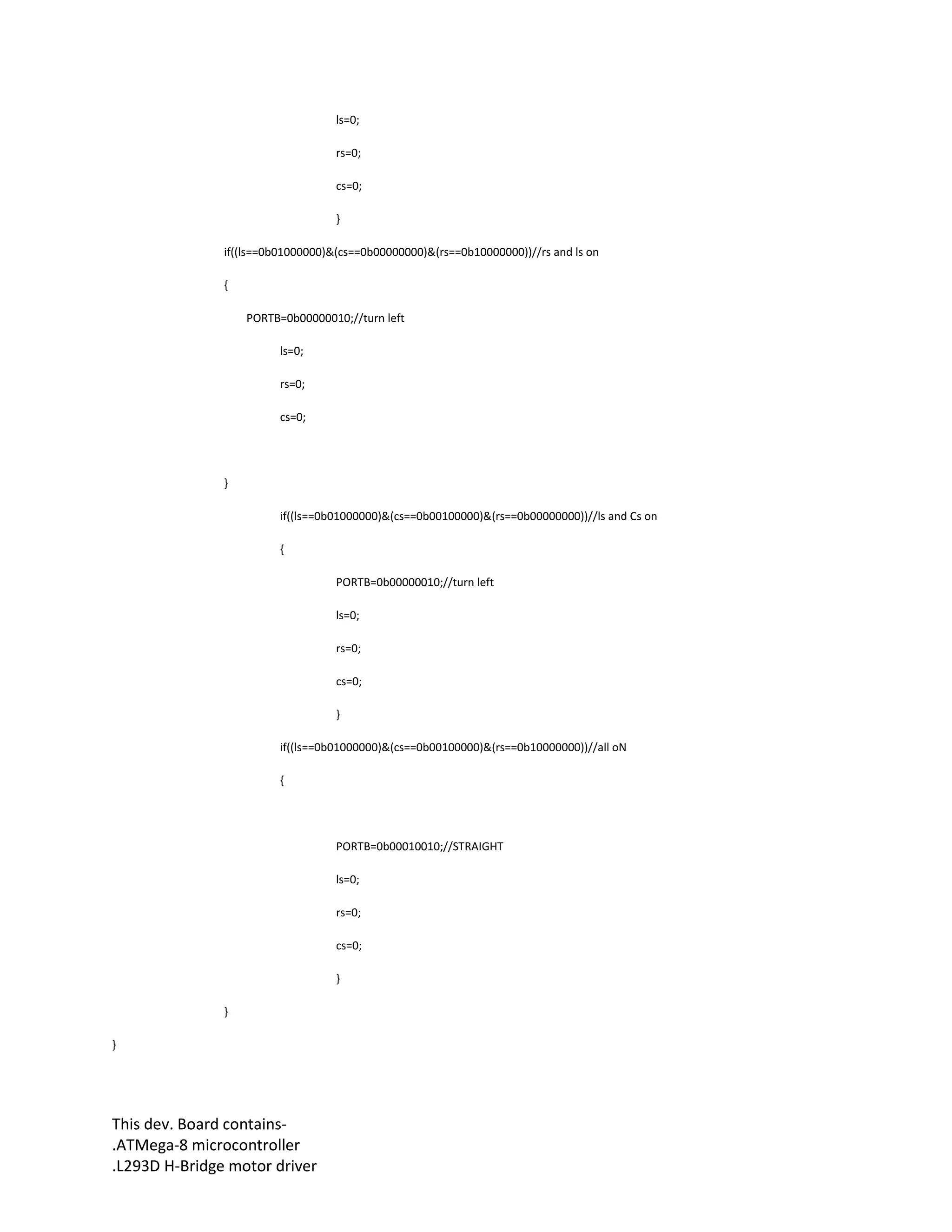

ls=0;
rs=0;
cs=0;
}
if((ls==0b01000000)&(cs==0b00000000)&(rs==0b10000000))//rs and ls on
{
PORTB=0b00000010;//turn left
ls=0;
rs=0;
cs=0;
}
if((ls==0b01000000)&(cs==0b00100000)&(rs==0b00000000))//ls and Cs on
{
PORTB=0b00000010;//turn left
ls=0;
rs=0;
cs=0;
}
if((ls==0b01000000)&(cs==0b00100000)&(rs==0b10000000))//all oN
{
PORTB=0b00010010;//STRAIGHT
ls=0;
rs=0;
cs=0;
}
}
}

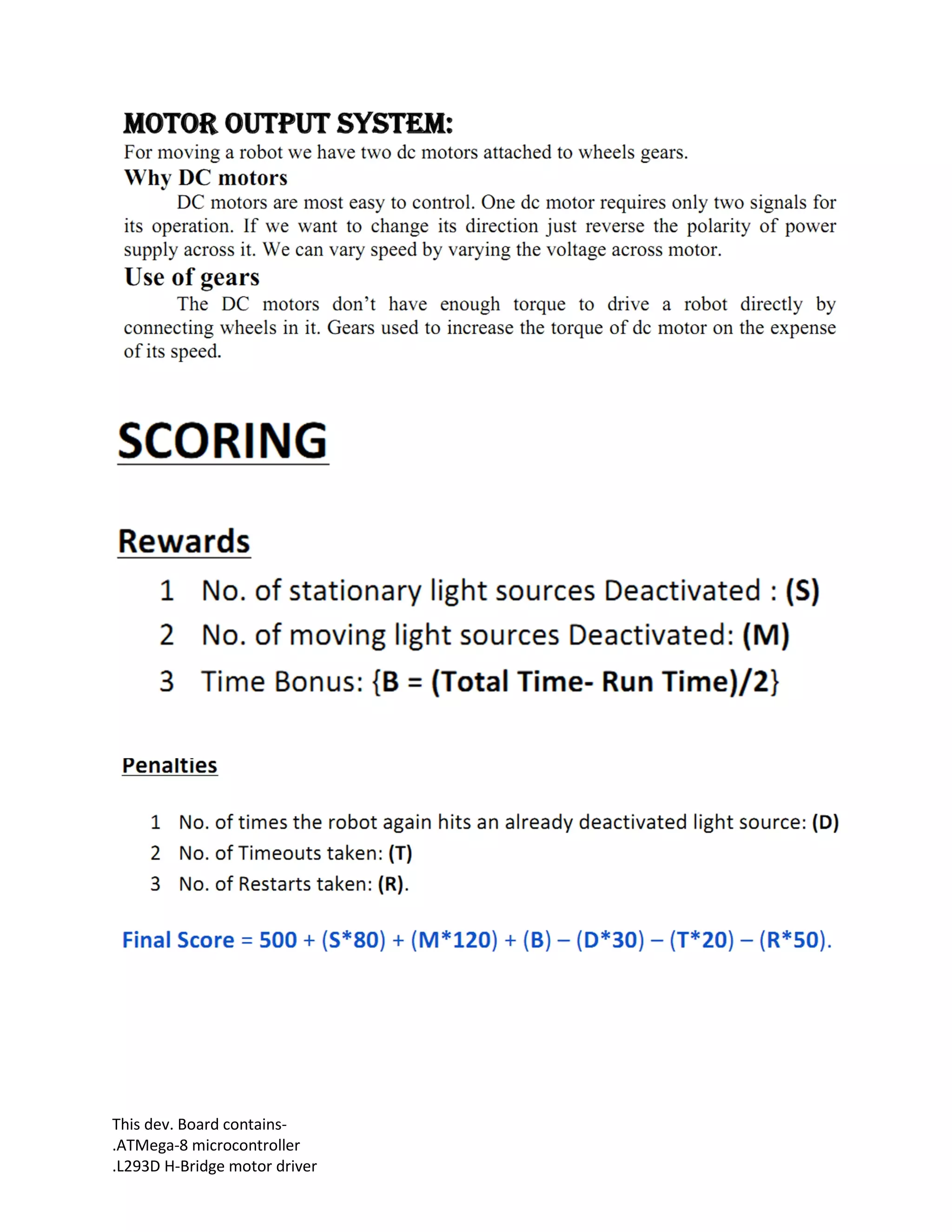

13. This dev. Board contains-
.ATMega-8 microcontroller
.L293D H-Bridge motor driver

14. This dev. Board contains-
.ATMega-8 microcontroller
.L293D H-Bridge motor driver

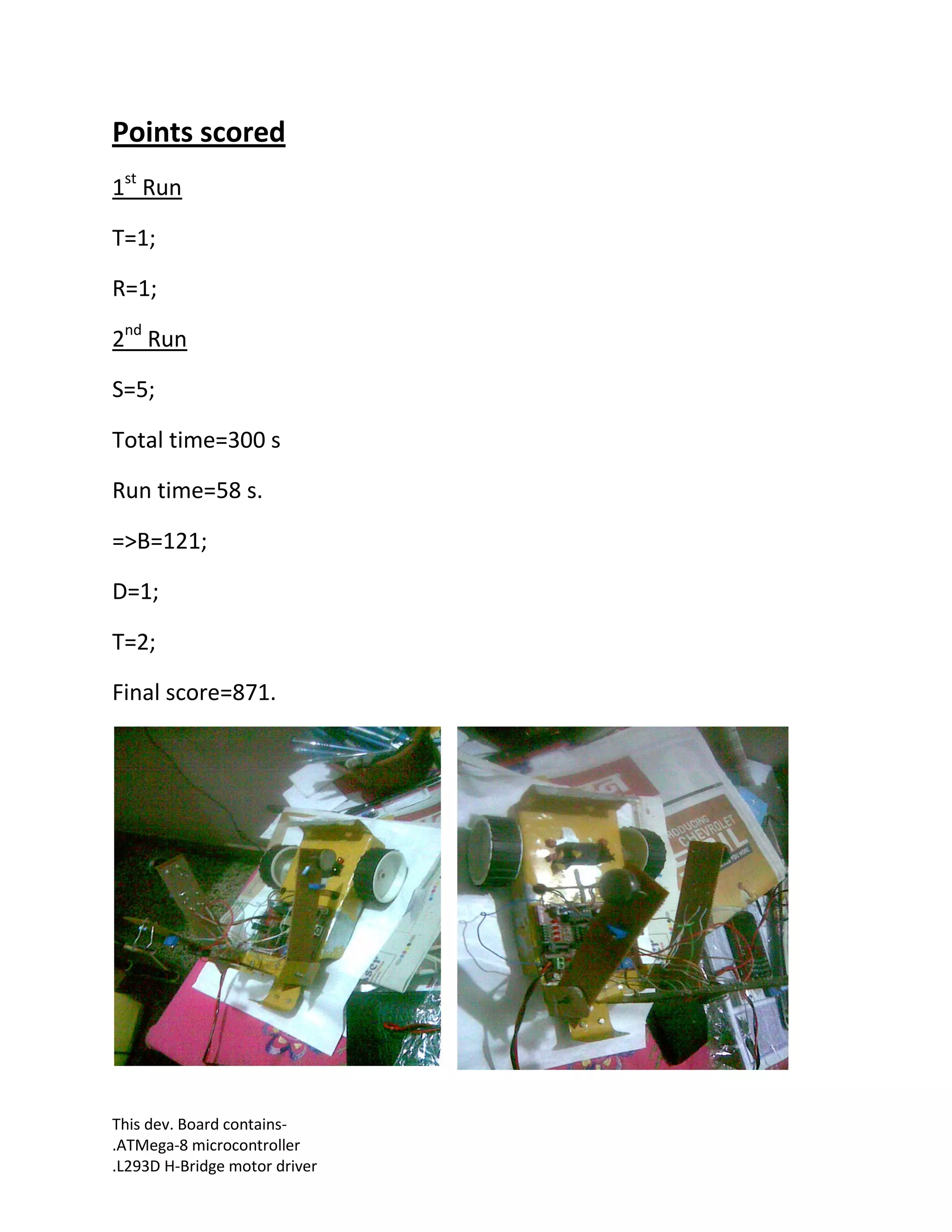

Points scored
1st
Run
T=1;
R=1;
2nd
Run
S=5;
Total time=300 s
Run time=58 s.
=>B=121;
D=1;
T=2;
Final score=871.

15. This dev. Board contains-
.ATMega-8 microcontroller
.L293D H-Bridge motor driver

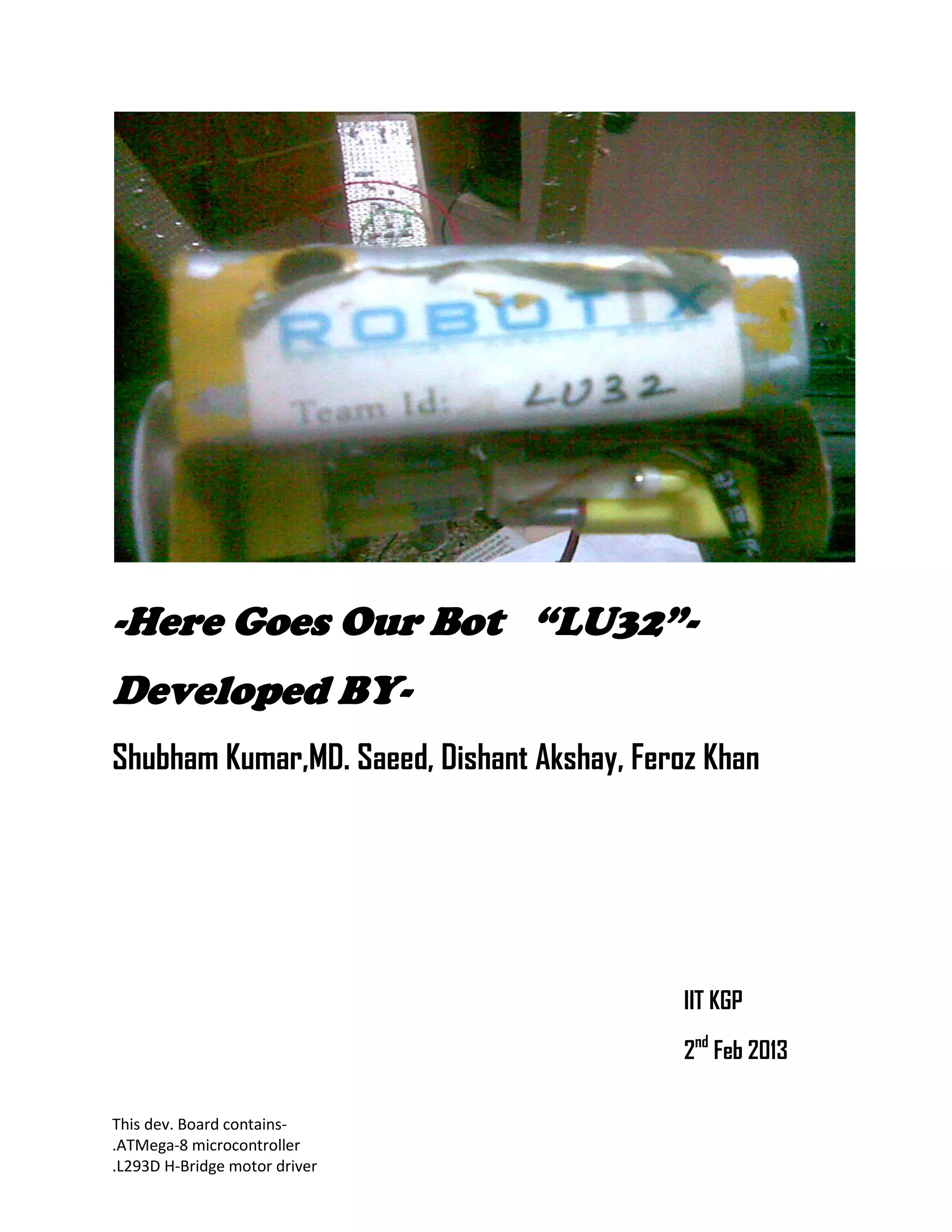

-Here Goes Our Bot “LU32”-
Developed BY-
Shubham Kumar,MD. Saeed, Dishant Akshay, Feroz Khan
IIT KGP
2nd
Feb 2013
