Generic Routing Encapsulation (GRE) is a tunneling protocol by Cisco that encapsulates packets from one protocol within another, using IP as the transport protocol. GRE tunnels act as virtual point-to-point links carrying various protocols, allowing routing through an intermediate host. The protocol supports up to 500 tunnels between switches and is used in various applications, including VPNs and mobility protocols.

1. GRE (Generic Routing Encapsulation)

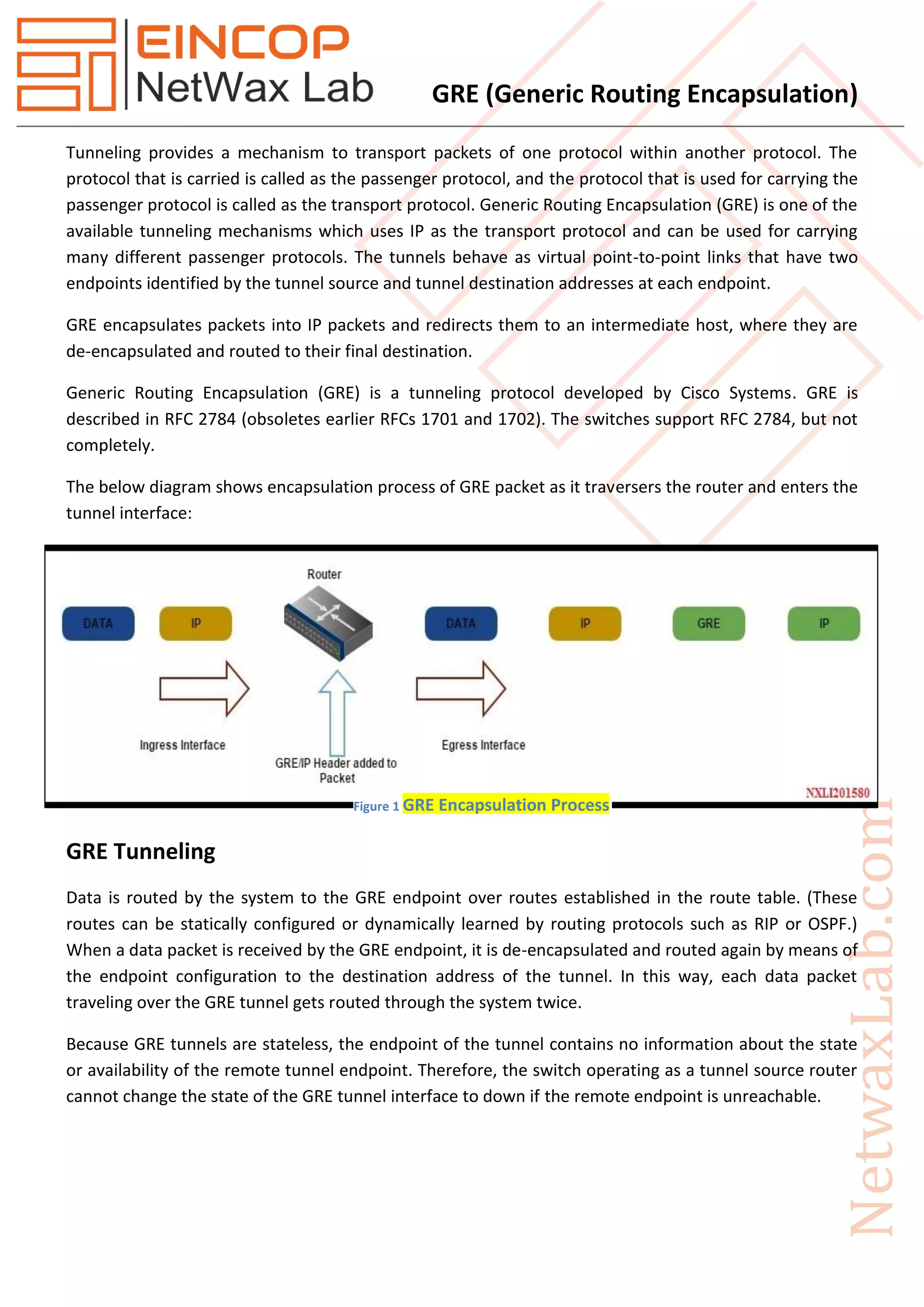

Tunneling provides a mechanism to transport packets of one protocol within another protocol. The
protocol that is carried is called as the passenger protocol, and the protocol that is used for carrying the
passenger protocol is called as the transport protocol. Generic Routing Encapsulation (GRE) is one of the
available tunneling mechanisms which uses IP as the transport protocol and can be used for carrying
many different passenger protocols. The tunnels behave as virtual point-to-point links that have two
endpoints identified by the tunnel source and tunnel destination addresses at each endpoint.
GRE encapsulates packets into IP packets and redirects them to an intermediate host, where they are
de-encapsulated and routed to their final destination.
Generic Routing Encapsulation (GRE) is a tunneling protocol developed by Cisco Systems. GRE is
described in RFC 2784 (obsoletes earlier RFCs 1701 and 1702). The switches support RFC 2784, but not
completely.
The below diagram shows encapsulation process of GRE packet as it traversers the router and enters the
tunnel interface:
GRE Tunneling
Data is routed by the system to the GRE endpoint over routes established in the route table. (These
routes can be statically configured or dynamically learned by routing protocols such as RIP or OSPF.)
When a data packet is received by the GRE endpoint, it is de-encapsulated and routed again by means of
the endpoint configuration to the destination address of the tunnel. In this way, each data packet
traveling over the GRE tunnel gets routed through the system twice.
Because GRE tunnels are stateless, the endpoint of the tunnel contains no information about the state
or availability of the remote tunnel endpoint. Therefore, the switch operating as a tunnel source router
cannot change the state of the GRE tunnel interface to down if the remote endpoint is unreachable.
Figure 1 GRE Encapsulation Process

2. GRE (Generic Routing Encapsulation)

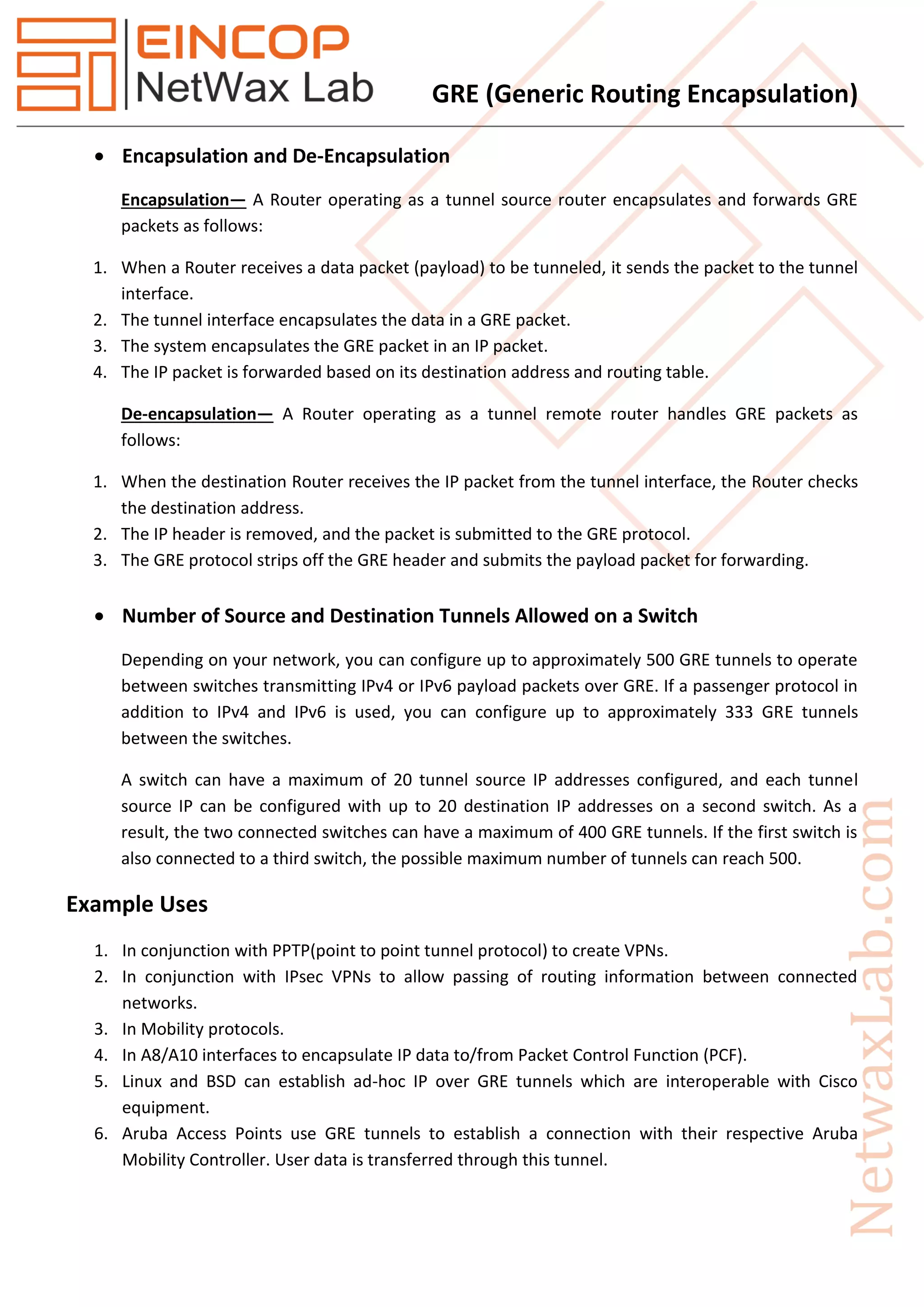

 Encapsulation and De-Encapsulation
Encapsulation— A Router operating as a tunnel source router encapsulates and forwards GRE
packets as follows:
1. When a Router receives a data packet (payload) to be tunneled, it sends the packet to the tunnel
interface.
2. The tunnel interface encapsulates the data in a GRE packet.
3. The system encapsulates the GRE packet in an IP packet.
4. The IP packet is forwarded based on its destination address and routing table.
De-encapsulation— A Router operating as a tunnel remote router handles GRE packets as
follows:
1. When the destination Router receives the IP packet from the tunnel interface, the Router checks
the destination address.
2. The IP header is removed, and the packet is submitted to the GRE protocol.
3. The GRE protocol strips off the GRE header and submits the payload packet for forwarding.
 Number of Source and Destination Tunnels Allowed on a Switch
Depending on your network, you can configure up to approximately 500 GRE tunnels to operate
between switches transmitting IPv4 or IPv6 payload packets over GRE. If a passenger protocol in
addition to IPv4 and IPv6 is used, you can configure up to approximately 333 GRE tunnels
between the switches.
A switch can have a maximum of 20 tunnel source IP addresses configured, and each tunnel
source IP can be configured with up to 20 destination IP addresses on a second switch. As a
result, the two connected switches can have a maximum of 400 GRE tunnels. If the first switch is
also connected to a third switch, the possible maximum number of tunnels can reach 500.
Example Uses
1. In conjunction with PPTP(point to point tunnel protocol) to create VPNs.
2. In conjunction with IPsec VPNs to allow passing of routing information between connected
networks.
3. In Mobility protocols.
4. In A8/A10 interfaces to encapsulate IP data to/from Packet Control Function (PCF).
5. Linux and BSD can establish ad-hoc IP over GRE tunnels which are interoperable with Cisco
equipment.
6. Aruba Access Points use GRE tunnels to establish a connection with their respective Aruba
Mobility Controller. User data is transferred through this tunnel.

3. GRE (Generic Routing Encapsulation)
7. Distributed denial of service (DDoS) protected appliance to an unprotected endpoint.
Example protocol stack
OSI model layer Protocol
5. Session X.225
4. Transport UDP
3. Network (GRE-encapsulated) IPv6
Encapsulation GRE
3. Network IPv4
2. Data Link Ethernet
1. Physical Ethernet physical layer
Based on the principles of protocol layering in OSI, protocol encapsulation, not specifically GRE, breaks
the layering order. It may be viewed as a separator between two different protocol stacks, one acting as
a carrier for another.
Packet Header
 Standard GRE Packet Header
A standard GRE packet header structure, as defined by RFC 2784 and RFC 2890, is represented in the
diagram below.
Bits 0–3 4–12 13–15 16–31
C K S Reserved0 Version Protocol Type
Checksum (optional) Reserved1 (optional)
Key (optional)
Sequence Number (optional)

4. GRE (Generic Routing Encapsulation)
a) C: Checksum bit. Set to 1 if a checksum is present.
b) K: Key bit. Set to 1 if a key is present.
c) S: Sequence number bit. Set to 1 if a sequence number is present.
d) Reserved0: Reserved bits; set to 0.
e) Version: GRE Version number; set to 0.
f) Protocol Type: Indicates the ether protocol type of the encapsulated payload. (For IPv4, this
would be hex 0800.)
g) Checksum: Present if the C bit is set; contains the checksum for the GRE header and payload.
h) Reserved1: Present if the C bit is set; is set to 0.
i) Key: Present if the K bit is set; contains an application-specific key value.
j) Sequence Number: Present if the S bit is set; contains a sequence number for the GRE packet.
 PPTP GRE Packet Header
The Point-to-Point Tunneling Protocol (PPTP), defined in RFC 2637, uses a variant GRE packet header
structure, represented below. PPTP creates a GRE tunnel through which the PPTP GRE packets are sent.
Bits 0–4 5–7 8 9-12 13–15 16–31
C R K S s Recur A Flags Version Protocol Type
Key Payload Length Key Call ID
Sequence Number (optional)
Acknowledgement Number (optional)
a) C: Checksum bit. For PPTP GRE packets, this is set to 0.
b) R: Routing bit. For PPTP GRE packets, this is set to 0.
c) K: Key bit. For PPTP GRE packets, this is set to 1. (All PPTP GRE packets carry a key.)
d) S: Sequence number bit. Set to 1 if a sequence number is supplied, indicating a PPTP GRE data
packet.
e) s: Strict source route bit. For PPTP GRE packets, this is set to 0.
f) Recur: Recursion control bits. For PPTP GRE packets, these are set to 0.
g) A: Acknowledgement number present. Set to 1 if an acknowledgement number is supplied,
indicating a PPTP GRE acknowledgement packet.
h) Flags: Flag bits. For PPTP GRE packets, these are set to 0.
i) Version: GRE Version number. For PPTP GRE packets, this is set to 1.
j) Protocol Type: For PPTP GRE packets, this is set to hex 880B.

5. GRE (Generic Routing Encapsulation)
k) Key Payload Length: Contains the size of the payload, not including the GRE header.
l) Key Call ID: Contains the Peer's Call ID for the session to which the packet belongs.
m) Sequence Number: Present if the S bit is set; contains the GRE payload sequence number.
n) Acknowledgement Number: Present if the A bit is set; contains the sequence number of the
highest GRE payload packet received by the sender.
Example (GRE Tunnel over S2S VPN)
(Note: 1. R2 and R3 must able to ping each other.
2. Tunnel ip is must to ping each other.)
R2
int t0
ip add 192.168.1.1 255.255.255.0
tunnel source se0/0
tunnel destination 102.1.1.100
exit
router eigrp 100
network 192.168.1.0 0.0.0.255
network 192.10.1.0 0.0.0.255
network 192.10.2.0 0.0.0.255
network 192.10.3.0 0.0.0.255
Figure 2 Topology

6. GRE (Generic Routing Encapsulation)
network 192.10.4.0 0.0.0.255
no auto-summary
exit
crypto isakmp policy 10
authentication pre-share
encryption 3des
group 2
hash sha
lifetime 1800
exit
crypto ipsec transform-set tset esp-sha-hmac esp-3des
exit
crypto isakmp key cisco add 102.1.1.100
crypto ipsec profile IPSEC
set transform-set tset
exit
int t0
tunnel mode ipsec ipv4
tunnel protection ipsec profile IPSEC
exit
R3
int t0
ip add 192.168.1.2 255.255.255.0
tunnel source se0/0
tunnel destination 101.1.1.100
exit
router eigrp 100
network 192.168.1.0 0.0.0.255
network 192.20.1.0 0.0.0.255
network 192.20.2.0 0.0.0.255
network 192.20.3.0 0.0.0.255
network 192.20.4.0 0.0.0.255
no auto-summary

7. GRE (Generic Routing Encapsulation)
exit
crypto isakmp policy 10
authentication pre-share
encryption 3des
group 2
hash sha
lifetime 1800
exit
crypto ipsec transform-set tset esp-sha-hmac esp-3des
exit
crypto isakmp key cisco add 101.1.1.100
crypto ipsec profile IPSEC
set transform-set tset
exit
int t0
tunnel mode ipsec ipv4
tunnel protection ipsec profile IPSEC
exit
