The document describes configuring VRRP (Virtual Router Redundancy Protocol) on routers R1 and R2. It involves: 1. Configuring R1 as the master for VRRP group 1 using virtual IP 10.0.0.254 and authentication. 2. Configuring R2 as the master for load-balanced VRRP group 2 using virtual IP 10.0.0.193 and a different authentication string. 3. Enabling tracking on both routers so that the priority of the backup router decreases if the route to the opposite network fails, allowing it to take over as master.

1. Lab 19: VRRP (Virtual Router Redundancy Protocol)
Task
1. Configure IP Address as per given in toplogy.
2. Configure DNS Server on Server as per given in topology and Make sure ISP ping all the DNS.
3. Configure Routing Protocol in between HQ, R1 and R2.
4. Configure VRRP between R1 and R2. Use Virtual IP 10.0.0.254 for VRRP.
5. Make sure R1 is Master for VRRP. Do possible configuration.
6. Make sure VRRP use MD5 authentication with password "netwaxlab@109".
7. Configure VRRP Load Balancing using group number. Use Virtual IP 10.0.0.193. Make sure R2 is
master.
8. Make sure Authentication is enable for VRRP Load Balancing use key-string as
"Blog.Eincop.com@109".
9. Make sure Tracking is enable in VRRP.
10. Configure PC1 and PC4 send traffic via 10.0.0.254 and rest of all PC's send traffic via 10.0.0.193.
Figure 1 Topology

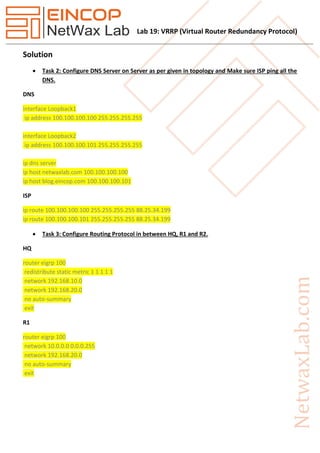

2. Lab 19: VRRP (Virtual Router Redundancy Protocol)
Solution
 Task 2: Configure DNS Server on Server as per given in topology and Make sure ISP ping all the
DNS.
DNS
interface Loopback1
ip address 100.100.100.100 255.255.255.255
interface Loopback2
ip address 100.100.100.101 255.255.255.255
ip dns server
ip host netwaxlab.com 100.100.100.100
ip host blog.eincop.com 100.100.100.101
ISP
ip route 100.100.100.100 255.255.255.255 88.25.34.199
ip route 100.100.100.101 255.255.255.255 88.25.34.199
 Task 3: Configure Routing Protocol in between HQ, R1 and R2.
HQ
router eigrp 100
redistribute static metric 1 1 1 1 1
network 192.168.10.0
network 192.168.20.0
no auto-summary
exit
R1
router eigrp 100
network 10.0.0.0 0.0.0.255
network 192.168.20.0
no auto-summary
exit

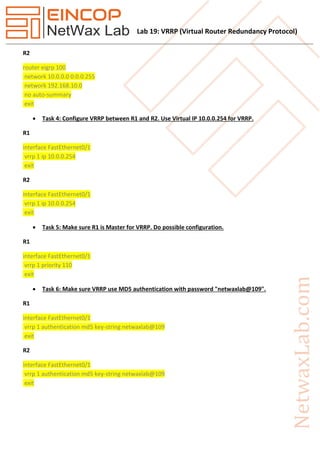

3. Lab 19: VRRP (Virtual Router Redundancy Protocol)
R2
router eigrp 100
network 10.0.0.0 0.0.0.255
network 192.168.10.0
no auto-summary
exit
 Task 4: Configure VRRP between R1 and R2. Use Virtual IP 10.0.0.254 for VRRP.
R1
interface FastEthernet0/1
vrrp 1 ip 10.0.0.254
exit
R2
interface FastEthernet0/1
vrrp 1 ip 10.0.0.254
exit
 Task 5: Make sure R1 is Master for VRRP. Do possible configuration.
R1
interface FastEthernet0/1
vrrp 1 priority 110
exit
 Task 6: Make sure VRRP use MD5 authentication with password "netwaxlab@109".
R1
interface FastEthernet0/1
vrrp 1 authentication md5 key-string netwaxlab@109
exit
R2
interface FastEthernet0/1
vrrp 1 authentication md5 key-string netwaxlab@109
exit

4. Lab 19: VRRP (Virtual Router Redundancy Protocol)
 Task 7: Configure VRRP Load Balancing using group number. Use Virtual IP 10.0.0.193. Make
sure R2 is master.
R1
interface FastEthernet0/1
vrrp 2 ip 10.0.0.193
exit
R2
interface FastEthernet0/1
vrrp 2 ip 10.0.0.193
vrrp 2 priority 110
exit
 Task 8: Make sure Authentication is enable for VRRP Load Balancing use key-string as
"Blog.Eincop.com@109".
R1
interface FastEthernet0/1
vrrp 2 authentication md5 key-string Blog.Eincop.com@109
exit
R2
interface FastEthernet0/1
vrrp 2 authentication md5 key-string Blog.Eincop.com@109
exit
 Task 9: Make sure Tracking is enable in VRRP.
R1
track 1 ip route 192.168.20.0 255.255.255.0 reachability
interface FastEthernet0/1
vrrp 1 track 1 decrement 20
exit

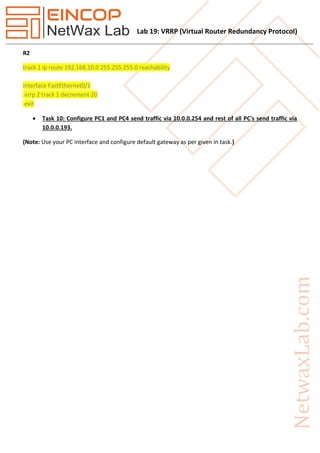

5. Lab 19: VRRP (Virtual Router Redundancy Protocol)
R2
track 1 ip route 192.168.10.0 255.255.255.0 reachability
interface FastEthernet0/1
vrrp 2 track 1 decrement 20
exit
 Task 10: Configure PC1 and PC4 send traffic via 10.0.0.254 and rest of all PC's send traffic via
10.0.0.193.
(Note: Use your PC interface and configure default gateway as per given in task.)
