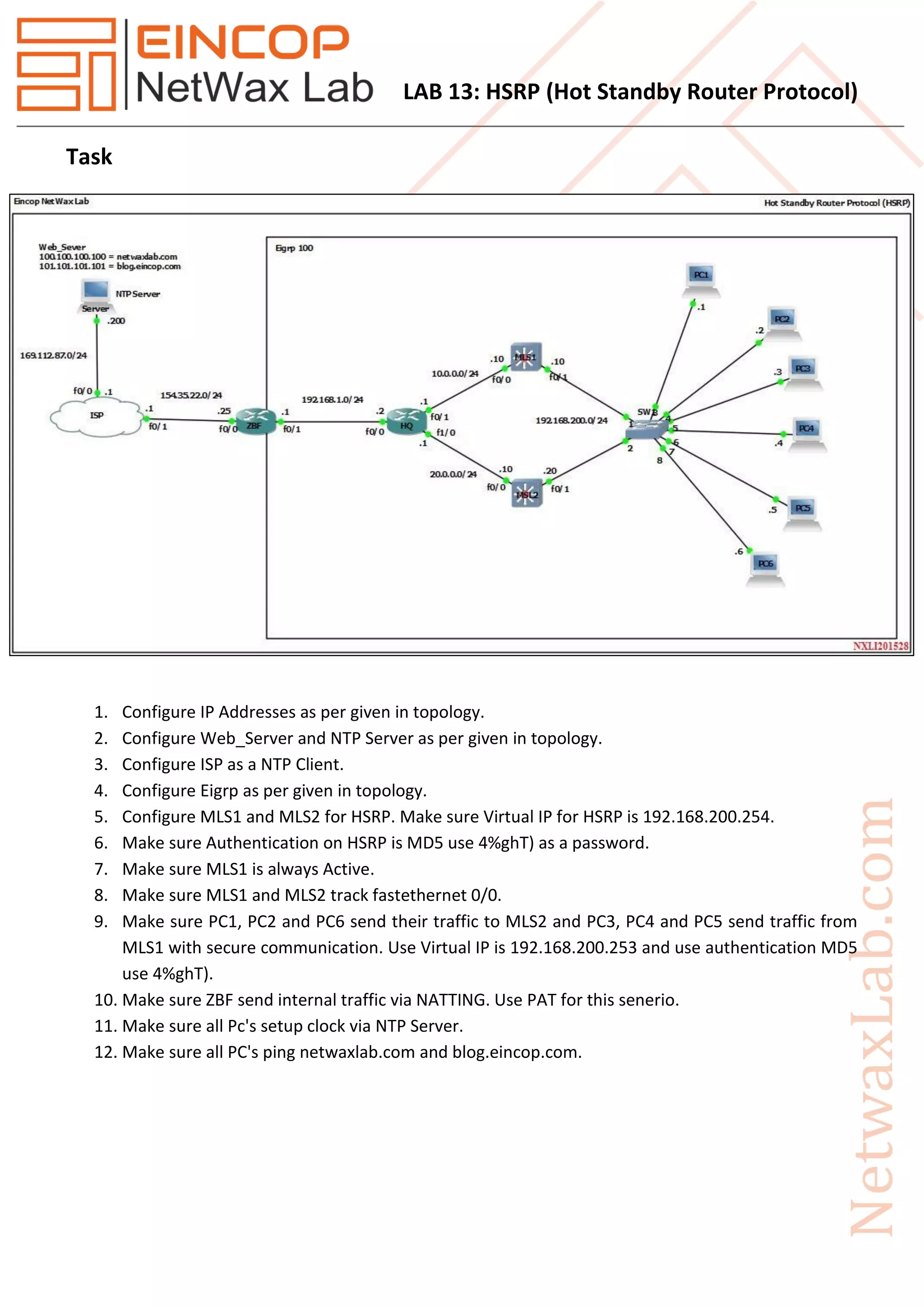

1. LAB 13: HSRP (Hot Standby Router Protocol)
Task
1. Configure IP Addresses as per given in topology.
2. Configure Web_Server and NTP Server as per given in topology.
3. Configure ISP as a NTP Client.
4. Configure Eigrp as per given in topology.
5. Configure MLS1 and MLS2 for HSRP. Make sure Virtual IP for HSRP is 192.168.200.254.
6. Make sure Authentication on HSRP is MD5 use 4%ghT) as a password.
7. Make sure MLS1 is always Active.
8. Make sure MLS1 and MLS2 track fastethernet 0/0.
9. Make sure PC1, PC2 and PC6 send their traffic to MLS2 and PC3, PC4 and PC5 send traffic from
MLS1 with secure communication. Use Virtual IP is 192.168.200.253 and use authentication MD5
use 4%ghT).
10. Make sure ZBF send internal traffic via NATTING. Use PAT for this senerio.
11. Make sure all Pc's setup clock via NTP Server.
12. Make sure all PC's ping netwaxlab.com and blog.eincop.com.

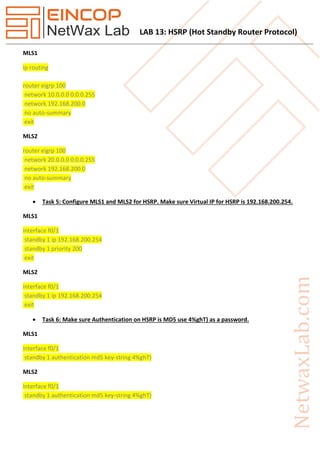

2. LAB 13: HSRP (Hot Standby Router Protocol)
Solution
Task 2: Configure Web_Server and NTP Server as per given in topology.
Server
no ip routing
ip default-gateway 169.112.87.1
Web_Server
ip dns server
ip host netwaxlab.com 100.100.100.100
ip host blog.eincop.com 101.101.101.101
NTP
Server# set clock (you need to set clock with this command)
Server(config)# ntp master
Task 3: Configure ISP as a NTP Client.
Server(config)# ntp server 169.112.87.200
Task 4: Configure Eigrp as per given in topology.
ZBF
router eigrp 100
redistribute static
network 192.168.1.0
no auto-summary
exit
HQ
router eigrp 100
network 10.0.0.0 0.0.0.255
network 20.0.0.0 0.0.0.255
network 192.168.1.0
no auto-summary
exit
(NOTE: Make sure you need to use "ip routing" command to enable routing on Multi Layer Switch)
3. LAB 13: HSRP (Hot Standby Router Protocol)
MLS1
ip routing
router eigrp 100
network 10.0.0.0 0.0.0.255
network 192.168.200.0
no auto-summary
exit
MLS2
router eigrp 100
network 20.0.0.0 0.0.0.255
network 192.168.200.0
no auto-summary
exit
Task 5: Configure MLS1 and MLS2 for HSRP. Make sure Virtual IP for HSRP is 192.168.200.254.
MLS1
interface f0/1
standby 1 ip 192.168.200.254
standby 1 priority 200
exit
MLS2
interface f0/1
standby 1 ip 192.168.200.254
exit
Task 6: Make sure Authentication on HSRP is MD5 use 4%ghT) as a password.
MLS1
interface f0/1
standby 1 authentication md5 key-string 4%ghT)
MLS2
interface f0/1
standby 1 authentication md5 key-string 4%ghT)
4. LAB 13: HSRP (Hot Standby Router Protocol)
Task 7: Make sure MLS1 is always Active after recover the link.
MLS1
interface f0/1
standby 1 preempt
exit
Task 8: Make sure MLS1 and MLS2 track fastethernet 0/0.
MLS1
interface f0/1
standby 1 track f0/0
exit
MLS2
interface f0/1
standby 1 track f0/0
exit
Task 9: Make sure PC1, PC2 and PC6 send their traffic to MLS2 and PC3, PC4 and PC5 send
traffic from MLS1 with secure communication. Use Virtual IP is 192.168.200.253 and use
authentication MD5 use 4%ghT).
(NOTE: Load Balancing Concept in HSRP)
MLS1
interface f0/1
standby 2 ip 192.168.200.253
standby 2 authentication md5 key-string 4%ghT)
standby 2 track FastEthernet0/0
exit
MLS2
standby 2 ip 192.168.200.253
standby 2 priority 200
standby 2 preempt
standby 2 authentication md5 key-string 4%ghT)
standby 2 track FastEthernet0/0
5. LAB 13: HSRP (Hot Standby Router Protocol)
(NOTE: Configure PC1, PC2 and PC6 default gateway is 192.168.200.253 and PC3, PC4 and PC5 default
gateway is 192.168.200.254.)
Task 10: Make sure ZBF send internal traffic via NATTING. Use PAT for this scenario.
ZBF
ip access-list extended NAT
permit ip 192.168.1.0 0.0.0.255 any
permit ip 10.0.0.0 0.0.0.255 any
permit ip 20.0.0.0 0.0.0.255 any
permit ip 192.168.200.0 0.0.0.255 any
exit
interface f0/1
ip nat inside
exit
interface f0/0
ip nat outside
exit
ip nat inside source list NAT interface FastEthernet0/0 overload
verify it using "sh ip nat translations" command.
Task 11: Make sure all Pc's setup clock via NTP Server.
(NOTE: you need to use clock setting in your pc and provide NTP server ip address. It will sync and show
the time)
Task 12: Make sure all PC's ping netwaxlab.com and blog.eincop.com.
(NOTE: first you need to ping 169.112.87.200, If it will response then you need to configure you dns
using the same ip).
Now generate ping for netwaxlab.com and blog.eincop.com.
Make sure you need to provide static route in ISP to 100,100.100.100 and 101.101.101.101.
