Sources of fatty amines

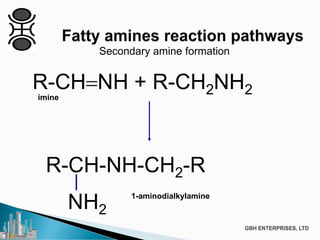

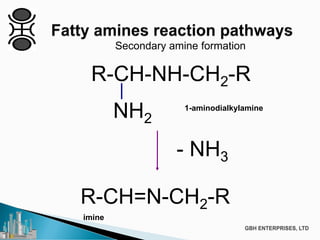

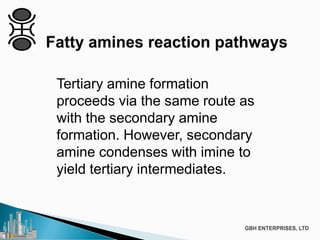

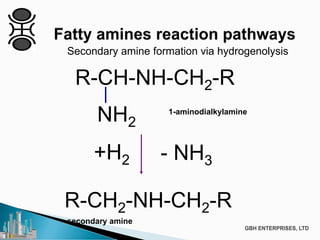

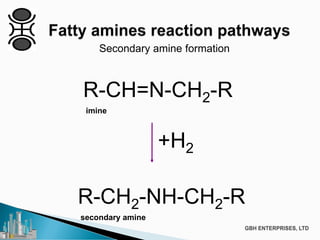

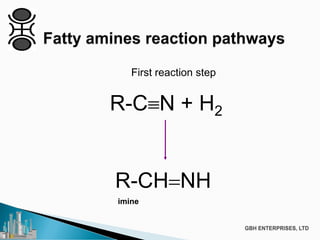

The natural reaction pathways of fatty amines
Manufacture of hetero-alkyl amines
tertiary amines
quaternary amine salts

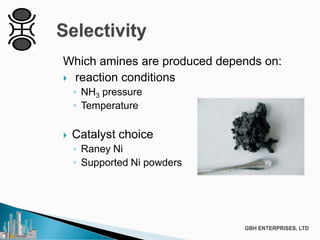

Directional influence of H2, NH3 and H2O on:
amine distribution
conversion and reaction rate
Oleochemical Technology. Production of fatty acids & glycerine starting from vegetable & animal oil and fats Hydrolysis is the basic production step, the fats and oils are split into crude glycerine and a mixture of crude fatty acids, under the combined action of water, temperature and pressure. The temperature exceeds 200°C and the products are kept under pressure for more than 20 minutes.. Fats & oils crude glycerine + crude fatty acids + water
3. • A process for the esterification of a triglyceride. • The process comprises forming a single phase solution of said triglyceride in an alcohol selected from methanol and ethanol, the ratio of alcohol to triglyceride being 15:1 to 35:1. • The solution further comprises a co-solvent in an amount to effect formation the single phase and a base catalyst for the esterification reaction. • After a period of time, ester is recovered from the solution. • Esterification is rapid and proceeds essentially to completion. • The esters may be used as biofuel or biodiesel
4. Glycerine (also called glycerin or glycerol) is an alcohol which is used as a moisturizer in soaps and lotions. Glycerine has a sweet taste, and it can be used as a food preservative and a non-sugar sweetener.
5. Glycerine Lubricants (jet engine, refrigeration) Plasticizer for Polyvinyl Butyral (PVB) Explosives Polyurethane Foam
6. Examples of Derivative
7. Process involves 1. A fatty acid or fatty acid mixture is esterified in a column reactor. 4. As the liquid flows down the trays it encounters progressively drier lower alkanol. 5. The ester product recovered from the bottom of the reactor has an ester content of at least 99 mole % (calculated on a lower alkanol free basis). 2. Relatively dry lower alkanol vapour (water content not more than 5 mole %) is injected into the bottom of the column reactor. 3. Water of esterification is removed from the top of the column reactor in the vapour stream, whilst ester product is recovered from the sump of the reactor.
Oleochemicals - What are they?
fatty acids
fatty alcohols
fatty methyl esters
fatty amines
glycerine
Oleochemical pathways
What are they used for?
Where do they come from?
Review of Organic Functional Groups
Fatty Acids
- Uses
- Process
- Splitting
- Hydrogenation

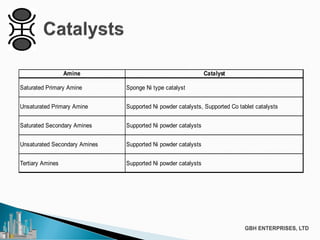

Ni Catalyst for FA hydrogenation
Catalyst deactivation in fatty acids by corrosion
Ni soap decomposition
Nickel dissolution in the presence of hydrogen
Comparison pore size & TG/FA molecules
Effect of pore dimensions in fatty acid hardening
Effect of premixing timeon catalyst activity
Effects of catalyst dissolution summarized:
Reducing Ni soaps
Issues
Alternative catalyst for FA hydrogenation (i)
Precious metal catalyst cycle
Alternative catalyst for FA hydrogenation (ii)
Fatty Alcohols
- Uses
- Process
Fatty Ester Hydrogenolysis
Fixed Bed Hydrogenolysis
Slurry Phase Hydrogenolysis
Fatty OH polishing
Fatty Methyl Esters
- Uses
Advantages of ME vs FA as a feedstock
FME - Biodiesel

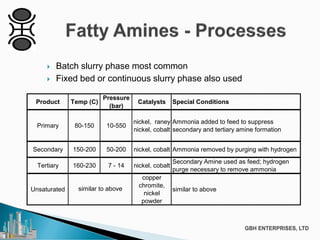

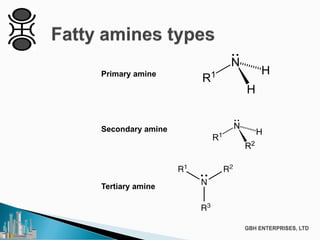

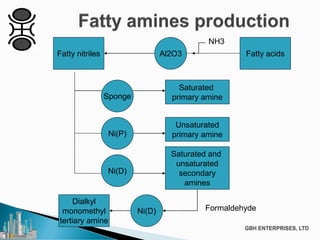

Fatty Amines
Glycerin
- Uses
- The Future
REFERENCE:
Some graphs and photographs, in particular the photo of "The nickel deposits in the tube section", were extracted from Johnson Matthey contributions to International conferences.
Episode 46 : PRODUCTION OF OLEOCHEMICAL METHYL ESTER FROM RBD PALM KERNEL OIL SAJJAD KHUDHUR ABBAS
Episode 46 : PRODUCTION OF OLEOCHEMICAL METHYL ESTER FROM
RBD PALM KERNEL OIL
Oleo chemicals
The term ― oleo chemicals refers to any chemical compounds derived from natural oils
almost 95% of natural oils and fats are used in food application
small percentage is applied in non-food purposes such as soap manufacturing
The advantages of using oleo chemicals over petrochemicals are:
Oleo chemicals are derived from renewable resources .
Oleo chemical production requires less energy and causes less pollution .
Oleo chemicals are fully non-toxic .
SAJJAD KHUDHUR ABBAS
Ceo , Founder & Head of SHacademy
Chemical Engineering , Al-Muthanna University, Iraq
Oil & Gas Safety and Health Professional – OSHACADEMY
Trainer of Trainers (TOT) - Canadian Center of Human
Development
Fatty alcohol. Define fatty alcohols Describe the production processes of fatty alcohols and its derivatives Draw the flow chart of fatty alcohol production Explain the uses and application of fatty alcohols.
3. Definitionof Fatty Alcohols Fatty alcohols are the workhorse raw materials that facilitate the existence of products such as shampoos, shaving creams, laundry detergents, etc, and are produced at a rate of about one-and-a-half million tonnes per year and growing. Fatty alcohols are oleochemicals derived from vegetable feedstocks. The feedstock raw materials include coconut and palm kernel oils. These refined vegetable oils are first converted to a methyl ester or fatty acid. This reaction generates crude glycerine. The intermediate methyl ester or fatty acid are then fractionated and hydrogenated to produce fatty alcohol. Sources : http://www.pgchemicals.com/products/fatty-alcohols/
4. Chemical Equation for Fatty Alcohol Production Sources : http://www.pgchemicals.com/products/fatty- alcohols/
5. Block diagram of Fatty Alcohol production process
6. Fatty acids are converted into methyl ester and hydrogenated into fatty alcohols.
7. Sources : http://www.abq.org.br/workshop/11/ADRIANO- SALES-%20FIRJAM_Oleochemicals-from-Palm-Kernel- Oil.pdf
8. Hydrogenation All natural fatty alcohol processes are based on renewable fats and oils like coconut, palm oil,palm kernel,rope seed and soya bean oil. It has been proven that hydrogenation of methyl esters are preferred alternatives than hydrogenating the oils directly. Using fixed bed hydrogenation process offers the advantage of lower hydrogenation temperatures and pressures. Using special catalysts, this process is able to produce unsaturated fatty alcohols too. To produce fatty alcohols, there are three routes which is acid route,ester route and wax ester route that are shown in the following block diagrams.
9. - Acid route - Ester route - Wax ester route
10. Acid Route
Presented by: Dr. Adel Gabr Abdel-Razek
Fats and Oils Dept., National Research Center.
in workshop on Workshop on Oleochemicals at the SemiRamis Intercontinental Hotel.
Sources of fatty amines
The natural reaction pathways of fatty amines
Manufacture of hetero-alkyl amines
tertiary amines
quaternary amine salts
Directional influence of H2, NH3 and H2O on:
amine distribution
conversion and reaction rate
Oleochemical Technology. Production of fatty acids & glycerine starting from vegetable & animal oil and fats Hydrolysis is the basic production step, the fats and oils are split into crude glycerine and a mixture of crude fatty acids, under the combined action of water, temperature and pressure. The temperature exceeds 200°C and the products are kept under pressure for more than 20 minutes.. Fats & oils crude glycerine + crude fatty acids + water
3. • A process for the esterification of a triglyceride. • The process comprises forming a single phase solution of said triglyceride in an alcohol selected from methanol and ethanol, the ratio of alcohol to triglyceride being 15:1 to 35:1. • The solution further comprises a co-solvent in an amount to effect formation the single phase and a base catalyst for the esterification reaction. • After a period of time, ester is recovered from the solution. • Esterification is rapid and proceeds essentially to completion. • The esters may be used as biofuel or biodiesel
4. Glycerine (also called glycerin or glycerol) is an alcohol which is used as a moisturizer in soaps and lotions. Glycerine has a sweet taste, and it can be used as a food preservative and a non-sugar sweetener.
5. Glycerine Lubricants (jet engine, refrigeration) Plasticizer for Polyvinyl Butyral (PVB) Explosives Polyurethane Foam
6. Examples of Derivative
7. Process involves 1. A fatty acid or fatty acid mixture is esterified in a column reactor. 4. As the liquid flows down the trays it encounters progressively drier lower alkanol. 5. The ester product recovered from the bottom of the reactor has an ester content of at least 99 mole % (calculated on a lower alkanol free basis). 2. Relatively dry lower alkanol vapour (water content not more than 5 mole %) is injected into the bottom of the column reactor. 3. Water of esterification is removed from the top of the column reactor in the vapour stream, whilst ester product is recovered from the sump of the reactor.
Oleochemicals - What are they?
fatty acids
fatty alcohols
fatty methyl esters
fatty amines
glycerine
Oleochemical pathways
What are they used for?
Where do they come from?
Review of Organic Functional Groups
Fatty Acids
- Uses
- Process
- Splitting
- Hydrogenation
Ni Catalyst for FA hydrogenation
Catalyst deactivation in fatty acids by corrosion
Ni soap decomposition
Nickel dissolution in the presence of hydrogen
Comparison pore size & TG/FA molecules
Effect of pore dimensions in fatty acid hardening
Effect of premixing timeon catalyst activity
Effects of catalyst dissolution summarized:
Reducing Ni soaps
Issues
Alternative catalyst for FA hydrogenation (i)
Precious metal catalyst cycle
Alternative catalyst for FA hydrogenation (ii)
Fatty Alcohols
- Uses
- Process
Fatty Ester Hydrogenolysis
Fixed Bed Hydrogenolysis
Slurry Phase Hydrogenolysis
Fatty OH polishing
Fatty Methyl Esters
- Uses
Advantages of ME vs FA as a feedstock
FME - Biodiesel
Fatty Amines
Glycerin
- Uses
- The Future
REFERENCE:
Some graphs and photographs, in particular the photo of "The nickel deposits in the tube section", were extracted from Johnson Matthey contributions to International conferences.
Episode 46 : PRODUCTION OF OLEOCHEMICAL METHYL ESTER FROM RBD PALM KERNEL OIL SAJJAD KHUDHUR ABBAS
Episode 46 : PRODUCTION OF OLEOCHEMICAL METHYL ESTER FROM
RBD PALM KERNEL OIL
Oleo chemicals
The term ― oleo chemicals refers to any chemical compounds derived from natural oils
almost 95% of natural oils and fats are used in food application
small percentage is applied in non-food purposes such as soap manufacturing
The advantages of using oleo chemicals over petrochemicals are:
Oleo chemicals are derived from renewable resources .
Oleo chemical production requires less energy and causes less pollution .
Oleo chemicals are fully non-toxic .
SAJJAD KHUDHUR ABBAS
Ceo , Founder & Head of SHacademy
Chemical Engineering , Al-Muthanna University, Iraq
Oil & Gas Safety and Health Professional – OSHACADEMY
Trainer of Trainers (TOT) - Canadian Center of Human
Development
Fatty alcohol. Define fatty alcohols Describe the production processes of fatty alcohols and its derivatives Draw the flow chart of fatty alcohol production Explain the uses and application of fatty alcohols.
3. Definitionof Fatty Alcohols Fatty alcohols are the workhorse raw materials that facilitate the existence of products such as shampoos, shaving creams, laundry detergents, etc, and are produced at a rate of about one-and-a-half million tonnes per year and growing. Fatty alcohols are oleochemicals derived from vegetable feedstocks. The feedstock raw materials include coconut and palm kernel oils. These refined vegetable oils are first converted to a methyl ester or fatty acid. This reaction generates crude glycerine. The intermediate methyl ester or fatty acid are then fractionated and hydrogenated to produce fatty alcohol. Sources : http://www.pgchemicals.com/products/fatty-alcohols/
4. Chemical Equation for Fatty Alcohol Production Sources : http://www.pgchemicals.com/products/fatty- alcohols/
5. Block diagram of Fatty Alcohol production process
6. Fatty acids are converted into methyl ester and hydrogenated into fatty alcohols.
7. Sources : http://www.abq.org.br/workshop/11/ADRIANO- SALES-%20FIRJAM_Oleochemicals-from-Palm-Kernel- Oil.pdf
8. Hydrogenation All natural fatty alcohol processes are based on renewable fats and oils like coconut, palm oil,palm kernel,rope seed and soya bean oil. It has been proven that hydrogenation of methyl esters are preferred alternatives than hydrogenating the oils directly. Using fixed bed hydrogenation process offers the advantage of lower hydrogenation temperatures and pressures. Using special catalysts, this process is able to produce unsaturated fatty alcohols too. To produce fatty alcohols, there are three routes which is acid route,ester route and wax ester route that are shown in the following block diagrams.
9. - Acid route - Ester route - Wax ester route
10. Acid Route
Presented by: Dr. Adel Gabr Abdel-Razek
Fats and Oils Dept., National Research Center.
in workshop on Workshop on Oleochemicals at the SemiRamis Intercontinental Hotel.
