2. WHAT IS MODULATION
• Modulation = Adding information to a carrier signal
• The sine wave on which the characteristics of the information signal are
modulated is called a carrier signal
5. TYPES OF MODULATION
ANALOG MODULATION: If the variation in
the parameter of the carrier is continuous in
accordance to the input analog signal the
modulation technique is termed as analog
modulation scheme
DIGITAL MODULATION: If the variation in the
parameter of the carrier is discrete then it is
termed as digital modulation technique
7. DIGITAL MODULATION
• In digital modulation , an analog carrier signal is
modulated by a discrete signal
• Digital modulation can be considered as digital-
to-analog and the corresponding demodulation
as analog-to-digital conversion
• In digital communications, the modulating wave
consists of binary data and the carrier is
sinusoidal wave

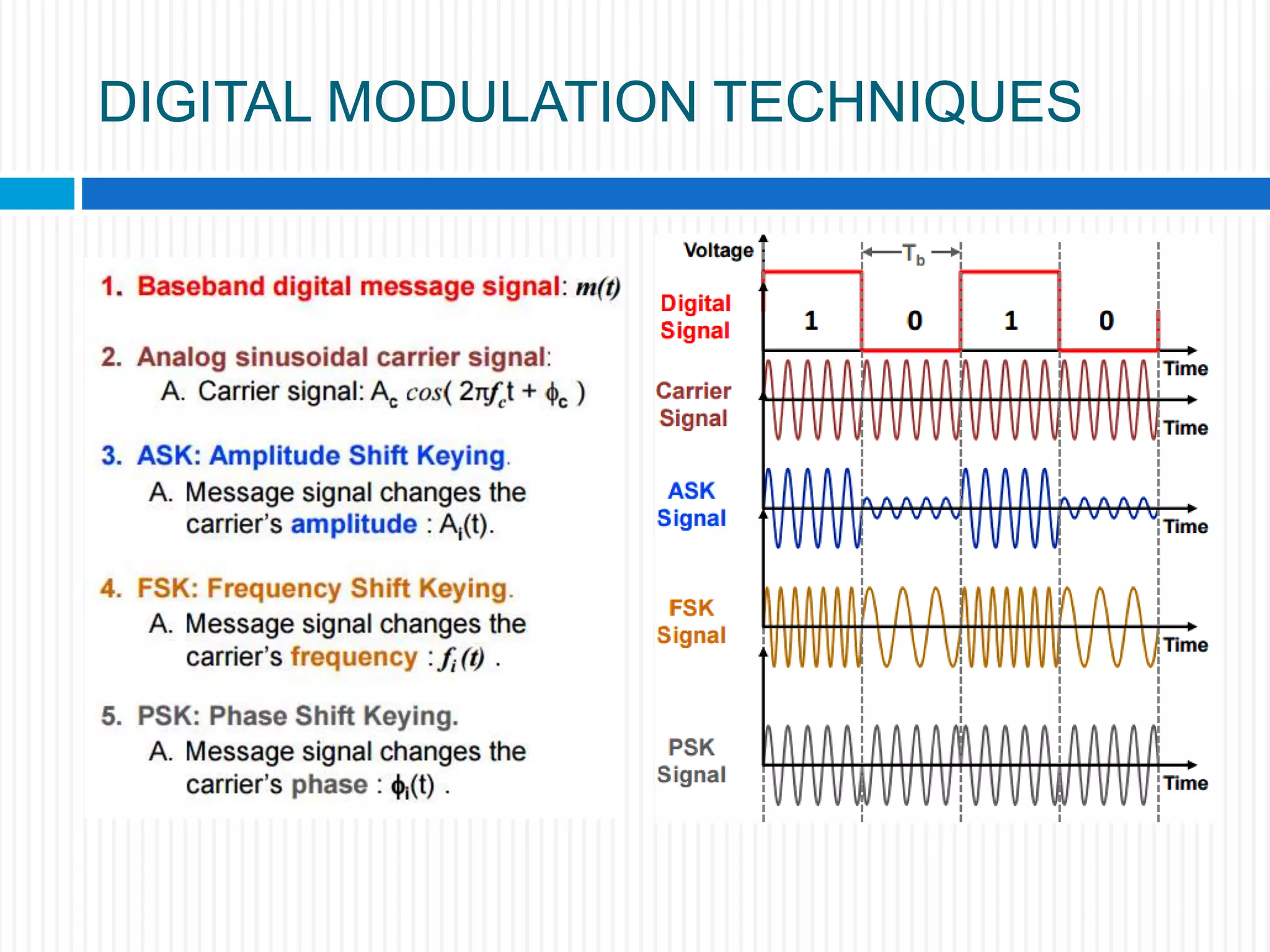

9. AMPLITUDE SHIFT KEYING
In ASK, the amplitude of the signal is changed in
response to information and all else is kept fixed
Bit 1 is transmitted by a signal of one particular
amplitude. To transmit 0,we change the amplitude
keeping the frequency constant
10. FREQUENCY SHIFT KEYING
In FSK, we change the frequency in response to
information
one particular frequency for a 1 and another
frequency for a 0
11. PHASE SHIFT KEYING
In PSK, we change the phase of the sinusoidal carrier to
indicate information. Phase in this context is the starting
angle at which the sinusoidal starts
One phase change encodes 0 while another phase
change encodes 1.To transmit 0,we shift the phase of the
sinusoid by 180
12. M-ARY MODULATION TECHNIQUE
In binary data transmission, send only one of two
possible signals during each bit interval Tb
In M-ary data transmission, send one of M
possible signals during each signaling interval T
In almost all applications, M = 2n and T = nTb,
where n is an integer
Each of the M signals is called a symbol
These signals are generated by changing the
amplitude, phase, frequency, or combined forms
of a carrier.
Thus, we have: MASK MPSK MFSK MQAM

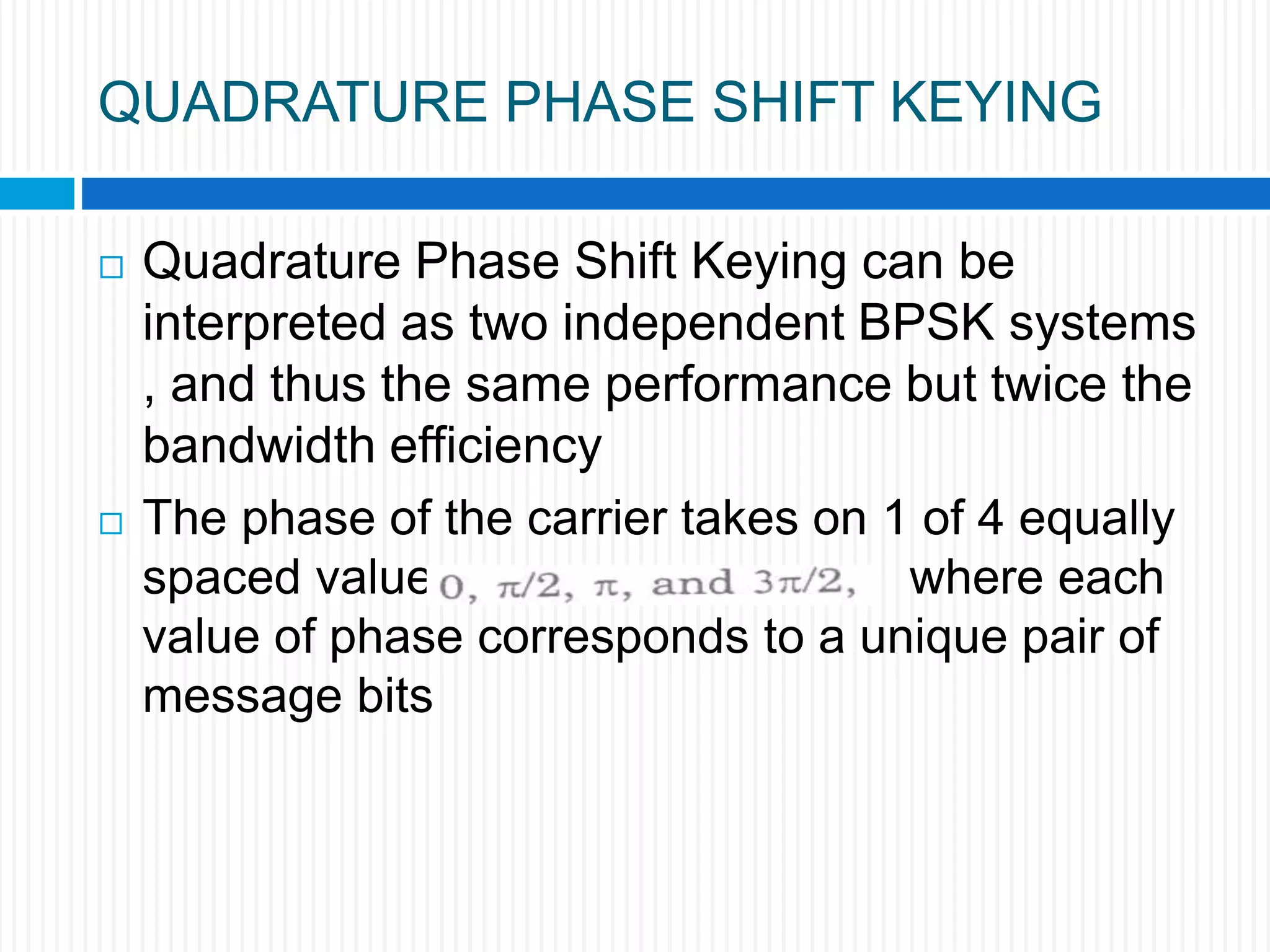

13. QUADRATURE PHASE SHIFT KEYING
Quadrature Phase Shift Keying can be
interpreted as two independent BPSK systems
, and thus the same performance but twice the
bandwidth efficiency
The phase of the carrier takes on 1 of 4 equally
spaced values where each
value of phase corresponds to a unique pair of
message bits
14. QUADRATURE AMPLITUDE MODULATION
If both the amplitude and the phase are varied
proportional to the information signal,
quadrature amplitude modulation results.
Combination of phase shifting and amplitude
shifting

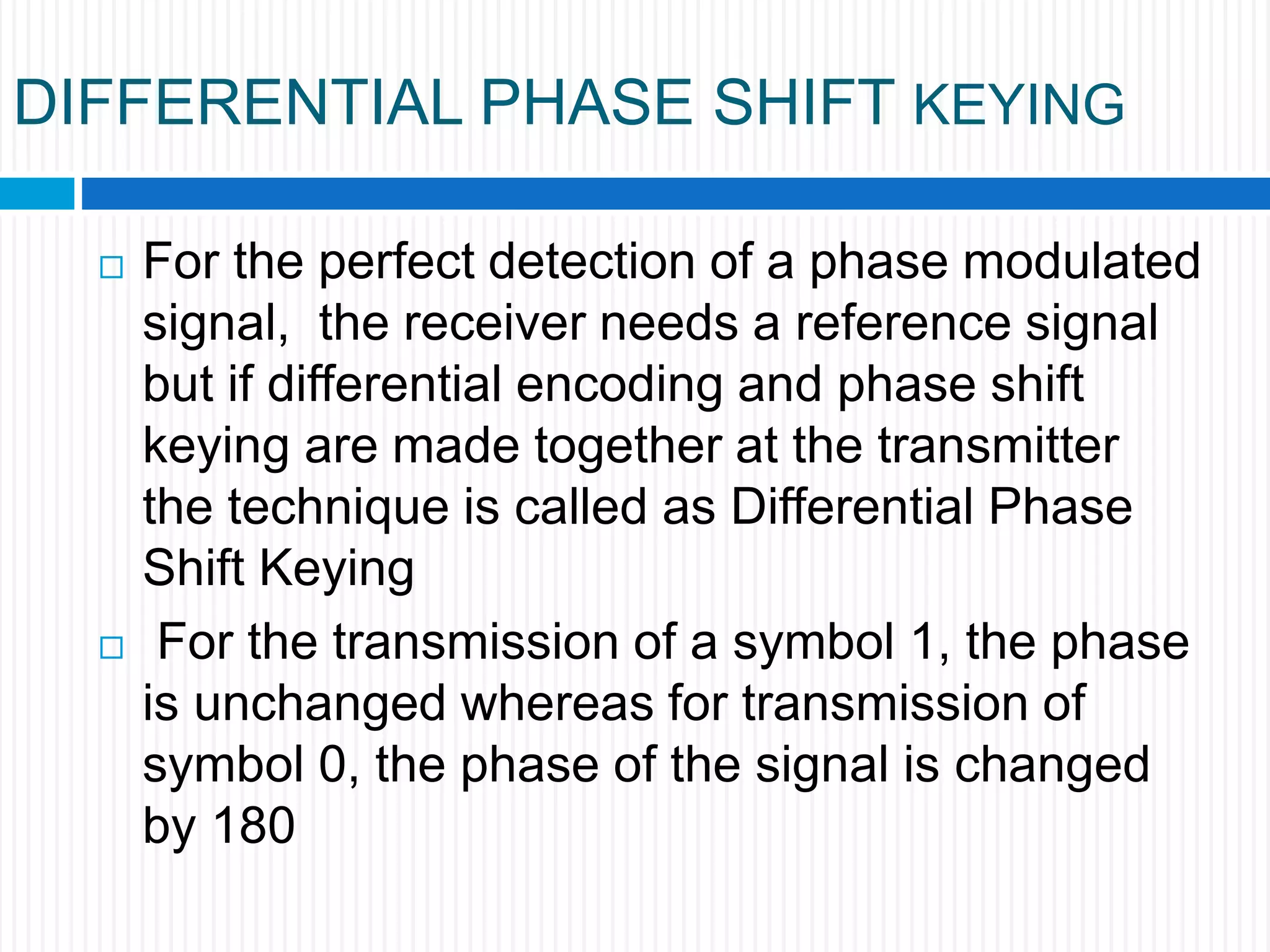

15. DIFFERENTIAL PHASE SHIFT KEYING
For the perfect detection of a phase modulated
signal, the receiver needs a reference signal
but if differential encoding and phase shift
keying are made together at the transmitter
the technique is called as Differential Phase
Shift Keying
For the transmission of a symbol 1, the phase
is unchanged whereas for transmission of
symbol 0, the phase of the signal is changed
by 180
16. In DPSK, the phase shift is with reference
to the previous bit transmitted rather than
to some constant reference signal
CONTD..
17. METRICS FOR DIGITAL MODULATION
POWER EFFICIENCY
Power efficiency is a measure of how much signal
power should be increased to achieve a particular bit error
rate (BER) for a given modulation scheme
Ability of a modulation technique to preserve the fidelity of
the digital message at low power
Designer can increase noise immunity by increasing
signal
power
BANDWIDTH EFFICIENCY
Ability to accomodate data within a limited bandwidth
Tradeoff between data rate and pulse width
Easy to implement and cost-effective to operate.
