Remote sensing involves obtaining information about objects without physical contact. It works by sensing and recording electromagnetic radiation reflected or emitted from targets. The key components are an energy source, sensor, platforms, and data analysis to extract information. Sensors can be optical, thermal, or microwave. Platforms include satellites, aircraft, and ground bases. Applications of remote sensing include agriculture, forestry, geology, hydrology, urban planning, and national security.

1. Prepared by: Akash Tikhe (akashtk92@gmail.com)
CONCEPTS OF
REMOTE SENSING

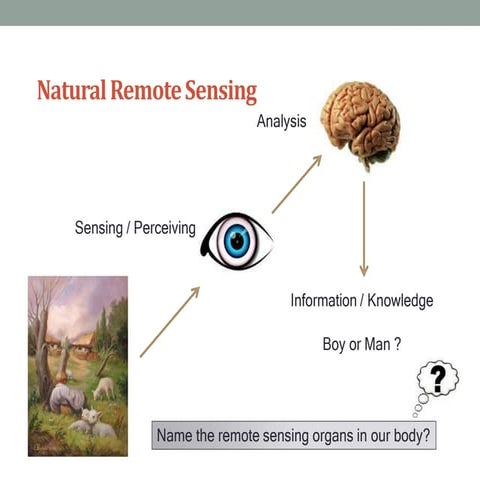

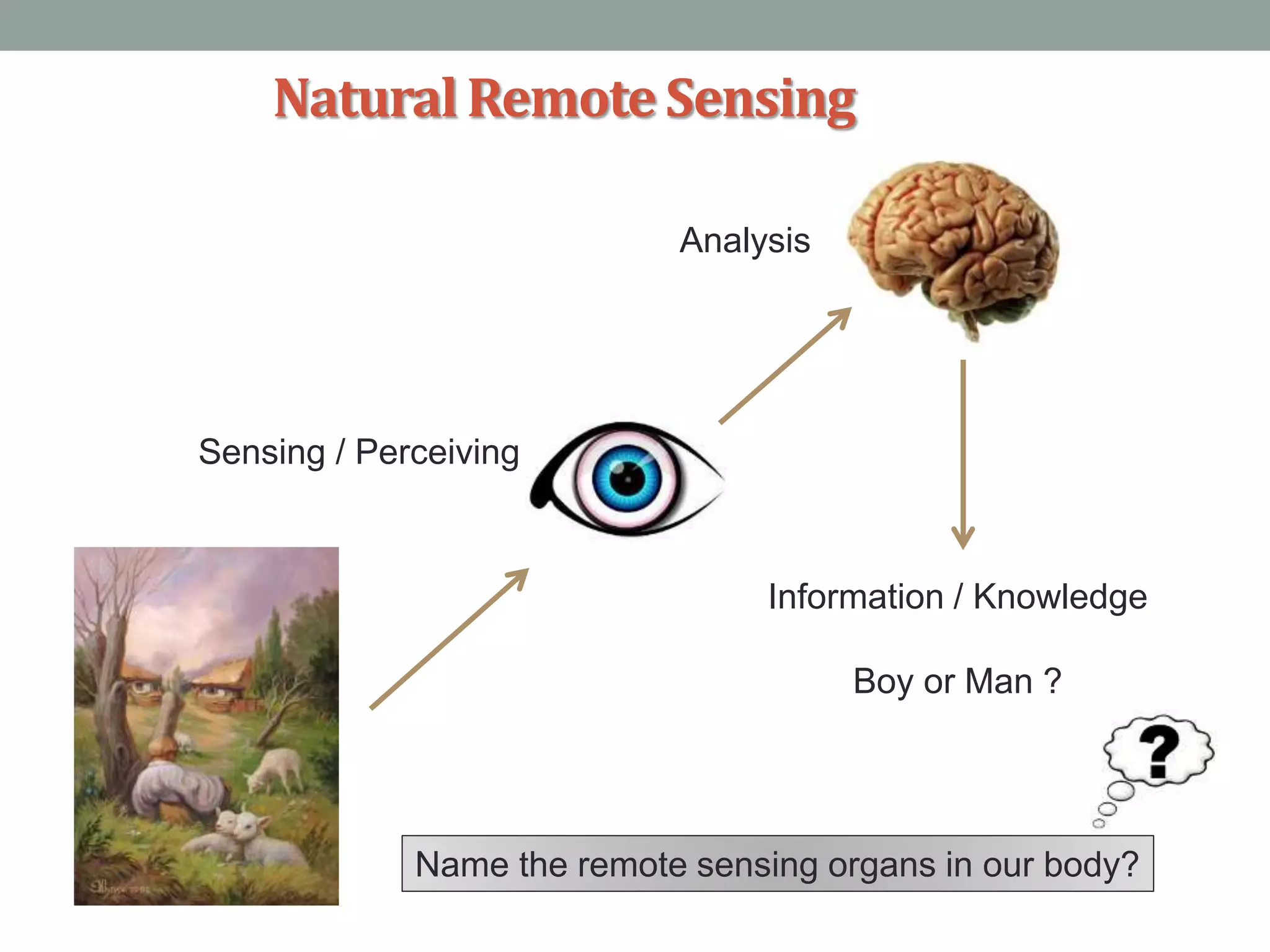

2. NaturalRemoteSensing
Sensing / Perceiving
Analysis
Information / Knowledge
Boy or Man ?
Name the remote sensing organs in our body?

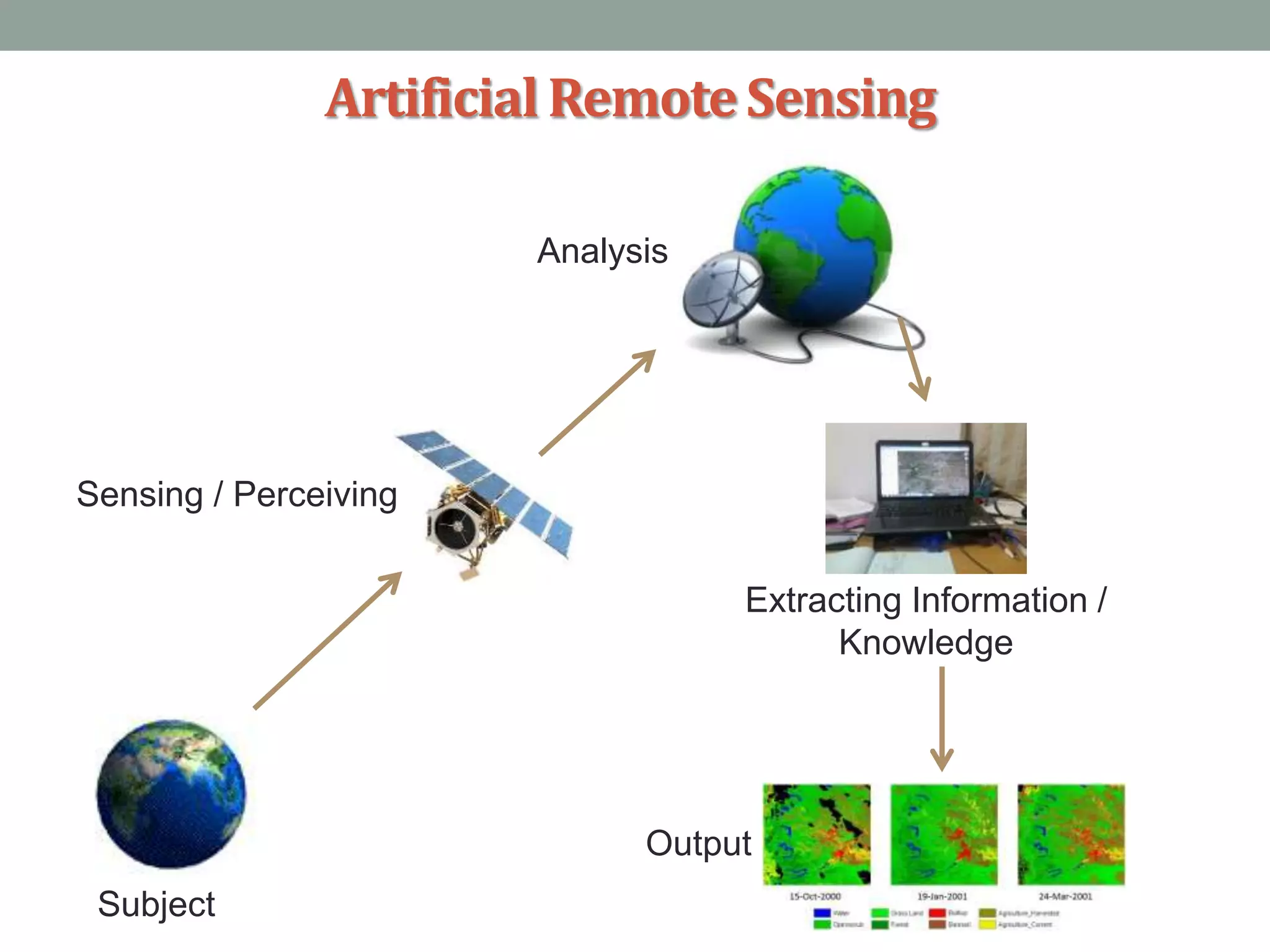

3. ArtificialRemoteSensing
Sensing / Perceiving
Analysis
Extracting Information /
Knowledge
Output
Subject

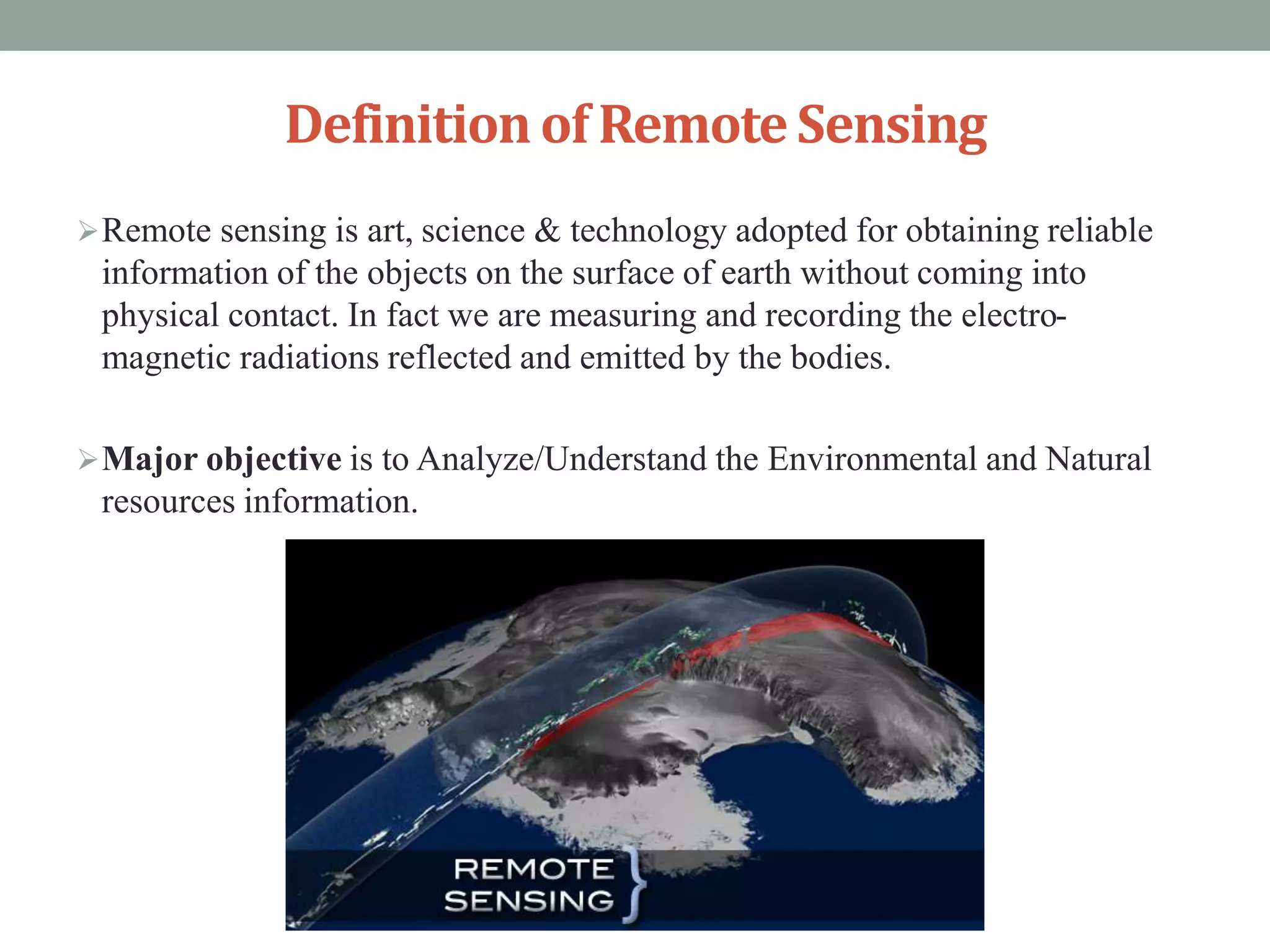

4. Definitionof RemoteSensing
Remote sensing is art, science & technology adopted for obtaining reliable
information of the objects on the surface of earth without coming into
physical contact. In fact we are measuring and recording the electro-
magnetic radiations reflected and emitted by the bodies.
Major objective is to Analyze/Understand the Environmental and Natural
resources information.

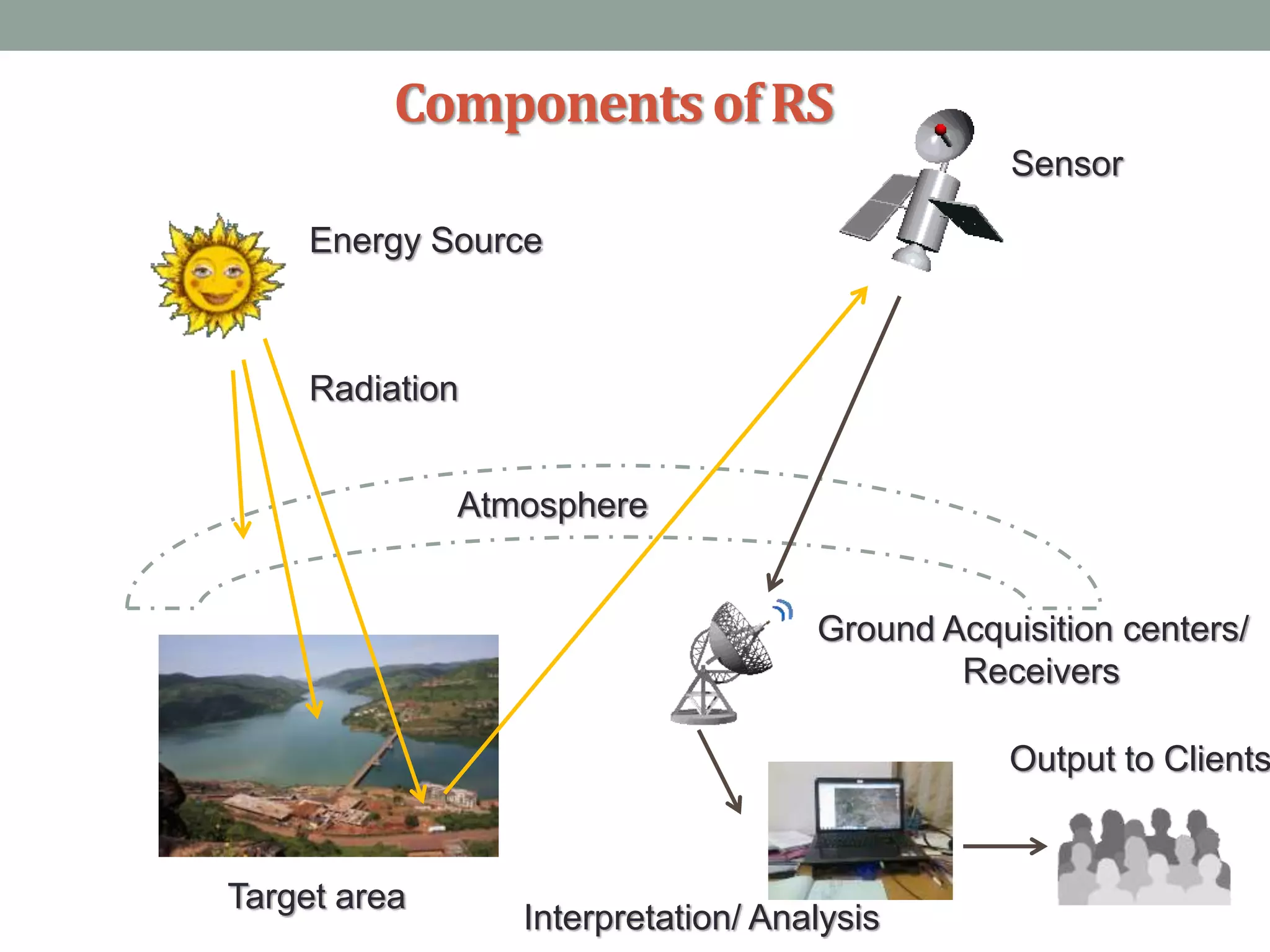

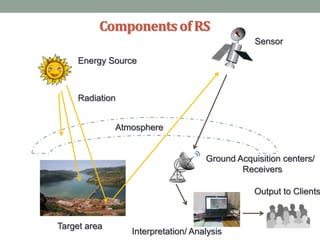

5. Componentsof RS
Energy Source
Radiation
Atmosphere
Target area
Sensor
Ground Acquisition centers/
Receivers
Interpretation/ Analysis
Output to Clients

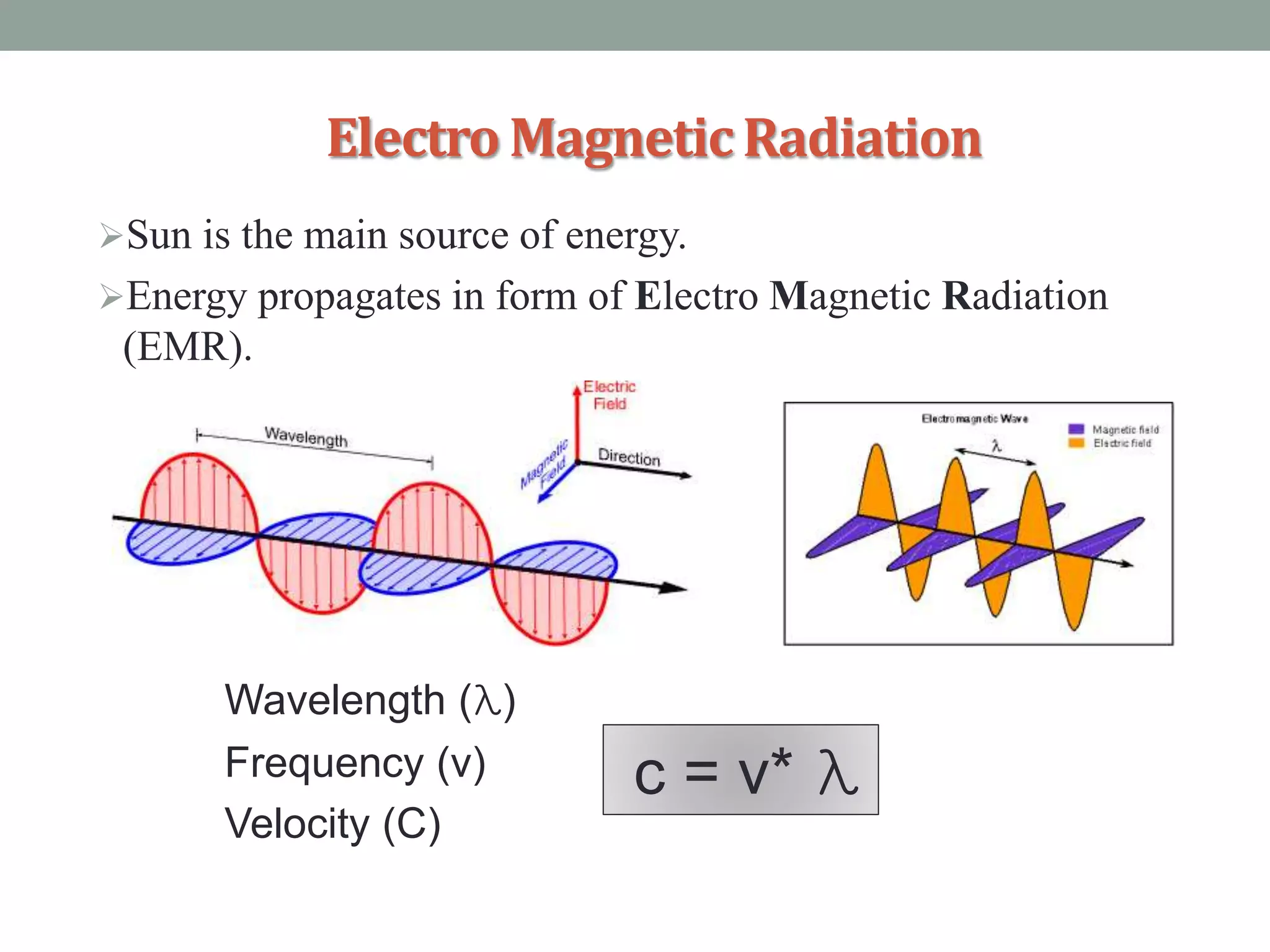

6. Electro MagneticRadiation
Sun is the main source of energy.
Energy propagates in form of Electro Magnetic Radiation
(EMR).
Wavelength (λ)
Frequency (ν)
Velocity (C)
c = ν* λ

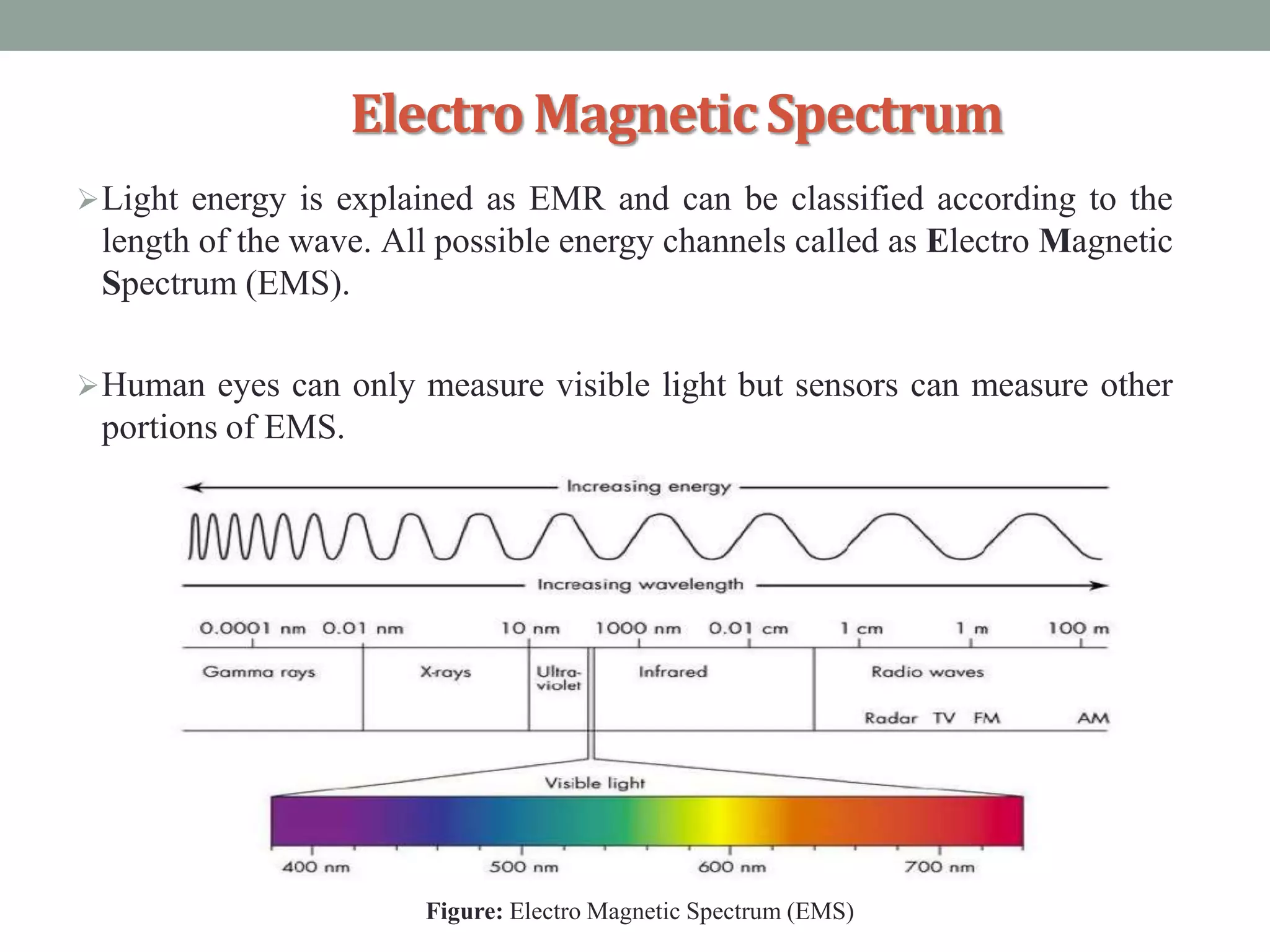

7. ElectroMagneticSpectrum
Light energy is explained as EMR and can be classified according to the
length of the wave. All possible energy channels called as Electro Magnetic
Spectrum (EMS).
Human eyes can only measure visible light but sensors can measure other
portions of EMS.

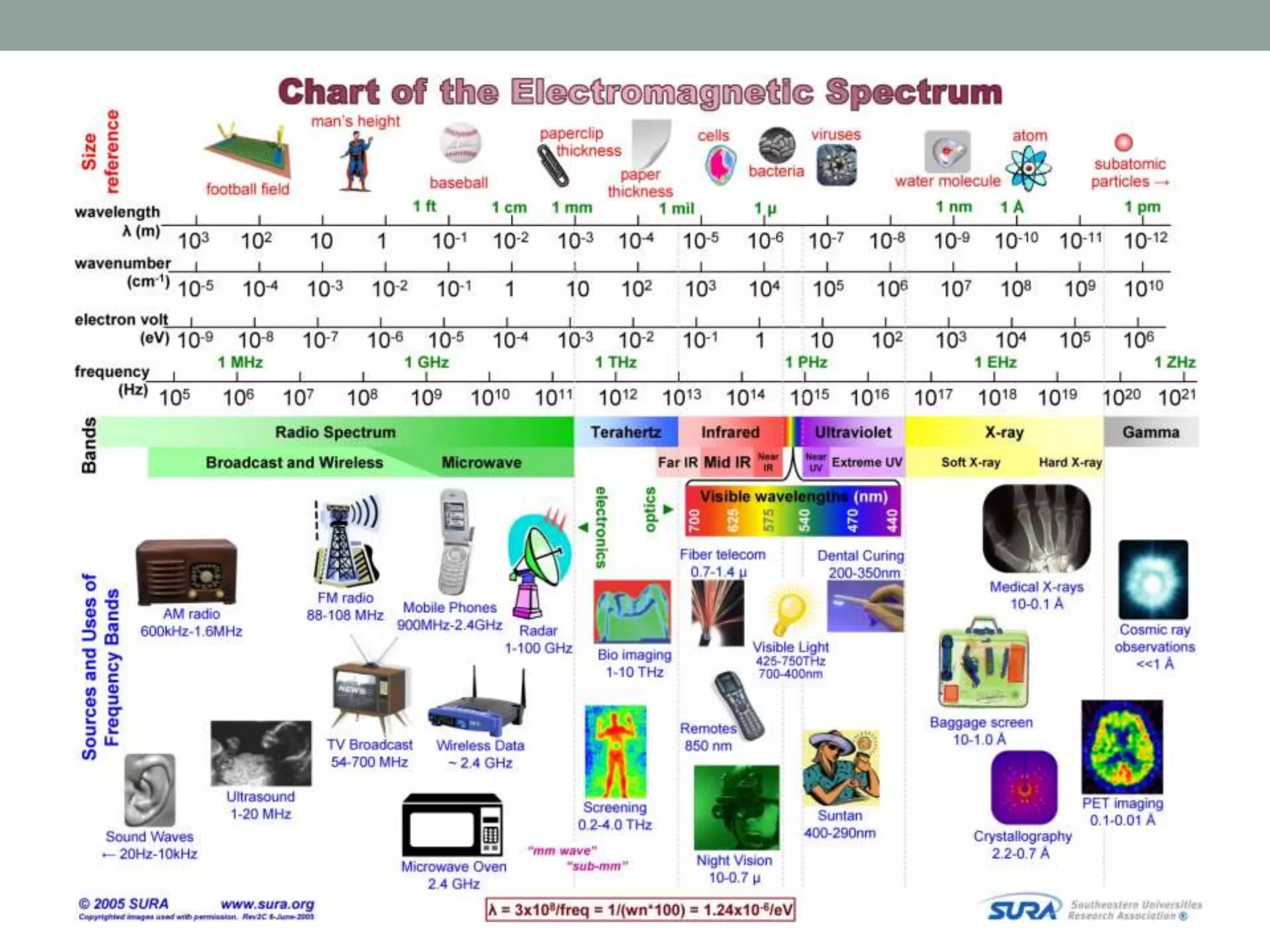

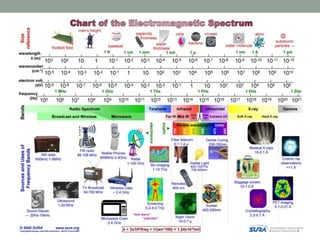

Figure: Electro Magnetic Spectrum (EMS)

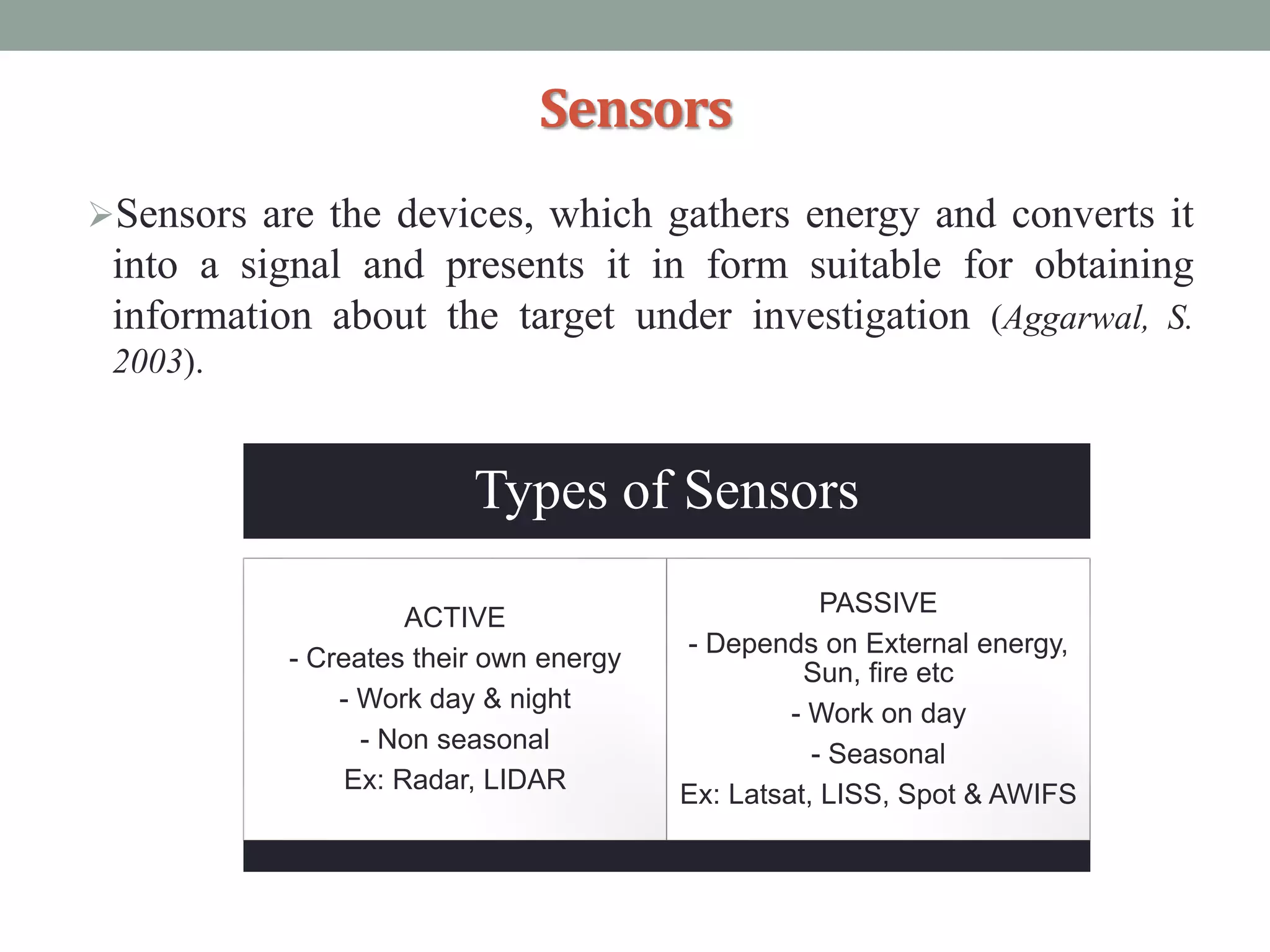

9. Sensors
Sensors are the devices, which gathers energy and converts it
into a signal and presents it in form suitable for obtaining
information about the target under investigation (Aggarwal, S.
2003).

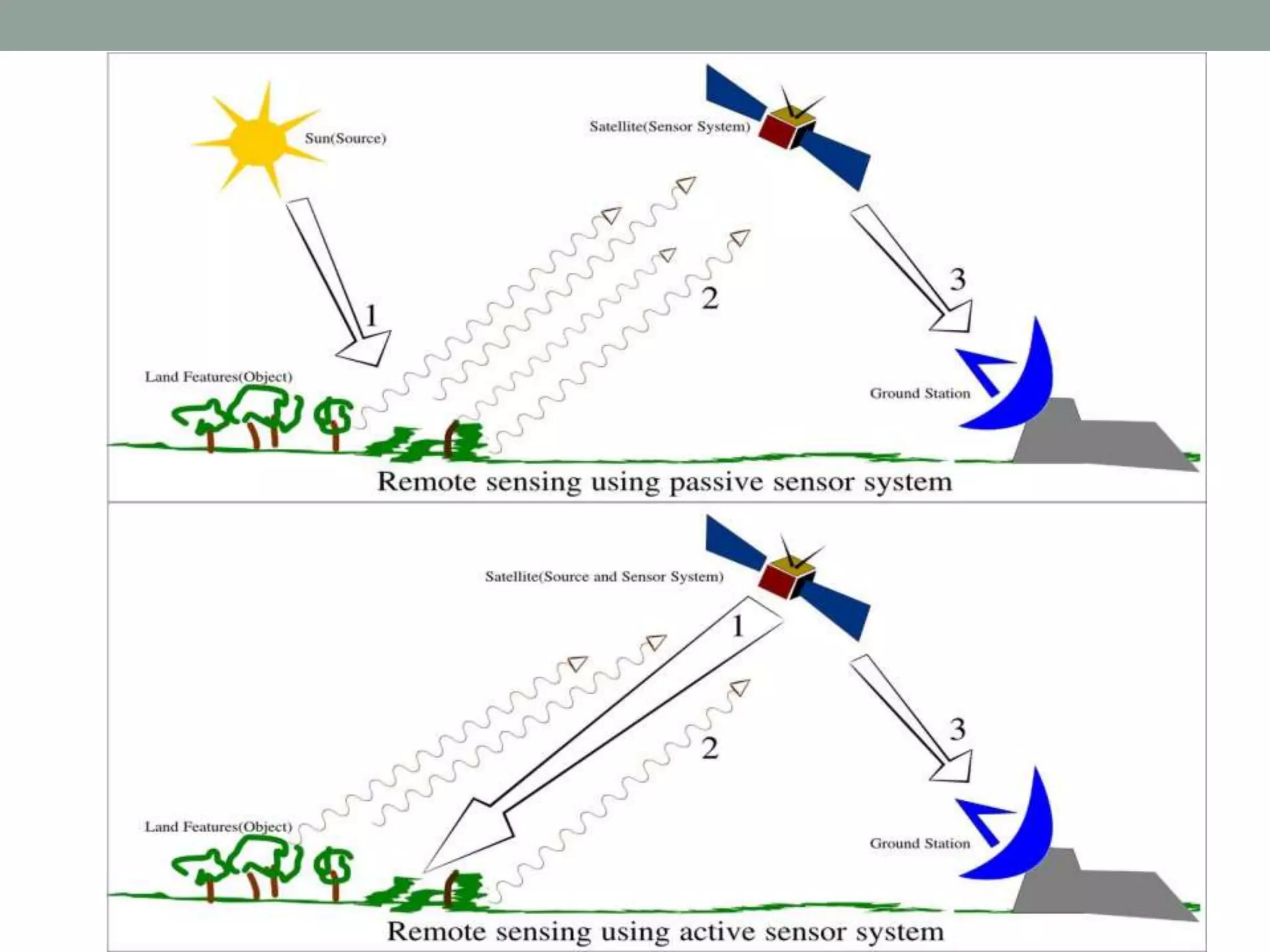

Types of Sensors
ACTIVE
- Creates their own energy
- Work day & night
- Non seasonal
Ex: Radar, LIDAR
PASSIVE
- Depends on External energy,
Sun, fire etc
- Work on day
- Seasonal
Ex: Latsat, LISS, Spot & AWIFS

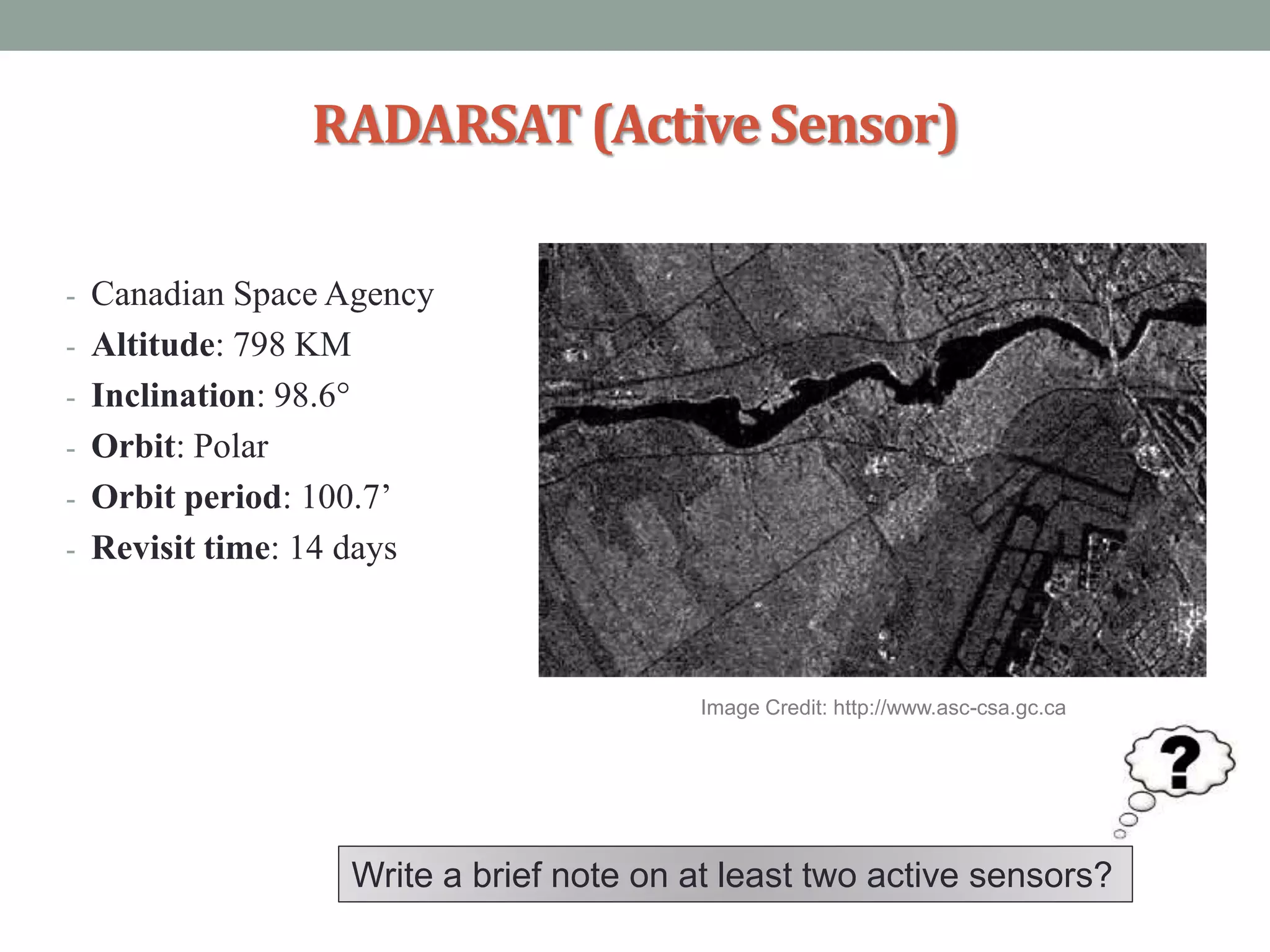

11. RADARSAT(Active Sensor)
- Canadian Space Agency
- Altitude: 798 KM
- Inclination: 98.6°
- Orbit: Polar
- Orbit period: 100.7’
- Revisit time: 14 days
Write a brief note on at least two active sensors?
Image Credit: http://www.asc-csa.gc.ca

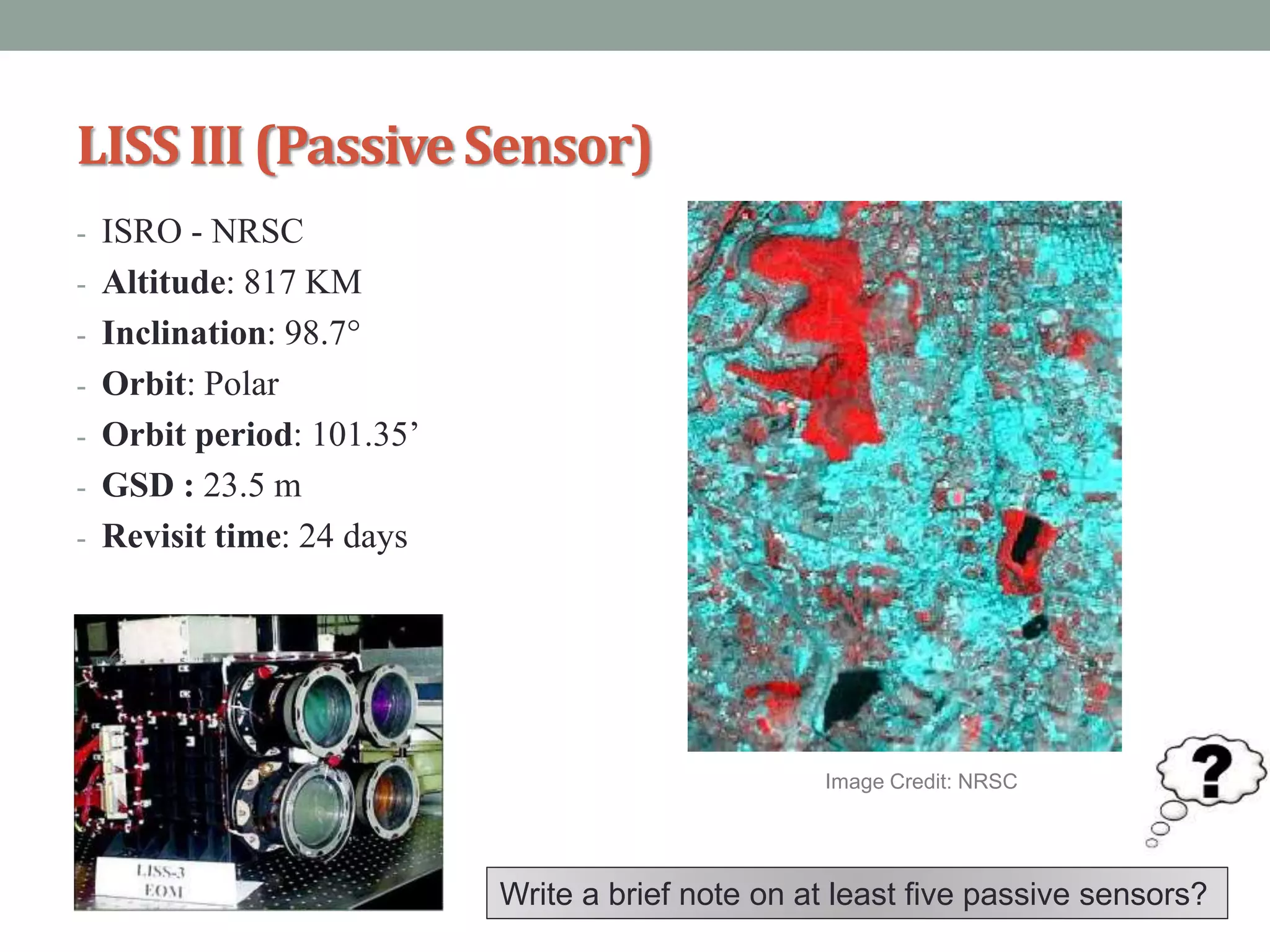

12. LISSIII (PassiveSensor)
- ISRO - NRSC
- Altitude: 817 KM
- Inclination: 98.7°
- Orbit: Polar
- Orbit period: 101.35’
- GSD : 23.5 m
- Revisit time: 24 days
Write a brief note on at least five passive sensors?
Image Credit: NRSC

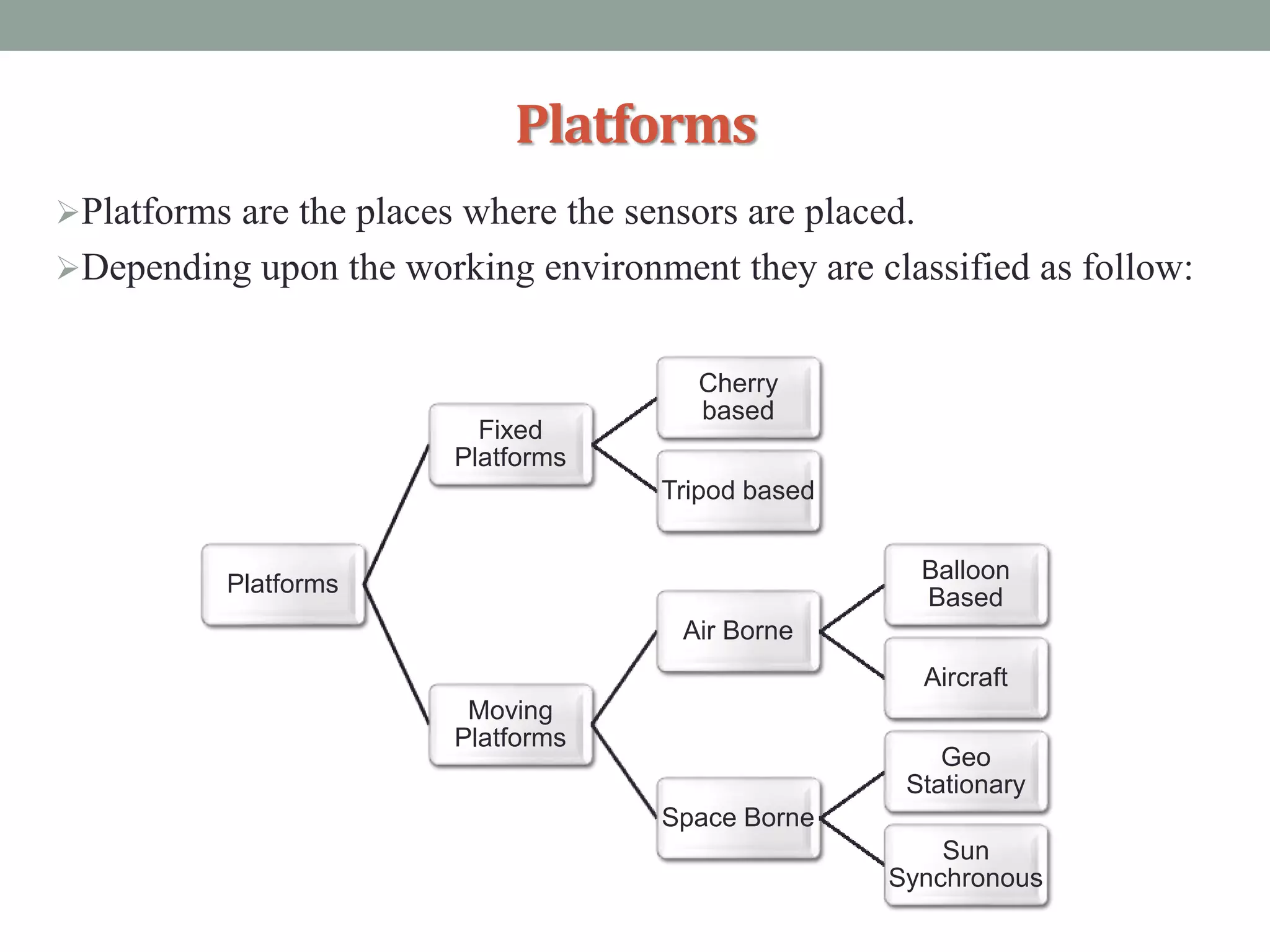

13. Platforms
Platforms are the places where the sensors are placed.
Depending upon the working environment they are classified as follow:
Platforms
Fixed
Platforms
Cherry
based
Tripod based
Moving
Platforms
Air Borne
Balloon
Based
Aircraft
Space Borne
Geo
Stationary
Sun
Synchronous

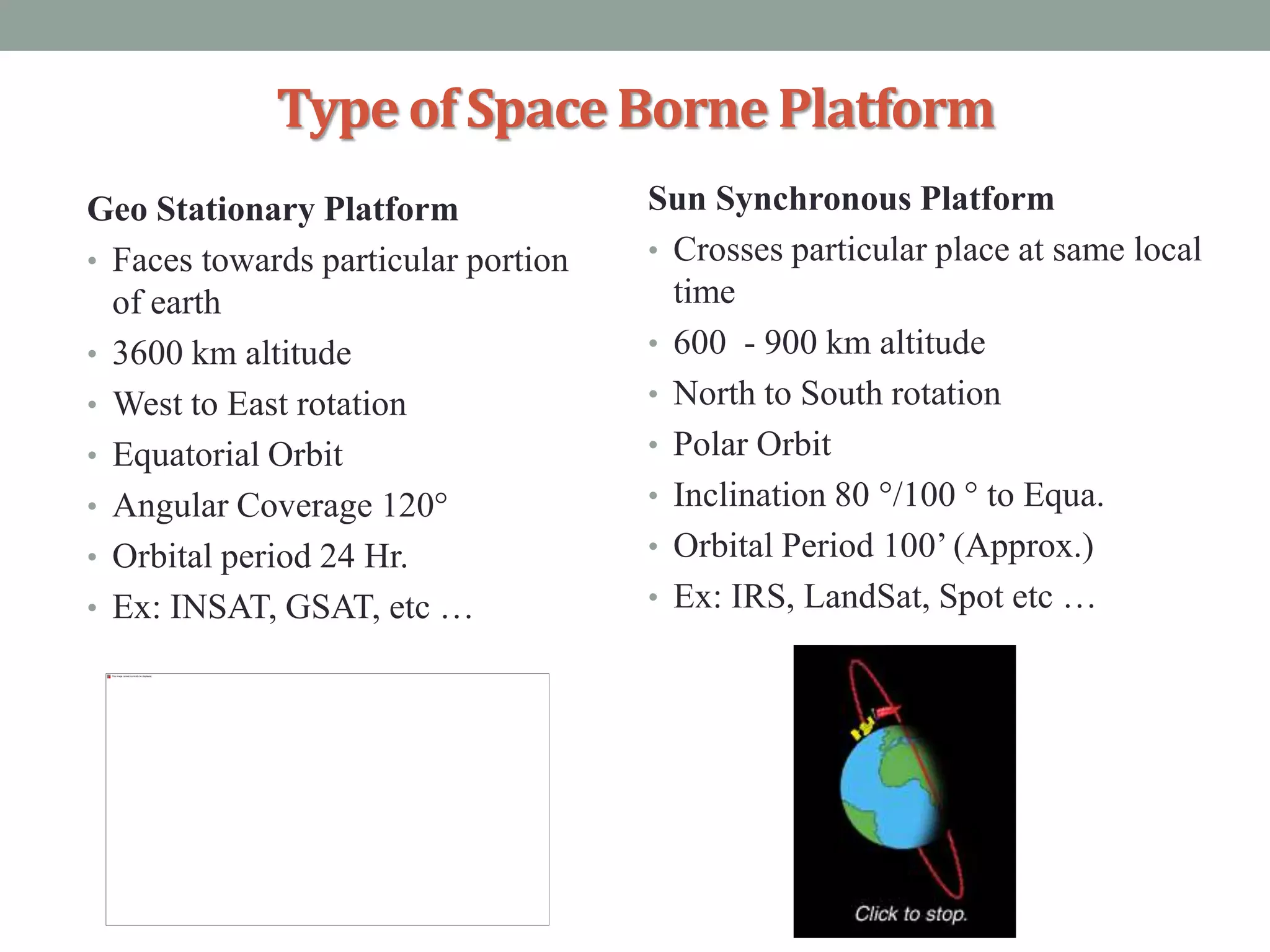

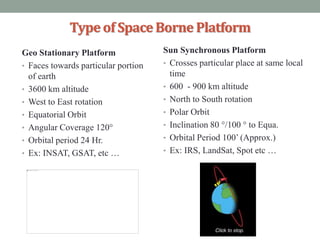

14. Type of SpaceBorne Platform
Geo Stationary Platform
• Faces towards particular portion
of earth
• 3600 km altitude
• West to East rotation
• Equatorial Orbit
• Angular Coverage 120°
• Orbital period 24 Hr.
• Ex: INSAT, GSAT, etc …
Sun Synchronous Platform
• Crosses particular place at same local
time
• 600 - 900 km altitude
• North to South rotation
• Polar Orbit
• Inclination 80 °/100 ° to Equa.
• Orbital Period 100’ (Approx.)
• Ex: IRS, LandSat, Spot etc …

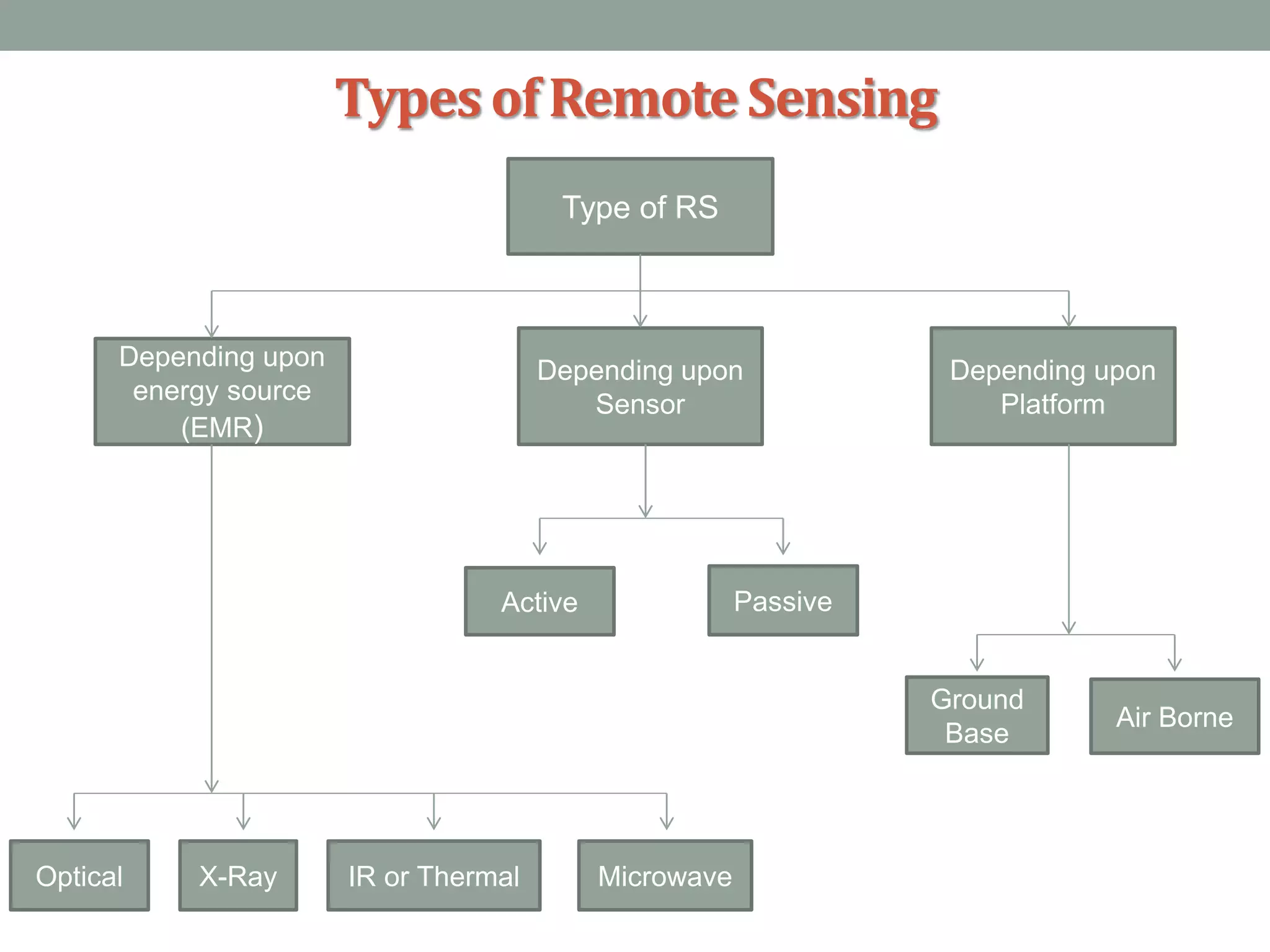

15. Typesof RemoteSensing
Type of RS
Depending upon
energy source
(EMR)
Depending upon
Sensor
Depending upon
Platform
Optical MicrowaveIR or ThermalX-Ray
Active Passive
Ground
Base
Air Borne

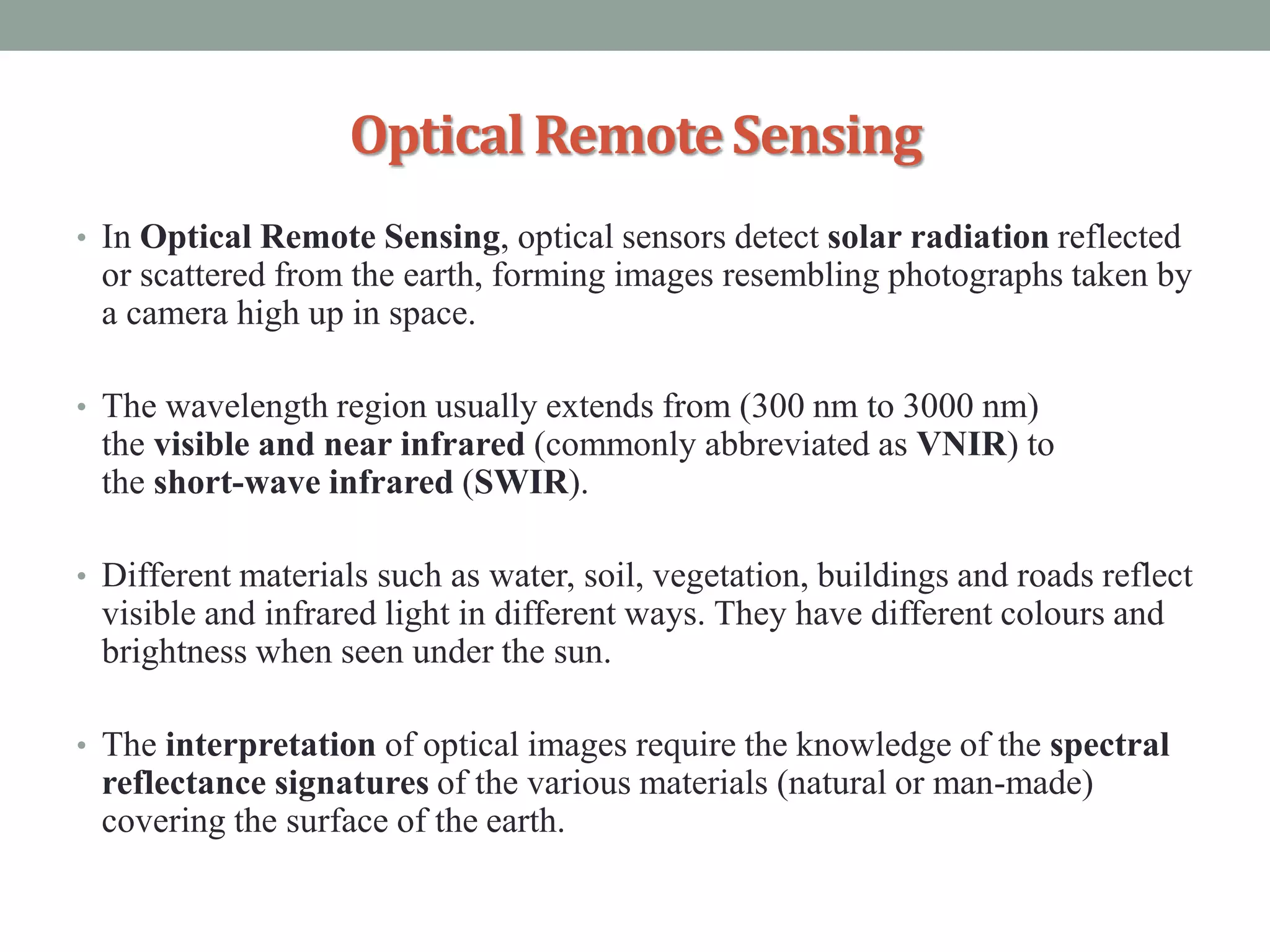

16. OpticalRemoteSensing
• In Optical Remote Sensing, optical sensors detect solar radiation reflected
or scattered from the earth, forming images resembling photographs taken by
a camera high up in space.
• The wavelength region usually extends from (300 nm to 3000 nm)
the visible and near infrared (commonly abbreviated as VNIR) to
the short-wave infrared (SWIR).
• Different materials such as water, soil, vegetation, buildings and roads reflect
visible and infrared light in different ways. They have different colours and
brightness when seen under the sun.
• The interpretation of optical images require the knowledge of the spectral
reflectance signatures of the various materials (natural or man-made)
covering the surface of the earth.

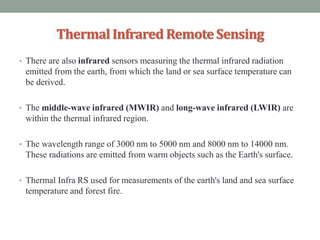

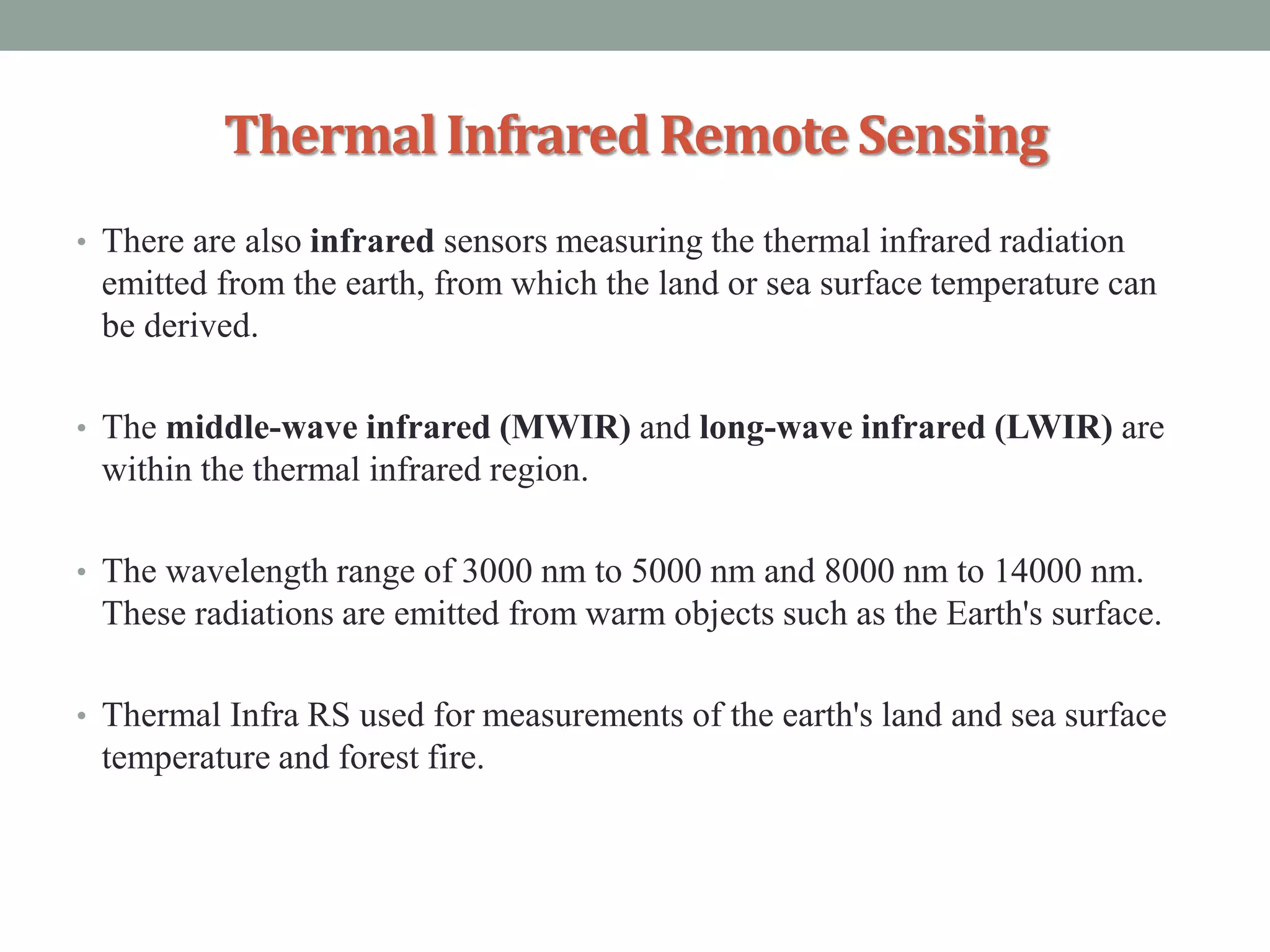

17. ThermalInfrared RemoteSensing
• There are also infrared sensors measuring the thermal infrared radiation
emitted from the earth, from which the land or sea surface temperature can
be derived.
• The middle-wave infrared (MWIR) and long-wave infrared (LWIR) are
within the thermal infrared region.
• The wavelength range of 3000 nm to 5000 nm and 8000 nm to 14000 nm.
These radiations are emitted from warm objects such as the Earth's surface.
• Thermal Infra RS used for measurements of the earth's land and sea surface
temperature and forest fire.

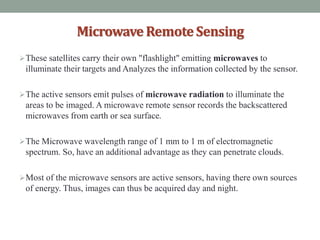

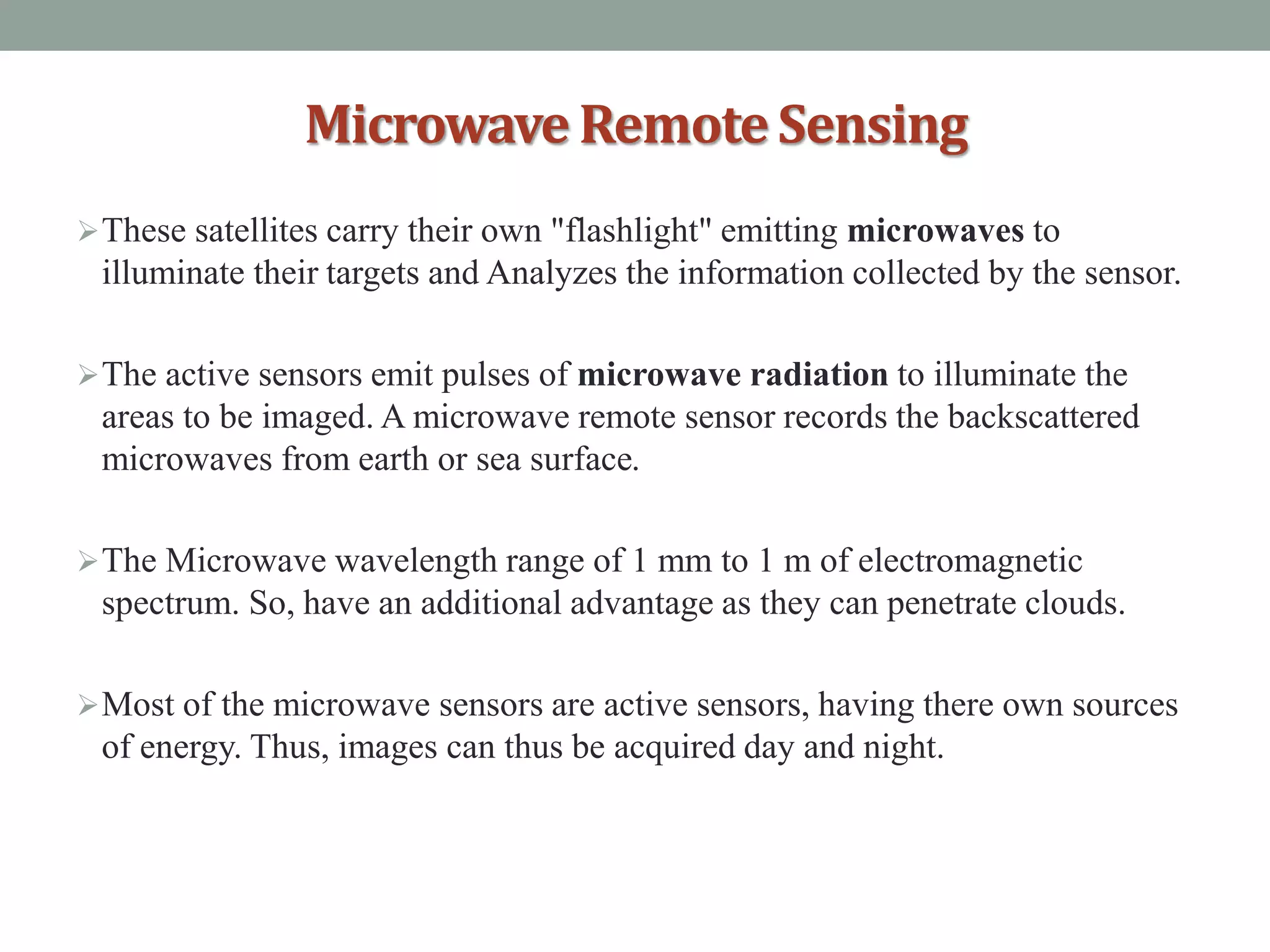

18. MicrowaveRemoteSensing
These satellites carry their own "flashlight" emitting microwaves to
illuminate their targets and Analyzes the information collected by the sensor.
The active sensors emit pulses of microwave radiation to illuminate the
areas to be imaged. A microwave remote sensor records the backscattered
microwaves from earth or sea surface.
The Microwave wavelength range of 1 mm to 1 m of electromagnetic
spectrum. So, have an additional advantage as they can penetrate clouds.
Most of the microwave sensors are active sensors, having there own sources
of energy. Thus, images can thus be acquired day and night.

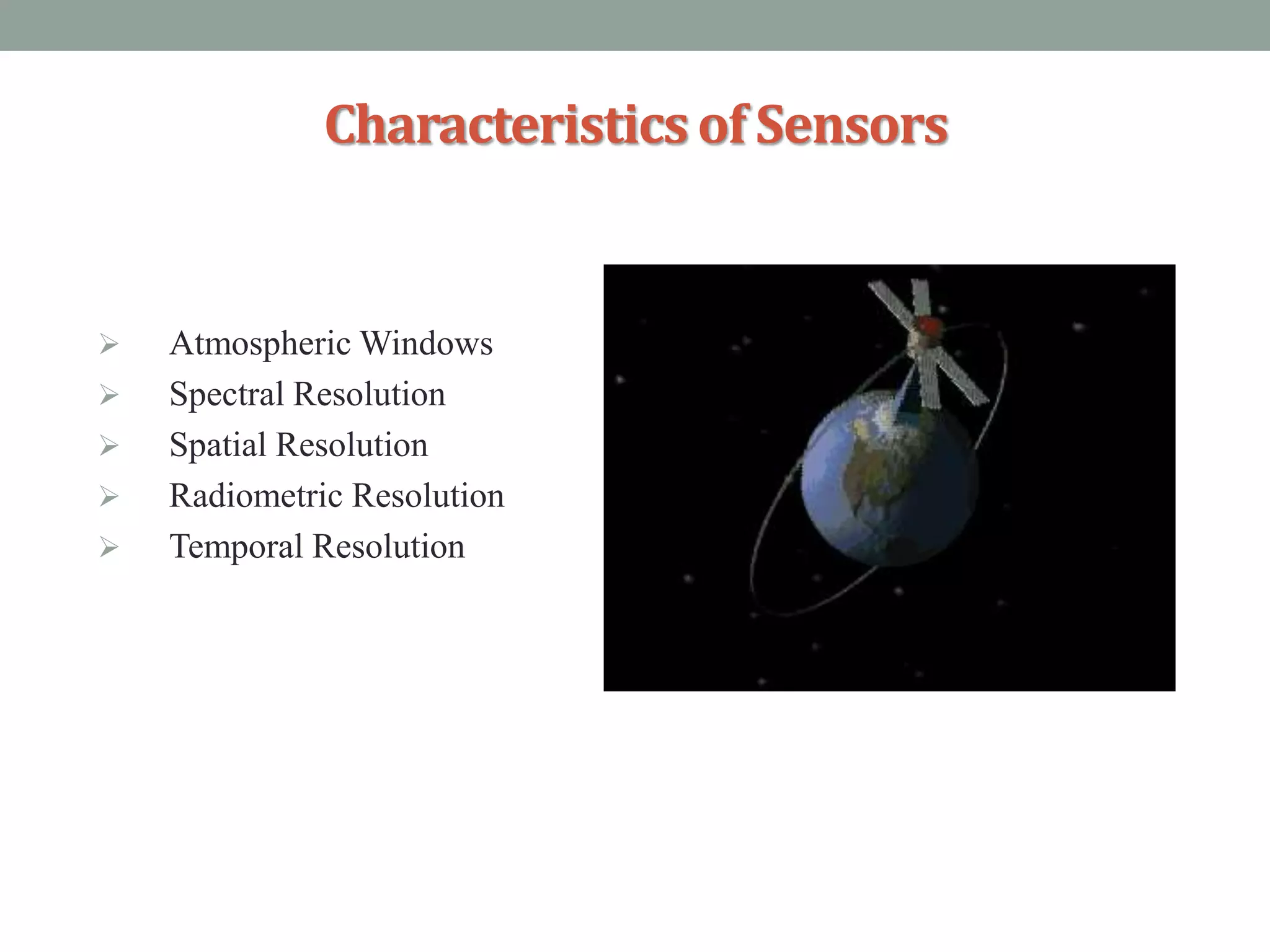

19. Characteristicsof Sensors
 Atmospheric Windows
 Spectral Resolution
 Spatial Resolution
 Radiometric Resolution
 Temporal Resolution

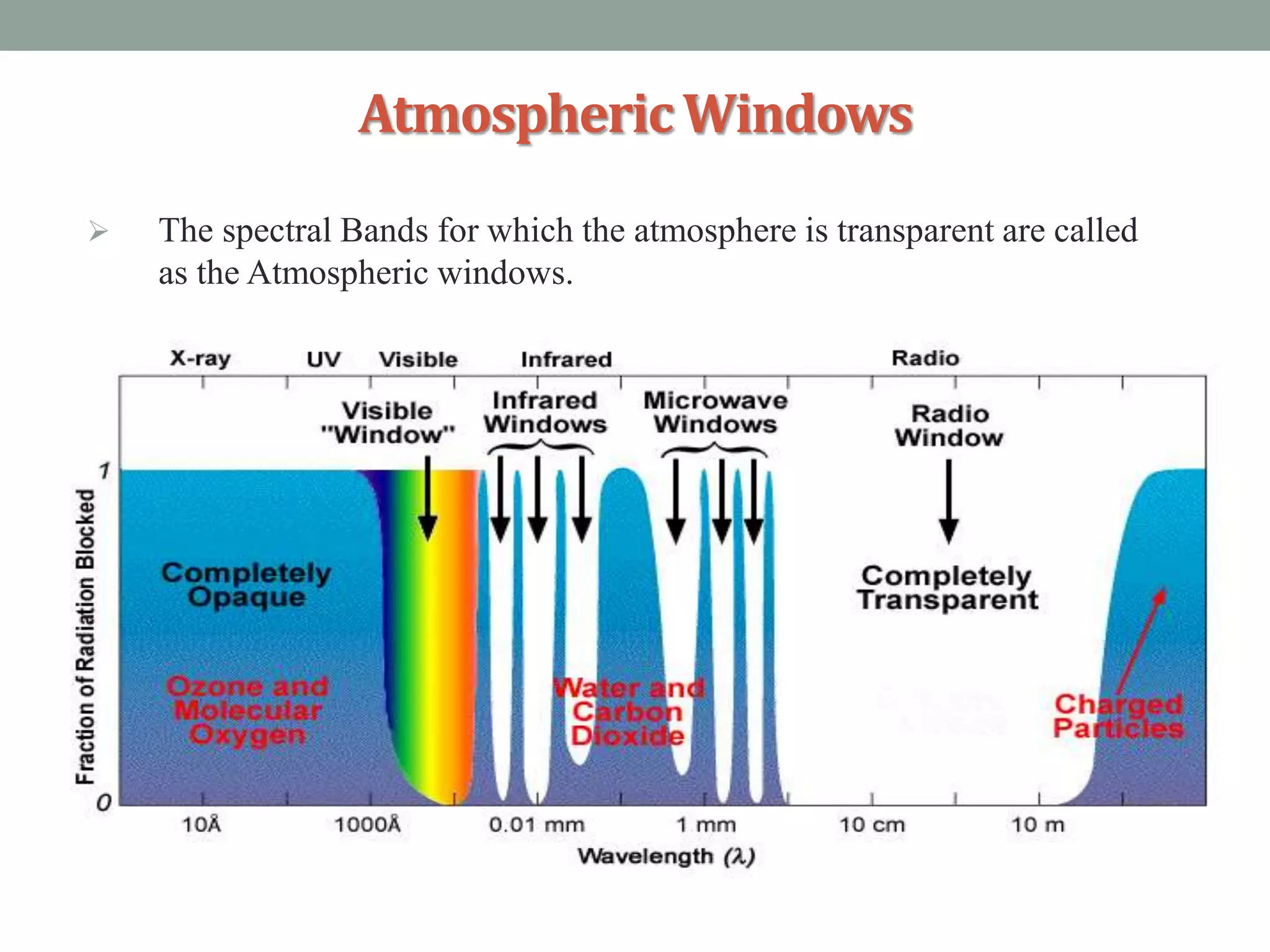

20. AtmosphericWindows
 The spectral Bands for which the atmosphere is transparent are called
as the Atmospheric windows.

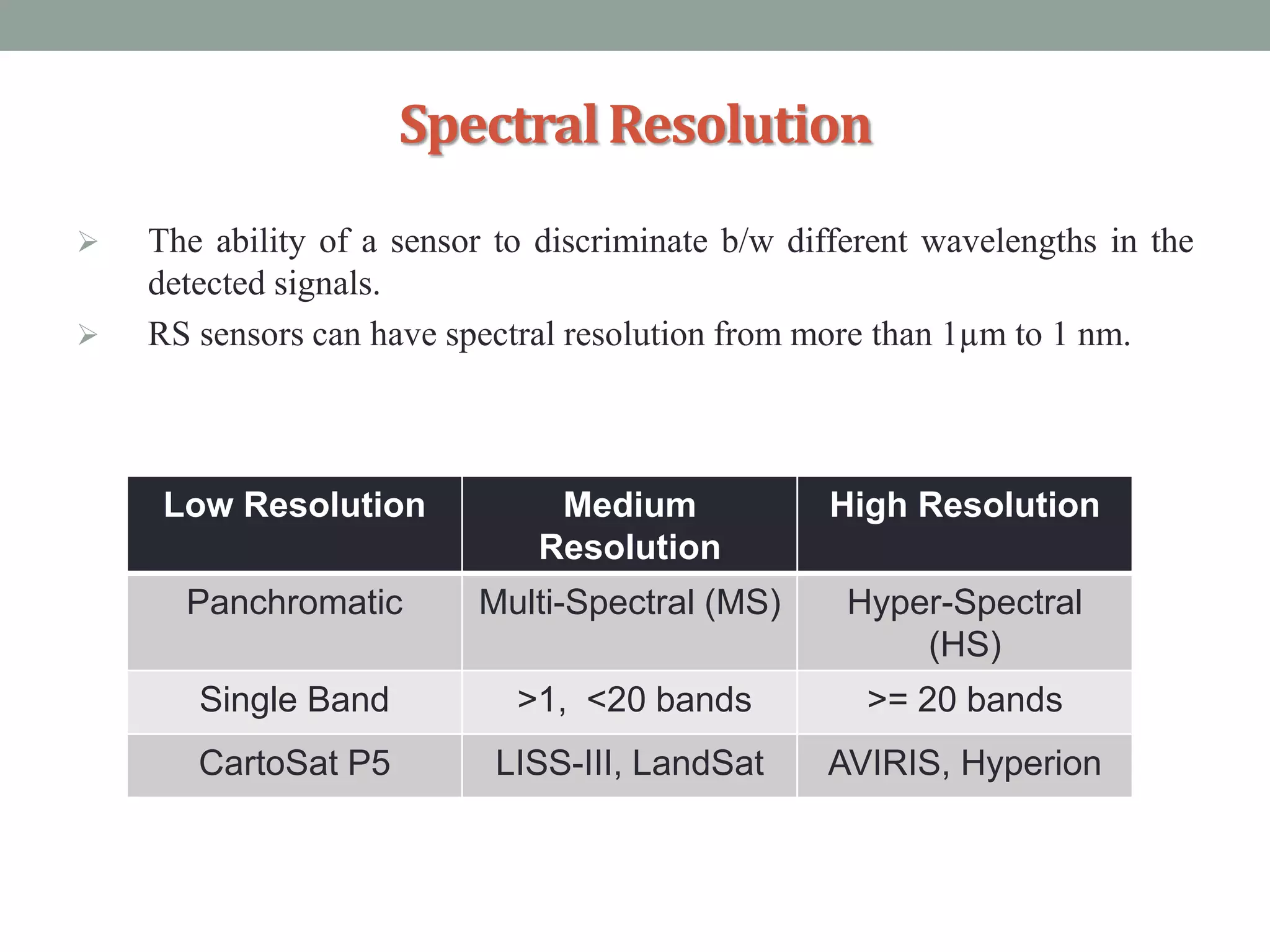

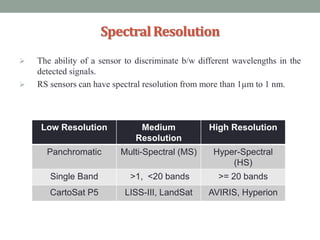

21. SpectralResolution
 The ability of a sensor to discriminate b/w different wavelengths in the
detected signals.
 RS sensors can have spectral resolution from more than 1µm to 1 nm.
Low Resolution Medium
Resolution
High Resolution
Panchromatic Multi-Spectral (MS) Hyper-Spectral
(HS)
Single Band >1, <20 bands >= 20 bands
CartoSat P5 LISS-III, LandSat AVIRIS, Hyperion

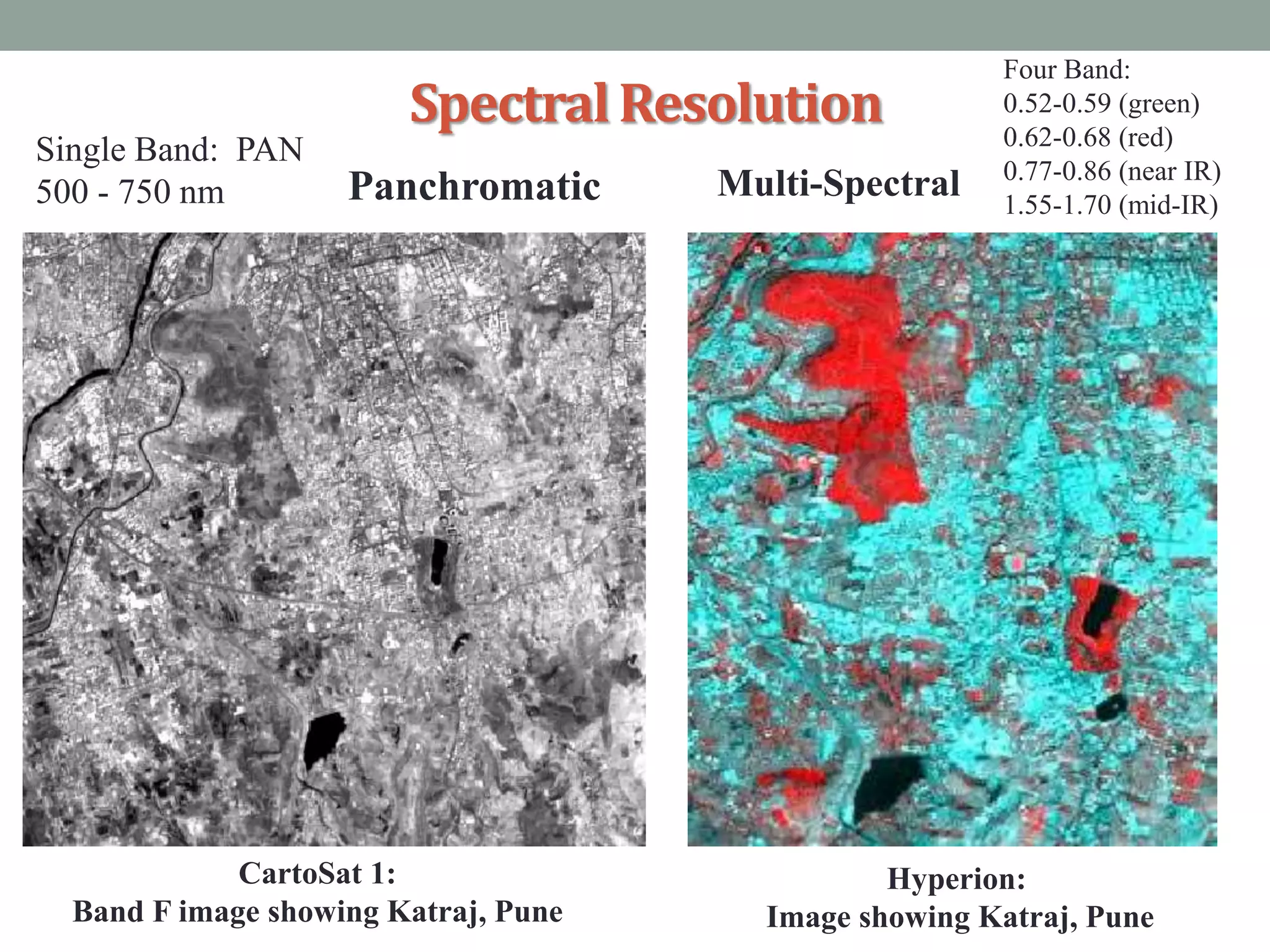

22. SpectralResolution
Single Band: PAN
500 - 750 nm
CartoSat 1:
Band F image showing Katraj, Pune
Panchromatic Multi-Spectral
Hyperion:
Image showing Katraj, Pune
Four Band:
0.52-0.59 (green)
0.62-0.68 (red)
0.77-0.86 (near IR)
1.55-1.70 (mid-IR)

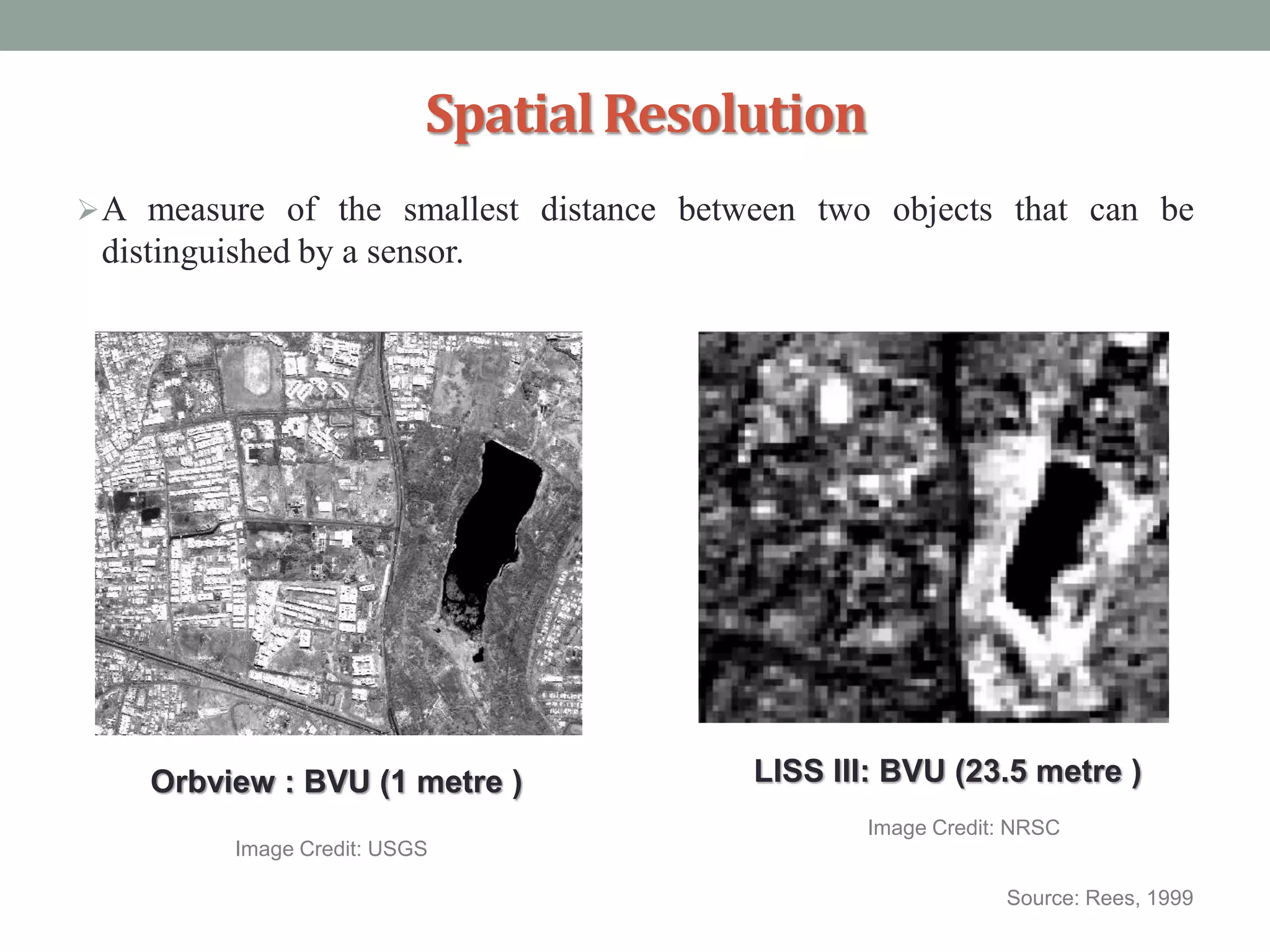

23. SpatialResolution
A measure of the smallest distance between two objects that can be
distinguished by a sensor.
Source: Rees, 1999
Orbview : BVU (1 metre ) LISS III: BVU (23.5 metre )
Image Credit: USGS
Image Credit: NRSC

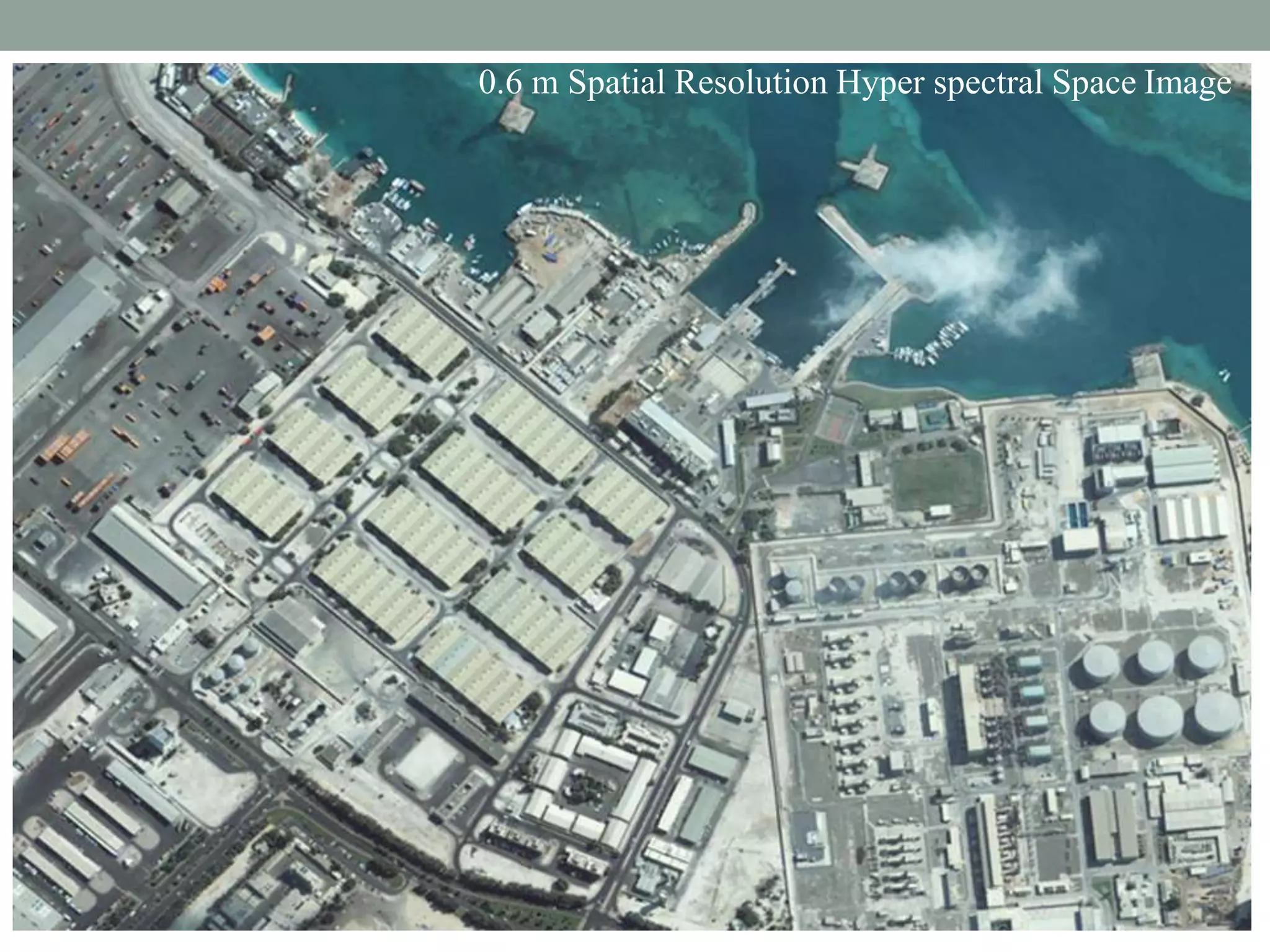

24. 0.6 m Spatial Resolution Hyper spectral Space Image

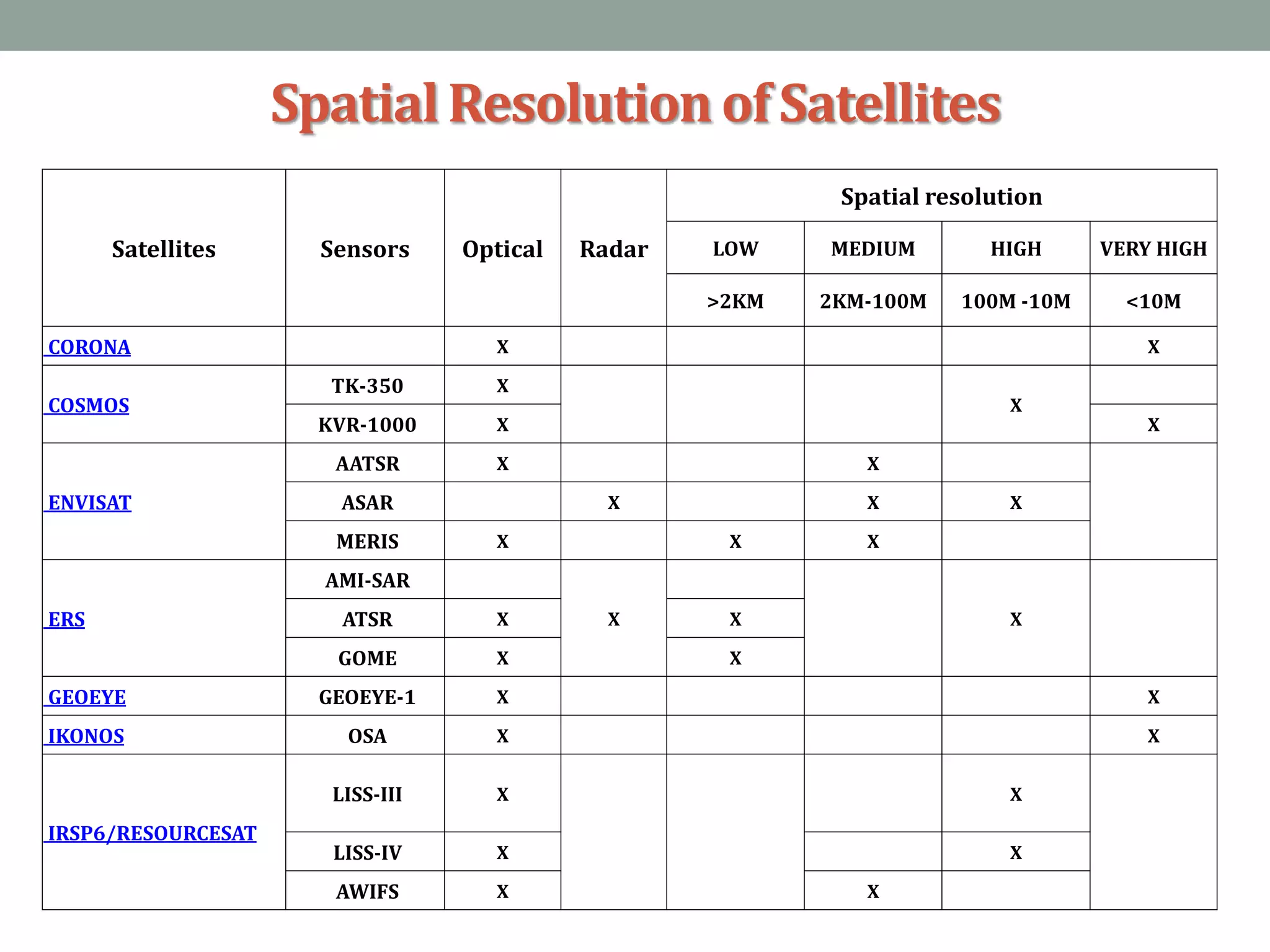

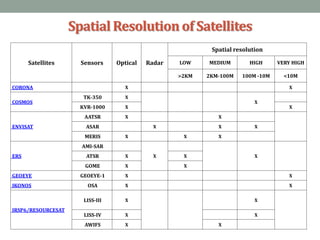

25. SpatialResolutionof Satellites
Satellites Sensors Optical Radar
Spatial resolution
LOW MEDIUM HIGH VERY HIGH
>2KM 2KM-100M 100M -10M <10M
CORONA X X
COSMOS
TK-350 X
X
KVR-1000 X X
ENVISAT
AATSR X X
ASAR X X X
MERIS X X X
ERS
AMI-SAR
X XATSR X X
GOME X X
GEOEYE GEOEYE-1 X X
IKONOS OSA X X
IRSP6/RESOURCESAT
LISS-III X X
LISS-IV X X
AWIFS X X

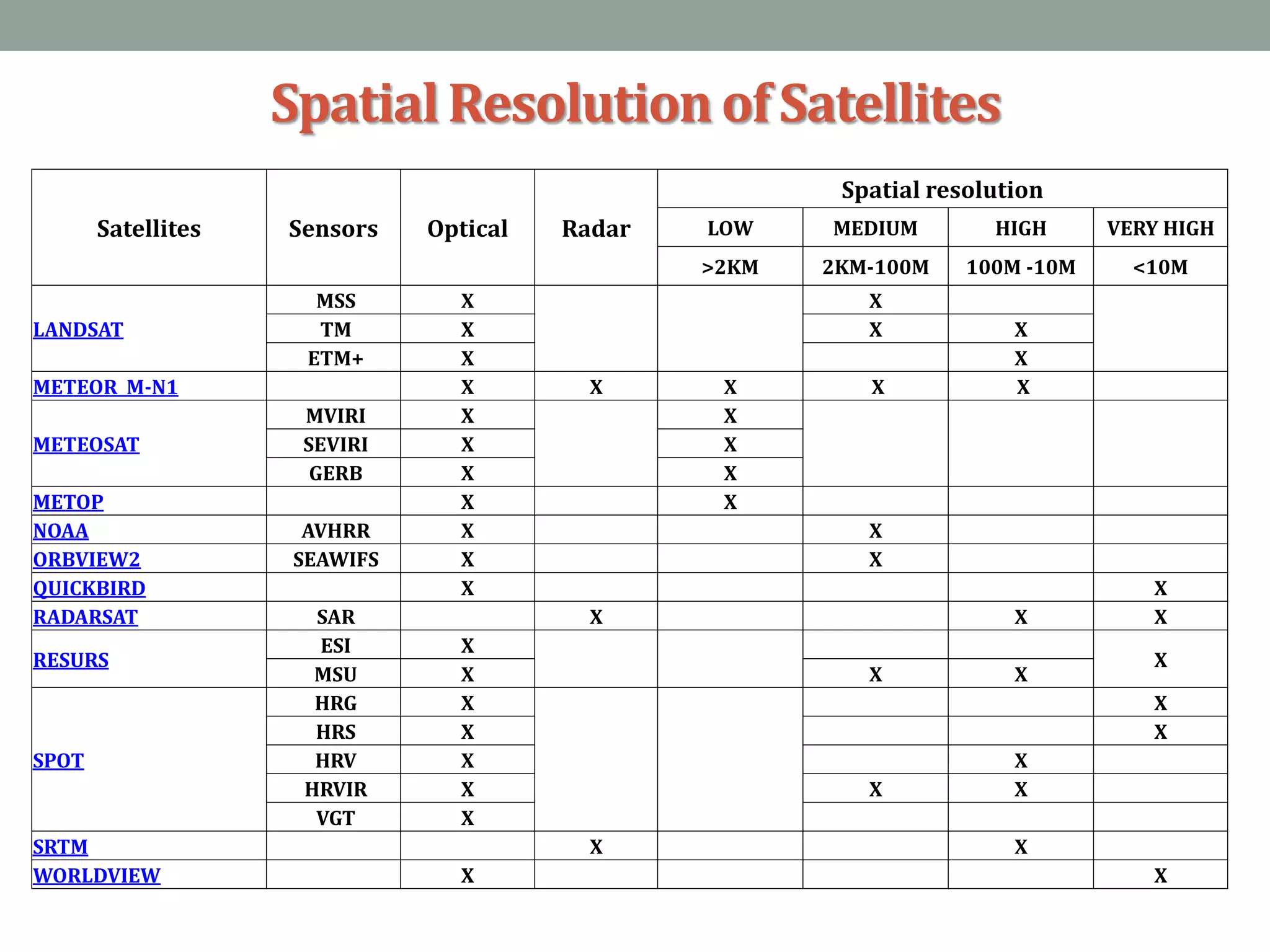

26. SpatialResolutionof Satellites
Satellites Sensors Optical Radar
Spatial resolution
LOW MEDIUM HIGH VERY HIGH
>2KM 2KM-100M 100M -10M <10M
LANDSAT
MSS X X
TM X X X
ETM+ X X
METEOR M-N1 X X X X X
METEOSAT
MVIRI X X
SEVIRI X X
GERB X X
METOP X X
NOAA AVHRR X X
ORBVIEW2 SEAWIFS X X
QUICKBIRD X X
RADARSAT SAR X X X
RESURS
ESI X
X
MSU X X X
SPOT
HRG X X
HRS X X
HRV X X
HRVIR X X X
VGT X
SRTM X X
WORLDVIEW X X

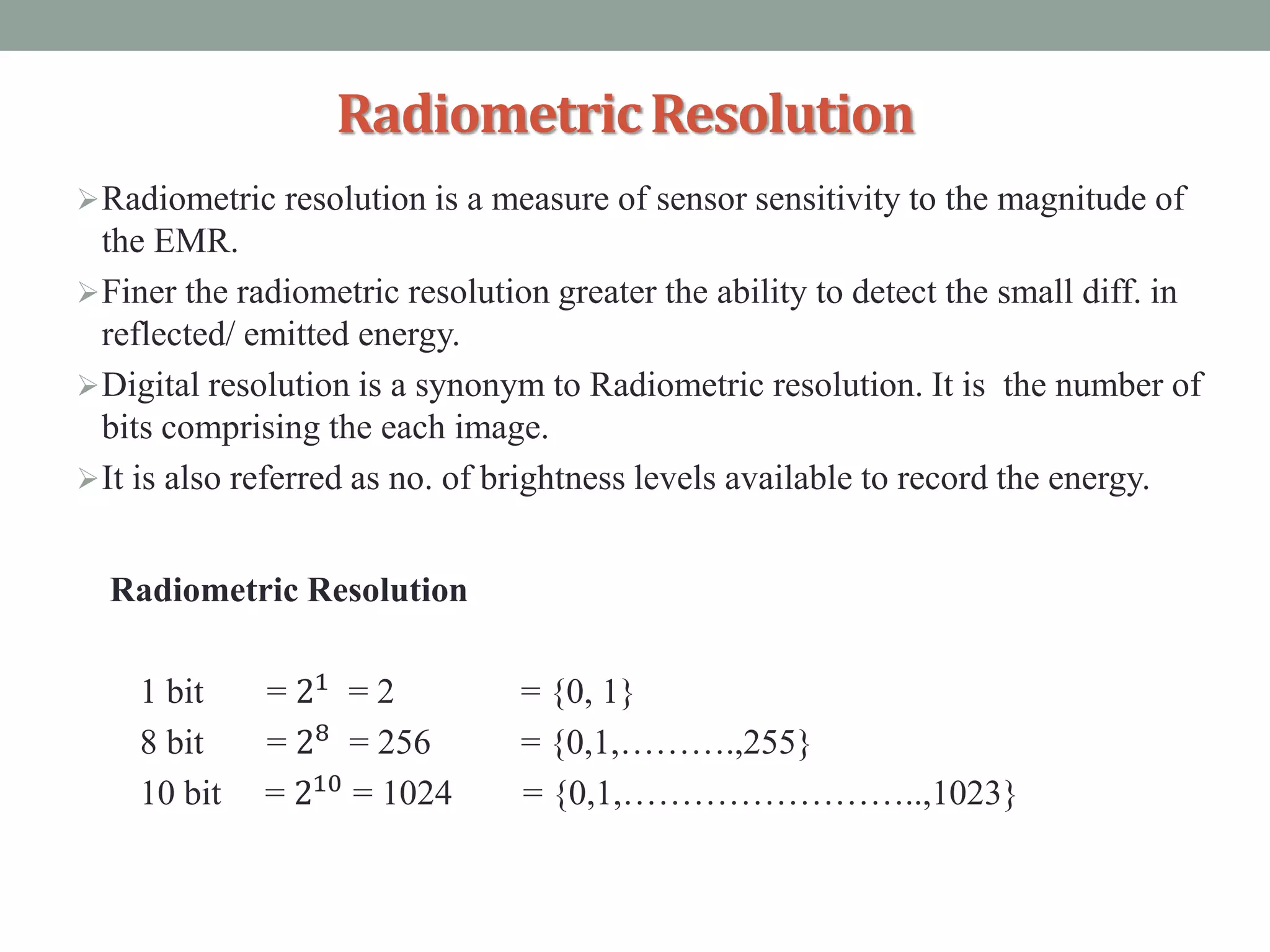

27. RadiometricResolution
Radiometric resolution is a measure of sensor sensitivity to the magnitude of
the EMR.
Finer the radiometric resolution greater the ability to detect the small diff. in
reflected/ emitted energy.
Digital resolution is a synonym to Radiometric resolution. It is the number of
bits comprising the each image.
It is also referred as no. of brightness levels available to record the energy.
Radiometric Resolution
1 bit = 21
= 2 = {0, 1}
8 bit = 28 = 256 = {0,1,……….,255}
10 bit = 210 = 1024 = {0,1,……………………..,1023}

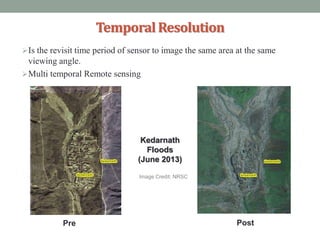

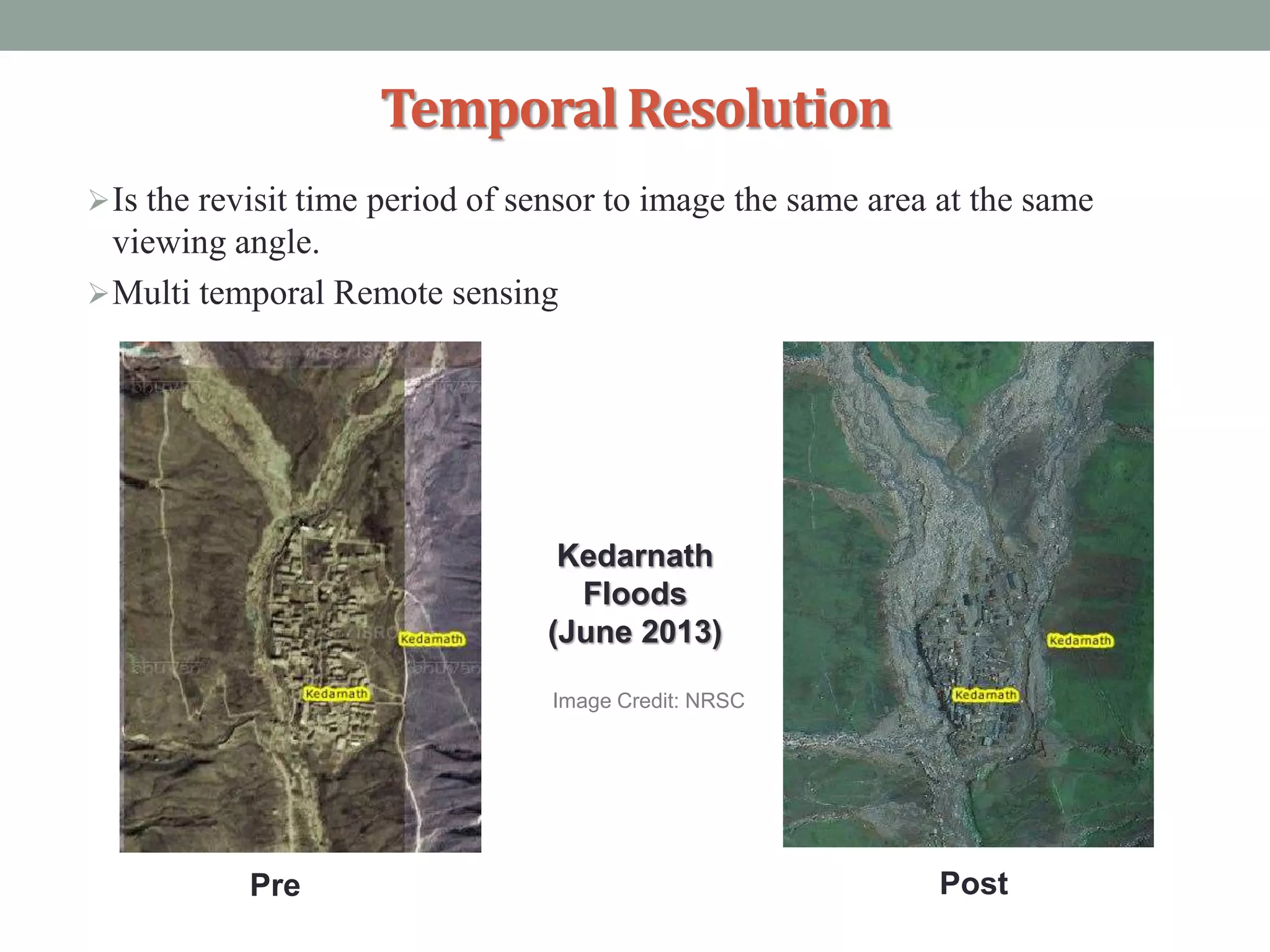

28. TemporalResolution
Is the revisit time period of sensor to image the same area at the same
viewing angle.
Multi temporal Remote sensing
Kedarnath
Floods
(June 2013)
Pre Post
Image Credit: NRSC

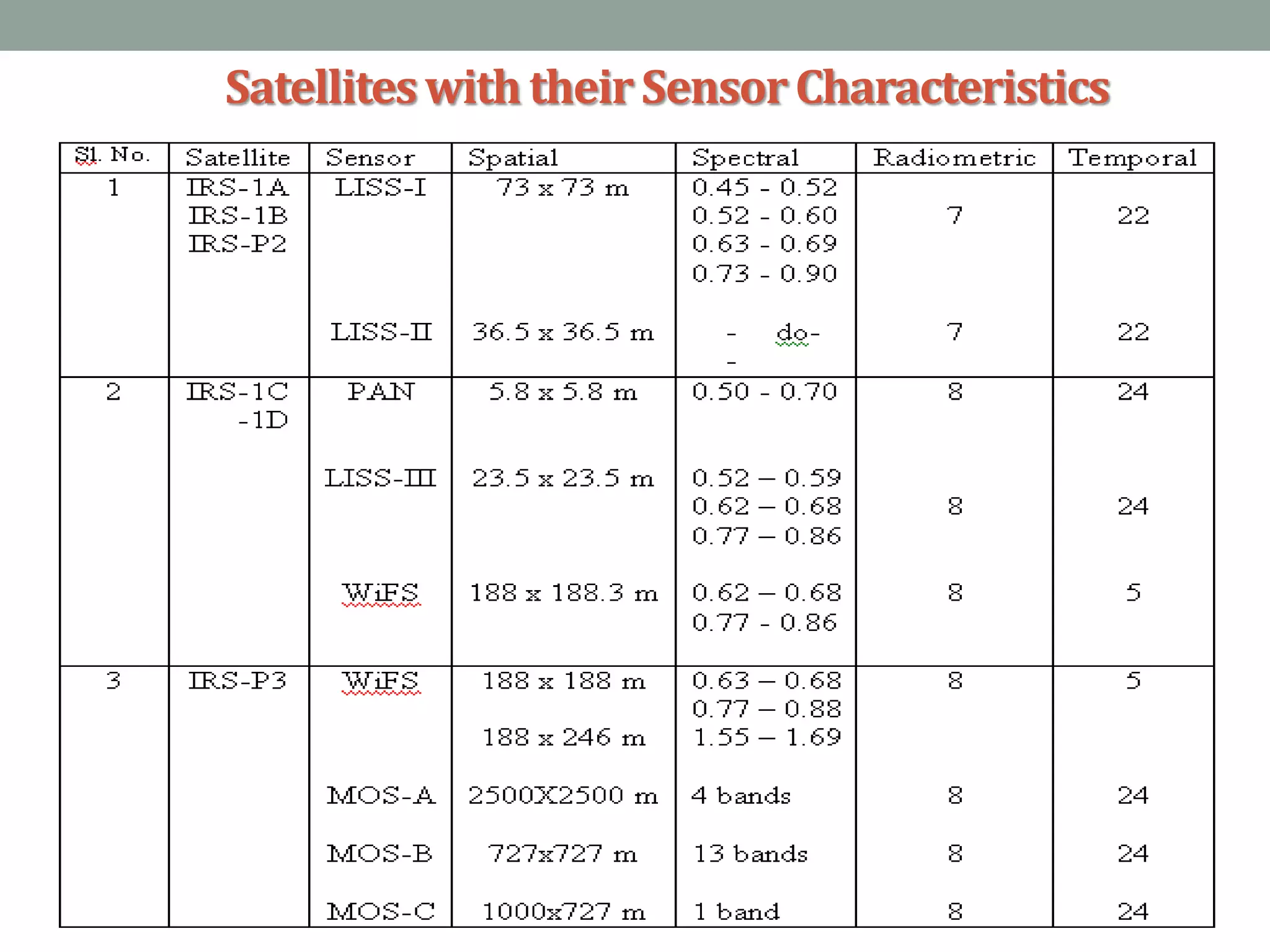

29. Satelliteswith theirSensorCharacteristics

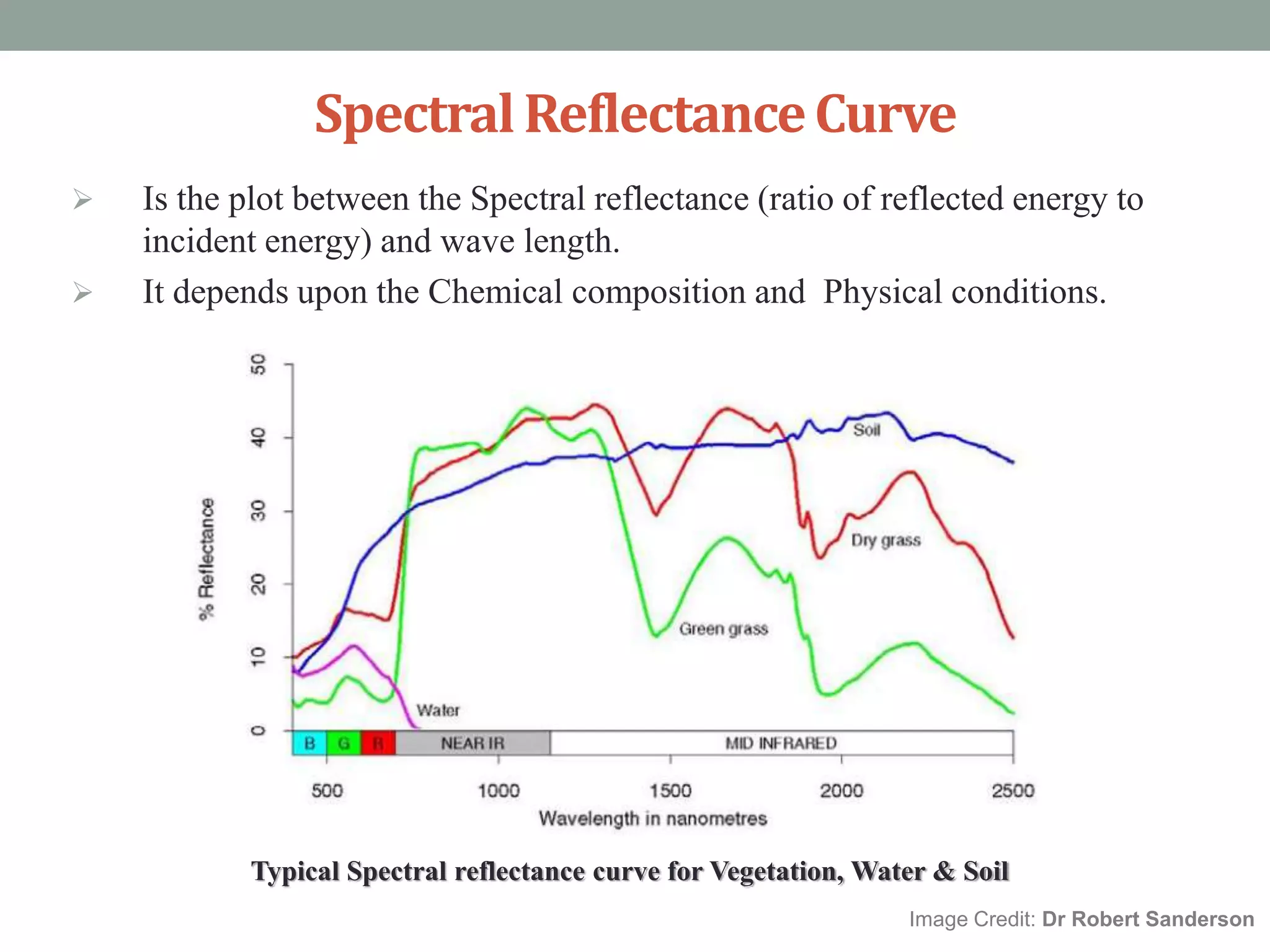

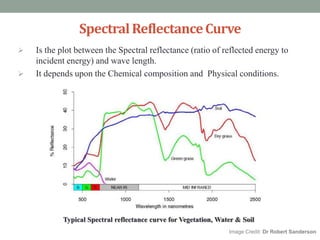

30. SpectralReflectanceCurve
 Is the plot between the Spectral reflectance (ratio of reflected energy to
incident energy) and wave length.
 It depends upon the Chemical composition and Physical conditions.
Image Credit: Dr Robert Sanderson
Typical Spectral reflectance curve for Vegetation, Water & Soil

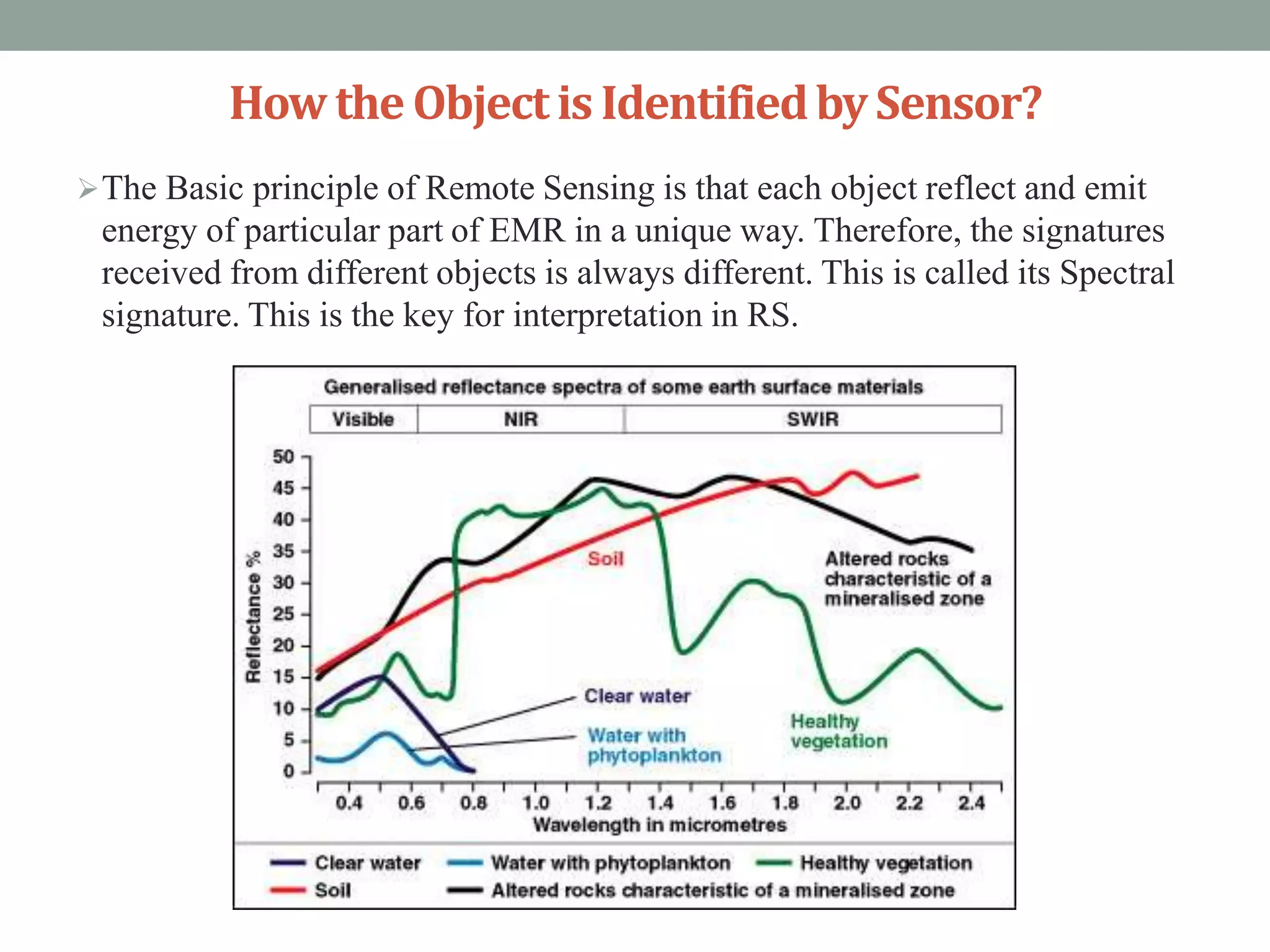

31. How the Objectis IdentifiedbySensor?
The Basic principle of Remote Sensing is that each object reflect and emit
energy of particular part of EMR in a unique way. Therefore, the signatures
received from different objects is always different. This is called its Spectral
signature. This is the key for interpretation in RS.

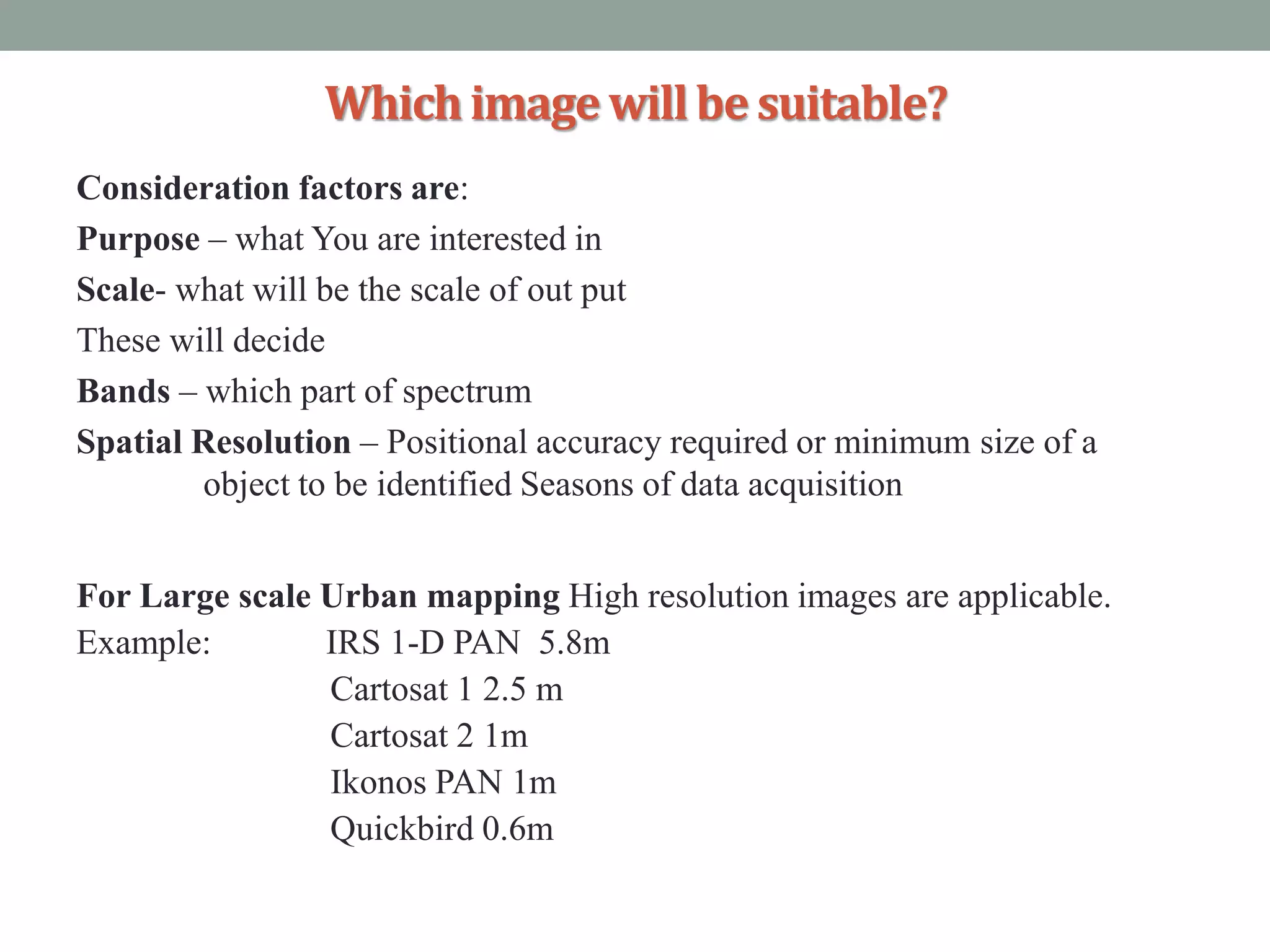

32. Whichimagewillbesuitable?
Consideration factors are:
Purpose – what You are interested in
Scale- what will be the scale of out put
These will decide
Bands – which part of spectrum
Spatial Resolution – Positional accuracy required or minimum size of a
object to be identified Seasons of data acquisition
For Large scale Urban mapping High resolution images are applicable.
Example: IRS 1-D PAN 5.8m
Cartosat 1 2.5 m
Cartosat 2 1m
Ikonos PAN 1m
Quickbird 0.6m

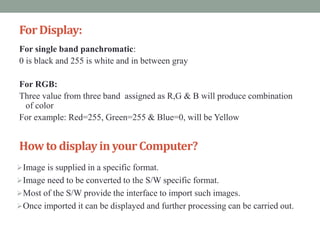

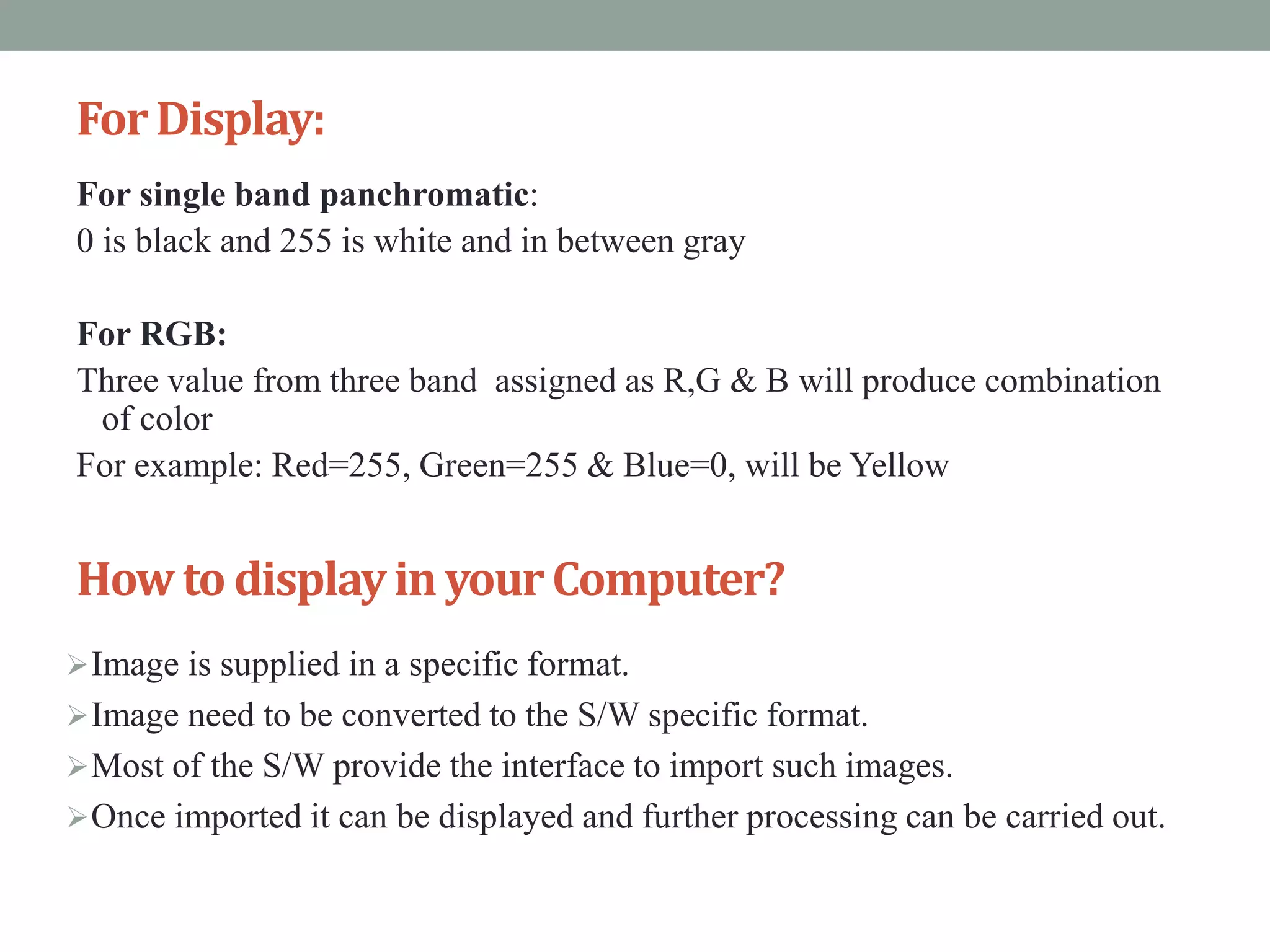

33. ForDisplay:
For single band panchromatic:
0 is black and 255 is white and in between gray
For RGB:
Three value from three band assigned as R,G & B will produce combination
of color
For example: Red=255, Green=255 & Blue=0, will be Yellow
How to displayinyourComputer?
Image is supplied in a specific format.
Image need to be converted to the S/W specific format.
Most of the S/W provide the interface to import such images.
Once imported it can be displayed and further processing can be carried out.

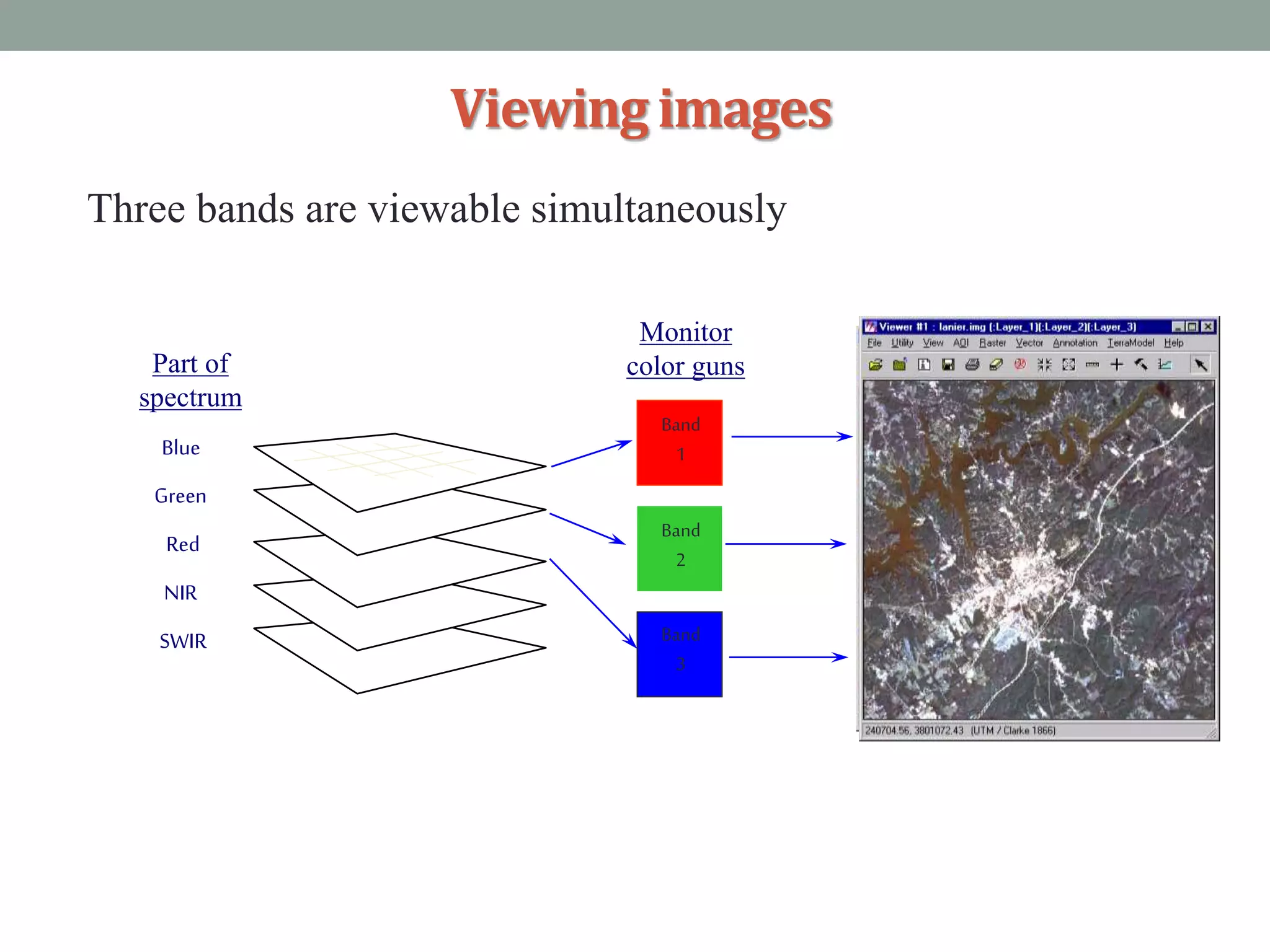

34. Blue
Green
Red
NIR
SWIR
Part of
spectrum
Monitor
color guns
Viewing images
Three bands are viewable simultaneously
Band
4
Band
3
Band
2
Band
4
Band
5
Band
3
Band
1
Band
2
Band
3

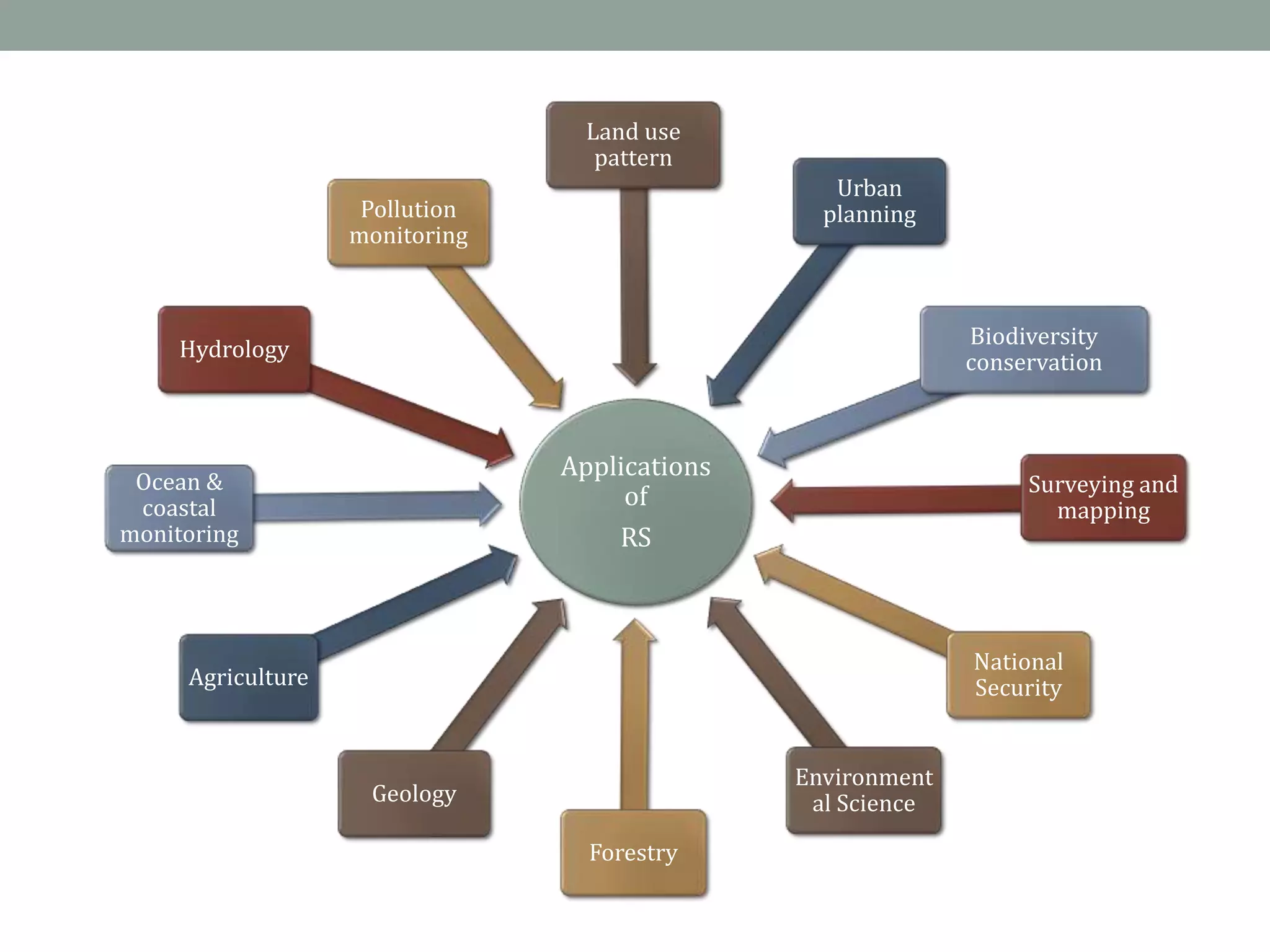

35. Applications
of
RS
Forestry
Geology
Agriculture
Ocean &
coastal
monitoring
Hydrology
Pollution
monitoring
Land use
pattern
Urban
planning
Biodiversity
conservation
Surveying and
mapping
National
Security
Environment
al Science

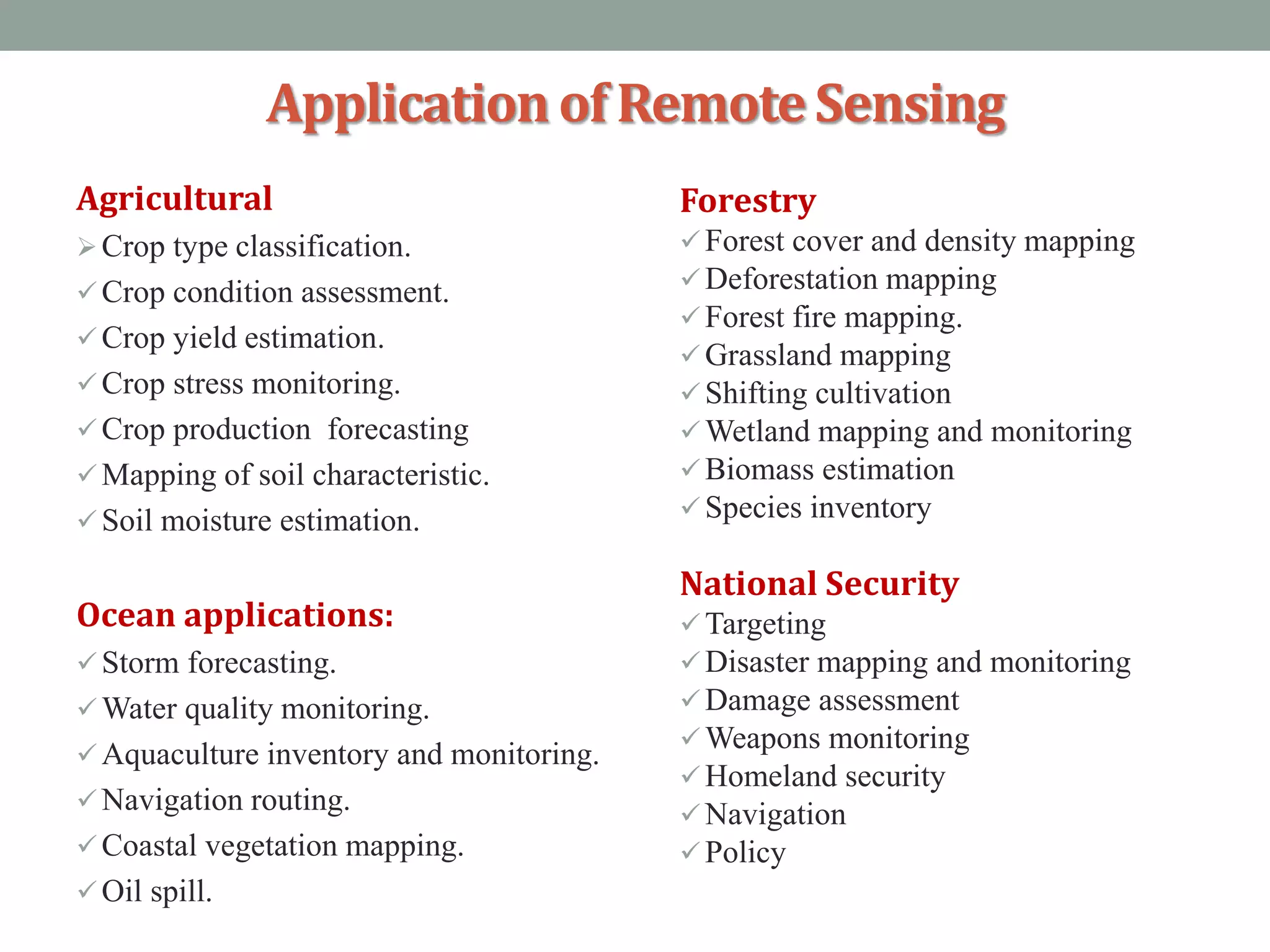

36. Applicationof RemoteSensing
Agricultural
Crop type classification.
 Crop condition assessment.
 Crop yield estimation.
 Crop stress monitoring.
 Crop production forecasting
 Mapping of soil characteristic.
 Soil moisture estimation.
Ocean applications:
 Storm forecasting.
 Water quality monitoring.
 Aquaculture inventory and monitoring.
 Navigation routing.
 Coastal vegetation mapping.
 Oil spill.
Forestry
 Forest cover and density mapping
 Deforestation mapping
 Forest fire mapping.
 Grassland mapping
 Shifting cultivation
 Wetland mapping and monitoring
 Biomass estimation
 Species inventory
National Security
 Targeting
 Disaster mapping and monitoring
 Damage assessment
 Weapons monitoring
 Homeland security
 Navigation
 Policy

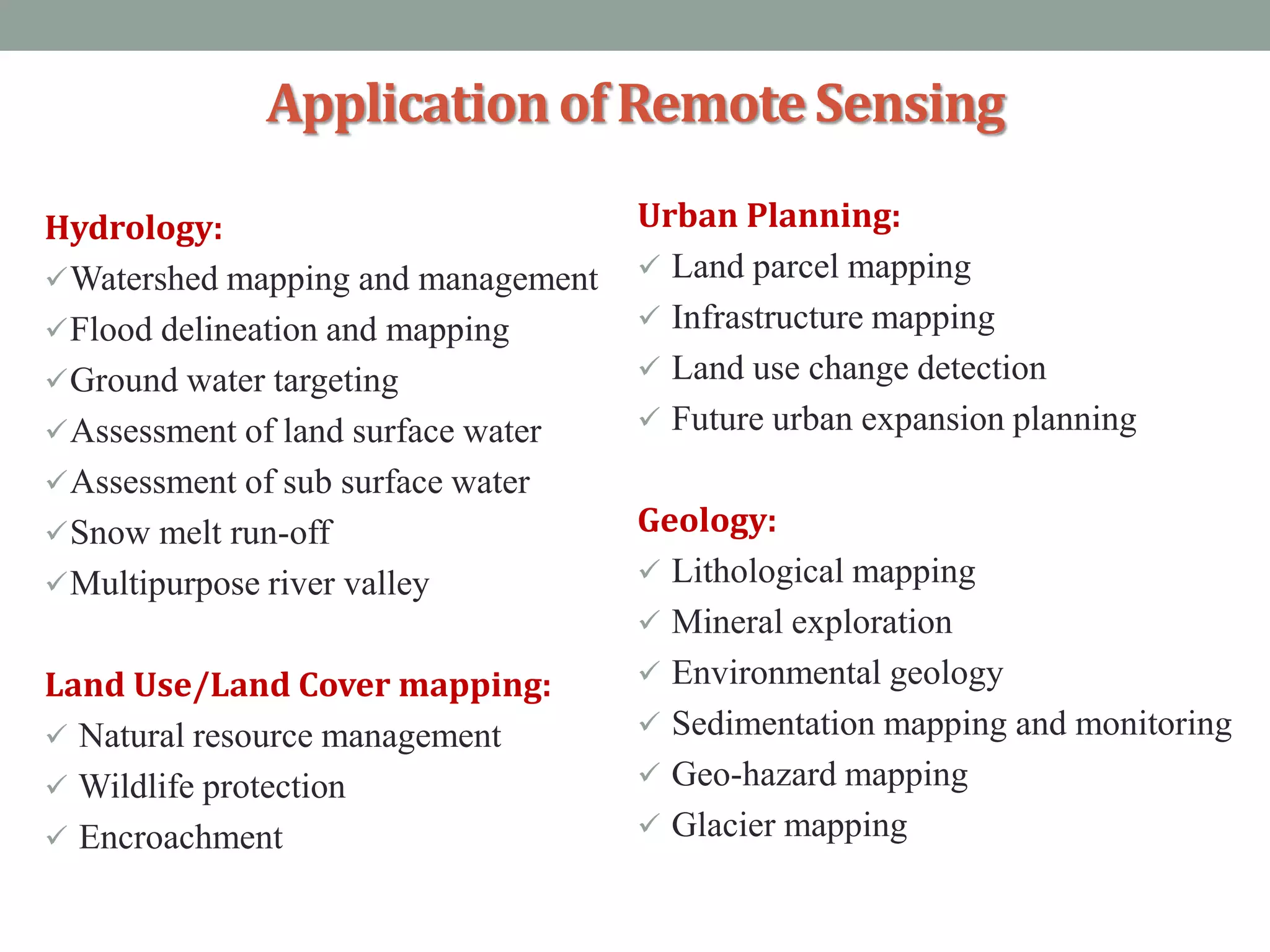

37. Hydrology:
Watershed mapping and management
Flood delineation and mapping
Ground water targeting
Assessment of land surface water
Assessment of sub surface water
Snow melt run-off
Multipurpose river valley
Land Use/Land Cover mapping:
 Natural resource management
 Wildlife protection
 Encroachment
Applicationof RemoteSensing
Urban Planning:
 Land parcel mapping
 Infrastructure mapping
 Land use change detection
 Future urban expansion planning
Geology:
 Lithological mapping
 Mineral exploration
 Environmental geology
 Sedimentation mapping and monitoring
 Geo-hazard mapping
 Glacier mapping
