Hand in hand with 5S implementation is creating Visual Factory. Use of signage, demarcation lines, quality inspection points, easy to ready guages and dials

1. 5 S – A Visual Factory

3. A 5S Factory A Workplace That Shines

4. Floor area markings Red area = Do not put anything here

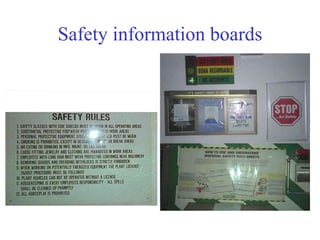

5. Safety information boards

6. Visual Inspection Points

7. Walkway safety Persons Fork lift trucks Mirror shows step

8. Walkway safety signs

9. Stairway safety Watch your step !

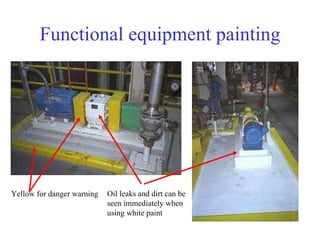

10. Functional equipment painting Oil leaks and dirt can be seen immediately when using white paint Yellow for danger warning

12. Visual Factory - gauge markings

13. Piping marking Color coding Color coded name and flow direction labels

14. Visual Factory - valve labeling

15. Valves- normally closed, open

16. Parts & tools organization Moveable cart with change parts to enable quick change over Tool carts organized using markings on floor Somebody left his cart standing!

17. Change-parts storage Before After Color coding show which parts to use for what product Lines on floor show location of carrier

18. Spare Parts Storage

19. Tool Storage

20. Storage Locations

21. Storage Height Line

22. LABELS

23. Visual Factory - color coding

24. Visual Factory - Fire Ext. marking

25. Visual Factory - LOTO Stations

26. Visual Factory - LOTO Devices

27. Visual Factory - LOTO

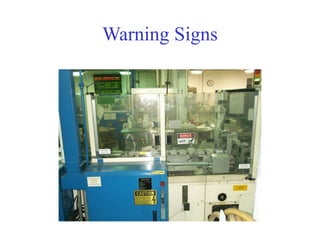

28. Warning Signs

29. 5S Packing Line

30. ALL Areas Set in Order
