5. Visual Display & Control
Visual display relates information and data to employees in
the area.
 For example, charts showing the monthly revenues of the
company or a graphic depicting a certain type of quality issue
that group members should be aware of.

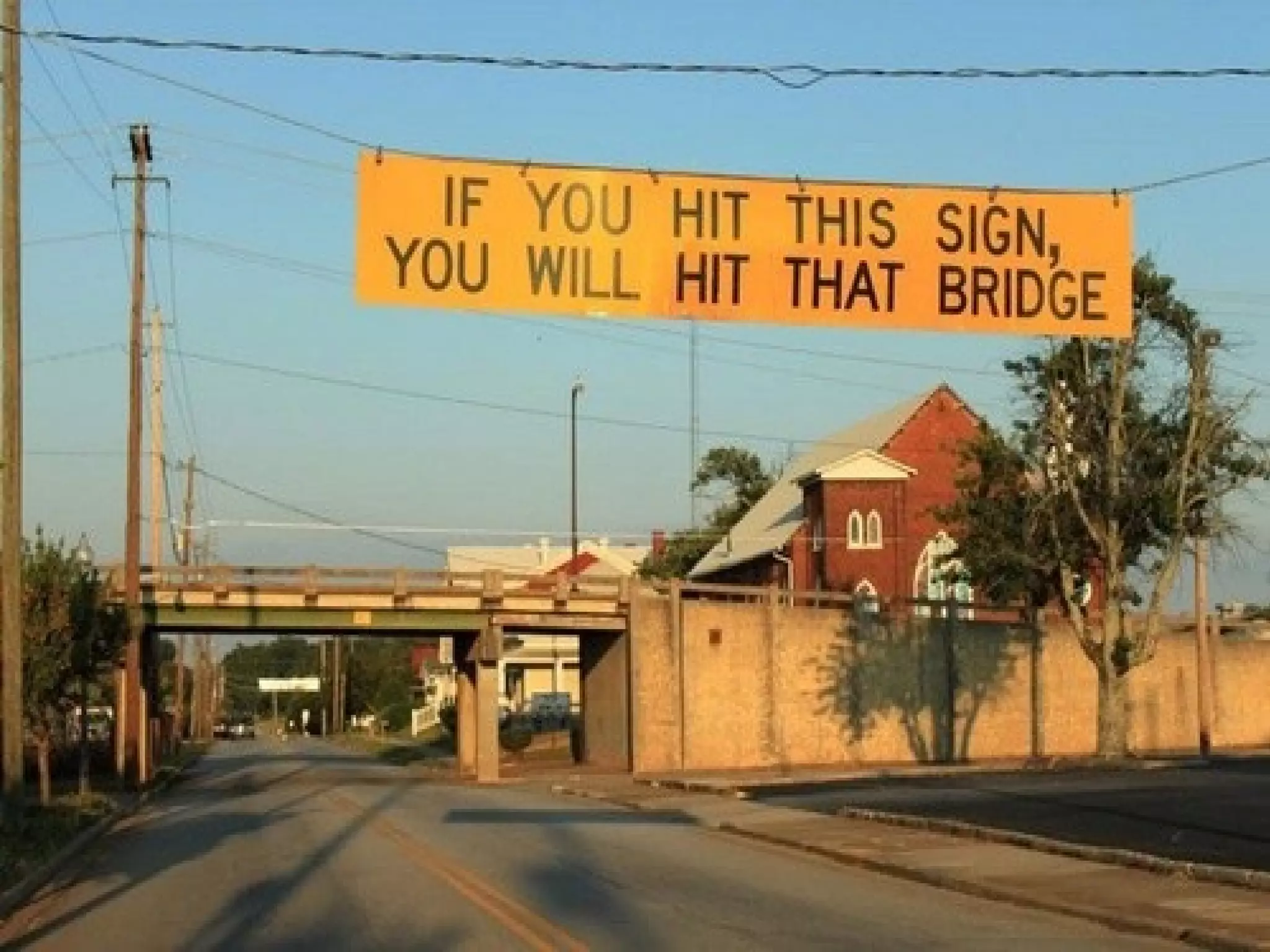

A visual control is intended to actually control or guide the
action of the group members.
Examples of controls are readily apparent in society: stop signs,
handicap parking signs, no smoking signs, etc.
Visual controls describe workplace safety, production
throughput, material flow, quality metrics, or other information
Audio signals in the factory are also very important because
they signal malfunctioning equipment, sound warnings before
the start of machine operation, or other useful information.

6. Benefits of Visual
Management
Visual management techniques express information in a way
that can be understood quickly by everyone.
Visual displays and controls help keep things running as
efficiently as they were designed to run.
Sharing information through visual tools helps keep
production running smoothly and safely
Visual information can also help prevent mistakes. Colour
coding is a form of visual display often used to prevent error
The most important benefit of a visual factory is that it shows
when something is out of place or missing

7. Examples of Visual
Management
Colour-coded pipes and wires
Painted floor areas for good stock, scrap, trash, etc.
Shadow boards for parts and tools
Indicator lights
Workgroup display boards with charts, metrics, procedures,
etc
Communicating goals and objectives
Publishing results of continuous improvement efforts
Production status boards
Direction of flow indicators
Indicate the quantity or the maximum amount of inventory
Provide a document form that tells employees the items so
they can distinguish them from other items.

8. Examples of Visual
Management

9. Shadow Boards

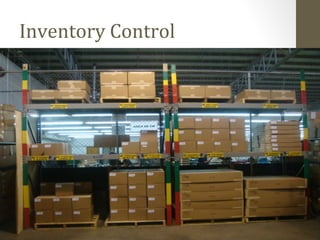

10. Inventory Control

11. Workgroup Display Boards

12. SOP Displayed at Workplace

13. Visual Control

14. Continuous Improvement
Board

15. Example : Andon Board
• Andon system is one of the principal elements ofAndon system is one of the principal elements of
the Jidoka Quality Control method pioneered by Toyotathe Jidoka Quality Control method pioneered by Toyota
• AndonAndon is a system referring to a system to notifyis a system referring to a system to notify
management, maintenance, and other workers of amanagement, maintenance, and other workers of a
quality or process problem.quality or process problem.
• The centrepiece is a signboard incorporating signalThe centrepiece is a signboard incorporating signal
lights to indicate which workstation has the problem.lights to indicate which workstation has the problem.
• The alert can be activated manually by a worker using a pull-cord or button, orThe alert can be activated manually by a worker using a pull-cord or button, or
may be activated automatically by the production equipment itself.may be activated automatically by the production equipment itself.
• The system may include a means to stop production so the issue can beThe system may include a means to stop production so the issue can be
corrected. Some modern alert systems incorporate audio alarms, text, or othercorrected. Some modern alert systems incorporate audio alarms, text, or other
displays.displays.

16. Maintenance Boards

17. Example of a Hospital

18. www.mastersungroup.com, Master Sun Consulting, Master Sun Group Firm.
A Visual Workplace is a
More Productive, More
Dynamic & More Mistake-
Free Workplace
