1. UV / VISIBLE SPECTROSCOPY
Dr. Nilesh Thakare

2. Spectroscopy

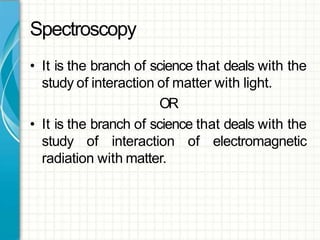

• It is the branch of science that deals with the
study of interaction of matter with light.
OR
• It is the branch of science that deals with the
study of interaction of electromagnetic
radiation with matter.

3. Electromagnetic
Radiation

4. Electromagnetic Radiation

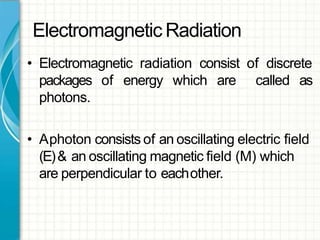

• Electromagnetic radiation consist of discrete
packages of energy which are called as
photons.
• Aphoton consists of an oscillating electric field
(E)& an oscillating magnetic field (M) which
are perpendicular to eachother.

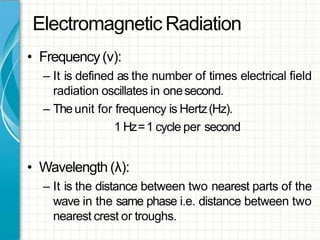

6. Electromagnetic Radiation
• Frequency(ν):
– It is defined as the number of times electrical field
radiation oscillates in onesecond.
– Theunit for frequency is Hertz(Hz).
1 Hz=1 cycle per second
• Wavelength (λ):
– It is the distance between two nearest parts of the
wave in the same phase i.e. distance between two
nearest crest or troughs.

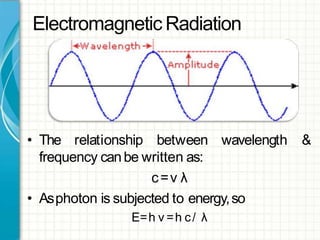

7. Electromagnetic Radiation
• The relationship between wavelength &
frequency canbe written as:
c=ν λ
• Asphoton is subjected to energy,so
E=h ν =h c/ λ

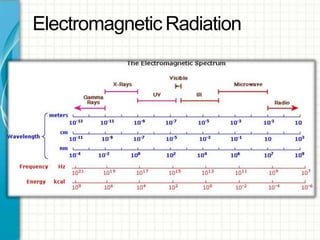

8. Electromagnetic Radiation

9. Electromagnetic Radiation

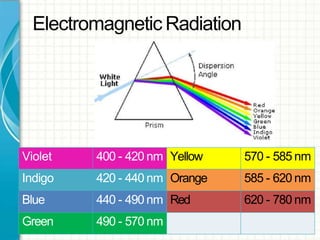

Violet 400 - 420 nm Yellow 570 - 585 nm
Indigo 420 - 440 nm Orange 585 - 620 nm
Blue 440 - 490 nm Red 620 - 780 nm
Green 490 - 570 nm

10. Principles of
Spectroscopy

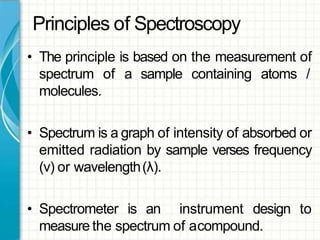

11. Principles of Spectroscopy
• The principle is based on the measurement of
spectrum of a sample containing atoms /
molecules.
• Spectrum is a graph of intensity of absorbed or
emitted radiation by sample verses frequency
(ν) or wavelength(λ).
• Spectrometer is an instrument design to
measure the spectrum of acompound.

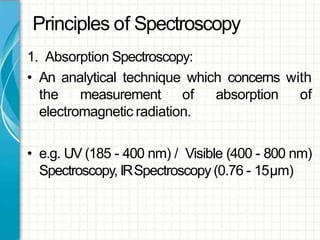

12. Principles of Spectroscopy
1. Absorption Spectroscopy:
• An analytical technique which concerns with
the measurement of absorption of
electromagnetic radiation.
• e.g. UV (185 - 400 nm) / Visible (400 - 800 nm)
Spectroscopy, IRSpectroscopy (0.76 - 15μm)

13. Interaction of
EMR with
Matter

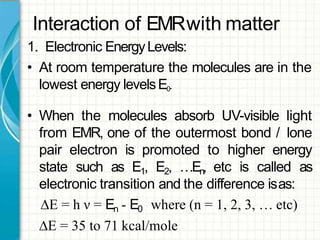

14. Interaction of EMRwith matter
1. Electronic EnergyLevels:
• At room temperature the molecules are in the
lowest energy levelsE0.
• When the molecules absorb UV-visible light
from EMR, one of the outermost bond / lone
pair electron is promoted to higher energy
state such as E1, E2, …En, etc is called as
electronic transition and the difference isas:
∆E = h ν = En - E0 where (n = 1, 2, 3, … etc)
∆E = 35 to 71 kcal/mole

15. Lambert’
s Law

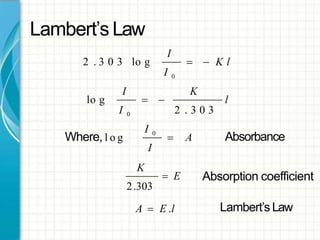

16. Lambert’s Law

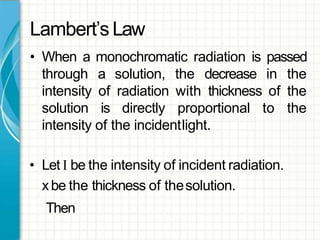

• When a monochromatic radiation is passed
through a solution, the decrease in the
intensity of radiation with thickness of the
solution is directly proportional to the
intensity of the incidentlight.
• Let I be the intensity of incident radiation.
xbe the thickness of thesolution.
Then

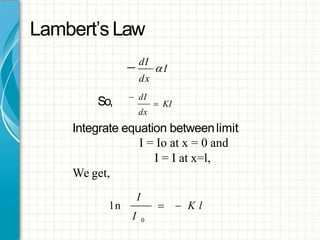

17. Lambert’s Law
 dI
I
dx
So,  KI
 dI
dx
Integrate equation betweenlimit
I = Io at x = 0 and
I = I at x=l,
We get,
I
I 0
l n   K l

18. Lambert’s Law
I
  K l
I 0
2 . 3 0 3 lo g
l
KI
2 . 3 0 3
lo g
I 0
 
Absorbance
I
 A
I 0
Where, l o g
K
 E
2.303
A  E .l
Absorption coefficient
Lambert’s Law

19. Beer’
s Law

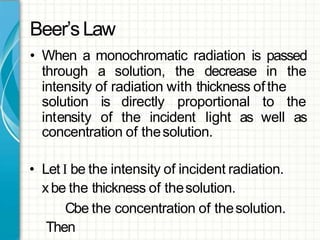

20. Beer’sLaw
• When a monochromatic radiation is passed
through a solution, the decrease in the
intensity of radiation with thickness ofthe
solution
intensity
is directly proportional
of the incident light as
to the
well as
concentration of thesolution.
• Let I be the intensity of incident radiation.
xbe the thickness of thesolution.
Cbe the concentration of thesolution.
Then

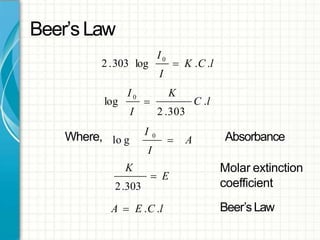

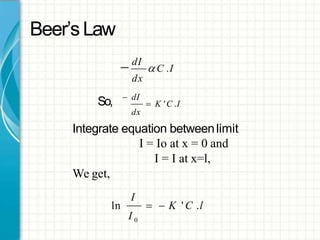

21. Beer’sLaw
 dI
 C .I
dx
So,  K 'C .I
 dI
dx
Integrate equation betweenlimit
I = Io at x = 0 and
I = I at x=l,
We get,
I
I 0
ln   K ' C .l

22. Beer’sLaw
I
2 .303 log
I0
 K .C .l
K
I
C .l
2 .303
log
I 0

Where, Absorbance
I
 A
I 0
lo g
K
 E
2.303
A  E .C .l
Molar extinction
coefficient
Beer’sLaw

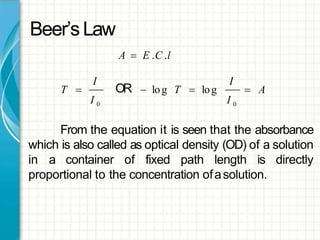

23. Beer’sLaw
A  E .C .l
I
T  OR
I
 A log T  log
I 0 I 0
From the equation it is seen that the absorbance
which is also called as optical density (OD) of a solution
in a container of fixed path length is directly
proportional to the concentration ofasolution.

24. PRINCIPLES OF
UV - VISIBLE
SPECTROSCOPY

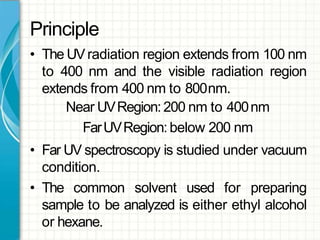

25. Principle
• The UVradiation region extends from 100 nm
to 400 nm and the visible radiation region
extends from 400 nm to 800nm.
Near UVRegion:200 nm to 400nm
FarUVRegion:below 200 nm
• Far UV spectroscopy is studied under vacuum
condition.
• The common solvent used for preparing
sample to be analyzed is either ethyl alcohol
or hexane.

26. Electronic
Transitions

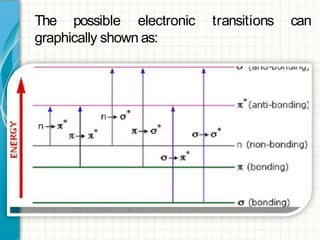

27. transitions canThe possible electronic
graphically shown as:

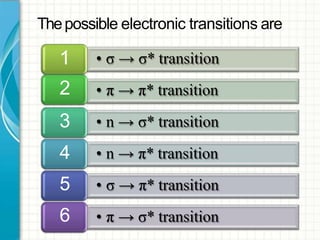

28. • σ → σ* transition
• π → π* transition
• n → σ* transition
• n → π* transition
• σ → π* transition
• π → σ* transition
1
2
3
4
5
6
Thepossible electronic transitions are

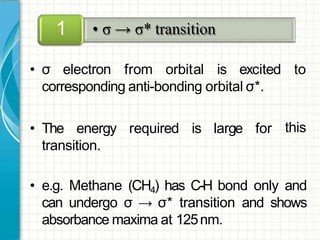

29. this
• σ electron from orbital is excited to
corresponding anti-bonding orbital σ*.
• The energy required is large for
transition.
• e.g. Methane (CH4) has C-H bond only and
can undergo σ → σ* transition and shows
absorbance maxima at 125nm.
• σ → σ* transition1

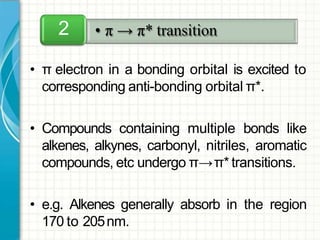

30. • π electron in a bonding orbital is excited to
corresponding anti-bonding orbital π*.
• Compounds containing multiple bonds like
alkenes, alkynes, carbonyl, nitriles, aromatic
compounds, etc undergo π→π* transitions.
• e.g. Alkenes generally absorb in the region
170 to 205nm.
• π → π* transition2

31. • Saturated compounds containing atoms with
lone pair of electrons like O, N, S and
halogens are capable of n →σ* transition.
• These transitions usually requires less energy
than σ→σ* transitions.
• The number of organic functional groups
with n →σ* peaksin UVregion is small (150
– 250 nm).
• n → σ* transition3

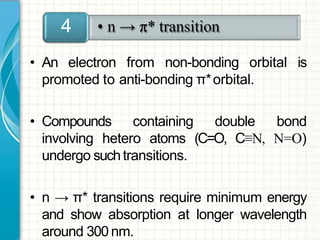

32. • An electron from non-bonding orbital is
promoted to anti-bonding π*orbital.
• Compounds containing double bond
involving hetero atoms (C=O, C≡N, N=O)
undergo suchtransitions.
• n → π* transitions require minimum energy
and show absorption at longer wavelength
around 300 nm.
• n → π* transition4

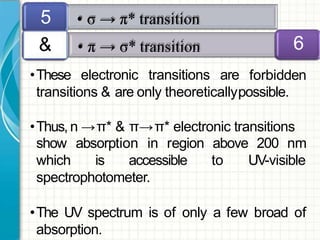

33. •These electronic transitions are
transitions & are only theoreticallypossible.
•Thus,n →π* & π→π* electronic transitions
show absorption in region
which is accessible
above 200 nm
to UV-visible
spectrophotometer.
•The UV spectrum is of only a few broad of
absorption.
• σ → π* transition
• π → σ* transition 6
forbidden
5
&

34. Termsused
in
UV/ Visible
Spectroscopy

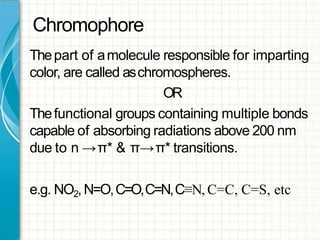

35. Chromophore
Thepart of amolecule responsible for imparting
color, are called aschromospheres.
OR
Thefunctional groups containing multiple bonds
capable of absorbing radiations above 200 nm
due to n →π* & π→π* transitions.
e.g. NO2,N=O,C=O,C=N,C≡N, C=C, C=S, etc

36. Chromophore
Tointerpretate UV– visible spectrum following
points should benoted:
1. Non-conjugated alkenes show an intense
absorption below 200 nm & are therefore
inaccessible to UVspectrophotometer.
2. Non-conjugated carbonyl group compound
give a weak absorption band in the 200 - 300
nm region.

37. Chromophore
e.g.
C
H3C CH3
and that cyclohexane hasλmax =291nm.
When double bonds are conjugated in
a compound λmax is shifted to
longer wavelength.
O
e.g. Acetone which has λmax =279 nmO
H2C
1,5 - hexadiene hasλmax =178 nm
2,4 - hexadiene hasλmax =227nm
CH2
H3C
CH3

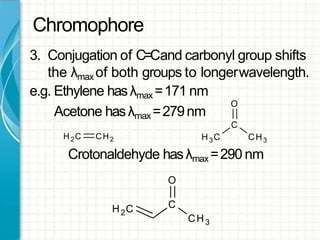

38. Chromophore
3. Conjugation of C=Cand carbonyl group shifts
the λmax of both groups to longerwavelength.
e.g. Ethylene hasλmax =171 nm
Acetone hasλmax =279nm
C
H3C CH3
O
H 2C CH2
C
CH3
Crotonaldehyde hasλmax =290 nm
O
H2C

39. Auxochrome
The functional groups attached to a
chromophore which modifies the ability of the
chromophore to absorb light , altering the
wavelength or intensity ofabsorption.
OR
Thefunctional group with non-bondingelectrons
that does not absorb radiation in near UVregion
but when attached to achromophore alters the
wavelength & intensity ofabsorption.

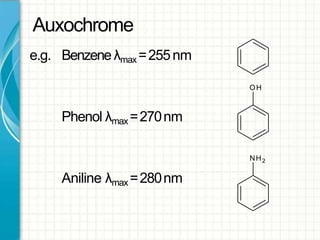

40. Auxochrome
e.g. Benzeneλmax =255nm
Phenol λmax =270nm
Aniline λmax =280nm
OH
NH2

41. Absorption
& Intensity
Shifts

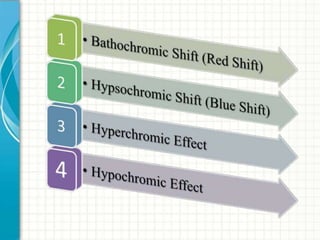

43. • When absorption maxima (λmax) of a
compound shifts to longer wavelength, it is
known asbathochromic shift or redshift.
• The effect is due to presence of an auxochrome
or by the changeofsolvent.
• e.g. An auxochrome group like –OH, -OCH3
causes absorption of compound at longer
wavelength.
• Bathochromic Shift (Red Shift)1

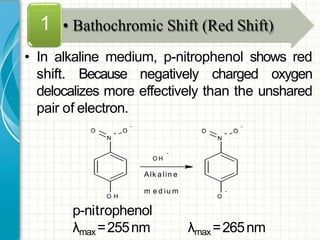

44. • In alkaline medium, p-nitrophenol shows red
shift. Because negatively charged oxygen
delocalizes more effectively than the unshared
pair of electron.
p-nitrophenol
λmax =255nm λmax =265nm
• Bathochromic Shift (Red Shift)1
O H
N
+
O O
-
O H
Alk a lin e
m e d iu m -
O
N
+
- -
O O

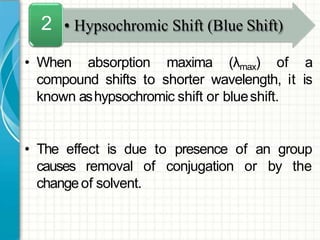

45. • When absorption maxima (λmax) of a
compound shifts to shorter wavelength, it is
known ashypsochromic shift or blueshift.
• The effect is due to presence of an group
causes removal of conjugation or by the
changeof solvent.
• Hypsochromic Shift (Blue Shift)2

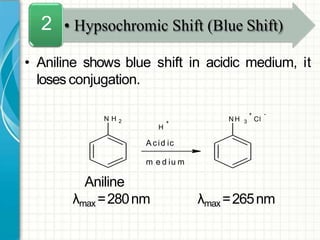

46. • Aniline shows blue shift in acidic medium, it
loses conjugation.
Aniline
λmax =280nm λmax =265nm
• Hypsochromic Shift (Blue Shift)2
N H 2 +
H
A cid ic
m e d iu m
+
N H 3 Cl
-

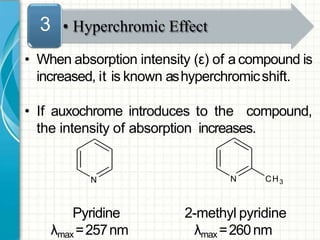

47. • When absorption intensity (ε) of a compound is
increased, it is known ashyperchromicshift.
• If auxochrome introduces to the compound,
the intensity of absorption increases.
Pyridine
λmax =257nm
2-methyl pyridine
λmax =260nm
• Hyperchromic Effect3
N N CH3

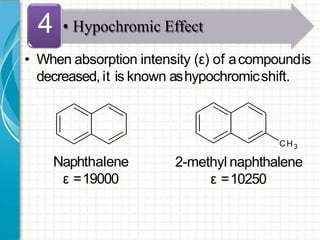

48. • When absorption intensity (ε) of acompoundis
decreased, it is known ashypochromicshift.
Naphthalene
ε =19000
CH3
2-methyl naphthalene
ε =10250
• Hypochromic Effect4

49. Absorbance(A)
Shifts and Effects
Hyperchromic shift
Red
shift
Blu
e
shift
Hypochromic shift
λmax
Wavelength ( λ)

50. APPLICATIONS OF
UV / VISIBLE
SPECTROSCOPY

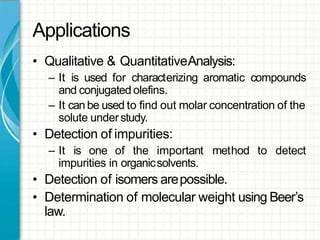

51. Applications
• Qualitative & QuantitativeAnalysis:
– It is used for characterizing aromatic compounds
and conjugated olefins.
– It can be used to find out molar concentration of the
solute understudy.
• Detection of impurities:
– It is one of the important method to detect
impurities in organicsolvents.
• Detection of isomers arepossible.
• Determination of molecular weight using Beer’s
law.

52. REFERENCES

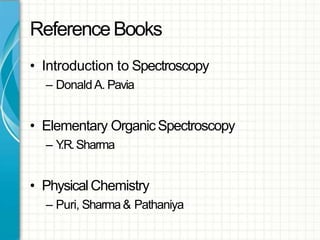

53. ReferenceBooks
