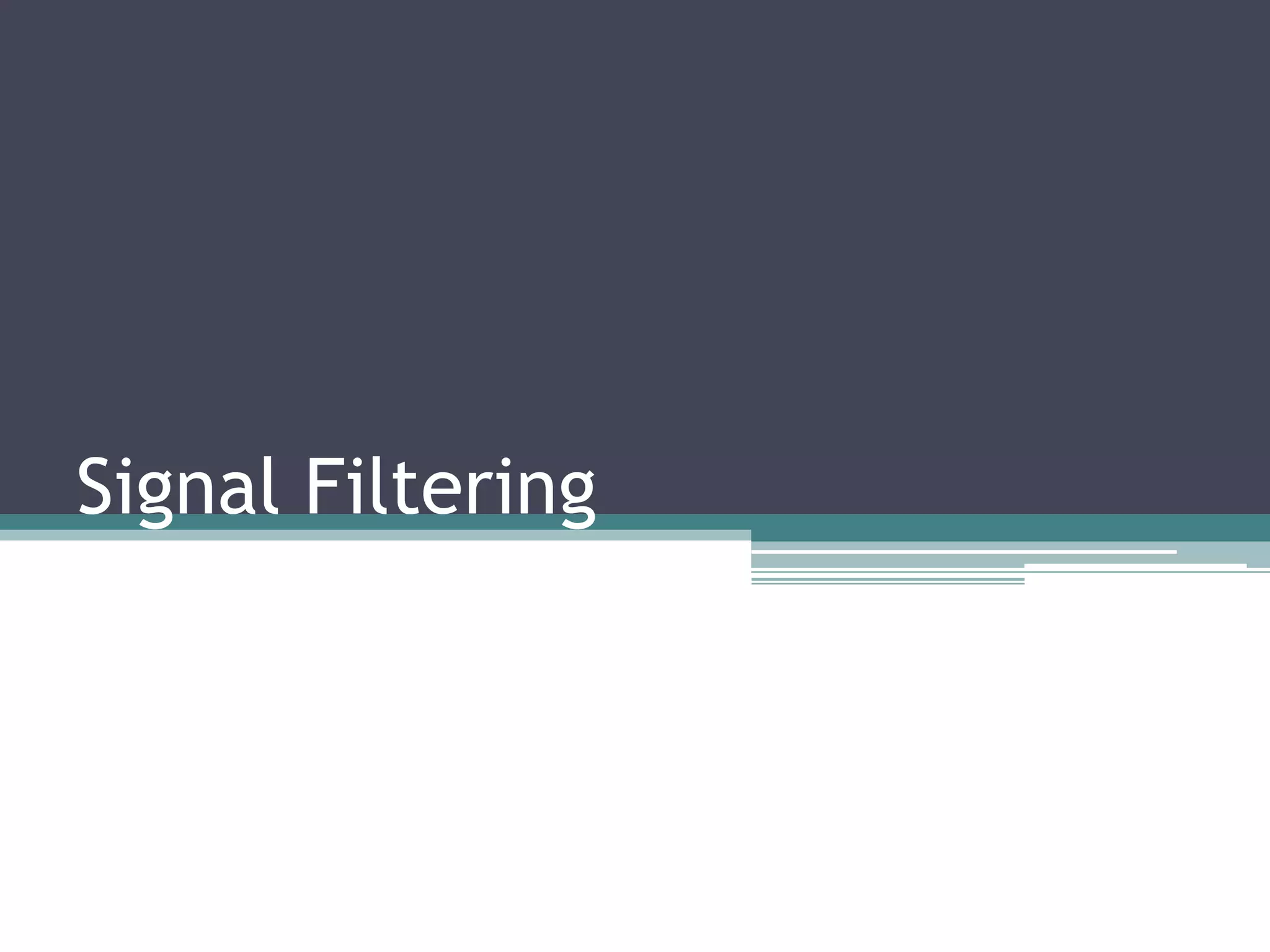

1. Signal Filtering

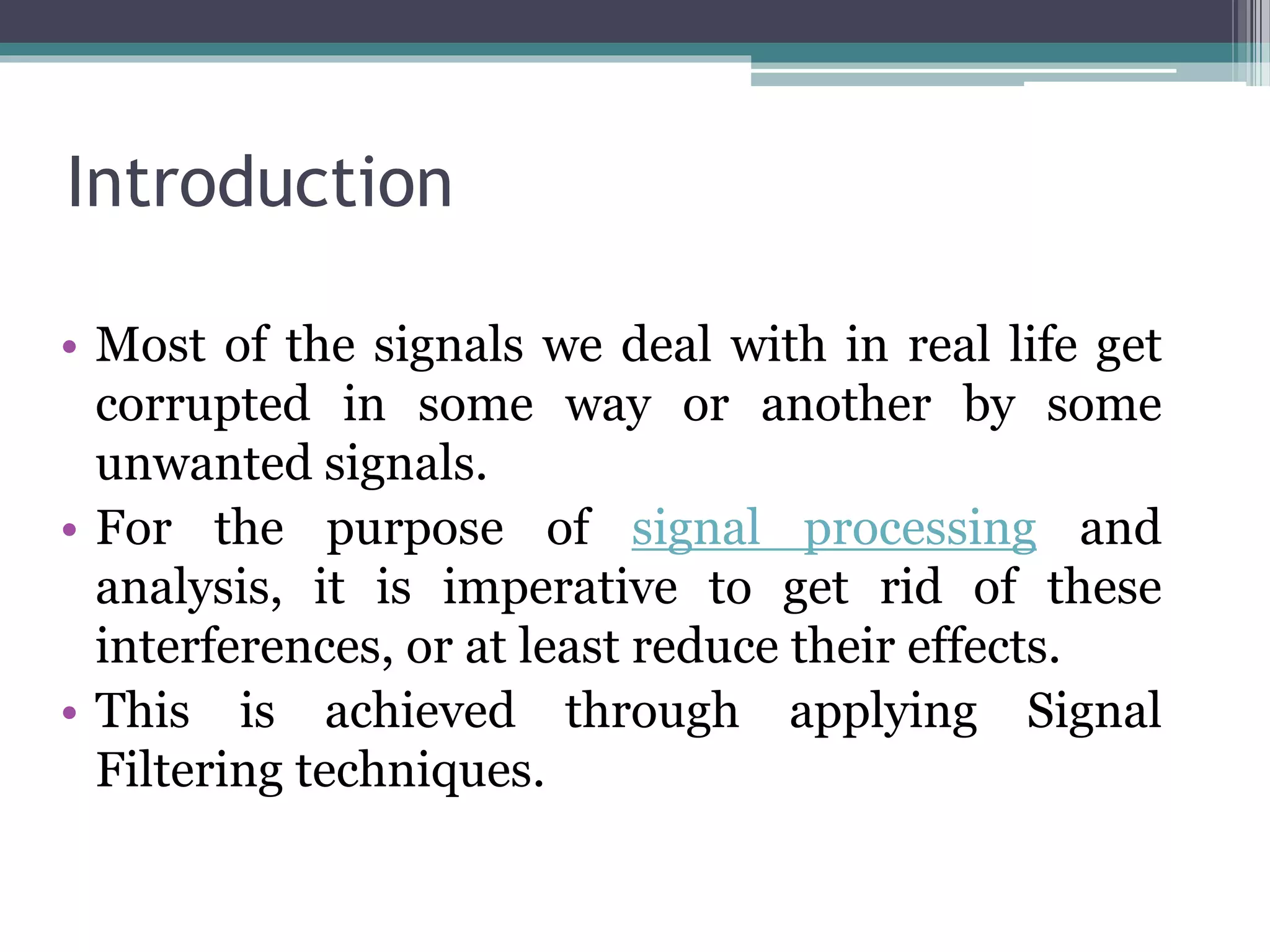

2. Introduction
• Most of the signals we deal with in real life get
corrupted in some way or another by some
unwanted signals.
• For the purpose of signal processing and
analysis, it is imperative to get rid of these
interferences, or at least reduce their effects.
• This is achieved through applying Signal
Filtering techniques.

3. What are filters?
• A Filter is an electronic circuit that
removes/attenuates, from a signal, some
unwanted component or feature.

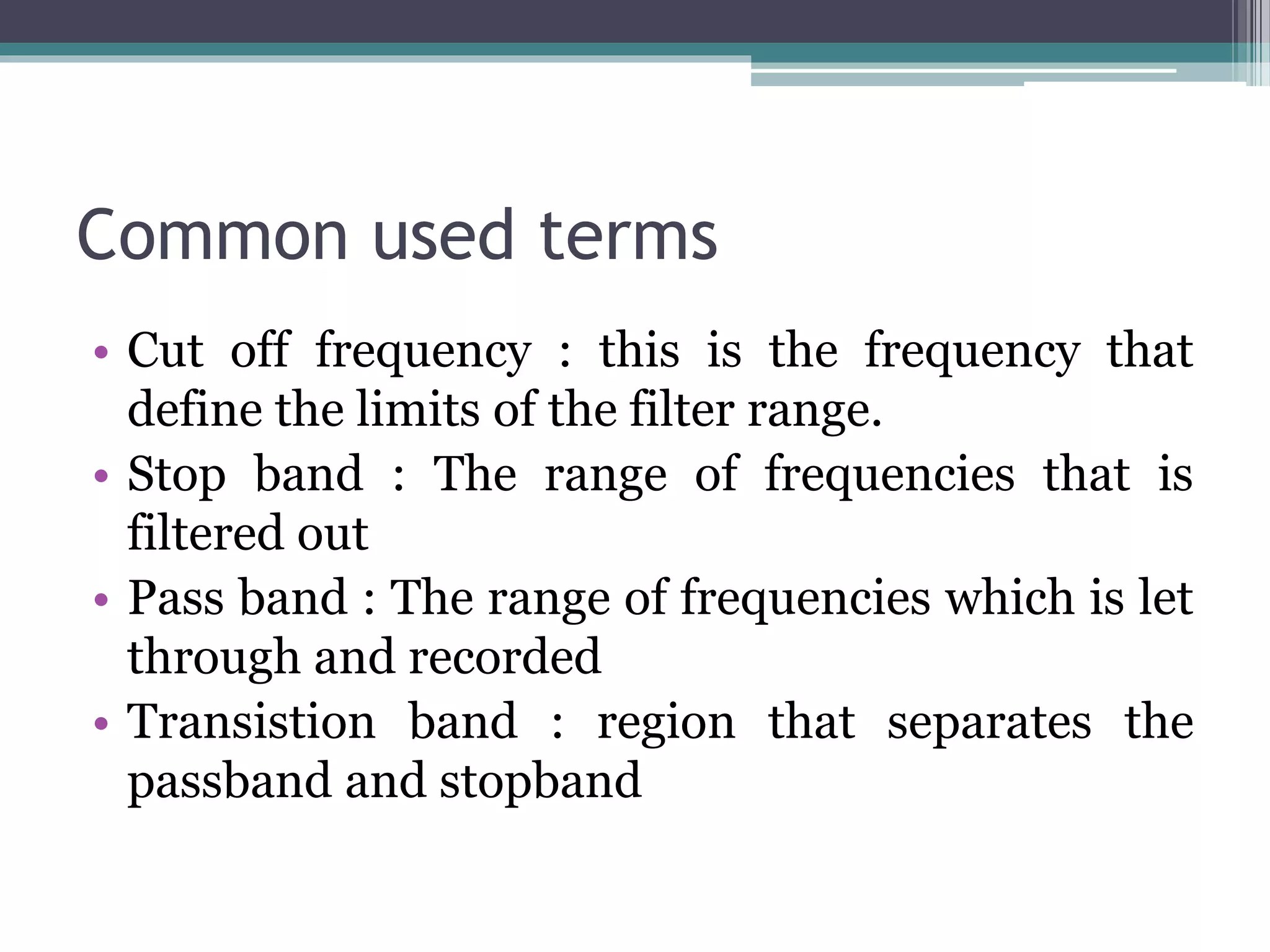

4. Common used terms
• Cut off frequency : this is the frequency that
define the limits of the filter range.
• Stop band : The range of frequencies that is
filtered out
• Pass band : The range of frequencies which is let
through and recorded
• Transistion band : region that separates the
passband and stopband

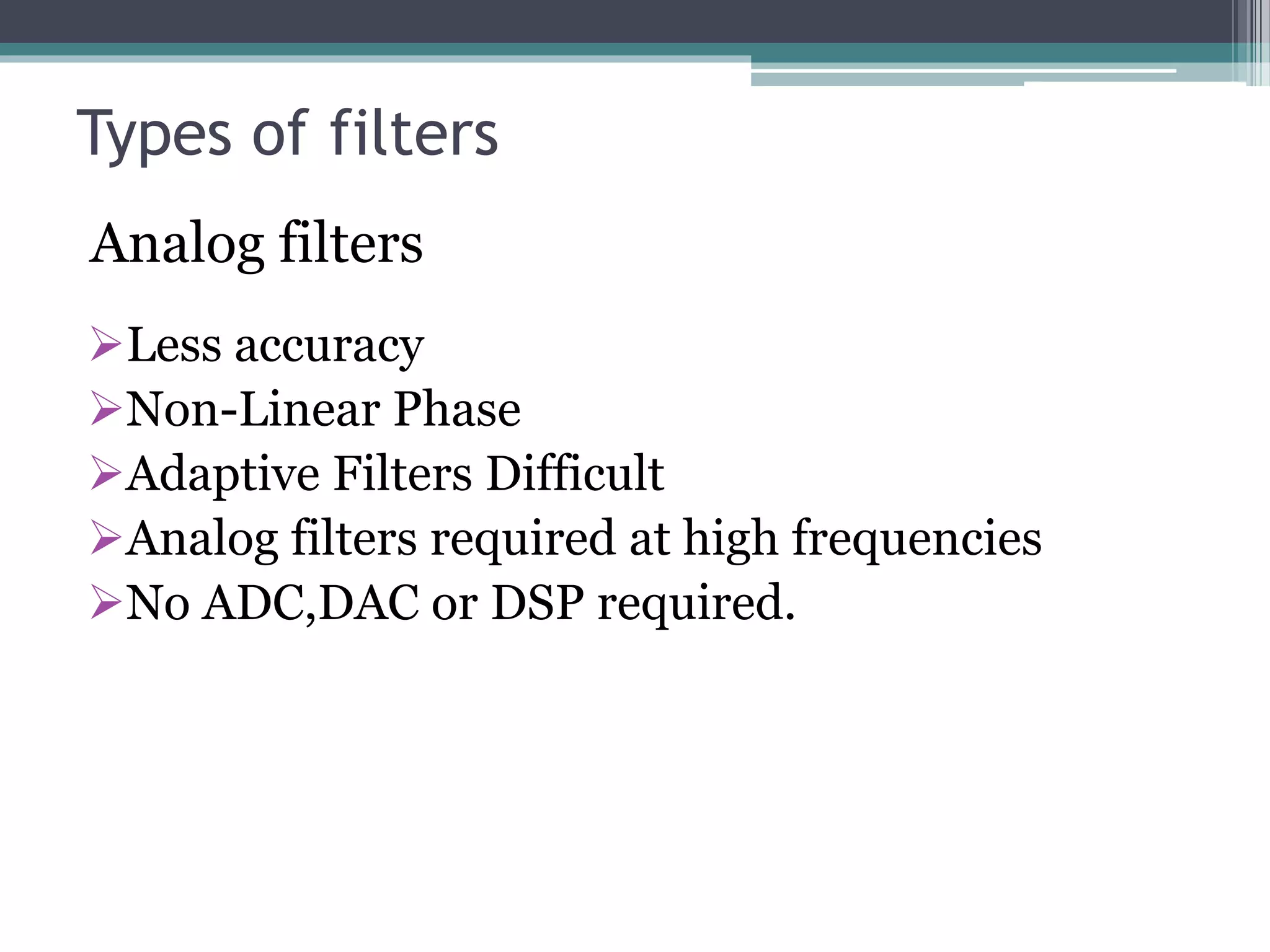

5. Types of filters
Less accuracy
Non-Linear Phase
Adaptive Filters Difficult
Analog filters required at high frequencies
No ADC,DAC or DSP required.
Analog filters

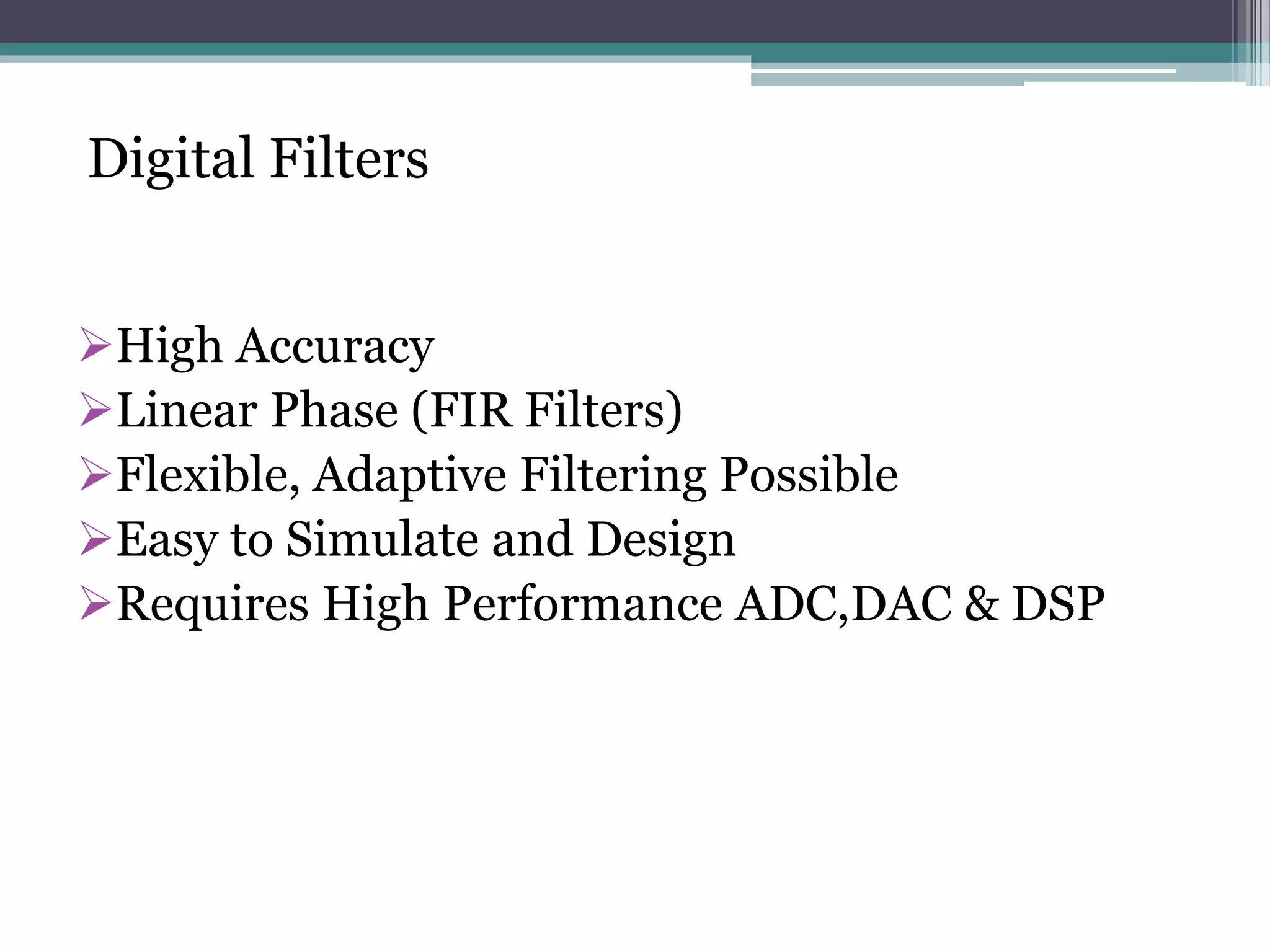

6. High Accuracy
Linear Phase (FIR Filters)
Flexible, Adaptive Filtering Possible
Easy to Simulate and Design
Requires High Performance ADC,DAC & DSP
Digital Filters

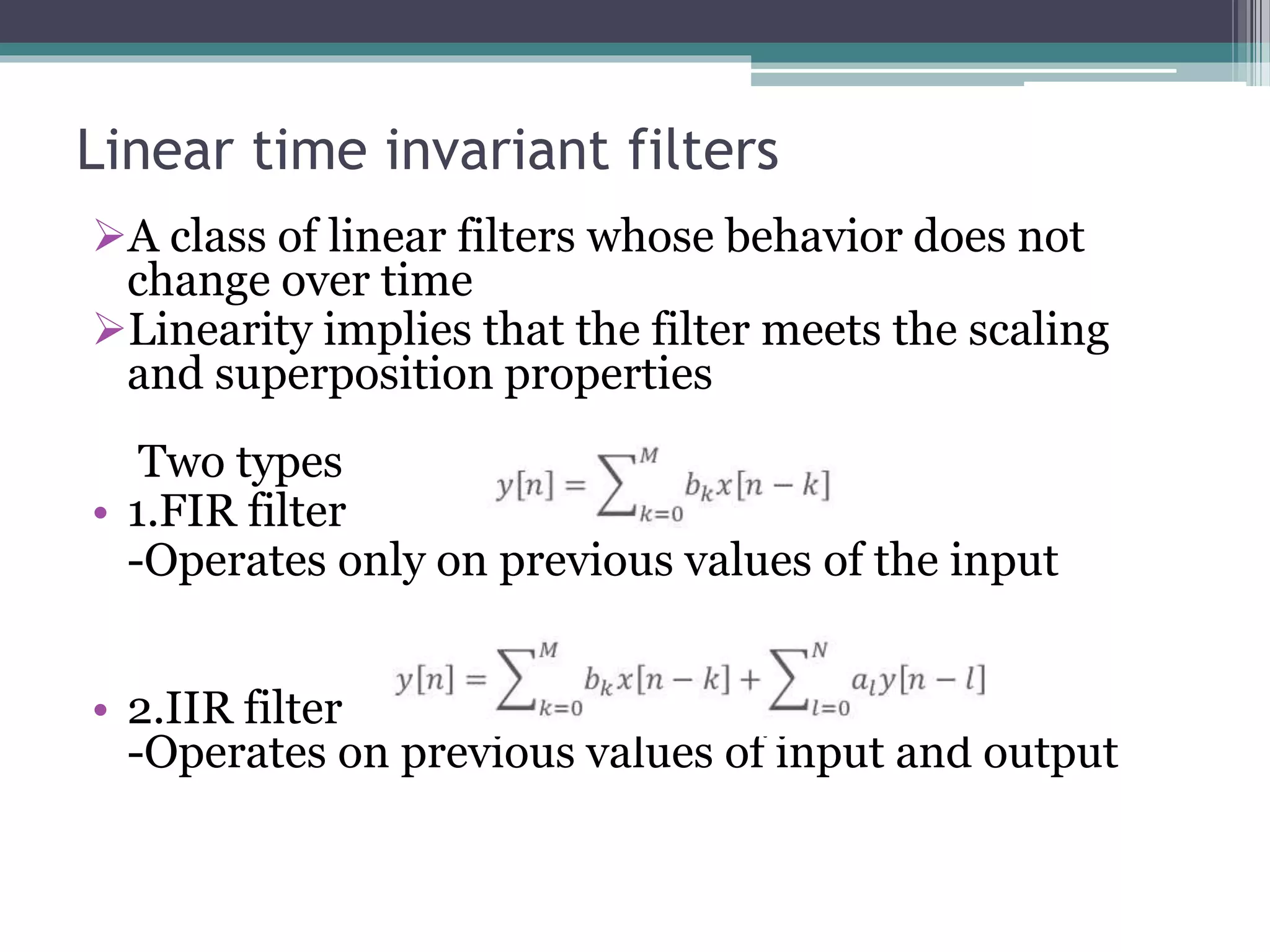

7. Linear time invariant filters
A class of linear filters whose behavior does not
change over time
Linearity implies that the filter meets the scaling
and superposition properties
Two types
• 1.FIR filter
-Operates only on previous values of the input
• 2.IIR filter
-Operates on previous values of input and output

8. Filters on the basis of structure
• Direct form

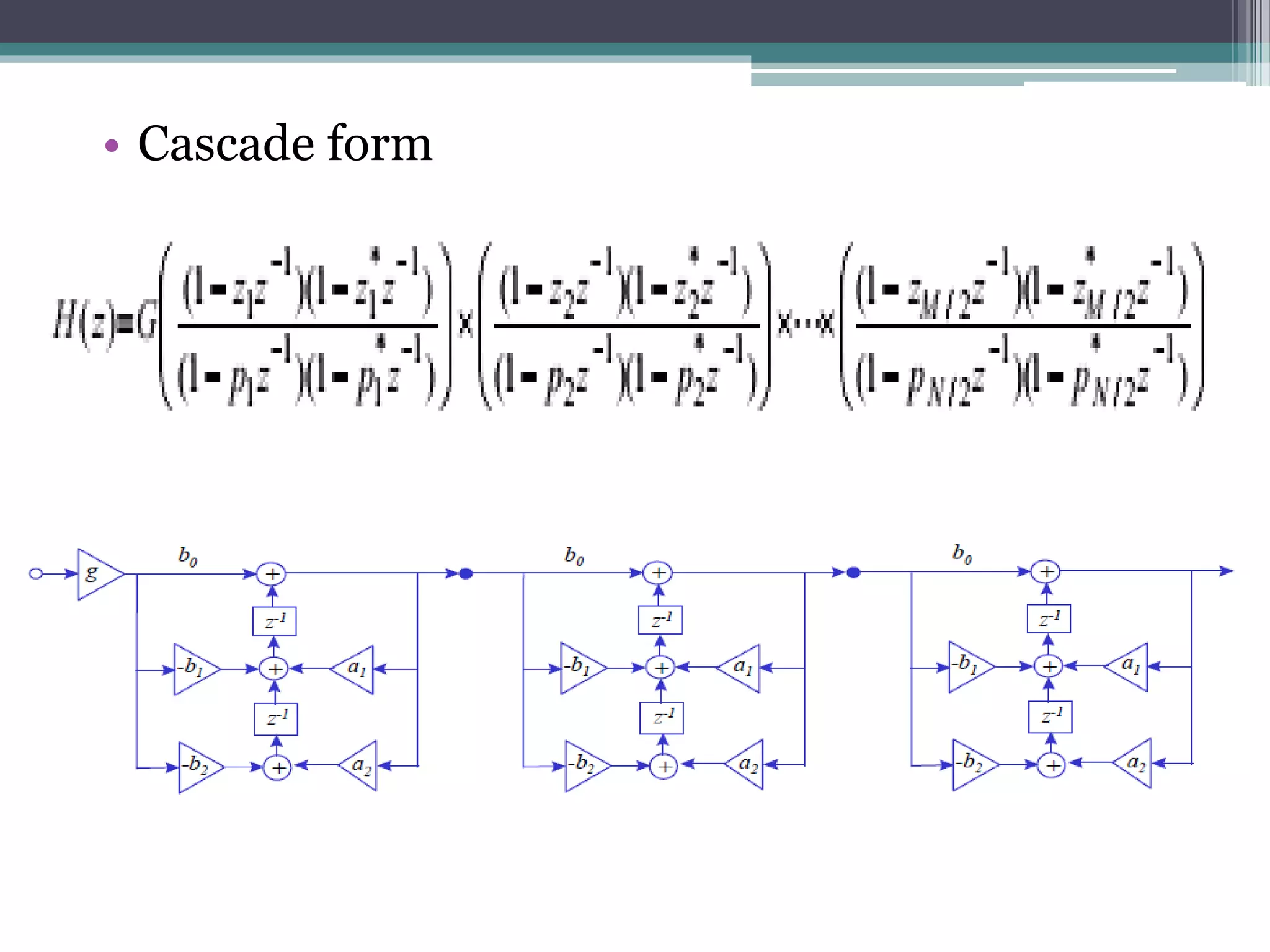

9. • Cascade form

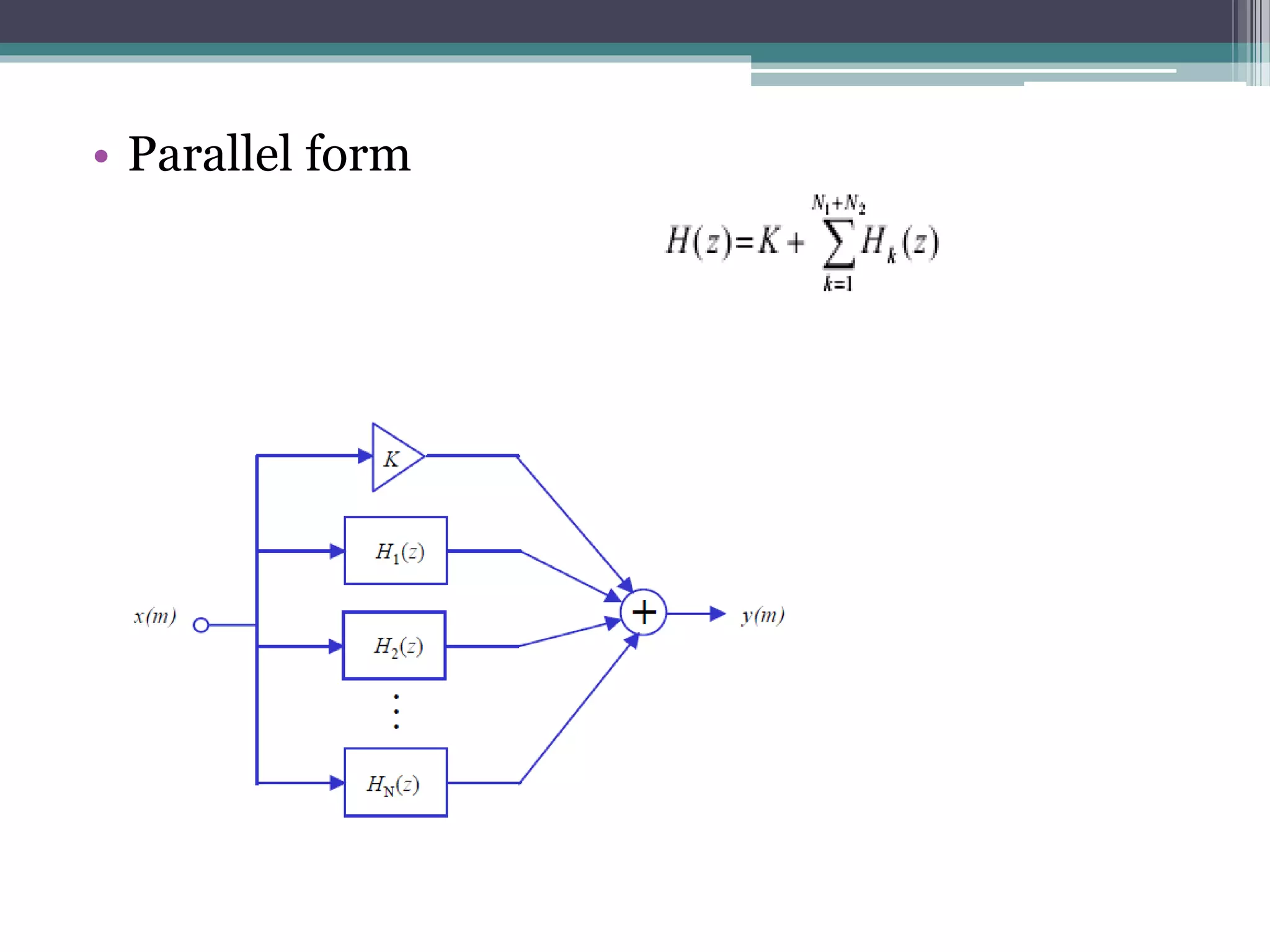

10. • Parallel form

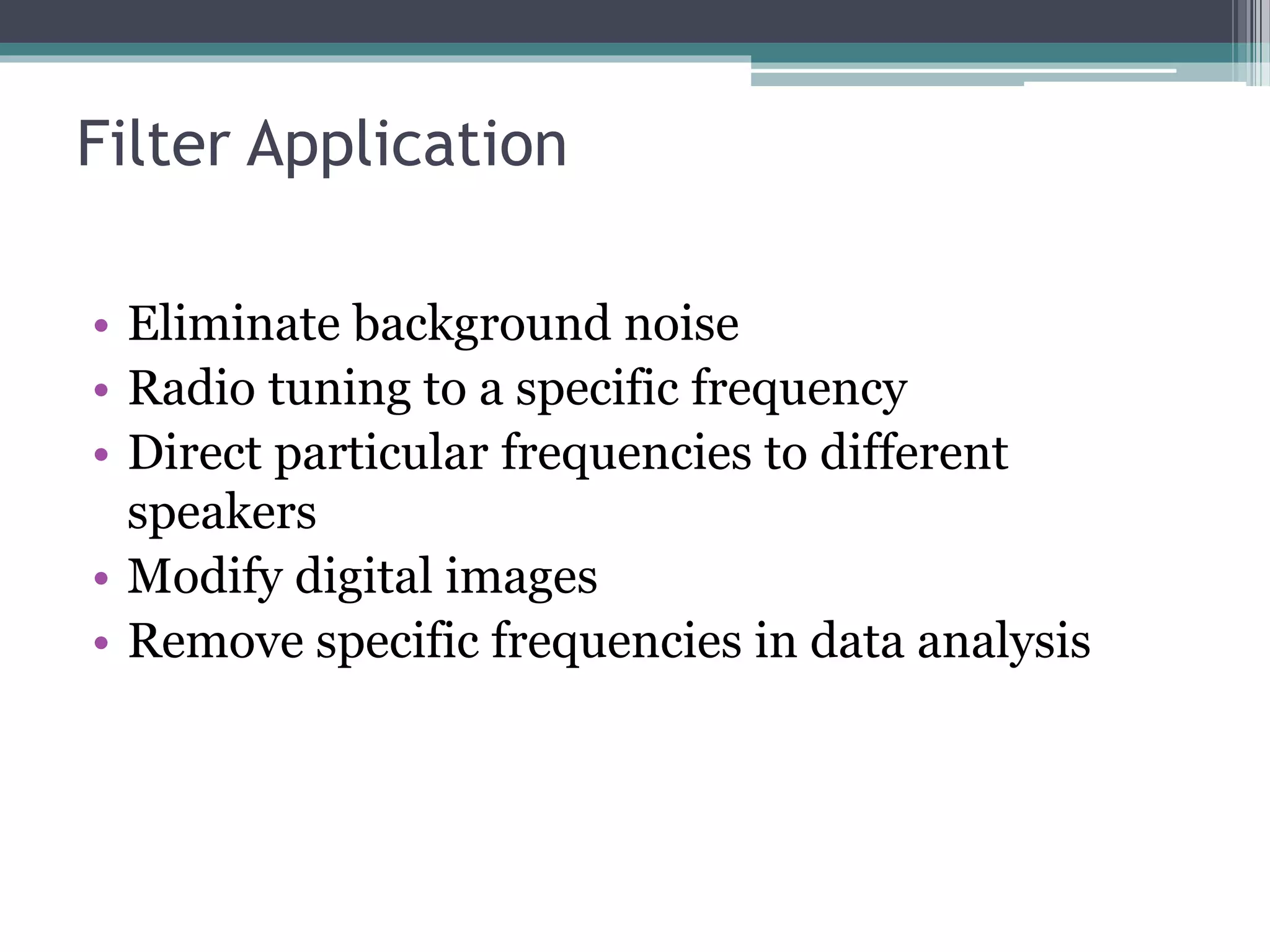

11. Filter Application
• Eliminate background noise
• Radio tuning to a specific frequency
• Direct particular frequencies to different
speakers
• Modify digital images
• Remove specific frequencies in data analysis

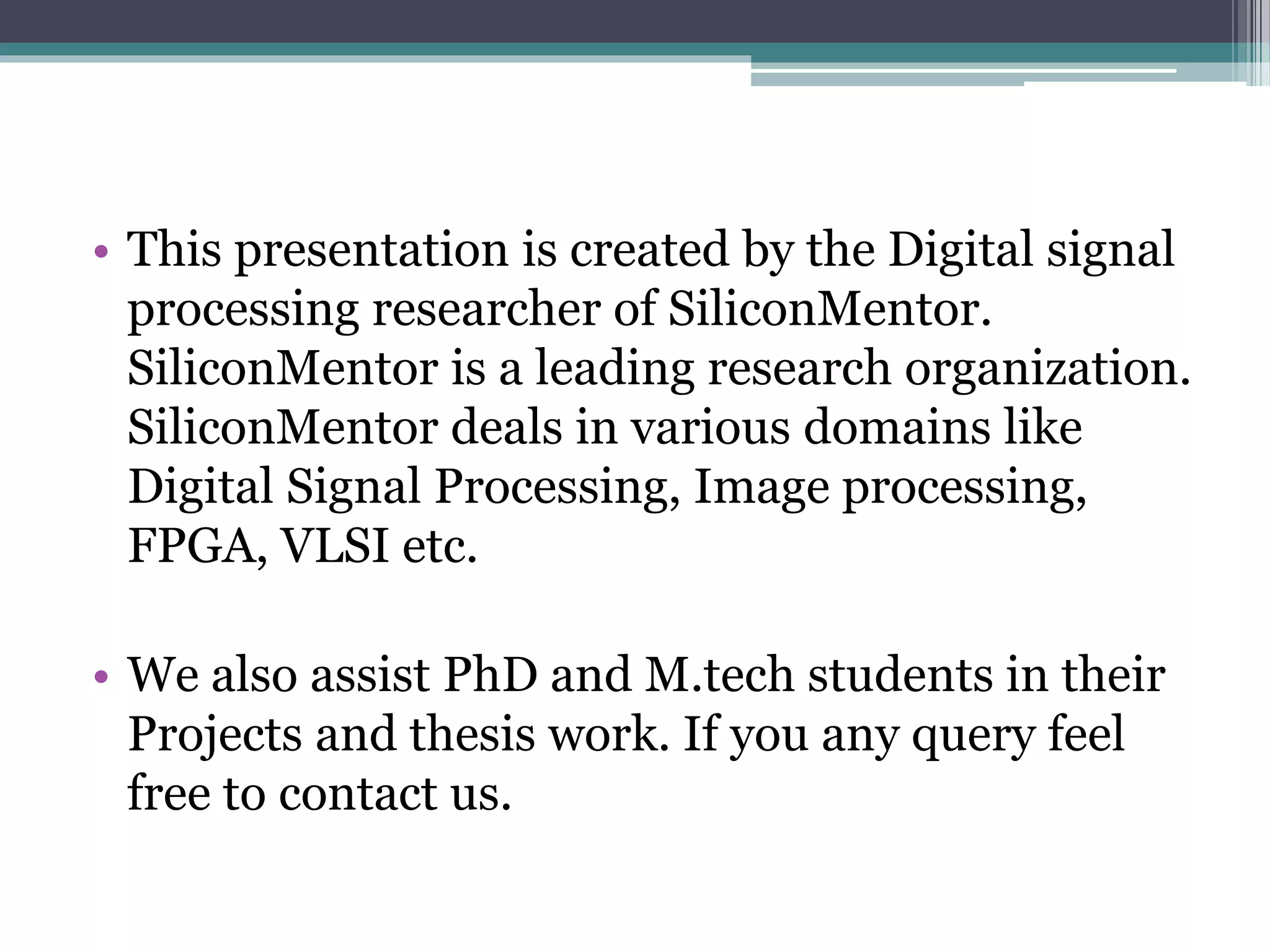

12. • This presentation is created by the Digital signal
