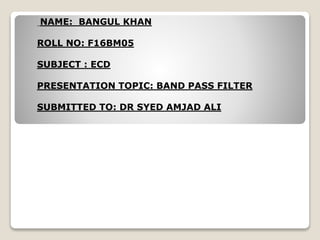

1. NAME: BANGUL KHAN
ROLL NO: F16BM05
SUBJECT : ECD
PRESENTATION TOPIC: BAND PASS FILTER
SUBMITTED TO: DR SYED AMJAD ALI

2. OUTLINE:
 BAND PASS FILTER
 SCHEMATIC DIAGRAM
 WAVEFORM
 TYPES OF BAND PASS FILTER :
 APPLICATIONS OF BAND PASS FILTER
 SIMULATION OF BAND PASS FILTER

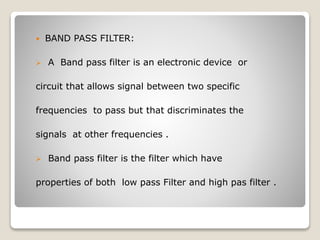

3.  BAND PASS FILTER:
 A Band pass filter is an electronic device or
circuit that allows signal between two specific
frequencies to pass but that discriminates the
signals at other frequencies .
 Band pass filter is the filter which have
properties of both low pass Filter and high pas filter .

4. SCHEMATIC DIAGRAM:

5. WAVEFORM:

6. So in waveform:
 Fl : low pass filter frequency
 FH : high pass filter frequency
 Fo: geometric center frequency
 B : band width

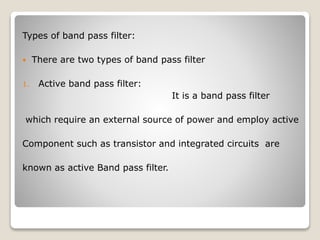

7. Types of band pass filter:
 There are two types of band pass filter
1. Active band pass filter:
It is a band pass filter
which require an external source of power and employ active
Component such as transistor and integrated circuits are
known as active Band pass filter.

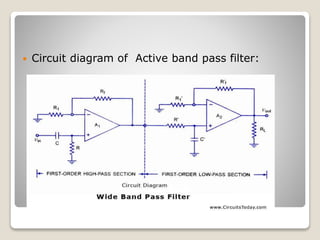

8.  Circuit diagram of Active band pass filter:

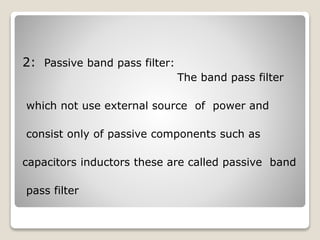

9. 2: Passive band pass filter:
The band pass filter
which not use external source of power and
consist only of passive components such as
capacitors inductors these are called passive band
pass filter

10.  Diagram of passive band pass filter:

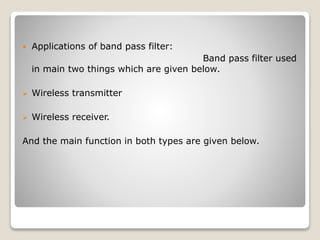

11.  Applications of band pass filter:
Band pass filter used
in main two things which are given below.
 Wireless transmitter
 Wireless receiver.
And the main function in both types are given below.

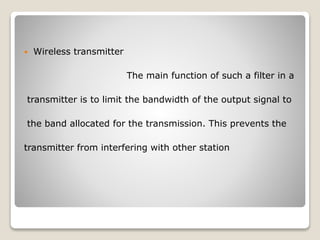

12.  Wireless transmitter
The main function of such a filter in a
transmitter is to limit the bandwidth of the output signal to
the band allocated for the transmission. This prevents the
transmitter from interfering with other station

13.  Wireless receiver.
In a receiver, a band pass filter allows
signals within selected range of frequencies to be heard or
decoded, while preventing signals at unwanted frequencies
from getting through other stations.

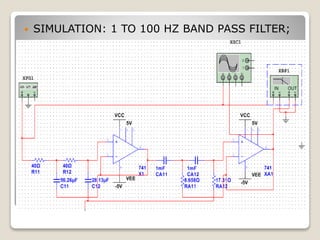

14.  SIMULATION: 1 TO 100 HZ BAND PASS FILTER;
