Describe the fundamentals of Digital Signal Processing (DSP) Apply DSP technology to improve efficiency Analyse frequency of signals and the application of this knowledge Correctly apply design digital filters Analyse the performance of DSP systems Identify the key issues in designing a DSP system Specify features and capabilities of commercial DSP applications WHO SHOULD ATTEND? Condition monitoring engineers and technicians Control system engineers Communications system engineers Design engineers Electrical and electronic engineers Instrumentation engineers MORE INFORMATION: http://www.idc-online.com/content/practical-digital-signal-processing-engineers-and-technicians-2

1. Practical Digital Signal Processing
for Engineers and Technicians
Technology www.idc-online.com/slideshare Training that Works

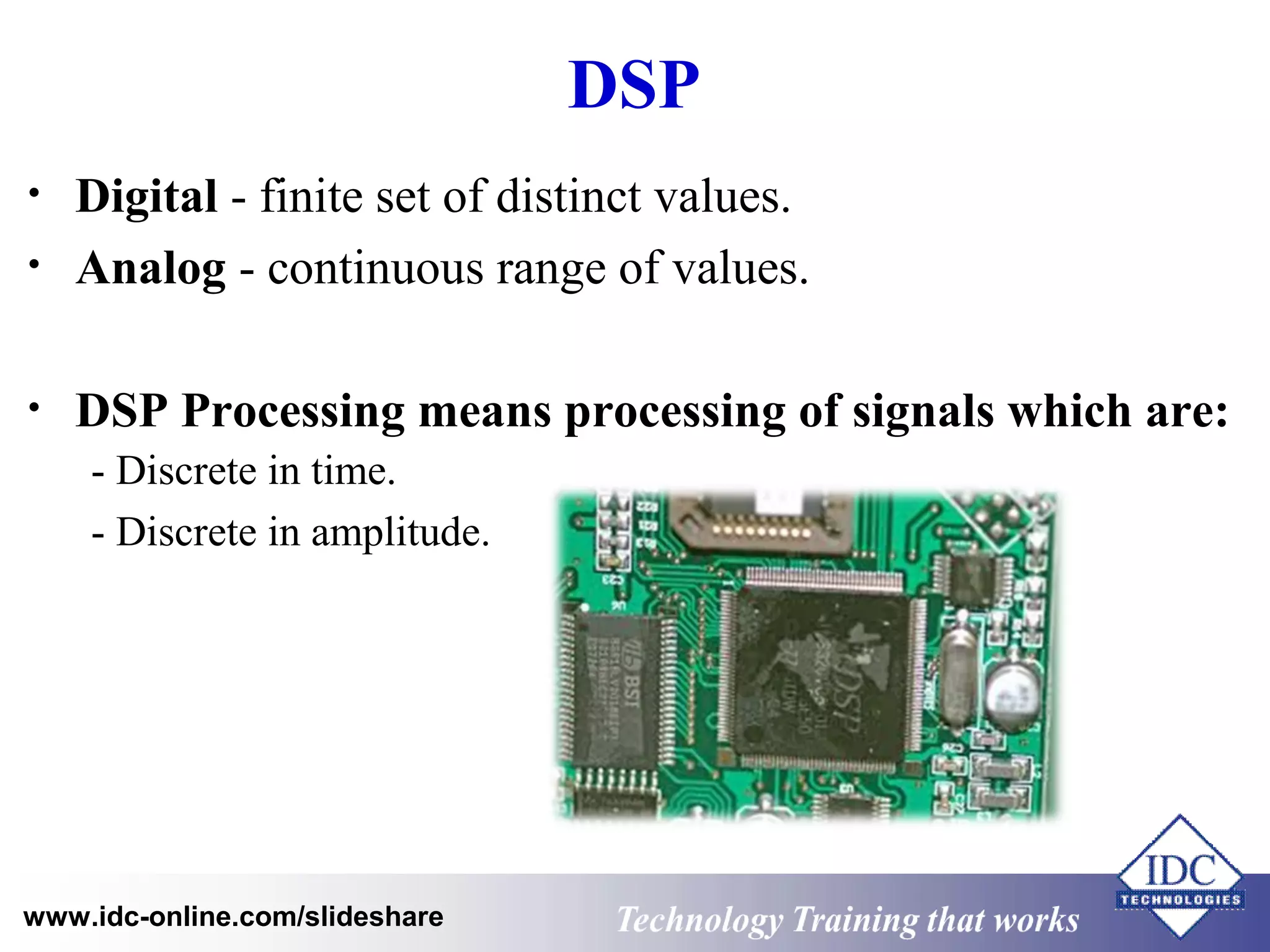

2. DSP
• Digital - finite set of distinct values.
• Analog - continuous range of values.
• DSP Processing means processing of signals which are:
- Discrete in time.
- Discrete in amplitude.
Technology www.idc-online.com/slideshare Training that Works

3. Two sources of discrete signals
• Ones that are discrete in
nature.
• Sampled version of a
continuous-time signal.
Technology www.idc-online.com/slideshare Training that Works

4. Why Process Signals Digitally?
• The signals are inherently discrete in nature.
• Consistency - compared with analog methods.
Technology www.idc-online.com/slideshare Training that Works

5. Definition of Terms
• Signals - A quantity that can be measured over time.
• Frequency - A signal is said to have a frequency of 50 or 60 Hz.
• Spectrum - Some signals have a combination of frequencies.
• Low Pass Filter - This lets through the low pass component.
• Bandpass Filter - Only a range of frequencies is passed through
intact.
• High-pass Filter - Allows frequencies above a certain frequency to
pass through intact.
Technology www.idc-online.com/slideshare Training that Works

6. Some Application Areas
• Speech and Audio Processing.
- Coding.
- Synthesis.
- Recognition.
Technology www.idc-online.com/slideshare Training that Works

7. Companding Process
Technology www.idc-online.com/slideshare Training that Works

8. Adaptive Differential Pulse Code Modulator
Technology www.idc-online.com/slideshare Training that Works

9. Linear Predictive Coding
Technology www.idc-online.com/slideshare Training that Works

10. Image and Video Processing
• Image Enhancement.
• Image Restoration.
• Image Compression and
Coding.
Technology www.idc-online.com/slideshare Training that Works

11. Adaptive Filtering
• Noise Cancellation.
• Echo Cancellation.
• Channel Equalisation.
Technology www.idc-online.com/slideshare Training that Works

12. Adaptive Noise Cancellation System
Technology www.idc-online.com/slideshare Training that Works

13. Adaptive Echo Cancellation System
Technology www.idc-online.com/slideshare Training that Works

14. Adaptive Equalizer in Training Mode
Technology www.idc-online.com/slideshare Training that Works

15. Control Applications
• Controlling closed-loop feedback systems.
• Controller implements algebraic algorithms such as filters
and compensators.
Technology www.idc-online.com/slideshare Training that Works

16. Digital Closed Loop Control System
Technology www.idc-online.com/slideshare Training that Works

17. Sensor or Antenna Array Processing
• Spatially distributed sensors are used for receiving signals
from some sources.
• Coherent summing of outputs from these sensors referred to
as beamforming.
• One can “listen” preferentially to wavefronts originating
from one direction over another.
Technology www.idc-online.com/slideshare Training that Works

18. Digital Communication
• New Architecture called
software radio.
• Use of wideband A/D and D/A
converters to convert RF or IF
signals directly.
Technology www.idc-online.com/slideshare Training that Works

19. Software Radio Architecture
Technology www.idc-online.com/slideshare Training that Works
