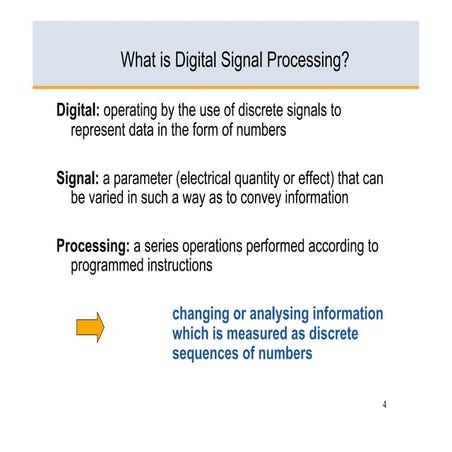

Digital: Operating by the use of discrete signals to represent data in the form of numbers.
Signal: A parameter (Electrical quantity or effect) that can be varied in such a way as to convey information.
Processing: A series operations performed according to programmed instructions.
The TMS320C6472 DSP is a six-core, fixed-point DSP from Texas instrument and two of these are integrated onto the Sundance EVP6472. Each DSP Core is a 700MHz DSP and can used for a many applications, requiring Embedded DSP Processing
Practical Digital Signal Processing for Engineers and TechniciansLiving Online
Describe the fundamentals of Digital Signal Processing (DSP)
Apply DSP technology to improve efficiency
Analyse frequency of signals and the application of this knowledge
Correctly apply design digital filters
Analyse the performance of DSP systems
Identify the key issues in designing a DSP system
Specify features and capabilities of commercial DSP applications
WHO SHOULD ATTEND?
Condition monitoring engineers and technicians
Control system engineers
Communications system engineers
Design engineers
Electrical and electronic engineers
Instrumentation engineers
MORE INFORMATION: http://www.idc-online.com/content/practical-digital-signal-processing-engineers-and-technicians-2
High Performance DSP with Xilinx All Programmable Devices (Design Conference ...Analog Devices, Inc.
This session includes a discussion on rapid prototyping concepts using Xilinx All Programmable FPGAs and SoCs with Analog Devices high speed and precision products. Covered in this session will be common use cases for Xilinx devices in DSP applications that interface to high speed analog. An overview will be provided of how Xilinx accelerates development with DSP platforms that can be used to quickly evaluate and prototype systems that include high speed analog, programmable logic, and embedded processing. Also covered will be an introduction to Xilinx’s new Vivado Design Suite development environment that shortens design cycles by providing an IP centric design flow, easy to use design analysis and debug, and high level design flows supporting C/C++ and MATLAB/Simulink.
Digital: Operating by the use of discrete signals to represent data in the form of numbers.
Signal: A parameter (Electrical quantity or effect) that can be varied in such a way as to convey information.
Processing: A series operations performed according to programmed instructions.
The TMS320C6472 DSP is a six-core, fixed-point DSP from Texas instrument and two of these are integrated onto the Sundance EVP6472. Each DSP Core is a 700MHz DSP and can used for a many applications, requiring Embedded DSP Processing
Practical Digital Signal Processing for Engineers and TechniciansLiving Online
Describe the fundamentals of Digital Signal Processing (DSP)
Apply DSP technology to improve efficiency
Analyse frequency of signals and the application of this knowledge
Correctly apply design digital filters
Analyse the performance of DSP systems
Identify the key issues in designing a DSP system
Specify features and capabilities of commercial DSP applications
WHO SHOULD ATTEND?
Condition monitoring engineers and technicians
Control system engineers
Communications system engineers
Design engineers
Electrical and electronic engineers
Instrumentation engineers
MORE INFORMATION: http://www.idc-online.com/content/practical-digital-signal-processing-engineers-and-technicians-2
High Performance DSP with Xilinx All Programmable Devices (Design Conference ...Analog Devices, Inc.
This session includes a discussion on rapid prototyping concepts using Xilinx All Programmable FPGAs and SoCs with Analog Devices high speed and precision products. Covered in this session will be common use cases for Xilinx devices in DSP applications that interface to high speed analog. An overview will be provided of how Xilinx accelerates development with DSP platforms that can be used to quickly evaluate and prototype systems that include high speed analog, programmable logic, and embedded processing. Also covered will be an introduction to Xilinx’s new Vivado Design Suite development environment that shortens design cycles by providing an IP centric design flow, easy to use design analysis and debug, and high level design flows supporting C/C++ and MATLAB/Simulink.
For the full video of this presentation, please visit: https://www.edge-ai-vision.com/2023/06/tensilica-processor-cores-enable-sensor-fusion-for-robust-perception-a-presentation-from-cadence/
Amol Borkar, Product Marketing Director at Cadence, presents the “Tensilica Processor Cores Enable Sensor Fusion for Robust Perception” tutorial at the May 2023 Embedded Vision Summit.
Until recently, the majority of sensor-based AI processing used vision and speech inputs. Recently, we have begun to see radar, LiDAR, event-based image sensors and other types of sensors used in new AI applications. And, increasingly, system developers are incorporating multiple, heterogeneous sensors in their designs and utilizing sensor fusion techniques to enable more robust machine perception.
In this presentation, Borkar explores some of the heterogeneous sensor combinations and sensor fusion approaches that are gaining adoption in applications such as driver assistance and mobile robots. He also shows how the Cadence Tensilica ConnX and Vision processor IP core families and their associated software tools and libraries support sensor fusion applications with high performance, efficiency and ease of development.
Hai Tao at AI Frontiers: Deep Learning For Embedded Vision SystemAI Frontiers
This presentation will demonstrate our recent progress in developing advanced computer vision algorithms using embedded platforms for video-based face recognition, vehicle attribute analysis, urban management event detection, and high-density crowd counting. These algorithms combine the traditional CV approach with recent advances in deep learning to make high-performance computer vision systems practical and enable products in several vertical markets including intelligent transportation systems (ITS), business intelligence (BI), and smart video surveillance. We will demonstrate algorithm design and optimization scheme for several recently available processors from Movidius, Nvidia, and ARM.
20200509 sid china digital optics and digital modulation_v5.0Chun-Wei Tsai
CEO Kenneth Tai from Jasper Display Corp. (JDC) was an invited speaker at SID China on May 9, 2020. The presentation title is "Digital Optics and Digital Modulation."
For the full video of this presentation, please visit: https://www.edge-ai-vision.com/2022/06/designing-the-next-ultra-low-power-always-on-solution-a-presentation-from-cadence/
Amol Borkar, Director of Product Management and Marketing for Tensilica Vision and AI DSPs at Cadence, presents the “Designing the Next Ultra-Low-Power Always-On Solution” tutorial at the May 2022 Embedded Vision Summit.
Increasingly, users expect their systems to be ready to respond at any time—for example, using a voice command to launch a music playlist. System designers have traditionally relied on classical signal processing techniques on simple microcontrollers to implement such features. Today, as more and more devices incorporate cameras and other types of sensors, there’s a growing desire to enable “always-on” functionality using more than just wake words—for example, so that a doorbell camera can wake up when a person approaches.
These enhancements require clever AI algorithms that can reliably detect events of interest. And, to enable “always-on” capability, these sophisticated algorithms often must be implemented with ultra-low power consumption, especially for battery-powered devices. In this presentation, Borkar shares the trends his company has observed in always-on features and applications and highlights the latest additions to the Cadence Tensilica processor portfolio that address the needs of ultra-low-power, always-on applications.
This project is basically on software defined radio which was published by microsoft asia team which is based on reconfigurable baseband processor architecture, which tries to increase the performance of processor by adding no. cores into process
OMAP (Open Multimedia Applications Platform) is a series of image/video processors developed by Texas Instruments. this ppt gives the overview of OMAP processor family
POWER GENERATION OF THERMAL POWER PLANTsathish sak
. The kinetic energy of the molecules in a solid, liquid or gas
2. The more kinetic energy, the more thermal energy the object possesses
3. Physicists also call this the internal energy of an object
mathematics application fiels of engineeringsathish sak
MATHS IS HARD
MATHS IS BORING
MATHS HAS NOTHING TO DO WITH REAL LIFE
ALL MATHEMATICIANS ARE MAD!
BUT I CAN SHOW YOU THAT MATHS IS IMPORTANT IN
CRIME DETECTION MEDICINE FINDING LANDMINES
Plastic is a material consists of wide range of synthetic or organics that can be moulded into solid object with diverse shapes.
The word PLASTIC is derived from the Greek Word “PLASTIKOS” meaning capable of being shaped or moulded.
Plastics are organic polymers of higher molecular mass.
Radio frequency identification(RFID) technology using at various application by using radio frequency ranges.
It is especially used at tollgates. For automation of gate control.
It can also used at library systems.
Green Chemistry is the utilisation of a set of principles that reduces or eliminates the use or generation of hazardous substances in the design, manufacture and application of chemical products .
A particle accelerator
Sends charged particles, which constantly accelerate through a ‘Dee’, through a circular path until they are (most likely) directed towards a designated target for a specific purpose
The scarcity of water, in terms of both quantity and quality, poses a significant threat to the current and future well being of people worldwide, but especially to people in developing countries. Sustainable water management is a critical aspect of addressing poverty, equity, and related issues. Science and technology has a role to play in contributing to the development of new methods, tools, and techniques to solve specific water quality and quantity problems. The projects that meet economic, social, and environmental criteria can contribute to sustainable management of water resources and improve access to clean water for poor people in developing countries.
Multi-cluster Kubernetes Networking- Patterns, Projects and GuidelinesSanjeev Rampal
Talk presented at Kubernetes Community Day, New York, May 2024.
Technical summary of Multi-Cluster Kubernetes Networking architectures with focus on 4 key topics.
1) Key patterns for Multi-cluster architectures
2) Architectural comparison of several OSS/ CNCF projects to address these patterns
3) Evolution trends for the APIs of these projects
4) Some design recommendations & guidelines for adopting/ deploying these solutions.
1.Wireless Communication System_Wireless communication is a broad term that i...JeyaPerumal1
Wireless communication involves the transmission of information over a distance without the help of wires, cables or any other forms of electrical conductors.
Wireless communication is a broad term that incorporates all procedures and forms of connecting and communicating between two or more devices using a wireless signal through wireless communication technologies and devices.
Features of Wireless Communication
The evolution of wireless technology has brought many advancements with its effective features.
The transmitted distance can be anywhere between a few meters (for example, a television's remote control) and thousands of kilometers (for example, radio communication).
Wireless communication can be used for cellular telephony, wireless access to the internet, wireless home networking, and so on.
ER(Entity Relationship) Diagram for online shopping - TAEHimani415946
https://bit.ly/3KACoyV
The ER diagram for the project is the foundation for the building of the database of the project. The properties, datatypes, and attributes are defined by the ER diagram.
This 7-second Brain Wave Ritual Attracts Money To You.!nirahealhty
Discover the power of a simple 7-second brain wave ritual that can attract wealth and abundance into your life. By tapping into specific brain frequencies, this technique helps you manifest financial success effortlessly. Ready to transform your financial future? Try this powerful ritual and start attracting money today!
3. 3

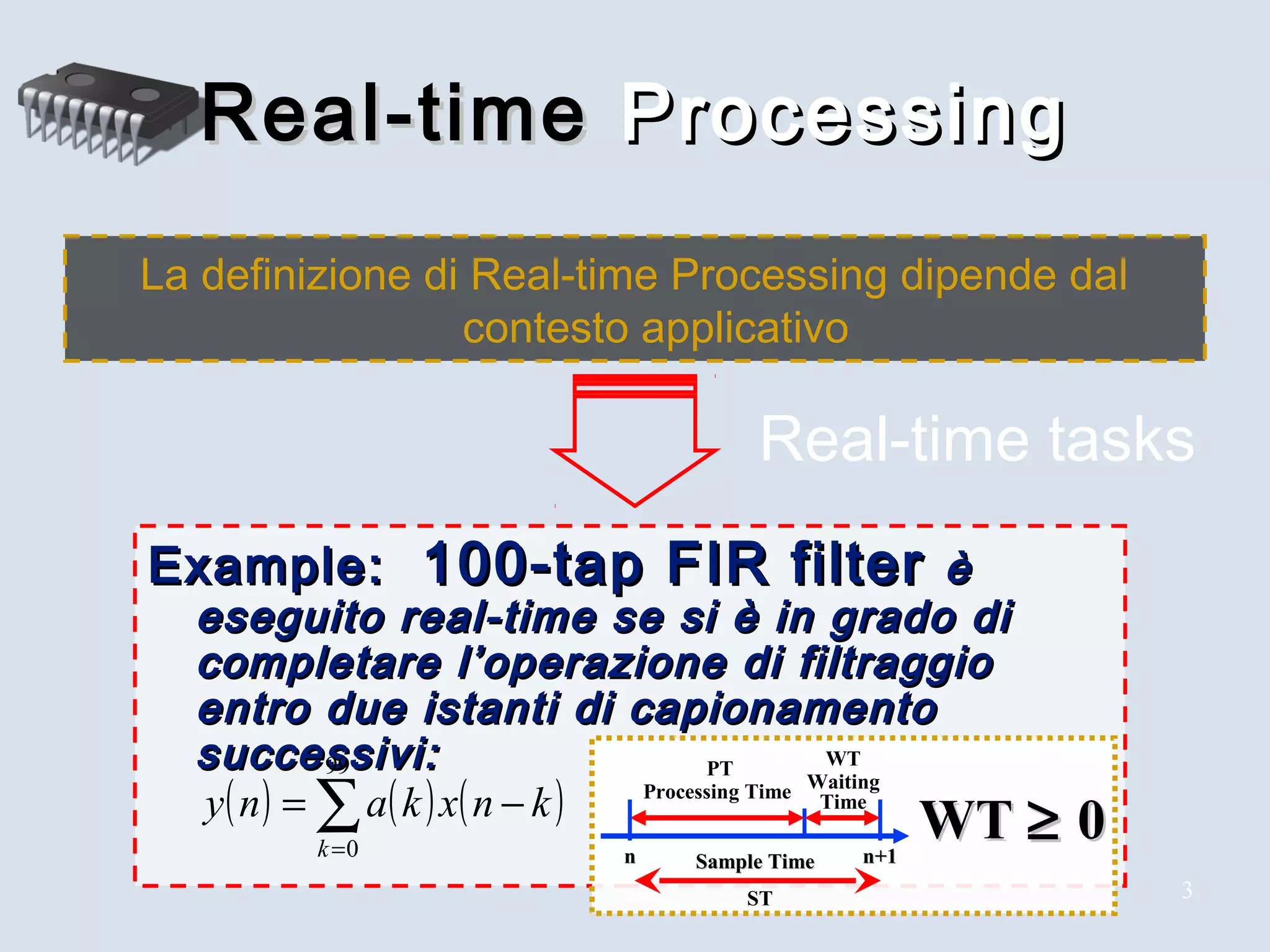

Real-time tasks
Real-timeReal-time ProcessingProcessing
Example:Example: 100-tap FIR filter100-tap FIR filter èè
eseguito real-time se si è in grado dieseguito real-time se si è in grado di
completare l’operazione di filtraggiocompletare l’operazione di filtraggio
entro due istanti di capionamentoentro due istanti di capionamento
successivi:successivi:
( ) ( ) ( )∑=
−=
99
0k
knxkany
La definizione di Real-time Processing dipende dal
contesto applicativo
Processing Time Waiting
Time
Sample TimeSample Timenn n+1n+1
WTPT
ST
WTWT ≥≥ 00

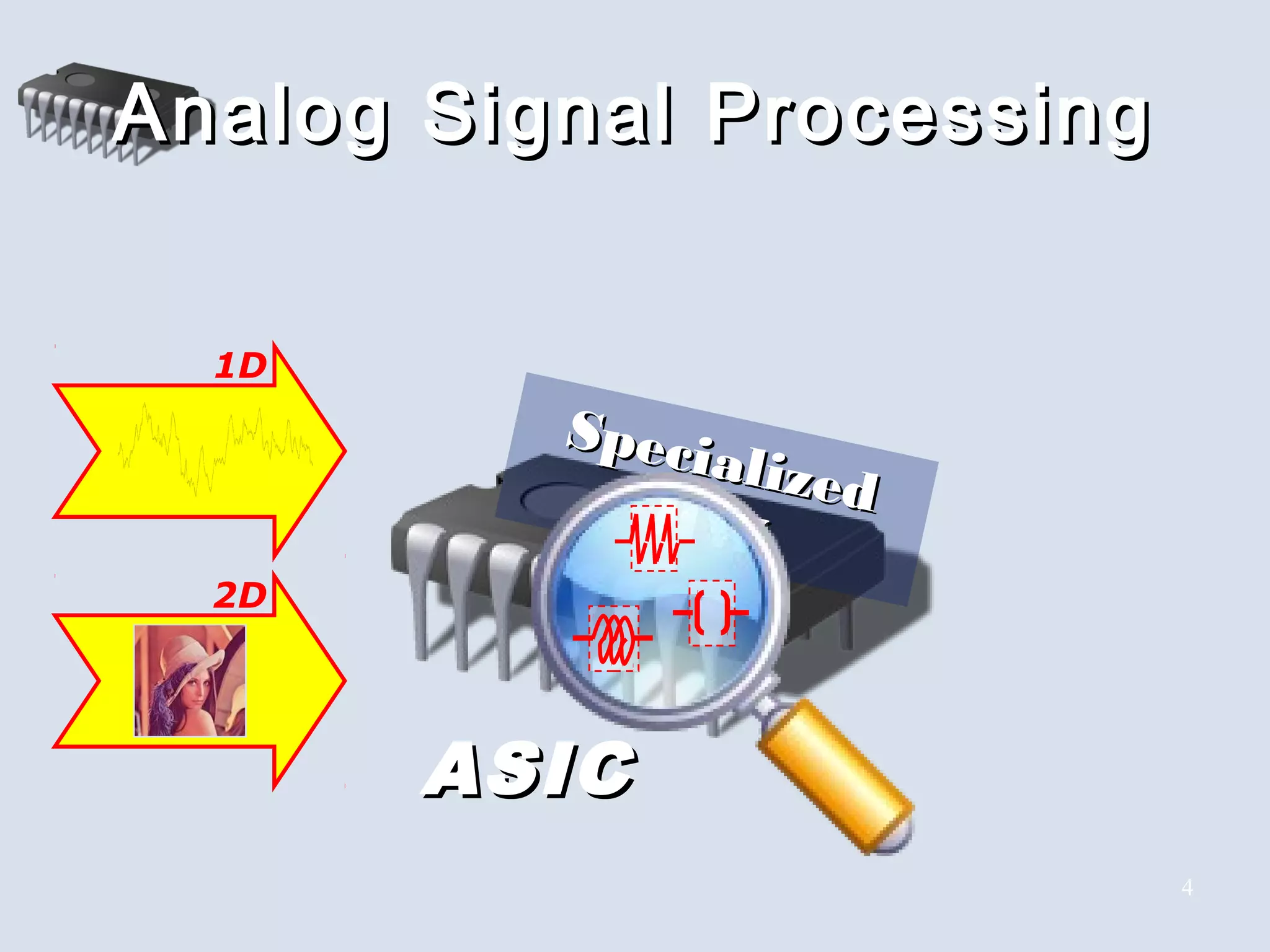

5. 5

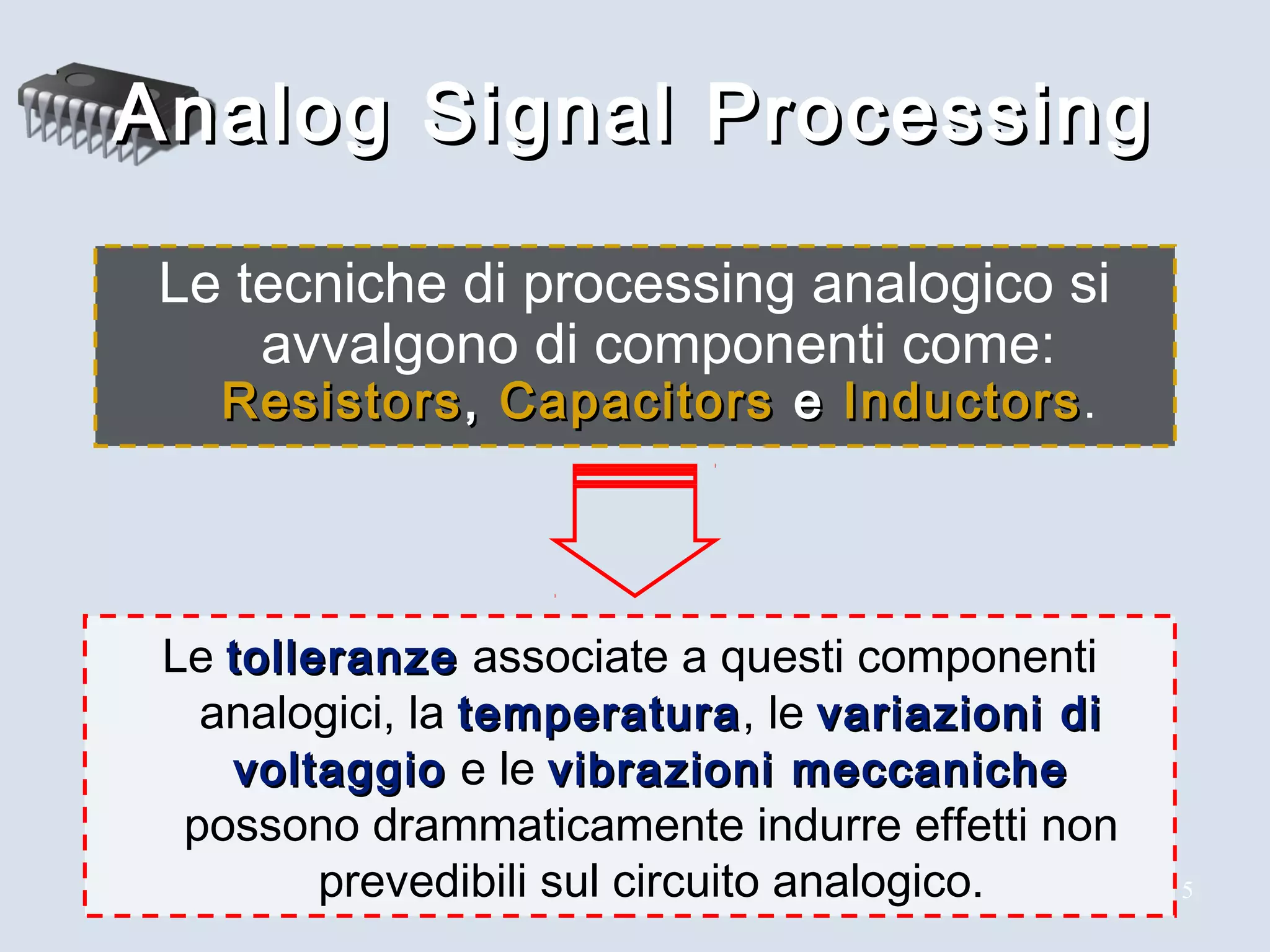

Le tolleranzetolleranze associate a questi componenti
analogici, la temperaturatemperatura, le variazioni divariazioni di
voltaggiovoltaggio e le vibrazioni meccanichevibrazioni meccaniche
possono drammaticamente indurre effetti non
prevedibili sul circuito analogico.
Le tecniche di processing analogico si
avvalgono di componenti come:
ResistorsResistors,, CapacitorsCapacitors ee InductorsInductors.
Analog Signal ProcessingAnalog Signal Processing
7. 7

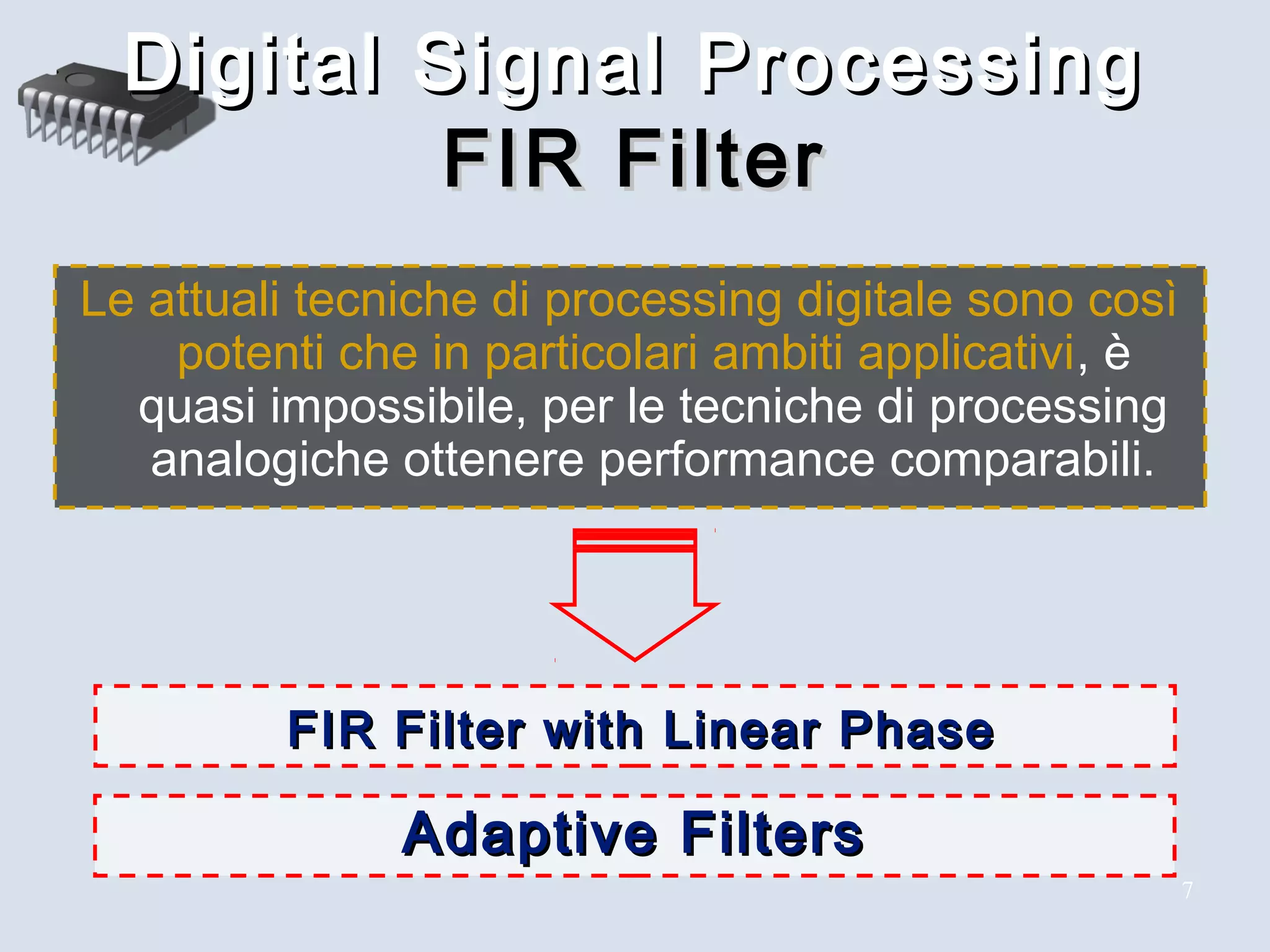

FIR Filter with Linear PhaseFIR Filter with Linear Phase
Le attuali tecniche di processing digitale sono così
potenti che in particolari ambiti applicativi, è
quasi impossibile, per le tecniche di processing
analogiche ottenere performance comparabili.
Adaptive FiltersAdaptive Filters
Digital Signal ProcessingDigital Signal Processing
FIR FilterFIR Filter

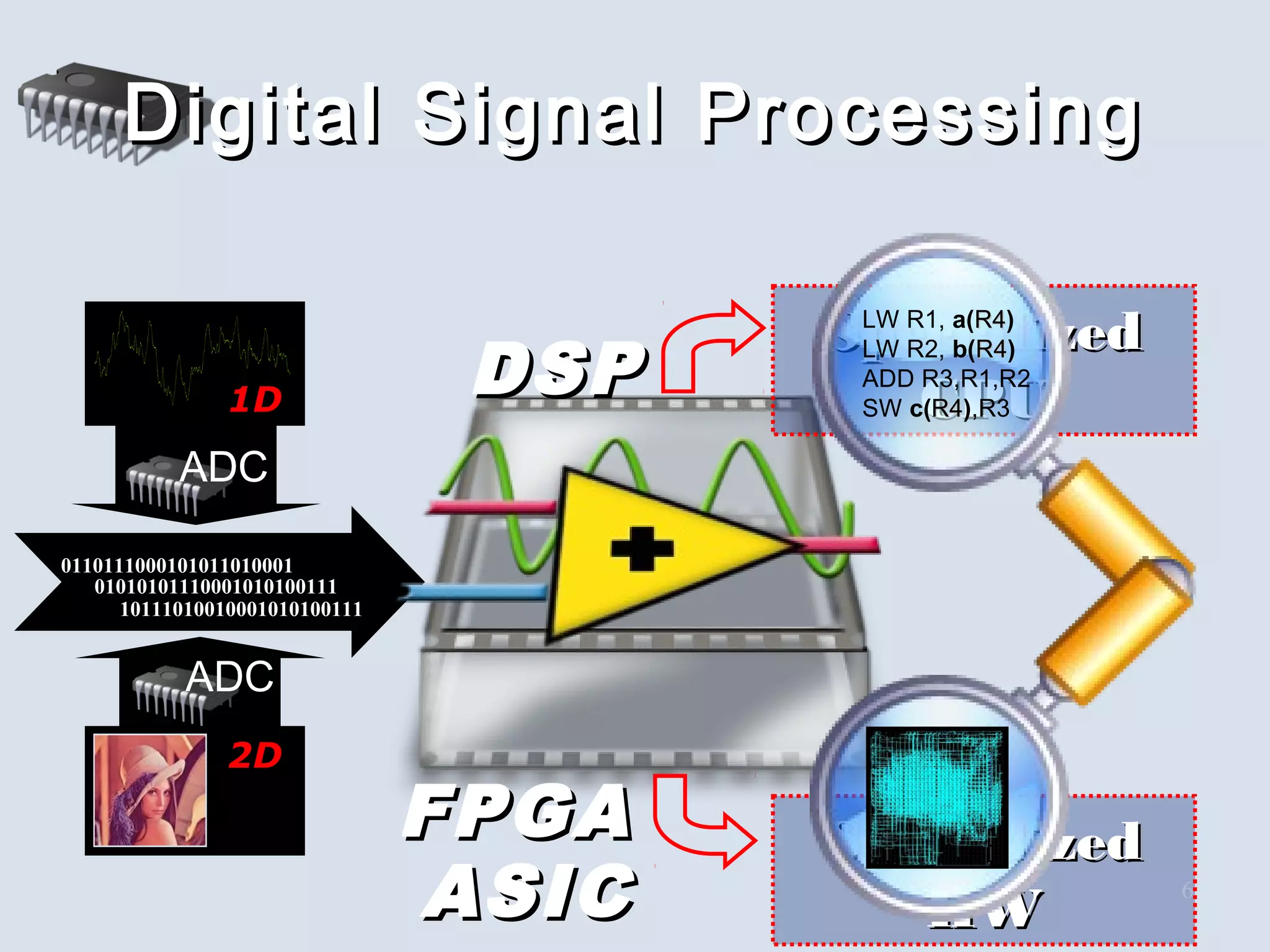

8. 8
Digital Signal ProcessingDigital Signal Processing
Change applicationsChange applications
Correct applicationsCorrect applications
Update applicationsUpdate applications
Easy
Reduces
Noise susceptibilityNoise susceptibility
Development timeDevelopment time
Power consumptionPower consumption
Cost

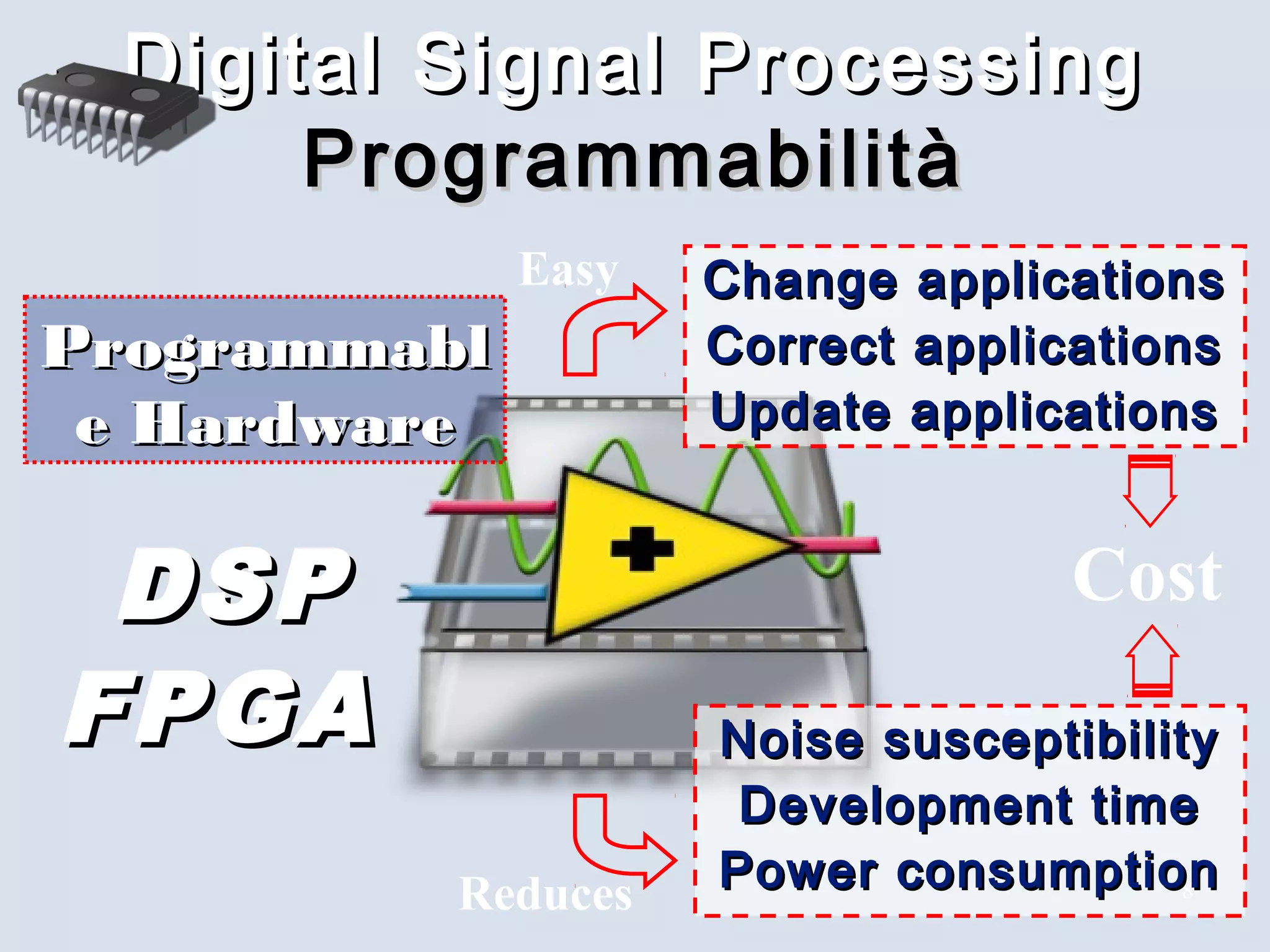

ProgrammablProgrammabl
e Hardwaree Hardware
DSPDSP
FPGAFPGA
ProgrammabilitàProgrammabilità
9. 9

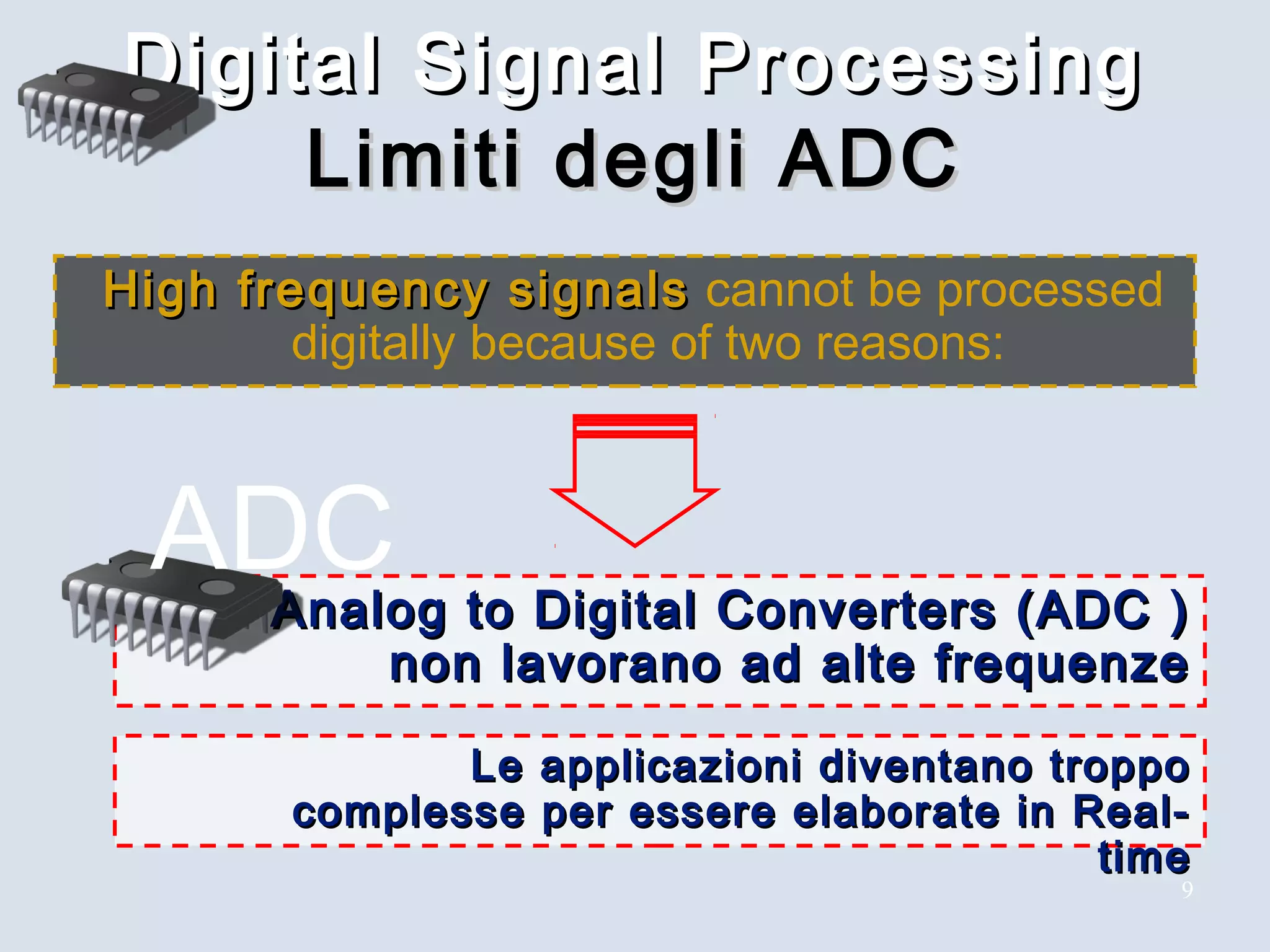

High frequency signalsHigh frequency signals cannot be processed
digitally because of two reasons:
Digital Signal ProcessingDigital Signal Processing
Limiti degli ADCLimiti degli ADC
Le applicazioni diventano troppoLe applicazioni diventano troppo
complesse per essere elaborate in Real-complesse per essere elaborate in Real-
timetime
Analog to Digital Converters (ADC )Analog to Digital Converters (ADC )
non lavorano ad alte frequenzenon lavorano ad alte frequenze
ADC
10. 10

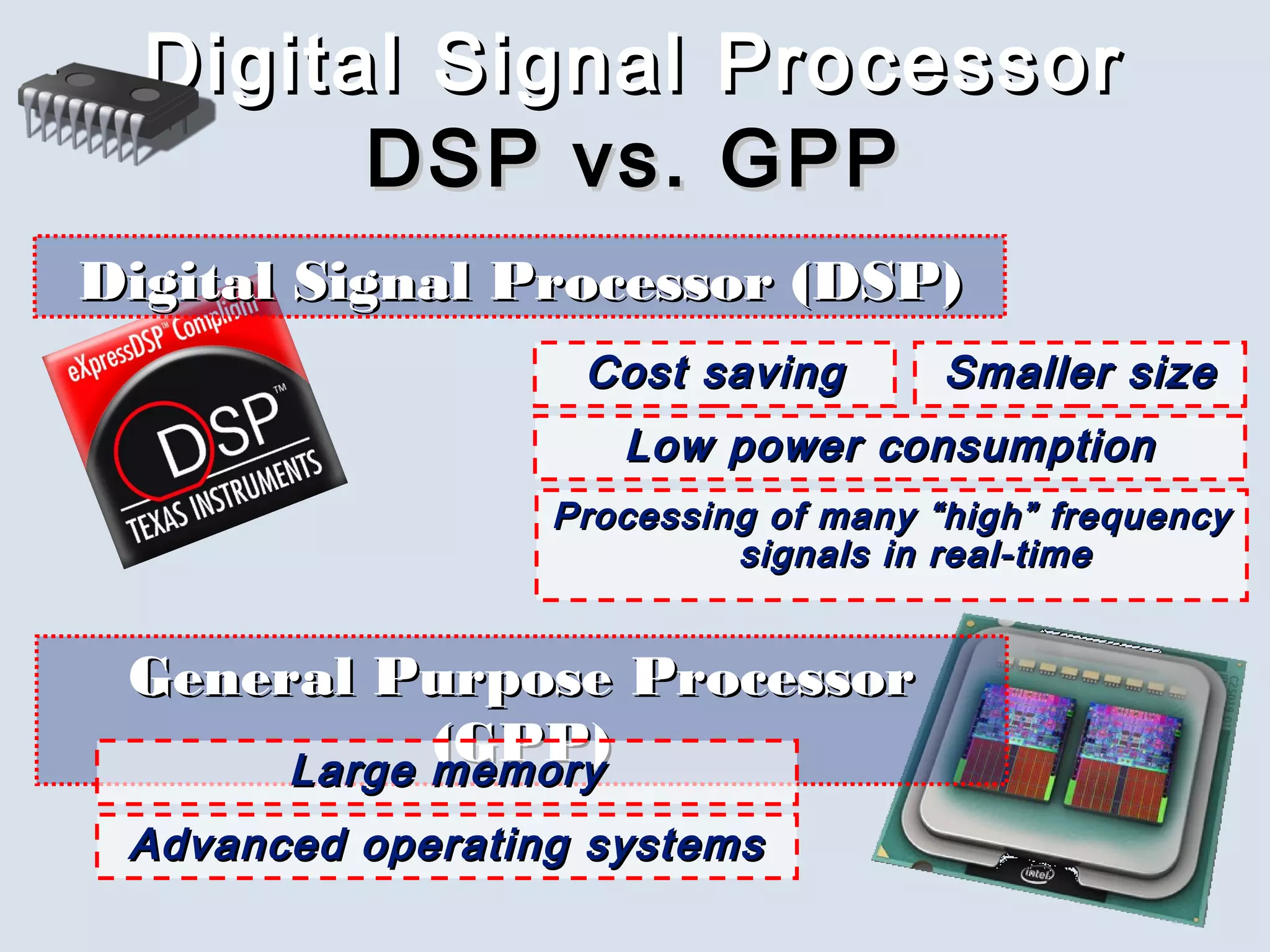

Digital Signal ProcessorDigital Signal Processor
DSP vs. GPPDSP vs. GPP
General Purpose ProcessorGeneral Purpose Processor
(GPP)(GPP)Large memoryLarge memory
Advanced operating systemsAdvanced operating systems
Processing of many “high” frequencyProcessing of many “high” frequency
signals in real-timesignals in real-time
Cost savingCost saving Smaller sizeSmaller size
Low power consumptionLow power consumption
Digital Signal Processor (DSP)Digital Signal Processor (DSP)
11. 11
Algorithm Equation
Finite Impulse Response Filter
Infinite Impulse Response Filter
Convolution
Discrete Fourier Transform
Discrete Cosine Transform

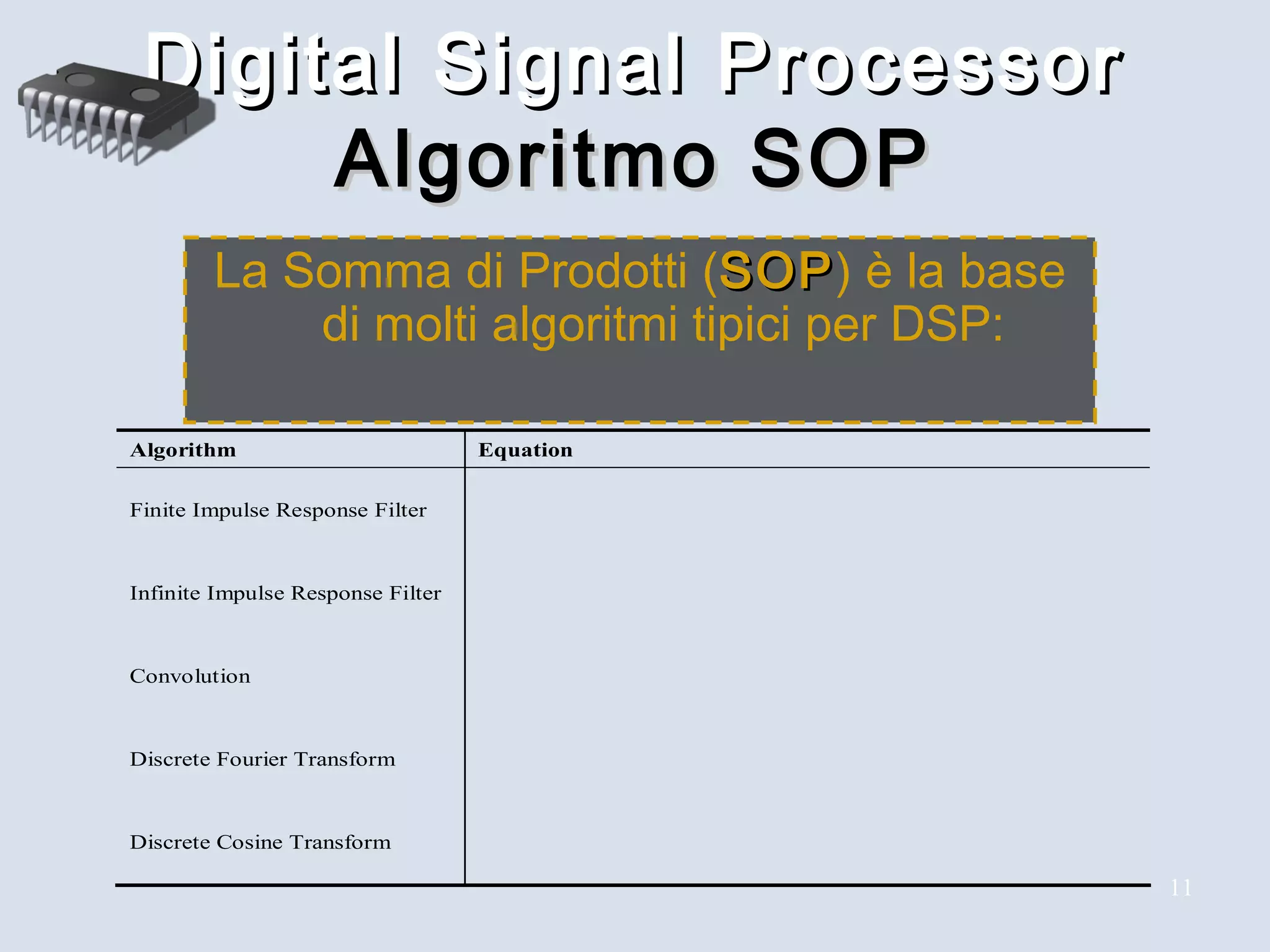

La Somma di Prodotti (SOPSOP) è la base
di molti algoritmi tipici per DSP:
Digital Signal ProcessorDigital Signal Processor
Algoritmo SOPAlgoritmo SOP
12. 12

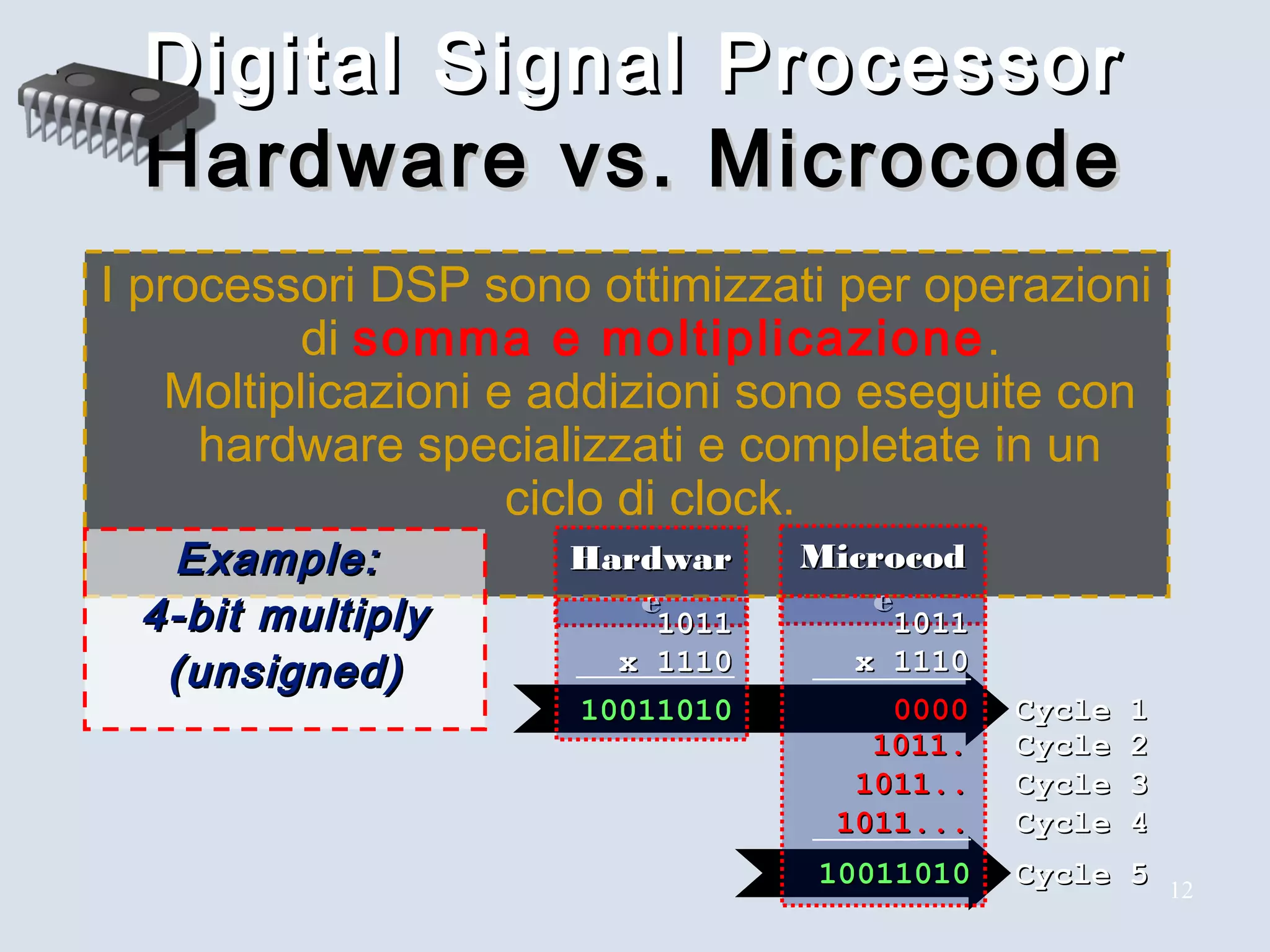

I processori DSP sono ottimizzati per operazioni
di somma e moltiplicazione.
Moltiplicazioni e addizioni sono eseguite con
hardware specializzati e completate in un
ciclo di clock.
HardwarHardwar
ee
MicrocodMicrocod
ee
10111011
x 1110x 1110
1001101010011010
10111011
x 1110x 1110
00000000
1011.1011.
1011..1011..
1011...1011...
1001101010011010
Cycle 1Cycle 1
Cycle 2Cycle 2
Cycle 3Cycle 3
Cycle 4Cycle 4
Cycle 5Cycle 5
Digital Signal ProcessorDigital Signal Processor
Hardware vs. MicrocodeHardware vs. Microcode
Example:Example:
4-bit multiply4-bit multiply
(unsigned)(unsigned)
13. 13
Parameter
Arithmetic format
Extended floating point
Extended Arithmetic
Performance (peak)
Number of hardware multipliers
Number of registers
Internal L1 program memory cache
Internal L1 data memory cache
Internal L2 cache
32-bit
N/A
40-bit
1200MIPS
2 (16 x 16-bit) with
32-bit result
32
32K
32K
512K
32-bit
64-bit
40-bit
1200MFLOPS
2 (32 x 32-bit) with
32 or 64-bit result
32
32K
32K
512K
TMS320C6211
(@150MHz)
TMS320C6711
(@150MHz)
C6711 Datasheet:C6711 Datasheet: TMS320C6711.pdfTMS320C6711.pdf
C6211 Datasheet:C6211 Datasheet: TMS320C6211.pdfTMS320C6211.pdf
Digital Signal ProcessorDigital Signal Processor

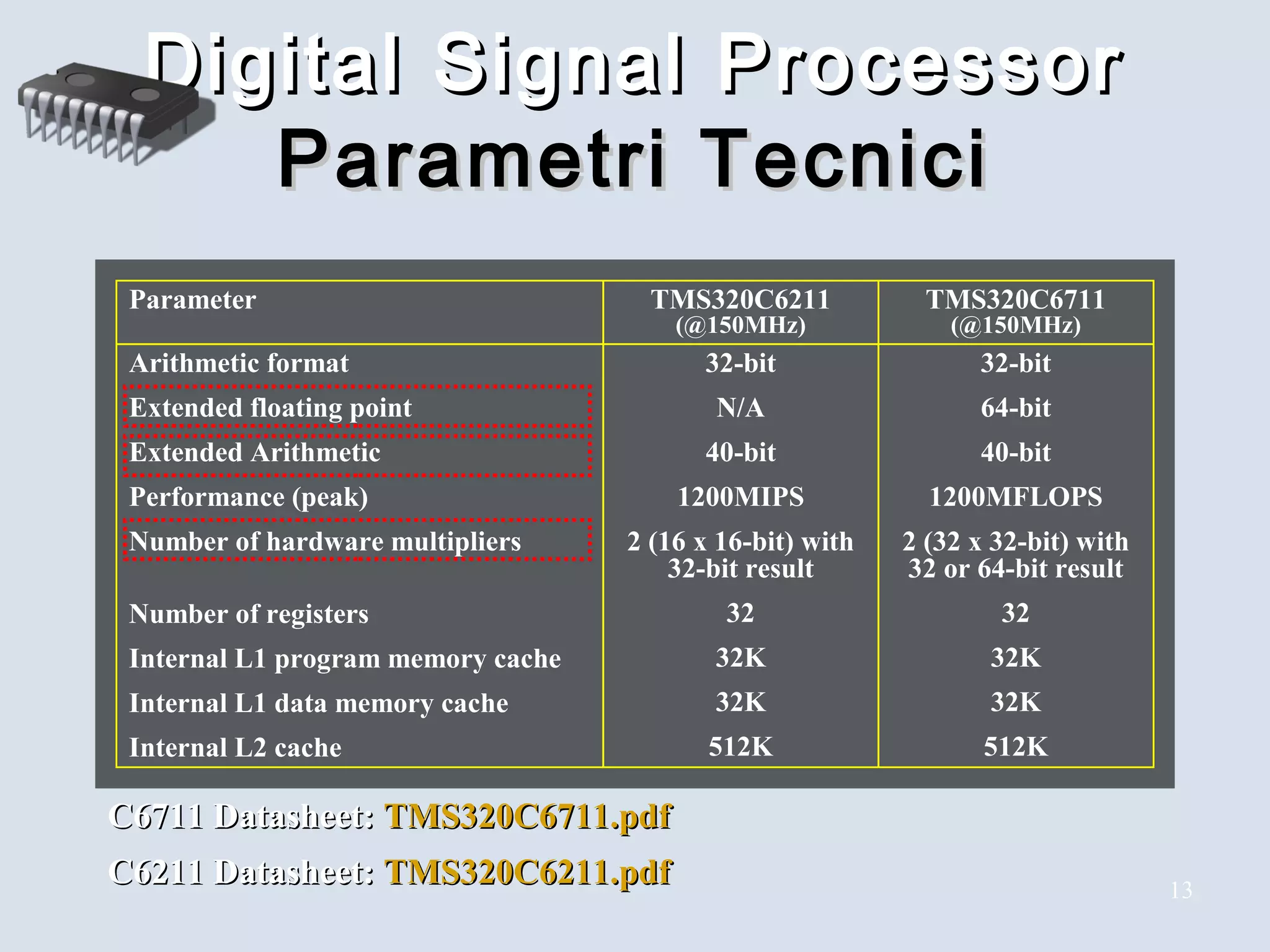

Parametri TecniciParametri Tecnici
14. 14

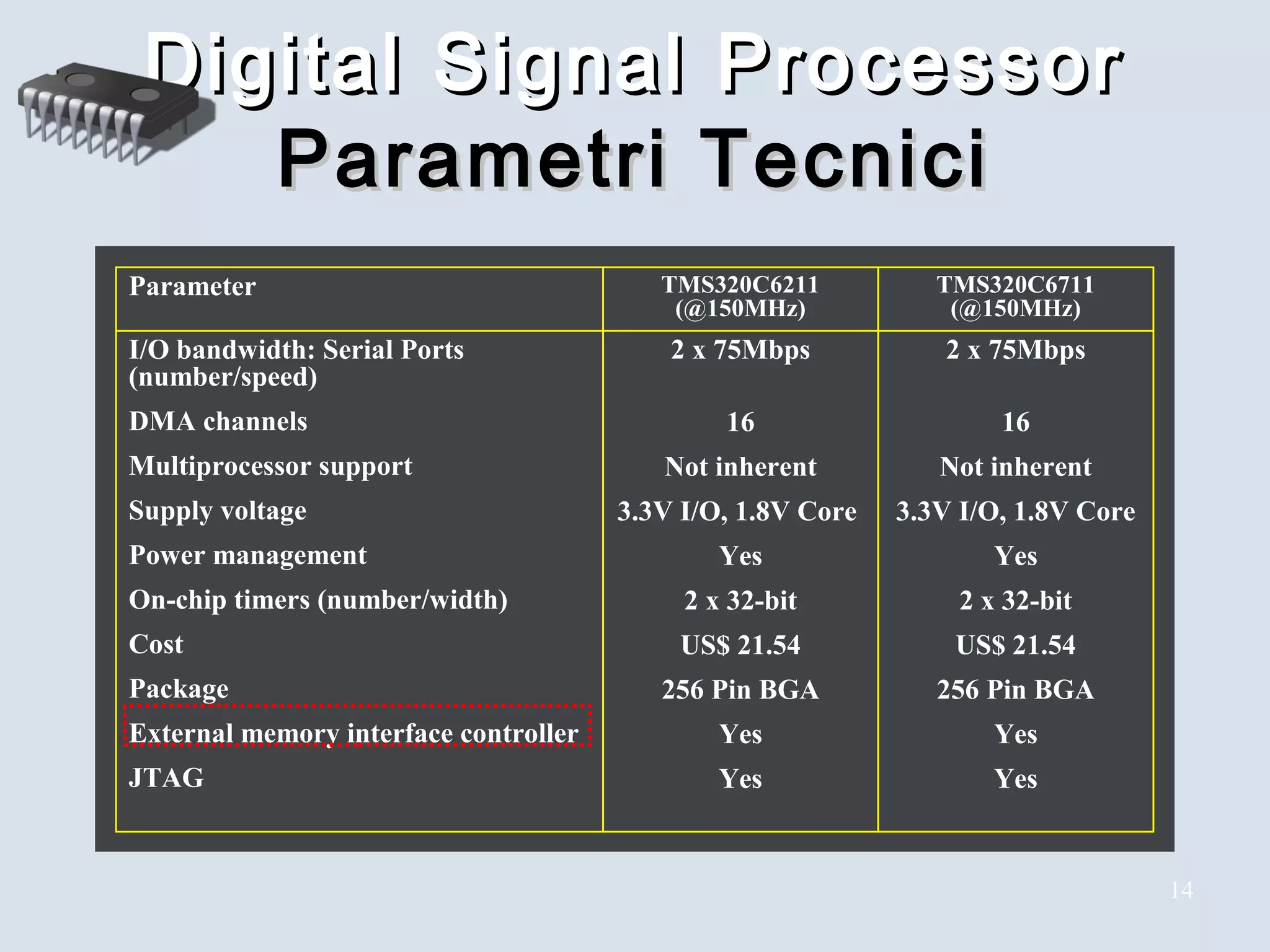

Parameter
I/O bandwidth: Serial Ports
(number/speed)
DMA channels
Multiprocessor support
Supply voltage
Power management
On-chip timers (number/width)
Cost
Package
External memory interface controller
JTAG
2 x 75Mbps
16
Not inherent
3.3V I/O, 1.8V Core
Yes
2 x 32-bit
US$ 21.54
256 Pin BGA
Yes
Yes
2 x 75Mbps
16
Not inherent
3.3V I/O, 1.8V Core
Yes
2 x 32-bit
US$ 21.54
256 Pin BGA
Yes
Yes
TMS320C6211
(@150MHz)
TMS320C6711
(@150MHz)
Digital Signal ProcessorDigital Signal Processor
Parametri TecniciParametri Tecnici
15. 15

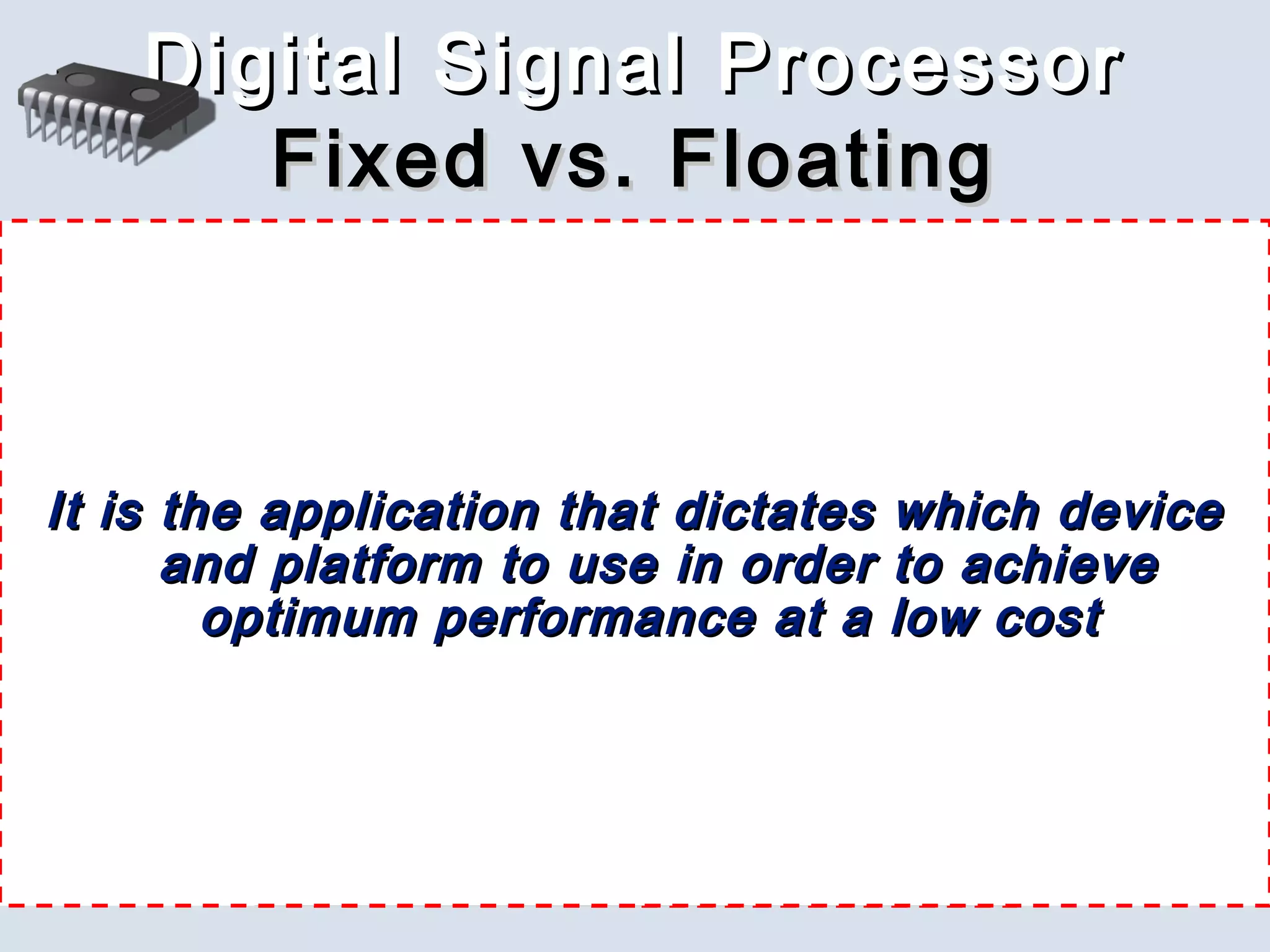

Can be slower than fixed-pointCan be slower than fixed-point
counterparts and larger in sizecounterparts and larger in size
Digital Signal ProcessorDigital Signal Processor
Fixed vs. FloatingFixed vs. Floating
Floating
Point
Ease ofEase of
useuse
High precisionHigh precision
Wide dynamic rangeWide dynamic range
High signal-to-noise ratioHigh signal-to-noise ratio
Higher power consumptionHigher power consumption
Can be more expensiveCan be more expensive
It is the application that dictates which deviceIt is the application that dictates which device
and platform to use in order to achieveand platform to use in order to achieve
optimum performance at a low costoptimum performance at a low cost

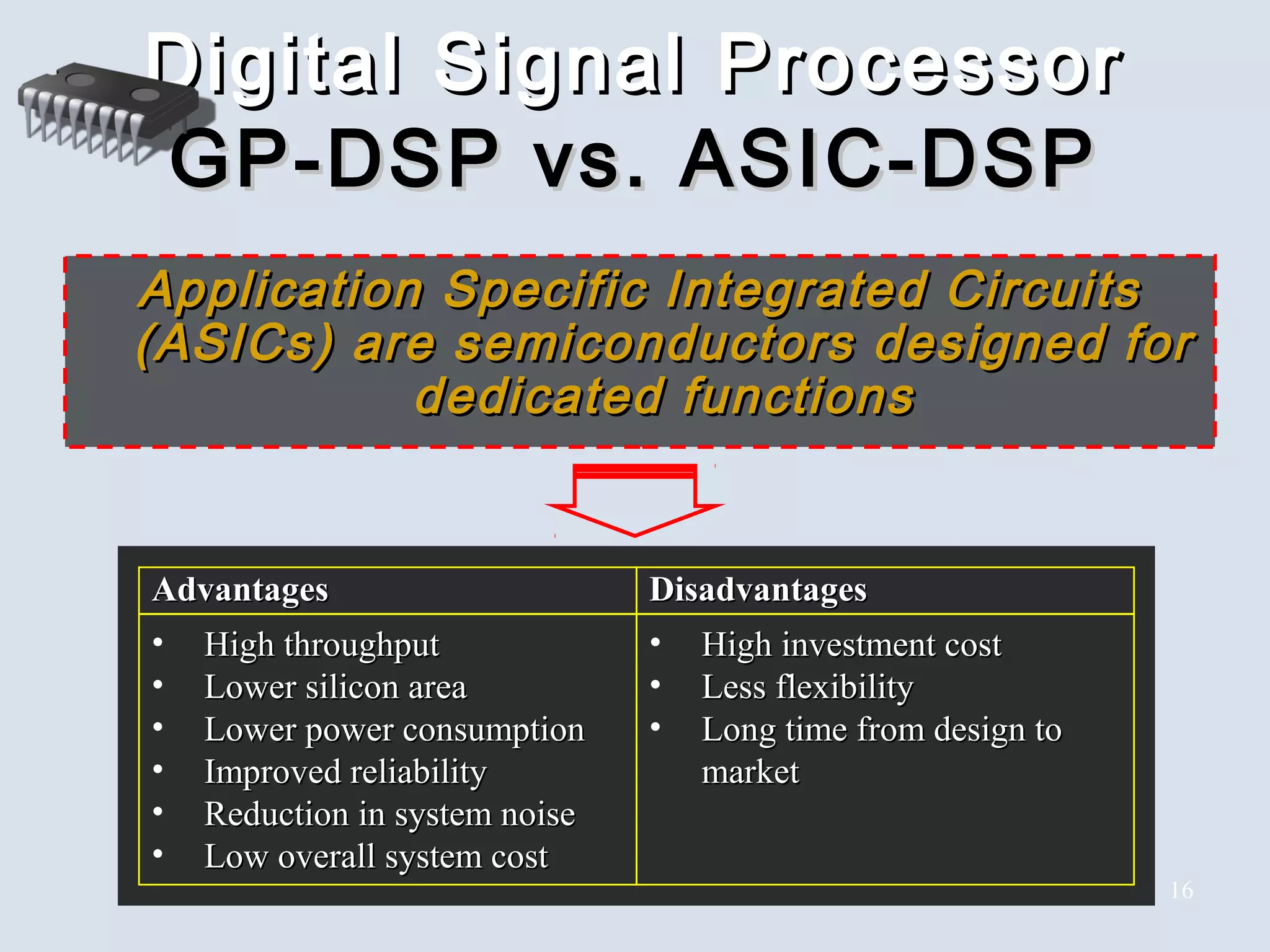

16. 16
AdvantagesAdvantages
• High throughputHigh throughput
• Lower silicon areaLower silicon area
• Lower power consumptionLower power consumption
• Improved reliabilityImproved reliability
• Reduction in system noiseReduction in system noise
• Low overall system costLow overall system cost
DisadvantagesDisadvantages
• High investment costHigh investment cost
• Less flexibilityLess flexibility
• Long time from design toLong time from design to
marketmarket
Digital Signal ProcessorDigital Signal Processor
GP-DSP vs. ASIC-DSPGP-DSP vs. ASIC-DSP
Application Specific Integrated CircuitsApplication Specific Integrated Circuits
(ASICs) are semiconductors designed for(ASICs) are semiconductors designed for
dedicated functionsdedicated functions
17. 17
VoIP
Digital Signal ProcessorDigital Signal Processor
Texas Instruments’Texas Instruments’ TMS220 FamilyTMS220 Family
C2000
C5000
C6000
Lowest CostLowest Cost
Control SystemsControl Systems
- Motor Control- Motor Control
- Storage- Storage
- Digital Ctrl Systems- Digital Ctrl Systems
EfficiencyEfficiency
Best MIPS per Watt /Best MIPS per Watt /
Dollar / SizeDollar / Size
- Wireless phones- Wireless phones
- Internet audio- Internet audio
playersplayers
- Digital still cameras- Digital still cameras
- Modems- Modems
- Telephony- Telephony
- VoIP- VoIP
Performance &Performance &
Best Ease-of-UseBest Ease-of-Use
- Multi Channel and Multi- Multi Channel and Multi
Function App'sFunction App's
- Comm Infrastructure- Comm Infrastructure
- Wireless Base-stations- Wireless Base-stations
- DSL- DSL
- Imaging- Imaging
- Multi-media Servers- Multi-media Servers
- Video- Video
18. 18

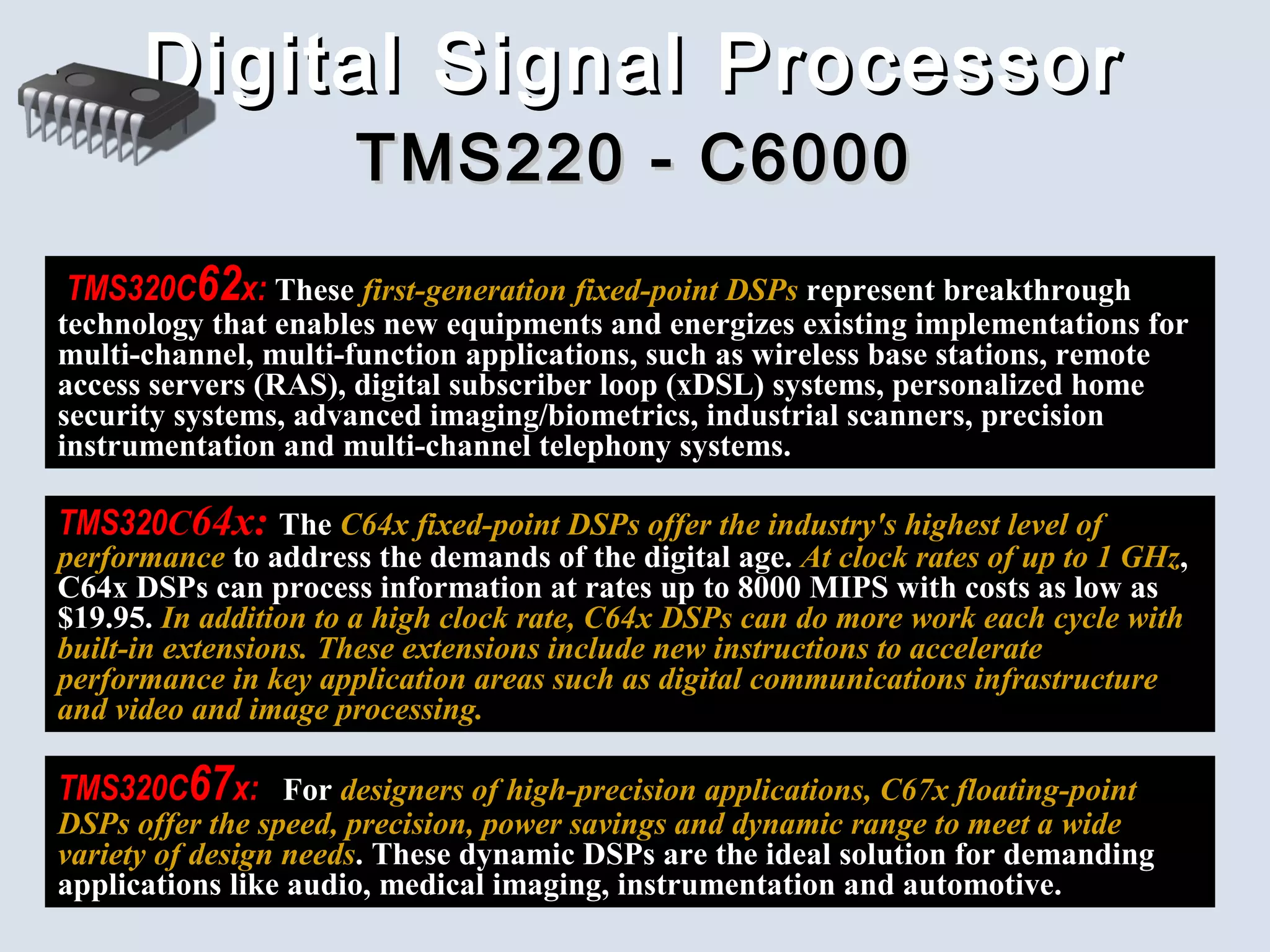

TMS320TMS320CC64x:64x: The C64x fixed-point DSPs offer the industry's highest level of
performance to address the demands of the digital age. At clock rates of up to 1 GHz,
C64x DSPs can process information at rates up to 8000 MIPS with costs as low as
$19.95. In addition to a high clock rate, C64x DSPs can do more work each cycle with
built-in extensions. These extensions include new instructions to accelerate
performance in key application areas such as digital communications infrastructure
and video and image processing.
TMS320CTMS320C6262x:x: These first-generation fixed-point DSPs represent breakthrough
technology that enables new equipments and energizes existing implementations for
multi-channel, multi-function applications, such as wireless base stations, remote
access servers (RAS), digital subscriber loop (xDSL) systems, personalized home
security systems, advanced imaging/biometrics, industrial scanners, precision
instrumentation and multi-channel telephony systems.
TMS320CTMS320C6767x:x: For designers of high-precision applications, C67x floating-point
DSPs offer the speed, precision, power savings and dynamic range to meet a wide
variety of design needs. These dynamic DSPs are the ideal solution for demanding
applications like audio, medical imaging, instrumentation and automotive.
Digital Signal ProcessorDigital Signal Processor
TMS220 - C6000TMS220 - C6000
