3. ¡ Digital Signal Processors
(DSP) take real-world
signals like voice, audio,
video, temperature,
pressure, or position that
have been digitized and
then mathematically
manipulate them.
¡ A DSP is designed for
performing mathematical
functions like "add",
"subtract", "multiply" and
"divide" very quickly
DSP is used in an MP3 audio player.
D S P a p p l i c a t i o n s i n c l u d e a u d i o a n d s p e e c h
processing, sonar, radar and other sensor array processing, spectral
density estimation, statistical signal processing, digital image
processing, signal processing for telecommunications, control
systems, biomedical engineering, seismology, among others.

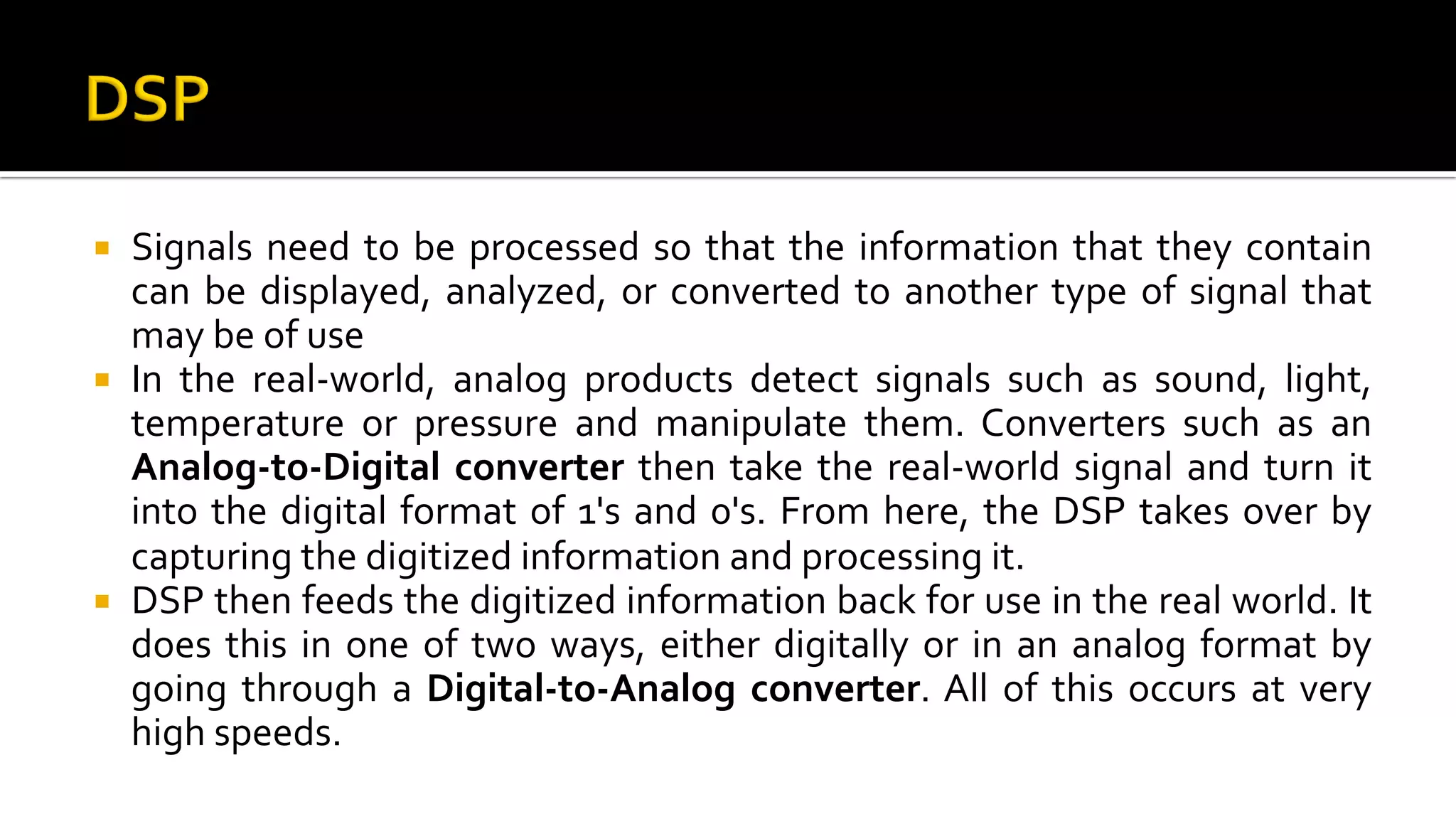

4. ¡ Signals need to be processed so that the information that they contain
can be displayed, analyzed, or converted to another type of signal that
may be of use
¡ In the real-world, analog products detect signals such as sound, light,
temperature or pressure and manipulate them. Converters such as an
Analog-to-Digital converter then take the real-world signal and turn it
into the digital format of 1's and 0's. From here, the DSP takes over by
capturing the digitized information and processing it.
¡ DSP then feeds the digitized information back for use in the real world. It
does this in one of two ways, either digitally or in an analog format by
going through a Digital-to-Analog converter. All of this occurs at very
high speeds.

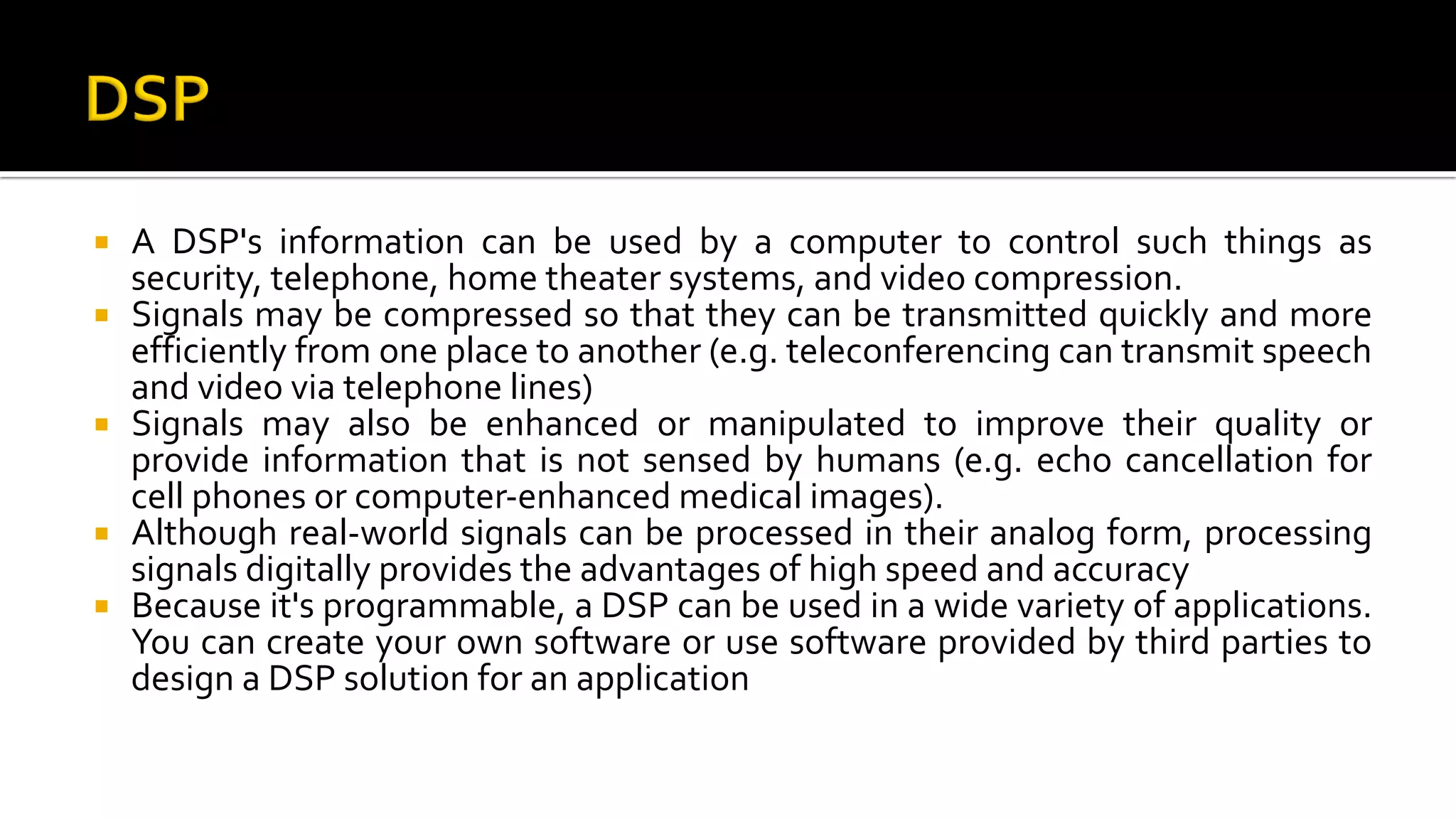

5. ¡ A DSP's information can be used by a computer to control such things as
security, telephone, home theater systems, and video compression.
¡ Signals may be compressed so that they can be transmitted quickly and more
efficiently from one place to another (e.g. teleconferencing can transmit speech
and video via telephone lines)
¡ Signals may also be enhanced or manipulated to improve their quality or
provide information that is not sensed by humans (e.g. echo cancellation for
cell phones or computer-enhanced medical images).
¡ Although real-world signals can be processed in their analog form, processing
signals digitally provides the advantages of high speed and accuracy
¡ Because it's programmable, a DSP can be used in a wide variety of applications.
You can create your own software or use software provided by third parties to
design a DSP solution for an application

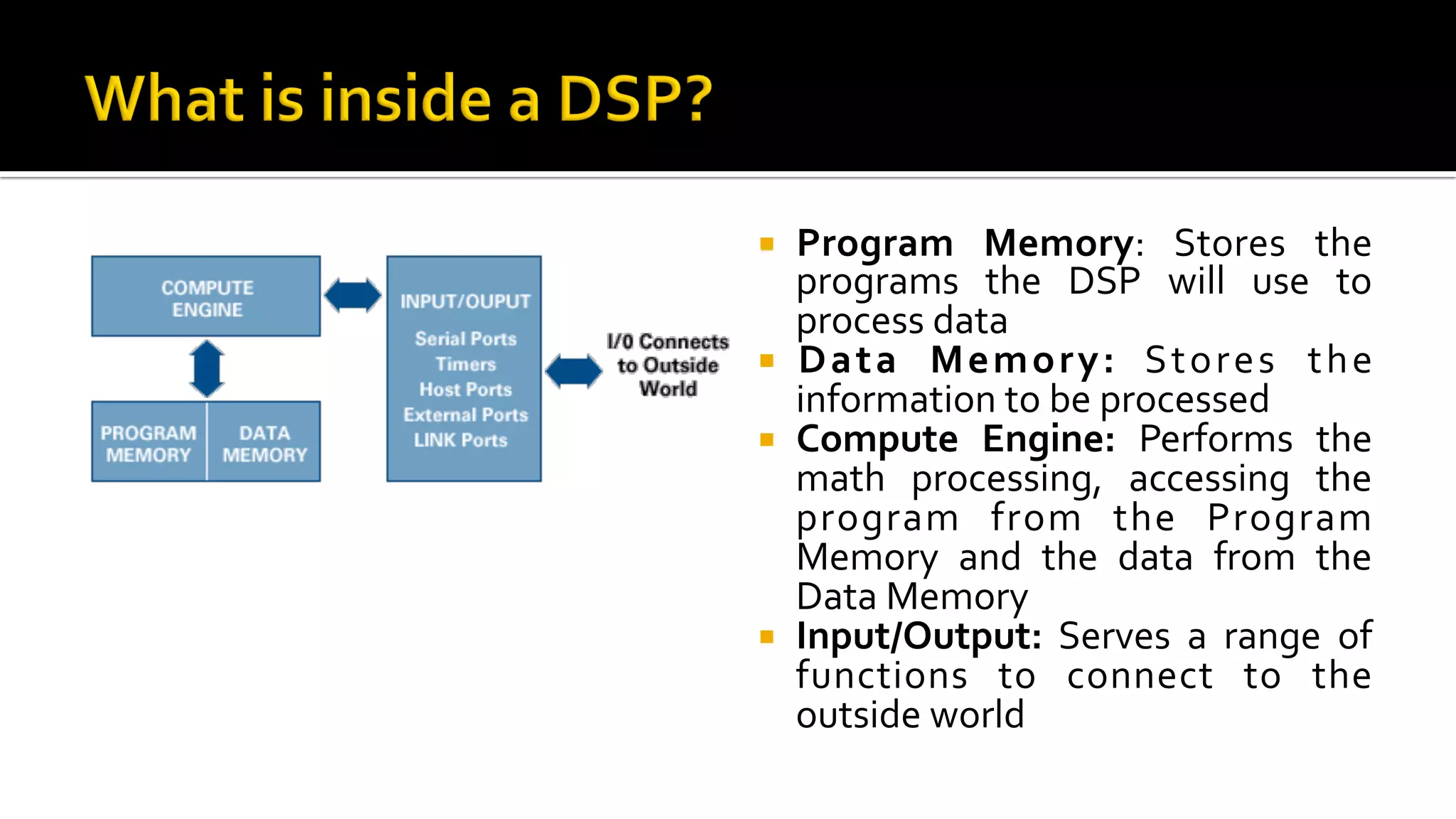

7. ¡ Program Memory: Stores the
programs the DSP will use to
process data
¡ Data Memory: Stores the
information to be processed
¡ Compute Engine: Performs the
math processing, accessing the
program from the Program
Memory and the data from the
Data Memory
¡ Input/Output: Serves a range of
functions to connect to the
outside world

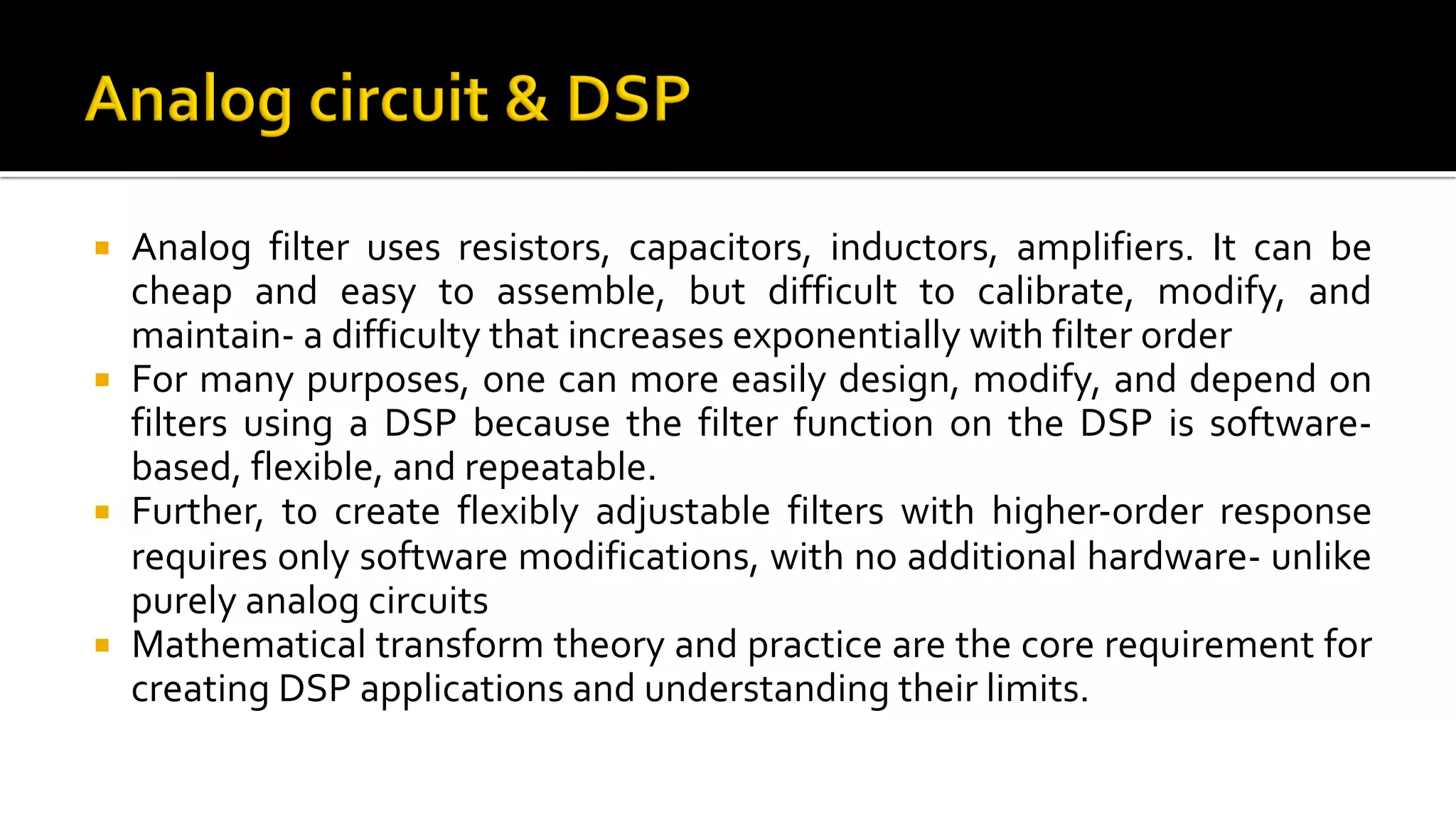

8. ¡ Analog filter uses resistors, capacitors, inductors, amplifiers. It can be
cheap and easy to assemble, but difficult to calibrate, modify, and
maintain- a difficulty that increases exponentially with filter order
¡ For many purposes, one can more easily design, modify, and depend on
filters using a DSP because the filter function on the DSP is software-
based, flexible, and repeatable.
¡ Further, to create flexibly adjustable filters with higher-order response
requires only software modifications, with no additional hardware- unlike
purely analog circuits
¡ Mathematical transform theory and practice are the core requirement for
creating DSP applications and understanding their limits.

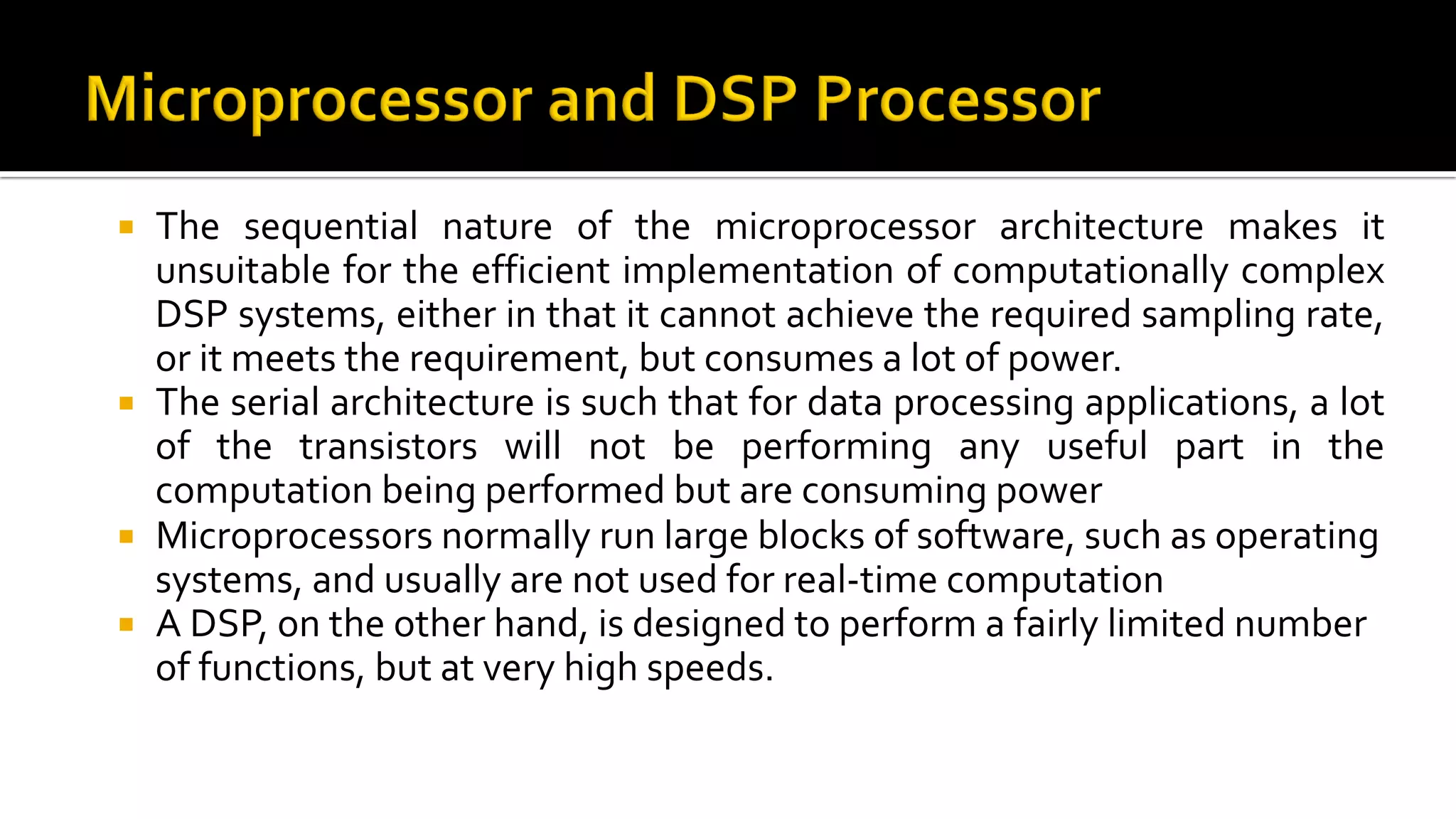

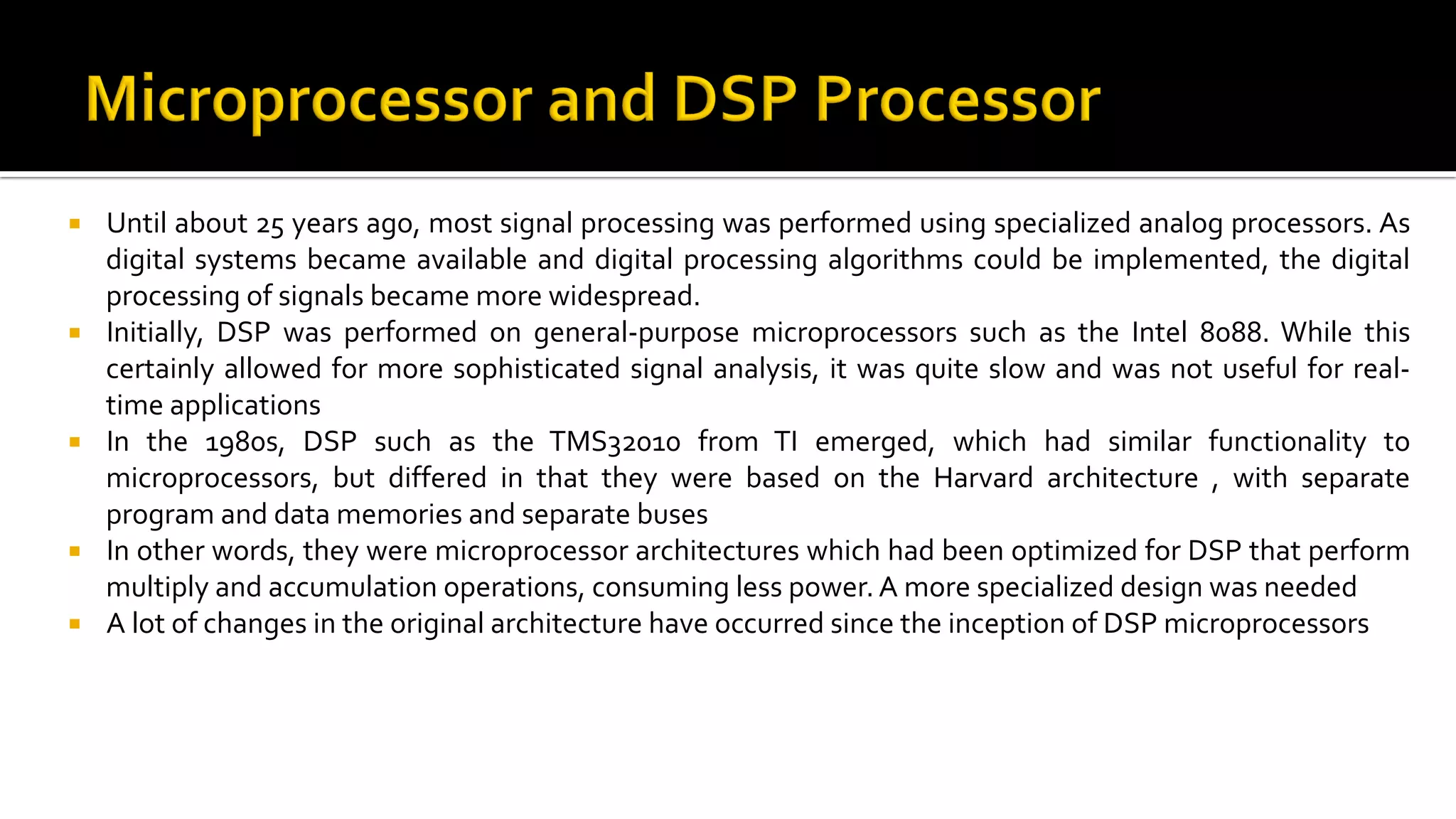

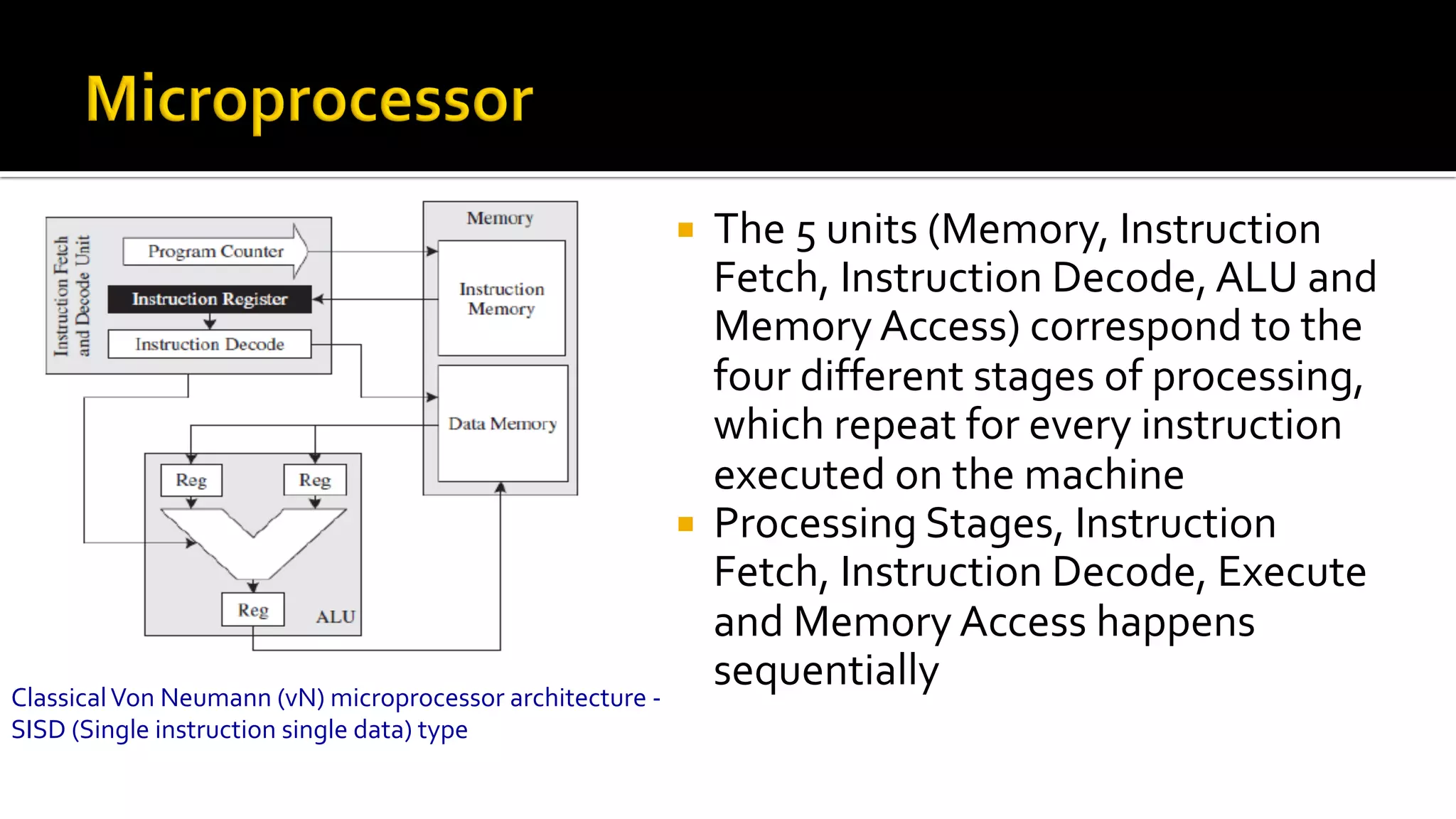

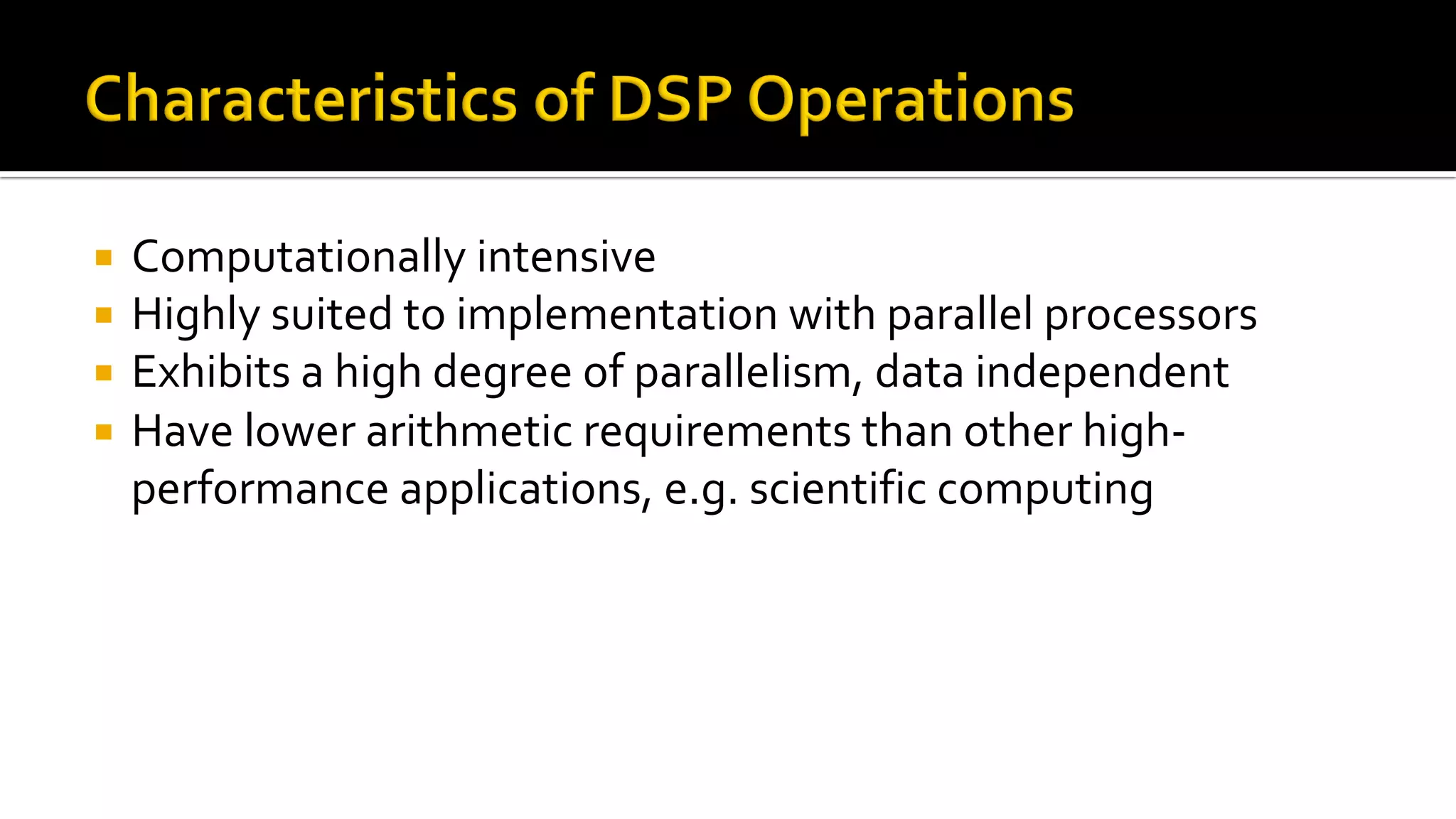

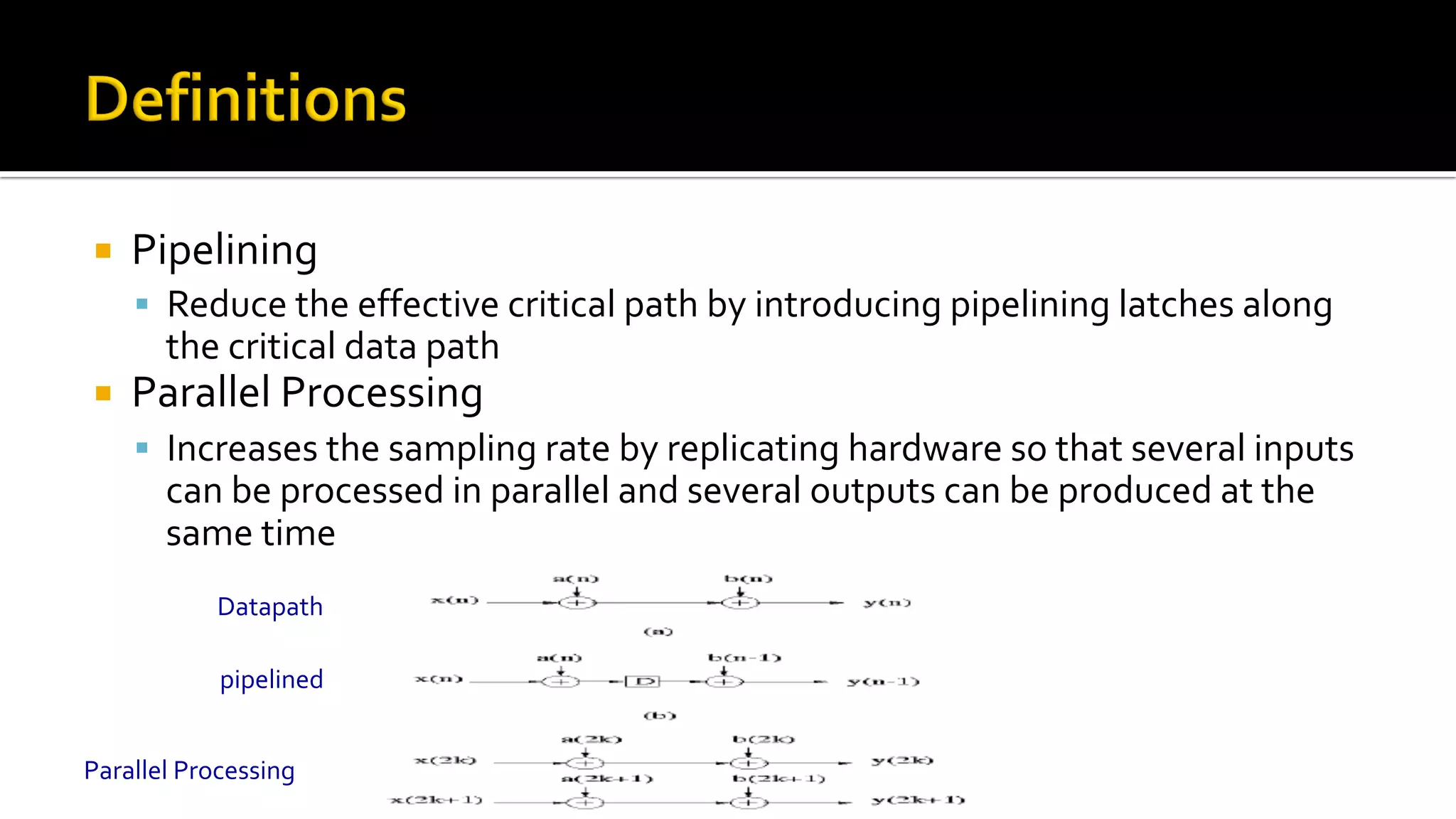

13. ¡ The sequential nature of the microprocessor architecture makes it
unsuitable for the efficient implementation of computationally complex
DSP systems, either in that it cannot achieve the required sampling rate,
or it meets the requirement, but consumes a lot of power.
¡ The serial architecture is such that for data processing applications, a lot
of the transistors will not be performing any useful part in the
computation being performed but are consuming power
¡ Microprocessors normally run large blocks of software, such as operating
systems, and usually are not used for real-time computation
¡ A DSP, on the other hand, is designed to perform a fairly limited number
of functions, but at very high speeds.

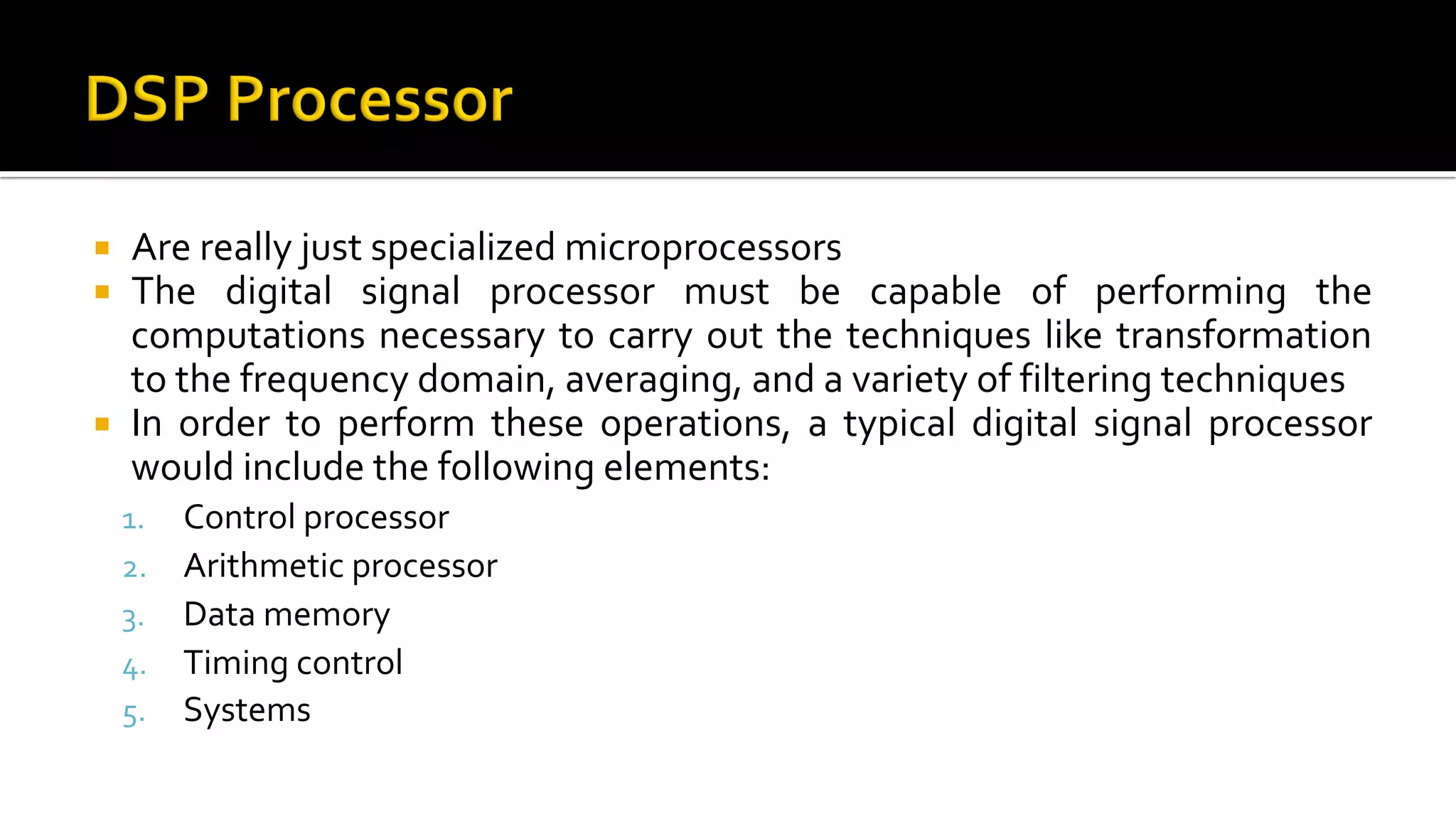

14. ¡ Are really just specialized microprocessors
¡ The digital signal processor must be capable of performing the
computations necessary to carry out the techniques like transformation
to the frequency domain, averaging, and a variety of filtering techniques

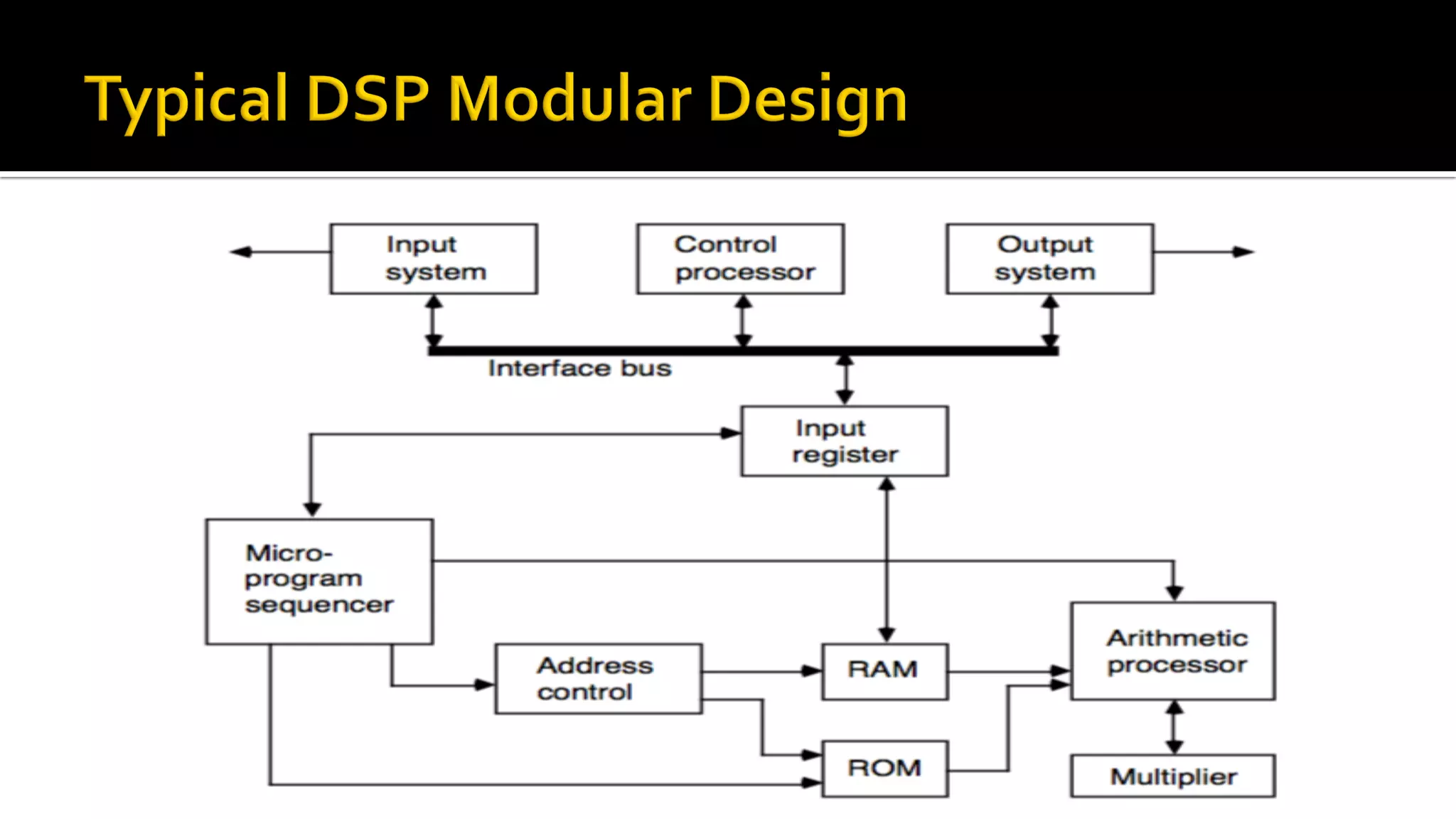

¡ In order to perform these operations, a typical digital signal processor
would include the following elements:
1. Control processor
2. Arithmetic processor
3. Data memory
4. Timing control
5. Systems

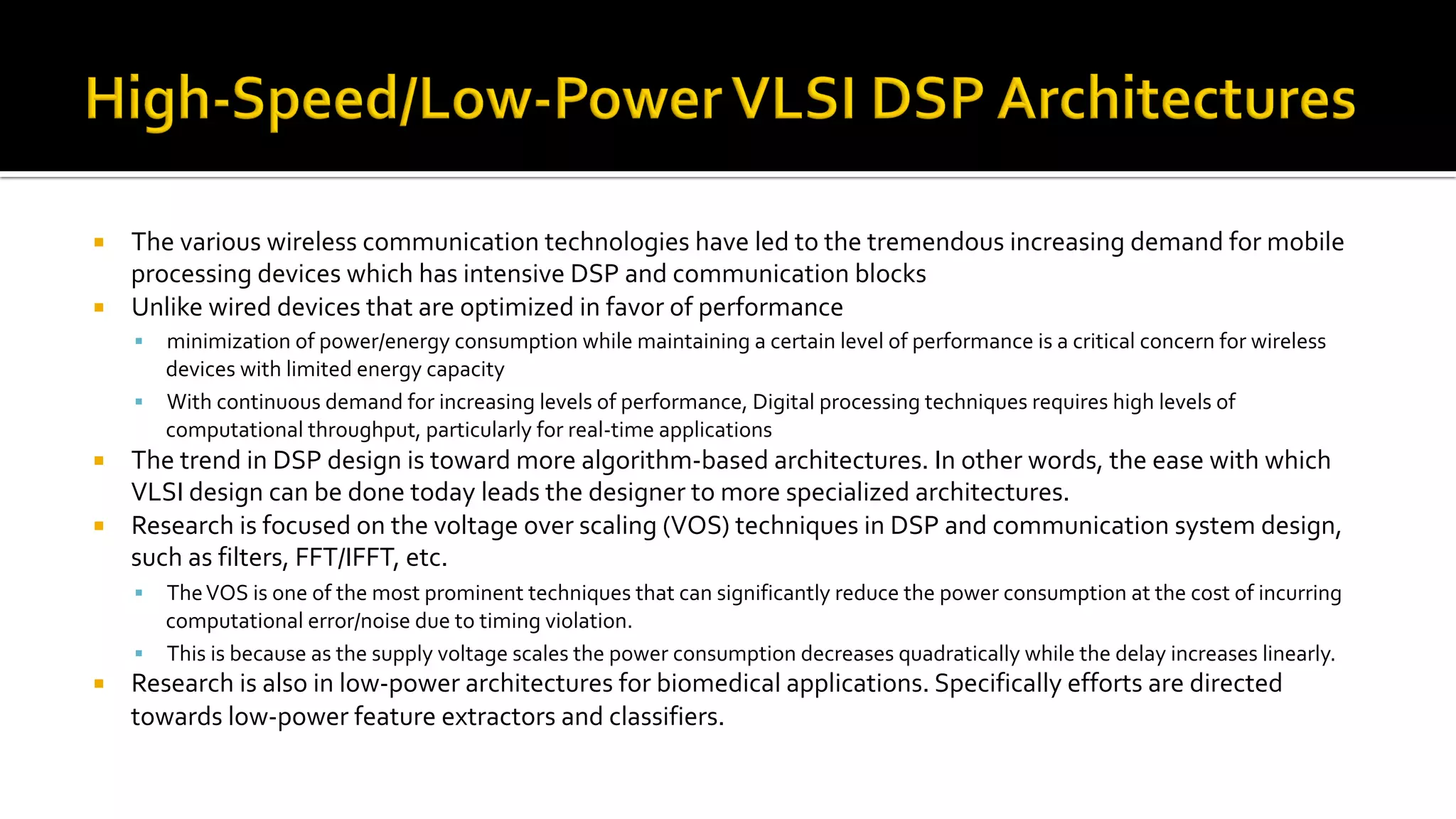

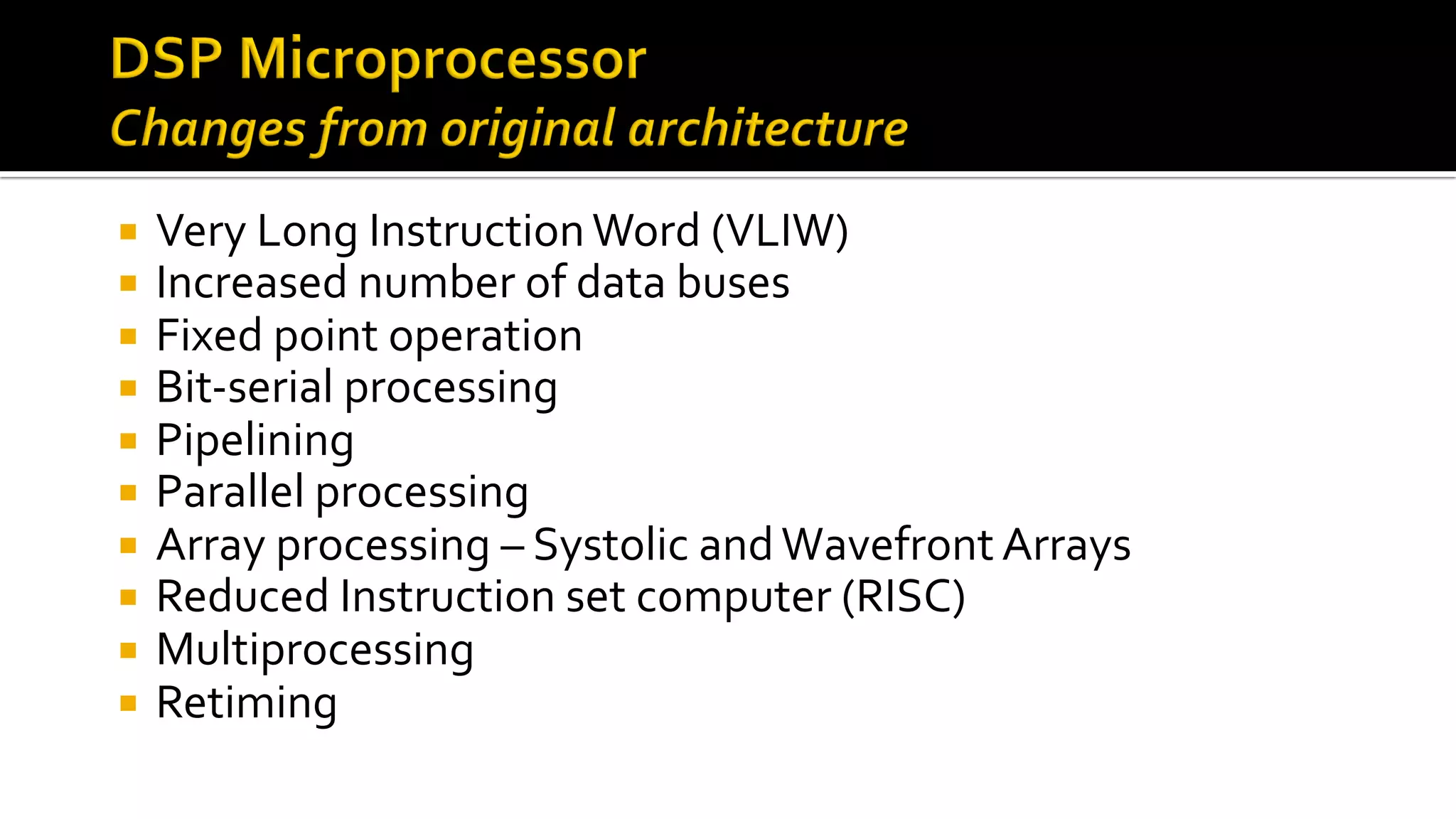

17. ¡ The various wireless communication technologies have led to the tremendous increasing demand for mobile
processing devices which has intensive DSP and communication blocks
¡ Unlike wired devices that are optimized in favor of performance
§ minimization of power/energy consumption while maintaining a certain level of performance is a critical concern for wireless
devices with limited energy capacity
§ With continuous demand for increasing levels of performance, Digital processing techniques requires high levels of
computational throughput, particularly for real-time applications
¡ The trend in DSP design is toward more algorithm-based architectures. In other words, the ease with which
VLSI design can be done today leads the designer to more specialized architectures.
¡ Research is focused on the voltage over scaling (VOS) techniques in DSP and communication system design,
such as filters, FFT/IFFT, etc.
§ The VOS is one of the most prominent techniques that can significantly reduce the power consumption at the cost of incurring
computational error/noise due to timing violation.
§ This is because as the supply voltage scales the power consumption decreases quadratically while the delay increases linearly.
¡ Research is also in low-power architectures for biomedical applications. Specifically efforts are directed
towards low-power feature extractors and classifiers.

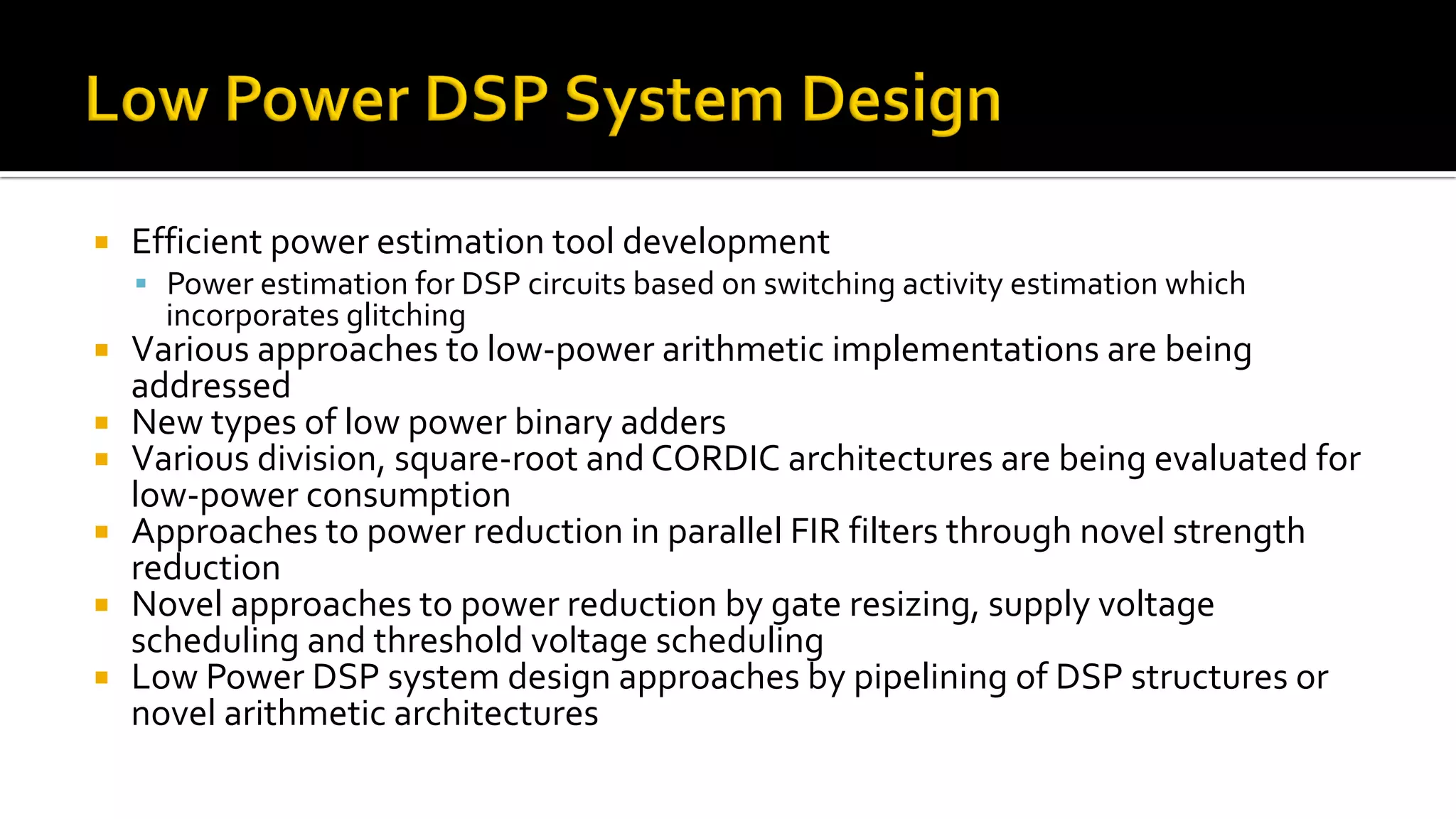

18. ¡ Efficient power estimation tool development
§ Power estimation for DSP circuits based on switching activity estimation which
incorporates glitching
¡ Various approaches to low-power arithmetic implementations are being
addressed
¡ New types of low power binary adders
¡ Various division, square-root and CORDIC architectures are being evaluated for
low-power consumption
¡ Approaches to power reduction in parallel FIR filters through novel strength
reduction
¡ Novel approaches to power reduction by gate resizing, supply voltage
scheduling and threshold voltage scheduling
¡ Low Power DSP system design approaches by pipelining of DSP structures or
novel arithmetic architectures

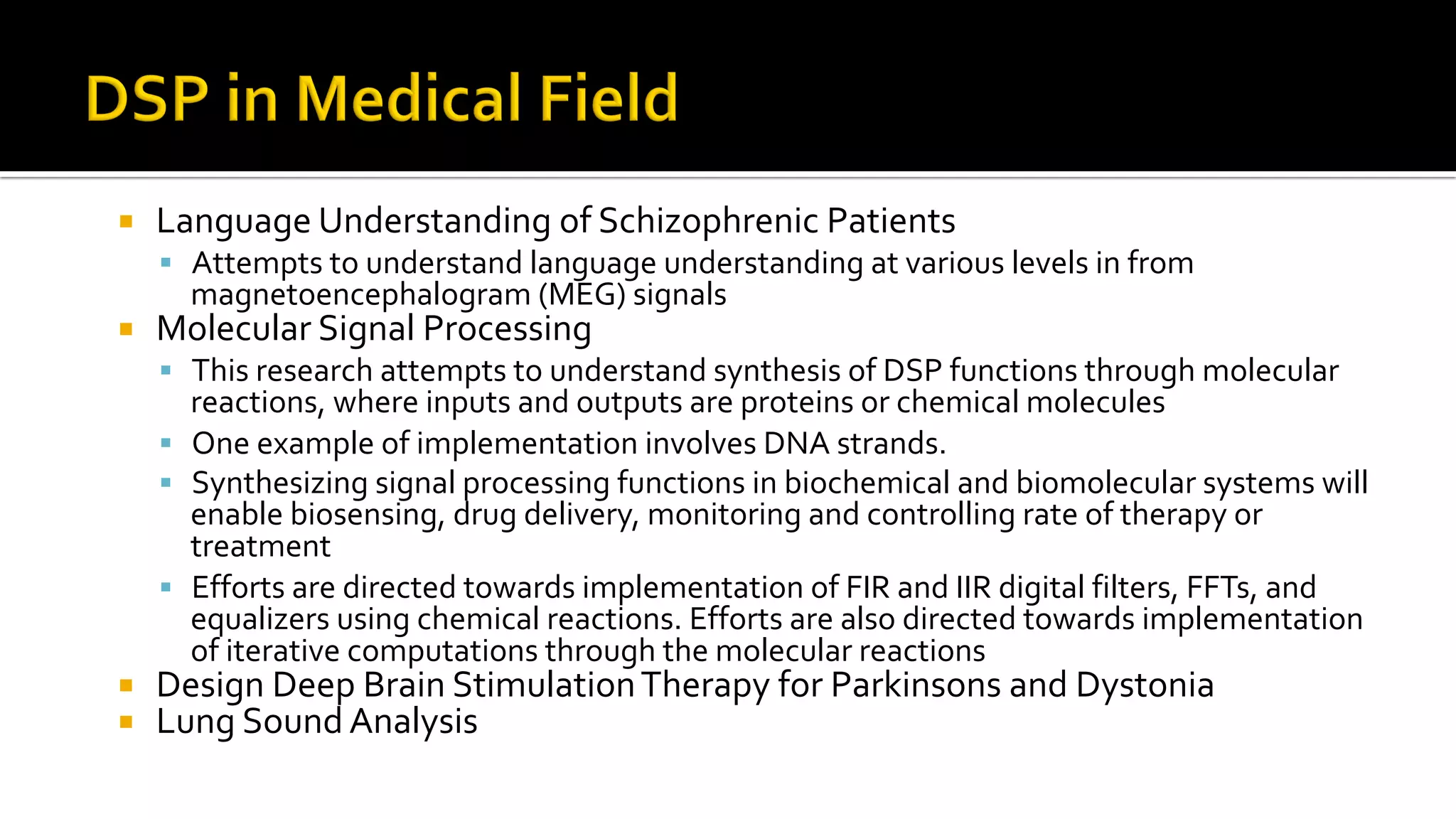

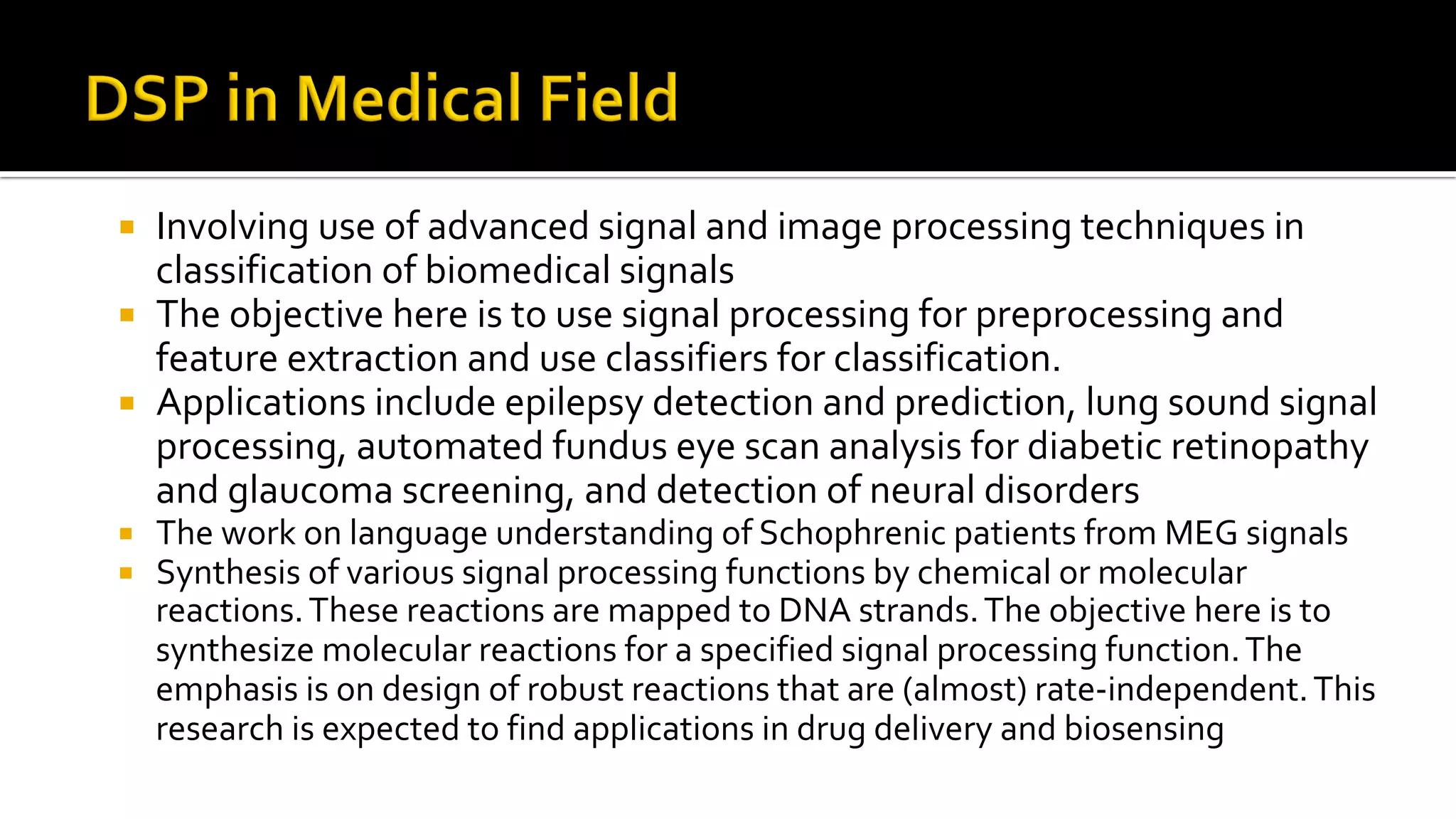

25. ¡ Language Understanding of Schizophrenic Patients
§ Attempts to understand language understanding at various levels in from
magnetoencephalogram (MEG) signals
¡ Molecular Signal Processing
§ This research attempts to understand synthesis of DSP functions through molecular
reactions, where inputs and outputs are proteins or chemical molecules
§ One example of implementation involves DNA strands.
§ Synthesizing signal processing functions in biochemical and biomolecular systems will
enable biosensing, drug delivery, monitoring and controlling rate of therapy or
treatment
§ Efforts are directed towards implementation of FIR and IIR digital filters, FFTs, and
equalizers using chemical reactions. Efforts are also directed towards implementation
of iterative computations through the molecular reactions
¡ Design Deep Brain Stimulation Therapy for Parkinsons and Dystonia
¡ Lung Sound Analysis

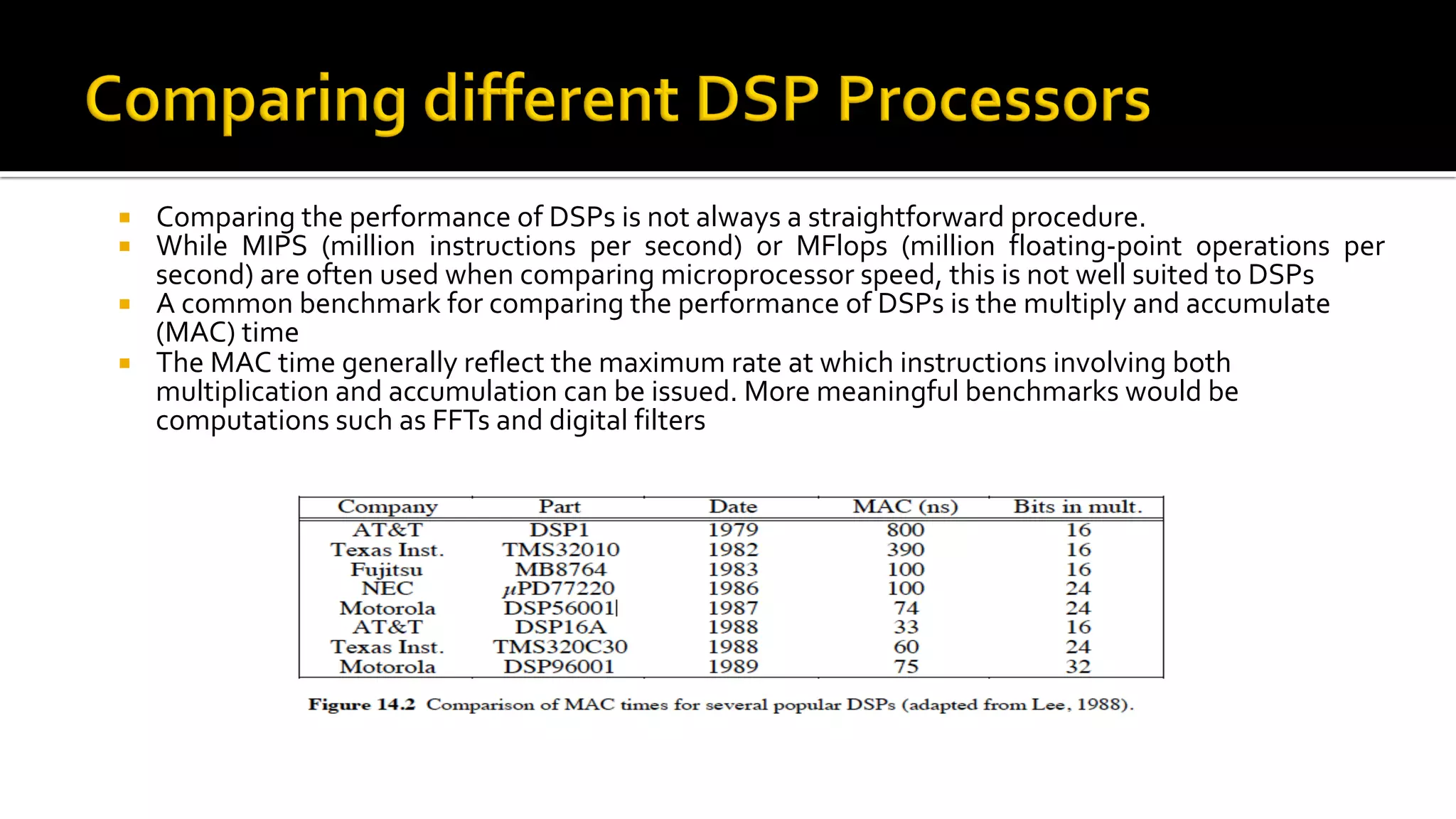

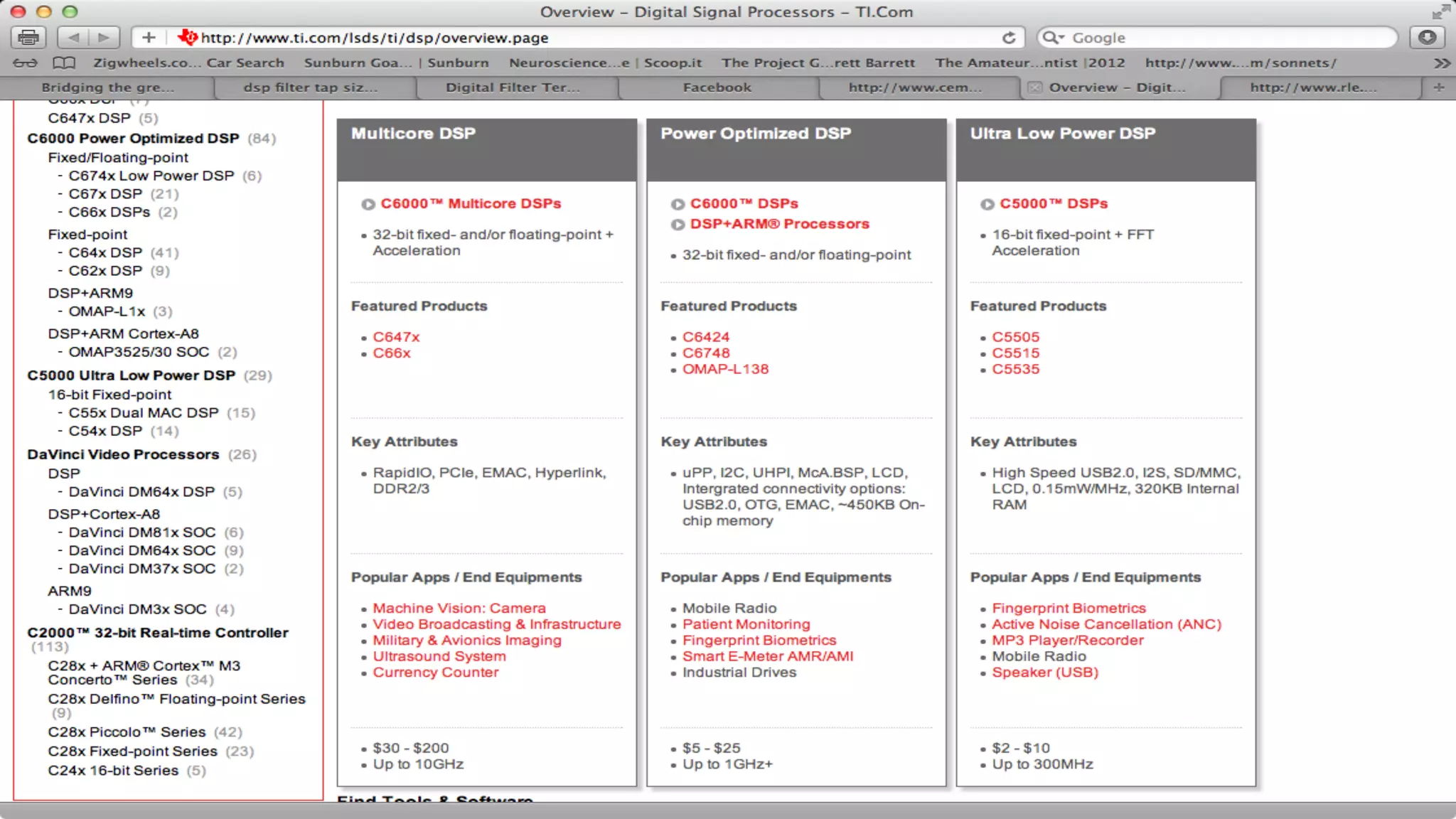

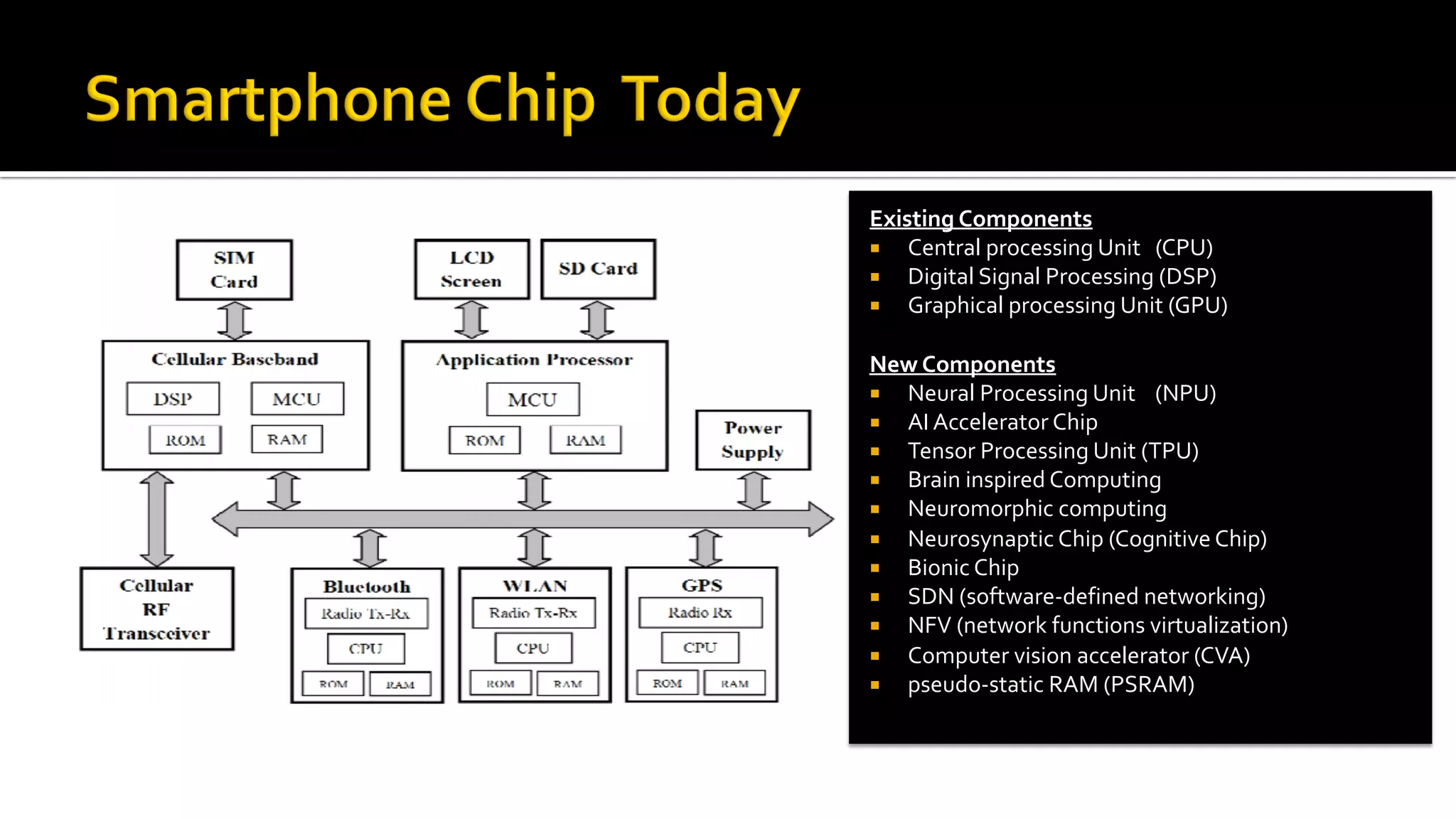

33. ¡ Comparing the performance of DSPs is not always a straightforward procedure.
¡ While MIPS (million instructions per second) or MFlops (million floating-point operations per
second) are often used when comparing microprocessor speed, this is not well suited to DSPs
¡ A common benchmark for comparing the performance of DSPs is the multiply and accumulate
(MAC) time
¡ The MAC time generally reflect the maximum rate at which instructions involving both
multiplication and accumulation can be issued. More meaningful benchmarks would be
computations such as FFTs and digital filters

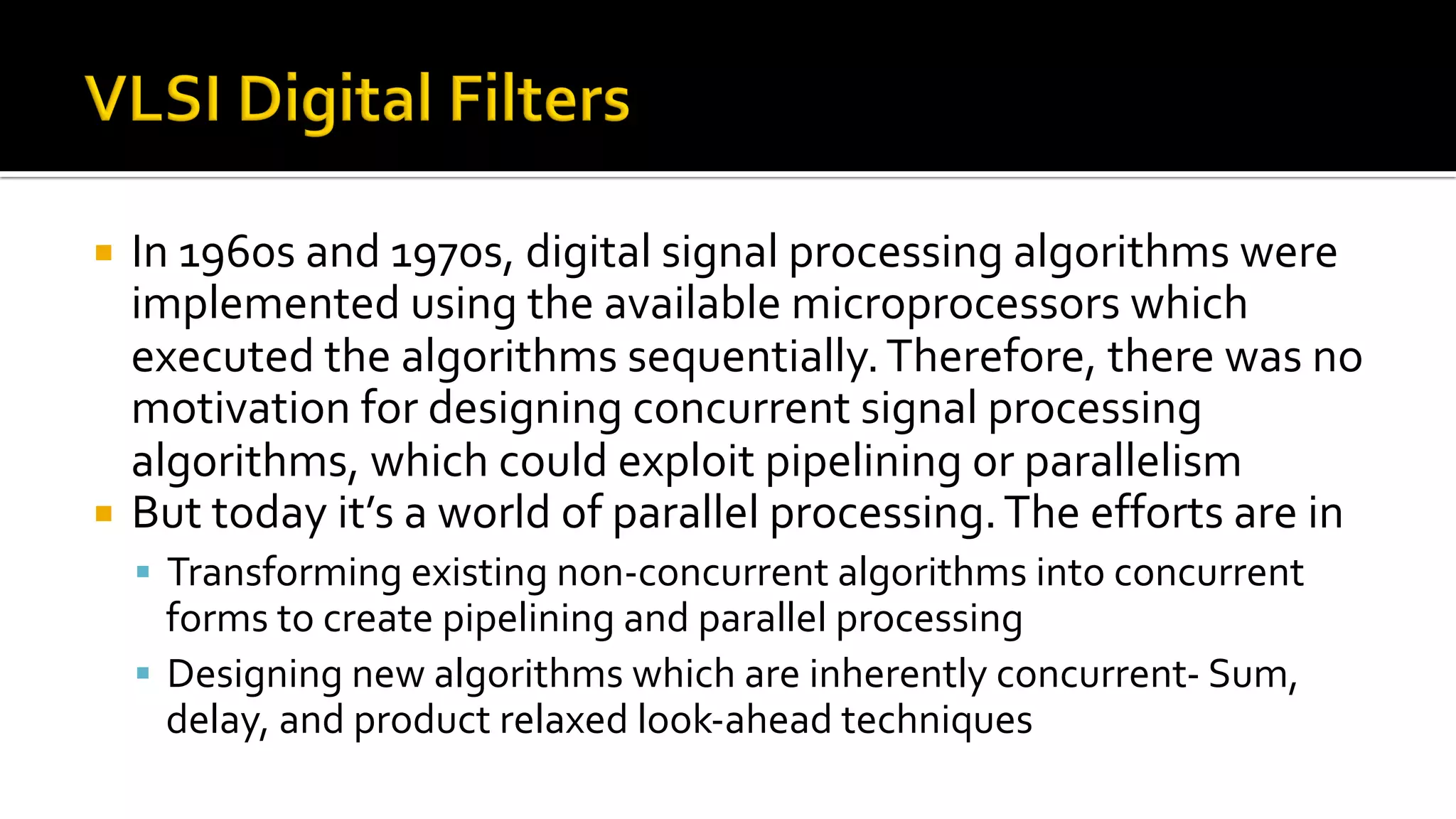

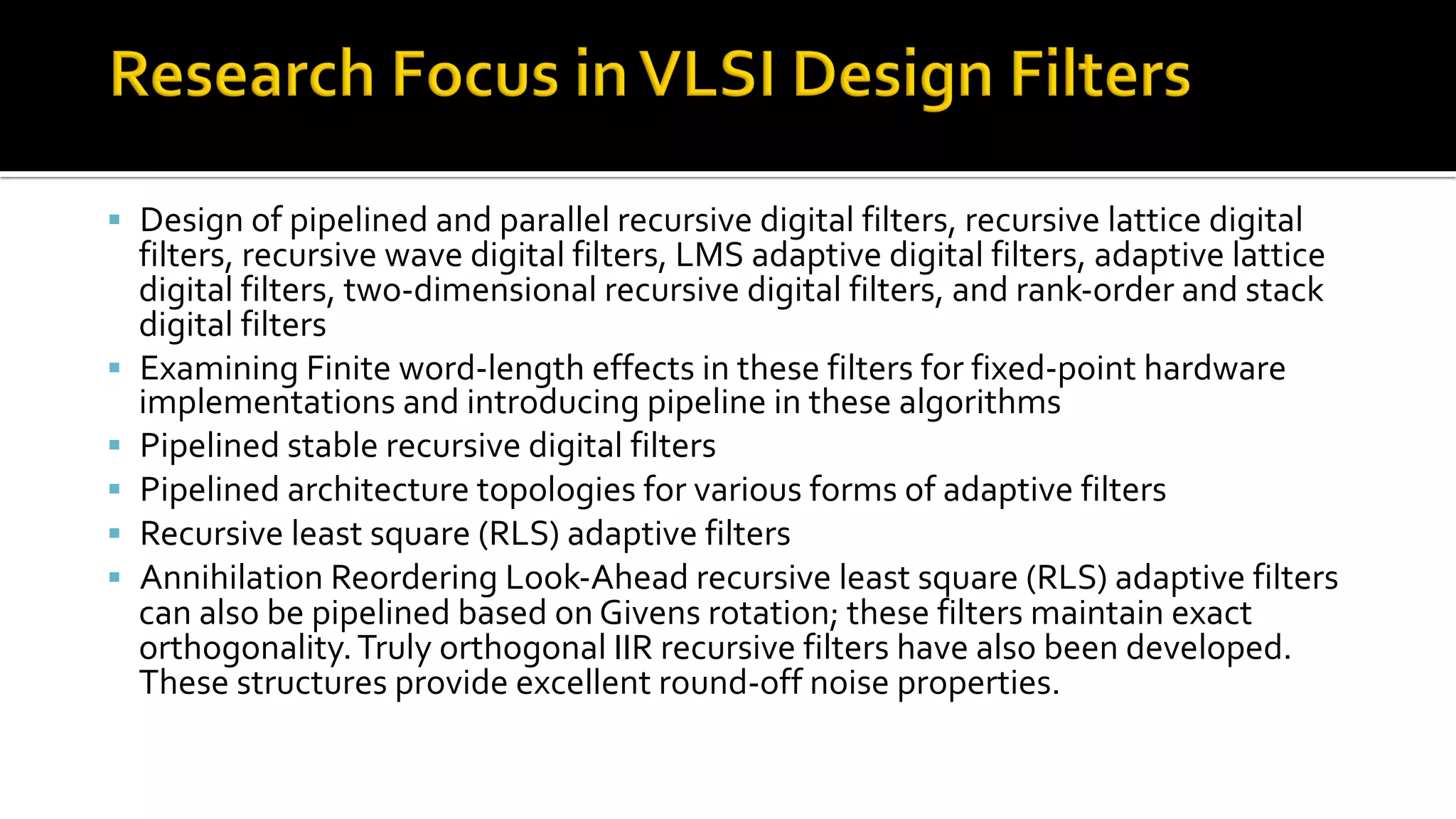

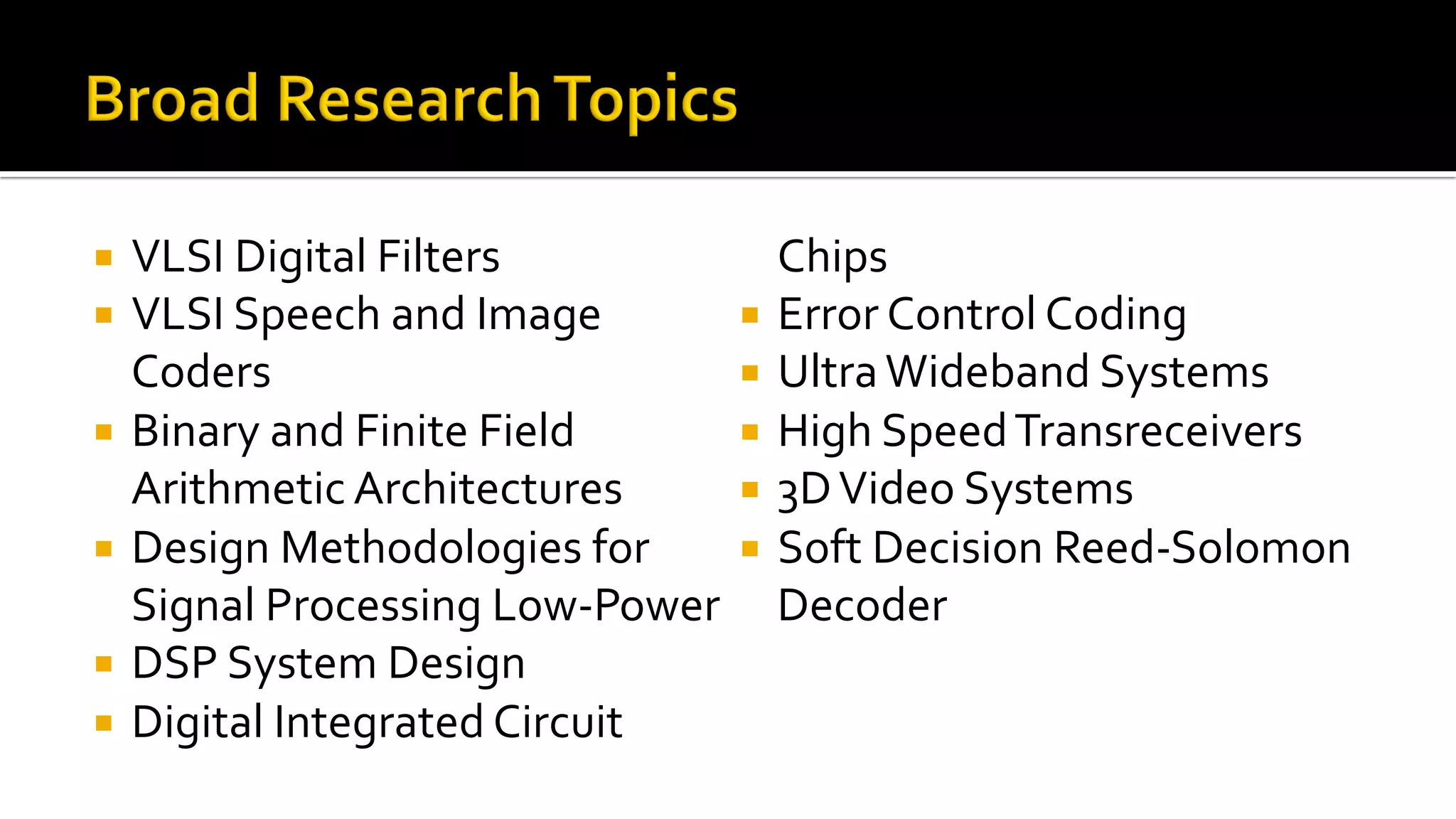

34. ¡ VLSI Digital Filters

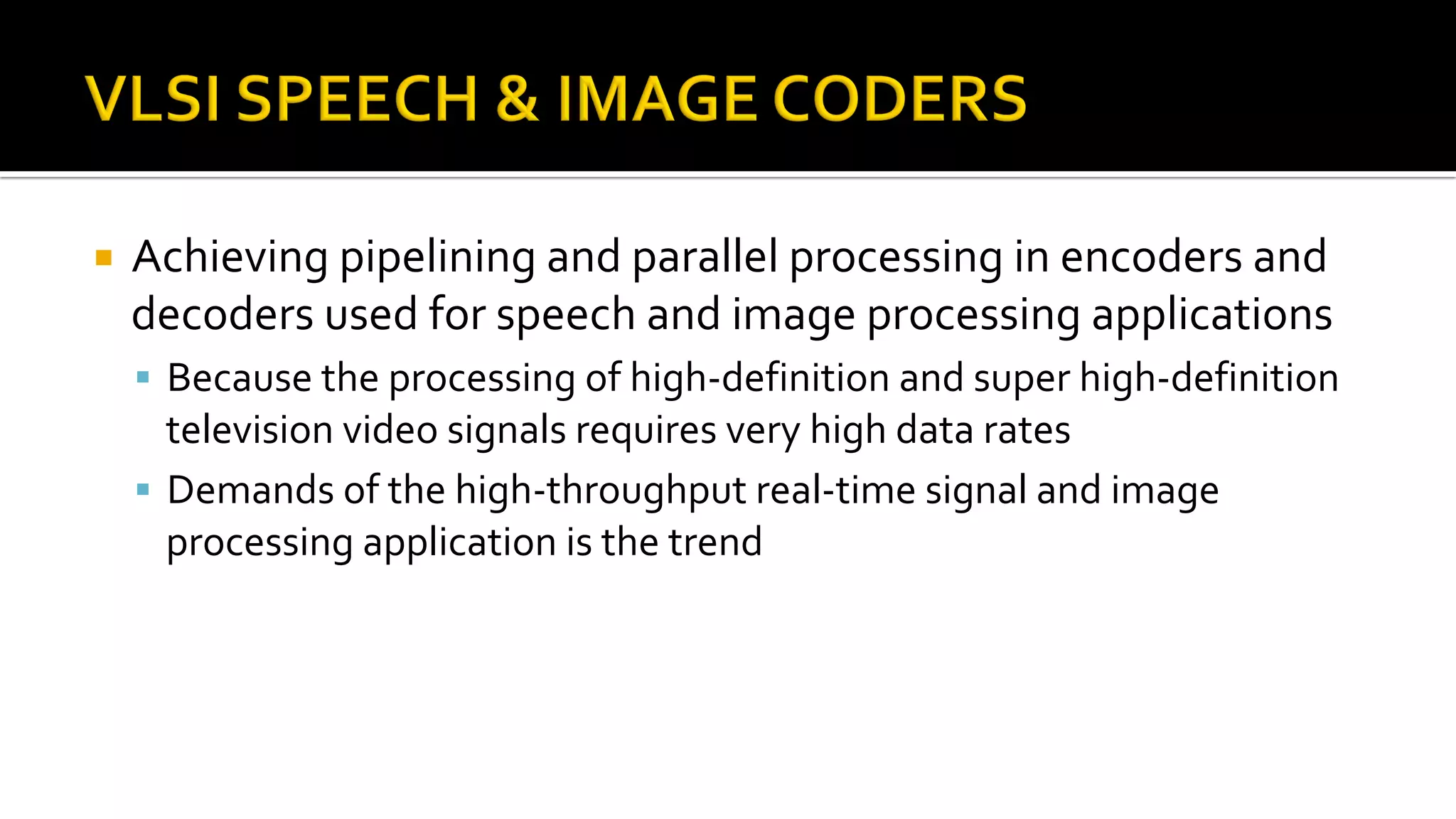

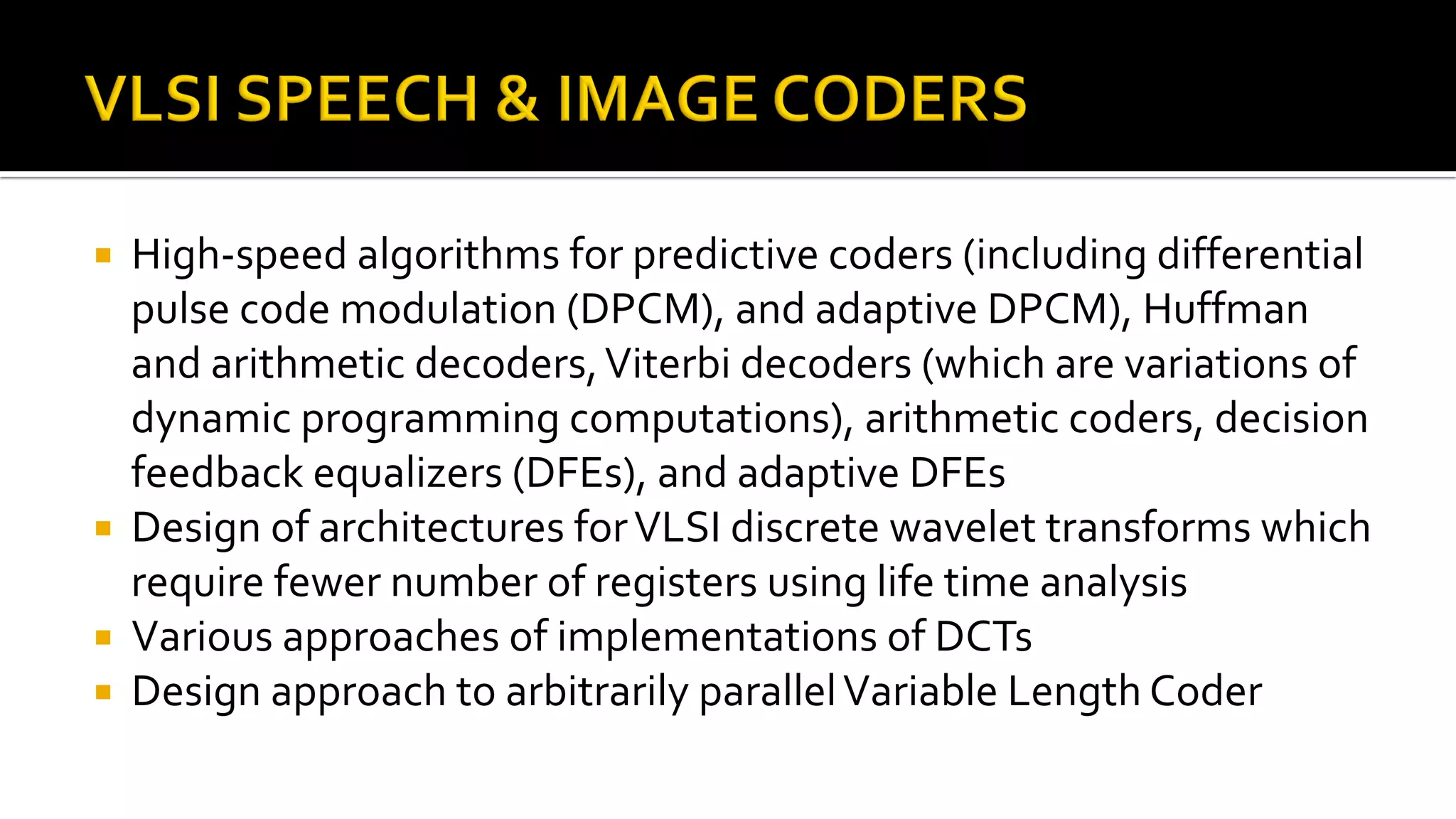

¡ VLSI Speech and Image
Coders
¡ Binary and Finite Field
Arithmetic Architectures

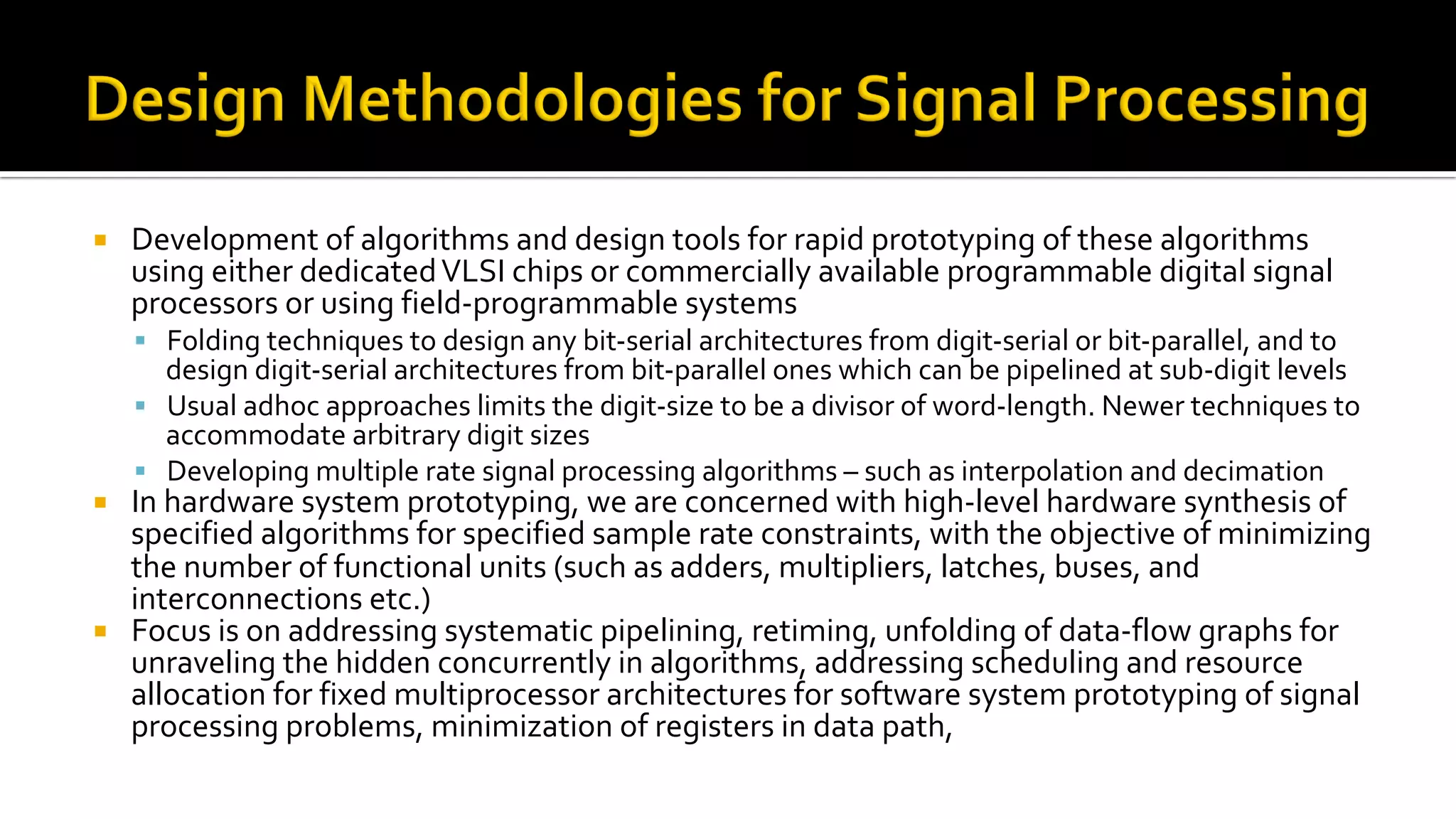

¡ Design Methodologies for
Signal Processing Low-Power
¡ DSP System Design

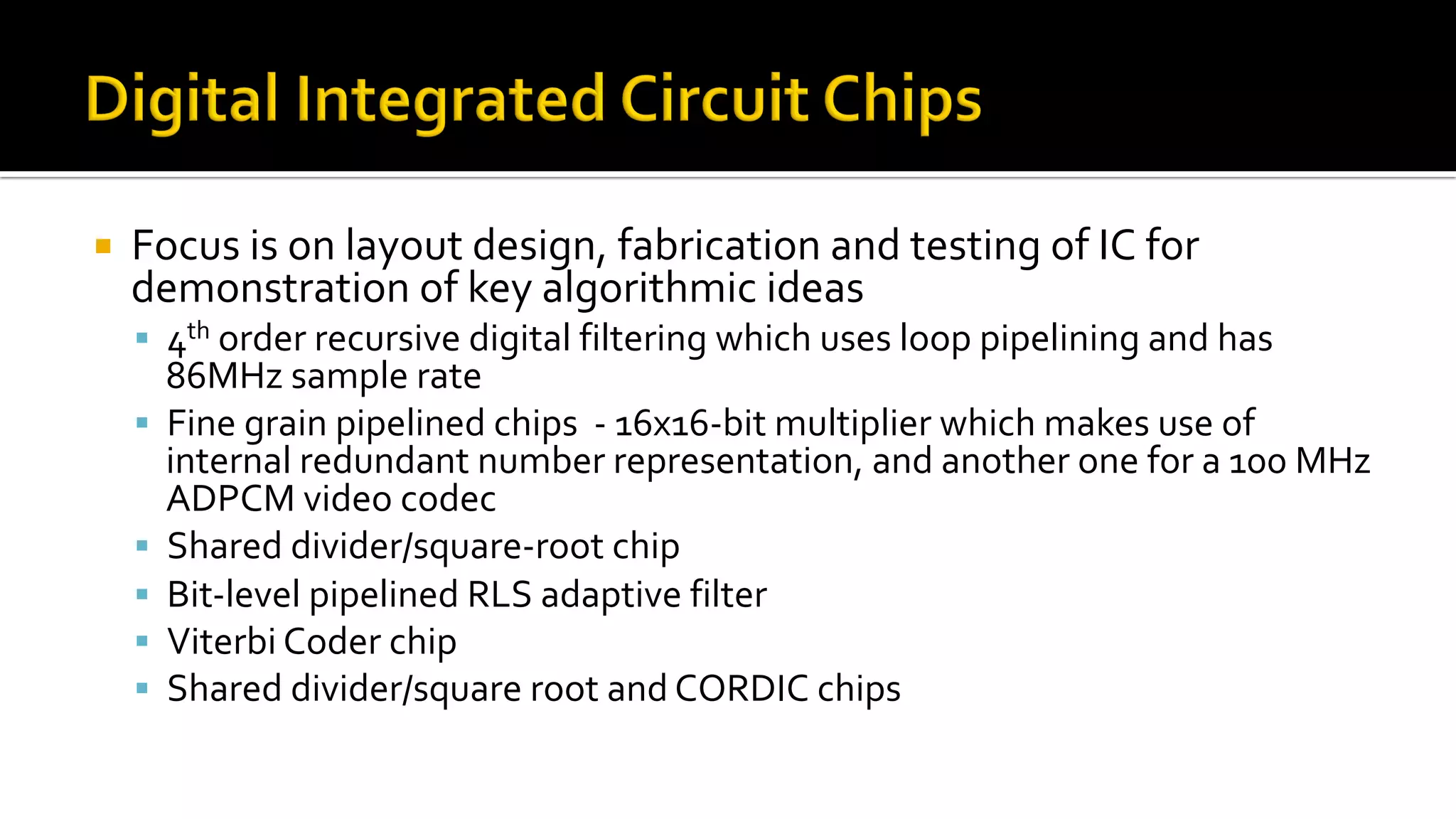

¡ Digital Integrated Circuit
Chips

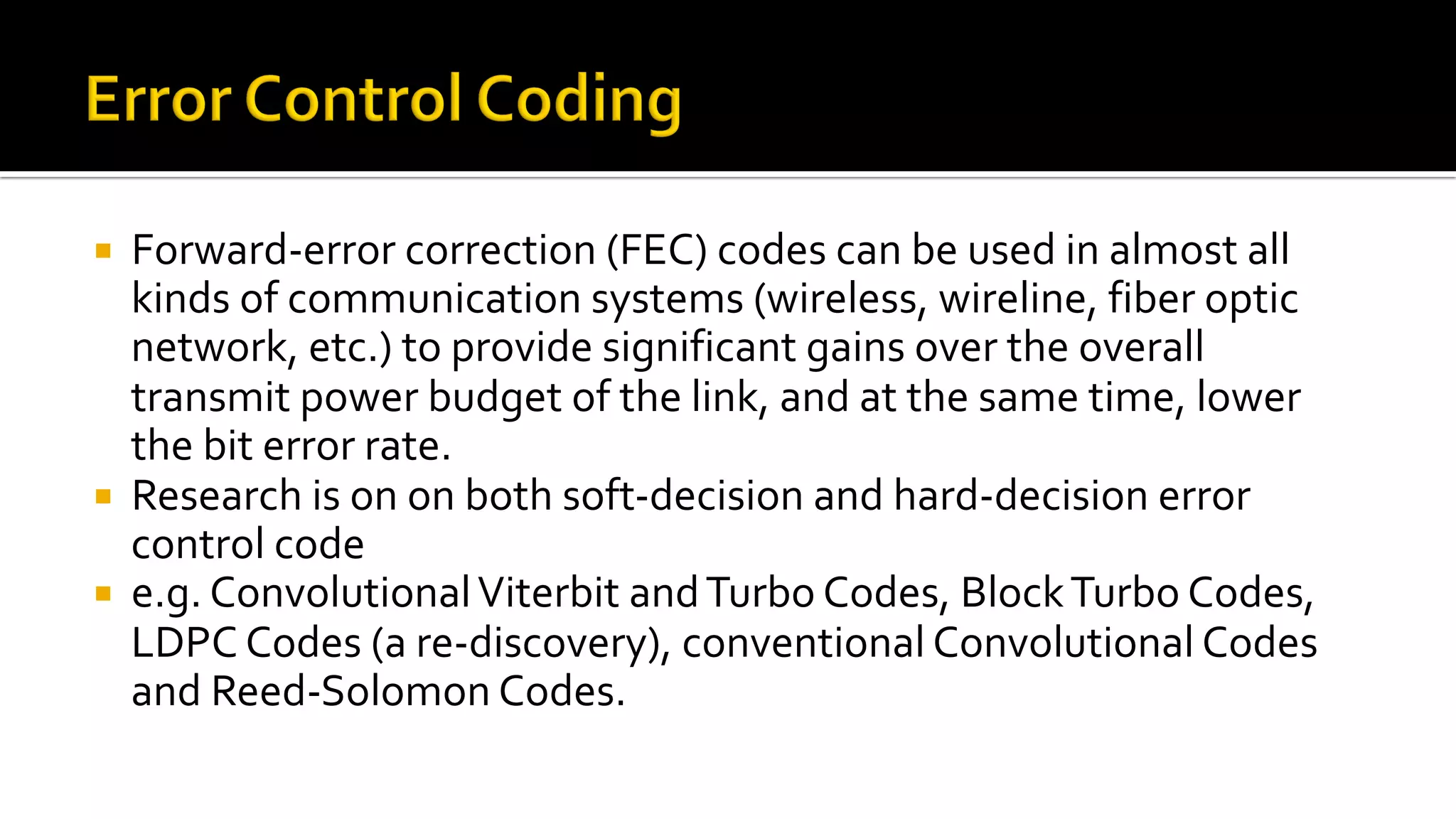

¡ Error Control Coding

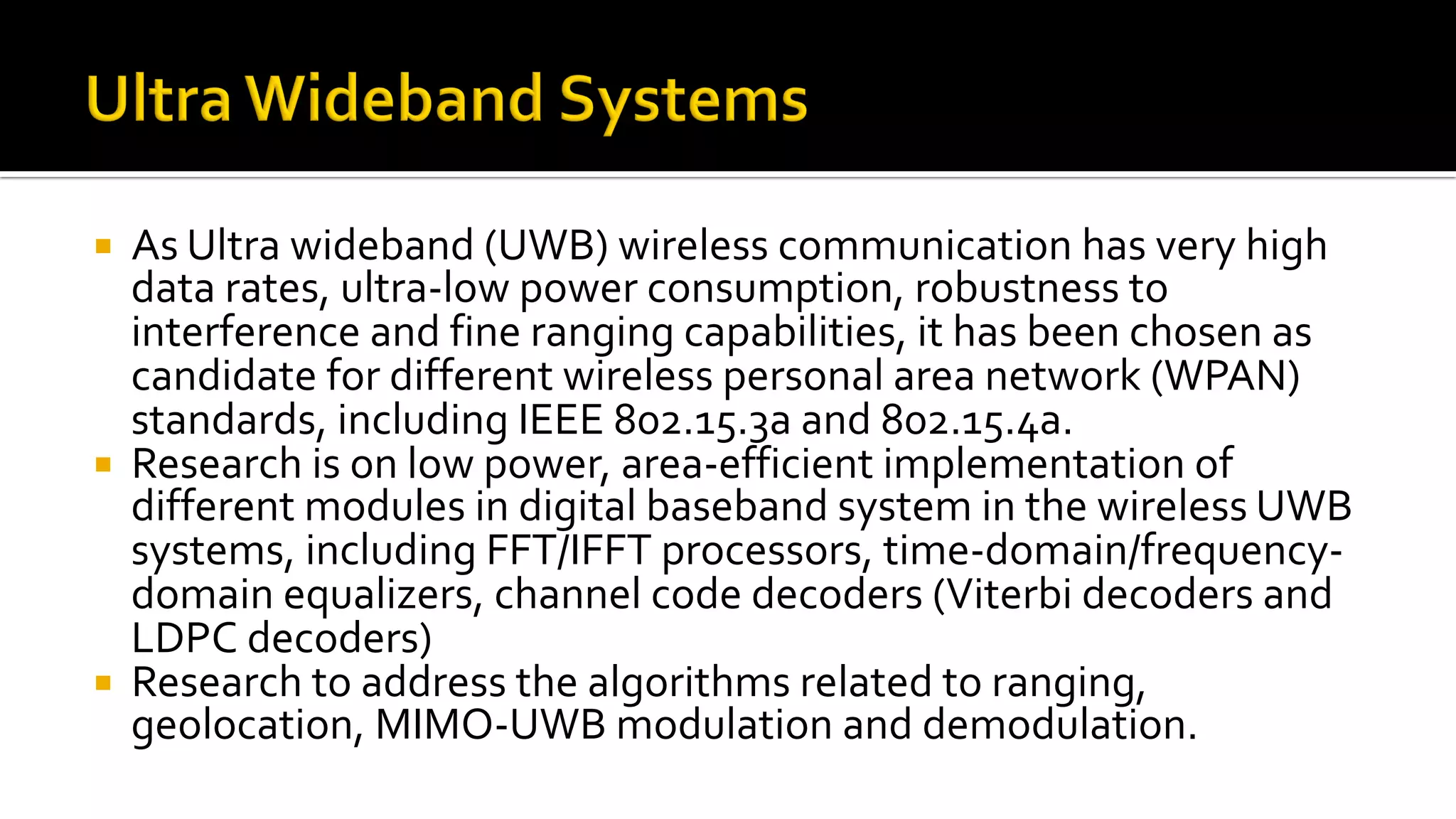

¡ Ultra Wideband Systems

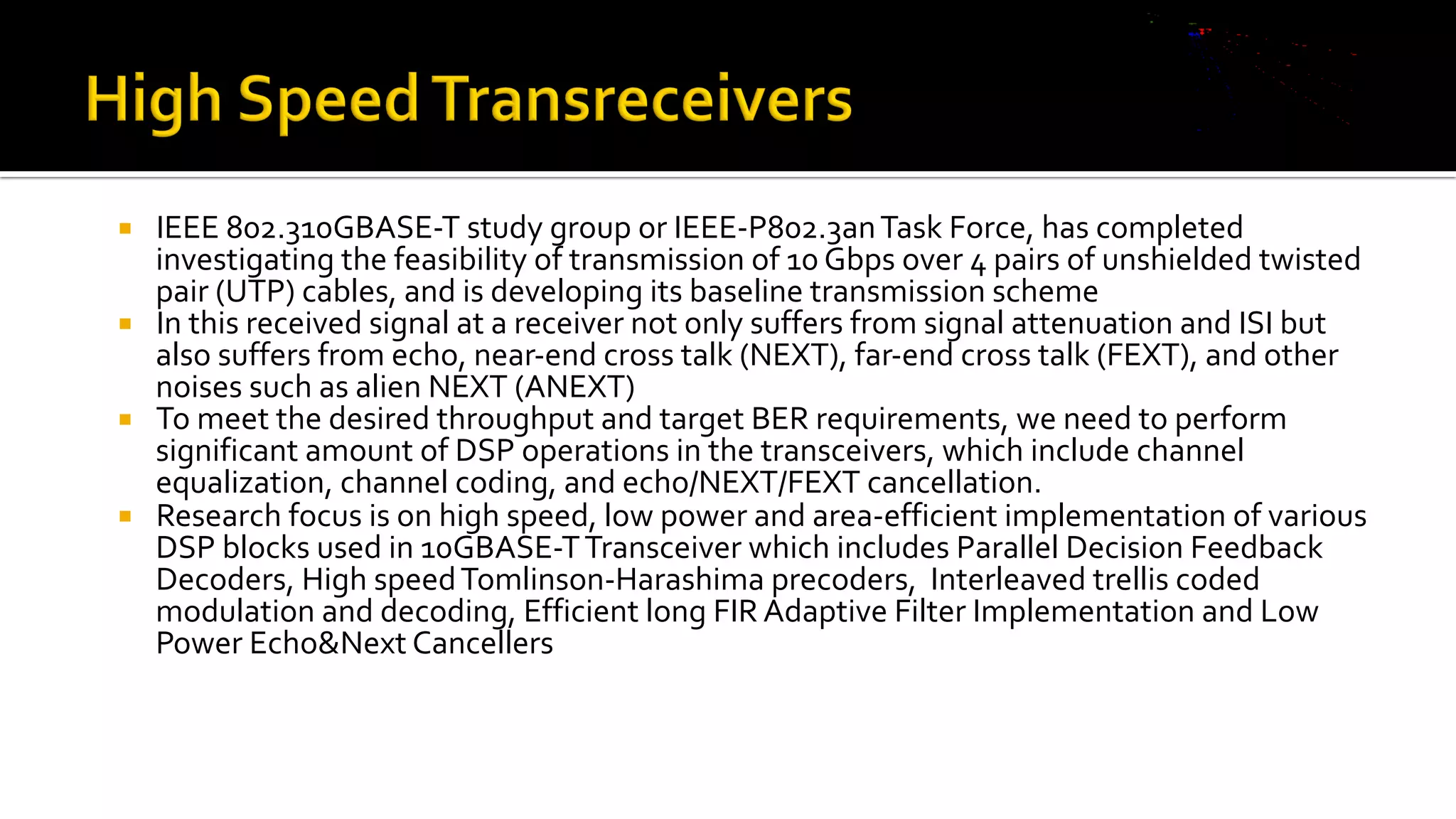

¡ High Speed Transreceivers

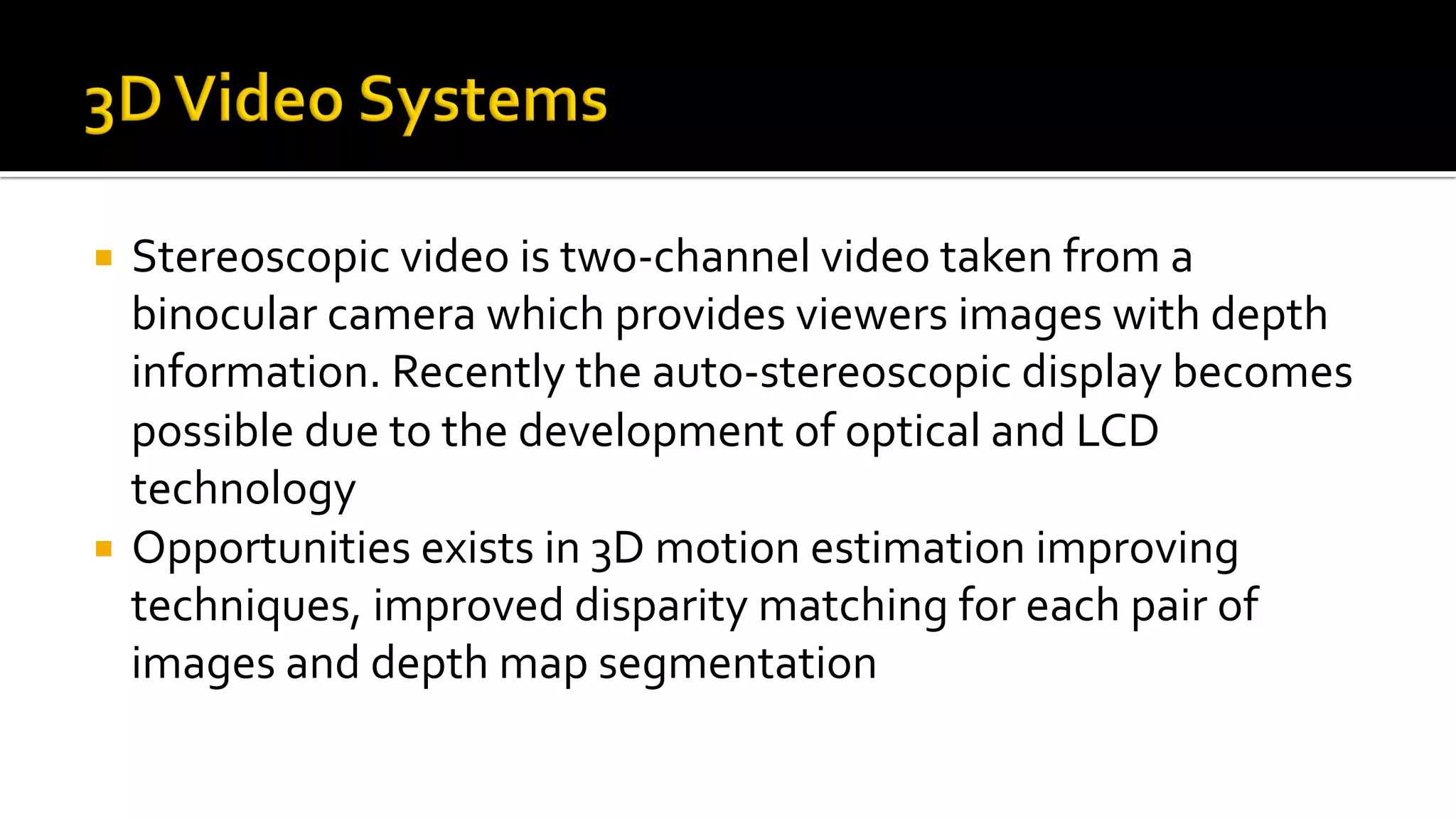

¡ 3D Video Systems
¡ Soft Decision Reed-Solomon
Decoder

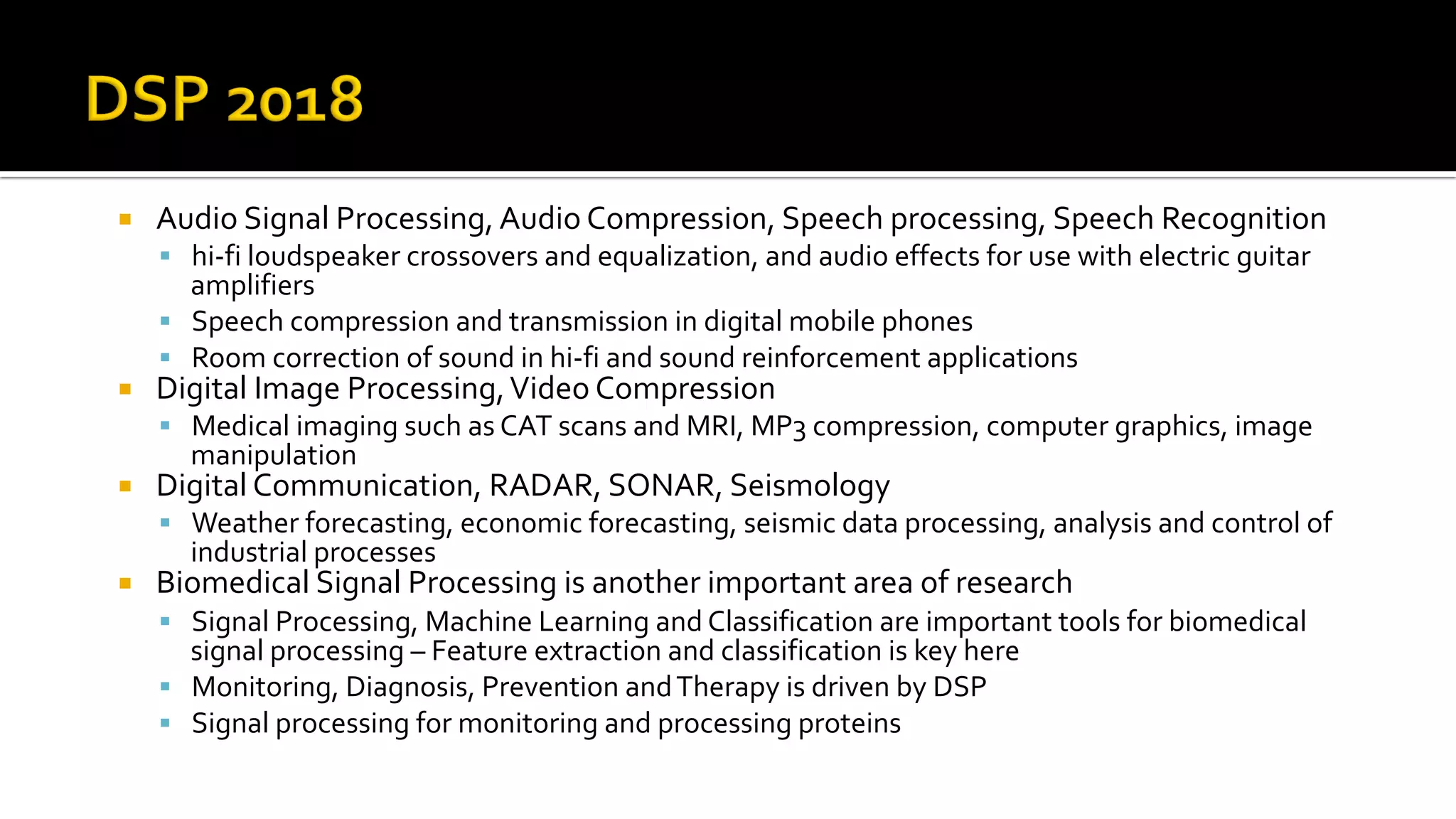

36. ¡ Audio Signal Processing, Audio Compression, Speech processing, Speech Recognition
§ hi-fi loudspeaker crossovers and equalization, and audio effects for use with electric guitar
amplifiers
§ Speech compression and transmission in digital mobile phones
§ Room correction of sound in hi-fi and sound reinforcement applications
¡ Digital Image Processing, Video Compression
§ Medical imaging such as CAT scans and MRI, MP3 compression, computer graphics, image
manipulation
¡ Digital Communication, RADAR, SONAR, Seismology
§ Weather forecasting, economic forecasting, seismic data processing, analysis and control of
industrial processes
¡ Biomedical Signal Processing is another important area of research
§ Signal Processing, Machine Learning and Classification are important tools for biomedical
signal processing – Feature extraction and classification is key here
§ Monitoring, Diagnosis, Prevention and Therapy is driven by DSP
§ Signal processing for monitoring and processing proteins

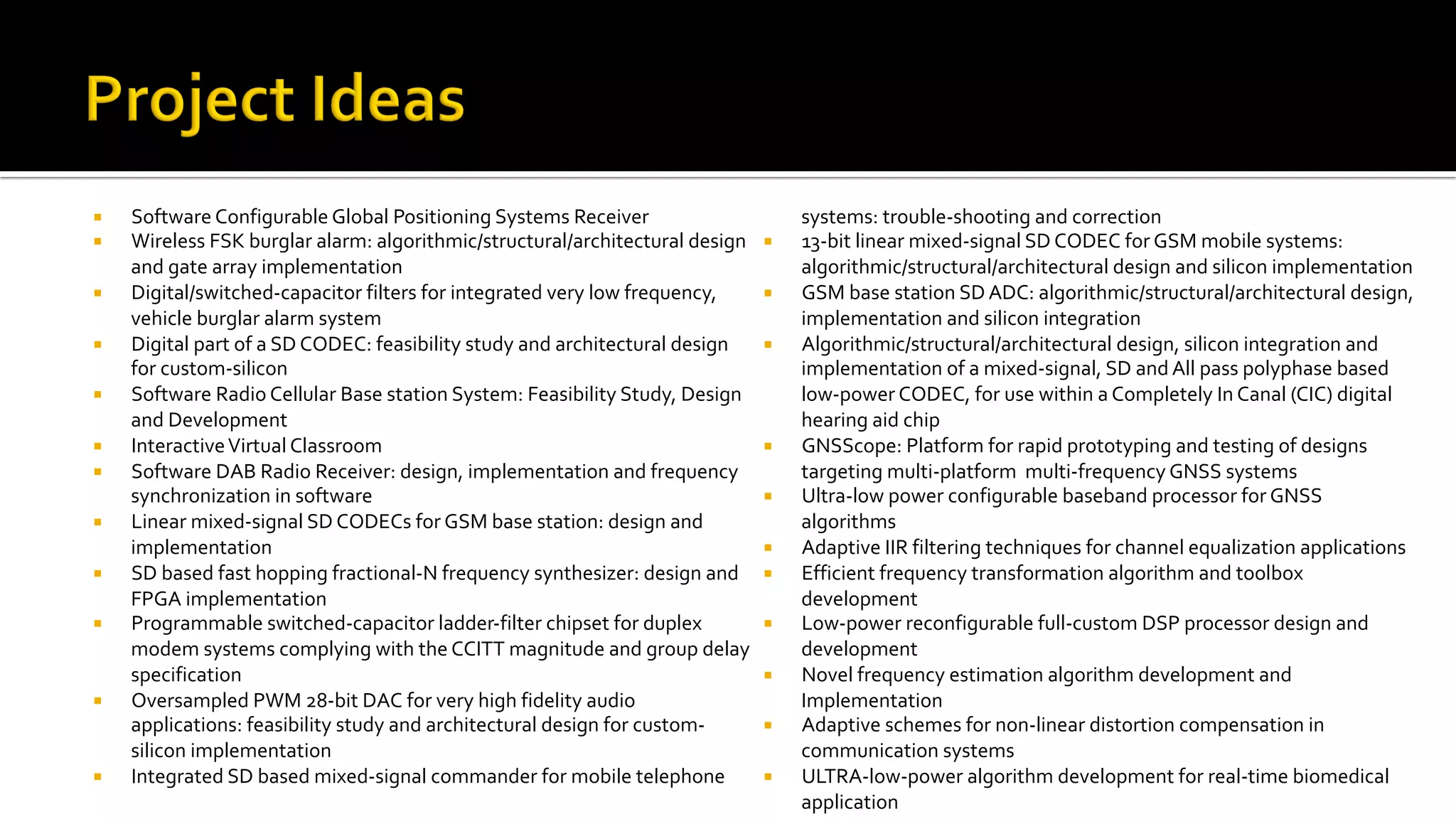

37. ¡ Software Configurable Global Positioning Systems Receiver
¡ Wireless FSK burglar alarm: algorithmic/structural/architectural design
and gate array implementation
¡ Digital/switched-capacitor filters for integrated very low frequency,
vehicle burglar alarm system
¡ Digital part of a SD CODEC: feasibility study and architectural design
for custom-silicon
¡ Software Radio Cellular Base station System: Feasibility Study, Design
and Development
¡ Interactive Virtual Classroom
¡ Software DAB Radio Receiver: design, implementation and frequency
synchronization in software
¡ Linear mixed-signal SD CODECs for GSM base station: design and
implementation
¡ SD based fast hopping fractional-N frequency synthesizer: design and
FPGA implementation
¡ Programmable switched-capacitor ladder-filter chipset for duplex
modem systems complying with the CCITT magnitude and group delay
specification
¡ Oversampled PWM 28-bit DAC for very high fidelity audio
applications: feasibility study and architectural design for custom-
silicon implementation
¡ Integrated SD based mixed-signal commander for mobile telephone
systems: trouble-shooting and correction
¡ 13-bit linear mixed-signal SD CODEC for GSM mobile systems:
algorithmic/structural/architectural design and silicon implementation
¡ GSM base station SD ADC: algorithmic/structural/architectural design,
implementation and silicon integration
¡ Algorithmic/structural/architectural design, silicon integration and
implementation of a mixed-signal, SD and All pass polyphase based
low-power CODEC, for use within a Completely In Canal (CIC) digital
hearing aid chip
¡ GNSScope: Platform for rapid prototyping and testing of designs
targeting multi-platform multi-frequency GNSS systems
¡ Ultra-low power configurable baseband processor for GNSS
algorithms
¡ Adaptive IIR filtering techniques for channel equalization applications
¡ Efficient frequency transformation algorithm and toolbox
development
¡ Low-power reconfigurable full-custom DSP processor design and
development
¡ Novel frequency estimation algorithm development and
Implementation
¡ Adaptive schemes for non-linear distortion compensation in
communication systems
¡ ULTRA-low-power algorithm development for real-time biomedical
application

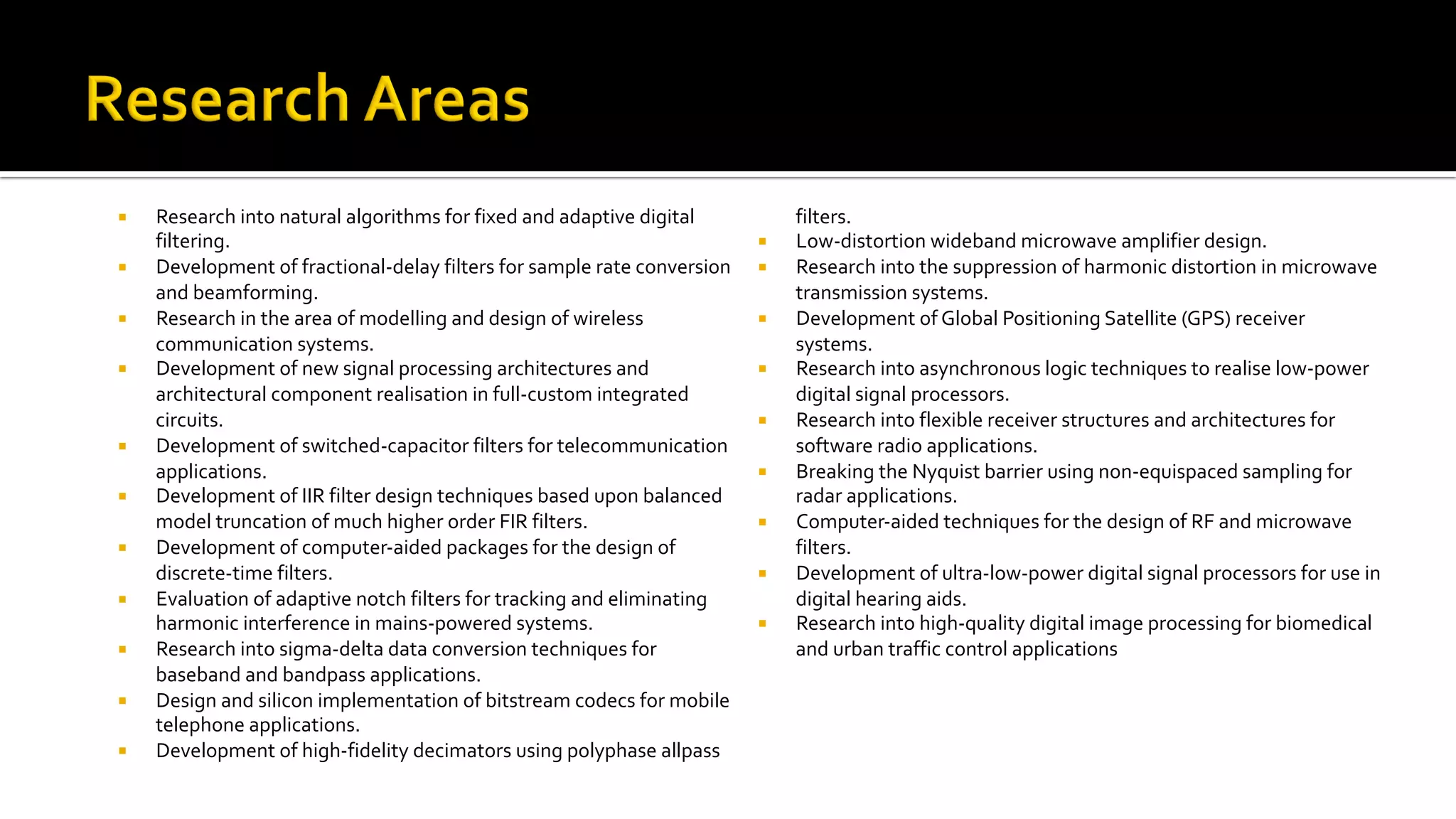

38. ¡ Research into natural algorithms for fixed and adaptive digital
filtering.
¡ Development of fractional-delay filters for sample rate conversion
and beamforming.
¡ Research in the area of modelling and design of wireless
communication systems.
¡ Development of new signal processing architectures and
architectural component realisation in full-custom integrated
circuits.
¡ Development of switched-capacitor filters for telecommunication
applications.
¡ Development of IIR filter design techniques based upon balanced
model truncation of much higher order FIR filters.
¡ Development of computer-aided packages for the design of
discrete-time filters.
¡ Evaluation of adaptive notch filters for tracking and eliminating
harmonic interference in mains-powered systems.
¡ Research into sigma-delta data conversion techniques for
baseband and bandpass applications.
¡ Design and silicon implementation of bitstream codecs for mobile
telephone applications.
¡ Development of high-fidelity decimators using polyphase allpass
filters.
¡ Low-distortion wideband microwave amplifier design.
¡ Research into the suppression of harmonic distortion in microwave
transmission systems.
¡ Development of Global Positioning Satellite (GPS) receiver
systems.
¡ Research into asynchronous logic techniques to realise low-power
digital signal processors.
¡ Research into flexible receiver structures and architectures for
software radio applications.
¡ Breaking the Nyquist barrier using non-equispaced sampling for
radar applications.
¡ Computer-aided techniques for the design of RF and microwave
filters.
¡ Development of ultra-low-power digital signal processors for use in
digital hearing aids.
¡ Research into high-quality digital image processing for biomedical
and urban traffic control applications

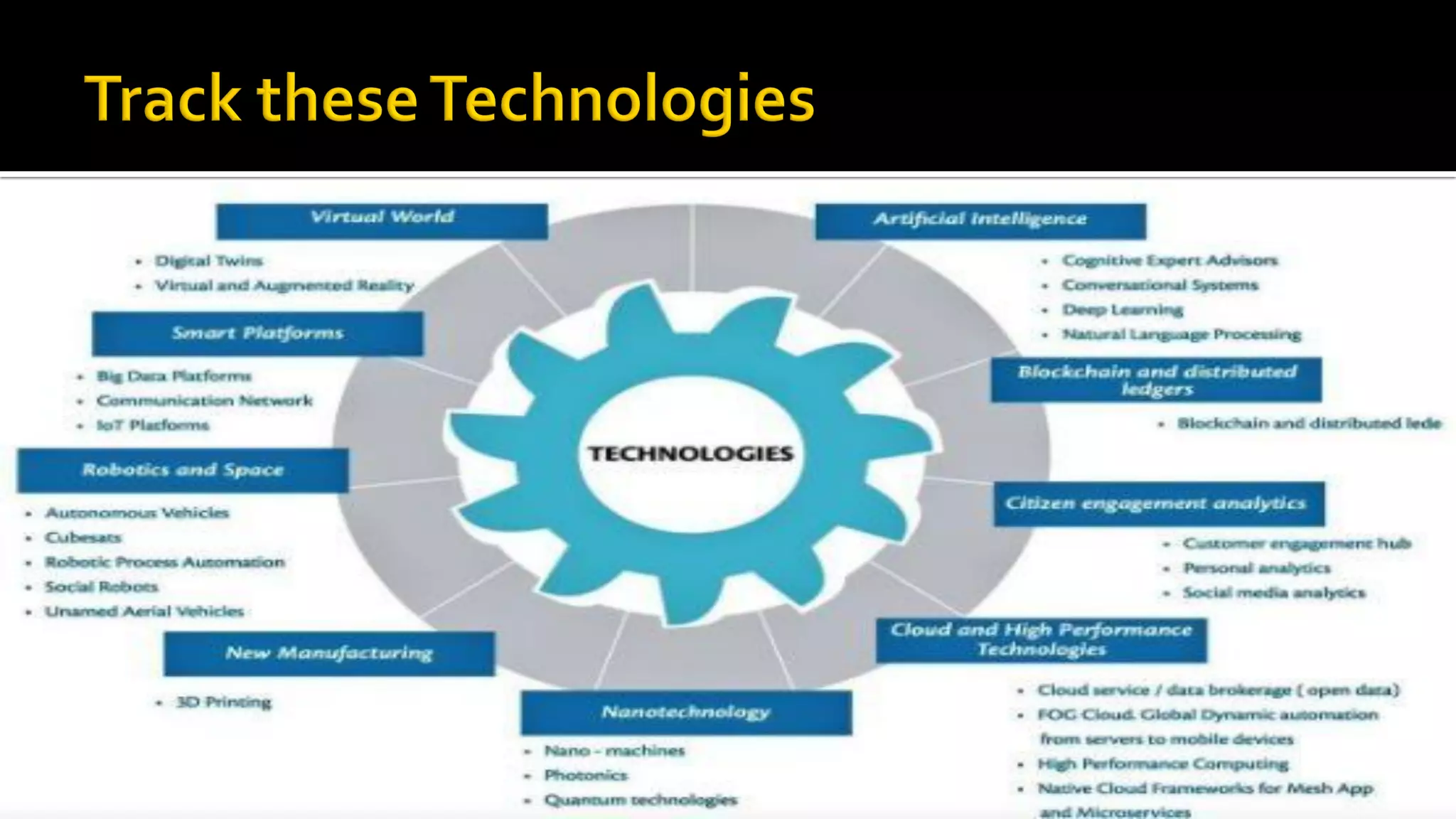

42. ¡ Belakoo Education Trust offers free quality education for
underprivileged children. We run STEAM programs for
Government School kids substituting their learnings at school.
¡ We participate in Skill Development Program for students under
various running central/stage level schemes
https://www.facebook.com/belakootrust/

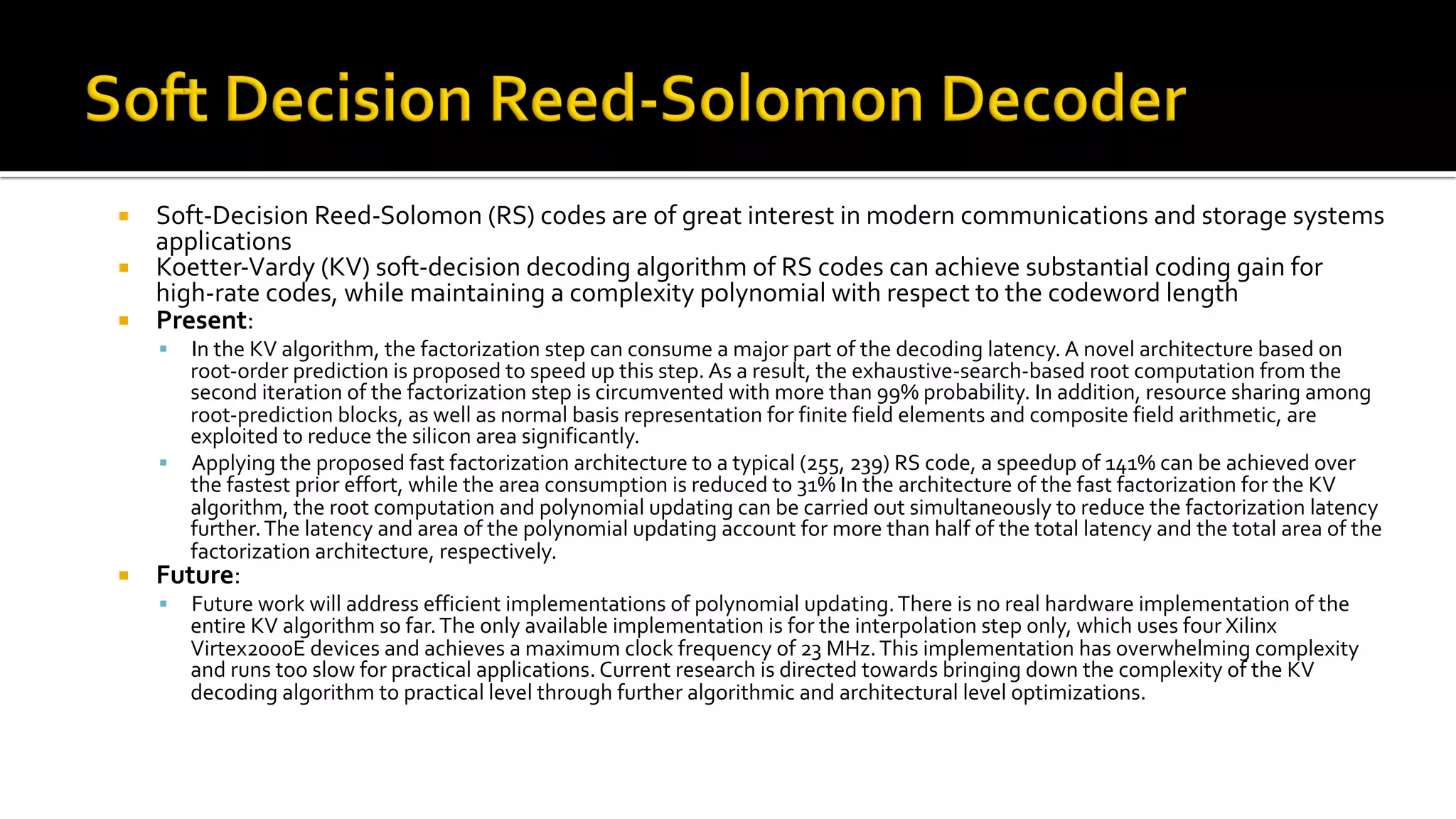

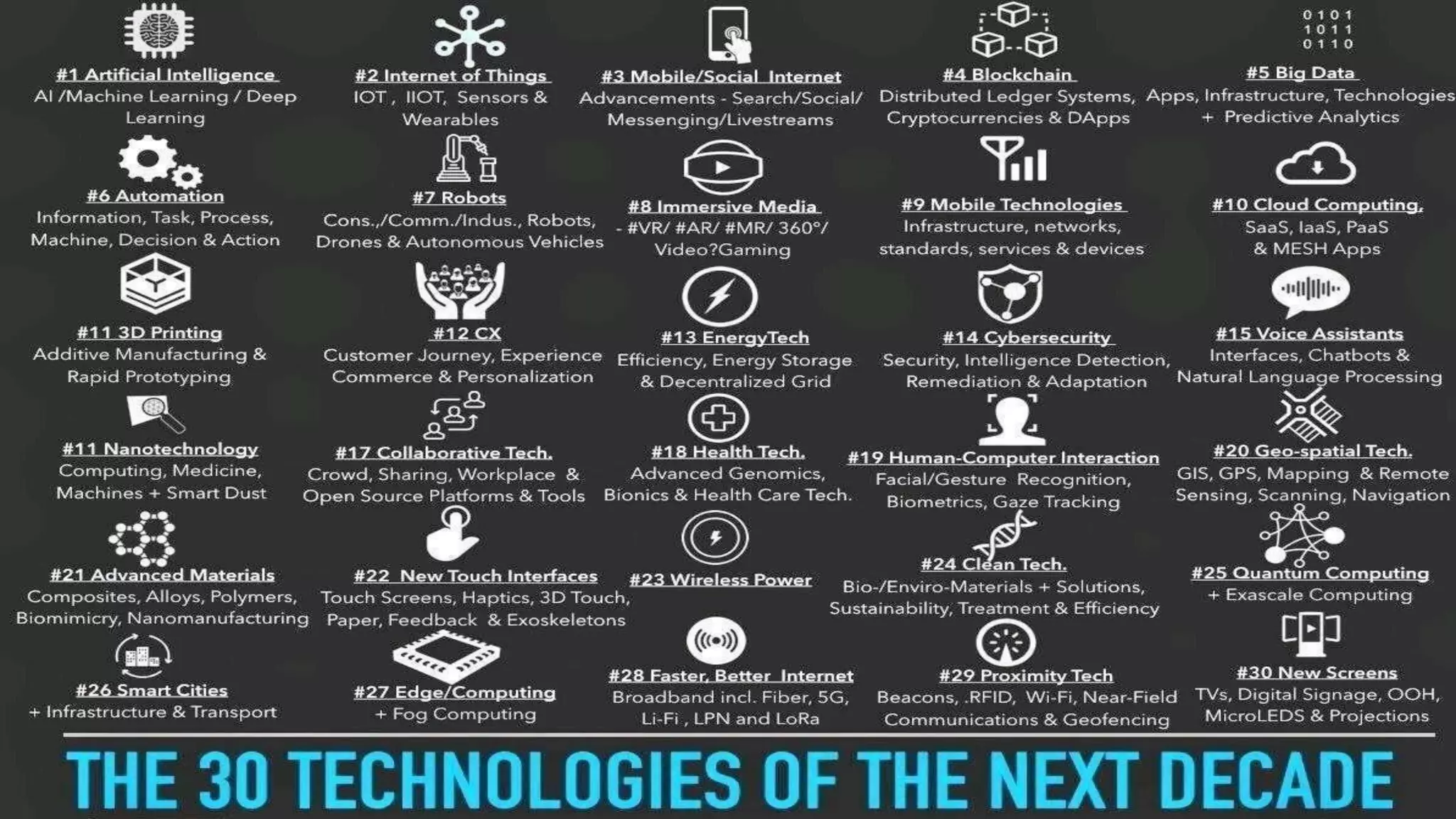

54. ¡ Soft-Decision Reed-Solomon (RS) codes are of great interest in modern communications and storage systems
applications
¡ Koetter-Vardy (KV) soft-decision decoding algorithm of RS codes can achieve substantial coding gain for
high-rate codes, while maintaining a complexity polynomial with respect to the codeword length
¡ Present:
§ In the KV algorithm, the factorization step can consume a major part of the decoding latency. A novel architecture based on
root-order prediction is proposed to speed up this step. As a result, the exhaustive-search-based root computation from the
second iteration of the factorization step is circumvented with more than 99% probability. In addition, resource sharing among
root-prediction blocks, as well as normal basis representation for finite field elements and composite field arithmetic, are
exploited to reduce the silicon area significantly.
§ Applying the proposed fast factorization architecture to a typical (255, 239) RS code, a speedup of 141% can be achieved over
the fastest prior effort, while the area consumption is reduced to 31% In the architecture of the fast factorization for the KV
algorithm, the root computation and polynomial updating can be carried out simultaneously to reduce the factorization latency
further. The latency and area of the polynomial updating account for more than half of the total latency and the total area of the
factorization architecture, respectively.
¡ Future:
§ Future work will address efficient implementations of polynomial updating. There is no real hardware implementation of the
entire KV algorithm so far. The only available implementation is for the interpolation step only, which uses four Xilinx
Virtex2000E devices and achieves a maximum clock frequency of 23 MHz. This implementation has overwhelming complexity
and runs too slow for practical applications. Current research is directed towards bringing down the complexity of the KV
decoding algorithm to practical level through further algorithmic and architectural level optimizations.

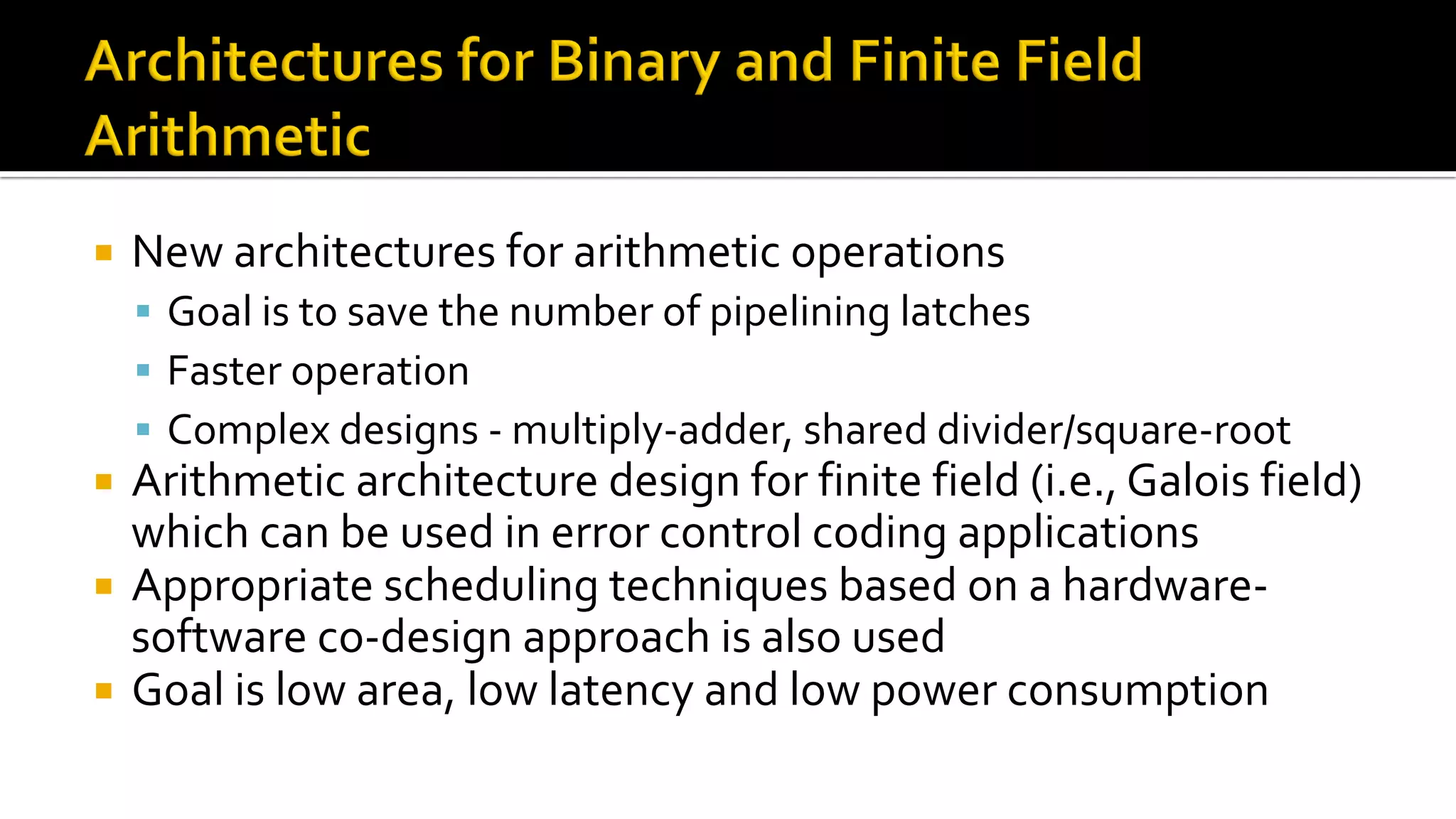

57. ¡ New architectures for arithmetic operations
§ Goal is to save the number of pipelining latches
§ Faster operation
§ Complex designs - multiply-adder, shared divider/square-root
¡ Arithmetic architecture design for finite field (i.e., Galois field)
which can be used in error control coding applications
¡ Appropriate scheduling techniques based on a hardware-
software co-design approach is also used
¡ Goal is low area, low latency and low power consumption
