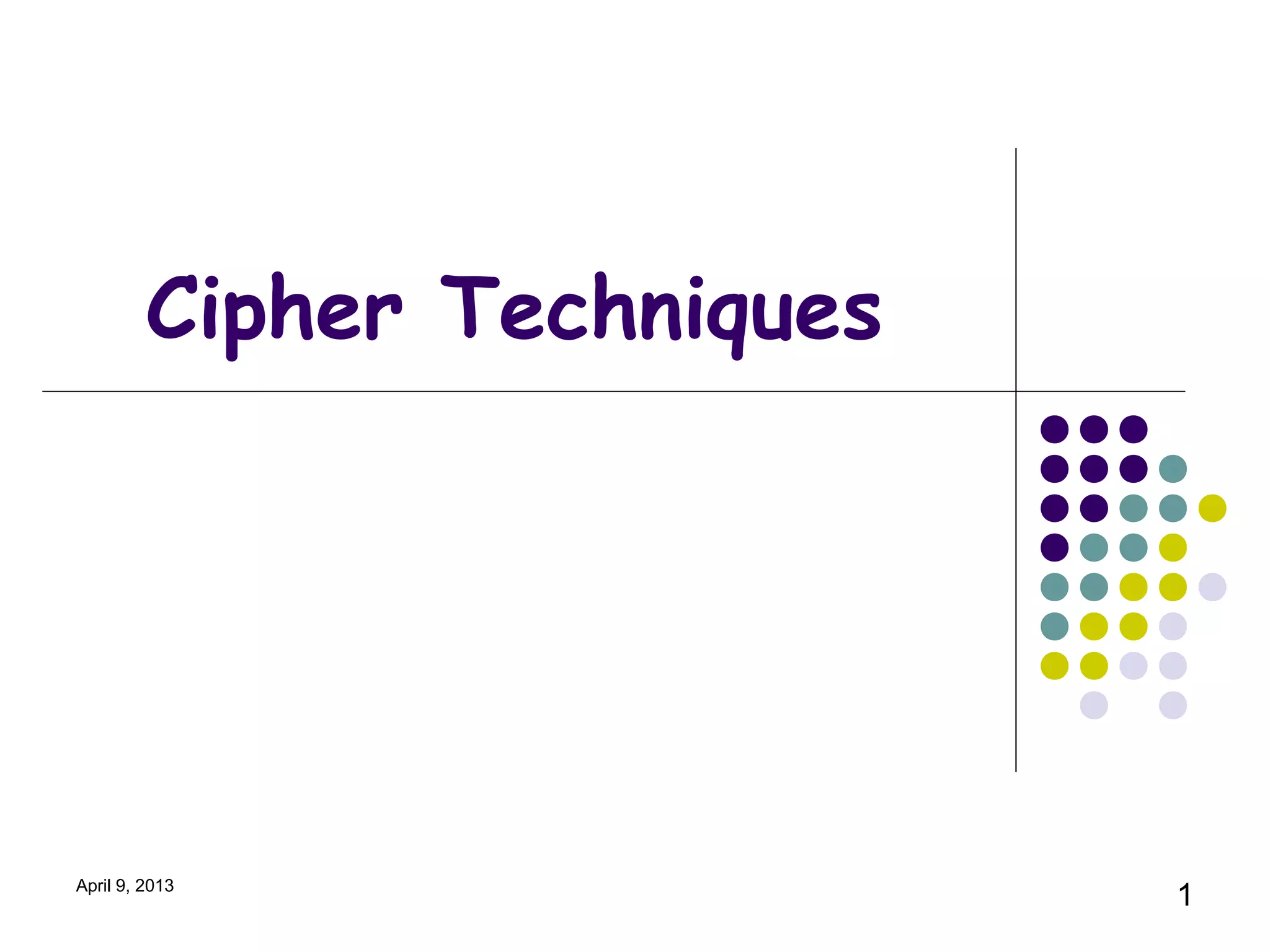

1. Cipher Techniques
April 9, 2013
1

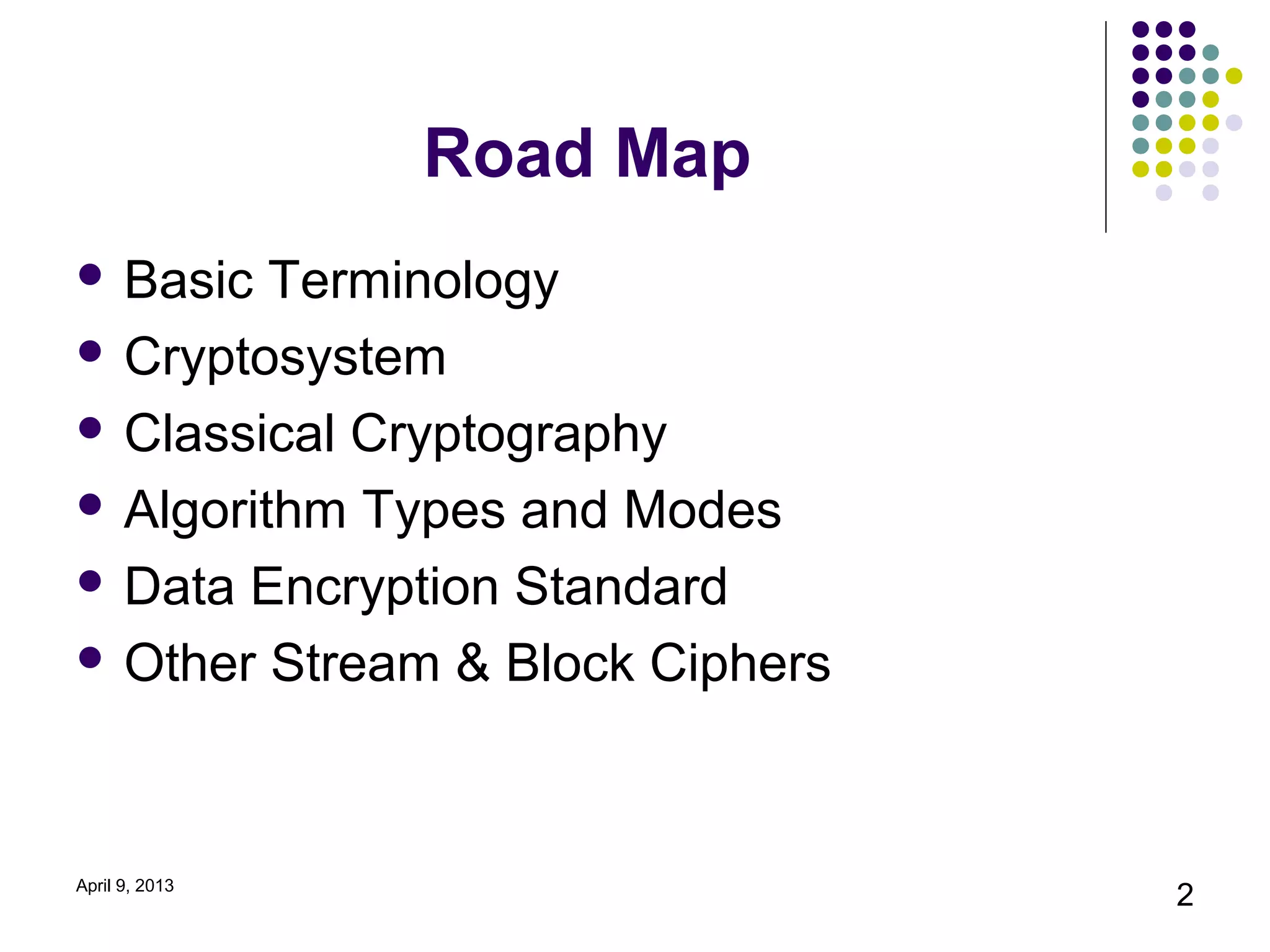

2. Road Map
 Basic Terminology
 Cryptosystem
 Classical Cryptography
 Algorithm Types and Modes
 Data Encryption Standard
 Other Stream & Block Ciphers
April 9, 2013
2

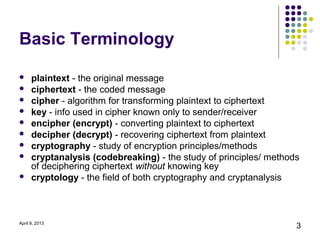

3. Basic Terminology
 plaintext - the original message
 ciphertext - the coded message
 cipher - algorithm for transforming plaintext to ciphertext
 key - info used in cipher known only to sender/receiver
 encipher (encrypt) - converting plaintext to ciphertext
 decipher (decrypt) - recovering ciphertext from plaintext
 cryptography - study of encryption principles/methods
 cryptanalysis (codebreaking) - the study of principles/ methods
of deciphering ciphertext without knowing key
 cryptology - the field of both cryptography and cryptanalysis
April 9, 2013
3

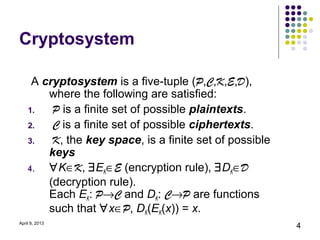

4. Cryptosystem
A cryptosystem is a five-tuple (P,C,K,E,D),
where the following are satisfied:
1. P is a finite set of possible plaintexts.
2. C is a finite set of possible ciphertexts.
3. K, the key space, is a finite set of possible
keys
4. ∀K∈K, ∃EK∈E (encryption rule), ∃DK∈D
(decryption rule).
Each EK: P→C and DK: C→P are functions
such that ∀x∈P, DK(EK(x)) = x.
April 9, 2013
4

5. Cryptography
 Cryptography
 Symmetric / private key / single key
 Asymmetric / public-key / two - key
April 9, 2013
5

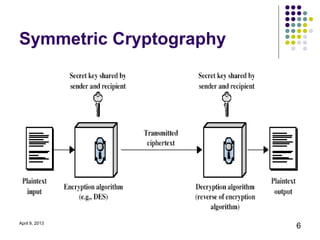

6. Symmetric Cryptography
April 9, 2013
6

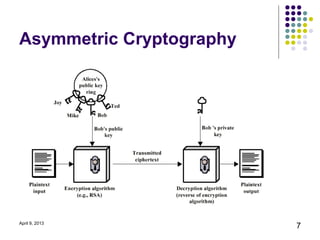

7. Asymmetric Cryptography
April 9, 2013
7

8. Requirements
 Two requirements for secure use of
symmetric encryption:
 a strong encryption algorithm
 a secret key known only to sender / receiver
Y = EK(X)
X = DK(Y)
 assume encryption algorithm is known
 implies a secure channel to distribute key
April 9, 2013
8

9. Symmetric cryptography
 Transposition Techniques
 Substitution techniques
 Caesar Cipher
 Monoalphabetic Cipher
 Polyalphabethic Cipher
 Playfair Cipher
April 9, 2013
9

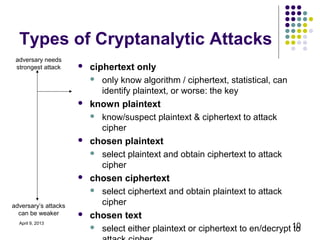

10. Types of Cryptanalytic Attacks
adversary needs
strongest attack  ciphertext only
 only know algorithm / ciphertext, statistical, can
identify plaintext, or worse: the key
 known plaintext
 know/suspect plaintext & ciphertext to attack
cipher
 chosen plaintext
 select plaintext and obtain ciphertext to attack
cipher
 chosen ciphertext
 select ciphertext and obtain plaintext to attack
adversary’s attacks cipher
can be weaker  chosen text
April 9, 2013
 select either plaintext or ciphertext to en/decrypt 10
to

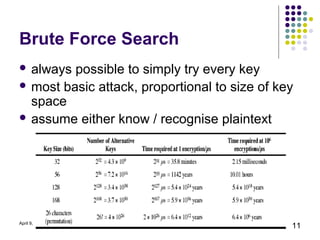

11. Brute Force Search
 always possible to simply try every key
 most basic attack, proportional to size of key
space
 assume either know / recognise plaintext
April 9, 2013
11

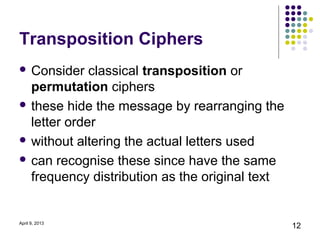

12. Transposition Ciphers
 Consider classical transposition or
permutation ciphers
 these hide the message by rearranging the
letter order
 without altering the actual letters used
 can recognise these since have the same
frequency distribution as the original text
April 9, 2013
12

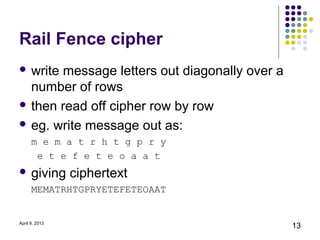

13. Rail Fence cipher
 writemessage letters out diagonally over a
number of rows
 then read off cipher row by row
 eg. write message out as:
m e m a t r h t g p r y
e t e f e t e o a a t
 giving ciphertext
MEMATRHTGPRYETEFETEOAAT
April 9, 2013
13

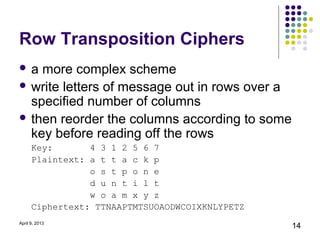

14. Row Transposition Ciphers
a more complex scheme
 write letters of message out in rows over a
specified number of columns
 then reorder the columns according to some
key before reading off the rows
Key: 4 3 1 2 5 6 7
Plaintext: a t t a c k p
o s t p o n e
d u n t i l t
w o a m x y z
Ciphertext: TTNAAPTMTSUOAODWCOIXKNLYPETZ
April 9, 2013
14

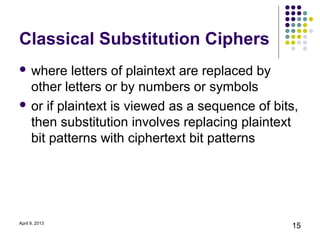

15. Classical Substitution Ciphers
 where letters of plaintext are replaced by
other letters or by numbers or symbols
 or if plaintext is viewed as a sequence of bits,
then substitution involves replacing plaintext
bit patterns with ciphertext bit patterns
April 9, 2013
15

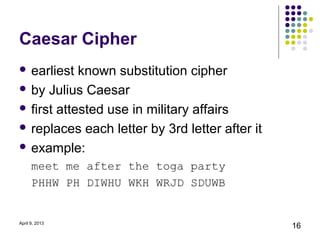

16. Caesar Cipher
 earliest known substitution cipher
 by Julius Caesar
 first attested use in military affairs
 replaces each letter by 3rd letter after it
 example:
meet me after the toga party
PHHW PH DIWHU WKH WRJD SDUWB
April 9, 2013
16

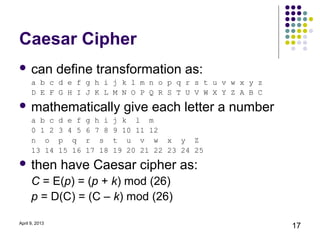

17. Caesar Cipher
 can define transformation as:
a b c d e f g h i j k l m n o p q r s t u v w x y z
D E F G H I J K L M N O P Q R S T U V W X Y Z A B C
 mathematically give each letter a number
a b c d e f g h i j k l m
0 1 2 3 4 5 6 7 8 9 10 11 12
n o p q r s t u v w x y Z
13 14 15 16 17 18 19 20 21 22 23 24 25
 then have Caesar cipher as:
C = E(p) = (p + k) mod (26)
p = D(C) = (C – k) mod (26)
April 9, 2013
17

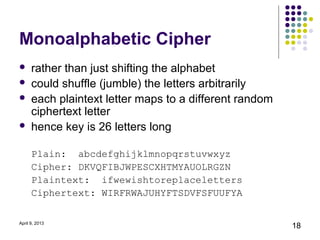

18. Monoalphabetic Cipher
 rather than just shifting the alphabet
 could shuffle (jumble) the letters arbitrarily
 each plaintext letter maps to a different random
ciphertext letter
 hence key is 26 letters long
Plain: abcdefghijklmnopqrstuvwxyz
Cipher: DKVQFIBJWPESCXHTMYAUOLRGZN
Plaintext: ifwewishtoreplaceletters
Ciphertext: WIRFRWAJUHYFTSDVFSFUUFYA
April 9, 2013
18

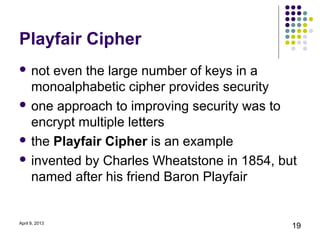

19. Playfair Cipher
 not even the large number of keys in a
monoalphabetic cipher provides security
 one approach to improving security was to
encrypt multiple letters
 the Playfair Cipher is an example
 invented by Charles Wheatstone in 1854, but
named after his friend Baron Playfair
April 9, 2013
19

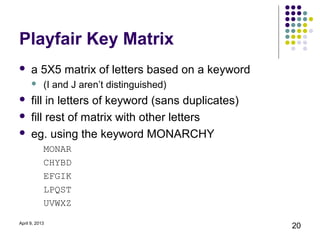

20. Playfair Key Matrix
 a 5X5 matrix of letters based on a keyword
 (I and J aren’t distinguished)
 fill in letters of keyword (sans duplicates)
 fill rest of matrix with other letters
 eg. using the keyword MONARCHY
MONAR
CHYBD
EFGIK
LPQST
UVWXZ
April 9, 2013
20

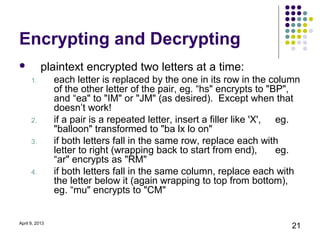

21. Encrypting and Decrypting
 plaintext encrypted two letters at a time:
1. each letter is replaced by the one in its row in the column
of the other letter of the pair, eg. “hs" encrypts to "BP",
and “ea" to "IM" or "JM" (as desired). Except when that
doesn’t work!
2. if a pair is a repeated letter, insert a filler like 'X', eg.
"balloon" transformed to "ba lx lo on"
3. if both letters fall in the same row, replace each with
letter to right (wrapping back to start from end), eg.
“ar" encrypts as "RM"
4. if both letters fall in the same column, replace each with
the letter below it (again wrapping to top from bottom),
eg. “mu" encrypts to "CM"
April 9, 2013
21

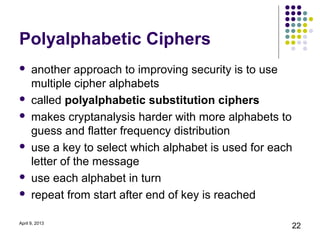

22. Polyalphabetic Ciphers
 another approach to improving security is to use
multiple cipher alphabets
 called polyalphabetic substitution ciphers
 makes cryptanalysis harder with more alphabets to
guess and flatter frequency distribution
 use a key to select which alphabet is used for each
letter of the message
 use each alphabet in turn
 repeat from start after end of key is reached
April 9, 2013
22

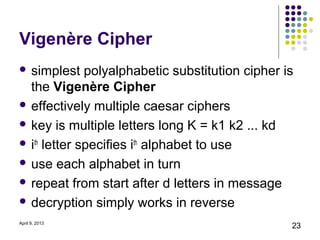

23. Vigenère Cipher
 simplest polyalphabetic substitution cipher is
the Vigenère Cipher
 effectively multiple caesar ciphers
 key is multiple letters long K = k1 k2 ... kd
 ith letter specifies ith alphabet to use
 use each alphabet in turn
 repeat from start after d letters in message
 decryption simply works in reverse
April 9, 2013
23

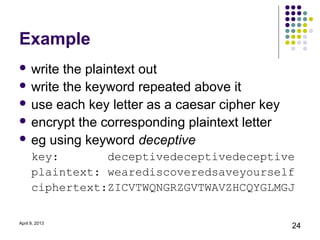

24. Example
 write the plaintext out
 write the keyword repeated above it
 use each key letter as a caesar cipher key
 encrypt the corresponding plaintext letter
 eg using keyword deceptive
key: deceptivedeceptivedeceptive
plaintext: wearediscoveredsaveyourself
ciphertext:ZICVTWQNGRZGVTWAVZHCQYGLMGJ
April 9, 2013
24

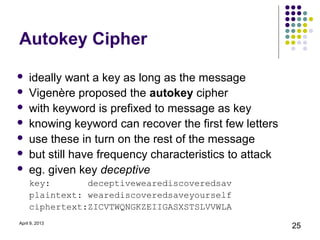

25. Autokey Cipher
 ideally want a key as long as the message
 Vigenère proposed the autokey cipher
 with keyword is prefixed to message as key
 knowing keyword can recover the first few letters
 use these in turn on the rest of the message
 but still have frequency characteristics to attack
 eg. given key deceptive
key: deceptivewearediscoveredsav
plaintext: wearediscoveredsaveyourself
ciphertext:ZICVTWQNGKZEIIGASXSTSLVVWLA
April 9, 2013
25

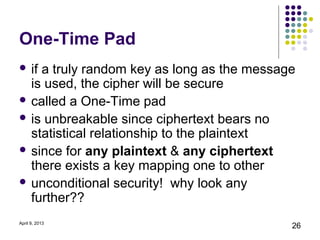

26. One-Time Pad
 ifa truly random key as long as the message
is used, the cipher will be secure
 called a One-Time pad
 is unbreakable since ciphertext bears no
statistical relationship to the plaintext
 since for any plaintext & any ciphertext
there exists a key mapping one to other
 unconditional security! why look any
further??
April 9, 2013
26

27. Product Ciphers
 ciphers using substitutions or transpositions are not
secure because of language characteristics
 hence consider using several ciphers in succession
to make harder (Shannon)
 two substitutions make a more complex substitution
 two transpositions make more complex transposition
 but a substitution followed by a transposition makes a new
much harder cipher
 this is bridge from classical to modern ciphers
April 9, 2013
27

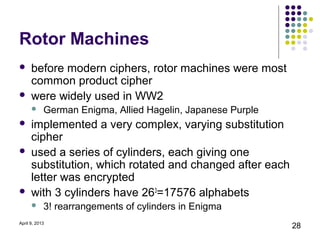

28. Rotor Machines
 before modern ciphers, rotor machines were most
common product cipher
 were widely used in WW2
 German Enigma, Allied Hagelin, Japanese Purple
 implemented a very complex, varying substitution
cipher
 used a series of cylinders, each giving one
substitution, which rotated and changed after each
letter was encrypted
 with 3 cylinders have 263=17576 alphabets
 3! rearrangements of cylinders in Enigma
April 9, 2013
28

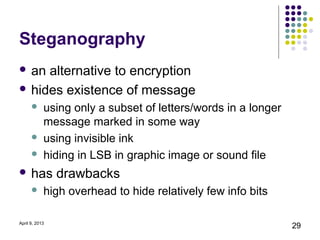

29. Steganography
 an alternative to encryption
 hides existence of message
 using only a subset of letters/words in a longer
message marked in some way
 using invisible ink
 hiding in LSB in graphic image or sound file
 has drawbacks
 high overhead to hide relatively few info bits
April 9, 2013
29

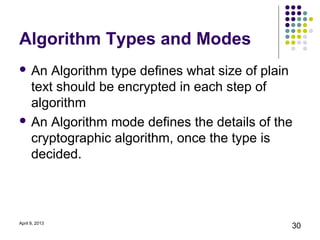

30. Algorithm Types and Modes
 An Algorithm type defines what size of plain
text should be encrypted in each step of
algorithm
 An Algorithm mode defines the details of the
cryptographic algorithm, once the type is
decided.
April 9, 2013
30

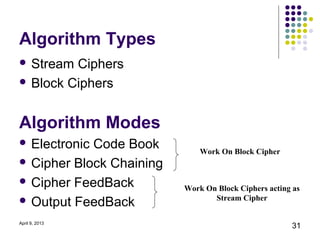

31. Algorithm Types
 Stream Ciphers
 Block Ciphers
Algorithm Modes
 ElectronicCode Book Work On Block Cipher
 Cipher Block Chaining
 Cipher FeedBack
Work On Block Ciphers acting as
 Output FeedBack Stream Cipher
April 9, 2013
31

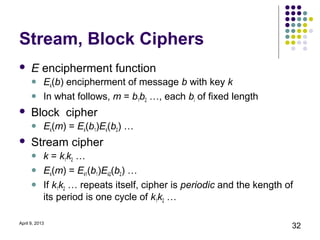

32. Stream, Block Ciphers
 E encipherment function
 Ek(b) encipherment of message b with key k
 In what follows, m = b1b2 …, each bi of fixed length
 Block cipher
 Ek(m) = Ek(b1)Ek(b2) …
 Stream cipher
 k = k1k2 …
 Ek(m) = Ek1(b1)Ek2(b2) …
 If k1k2 … repeats itself, cipher is periodic and the kength of
its period is one cycle of k1k2 …
April 9, 2013
32

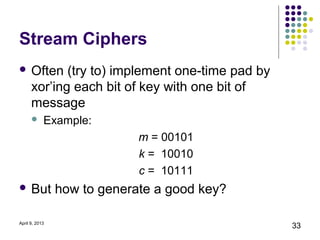

33. Stream Ciphers
 Often (try to) implement one-time pad by
xor’ing each bit of key with one bit of
message
 Example:
m = 00101
k = 10010
c = 10111
 But how to generate a good key?
April 9, 2013
33

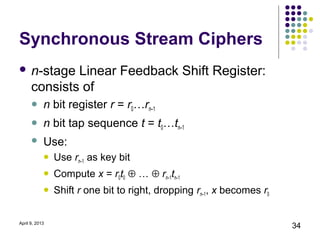

34. Synchronous Stream Ciphers
 n-stage Linear Feedback Shift Register:
consists of
 n bit register r = r0…rn–1
 n bit tap sequence t = t0…tn–1
 Use:
 Use rn–1 as key bit
 Compute x = r0t0 ⊕ … ⊕ rn–1tn–1
 Shift r one bit to right, dropping rn–1, x becomes r0
April 9, 2013
34

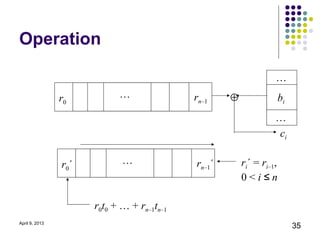

35. Operation
…
r0 … rn–1 ⊕ bi
…
ci
r0´ … rn–1´ ri´ = ri–1,
0<i≤n
r0t0 + … + rn–1tn–1
April 9, 2013
35

36. Example
 4-stage LFSR; t = 1001
r ki new bit computation new r
0010 0 01⊕00⊕10⊕01 = 0 0001
0001 1 01⊕00⊕00⊕11 = 1 1000
1000 0 11⊕00⊕00⊕01 = 1 1100
1100 0 11⊕10⊕00⊕01 = 1 1110
1110 0 11⊕10⊕10⊕01 = 1 1111
1111 1 11⊕10⊕10⊕11 = 0 0111
0111 1 11⊕10⊕10⊕11 = 1 1011
 Key sequence has period of 15 (010001111010110)
April 9, 2013
36

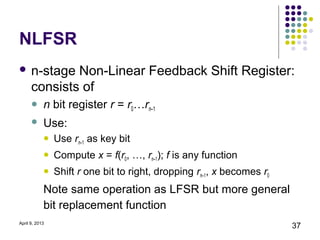

37. NLFSR
 n-stage Non-Linear Feedback Shift Register:
consists of
 n bit register r = r0…rn–1
 Use:
 Use rn–1 as key bit
 Compute x = f(r0, …, rn–1); f is any function
 Shift r one bit to right, dropping rn–1, x becomes r0
Note same operation as LFSR but more general
bit replacement function
April 9, 2013
37

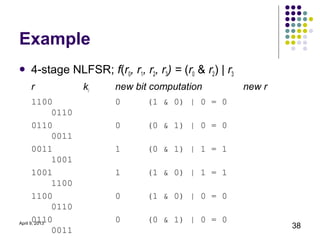

38. Example
 4-stage NLFSR; f(r0, r1, r2, r3) = (r0 & r2) | r3
r ki new bit computation new r
1100 0 (1 & 0) | 0 = 0
0110
0110 0 (0 & 1) | 0 = 0
0011
0011 1 (0 & 1) | 1 = 1
1001
1001 1 (1 & 0) | 1 = 1
1100
1100 0 (1 & 0) | 0 = 0
0110
0110
April 9, 2013
0 (0 & 1) | 0 = 0
38
0011

39. Self-Synchronous Stream
Cipher
 Takekey from message itself (autokey)
 Example: Vigenère, key drawn from plaintext
 key XTHEBOYHASTHEBA
 plaintext THEBOYHASTHEBAG
 ciphertext QALFPNFHSLALFCT
 Problem:
 Statistical regularities in plaintext show in key
 Once you get any part of the message, you can
decipher more
April 9, 2013
39

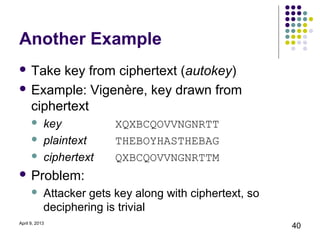

40. Another Example
 Take key from ciphertext (autokey)
 Example: Vigenère, key drawn from
ciphertext
 key XQXBCQOVVNGNRTT
 plaintext THEBOYHASTHEBAG
 ciphertext QXBCQOVVNGNRTTM
 Problem:
 Attacker gets key along with ciphertext, so
deciphering is trivial
April 9, 2013
40

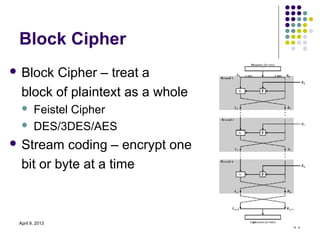

41. Block Cipher
 Block Cipher – treat a
block of plaintext as a whole
 Feistel Cipher
 DES/3DES/AES
 Stream coding – encrypt one
bit or byte at a time
April 9, 2013
41

42. Block Ciphers
 Encipher, decipher multiple bits at once
 Each block enciphered independently
 Problem: identical plaintext blocks produce
identical ciphertext blocks
 Example: two database records
 MEMBER: HOLLY INCOME $100,000
 MEMBER: HEIDI INCOME $100,000
 Encipherment:
 ABCQZRME GHQMRSIB CTXUVYSS RMGRPFQN
 ABCQZRME ORMPABRZ CTXUVYSS RMGRPFQN
April 9, 2013
42

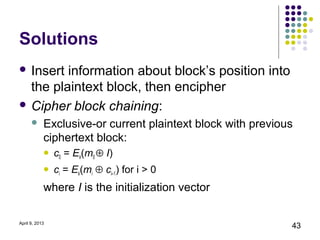

43. Solutions
 Insert information about block’s position into
the plaintext block, then encipher
 Cipher block chaining:
 Exclusive-or current plaintext block with previous
ciphertext block:
 c0 = Ek(m0 ⊕ I)
 ci = Ek(mi ⊕ ci–1) for i > 0
where I is the initialization vector
April 9, 2013
43

44. Algorithm Modes
 ElectronicCode Book Work On Block Cipher
 Cipher Block Chaining
 Cipher FeedBack
Work On Block Ciphers acting as
 Output FeedBack Stream Cipher
April 9, 2013
44

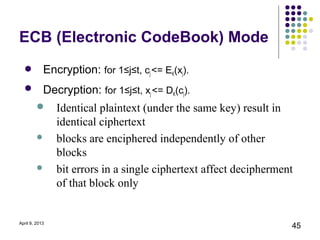

45. ECB (Electronic CodeBook) Mode
 Encryption: for 1≤j≤t, cj <= EK(xj).
 Decryption: for 1≤j≤t, xj <= DK(cj).
 Identical plaintext (under the same key) result in
identical ciphertext
 blocks are enciphered independently of other
blocks
 bit errors in a single ciphertext affect decipherment
of that block only
April 9, 2013
45

46. ECB Mode (Cont’d)
xj
n
key E E-1 key
n
x’j = xj
cj
encipherment decipherment
April 9, 2013
46

47. CBC (Cipher-Block Chaining)
Mode
C0=IV Cj
C j-1
n key
xj ⊕ E-1
⊕
C j-1
key E
Cj
<Encipherment> n X’j = xj
<Decipherment>
April 9, 2013
47

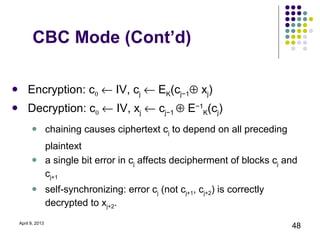

48. CBC Mode (Cont’d)
 Encryption: c0 ← IV, cj ← EK(cj−1⊕ xj)
 Decryption: c0 ← IV, xj ← cj−1 ⊕ E−1K(cj)
 chaining causes ciphertext cj to depend on all preceding
plaintext
 a single bit error in cj affects decipherment of blocks cj and
cj+1
 self-synchronizing: error cj (not cj+1, cj+2) is correctly
decrypted to xj+2.
April 9, 2013
48

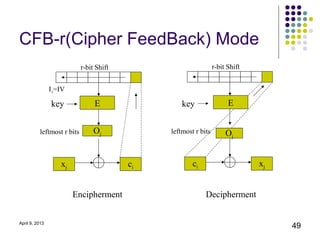

49. CFB-r(Cipher FeedBack) Mode
r-bit Shift r-bit Shift
I1=IV
key E key E
leftmost r bits Oj leftmost r bits Oj
xj ci ci xj
Encipherment Decipherment
April 9, 2013
49

50. OFB(Output FeedBack) Mode
with full(or r-bit) feedback
Ij r-bit Shift Ij r-bit Shift
I1=IV
key E key E
Leftmost r-bits Oj Leftmost r-bits Oj
xj cj cj xj
Encipherment Deciphering
April 9, 2013
50

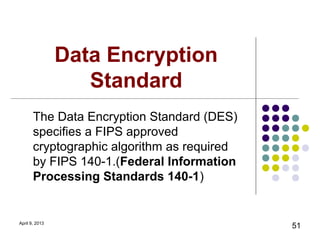

51. Data Encryption
Standard
The Data Encryption Standard (DES)
specifies a FIPS approved
cryptographic algorithm as required
by FIPS 140-1.(Federal Information
Processing Standards 140-1)
April 9, 2013
51

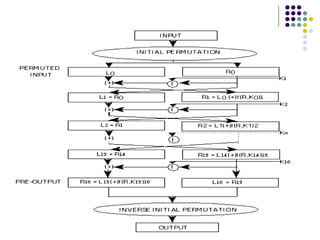

52. April 9, 2013
52

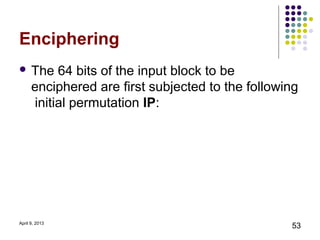

53. Enciphering
 The 64 bits of the input block to be
enciphered are first subjected to the following
initial permutation IP:
April 9, 2013
53

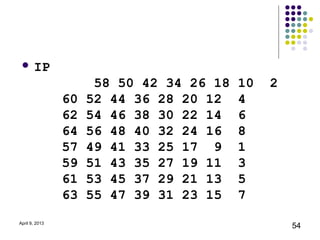

54.  IP
58 50 42 34 26 18 10 2
60 52 44 36 28 20 12 4
62 54 46 38 30 22 14 6
64 56 48 40 32 24 16 8
57 49 41 33 25 17 9 1
59 51 43 35 27 19 11 3
61 53 45 37 29 21 13 5
63 55 47 39 31 23 15 7
April 9, 2013
54

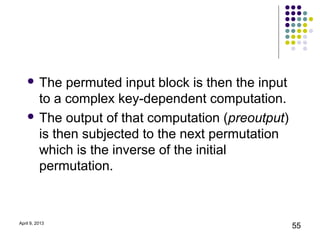

55.  The permuted input block is then the input
to a complex key-dependent computation.
 The output of that computation (preoutput)
is then subjected to the next permutation
which is the inverse of the initial
permutation.
April 9, 2013
55

56.  IP-1 40 8 48 16 56 24 64 32
39 7 47 15 55 23 63 31
38 6 46 14 54 22 62 30
37 5 45 13 53 21 61 29
36 4 44 12 52 20 60 28
35 3 43 11 51 19 59 27
34 2 42 10 50 18 58 26
33 1 41 9 49 17 57 25
April 9, 2013
56

57.  Let K be a block of 48 bits chosen from the
64-bit (how? explained next). Then the
output L'R' of an iteration with input LR is
defined by:
L' = R
R' = L (+) f (R,K)
 L'R' is the output of the 16th iteration then
R'L' is the preoutput block.
April 9, 2013
57

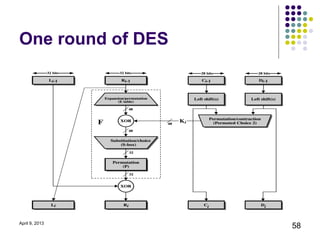

58. One round of DES
April 9, 2013
58

59. April 9, 2013
59

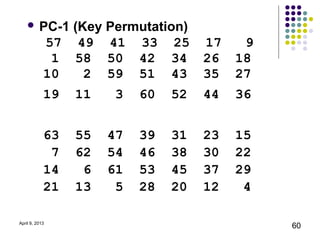

60.  PC-1 (Key Permutation)
57 49 41 33 25 17 9
1 58 50 42 34 26 18
10 2 59 51 43 35 27
19 11 3 60 52 44 36
63 55 47 39 31 23 15
7 62 54 46 38 30 22
14 6 61 53 45 37 29
21 13 5 28 20 12 4
April 9, 2013
60

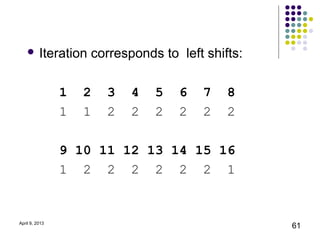

61.  Iteration corresponds to left shifts:
1 2 3 4 5 6 7 8
1 1 2 2 2 2 2 2
9 10 11 12 13 14 15 16
1 2 2 2 2 2 2 1
April 9, 2013
61

62.  PC-2 (Compression Permutation)
14 17 11 24 1 5
3 28 15 6 21 10
23 19 12 4 26 8
16 7 27 20 13 2
41 52 31 37 47 55
30 40 51 45 33 48
44 49 39 56 34 53
46 42 50 36 29 32
April 9, 2013
62

63. One round of DES
April 9, 2013
63

64.  The Cipher Function f : A sketch of
the calculation of f (R, K) is given by
April 9, 2013
64

65. Expansion Permutation
1 2 3 4 5 6 7 8 9 10 11 12
1 2 3 4 5 6 7 8 9 10 111213 14 15 16
April 9, 2013
65

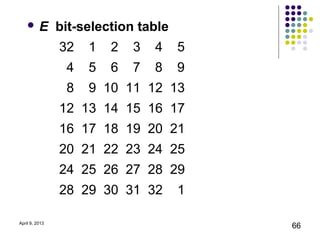

66. E bit-selection table
32 1 2 3 4 5
4 5 6 7 8 9
8 9 10 11 12 13
12 13 14 15 16 17
16 17 18 19 20 21
20 21 22 23 24 25
24 25 26 27 28 29
28 29 30 31 32 1
April 9, 2013
66

67. One round of DES
April 9, 2013
67

68. S
1
14 4 13 1 2 15 11 8 3 10 6 12 5 9 0 7
O 15 7 4 14 2 13 1 10 6 12 11 9 5 3 8
4 1 14 8 13 6 2 11 15 12 9 7 3 10 5 0
15 12 8 2 4 9 1 7 5 11 3 14 10 O 6 13
S
2
15 1 8 14 6 11 3 4 9 7 2 13 12 O 5 10
3 13 4 7 15 2 8 14 12 0 1 10 6 9 11 5
0 14 7 11 10 4 13 1 5 8 12 6 9 3 2 15
13 8 10 1 3 15 4 2 11 6 7 12 0 5 14 9
April 9, 2013
68

69. S
3
10 0 9 14 6 3 15 5 1 13 12 7 11 4 2 8
13 7 O 9 3 4 6 10 2 8 5 14 12 11 15 1
13 6 4 9 8 15 3 0 11 1 2 12 5 10 14 7
1 10 13 0 6 9 8 7 4 15 14 3 11 5 2 12
S
4
7 13 14 3 0 6 9 10 1 2 8 5 11 12 4 15
13 8 11 5 6 15 O 3 4 7 2 12 1 10 14 9
10 6 9 0 12 11 7 13 15 1 3 14 5 2 8 4
3 15 O 6 10 1 13 8 9 4 5 11 12 7 2 14
April 9, 2013
69

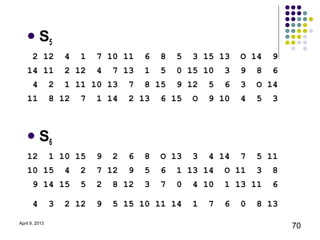

70. S
5
2 12 4 1 7 10 11 6 8 5 3 15 13 O 14 9
14 11 2 12 4 7 13 1 5 0 15 10 3 9 8 6
4 2 1 11 10 13 7 8 15 9 12 5 6 3 O 14
11 8 12 7 1 14 2 13 6 15 O 9 10 4 5 3
S
6
12 1 10 15 9 2 6 8 O 13 3 4 14 7 5 11
10 15 4 2 7 12 9 5 6 1 13 14 O 11 3 8
9 14 15 5 2 8 12 3 7 0 4 10 1 13 11 6
4 3 2 12 9 5 15 10 11 14 1 7 6 0 8 13
April 9, 2013
70

71. S
7
4 11 2 14 15 0 8 13 3 12 9 7 5 10 6 1
13 0 11 7 4 9 1 10 14 3 5 12 2 15 8 6
1 4 11 13 12 3 7 14 10 15 6 8 0 5 9 2
6 11 13 8 1 4 10 7 9 5 0 15 14 2 3 12
S
8
13 2 8 4 6 15 11 1 10 9 3 14 5 0 12 7
1 15 13 8 10 3 7 4 12 5 6 11 0 14 9 2
7 11 4 1 9 12 14 2 0 6 10 13 15 3 5 8
2 1 14 7 4 10 8 13 15 12 9 0 3 5 6 11
April 9, 2013
71

72.  S1
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
0 14 4 13 1 2 15 11 8 3 10 6 12 5 9 0 7
1 0 15 7 4 14 2 13 1 10 6 12 11 9 5 3 8
2 4 1 14 8 13 6 2 11 15 12 9 7 3 10 5 0
3 15 12 8 2 4 9 1 7 5 11 3 14 10 0 6 13
 For example, for input 011011 the row is 01,
that is row 1, and the column is determined
by 1101, that is column 13. In row 1 column
13 appears 5 so that the output is 0101.
April 9, 2013
72

73. One round of DES
April 9, 2013
73

74.  The permutation function P yields a 32-
bit output from a 32-bit input by
permuting the bits of the input block
P 16 7 20 21
29 12 28 17
1 15 23 26
5 18 31 10
2 8 24 14
32 27 3 9
19 13 30 6
22 11 4 25
April 9, 2013
74

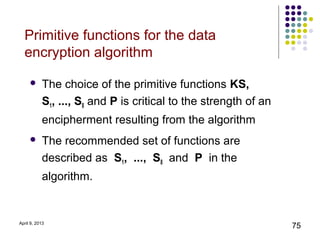

75. Primitive functions for the data
encryption algorithm
 The choice of the primitive functions KS,
S1, ..., S8 and P is critical to the strength of an
encipherment resulting from the algorithm
 The recommended set of functions are
described as S1, ..., S8 and P in the
algorithm.
April 9, 2013
75

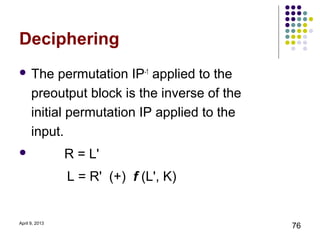

76. Deciphering
 The permutation IP-1 applied to the
preoutput block is the inverse of the
initial permutation IP applied to the
input.
 R = L'
L = R' (+) f (L', K)
April 9, 2013
76

77. Other Stream Ciphers
 RC4
 Variable key size stream cipher
 Proprietary for 7 years (1987 - 1994)
 In 1994 source code was posted to mailing list
 Works in OFB
 Encryption is 10 times faster than DES
 SEAL (Software-optimized Encryption ALgorithm)
 length-increasing pseudorandom function which maps a 32-bit sequence
number n to an L-bit keystream under control of a 160-bit secret key a
 In the preprocessing stage, the key is stretched into larger tables using the
table-generation function Ga (based on SHA-1)
 Subsequent to this preprocessing, keystream generation requires about 5
machine instructions per byte
 order of magnitude faster than DES
April 9, 2013
77

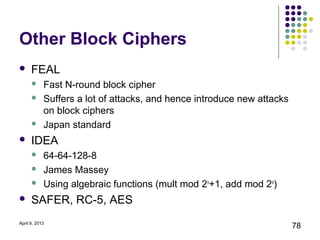

78. Other Block Ciphers
 FEAL
 Fast N-round block cipher
 Suffers a lot of attacks, and hence introduce new attacks
on block ciphers
 Japan standard
 IDEA
 64-64-128-8
 James Massey
 Using algebraic functions (mult mod 2n+1, add mod 2n)
 SAFER, RC-5, AES
April 9, 2013
78

79. Thank You
reachable at
naasir_k@donboscoit.ac.in
April 9, 2013
79
