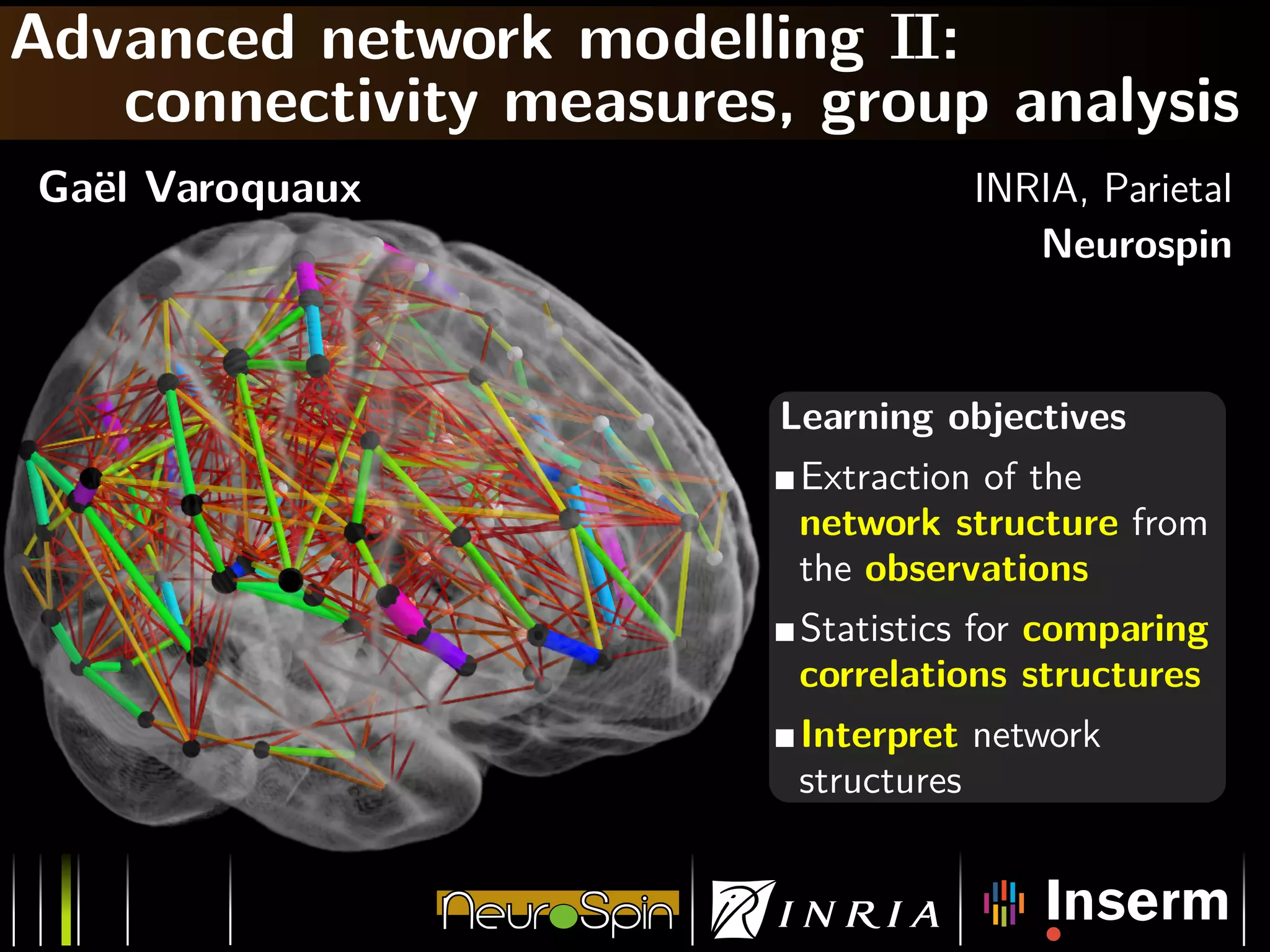

Advanced network modelling II:
   connectivity measures, group analysis
Ga¨l Varoquaux
  e                                 INRIA, Parietal
                                       Neurospin



                         Learning objectives
                          Extraction of the
                          network structure from
                          the observations
                          Statistics for comparing
                          correlations structures
                          Interpret network
                          structures

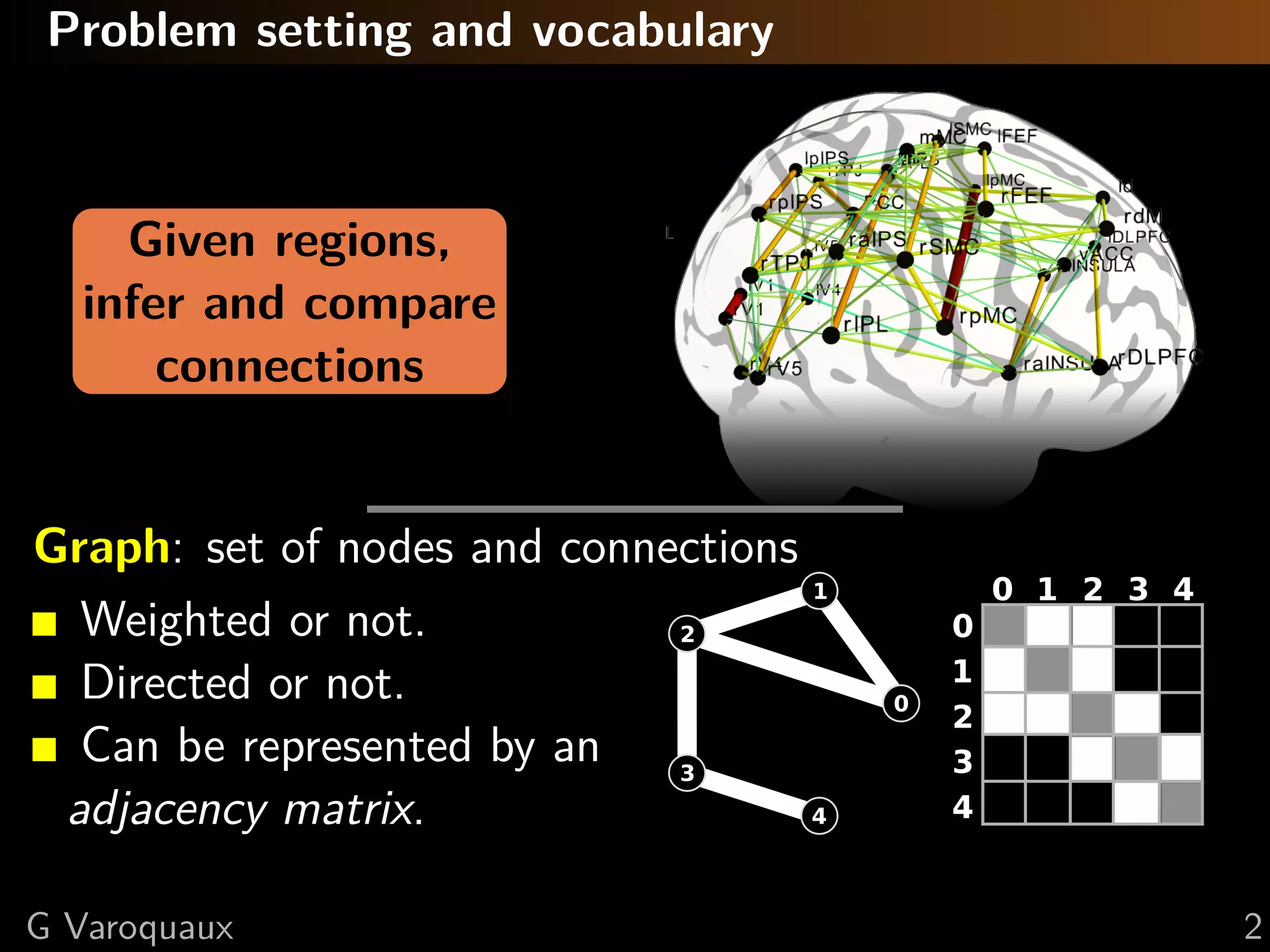

Problem setting and vocabulary



     Given regions,
   infer and compare
       connections


Graph: set of nodes and connections
  Weighted or not.
  Directed or not.
  Can be represented by an
 adjacency matrix.

G Varoquaux                           2

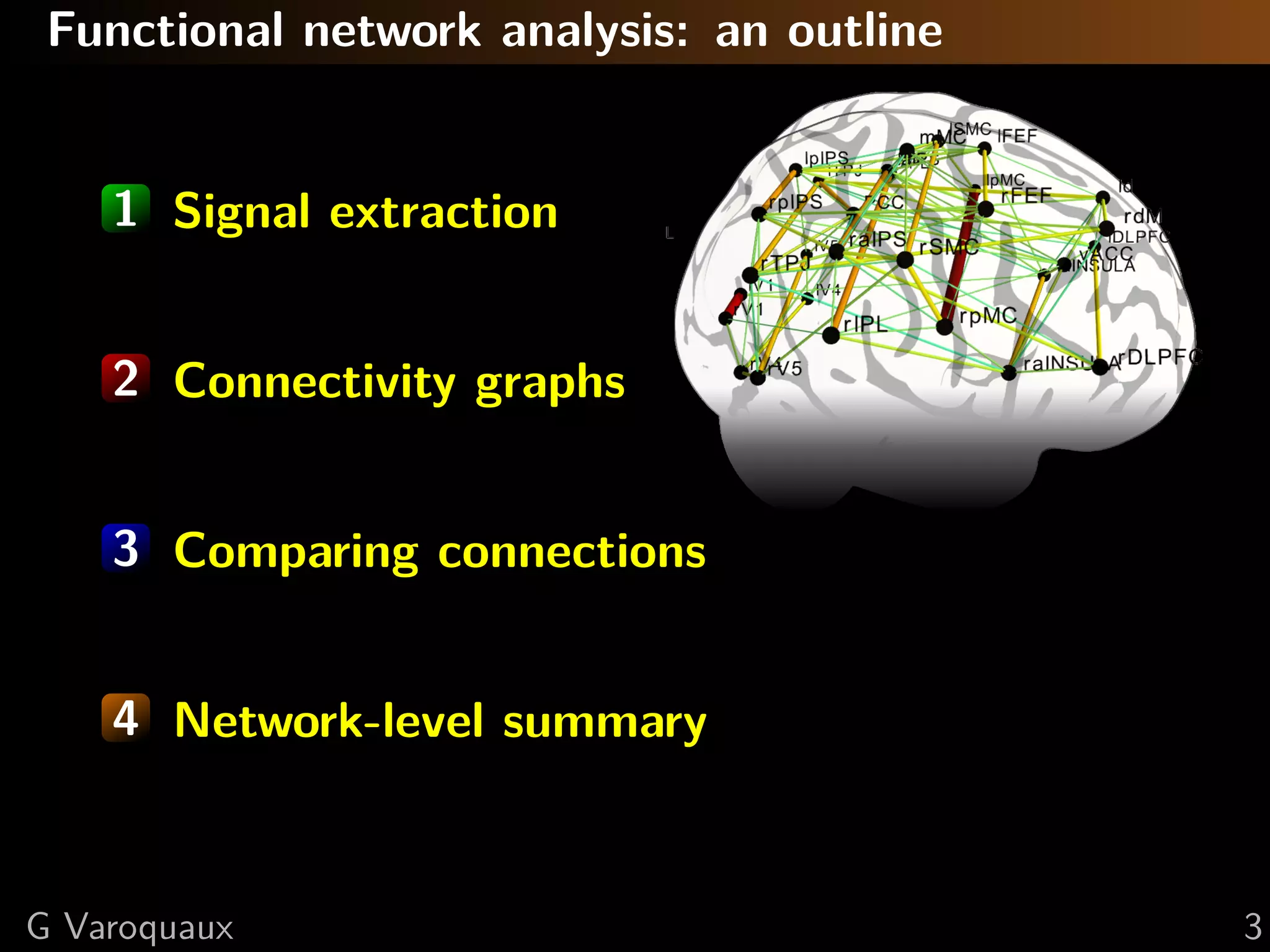

Functional network analysis: an outline


    1 Signal extraction


    2 Connectivity graphs


    3 Comparing connections


    4 Network-level summary



G Varoquaux                                3
1 Signal extraction

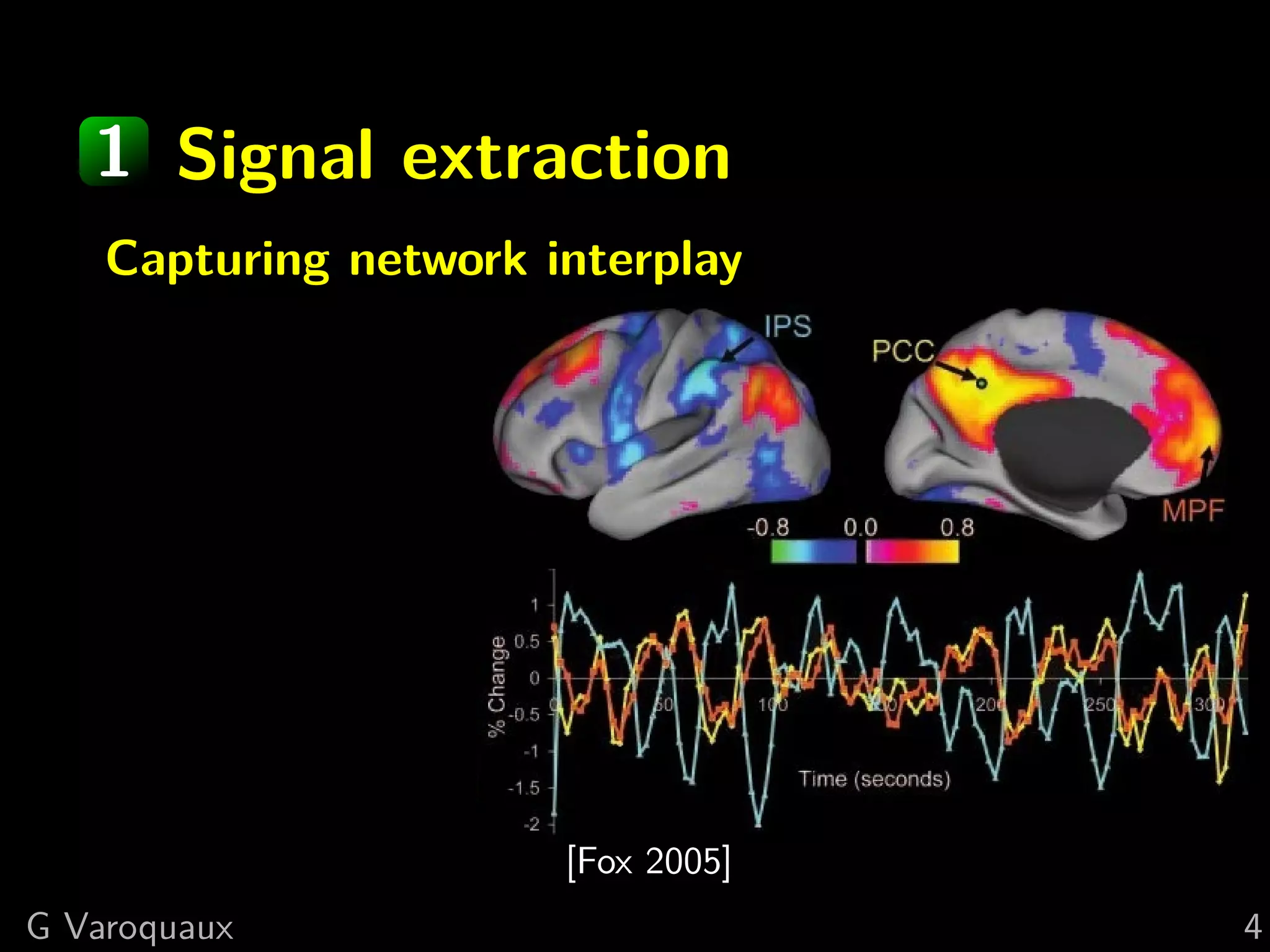

    Capturing network interplay




                       [Fox 2005]
G Varoquaux                         4

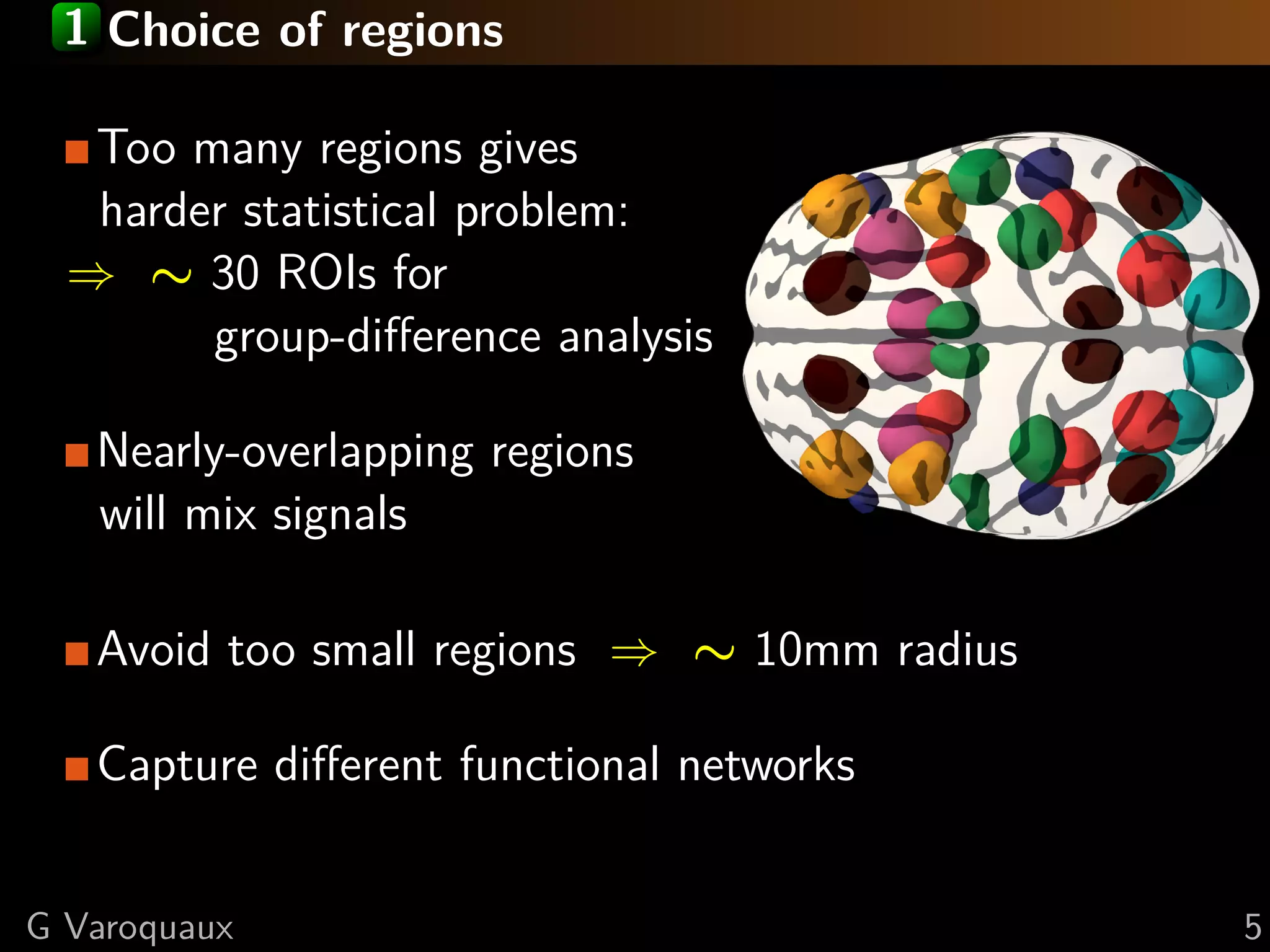

1 Choice of regions

   Too many regions gives
   harder statistical problem:
  ⇒ ∼ 30 ROIs for
        group-difference analysis

   Nearly-overlapping regions
   will mix signals

   Avoid too small regions ⇒ ∼ 10mm radius

   Capture different functional networks


G Varoquaux                                  5

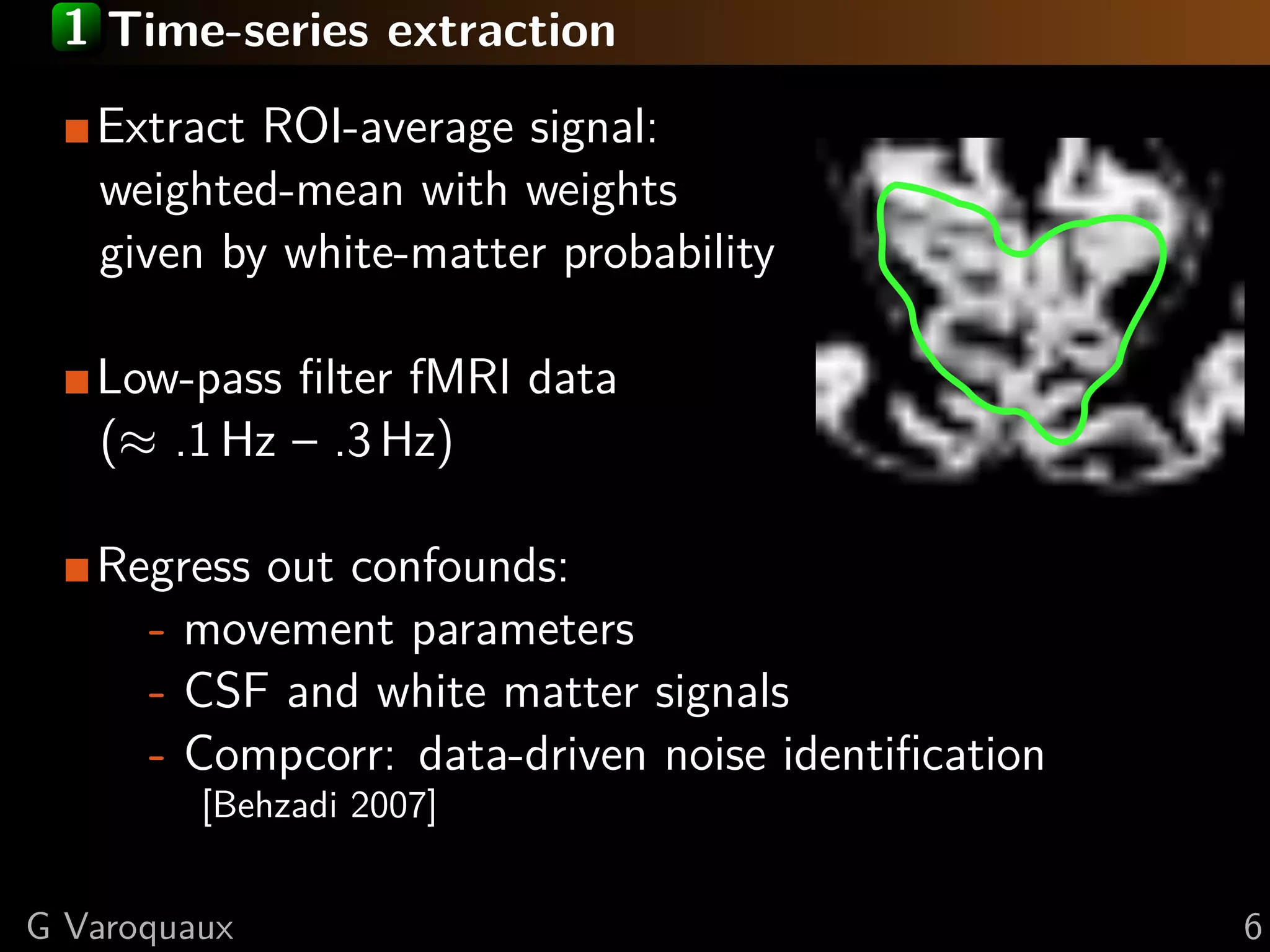

1 Time-series extraction
   Extract ROI-average signal:
   weighted-mean with weights
   given by white-matter probability

   Low-pass filter fMRI data
   (≈ .1 Hz – .3 Hz)

   Regress out confounds:
     - movement parameters
     - CSF and white matter signals
     - Compcorr: data-driven noise identification
         [Behzadi 2007]


G Varoquaux                                        6
2 Connectivity graphs
    From correlations to connections




 Functional connectivity:
 correlation-based statistics

G Varoquaux                            7
2 Correlation, covariance
    For x and y centered:
                                    1
         covariance:    cov(x, y) =                     xi yi
                                    n               i
                                                    cov(x, y)
           correlation:          cor(x, y) =
                                                  std(x) std(y)
    Correlation is normalized: cor(x, y) ∈ [−1, 1]
    Quantify linear dependence between x and y

 Correlation matrix

                                                                  1
 functional connectivity graphs
 [Bullmore1996,..., Eguiluz2005, Achard2006...]



G Varoquaux                                                           8

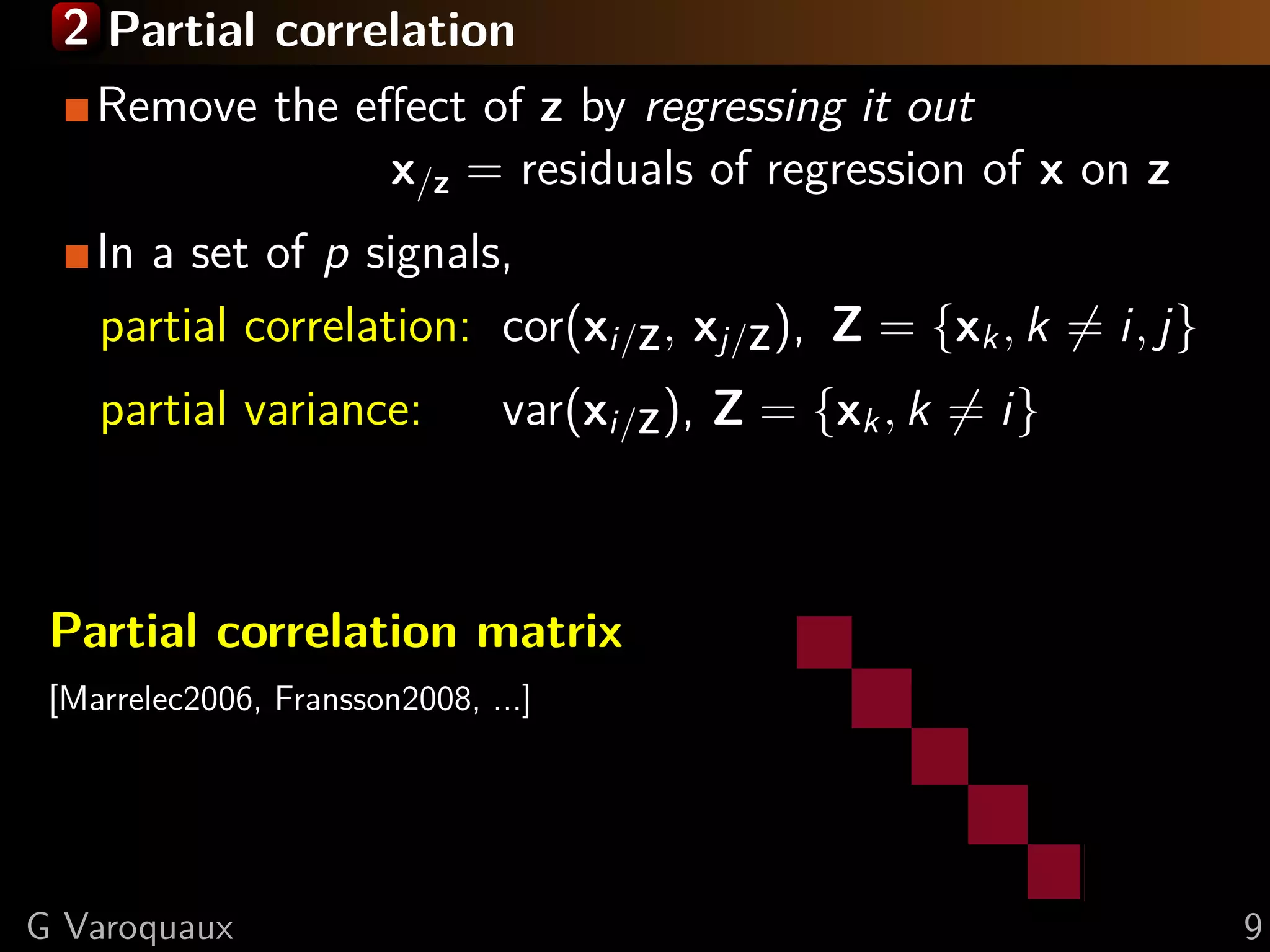

2 Partial correlation
    Remove the effect of z by regressing it out
                x/z = residuals of regression of x on z
    In a set of p signals,
    partial correlation: cor(xi/Z , xj/Z ), Z = {xk , k = i, j}
    partial variance:          var(xi/Z ), Z = {xk , k = i}



 Partial correlation matrix
 [Marrelec2006, Fransson2008, ...]




G Varoquaux                                                       9

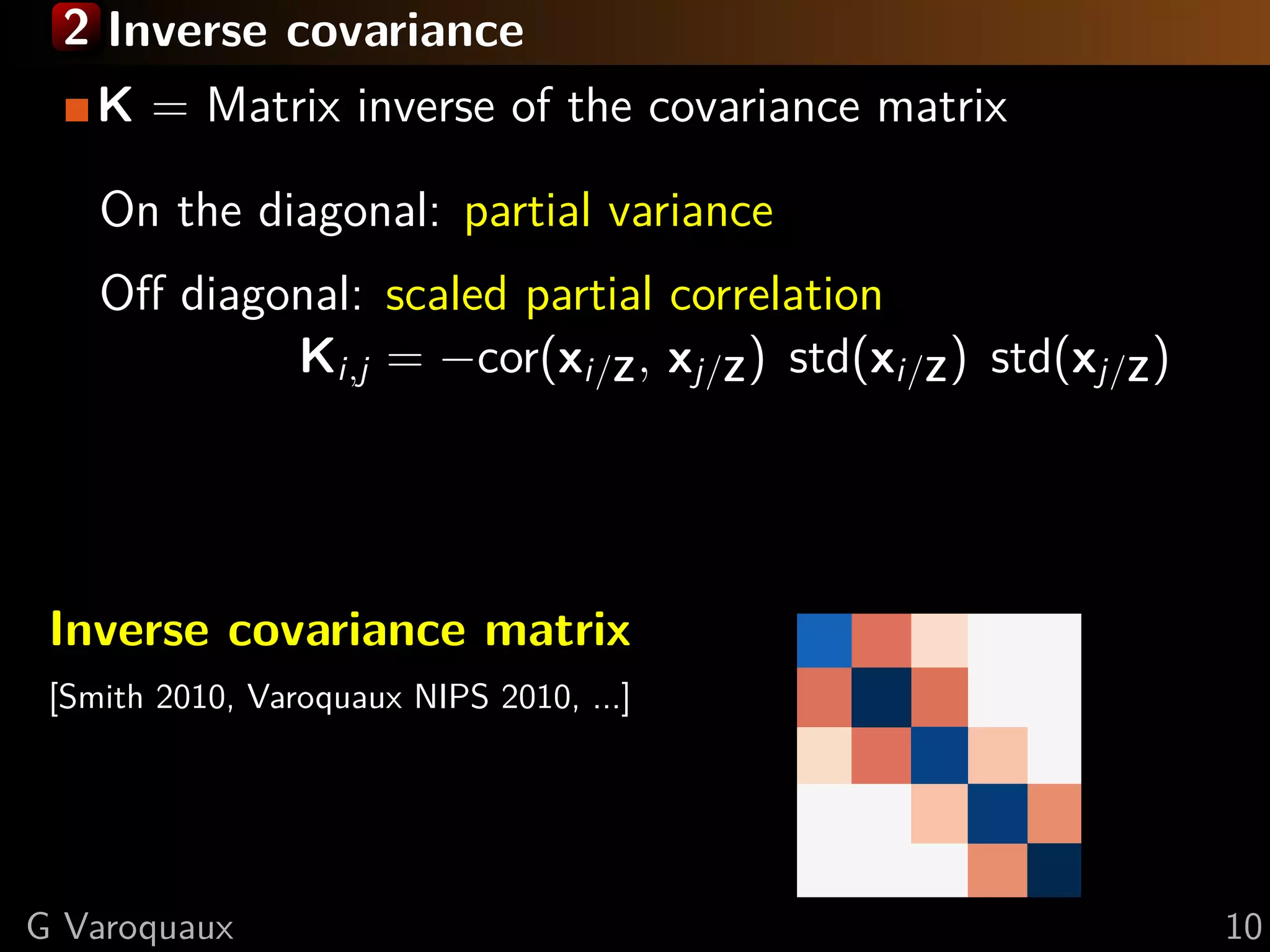

2 Inverse covariance
    K = Matrix inverse of the covariance matrix

    On the diagonal: partial variance
    Off diagonal: scaled partial correlation
            Ki,j = −cor(xi/Z , xj/Z ) std(xi/Z ) std(xj/Z )




 Inverse covariance matrix
 [Smith 2010, Varoquaux NIPS 2010, ...]




G Varoquaux                                                   10

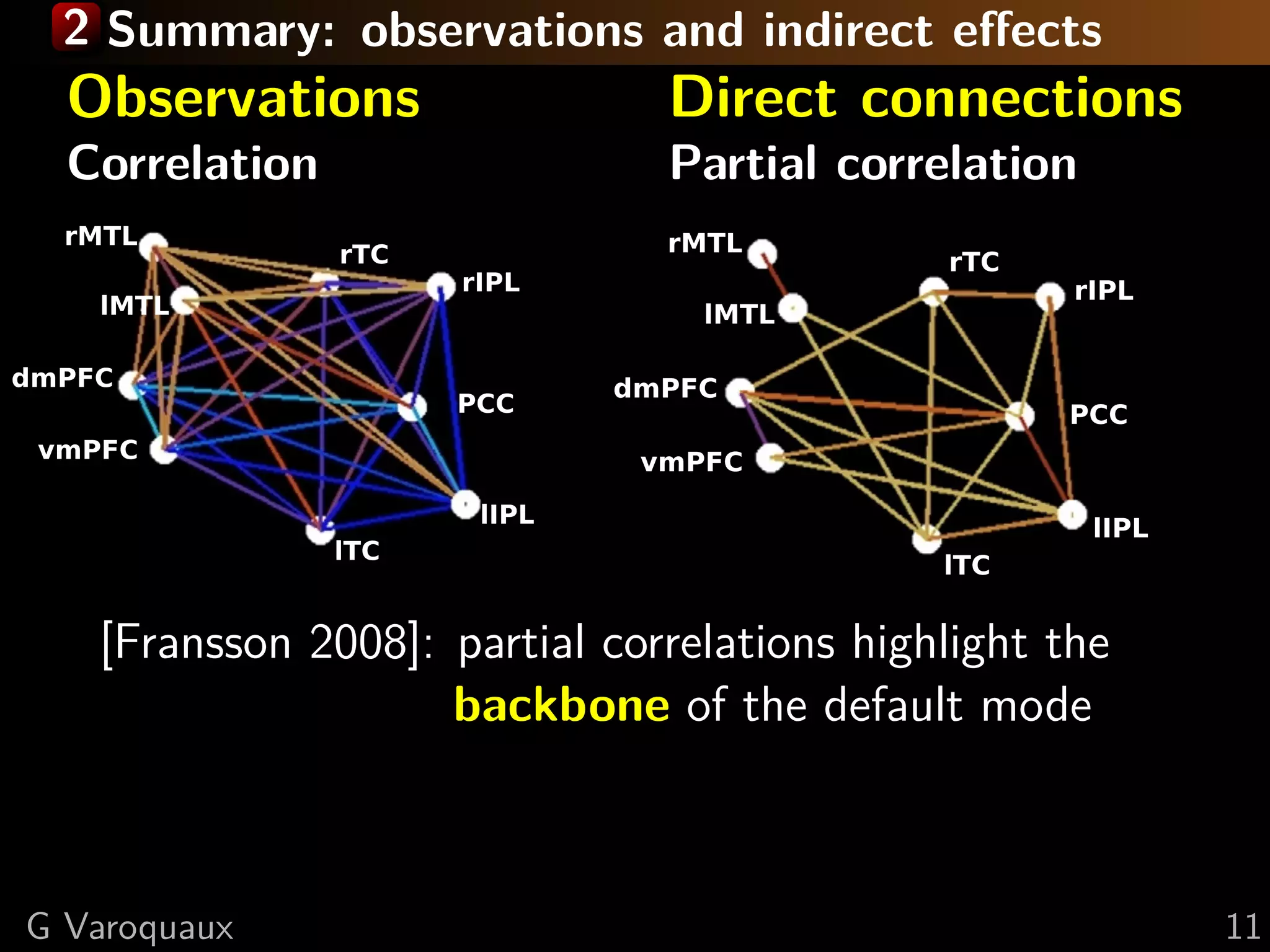

2 Summary: observations and indirect effects
  Observations              Direct connections
  Correlation               Partial correlation
              1                       1
   2                        2

                  0                         0

  3                         3
              4                       4


 + Variance:                 + Partial variance
amount of observed signal    innovation term

G Varoquaux                                       11
2 Summary: observations and indirect effects
  Observations                 Direct connections
  Correlation                  Partial correlation




   [Fransson 2008]: partial correlations highlight the
                    backbone of the default mode



G Varoquaux                                              11

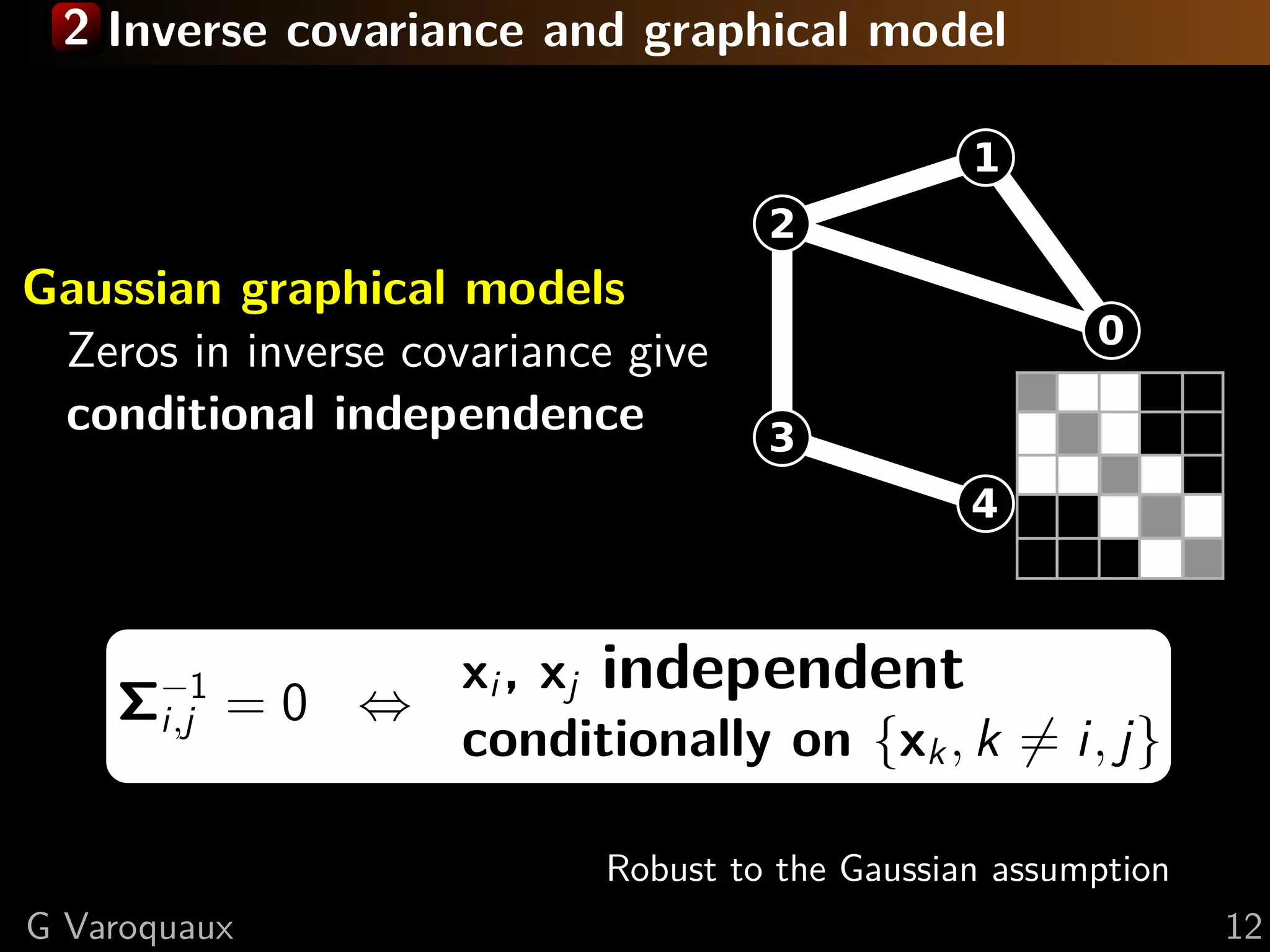

2 Inverse covariance and graphical model




Gaussian graphical models
 Zeros in inverse covariance give
 conditional independence




                     xi , xj independent
    Σ−1 = 0 ⇔
     i,j
                     conditionally on {xk , k = i, j}

                            Robust to the Gaussian assumption
G Varoquaux                                                     12

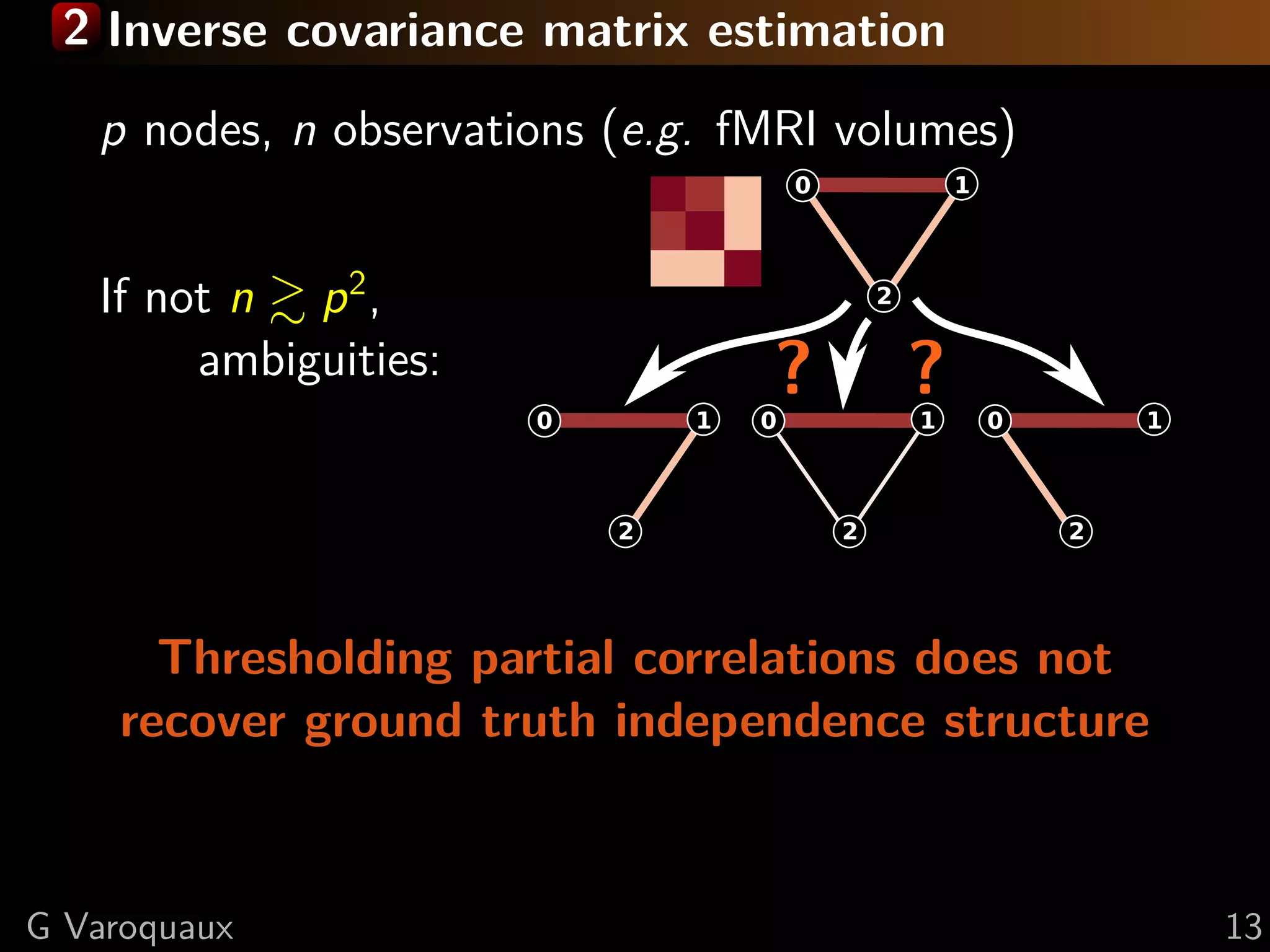

2 Inverse covariance matrix estimation

   p nodes, n observations (e.g. fMRI volumes)
                                       0               1




   If not n p 2 ,                              2


        ambiguities:
                       0       1
                                   ?
                                   0
                                                   ?
                                                   1       0       1



                           2               2                   2




      Thresholding partial correlations does not
    recover ground truth independence structure



G Varoquaux                                                            13
2 Inverse covariance matrix estimation

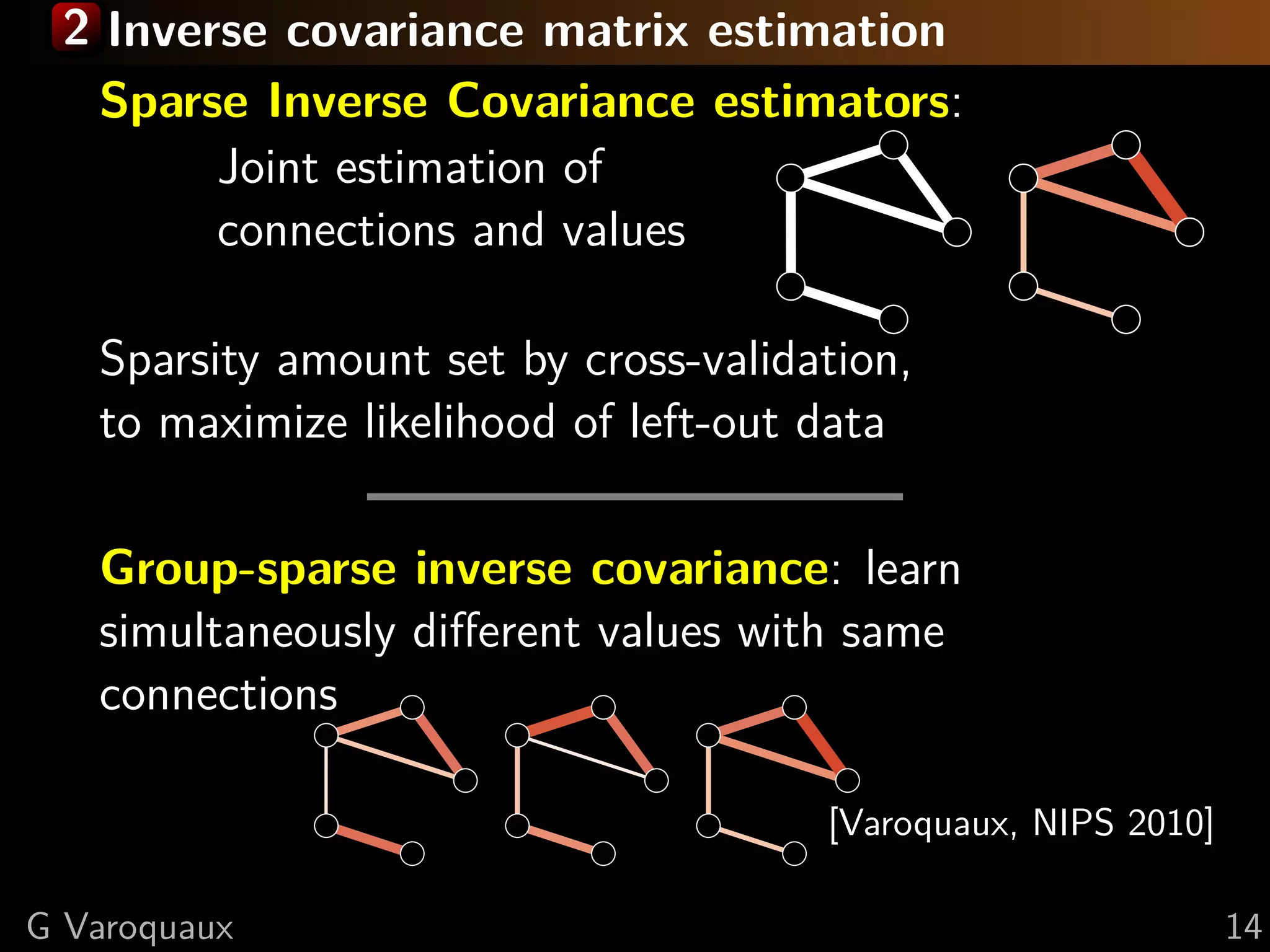

   Sparse Inverse Covariance estimators:
        Joint estimation of
        connections and values

   Sparsity amount set by cross-validation,
   to maximize likelihood of left-out data

   Group-sparse inverse covariance: learn
   simultaneously different values with same
   connections

                                      [Varoquaux, NIPS 2010]

G Varoquaux                                                    14

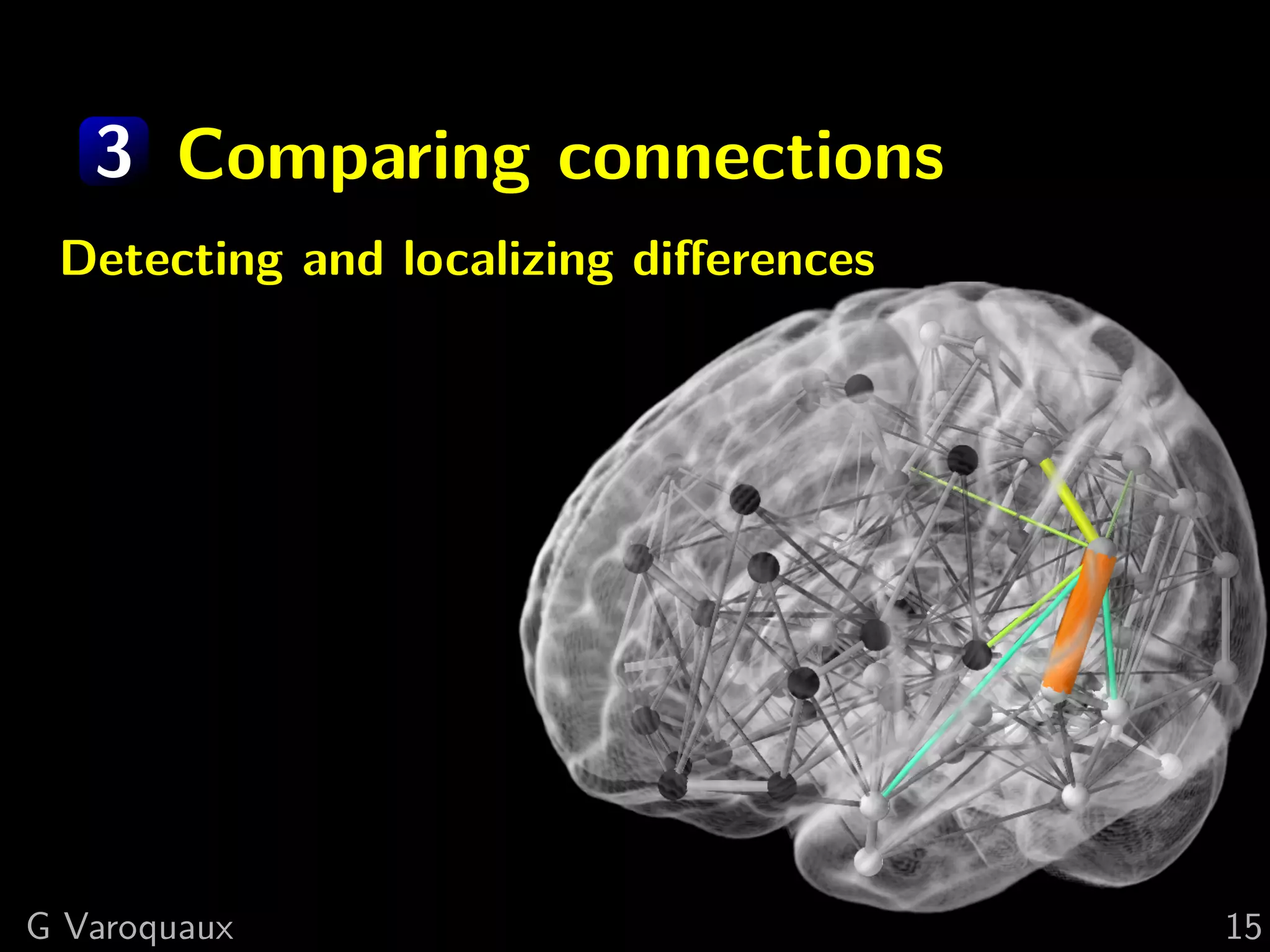

3 Comparing connections
 Detecting and localizing differences




G Varoquaux                            15
3 Comparing connections
 Detecting and localizing differences

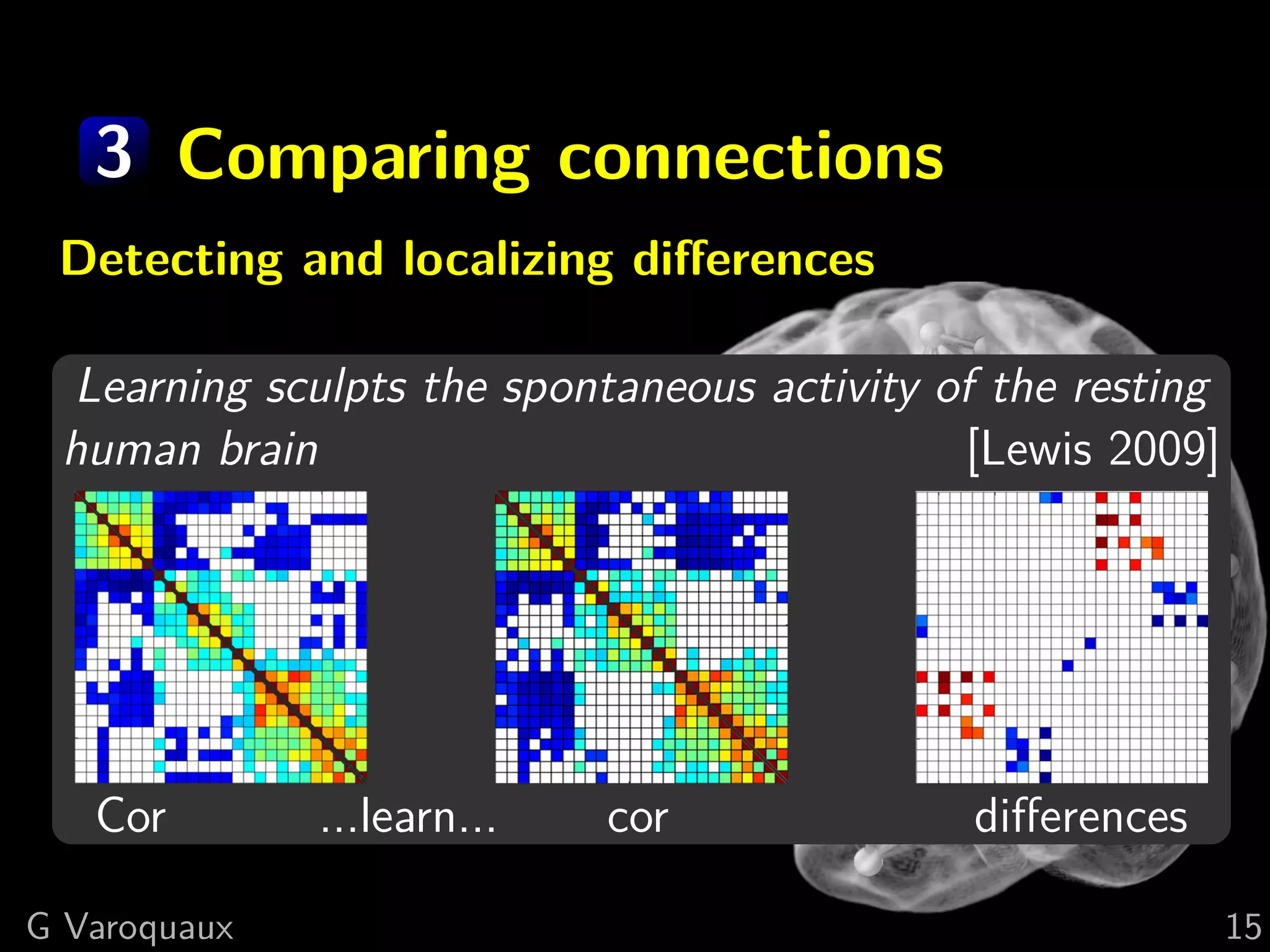

 Learning sculpts the spontaneous activity of the resting
 human brain                                [Lewis 2009]




   Cor        ...learn...   cor              differences

G Varoquaux                                                 15

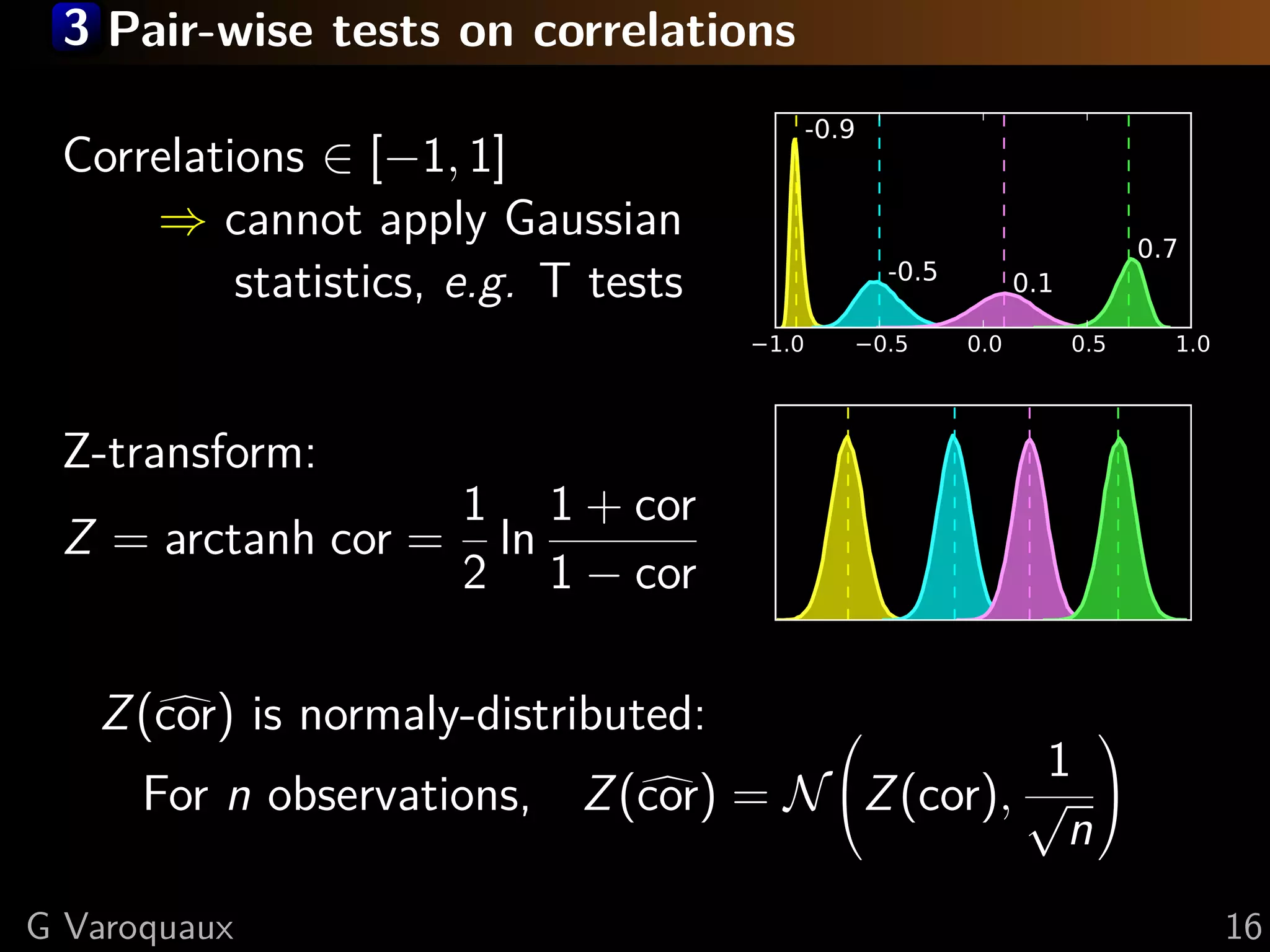

3 Pair-wise tests on correlations

 Correlations ∈ [−1, 1]
     ⇒ cannot apply Gaussian
          statistics, e.g. T tests


 Z-transform:
                      1 1 + cor
 Z = arctanh cor =     ln
                      2 1 − cor

   Z (cor) is normaly-distributed:              
                                                 1
      For n observations, Z (cor) = N Z (cor), √ 
                                                  n
G Varoquaux                                           16

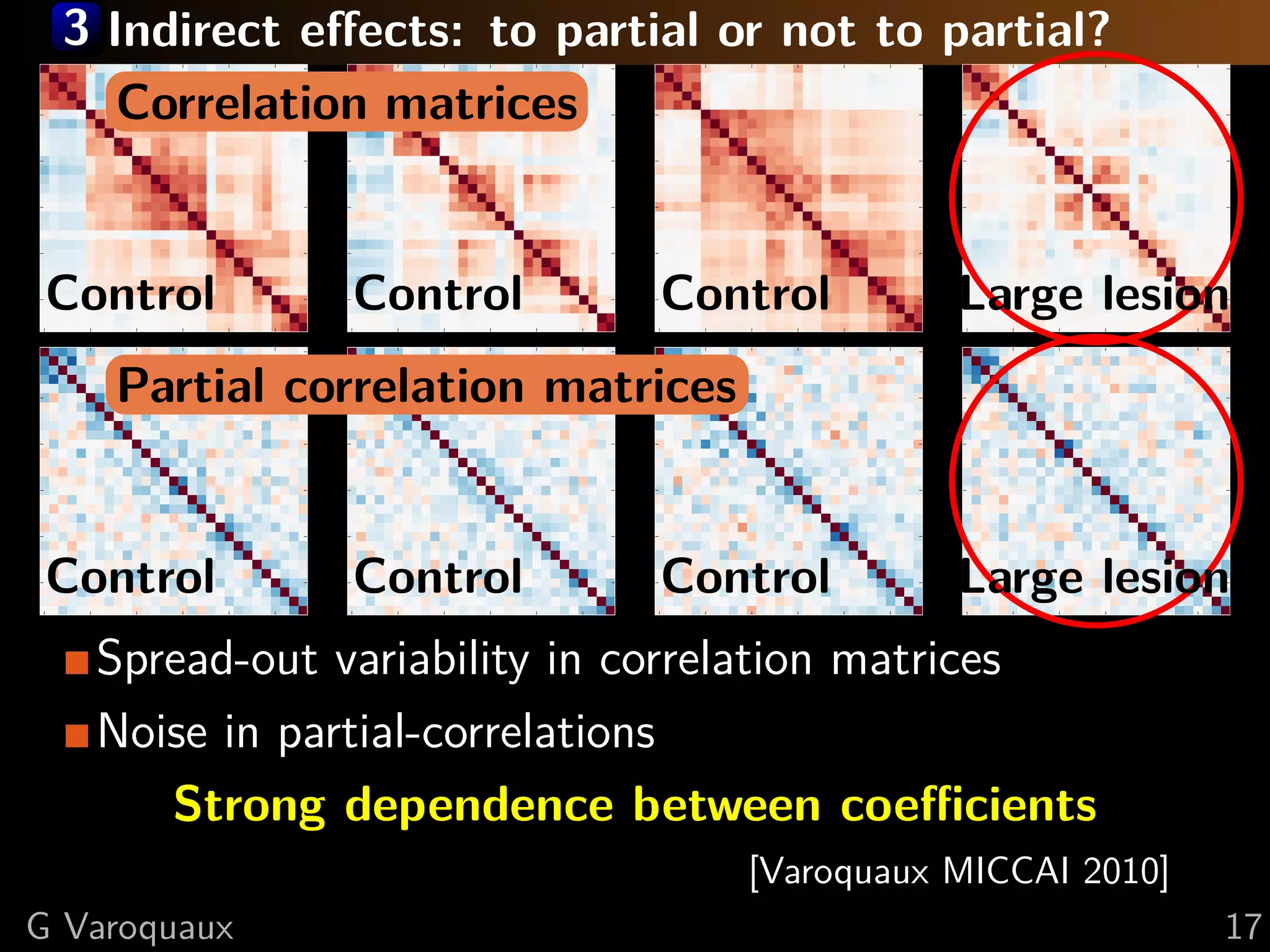

3 Indirect effects: to partial or not to partial?
0                                  0                                0                                0

 5          Correlation matrices    5                                5                                5

10                                 10                               10                               10

15                                 15                               15                               15

20                                 20                               20                               20

25   Control                       25   Control                     25   Control                      Large lesion
                                                                                                     25

     0    5    10   15   20   25        0   5   10   15   20   25        0   5   10   15   20   25        0   5   10   15   20   25
0                                  0                                0                                0

 5            Partial correlation matrices
                                    5                                5                                5

10                                 10                               10                               10

15                                 15                               15                               15

20                                 20                               20                               20

25   Control                       25   Control                     25   Control                      Large lesion
                                                                                                     25

     0    5    10   15   20   25        0   5   10   15   20   25        0   5   10   15   20   25        0   5   10   15   20   25

              Spread-out variability in correlation matrices
              Noise in partial-correlations
                 Strong dependence between coefficients
                                                                                 [Varoquaux MICCAI 2010]
G Varoquaux                                                                                                                           17

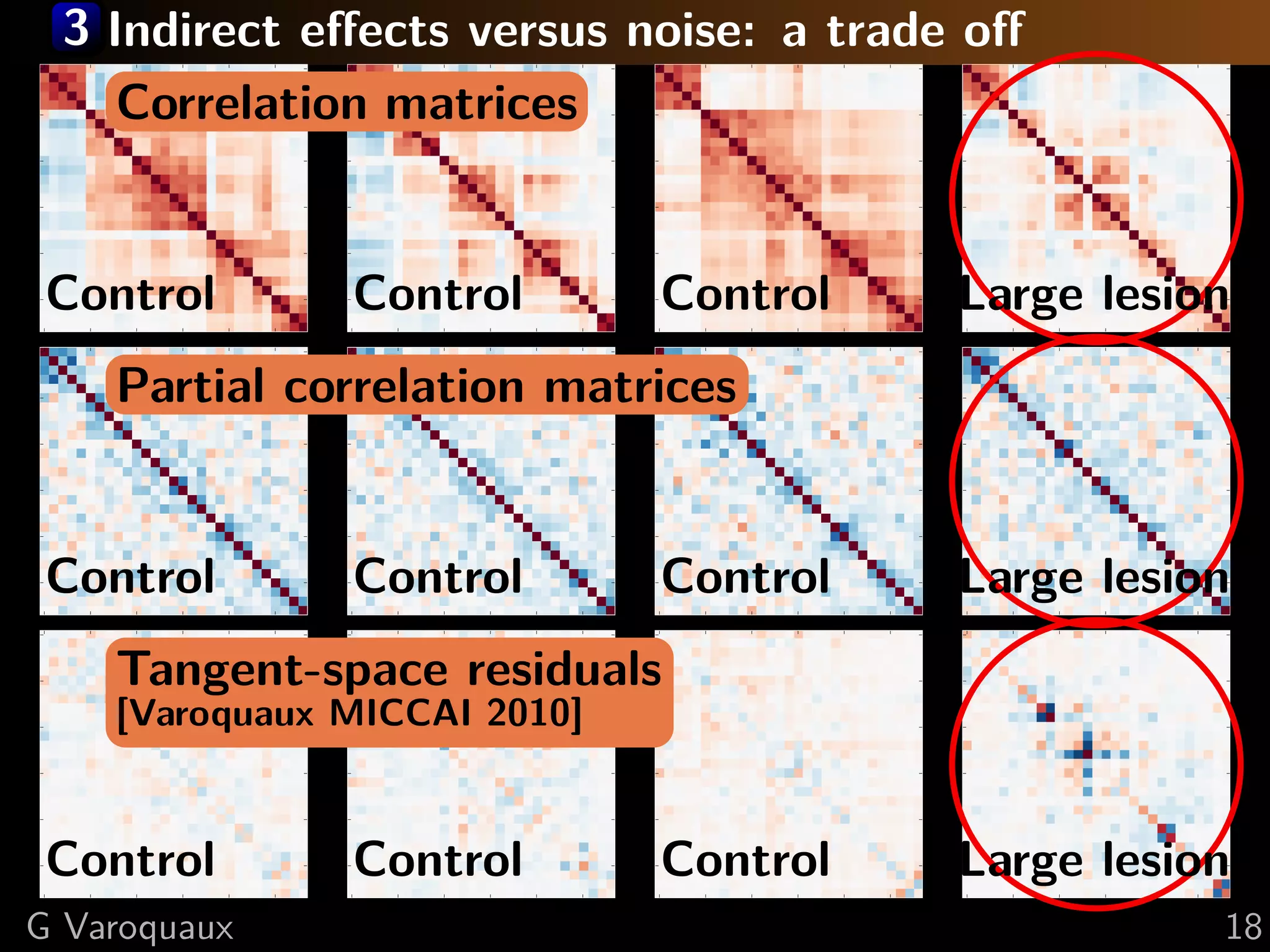

3 Indirect effects versus noise: a trade off
0                                 0                                0                                0

 5          Correlation matrices   5                                5                                5

10                                10                               10                               10

15                                15                               15                               15

20                                20                               20                               20

25   Control                      25   Control                     25   Control                      Large lesion
                                                                                                    25

     0    5   10   15   20   25        0   5   10   15   20   25        0   5   10   15   20   25        0   5   10   15   20   25
0                                 0                                0                                0

 5            Partial correlation matrices
                                   5                                5                                5

10                                10                               10                               10

15                                15                               15                               15

20                                20                               20                               20

25   Control                      25   Control                     25   Control                      Large lesion
                                                                                                    25

     0    5   10   15   20   25        0   5   10   15   20   25        0   5   10   15   20   25        0   5   10   15   20   25
0                                 0                                0                                0

 5            Tangent-space residuals
                                   5                                5                                5

10            [Varoquaux MICCAI 2010]
                         10                                        10                               10

15                                15                               15                               15

20                                20                               20                               20

25   Control                      25   Control                     25   Control                      Large lesion
                                                                                                    25

     0    5   10   15   20   25        0   5   10   15   20   25        0   5   10   15   20   25        0   5   10   15   20   25
G Varoquaux                                                                                                                          18

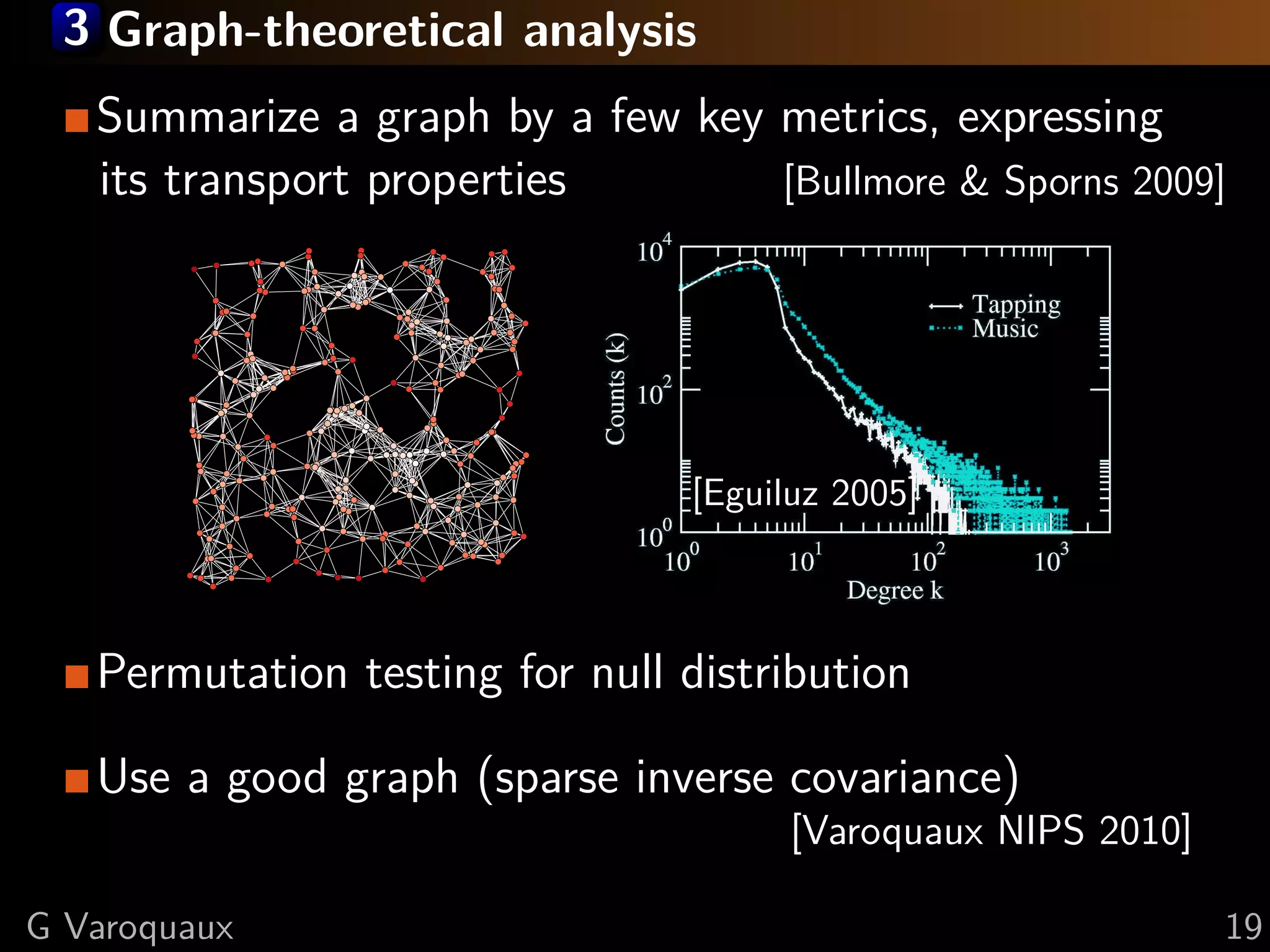

3 Graph-theoretical analysis
   Summarize a graph by a few key metrics, expressing
   its transport properties       [Bullmore & Sporns 2009]




                                [Eguiluz 2005]



   Permutation testing for null distribution

   Use a good graph (sparse inverse covariance)
                                      [Varoquaux NIPS 2010]

G Varoquaux                                                   19

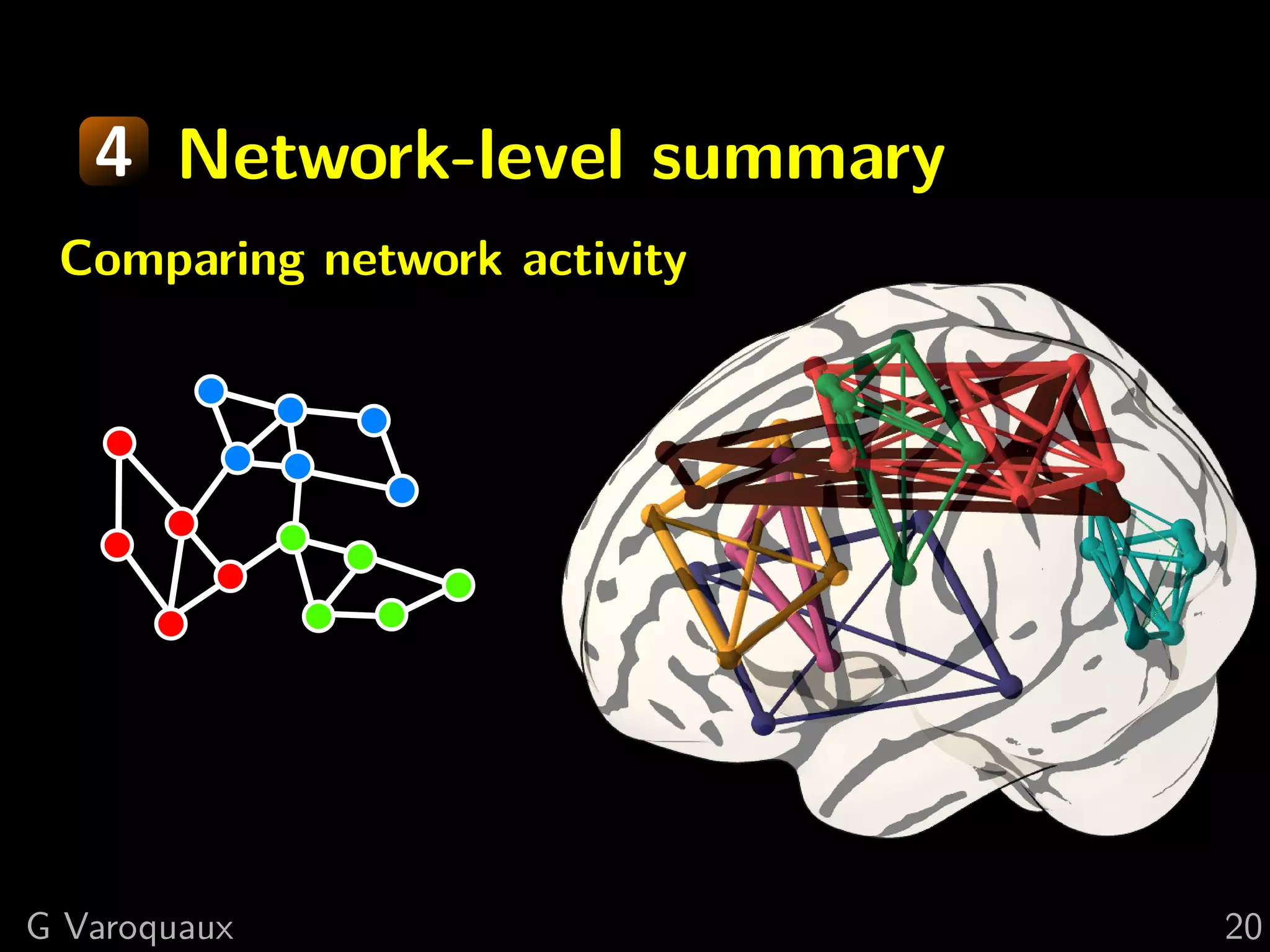

4 Network-level summary
 Comparing network activity




G Varoquaux                   20

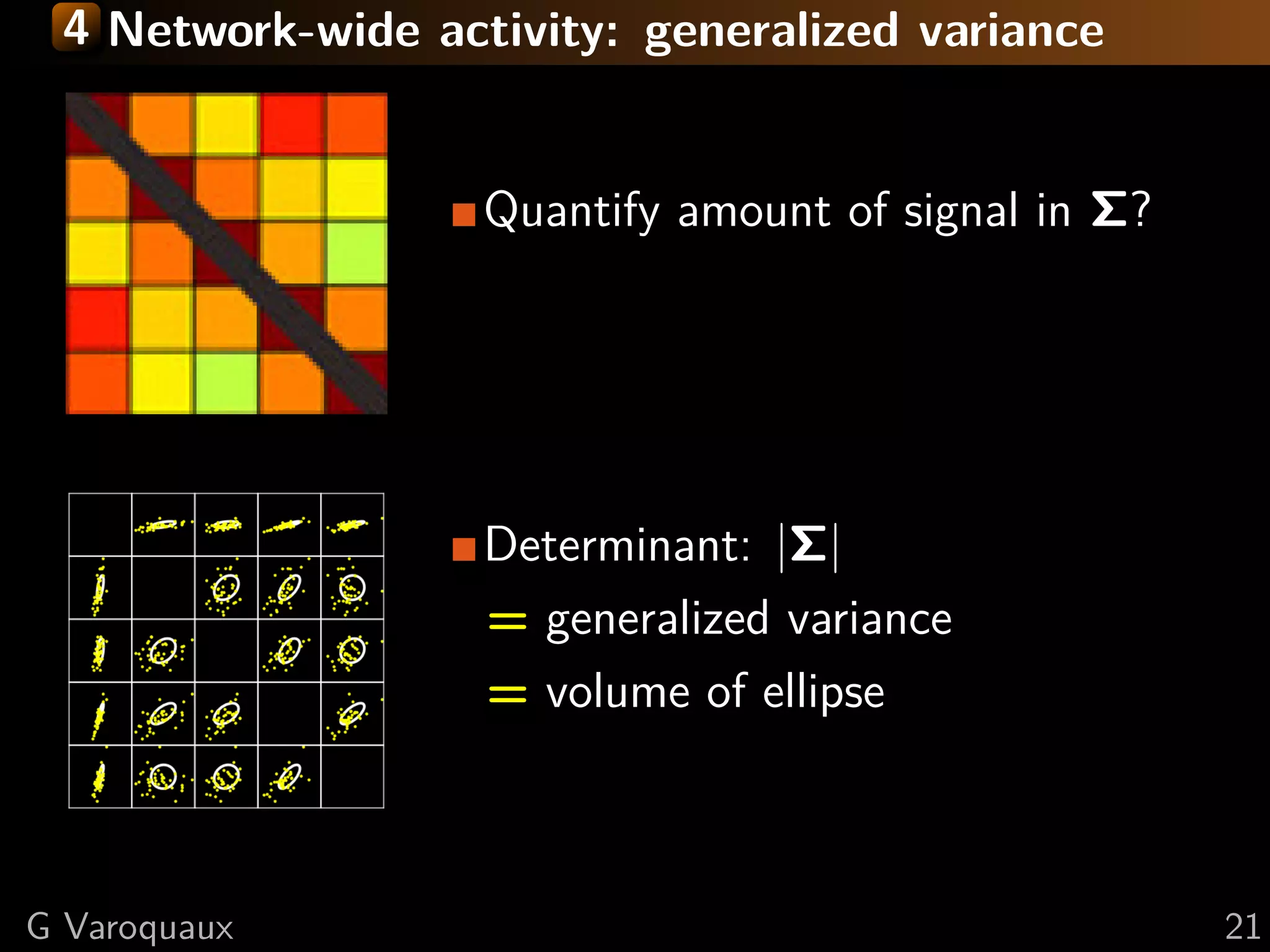

4 Network-wide activity: generalized variance


                   Quantify amount of signal in Σ?




                   Determinant: |Σ|
                   = generalized variance
                   = volume of ellipse



G Varoquaux                                          21

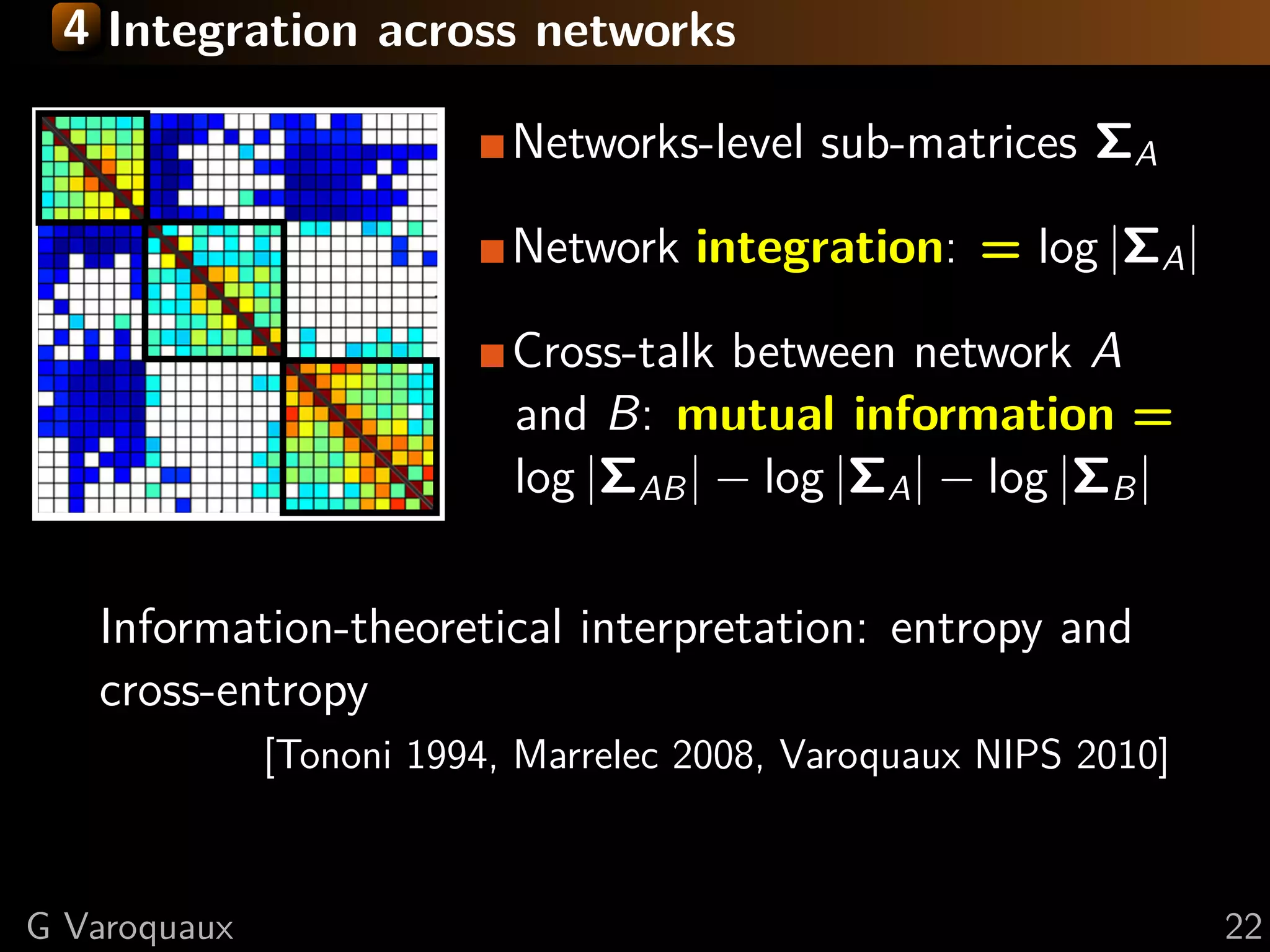

4 Integration across networks

                           Networks-level sub-matrices ΣA

                           Network integration: = log |ΣA |

                           Cross-talk between network A
                           and B: mutual information =
                           log |ΣAB | − log |ΣA | − log |ΣB |

   Information-theoretical interpretation: entropy and
   cross-entropy
              [Tononi 1994, Marrelec 2008, Varoquaux NIPS 2010]



G Varoquaux                                                       22

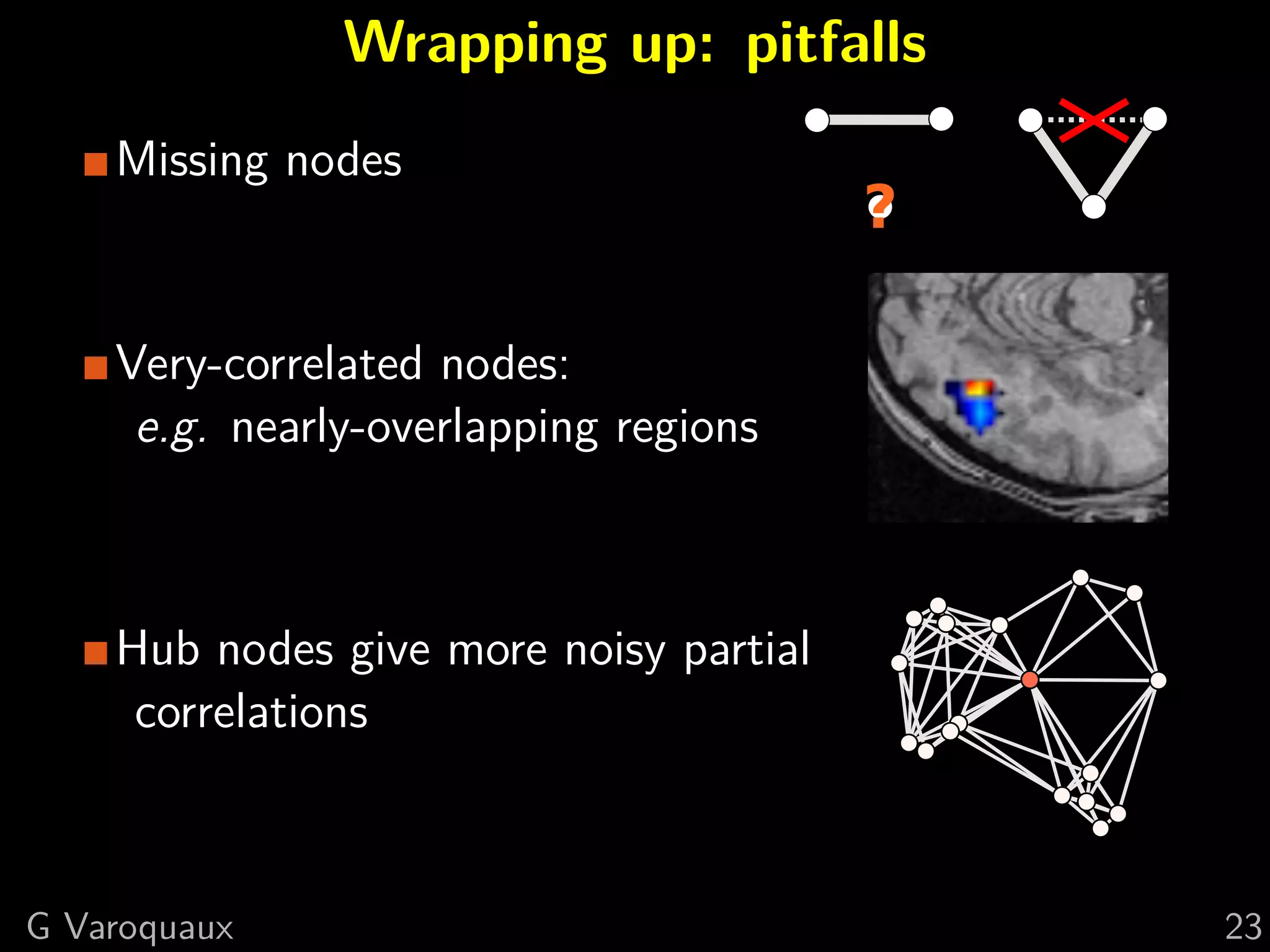

Wrapping up: pitfalls
    Missing nodes



    Very-correlated nodes:
     e.g. nearly-overlapping regions



    Hub nodes give more noisy partial
     correlations



G Varoquaux                             23

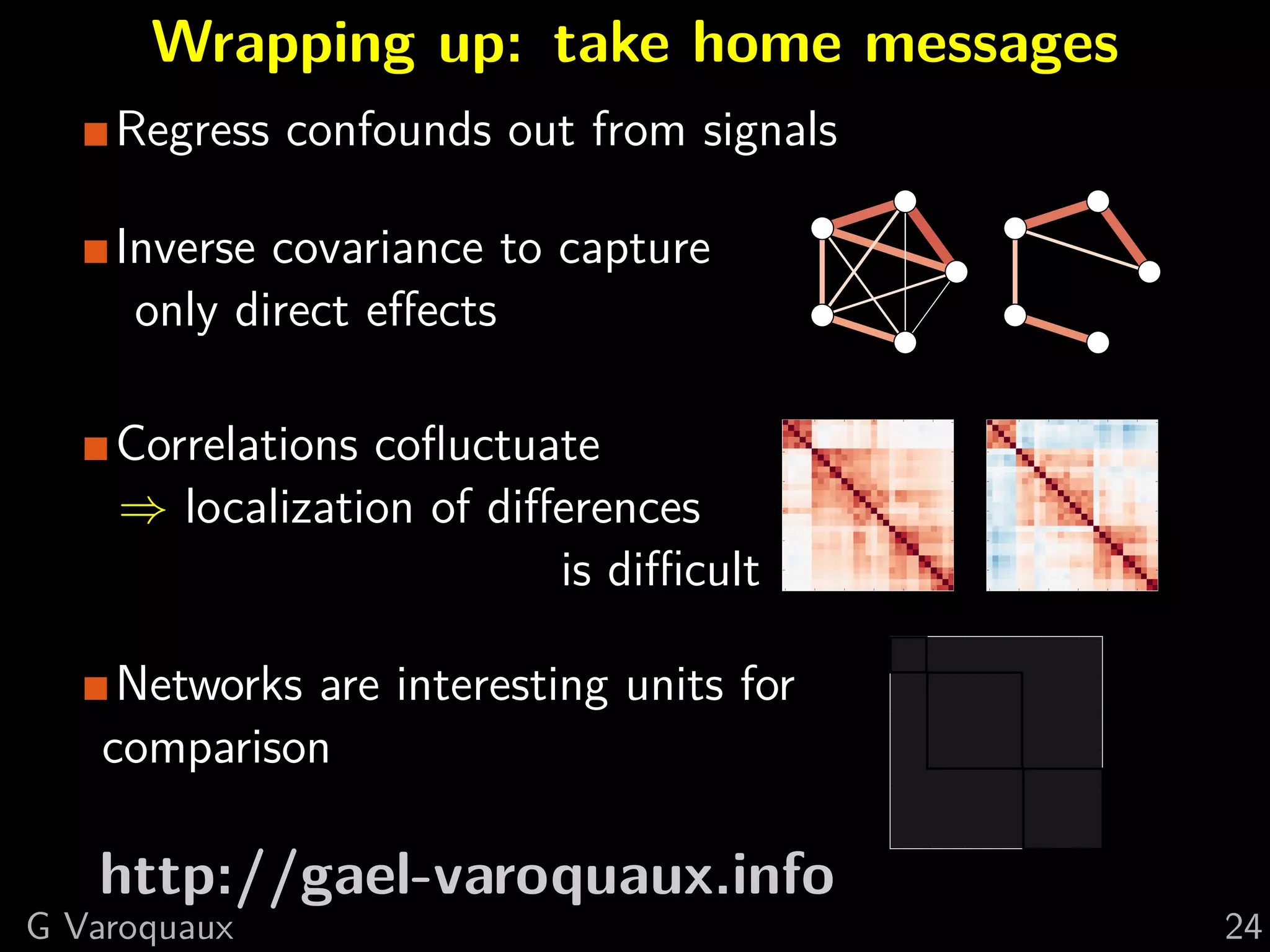

Wrapping up: take home messages
    Regress confounds out from signals

    Inverse covariance to capture
     only direct effects
                                      0                                0


    Correlations cofluctuate            5

                                      10
                                                                        5

                                                                       10


    ⇒ localization of differences      15

                                      20
                                                                       15

                                                                       20


                         is difficult   25

                                           0   5   10   15   20   25
                                                                       25

                                                                            0   5   10   15   20   25




     Networks are interesting units for
    comparison

   http://gael-varoquaux.info
G Varoquaux                                                                                             24

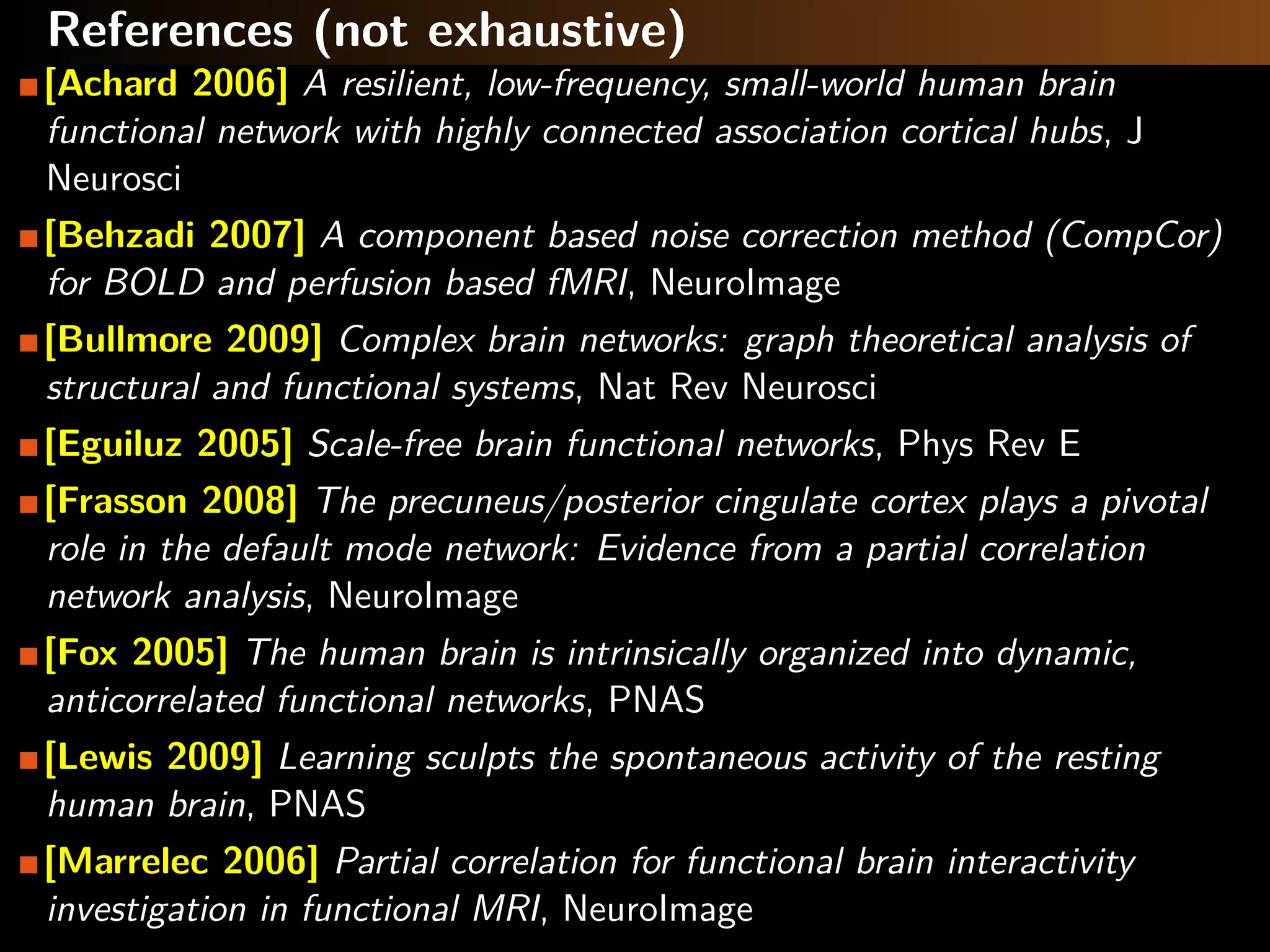

References (not exhaustive)
[Achard 2006] A resilient, low-frequency, small-world human brain
functional network with highly connected association cortical hubs, J
Neurosci
[Behzadi 2007] A component based noise correction method (CompCor)
for BOLD and perfusion based fMRI, NeuroImage
[Bullmore 2009] Complex brain networks: graph theoretical analysis of
structural and functional systems, Nat Rev Neurosci
[Eguiluz 2005] Scale-free brain functional networks, Phys Rev E
[Frasson 2008] The precuneus/posterior cingulate cortex plays a pivotal
role in the default mode network: Evidence from a partial correlation
network analysis, NeuroImage
[Fox 2005] The human brain is intrinsically organized into dynamic,
anticorrelated functional networks, PNAS
[Lewis 2009] Learning sculpts the spontaneous activity of the resting
human brain, PNAS
[Marrelec 2006] Partial correlation for functional brain interactivity
investigation in functional MRI, NeuroImage
References (not exhaustive)
[Marrelec 2007] Using partial correlation to enhance structural equation
modeling of functional MRI data, Magn Res Im
[Marrelec 2008] Regions, systems, and the brain: hierarchical measures
of functional integration in fMRI, Med Im Analys
[Smith 2010] Network Modelling Methods for fMRI, NeuroImage
[Tononi 1994] A measure for brain complexity: relating functional
segregation and integration in the nervous system, PNAS
[Varoquaux MICCAI 2010] Detection of brain functional-connectivity
difference in post-stroke patients using group-level covariance modeling,
Med Imag Proc Comp Aided Intervention
[Varoquaux NIPS 2010] Brain covariance selection: better individual
functional connectivity models using population prior, Neural Inf Proc Sys
[Varoquaux 2012] Markov models for fMRI correlation structure: is
brain functional connectivity small world, or decomposable into
networks?, J Physio Paris

More Related Content

What's hot

Introduction to Graph Neural Networks: Basics and Applications - Katsuhiko Is...
Introduction to Graph Neural Networks: Basics and Applications - Katsuhiko Is...Introduction to Graph Neural Networks: Basics and Applications - Katsuhiko Is...
Introduction to Graph Neural Networks: Basics and Applications - Katsuhiko Is...
Preferred Networks

Nural network ER. Abhishek k. upadhyay
Nural network ER. Abhishek  k. upadhyayNural network ER. Abhishek  k. upadhyay
Nural network ER. Abhishek k. upadhyay
abhishek upadhyay

Associative memory network
Associative memory networkAssociative memory network
Associative memory network
Dr. C.V. Suresh Babu

Deep Learning with Audio Signals: Prepare, Process, Design, Expect
Deep Learning with Audio Signals: Prepare, Process, Design, ExpectDeep Learning with Audio Signals: Prepare, Process, Design, Expect
Deep Learning with Audio Signals: Prepare, Process, Design, Expect
Keunwoo Choi

Parkinson disease classification v2.0
Parkinson disease classification v2.0Parkinson disease classification v2.0
Parkinson disease classification v2.0
Nikhil Shrivastava, MS, SAFe PMPO

Jekaterina Novikova - Machine Learning Methods in Detecting Alzheimer’s Disea...
Jekaterina Novikova - Machine Learning Methods in Detecting Alzheimer’s Disea...Jekaterina Novikova - Machine Learning Methods in Detecting Alzheimer’s Disea...
Jekaterina Novikova - Machine Learning Methods in Detecting Alzheimer’s Disea...
MLconf

Sensory motor processing in planning and execution of movement
Sensory motor processing in planning and execution of movementSensory motor processing in planning and execution of movement
Sensory motor processing in planning and execution of movement
Subhadeep Dutta Gupta

Neural Networks: Introducton
Neural Networks: IntroductonNeural Networks: Introducton
Neural Networks: Introducton
Mostafa G. M. Mostafa

Psychiatric aspects of basal ganglion
Psychiatric aspects of basal ganglionPsychiatric aspects of basal ganglion
Psychiatric aspects of basal ganglion
Dr. Amit Chougule

Graph neural networks overview
Graph neural networks overviewGraph neural networks overview
Graph neural networks overview
Rodion Kiryukhin

Artificial Intelligence in Neurology.pptx
Artificial Intelligence in Neurology.pptxArtificial Intelligence in Neurology.pptx
Artificial Intelligence in Neurology.pptx
NeurologyKota

Convolutional Neural Networks
Convolutional Neural NetworksConvolutional Neural Networks
Convolutional Neural Networks
Ashray Bhandare

Neuropeptides
NeuropeptidesNeuropeptides
Neuropeptides
Murugavel Veeramani

Spectral-, source-, connectivity- and network analysis of EEG and MEG data
Spectral-, source-, connectivity- and network analysis of EEG and MEG dataSpectral-, source-, connectivity- and network analysis of EEG and MEG data
Spectral-, source-, connectivity- and network analysis of EEG and MEG data
Robert Oostenveld

EEG dr archana
EEG dr archanaEEG dr archana
EEG dr archana
dr archana verma

Introduction to Complex Networks
Introduction to Complex NetworksIntroduction to Complex Networks
Introduction to Complex Networks
Hossein A. (Saeed) Rahmani

Gnn overview
Gnn overviewGnn overview
Gnn overview
Louis (Yufeng) Wang

Disease prediction system using python.pptx
Disease prediction system using python.pptxDisease prediction system using python.pptx
Disease prediction system using python.pptx
KeshavRaoPilli

New Insights and Perspectives on the Natural Gradient Method
New Insights and Perspectives on the Natural Gradient MethodNew Insights and Perspectives on the Natural Gradient Method
New Insights and Perspectives on the Natural Gradient Method
Yoonho Lee


What's hot (20)

Introduction to Graph Neural Networks: Basics and Applications - Katsuhiko Is...
Introduction to Graph Neural Networks: Basics and Applications - Katsuhiko Is...Introduction to Graph Neural Networks: Basics and Applications - Katsuhiko Is...
Introduction to Graph Neural Networks: Basics and Applications - Katsuhiko Is...

Nural network ER. Abhishek k. upadhyay
Nural network ER. Abhishek  k. upadhyayNural network ER. Abhishek  k. upadhyay
Nural network ER. Abhishek k. upadhyay

Associative memory network
Associative memory networkAssociative memory network
Associative memory network

Deep Learning with Audio Signals: Prepare, Process, Design, Expect
Deep Learning with Audio Signals: Prepare, Process, Design, ExpectDeep Learning with Audio Signals: Prepare, Process, Design, Expect
Deep Learning with Audio Signals: Prepare, Process, Design, Expect

Parkinson disease classification v2.0
Parkinson disease classification v2.0Parkinson disease classification v2.0
Parkinson disease classification v2.0

Jekaterina Novikova - Machine Learning Methods in Detecting Alzheimer’s Disea...
Jekaterina Novikova - Machine Learning Methods in Detecting Alzheimer’s Disea...Jekaterina Novikova - Machine Learning Methods in Detecting Alzheimer’s Disea...
Jekaterina Novikova - Machine Learning Methods in Detecting Alzheimer’s Disea...

Sensory motor processing in planning and execution of movement
Sensory motor processing in planning and execution of movementSensory motor processing in planning and execution of movement
Sensory motor processing in planning and execution of movement

Neural Networks: Introducton
Neural Networks: IntroductonNeural Networks: Introducton
Neural Networks: Introducton

Psychiatric aspects of basal ganglion
Psychiatric aspects of basal ganglionPsychiatric aspects of basal ganglion
Psychiatric aspects of basal ganglion

Graph neural networks overview
Graph neural networks overviewGraph neural networks overview
Graph neural networks overview

Artificial Intelligence in Neurology.pptx
Artificial Intelligence in Neurology.pptxArtificial Intelligence in Neurology.pptx
Artificial Intelligence in Neurology.pptx

Convolutional Neural Networks
Convolutional Neural NetworksConvolutional Neural Networks
Convolutional Neural Networks

Neuropeptides
NeuropeptidesNeuropeptides
Neuropeptides

Spectral-, source-, connectivity- and network analysis of EEG and MEG data
Spectral-, source-, connectivity- and network analysis of EEG and MEG dataSpectral-, source-, connectivity- and network analysis of EEG and MEG data
Spectral-, source-, connectivity- and network analysis of EEG and MEG data

EEG dr archana
EEG dr archanaEEG dr archana
EEG dr archana

Introduction to Complex Networks
Introduction to Complex NetworksIntroduction to Complex Networks
Introduction to Complex Networks

Gnn overview
Gnn overviewGnn overview
Gnn overview

Mirror neurons
Mirror neuronsMirror neurons
Mirror neurons

Disease prediction system using python.pptx
Disease prediction system using python.pptxDisease prediction system using python.pptx
Disease prediction system using python.pptx

New Insights and Perspectives on the Natural Gradient Method
New Insights and Perspectives on the Natural Gradient MethodNew Insights and Perspectives on the Natural Gradient Method
New Insights and Perspectives on the Natural Gradient Method


Viewers also liked

Brain Network - Thalamocortical Motif
Brain Network - Thalamocortical MotifBrain Network - Thalamocortical Motif
Brain Network - Thalamocortical Motif
Jimmy Lu

A tutorial in Connectome Analysis (1) - Marcus Kaiser
A tutorial in Connectome Analysis (1) - Marcus KaiserA tutorial in Connectome Analysis (1) - Marcus Kaiser
A tutorial in Connectome Analysis (1) - Marcus Kaiser
Lake Como School of Advanced Studies

Exploring Complex Networks
Exploring Complex NetworksExploring Complex Networks
Exploring Complex Networks
Jimmy Lu

ITAB2010-Thresholding Correlation Matrices
ITAB2010-Thresholding Correlation MatricesITAB2010-Thresholding Correlation Matrices
ITAB2010-Thresholding Correlation Matrices
Athanasios Anastasiou

Brain connectivity analysis
Brain connectivity analysisBrain connectivity analysis
Brain connectivity analysis
Andres Quintero Zea

On the code of data science
On the code of data scienceOn the code of data science
On the code of data science
Gael Varoquaux

Presentation Internship Brain Connectivity Graph 2014 (ENG)
Presentation Internship Brain Connectivity Graph 2014 (ENG)Presentation Internship Brain Connectivity Graph 2014 (ENG)
Presentation Internship Brain Connectivity Graph 2014 (ENG)Romain Chion

A tutorial in Connectome Analysis (2) - Marcus Kaiser
A tutorial in Connectome Analysis (2) - Marcus KaiserA tutorial in Connectome Analysis (2) - Marcus Kaiser
A tutorial in Connectome Analysis (2) - Marcus Kaiser
Lake Como School of Advanced Studies

Introduction to Neuroimaging Informatics
Introduction to Neuroimaging InformaticsIntroduction to Neuroimaging Informatics
Introduction to Neuroimaging Informatics
Vanessa S

Lean Manga. The Lean Brain
Lean Manga. The Lean BrainLean Manga. The Lean Brain
Lean Manga. The Lean Brain
Hochschule Heilbronn

Learning and comparing multi-subject models of brain functional connecitivity
Learning and comparing multi-subject models of brain functional connecitivityLearning and comparing multi-subject models of brain functional connecitivity
Learning and comparing multi-subject models of brain functional connecitivity
Gael Varoquaux

Introduction to Graph Theory
Introduction to Graph TheoryIntroduction to Graph Theory
Introduction to Graph Theory
Premsankar Chakkingal

Central Nervous System, The Autonomic Nervous System
Central Nervous System, The Autonomic Nervous SystemCentral Nervous System, The Autonomic Nervous System
Central Nervous System, The Autonomic Nervous Systemcarmencrivii

Frontotemporal dementia: Neural circuits, genetics and neuropathology
Frontotemporal dementia: Neural circuits, genetics and neuropathologyFrontotemporal dementia: Neural circuits, genetics and neuropathology
Frontotemporal dementia: Neural circuits, genetics and neuropathologyRavi Soni


Viewers also liked (15)

Brain Network - Thalamocortical Motif
Brain Network - Thalamocortical MotifBrain Network - Thalamocortical Motif
Brain Network - Thalamocortical Motif

A tutorial in Connectome Analysis (1) - Marcus Kaiser
A tutorial in Connectome Analysis (1) - Marcus KaiserA tutorial in Connectome Analysis (1) - Marcus Kaiser
A tutorial in Connectome Analysis (1) - Marcus Kaiser

Sporns kavli2008
Sporns kavli2008Sporns kavli2008
Sporns kavli2008

Exploring Complex Networks
Exploring Complex NetworksExploring Complex Networks
Exploring Complex Networks

ITAB2010-Thresholding Correlation Matrices
ITAB2010-Thresholding Correlation MatricesITAB2010-Thresholding Correlation Matrices
ITAB2010-Thresholding Correlation Matrices

Brain connectivity analysis
Brain connectivity analysisBrain connectivity analysis
Brain connectivity analysis

On the code of data science
On the code of data scienceOn the code of data science
On the code of data science

Presentation Internship Brain Connectivity Graph 2014 (ENG)
Presentation Internship Brain Connectivity Graph 2014 (ENG)Presentation Internship Brain Connectivity Graph 2014 (ENG)
Presentation Internship Brain Connectivity Graph 2014 (ENG)

A tutorial in Connectome Analysis (2) - Marcus Kaiser
A tutorial in Connectome Analysis (2) - Marcus KaiserA tutorial in Connectome Analysis (2) - Marcus Kaiser
A tutorial in Connectome Analysis (2) - Marcus Kaiser

Introduction to Neuroimaging Informatics
Introduction to Neuroimaging InformaticsIntroduction to Neuroimaging Informatics
Introduction to Neuroimaging Informatics

Lean Manga. The Lean Brain
Lean Manga. The Lean BrainLean Manga. The Lean Brain
Lean Manga. The Lean Brain

Learning and comparing multi-subject models of brain functional connecitivity
Learning and comparing multi-subject models of brain functional connecitivityLearning and comparing multi-subject models of brain functional connecitivity
Learning and comparing multi-subject models of brain functional connecitivity

Introduction to Graph Theory
Introduction to Graph TheoryIntroduction to Graph Theory
Introduction to Graph Theory

Central Nervous System, The Autonomic Nervous System
Central Nervous System, The Autonomic Nervous SystemCentral Nervous System, The Autonomic Nervous System
Central Nervous System, The Autonomic Nervous System

Frontotemporal dementia: Neural circuits, genetics and neuropathology
Frontotemporal dementia: Neural circuits, genetics and neuropathologyFrontotemporal dementia: Neural circuits, genetics and neuropathology
Frontotemporal dementia: Neural circuits, genetics and neuropathology


Similar to Brain network modelling: connectivity metrics and group analysis

Connectomics: Parcellations and Network Analysis Methods
Connectomics: Parcellations and Network Analysis MethodsConnectomics: Parcellations and Network Analysis Methods
Connectomics: Parcellations and Network Analysis Methods
Gael Varoquaux

Estimating Functional Connectomes: Sparsity’s Strength and Limitations
Estimating Functional Connectomes: Sparsity’s Strength and LimitationsEstimating Functional Connectomes: Sparsity’s Strength and Limitations
Estimating Functional Connectomes: Sparsity’s Strength and Limitations
Gael Varoquaux

Advanced network modelling 2: connectivity measures, goup analysis
Advanced network modelling 2: connectivity measures, goup analysisAdvanced network modelling 2: connectivity measures, goup analysis
Advanced network modelling 2: connectivity measures, goup analysis
Gael Varoquaux

Machine learning for functional connectomes
Machine learning for functional connectomesMachine learning for functional connectomes
Machine learning for functional connectomes
Gael Varoquaux

Multi Level Modelling&Weights Workshop Kiel09
Multi Level Modelling&Weights Workshop Kiel09Multi Level Modelling&Weights Workshop Kiel09
Multi Level Modelling&Weights Workshop Kiel09
egebhardt72

Brain reading, compressive sensing, fMRI and statistical learning in Python
Brain reading, compressive sensing, fMRI and statistical learning in PythonBrain reading, compressive sensing, fMRI and statistical learning in Python
Brain reading, compressive sensing, fMRI and statistical learning in Python
Gael Varoquaux

Social-sparsity brain decoders: faster spatial sparsity
Social-sparsity brain decoders: faster spatial sparsitySocial-sparsity brain decoders: faster spatial sparsity
Social-sparsity brain decoders: faster spatial sparsity
Gael Varoquaux

MVPA with SpaceNet: sparse structured priors
MVPA with SpaceNet: sparse structured priorsMVPA with SpaceNet: sparse structured priors
MVPA with SpaceNet: sparse structured priors
Elvis DOHMATOB

Integrability and weak diffraction in a two-particle Bose-Hubbard model
 Integrability and weak diffraction in a two-particle Bose-Hubbard model  Integrability and weak diffraction in a two-particle Bose-Hubbard model
Integrability and weak diffraction in a two-particle Bose-Hubbard model
jiang-min zhang

L-8 VECM Formulation, Hypothesis Testing, and Forecasting - KH.pptx
L-8 VECM Formulation, Hypothesis Testing, and Forecasting - KH.pptxL-8 VECM Formulation, Hypothesis Testing, and Forecasting - KH.pptx
L-8 VECM Formulation, Hypothesis Testing, and Forecasting - KH.pptx
RiyadhJack

Paper Summary of Beta-VAE: Learning Basic Visual Concepts with a Constrained ...
Paper Summary of Beta-VAE: Learning Basic Visual Concepts with a Constrained ...Paper Summary of Beta-VAE: Learning Basic Visual Concepts with a Constrained ...
Paper Summary of Beta-VAE: Learning Basic Visual Concepts with a Constrained ...
준식 최

Lecture 2: Stochastic Hydrology
Lecture 2: Stochastic Hydrology Lecture 2: Stochastic Hydrology
Lecture 2: Stochastic Hydrology
Amro Elfeki

Network and risk spillovers: a multivariate GARCH perspective
Network and risk spillovers: a multivariate GARCH perspectiveNetwork and risk spillovers: a multivariate GARCH perspective
Network and risk spillovers: a multivariate GARCH perspective
SYRTO Project

Swapping between Two Nonorthogonal Entangled Coherent States (and Branching o...
Swapping between Two Nonorthogonal Entangled Coherent States (and Branching o...Swapping between Two Nonorthogonal Entangled Coherent States (and Branching o...
Swapping between Two Nonorthogonal Entangled Coherent States (and Branching o...
Vasudha Pande

An O(log^2 k)-approximation algorithm for k-vertex connected spanning subgraph
An O(log^2 k)-approximation algorithm for k-vertex connected spanning subgraphAn O(log^2 k)-approximation algorithm for k-vertex connected spanning subgraph
An O(log^2 k)-approximation algorithm for k-vertex connected spanning subgraph
lbundit

A short and naive introduction to using network in prediction models
A short and naive introduction to using network in prediction modelsA short and naive introduction to using network in prediction models
A short and naive introduction to using network in prediction models
tuxette

Iclr2016 vaeまとめ
Iclr2016 vaeまとめIclr2016 vaeまとめ
Iclr2016 vaeまとめ
Deep Learning JP

An integer linear programming formulation and branch-and-cut algorithm for th...
An integer linear programming formulation and branch-and-cut algorithm for th...An integer linear programming formulation and branch-and-cut algorithm for th...
An integer linear programming formulation and branch-and-cut algorithm for th...
Hernán Berinsky

Regression and Co-Relation
Regression and Co-RelationRegression and Co-Relation
Regression and Co-Relation
nuwan udugampala


Similar to Brain network modelling: connectivity metrics and group analysis (20)

Connectomics: Parcellations and Network Analysis Methods
Connectomics: Parcellations and Network Analysis MethodsConnectomics: Parcellations and Network Analysis Methods
Connectomics: Parcellations and Network Analysis Methods

Estimating Functional Connectomes: Sparsity’s Strength and Limitations
Estimating Functional Connectomes: Sparsity’s Strength and LimitationsEstimating Functional Connectomes: Sparsity’s Strength and Limitations
Estimating Functional Connectomes: Sparsity’s Strength and Limitations

Advanced network modelling 2: connectivity measures, goup analysis
Advanced network modelling 2: connectivity measures, goup analysisAdvanced network modelling 2: connectivity measures, goup analysis
Advanced network modelling 2: connectivity measures, goup analysis

Machine learning for functional connectomes
Machine learning for functional connectomesMachine learning for functional connectomes
Machine learning for functional connectomes

Multi Level Modelling&Weights Workshop Kiel09
Multi Level Modelling&Weights Workshop Kiel09Multi Level Modelling&Weights Workshop Kiel09
Multi Level Modelling&Weights Workshop Kiel09

T tests anovas and regression
T tests anovas and regressionT tests anovas and regression
T tests anovas and regression

Brain reading, compressive sensing, fMRI and statistical learning in Python
Brain reading, compressive sensing, fMRI and statistical learning in PythonBrain reading, compressive sensing, fMRI and statistical learning in Python
Brain reading, compressive sensing, fMRI and statistical learning in Python

Social-sparsity brain decoders: faster spatial sparsity
Social-sparsity brain decoders: faster spatial sparsitySocial-sparsity brain decoders: faster spatial sparsity
Social-sparsity brain decoders: faster spatial sparsity

MVPA with SpaceNet: sparse structured priors
MVPA with SpaceNet: sparse structured priorsMVPA with SpaceNet: sparse structured priors
MVPA with SpaceNet: sparse structured priors

Integrability and weak diffraction in a two-particle Bose-Hubbard model
 Integrability and weak diffraction in a two-particle Bose-Hubbard model  Integrability and weak diffraction in a two-particle Bose-Hubbard model
Integrability and weak diffraction in a two-particle Bose-Hubbard model

L-8 VECM Formulation, Hypothesis Testing, and Forecasting - KH.pptx
L-8 VECM Formulation, Hypothesis Testing, and Forecasting - KH.pptxL-8 VECM Formulation, Hypothesis Testing, and Forecasting - KH.pptx
L-8 VECM Formulation, Hypothesis Testing, and Forecasting - KH.pptx

Paper Summary of Beta-VAE: Learning Basic Visual Concepts with a Constrained ...
Paper Summary of Beta-VAE: Learning Basic Visual Concepts with a Constrained ...Paper Summary of Beta-VAE: Learning Basic Visual Concepts with a Constrained ...
Paper Summary of Beta-VAE: Learning Basic Visual Concepts with a Constrained ...

Lecture 2: Stochastic Hydrology
Lecture 2: Stochastic Hydrology Lecture 2: Stochastic Hydrology
Lecture 2: Stochastic Hydrology

Network and risk spillovers: a multivariate GARCH perspective
Network and risk spillovers: a multivariate GARCH perspectiveNetwork and risk spillovers: a multivariate GARCH perspective
Network and risk spillovers: a multivariate GARCH perspective

Swapping between Two Nonorthogonal Entangled Coherent States (and Branching o...
Swapping between Two Nonorthogonal Entangled Coherent States (and Branching o...Swapping between Two Nonorthogonal Entangled Coherent States (and Branching o...
Swapping between Two Nonorthogonal Entangled Coherent States (and Branching o...

An O(log^2 k)-approximation algorithm for k-vertex connected spanning subgraph
An O(log^2 k)-approximation algorithm for k-vertex connected spanning subgraphAn O(log^2 k)-approximation algorithm for k-vertex connected spanning subgraph
An O(log^2 k)-approximation algorithm for k-vertex connected spanning subgraph

A short and naive introduction to using network in prediction models
A short and naive introduction to using network in prediction modelsA short and naive introduction to using network in prediction models
A short and naive introduction to using network in prediction models

Iclr2016 vaeまとめ
Iclr2016 vaeまとめIclr2016 vaeまとめ
Iclr2016 vaeまとめ

An integer linear programming formulation and branch-and-cut algorithm for th...
An integer linear programming formulation and branch-and-cut algorithm for th...An integer linear programming formulation and branch-and-cut algorithm for th...
An integer linear programming formulation and branch-and-cut algorithm for th...

Regression and Co-Relation
Regression and Co-RelationRegression and Co-Relation
Regression and Co-Relation


More from Gael Varoquaux

Evaluating machine learning models and their diagnostic value
Evaluating machine learning models and their diagnostic valueEvaluating machine learning models and their diagnostic value
Evaluating machine learning models and their diagnostic value
Gael Varoquaux

Measuring mental health with machine learning and brain imaging
Measuring mental health with machine learning and brain imagingMeasuring mental health with machine learning and brain imaging
Measuring mental health with machine learning and brain imaging
Gael Varoquaux

Machine learning with missing values
Machine learning with missing valuesMachine learning with missing values
Machine learning with missing values
Gael Varoquaux

Dirty data science machine learning on non-curated data
Dirty data science machine learning on non-curated dataDirty data science machine learning on non-curated data
Dirty data science machine learning on non-curated data
Gael Varoquaux

Representation learning in limited-data settings
Representation learning in limited-data settingsRepresentation learning in limited-data settings
Representation learning in limited-data settings
Gael Varoquaux

Better neuroimaging data processing: driven by evidence, open communities, an...
Better neuroimaging data processing: driven by evidence, open communities, an...Better neuroimaging data processing: driven by evidence, open communities, an...
Better neuroimaging data processing: driven by evidence, open communities, an...
Gael Varoquaux

Functional-connectome biomarkers to meet clinical needs?
Functional-connectome biomarkers to meet clinical needs?Functional-connectome biomarkers to meet clinical needs?
Functional-connectome biomarkers to meet clinical needs?
Gael Varoquaux

Atlases of cognition with large-scale human brain mapping
Atlases of cognition with large-scale human brain mappingAtlases of cognition with large-scale human brain mapping
Atlases of cognition with large-scale human brain mapping
Gael Varoquaux

Similarity encoding for learning on dirty categorical variables
Similarity encoding for learning on dirty categorical variablesSimilarity encoding for learning on dirty categorical variables
Similarity encoding for learning on dirty categorical variables
Gael Varoquaux

Towards psychoinformatics with machine learning and brain imaging
Towards psychoinformatics with machine learning and brain imagingTowards psychoinformatics with machine learning and brain imaging
Towards psychoinformatics with machine learning and brain imaging
Gael Varoquaux

Simple representations for learning: factorizations and similarities
Simple representations for learning: factorizations and similarities Simple representations for learning: factorizations and similarities
Simple representations for learning: factorizations and similarities
Gael Varoquaux

A tutorial on Machine Learning, with illustrations for MR imaging
A tutorial on Machine Learning, with illustrations for MR imagingA tutorial on Machine Learning, with illustrations for MR imaging
A tutorial on Machine Learning, with illustrations for MR imaging
Gael Varoquaux

Scikit-learn and nilearn: Democratisation of machine learning for brain imaging
Scikit-learn and nilearn: Democratisation of machine learning for brain imagingScikit-learn and nilearn: Democratisation of machine learning for brain imaging
Scikit-learn and nilearn: Democratisation of machine learning for brain imaging
Gael Varoquaux

Computational practices for reproducible science
Computational practices for reproducible scienceComputational practices for reproducible science
Computational practices for reproducible science
Gael Varoquaux

Coding for science and innovation
Coding for science and innovationCoding for science and innovation
Coding for science and innovation
Gael Varoquaux

Scientist meets web dev: how Python became the language of data
Scientist meets web dev: how Python became the language of dataScientist meets web dev: how Python became the language of data
Scientist meets web dev: how Python became the language of data
Gael Varoquaux

Machine learning and cognitive neuroimaging: new tools can answer new questions
Machine learning and cognitive neuroimaging: new tools can answer new questionsMachine learning and cognitive neuroimaging: new tools can answer new questions
Machine learning and cognitive neuroimaging: new tools can answer new questions
Gael Varoquaux

Scikit-learn: the state of the union 2016
Scikit-learn: the state of the union 2016Scikit-learn: the state of the union 2016
Scikit-learn: the state of the union 2016
Gael Varoquaux

Inter-site autism biomarkers from resting state fMRI
Inter-site autism biomarkers from resting state fMRIInter-site autism biomarkers from resting state fMRI
Inter-site autism biomarkers from resting state fMRI
Gael Varoquaux

Brain maps from machine learning? Spatial regularizations
Brain maps from machine learning? Spatial regularizationsBrain maps from machine learning? Spatial regularizations
Brain maps from machine learning? Spatial regularizations
Gael Varoquaux


More from Gael Varoquaux (20)

Evaluating machine learning models and their diagnostic value
Evaluating machine learning models and their diagnostic valueEvaluating machine learning models and their diagnostic value
Evaluating machine learning models and their diagnostic value

Measuring mental health with machine learning and brain imaging
Measuring mental health with machine learning and brain imagingMeasuring mental health with machine learning and brain imaging
Measuring mental health with machine learning and brain imaging

Machine learning with missing values
Machine learning with missing valuesMachine learning with missing values
Machine learning with missing values

Dirty data science machine learning on non-curated data
Dirty data science machine learning on non-curated dataDirty data science machine learning on non-curated data
Dirty data science machine learning on non-curated data

Representation learning in limited-data settings
Representation learning in limited-data settingsRepresentation learning in limited-data settings
Representation learning in limited-data settings

Better neuroimaging data processing: driven by evidence, open communities, an...
Better neuroimaging data processing: driven by evidence, open communities, an...Better neuroimaging data processing: driven by evidence, open communities, an...
Better neuroimaging data processing: driven by evidence, open communities, an...

Functional-connectome biomarkers to meet clinical needs?
Functional-connectome biomarkers to meet clinical needs?Functional-connectome biomarkers to meet clinical needs?
Functional-connectome biomarkers to meet clinical needs?

Atlases of cognition with large-scale human brain mapping
Atlases of cognition with large-scale human brain mappingAtlases of cognition with large-scale human brain mapping
Atlases of cognition with large-scale human brain mapping

Similarity encoding for learning on dirty categorical variables
Similarity encoding for learning on dirty categorical variablesSimilarity encoding for learning on dirty categorical variables
Similarity encoding for learning on dirty categorical variables

Towards psychoinformatics with machine learning and brain imaging
Towards psychoinformatics with machine learning and brain imagingTowards psychoinformatics with machine learning and brain imaging
Towards psychoinformatics with machine learning and brain imaging

Simple representations for learning: factorizations and similarities
Simple representations for learning: factorizations and similarities Simple representations for learning: factorizations and similarities
Simple representations for learning: factorizations and similarities

A tutorial on Machine Learning, with illustrations for MR imaging
A tutorial on Machine Learning, with illustrations for MR imagingA tutorial on Machine Learning, with illustrations for MR imaging
A tutorial on Machine Learning, with illustrations for MR imaging

Scikit-learn and nilearn: Democratisation of machine learning for brain imaging
Scikit-learn and nilearn: Democratisation of machine learning for brain imagingScikit-learn and nilearn: Democratisation of machine learning for brain imaging
Scikit-learn and nilearn: Democratisation of machine learning for brain imaging

Computational practices for reproducible science
Computational practices for reproducible scienceComputational practices for reproducible science
Computational practices for reproducible science

Coding for science and innovation
Coding for science and innovationCoding for science and innovation
Coding for science and innovation

Scientist meets web dev: how Python became the language of data
Scientist meets web dev: how Python became the language of dataScientist meets web dev: how Python became the language of data
Scientist meets web dev: how Python became the language of data

Machine learning and cognitive neuroimaging: new tools can answer new questions
Machine learning and cognitive neuroimaging: new tools can answer new questionsMachine learning and cognitive neuroimaging: new tools can answer new questions
Machine learning and cognitive neuroimaging: new tools can answer new questions

Scikit-learn: the state of the union 2016
Scikit-learn: the state of the union 2016Scikit-learn: the state of the union 2016
Scikit-learn: the state of the union 2016

Inter-site autism biomarkers from resting state fMRI
Inter-site autism biomarkers from resting state fMRIInter-site autism biomarkers from resting state fMRI
Inter-site autism biomarkers from resting state fMRI

Brain maps from machine learning? Spatial regularizations
Brain maps from machine learning? Spatial regularizationsBrain maps from machine learning? Spatial regularizations
Brain maps from machine learning? Spatial regularizations


Recently uploaded

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME
Safe Software

GraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge GraphGraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge Graph
Guy Korland

Video Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the FutureVideo Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the Future
Alpen-Adria-Universität

LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...
LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...
LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...
DanBrown980551

Generative AI Deep Dive: Advancing from Proof of Concept to Production
Generative AI Deep Dive: Advancing from Proof of Concept to ProductionGenerative AI Deep Dive: Advancing from Proof of Concept to Production
Generative AI Deep Dive: Advancing from Proof of Concept to Production
Aggregage

Microsoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdfMicrosoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdf
Uni Systems S.M.S.A.

Epistemic Interaction - tuning interfaces to provide information for AI support
Epistemic Interaction - tuning interfaces to provide information for AI supportEpistemic Interaction - tuning interfaces to provide information for AI support
Epistemic Interaction - tuning interfaces to provide information for AI support
Alan Dix

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days
Kari Kakkonen

PHP Frameworks: I want to break free (IPC Berlin 2024)
PHP Frameworks: I want to break free (IPC Berlin 2024)PHP Frameworks: I want to break free (IPC Berlin 2024)
PHP Frameworks: I want to break free (IPC Berlin 2024)
Ralf Eggert

PCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase TeamPCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase Team
ControlCase

FIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdf
FIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdfFIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdf
FIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdf
FIDO Alliance

Introduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - CybersecurityIntroduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - Cybersecurity
mikeeftimakis1

GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
Neo4j

Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Albert Hoitingh

UiPath Test Automation using UiPath Test Suite series, part 5
UiPath Test Automation using UiPath Test Suite series, part 5UiPath Test Automation using UiPath Test Suite series, part 5
UiPath Test Automation using UiPath Test Suite series, part 5
DianaGray10

State of ICS and IoT Cyber Threat Landscape Report 2024 preview
State of ICS and IoT Cyber Threat Landscape Report 2024 previewState of ICS and IoT Cyber Threat Landscape Report 2024 preview
State of ICS and IoT Cyber Threat Landscape Report 2024 preview
Prayukth K V

SAP Sapphire 2024 - ASUG301 building better apps with SAP Fiori.pdf
SAP Sapphire 2024 - ASUG301 building better apps with SAP Fiori.pdfSAP Sapphire 2024 - ASUG301 building better apps with SAP Fiori.pdf
SAP Sapphire 2024 - ASUG301 building better apps with SAP Fiori.pdf
Peter Spielvogel

The Future of Platform Engineering
The Future of Platform EngineeringThe Future of Platform Engineering
The Future of Platform Engineering
Jemma Hussein Allen

Free Complete Python - A step towards Data Science
Free Complete Python - A step towards Data ScienceFree Complete Python - A step towards Data Science
Free Complete Python - A step towards Data Science
RinaMondal9

Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdfObservability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Paige Cruz


Recently uploaded (20)

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME

GraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge GraphGraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge Graph

Video Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the FutureVideo Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the Future

LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...
LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...
LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...

Generative AI Deep Dive: Advancing from Proof of Concept to Production
Generative AI Deep Dive: Advancing from Proof of Concept to ProductionGenerative AI Deep Dive: Advancing from Proof of Concept to Production
Generative AI Deep Dive: Advancing from Proof of Concept to Production

Microsoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdfMicrosoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdf

Epistemic Interaction - tuning interfaces to provide information for AI support
Epistemic Interaction - tuning interfaces to provide information for AI supportEpistemic Interaction - tuning interfaces to provide information for AI support
Epistemic Interaction - tuning interfaces to provide information for AI support

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days

PHP Frameworks: I want to break free (IPC Berlin 2024)
PHP Frameworks: I want to break free (IPC Berlin 2024)PHP Frameworks: I want to break free (IPC Berlin 2024)
PHP Frameworks: I want to break free (IPC Berlin 2024)

PCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase TeamPCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase Team

FIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdf
FIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdfFIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdf
FIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdf

Introduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - CybersecurityIntroduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - Cybersecurity

GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...

Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024

UiPath Test Automation using UiPath Test Suite series, part 5
UiPath Test Automation using UiPath Test Suite series, part 5UiPath Test Automation using UiPath Test Suite series, part 5
UiPath Test Automation using UiPath Test Suite series, part 5

State of ICS and IoT Cyber Threat Landscape Report 2024 preview
State of ICS and IoT Cyber Threat Landscape Report 2024 previewState of ICS and IoT Cyber Threat Landscape Report 2024 preview
State of ICS and IoT Cyber Threat Landscape Report 2024 preview

SAP Sapphire 2024 - ASUG301 building better apps with SAP Fiori.pdf
SAP Sapphire 2024 - ASUG301 building better apps with SAP Fiori.pdfSAP Sapphire 2024 - ASUG301 building better apps with SAP Fiori.pdf
SAP Sapphire 2024 - ASUG301 building better apps with SAP Fiori.pdf

The Future of Platform Engineering
The Future of Platform EngineeringThe Future of Platform Engineering
The Future of Platform Engineering

Free Complete Python - A step towards Data Science
Free Complete Python - A step towards Data ScienceFree Complete Python - A step towards Data Science
Free Complete Python - A step towards Data Science

Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdfObservability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf


Brain network modelling: connectivity metrics and group analysis

  • 1. Advanced network modelling II: connectivity measures, group analysis Ga¨l Varoquaux e INRIA, Parietal Neurospin Learning objectives Extraction of the network structure from the observations Statistics for comparing correlations structures Interpret network structures
  • 2. Problem setting and vocabulary Given regions, infer and compare connections Graph: set of nodes and connections Weighted or not. Directed or not. Can be represented by an adjacency matrix. G Varoquaux 2
  • 3. Functional network analysis: an outline 1 Signal extraction 2 Connectivity graphs 3 Comparing connections 4 Network-level summary G Varoquaux 3
  • 4. 1 Signal extraction Capturing network interplay [Fox 2005] G Varoquaux 4
  • 5. 1 Choice of regions Too many regions gives harder statistical problem: ⇒ ∼ 30 ROIs for group-difference analysis Nearly-overlapping regions will mix signals Avoid too small regions ⇒ ∼ 10mm radius Capture different functional networks G Varoquaux 5
  • 6. 1 Time-series extraction Extract ROI-average signal: weighted-mean with weights given by white-matter probability Low-pass filter fMRI data (≈ .1 Hz – .3 Hz) Regress out confounds: - movement parameters - CSF and white matter signals - Compcorr: data-driven noise identification [Behzadi 2007] G Varoquaux 6
  • 7. 2 Connectivity graphs From correlations to connections Functional connectivity: correlation-based statistics G Varoquaux 7
  • 8. 2 Correlation, covariance For x and y centered: 1 covariance: cov(x, y) = xi yi n i cov(x, y) correlation: cor(x, y) = std(x) std(y) Correlation is normalized: cor(x, y) ∈ [−1, 1] Quantify linear dependence between x and y Correlation matrix 1 functional connectivity graphs [Bullmore1996,..., Eguiluz2005, Achard2006...] G Varoquaux 8
  • 9. 2 Partial correlation Remove the effect of z by regressing it out x/z = residuals of regression of x on z In a set of p signals, partial correlation: cor(xi/Z , xj/Z ), Z = {xk , k = i, j} partial variance: var(xi/Z ), Z = {xk , k = i} Partial correlation matrix [Marrelec2006, Fransson2008, ...] G Varoquaux 9
  • 10. 2 Inverse covariance K = Matrix inverse of the covariance matrix On the diagonal: partial variance Off diagonal: scaled partial correlation Ki,j = −cor(xi/Z , xj/Z ) std(xi/Z ) std(xj/Z ) Inverse covariance matrix [Smith 2010, Varoquaux NIPS 2010, ...] G Varoquaux 10
  • 11. 2 Summary: observations and indirect effects Observations Direct connections Correlation Partial correlation 1 1 2 2 0 0 3 3 4 4 + Variance: + Partial variance amount of observed signal innovation term G Varoquaux 11
  • 12. 2 Summary: observations and indirect effects Observations Direct connections Correlation Partial correlation [Fransson 2008]: partial correlations highlight the backbone of the default mode G Varoquaux 11
  • 13. 2 Inverse covariance and graphical model Gaussian graphical models Zeros in inverse covariance give conditional independence xi , xj independent Σ−1 = 0 ⇔ i,j conditionally on {xk , k = i, j} Robust to the Gaussian assumption G Varoquaux 12
  • 14. 2 Inverse covariance matrix estimation p nodes, n observations (e.g. fMRI volumes) 0 1 If not n p 2 , 2 ambiguities: 0 1 ? 0 ? 1 0 1 2 2 2 Thresholding partial correlations does not recover ground truth independence structure G Varoquaux 13
  • 15. 2 Inverse covariance matrix estimation Sparse Inverse Covariance estimators: Joint estimation of connections and values Sparsity amount set by cross-validation, to maximize likelihood of left-out data Group-sparse inverse covariance: learn simultaneously different values with same connections [Varoquaux, NIPS 2010] G Varoquaux 14
  • 16. 3 Comparing connections Detecting and localizing differences G Varoquaux 15
  • 17. 3 Comparing connections Detecting and localizing differences Learning sculpts the spontaneous activity of the resting human brain [Lewis 2009] Cor ...learn... cor differences G Varoquaux 15
  • 18. 3 Pair-wise tests on correlations Correlations ∈ [−1, 1] ⇒ cannot apply Gaussian statistics, e.g. T tests Z-transform: 1 1 + cor Z = arctanh cor = ln 2 1 − cor Z (cor) is normaly-distributed:   1 For n observations, Z (cor) = N Z (cor), √  n G Varoquaux 16
  • 19. 3 Indirect effects: to partial or not to partial? 0 0 0 0 5 Correlation matrices 5 5 5 10 10 10 10 15 15 15 15 20 20 20 20 25 Control 25 Control 25 Control Large lesion 25 0 5 10 15 20 25 0 5 10 15 20 25 0 5 10 15 20 25 0 5 10 15 20 25 0 0 0 0 5 Partial correlation matrices 5 5 5 10 10 10 10 15 15 15 15 20 20 20 20 25 Control 25 Control 25 Control Large lesion 25 0 5 10 15 20 25 0 5 10 15 20 25 0 5 10 15 20 25 0 5 10 15 20 25 Spread-out variability in correlation matrices Noise in partial-correlations Strong dependence between coefficients [Varoquaux MICCAI 2010] G Varoquaux 17
  • 20. 3 Indirect effects versus noise: a trade off 0 0 0 0 5 Correlation matrices 5 5 5 10 10 10 10 15 15 15 15 20 20 20 20 25 Control 25 Control 25 Control Large lesion 25 0 5 10 15 20 25 0 5 10 15 20 25 0 5 10 15 20 25 0 5 10 15 20 25 0 0 0 0 5 Partial correlation matrices 5 5 5 10 10 10 10 15 15 15 15 20 20 20 20 25 Control 25 Control 25 Control Large lesion 25 0 5 10 15 20 25 0 5 10 15 20 25 0 5 10 15 20 25 0 5 10 15 20 25 0 0 0 0 5 Tangent-space residuals 5 5 5 10 [Varoquaux MICCAI 2010] 10 10 10 15 15 15 15 20 20 20 20 25 Control 25 Control 25 Control Large lesion 25 0 5 10 15 20 25 0 5 10 15 20 25 0 5 10 15 20 25 0 5 10 15 20 25 G Varoquaux 18
  • 21. 3 Graph-theoretical analysis Summarize a graph by a few key metrics, expressing its transport properties [Bullmore & Sporns 2009] [Eguiluz 2005] Permutation testing for null distribution Use a good graph (sparse inverse covariance) [Varoquaux NIPS 2010] G Varoquaux 19
  • 22. 4 Network-level summary Comparing network activity G Varoquaux 20
  • 23. 4 Network-wide activity: generalized variance Quantify amount of signal in Σ? Determinant: |Σ| = generalized variance = volume of ellipse G Varoquaux 21
  • 24. 4 Integration across networks Networks-level sub-matrices ΣA Network integration: = log |ΣA | Cross-talk between network A and B: mutual information = log |ΣAB | − log |ΣA | − log |ΣB | Information-theoretical interpretation: entropy and cross-entropy [Tononi 1994, Marrelec 2008, Varoquaux NIPS 2010] G Varoquaux 22
  • 25. Wrapping up: pitfalls Missing nodes Very-correlated nodes: e.g. nearly-overlapping regions Hub nodes give more noisy partial correlations G Varoquaux 23
  • 26. Wrapping up: take home messages Regress confounds out from signals Inverse covariance to capture only direct effects 0 0 Correlations cofluctuate 5 10 5 10 ⇒ localization of differences 15 20 15 20 is difficult 25 0 5 10 15 20 25 25 0 5 10 15 20 25 Networks are interesting units for comparison http://gael-varoquaux.info G Varoquaux 24
  • 27. References (not exhaustive) [Achard 2006] A resilient, low-frequency, small-world human brain functional network with highly connected association cortical hubs, J Neurosci [Behzadi 2007] A component based noise correction method (CompCor) for BOLD and perfusion based fMRI, NeuroImage [Bullmore 2009] Complex brain networks: graph theoretical analysis of structural and functional systems, Nat Rev Neurosci [Eguiluz 2005] Scale-free brain functional networks, Phys Rev E [Frasson 2008] The precuneus/posterior cingulate cortex plays a pivotal role in the default mode network: Evidence from a partial correlation network analysis, NeuroImage [Fox 2005] The human brain is intrinsically organized into dynamic, anticorrelated functional networks, PNAS [Lewis 2009] Learning sculpts the spontaneous activity of the resting human brain, PNAS [Marrelec 2006] Partial correlation for functional brain interactivity investigation in functional MRI, NeuroImage
  • 28. References (not exhaustive) [Marrelec 2007] Using partial correlation to enhance structural equation modeling of functional MRI data, Magn Res Im [Marrelec 2008] Regions, systems, and the brain: hierarchical measures of functional integration in fMRI, Med Im Analys [Smith 2010] Network Modelling Methods for fMRI, NeuroImage [Tononi 1994] A measure for brain complexity: relating functional segregation and integration in the nervous system, PNAS [Varoquaux MICCAI 2010] Detection of brain functional-connectivity difference in post-stroke patients using group-level covariance modeling, Med Imag Proc Comp Aided Intervention [Varoquaux NIPS 2010] Brain covariance selection: better individual functional connectivity models using population prior, Neural Inf Proc Sys [Varoquaux 2012] Markov models for fMRI correlation structure: is brain functional connectivity small world, or decomposable into networks?, J Physio Paris
