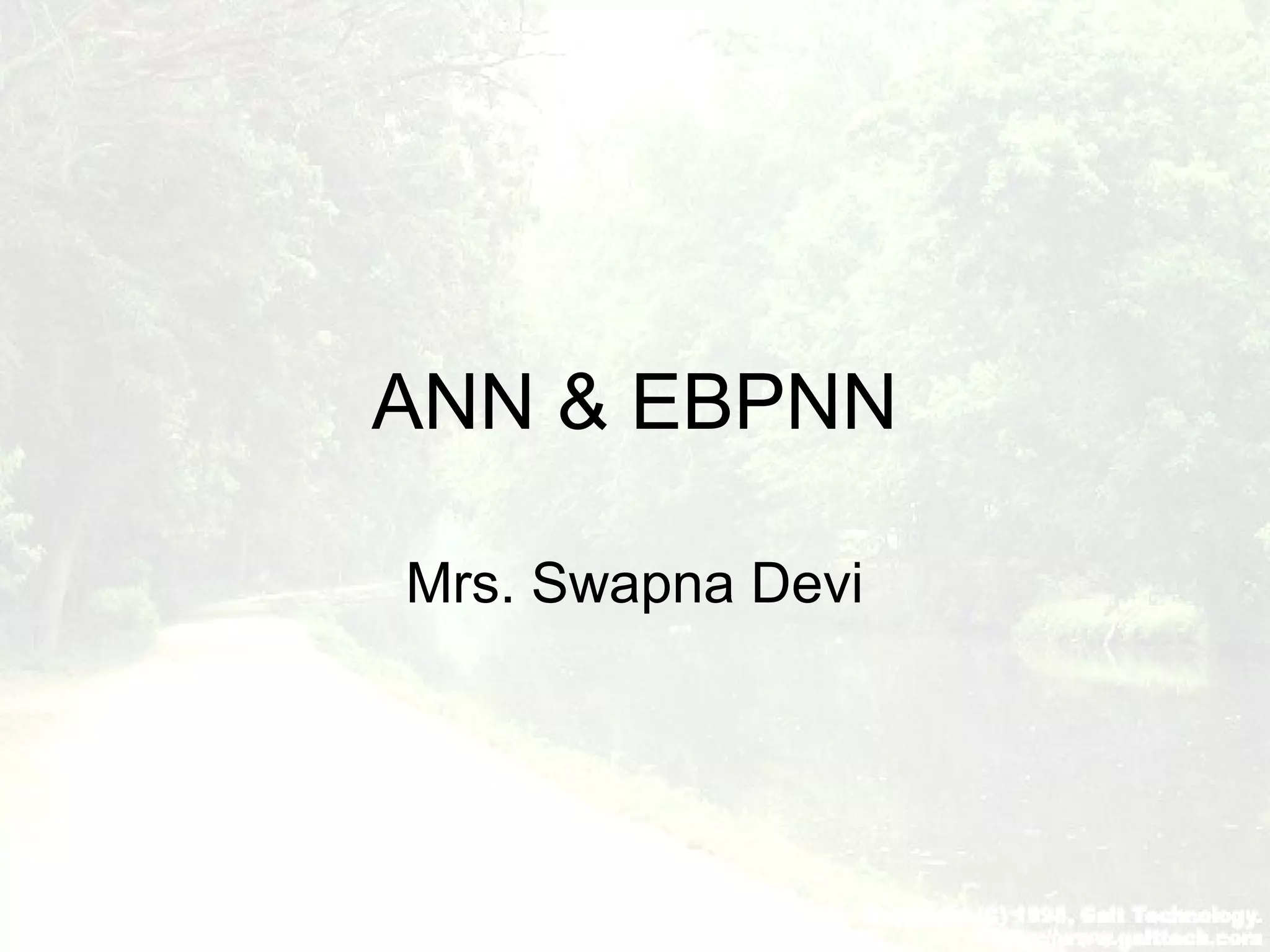

1. ANN & EBPNN
Mrs. Swapna Devi

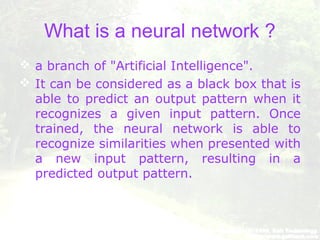

2. What is a neural network ?
 a branch of "Artificial Intelligence".
 It can be considered as a black box that is
able to predict an output pattern when it
recognizes a given input pattern. Once
trained, the neural network is able to
recognize similarities when presented with
a new input pattern, resulting in a
predicted output pattern.

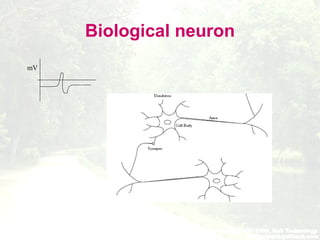

3. Biological neuron
mV

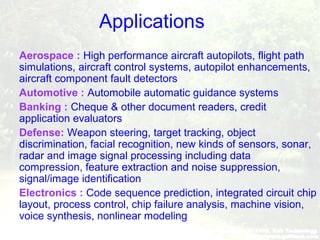

4. Applications
 Aerospace : High performance aircraft autopilots, flight path
simulations, aircraft control systems, autopilot enhancements,
aircraft component fault detectors
 Automotive : Automobile automatic guidance systems
 Banking : Cheque & other document readers, credit
application evaluators
 Defense: Weapon steering, target tracking, object
discrimination, facial recognition, new kinds of sensors, sonar,
radar and image signal processing including data
compression, feature extraction and noise suppression,
signal/image identification
 Electronics : Code sequence prediction, integrated circuit chip
layout, process control, chip failure analysis, machine vision,
voice synthesis, nonlinear modeling

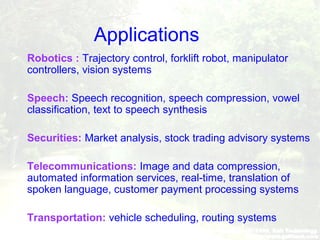

5. Applications
 Robotics : Trajectory control, forklift robot, manipulator
controllers, vision systems
 Speech: Speech recognition, speech compression, vowel
classification, text to speech synthesis
 Securities: Market analysis, stock trading advisory systems
 Telecommunications: Image and data compression,
automated information services, real-time, translation of
spoken language, customer payment processing systems
 Transportation: vehicle scheduling, routing systems

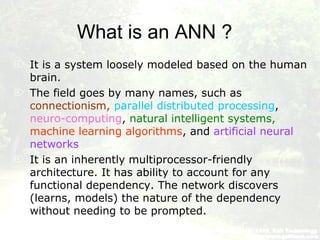

6. What is an ANN ?
 It is a system loosely modeled based on the human
brain.
 The field goes by many names, such as
connectionism, parallel distributed processing,
neuro-computing, natural intelligent systems,
machine learning algorithms, and artificial neural
networks.
 It is an inherently multiprocessor-friendly
architecture. It has ability to account for any
functional dependency. The network discovers
(learns, models) the nature of the dependency
without needing to be prompted.

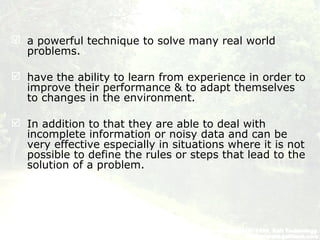

7.  a powerful technique to solve many real world
problems.
 have the ability to learn from experience in order to
improve their performance & to adapt themselves
to changes in the environment.
 In addition to that they are able to deal with
incomplete information or noisy data and can be
very effective especially in situations where it is not
possible to define the rules or steps that lead to the
solution of a problem.

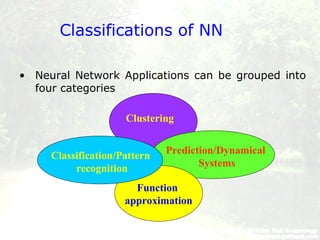

8. Classifications of NN
• Neural Network Applications can be grouped into
four categories
Function
approximation
Clustering
Classification/Pattern
recognition
Prediction/Dynamical
Systems

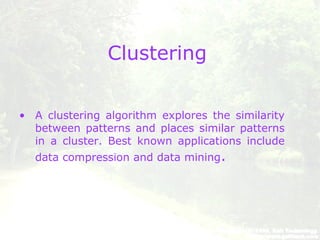

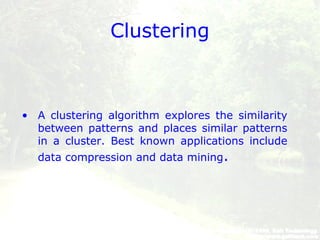

9. Clustering
• A clustering algorithm explores the similarity
between patterns and places similar patterns
in a cluster. Best known applications include
data compression and data mining.

10. Clustering
• A clustering algorithm explores the similarity
between patterns and places similar patterns
in a cluster. Best known applications include
data compression and data mining.

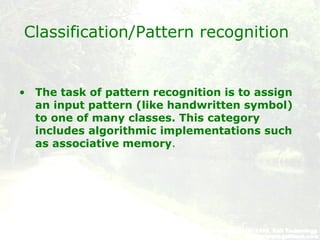

11. Classification/Pattern recognition
• The task of pattern recognition is to assign
an input pattern (like handwritten symbol)
to one of many classes. This category
includes algorithmic implementations such
as associative memory.

12. Function approximation
• The tasks of function approximation is to
find an estimate of the unknown function
f() subject to noise. Various engineering
and scientific disciplines require function
approximation.

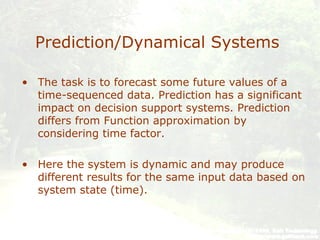

13. Prediction/Dynamical Systems
• The task is to forecast some future values of a
time-sequenced data. Prediction has a significant
impact on decision support systems. Prediction
differs from Function approximation by
considering time factor.
• Here the system is dynamic and may produce
different results for the same input data based on
system state (time).

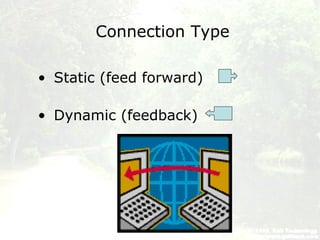

14. Connection Type
• Static (feed forward)
• Dynamic (feedback)

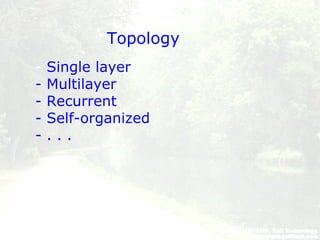

15. Topology
- Single layer
- Multilayer
- Recurrent
- Self-organized
- . . .

16. Learning Methods
- Supervised
- Unsupervised

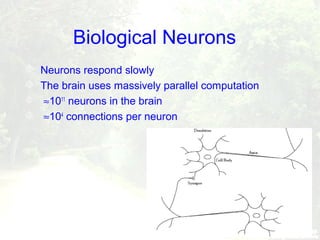

17. Biological Neurons
 Neurons respond slowly
 The brain uses massively parallel computation
 ≈1011
neurons in the brain
 ≈104
connections per neuron

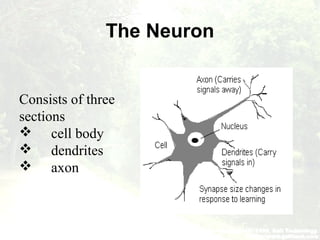

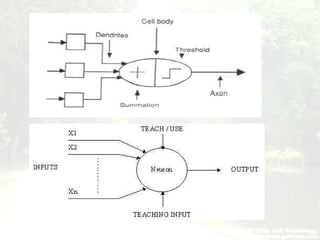

18. The Neuron
Consists of three
sections
 cell body
 dendrites
 axon

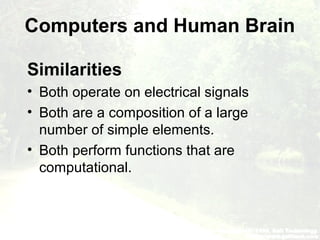

19. Computers and Human Brain
Similarities
• Both operate on electrical signals
• Both are a composition of a large
number of simple elements.
• Both perform functions that are
computational.

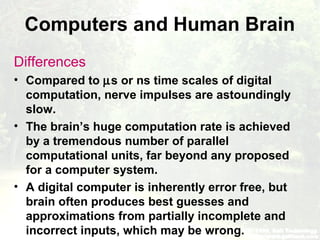

20. Computers and Human Brain
Differences
• Compared to µs or ns time scales of digital
computation, nerve impulses are astoundingly
slow.
• The brain’s huge computation rate is achieved
by a tremendous number of parallel
computational units, far beyond any proposed
for a computer system.
• A digital computer is inherently error free, but
brain often produces best guesses and
approximations from partially incomplete and
incorrect inputs, which may be wrong.

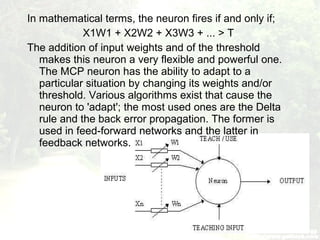

22. In mathematical terms, the neuron fires if and only if;
X1W1 + X2W2 + X3W3 + ... > T
The addition of input weights and of the threshold
makes this neuron a very flexible and powerful one.
The MCP neuron has the ability to adapt to a
particular situation by changing its weights and/or
threshold. Various algorithms exist that cause the
neuron to 'adapt'; the most used ones are the Delta
rule and the back error propagation. The former is
used in feed-forward networks and the latter in
feedback networks.

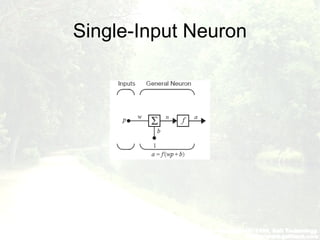

23. Single-Input Neuron

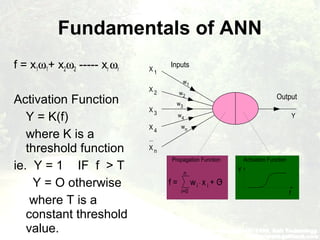

24. Fundamentals of ANN
f = x1ω1+ x2ω2 ----- xr ωr
Activation Function
Y = K(f)
where K is a
threshold function
ie. Y = 1 IF f > T
Y = O otherwise
where T is a
constant threshold
value.
Inputs
X 1
X 2
X 3
X 4
X n
...
Output
Propagation Function Activation Function
Y
f = w x + O
n
i=0
i i
-.
w1
w2
w3
w4
wn
Y
f

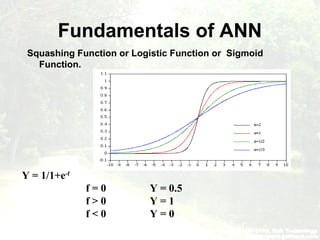

25. Fundamentals of ANN
Squashing Function or Logistic Function or Sigmoid
Function.
Y = 1/1+e-f
f = 0 Y = 0.5
f > 0 Y = 1
f < 0 Y = 0

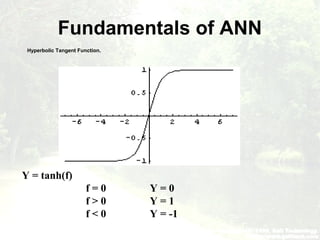

26. Fundamentals of ANN
Hyperbolic Tangent Function.
Y = tanh(f)
f = 0 Y = 0
f > 0 Y = 1
f < 0 Y = -1

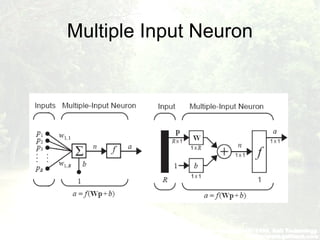

27. Multiple Input Neuron

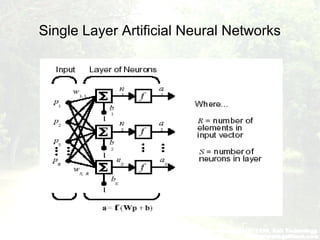

28. Single Layer Artificial Neural Networks

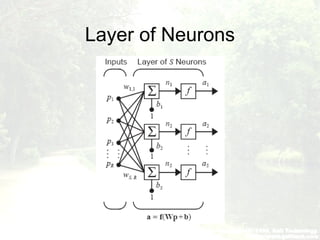

29. Layer of Neurons

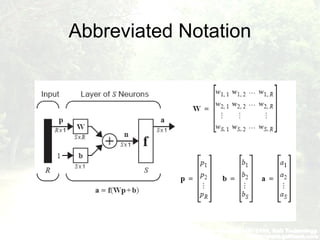

30. Abbreviated Notation

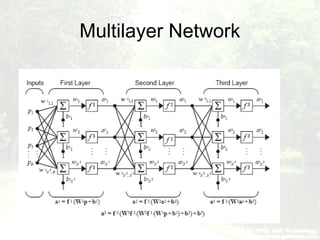

31. Multilayer Network

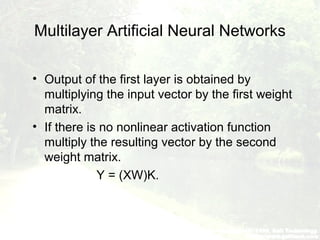

32. Multilayer Artificial Neural Networks
• Output of the first layer is obtained by
multiplying the input vector by the first weight
matrix.
• If there is no nonlinear activation function
multiply the resulting vector by the second
weight matrix.
Y = (XW)K.

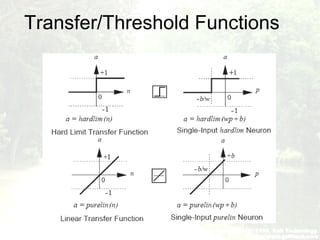

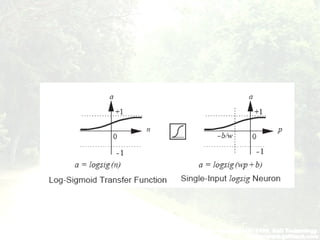

33. Transfer/Threshold Functions

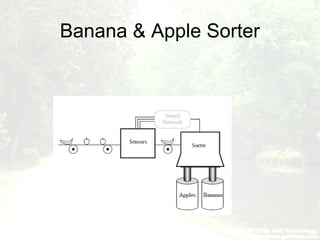

35. Banana & Apple Sorter

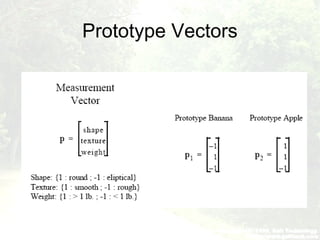

36. Prototype Vectors

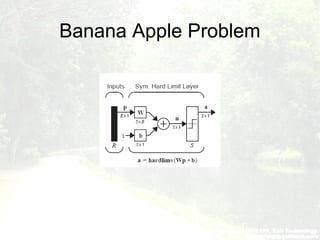

37. Banana Apple Problem

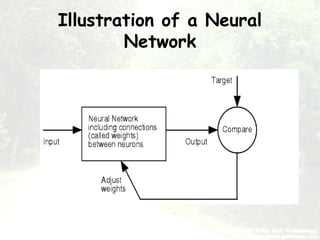

38. Illustration of a Neural
Network

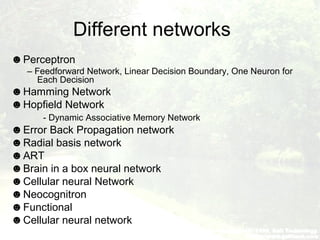

39. Different networks
☻Perceptron
– Feedforward Network, Linear Decision Boundary, One Neuron for
Each Decision
☻Hamming Network
☻Hopfield Network
- Dynamic Associative Memory Network
☻Error Back Propagation network
☻Radial basis network
☻ART
☻Brain in a box neural network
☻Cellular neural Network
☻Neocognitron
☻Functional
☻Cellular neural network

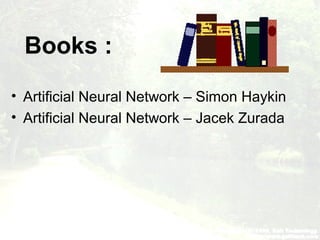

40. Books :
• Artificial Neural Network – Simon Haykin
• Artificial Neural Network – Jacek Zurada
