1. Hybrid Neural Networks for
Time Series Learning
Tian Guo
Ph.D.
24 Nov. 2016

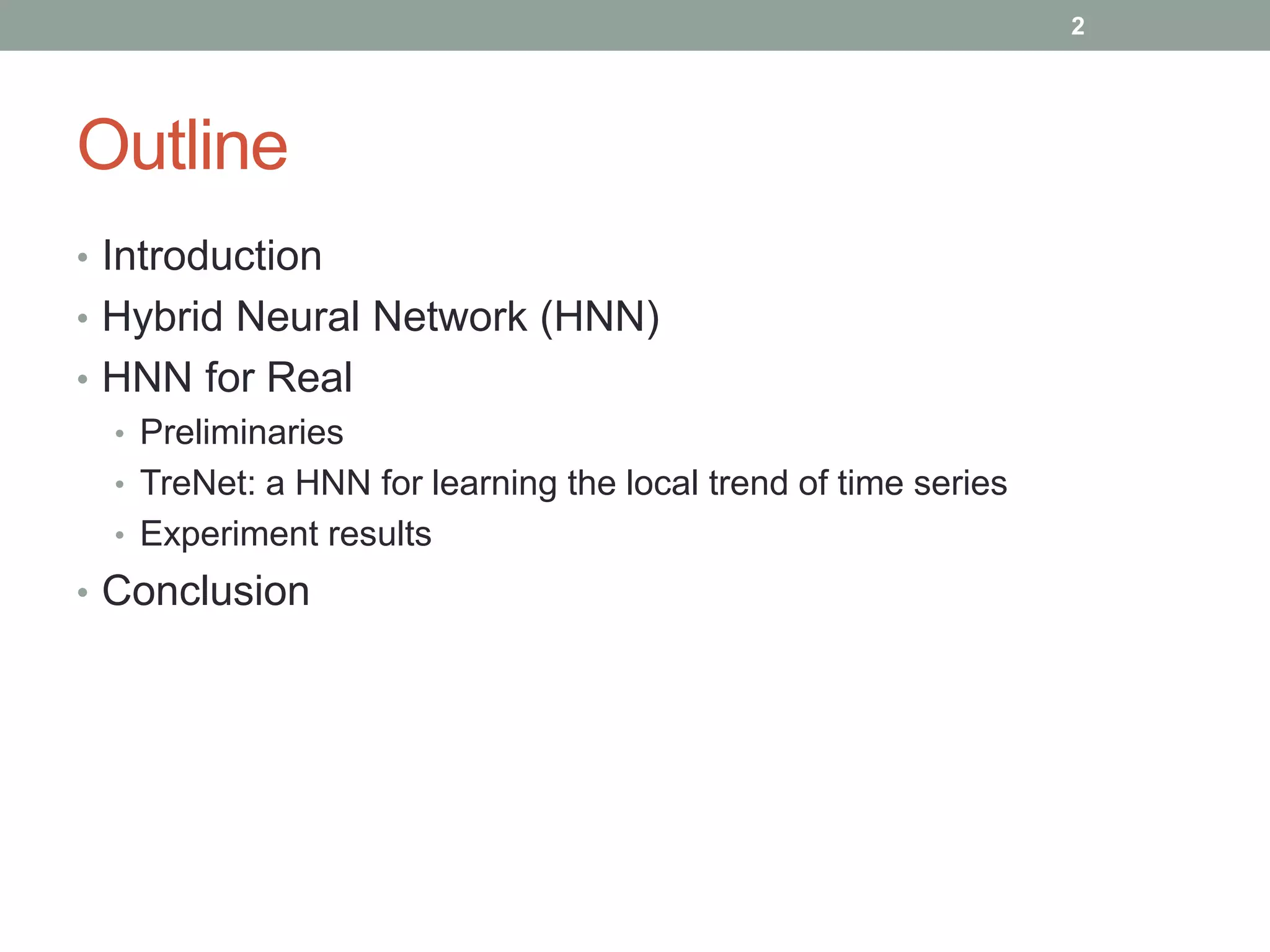

2. Outline
• Introduction
• Hybrid Neural Network (HNN)
• HNN for Real
• Preliminaries
• TreNet: a HNN for learning the local trend of time series
• Experiment results
• Conclusion
2

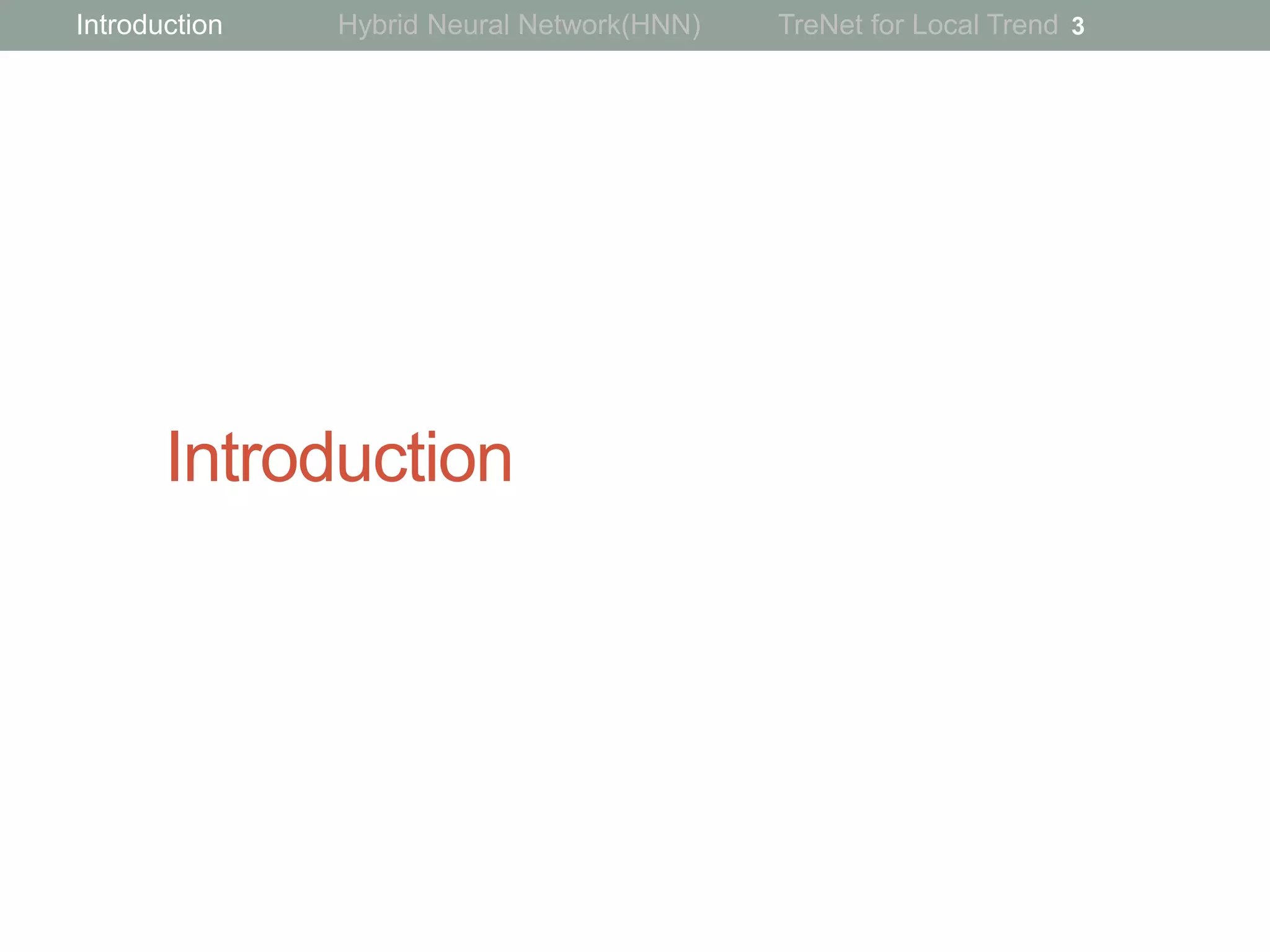

3. Introduction
3Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

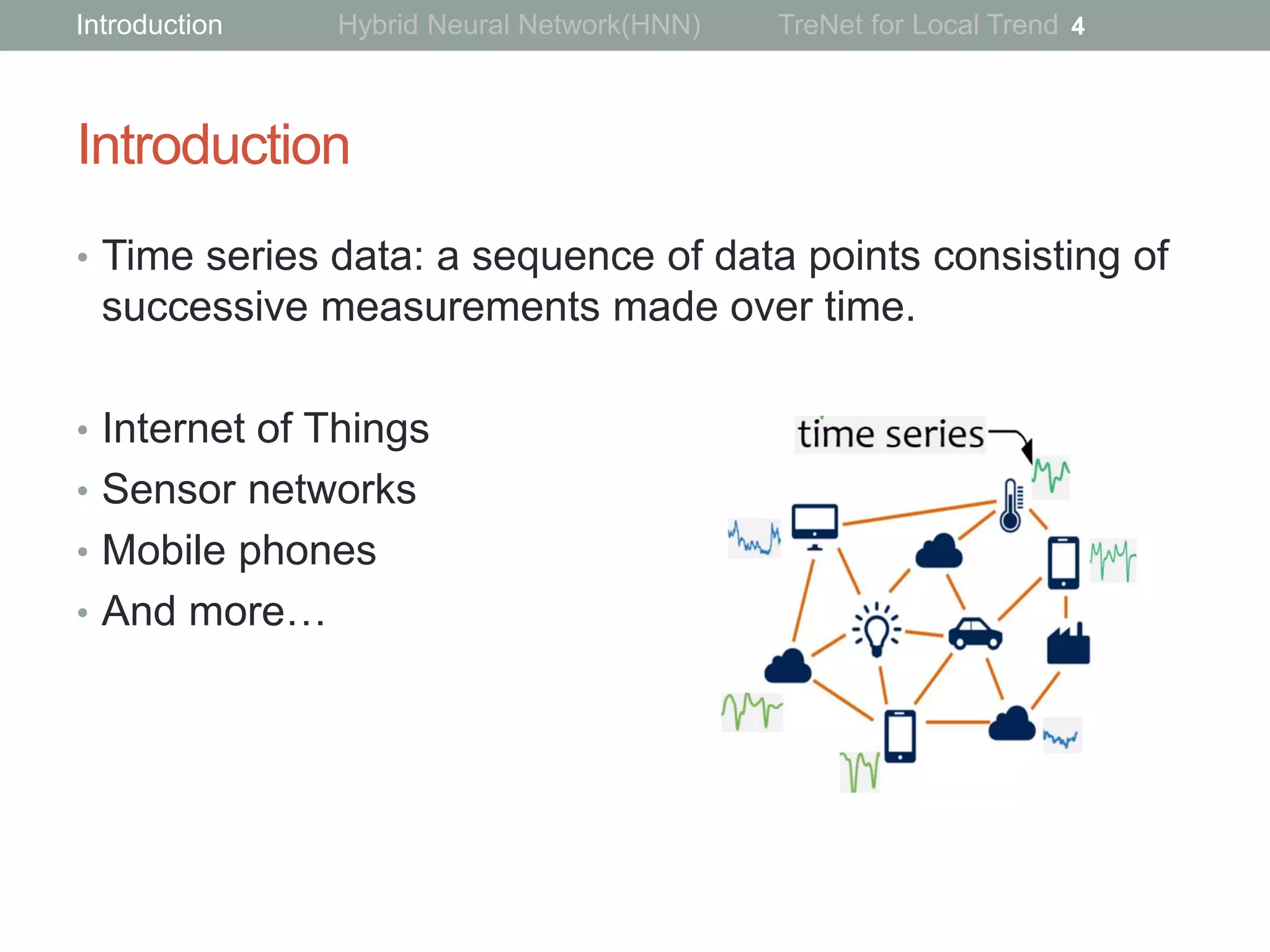

4. Introduction
• Time series data: a sequence of data points consisting of
successive measurements made over time.
• Internet of Things
• Sensor networks
• Mobile phones
• And more…
4Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

5. Introduction
• Time series analytics in a variety of applications
• Classification
• Prediction
• Anomaly detection
• Pattern discovery
• And more…
5
Pattern 1 Pattern 2
Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

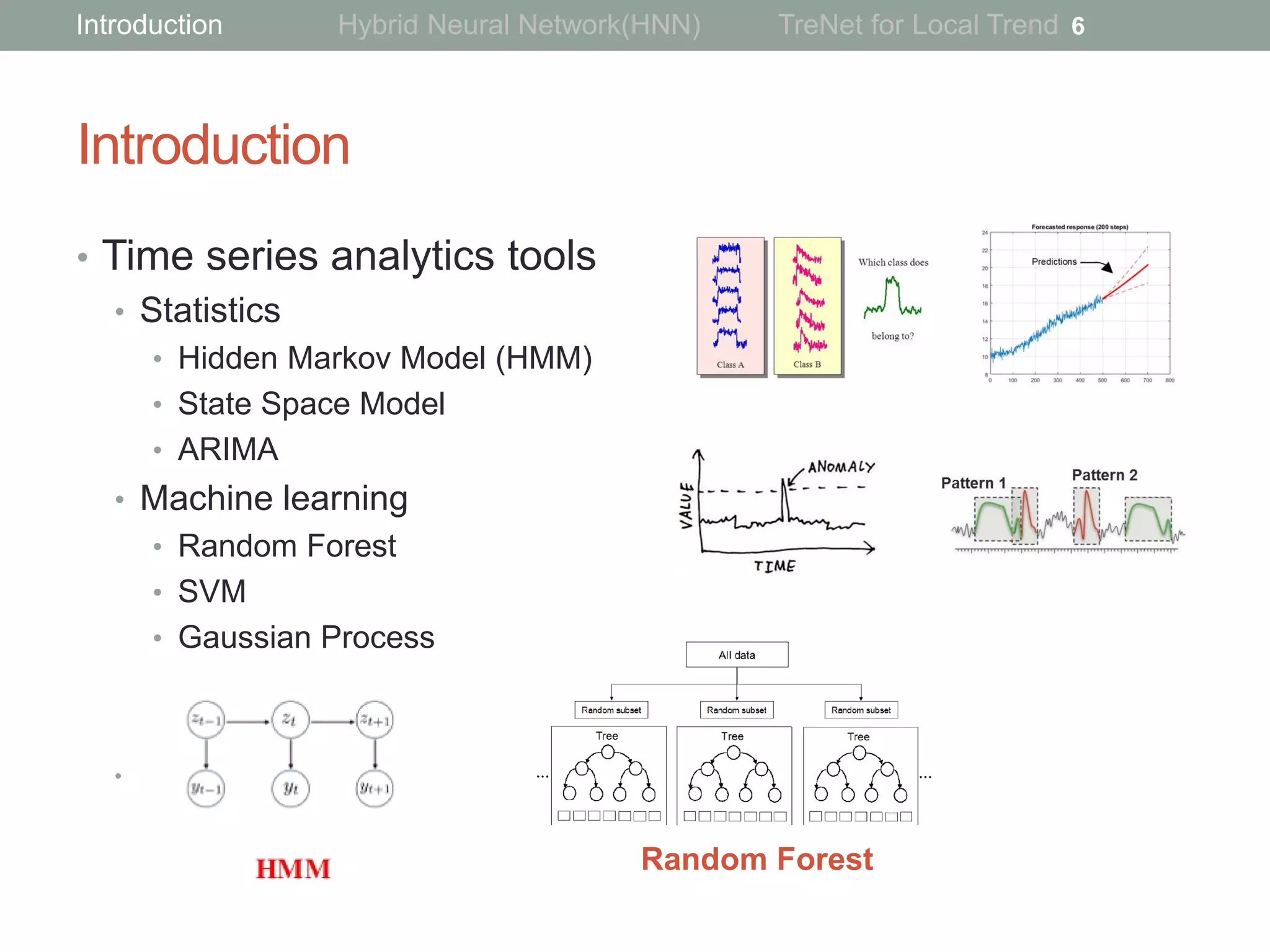

6. Introduction
• Time series analytics tools
• Statistics
• Hidden Markov Model (HMM)
• State Space Model
• ARIMA
• Machine learning
• Random Forest
• SVM
• Gaussian Process
•
6
Random Forest
Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

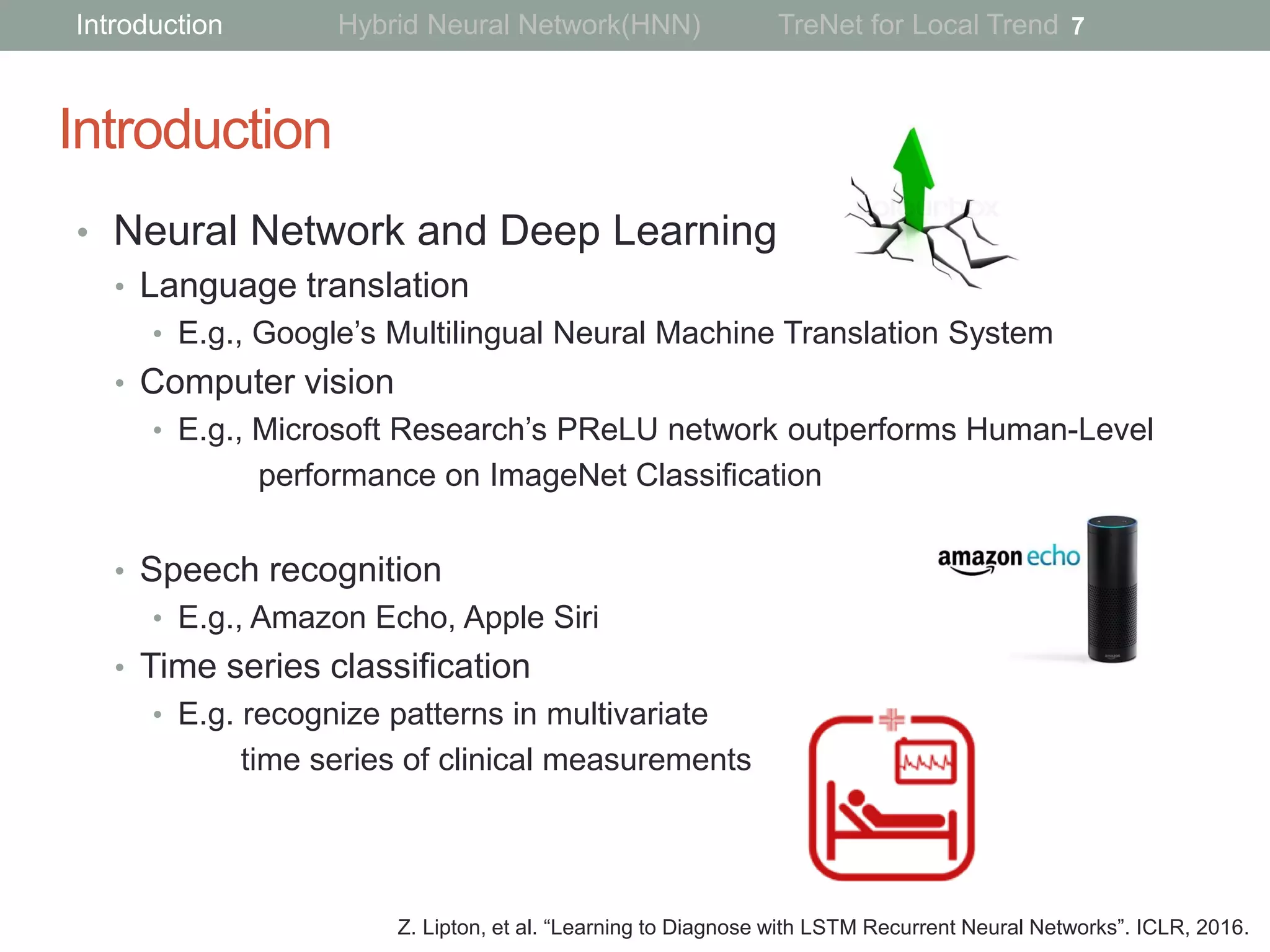

7. Introduction
• Neural Network and Deep Learning
• Language translation
• E.g., Google’s Multilingual Neural Machine Translation System
• Computer vision
• E.g., Microsoft Research’s PReLU network outperforms Human-Level
performance on ImageNet Classification
• Speech recognition
• E.g., Amazon Echo, Apple Siri
• Time series classification
• E.g. recognize patterns in multivariate
time series of clinical measurements
7
Z. Lipton, et al. “Learning to Diagnose with LSTM Recurrent Neural Networks”. ICLR, 2016.
Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

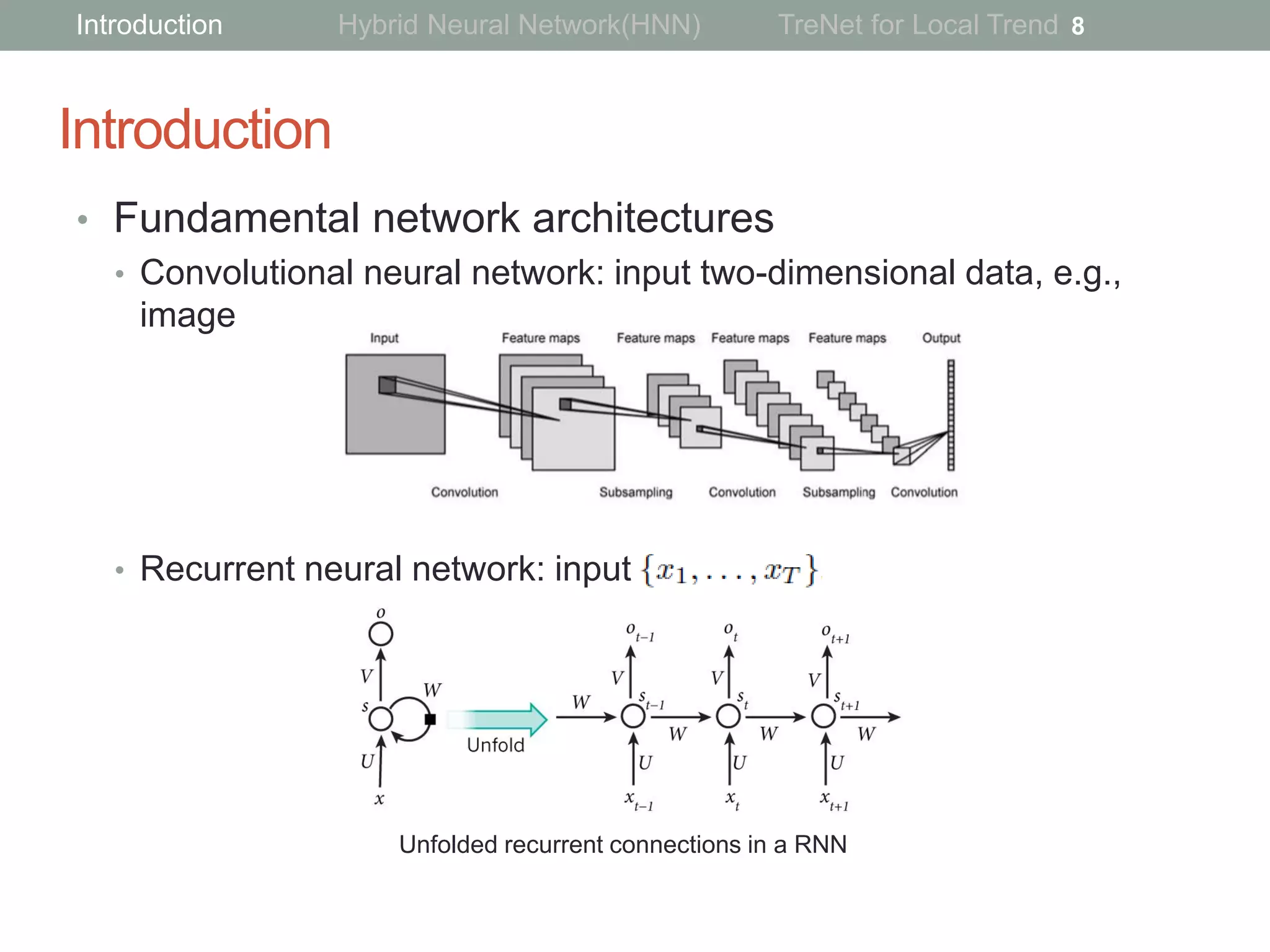

8. Introduction
• Fundamental network architectures
• Convolutional neural network: input two-dimensional data, e.g.,
• Recurrent neural network: input
8
Unfolded recurrent connections in a RNN
Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

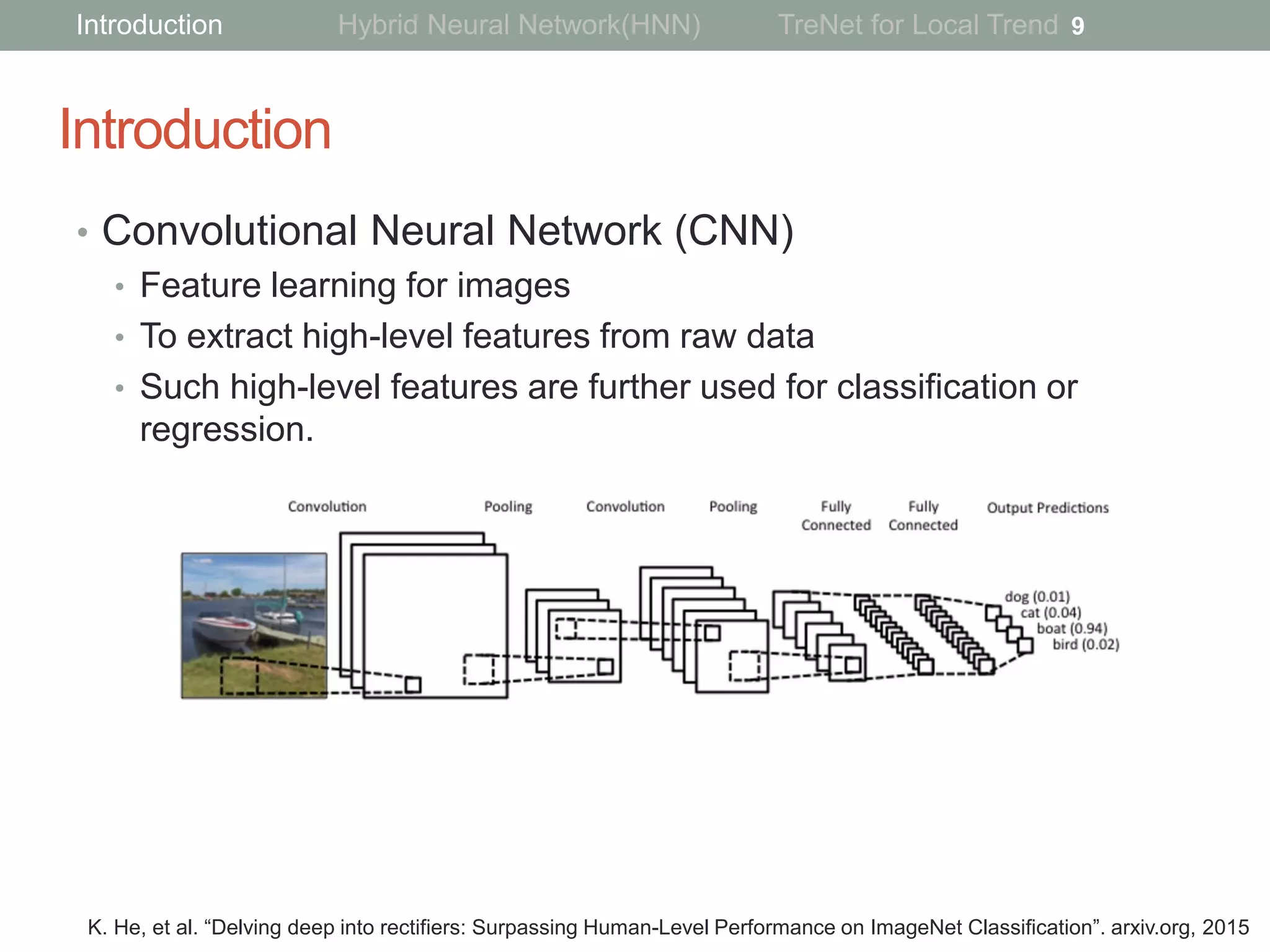

9. Introduction
• Convolutional Neural Network (CNN)
• Feature learning for images
• To extract high-level features from raw data
• Such high-level features are further used for classification or
regression.
9
K. He, et al. “Delving deep into rectifiers: Surpassing Human-Level Performance on ImageNet Classification”. arxiv.org, 2015
Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

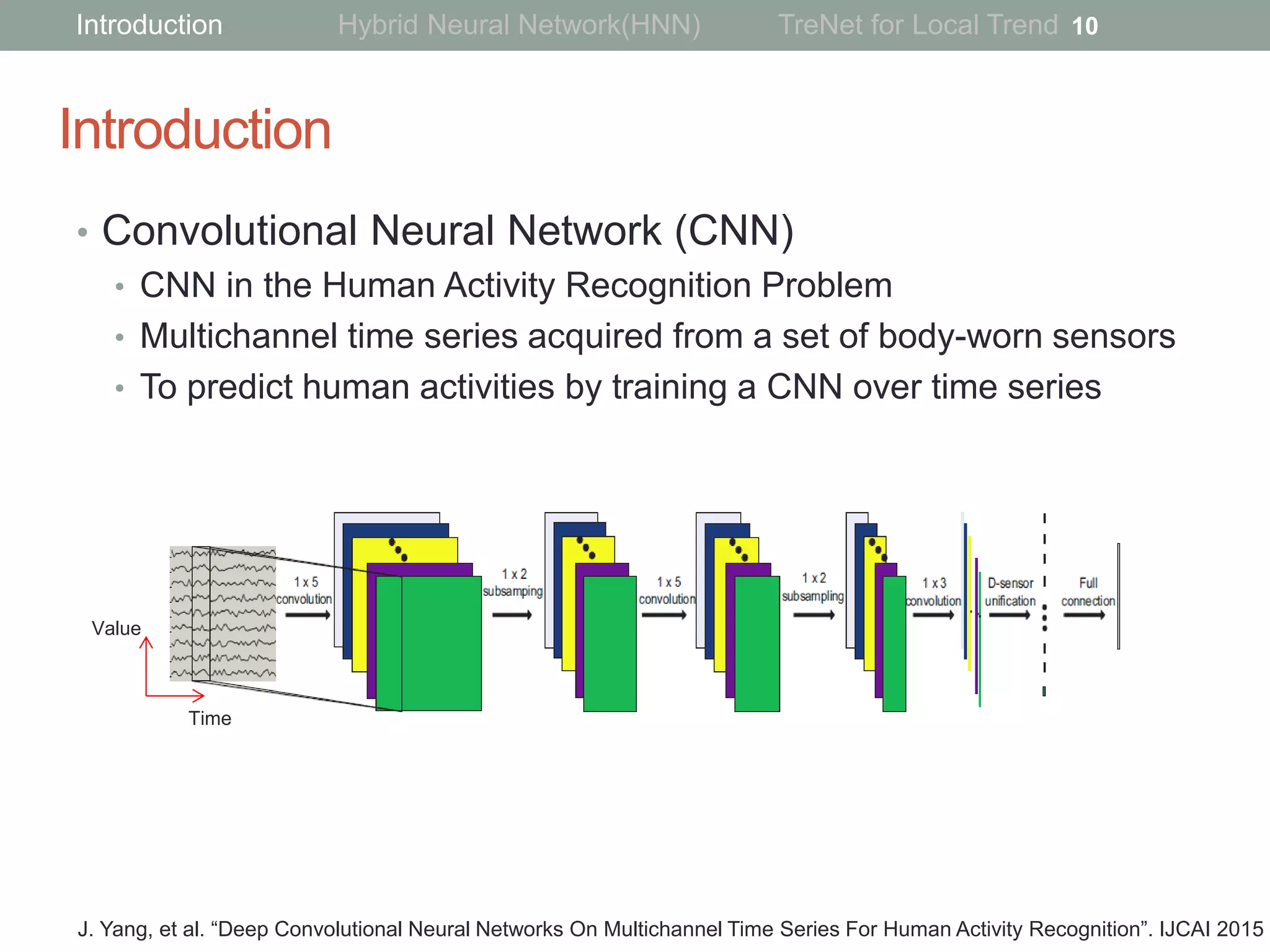

10. Introduction
• Convolutional Neural Network (CNN)
• CNN in the Human Activity Recognition Problem
• Multichannel time series acquired from a set of body-worn sensors
• To predict human activities by training a CNN over time series
10
J. Yang, et al. “Deep Convolutional Neural Networks On Multichannel Time Series For Human Activity Recognition”. IJCAI 2015
Value
Time
Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

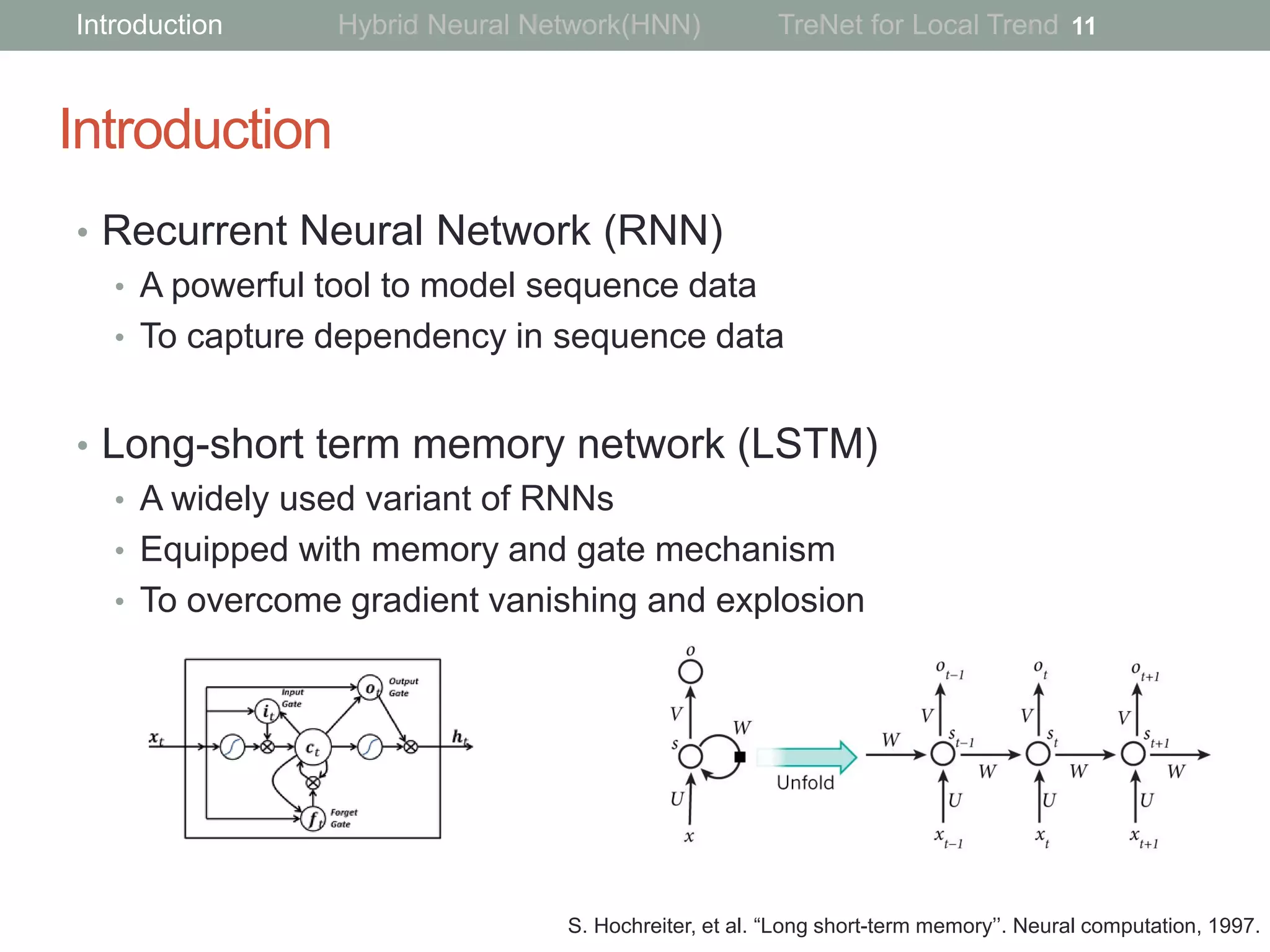

11. Introduction
• Recurrent Neural Network (RNN)
• A powerful tool to model sequence data
• To capture dependency in sequence data
• Long-short term memory network (LSTM)
• A widely used variant of RNNs
• Equipped with memory and gate mechanism
• To overcome gradient vanishing and explosion
11
S. Hochreiter, et al. “Long short-term memory’’. Neural computation, 1997.
Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

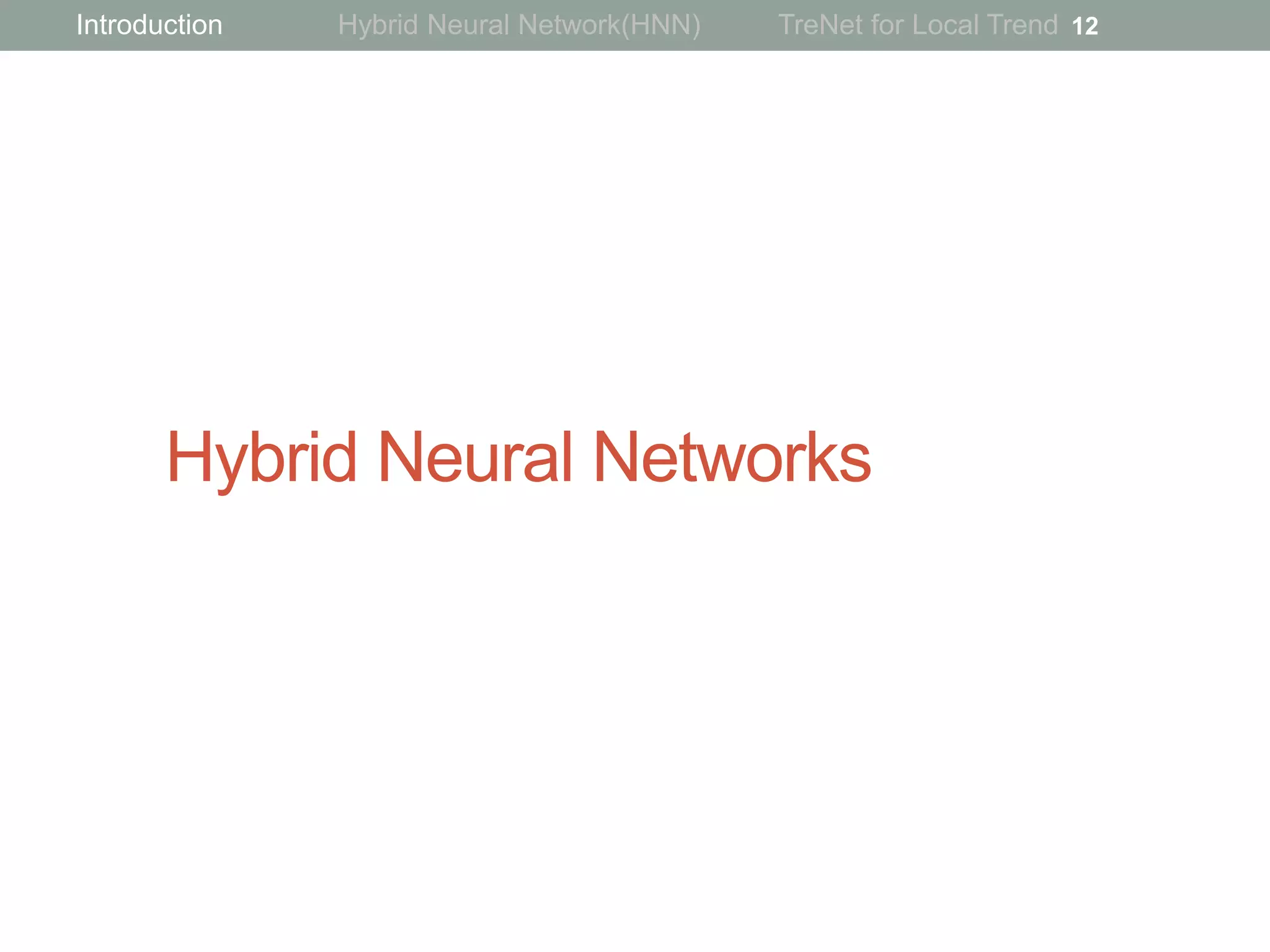

12. Hybrid Neural Networks
12Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

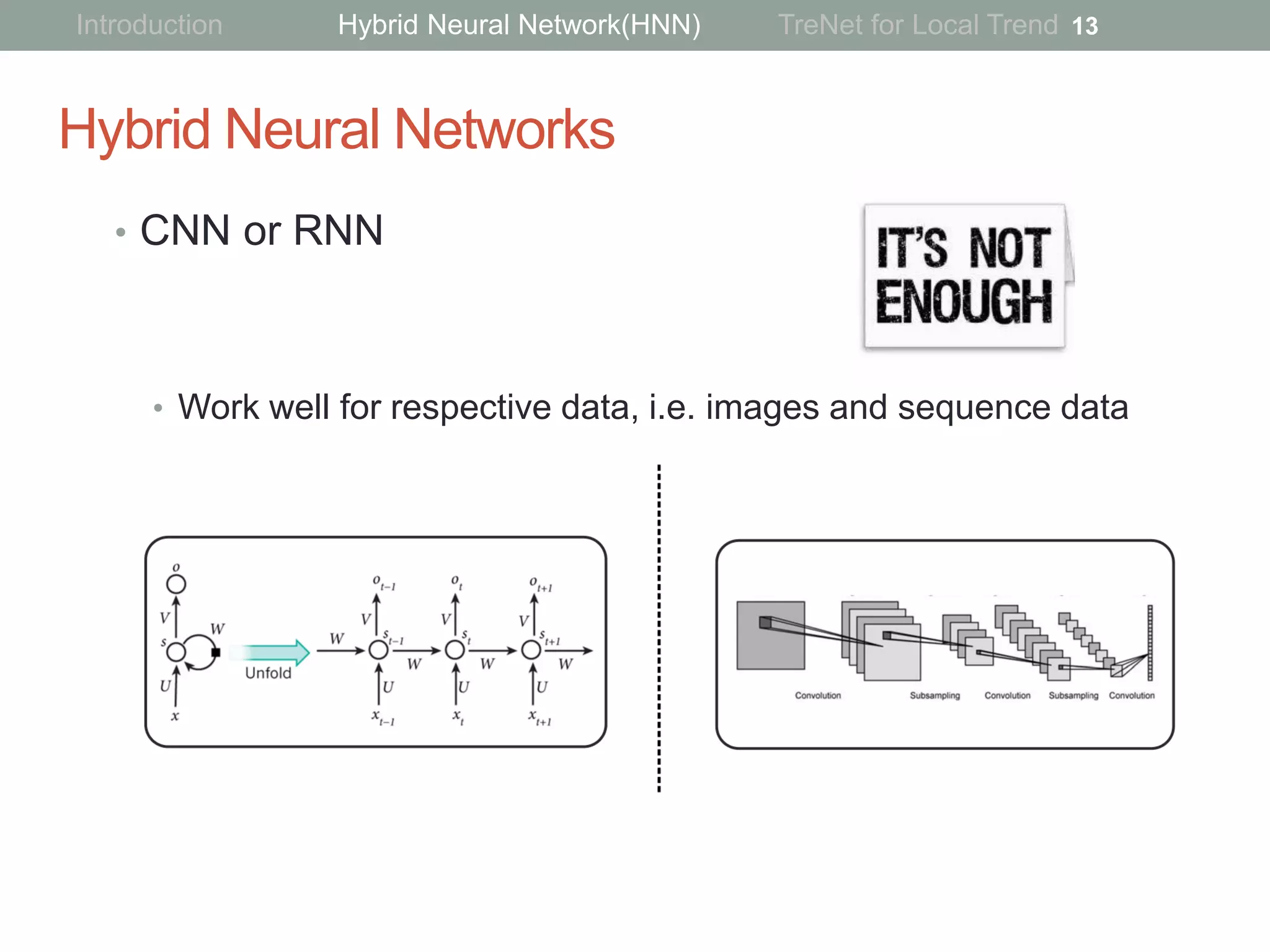

13. Hybrid Neural Networks
• CNN or RNN
• Work well for respective data, i.e. images and sequence data
13Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

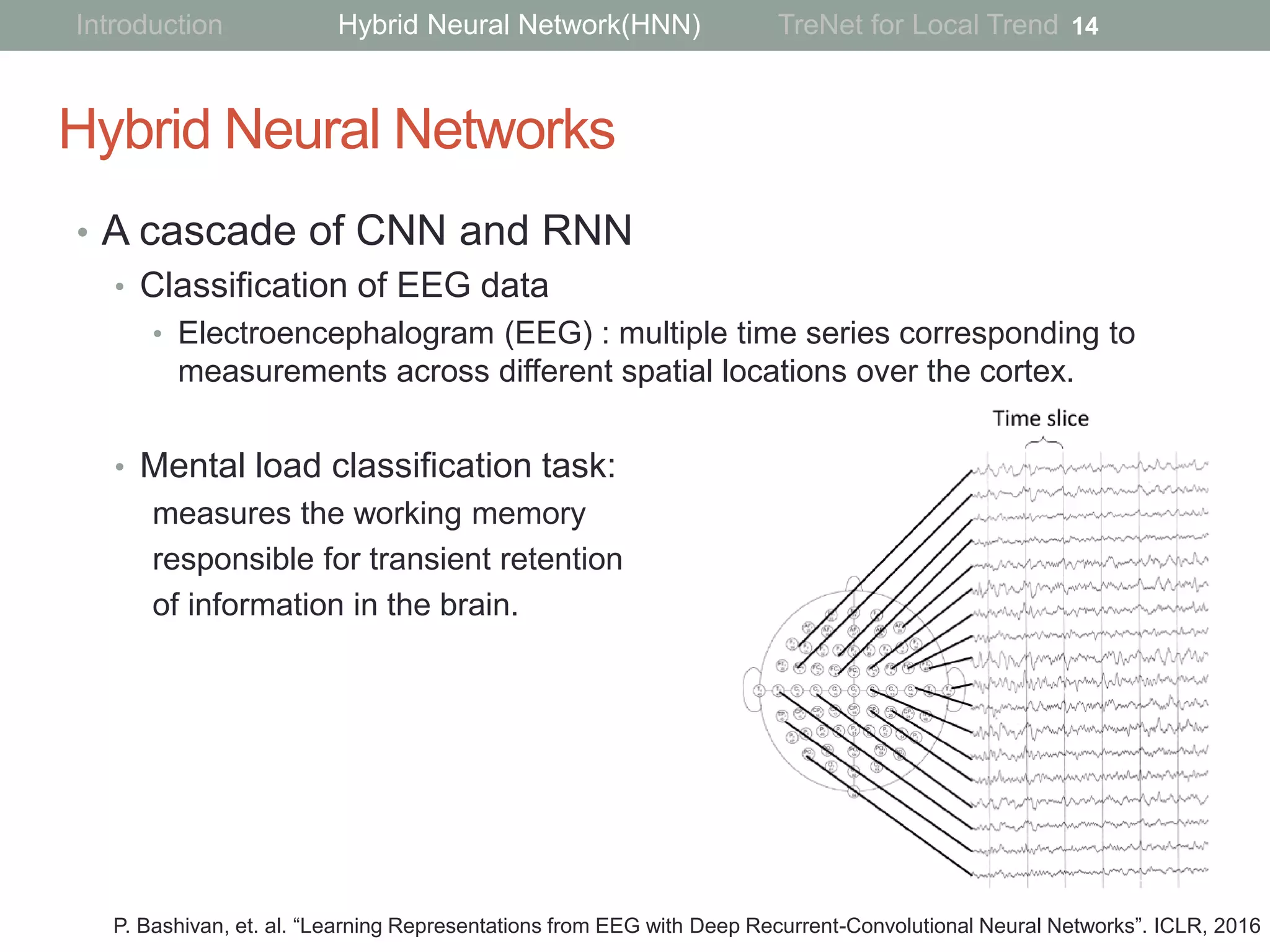

14. Hybrid Neural Networks
• A cascade of CNN and RNN
• Classification of EEG data
• Electroencephalogram (EEG) : multiple time series corresponding to
measurements across different spatial locations over the cortex.
• Mental load classification task:
measures the working memory
responsible for transient retention
of information in the brain.
14
P. Bashivan, et. al. “Learning Representations from EEG with Deep Recurrent-Convolutional Neural Networks”. ICLR, 2016
Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

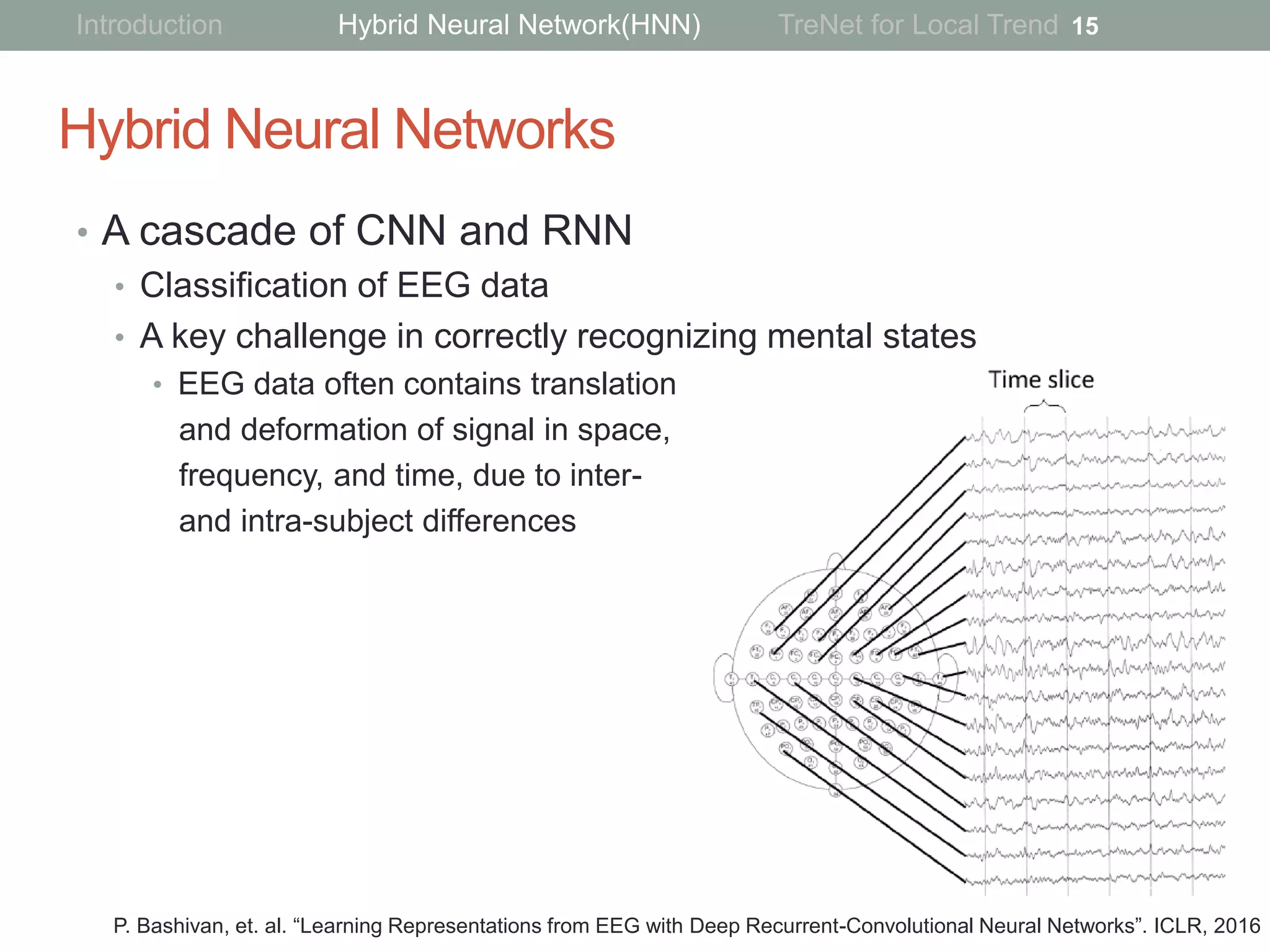

15. Hybrid Neural Networks
• A cascade of CNN and RNN
• Classification of EEG data
• A key challenge in correctly recognizing mental states
• EEG data often contains translation
and deformation of signal in space,
frequency, and time, due to inter-
and intra-subject differences
15
P. Bashivan, et. al. “Learning Representations from EEG with Deep Recurrent-Convolutional Neural Networks”. ICLR, 2016
Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

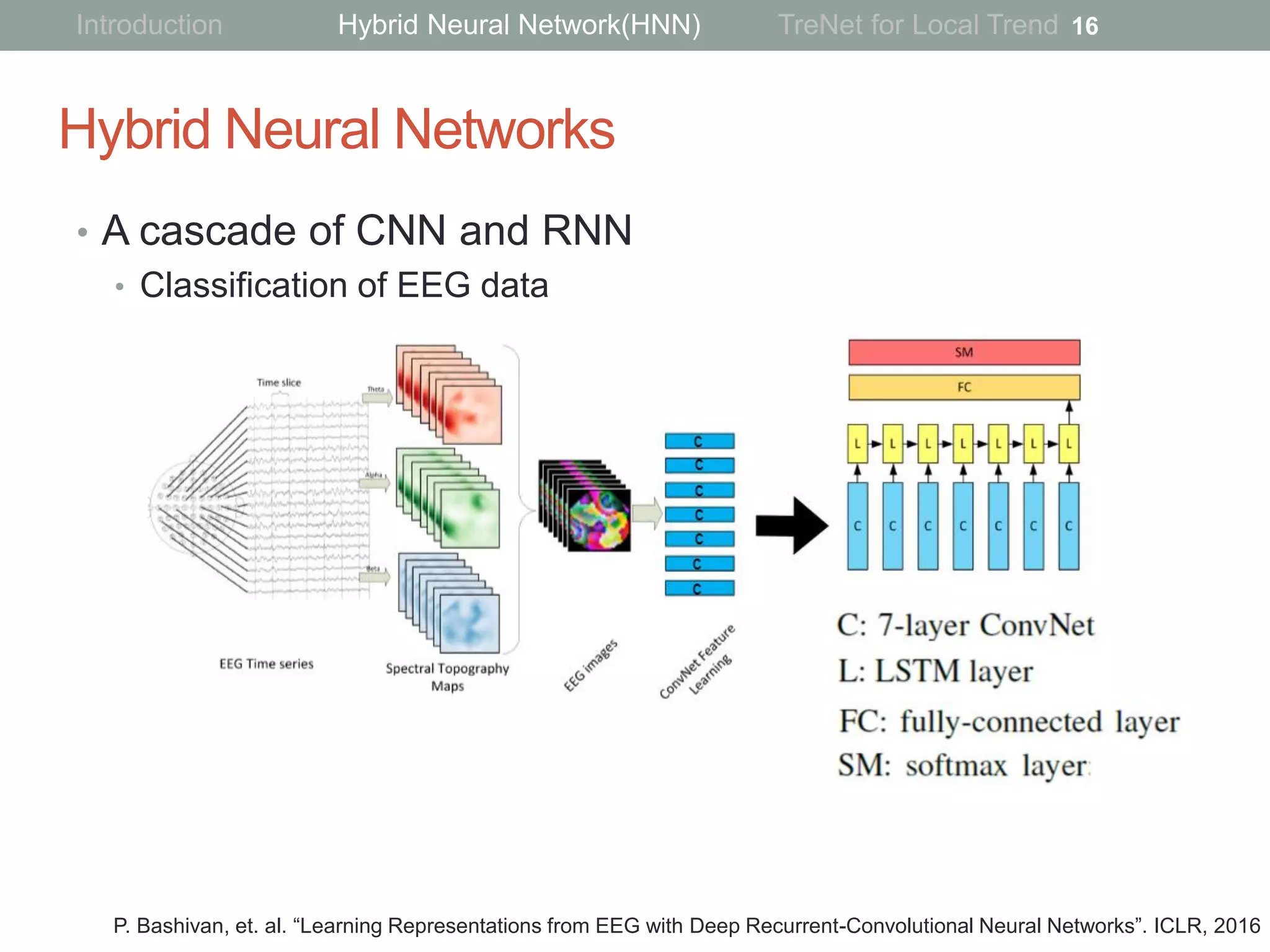

16. Hybrid Neural Networks
• A cascade of CNN and RNN
• Classification of EEG data
16
P. Bashivan, et. al. “Learning Representations from EEG with Deep Recurrent-Convolutional Neural Networks”. ICLR, 2016
Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

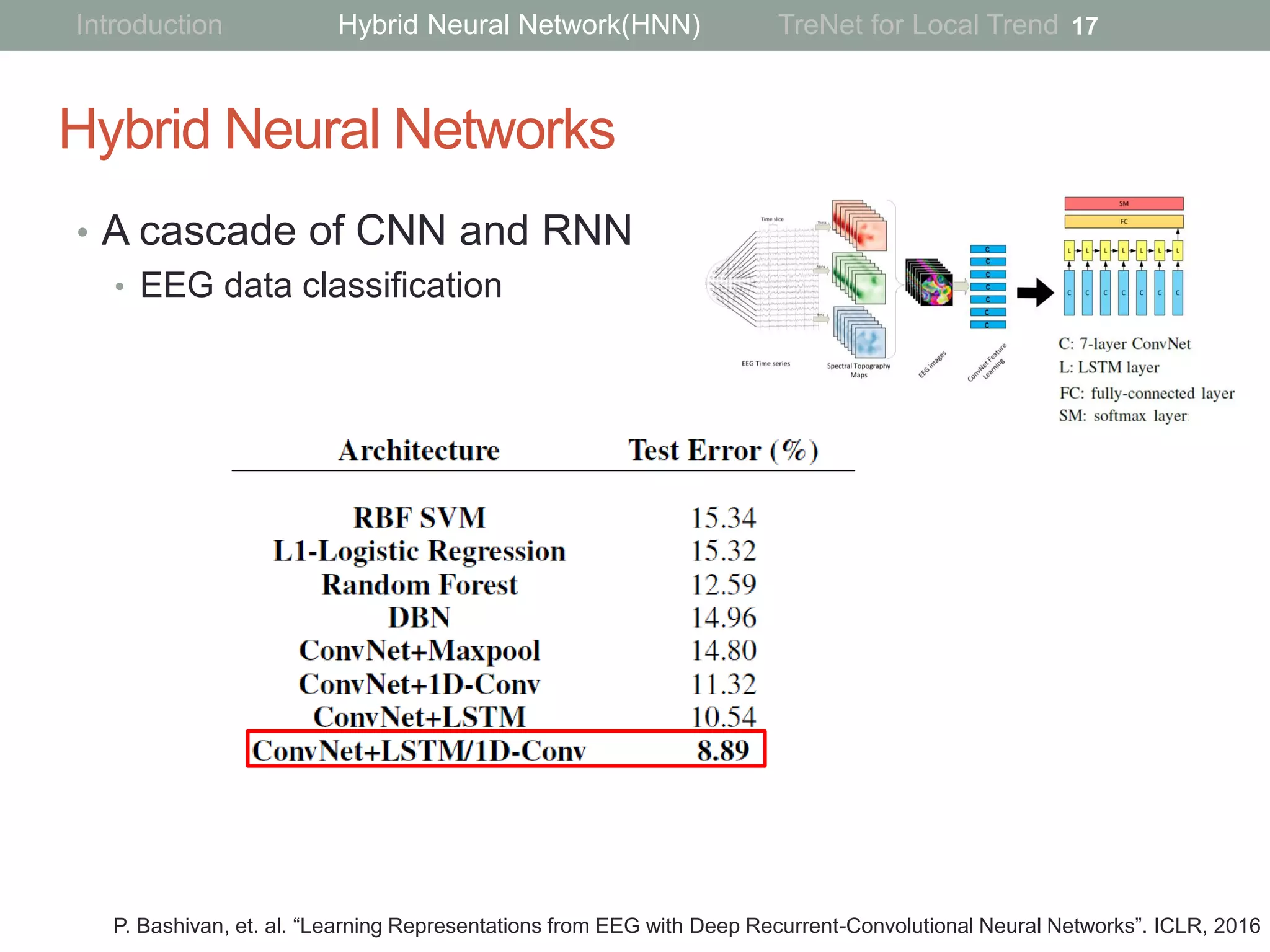

17. Hybrid Neural Networks
• A cascade of CNN and RNN
• EEG data classification
17
P. Bashivan, et. al. “Learning Representations from EEG with Deep Recurrent-Convolutional Neural Networks”. ICLR, 2016
Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

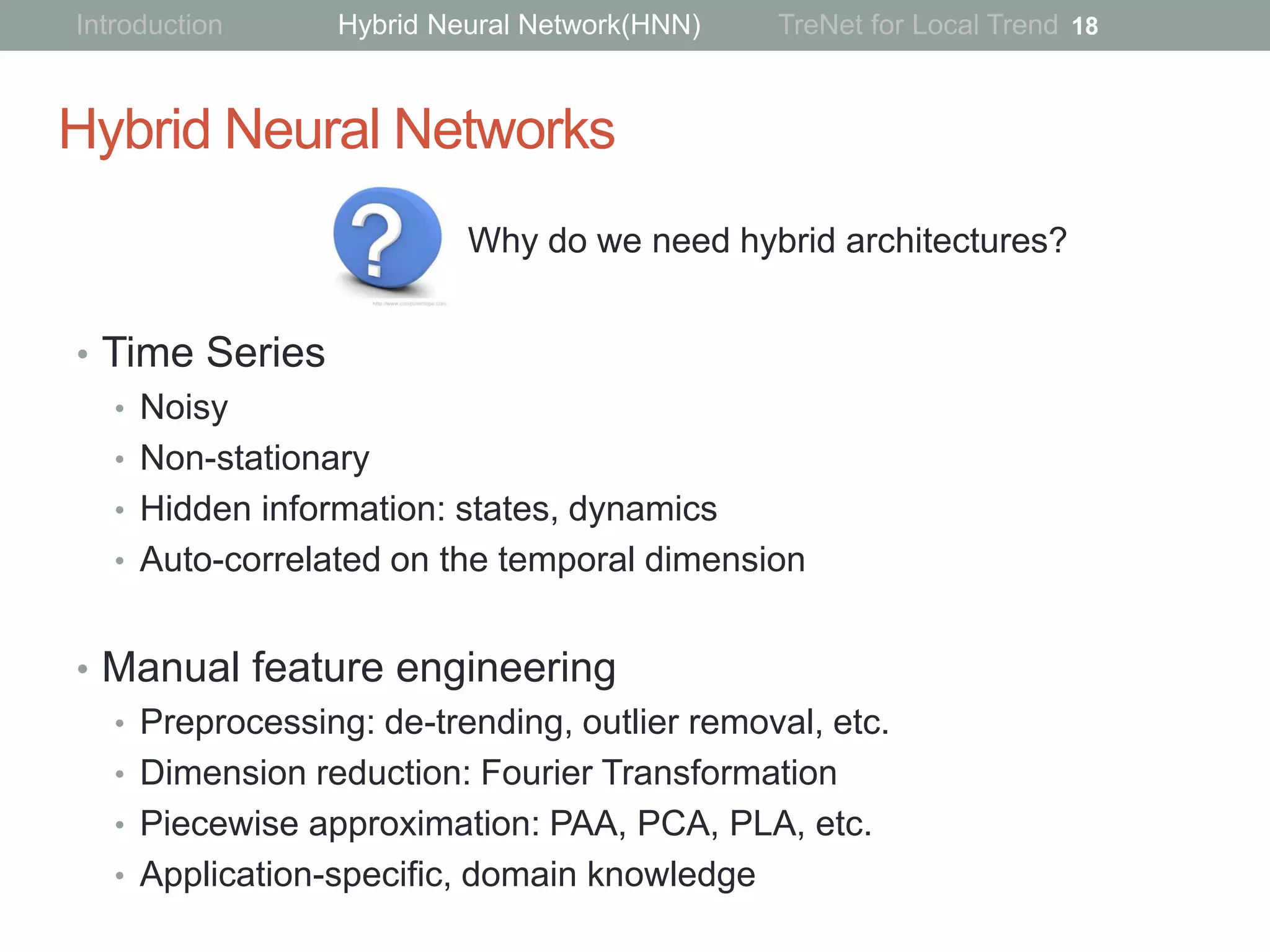

18. Hybrid Neural Networks
• Time Series
• Noisy
• Non-stationary
• Hidden information: states, dynamics
• Auto-correlated on the temporal dimension
• Manual feature engineering
• Preprocessing: de-trending, outlier removal, etc.
• Dimension reduction: Fourier Transformation
• Piecewise approximation: PAA, PCA, PLA, etc.
• Application-specific, domain knowledge
18
Why do we need hybrid architectures?
Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

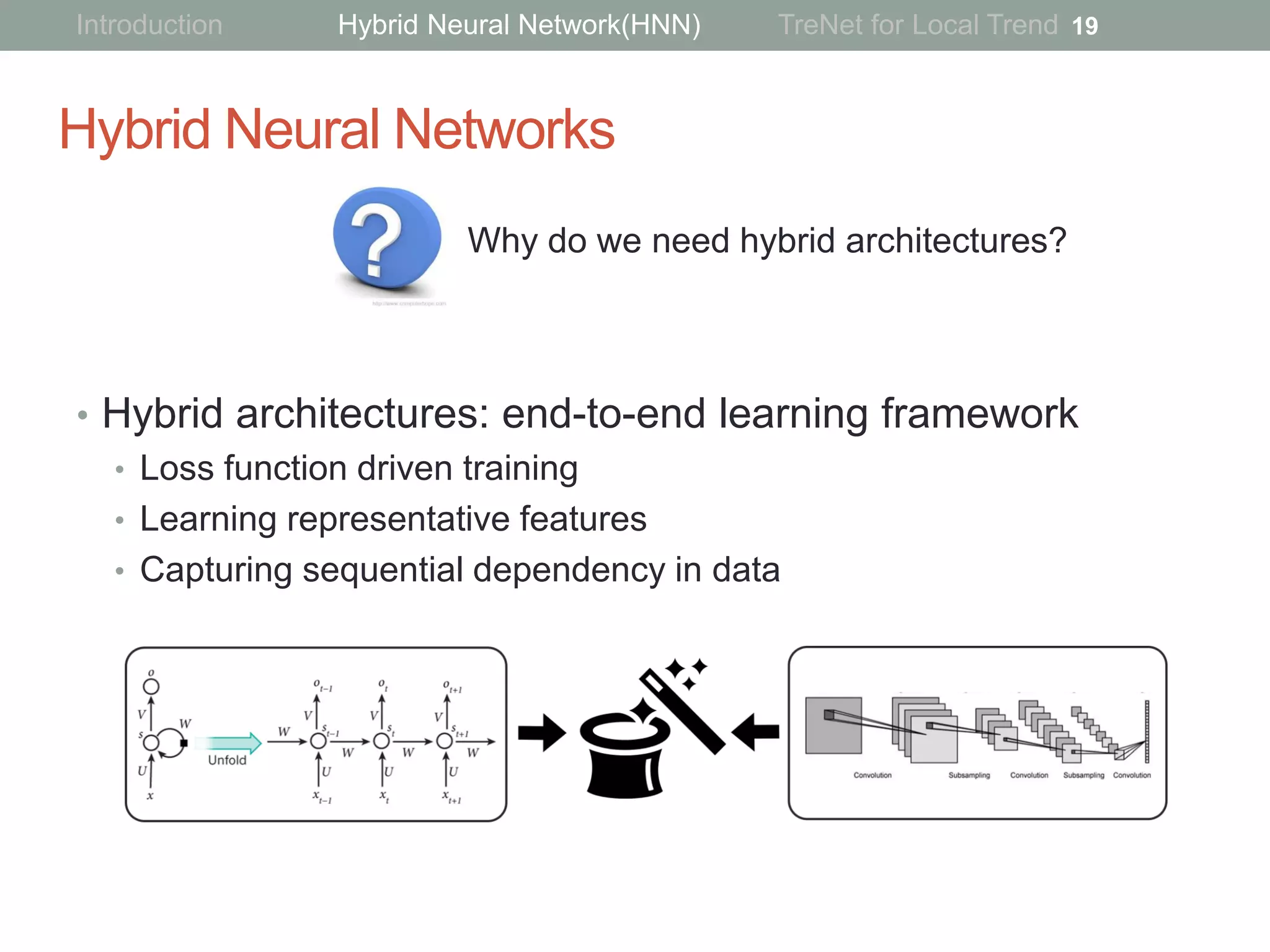

19. Hybrid Neural Networks
• Hybrid architectures: end-to-end learning framework
• Loss function driven training
• Learning representative features
• Capturing sequential dependency in data
19
Why do we need hybrid architectures?
Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

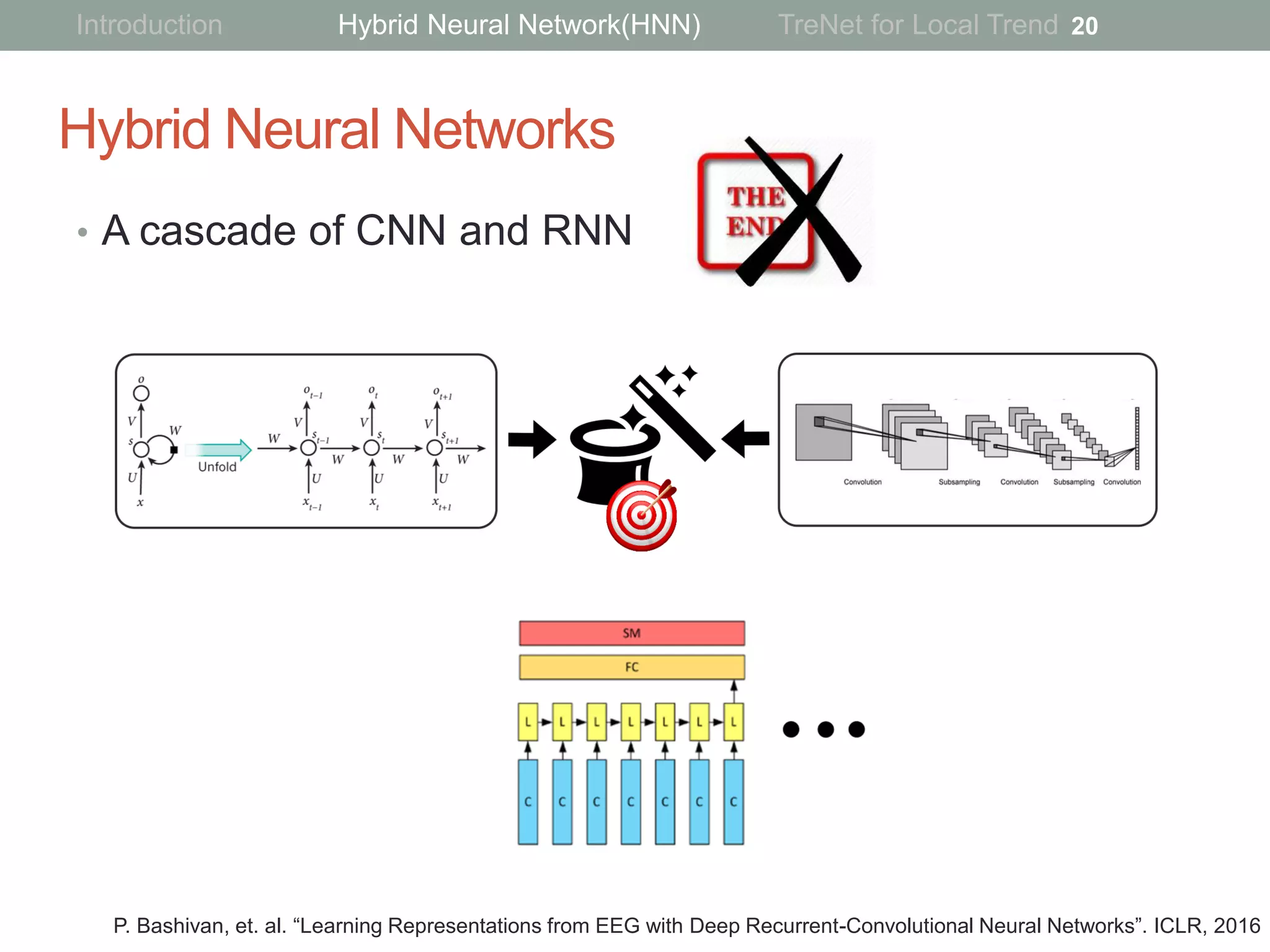

20. Hybrid Neural Networks
• A cascade of CNN and RNN
20
P. Bashivan, et. al. “Learning Representations from EEG with Deep Recurrent-Convolutional Neural Networks”. ICLR, 2016
Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

21. HNN for Real:
TreNet for Learning the Local Trend
21
T. Guo, et al. TreNet: Hybrid Neural Networks for Learning the Local Trend in Temporal Data. In submission to ICLR, 2017
Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

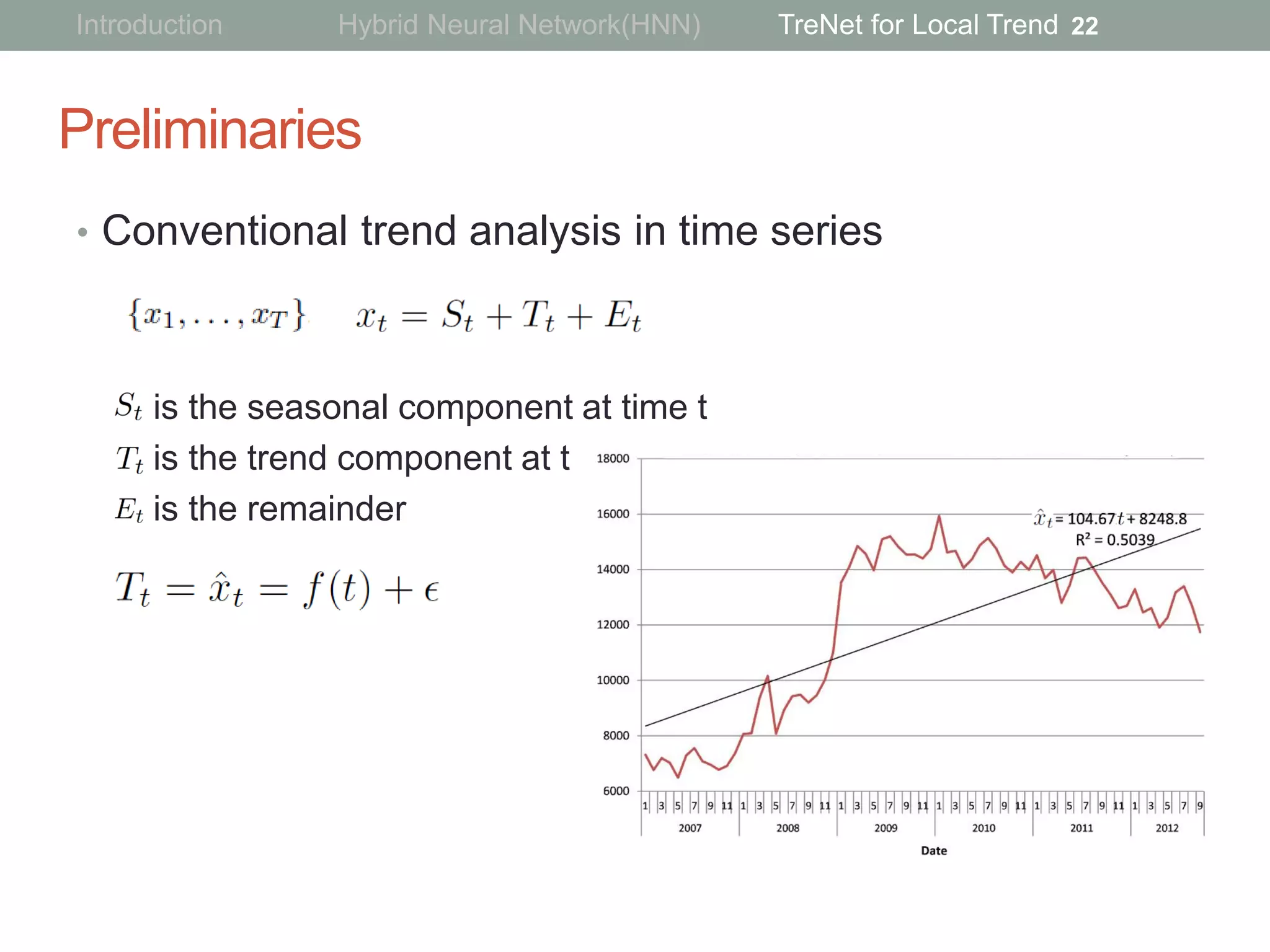

22. Preliminaries
• Conventional trend analysis in time series
is the seasonal component at time t
is the trend component at t
is the remainder
22Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

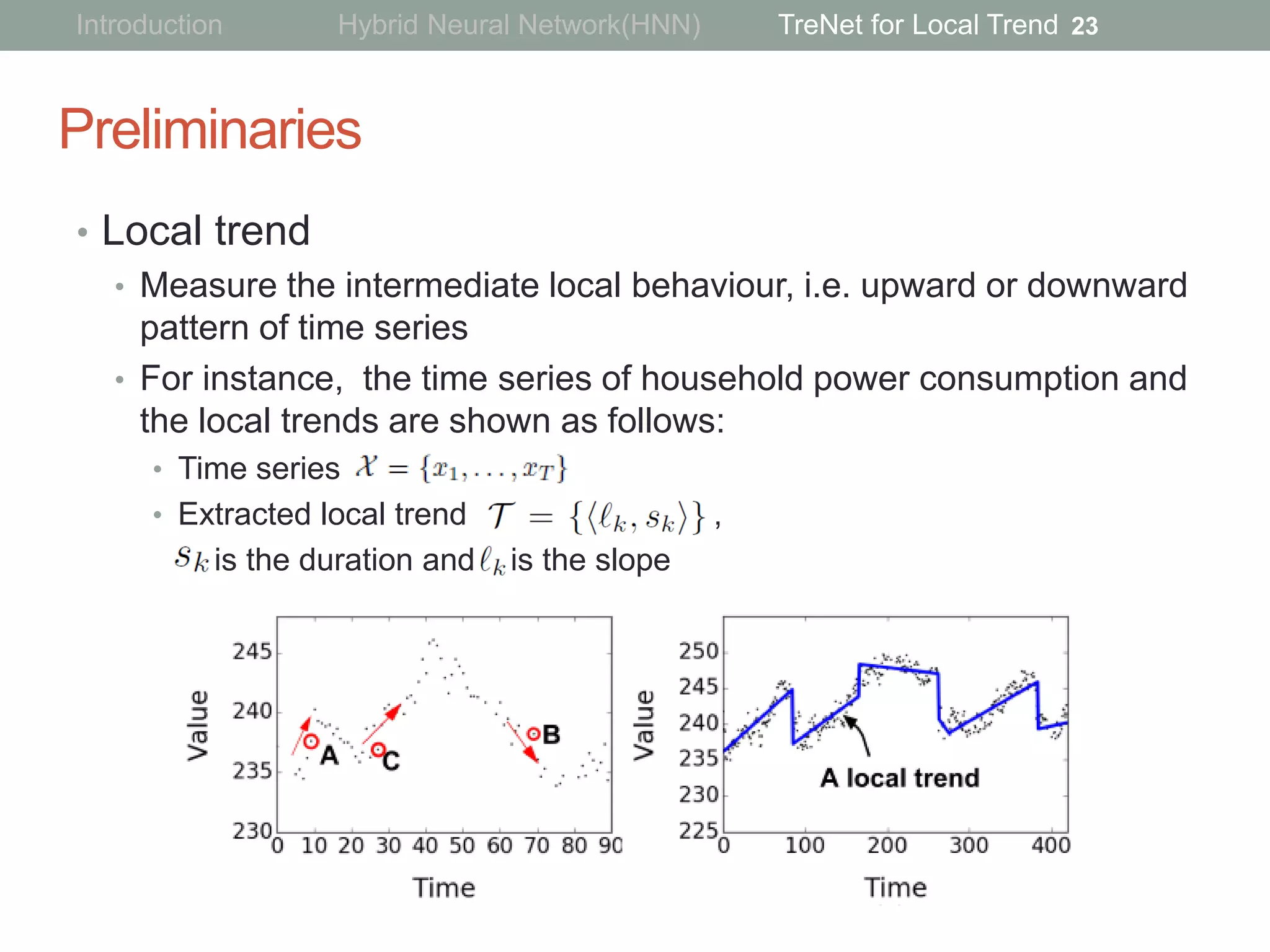

23. Preliminaries
• Local trend
• Measure the intermediate local behaviour, i.e. upward or downward
pattern of time series
• For instance, the time series of household power consumption and
the local trends are shown as follows:
• Time series
• Extracted local trend ,
is the duration and is the slope
23Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

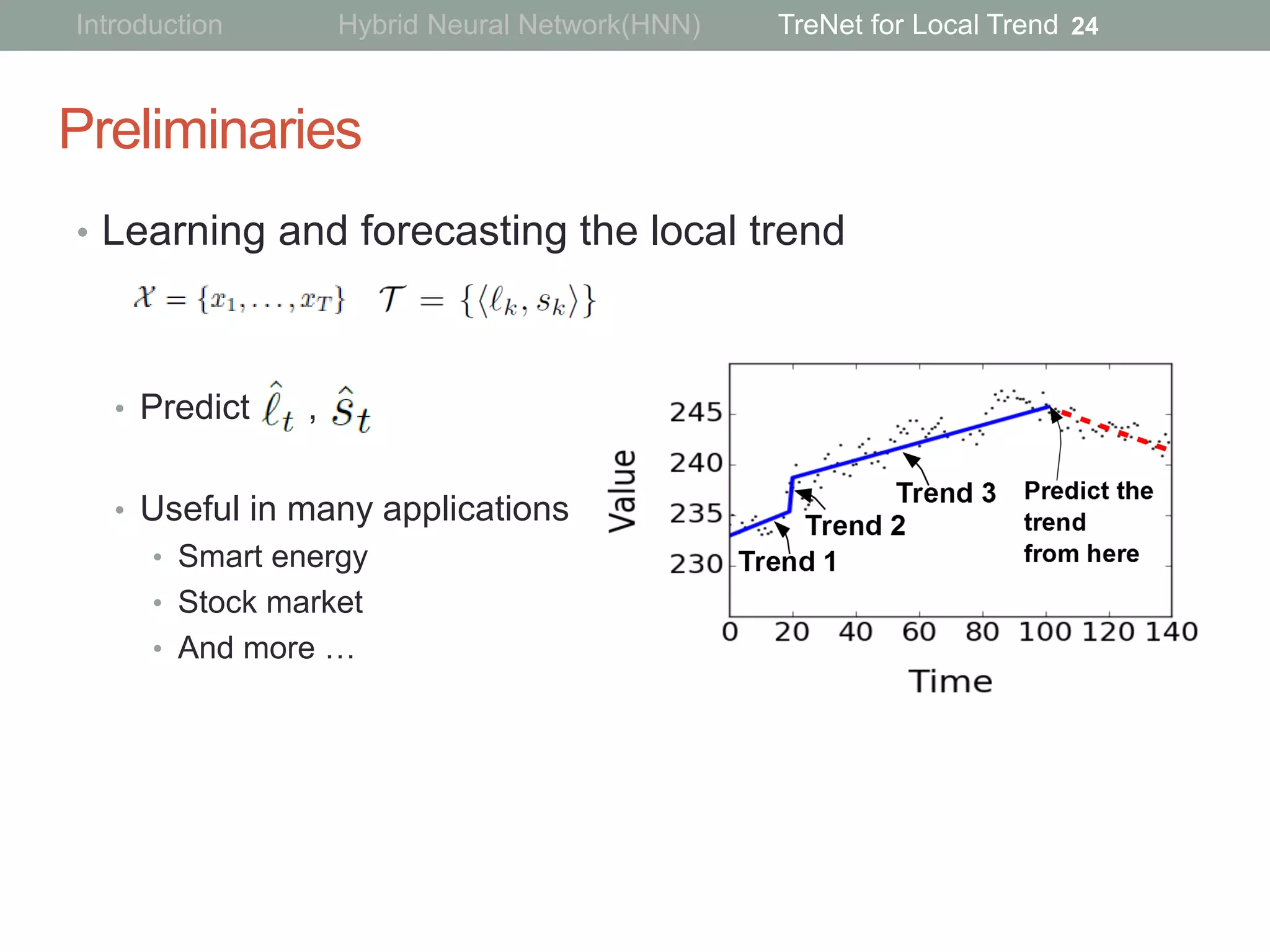

24. Preliminaries
• Learning and forecasting the local trend
• Predict ,
• Useful in many applications
• Smart energy
• Stock market
• And more …
24Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

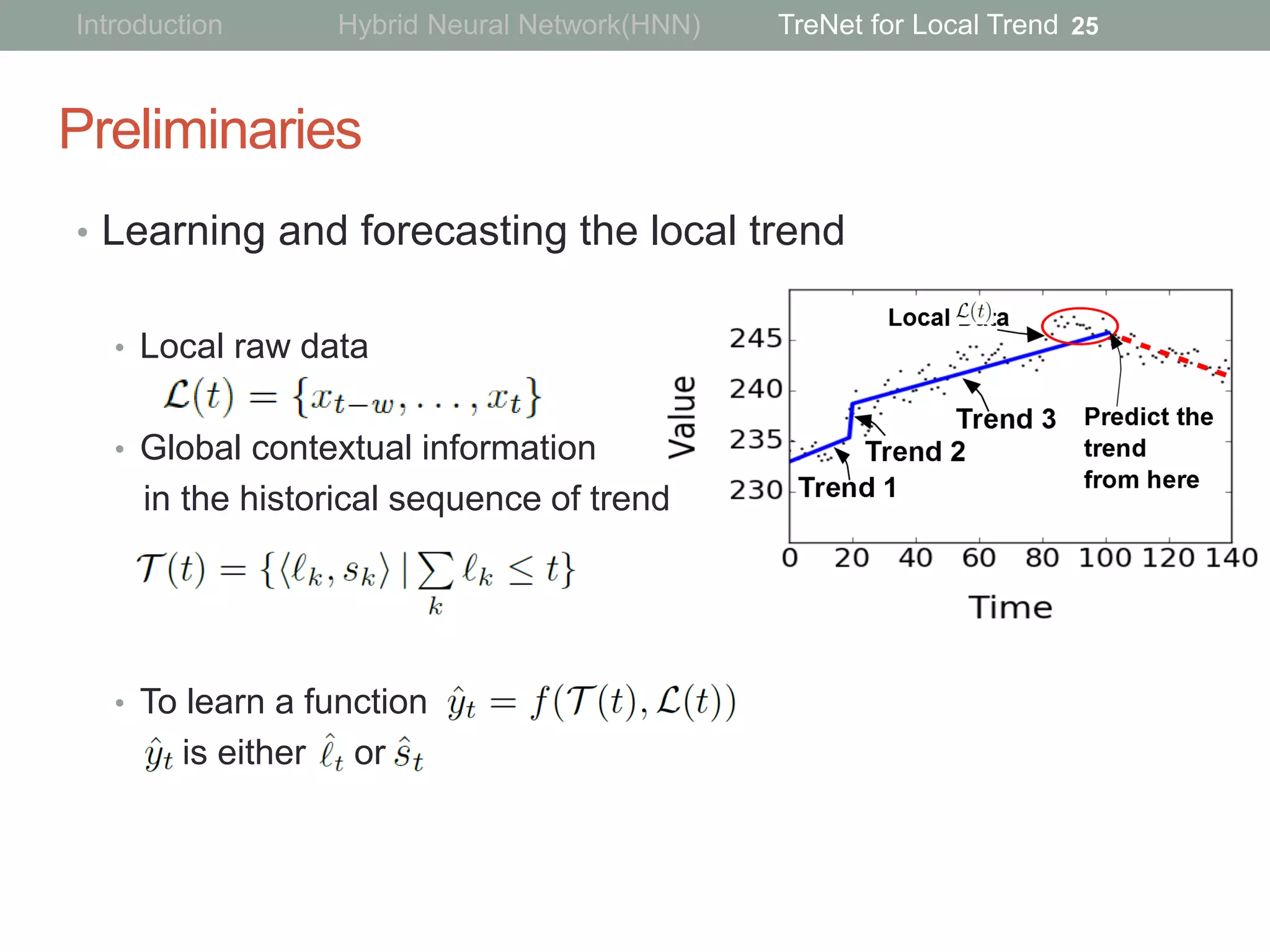

25. Preliminaries
• Learning and forecasting the local trend
• Local raw data
• Global contextual information
in the historical sequence of trend
• To learn a function
is either or
25Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

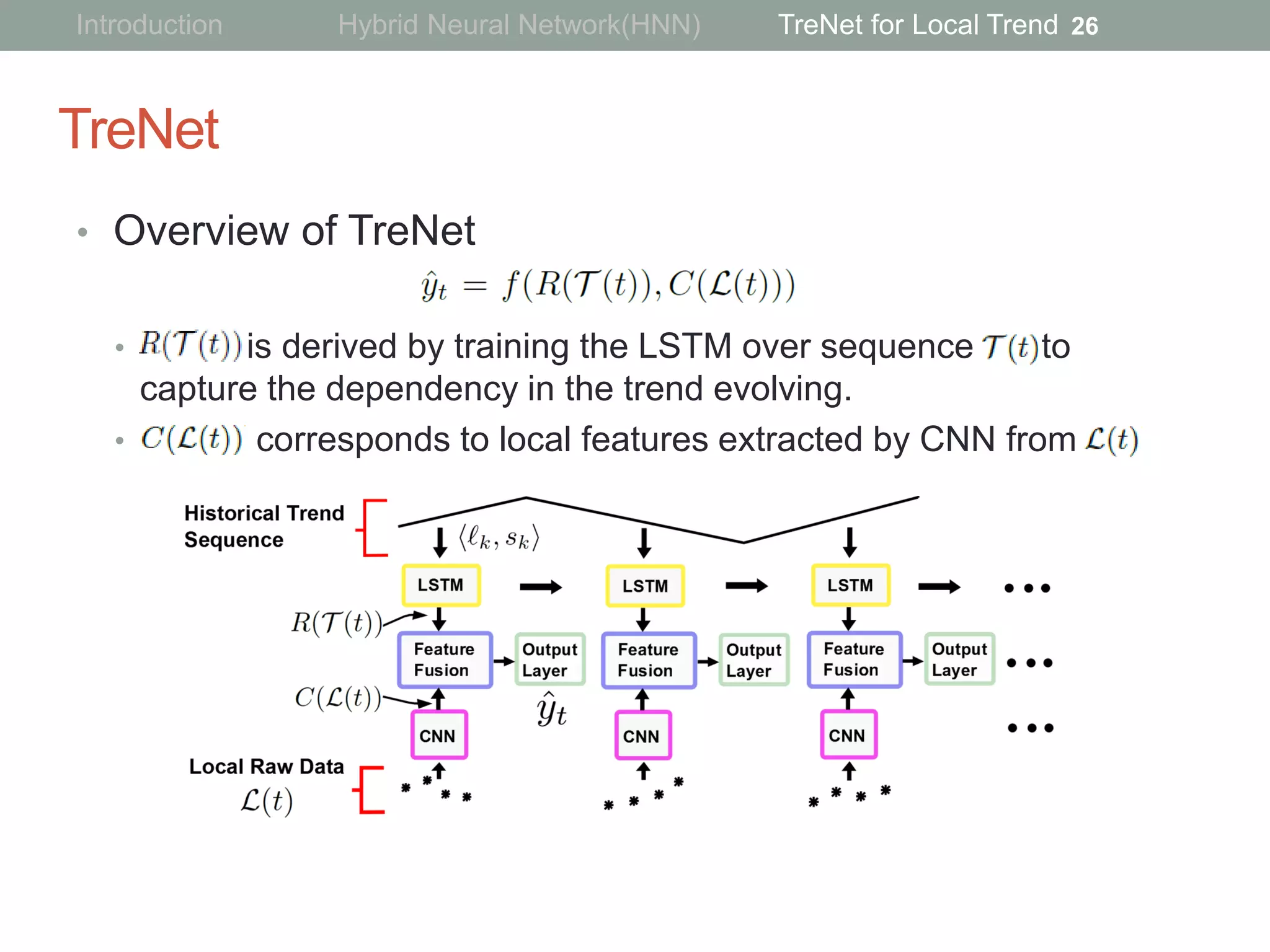

26. TreNet
• Overview of TreNet
• is derived by training the LSTM over sequence to
capture the dependency in the trend evolving.
• corresponds to local features extracted by CNN from
26Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

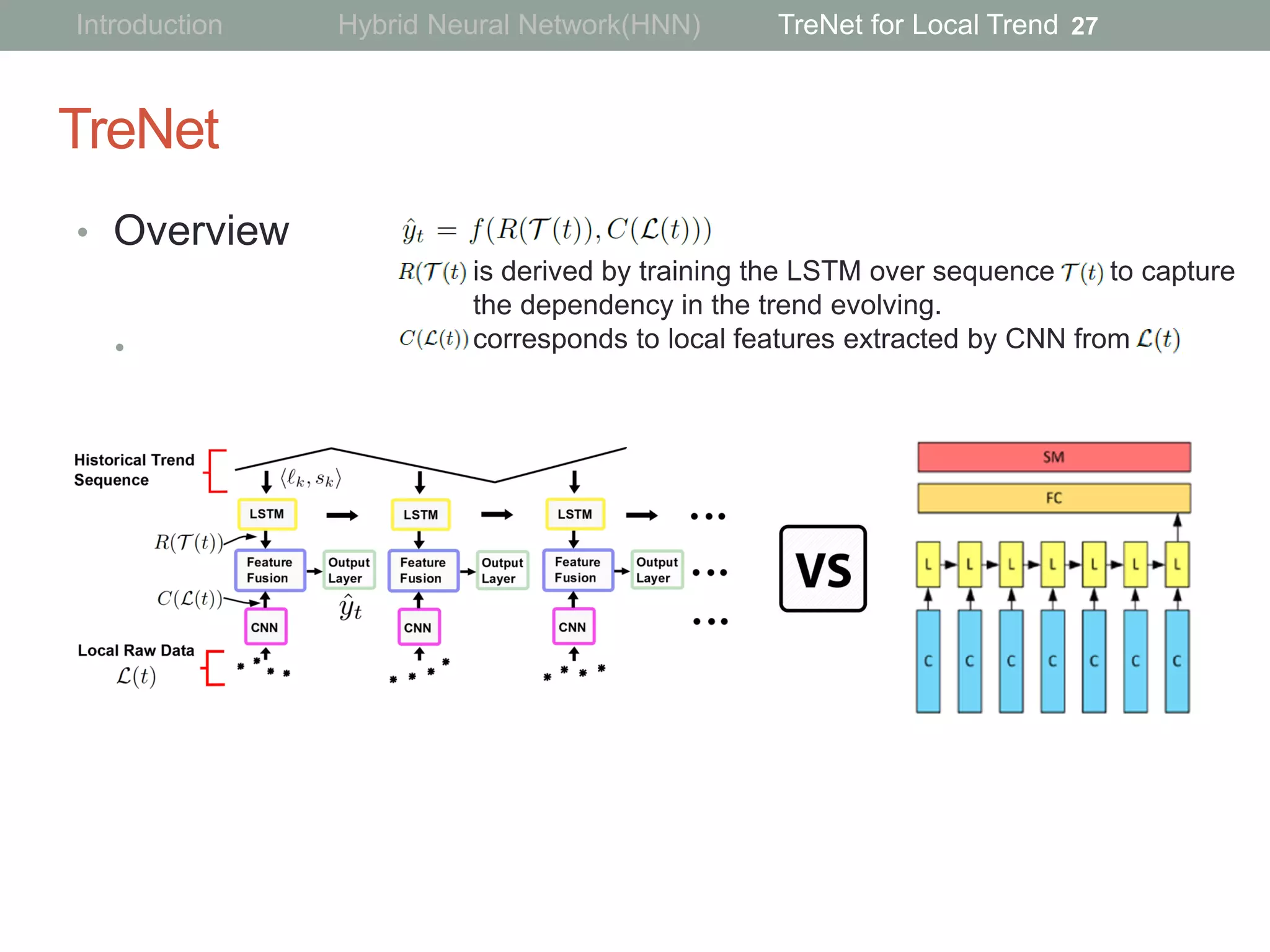

27. is derived by training the LSTM over sequence to capture
the dependency in the trend evolving.
corresponds to local features extracted by CNN from
TreNet
• Overview
•
27Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

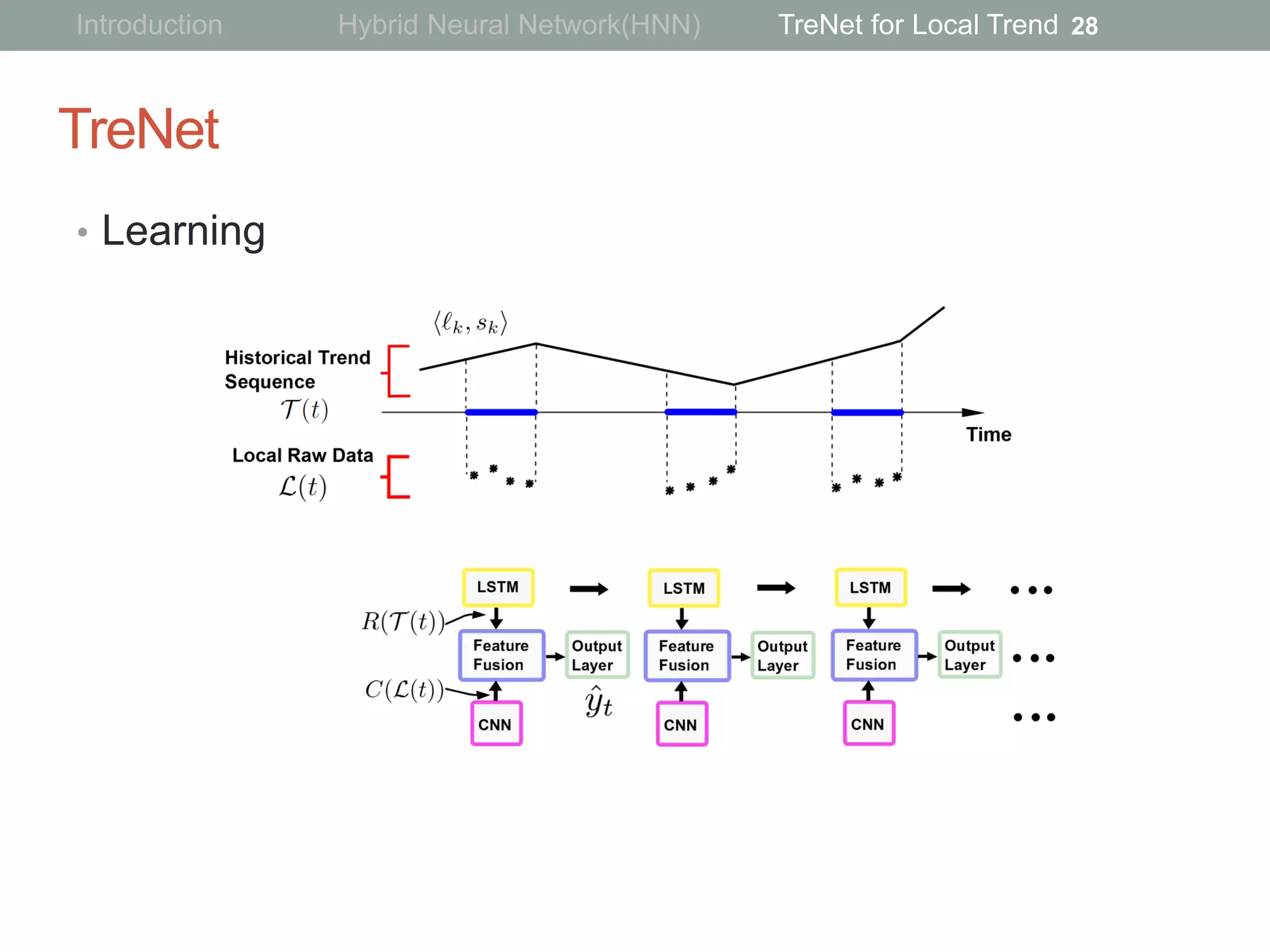

28. TreNet
• Learning
28Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

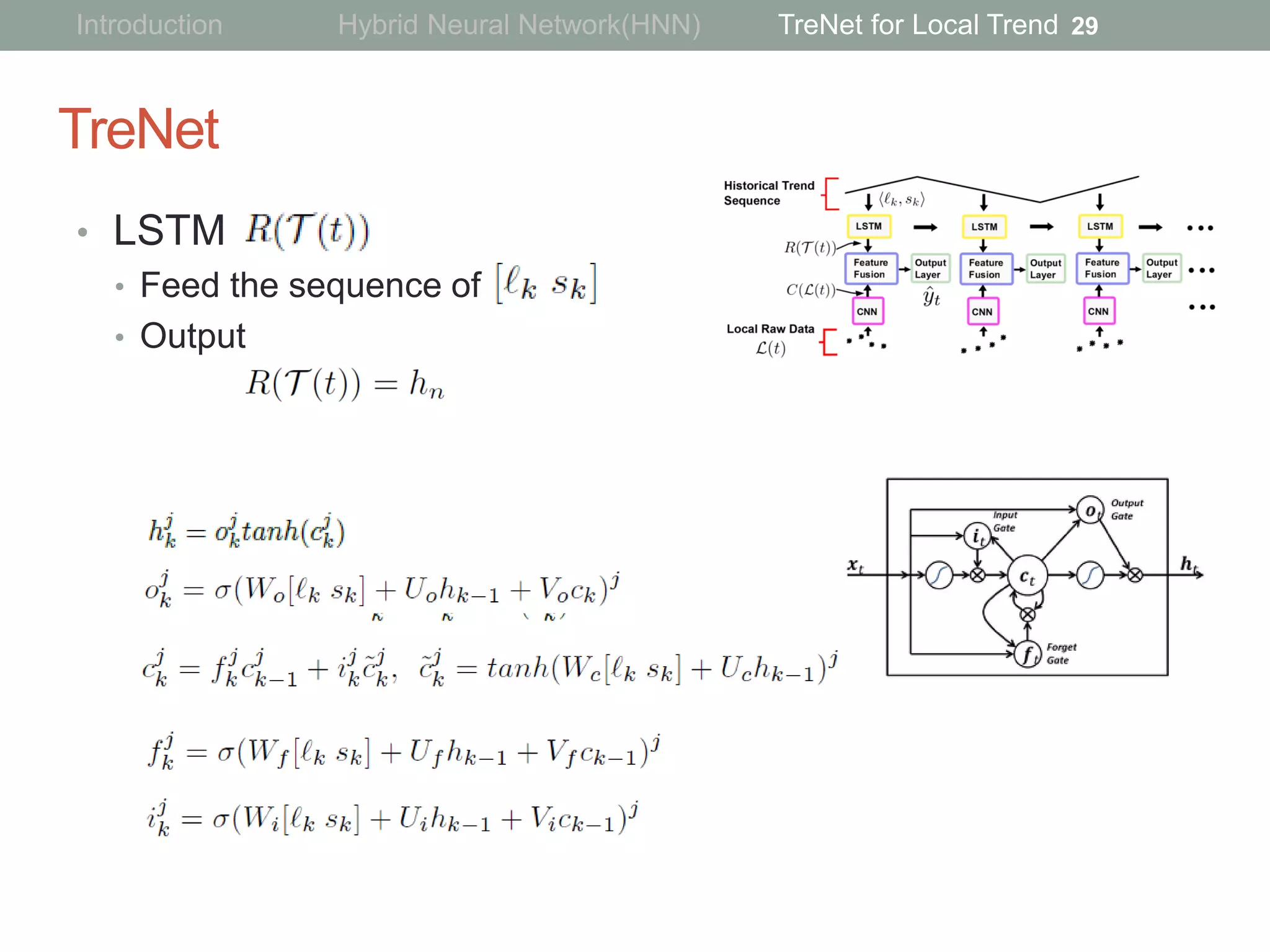

29. TreNet
• LSTM
• Feed the sequence of
• Output
29Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

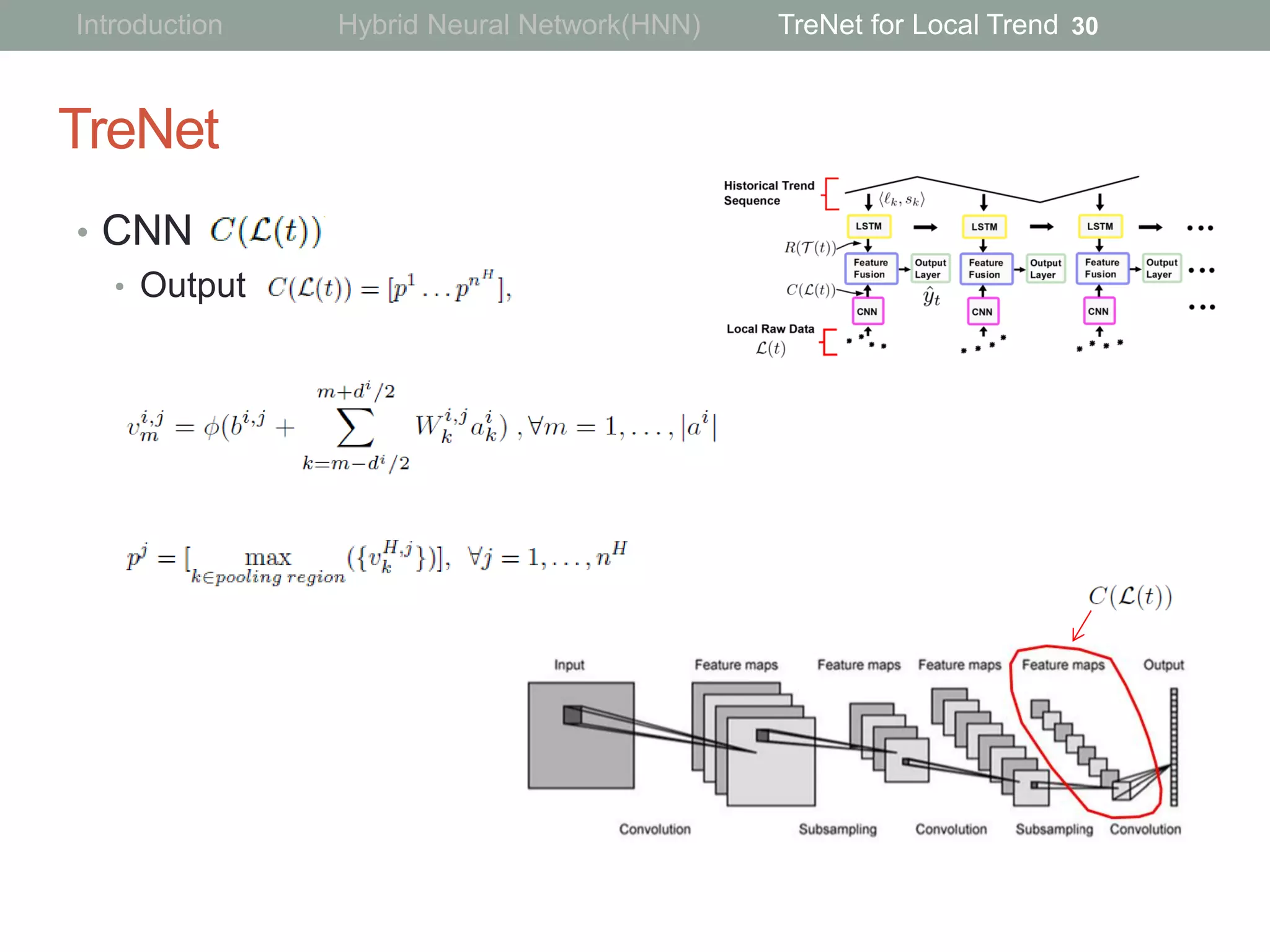

30. TreNet
• CNN
• Output
30Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

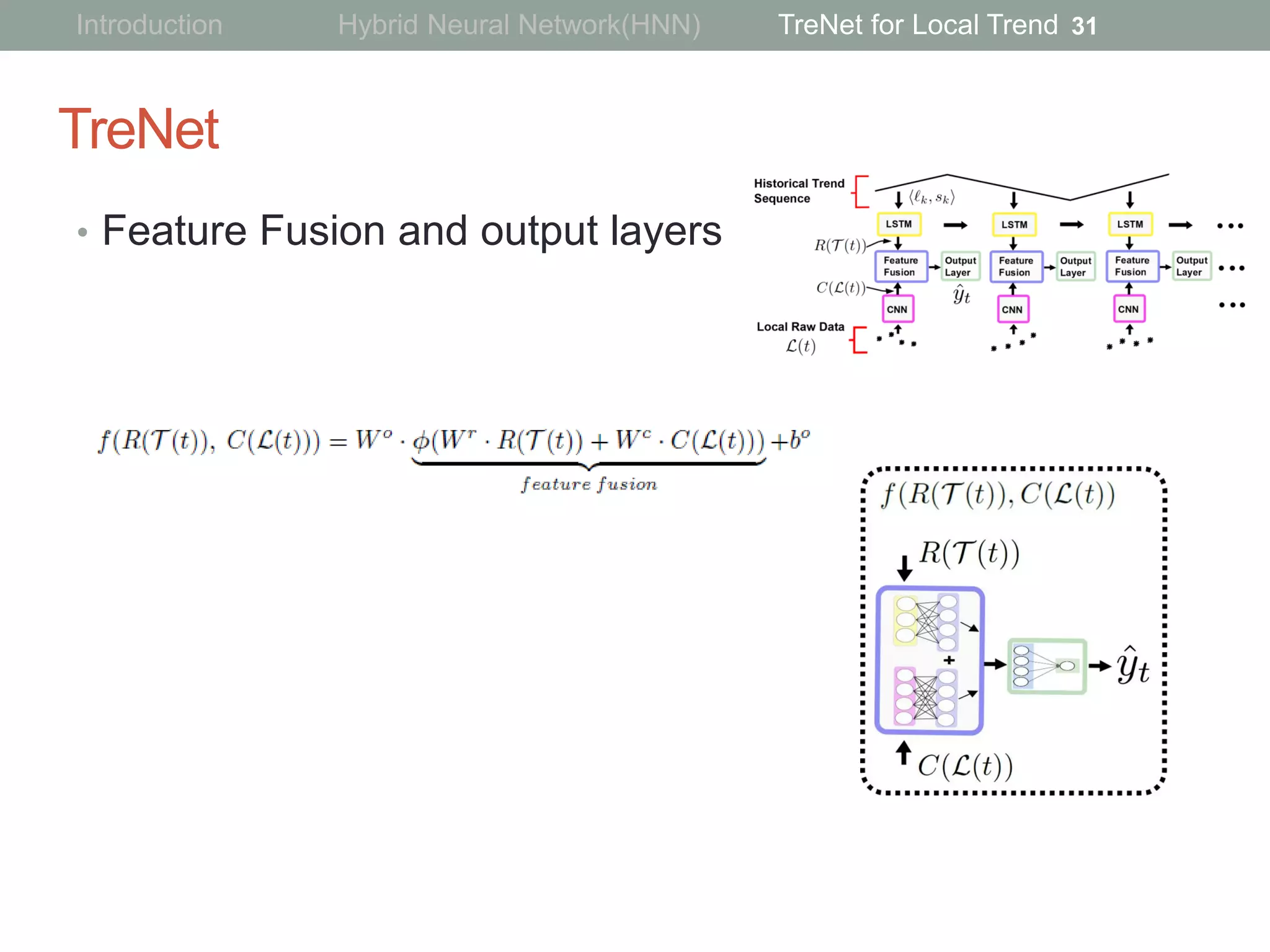

31. TreNet
• Feature Fusion and output layers
31Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

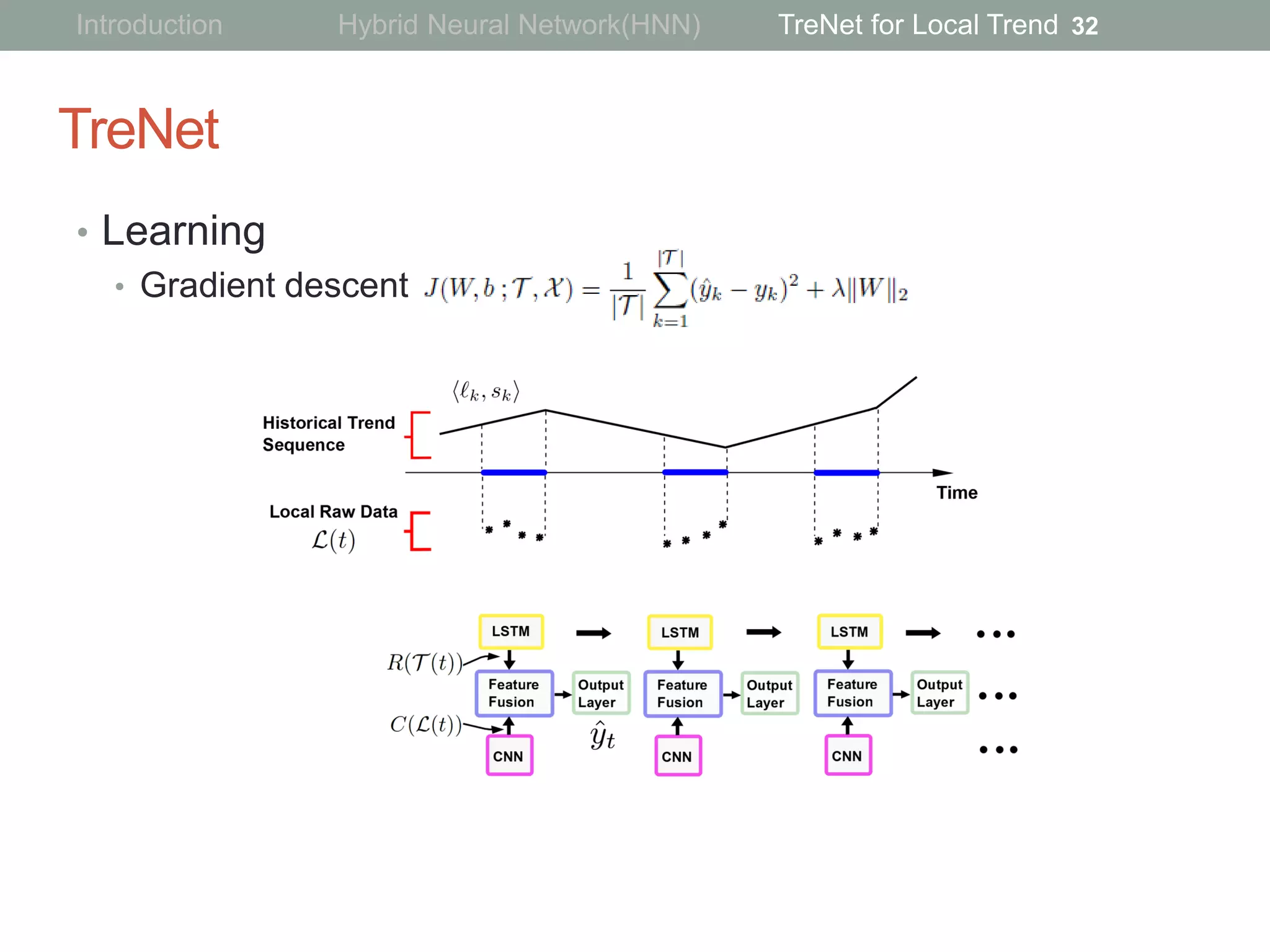

32. TreNet
• Learning
• Gradient descent
32Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

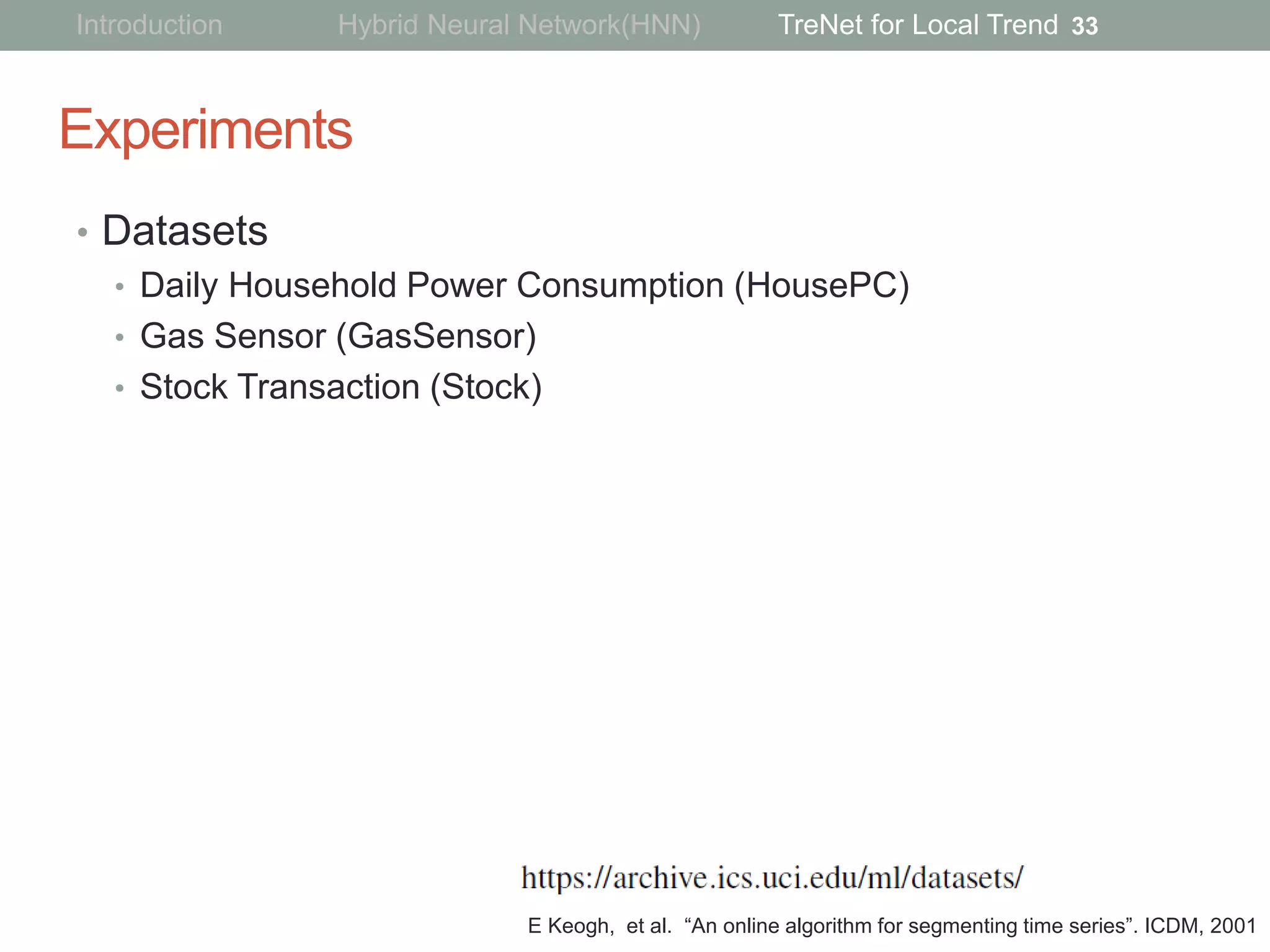

33. Experiments
• Datasets
• Daily Household Power Consumption (HousePC)
• Gas Sensor (GasSensor)
• Stock Transaction (Stock)
33
E Keogh, et al. “An online algorithm for segmenting time series”. ICDM, 2001
Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

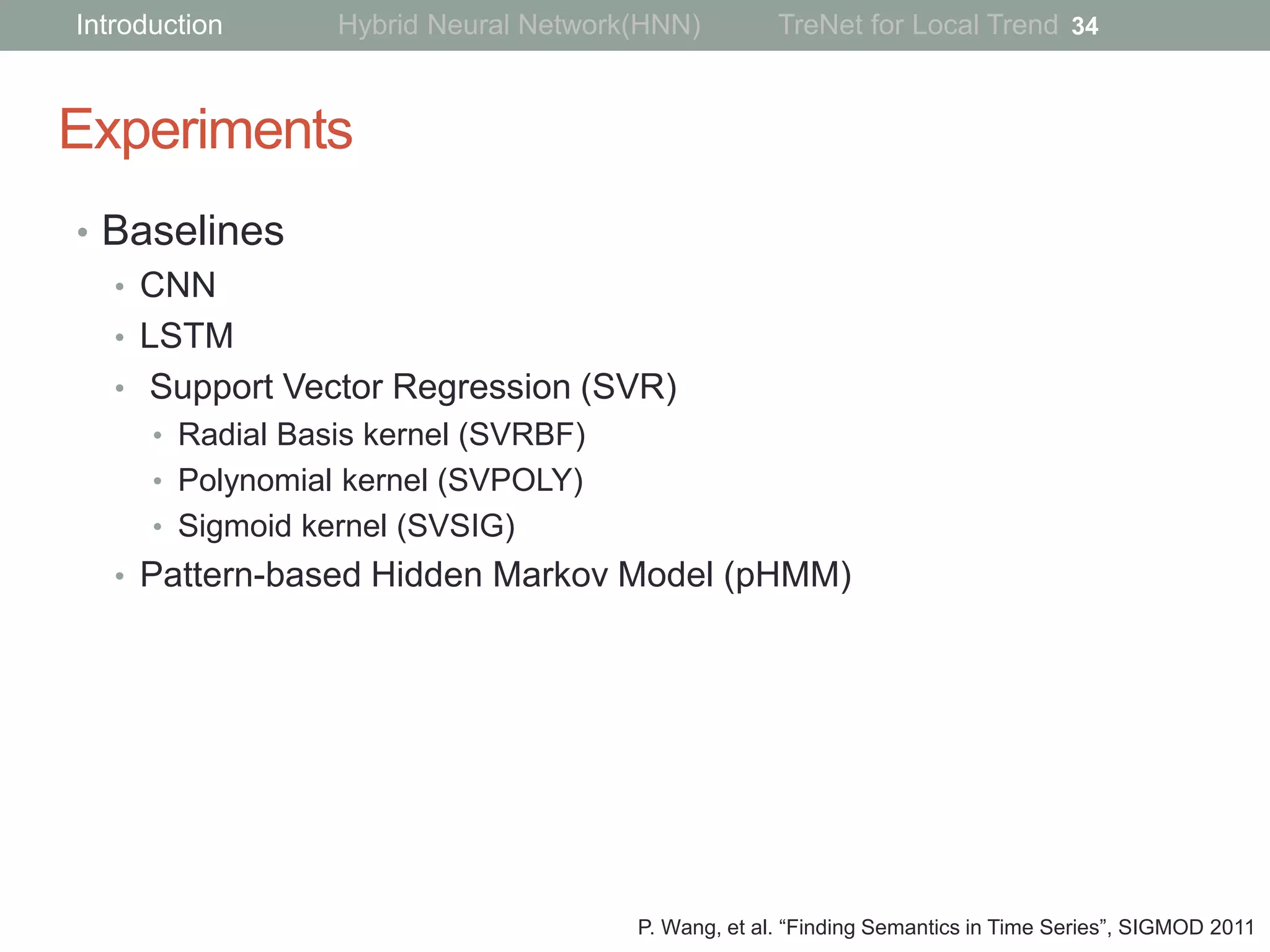

34. Experiments
• Baselines
• CNN
• LSTM
• Support Vector Regression (SVR)
• Radial Basis kernel (SVRBF)
• Polynomial kernel (SVPOLY)
• Sigmoid kernel (SVSIG)
• Pattern-based Hidden Markov Model (pHMM)
34Introduction Hybrid Neural Network(HNN) TreNet for Local Trend
P. Wang, et al. “Finding Semantics in Time Series”, SIGMOD 2011

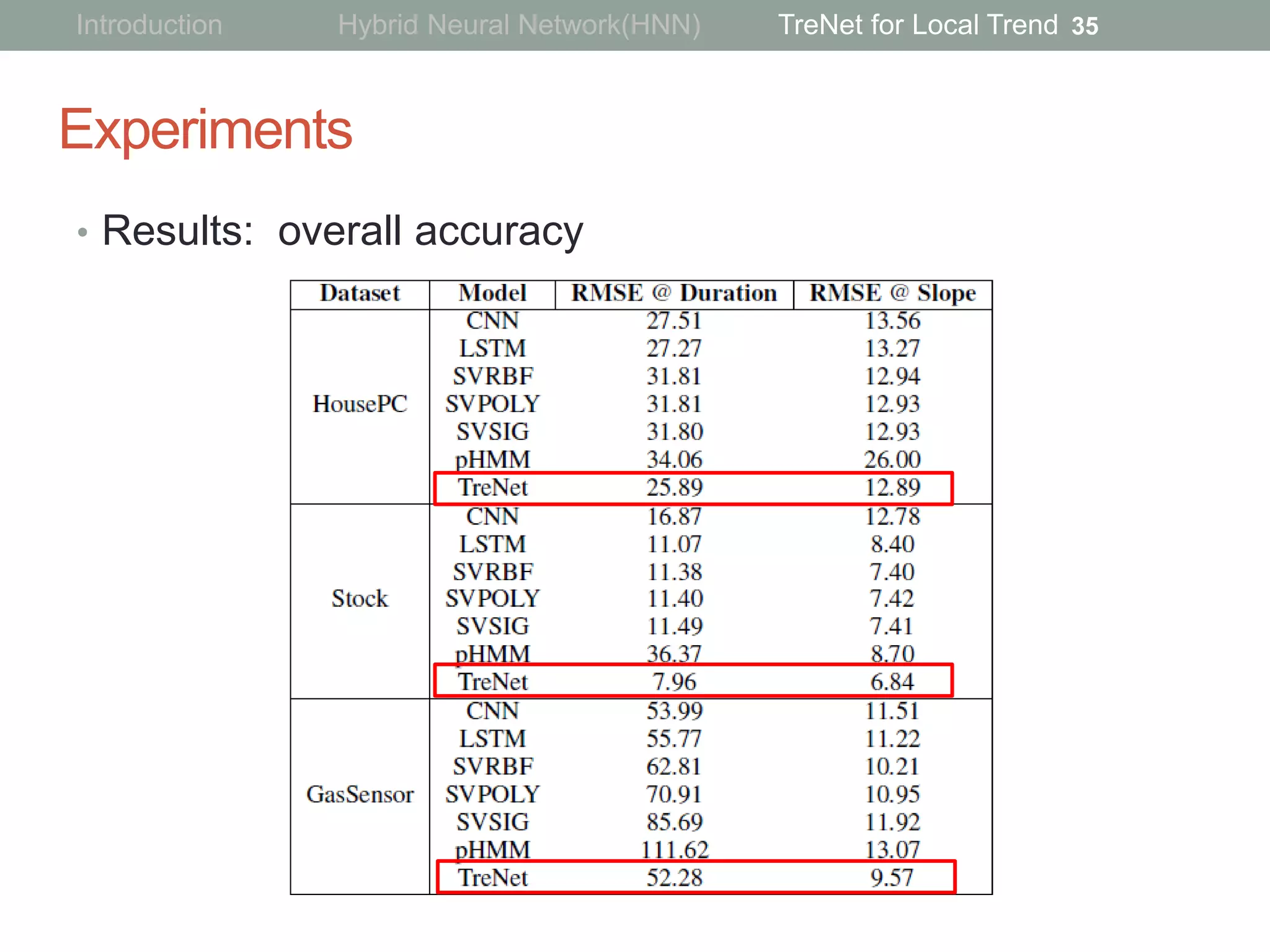

35. Experiments
• Results: overall accuracy
35Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

36. Experiments
• Results: prediction visualization
36Introduction Hybrid Neural Network(HNN) TreNet for Local Trend

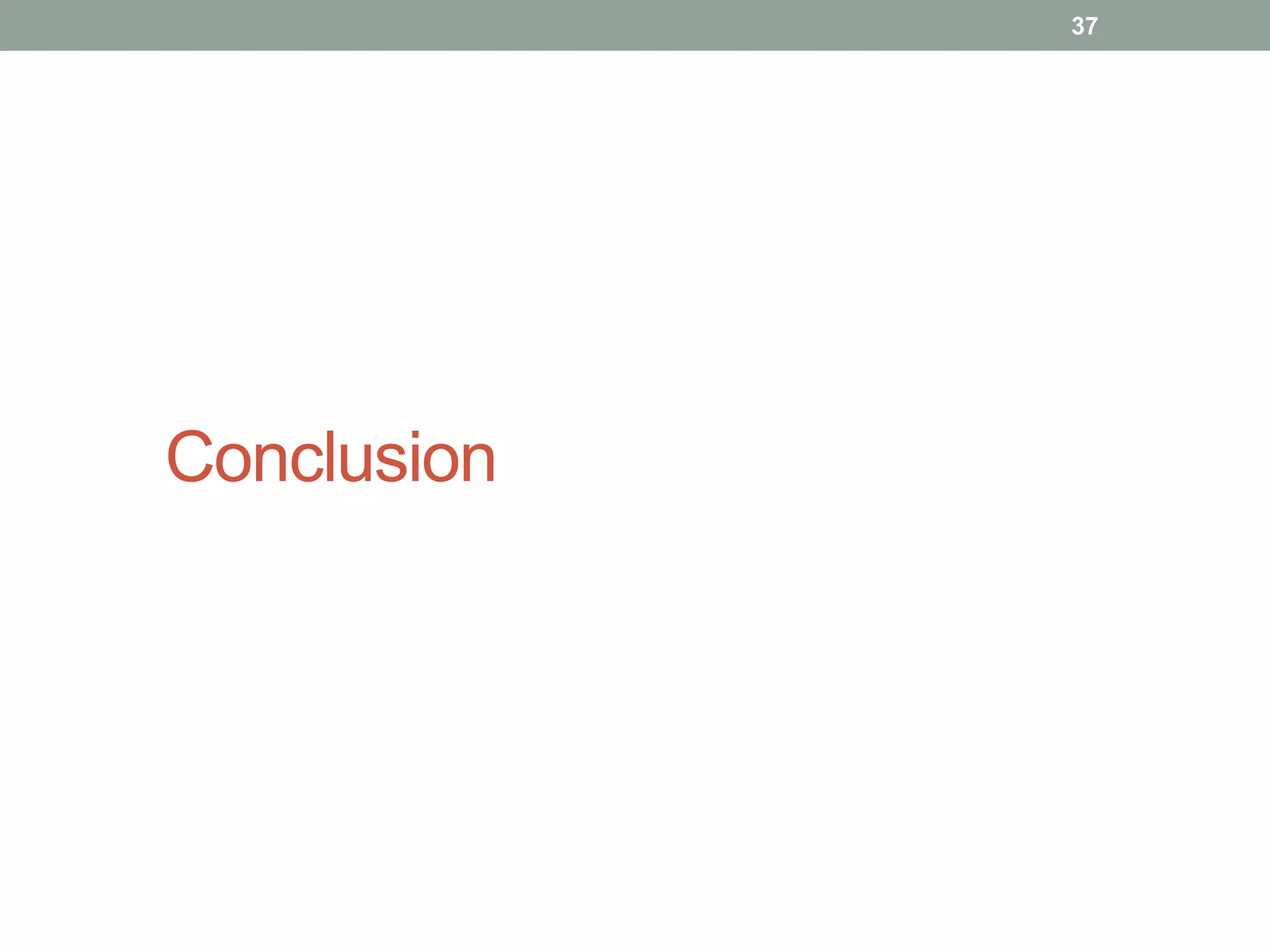

37. Conclusion
37

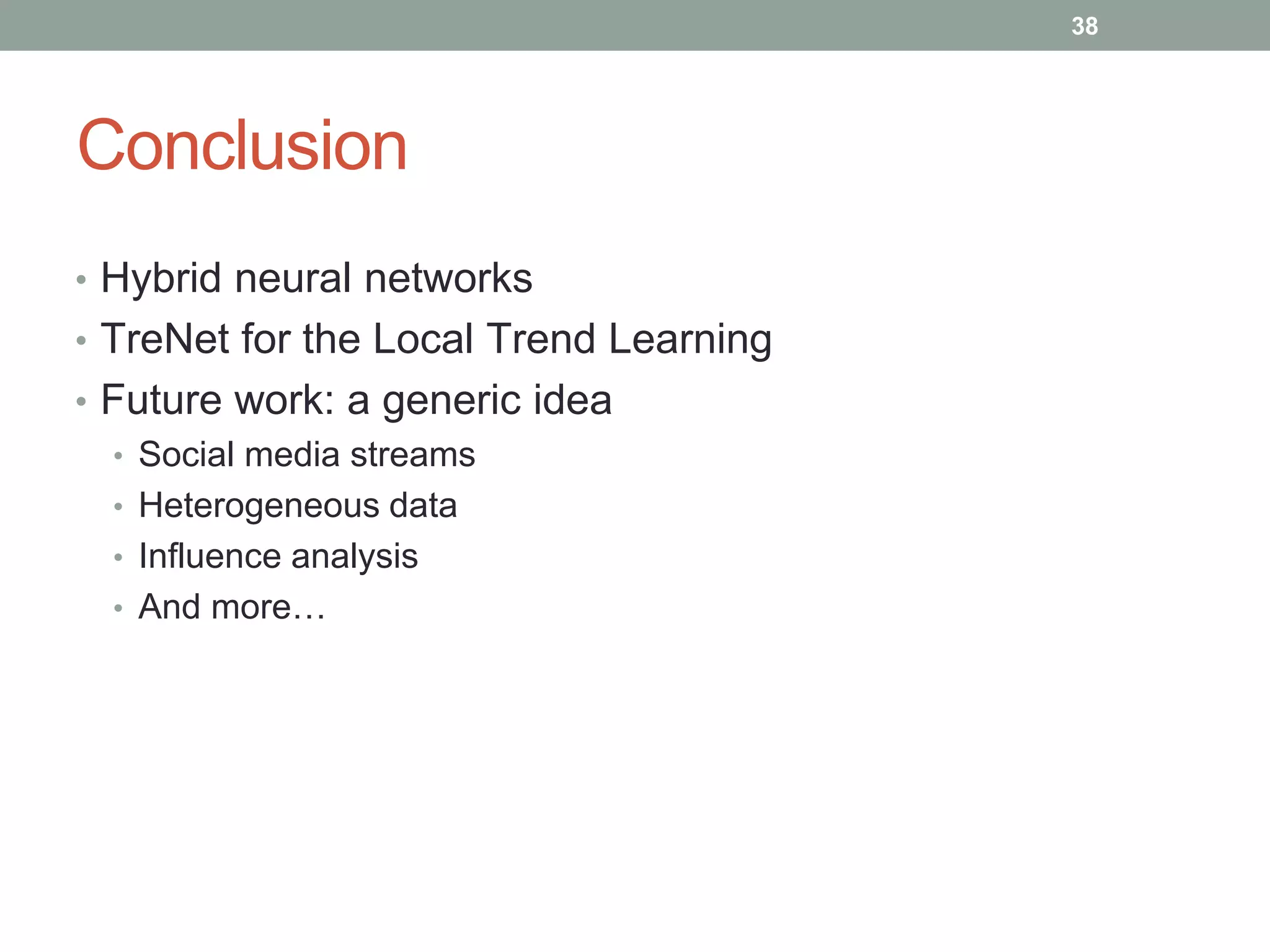

38. Conclusion
38
• Hybrid neural networks
• TreNet for the Local Trend Learning
• Future work: a generic idea
• Social media streams
• Heterogeneous data
• Influence analysis
• And more…

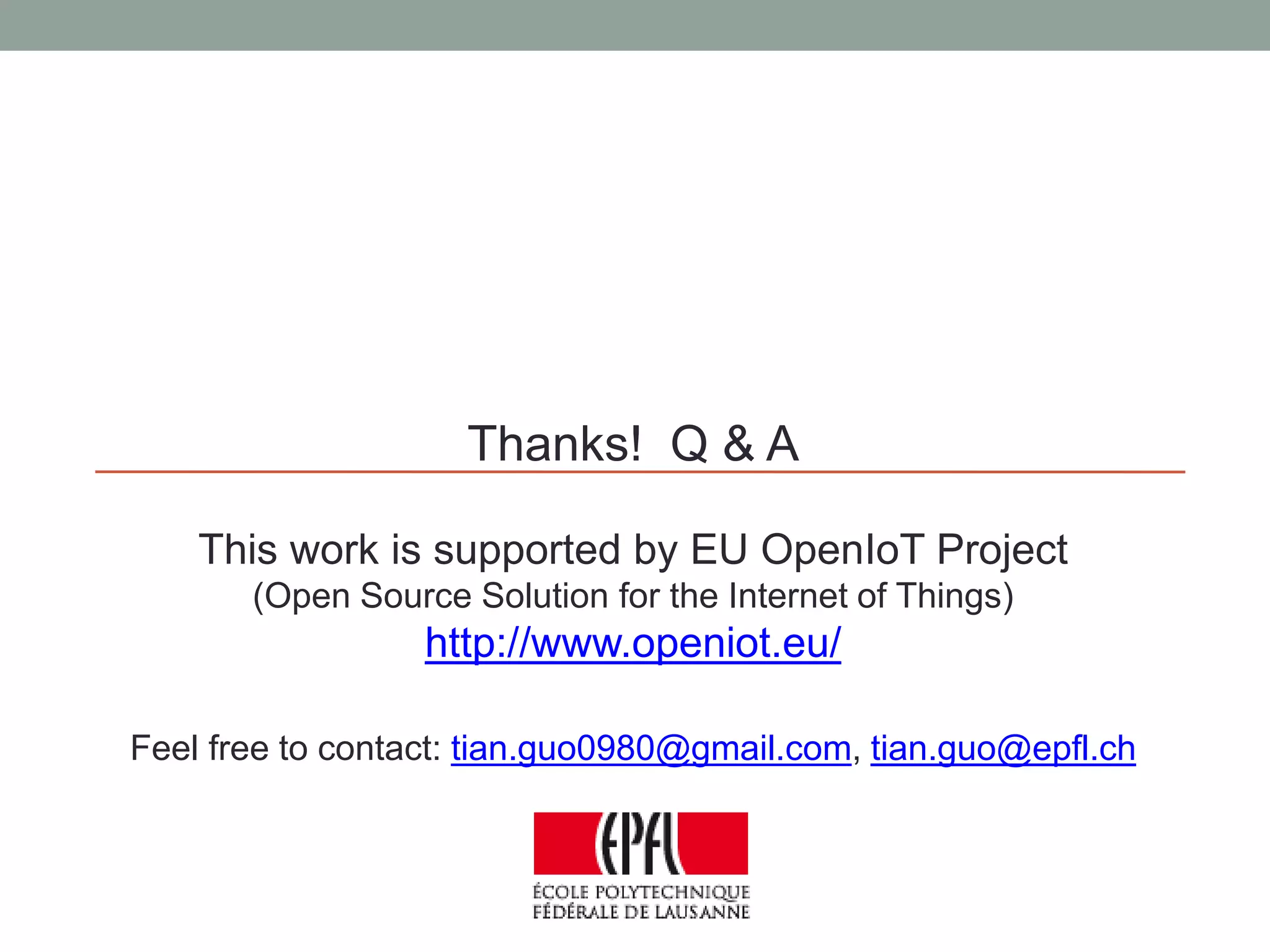

39. Thanks! Q & A
This work is supported by EU OpenIoT Project
(Open Source Solution for the Internet of Things)
http://www.openiot.eu/
Feel free to contact: tian.guo0980@gmail.com, tian.guo@epfl.ch
