This document provides an overview of acute myelogenous leukemia (AML). It defines AML, discusses its epidemiology including increasing incidence with age, and reviews its etiology related to environmental/genetic risk factors and predisposing diseases. The document also covers AML classification systems, cytogenetics, clinical features, laboratory findings including blood/bone marrow morphology and immunophenotypes, and general treatment approaches.

1. Acute Myelogenous Leukemia
Prof. Dr.S.TITO’s Unit M4
Dr.Rakesh Pinninti

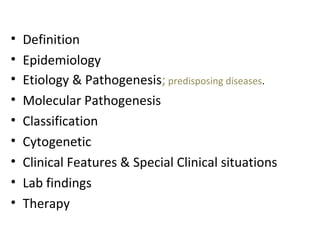

2. • Definition
• Epidemiology
• Etiology & Pathogenesis; predisposing diseases.
• Molecular Pathogenesis
• Classification
• Cytogenetic
• Clinical Features & Special Clinical situations
• Lab findings
• Therapy

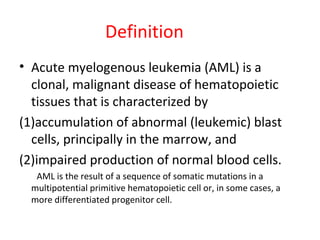

3. Definition
• Acute myelogenous leukemia (AML) is a
clonal, malignant disease of hematopoietic
tissues that is characterized by
(1)accumulation of abnormal (leukemic) blast
cells, principally in the marrow, and
(2)impaired production of normal blood cells.
AML is the result of a sequence of somatic mutations in a
multipotential primitive hematopoietic cell or, in some cases, a
more differentiated progenitor cell.

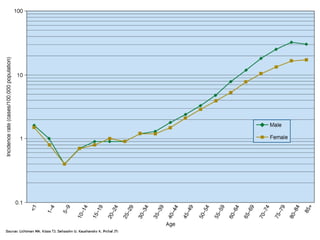

4. Epidemiology
• The incidence rate of AML is
• approx 1.5 / 100,000 in infants --- < 1 yr
approx 0.4 / 100,000 children ---- 5 to 9 yrs,
approx 1.0 / 100,000 ----------until age 25 yrs,
increases exponentially until the rate reaches
approx 25 per 100,000 persons in octogenarians
• The exception to this exponential age-related increase in incidence is
acute promyelocytic leukemia (APL), which does not change greatly in
incidence with age.
• AML accounts for 15 to 20 percent of the acute leukemias in
children and 80 percent of the acute leukemias in adults. It is
slightly more common in males.

5. Etiology and Pathogenesis
• Environmental factors
Radiation
Benzene
Cytotoxic drugs
Tobacco smoke
• Acquired diseases
a) Clonal myeloid diseases
1. Chronic myelogenous leukemia
2. Primary myelofibrosis
3. Essential thrombocythemia
4. Polycythemia vera
5. Clonal cytopenias
6. Paroxysmal nocturnal hemoglobinuria
Other hematopoietic disorders
Aplastic anemia Eosinophilic fasciitis Myeloma
• Inherited or Congenital Conditions
sibling with AML
Amegakaryocytic thrombocytopenia, congenital
Ataxia-pancytopenia
Bloom syndrome
Congenital agranulocytosis (Kostmann syndrome)
Chronic thrombocytopenia with chromosome 21q 22.12 microdel
Diamond-Blackfan syndrome
Down syndrome
Dubowitz syndrome
Dyskeratosis congenita
Familial (pure, nonsyndromic) AML
Familial platelet disorder
Fanconi anemia
Naxos syndrome
Neurofibromatosis
Noonan syndrome
Poland syndrome
Rothmund-Thomson syndrome
Seckel syndrome
Shwachman syndrome
Werner syndrome (progeria)

6. Classification
WHO classification is based on immunophenotype ,
clinical features, cytogenetic & molecular
abnormalities, in addition to morphology.
• A major difference btw WHO & FAB systems is the
blast cut-off for the diagnosis of AML as opposed to
MDS; it is 20% in WHO & 30% in FAB.
• The WHO classification is the 1st
luekemia classification
to incorporate genetic information. For example, AML FAB M3 is
designated as Acute promyelocytic leukemia (APL), based on the presence of
either the t(15,17)(q22;12) cytogenetic rearrangement or the PML/RARa product
of translocation.

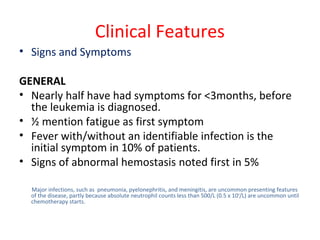

7. Clinical Features
• Signs and Symptoms
GENERAL
• Nearly half have had symptoms for <3months, before
the leukemia is diagnosed.
• ½ mention fatigue as first symptom
• Fever with/without an identifiable infection is the
initial symptom in 10% of patients.
• Signs of abnormal hemostasis noted first in 5%
Major infections, such as pneumonia, pyelonephritis, and meningitis, are uncommon presenting features
of the disease, partly because absolute neutrophil counts less than 500/L (0.5 x 109
/L) are uncommon until
chemotherapy starts.

8. Specific Organ System Involvement
• Extramedullary involvement is most common in monocytic or
myelomonocytic leukemia
• A) Skin involvement
• B) The gastrointestinal tract
• C) The respiratory tract
• D) Cardiac involvement
• E) The urogenital system
• F) Osteoarticular
• H) Central or peripheral nervous system
• nonspecific lesions, leukemia
cutis, or granulocytic (myeloid)
sarcoma.
• Nonspecific lesions include
macules, papules, vesicles,
pyoderma gangrenosum,
vasculitis, neutrophilic dermatitis
(Sweet syndrome), cutis vertices
gyrata, and erythema multiforme
or nodosum.
• Gingival or periodontal infiltration and dental abscesses
• Ileotyphlitis (enterocolitis)
• Fever, abdominal pain, bloody diarrhea, or ileus
• intestinal perforation, an inflammatory mass, and
associated infection with enteric gram-negative bacilli
or clostridial species often are associated with a fatal
outcome.
• Proctitis, especially common in the monocytic variant
of AML, can be a presenting sign or a vexing problem
during periods of severe granulocytopenia and
diarrhea.
• Central or peripheral nervous system
involvement by infiltration of leukemic
cells is very uncommon, although
meningeal involvement is an important
consideration in the treatment of the
monocytic type of AML.
• An association of CNS involvement and
diabetes insipidus in AML with
monosomy 7 and inv 16 has been
reported.

9. Special Clinical situations
• Hyperleukocytosis
• Hypoplastic Leukemia
• Oligoblastic (Subacute, Smoldering) Leukemia
• Ph-Chromosome–Positive AML
• Marrow Necrosis
• Neonatal Myeloproliferation and Leukemia
• Myeloid (Granulocytic) Sarcoma

10. Hyperleukocytosis
• Leukocyte count is an independent prognostic factor in the
outcome of AML treatment.
• Approx 5 percent of patients with AML develop signs or
symptoms attributable to a markedly elevated blood blast cell
count, usually greater than 100 x 109
/L
• The circulations of the CNS, lungs, and penis are most sensitive
to the effects of leukostasis.
• Dizziness, stupor, dyspnea, and priapism may occur.
• Diabetes insipidus is another association.
• A high early mortality in patients with AML correlates with
hyperleukocytosis greater than 100 x 109
/L.
• Chemotherapy in hyperleukocytic patients may lead to a
pulmonary leukostatic syndrome, presumably from the effects
of rigid, effete blast cells, or the discharge of large amounts of
cell contents and resultant cell aggregation or other effects.274–

11. Myeloid (Granulocytic) Sarcoma
A) Myeloid sarcoma (also known as granulocytic sarcoma, chloroma,
myeloblastoma, monocytoma) is a tumor composed of
myeloblasts, monoblasts, or megakaryocyes.
B) The tumors originally were called chloromas because of the green
color imparted by the high concentration of the enzyme
myeloperoxidase present in myelogenous leukemic cells.
C) Biopsy specimens are positive for chloracetate esterase, lysozyme,
myeloperoxidase, and cluster of differentiation (CD) markers of
myeloid cells.
D) Patients having AML with t(8;21) have a propensity to develop
extramedullary leukemia, and such patients with myeloid sarcomas
have a poorer outcome after treatment.192,194

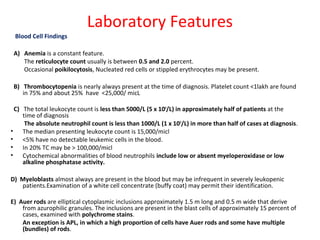

12. Laboratory Features
Blood Cell Findings
A) Anemia is a constant feature.
The reticulocyte count usually is between 0.5 and 2.0 percent.
Occasional poikilocytosis, Nucleated red cells or stippled erythrocytes may be present.
B) Thrombocytopenia is nearly always present at the time of diagnosis. Platelet count <1lakh are found
in 75% and about 25% have <25,000/ micL
C) The total leukocyte count is less than 5000/L (5 x 109
/L) in approximately half of patients at the
time of diagnosis
The absolute neutrophil count is less than 1000/L (1 x 109
/L) in more than half of cases at diagnosis.
• The median presenting leukocyte count is 15,000/micl
• <5% have no detectable leukemic cells in the blood.
• In 20% TC may be > 100,000/micl
• Cytochemical abnormalities of blood neutrophils include low or absent myeloperoxidase or low
alkaline phosphatase activity.
D) Myeloblasts almost always are present in the blood but may be infrequent in severely leukopenic
patients.Examination of a white cell concentrate (buffy coat) may permit their identification.
E) Auer rods are elliptical cytoplasmic inclusions approximately 1.5 m long and 0.5 m wide that derive
from azurophilic granules. The inclusions are present in the blast cells of approximately 15 percent of
cases, examined with polychrome stains.
An exception is APL, in which a high proportion of cells have Auer rods and some have multiple
(bundles) of rods.

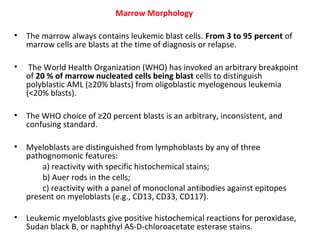

17. Marrow Morphology
• The marrow always contains leukemic blast cells. From 3 to 95 percent of
marrow cells are blasts at the time of diagnosis or relapse.
• The World Health Organization (WHO) has invoked an arbitrary breakpoint
of 20 % of marrow nucleated cells being blast cells to distinguish
polyblastic AML (≥20% blasts) from oligoblastic myelogenous leukemia
(<20% blasts).
• The WHO choice of ≥20 percent blasts is an arbitrary, inconsistent, and
confusing standard.
• Myeloblasts are distinguished from lymphoblasts by any of three
pathognomonic features:
a) reactivity with specific histochemical stains;
b) Auer rods in the cells;
c) reactivity with a panel of monoclonal antibodies against epitopes
present on myeloblasts (e.g., CD13, CD33, CD117).
• Leukemic myeloblasts give positive histochemical reactions for peroxidase,
Sudan black B, or naphthyl AS-D-chloroacetate esterase stains.

18. A. Auer rods can be found in the marrow blast cells in approximately one-
sixth of cases.
B. Blast cells may express granulocytic (CD15, CD65) or monocytic
(CD11b, CD11c, CD14, CD64) surface antigens.
C. In a proportion of otherwise typical cases of AML, the cells may contain
terminal deoxynucleotidyl transferase (TdT).
D. Normal erythropoiesis, megakaryocytopoiesis, and granulopoiesis are
decreased or absent in the marrow aspirate.
E. Dysmorphic changes in hematopoietic cells may occur in 30 to 50
percent of patients with de novo AML.
F. Marrow reticulin fibrosis is common but usually is slight to moderate
except in cases of megakaryoblastic leukemia, in which intense fibrosis
is the rule.
G. AML cytogenetic variants may result in marrow basophilia (usually

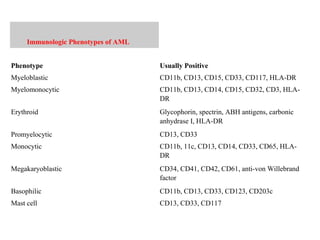

19. Immunologic Phenotypes of AML
Phenotype Usually Positive
Myeloblastic CD11b, CD13, CD15, CD33, CD117, HLA-DR
Myelomonocytic CD11b, CD13, CD14, CD15, CD32, CD3, HLA-
DR
Erythroid Glycophorin, spectrin, ABH antigens, carbonic
anhydrase I, HLA-DR
Promyelocytic CD13, CD33
Monocytic CD11b, 11c, CD13, CD14, CD33, CD65, HLA-
DR
Megakaryoblastic CD34, CD41, CD42, CD61, anti-von Willebrand
factor
Basophilic CD11b, CD13, CD33, CD123, CD203c
Mast cell CD13, CD33, CD117

20. Plasma Chemical Findings
• Severe hyponatremia associated with SIADH secretion has
occurred at presentation.
• Severe hypernatremia as a consequence of diabetes insipidus can
be an initial event.
• Hypokalemia is a more frequent finding at presentation and is
related to kaliuresis.
• Hypercalcemia can occur.
• Severe lactic acidosis prior to treatment has been reported.
• Hypophosphatemia as a result of phosphate uptake by leukemic
cells can occur.
• Uric acid and lactic dehydrogenase levels levels are higher in
myelomonocytic and monocytic AML than in other AML phenotypes
• Acute promyelocytic and acute monocytic leukemia are associated
with hypofibrinogenemia and other indicators of activation of
coagulation or fibrinolysis
• The levels of the shed form of L-selectinand anticardiolipin antibodies ,
levels of soluble VEGF receptor-1 (VEGFR-1) and VEGFR-2 are frquently
elevated
• The ratio of soluble VEGFR-1 to VEGF correlates with greater
leukemic blast cell burden and with less favorable outcome.

22. Poor prognostic markers
Older age
Unfavorable karyotypes
Multidrug resistance phenotype
Prior clonal hemopathy
Higher white cell count: Count >30,000/µL (30 x 109
/L) or a blast cell count >15,000/µL
Very low platelet count (<30,000/µL [<30 x 109
/L])
High serum lactic dehydrogenase, Low serum albumin or prealbumin
Low expression of retinoblastoma gene
Another medical disorder: extreme obesity, diabetes mellitus, chronic renal disease
Need for intubation or ventilator support during induction therapy
High BCL-2, MCL-1 expression, mutated KIT with t(8;21), MLL tandem duplications and
11p23/MLL abnormalities

23. Cytogenetics

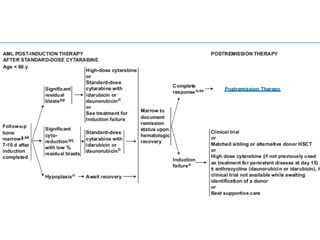

24. Therapy

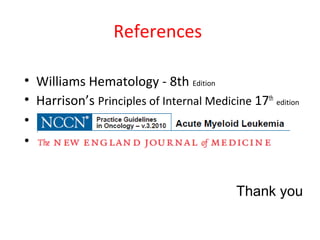

30. References
• Williams Hematology - 8th Edition
• Harrison’s Principles of Internal Medicine 17th
edition
• H
• aaa
Thank you
