The seminar report by Baldev Ram discusses the AC performance of nanoelectronics, focusing on carbon nanotube transistors and their use in high-frequency applications. It details both tunnel and ballistic transport devices, highlighting that while resistance seems to limit operational speed, small capacitance and spacing can enable extremely fast performance. The report includes a literature survey, various figures, and extensive exploration of the mechanisms affecting transistor performance and design considerations for maximizing ballistic transport.

1. i
A

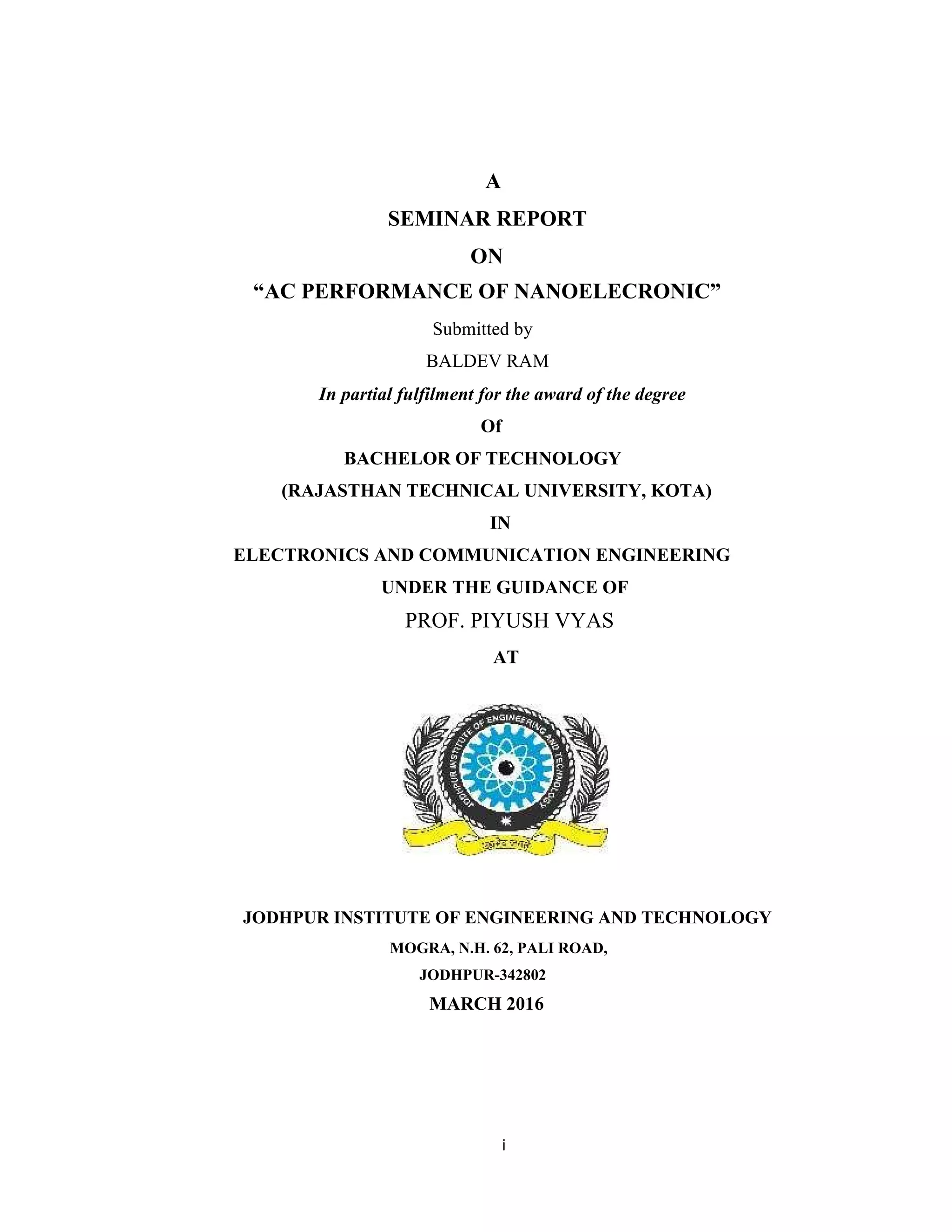

SEMINAR REPORT
ON
“AC PERFORMANCE OF NANOELECRONIC”
Submitted by
BALDEV RAM
In partial fulfilment for the award of the degree
Of
BACHELOR OF TECHNOLOGY
(RAJASTHAN TECHNICAL UNIVERSITY, KOTA)
IN
ELECTRONICS AND COMMUNICATION ENGINEERING
UNDER THE GUIDANCE OF
PROF. PIYUSH VYAS
AT
JODHPUR INSTITUTE OF ENGINEERING AND TECHNOLOGY
MOGRA, N.H. 62, PALI ROAD,
JODHPUR-342802
MARCH 2016

2. ii

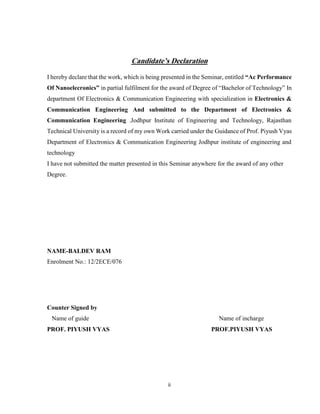

Candidate’s Declaration
I hereby declare that the work, which is being presented in the Seminar, entitled “Ac Performance
Of Nanoelecronics” in partial fulfilment for the award of Degree of “Bachelor of Technology” In
department Of Electronics & Communication Engineering with specialization in Electronics &
Communication Engineering And submitted to the Department of Electronics &
Communication Engineering .Jodhpur Institute of Engineering and Technology, Rajasthan
Technical University is a record of my own Work carried under the Guidance of Prof. Piyush Vyas
Department of Electronics & Communication Engineering Jodhpur institute of engineering and
technology
I have not submitted the matter presented in this Seminar anywhere for the award of any other
Degree.
NAME-BALDEV RAM
Enrolment No.: 12/2ECE/076
Counter Signed by
Name of guide Name of incharge
PROF. PIYUSH VYAS PROF.PIYUSH VYAS

3. iii

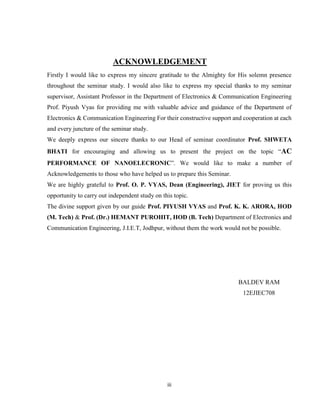

ACKNOWLEDGEMENT
Firstly I would like to express my sincere gratitude to the Almighty for His solemn presence
throughout the seminar study. I would also like to express my special thanks to my seminar
supervisor, Assistant Professor in the Department of Electronics & Communication Engineering
Prof. Piyush Vyas for providing me with valuable advice and guidance of the Department of
Electronics & Communication Engineering For their constructive support and cooperation at each
and every juncture of the seminar study.
We deeply express our sincere thanks to our Head of seminar coordinator Prof. SHWETA
BHATI for encouraging and allowing us to present the project on the topic “AC
PERFORMANCE OF NANOELECRONIC”. We would like to make a number of
Acknowledgements to those who have helped us to prepare this Seminar.
We are highly grateful to Prof. O. P. VYAS, Dean (Engineering), JIET for proving us this
opportunity to carry out independent study on this topic.
The divine support given by our guide Prof. PIYUSH VYAS and Prof. K. K. ARORA, HOD
(M. Tech) & Prof. (Dr.) HEMANT PUROHIT, HOD (B. Tech) Department of Electronics and
Communication Engineering, J.I.E.T, Jodhpur, without them the work would not be possible.
BALDEV RAM
12EJIEC708

4. iv

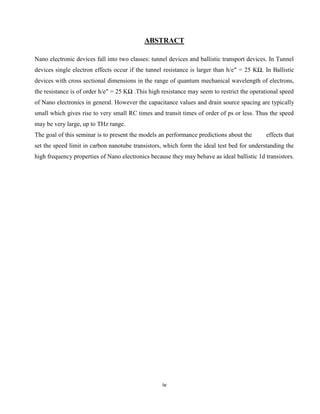

ABSTRACT
Nano electronic devices fall into two classes: tunnel devices and ballistic transport devices. In Tunnel
devices single electron effects occur if the tunnel resistance is larger than h/e″ = 25 KΩ. In Ballistic
devices with cross sectional dimensions in the range of quantum mechanical wavelength of electrons,
the resistance is of order h/e″ = 25 KΩ .This high resistance may seem to restrict the operational speed
of Nano electronics in general. However the capacitance values and drain source spacing are typically
small which gives rise to very small RC times and transit times of order of ps or less. Thus the speed
may be very large, up to THz range.
The goal of this seminar is to present the models an performance predictions about the effects that
set the speed limit in carbon nanotube transistors, which form the ideal test bed for understanding the
high frequency properties of Nano electronics because they may behave as ideal ballistic 1d transistors.

5. v

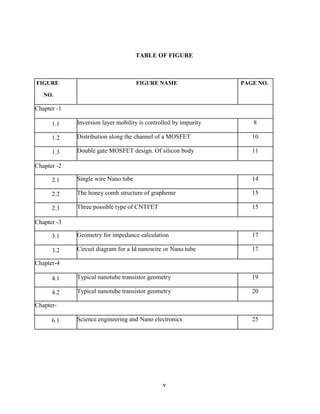

TABLE OF FIGURE
FIGURE FIGURE NAME PAGE NO.
NO.
Chapter -1
1.1 Inversion layer mobility is controlled by impurity 8

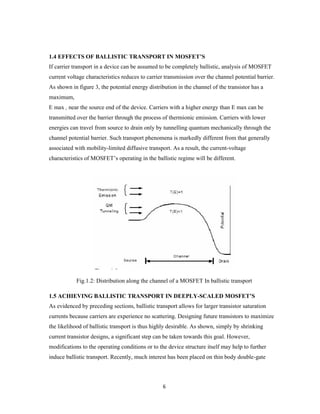

1.2 Distribution along the channel of a MOSFET 10

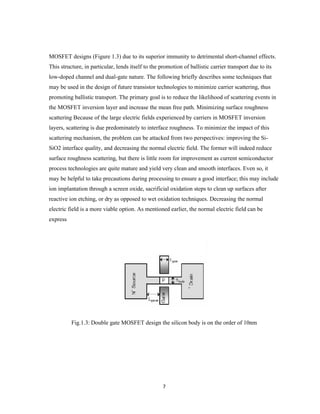

1.3 Double gate MOSFET design. Of silicon body 11
Chapter -2

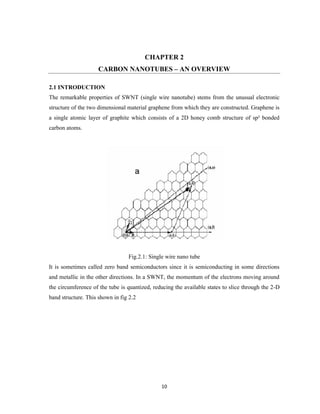

2.1 Single wire Nano tube 14

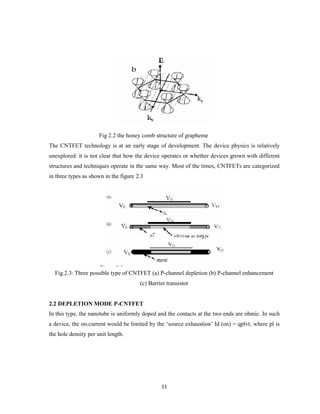

2.2 The honey comb structure of grapheme 15
2.3 Three possible type of CNTFET 15
Chapter -3
3.1 Geometry for impedance calculation 17
3.2 Circuit diagram for a Id nanowire or Nano tube 17
Chapter-4
4.1 Typical nanotube transistor geometry 19
4.2 Typical nanotube transistor geometry 20
Chapter-

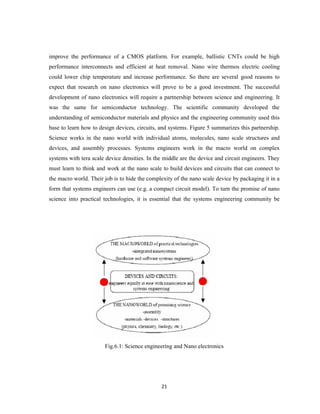

6.1 Science engineering and Nano electronics 25

6. vi

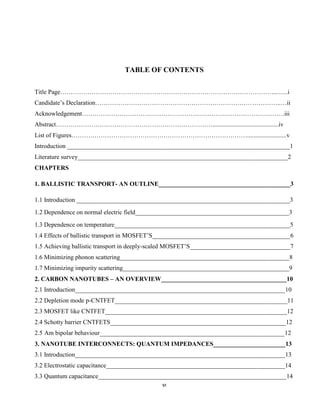

TABLE OF CONTENTS
Title Page…………………………………………………………………………………………..…...i
Candidate’s Declaration……………………………………………………………………………..…ii
Acknowledgement…………………………………………………………………………………….iii
Abstract…………………………………………………………………..........................................iv
List of Figures………………………………………………………………………….........................v
Introduction _______________________________________________________________________1
Literature survey___________________________________________________________________2
CHAPTERS
1. BALLISTIC TRANSPORT- AN OUTLINE__________________________________________3
1.1 Introduction ____________________________________________________________________3
1.2 Dependence on normal electric field_________________________________________________3
1.3 Dependence on temperature________________________________________________________5
1.4 Effects of ballistic transport in MOSFET’S____________________________________________6
1.5 Achieving ballistic transport in deeply-scaled MOSFET’S________________________________7
1.6 Minimizing phonon scattering______________________________________________________8

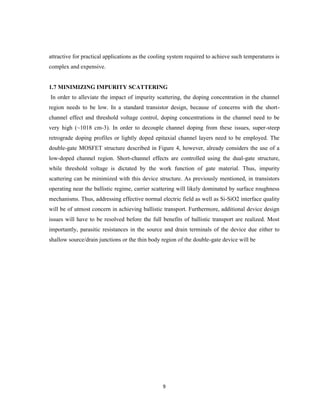

1.7 Minimizing impurity scattering_____________________________________________________9
2. CARBON NANOTUBES – AN OVERVIEW________________________________________10
2.1 Introduction___________________________________________________________________10
2.2 Depletion mode p-CNTFET_______________________________________________________11
2.3 MOSFET like CNTFET__________________________________________________________12
2.4 Schotty barrier CNTFETS________________________________________________________12
2.5 Am bipolar behaviour___________________________________________________________12

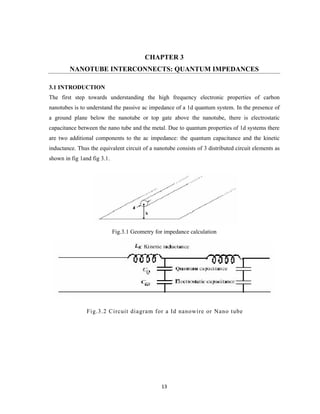

3. NANOTUBE INTERCONNECTS: QUANTUM IMPEDANCES_______________________13
3.1 Introduction___________________________________________________________________13
3.2 Electrostatic capacitance_________________________________________________________14
3.3 Quantum capacitance____________________________________________________________14

7. vii

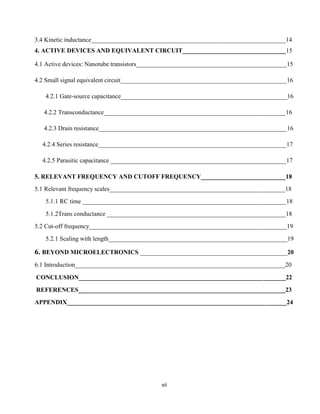

3.4 Kinetic inductance______________________________________________________________14
4. ACTIVE DEVICES AND EQUIVALENT CIRCUIT_________________________________15
4.1 Active devices: Nanotube transistors________________________________________________15

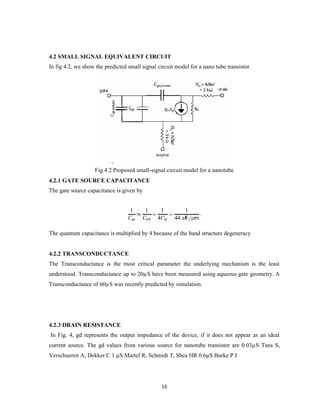

4.2 Small signal equivalent circuit_____________________________________________________16
4.2.1 Gate-source capacitance_____________________________________________________16
4.2.2 Transconductance__________________________________________________________16
4.2.3 Drain resistance____________________________________________________________16

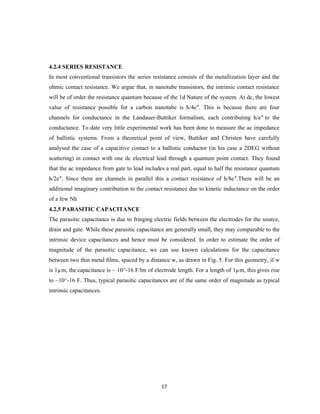

4.2.4 Series resistance____________________________________________________________17
4.2.5 Parasitic capacitance ________________________________________________________17

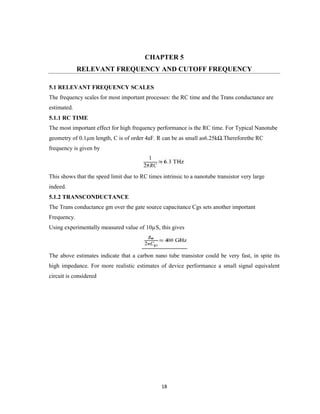

5. RELEVANT FREQUENCY AND CUTOFF FREQUENCY___________________________18
5.1 Relevant frequency scales________________________________________________________18
5.1.1 RC time _________________________________________________________________18
5.1.2Trans conductance _________________________________________________________18

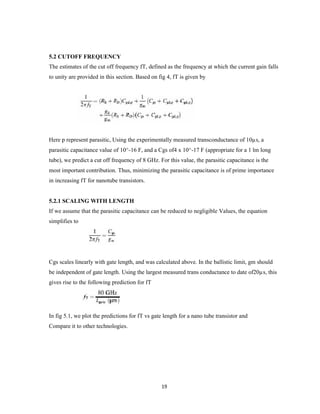

5.2 Cut-off frequency_______________________________________________________________19
5.2.1 Scaling with length_________________________________________________________19

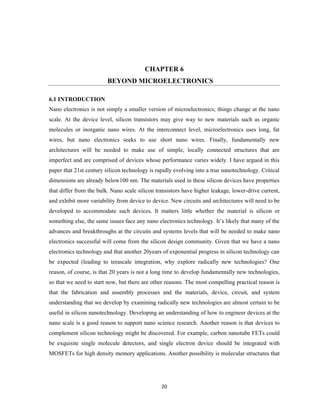

6. BEYOND MICROELECTRONICS _______________________________________________20
6.1 Introduction___________________________________________________________________20

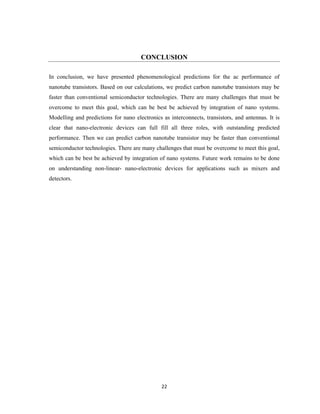

CONCLUSION__________________________________________________________________22
REFERENCES__________________________________________________________________23
APPENDIX______________________________________________________________________24

8. 1

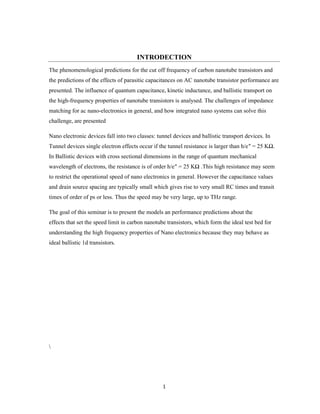

INTRODECTION
The phenomenological predictions for the cut off frequency of carbon nanotube transistors and
the predictions of the effects of parasitic capacitances on AC nanotube transistor performance are
presented. The influence of quantum capacitance, kinetic inductance, and ballistic transport on
the high-frequency properties of nanotube transistors is analysed. The challenges of impedance
matching for ac nano-electronics in general, and how integrated nano systems can solve this
challenge, are presented
Nano electronic devices fall into two classes: tunnel devices and ballistic transport devices. In
Tunnel devices single electron effects occur if the tunnel resistance is larger than h/e″ = 25 KΩ.
In Ballistic devices with cross sectional dimensions in the range of quantum mechanical
wavelength of electrons, the resistance is of order h/e″ = 25 KΩ .This high resistance may seem
to restrict the operational speed of nano electronics in general. However the capacitance values
and drain source spacing are typically small which gives rise to very small RC times and transit
times of order of ps or less. Thus the speed may be very large, up to THz range.
The goal of this seminar is to present the models an performance predictions about the
effects that set the speed limit in carbon nanotube transistors, which form the ideal test bed for
understanding the high frequency properties of Nano electronics because they may behave as
ideal ballistic 1d transistors.

9. 2

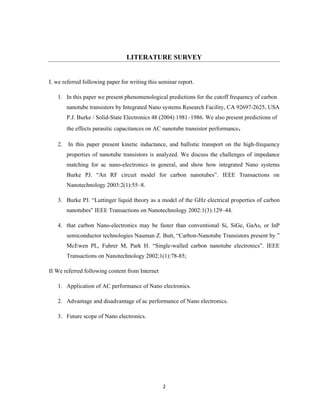

LITERATURE SURVEY
I. we referred following paper for writing this seminar report.
1. In this paper we present phenomenological predictions for the cutoff frequency of carbon
nanotube transistors by Integrated Nano systems Research Facility, CA 92697-2625, USA
P.J. Burke / Solid-State Electronics 48 (2004) 1981–1986. We also present predictions of
the effects parasitic capacitances on AC nanotube transistor performance.
2. In this paper present kinetic inductance, and ballistic transport on the high-frequency
properties of nanotube transistors is analyzed. We discuss the challenges of impedance
matching for ac nano-electronics in general, and show how integrated Nano systems
Burke PJ. “An RF circuit model for carbon nanotubes”. IEEE Transactions on
Nanotechnology 2003:2(1):55–8.
3. Burke PJ. “Luttinger liquid theory as a model of the GHz electrical properties of carbon
nanotubes” IEEE Transactions on Nanotechnology 2002:1(3):129–44.
4. that carbon Nano-electronics may be faster than conventional Si, SiGe, GaAs, or InP
semiconductor technologies Nauman Z. Butt, “Carbon-Nanotube Transistors present by ”
McEwen PL, Fuhrer M, Park H. “Single-walled carbon nanotube electronics”. IEEE
Transactions on Nanotechnology 2002;1(1):78-85;
II We referred following content from Internet
1. Application of AC performance of Nano electronics.
2. Advantage and disadvantage of ac performance of Nano electronics.
3. Future scope of Nano electronics.

10. 3

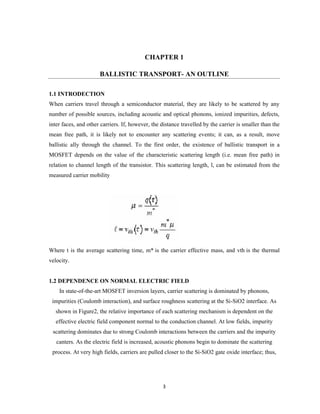

CHAPTER 1
BALLISTIC TRANSPORT- AN OUTLINE
1.1 INTRODECTION
When carriers travel through a semiconductor material, they are likely to be scattered by any
number of possible sources, including acoustic and optical phonons, ionized impurities, defects,
inter faces, and other carriers. If, however, the distance travelled by the carrier is smaller than the
mean free path, it is likely not to encounter any scattering events; it can, as a result, move
ballistic ally through the channel. To the first order, the existence of ballistic transport in a
MOSFET depends on the value of the characteristic scattering length (i.e. mean free path) in
relation to channel length of the transistor. This scattering length, l, can be estimated from the
measured carrier mobility
Where t is the average scattering time, m* is the carrier effective mass, and vth is the thermal
velocity.
1.2 DEPENDENCE ON NORMAL ELECTRIC FIELD
In state-of-the-art MOSFET inversion layers, carrier scattering is dominated by phonons,
impurities (Coulomb interaction), and surface roughness scattering at the Si-SiO2 interface. As
shown in Figure2, the relative importance of each scattering mechanism is dependent on the
effective electric field component normal to the conduction channel. At low fields, impurity
scattering dominates due to strong Coulomb interactions between the carriers and the impurity
canters. As the electric field is increased, acoustic phonons begin to dominate the scattering
process. At very high fields, carriers are pulled closer to the Si-SiO2 gate oxide interface; thus,

11. 4

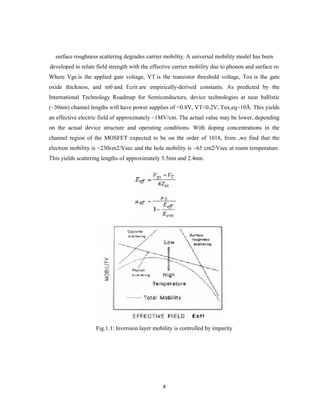

surface roughness scattering degrades carrier mobility. A universal mobility model has been
developed to relate field strength with the effective carrier mobility due to phonon and surface ro
Where Vgs is the applied gate voltage, VT is the transistor threshold voltage, Tox is the gate
oxide thickness, and m0 and Ecrit are empirically-derived constants. As predicted by the
International Technology Roadmap for Semiconductors, device technologies at near ballistic
(~30nm) channel lengths will have power supplies of <0.8V, VT<0.2V, Tox,eq~10Å. This yields
an effective electric field of approximately ~1MV/cm. The actual value may be lower, depending
on the actual device structure and operating conditions. With doping concentrations in the
channel region of the MOSFET expected to be on the order of 1018, from ,we find that the
electron mobility is ~230cm2/Vsec and the hole mobility is ~65 cm2/Vsec at room temperature.
This yields scattering lengths of approximately 5.5nm and 2.4nm.
Fig.1.1: Inversion layer mobility is controlled by impurity

12. 5

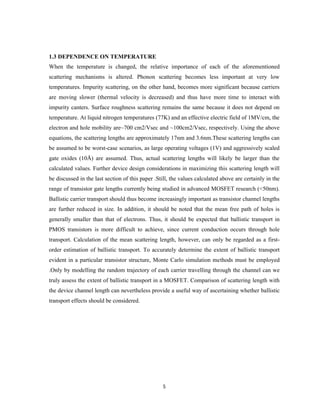

1.3 DEPENDENCE ON TEMPERATURE
When the temperature is changed, the relative importance of each of the aforementioned
scattering mechanisms is altered. Phonon scattering becomes less important at very low
temperatures. Impurity scattering, on the other hand, becomes more significant because carriers
are moving slower (thermal velocity is decreased) and thus have more time to interact with
impurity canters. Surface roughness scattering remains the same because it does not depend on
temperature. At liquid nitrogen temperatures (77K) and an effective electric field of 1MV/cm, the
electron and hole mobility are~700 cm2/Vsec and ~100cm2/Vsec, respectively. Using the above
equations, the scattering lengths are approximately 17nm and 3.6nm.These scattering lengths can
be assumed to be worst-case scenarios, as large operating voltages (1V) and aggressively scaled
gate oxides (10Å) are assumed. Thus, actual scattering lengths will likely be larger than the
calculated values. Further device design considerations in maximizing this scattering length will
be discussed in the last section of this paper .Still, the values calculated above are certainly in the
range of transistor gate lengths currently being studied in advanced MOSFET research (<50nm).
Ballistic carrier transport should thus become increasingly important as transistor channel lengths
are further reduced in size. In addition, it should be noted that the mean free path of holes is
generally smaller than that of electrons. Thus, it should be expected that ballistic transport in
PMOS transistors is more difficult to achieve, since current conduction occurs through hole
transport. Calculation of the mean scattering length, however, can only be regarded as a first-
order estimation of ballistic transport. To accurately determine the extent of ballistic transport
evident in a particular transistor structure, Monte Carlo simulation methods must be employed
.Only by modelling the random trajectory of each carrier travelling through the channel can we
truly assess the extent of ballistic transport in a MOSFET. Comparison of scattering length with
the device channel length can nevertheless provide a useful way of ascertaining whether ballistic
transport effects should be considered.

13. 6
1.4 EFFECTS OF BALLISTIC TRANSPORT IN MOSFET’S
If carrier transport in a device can be assumed to be completely ballistic, analysis of MOSFET
current voltage characteristics reduces to carrier transmission over the channel potential barrier.
As shown in figure 3, the potential energy distribution in the channel of the transistor has a
maximum,
E max , near the source end of the device. Carriers with a higher energy than E max can be
transmitted over the barrier through the process of thermionic emission. Carriers with lower
energies can travel from source to drain only by tunnelling quantum mechanically through the
channel potential barrier. Such transport phenomena is markedly different from that generally
associated with mobility-limited diffusive transport. As a result, the current-voltage
characteristics of MOSFET’s operating in the ballistic regime will be different.
Fig.1.2: Distribution along the channel of a MOSFET In ballistic transport
1.5 ACHIEVING BALLISTIC TRANSPORT IN DEEPLY-SCALED MOSFET’S
As evidenced by preceding sections, ballistic transport allows for larger transistor saturation
currents because carriers are experience no scattering. Designing future transistors to maximize
the likelihood of ballistic transport is thus highly desirable. As shown, simply by shrinking
current transistor designs, a significant step can be taken towards this goal. However,
modifications to the operating conditions or to the device structure itself may help to further
induce ballistic transport. Recently, much interest has been placed on thin body double-gate

14. 7
MOSFET designs (Figure 1.3) due to its superior immunity to detrimental short-channel effects.
This structure, in particular, lends itself to the promotion of ballistic carrier transport due to its
low-doped channel and dual-gate nature. The following briefly describes some techniques that
may be used in the design of future transistor technologies to minimize carrier scattering, thus
promoting ballistic transport. The primary goal is to reduce the likelihood of scattering events in
the MOSFET inversion layer and increase the mean free path. Minimizing surface roughness
scattering Because of the large electric fields experienced by carriers in MOSFET inversion
layers, scattering is due predominately to interface roughness. To minimize the impact of this
scattering mechanism, the problem can be attacked from two perspectives: improving the Si-
SiO2 interface quality, and decreasing the normal electric field. The former will indeed reduce
surface roughness scattering, but there is little room for improvement as current semiconductor
process technologies are quite mature and yield very clean and smooth interfaces. Even so, it
may be helpful to take precautions during processing to ensure a good interface; this may include
ion implantation through a screen oxide, sacrificial oxidation steps to clean up surfaces after
reactive ion etching, or dry as opposed to wet oxidation techniques. Decreasing the normal
electric field is a more viable option. As mentioned earlier, the normal electric field can be
express
Fig.1.3: Double gate MOSFET design the silicon body is on the order of 10nm

15. 8
To decrease the normal electric field, either the power supply voltage (which becomes the
applied Vgs) must be scaled down or the oxide thickness must be increased. Lowering of the
power supply is already a widespread trend, mainly due to power dissipation and device
reliability concerns. However, this results in a smaller inversion charge density and thus a smaller
current. As such, a trade off in current drive can be observed between minimization of carrier
scattering and the decrease in inversion charge. There is likely an optimum point for the choice
of supply voltage. Normally, gate oxide thickness is decreased in advanced transistor
technologies to combat short channel effects and to improve the ability to “turn off” the
transistor. However, a thicker gate oxide may allow for ballistic transport, which may decrease
the effective field, increase current, and result in an overall advantage. The double-gate MOSFET
structure (Figure 4) is particularly attractive for this option because two gate electrodes exist to
help to control channel conductivity, the gate oxide thickness need not be as thin to achieve small
gate lengths. Additionally, in the double-gate MOSFET structure, because there are two gate
electrodes on opposite sides of the conduction channel, it is reasonable to assume that the two
will have a cancelling effect on the normal electric field component in the middle of the silicon
body . This should, in turn, reduce surface roughness scattering in the inversion layer. If indeed
the normal electric field component is reduced in double-gate MOSFET’s, it may be much easier
to achieve ballistic-mode transport in these devices.
1.6 MINIMIZING PHONON SCATTERING
Phonons resulting from vibrations in the silicon lattice are principally controlled by the ambient
temperature. Decreasing the operating temperature of a transistor reduces phonon scattering and
increases the carrier transmission coefficient and thus the likelihood of ballistic transport.
Transmission coefficients as high as 92% have been obtained at liquid nitrogen temperatures
(77K).However, low temperature operation, while interesting from an academic standpoint, is not

16. 9
attractive for practical applications as the cooling system required to achieve such temperatures is
complex and expensive.
1.7 MINIMIZING IMPURITY SCATTERING
In order to alleviate the impact of impurity scattering, the doping concentration in the channel
region needs to be low. In a standard transistor design, because of concerns with the short-
channel effect and threshold voltage control, doping concentrations in the channel need to be
very high (~1018 cm-3). In order to decouple channel doping from these issues, super-steep
retrograde doping profiles or lightly doped epitaxial channel layers need to be employed. The
double-gate MOSFET structure described in Figure 4, however, already considers the use of a
low-doped channel region. Short-channel effects are controlled using the dual-gate structure,
while threshold voltage is dictated by the work function of gate material. Thus, impurity
scattering can be minimized with this device structure. As previously mentioned, in transistors
operating near the ballistic regime, carrier scattering will likely dominated by surface roughness
mechanisms. Thus, addressing effective normal electric field as well as Si-SiO2 interface quality
will be of utmost concern in achieving ballistic transport. Furthermore, additional device design
issues will have to be resolved before the full benefits of ballistic transport are realized. Most
importantly, parasitic resistances in the source and drain terminals of the device due either to
shallow source/drain junctions or the thin body region of the double-gate device will be

17. 10
CHAPTER 2
CARBON NANOTUBES – AN OVERVIEW
2.1 INTRODUCTION
The remarkable properties of SWNT (single wire nanotube) stems from the unusual electronic
structure of the two dimensional material graphene from which they are constructed. Graphene is
a single atomic layer of graphite which consists of a 2D honey comb structure of sp² bonded
carbon atoms.
Fig.2.1: Single wire nano tube
It is sometimes called zero band semiconductors since it is semiconducting in some directions
and metallic in the other directions. In a SWNT, the momentum of the electrons moving around
the circumference of the tube is quantized, reducing the available states to slice through the 2-D
band structure. This shown in fig 2.2

18. 11
Fig 2.2 the honey comb structure of grapheme
The CNTFET technology is at an early stage of development. The device physics is relatively
unexplored: it is not clear that how the device operates or whether devices grown with different
structures and techniques operate in the same way. Most of the times, CNTFETs are categorized
in three types as shown in the figure 2.3
Fig.2.3: Three possible type of CNTFET (a) P-channel depletion (b) P-channel enhancement
(c) Barrier transistor
2.2 DEPLETION MODE P-CNTFET
In this type, the nanotube is uniformly doped and the contacts at the two ends are ohmic. In such
a device, the on-current would be limited by the ‘source exhaustion’ Id (on) = qplvt, where pl is
the hole density per unit length.

19. 12
2.3 MOSFET LIKE CNTFET
In this type of nanotube transistors, the conductance of channel is controlled by the gate as in a
MOSFET. This is supported by the fact that some long channel CNTFETs Obeys the MOSFET
square law theory and no am bipolar behaviour is observed in these Devices. Some recent
CNTFETs that behaves as MOSFET like devices, have demonstrated performance that is many
orders of magnitude better than current state of-the-art MOSFETs.
2.4 SCHOTTY BARRIER CNTFETS
Another possibility is that the CNTFET operates as “Schottky barrier transistors” in which
transistor action takes place primarily by varying the contact resistance rather than the channel
conductance. This is supported by the observations of am bipolar behaviour in some CNTFETs.
The observation of am bipolar operation in some CNTFETs and the transition of the tube from n-
type top-type indicate that some CNTFETs operate as unconventional Schottky barrier
transistors. In such a device, the gate modulates the transmission through a Schottky barrier and
the transistor action takes place primarily by varying the contact resistance rather than the
channel conductance. In addition, the electrode geometry is crucial for good device performance.
2.5 AMBIPOLAR BEHAVIOR
The CNTFETs measured in air are unipolar with p type characteristics, i.e. the tube conducts
holes upon applying negative gate voltages and they show no evidence of electron conduction
events very large gate voltages. The origin of this p-type character of semiconducting SWNT is
still not clearly understood. Several proposals have been made to explain this effect including
contact doping, doping introduced by cleaning or handling the nanotube in oxidizing acids, or
doping by the adsorption of atmospheric oxygen. In principle any of the above mechanism can
influence the transistor characteristics. The device is said to be am bipolar when it behaves like
n-type or p-type depending on the applied gate voltage i.e. it shows large conduction for both
positive and negative gate voltages

20. 13
CHAPTER 3
NANOTUBE INTERCONNECTS: QUANTUM IMPEDANCES
3.1 INTRODUCTION
The first step towards understanding the high frequency electronic properties of carbon
nanotubes is to understand the passive ac impedance of a 1d quantum system. In the presence of
a ground plane below the nanotube or top gate above the nanotube, there is electrostatic
capacitance between the nano tube and the metal. Due to quantum properties of 1d systems there
are two additional components to the ac impedance: the quantum capacitance and the kinetic
inductance. Thus the equivalent circuit of a nanotube consists of 3 distributed circuit elements as
shown in fig 1and fig 3.1.
Fig.3.1 Geometry for impedance calculation
Fig.3.2 Circuit diagram for a Id nanowire or Nano tube

21. 14
3.2 ELECTROSTATIC CAPACITANCE
The electrostatic capacitance between a wire and a ground plane as shown infig1 is given by
where the approximation holds good to within 1% for h > 2d. For a typical value if h/d, this wire
length can be approximated numerically as
3.3 QUANTUM CAPACITANCE
Because of the finite quantum energy level spacing of electrons in 1d, it costs energy to add an
electron to the system. By equating this energy cost ∆E with an effective Quantum capacitance,
one arrives at the following expression for capacitance per unit length:
Where h is the Planck’s constant and νF is the Fermi velocity. The fermi velocity for graphene
and also carbon nano tubes is usually taken as νF = 8x 10ˆ5 m/s, so that numerically,
3.4 KINETIC INDUCTANCE
Due to inertia of electrons, the instantaneous velocity lags the instantaneous electric field in time.
This means the current lags the phase, which can be described as a kinetic inductance. For1d
systems we have the following expression for the kinetic energy per unit length:
Numerically,

22. 15

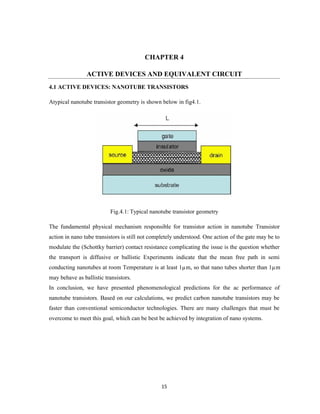

CHAPTER 4
ACTIVE DEVICES AND EQUIVALENT CIRCUIT
4.1 ACTIVE DEVICES: NANOTUBE TRANSISTORS
Atypical nanotube transistor geometry is shown below in fig4.1.
Fig.4.1: Typical nanotube transistor geometry
The fundamental physical mechanism responsible for transistor action in nanotube Transistor
action in nano tube transistors is still not completely understood. One action of the gate may be to
modulate the (Schottky barrier) contact resistance complicating the issue is the question whether
the transport is diffusive or ballistic Experiments indicate that the mean free path in semi
conducting nanotubes at room Temperature is at least 1µm, so that nano tubes shorter than 1µm
may behave as ballistic transistors.
In conclusion, we have presented phenomenological predictions for the ac performance of
nanotube transistors. Based on our calculations, we predict carbon nanotube transistors may be
faster than conventional semiconductor technologies. There are many challenges that must be
overcome to meet this goal, which can be best be achieved by integration of nano systems.

23. 16
4.2 SMALL SIGNAL EQUIVALENT CIRCUIT
In fig 4.2, we show the predicted small signal circuit model for a nano tube transistor
Fig.4.2 Proposed small-signal circuit model for a nanotube
4.2.1 GATE SOURCE CAPACITANCE
The gate source capacitance is given by
The quantum capacitance is multiplied by 4 because of the band structure degeneracy
4.2.2 TRANSCONDUCTANCE
The Transconductance is the most critical parameter the underlying mechanism is the least
understood. Transconductance up to 20µS have been measured using aqueous gate geometry. A
Transconductance of 60µS was recently predicted by simulation.
4.2.3 DRAIN RESISTANCE
In Fig. 4, gd represents the output impedance of the device, if it does not appear as an ideal
current source. The gd values from various source for nanotube transistor are 0.03µS Tans S,
Verschueren A, Dekker C 1 µS Martel R, Schmidt T, Shea HR 0.6µS Burke P J

24. 17
4.2.4 SERIES RESISTANCE
In most conventional transistors the series resistance consists of the metallization layer and the
ohmic contact resistance. We argue that, in nanotube transistors, the intrinsic contact resistance
will be of order the resistance quantum because of the 1d Nature of the system. At dc, the lowest
value of resistance possible for a carbon nanotube is h/4e″. This is because there are four
channels for conductance in the Landauer-Buttiker formalism, each contributing h/e″ to the
conductance. To date very little experimental work has been done to measure the ac impedance
of ballistic systems. From a theoretical point of view, Buttiker and Christen have carefully
analysed the case of a capacitive contact to a ballistic conductor (in his case a 2DEG without
scattering) in contact with one dc electrical lead through a quantum point contact. They found
that the ac impedance from gate to lead includes a real part, equal to half the resistance quantum
h/2e″. Since there are channels in parallel this a contact resistance of h/8e″.There will be an
additional imaginary contribution to the contact resistance due to kinetic inductance on the order
of a few Nh
4.2.5 PARASITIC CAPACITANCE
The parasitic capacitance is due to fringing electric fields between the electrodes for the source,
drain and gate. While these parasitic capacitance are generally small, they may comparable to the
intrinsic device capacitances and hence must be considered. In order to estimate the order of
magnitude of the parasitic capacitance, we can use known calculations for the capacitance
between two thin metal films, spaced by a distance w, as drawn in Fig. 5. For this geometry, if w
is 1µm, the capacitance is ~ 10^-16 F/lm of electrode length. For a length of 1µm, this gives rise
to ~10^-16 F. Thus, typical parasitic capacitances are of the same order of magnitude as typical
intrinsic capacitances.

25. 18
CHAPTER 5
RELEVANT FREQUENCY AND CUTOFF FREQUENCY
5.1 RELEVANT FREQUENCY SCALES
The frequency scales for most important processes: the RC time and the Trans conductance are
estimated.
5.1.1 RC TIME
The most important effect for high frequency performance is the RC time. For Typical Nanotube
geometry of 0.1µm length, C is of order 4aF. R can be as small as6.25kΩ.Thereforethe RC
frequency is given by
This shows that the speed limit due to RC times intrinsic to a nanotube transistor very large
indeed.
5.1.2 TRANSCONDUCTANCE
The Trans conductance gm over the gate source capacitance Cgs sets another important
Frequency.
Using experimentally measured value of 10µS, this gives
The above estimates indicate that a carbon nano tube transistor could be very fast, in spite its
high impedance. For more realistic estimates of device performance a small signal equivalent
circuit is considered

26. 19
5.2 CUTOFF FREQUENCY
The estimates of the cut off frequency fT, defined as the frequency at which the current gain falls
to unity are provided in this section. Based on fig 4, fT is given by
Here p represent parasitic, Using the experimentally measured transconductance of 10µs, a
parasitic capacitance value of 10^-16 F, and a Cgs of4 x 10^-17 F (appropriate for a 1 lm long
tube), we predict a cut off frequency of 8 GHz. For this value, the parasitic capacitance is the
most important contribution. Thus, minimizing the parasitic capacitance is of prime importance
in increasing fT for nanotube transistors.
5.2.1 SCALING WITH LENGTH
If we assume that the parasitic capacitance can be reduced to negligible Values, the equation
simplifies to
Cgs scales linearly with gate length, and was calculated above. In the ballistic limit, gm should
be independent of gate length. Using the largest measured trans conductance to date of20µs, this
gives rise to the following prediction for fT
In fig 5.1, we plot the predictions for fT vs gate length for a nano tube transistor and
Compare it to other technologies.

27. 20
CHAPTER 6
BEYOND MICROELECTRONICS
6.1 INTRODUCTION
Nano electronics is not simply a smaller version of microelectronics; things change at the nano
scale. At the device level, silicon transistors may give way to new materials such as organic
molecules or inorganic nano wires. At the interconnect level, microelectronics uses long, fat
wires, but nano electronics seeks to use short nano wires. Finally, fundamentally new
architectures will be needed to make use of simple, locally connected structures that are
imperfect and are comprised of devices whose performance varies widely. I have argued in this
paper that 21st century silicon technology is rapidly evolving into a true nanotechnology. Critical
dimensions are already below100 nm. The materials used in these silicon devices have properties
that differ from the bulk. Nano scale silicon transistors have higher leakage, lower-drive current,
and exhibit more variability from device to device. New circuits and architectures will need to be
developed to accommodate such devices. It matters little whether the material is silicon or
something else, the same issues face any nano electronics technology. It’s likely that many of the
advances and breakthroughs at the circuits and systems levels that will be needed to make nano
electronics successful will come from the silicon design community. Given that we have a nano
electronics technology and that another 20years of exponential progress in silicon technology can
be expected (leading to terascale integration, why explore radically new technologies? One
reason, of course, is that 20 years is not a long time to develop fundamentally new technologies,
so that we need to start now, but there are other reasons. The most compelling practical reason is
that the fabrication and assembly processes and the materials, device, circuit, and system
understanding that we develop by examining radically new technologies are almost certain to be
useful in silicon nanotechnology. Developing an understanding of how to engineer devices at the
nano scale is a good reason to support nano science research. Another reason is that devices to
complement silicon technology might be discovered. For example, carbon nanotube FETs could
be exquisite single molecule detectors, and single electron device should be integrated with
MOSFETs for high density memory applications. Another possibility is molecular structures that

28. 21
improve the performance of a CMOS platform. For example, ballistic CNTs could be high
performance interconnects and efficient at heat removal. Nano wire thermos electric cooling
could lower chip temperature and increase performance. So there are several good reasons to
expect that research on nano electronics will prove to be a good investment. The successful
development of nano electronics will require a partnership between science and engineering. It
was the same for semiconductor technology. The scientific community developed the
understanding of semiconductor materials and physics and the engineering community used this
base to learn how to design devices, circuits, and systems. Figure 5 summarizes this partnership.
Science works in the nano world with individual atoms, molecules, nano scale structures and
devices, and assembly processes. Systems engineers work in the macro world on complex
systems with tera scale device densities. In the middle are the device and circuit engineers. They
must learn to think and work at the nano scale to build devices and circuits that can connect to
the macro world. Their job is to hide the complexity of the nano scale device by packaging it in a
form that systems engineers can use (e.g. a compact circuit model). To turn the promise of nano
science into practical technologies, it is essential that the systems engineering community be
Fig.6.1: Science engineering and Nano electronics

29. 22
CONCLUSION
In conclusion, we have presented phenomenological predictions for the ac performance of
nanotube transistors. Based on our calculations, we predict carbon nanotube transistors may be
faster than conventional semiconductor technologies. There are many challenges that must be
overcome to meet this goal, which can be best be achieved by integration of nano systems.
Modelling and predictions for nano electronics as interconnects, transistors, and antennas. It is
clear that nano-electronic devices can full fill all three roles, with outstanding predicted
performance. Then we can predict carbon nanotube transistor may be faster than conventional
semiconductor technologies. There are many challenges that must be overcome to meet this goal,
which can be best be achieved by integration of nano systems. Future work remains to be done
on understanding non-linear- nano-electronic devices for applications such as mixers and
detectors.

30. 23
REFERENCES
Burke PJ. An RF circuit model for carbon nanotubes. IEEE Trans Nanotechnology
P.J. Burke – Carbon nano electronics technology
1. www.cientifica.com
2. Burke PJ. Luttinger liquid theory as a model of the GHz electrical properties
of carbon nanotubes. IEEE Trans Nanotechnology 2002;1(3):129–44.
3. Burke PJ. An RF circuit model for carbon nanotubes. IEEE Trans
Nanotechnology 2003; 2(1):55–8.
4. Ramo S, Whinnery JR, Van Duzer T. Fields and waves in communications
electronics. New York: Wiley; 1994.
5. Li S, Yu Z, Gadde G, Burke PJ, Tang WC. Carbon nanotube growth for GHz
devices. In: Proc 3rd IEEE Conf Nanotechnology, 2003.
6. Li S, Yu Z, Yen S-F, Tang WC, Burke PJ. Carbon nanotube transistor
operation at 2.6 GHz. Nano Lett, in press.
7. Avouris Ph, Dresselhaus MS, Dresselhaus G, editors. Carbon Nanotubes:
Synthesis, Structure, Properties, and Applications. Topics in Applied Physics,
vol. 80. Berlin, Germany: Springer; 2001.

31. 24

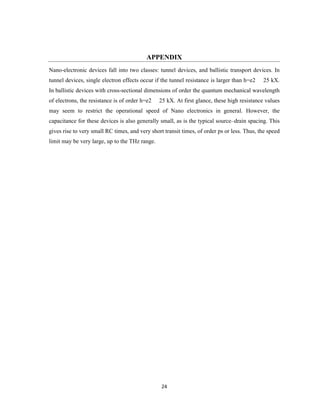

APPENDIX
Nano-electronic devices fall into two classes: tunnel devices, and ballistic transport devices. In
tunnel devices, single electron effects occur if the tunnel resistance is larger than h=e2 25 kX.
In ballistic devices with cross-sectional dimensions of order the quantum mechanical wavelength
of electrons, the resistance is of order h=e2 25 kX. At first glance, these high resistance values
may seem to restrict the operational speed of Nano electronics in general. However, the
capacitance for these devices is also generally small, as is the typical source–drain spacing. This
gives rise to very small RC times, and very short transit times, of order ps or less. Thus, the speed
limit may be very large, up to the THz range.
