The document discusses key concepts in nanoelectronics including Moore's law, scaling principles and limits of MOSFETs, quantum effects in ultrashort channel MOSFETs, and basic phenomena observed in nano devices such as ballistic transport and resonant tunneling. It also describes recent developments like the world's smallest transistor made from graphene and the first nanoradio receiver constructed at the nanoscale.

1. Presented by:- Shikha Gupta (UE6558) NANOELECTRONICS

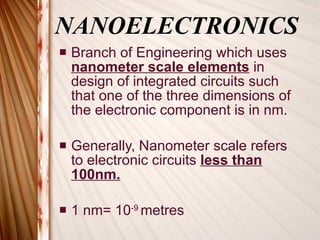

2. NANOELECTRONICS Branch of Engineering which uses nanometer scale elements in design of integrated circuits such that one of the three dimensions of the electronic component is in nm. Generally, Nanometer scale refers to electronic circuits less than 100nm. 1 nm= 10 -9 metres

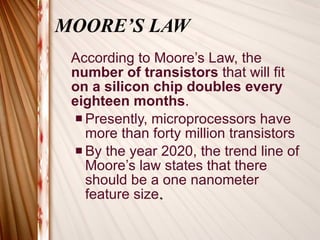

3. MOORE’S LAW According to Moore’s Law, the number of transistors that will fit on a silicon chip doubles every eighteen months . Presently, microprocessors have more than forty million transistors By the year 2020, the trend line of Moore’s law states that there should be a one nanometer feature size .

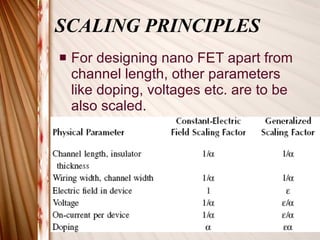

4. SCALING PRINCIPLES For designing nano FET apart from channel length, other parameters like doping, voltages etc. are to be also scaled.

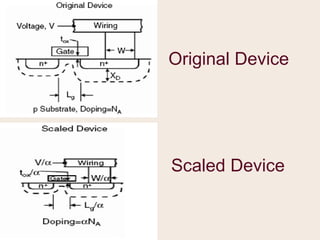

5. Original Device Scaled Device

6. EJ MOSFET (Electrically variable shallow junction MOSFET) NANO MOSFET

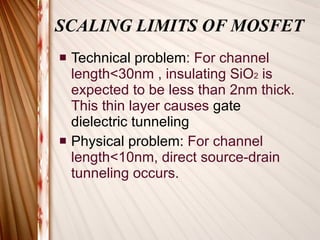

7. SCALING LIMITS OF MOSFET Technical problem : For channel length<30nm , insulating SiO 2 is expected to be less than 2nm thick. This thin layer causes gate dielectric tunneling Physical problem: For channel length<10nm, direct source-drain tunneling occurs.

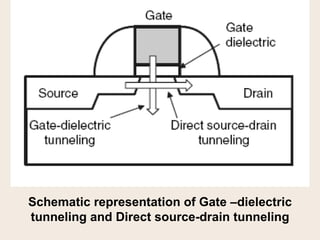

8. Schematic representation of Gate –dielectric tunneling and Direct source-drain tunneling

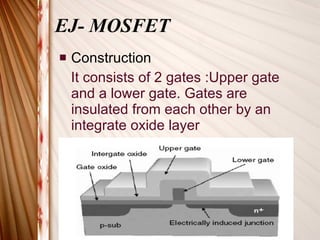

9. EJ- MOSFET Construction It consists of 2 gates :Upper gate and a lower gate. Gates are insulated from each other by an integrate oxide layer

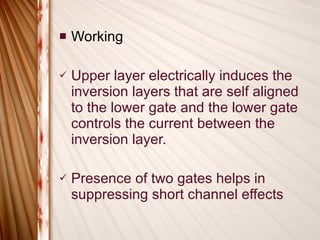

10. Working Upper layer electrically induces the inversion layers that are self aligned to the lower gate and the lower gate controls the current between the inversion layer. Presence of two gates helps in suppressing short channel effects

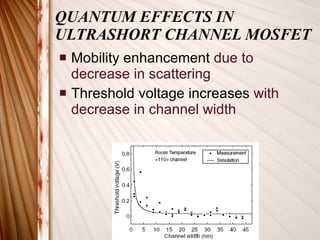

11. QUANTUM EFFECTS IN ULTRASHORT CHANNEL MOSFET Mobility enhancement due to decrease in scattering Threshold voltage increases with decrease in channel width

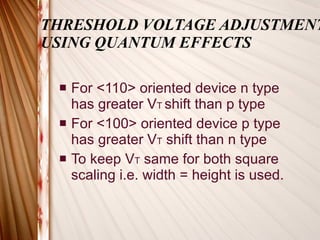

12. THRESHOLD VOLTAGE ADJUSTMENT USING QUANTUM EFFECTS For <110> oriented device n type has greater V T shift than p type For <100> oriented device p type has greater V T shift than n type To keep V T same for both square scaling i.e. width = height is used.

13. BASIC PHENOMENON OBSERVED IN NANO DEVICES

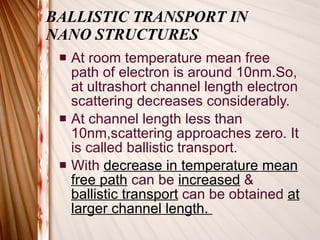

14. BALLISTIC TRANSPORT IN NANO STRUCTURES At room temperature mean free path of electron is around 10nm.So, at ultrashort channel length electron scattering decreases considerably. At channel length less than 10nm,scattering approaches zero. It is called ballistic transport. With decrease in temperature mean free path can be increased & ballistic transport can be obtained at larger channel length.

15. RESONANT TUNNELING IN NANO DEVICES RT is observed in hetero-structure semiconductor devices made from pairs of different alloys III-V alloys . Eg. AlGaAs/GaAs/AlGaAs diodes

16. MISCELLANEOUS NANO-STRUCTURES Carbon nanotubes & nanowires

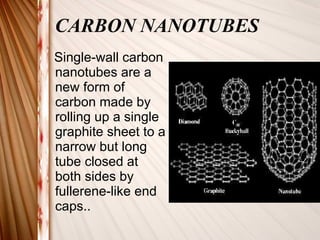

17. CARBON NANOTUBES Single-wall carbon nanotubes are a new form of carbon made by rolling up a single graphite sheet to a narrow but long tube closed at both sides by fullerene-like end caps..

18. PROPERTIES Exhibit electrical conductivity as high as copper, thermal conductivity as high as diamond Strength 100 times greater than steel at one sixth the weight Electrical conductivity depends on their helicity.

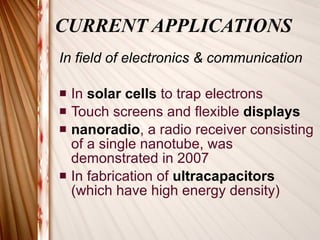

19. CURRENT APPLICATIONS In field of electronics & communication In solar cells to trap electrons Touch screens and flexible displays nanoradio , a radio receiver consisting of a single nanotube, was demonstrated in 2007 In fabrication of ultracapacitors (which have high energy density)

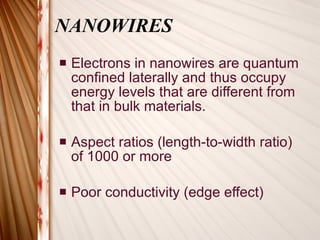

20. NANOWIRES Electrons in nanowires are quantum confined laterally and thus occupy energy levels that are different from that in bulk materials. Aspect ratios (length-to-width ratio) of 1000 or more Poor conductivity (edge effect)

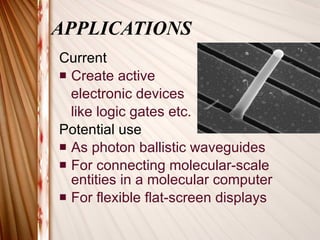

21. APPLICATIONS Current Create active electronic devices like logic gates etc. Potential use As photon ballistic waveguides For connecting molecular-scale entities in a molecular computer For flexible flat-screen displays

22. RECENT DEVELOPMENTS IN FIELD OF NANOELECTRONICS

23. WORLD’S SMALLEST TRANSISTOR Graphene Transistor

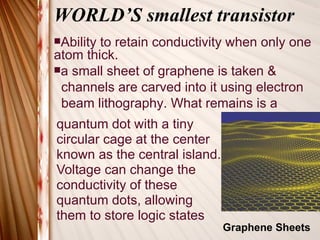

24. WORLD’S smallest transistor quantum dot with a tiny circular cage at the center known as the central island. Voltage can change the conductivity of these quantum dots, allowing them to store logic states Ability to retain conductivity when only one atom thick. a small sheet of graphene is taken & channels are carved into it using electron beam lithography. What remains is a Graphene Sheets

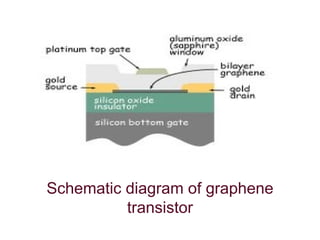

25. Schematic diagram of graphene transistor

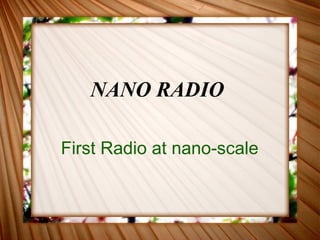

26. NANO RADIO First Radio at nano-scale

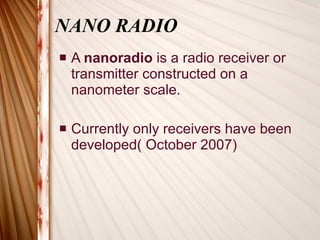

27. NANO RADIO A nanoradio is a radio receiver or transmitter constructed on a nanometer scale. Currently only receivers have been developed( October 2007)

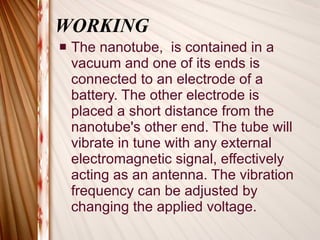

28. WORKING The nanotube, is contained in a vacuum and one of its ends is connected to an electrode of a battery. The other electrode is placed a short distance from the nanotube's other end. The tube will vibrate in tune with any external electromagnetic signal, effectively acting as an antenna. The vibration frequency can be adjusted by changing the applied voltage.

29. NANO RADIO

30. NANO EMISSIVE DISPLAY

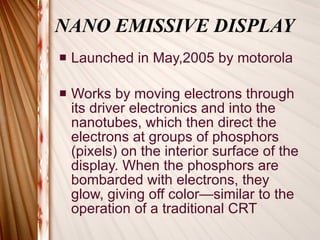

31. NANO EMISSIVE DISPLAY Launched in May,2005 by motorola Works by moving electrons through its driver electronics and into the nanotubes, which then direct the electrons at groups of phosphors (pixels) on the interior surface of the display. When the phosphors are bombarded with electrons, they glow, giving off color—similar to the operation of a traditional CRT

32. ADVANTAGES Light in weight and more slim Saves 20% to 30% more power than other flat panel displays Manufacturing cost is estimated to be a half to a third the cost of LCD and plasma displays

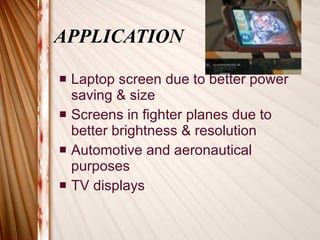

33. APPLICATION Laptop screen due to better power saving & size Screens in fighter planes due to better brightness & resolution Automotive and aeronautical purposes TV displays
