This document discusses various types of transducers. It begins by defining transducers as devices that convert one form of energy into another. Sensors and actuators are described as input and output transducers, and can be either analog or digital. The document then discusses factors like ruggedness, linearity, and dynamic response that are important in transducer selection and design. Examples of specific transducer types discussed include bourdon tubes, bellows, strain gauges, thermistors, and digital encoding transducers.

1. Sheela.P
Lecturer / EEE

2. Proud to be a Electrical
Engineer
07/24/16 EEE 2

3. Sensor Technology
07/24/16 EEE 3

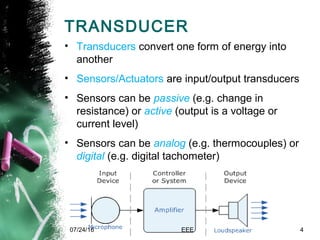

4. TRANSDUCER
• Transducers convert one form of energy into
another
• Sensors/Actuators are input/output transducers
• Sensors can be passive (e.g. change in
resistance) or active (output is a voltage or
current level)
• Sensors can be analog (e.g. thermocouples) or
digital (e.g. digital tachometer)
07/24/16 EEE 4

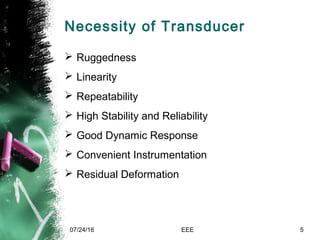

5. Necessity of Transducer
 Ruggedness
 Linearity
 Repeatability
 High Stability and Reliability
 Good Dynamic Response
 Convenient Instrumentation
 Residual Deformation
07/24/16 EEE 5

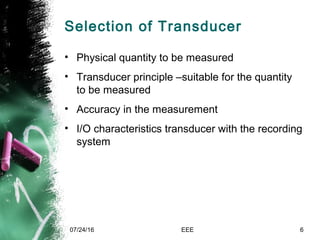

6. Selection of Transducer
• Physical quantity to be measured
• Transducer principle –suitable for the quantity
to be measured
• Accuracy in the measurement
• I/O characteristics transducer with the recording
system
07/24/16 EEE 6

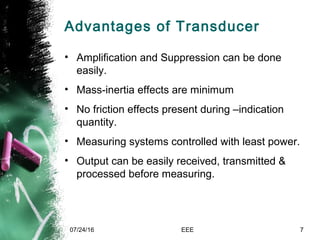

7. Advantages of Transducer
• Amplification and Suppression can be done
easily.
• Mass-inertia effects are minimum
• No friction effects present during –indication
quantity.
• Measuring systems controlled with least power.
• Output can be easily received, transmitted &
processed before measuring.
07/24/16 EEE 7

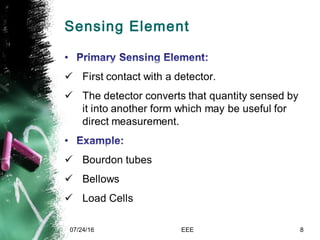

8. Sensing Element
07/24/16 EEE 8

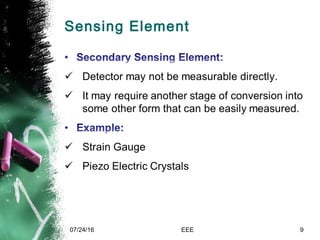

9. Sensing Element
07/24/16 EEE 9

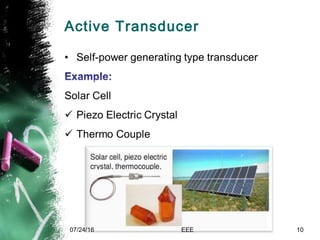

10. Active Transducer
07/24/16 EEE 10

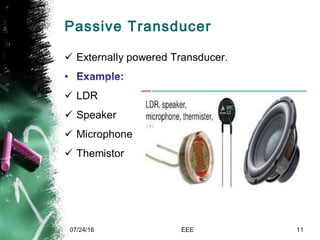

11. Passive Transducer
07/24/16 EEE 11

12. Active & Passive
07/24/16 EEE 12

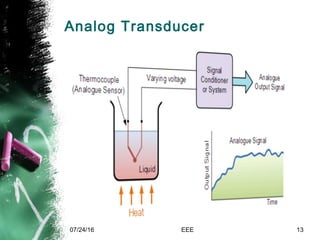

13. Analog Transducer
07/24/16 EEE 13

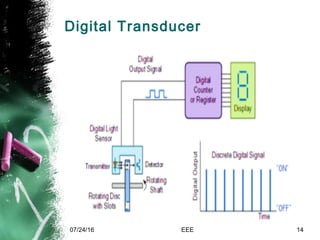

14. Digital Transducer
07/24/16 EEE 14

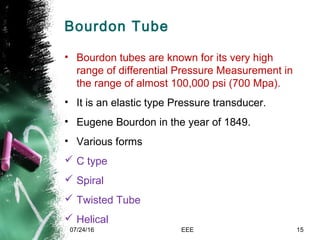

15. Bourdon Tube
• Bourdon tubes are known for its very high
range of differential Pressure Measurement in
the range of almost 100,000 psi (700 Mpa).
• It is an elastic type Pressure transducer.
• Eugene Bourdon in the year of 1849.
• Various forms
 C type
 Spiral
 Twisted Tube
 Helical
07/24/16 EEE 15

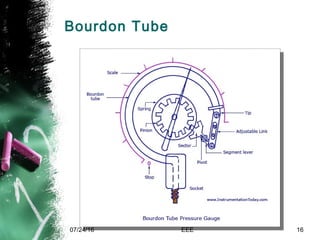

16. Bourdon Tube
07/24/16 EEE 16

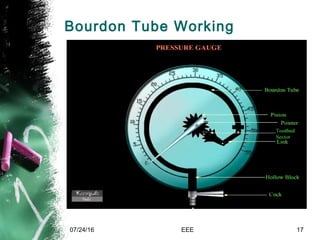

17. Bourdon Tube Working
07/24/16 EEE 17

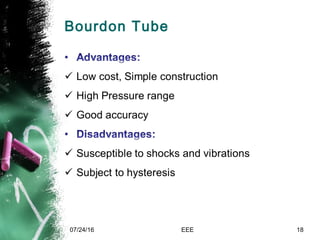

18. Bourdon Tube
07/24/16 EEE 18

19. Bellows
• Bellows is used for pressure measurement, can
be made up of cascaded capsules.
• Expanded or contracted axial by changes in
pressure.
• Materials Commonly used :
 Brass
 Bronze
 Beryllium copper
 Alloys of nickel & copper
 Steel
07/24/16 EEE 19

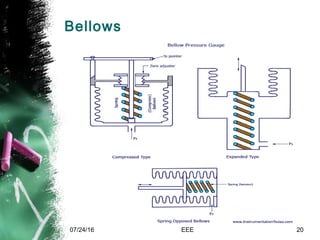

20. Bellows
07/24/16 EEE 20

21. Bellows Working Principle
07/24/16 EEE 21

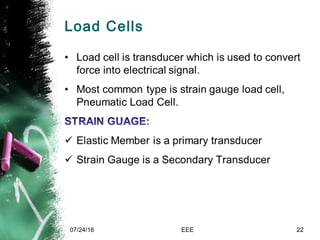

22. Load Cells
07/24/16 EEE 22

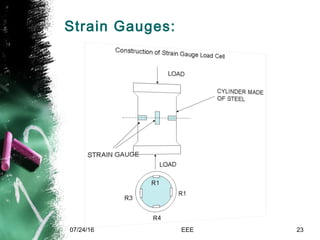

23. Strain Gauges:
07/24/16 EEE 23

24. Strain Gauge Working Principle
07/24/16 EEE 24

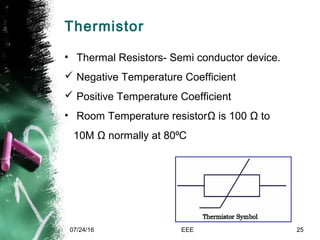

25. Thermistor
• Thermal Resistors- Semi conductor device.
 Negative Temperature Coefficient
 Positive Temperature Coefficient
• Room Temperature resistorΩ is 100 Ω to
10M Ω normally at 80 C⁰
07/24/16 EEE 25

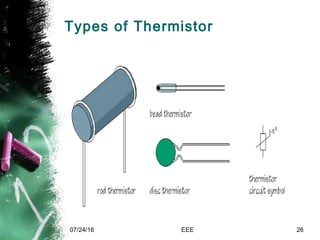

26. Types of Thermistor
07/24/16 EEE 26

27. PTC & NTC
07/24/16 EEE 27

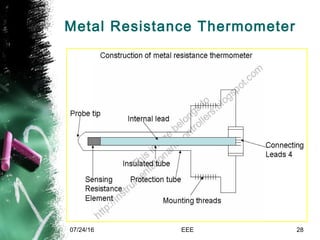

28. Metal Resistance Thermometer
07/24/16 EEE 28

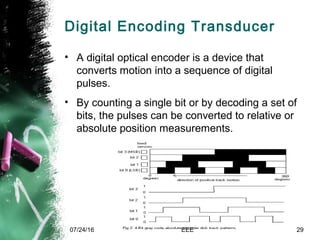

29. Digital Encoding Transducer
• A digital optical encoder is a device that
converts motion into a sequence of digital
pulses.
• By counting a single bit or by decoding a set of
bits, the pulses can be converted to relative or
absolute position measurements.
07/24/16 EEE 29

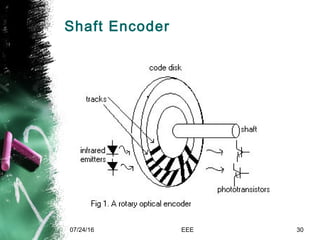

30. Shaft Encoder
07/24/16 EEE 30

31. Optical Encoder
07/24/16 EEE 31
