WAVE QUANTUM MECHANIC
MODEL

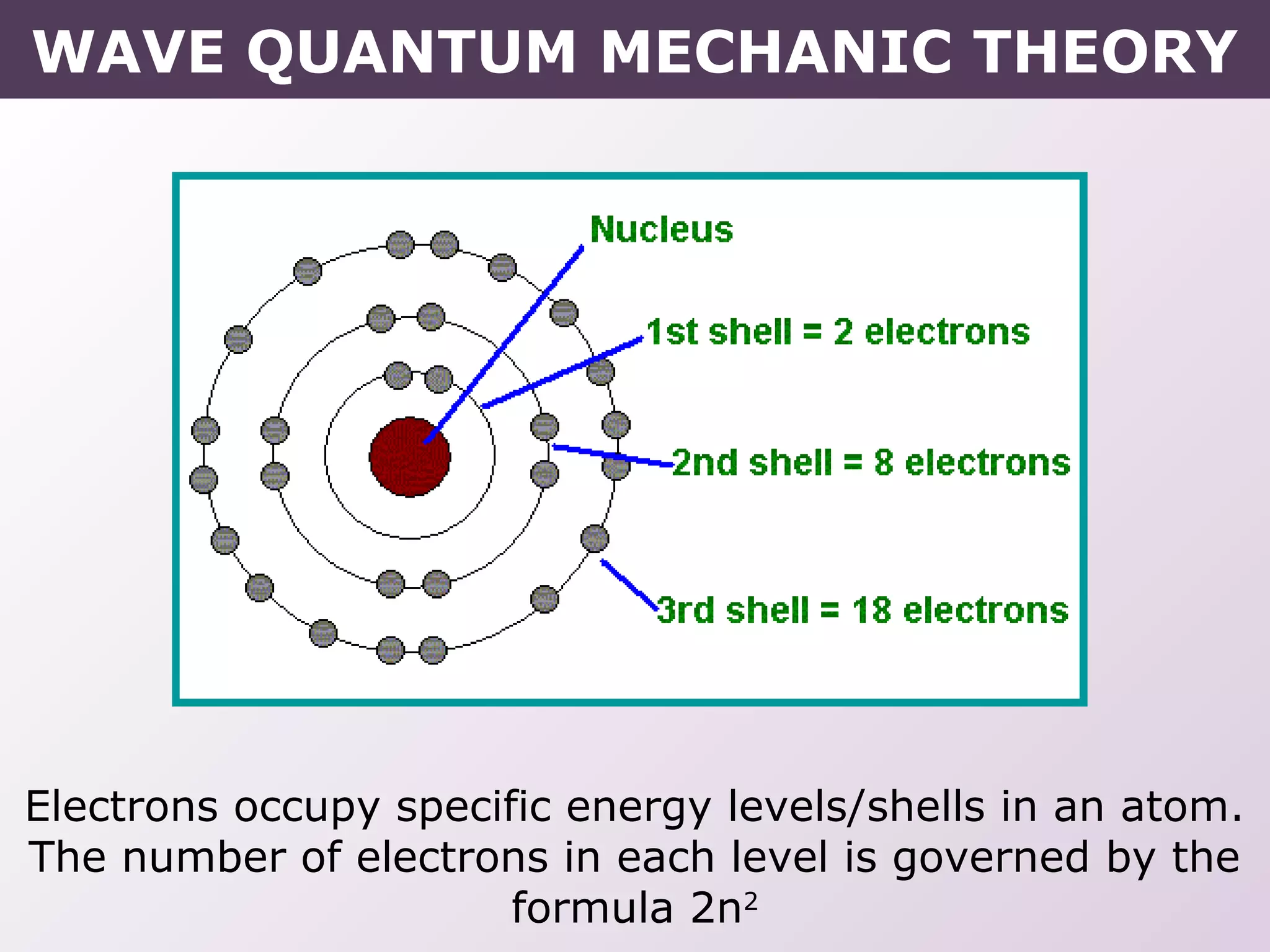

Electrons occupy specific energy levels/shells in an atom.
The number of electrons in each level is governed by the
formula 2n2
WAVE QUANTUM MECHANIC THEORY
Erwin Schrödinger
• 1887 – 1961
• physicist & theoretical
biologist
• helped develop
quantum mechanics
• Nobel Prize 1933
– Schrödinger’s
Equation
– quantum state of a
physical system
changes over time
WAVE QUANTUM MECHANIC THEORY

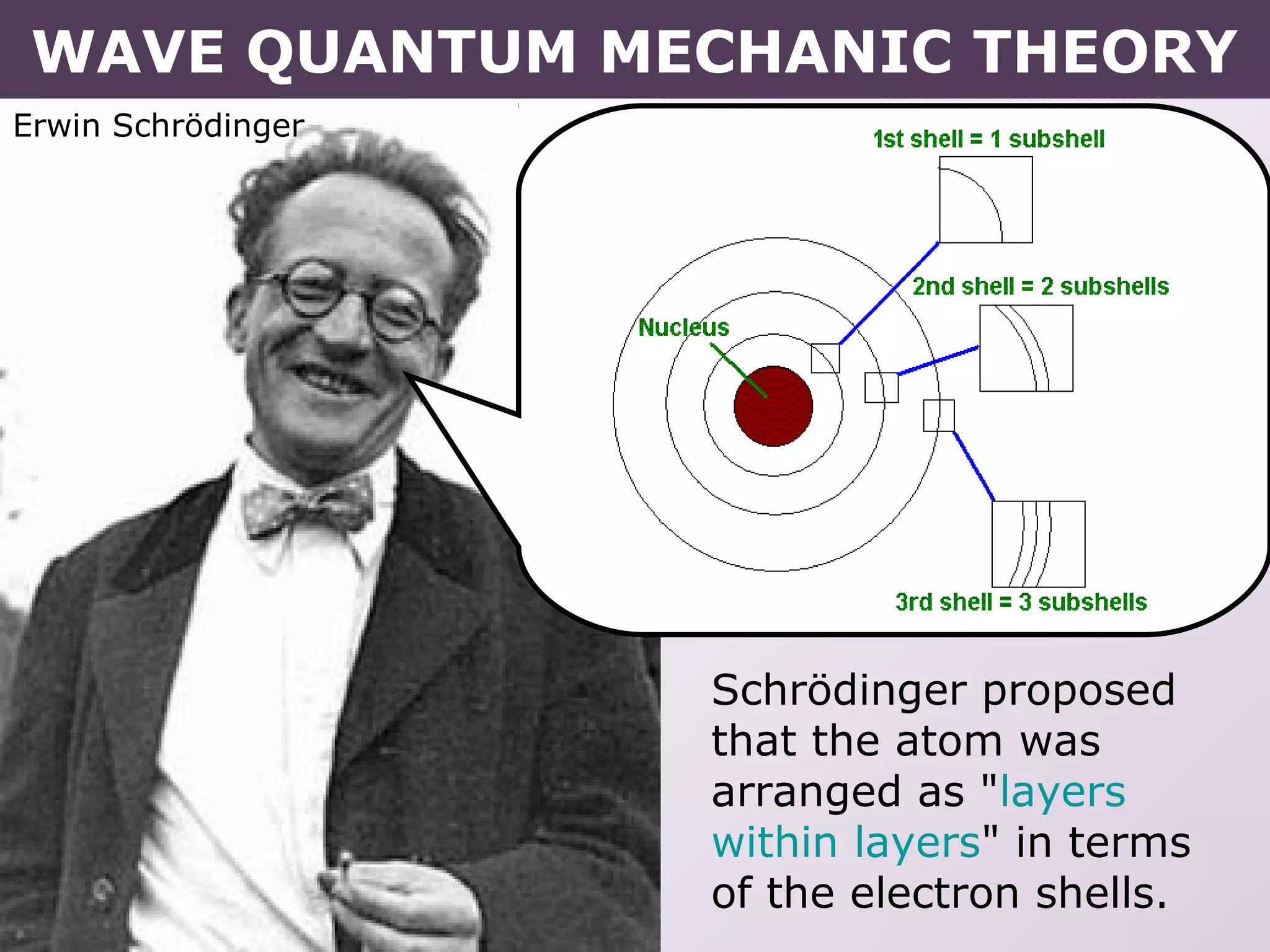

Erwin Schrödinger
Schrödinger proposed
that the atom was
arranged as "layers
within layers" in terms
of the electron shells.
WAVE QUANTUM MECHANIC THEORY

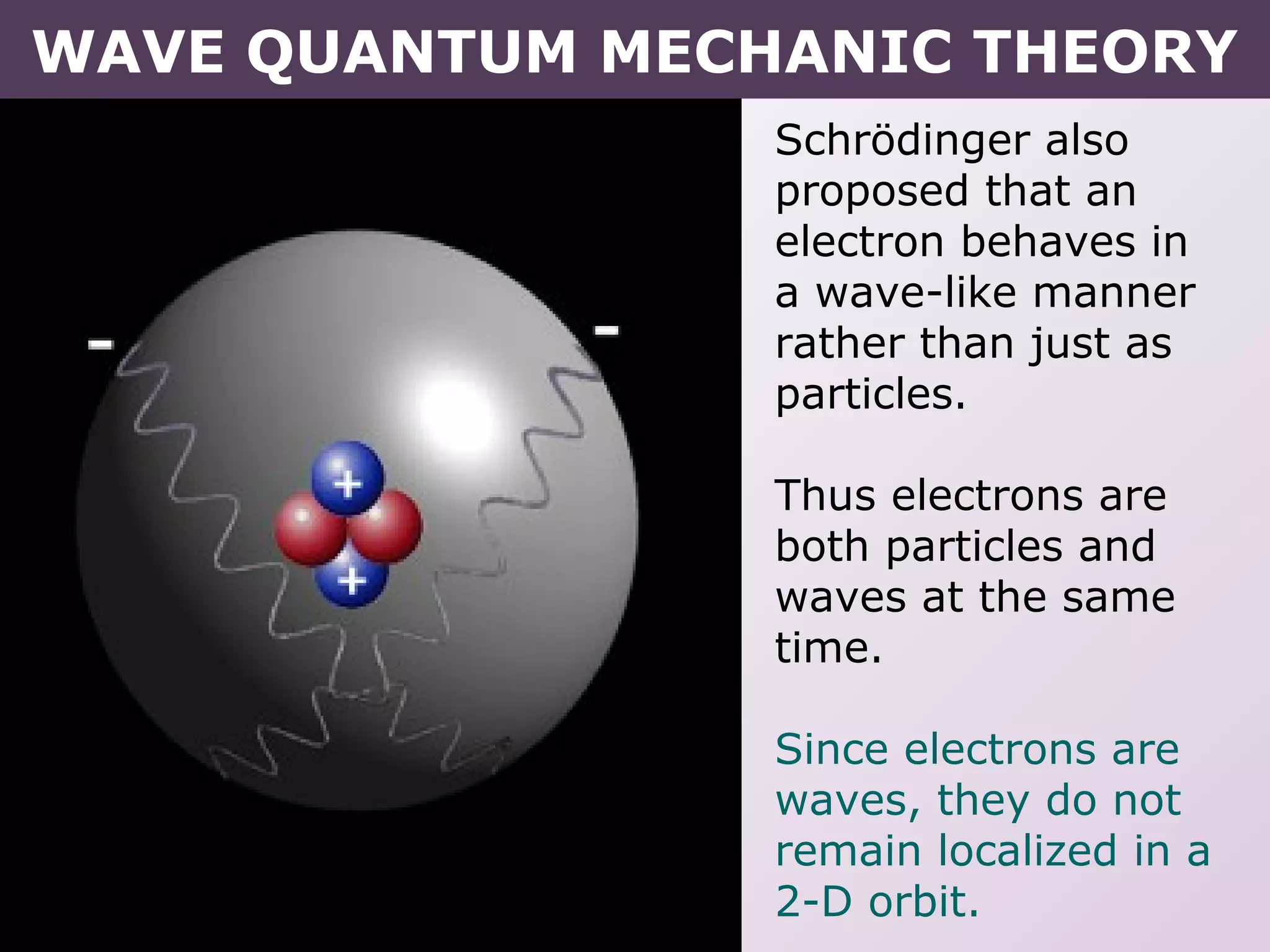

Schrödinger also
proposed that an
electron behaves in
a wave-like manner
rather than just as
particles.
Thus electrons are
both particles and
waves at the same
time.
Since electrons are
waves, they do not
remain localized in a
2-D orbit.
WAVE QUANTUM MECHANIC THEORY
WAVE QUANTUM MECHANIC THEORY
quantum mechanics – mathematical description of
wave-particle duality of energy / matter
Schrodinger’s Wave Equation:
Electrons do not travel in defined paths around the
nucleus. Rather they occupy a space defined by
the “wave equation”.

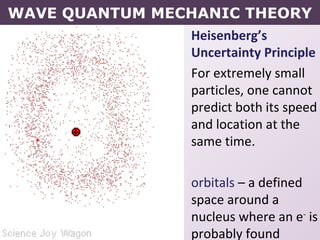

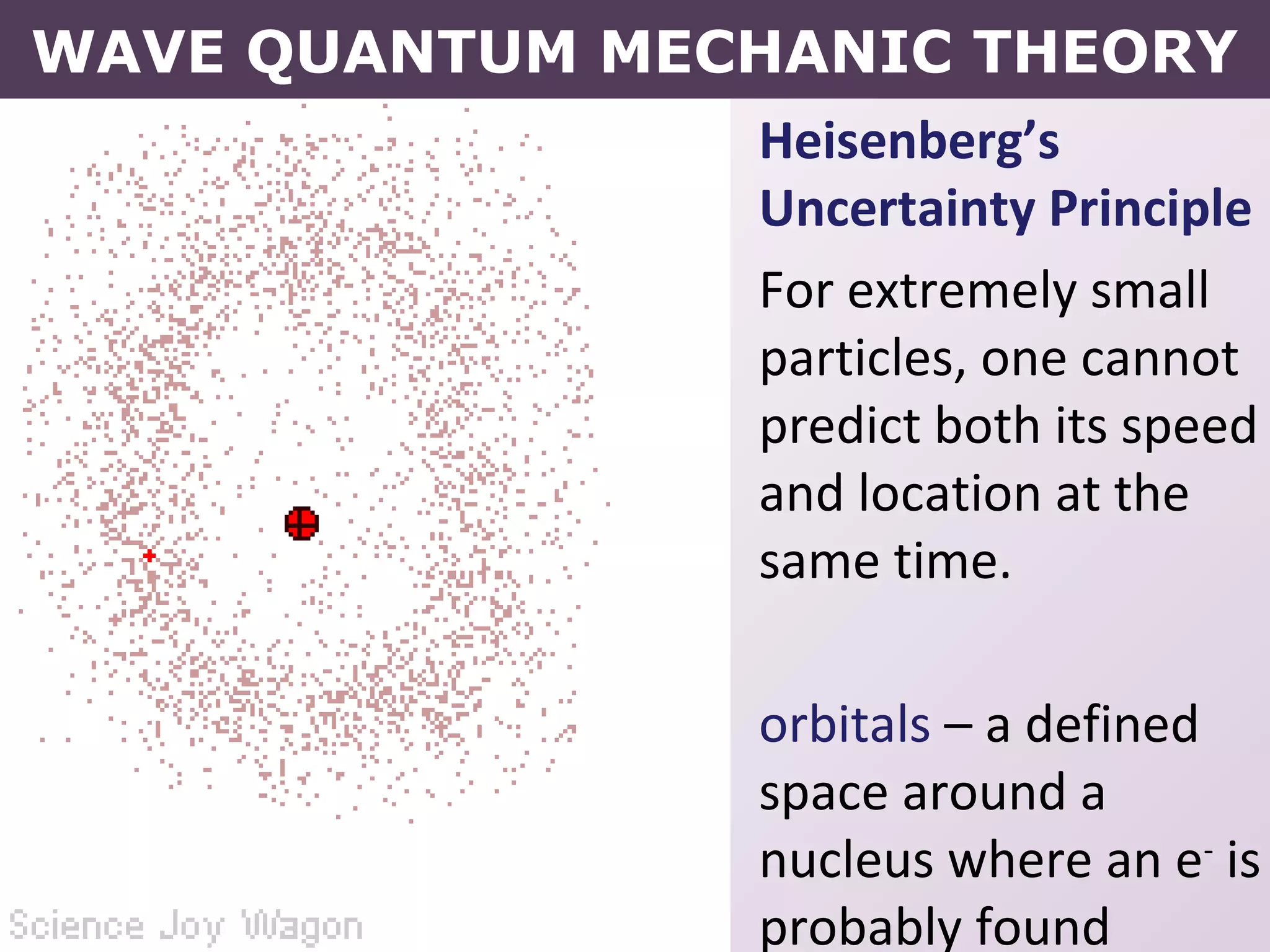

Heisenberg’s
Uncertainty Principle
For extremely small
particles, one cannot
predict both its speed
and location at the
same time.
orbitals – a defined
space around a
nucleus where an e-
is
probably found
WAVE QUANTUM MECHANIC THEORY

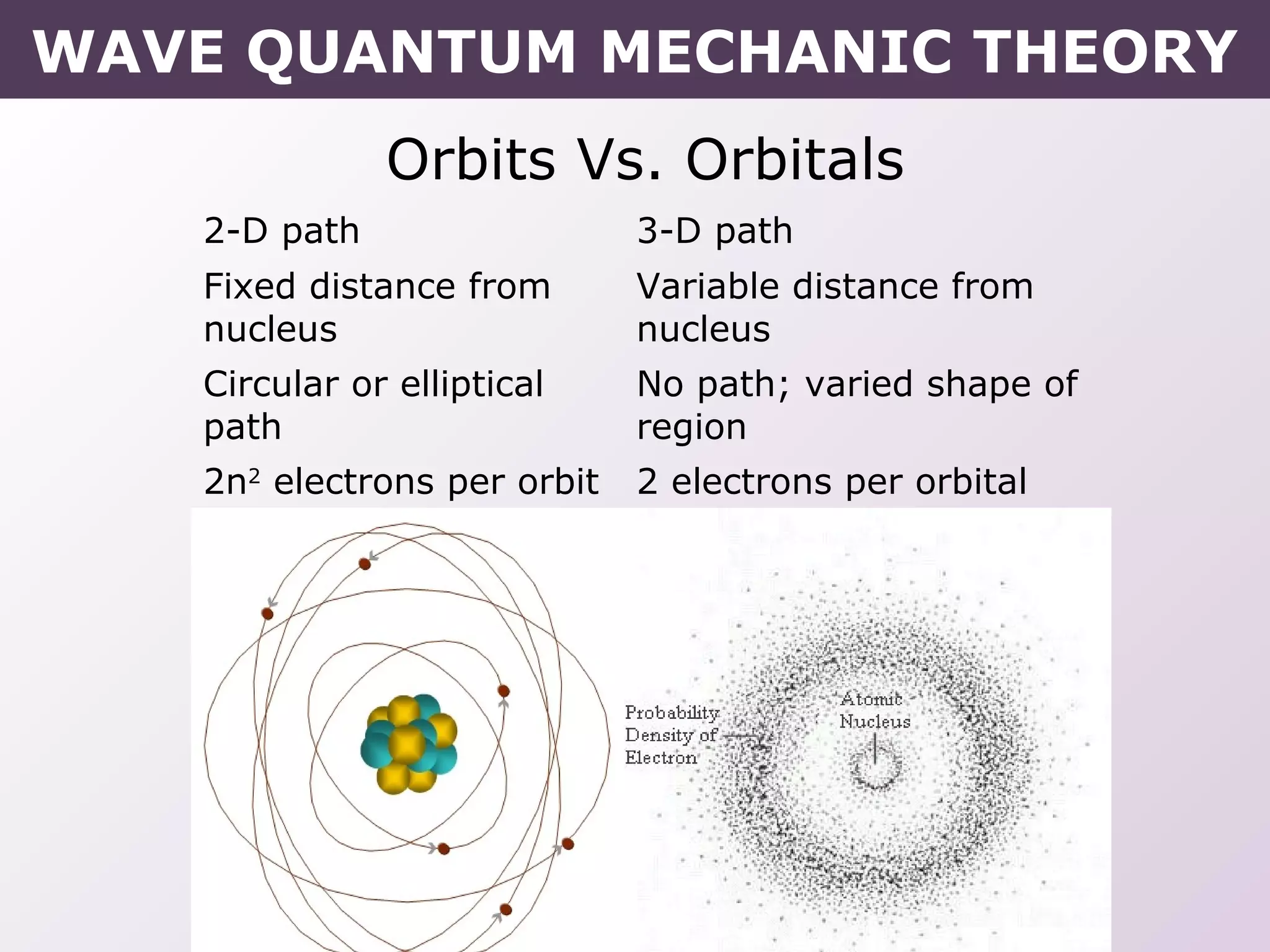

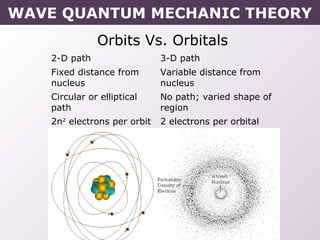

Orbits Vs. Orbitals
2-D path 3-D path
Fixed distance from
nucleus
Variable distance from
nucleus
Circular or elliptical
path
No path; varied shape of
region
2n2
electrons per orbit 2 electrons per orbital
WAVE QUANTUM MECHANIC THEORY

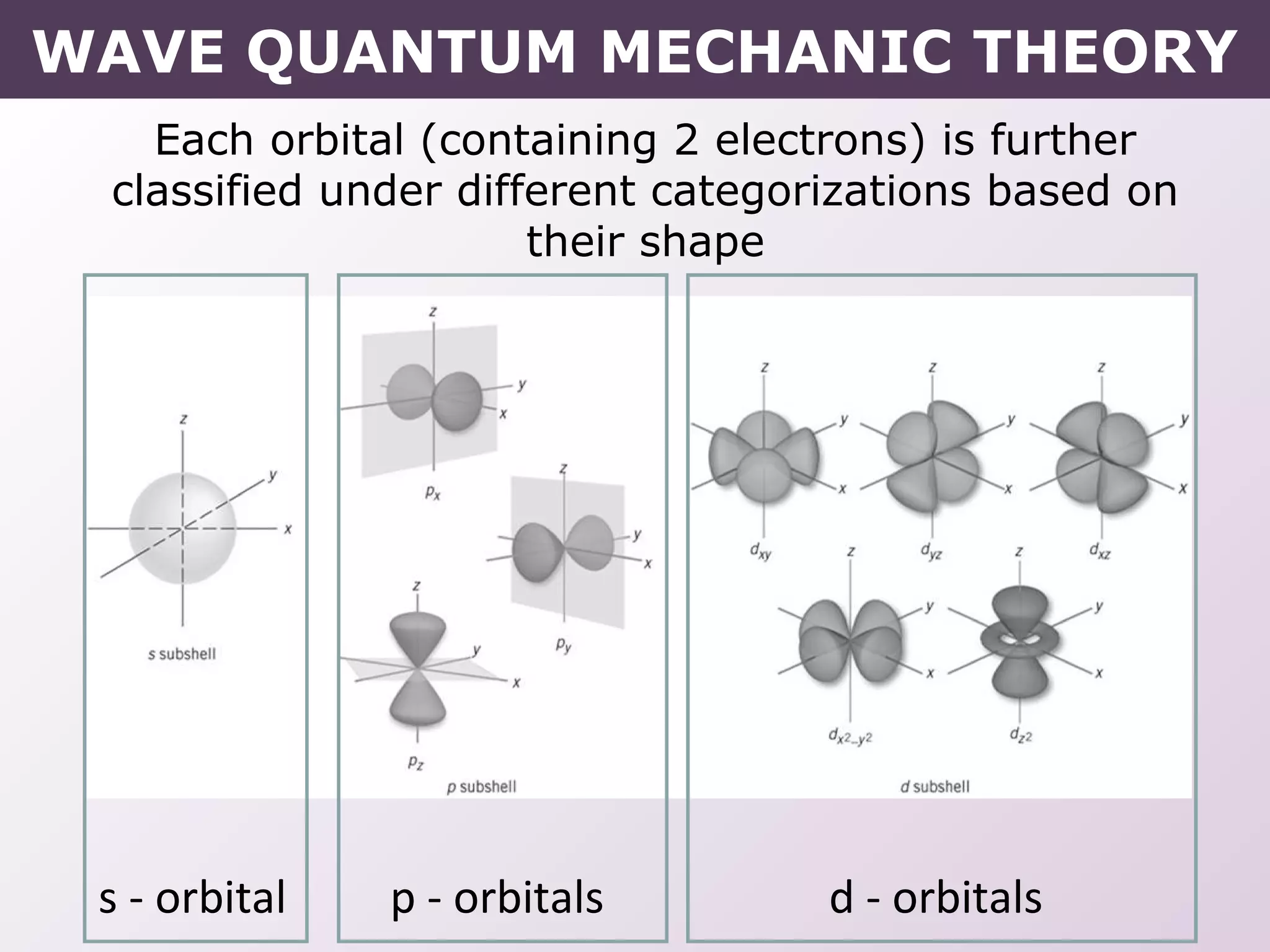

Each orbital (containing 2 electrons) is further
classified under different categorizations based on
their shape
WAVE QUANTUM MECHANIC THEORY
s - orbital p - orbitals d - orbitals
WAVE QUANTUM MECHANIC THEORY

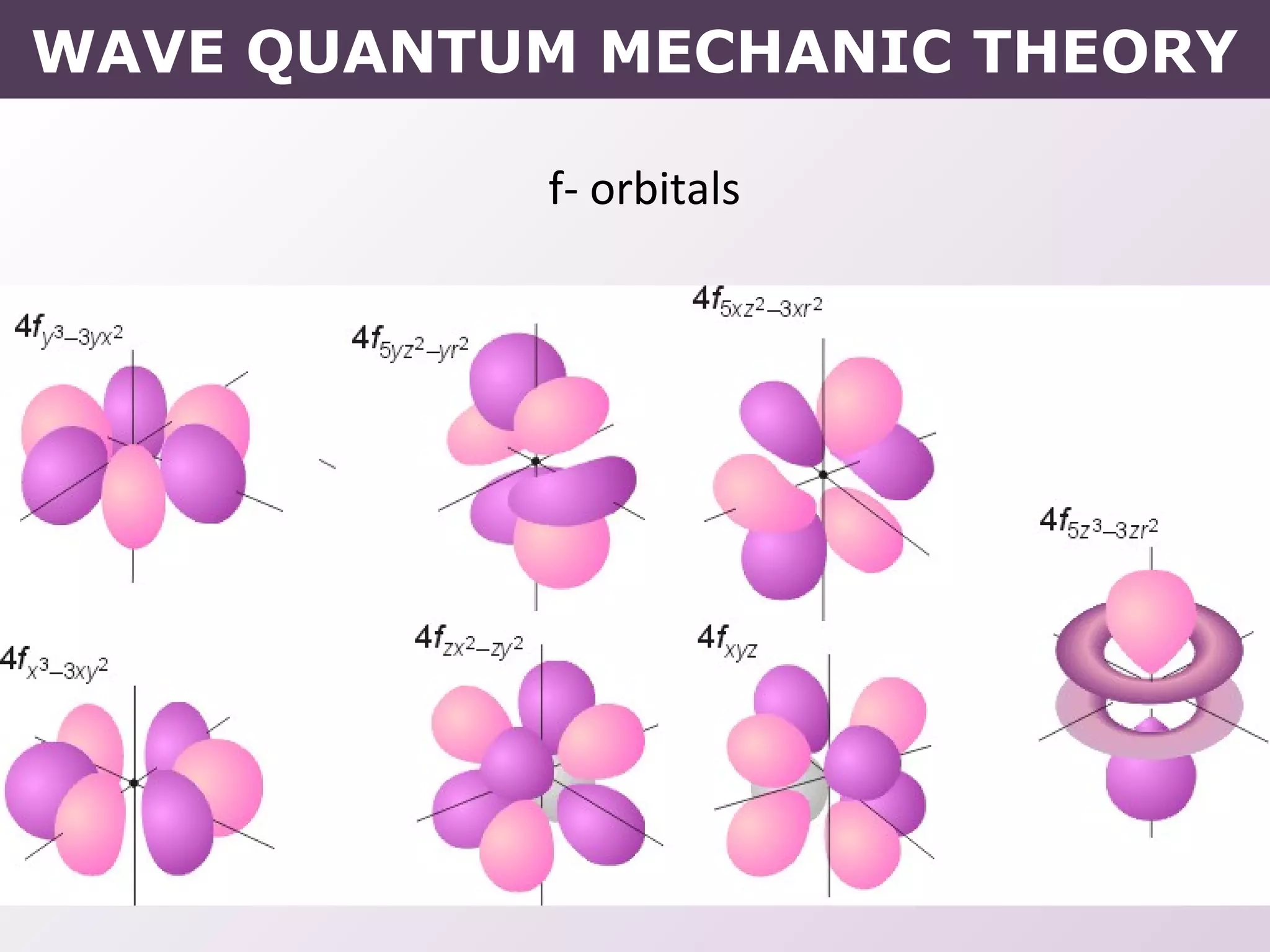

f- orbitals

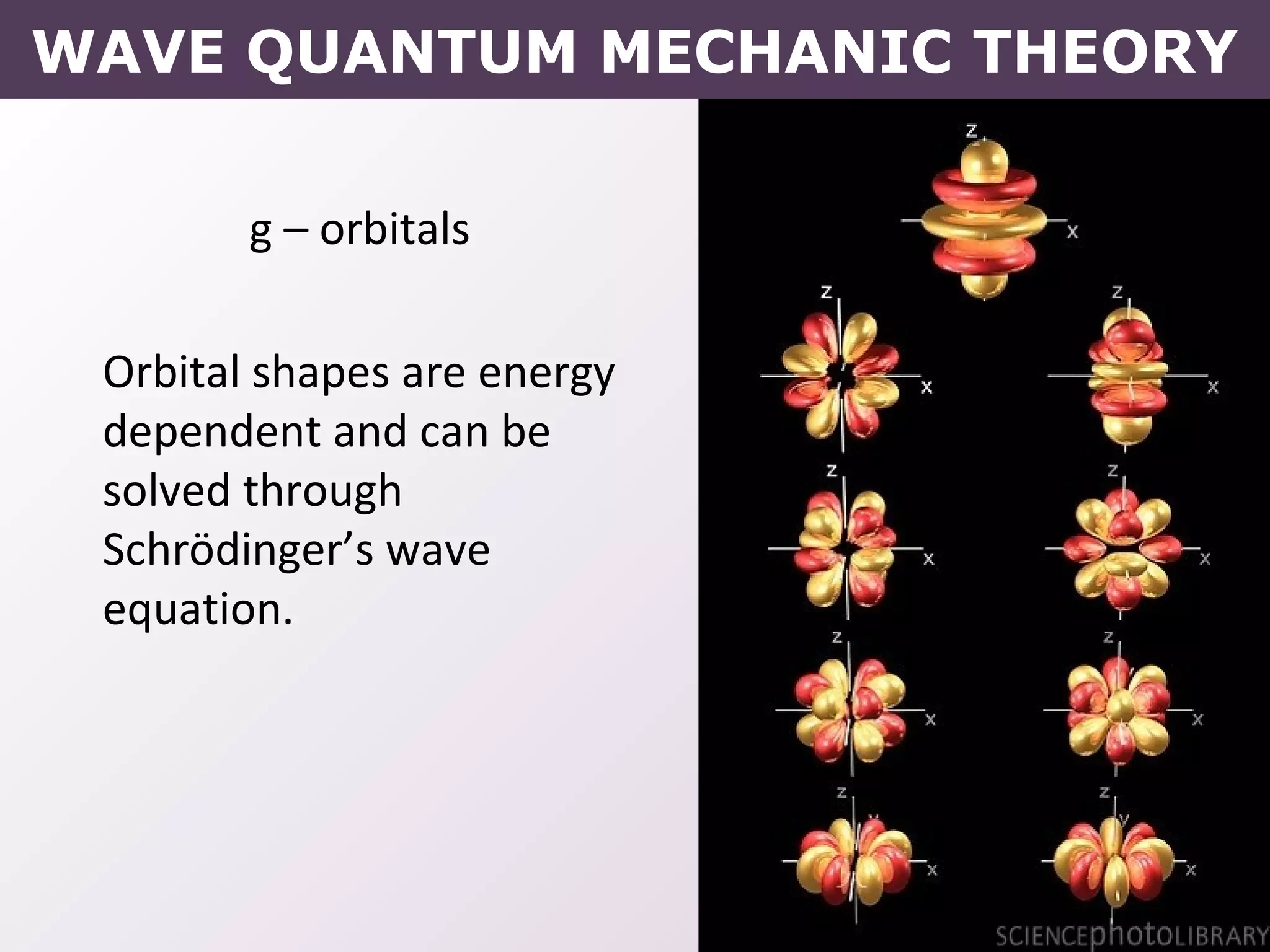

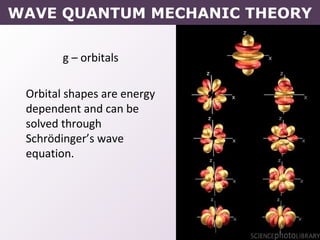

g – orbitals
Orbital shapes are energy
dependent and can be
solved through
Schrödinger’s wave
equation.
WAVE QUANTUM MECHANIC THEORY

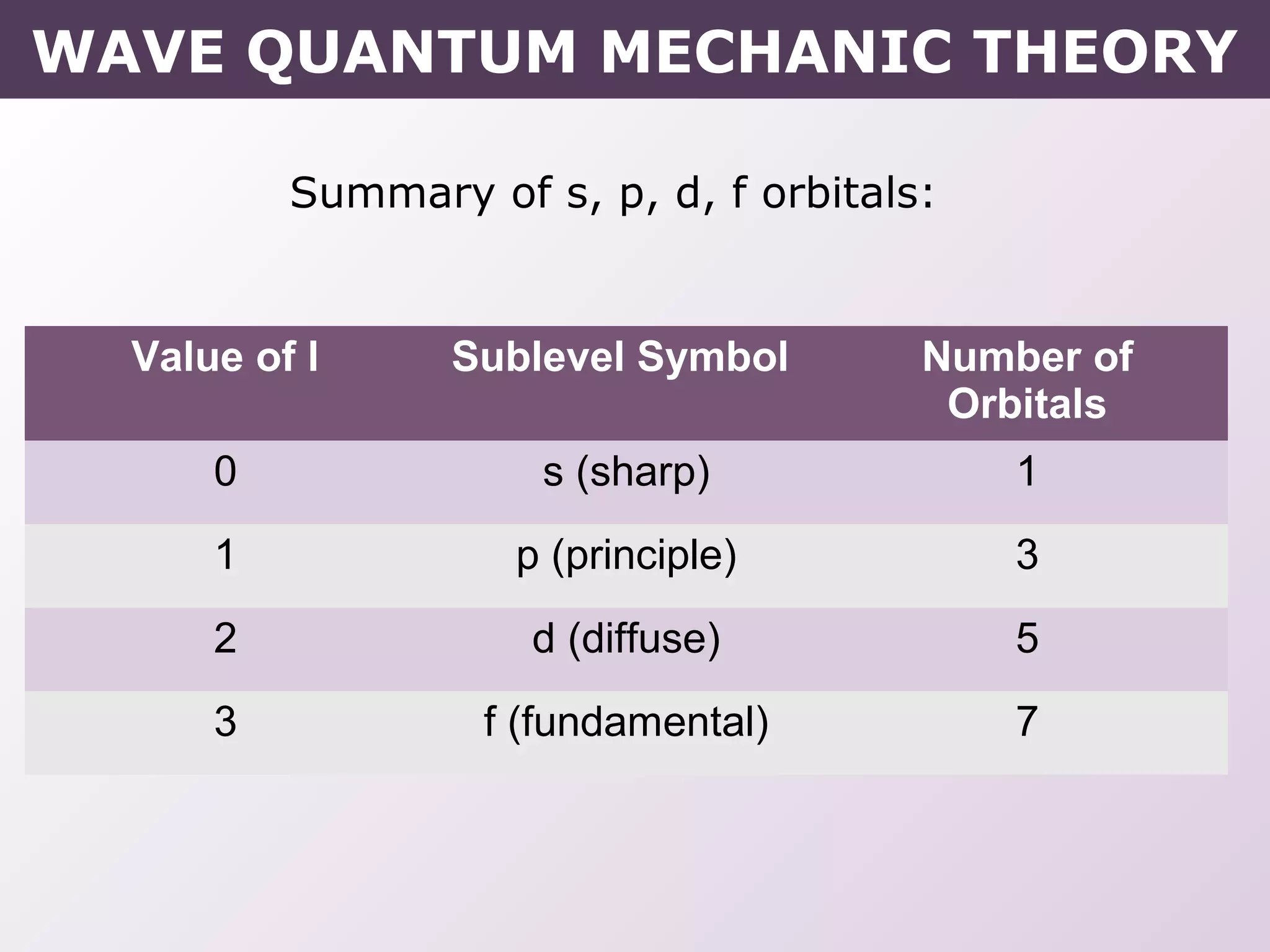

Value of l Sublevel Symbol Number of
Orbitals
0 s (sharp) 1
1 p (principle) 3
2 d (diffuse) 5
3 f (fundamental) 7
Summary of s, p, d, f orbitals:
WAVE QUANTUM MECHANIC THEORY
WAVE QUANTUM MECHANIC THEORY

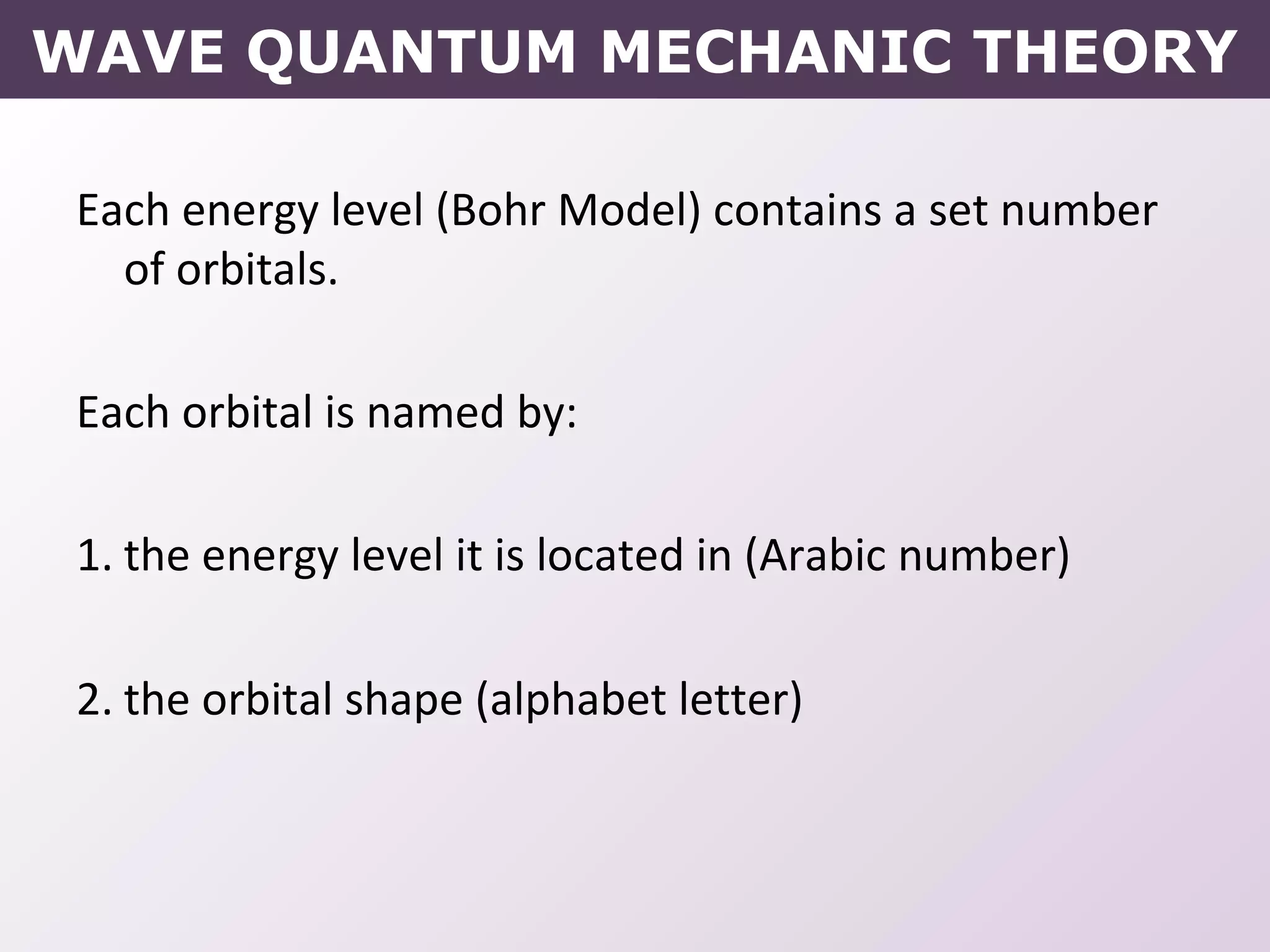

Each energy level (Bohr Model) contains a set number
of orbitals.
Each orbital is named by:
1. the energy level it is located in (Arabic number)
2. the orbital shape (alphabet letter)

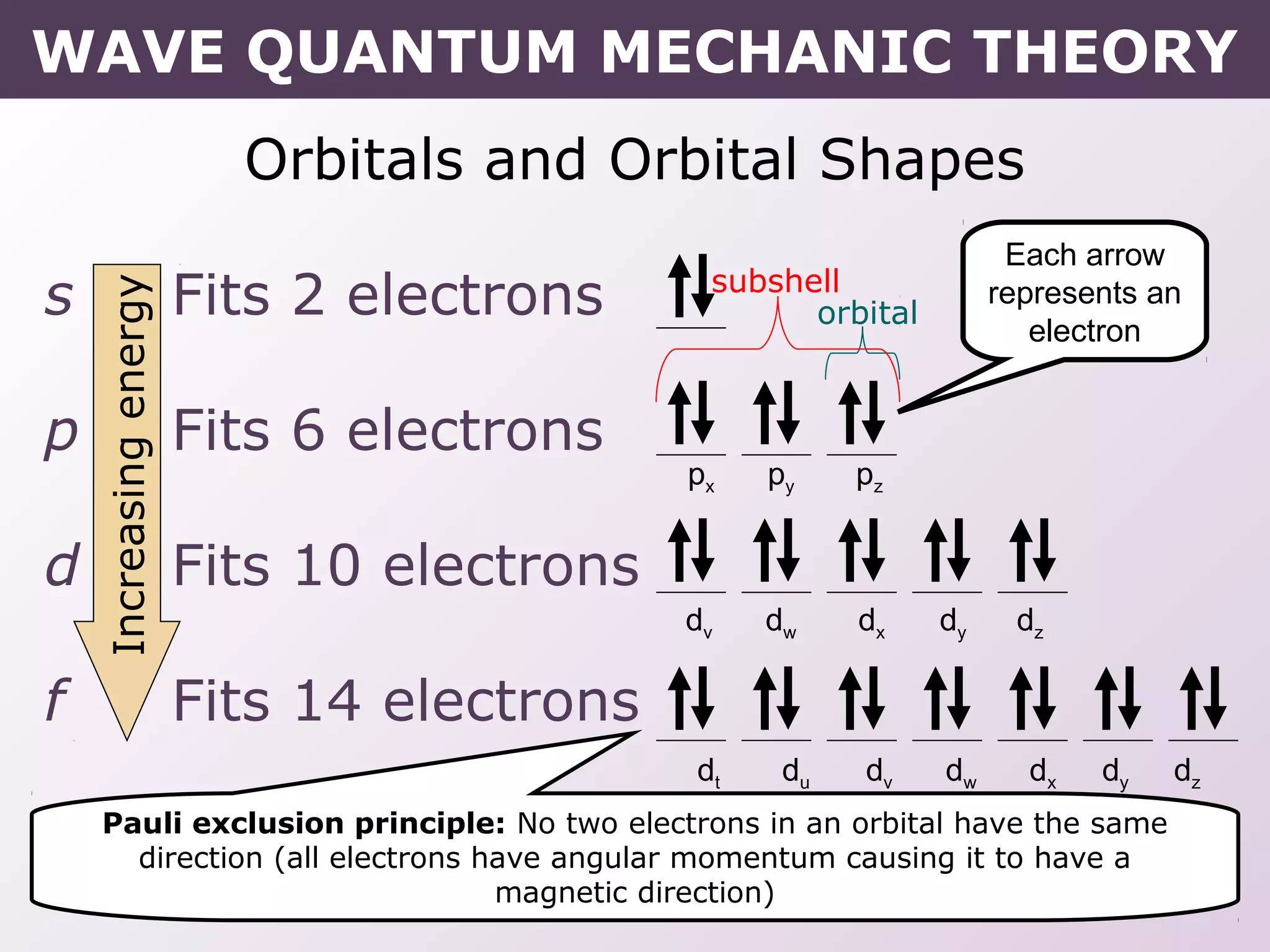

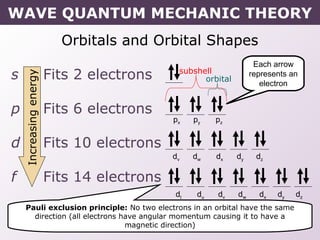

Orbitals and Orbital Shapes
s Fits 2 electrons
p Fits 6 electrons
d Fits 10 electrons
f Fits 14 electrons
px py pz
dv dw dx dy dz
dt du dv dw dx dy dz
Increasingenergy
orbital
subshell
Each arrow
represents an
electron
Pauli exclusion principle: No two electrons in an orbital have the same
direction (all electrons have angular momentum causing it to have a
magnetic direction)
WAVE QUANTUM MECHANIC THEORY

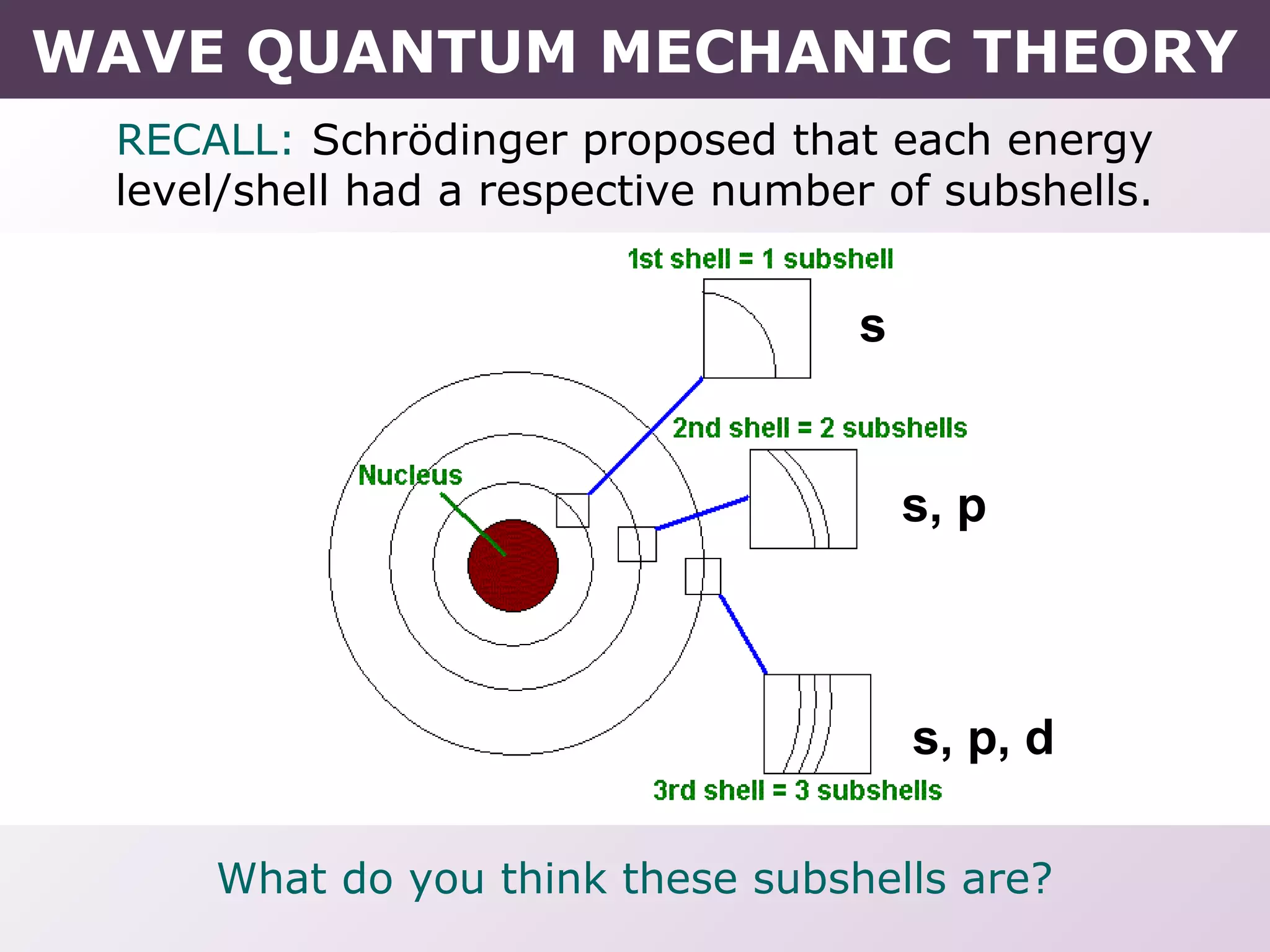

RECALL: Schrödinger proposed that each energy
level/shell had a respective number of subshells.
What do you think these subshells are?
s
s, p
s, p, d
WAVE QUANTUM MECHANIC THEORY
Electron distribution:
Energy Level Sublevel Maximum #
of Electrons
in Energy
Level (2n2
)
Number of
Each Orbital
Maximum #
of Electrons
in Orbital
Type
1 s 2 1 2
2 s
p
8 1
3
2
6
3 s
p
d
18 1
3
5
2
6
10
4 s
p
d
f
32 1
3
5
7
2
6
10
14
WAVE QUANTUM MECHANIC THEORY
WAVE QUANTUM MECHANIC THEORY

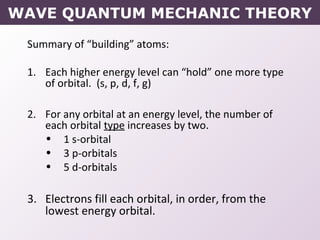

Summary of “building” atoms:
1. Each higher energy level can “hold” one more type
of orbital. (s, p, d, f, g)
2. For any orbital at an energy level, the number of
each orbital type increases by two.
• 1 s-orbital
• 3 p-orbitals
• 5 d-orbitals
3. Electrons fill each orbital, in order, from the
lowest energy orbital.

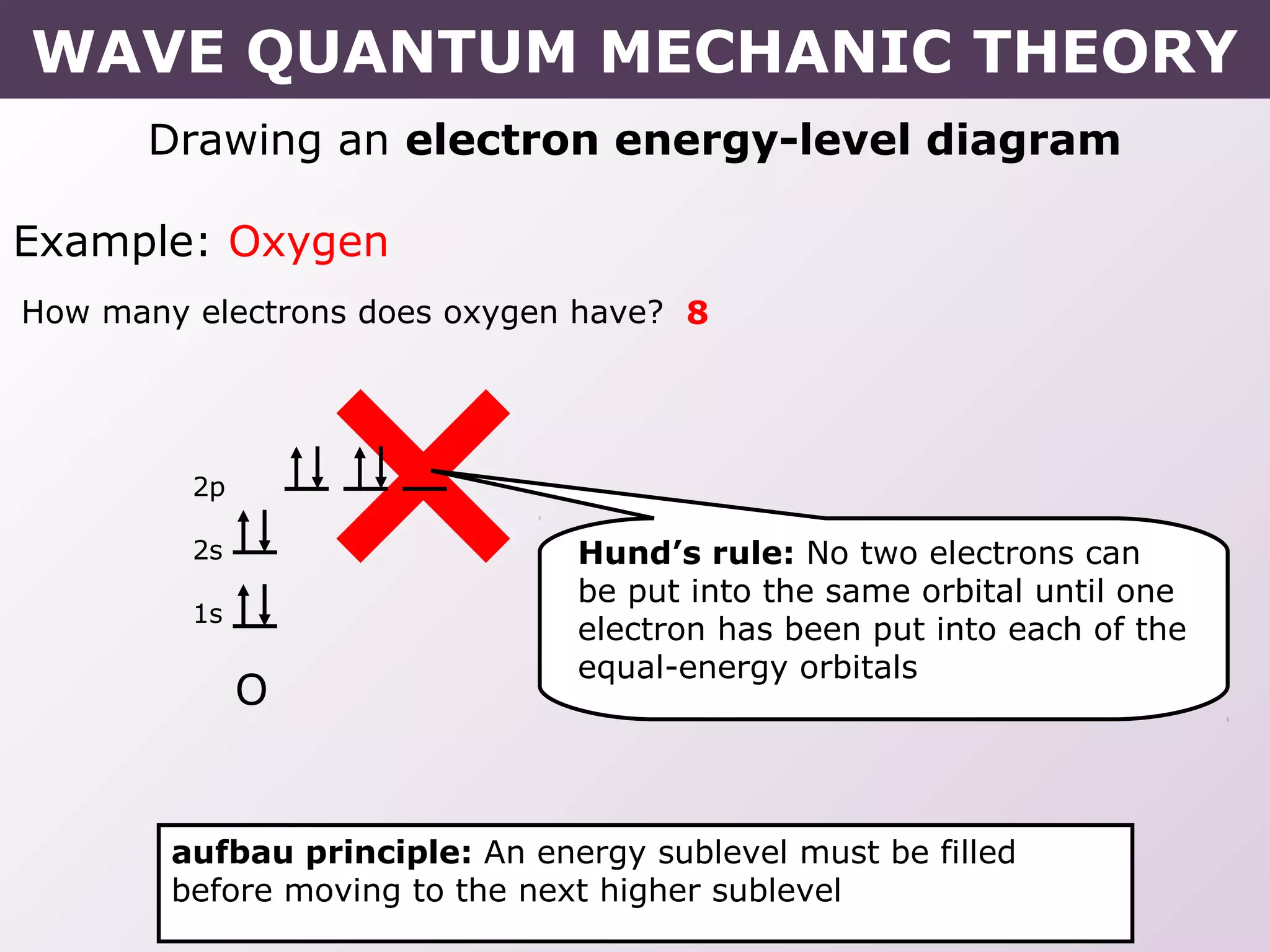

Drawing an electron energy-level diagram
Example: Oxygen
How many electrons does oxygen have? 8
O
aufbau principle: An energy sublevel must be filled
before moving to the next higher sublevel
2p
2s
1s
Hund’s rule: No two electrons can
be put into the same orbital until one
electron has been put into each of the
equal-energy orbitals
WAVE QUANTUM MECHANIC THEORY

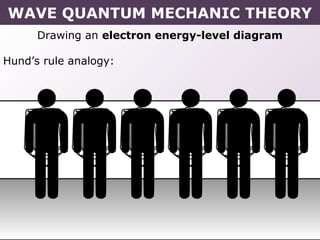

Drawing an electron energy-level diagram

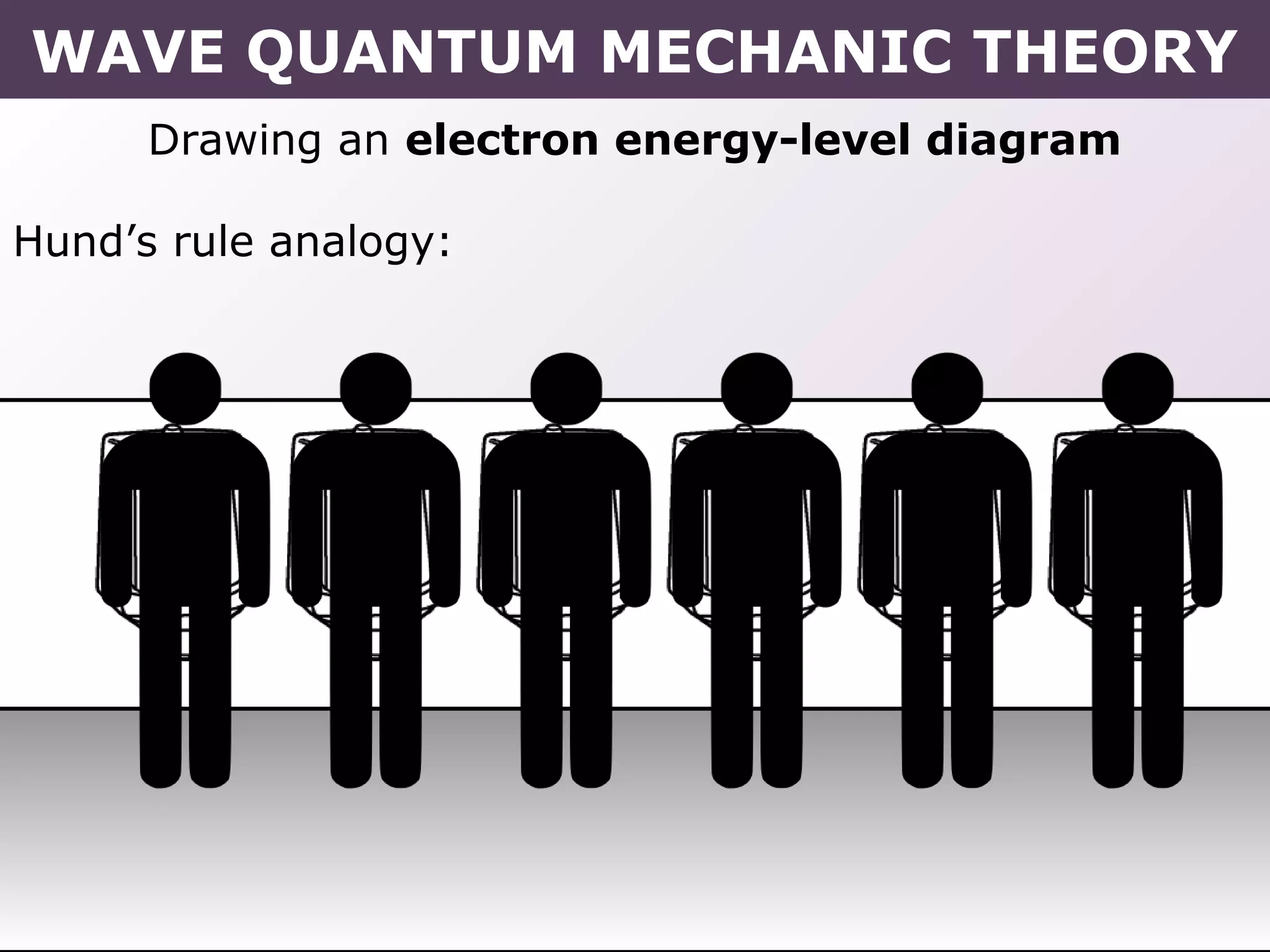

Hund’s rule analogy:
WAVE QUANTUM MECHANIC THEORY

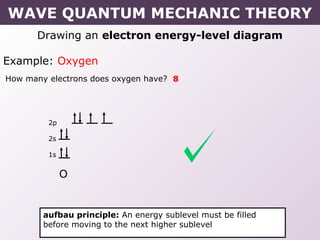

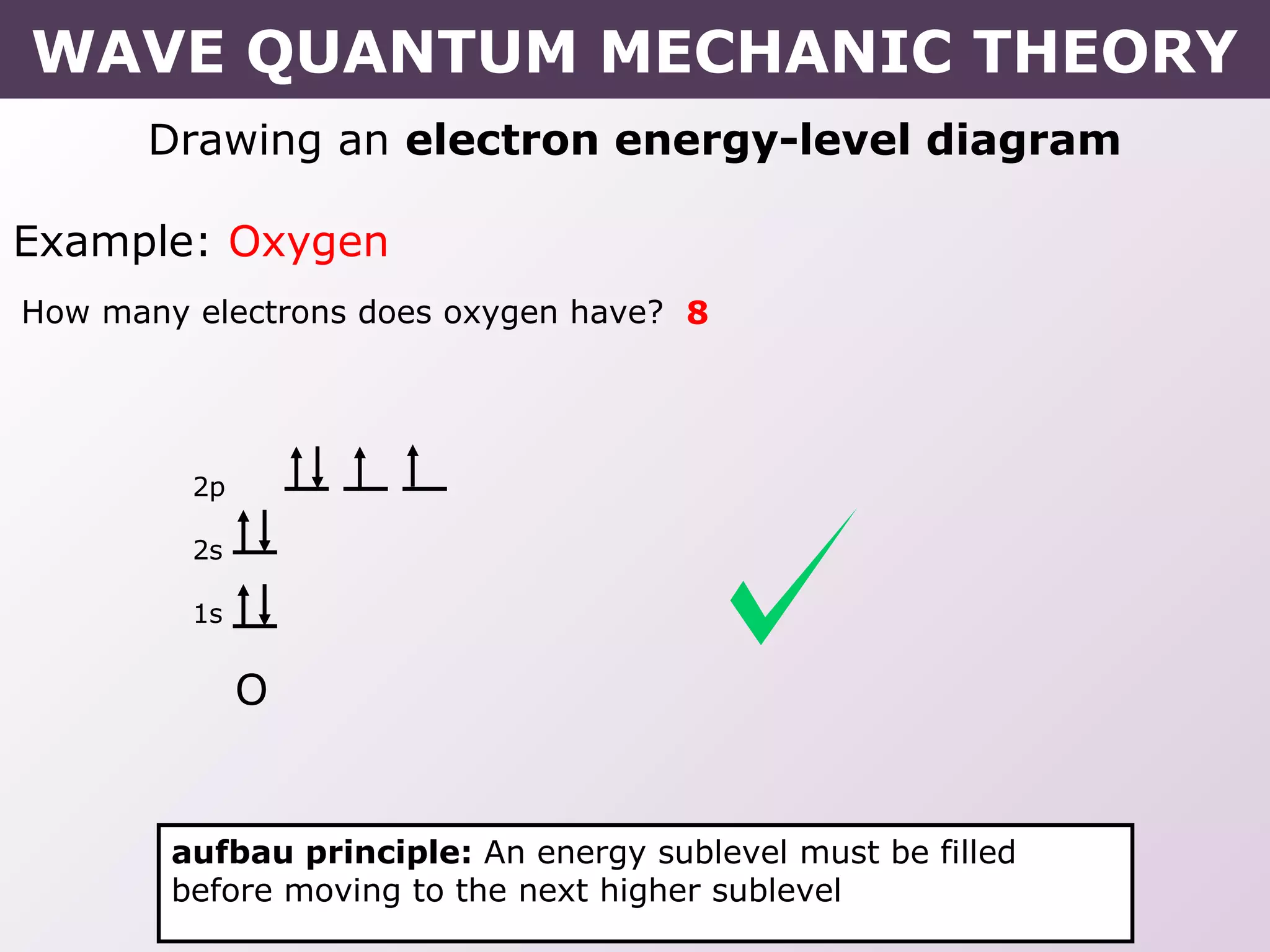

Drawing an electron energy-level diagram
Example: Oxygen
How many electrons does oxygen have? 8
O
aufbau principle: An energy sublevel must be filled
before moving to the next higher sublevel
2p
2s
1s

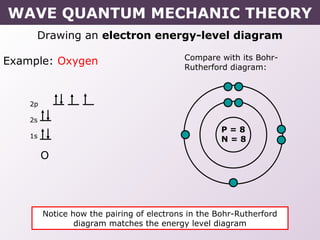

WAVE QUANTUM MECHANIC THEORY

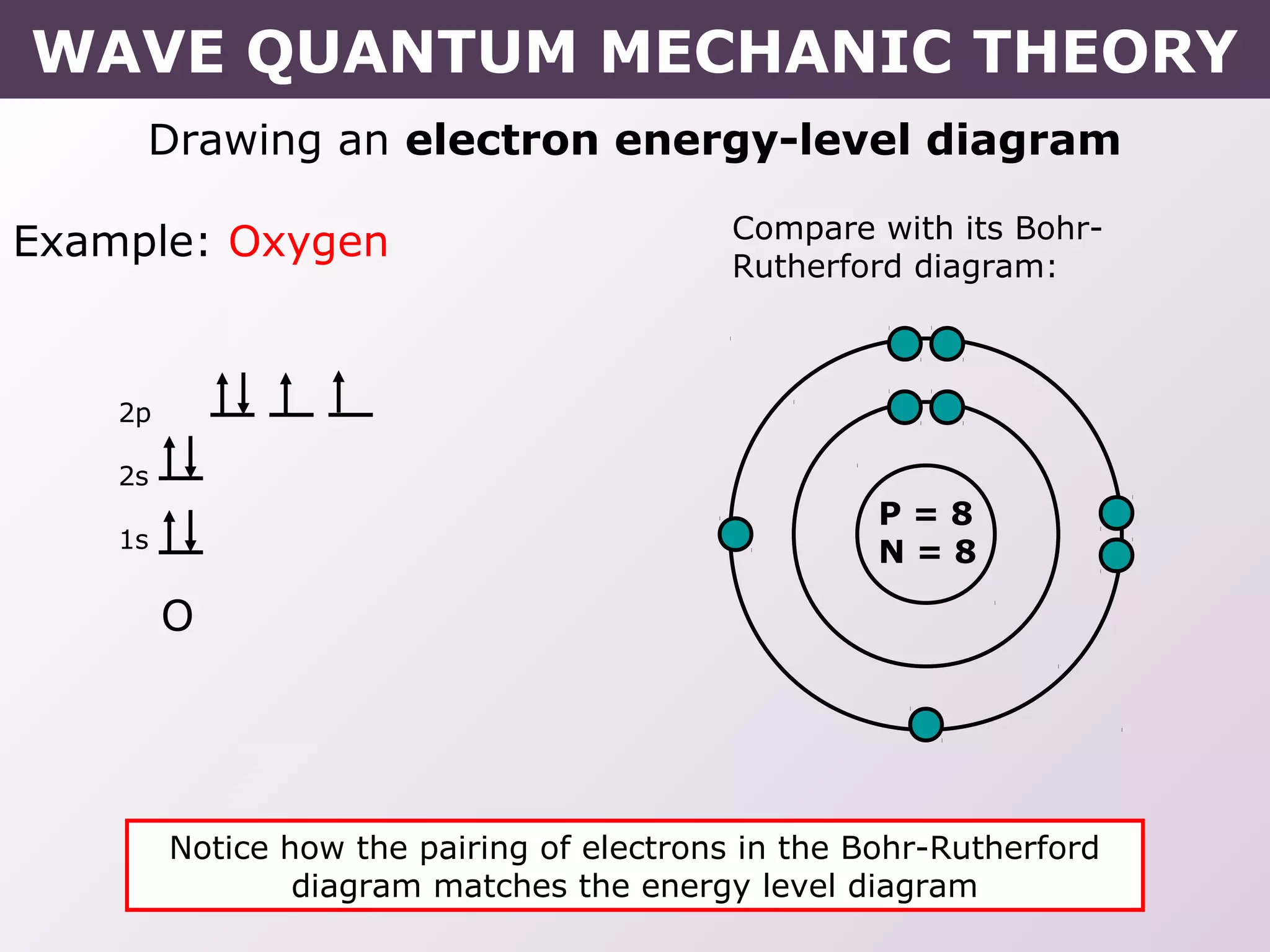

Drawing an electron energy-level diagram
Example: Oxygen
O
2p
2s
1s
Compare with its Bohr-
Rutherford diagram:
P = 8
N = 8
Notice how the pairing of electrons in the Bohr-Rutherford
diagram matches the energy level diagram
WAVE QUANTUM MECHANIC THEORY

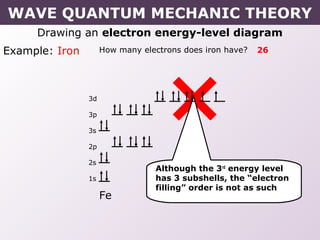

Drawing an electron energy-level diagram
Example: Iron How many electrons does iron have? 26
Although the 3rd
energy level
has 3 subshells, the “electron
filling” order is not as such
Fe
3d
3p
3s
2p
2s
1s
WAVE QUANTUM MECHANIC THEORY

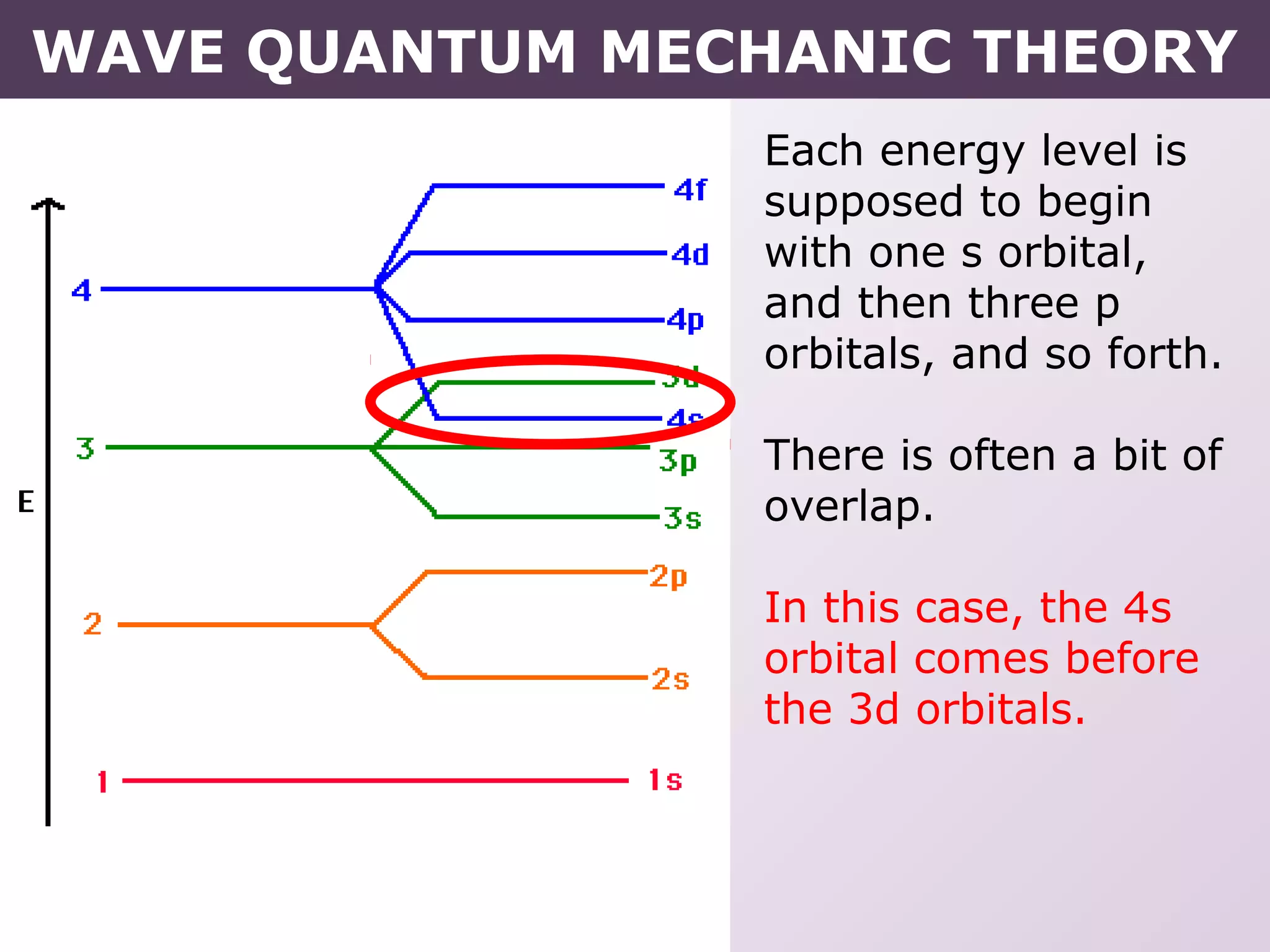

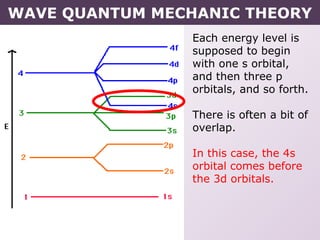

Each energy level is
supposed to begin
with one s orbital,
and then three p
orbitals, and so forth.
There is often a bit of
overlap.
In this case, the 4s
orbital comes before
the 3d orbitals.
WAVE QUANTUM MECHANIC THEORY

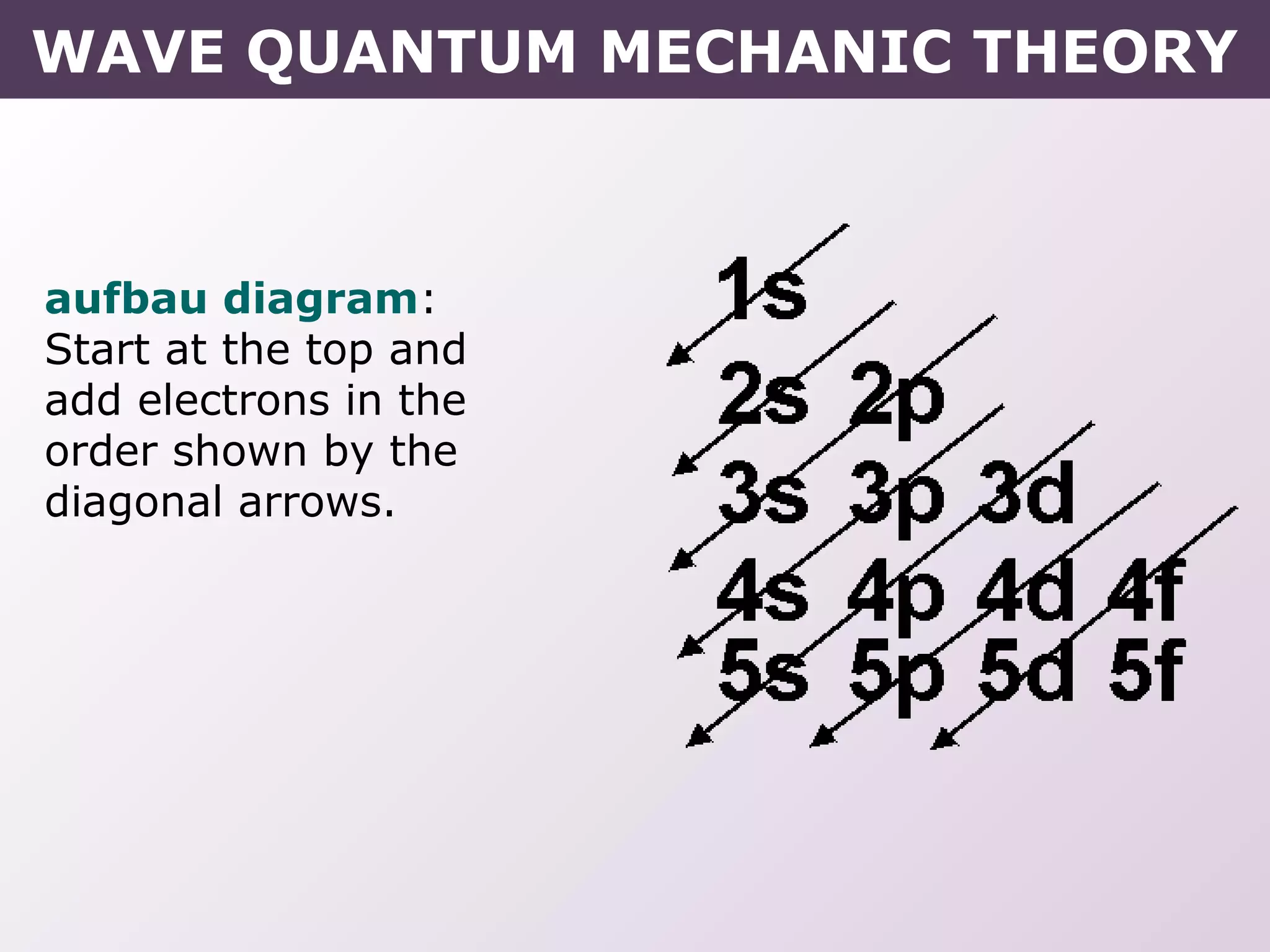

aufbau diagram:
Start at the top and
add electrons in the
order shown by the
diagonal arrows.
WAVE QUANTUM MECHANIC THEORY

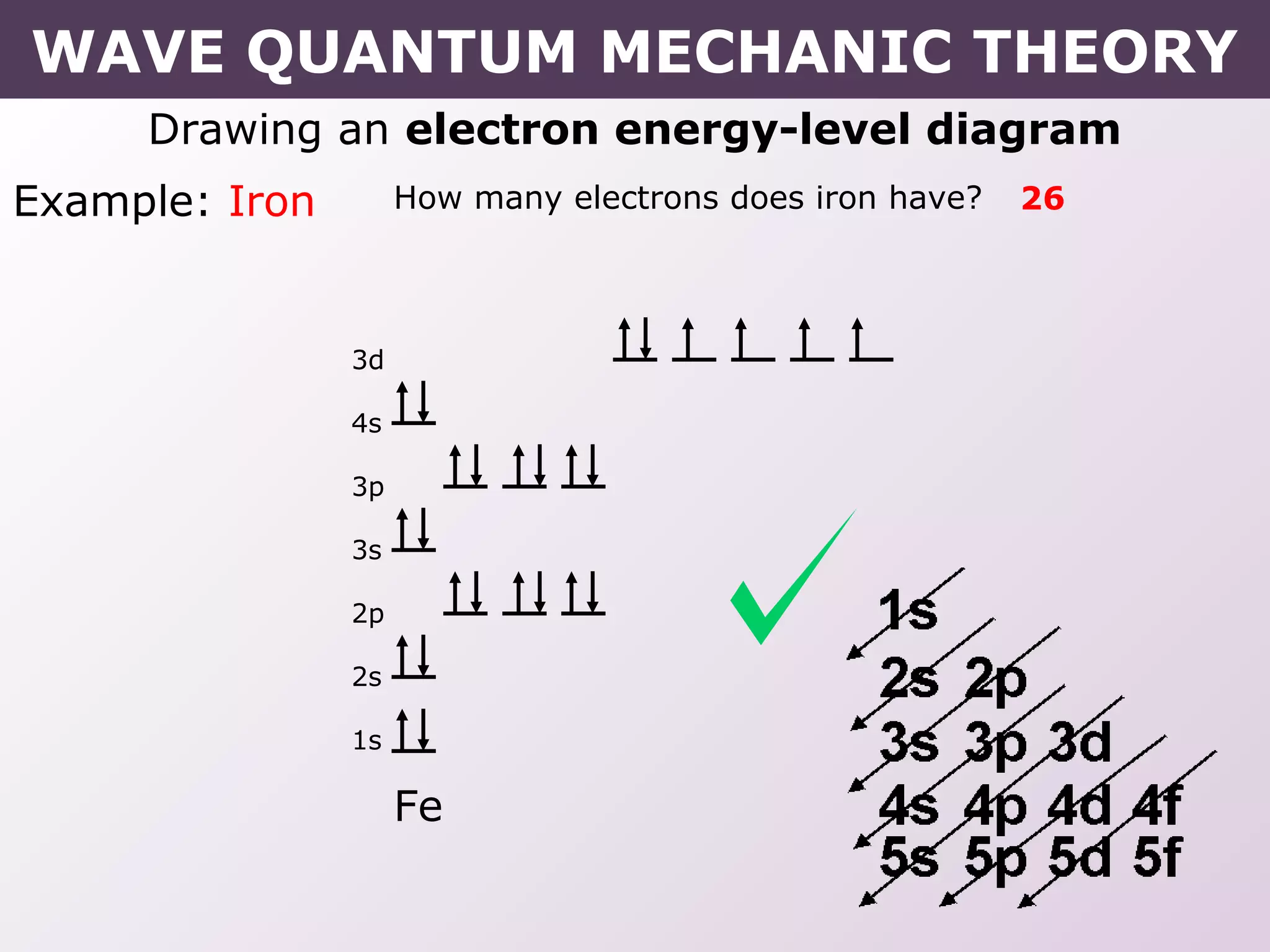

Drawing an electron energy-level diagram
Example: Iron How many electrons does iron have? 26
Fe
3d
4s
3p
3s
2p
2s
1s
WAVE QUANTUM MECHANIC THEORY

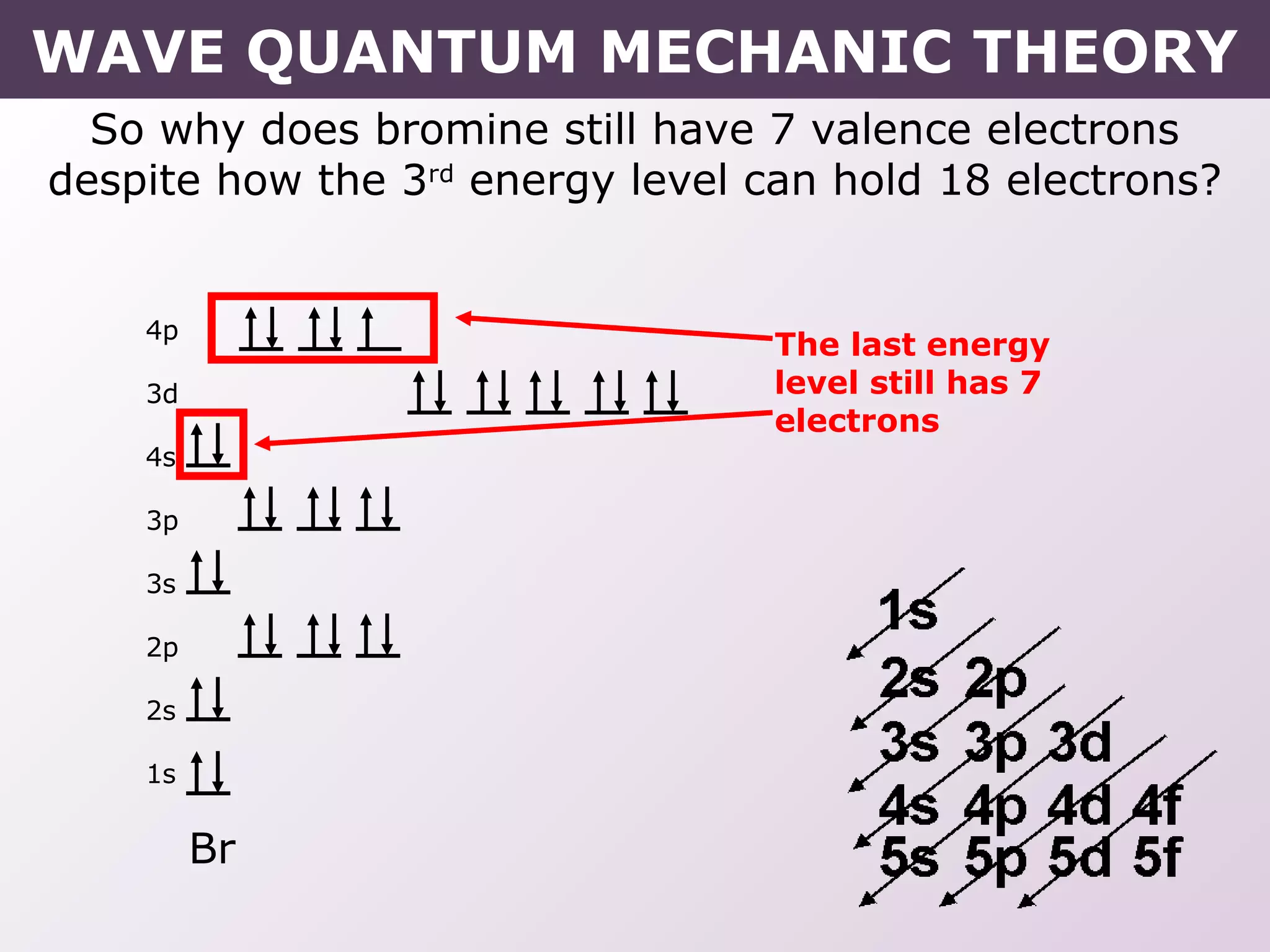

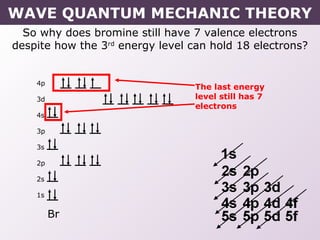

So why does bromine still have 7 valence electrons
despite how the 3rd
energy level can hold 18 electrons?
The last energy
level still has 7
electrons
Br
4p
3d
4s
3p
3s
2p
2s
1s
WAVE QUANTUM MECHANIC THEORY

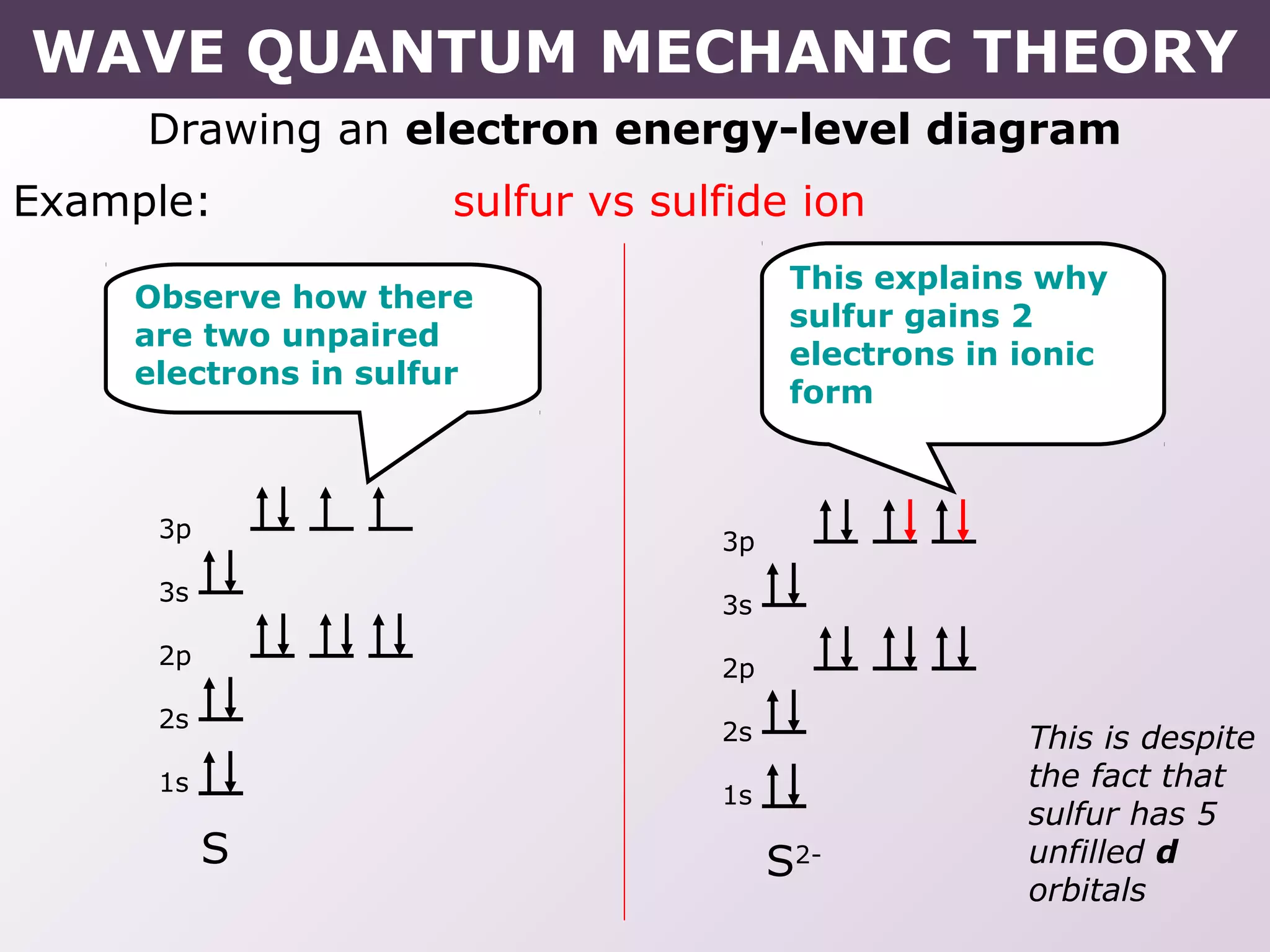

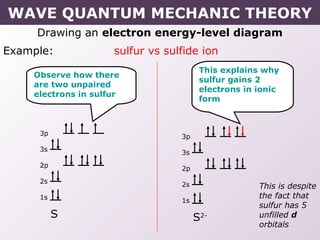

Drawing an electron energy-level diagram
Example: sulfur vs sulfide ion
Observe how there
are two unpaired
electrons in sulfur
This explains why
sulfur gains 2
electrons in ionic
form
This is despite
the fact that
sulfur has 5
unfilled d
orbitals
S
3p
3s
2p
2s
1s
S2-
3p
3s
2p
2s
1s
WAVE QUANTUM MECHANIC THEORY

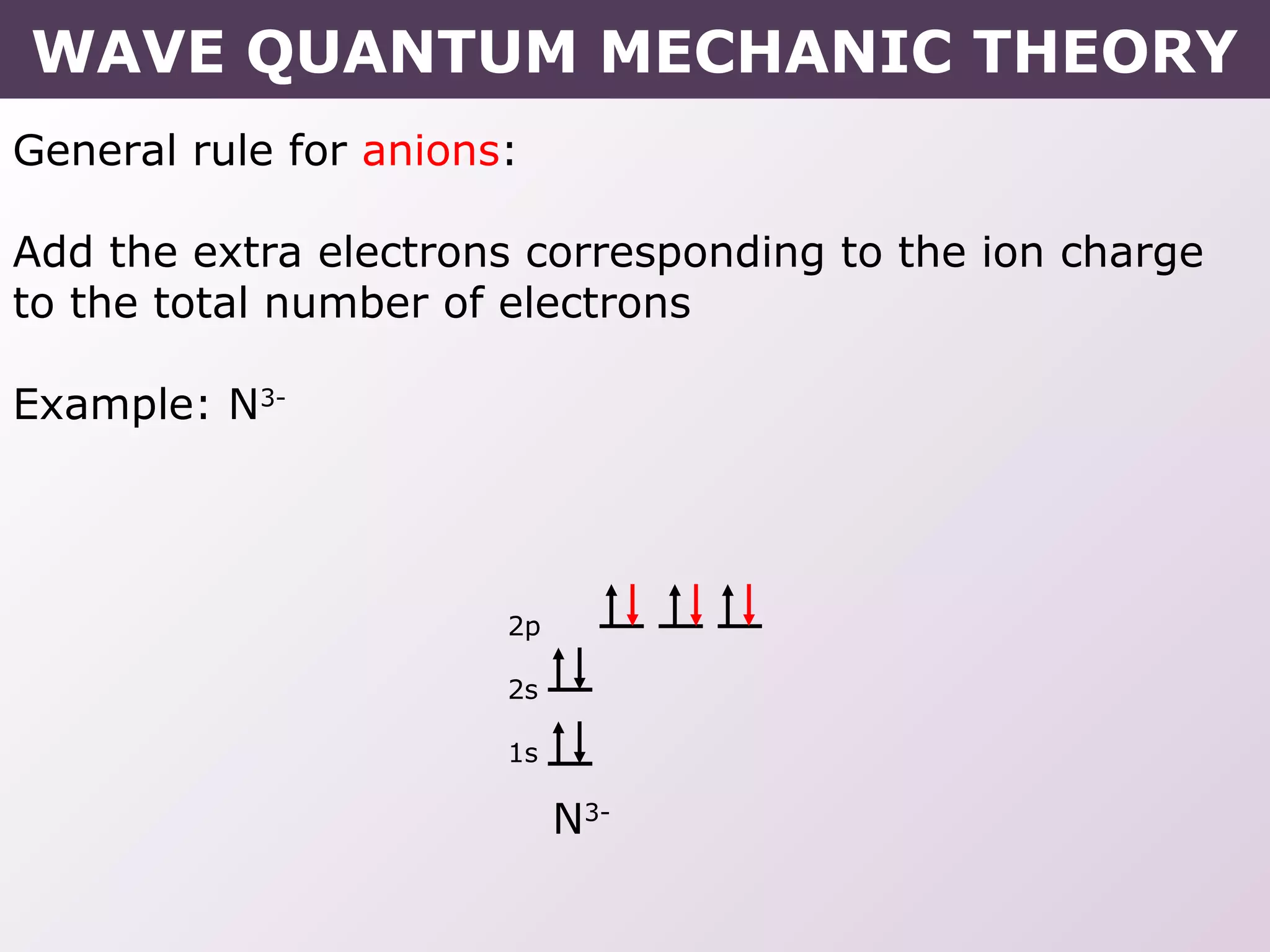

General rule for anions:
Add the extra electrons corresponding to the ion charge
to the total number of electrons
Example: N3-
N3-
2p
2s
1s
WAVE QUANTUM MECHANIC THEORY

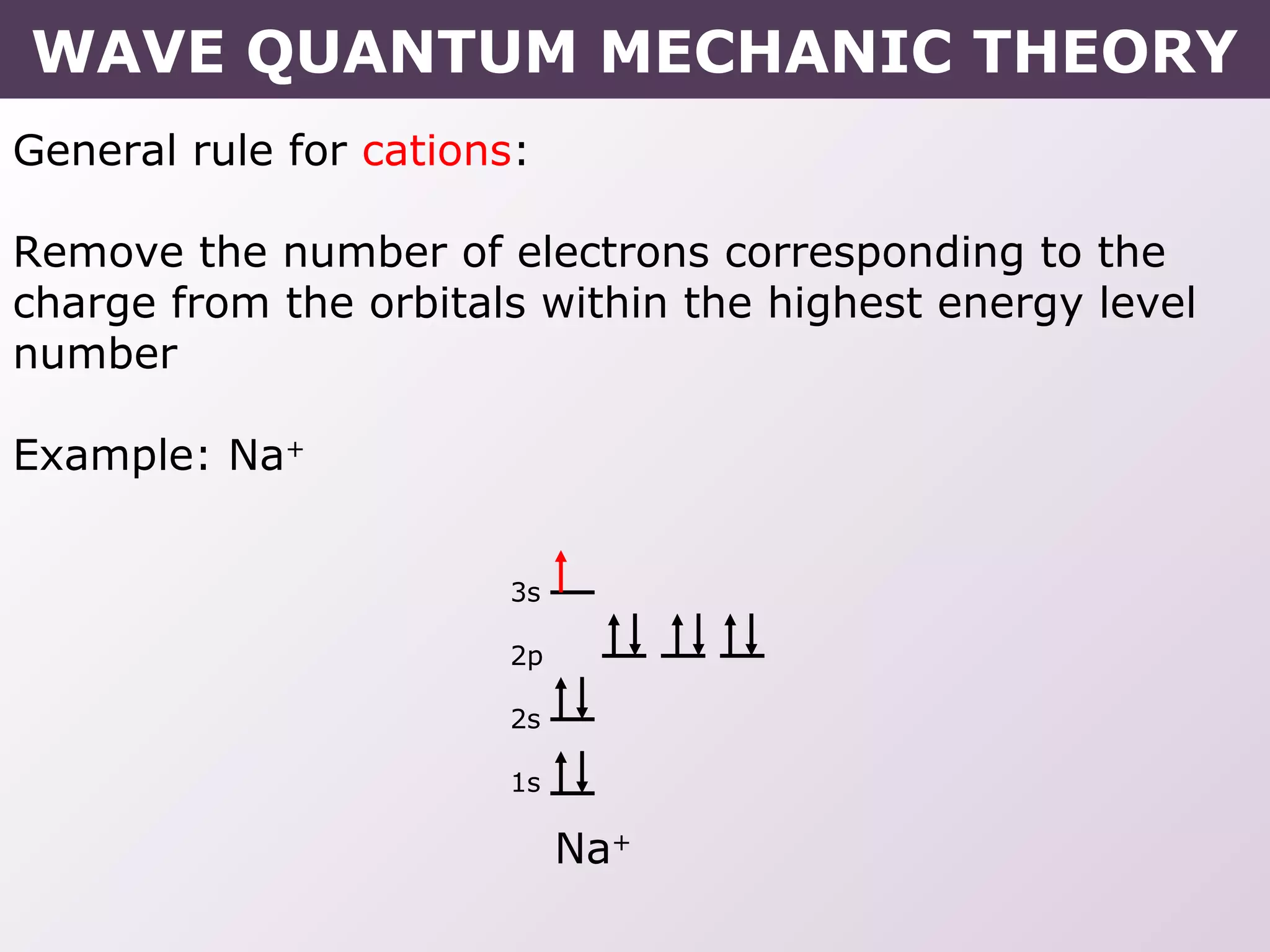

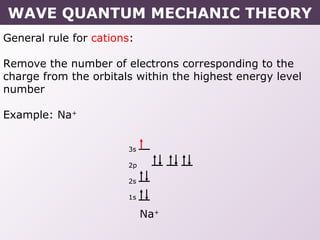

General rule for cations:
Remove the number of electrons corresponding to the
charge from the orbitals within the highest energy level
number
Example: Na+
Na+
3s
2p
2s
1s
WAVE QUANTUM MECHANIC THEORY

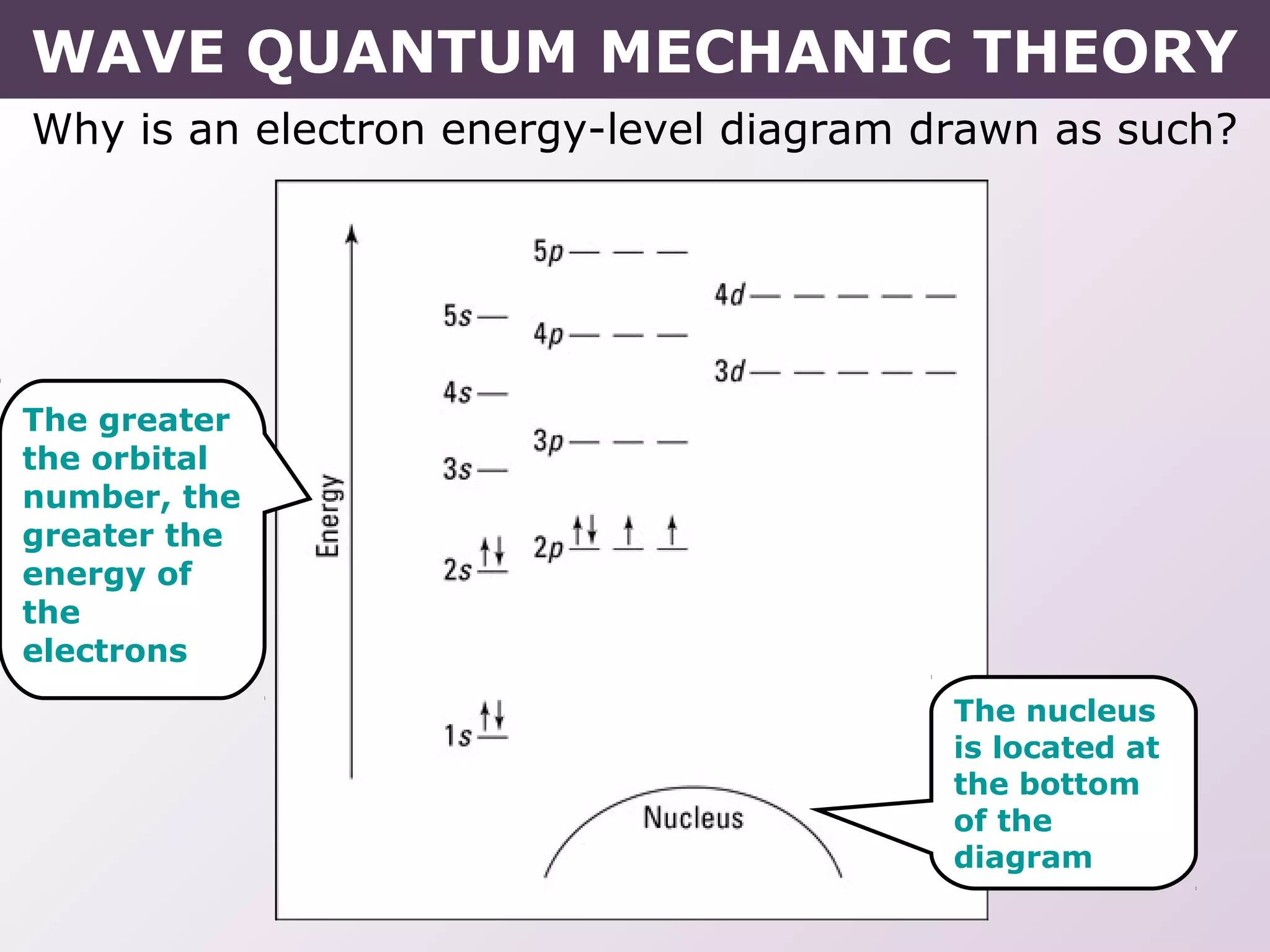

Why is an electron energy-level diagram drawn as such?
The greater
the orbital
number, the
greater the
energy of
the
electrons
The nucleus
is located at
the bottom
of the
diagram
WAVE QUANTUM MECHANIC THEORY

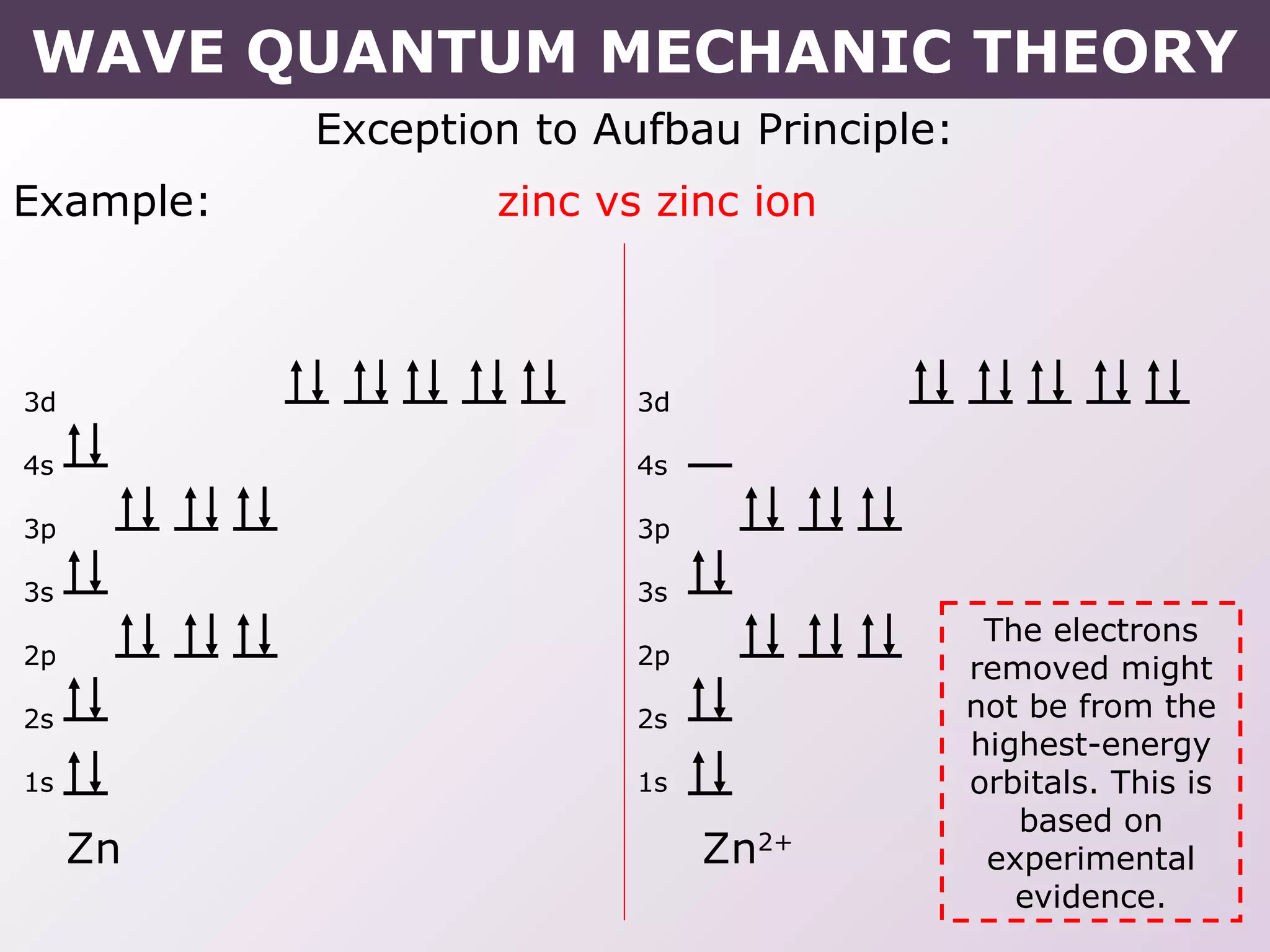

Exception to Aufbau Principle:
Example: zinc vs zinc ion
Zn
3d
4s
3p
3s
2p
2s
1s
Zn2+
3d
4s
3p
3s
2p
2s
1s
The electrons
removed might
not be from the
highest-energy
orbitals. This is
based on
experimental
evidence.
WAVE QUANTUM MECHANIC THEORY

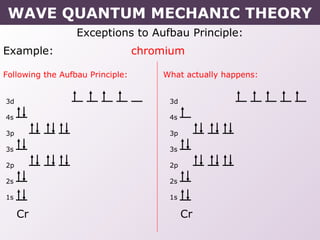

Exceptions to Aufbau Principle:
Example: chromium
Following the Aufbau Principle: What actually happens:
Cr
3d
4s
3p
3s
2p
2s
1s
Cr
3d
4s
3p
3s
2p
2s
1s
WAVE QUANTUM MECHANIC THEORY

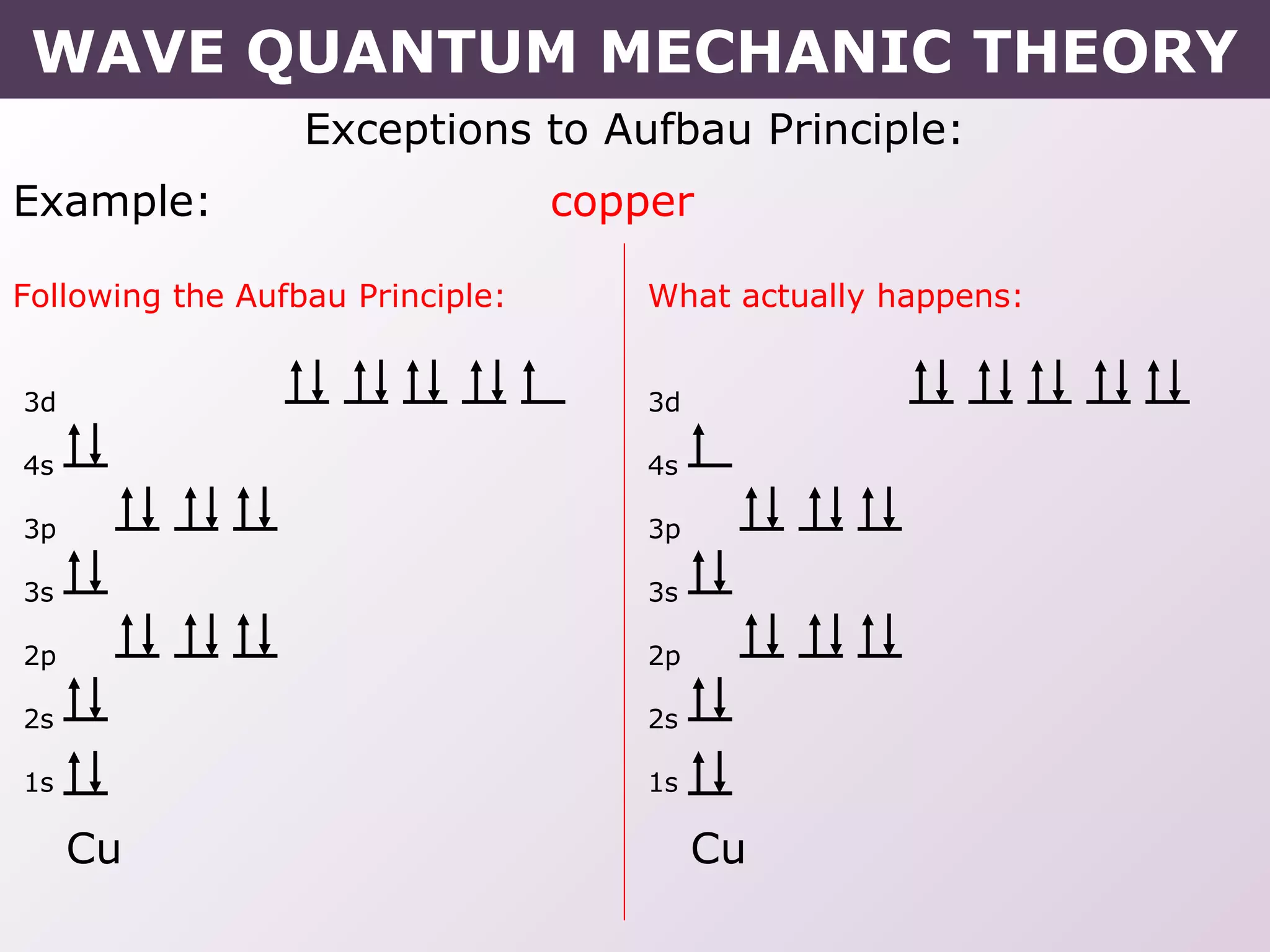

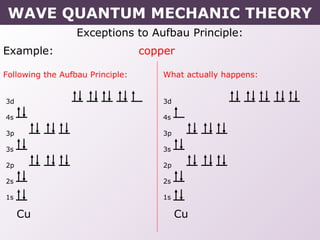

Exceptions to Aufbau Principle:
Example: copper
Following the Aufbau Principle: What actually happens:
Cu
3d
4s
3p
3s
2p
2s
1s
Cu
3d
4s
3p
3s
2p
2s
1s
WAVE QUANTUM MECHANIC THEORY

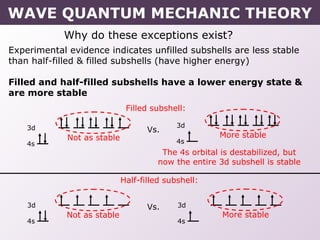

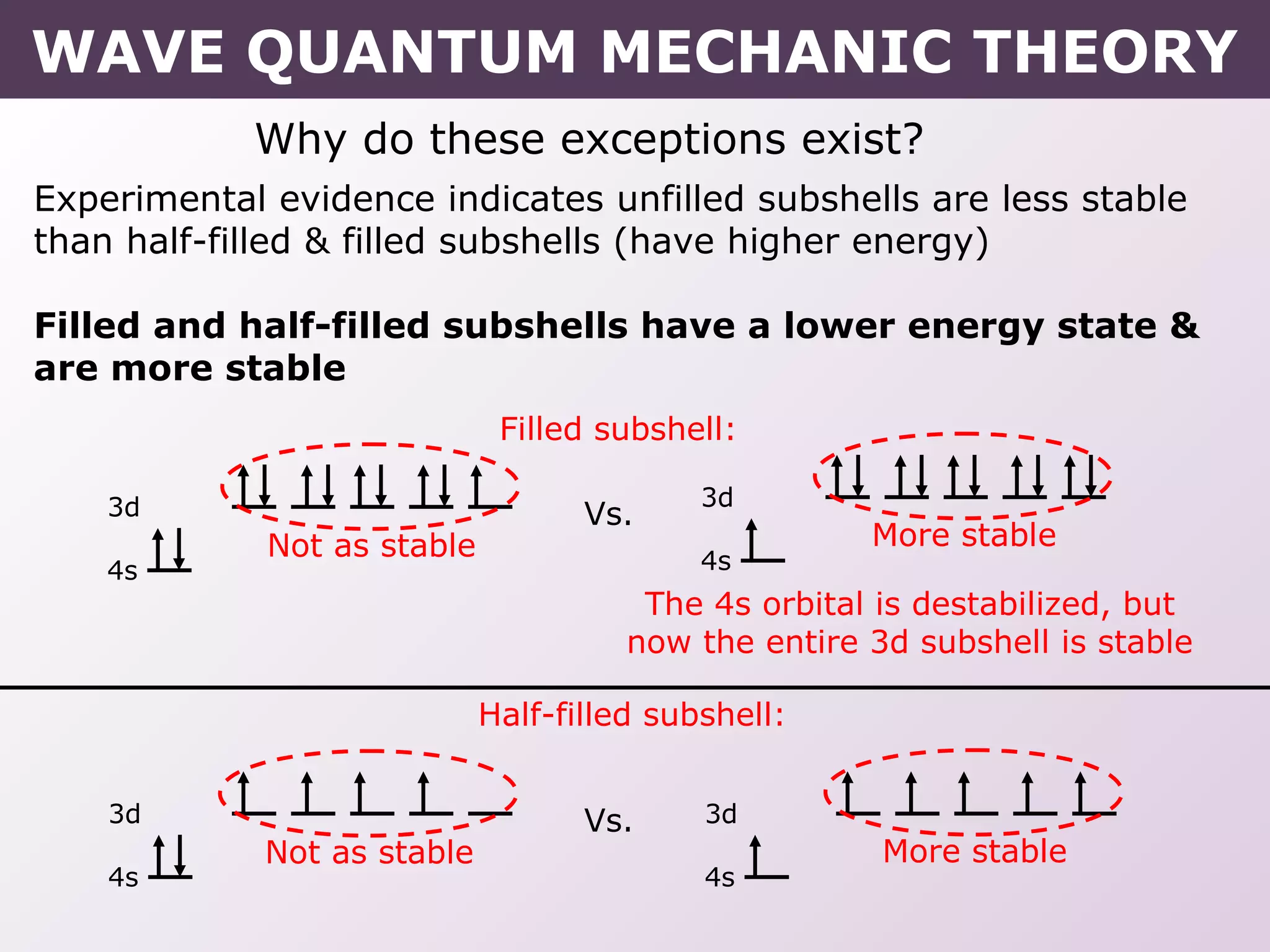

Why do these exceptions exist?
3d
4s
3d
4s
Vs.
Not as stable More stable
The 4s orbital is destabilized, but
now the entire 3d subshell is stable
3d
4s
3d
4s
Not as stable More stable
Filled subshell:
Half-filled subshell:
Experimental evidence indicates unfilled subshells are less stable
than half-filled & filled subshells (have higher energy)
Filled and half-filled subshells have a lower energy state &
are more stable
Vs.
WAVE QUANTUM MECHANIC THEORY

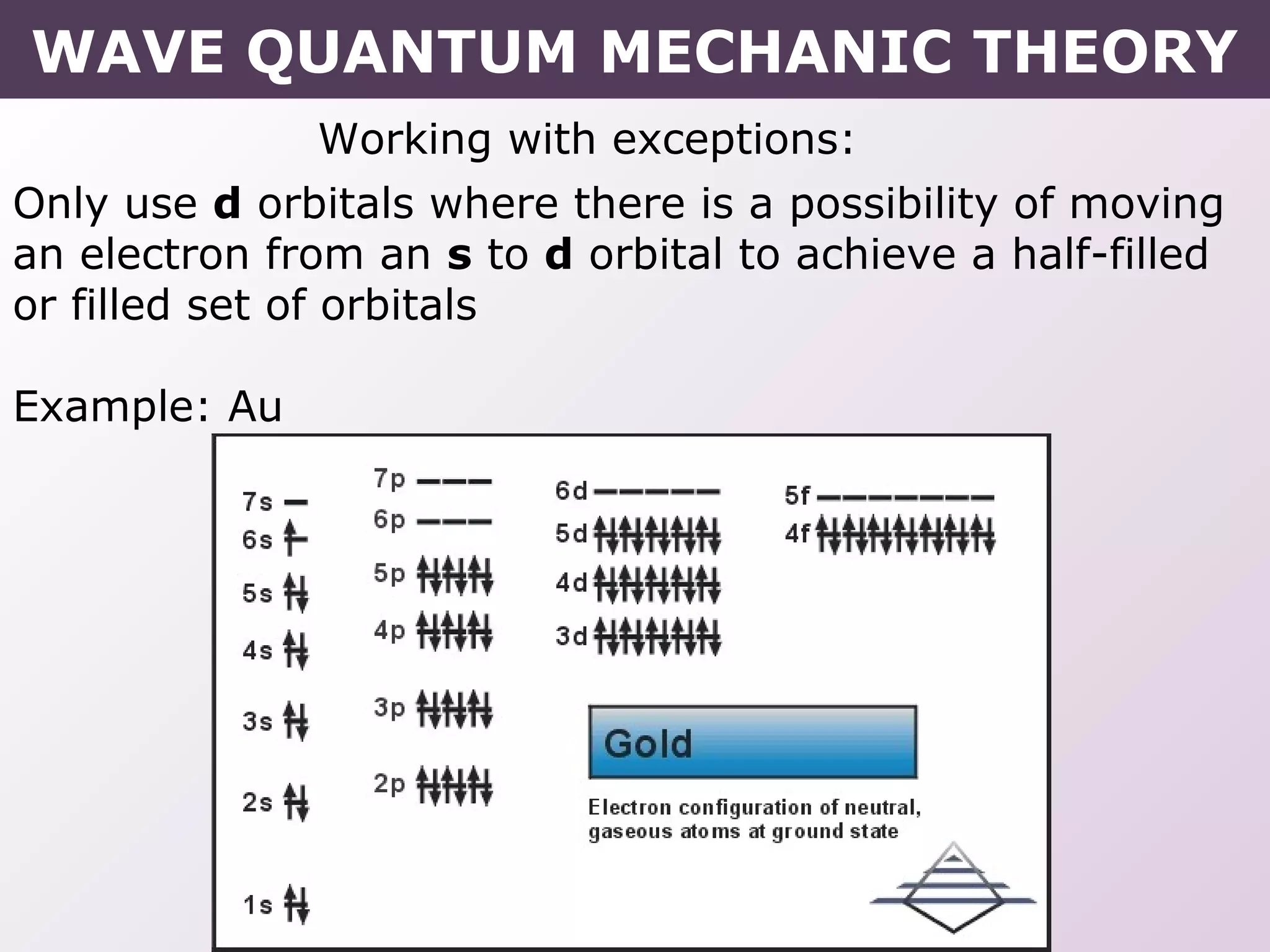

Working with exceptions:
Only use d orbitals where there is a possibility of moving
an electron from an s to d orbital to achieve a half-filled
or filled set of orbitals
Example: Au
WAVE QUANTUM MECHANIC THEORY

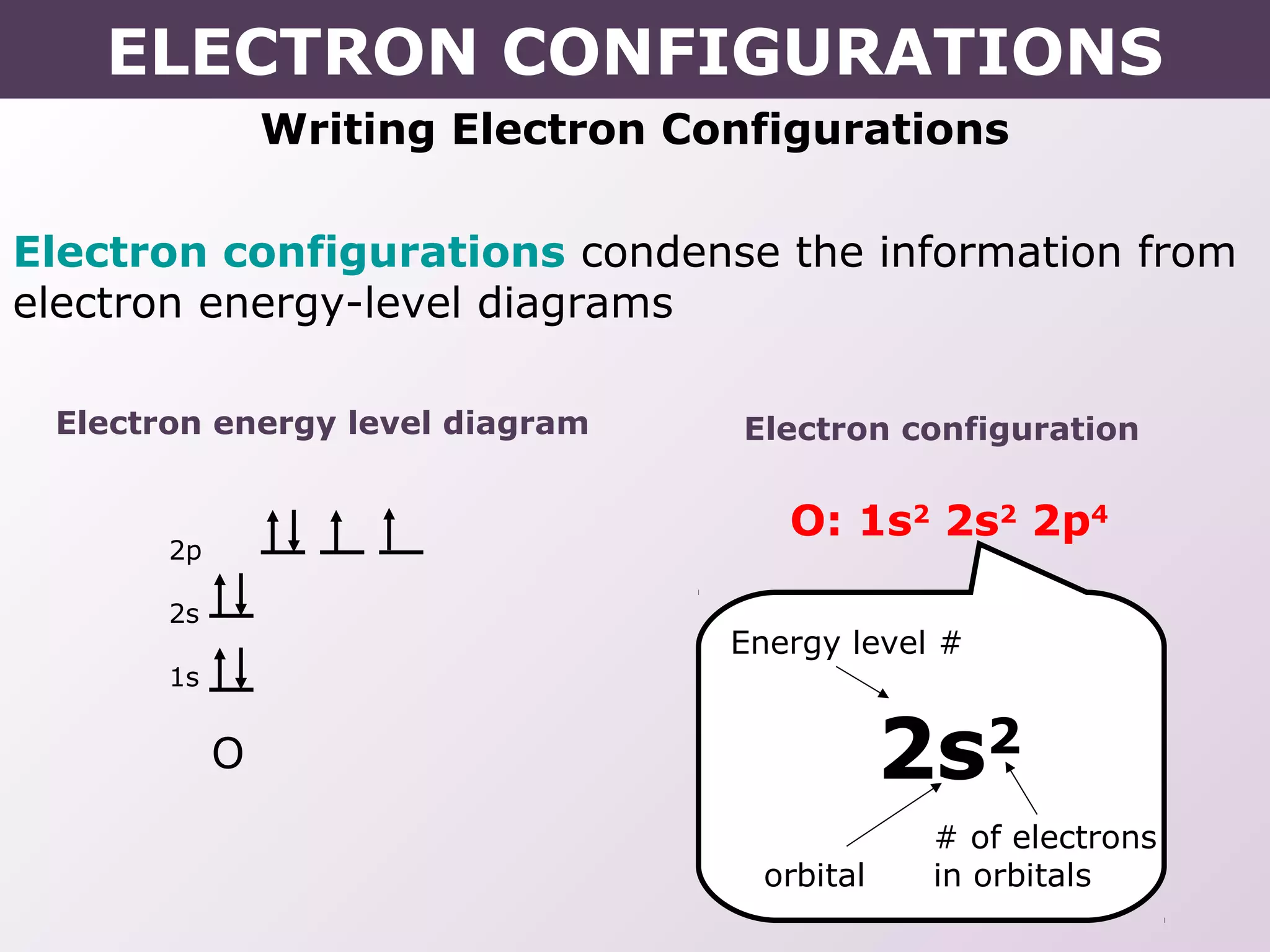

Writing Electron Configurations
Electron configurations condense the information from
electron energy-level diagrams
Electron energy level diagram Electron configuration
O: 1s2
2s2
2p4
2s2
Energy level #
orbital
# of electrons
in orbitals
O
2p
2s
1s
ELECTRON CONFIGURATIONS
Writing Electron Configurations
Electron configurations:
Cl: 1s2
2s2
2p6
3s2
3p5
Sn: 1s2
2s2
2p6
3s2
3p6
4s2
3d10
4p6
5s2
4d10
5p2
S2-
: 1s2
2s2
2p6
3s2
3p6
Fe: 1s2
2s2
2p6
3s2
3p6
4s2
3d6
ELECTRON CONFIGURATIONS
Writing Electron Configurations
Shorthand form of Electron configurations:
Cl: 1s2
2s2
2p6
3s2
3p5
Sn: 1s2
2s2
2p6
3s2
3p6
4s2
3d10
4p6
5s2
4d10
5p2
Cl: [Ne] 3s2
3p5
Sn: [Kr] 5s2
4d10
5p2
Same configuration as Neon
Same configuration as krypton
In the shorthand version, the “core electrons” of an
atom are represented by the preceding noble gas
ELECTRON CONFIGURATIONS

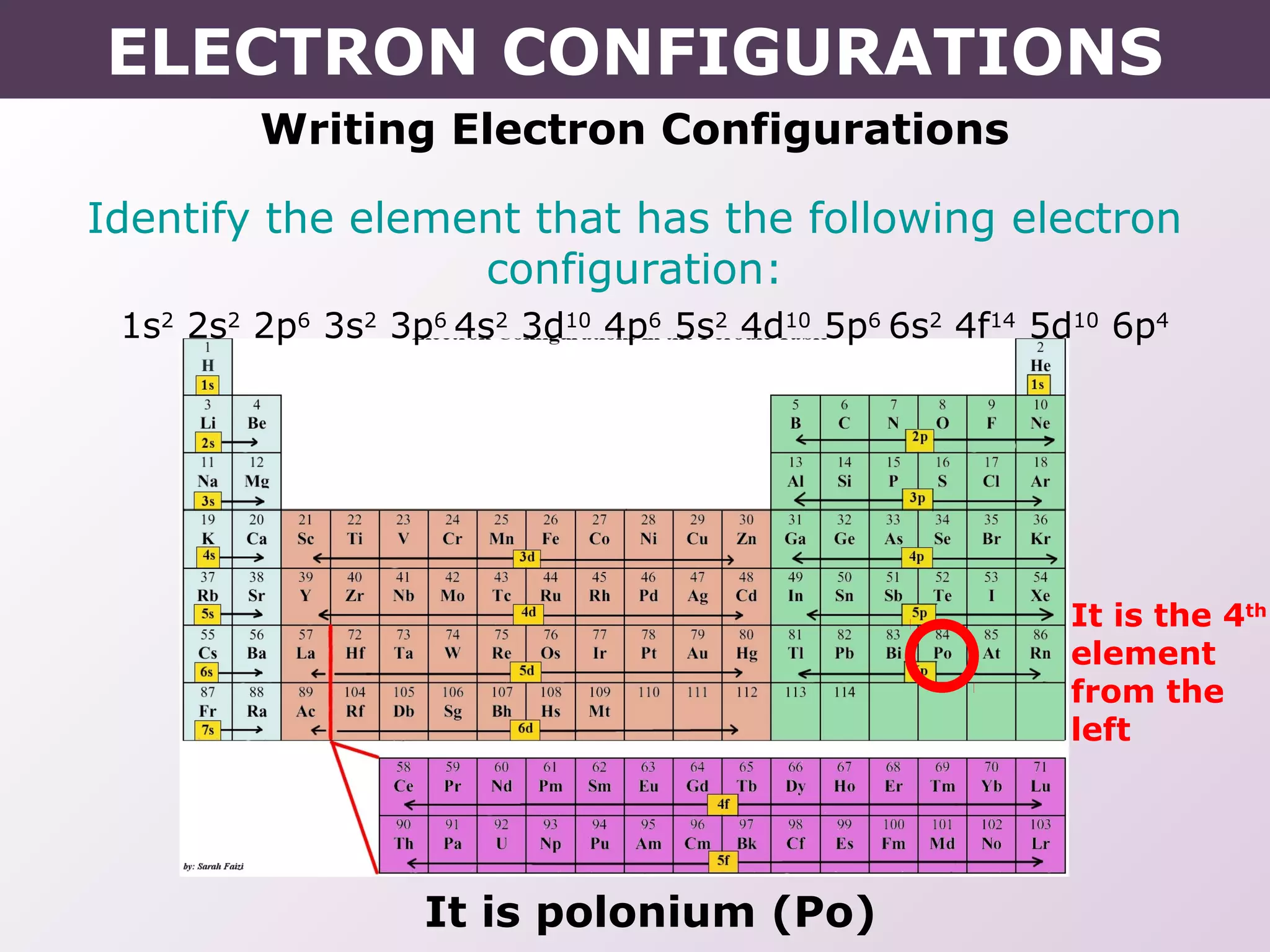

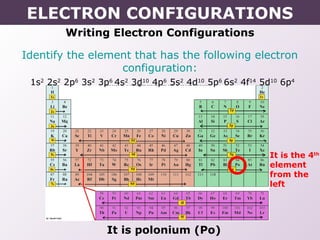

Writing Electron Configurations
Identify the element that has the following electron
configuration:
1s2
2s2
2p6
3s2
3p6
4s2
3d10
4p6
5s2
4d10
5p6
6s2
4f14
5d10
6p4
It is the 4th
element
from the
left
It is polonium (Po)
ELECTRON CONFIGURATIONS
ELECTRON CONFIGURATIONS

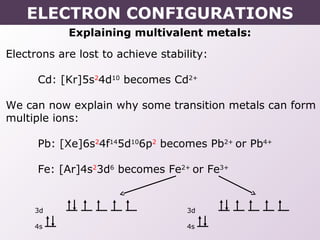

Explaining multivalent metals:
Electrons are lost to achieve stability:
Cd: [Kr]5s2
4d10
becomes Cd2+
We can now explain why some transition metals can form
multiple ions:
Pb: [Xe]6s2
4f14
5d10
6p2
becomes Pb2+
or Pb4+
Fe: [Ar]4s2
3d6
becomes Fe2+
or Fe3+
3d
4s
3d
4s
ELECTRON CONFIGURATIONS

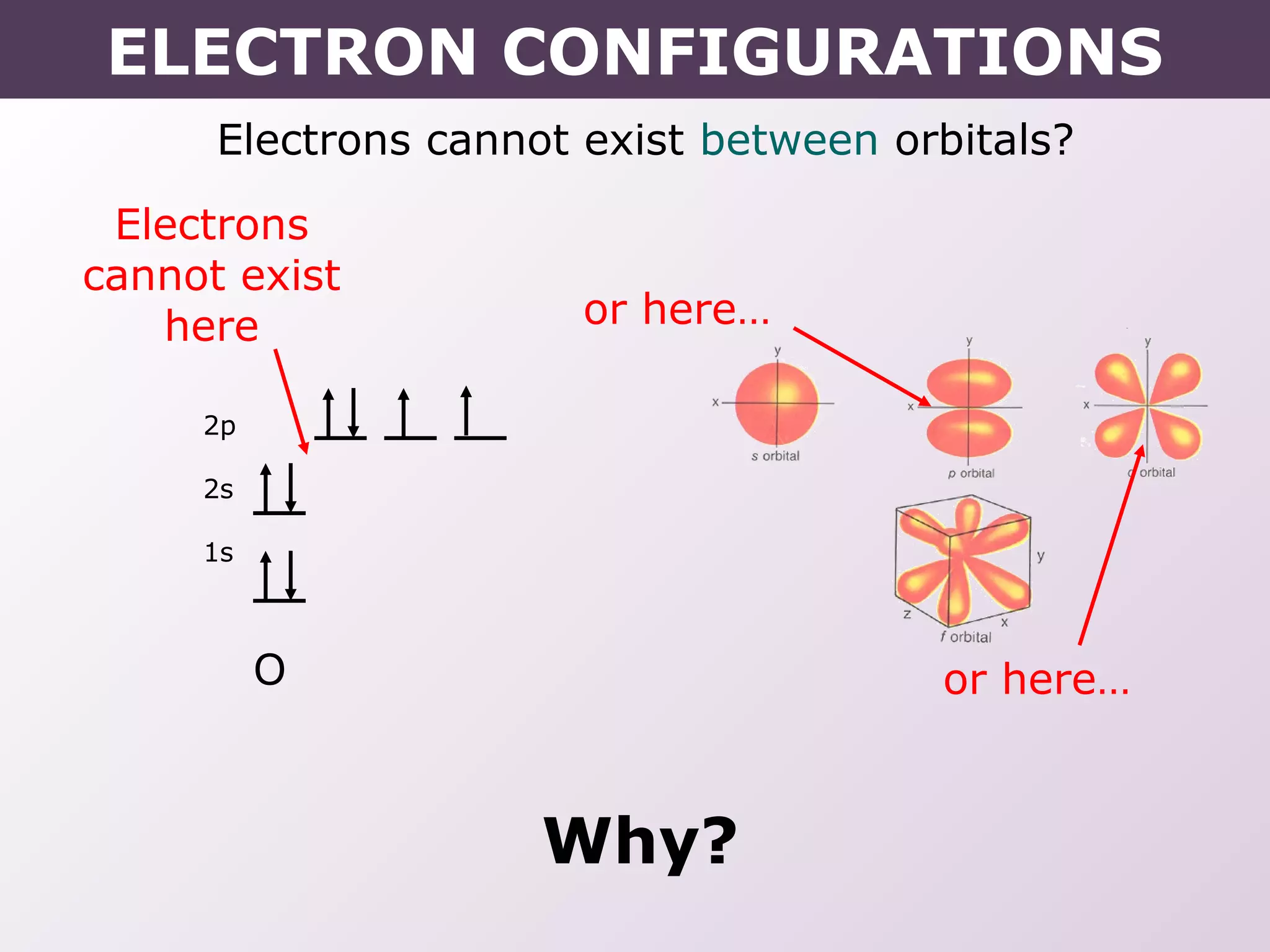

Electrons cannot exist between orbitals?
O
2p
2s
1s
Electrons
cannot exist
here or here…
or here…
Why?
ELECTRON CONFIGURATIONS

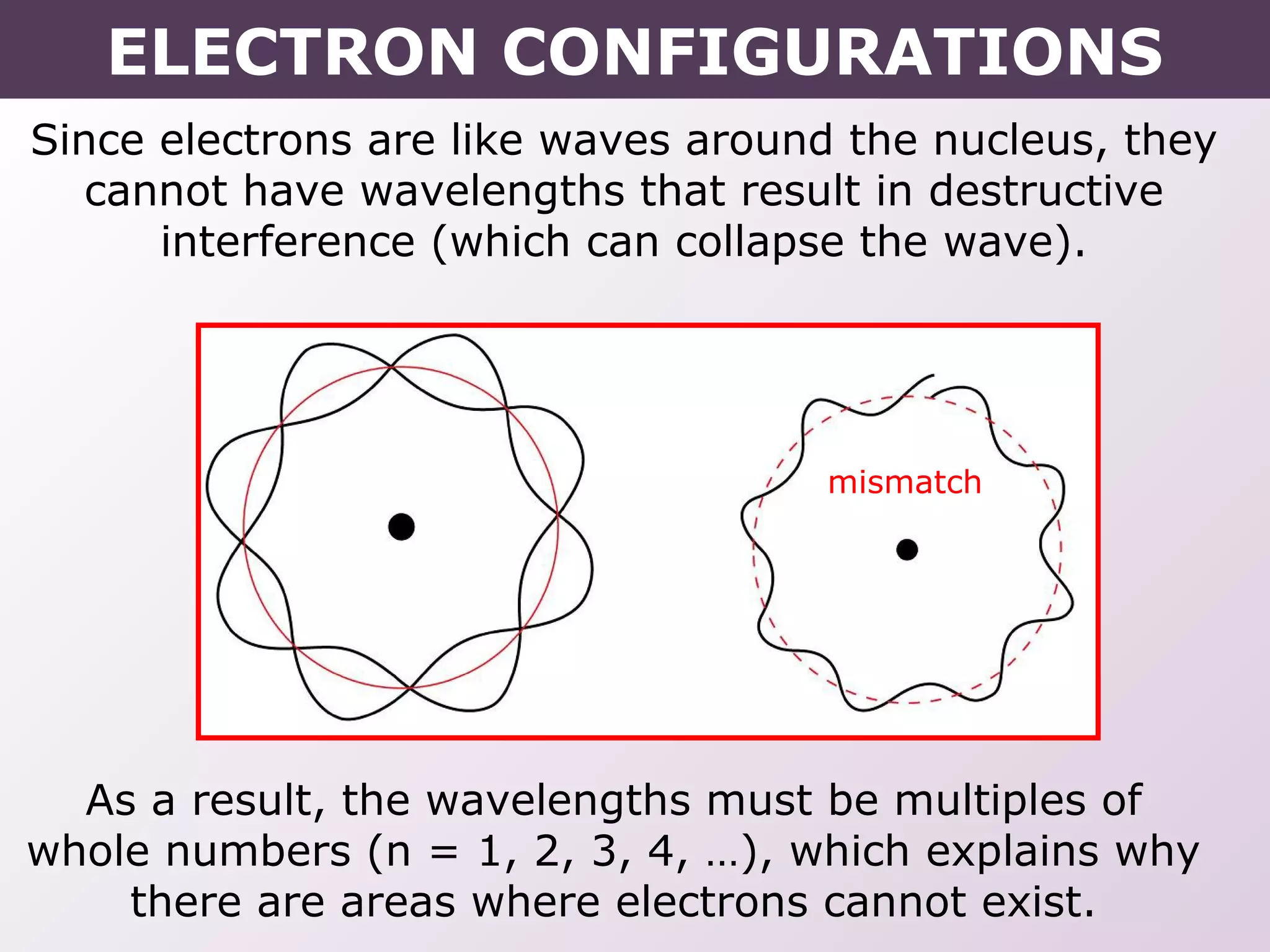

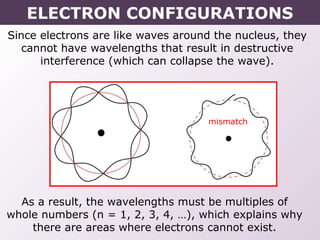

Since electrons are like waves around the nucleus, they
cannot have wavelengths that result in destructive
interference (which can collapse the wave).
As a result, the wavelengths must be multiples of
whole numbers (n = 1, 2, 3, 4, …), which explains why
there are areas where electrons cannot exist.
mismatch
ELECTRON CONFIGURATIONS

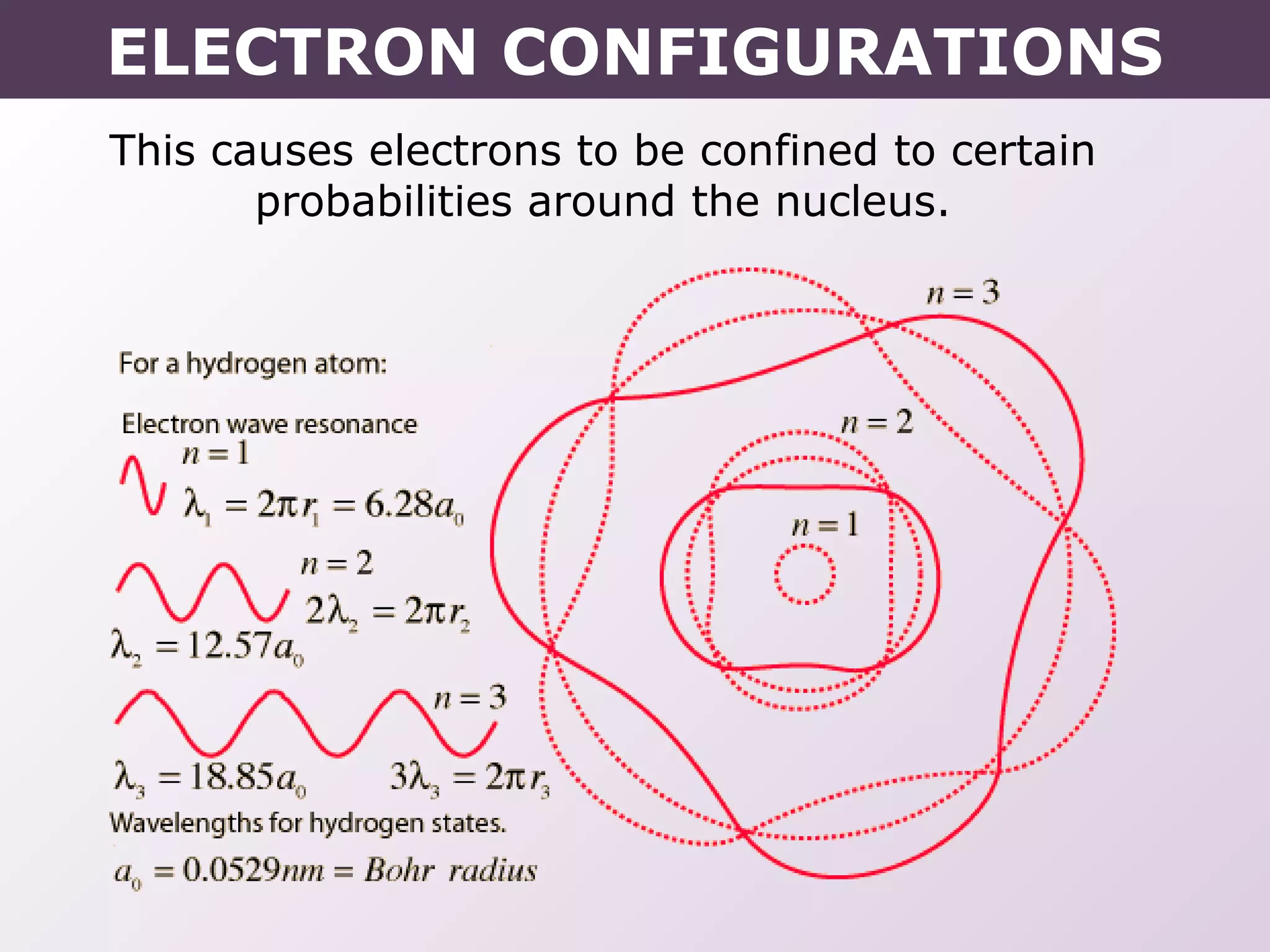

This causes electrons to be confined to certain
probabilities around the nucleus.
ELECTRON CONFIGURATIONS

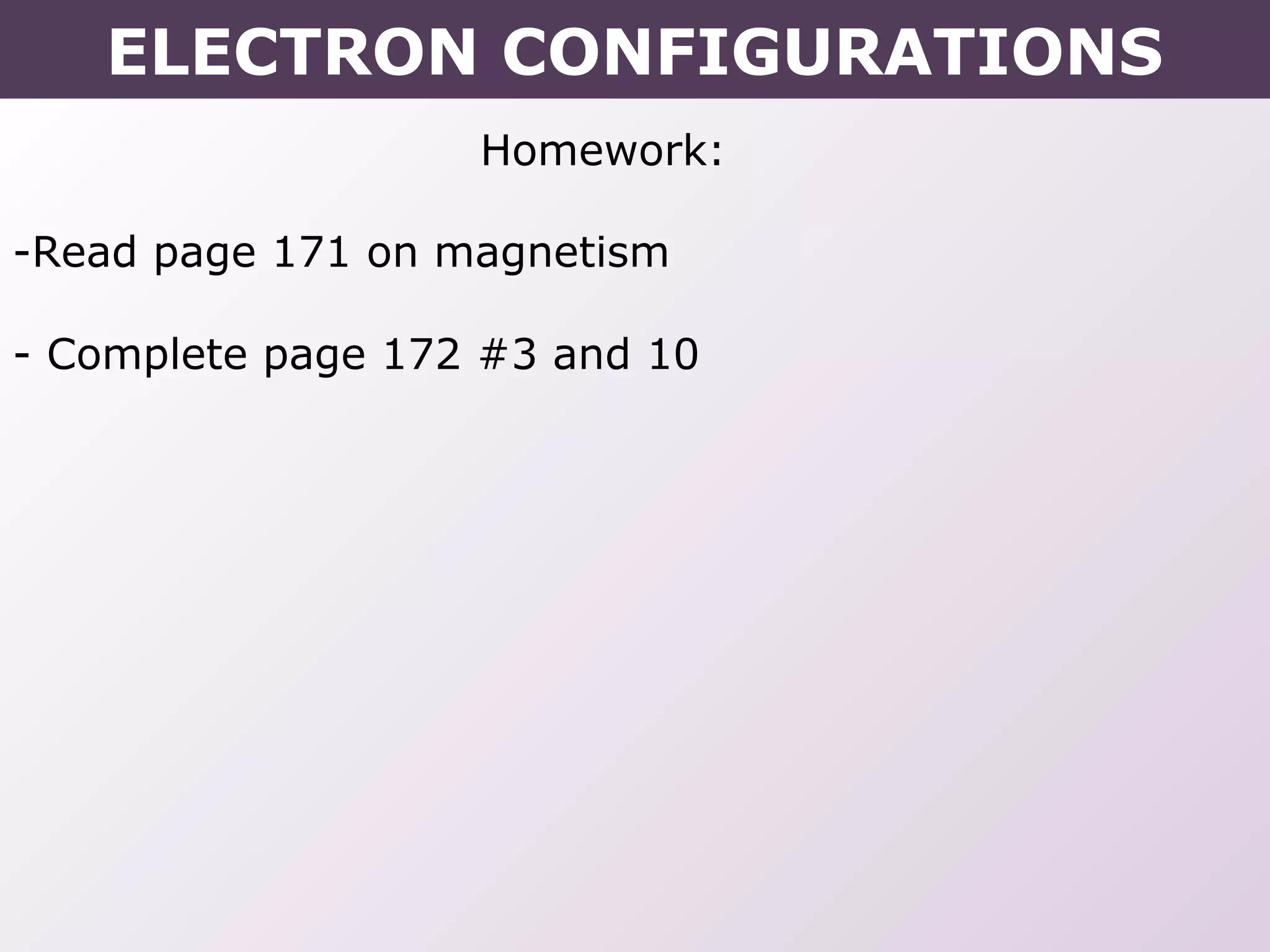

Homework:
-Read page 171 on magnetism
- Complete page 172 #3 and 10
ELECTRON CONFIGURATIONS

More Related Content

What's hot

Basic Chemistry
Basic ChemistryBasic Chemistry
Basic Chemistry
mpattani

Tang 06 bond energy
Tang 06   bond energyTang 06   bond energy
Tang 06 bond energy
mrtangextrahelp

Classical Statistics and Quantum Statistics
Classical Statistics and Quantum StatisticsClassical Statistics and Quantum Statistics
Classical Statistics and Quantum Statistics
DrRamBhosale

De Broglie
De BroglieDe Broglie
De Broglie
itamarita1984

Introduction to Organic Chemistry
Introduction to Organic ChemistryIntroduction to Organic Chemistry
Introduction to Organic Chemistry
akshat saxena

Ionic Equilibria
Ionic EquilibriaIonic Equilibria
Ionic Equilibria
Bernard Ng

Origin of quantum mechanics
Origin of quantum mechanicsOrigin of quantum mechanics
Origin of quantum mechanics
MUHAMMED ABDURAHMAN

Particle in a box- Application of Schrodinger wave equation
Particle in a box- Application of Schrodinger wave equationParticle in a box- Application of Schrodinger wave equation
Particle in a box- Application of Schrodinger wave equation
Rawat DA Greatt

Introductory physical chemistry lecture note
Introductory physical chemistry lecture noteIntroductory physical chemistry lecture note
Introductory physical chemistry lecture note
Belete Asefa Aragaw

AP Chemistry - VSEPR
AP Chemistry - VSEPRAP Chemistry - VSEPR
AP Chemistry - VSEPR
XuanTruc

Electron configuration 2021.pptx
Electron configuration 2021.pptxElectron configuration 2021.pptx
Electron configuration 2021.pptx
DanielleGillettChamb

Biomolecules (12 th chemistry)
Biomolecules  (12 th chemistry)Biomolecules  (12 th chemistry)
Biomolecules (12 th chemistry)
VeenuGupta8

CHEMICAL BONDING II: Molecular geometry and Hybridization of Atomic orbitals
CHEMICAL BONDING II: Molecular geometry and Hybridization of Atomic orbitalsCHEMICAL BONDING II: Molecular geometry and Hybridization of Atomic orbitals
CHEMICAL BONDING II: Molecular geometry and Hybridization of Atomic orbitals
Charilyn Cruz

Electrochemistry
ElectrochemistryElectrochemistry
Electrochemistry
Mohammad Nabil Hossain

Kinetic theory of gases
Kinetic theory of gasesKinetic theory of gases
Kinetic theory of gases
Rahul Singh

Quantum Chemistry
Quantum ChemistryQuantum Chemistry
Quantum Chemistry
baoilleach

The Fermi Level 1
The Fermi Level 1The Fermi Level 1
The Fermi Level 1
RDaCampo

Chapter 2 the structure of the atom
Chapter 2 the structure of the atomChapter 2 the structure of the atom
Chapter 2 the structure of the atom
Ling Leon

Bohr model
Bohr modelBohr model
Bohr model
eliebengston

Chapter 8 Covalent Bonds
Chapter 8 Covalent BondsChapter 8 Covalent Bonds
Chapter 8 Covalent Bonds
Currituck County High School


What's hot (20)

Basic Chemistry
Basic ChemistryBasic Chemistry
Basic Chemistry

Tang 06 bond energy
Tang 06   bond energyTang 06   bond energy
Tang 06 bond energy

Classical Statistics and Quantum Statistics
Classical Statistics and Quantum StatisticsClassical Statistics and Quantum Statistics
Classical Statistics and Quantum Statistics

De Broglie
De BroglieDe Broglie
De Broglie

Introduction to Organic Chemistry
Introduction to Organic ChemistryIntroduction to Organic Chemistry
Introduction to Organic Chemistry

Ionic Equilibria
Ionic EquilibriaIonic Equilibria
Ionic Equilibria

Origin of quantum mechanics
Origin of quantum mechanicsOrigin of quantum mechanics
Origin of quantum mechanics

Particle in a box- Application of Schrodinger wave equation
Particle in a box- Application of Schrodinger wave equationParticle in a box- Application of Schrodinger wave equation
Particle in a box- Application of Schrodinger wave equation

Introductory physical chemistry lecture note
Introductory physical chemistry lecture noteIntroductory physical chemistry lecture note
Introductory physical chemistry lecture note

AP Chemistry - VSEPR
AP Chemistry - VSEPRAP Chemistry - VSEPR
AP Chemistry - VSEPR

Electron configuration 2021.pptx
Electron configuration 2021.pptxElectron configuration 2021.pptx
Electron configuration 2021.pptx

Biomolecules (12 th chemistry)
Biomolecules  (12 th chemistry)Biomolecules  (12 th chemistry)
Biomolecules (12 th chemistry)

CHEMICAL BONDING II: Molecular geometry and Hybridization of Atomic orbitals
CHEMICAL BONDING II: Molecular geometry and Hybridization of Atomic orbitalsCHEMICAL BONDING II: Molecular geometry and Hybridization of Atomic orbitals
CHEMICAL BONDING II: Molecular geometry and Hybridization of Atomic orbitals

Electrochemistry
ElectrochemistryElectrochemistry
Electrochemistry

Kinetic theory of gases
Kinetic theory of gasesKinetic theory of gases
Kinetic theory of gases

Quantum Chemistry
Quantum ChemistryQuantum Chemistry
Quantum Chemistry

The Fermi Level 1
The Fermi Level 1The Fermi Level 1
The Fermi Level 1

Chapter 2 the structure of the atom
Chapter 2 the structure of the atomChapter 2 the structure of the atom
Chapter 2 the structure of the atom

Bohr model
Bohr modelBohr model
Bohr model

Chapter 8 Covalent Bonds
Chapter 8 Covalent BondsChapter 8 Covalent Bonds
Chapter 8 Covalent Bonds


Viewers also liked

Tang 09 intermolecular forces and solubility
Tang 09   intermolecular forces and solubilityTang 09   intermolecular forces and solubility
Tang 09 intermolecular forces and solubility
mrtangextrahelp

Tang 08 polarity
Tang 08   polarityTang 08   polarity
Tang 08 polarity
mrtangextrahelp

Tang 05 lewis dot diagrams
Tang 05   lewis dot diagramsTang 05   lewis dot diagrams
Tang 05 lewis dot diagrams
mrtangextrahelp

Tang 03 quantum numbers
Tang 03   quantum numbersTang 03   quantum numbers
Tang 03 quantum numbers
mrtangextrahelp

Tang 07 vsepr
Tang 07   vseprTang 07   vsepr
Tang 07 vsepr
mrtangextrahelp

34 quantumnumbers
34 quantumnumbers34 quantumnumbers
34 quantumnumbers
clwatson12

Tang 01 light and atomic structure
Tang 01   light and atomic structureTang 01   light and atomic structure
Tang 01 light and atomic structure
mrtangextrahelp

Tang 04 periodic trends
Tang 04   periodic trendsTang 04   periodic trends
Tang 04 periodic trends
mrtangextrahelp

Crystalline solids (group 1)
Crystalline solids (group 1)Crystalline solids (group 1)
Crystalline solids (group 1)
S M

Lect 1 solid state
Lect 1 solid stateLect 1 solid state
Lect 1 solid state
Dr manal Soub

Chemical Bonding
Chemical BondingChemical Bonding
Chemical Bonding
pallavi4prepgenie

Packing factor
Packing factorPacking factor
Packing factor
Gulfam Hussain

Bonding in Solids
Bonding in SolidsBonding in Solids
Bonding in Solids
Ghost Specter

Solid
SolidSolid
Crystalline Solids
Crystalline SolidsCrystalline Solids
Crystalline Solids
Sidra Javed

Types of solids
Types of solidsTypes of solids
Types of solids
Maramandansubu

Crystal Structures & their imperfection
Crystal Structures & their imperfectionCrystal Structures & their imperfection
Crystal Structures & their imperfection
Muveen Khan

Tang 10 structure and properties of solids
Tang 10   structure and properties of solidsTang 10   structure and properties of solids
Tang 10 structure and properties of solids
mrtangextrahelp

ELECTRICAL PROPERTIES OF NI0.4MG0.6FE2O4 SYNTHESIZED BY CONVENTIONAL SOLID-ST...
ELECTRICAL PROPERTIES OF NI0.4MG0.6FE2O4 SYNTHESIZED BY CONVENTIONAL SOLID-ST...ELECTRICAL PROPERTIES OF NI0.4MG0.6FE2O4 SYNTHESIZED BY CONVENTIONAL SOLID-ST...
ELECTRICAL PROPERTIES OF NI0.4MG0.6FE2O4 SYNTHESIZED BY CONVENTIONAL SOLID-ST...
IAEME Publication

Surface defects in crystals
Surface defects in crystalsSurface defects in crystals
Surface defects in crystals
ARUN K S


Viewers also liked (20)

Tang 09 intermolecular forces and solubility
Tang 09   intermolecular forces and solubilityTang 09   intermolecular forces and solubility
Tang 09 intermolecular forces and solubility

Tang 08 polarity
Tang 08   polarityTang 08   polarity
Tang 08 polarity

Tang 05 lewis dot diagrams
Tang 05   lewis dot diagramsTang 05   lewis dot diagrams
Tang 05 lewis dot diagrams

Tang 03 quantum numbers
Tang 03   quantum numbersTang 03   quantum numbers
Tang 03 quantum numbers

Tang 07 vsepr
Tang 07   vseprTang 07   vsepr
Tang 07 vsepr

34 quantumnumbers
34 quantumnumbers34 quantumnumbers
34 quantumnumbers

Tang 01 light and atomic structure
Tang 01   light and atomic structureTang 01   light and atomic structure
Tang 01 light and atomic structure

Tang 04 periodic trends
Tang 04   periodic trendsTang 04   periodic trends
Tang 04 periodic trends

Crystalline solids (group 1)
Crystalline solids (group 1)Crystalline solids (group 1)
Crystalline solids (group 1)

Lect 1 solid state
Lect 1 solid stateLect 1 solid state
Lect 1 solid state

Chemical Bonding
Chemical BondingChemical Bonding
Chemical Bonding

Packing factor
Packing factorPacking factor
Packing factor

Bonding in Solids
Bonding in SolidsBonding in Solids
Bonding in Solids

Solid
SolidSolid
Solid

Crystalline Solids
Crystalline SolidsCrystalline Solids
Crystalline Solids

Types of solids
Types of solidsTypes of solids
Types of solids

Crystal Structures & their imperfection
Crystal Structures & their imperfectionCrystal Structures & their imperfection
Crystal Structures & their imperfection

Tang 10 structure and properties of solids
Tang 10   structure and properties of solidsTang 10   structure and properties of solids
Tang 10 structure and properties of solids

ELECTRICAL PROPERTIES OF NI0.4MG0.6FE2O4 SYNTHESIZED BY CONVENTIONAL SOLID-ST...
ELECTRICAL PROPERTIES OF NI0.4MG0.6FE2O4 SYNTHESIZED BY CONVENTIONAL SOLID-ST...ELECTRICAL PROPERTIES OF NI0.4MG0.6FE2O4 SYNTHESIZED BY CONVENTIONAL SOLID-ST...
ELECTRICAL PROPERTIES OF NI0.4MG0.6FE2O4 SYNTHESIZED BY CONVENTIONAL SOLID-ST...

Surface defects in crystals
Surface defects in crystalsSurface defects in crystals
Surface defects in crystals


Similar to Tang 02 wave quantum mechanic model

Chapter 5 electrons in atoms
Chapter 5 electrons in atomsChapter 5 electrons in atoms
Chapter 5 electrons in atoms
mcnewbold

Adv chem chapt 7
Adv chem chapt 7Adv chem chapt 7
Adv chem chapt 7
bobcatchemistry

Chemistry - Chp 5 - Electrons In Atoms - Powerpoint
Chemistry - Chp 5 - Electrons In Atoms - PowerpointChemistry - Chp 5 - Electrons In Atoms - Powerpoint
Chemistry - Chp 5 - Electrons In Atoms - Powerpoint
Mr. Walajtys

Chapter6
Chapter6Chapter6
Chapter6
I.j. Carido

Advchemchapt7 101015115641-phpapp02
Advchemchapt7 101015115641-phpapp02Advchemchapt7 101015115641-phpapp02
Advchemchapt7 101015115641-phpapp02
Cleophas Rwemera

Electrons in atoms notes
Electrons in atoms notesElectrons in atoms notes
Electrons in atoms notes
martykilroy

2011 hl ib chemistry - topic 12
2011   hl ib chemistry - topic 122011   hl ib chemistry - topic 12
2011 hl ib chemistry - topic 12
David Young

Atomic structure part 2
Atomic structure part 2Atomic structure part 2
Atomic structure part 2
Chris Sonntag

Quantum Mechanics
Quantum MechanicsQuantum Mechanics
Quantum Mechanics
guest471a994

Orbitals hl
Orbitals hlOrbitals hl
Electron configuration
Electron configurationElectron configuration
Electron configuration
Kamal Metwalli

Apchemunit7 111006100549-phpapp02
Apchemunit7 111006100549-phpapp02Apchemunit7 111006100549-phpapp02
Apchemunit7 111006100549-phpapp02
Cleophas Rwemera

Atomic structure part 2/3
Atomic structure part 2/3Atomic structure part 2/3
Atomic structure part 2/3
Chris Sonntag

Electron Configuration
Electron ConfigurationElectron Configuration
Electron Configuration
MHS, Macabebe Pampanga

GenChem-Quantum Numbers-Atom.ppt
GenChem-Quantum Numbers-Atom.pptGenChem-Quantum Numbers-Atom.ppt
GenChem-Quantum Numbers-Atom.ppt
LiezlValiente1

Bell301
Bell301Bell301
Estructura electronica atomica
Estructura electronica atomicaEstructura electronica atomica
Estructura electronica atomica
Pablo Cartes

Chem chapt 5
Chem chapt 5Chem chapt 5
Chem chapt 5
bobcatchemistry

Electrons in Atoms
Electrons in AtomsElectrons in Atoms
Electrons in Atoms
Currituck County High School

Ch 5 electrons in atoms notes
Ch 5 electrons in atoms notesCh 5 electrons in atoms notes
Ch 5 electrons in atoms notes
Esther Herrera


Similar to Tang 02 wave quantum mechanic model (20)

Chapter 5 electrons in atoms
Chapter 5 electrons in atomsChapter 5 electrons in atoms
Chapter 5 electrons in atoms

Adv chem chapt 7
Adv chem chapt 7Adv chem chapt 7
Adv chem chapt 7

Chemistry - Chp 5 - Electrons In Atoms - Powerpoint
Chemistry - Chp 5 - Electrons In Atoms - PowerpointChemistry - Chp 5 - Electrons In Atoms - Powerpoint
Chemistry - Chp 5 - Electrons In Atoms - Powerpoint

Chapter6
Chapter6Chapter6
Chapter6

Advchemchapt7 101015115641-phpapp02
Advchemchapt7 101015115641-phpapp02Advchemchapt7 101015115641-phpapp02
Advchemchapt7 101015115641-phpapp02

Electrons in atoms notes
Electrons in atoms notesElectrons in atoms notes
Electrons in atoms notes

2011 hl ib chemistry - topic 12
2011   hl ib chemistry - topic 122011   hl ib chemistry - topic 12
2011 hl ib chemistry - topic 12

Atomic structure part 2
Atomic structure part 2Atomic structure part 2
Atomic structure part 2

Quantum Mechanics
Quantum MechanicsQuantum Mechanics
Quantum Mechanics

Orbitals hl
Orbitals hlOrbitals hl
Orbitals hl

Electron configuration
Electron configurationElectron configuration
Electron configuration

Apchemunit7 111006100549-phpapp02
Apchemunit7 111006100549-phpapp02Apchemunit7 111006100549-phpapp02
Apchemunit7 111006100549-phpapp02

Atomic structure part 2/3
Atomic structure part 2/3Atomic structure part 2/3
Atomic structure part 2/3

Electron Configuration
Electron ConfigurationElectron Configuration
Electron Configuration

GenChem-Quantum Numbers-Atom.ppt
GenChem-Quantum Numbers-Atom.pptGenChem-Quantum Numbers-Atom.ppt
GenChem-Quantum Numbers-Atom.ppt

Bell301
Bell301Bell301
Bell301

Estructura electronica atomica
Estructura electronica atomicaEstructura electronica atomica
Estructura electronica atomica

Chem chapt 5
Chem chapt 5Chem chapt 5
Chem chapt 5

Electrons in Atoms
Electrons in AtomsElectrons in Atoms
Electrons in Atoms

Ch 5 electrons in atoms notes
Ch 5 electrons in atoms notesCh 5 electrons in atoms notes
Ch 5 electrons in atoms notes


More from mrtangextrahelp

17 stoichiometry
17 stoichiometry17 stoichiometry
17 stoichiometry
mrtangextrahelp

Tang 04 periodic trends
Tang 04   periodic trendsTang 04   periodic trends
Tang 04 periodic trends
mrtangextrahelp

Tang 02 wave quantum mechanic model
Tang 02   wave quantum mechanic modelTang 02   wave quantum mechanic model
Tang 02 wave quantum mechanic model
mrtangextrahelp

23 gases
23 gases23 gases
23 gases
mrtangextrahelp

04 periodic trends v2
04 periodic trends v204 periodic trends v2
04 periodic trends v2
mrtangextrahelp

22 acids + bases
22 acids + bases22 acids + bases
22 acids + bases
mrtangextrahelp

23 gases
23 gases23 gases
23 gases
mrtangextrahelp

22 acids + bases
22 acids + bases22 acids + bases
22 acids + bases
mrtangextrahelp

22 solution stoichiometry new
22 solution stoichiometry new22 solution stoichiometry new
22 solution stoichiometry new
mrtangextrahelp

21 water treatment
21 water treatment21 water treatment
21 water treatment
mrtangextrahelp

20 concentration of solutions
20 concentration of solutions20 concentration of solutions
20 concentration of solutions
mrtangextrahelp

22 acids + bases
22 acids + bases22 acids + bases
22 acids + bases
mrtangextrahelp

19 solutions and solubility
19 solutions and solubility19 solutions and solubility
19 solutions and solubility
mrtangextrahelp

18 percentage yield
18 percentage yield18 percentage yield
18 percentage yield
mrtangextrahelp

17 stoichiometry
17 stoichiometry17 stoichiometry
17 stoichiometry
mrtangextrahelp

14 the mole!!!
14 the mole!!!14 the mole!!!
14 the mole!!!
mrtangextrahelp

01 significant digits
01 significant digits01 significant digits
01 significant digits
mrtangextrahelp

13 nuclear reactions
13 nuclear reactions13 nuclear reactions
13 nuclear reactions
mrtangextrahelp

13 isotopes
13   isotopes13   isotopes
13 isotopes
mrtangextrahelp

12 types of chemical reactions
12 types of chemical reactions12 types of chemical reactions
12 types of chemical reactions
mrtangextrahelp


More from mrtangextrahelp (20)

17 stoichiometry
17 stoichiometry17 stoichiometry
17 stoichiometry

Tang 04 periodic trends
Tang 04   periodic trendsTang 04   periodic trends
Tang 04 periodic trends

Tang 02 wave quantum mechanic model
Tang 02   wave quantum mechanic modelTang 02   wave quantum mechanic model
Tang 02 wave quantum mechanic model

23 gases
23 gases23 gases
23 gases

04 periodic trends v2
04 periodic trends v204 periodic trends v2
04 periodic trends v2

22 acids + bases
22 acids + bases22 acids + bases
22 acids + bases

23 gases
23 gases23 gases
23 gases

22 acids + bases
22 acids + bases22 acids + bases
22 acids + bases

22 solution stoichiometry new
22 solution stoichiometry new22 solution stoichiometry new
22 solution stoichiometry new

21 water treatment
21 water treatment21 water treatment
21 water treatment

20 concentration of solutions
20 concentration of solutions20 concentration of solutions
20 concentration of solutions

22 acids + bases
22 acids + bases22 acids + bases
22 acids + bases

19 solutions and solubility
19 solutions and solubility19 solutions and solubility
19 solutions and solubility

18 percentage yield
18 percentage yield18 percentage yield
18 percentage yield

17 stoichiometry
17 stoichiometry17 stoichiometry
17 stoichiometry

14 the mole!!!
14 the mole!!!14 the mole!!!
14 the mole!!!

01 significant digits
01 significant digits01 significant digits
01 significant digits

13 nuclear reactions
13 nuclear reactions13 nuclear reactions
13 nuclear reactions

13 isotopes
13   isotopes13   isotopes
13 isotopes

12 types of chemical reactions
12 types of chemical reactions12 types of chemical reactions
12 types of chemical reactions


Recently uploaded

Detection of the elusive dangling OH ice features at ~2.7 μm in Chamaeleon I ...
Detection of the elusive dangling OH ice features at ~2.7 μm in Chamaeleon I ...Detection of the elusive dangling OH ice features at ~2.7 μm in Chamaeleon I ...
Detection of the elusive dangling OH ice features at ~2.7 μm in Chamaeleon I ...
Sérgio Sacani

Review Article:- A REVIEW ON RADIOISOTOPES IN CANCER THERAPY
Review Article:- A REVIEW ON RADIOISOTOPES IN CANCER THERAPYReview Article:- A REVIEW ON RADIOISOTOPES IN CANCER THERAPY
Review Article:- A REVIEW ON RADIOISOTOPES IN CANCER THERAPY
niranjangiri009

VIII-Geography FOR CBSE CLASS 8 INDIA.pdf
VIII-Geography FOR CBSE CLASS 8 INDIA.pdfVIII-Geography FOR CBSE CLASS 8 INDIA.pdf
VIII-Geography FOR CBSE CLASS 8 INDIA.pdf
poorvarajgolkar

Plant Kingdom BioHack class 11 neet ....
Plant Kingdom BioHack class 11 neet ....Plant Kingdom BioHack class 11 neet ....
Plant Kingdom BioHack class 11 neet ....
anushkakharat13

SOFIA/HAWC+ FAR-INFRARED POLARIMETRIC LARGE-AREA CMZ EXPLORATION (FIREPLACE) ...
SOFIA/HAWC+ FAR-INFRARED POLARIMETRIC LARGE-AREA CMZ EXPLORATION (FIREPLACE) ...SOFIA/HAWC+ FAR-INFRARED POLARIMETRIC LARGE-AREA CMZ EXPLORATION (FIREPLACE) ...
SOFIA/HAWC+ FAR-INFRARED POLARIMETRIC LARGE-AREA CMZ EXPLORATION (FIREPLACE) ...
Sérgio Sacani

Classification and role of plant nutrients - Roxana Madjar
Classification and role of plant nutrients - Roxana MadjarClassification and role of plant nutrients - Roxana Madjar
Classification and role of plant nutrients - Roxana Madjar
Faculty of Applied Chemistry and Materials Science

Gametogenesis: Male gametes Formation Process / Spermatogenesis .pdf
Gametogenesis: Male gametes Formation Process / Spermatogenesis .pdfGametogenesis: Male gametes Formation Process / Spermatogenesis .pdf
Gametogenesis: Male gametes Formation Process / Spermatogenesis .pdf
SELF-EXPLANATORY

Synopsis: Analysis of a Metallic Specimen
Synopsis: Analysis of a Metallic SpecimenSynopsis: Analysis of a Metallic Specimen
Synopsis: Analysis of a Metallic Specimen
Sérgio Sacani

MCQ in Electrostatics. for class XII pptx
MCQ in Electrostatics. for class XII  pptxMCQ in Electrostatics. for class XII  pptx
MCQ in Electrostatics. for class XII pptx
ArunachalamM22

Simulations of pulsed overpressure jets: formation of bellows and ripples in ...
Simulations of pulsed overpressure jets: formation of bellows and ripples in ...Simulations of pulsed overpressure jets: formation of bellows and ripples in ...
Simulations of pulsed overpressure jets: formation of bellows and ripples in ...
Sérgio Sacani

17. 20240529_Ingrid Olesen_MariGreen summer school.pdf
17. 20240529_Ingrid Olesen_MariGreen summer school.pdf17. 20240529_Ingrid Olesen_MariGreen summer school.pdf
17. 20240529_Ingrid Olesen_MariGreen summer school.pdf
marigreenproject

Fish in the Loop: Exploring RAS - Julie Hansen Bergstedt
Fish in the Loop: Exploring RAS - Julie Hansen BergstedtFish in the Loop: Exploring RAS - Julie Hansen Bergstedt
Fish in the Loop: Exploring RAS - Julie Hansen Bergstedt
Faculty of Applied Chemistry and Materials Science

Adjusted NuGOweek 2024 Ghent programme flyer
Adjusted NuGOweek 2024 Ghent programme flyerAdjusted NuGOweek 2024 Ghent programme flyer
Adjusted NuGOweek 2024 Ghent programme flyer
pablovgd

Complementary interstellar detections from the heliotail
Complementary interstellar detections from the heliotailComplementary interstellar detections from the heliotail
Complementary interstellar detections from the heliotail
Sérgio Sacani

Pancreas_functional anatomy_enzymes.pptx
Pancreas_functional anatomy_enzymes.pptxPancreas_functional anatomy_enzymes.pptx
Pancreas_functional anatomy_enzymes.pptx
muralinath2

Rapid pulse drying of marine biomasses - Sigurd Sannan
Rapid pulse drying of marine biomasses - Sigurd SannanRapid pulse drying of marine biomasses - Sigurd Sannan
Rapid pulse drying of marine biomasses - Sigurd Sannan
Faculty of Applied Chemistry and Materials Science

Traditional, current and future use of fish and seaweed for fertilisation - ...
Traditional, current and future use of fish and seaweed for fertilisation -  ...Traditional, current and future use of fish and seaweed for fertilisation -  ...
Traditional, current and future use of fish and seaweed for fertilisation - ...
Faculty of Applied Chemistry and Materials Science

Post RN - Biochemistry (Unit 7) Metabolism
Post RN - Biochemistry (Unit 7) MetabolismPost RN - Biochemistry (Unit 7) Metabolism
Post RN - Biochemistry (Unit 7) Metabolism
Areesha Ahmad

Surface properties of the seas of Titan as revealed by Cassini mission bistat...
Surface properties of the seas of Titan as revealed by Cassini mission bistat...Surface properties of the seas of Titan as revealed by Cassini mission bistat...
Surface properties of the seas of Titan as revealed by Cassini mission bistat...
Sérgio Sacani

Potential of Marine renewable and Non renewable energy.pptx
Potential of Marine renewable and Non renewable energy.pptxPotential of Marine renewable and Non renewable energy.pptx
Potential of Marine renewable and Non renewable energy.pptx
J. Bovas Joel BFSc


Recently uploaded (20)

Detection of the elusive dangling OH ice features at ~2.7 μm in Chamaeleon I ...
Detection of the elusive dangling OH ice features at ~2.7 μm in Chamaeleon I ...Detection of the elusive dangling OH ice features at ~2.7 μm in Chamaeleon I ...
Detection of the elusive dangling OH ice features at ~2.7 μm in Chamaeleon I ...

Review Article:- A REVIEW ON RADIOISOTOPES IN CANCER THERAPY
Review Article:- A REVIEW ON RADIOISOTOPES IN CANCER THERAPYReview Article:- A REVIEW ON RADIOISOTOPES IN CANCER THERAPY
Review Article:- A REVIEW ON RADIOISOTOPES IN CANCER THERAPY

VIII-Geography FOR CBSE CLASS 8 INDIA.pdf
VIII-Geography FOR CBSE CLASS 8 INDIA.pdfVIII-Geography FOR CBSE CLASS 8 INDIA.pdf
VIII-Geography FOR CBSE CLASS 8 INDIA.pdf

Plant Kingdom BioHack class 11 neet ....
Plant Kingdom BioHack class 11 neet ....Plant Kingdom BioHack class 11 neet ....
Plant Kingdom BioHack class 11 neet ....

SOFIA/HAWC+ FAR-INFRARED POLARIMETRIC LARGE-AREA CMZ EXPLORATION (FIREPLACE) ...
SOFIA/HAWC+ FAR-INFRARED POLARIMETRIC LARGE-AREA CMZ EXPLORATION (FIREPLACE) ...SOFIA/HAWC+ FAR-INFRARED POLARIMETRIC LARGE-AREA CMZ EXPLORATION (FIREPLACE) ...
SOFIA/HAWC+ FAR-INFRARED POLARIMETRIC LARGE-AREA CMZ EXPLORATION (FIREPLACE) ...

Classification and role of plant nutrients - Roxana Madjar
Classification and role of plant nutrients - Roxana MadjarClassification and role of plant nutrients - Roxana Madjar
Classification and role of plant nutrients - Roxana Madjar

Gametogenesis: Male gametes Formation Process / Spermatogenesis .pdf
Gametogenesis: Male gametes Formation Process / Spermatogenesis .pdfGametogenesis: Male gametes Formation Process / Spermatogenesis .pdf
Gametogenesis: Male gametes Formation Process / Spermatogenesis .pdf

Synopsis: Analysis of a Metallic Specimen
Synopsis: Analysis of a Metallic SpecimenSynopsis: Analysis of a Metallic Specimen
Synopsis: Analysis of a Metallic Specimen

MCQ in Electrostatics. for class XII pptx
MCQ in Electrostatics. for class XII  pptxMCQ in Electrostatics. for class XII  pptx
MCQ in Electrostatics. for class XII pptx

Simulations of pulsed overpressure jets: formation of bellows and ripples in ...
Simulations of pulsed overpressure jets: formation of bellows and ripples in ...Simulations of pulsed overpressure jets: formation of bellows and ripples in ...
Simulations of pulsed overpressure jets: formation of bellows and ripples in ...

17. 20240529_Ingrid Olesen_MariGreen summer school.pdf
17. 20240529_Ingrid Olesen_MariGreen summer school.pdf17. 20240529_Ingrid Olesen_MariGreen summer school.pdf
17. 20240529_Ingrid Olesen_MariGreen summer school.pdf

Fish in the Loop: Exploring RAS - Julie Hansen Bergstedt
Fish in the Loop: Exploring RAS - Julie Hansen BergstedtFish in the Loop: Exploring RAS - Julie Hansen Bergstedt
Fish in the Loop: Exploring RAS - Julie Hansen Bergstedt

Adjusted NuGOweek 2024 Ghent programme flyer
Adjusted NuGOweek 2024 Ghent programme flyerAdjusted NuGOweek 2024 Ghent programme flyer
Adjusted NuGOweek 2024 Ghent programme flyer

Complementary interstellar detections from the heliotail
Complementary interstellar detections from the heliotailComplementary interstellar detections from the heliotail
Complementary interstellar detections from the heliotail

Pancreas_functional anatomy_enzymes.pptx
Pancreas_functional anatomy_enzymes.pptxPancreas_functional anatomy_enzymes.pptx
Pancreas_functional anatomy_enzymes.pptx

Rapid pulse drying of marine biomasses - Sigurd Sannan
Rapid pulse drying of marine biomasses - Sigurd SannanRapid pulse drying of marine biomasses - Sigurd Sannan
Rapid pulse drying of marine biomasses - Sigurd Sannan

Traditional, current and future use of fish and seaweed for fertilisation - ...
Traditional, current and future use of fish and seaweed for fertilisation -  ...Traditional, current and future use of fish and seaweed for fertilisation -  ...
Traditional, current and future use of fish and seaweed for fertilisation - ...

Post RN - Biochemistry (Unit 7) Metabolism
Post RN - Biochemistry (Unit 7) MetabolismPost RN - Biochemistry (Unit 7) Metabolism
Post RN - Biochemistry (Unit 7) Metabolism

Surface properties of the seas of Titan as revealed by Cassini mission bistat...
Surface properties of the seas of Titan as revealed by Cassini mission bistat...Surface properties of the seas of Titan as revealed by Cassini mission bistat...
Surface properties of the seas of Titan as revealed by Cassini mission bistat...

Potential of Marine renewable and Non renewable energy.pptx
Potential of Marine renewable and Non renewable energy.pptxPotential of Marine renewable and Non renewable energy.pptx
Potential of Marine renewable and Non renewable energy.pptx


Tang 02 wave quantum mechanic model

  • 2. Electrons occupy specific energy levels/shells in an atom. The number of electrons in each level is governed by the formula 2n2 WAVE QUANTUM MECHANIC THEORY
  • 3. Erwin Schrödinger • 1887 – 1961 • physicist & theoretical biologist • helped develop quantum mechanics • Nobel Prize 1933 – Schrödinger’s Equation – quantum state of a physical system changes over time WAVE QUANTUM MECHANIC THEORY
  • 4. Erwin Schrödinger Schrödinger proposed that the atom was arranged as "layers within layers" in terms of the electron shells. WAVE QUANTUM MECHANIC THEORY
  • 5. Schrödinger also proposed that an electron behaves in a wave-like manner rather than just as particles. Thus electrons are both particles and waves at the same time. Since electrons are waves, they do not remain localized in a 2-D orbit. WAVE QUANTUM MECHANIC THEORY
  • 6. WAVE QUANTUM MECHANIC THEORY quantum mechanics – mathematical description of wave-particle duality of energy / matter Schrodinger’s Wave Equation: Electrons do not travel in defined paths around the nucleus. Rather they occupy a space defined by the “wave equation”.
  • 7. Heisenberg’s Uncertainty Principle For extremely small particles, one cannot predict both its speed and location at the same time. orbitals – a defined space around a nucleus where an e- is probably found WAVE QUANTUM MECHANIC THEORY
  • 8. Orbits Vs. Orbitals 2-D path 3-D path Fixed distance from nucleus Variable distance from nucleus Circular or elliptical path No path; varied shape of region 2n2 electrons per orbit 2 electrons per orbital WAVE QUANTUM MECHANIC THEORY
  • 9. Each orbital (containing 2 electrons) is further classified under different categorizations based on their shape WAVE QUANTUM MECHANIC THEORY s - orbital p - orbitals d - orbitals
  • 10. WAVE QUANTUM MECHANIC THEORY f- orbitals
  • 11. g – orbitals Orbital shapes are energy dependent and can be solved through Schrödinger’s wave equation. WAVE QUANTUM MECHANIC THEORY
  • 12. Value of l Sublevel Symbol Number of Orbitals 0 s (sharp) 1 1 p (principle) 3 2 d (diffuse) 5 3 f (fundamental) 7 Summary of s, p, d, f orbitals: WAVE QUANTUM MECHANIC THEORY
  • 13. WAVE QUANTUM MECHANIC THEORY Each energy level (Bohr Model) contains a set number of orbitals. Each orbital is named by: 1. the energy level it is located in (Arabic number) 2. the orbital shape (alphabet letter)
  • 14. Orbitals and Orbital Shapes s Fits 2 electrons p Fits 6 electrons d Fits 10 electrons f Fits 14 electrons px py pz dv dw dx dy dz dt du dv dw dx dy dz Increasingenergy orbital subshell Each arrow represents an electron Pauli exclusion principle: No two electrons in an orbital have the same direction (all electrons have angular momentum causing it to have a magnetic direction) WAVE QUANTUM MECHANIC THEORY
  • 15. RECALL: Schrödinger proposed that each energy level/shell had a respective number of subshells. What do you think these subshells are? s s, p s, p, d WAVE QUANTUM MECHANIC THEORY
  • 16. Electron distribution: Energy Level Sublevel Maximum # of Electrons in Energy Level (2n2 ) Number of Each Orbital Maximum # of Electrons in Orbital Type 1 s 2 1 2 2 s p 8 1 3 2 6 3 s p d 18 1 3 5 2 6 10 4 s p d f 32 1 3 5 7 2 6 10 14 WAVE QUANTUM MECHANIC THEORY
  • 17. WAVE QUANTUM MECHANIC THEORY Summary of “building” atoms: 1. Each higher energy level can “hold” one more type of orbital. (s, p, d, f, g) 2. For any orbital at an energy level, the number of each orbital type increases by two. • 1 s-orbital • 3 p-orbitals • 5 d-orbitals 3. Electrons fill each orbital, in order, from the lowest energy orbital.
  • 18. Drawing an electron energy-level diagram Example: Oxygen How many electrons does oxygen have? 8 O aufbau principle: An energy sublevel must be filled before moving to the next higher sublevel 2p 2s 1s Hund’s rule: No two electrons can be put into the same orbital until one electron has been put into each of the equal-energy orbitals WAVE QUANTUM MECHANIC THEORY
  • 19. Drawing an electron energy-level diagram Hund’s rule analogy: WAVE QUANTUM MECHANIC THEORY
  • 20. Drawing an electron energy-level diagram Example: Oxygen How many electrons does oxygen have? 8 O aufbau principle: An energy sublevel must be filled before moving to the next higher sublevel 2p 2s 1s WAVE QUANTUM MECHANIC THEORY
  • 21. Drawing an electron energy-level diagram Example: Oxygen O 2p 2s 1s Compare with its Bohr- Rutherford diagram: P = 8 N = 8 Notice how the pairing of electrons in the Bohr-Rutherford diagram matches the energy level diagram WAVE QUANTUM MECHANIC THEORY
  • 22. Drawing an electron energy-level diagram Example: Iron How many electrons does iron have? 26 Although the 3rd energy level has 3 subshells, the “electron filling” order is not as such Fe 3d 3p 3s 2p 2s 1s WAVE QUANTUM MECHANIC THEORY
  • 23. Each energy level is supposed to begin with one s orbital, and then three p orbitals, and so forth. There is often a bit of overlap. In this case, the 4s orbital comes before the 3d orbitals. WAVE QUANTUM MECHANIC THEORY
  • 24. aufbau diagram: Start at the top and add electrons in the order shown by the diagonal arrows. WAVE QUANTUM MECHANIC THEORY
  • 25. Drawing an electron energy-level diagram Example: Iron How many electrons does iron have? 26 Fe 3d 4s 3p 3s 2p 2s 1s WAVE QUANTUM MECHANIC THEORY
  • 26. So why does bromine still have 7 valence electrons despite how the 3rd energy level can hold 18 electrons? The last energy level still has 7 electrons Br 4p 3d 4s 3p 3s 2p 2s 1s WAVE QUANTUM MECHANIC THEORY
  • 27. Drawing an electron energy-level diagram Example: sulfur vs sulfide ion Observe how there are two unpaired electrons in sulfur This explains why sulfur gains 2 electrons in ionic form This is despite the fact that sulfur has 5 unfilled d orbitals S 3p 3s 2p 2s 1s S2- 3p 3s 2p 2s 1s WAVE QUANTUM MECHANIC THEORY
  • 28. General rule for anions: Add the extra electrons corresponding to the ion charge to the total number of electrons Example: N3- N3- 2p 2s 1s WAVE QUANTUM MECHANIC THEORY
  • 29. General rule for cations: Remove the number of electrons corresponding to the charge from the orbitals within the highest energy level number Example: Na+ Na+ 3s 2p 2s 1s WAVE QUANTUM MECHANIC THEORY
  • 30. Why is an electron energy-level diagram drawn as such? The greater the orbital number, the greater the energy of the electrons The nucleus is located at the bottom of the diagram WAVE QUANTUM MECHANIC THEORY
  • 31. Exception to Aufbau Principle: Example: zinc vs zinc ion Zn 3d 4s 3p 3s 2p 2s 1s Zn2+ 3d 4s 3p 3s 2p 2s 1s The electrons removed might not be from the highest-energy orbitals. This is based on experimental evidence. WAVE QUANTUM MECHANIC THEORY
  • 32. Exceptions to Aufbau Principle: Example: chromium Following the Aufbau Principle: What actually happens: Cr 3d 4s 3p 3s 2p 2s 1s Cr 3d 4s 3p 3s 2p 2s 1s WAVE QUANTUM MECHANIC THEORY
  • 33. Exceptions to Aufbau Principle: Example: copper Following the Aufbau Principle: What actually happens: Cu 3d 4s 3p 3s 2p 2s 1s Cu 3d 4s 3p 3s 2p 2s 1s WAVE QUANTUM MECHANIC THEORY
  • 34. Why do these exceptions exist? 3d 4s 3d 4s Vs. Not as stable More stable The 4s orbital is destabilized, but now the entire 3d subshell is stable 3d 4s 3d 4s Not as stable More stable Filled subshell: Half-filled subshell: Experimental evidence indicates unfilled subshells are less stable than half-filled & filled subshells (have higher energy) Filled and half-filled subshells have a lower energy state & are more stable Vs. WAVE QUANTUM MECHANIC THEORY
  • 35. Working with exceptions: Only use d orbitals where there is a possibility of moving an electron from an s to d orbital to achieve a half-filled or filled set of orbitals Example: Au WAVE QUANTUM MECHANIC THEORY
  • 36. Writing Electron Configurations Electron configurations condense the information from electron energy-level diagrams Electron energy level diagram Electron configuration O: 1s2 2s2 2p4 2s2 Energy level # orbital # of electrons in orbitals O 2p 2s 1s ELECTRON CONFIGURATIONS
  • 37. Writing Electron Configurations Electron configurations: Cl: 1s2 2s2 2p6 3s2 3p5 Sn: 1s2 2s2 2p6 3s2 3p6 4s2 3d10 4p6 5s2 4d10 5p2 S2- : 1s2 2s2 2p6 3s2 3p6 Fe: 1s2 2s2 2p6 3s2 3p6 4s2 3d6 ELECTRON CONFIGURATIONS
  • 38. Writing Electron Configurations Shorthand form of Electron configurations: Cl: 1s2 2s2 2p6 3s2 3p5 Sn: 1s2 2s2 2p6 3s2 3p6 4s2 3d10 4p6 5s2 4d10 5p2 Cl: [Ne] 3s2 3p5 Sn: [Kr] 5s2 4d10 5p2 Same configuration as Neon Same configuration as krypton In the shorthand version, the “core electrons” of an atom are represented by the preceding noble gas ELECTRON CONFIGURATIONS
  • 39. Writing Electron Configurations Identify the element that has the following electron configuration: 1s2 2s2 2p6 3s2 3p6 4s2 3d10 4p6 5s2 4d10 5p6 6s2 4f14 5d10 6p4 It is the 4th element from the left It is polonium (Po) ELECTRON CONFIGURATIONS
  • 41. Explaining multivalent metals: Electrons are lost to achieve stability: Cd: [Kr]5s2 4d10 becomes Cd2+ We can now explain why some transition metals can form multiple ions: Pb: [Xe]6s2 4f14 5d10 6p2 becomes Pb2+ or Pb4+ Fe: [Ar]4s2 3d6 becomes Fe2+ or Fe3+ 3d 4s 3d 4s ELECTRON CONFIGURATIONS
  • 42. Electrons cannot exist between orbitals? O 2p 2s 1s Electrons cannot exist here or here… or here… Why? ELECTRON CONFIGURATIONS
  • 43. Since electrons are like waves around the nucleus, they cannot have wavelengths that result in destructive interference (which can collapse the wave). As a result, the wavelengths must be multiples of whole numbers (n = 1, 2, 3, 4, …), which explains why there are areas where electrons cannot exist. mismatch ELECTRON CONFIGURATIONS
  • 44. This causes electrons to be confined to certain probabilities around the nucleus. ELECTRON CONFIGURATIONS
  • 45. Homework: -Read page 171 on magnetism - Complete page 172 #3 and 10 ELECTRON CONFIGURATIONS

Editor's Notes

  1. http://www.youtube.com/watch?v=DfPeprQ7oGc
  2. http://www.youtube.com/watch?v=DfPeprQ7oGc
  3. http://www.youtube.com/watch?v=DfPeprQ7oGc
  4. http://www.youtube.com/watch?v=K-jNgq16jEY
  5. http://www.youtube.com/watch?v=K-jNgq16jEY
  6. http://www.youtube.com/watch?v=K-jNgq16jEY
  7. http://www.youtube.com/watch?v=sMt5Dcex0kg (of scandium)
  8. Examples: Mo, Ag, Au
  9. Homework: Read page 171 on magnetism, and page 172 #3 and 10
  10. Homework: Read page 171 on magnetism, and page 172 #3 and 10
