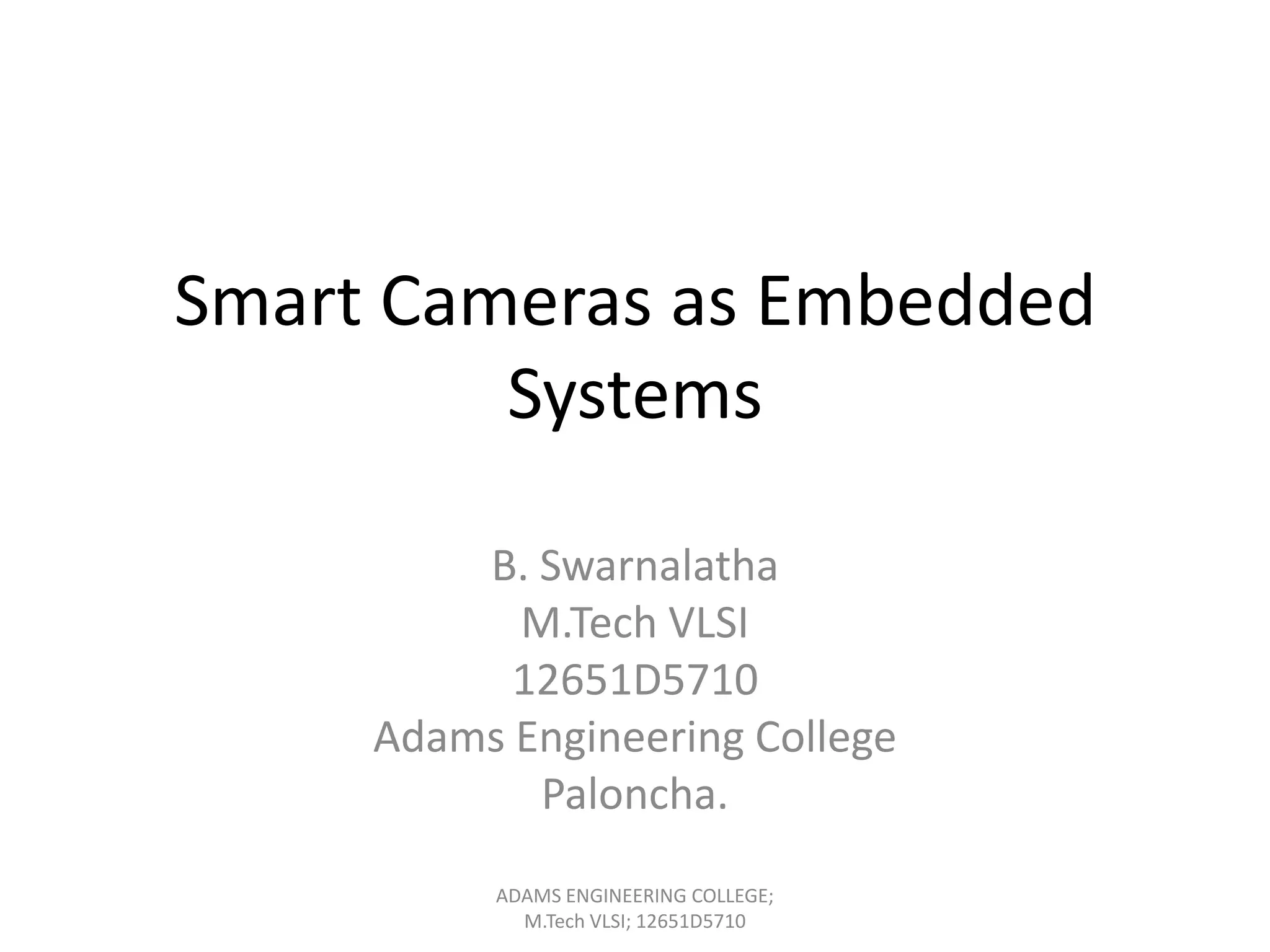

1. Smart Cameras as Embedded
Systems
B. Swarnalatha
M.Tech VLSI
12651D5710
Adams Engineering College
Paloncha.
ADAMS ENGINEERING COLLEGE;
M.Tech VLSI; 12651D5710

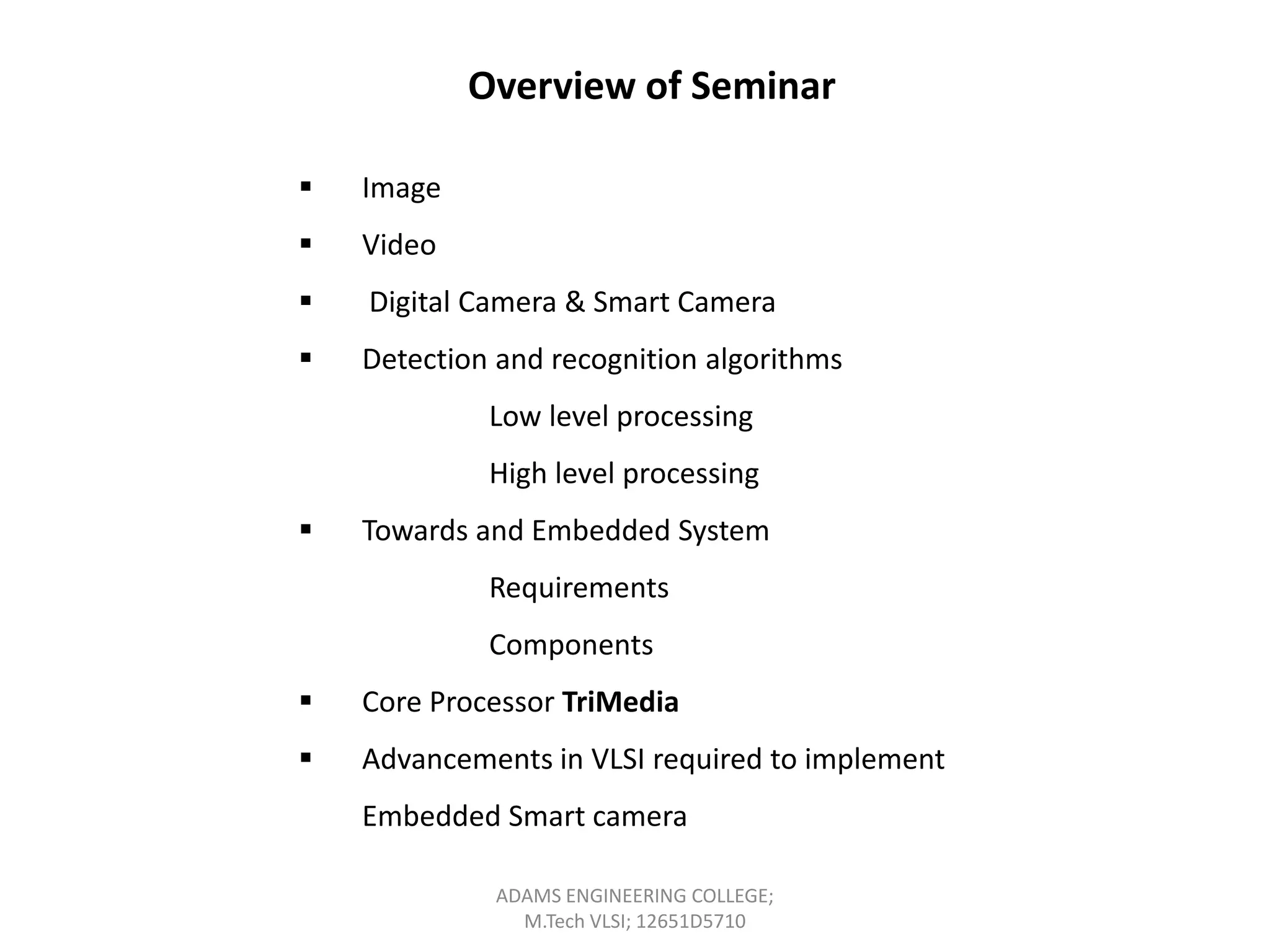

2. Overview of Seminar
Video
Digital Camera & Smart Camera
Detection and recognition algorithms
Low level processing
High level processing
Towards and Embedded System
Requirements
Components
Core Processor TriMedia
Advancements in VLSI required to implement
Embedded Smart camera
ADAMS ENGINEERING COLLEGE;
M.Tech VLSI; 12651D5710
3. IMAGE
An image may be defined as a two-dimensional function f(x, y) where x
and y are spatial (plane) coordinates, and the amplitude of f at any pair of
coordinates (x, y) is called the intensity or gray level of the image at that
point. A small region in the image is shown in matrix.
10 12 35 54 34 23 201 2
10 12
4
5
6
7
8
9
9
9
0
87 6
8
0
7
68 8
9
09 6
5
87 88 7
9
9
8
8
8
8
8
8
0
8
8
89 9
90 0
0
5
00
8
54 4
55 6
76 7
4
6
99
3
65 7
7
89 7
6
7
6
6
6
78 9
166 6
4
44 4
5
55 43 2
45 6
54 67 45 7
ADAMS ENGINEERING COLLEGE;
M.Tech VLSI; 12651D5710
3
8
77 6
54 87 5
7
98 54
5. Digital Camera and Smart Camera
Digital Cameras capture only images as digital files that users can upload to their
Computer , manipulate with software and distribute electronically. Eg. Nikon
Smart Cameras capture high-level descriptions of the scene and analyze
What they see.
These devices could support a wide variety of applications including
human and animal detection,
surveillance,
motion analysis, and
facial identification
Eg. Windows for KINECT
Digital Camera
ADAMS ENGINEERING COLLEGE;
M.Tech VLSI; 12651D5710
SMART Digital Camera
6. Detection and Recognition Algorithms
Low Level Processing
•Region Extraction
•Contour Following
•Ellipse fitting
•Graph Matching
High Level Processing
• Hidden Markov Models
•Classifiers
ADAMS ENGINEERING COLLEGE;
M.Tech VLSI; 12651D5710
7. DETECTION
AND RECOGNITION
ALGORITHMS
Low level processing
Region Extraction
The subject to be identified for gesture
recognition in the video frames are
extracted. Fig2. (b)
• Contour following
Grouping of pixels into contours that
geometrically define the regions.
Fig2. (c)
• Ellipse fitting
To correct for deformations in image
processing caused by clothing, objects
in the frame, or some body parts
blocking others, an algorithm fits
ellipses to the pixel regions to provide
simplified part attributes. Fig2. (d)
• Graph matching
Meaningful feature vectors are
extracted from the modeled body
parts with ellipses.
Figure2
ADAMS ENGINEERING COLLEGE;
M.Tech VLSI; 12651D5710
8. High level Processing
The high level processing component , which can be adopted to different
Applications, compares the motion pattern of each body part.
Example, a pointing gesture could be recognized as a command
to “go to the next slide” in a smart meeting room
or “open the window” in a smart car ,
Where as a smart security camera might interpret the
gesture as suspicious or threatening.
ADAMS ENGINEERING COLLEGE;
M.Tech VLSI; 12651D5710
9. Human Detection and Activity
Recognition Algorithm
ADAMS ENGINEERING COLLEGE;
M.Tech VLSI; 12651D5710
10. Towards an Embedded
Smart Camera
Requirements
Frame rate: The embedded smart
camera system must process a certain
amount of frames per second to
properly analyze motion and provide
useful results
Latency: The amount of time takes to
produce a result from the processed
frames
Components
• 100 MHz Philips TriMedia TM-1000
as video processor.
• Hi8 Cameras
• Shared memory interface
• Host computer
• Debugging algorithms and programs
• Networked system for connecting
multiple cameras
Smart Meeting Room
ADAMS ENGINEERING COLLEGE;
M.Tech VLSI; 12651D5710
12. TriMedia
Processor TM-1000
Features
•
a 5-issue VLIW architecture with a 32-bit word size;
•
27 functional units, offering a choice of operation types
in each slot in the instruction;
•
any operation can be guarded to provide conditional
execution without branching;
•
instruction set and functional units optimized with
respect to media processing;
•
a single multi-ported register file with bypass network,
allowing 1-cycle latency operations;
•
32 kB, 8-way instruction cache;
•
16kB, 8-way, quasi-dual ported, data cache;
•
a variable-length (compressed) instruction set design
ADAMS ENGINEERING COLLEGE;
M.Tech VLSI; 12651D5710
13. Advancements in VLSI required to implement
a smart camera embedded system
Algorithmic challenges
Choosing best computationally efficient algorithm with minimum
memory usage.
Library Functions
The library function of the processor should provide special
function to provide Instruction level-parallelism
Eg1. INONZERO: This instruction takes two input operands. If the
first is non zero, the destination is set to the value of the second
operand; otherwise it is set to zero.
Eg2. IABS: This instruction can provide absolute values
ADAMS ENGINEERING COLLEGE;
M.Tech VLSI; 12651D5710
14. Advancements in VLSI required to implement
a smart camera embedded system
Control-to-data transformation
The data transformation can be controlled using a processor with
more functional units.
Designing SINGLE-INSTRUCTION MULTIPLE-DATA (SIMD) Processors to
achieve real time performance.
Existing processors like (80xx, INTEL ) are pixel plane processors.
These processor can perform arithmetic and logical operations with
limited no of operands.
Embedding single-instruction multiple-data (SIMD) processors into
sensors is critical to improve the real time performance.
Processor architectures are to be designed to take multiple data in
one instruction to increase the computation power required to meet the
real time challenges.
ADAMS ENGINEERING COLLEGE;
M.Tech VLSI; 12651D5710
15. Reference: Wayne Wolf, Burak Ozer, Tiehan Lv “Smart Camera as Embedded
Systems”. IEEE Trans. Vol. 45, 2002.
Copy right IEEE
ADAMS ENGINEERING COLLEGE;
M.Tech VLSI; 12651D5710
