1. WEBINAR
Traditional vs. SoC FPGA Design Flow
with
A Video Pipeline Case Study
May 8, 2014

2. 2
SPEAKERS
Allan Dubeau
Principal Design Engineer,
Nuvation Engineering
Todd Koelling
Sr. Marketing Manager,
SoC Products, Altera
Stefan Rosinger
Product Manager,
CPU, ARM
Joseph Xavier
Marketing Manager,
Nuvation Engineering
Moderator:

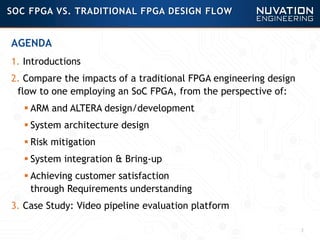

3. 1. Introductions
2. Compare the impacts of a traditional FPGA engineering design
flow to one employing an SoC FPGA, from the perspective of:
 ARM and ALTERA design/development
 System architecture design
 Risk mitigation
 System integration & Bring-up
 Achieving customer satisfaction
through Requirements understanding
3. Case Study: Video pipeline evaluation platform
3
SOC FPGA VS. TRADITIONAL FPGA DESIGN FLOW
AGENDA

4.  Established in 1997
 Offices in Silicon Valley and Waterloo, Canada
 800+ successful projects completed
 Clients ranging from start-ups to Fortune-50 companies
 Exceptional Engineers and Program Managers
 Flexible business models to match customer
and market requirements
4
WHO WE ARE
COMPANY PROFILE
NUVATION SPECIALIZES IN PRODUCT REALIZATION
AND CUTTING-EDGE DESIGNS.
SUNNYVALE, CA USAWATERLOO, ON CAN

5.  A top-tier Altera Design Services Network partner since 1998, with
projects delivered using virtually all device families
 Experts with ARM-based microprocessors and SoCs
Altera Partner & EDS Provider
ARM Connected Community Member
WHO WE ARE
NUVATION ENGINEERING

6. 6

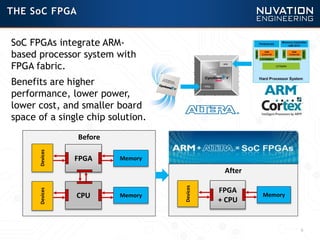

THE SoC FPGA
SoC FPGAs integrate ARM-
based processor system with
FPGA fabric.
Benefits are higher
performance, lower power,
lower cost, and smaller board
space of a single chip solution.
After
FPGA
+ CPU
Devices
Memory
Before
FPGA
Devices
Memory
CPU
Devices
Memory

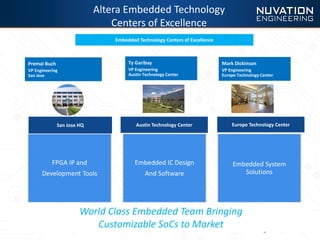

7. Altera Embedded Technology
Centers of Excellence
7
Premal Buch
VP Engineering
San Jose
Ty Garibay
VP Engineering
Austin Technology Center
Mark Dickinson
VP Engineering
Europe Technology Center
FPGA IP and
Development Tools
•FPGA Tools
•Qsys
•System Console
•AXI/Avalon IP interface
Embedded IC Design
And Software
•SoC FPGA IC Design
•Embedded Software
•Nios II Soft Processsor
Embedded System
Solutions
•Industrial Applications
•Automotive Applications
•Communications Solutions
•Video Processing
Embedded Technology Centers of Excellence
San Jose HQ Austin Technology Center Europe Technology Center
World Class Embedded Team Bringing
Customizable SoCs to Market

8. THE ARCHITECTURE FOR THE DIGITAL WORLD®
From sensors to servers, ARM designs processor technology that
lies at the heart of advanced consumer products

9. Software
developme
nt tools
Physical IP –
Design of the
building blocks of
the chip
Processor and
Graphics IP –
Design of the
brain of the chip
Power
Mgmt
Bluetooth
Cellular
Modem
WiFi
SIM
GPS Flash
Controller
Touchscreen
& Sensor Hub
Sensor
Hub
Camera
Apps Processor
 Advanced consumer products are incorporating more and
more ARM technology – from processor and multimedia IP
to software
ARM TECHNOLOGY

10. • ARM delivers technology to
drive scalable, efficient system-
on-chip solutions:
– Software increasing system
efficiency with optimized
software solutions
– Diverse components, including
CPUs and GPUs designed for
specific tasks
– Interconnect System IP
delivering coherency and the
quality of service required for
lowest memory bandwidth
– Physical IP for a highly optimized
processor implementation
THE CHIP IS THE SYSTEM

11. ARM and Altera Design/Development:
Co-Design and Co-Development
11

12. 12
ARM AND ALTERA DESIGN/DEVELOPMENT:
CO-DESIGN AND CO-DEVELOPMENT

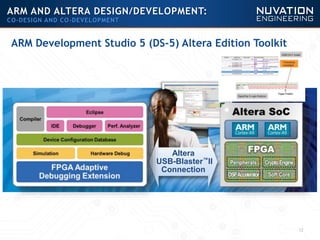

ARM Development Studio 5 (DS-5) Altera Edition Toolkit
Altera
USB-Blaster™II
Connection

13.  Industry First: FPGA-Adaptive Debugging
 Removes debugging barrier between CPUs and FPGA
• Synchronizes debug between the FPGA and ARM processor
software
• Cross-triggering between the HPS and FPGA fabric allows
inter-domain synchronization, for instance, to stop all
hard and soft processors simultaneously.
 Automatic creation of register views of FPGA peripherals
• Qsys-generated FPGA peripheral registers definition can
be imported into DS-5 Debugger for system register
visibility while debugging software
13
ARM AND ALTERA DESIGN/DEVELOPMENT:
CO-DESIGN AND CO-DEVELOPMENT
ARM® Development Studio 5 (DS-5™)
Altera® Edition Toolkit

14. ARM AND ALTERA DESIGN/DEVELOPMENT:
CO-DESIGN AND CO-DEVELOPMENT
• Customizable data collection to enable system wide optimization
OS counters: CPU load, thread
wait, network, memory
CPU counters, aggregated, per core
or cluster: clock cycles, instructions,
branch prediction, cache & TLB misses
System and custom counters: level2
cache, interconnect, custom metrics
Visual annotations: from bitmaps
to frame buffers
Process/thread heat map: color
reflects CPU/GPU activity
Text annotations: signal high-level
events in the application
System-Level Analysis with Streamline Performance Analyzer
Capable and
Cost Effective
Altera USB-Blaster™ II
Elaborate
ARM DSTREAM

15. System Architecting
15

16. 16
SYSTEM ARCHITECTING
 Profiling assessment in relation to
a client’s requirements
• Initial requirements maybe
biased based on pre-conceived
feature limitations of
bandwidth limitations of
external interfaces.
• Can be enhanced by removing
the bottleneck associated with
external multi-chip solutions
• The tight integration between
the HPS and FPGA fabric
provides over 125-Gbps peak
bandwidth with integrated data
coherency between the
processors and the FPGA.
• Computation profiling is an
available feature of the
development tools
—Streamline support:
Statistical analysis of software
load and bus traffic spanning
the CPUs and FPGA
• Many elements of the hardware
and software can be
independently developed

17. 17
SYSTEM ARCHITECTING
Software Design Flow
Hardware
Development
Software
Development
Release Release
• Quartus II Programmer
• In-system Update
• Flash Programmer
Simulate Simulate
• ModelSim,etc.
• AMBA-AXI and Avalon bus
functional models (BFMs)
• Virtual Target
Debug Debug
• SignalTap™ II logic analyzer
• System Console
• ARM Development Studio 5
• GNU, Lauterbach
•iSystem, SEGGER
• Quartus II design software
• Qsys system integration tool
• Standard RTL flow
• Altera and partner IP
• ARM Development Studio 5
• GNU tool chain
• OS/BSP: Linux, VxWorks
• Hardware Libraries
• Design Examples
Design Design
HW/SW
Handoff
FPGA Design Flow

18. 18
SYSTEM ARCHITECTING
HW/SW Design Partitioning
Partitioning can be postponed and refined at a later phase of the design
process and is not part of the critical path.

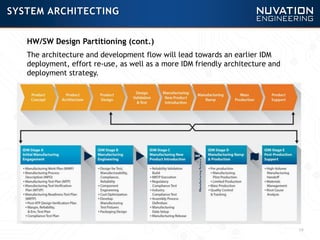

19. 19
SYSTEM ARCHITECTING
HW/SW Design Partitioning (cont.)
The architecture and development flow will lead towards an earlier IDM
deployment, effort re-use, as well as a more IDM friendly architecture and
deployment strategy.

20. 20
SYSTEM ARCHITECTING
 HW/SW design partitioning (cont)
• Data coherency maximizes partitioning
options
— Increase power efficient computing
o Co-processing certain tasks in the
FPGA fabric can not only benefit
from a performance standpoint but
also reduces the per power
computational element
— Decreased and much finer grained
latency potentials (do not have to
deal with protocol overheads)
— Saves on board level debugging
— Not I/O restrictive and removes
having to commit to a board level
CPU to FPGA interface
— Expedites board design faster
Hard Processor System (HPS)
…….
FPGA
Shared Multiport
DDR SDRAM
Controller (2)
HPS to
FPGA
FPGA
to HPS
FPGA
Config.

21.  Monolithic SOC advantages
• Does not compromise some of the characteristics of a multi-chip
solution
—Independent powering
—Flexible configuration and boot sequencing
• Reduced power, voltage rail requirement, clocking, BOM, layout
etc.
21
SYSTEM ARCHITECTING
≡

22. 22
SYSTEM ARCHITECTING

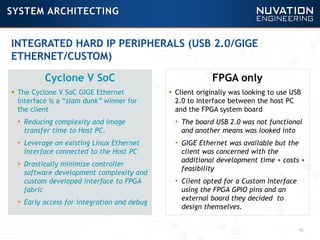

 Integrated Hard IP peripherals
• Increased performance
• Reduces implementation time
and cost
• Reduces FPGA resource and IP
cost requirements
—PCIe multi-function support
can save around 20K logic
elements alone
• Can share external DDR
memory
• FPGA can also access some of
the other HPS Hard IP
peripherals

23. Risk Mitigation
23

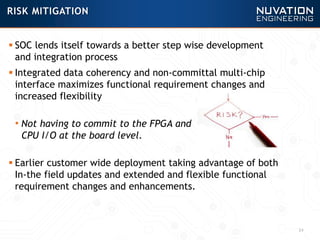

24.  SOC lends itself towards a better step wise development
and integration process
 Integrated data coherency and non-committal multi-chip
interface maximizes functional requirement changes and
increased flexibility
• Not having to commit to the FPGA and
CPU I/O at the board level.
 Earlier customer wide deployment taking advantage of both
In-the field updates and extended and flexible functional
requirement changes and enhancements.
24
RISK MITIGATION

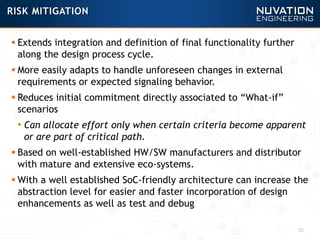

25.  Extends integration and definition of final functionality further
along the design process cycle.
 More easily adapts to handle unforeseen changes in external
requirements or expected signaling behavior.
 Reduces initial commitment directly associated to “What-if”
scenarios
• Can allocate effort only when certain criteria become apparent
or are part of critical path.
 Based on well-established HW/SW manufacturers and distributor
with mature and extensive eco-systems.
 With a well established SoC-friendly architecture can increase the
abstraction level for easier and faster incorporation of design
enhancements as well as test and debug
25
RISK MITIGATION

26. System Integration and Bring-Up
26

27.  Faster and less costly when factoring elements such as;
• Board and layout issues between multi-chip interface being eliminated
• Using extensive co-verification real-time debugging options
 Easier systematic debugging process through incremental and step-wise
development
• Taking advantage of the Cyclone V SoC ARM core’s computational power.
 Can incorporate and leverage on familiar, extensive and powerful Linux
based application level for debugging.
• The interfaces between many of the hard core periphery and software
drivers are mature and can be used as-is without additional debugging
27
SYSTEM INTEGRATION AND BRING-UP

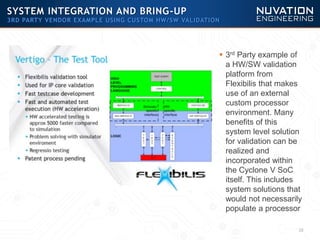

28.  3rd Party example of
a HW/SW validation
platform from
Flexibilis that makes
use of an external
custom processor
environment. Many
benefits of this
system level solution
for validation can be
realized and
incorporated within
the Cyclone V SoC
itself. This includes
system solutions that
would not necessarily
populate a processor
28
SYSTEM INTEGRATION AND BRING-UP
3RD PARTY VENDOR EXAMPLE USING CUSTOM HW/SW VALIDATION

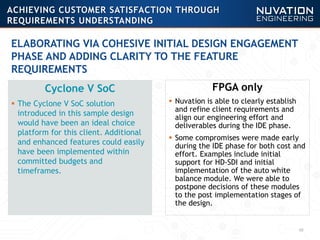

29. Achieving Customer Satisfaction
through Requirements Understanding
29

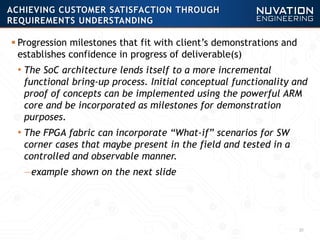

30.  Progression milestones that fit with client’s demonstrations and
establishes confidence in progress of deliverable(s)
• The SoC architecture lends itself to a more incremental
functional bring-up process. Initial conceptual functionality and
proof of concepts can be implemented using the powerful ARM
core and be incorporated as milestones for demonstration
purposes.
• The FPGA fabric can incorporate “What-if” scenarios for SW
corner cases that maybe present in the field and tested in a
controlled and observable manner.
—example shown on the next slide
30
ACHIEVING CUSTOMER SATISFACTION THROUGH
REQUIREMENTS UNDERSTANDING

31. 31

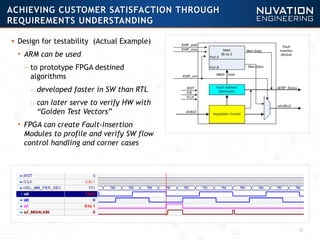

 Design for testability (Actual Example)
• ARM can be used
—to prototype FPGA destined
algorithms
o developed faster in SW than RTL
o can later serve to verify HW with
“Golden Test Vectors”
• FPGA can create Fault-Insertion
Modules to profile and verify SW flow
control handling and corner cases
ACHIEVING CUSTOMER SATISFACTION THROUGH
REQUIREMENTS UNDERSTANDING

32.  Reliability
• Apply non-intrusive tasks between both CPU and FPGA
—Data and Flow control integrity health monitoring
o Many FPGA designs omit this due to the impact on additional
resources and development time
 A small subset can be implemented on latency sensitive
signaling and exposed to SW routines
o Software based health monitoring is faster/easier and less
resource intensive to implement
32
ACHIEVING CUSTOMER SATISFACTION THROUGH
REQUIREMENTS UNDERSTANDING

33. Cyclone V SoC Case Study:
A Video Pipeline Evaluation Platform
33

34. 34
 Video Pipeline Evaluation
Platform
 17 Calendar Week Engagement
 1600 Eng-Hours (40 Eng-Weeks)
 2 FPGA Designs
 1 Controller (NIOS II) Software
Design
Nuvation Design Engagement
CYCLONE V SoC CASE STUDY:
VIDEO PIPELINE EVALUATION PLATFORM

35. 35

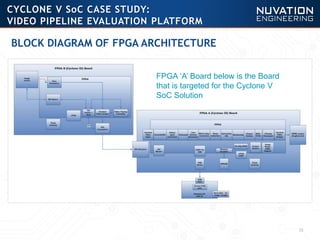

BLOCK DIAGRAM OF FPGA ARCHITECTURE
FPGA ‘A’ Board below is the Board
that is targeted for the Cyclone V
SoC Solution
CYCLONE V SoC CASE STUDY:
VIDEO PIPELINE EVALUATION PLATFORM

36. 36
ARM AND ALTERA DESIGN/DEVELOPMENT:
CO-DESIGN AND CO-DEVELOPMENT
Cyclone V SoC
 Familiarity with tool chains does not
incur any extra engineering time and
effort
 Allows more flexibility for engineering
resourcing
 Complex interaction between PC and
on-board FPGA ARM controller will
benefit from the enhanced Debugging
between FPGA fabric and ARM controller
 Can utilize Linux and Ethernet interface
to develop and debug application SW for
both low level and PC interface
FPGA only
 Embedded OS
• PC based Application required both
Low-Level and High Level control of
FPGA Video Pipeline
• NIOS solution posed a problem in
Horsepower and required additional
time in IDE to nail down
requirements
• The initial design UI was not ready
until the late stages of the design
DEVELOPMENT AND DEBUG TOOL CHAIN BASED ON MATURE
ECOSYSTEM OF TOOLS FOR BOTH ARM AND ALTERA

37. 37
SYSTEM ARCHITECTING
HW/SW DESIGN PARTITIONING
Cyclone V SoC
 An SoC solution allows some of the
implementation details to be
optimized during implementation with
an initial architecture approach
unblocking the development phase of
the FPGA.
FPGA only
 The Initial Design Engagement phase
was over 8 engineering weeks of effort
spanning an initial 5 week period
• There was considerable effort spent
on initial architecture due to custom
protocol between the PC and on-board
NIOS II
• The architecture partitioning affected
the FPGA implementation and both
the Software and Hardware Detailed
Design Specifications
• Several architecture decisions could
not be postponed

38. 38

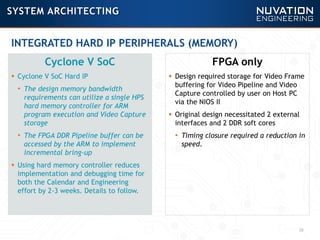

SYSTEM ARCHITECTING
INTEGRATED HARD IP PERIPHERALS (MEMORY)
Cyclone V SoC
 Cyclone V SoC Hard IP
• The design memory bandwidth
requirements can utilize a single HPS
hard memory controller for ARM
program execution and Video Capture
storage
• The FPGA DDR Pipeline buffer can be
accessed by the ARM to implement
incremental bring-up
 Using hard memory controller reduces
implementation and debugging time for
both the Calendar and Engineering
effort by 2-3 weeks. Details to follow.
FPGA only
 Design required storage for Video Frame
buffering for Video Pipeline and Video
Capture controlled by user on Host PC
via the NIOS II
 Original design necessitated 2 external
interfaces and 2 DDR soft cores
• Timing closure required a reduction in
speed.

39. 39
SYSTEM ARCHITECTING
INTEGRATED HARD IP PERIPHERALS (I2C AND SPI)
Cyclone V SoC
 This solution is available as Hard IP
connected directly to the ARM block
• Linux access to the I2C and SPI
modules
— Low level drivers already exist
— Functional HW/SW blocks that do
not to be debugged
— Already available to perform board
level tests of the external
interfaces
• Another example saving
— Time and effort costs
— FPGA internal resource reduction
FPGA only
 Original design used FPGA soft core
modules in conjunction with the NIOS II
to interface with the second FPGA
sensor board and configure external
HDMI chips.
• This also involved Software Driver
development work for the NIOS II
developer

40. 40
SYSTEM ARCHITECTING
INTEGRATED HARD IP PERIPHERALS (USB 2.0/GIGE
ETHERNET/CUSTOM)
Cyclone V SoC
 The Cyclone V SoC GIGE Ethernet
interface is a “slam dunk” winner for
the client
• Reducing complexity and image
transfer time to Host PC.
• Leverage on existing Linux Ethernet
interface connected to the Host PC
• Drastically minimize controller
software development complexity and
custom developed interface to FPGA
fabric
• Early access for integration and debug
FPGA only
 Client originally was looking to use USB
2.0 to interface between the host PC
and the FPGA system board
• The board USB 2.0 was not functional
and another means was looked into
• GIGE Ethernet was available but the
client was concerned with the
additional development time + costs +
feasibility
• Client opted for a Custom Interface
using the FPGA GPIO pins and an
external board they decided to
design themselves.

41. 41
SYSTEM ARCHITECTING
FPGA “A” RESOURCE MAPPING INTO CYCLONE V SOC SE
FAMILY OFFERING
Device Resources 5CSEA2 5CSEA4 5CSEA5 5CSEA6
LEs (K) 25 40 85 110
Adaptive logic modules (ALMs) 9,434 15,094 32,075 41,509
M10K memory blocks 140 224 397 514
M10K memory (Kb) 1,400 2,240 3,972 5,140
MLABs (Kb) 138 220 480 621
18-bit x 19-bit multipliers 72 116 174 224
Variable-precision DSP blocks (1) 36 58 87 112
FPGA PLLs 4 5 6 6
HPS PLLs 3 3 3 3
Maximum FPGA user I/Os 145 145 288 288
Maximum HPS I/Os 188 188 188 188
FPGA hard memory controllers 1 1 1 1
HPS hard memory controllers 1 1 1 1
Processor cores
(ARM CortexTM-A9 MPCoreTM) Single/Dual Single/Dual Single/Dual Single/Dual
Device Resources FPGA ‘A’
LEs (K) 34
Adaptive logic modules (ALMs) 12,600
M10K memory blocks 90
M10K memory (Kb) 900
MLABs (Kb)
18-bit x 19-bit multipliers 74
Variable-precision DSP blocks (1) 37
FPGA PLLs 2
HPS PLLs 2
Maximum FPGA user I/Os 140
Maximum HPS I/Os 130
FPGA hard memory controllers 1
HPS hard memory controllers 1
Processor cores
(ARM CortexTM-A9 MPCoreTM) Single
Cyclone V SoC Device Selection OptionsDesign Requirements

42. 42
RISK MITIGATION
..FUNCTIONAL REQUIREMENT CHANGES AND
ENHANCEMENTS.
Cyclone V SoC
 Almost all aspects of risk
mitigation that we highlighted
earlier would be applicable to
this project by utilizing a
Cyclone V SoC based solution
 Image Capture Rate
optimization could have more
easily been handled in an SoC
based solution with the ARM and
Linux interface
FPGA only
 The client wanted to increase
the Image Capture Rate transfer
to the Host PC system but was
limited by initial HW interface
selection.

43. 43
RISK MITIGATION
Cyclone V SoC
 GIGE Ethernet and Linux
environment available in a
Cyclone V SoC are a “slam dunk”
solution.
FPGA only
 The fact that the USB 2.0 did not work
and client opted for a custom interface
using 8 bit wide FIFO GPIO with an
internally developed custom board
design
• Added undesirable delays for the
client in the overall debugging and
development before they were able to
use our system as was delivered
— Majority of problem was attributed
directly to signal integrity issues of
the 3rd party custom board design
MORE EASILY ADAPTS TO HANDLE UNFORESEEN CHANGES
IN EXTERNAL REQUIREMENTS OR EXPECTED SIGNALING
BEHAVIOR

44. 44
SYSTEM INTEGRATION AND BRING-UP
Cyclone V SoC
 We can take advantage of the
shared multi-port memory
controller to insert and verify video
frames
 The next few slides make use of a
brief “gut feel check” for data rates
and throughputs
FPGA only
 Elements of the Video Pipeline that
were difficult to debug
• Capture Frame buffer
• Corner cases in some of the Video
Pipeline Blocks
• Auto White Balancing
• Sensor Raw Data interface
FASTER AND LESS COSTLY WHEN FACTORING ELEMENTS
SUCH AS USING EXTENSIVE CO-VERIFICATION REAL-TIME
DEBUGGING OPTIONS

45. 45
SYSTEM INTEGRATION AND BRING-UP

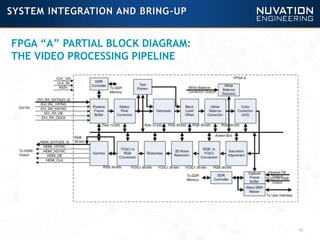

FPGA “A” PARTIAL BLOCK DIAGRAM:
THE VIDEO PROCESSING PIPELINE

46. 46
SYSTEM INTEGRATION AND BRING-UP

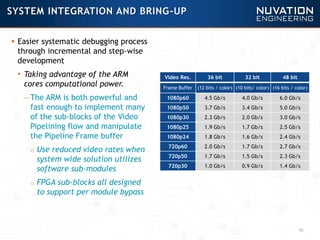

 Easier systematic debugging process
through incremental and step-wise
development
• Taking advantage of the ARM
cores computational power.
—The ARM is both powerful and
fast enough to implement many
of the sub-blocks of the Video
Pipelining flow and manipulate
the Pipeline Frame buffer
o Use reduced video rates when
system wide solution utilizes
software sub-modules
o FPGA sub-blocks all designed
to support per module bypass
Video Res. 36 bit 32 bit 48 bit
Frame Buffer (12 bits / color) (10 bits/ color) (16 bits / color)
1080p60 4.5 Gb/s 4.0 Gb/s 6.0 Gb/s
1080p50 3.7 Gb/s 3.4 Gb/s 5.0 Gb/s
1080p30 2.3 Gb/s 2.0 Gb/s 3.0 Gb/s
1080p25 1.9 Gb/s 1.7 Gb/s 2.5 Gb/s
1080p24 1.8 Gb/s 1.6 Gb/s 2.4 Gb/s
720p60 2.0 Gb/s 1.7 Gb/s 2.7 Gb/s
720p50 1.7 Gb/s 1.5 Gb/s 2.3 Gb/s
720p30 1.0 Gb/s 0.9 Gb/s 1.4 Gb/s

47.  The ARM Hard IP memory interface “Gut Feel Check” for manipulating and sharing
the Pipeline Frame Buffer DDR3.
 Showing example of 32 bit external interface to DDR3 and sample memory size of
256 MB
 The Design can consider Ping Pong buffering schemes
 Many decisions are deferred and effort is modular depending on potential bring-
up issues, risk mitigation aspects as well as feature demonstration requirements
 Example below shows a full frame of video at the lowest rate to be read and
written to/from memory in around 6 ms allowing a minimum 26 ms of
processing in a 30 fps requirement.
 Note – a conservative DDR3 efficiency of 50% is shown whereas 75% is typical
47
SYSTEM INTEGRATION AND BRING-UP
Memory Freq.
Ext.
Width
Data Rate Efficiency
Shared
Access
Rate
DDR3
MHz Bits 50% 1/2
300 32 19.2 Gb/s 9.6 Gb/s 4.8 Gb/s
400 32 25.6 Gb/s 12.8 Gb/s 6.4 Gb/s
Video Res.
Pixel
Storage
Memory
Storage
Req.
Sample
Storage
256 MB
Bits MB Frames
1080p
48 12.5 20
32 8.3 31
720p
48 5.6 46
32 3.7 69

48. 48
ACHIEVING CUSTOMER SATISFACTION THROUGH
REQUIREMENTS UNDERSTANDING
Cyclone V SoC
 The Cyclone V SoC solution
introduced in this sample design
would have been an ideal choice
platform for this client. Additional
and enhanced features could easily
have been implemented within
committed budgets and
timeframes.
FPGA only
 Nuvation is able to clearly establish
and refine client requirements and
align our engineering effort and
deliverables during the IDE phase.
 Some compromises were made early
during the IDE phase for both cost and
effort. Examples include initial
support for HD-SDI and initial
implementation of the auto white
balance module. We were able to
postpone decisions of these modules
to the post implementation stages of
the design.
ELABORATING VIA COHESIVE INITIAL DESIGN ENGAGEMENT
PHASE AND ADDING CLARITY TO THE FEATURE
REQUIREMENTS

49.  Incorporating trade-offs and benefits from an in-depth
understanding of the full system level design process
• Time to evaluate our SoC-based solution
—We will utilize the metrics directly from our project
timetable and effort and make the
necessary modifications to where the
SoC would impact the schedule
—We will utilize this information to
directly quantify the impact of an
SoC-based solution
—The following slides illustrate the evaluation process as it
relates to the Design phases of the project
49
SoC FPGA VS TRADITIONAL FPGA DESIGN FLOW:
CASE STUDY CONCLUSIONS

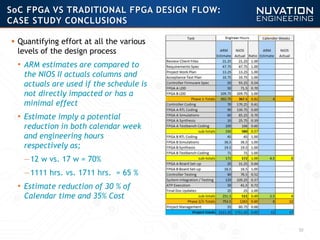

50. 50
 Quantifying effort at all the various
levels of the design process
• ARM estimates are compared to
the NIOS II actuals columns and
actuals are used if the schedule is
not directly impacted or has a
minimal effect
• Estimate imply a potential
reduction in both calendar week
and engineering hours
respectively as;
—12 w vs. 17 w = 70%
—1111 hrs. vs. 1711 hrs. = 65 %
• Estimate reduction of 30 % of
Calendar time and 35% Cost
SoC FPGA VS TRADITIONAL FPGA DESIGN FLOW:
CASE STUDY CONCLUSIONS

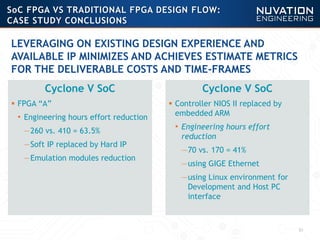

51. 51
Cyclone V SoC
 FPGA “A”
• Engineering hours effort reduction
—260 vs. 410 = 63.5%
—Soft IP replaced by Hard IP
—Emulation modules reduction
Cyclone V SoC
 Controller NIOS II replaced by
embedded ARM
• Engineering hours effort
reduction
—70 vs. 170 = 41%
—using GIGE Ethernet
—using Linux environment for
Development and Host PC
interface
LEVERAGING ON EXISTING DESIGN EXPERIENCE AND
AVAILABLE IP MINIMIZES AND ACHIEVES ESTIMATE METRICS
FOR THE DELIVERABLE COSTS AND TIME-FRAMES
SoC FPGA VS TRADITIONAL FPGA DESIGN FLOW:
CASE STUDY CONCLUSIONS

52. 52

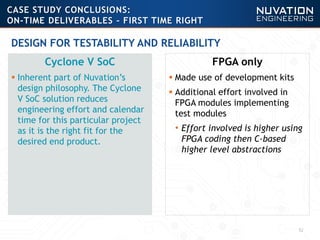

DESIGN FOR TESTABILITY AND RELIABILITY
Cyclone V SoC
 Inherent part of Nuvation’s
design philosophy. The Cyclone
V SoC solution reduces
engineering effort and calendar
time for this particular project
as it is the right fit for the
desired end product.
FPGA only
 Made use of development kits
 Additional effort involved in
FPGA modules implementing
test modules
• Effort involved is higher using
FPGA coding then C-based
higher level abstractions
CASE STUDY CONCLUSIONS:
ON-TIME DELIVERABLES – FIRST TIME RIGHT

53. 53

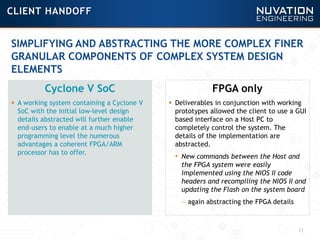

CLIENT HANDOFF
Cyclone V SoC
 A working system containing a Cyclone V
SoC with the initial low-level design
details abstracted will further enable
end-users to enable at a much higher
programming level the numerous
advantages a coherent FPGA/ARM
processor has to offer.
FPGA only
 Deliverables in conjunction with working
prototypes allowed the client to use a GUI
based interface on a Host PC to
completely control the system. The
details of the implementation are
abstracted.
• New commands between the Host and
the FPGA system were easily
implemented using the NIOS II code
headers and recompiling the NIOS II and
updating the Flash on the system board
— again abstracting the FPGA details
SIMPLIFYING AND ABSTRACTING THE MORE COMPLEX FINER
GRANULAR COMPONENTS OF COMPLEX SYSTEM DESIGN
ELEMENTS

54. 54
Questions?
Allan Dubeau
Principal Design Engineer,
Nuvation Engineering
Todd Koelling
Sr. Marketing Manager,
SoC Products, Altera
Stefan Rosinger
Product Manager,
CPU, ARM

55. solutions@nuvation.com
www.nuvation.com
888.669.0828
Silicon Valley Headquarters
151 Gibraltar Court, Sunnyvale, CA 94089 USA
Waterloo Design Center
332 Marsland Drive, Suite 200, Waterloo, ON N2J 3Z1 Canada
