2. Design for testability
Design for testability (DFT) refers to the design techniques
that make test generation and test application cost-
effective.
DFT methods for digital circuits:
Ad-hoc methods
Structured methods:
Scan
Partial Scan
Boundary scan
2
3. Scan chain
Circuit is designed using pre-specified design rules.
Test structure (hardware) is added to the verified design:
Replacing flip-flops by scan flip-flops and connect to form one or more
shift registers in the test mode.
Make input/output of each scan shift register controllable/observable
from PI/PO.
Scan design techniques involves modifying the registers to allow them to be
chained into a long shift register, called a scan chain.
3
4. Scan Flip-Flop (master-slave) 4
D
TC
SD
CK
Q
Q
MUX
D flip-flop
Master latch Slave latch
CK
TC Normal mode, D selected Scan mode, SD selected
Master open Slave open
t
t
Logic
overhead

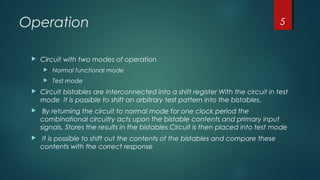

5. Operation
Circuit with two modes of operation
Normal functional mode
Test mode
Circuit bistables are interconnected into a shift register With the circuit in test
mode It is possible to shift an arbitrary test pattern into the bistables.
By returning the circuit to normal mode for one clock period the
combinational circuitry acts upon the bistable contents and primary input
signals, Stores the results in the bistables Circuit is then placed into test mode
It is possible to shift out the contents of the bistables and compare these
contents with the correct response
5
7. Adding Scan Structure 7
SFF
SFF
SFF
Combinational
logic
PI PO
SCANOUT
SCANIN
TC or TCK
8. Comb. Test Vectors 8
I2I1
O1 O2
PI
PO
SCANIN
SCANOUT
S1 S2
N1 N2
0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0TC
Don’t care
or random
bits
Sequence length = (nsff + 1) ncomb + nsff clock periods
ncomb = number of combinational vectors
nsff = number of scan flip-flops
9. Multiple Scan Registers
Scan flip-flops can be distributed among
any number of shift registers, each having
a separate scanin and scanout pin.
Test sequence length is determined by
the longest scan shift register.
9
SFF
SFF
SFF
Combinational
logic
PI/SCANIN PO/
SCANOUTM
U
X
CK
TC

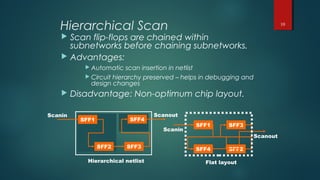

10. Hierarchical Scan
Scan flip-flops are chained within
subnetworks before chaining subnetworks.
Advantages:
Automatic scan insertion in netlist
Circuit hierarchy preserved – helps in debugging and
design changes
Disadvantage: Non-optimum chip layout.
10
SFF1
SFF2 SFF3
SFF4
SFF3SFF1
SFF2SFF4
Scanin Scanout
Scanin
Scanout
Hierarchical netlist Flat layout
11. Cons.
If the path is a critical timing path, performance of the whole system is
affected.
Another disadvantage of scan design, when compared to some other DFT
techniques, is that the scan chain is very long.
Shifting test vectors in and result vectors out takes a large fraction of test time,
so the system cannot be tested at full operational speed.
11

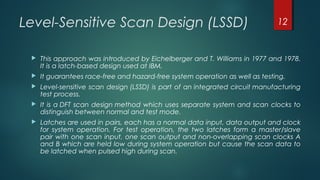

12. Level-Sensitive Scan Design (LSSD)
This approach was introduced by Eichelberger and T. Williams in 1977 and 1978.
It is a latch-based design used at IBM.
It guarantees race-free and hazard-free system operation as well as testing.
Level-sensitive scan design (LSSD) is part of an integrated circuit manufacturing
test process.
It is a DFT scan design method which uses separate system and scan clocks to
distinguish between normal and test mode.
Latches are used in pairs, each has a normal data input, data output and clock
for system operation. For test operation, the two latches form a master/slave
pair with one scan input, one scan output and non-overlapping scan clocks A
and B which are held low during system operation but cause the scan data to
be latched when pulsed high during scan.
12
13. Advantages & Drawbacks of LSSD
1. Correct operation independent of AC characteristics is guaranteed.
2. FSM is reduced to combinational logic as far as testing is concerned.
3. Hazards and races are eliminated, which simplifies test generation and fault
simulation.
1. Complex design rules are imposed on designers.
2. Asynchronous designs are not allowed in this approach.
3. Sequential routing of latches can introduce irregular structures.
4. Faults changing combinational function to sequential one may cause trouble, e.g.,
bridging and CMOS stuck-open faults.
5. Test application becomes a slow process, and normal-speed testing of the entire test
sequence is impossible.
6. It is not good for memory intensive designs.
13
15. Boundary scan
Boundary scan is a method for testing interconnects (wire lines) on printed circuit
boards or sub-blocks inside an integrated circuit. Boundary scan is also widely used
as a debugging method to watch integrated circuit pin states, measure voltage, or
analyze sub-blocks inside an integrated circuit.
The success of boundary scan techniques led to the formation of the Joint Test
Action Group (JTAG) in the 1980s for standardizing boundary scan components and
protocols.
Each component have a test access port (TAP), consisting of the following
connections:
o Test Clock (TCK): provides the clock signal for the test logic.
o Test Mode Select Input (TMS): controls test operation.
o Test Data Input (TDI): serial input for test data and instructions.
o Test Data Output (TDO): serial output for test data and instructions.
15
18. Operation
To test the PCB, the test equipment shifts a test vector into the scan chain.
When the chain is loaded, the vector is driven onto the external outputs of the
chips.
The scan-chain flip-flops then sample the external inputs, and the sampled
values are shifted out to the test equipment.
The test equipment can then verify that all of the connections between the
chips.
The TAP Controller operates as a simple finite-state machine, changing between
states depending on the value of the TMS input. Different states govern shifting
of data into the Instruction Register or one of the data registers.
The JTAG standard defines a number of instructions formats for operations that
select among data registers, control the mode of the scan chain
18
19. A BS cell 19
1. Normal: Mode_Control=0;
IN->OUT
2. Scan: ShiftDR=1,ClockDR;
TDI->...->SIN->SOUT->...TDO
3. Capture: ShiftDR=0, ClcokDR;
IN-> QA, OUT driven by IN or QB
4. Update: Mode_Control=1, UpdateDR;
QA->OUT

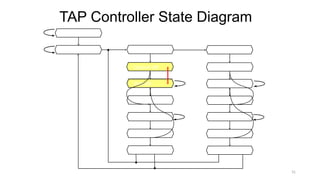

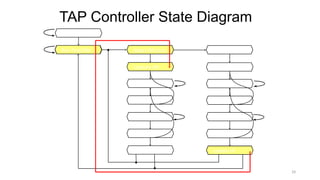

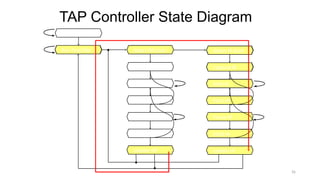

21. States of TAP Controller
Test-Logic-Reset: normal mode
Run-Test/Idle: wait for internal test
Select-DR-Scan: initiate a data-scan sequence
Capture-DR: load test data in parallel
Shift-DR: load test data in series
Exit1-DR: finish phase-1 shifting of data
Pause-DR: temporarily hold the scan operation (allow the bus master to reload
data)
Exit2-DR: finish phase-2 shifting of data
Update-DR: parallel load from associated shift registers
21
22. BSDL
BSDL description of a component, together with a set of test vectors, as input to
ATE for testing the component and the board in which it is embedded.
Test data can be shifted into the cells at the inputs and then driven onto the
core’s inputs. The core’s outputs can be sampled into the cells at the output
pins and then shifted out to the ATE.
Thus, the JTAG architecture solves two problems: in-circuit testing of
components in a system, and in-circuit testing of the connections between the
components.
22

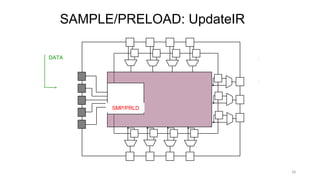

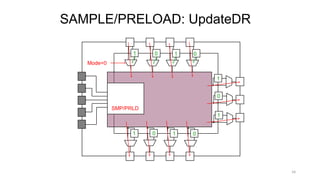

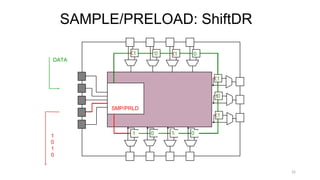

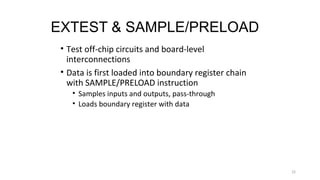

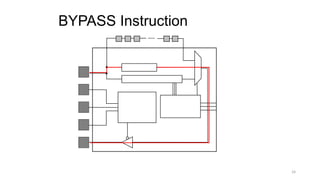

25. EXTEST & SAMPLE/PRELOAD
• Test off-chip circuits and board-level
interconnections
• Data is first loaded into boundary register chain
with SAMPLE/PRELOAD instruction
• Samples inputs and outputs, pass-through
• Loads boundary register with data
25
