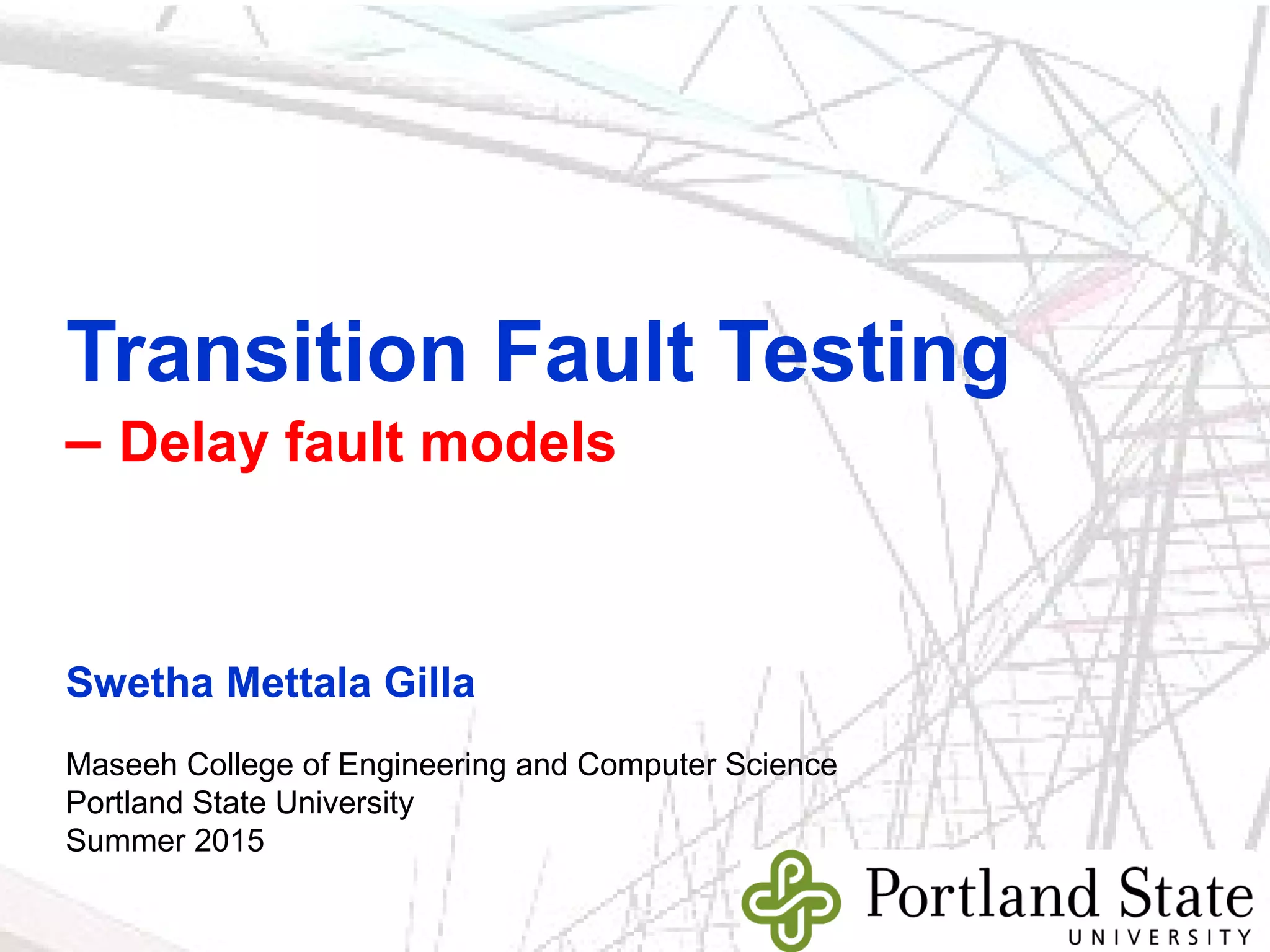

1. Transition Fault Testing
– Delay fault models
Swetha Mettala Gilla
Maseeh College of Engineering and Computer Science
Portland State University
Summer 2015
slide 1 of 63
2. Book References
[1] M. L. Bushnell and V. D. Agrawal “Chapter 12- Delay Test, Book -Essentials
of Electronic Testing for Digital, Memory, and Mixed-Signal VLSI Circuits,”
Springer, 2005.
[2] M. Abramovici et al., “Digital Systems Testing and Testable Design,” IEEE
2009.
[3] A. Krstic and K.T Cheng, “Delay Fault Testing for VLSI Circuits,” IEEE
1998.
[4] S. K. Goel, “Testing for Small-Delay Defects in Nanoscale CMOS
Integrated Circuits,” Taylor and Francis Group, 2013.
[5] M. Tehranipoor et al., “Chapter 2: Delay Test, Book: Test and Diagnosis for
Small-Delay Defects,” Springer, 2011.
3. Defects and Faults
• Defects?
• Manufacturing defects
• Resistive bridges, resistive opens etc.
• certain manufacturing defects do not change the logic function but cause timing
violations
• Design Errors
• Aggressive place and route
• Geometry variations: Line spacing and line thickness
• Process Variations
• Gate threshold variations
• Defect introduces a fault into the system.
• Faults are classified as
• Logical faults
• Causes logic function of a circuit to change to some other logic function
• Parametric fault
• Alters the magnitude of a circuit parameter: speed, current or voltage
• Delay fault is one of a parametric fault caused due to slow gates in the circuit and
affects the operating speed of the system
4. Delay Fault
• Delay fault
• affect the propagation delay of the circuit at high speed
• defects that cause delay faults are:
• Resistive shorting: defects between nodes and to the supply rails
• Parasitic transistor leakages, defective pn junctions and incorrect or shifted
threshold voltages
• Certain types of opens
• Process variations
• Delay Faults in Asynchronous Circuits?
• Asynchronous circuits obey certain timing constraints
• Delay Fault in control path
may degrade the circuit performance
• Delay Fault in data path
may violate the timing constraints and causes circuit to fail during normal
operation.
5. Delay Faults
Affect propagation delay of the circuit
•Circuit fails at high speeds
More important for high-speed circuits
Types of Delay Faults are:
•Gate Delay Fault (GDF)
• Delayed 1-to-0 or 0-to-1 transition at
a gate output
•Path Delay Fault (PDF)
• Exists a path from a primary input to
primary output is slow to propagate
0-to-1 or 1-to-0 transition
• Number of paths is an exponential
function of gates
Graph
6. Delay Fault Testing
• Fault Models
• Stuck-at fault test covers
• Shorts and opens
• Resistive shorts – Not covered
• Delay fault test covers
• Resistive opens and coupling faults
• Resistive power supply lines
• Process variations
• Delay Fault Testing
• Propagation delay of all paths in a circuit must be less than clock period
for correct operation
• Functional tests applied at operational speed of circuit are often used for
delay faults
• Scan based stuck-at tests are often applied at speed
• However, functional and stuck-at testing even if done at-speed do not
specifically target delay faults
7. Transition Faults
• Detection
• Testing for gate delay faults require accounting for delay defect size. Ex:
if the defect size at a circuit lead r is less than the slack of r, the fault
may not be detected.
• Slack of a circuit line is the difference between the period of the
functional clock and the max delay of all paths through r.
• Types of Gate Delay Faults
• Gross gate delay fault (G-GDF): one gate delay defect size is
greater than the system clock period
• DFs in all paths going through faulty gate, hence catastrophic
• Also called as transition fault
• Small GDF (S-GDF): delay defect size is smaller than system
clock period
• Detectable if causes Path Delay Fault in at least one path through
the gate
We want to focus on Gross gate delay fault i.e. Transition
fault
8. • All input transitions occur at the same time in the figure below
• The position of each output transition depends upon the delay of some input to output
combinational path
• The right edge of the output transition(red shaded region) is determined by
the last transition
• Delay of the longest combinational path activated by the current input vector
• The delay of critical paths determines the smallest clock period at which the circuit can
function correctly.
Digital Circuit Timing
9. Circuit Delays
• Switching or inertial delay
• Interval between input change and output change of a gate
• Depends on input capacitance, device (transistor) characteristics and output
capacitance of gate
• Also depends on input rise or fall times and states of other inputs (second-
order effects)
• Approximation: fixed rise and fall delays (or min-max range delay) for gate
output
• Propagation delay or interconnect delay
• Is the time a transition takes to travel between gates
• Depends on transmission line effects (distributed R,L, C parameters, length,
loading) of routing paths
• Approximation: modeled as lumped delays for gate inputs
10. Circuit Outputs
• Input and output changes of a combinational logic are synchronized with
clocks
• Each path can potentially produce one signal transition at the output
• The location of an output transition in time is determined by the delay of the
path
11. Delay Fault Models
• Segment-delay Fault model
• A segment of an I/O path is assumed to have large delay such that all paths
containing the segment become faulty
• Transition Fault model
• A segment delay fault with segment of unit length (two faults per gate)
• Slow-to-rise, slow-to-fall (we refer these as: delayed 0-to-1 and delayed 1-to-0)
• Models spot delay defects
• Gate-delay Fault model
• A gate is assumed to have a delay increase of certain amount while other gates
retain some nominal delays. Gate delay faults only of certain sizes may be
detectable.
• Path-delay Fault model
• Two path delay faults for each physical path (distributed path faults)
• Total number of path is an exponential function of gates
• Line-delay Fault
• A transition fault tested through the longest delay path. Two faults per line or
gate. Tests are dependent on modeled delays of gates
12. Transition Delay Fault
• Transition fault (or Gross Gate Delay fault)
• Even though the circuit doesn’t have a logical defect, it may have some
physical defect such as a process variation and that creates a large
enough gate delay to cause problems
• Transition Fault model
• Assumes that the delay fault affects only one gate in the circuit
• Assumes the logic function of circuit under test (CUT) is error-free
• Types of faults: delayed 0-to-1 & delayed 1-to-0
Fault at any node means the effect of any transition from 0 to 1 for delayed
high (or 1 to 0 for delayed low) will not reach primary output within the
stipulated time
extra delay (delay above the nominal delay) caused by the fault is assumed
to be large enough to prevent the transition from reaching primary output at
the time of observation
• Advantages
• the number of faults in the circuit increase linearly with the number of gates
• Practically used: stuck-at fault CAD tools with minor modifications
[Goel2013][Waicukauski1987]
13. Testing for Transition Faults
• Popular Scan Based Delay Fault Testing (from Bushnell)
• Normal Scan Sequential Test (Transition Delay Test)
• Enhanced Scan Test
• Slow Clock Combinational Test
• Variable-Clock Non-Scan Sequential Test
• Rated-Clock Non-Scan Sequential Test
14. Testing for Transition Faults
• Popular Scan Based Delay Fault Testing (from Bushnell)
• Normal Scan Sequential Test (Transition Delay Test)
• The two popular methods:
• Launch-off-capture (functional transition test)
• Launch-off-shift (skewed load delay test)
• Tested for delay faults but vector pairs must be specially generated
• Both methods are used for path-delay and transition faults.
• Enhanced Scan Test
• Slow Clock Combinational Test
• Variable-Clock Non-Scan Sequential Test
• Rated-Clock Non-Scan Sequential Test
15. Scan Based Delay Fault Testing
Transition Delay Testing Normal Scan Test
• Whole test operation is divided
into three cycles
Initialization Cycle (IC) where the CUT
is initialized to a particular state by
applying V1
Launch Cycle (LC) where the CUT is a
transition is launched at the target gate
terminal by applying V2
Capture Cycle (CC) where the
transition is propagated and captured
at an observation point
• for testing- we need a scan design
and a launch setup
• scan is used only to set the states.
• Transition Test
Pattern Pair (V1, V2).
Pattern V1 is the initialization pattern
Pattern V2 is the launch pattern
Capture Result (capture response at-
speed)
• Scan Based Transition Test
Shift-in (initialization pattern).
Launch a transition
Capture result
Shift out contents
Launch-off-shift (LOS) and launch-off-
capture (LOC) are the two most
widely used transition test methods
16. Scan Based Delay Fault Testing
Transition Delay Testing
• Transition Test
Pattern Pair (V1, V2).
Pattern V1 is the initialization pattern
Pattern V2 is the launch pattern
Capture Result (capture response at-
speed)
• Scan Based Transition Test
Shift-in (initialization pattern).
Launch a transition
Capture result
Shift out contents
Launch-off-shift (LOS) and launch-off-
capture (LOC) are the two most
widely used transition test methods
Normal Scan Test
• Apply a V1-> V2 transition at the inputs (PI/states)
of a combinational circuit
• Normal full-scan circuits
• V1 states serially shifted in and V2 states are
generated by
• A) one-bit scan shift of V1
• B) apply V1 in a normal mode
17. Testing for Transition Faults
• Popular Scan Based Delay Fault Testing (from Bushnell)
• Normal Scan Sequential Test (Transition Delay Test):
• The two popular methods:
• Launch-off-capture (functional transition test)
• Launch-off-shift (skewed load delay test)
• Enhanced Scan Test
• Applicable to scan types of sequential circuits
• Advantage: arbitrary vector pair can be applied
• Uses hold latches and additional HOLD signal
• Disadvantage: scan area overhead due to hold latch and also adds some
delay in the signal path.
• Slow Clock Combinational Test
• Variable-Clock Non-Scan Sequential Test
• Rated-Clock Non-Scan Sequential Test
18. Scan Based Delay Fault Testing
Enhanced Scan Test
• Apply a transition at the primary inputs (PI/states)
of a combinational circuit
• Normal scan chain is enhanced by inserting hold
latches and & hold signal
• Generate any arbitrary pattern-pair
Enhanced Scan Test- Steps
Portion of V1 is serially shifted in the scan
register by setting TC= 0 and applying clock
CK
Scanned V1 bits are transferred to hold
latches by setting HOLD = 1, and also apply
PI bits of V1
As signals stabilize due to V1, the state bits
of V2 are scanned in
Simultaneously activation of HOLD (=1) and
application of PI bits of V2 provides V1-> V2
transition
Set the circuit in normal mode (TC =1)
for exactly one rated-clock period, at the
end of which the clock CK latches the
combinational outputs in the FFs
Like normal scan, scan out the response
can be overlapped with scan in of next
vector
19. Scan Based Delay Fault Testing
Enhanced Scan Test Timing Diagram
• The control input HOLD keeps the output steady
at previous state of flip-flop
• Why needed?
• Reduce power dissipation during Scan
• Isolate asynchronous parts during scan test
20. Scan Based Delay Fault Testing
Enhanced Scan Test- Steps
Portion of V1 is serially shifted in the scan
register by setting TC= 0 and applying clock
CK
Scanned V1 bits are transferred to hold
latches by setting HOLD = 1, and also apply
PI bits of V1
As signals stabilize due to V1, the state bits
of V2 are scanned in
Simultaneously activation of HOLD (=1) and
application of PI bits of V2 provides V1-> V2
transition
Set the circuit in normal mode (TC =1)
for exactly one rated-clock period, at the
end of which the clock CK latches the
combinational outputs in the FFs
Like normal scan, scan out the response
can be overlapped with scan in of next
vector
Timing Diagram
21. Normal Scan Test
Normal Scan Test
V2 states are generated by
•(A) Shift in 1 bit after scan in of V1 in the following slow-clock
cycle i.e. (test control TC= 0)
•(B) V2 is the output of the combinational logic
A: TC V2
By scan shift
B: TC V2
By functional
22. Normal Scan Test (Launch-off-shift)
Launch-off-shift (LOS)
Steps
•Transition launched in last shift cycle
•Scan enable must switch at-speed
•Launch path is scan path more controllable
•E.g.: V1 = 01000101
V2= 10100010
23. Normal Scan Test (Launch-off-capture)
Launch-off-capture (LOC)
Steps
•Transition launched from functional path
•Scan enable doesn’t have to switch at-speed
•Functional launch path
- less controllable
24. Testing for Transition Faults
• Popular Scan Based Delay Fault Testing (from Bushnell)
• Normal Scan Sequential Test (Transition Delay Test)
• The two popular methods:
• Launch-off-capture (functional transition test)
• Launch-off-shift (skewed load delay test)
• Enhanced Scan Test
• Applicable to scan types of sequential circuits
• Slow Clock Combinational Test
• Applicable to combinational circuits or to those sequential circuits that are
internally combinational with flip-flops only at PIs and POs
• This method is useful when ATE cannot apply the vectors at rated speed
• Variable-Clock Non-Scan Sequential Test
• Rated-Clock Non-Scan Sequential Test
26. Testing for Transition Faults
• Popular Scan Based Delay Fault Testing (from Bushnell)
• Normal Scan Sequential Test (Transition Delay Test):
• The two popular methods:
• Launch-off-capture (functional transition test)
• Launch-off-shift (skewed load delay test)
• Enhanced Scan Test
• Applicable to scan types of sequential circuits
• Slow Clock Combinational Test
• Applicable to combinational circuits or to those sequential circuits that are
internally combinational with flip-flops only at PIs and POs
• Variable-Clock Non-Scan Sequential Test
• Requires more than two vectors
• Slow-clock prevents the delays in the circuit interfering with detection of the
target fault
• Since rated clock is used, other path delays can also affect the signals and
the state FFs.
• Rated-Clock Non-Scan Sequential Test
28. Testing for Transition Faults
• Popular Scan Based Delay Fault Testing (from Bushnell)
• Normal Scan Sequential Test (Transition Delay Test):
• The two popular methods:
• Launch-off-capture (functional transition test)
• Launch-off-shift (skewed load delay test)
• Enhanced Scan Test
• Applicable to scan types of sequential circuits
• Slow Clock Combinational Test
• Applicable to combinational circuits or to those sequential circuits that are
internally combinational with flip-flops only at PIs and Pos
• Variable-Clock Non-Scan Sequential Test
• Requires more than two vectors
• Rated-Clock Non-Scan Sequential Test
• Most natural form of test. All vectors are applied at rated speed. A target
delay fault can be activated several times
• If robust detection is desired, one must consider all delay combinations that
are potentially possible : PS I don’t have any example slide at the moment
29. Other References
[1] N. Ahmed et al, “Enhanced Launch-off-capture Transition Fault Testing,”
IEC, pp. 279–289, 2005.
[2] M. Roncken, “Defect-Oriented Testability for Asynchronous ICs,” In Proc.
IEEE, vol. 87, no. 2, pp. 363–375, Feb.1999.
[3] D. Vasudevan, “Automatic Test Pattern Generation for Asynchronous
Circuits,” Dissertation, 2012.
[4] S. Jayanthy et al, “Fuzzy Delay Model Based Fault Simulator for Crosstalk
Delay Fault Test Generation in Asynchronous Sequential Circuits,” IAS,
2015.
[5] M. Roncken et al, “Fsimac: A Fault Simulator for Asynchronous Sequential
Circuits,” IEEE, 2000.
[6] J. A. Waicukauski et al., “Transition Fault Simulation,” IEEE Design and
Test, 1987.
Editor's Notes
Silicon testing means Validating that the design on silicon works as expected.
Why do we need Silicon test and debug ?
We need it to detect catastrophic defects in the silicon end product
and to analyze these defects when needed and when possible.
This is different from simulation testing, because
Silicon signals are not easy to access
and often need special design for test features to make them accessible
These special Design for test features
are inserted prior to manufacturing, and
make it possible to reduce the costs for test generation and test application
Typical terms used in Testing are:
Test generation - this is the creation of tests for debug or fault coverage
Test coverage - this is the percentage of defects covered by your test
and Defect model - this is the behavioral model of a defect,.
As defect model we use the stuck at fault model.
My work focuses on the Design for Test features that self-timed circuits need
to enable good stuck-at fault coverage.
Silicon testing means Validating that the design on silicon works as expected.
Why do we need Silicon test and debug ?
We need it to detect catastrophic defects in the silicon end product
and to analyze these defects when needed and when possible.
This is different from simulation testing, because
Silicon signals are not easy to access
and often need special design for test features to make them accessible
These special Design for test features
are inserted prior to manufacturing, and
make it possible to reduce the costs for test generation and test application
Typical terms used in Testing are:
Test generation - this is the creation of tests for debug or fault coverage
Test coverage - this is the percentage of defects covered by your test
and Defect model - this is the behavioral model of a defect,.
As defect model we use the stuck at fault model.
My work focuses on the Design for Test features that self-timed circuits need
to enable good stuck-at fault coverage.
Silicon testing means Validating that the design on silicon works as expected.
Why do we need Silicon test and debug ?
We need it to detect catastrophic defects in the silicon end product
and to analyze these defects when needed and when possible.
This is different from simulation testing, because
Silicon signals are not easy to access
and often need special design for test features to make them accessible
These special Design for test features
are inserted prior to manufacturing, and
make it possible to reduce the costs for test generation and test application
Typical terms used in Testing are:
Test generation - this is the creation of tests for debug or fault coverage
Test coverage - this is the percentage of defects covered by your test
and Defect model - this is the behavioral model of a defect,.
As defect model we use the stuck at fault model.
My work focuses on the Design for Test features that self-timed circuits need
to enable good stuck-at fault coverage.
