This document discusses using JTAG (Joint Test Action Group) testing to test system-on-chip (SoC) interconnects. It proposes adding boundary scan cells to interconnect wires to test for faults like opens, shorts, and crosstalk-induced signal integrity issues. An Integrity Loss Sensor Cell is described that can detect voltage and delay violations. Experimental results show these sensor cells add only modest area overhead. The approach extends standard JTAG to enable comprehensive testing of SoC interconnects.

1. JTAG and System on Chip TestingAlexandru IOVANOVICIJanuary 2011

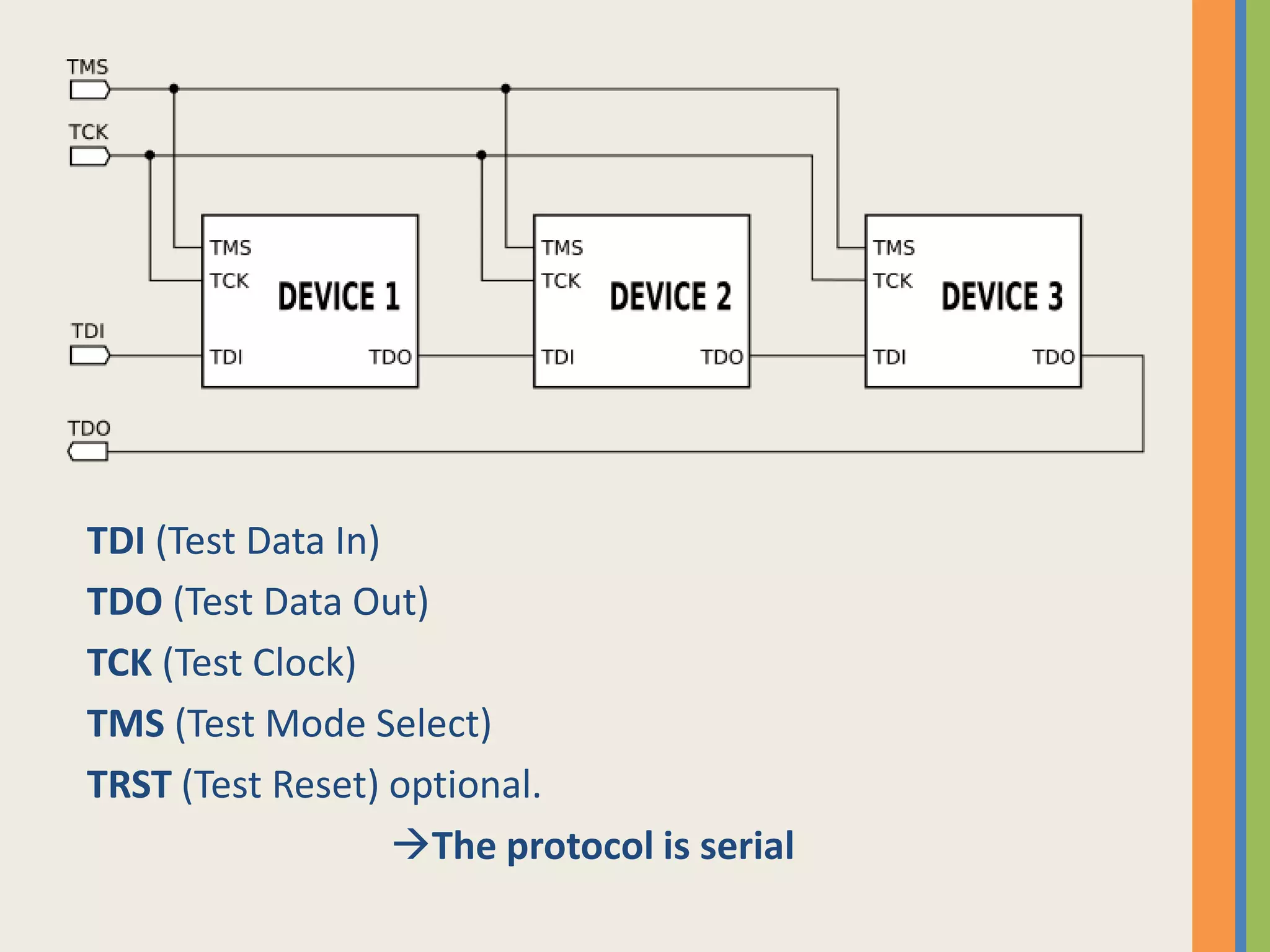

2. TDI (Test Data In)TDO (Test Data Out)TCK (Test Clock)TMS (Test Mode Select)TRST (Test Reset) optional.The protocol is serial

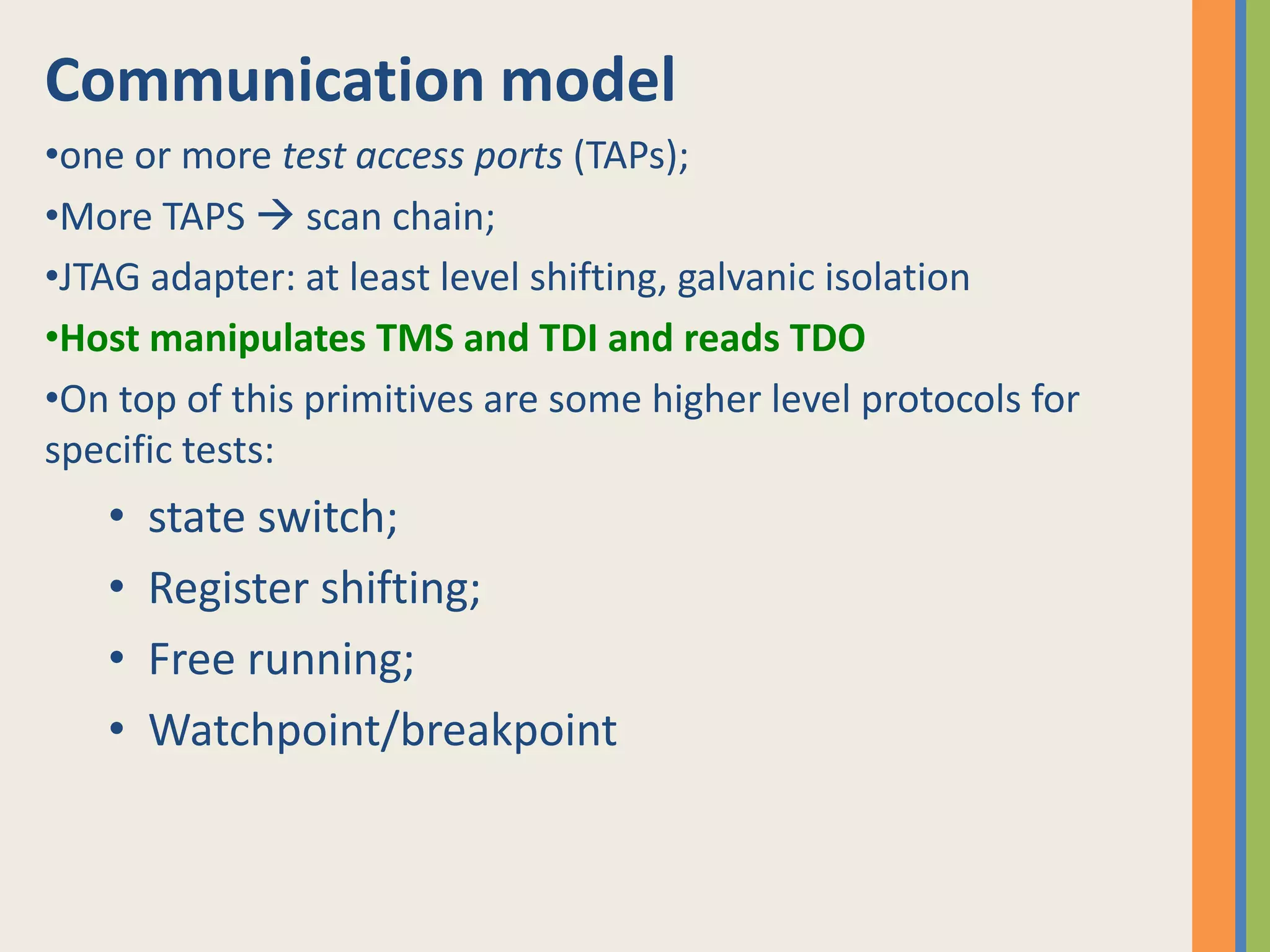

3. Communication modelone or more test access ports (TAPs);

4. More TAPS  scan chain;

5. JTAG adapter: at least level shifting, galvanic isolation

6. Host manipulates TMS and TDI and reads TDO

7. On top of this primitives are some higher level protocols for specific tests:

8. state switch;

9. Register shifting;

10. Free running;

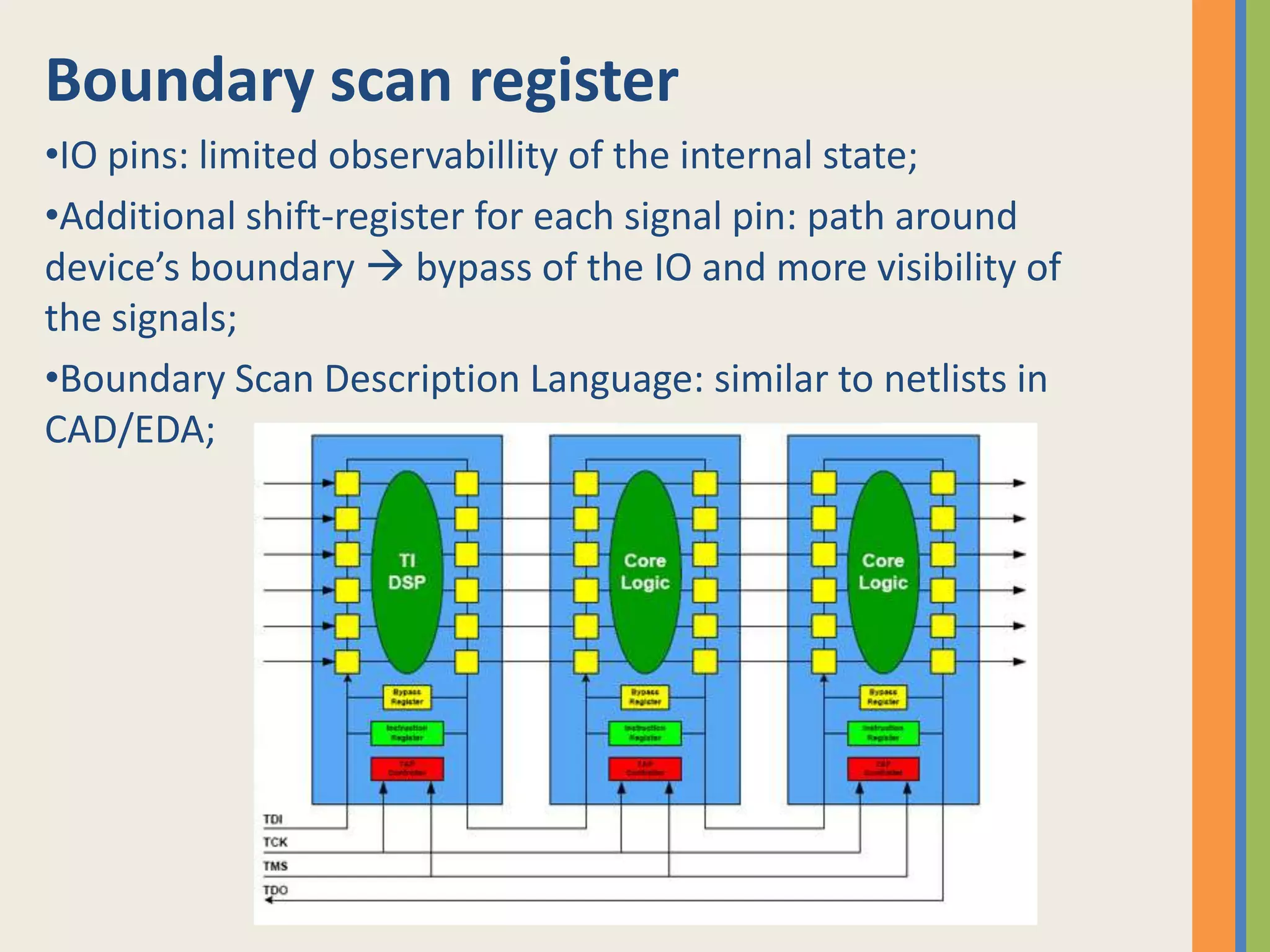

11. Watchpoint/breakpointBoundary scan registerIO pins: limited observabillity of the internal state;

12. Additional shift-register for each signal pin: path around device’s boundary  bypass of the IO and more visibility of the signals;

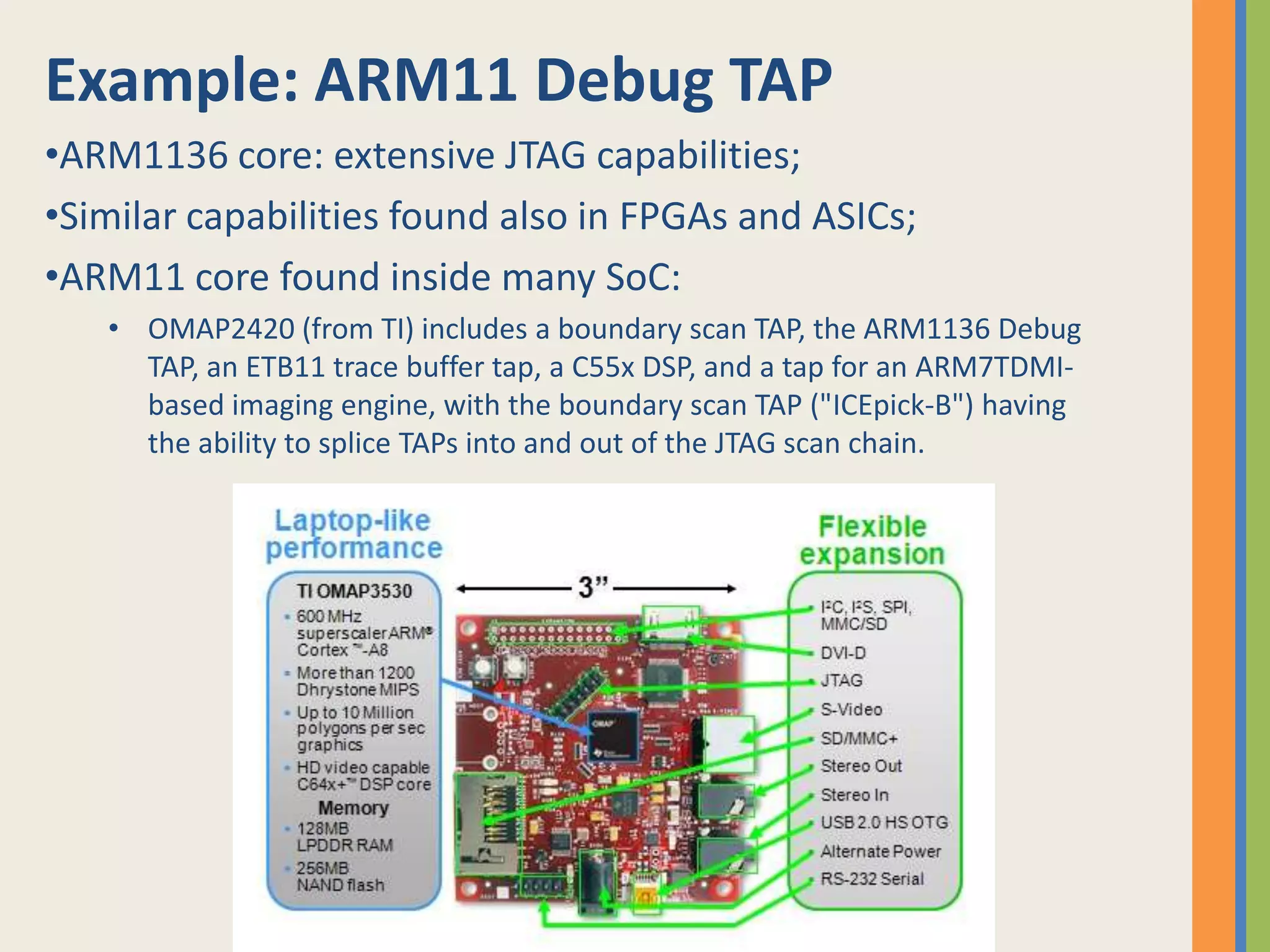

13. Boundary Scan Description Language: similar to netlists in CAD/EDA;Example: ARM11 Debug TAPARM1136 core: extensive JTAG capabilities;

14. Similar capabilities found also in FPGAs and ASICs;

15. ARM11 core found inside many SoC:

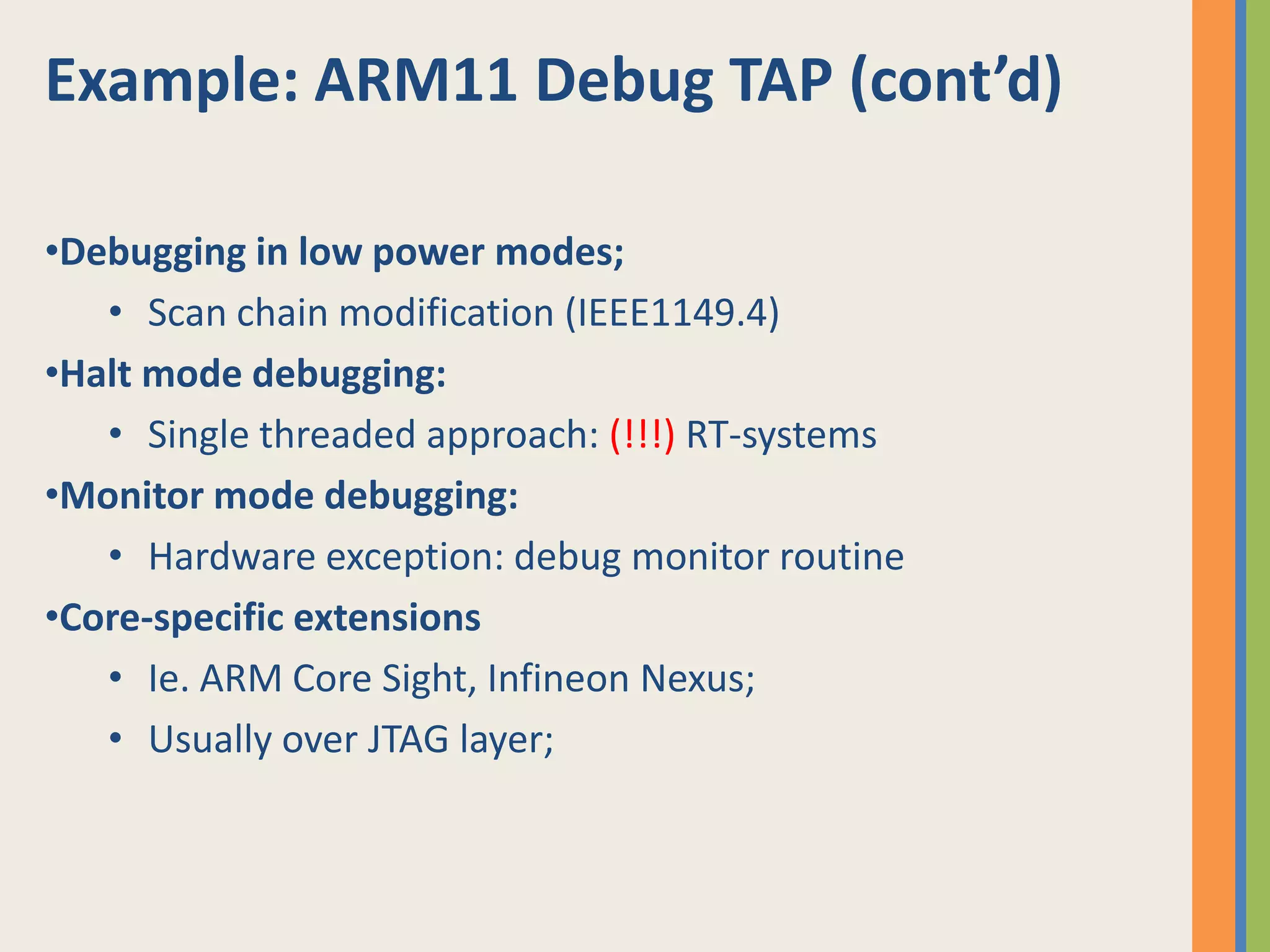

16. OMAP2420 (from TI) includes a boundary scan TAP, the ARM1136 Debug TAP, an ETB11 trace buffer tap, a C55x DSP, and a tap for an ARM7TDMI-based imaging engine, with the boundary scan TAP ("ICEpick-B") having the ability to splice TAPs into and out of the JTAG scan chain.Example: ARM11 Debug TAP (cont’d)Debugging in low power modes;

17. Scan chain modification (IEEE1149.4)

18. Halt mode debugging:

19. Single threaded approach: (!!!) RT-systems

20. Monitor mode debugging:

21. Hardware exception: debug monitor routine

22. Core-specific extensions

23. Ie. ARM Core Sight, Infineon Nexus;

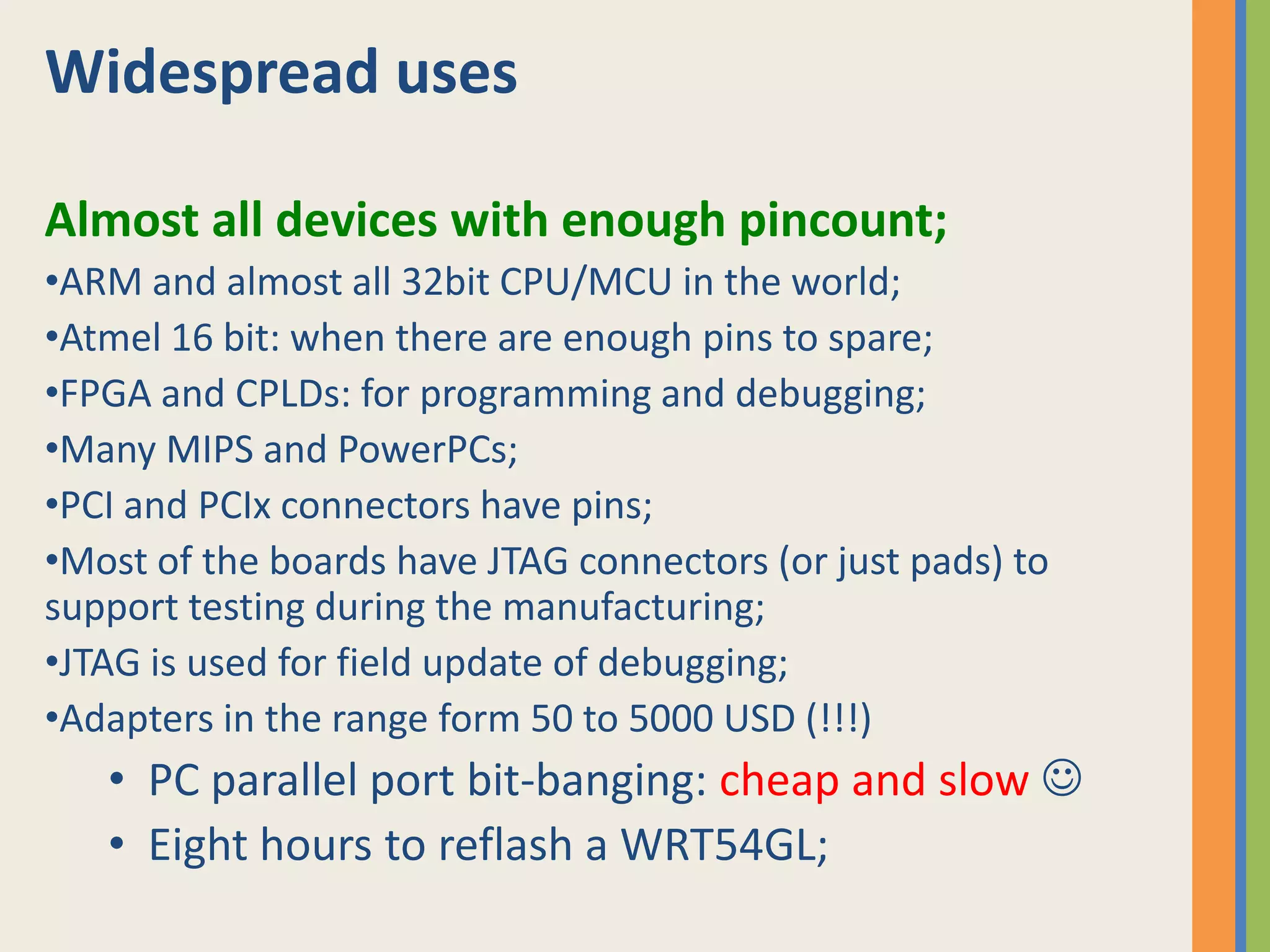

24. Usually over JTAG layer; Widespread usesAlmost all devices with enough pincount;ARM and almost all 32bit CPU/MCU in the world;

25. Atmel 16 bit: when there are enough pins to spare;

26. FPGA and CPLDs: for programming and debugging;

27. Many MIPS and PowerPCs;

28. PCI and PCIx connectors have pins;

29. Most of the boards have JTAG connectors (or just pads) to support testing during the manufacturing;

30. JTAG is used for field update of debugging;

31. Adapters in the range form 50 to 5000 USD (!!!)

32. PC parallel port bit-banging: cheap and slow 

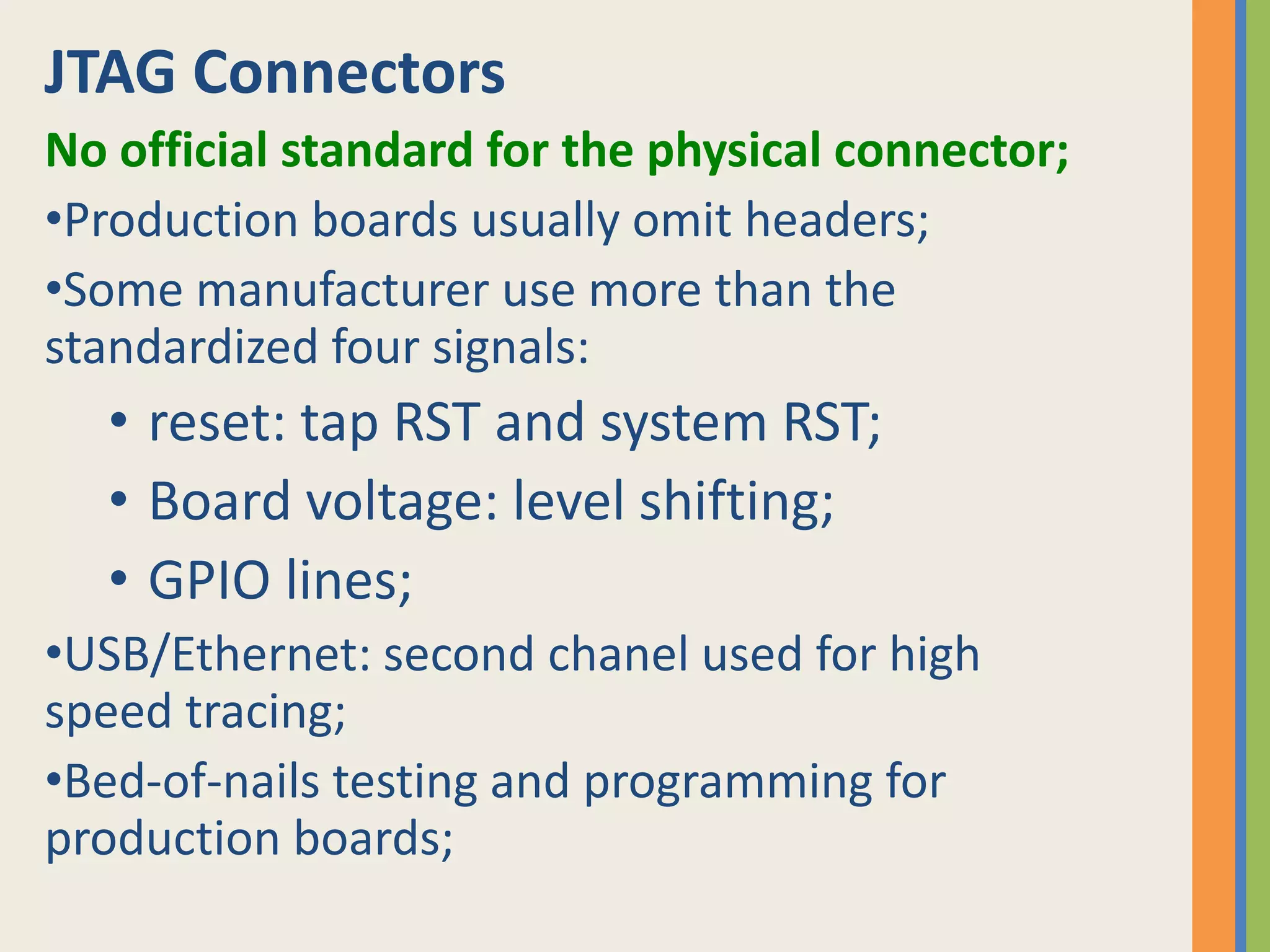

33. Eight hours to reflash a WRT54GL;JTAG ConnectorsNo official standard for the physical connector;Production boards usually omit headers;

34. Some manufacturer use more than the standardized four signals:

35. reset: tap RST and system RST;

36. Board voltage: level shifting;

37. GPIO lines;

38. USB/Ethernet: second chanel used for high speed tracing;

39. Bed-of-nails testing and programming for production boards;JTAG for Software Dev.Most IDEs have JTAG debug support; (Keil, CodeVision AVR, Quartus, Xilinx ISE, etc.);

40. Chip Vendors: provide tools and custom adapters;

41. Tool Vendors: adapters for a broad range of chips;

42. OpenSource: GCC+GDB OpenOCD

43. Best support for ARM

44. Support for:

45. Stopping/halting;

46. Single step/instruction;

47. Breakpoint;

48. Data structure browsing;

49. Commercial tools: simulators and trace analyzers; SoC Design and Test Considerations Martin Schrader, Roderick McConnell;

50. Infineon Technologies AG;

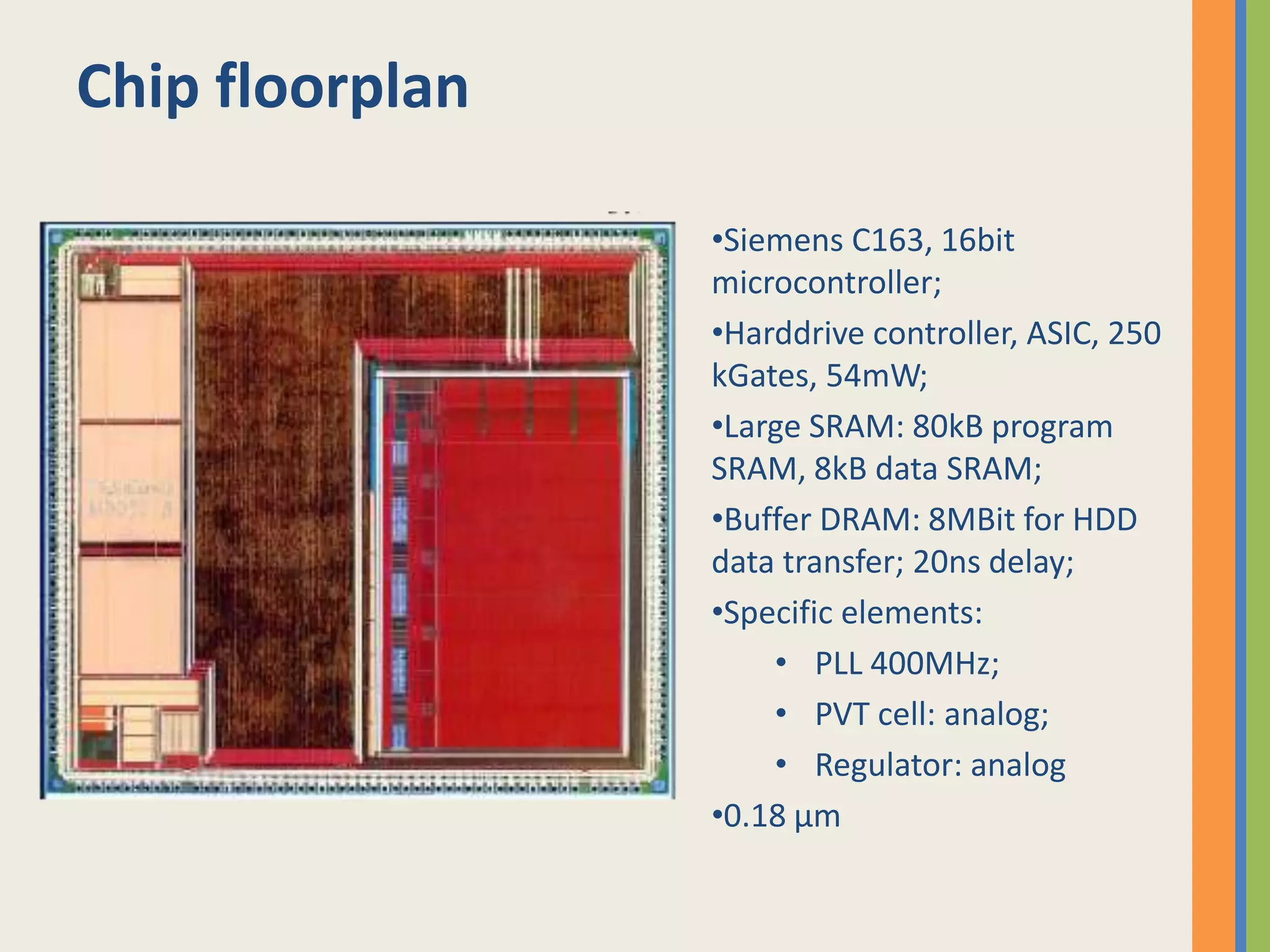

51. Design and Test Automation Conference 2003; Chip floorplanSiemens C163, 16bit microcontroller;

52. Harddrive controller, ASIC, 250 kGates, 54mW;

53. Large SRAM: 80kB program SRAM, 8kB data SRAM;

54. Buffer DRAM: 8MBit for HDD data transfer; 20ns delay;

55. Specific elements:

56. PLL 400MHz;

57. PVT cell: analog;

58. Regulator: analog

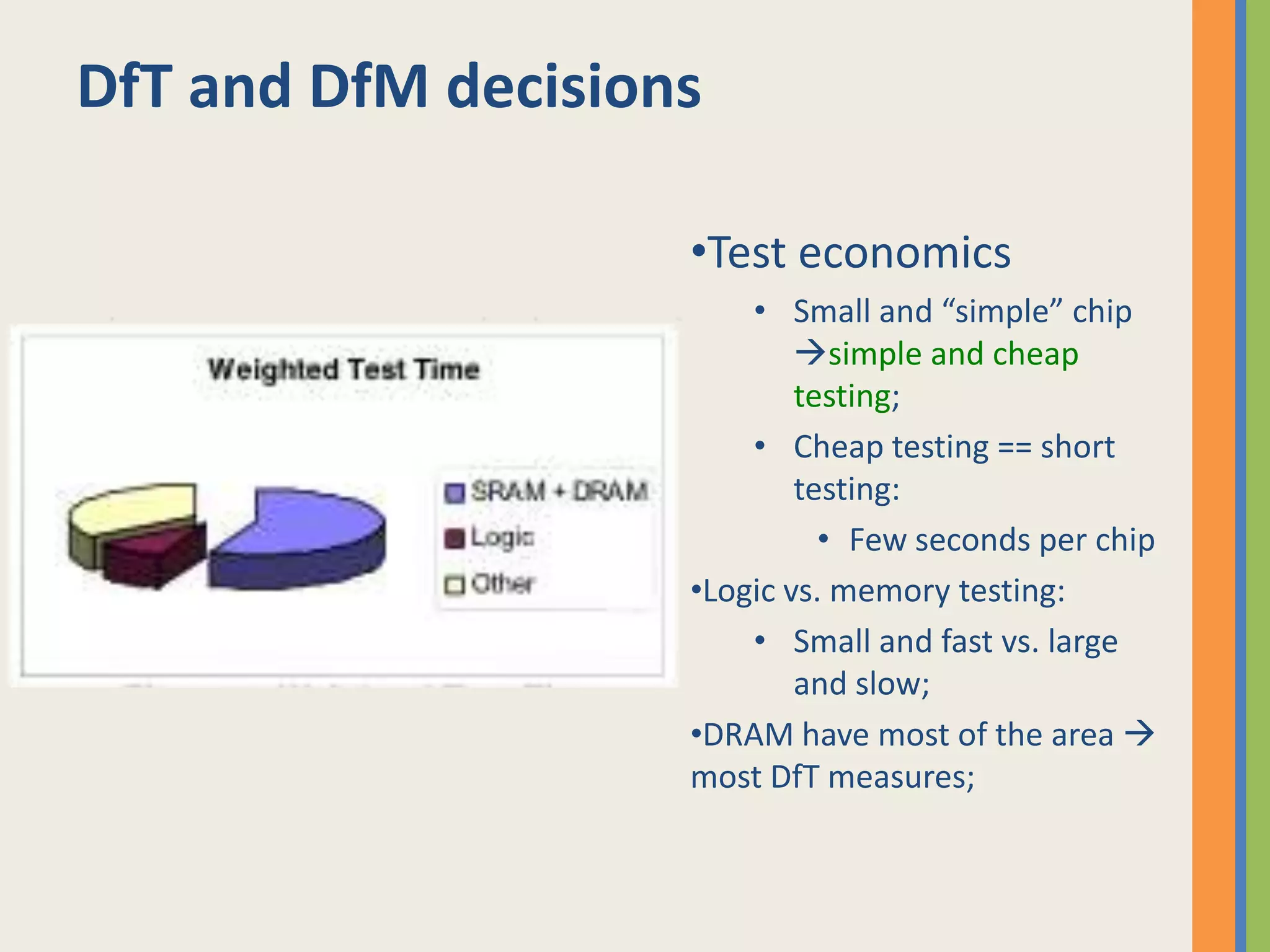

59. 0.18 μmDfT and DfM decisionsTest economics

60. Small and “simple” chip simple and cheap testing;

61. Cheap testing == short testing:Few seconds per chipLogic vs. memory testing:

62. Small and fast vs. large and slow;

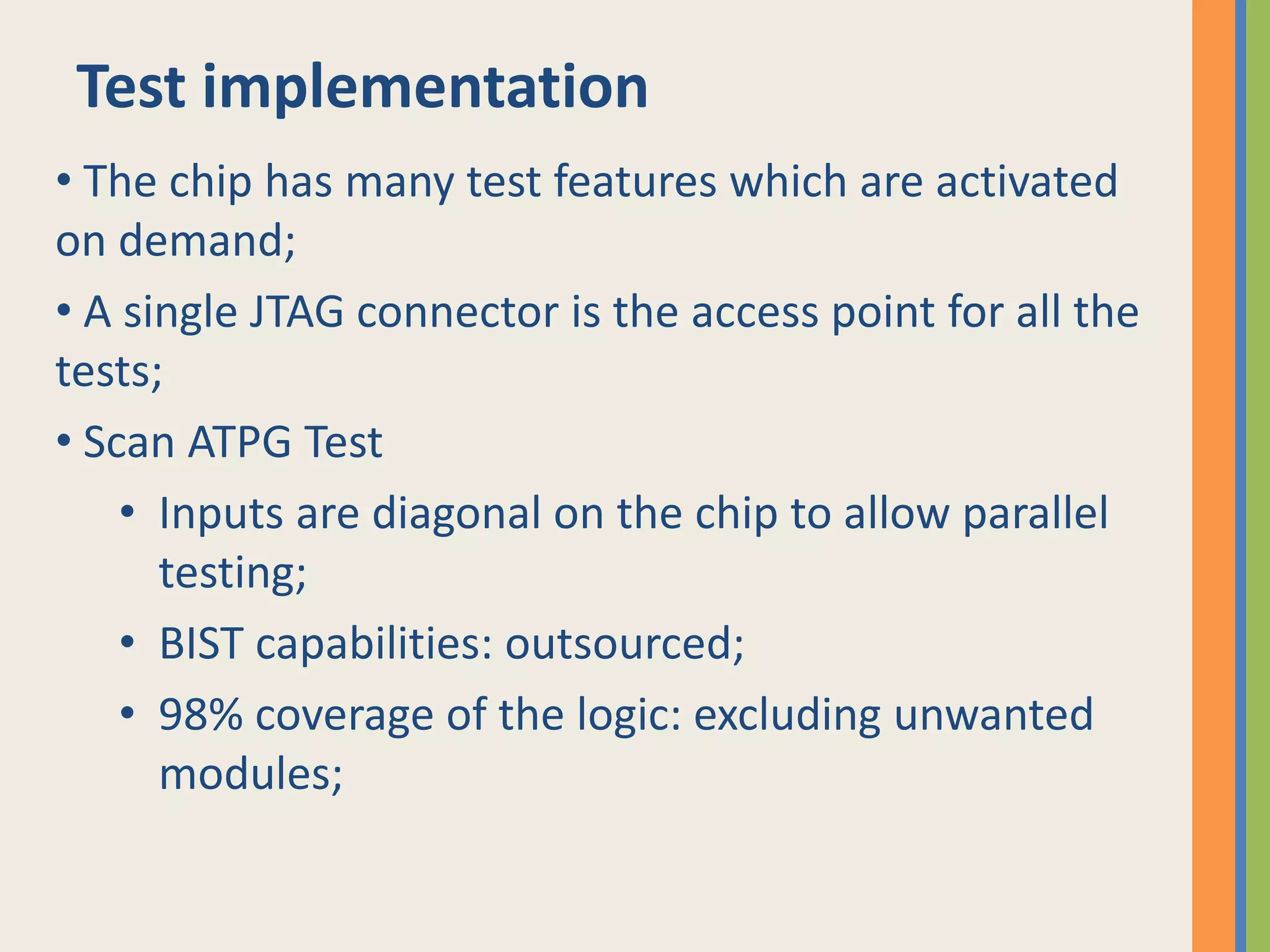

63. DRAM have most of the area  most DfT measures;Test implementation The chip has many test features which are activated on demand;

64. A single JTAG connector is the access point for all the tests;

65. Scan ATPG Test

66. Inputs are diagonal on the chip to allow parallel testing;

67. BIST capabilities: outsourced;

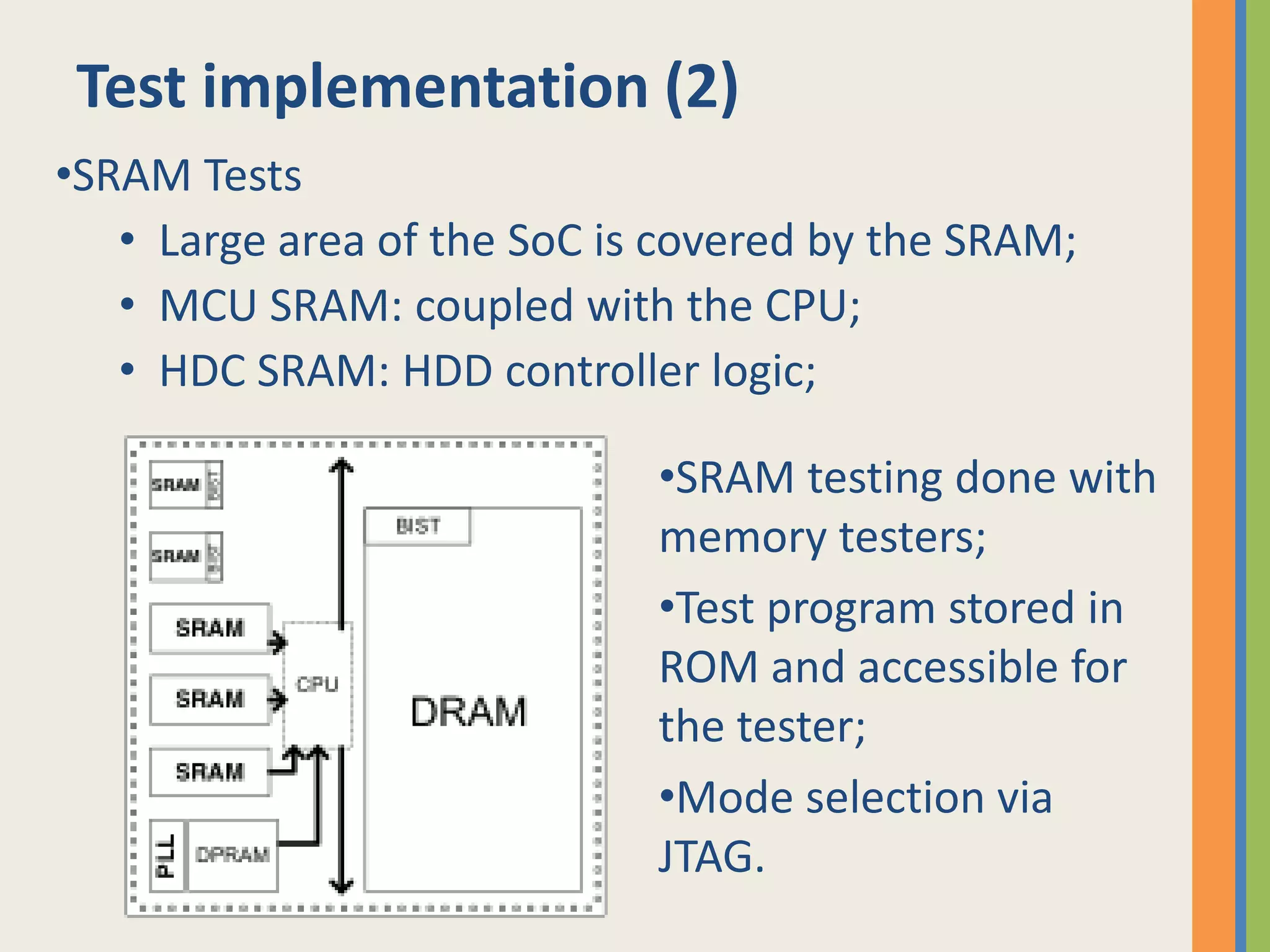

68. 98% coverage of the logic: excluding unwanted modules;Test implementation (2)SRAM Tests

69. Large area of the SoC is covered by the SRAM;

70. MCU SRAM: coupled with the CPU;

71. HDC SRAM: HDD controller logic;

72. SRAM testing done with memory testers;

73. Test program stored in ROM and accessible for the tester;

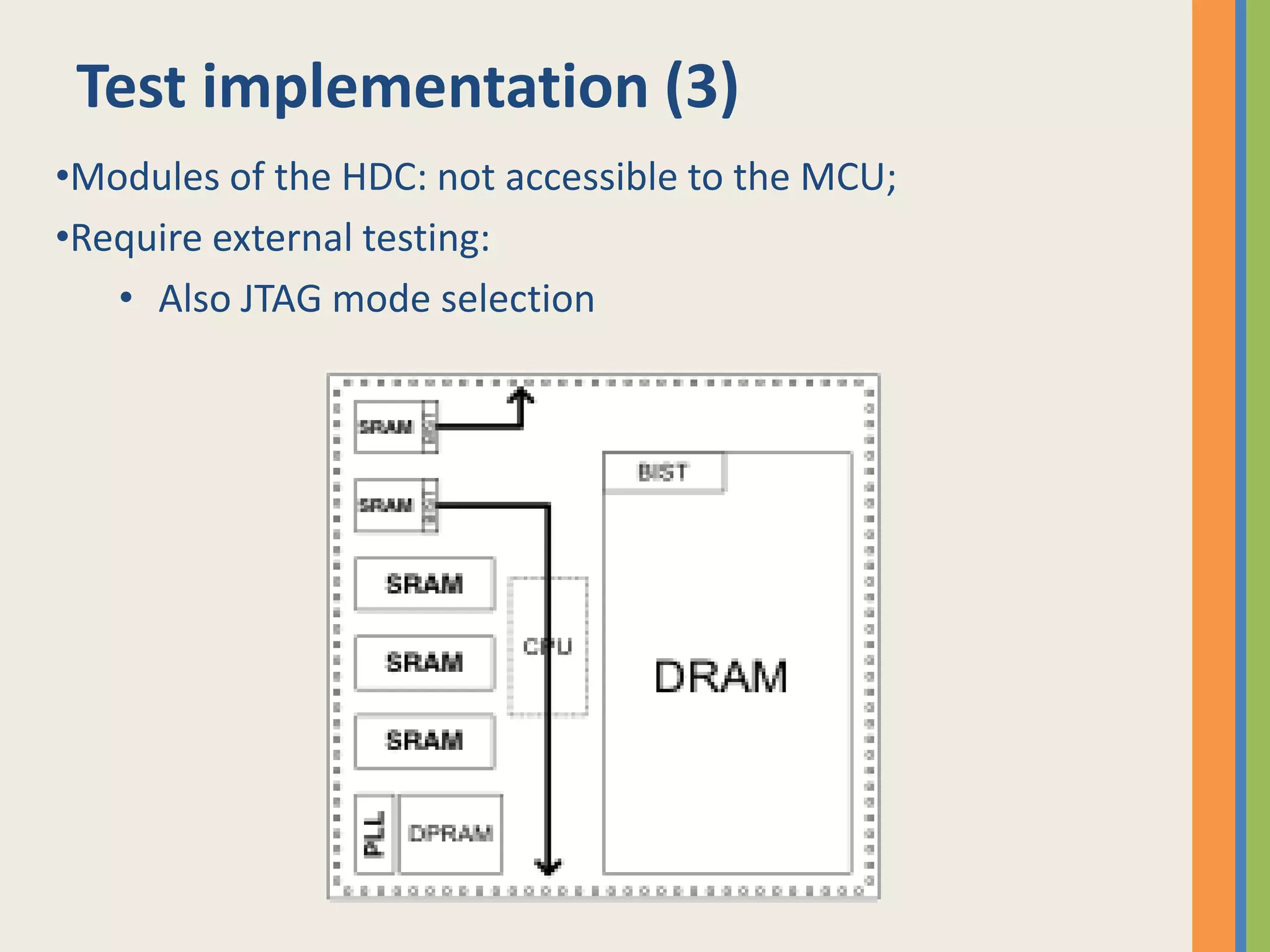

74. Mode selection via JTAG.Test implementation (3)Modules of the HDC: not accessible to the MCU;

75. Require external testing:

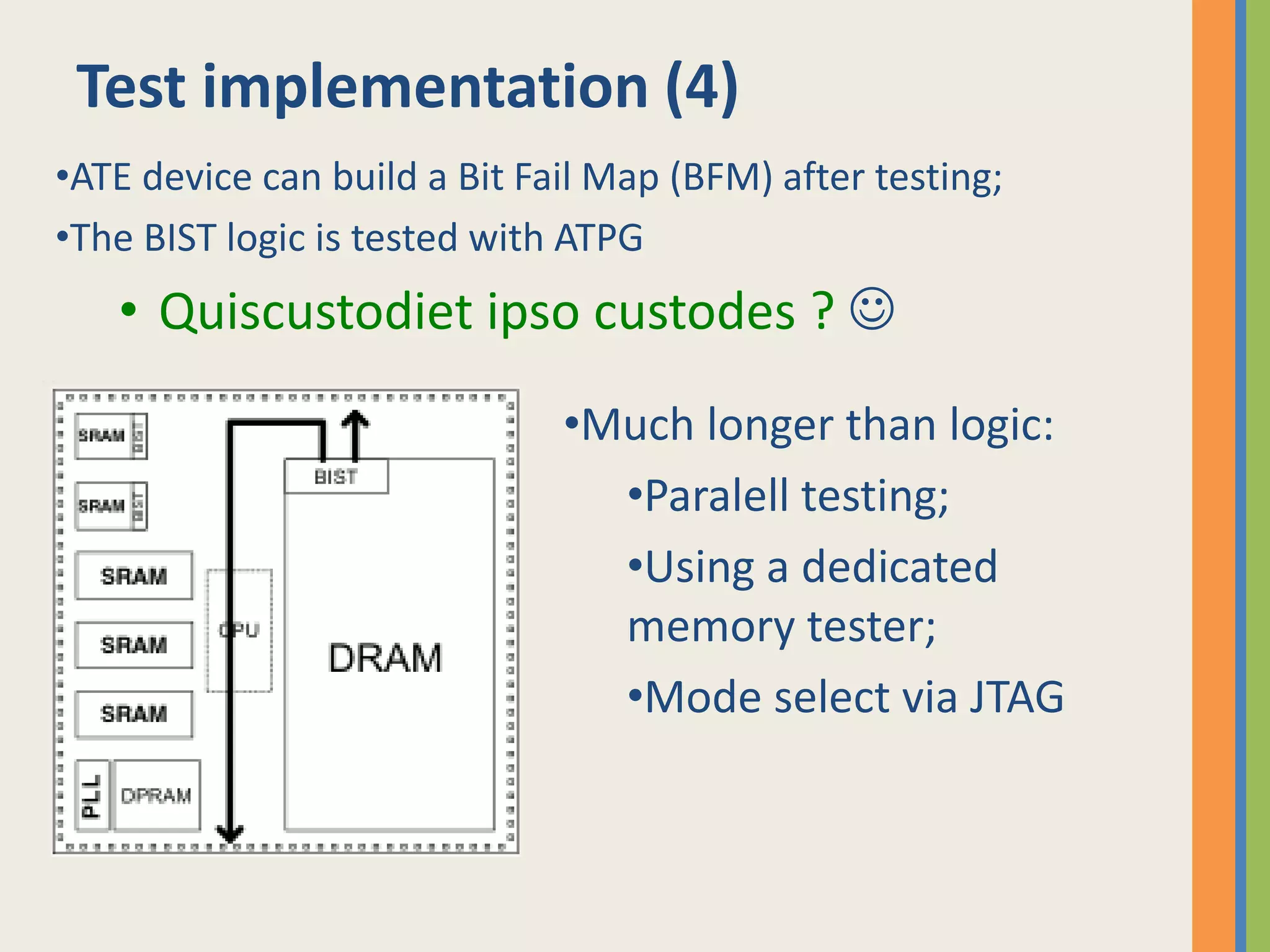

76. Also JTAG mode selectionTest implementation (4)ATE device can build a Bit Fail Map (BFM) after testing;

77. The BIST logic is tested with ATPG

78. Quiscustodiet ipso custodes ? 

79. Much longer than logic:

80. Paralell testing;

81. Using a dedicated memory tester;

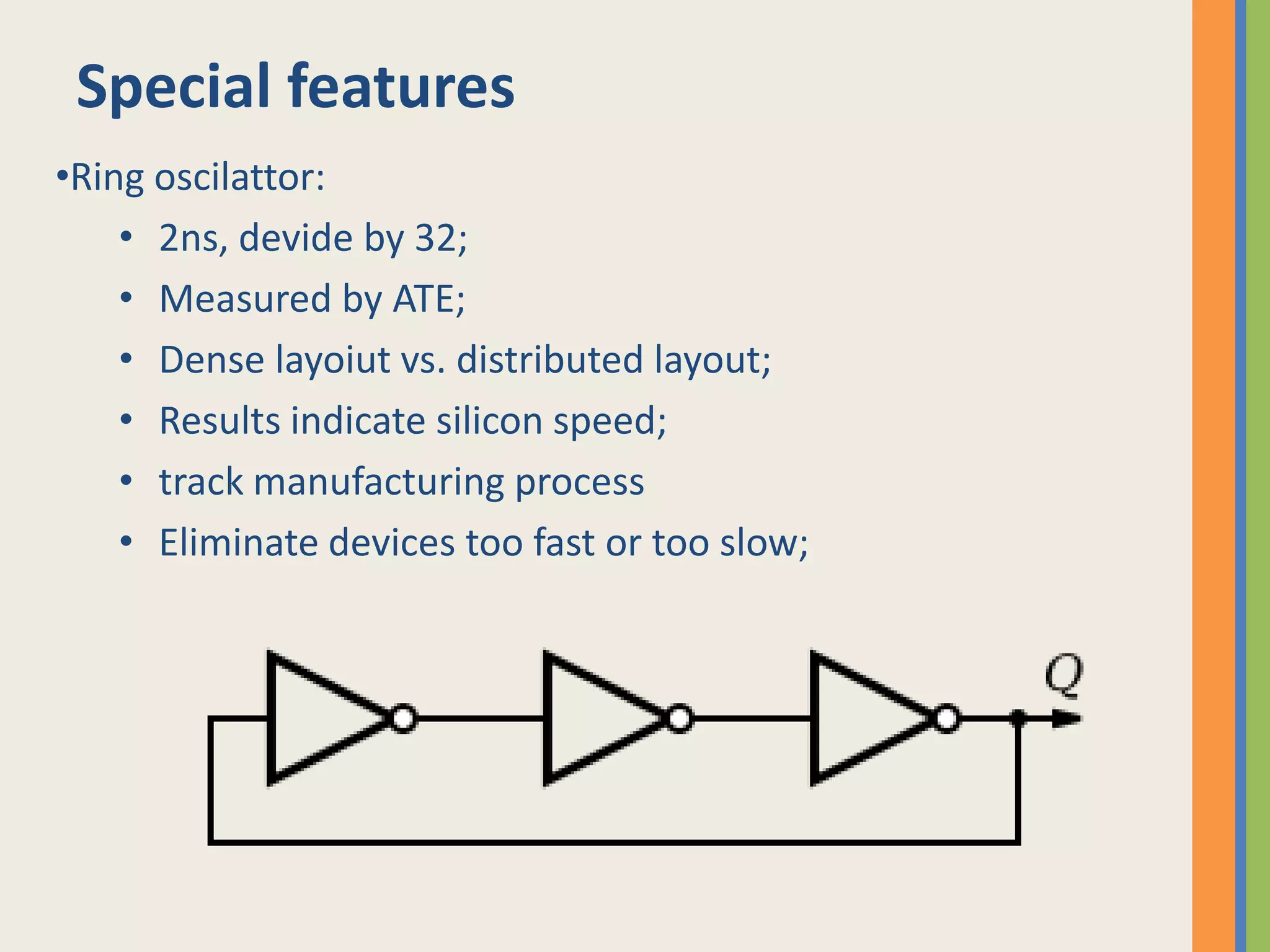

82. Mode select via JTAGSpecial featuresRing oscilattor:

83. 2ns, devide by 32;

84. Measured by ATE;

85. Dense layoiut vs. distributed layout;

86. Results indicate silicon speed;

87. track manufacturing process

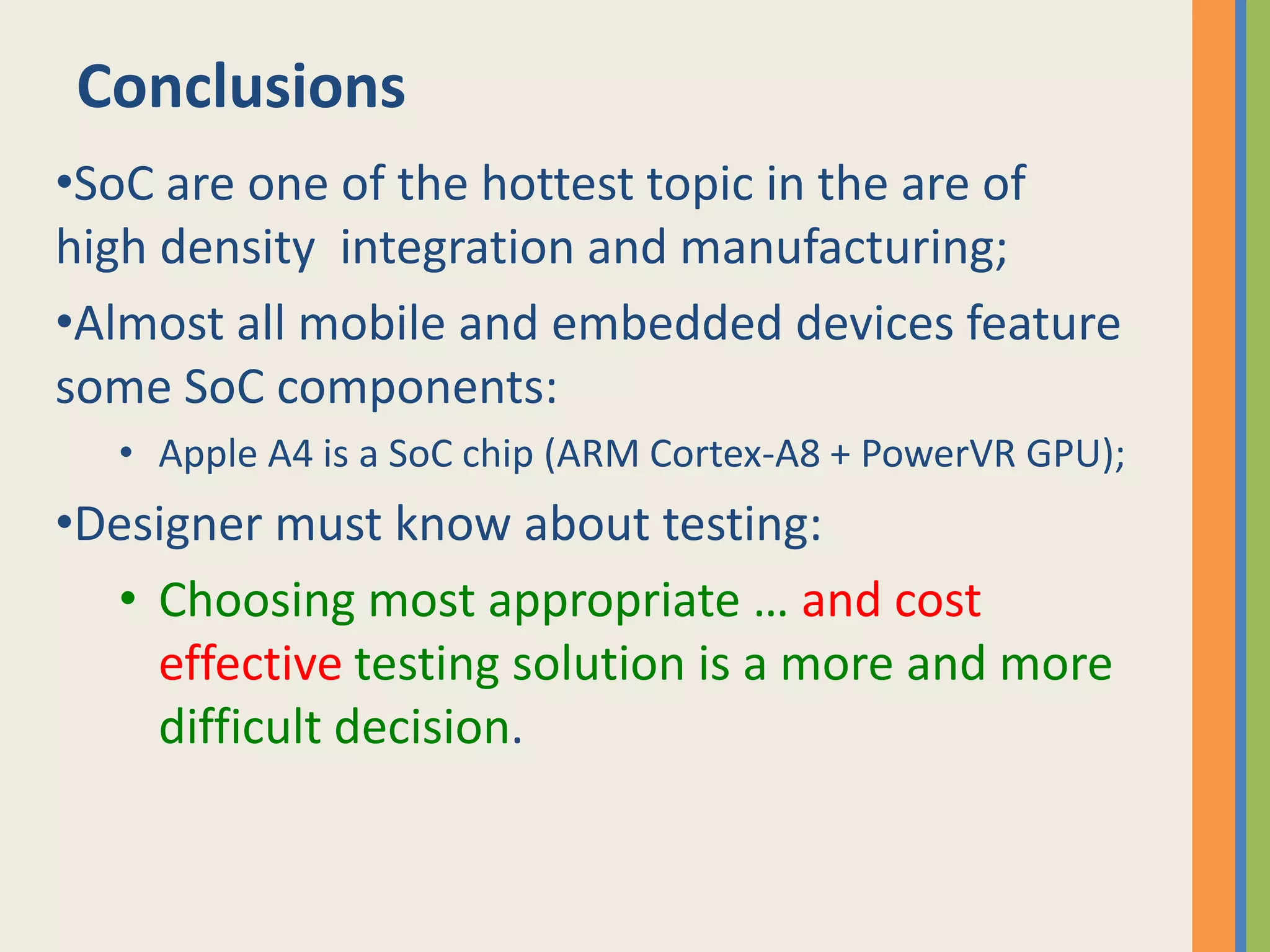

88. Eliminate devices too fast or too slow;ConclusionsSoC are one of the hottest topic in the are of high density integration and manufacturing;

89. Almost all mobile and embedded devices feature some SoC components:

90. Apple A4 is a SoC chip (ARM Cortex-A8 + PowerVR GPU);

91. Designer must know about testing:

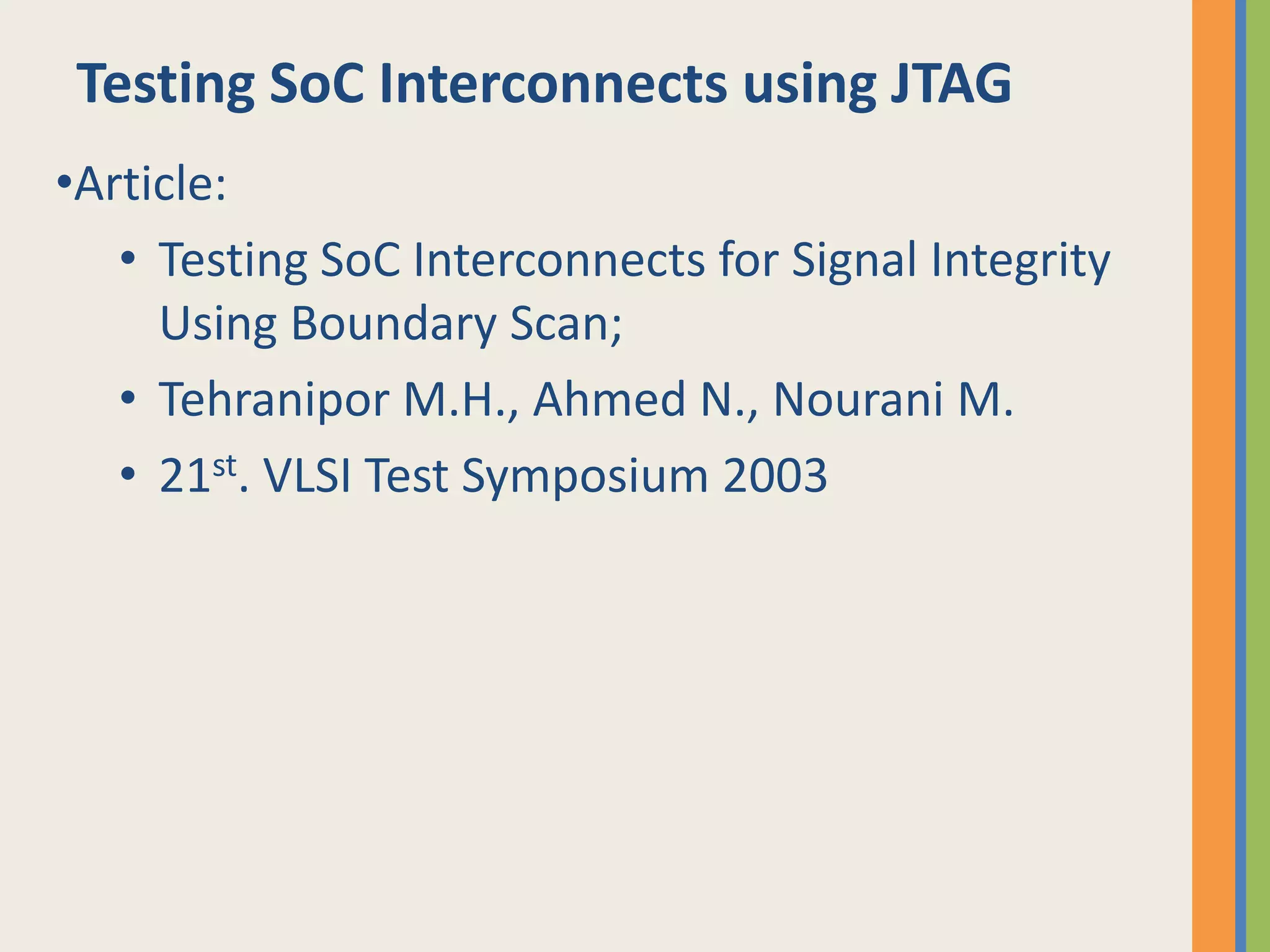

92. Choosing most appropriate … and cost effective testing solution is a more and more difficult decision.Testing SoC Interconnects using JTAGArticle:

93. Testing SoC Interconnects for Signal Integrity Using Boundary Scan;

94. Tehranipor M.H., Ahmed N., Nourani M.

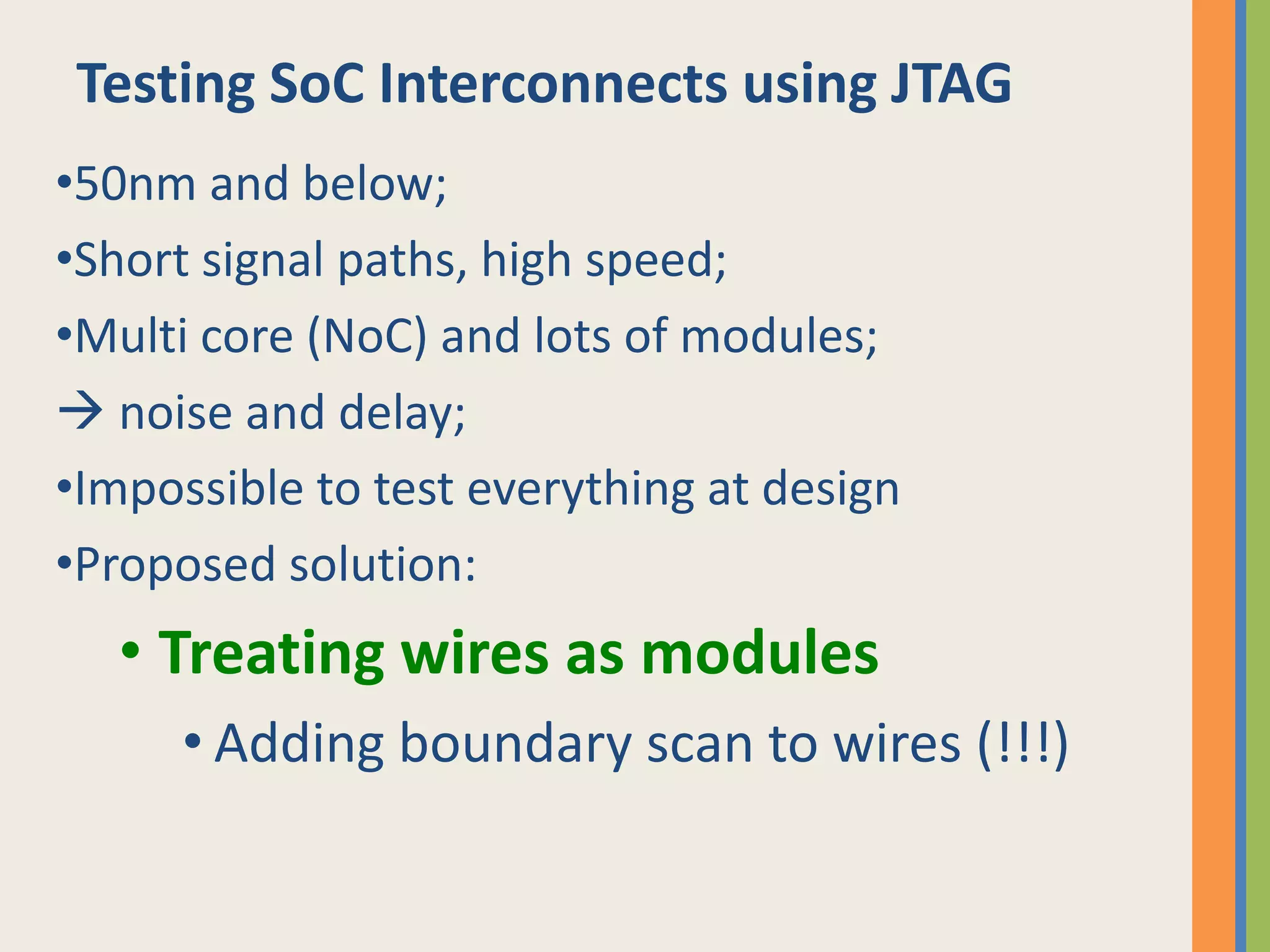

95. 21st. VLSI Test Symposium 2003Testing SoC Interconnects using JTAG50nm and below;

96. Short signal paths, high speed;

97. Multi core (NoC) and lots of modules; noise and delay;Impossible to test everything at design

98. Proposed solution:

99. Treating wires as modulesAdding boundary scan to wires (!!!)

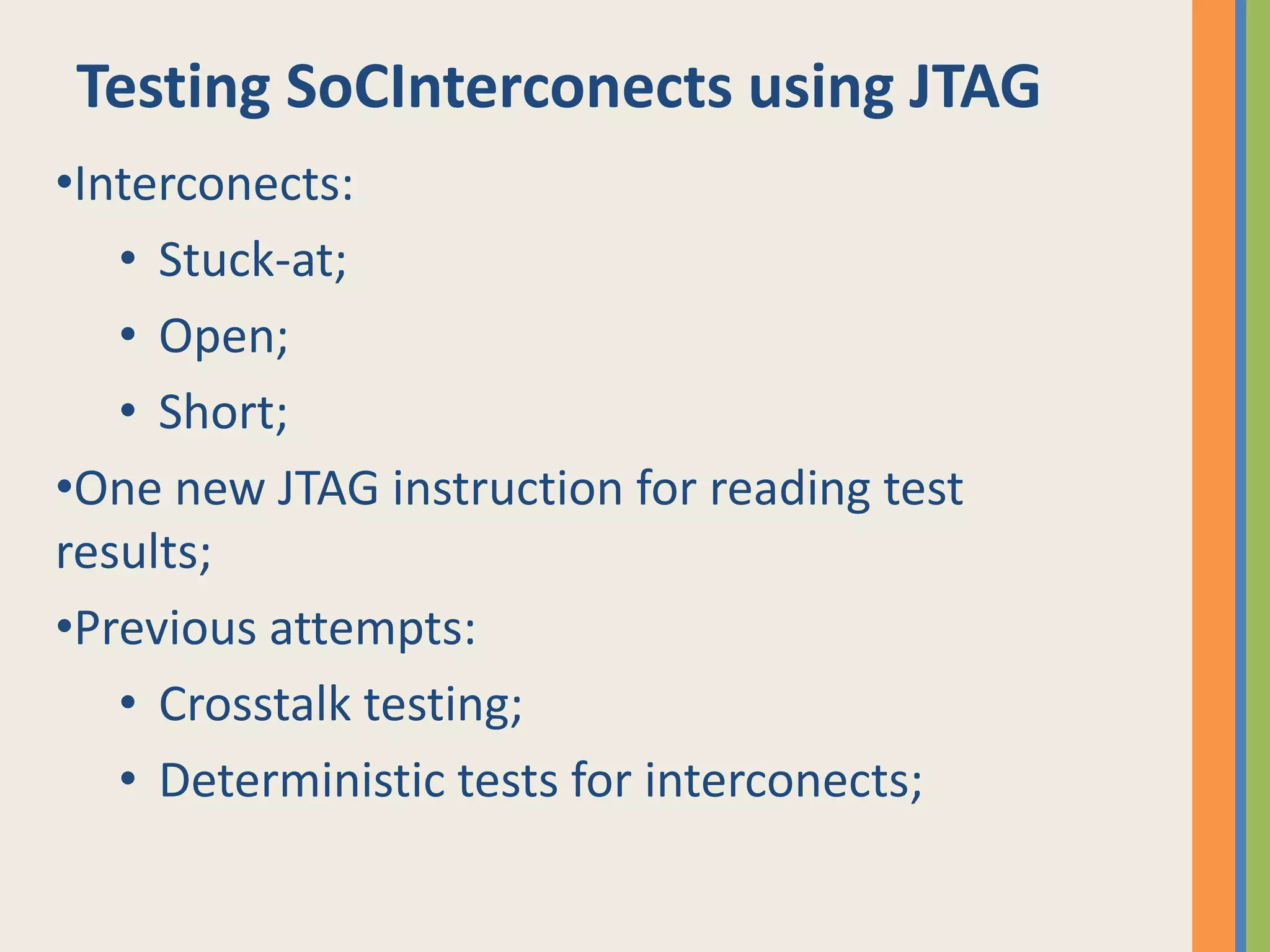

100. Testing SoCInterconects using JTAGInterconects:

101. Stuck-at;

102. Open;

103. Short;

104. One new JTAG instruction for reading test results;

105. Previous attempts:

106. Crosstalk testing;

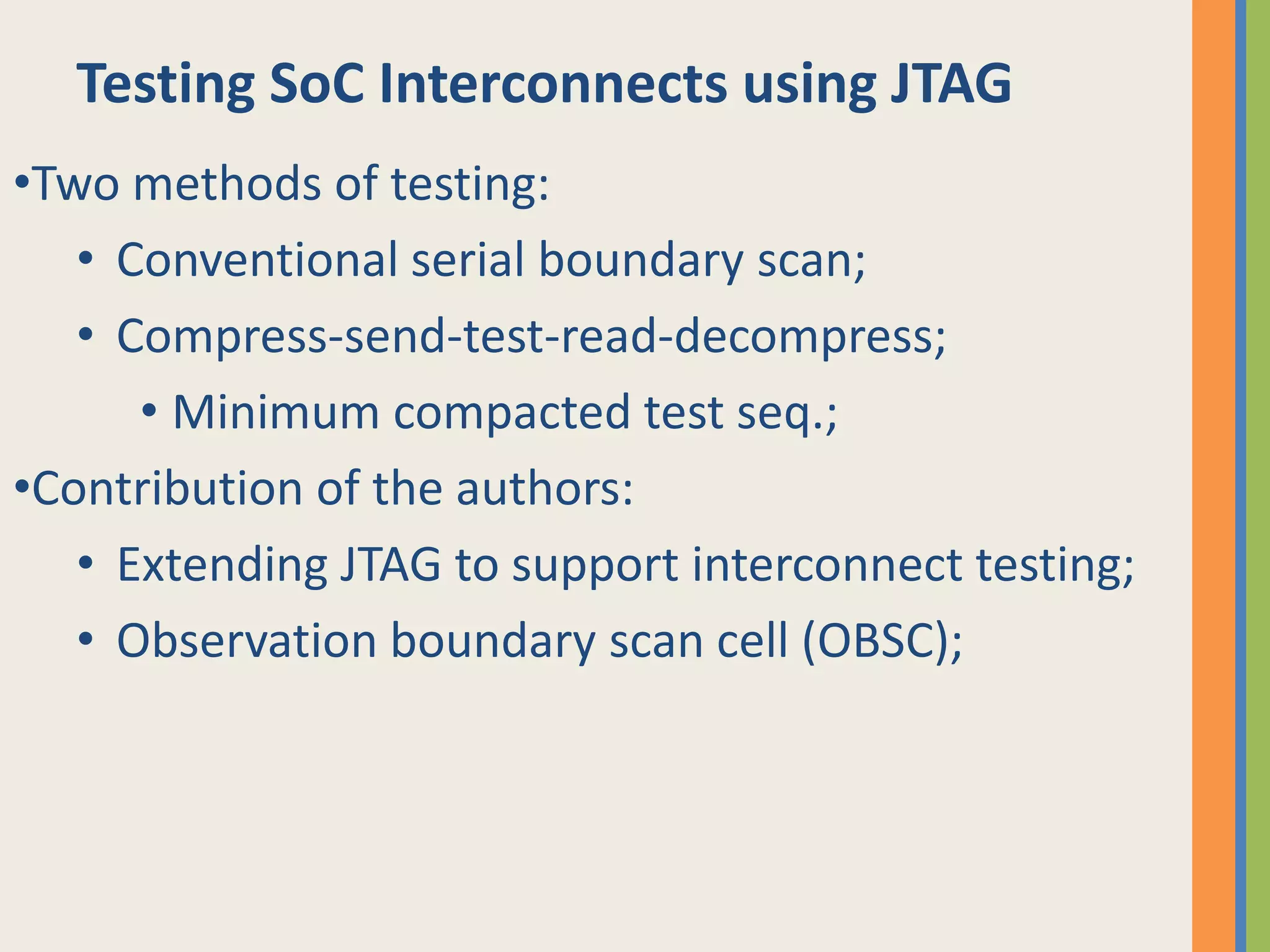

107. Deterministic tests for interconects;Testing SoC Interconnects using JTAGTwo methods of testing:

108. Conventional serial boundary scan;

109. Compress-send-test-read-decompress;Minimum compacted test seq.;Contribution of the authors:

110. Extending JTAG to support interconnect testing;

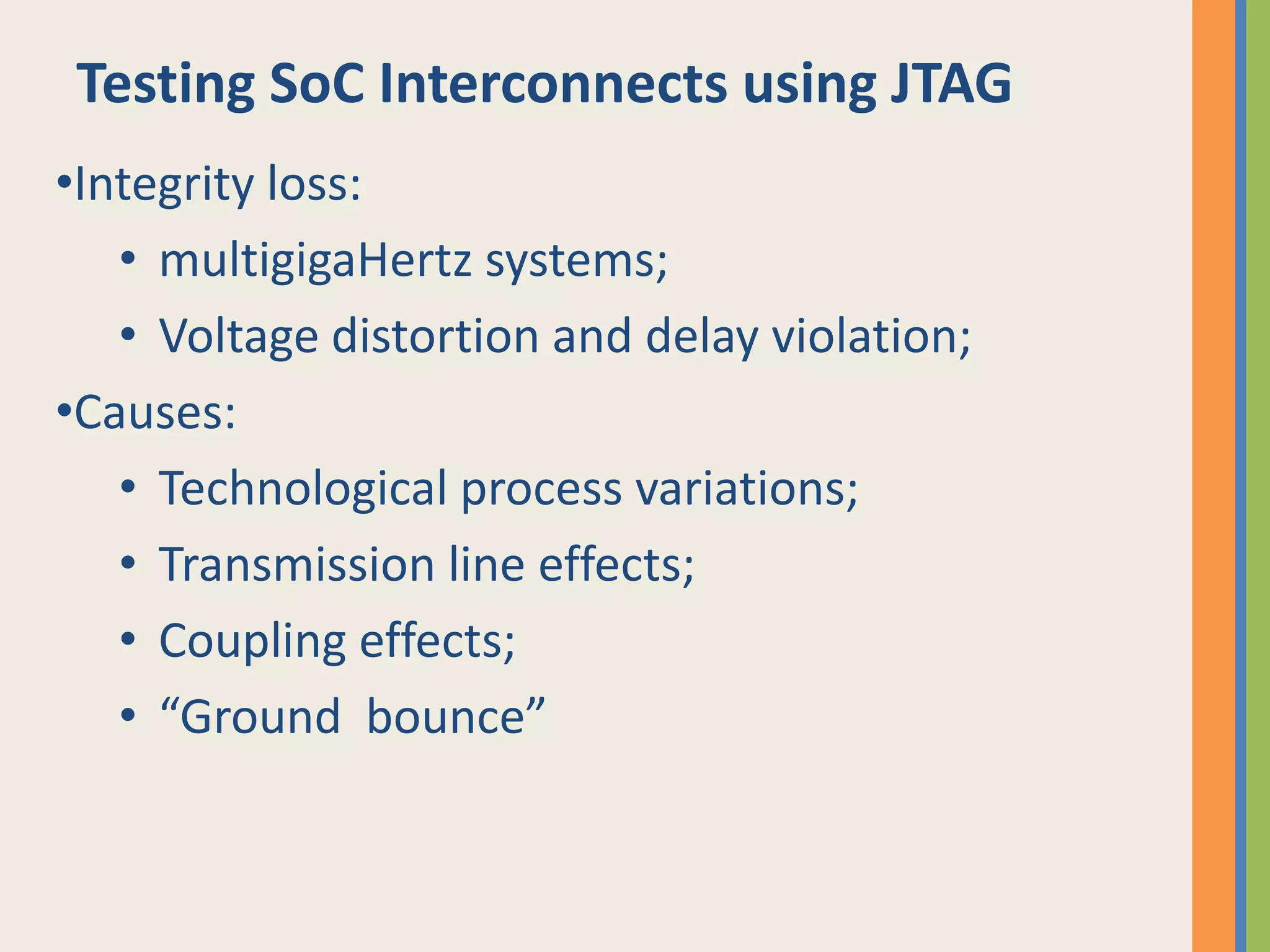

111. Observation boundary scan cell (OBSC);Testing SoC Interconnects using JTAGIntegrity loss:

112. multigigaHertz systems;

113. Voltage distortion and delay violation;

114. Causes:

115. Technological process variations;

116. Transmission line effects;

117. Coupling effects;

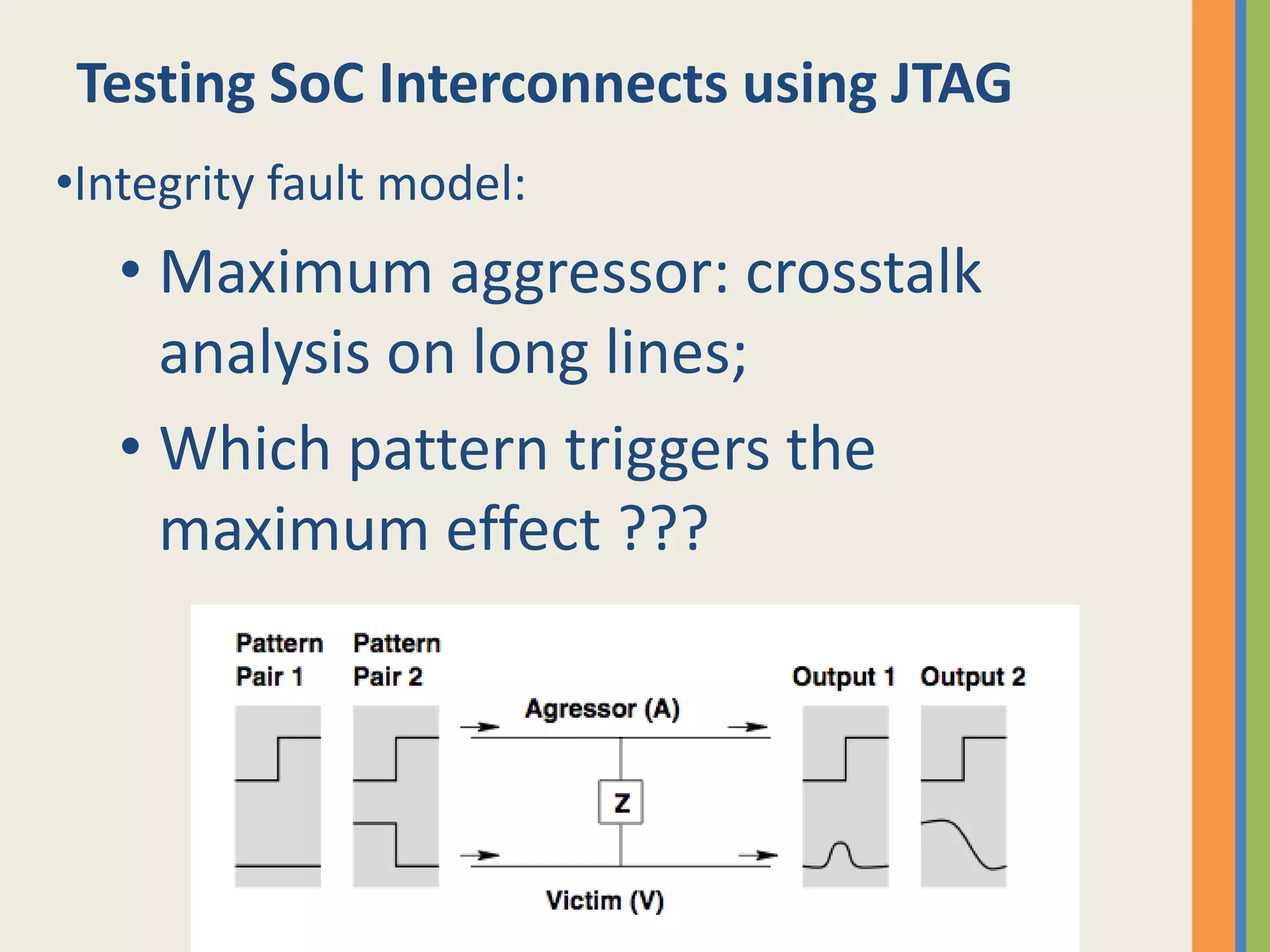

118. “Ground bounce”Testing SoC Interconnects using JTAGIntegrity fault model:

119. Maximum aggressor: crosstalk analysis on long lines;

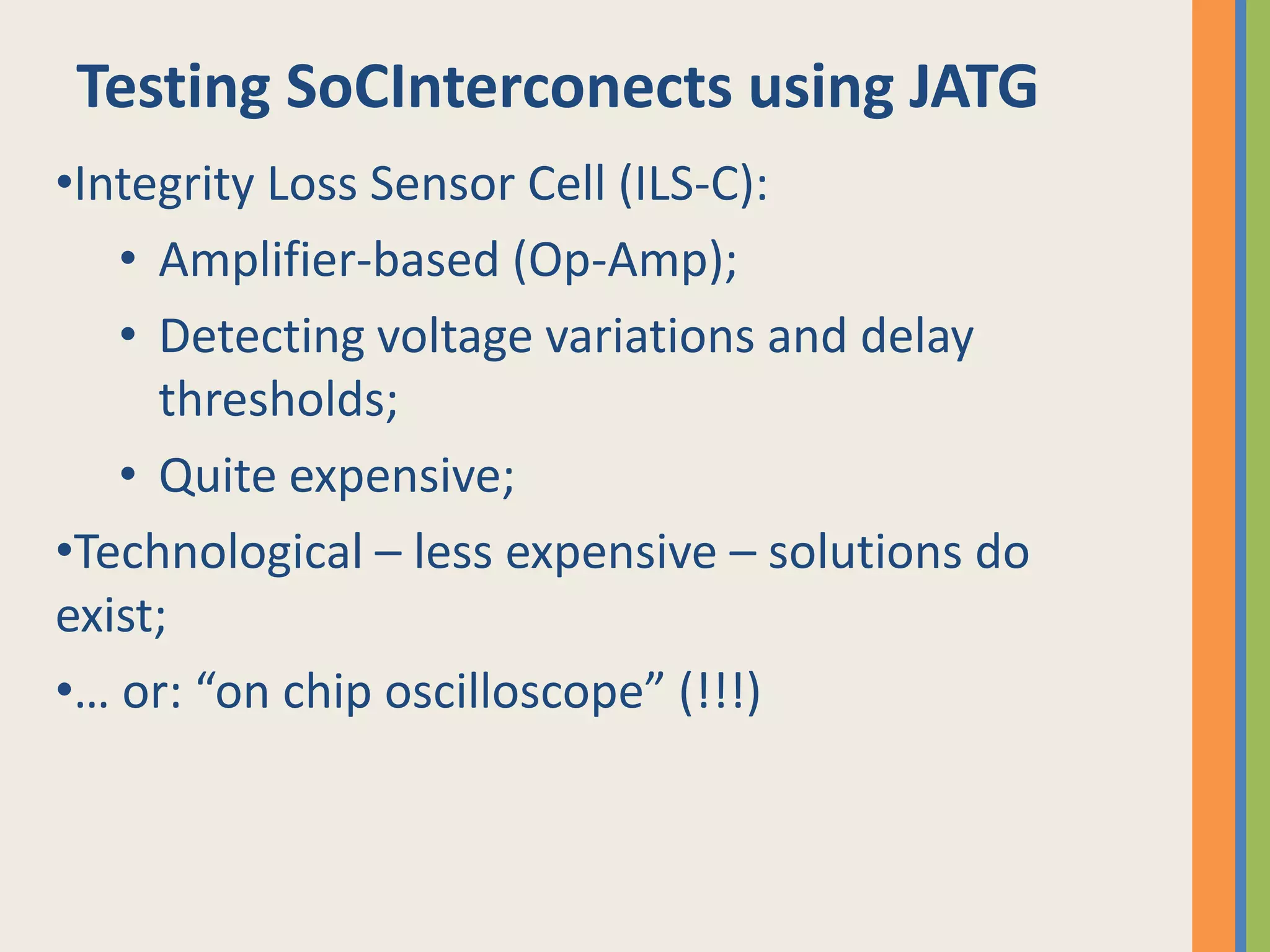

120. Which pattern triggers the maximum effect ???Testing SoCInterconects using JATGIntegrity Loss Sensor Cell (ILS-C):

121. Amplifier-based (Op-Amp);

122. Detecting voltage variations and delay thresholds;

123. Quite expensive;

124. Technological – less expensive – solutions do exist;

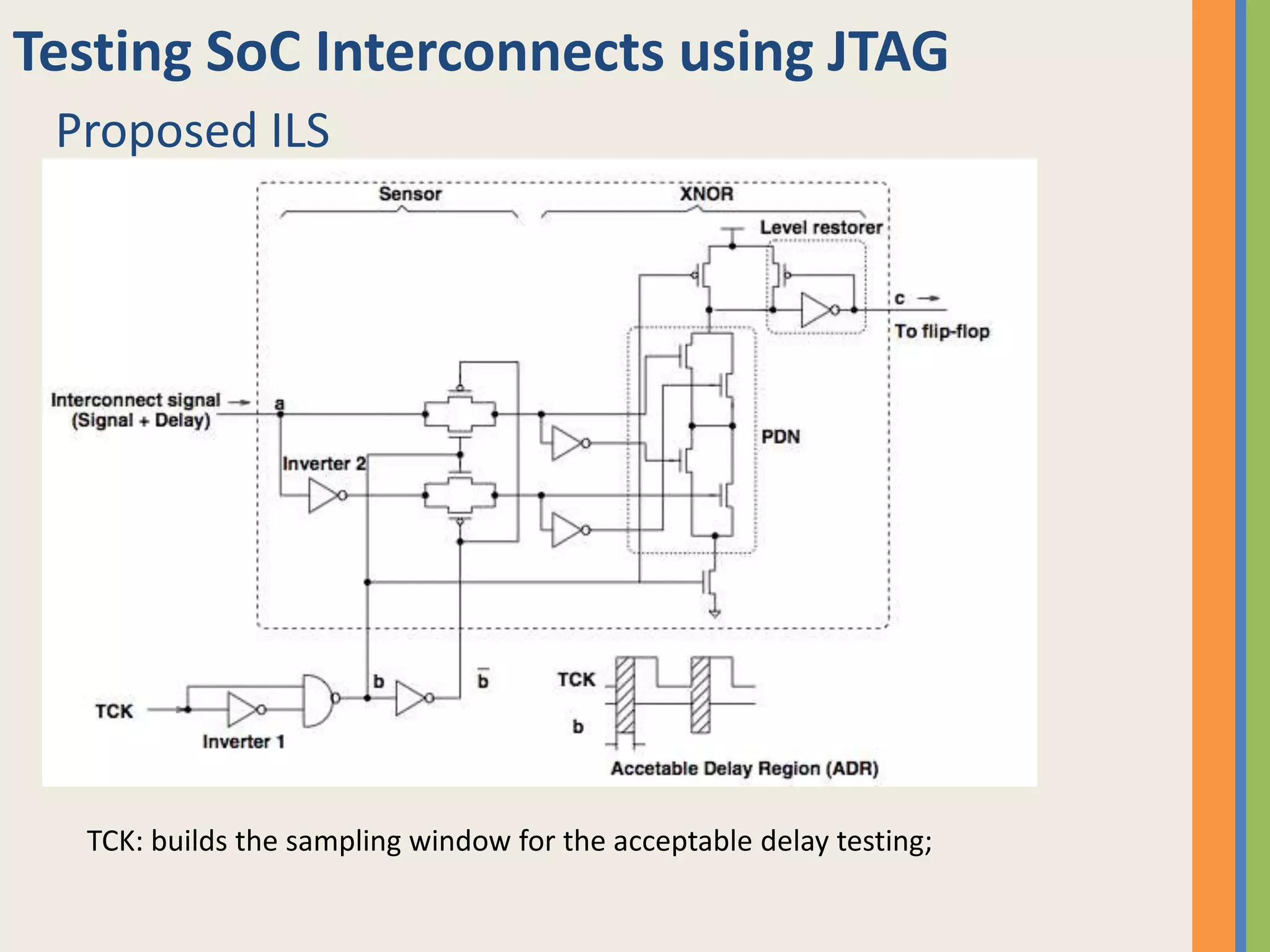

125. … or: “on chip oscilloscope” (!!!)Testing SoC Interconnects using JTAGProposed ILSTCK: builds the sampling window for the acceptable delay testing;

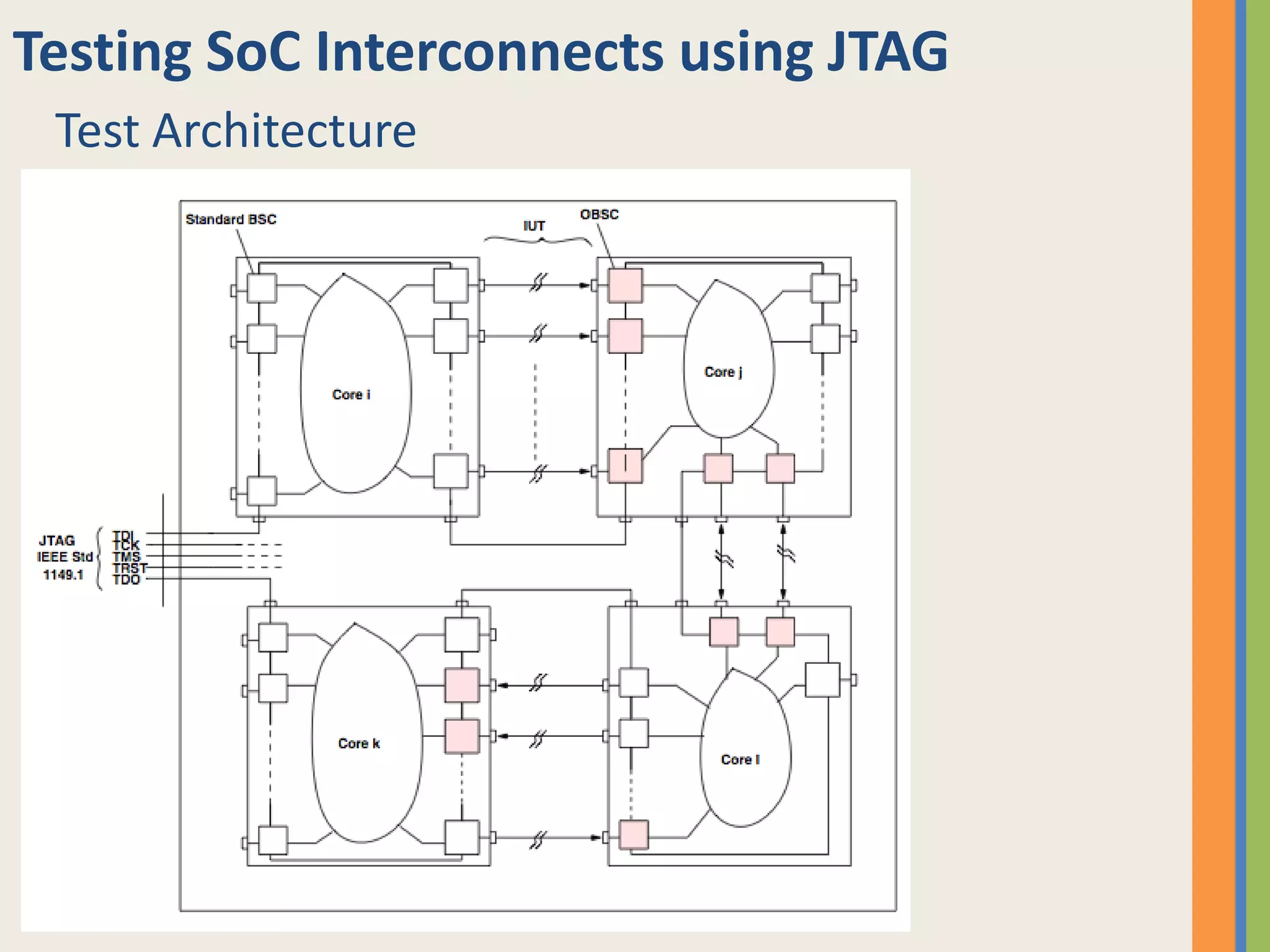

126. Testing SoC Interconnects using JTAGTest Architecture

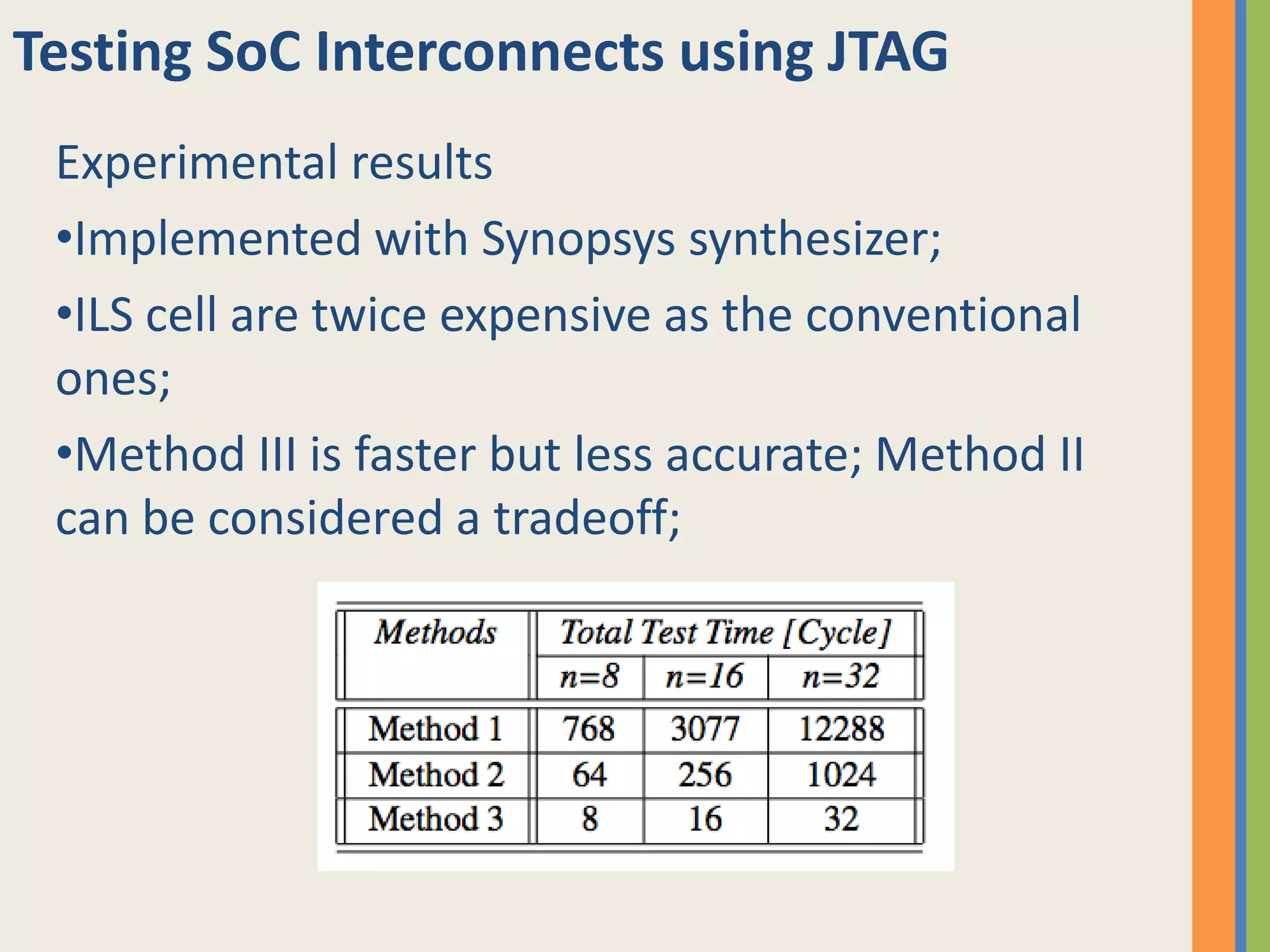

127. Testing SoC Interconnects using JTAGExperimental resultsImplemented with Synopsys synthesizer;

128. ILS cell are twice expensive as the conventional ones;

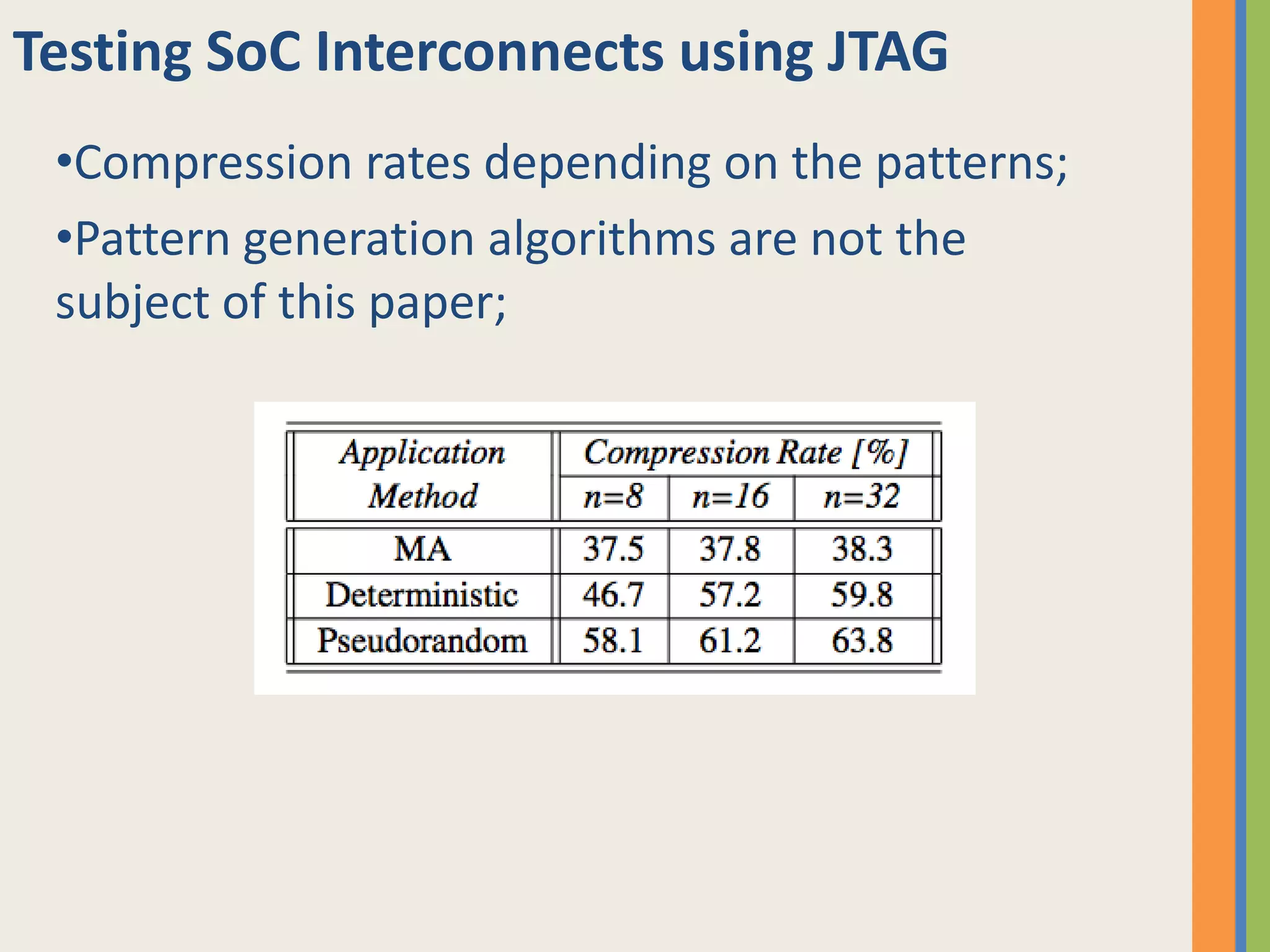

129. Method III is faster but less accurate; Method II can be considered a tradeoff;Testing SoC Interconnects using JTAGCompression rates depending on the patterns;

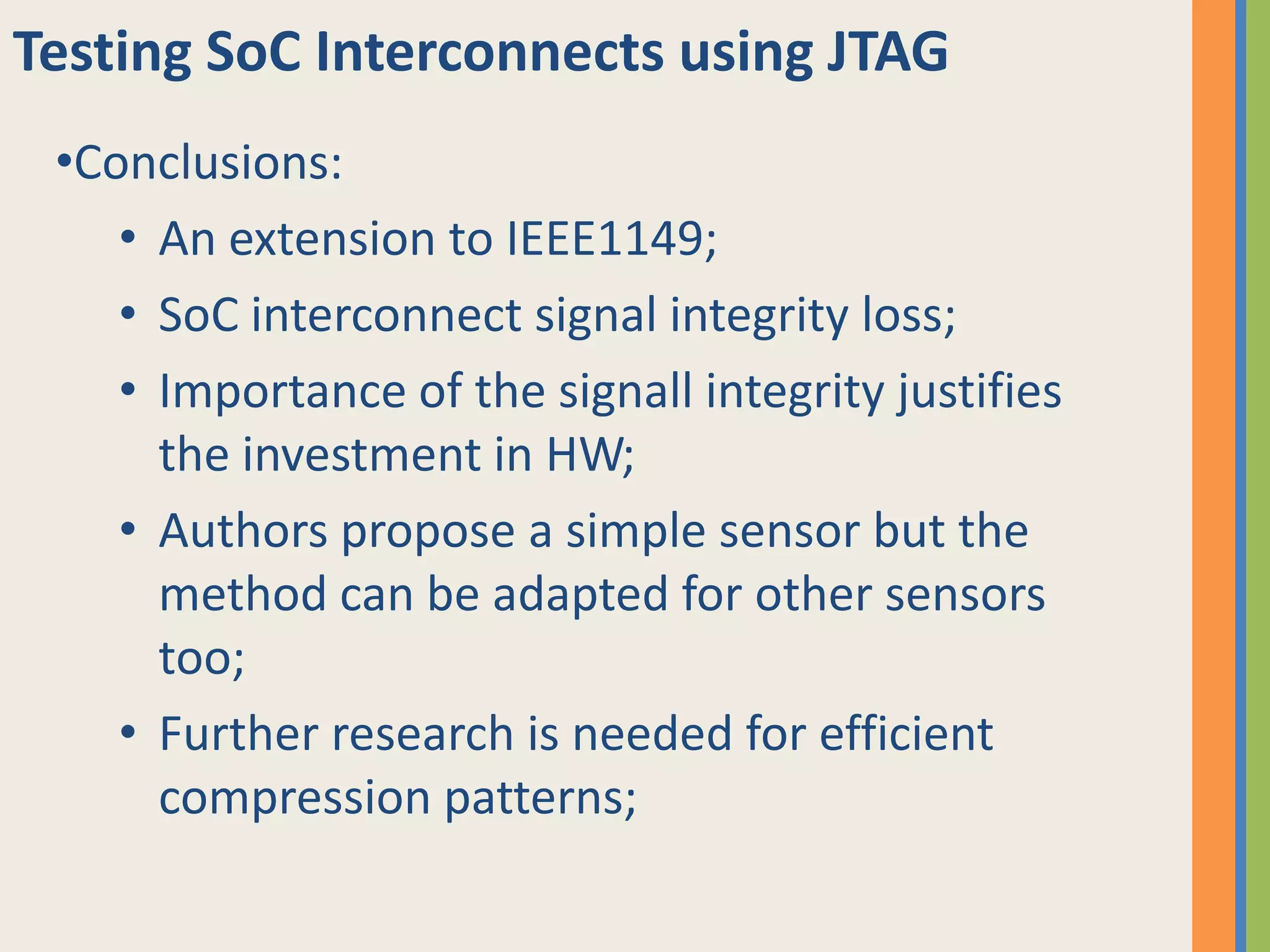

130. Pattern generation algorithms are not the subject of this paper;Testing SoC Interconnects using JTAGConclusions:

131. An extension to IEEE1149;

132. SoC interconnect signal integrity loss;

133. Importance of the signall integrity justifies the investment in HW;

134. Authors propose a simple sensor but the method can be adapted for other sensors too;

135. Further research is needed for efficient compression patterns;
