1. Intracorneal Ring Segments By
Femtosecond Tunnel Creation
BY
Dr. Amr Mounir
Lecturer of ophthalmology
Sohag university

2. Keratoconus is a
progressive,
noninflammatory,
bilateral (but usually
asymmetric) ectatic
corneal disease.
Introduction

3. Treatment modalities
include hard contact
lens, corneal collagen
crosslinking,
Intracorneal ring
segments and
Keratoplasty

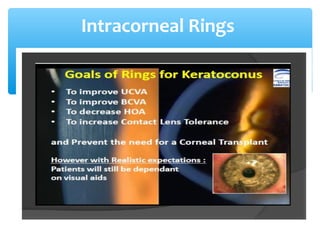

4. Intracorneal Rings

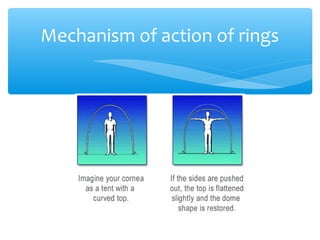

6. Mechanism of action of rings

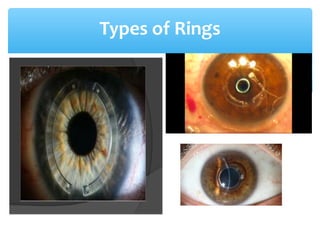

7. Types of Rings

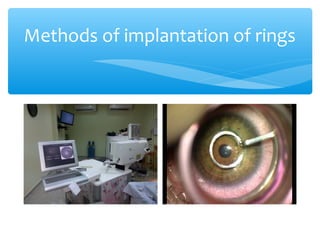

8. Methods of implantation of rings

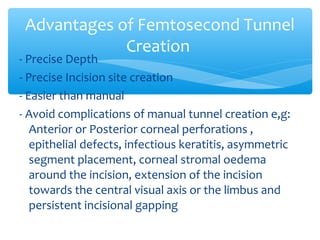

9. - Precise Depth
- Precise Incision site creation
- Easier than manual
- Avoid complications of manual tunnel creation e,g:
Anterior or Posterior corneal perforations ,
epithelial defects, infectious keratitis, asymmetric
segment placement, corneal stromal oedema
around the incision, extension of the incision
towards the central visual axis or the limbus and
persistent incisional gapping
Advantages of Femtosecond Tunnel
Creation

10. High errors.
Mean Keratometry > 48 Ds
K Max > 50 Ds
BCVA < 6/30
High patient motivation
Ideal patient for rings

11. Our provisional Experience
in Sohag

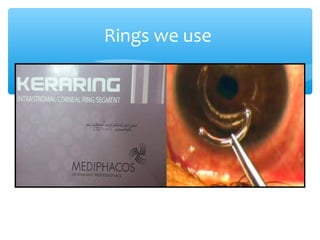

12. Rings we use

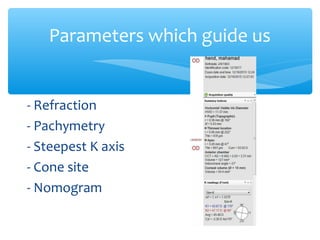

13. Parameters which guide us
- Refraction
- Pachymetry
- Steepest K axis
- Cone site
- Nomogram

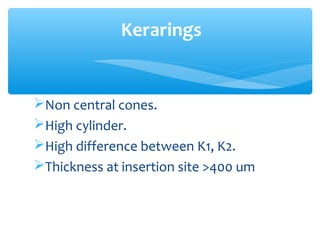

14. Non central cones.
High cylinder.
High difference between K1, K2.
Thickness at insertion site >400 um
Kerarings

15. Non of treatment options is satisfactory for the patient.
The disease is progressive by its nature.
Follow up is mandatory.
Combination of treatment options can be done.
Keratoplasty can be a final destiny even with treatment.
Rings mostly will be followed by glasses.
Don't judge on improvement of VA without correction.
Financial aspect should be taken into consideration.
Rings results are unpredictable
Rules in treatment by rings

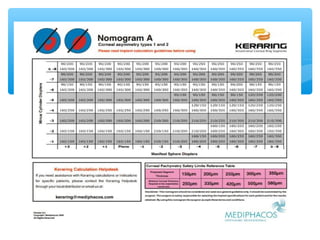

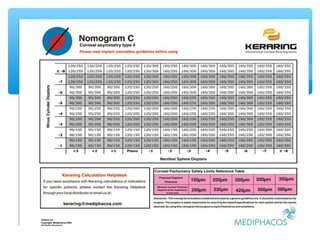

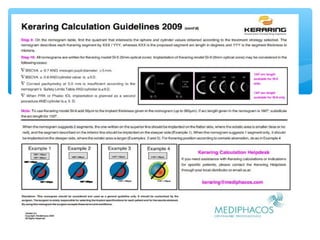

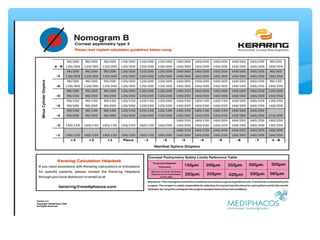

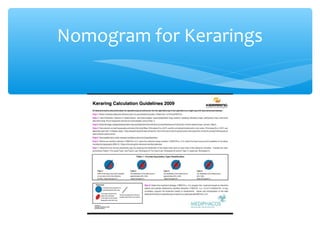

16. Nomogram for Kerarings

21. Tunnel creation by Femtosecond laser

22. Kerarings Ring implantation

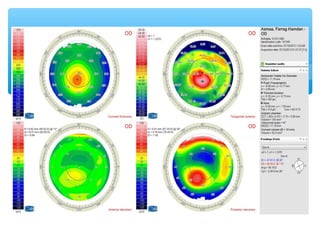

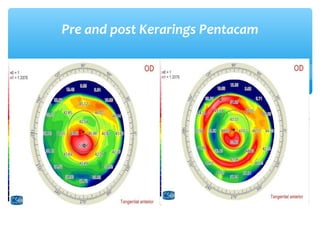

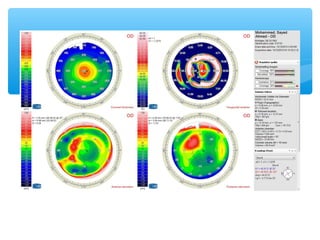

23. Pre and post Kerarings Pentacam

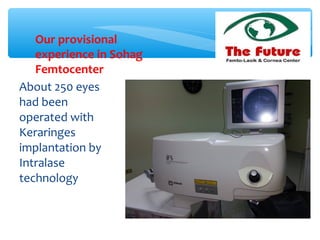

24. About 250 eyes
had been
operated with
Keraringes
implantation by
Intralase
technology
Our provisional
experience in Sohag
Femtocenter

25. We ask ourselves very important
question

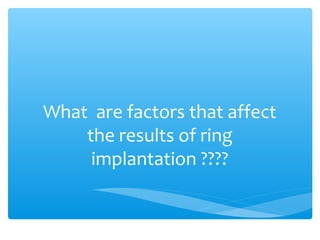

26. What are factors that affect
the results of ring
implantation ????

27. Age as a guideline

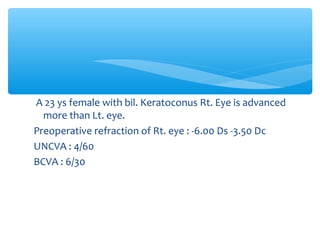

28. A 23 ys female with bil. Keratoconus Rt. Eye is advanced
more than Lt. eye.
Preoperative refraction of Rt. eye : -6.00 Ds -3.50 Dc
UNCVA : 4/60
BCVA : 6/30

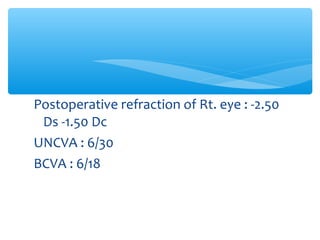

30. Postoperative refraction of Rt. eye : -2.50
Ds -1.50 Dc
UNCVA : 6/30
BCVA : 6/18

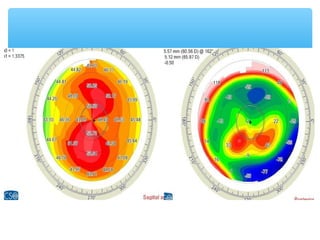

32. Symmetry of Bowtie as a guideline

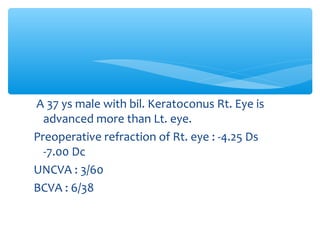

33. A 37 ys male with bil. Keratoconus Rt. Eye is
advanced more than Lt. eye.
Preoperative refraction of Rt. eye : -4.25 Ds
-7.00 Dc
UNCVA : 3/60
BCVA : 6/38

35. Postoperative refraction of Rt. eye : +1.00
Ds -1.0 Dc
UNCVA : 6/38
BCVA : 6/18

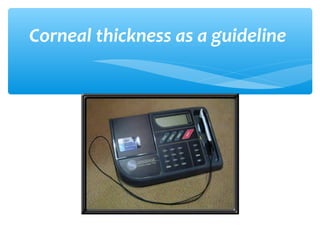

38. Corneal thickness as a guideline

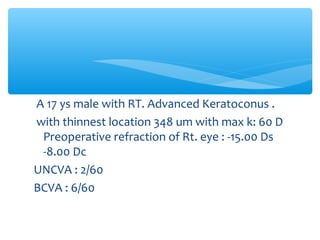

39. A 17 ys male with RT. Advanced Keratoconus .
with thinnest location 348 um with max k: 60 D
Preoperative refraction of Rt. eye : -15.00 Ds
-8.00 Dc
UNCVA : 2/60
BCVA : 6/60

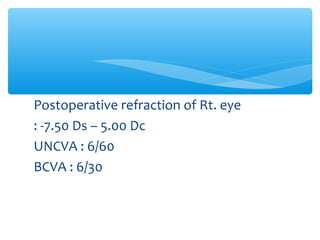

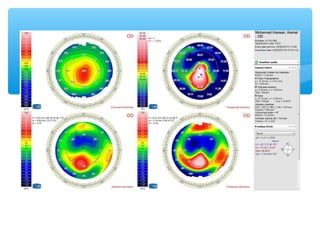

41. Postoperative refraction of Rt. eye
: -7.50 Ds – 5.00 Dc
UNCVA : 6/60
BCVA : 6/30

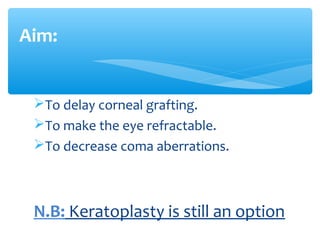

43. Rings in advanced cases

44. To delay corneal grafting.
To make the eye refractable.
To decrease coma aberrations.
N.B: Keratoplasty is still an option
Aim:
