Hemodynamic monitoring measures factors that influence the force and flow of blood in order to aid in diagnosing, monitoring, and managing critically ill patients. It involves using pulmonary artery catheters and transducers to obtain pressures and other cardiovascular measurements that provide information on conditions like shock states and help guide treatment decisions. Potential risks and complications require careful use of these monitoring techniques in appropriate clinical situations.

1. HEMODYNAMICS In the CRITICAL CARE UNIT Sherry L. Knowles, RN, CCRN, CRNI

2. DEFINITION PURPOSE DEFINITION HEMODYNAMIC MONITORING Measuring and monitoring the factors that influence the force and flow of blood. To aid in diagnosing, monitoring and managing critically ill patients.

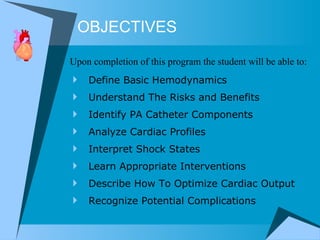

3. OBJECTIVES Define Basic Hemodynamics Understand The Risks and Benefits Identify PA Catheter Components Analyze Cardiac Profiles Interpret Shock States Learn Appropriate Interventions Describe How To Optimize Cardiac Output Recognize Potential Complications Upon completion of this program the student will be able to:

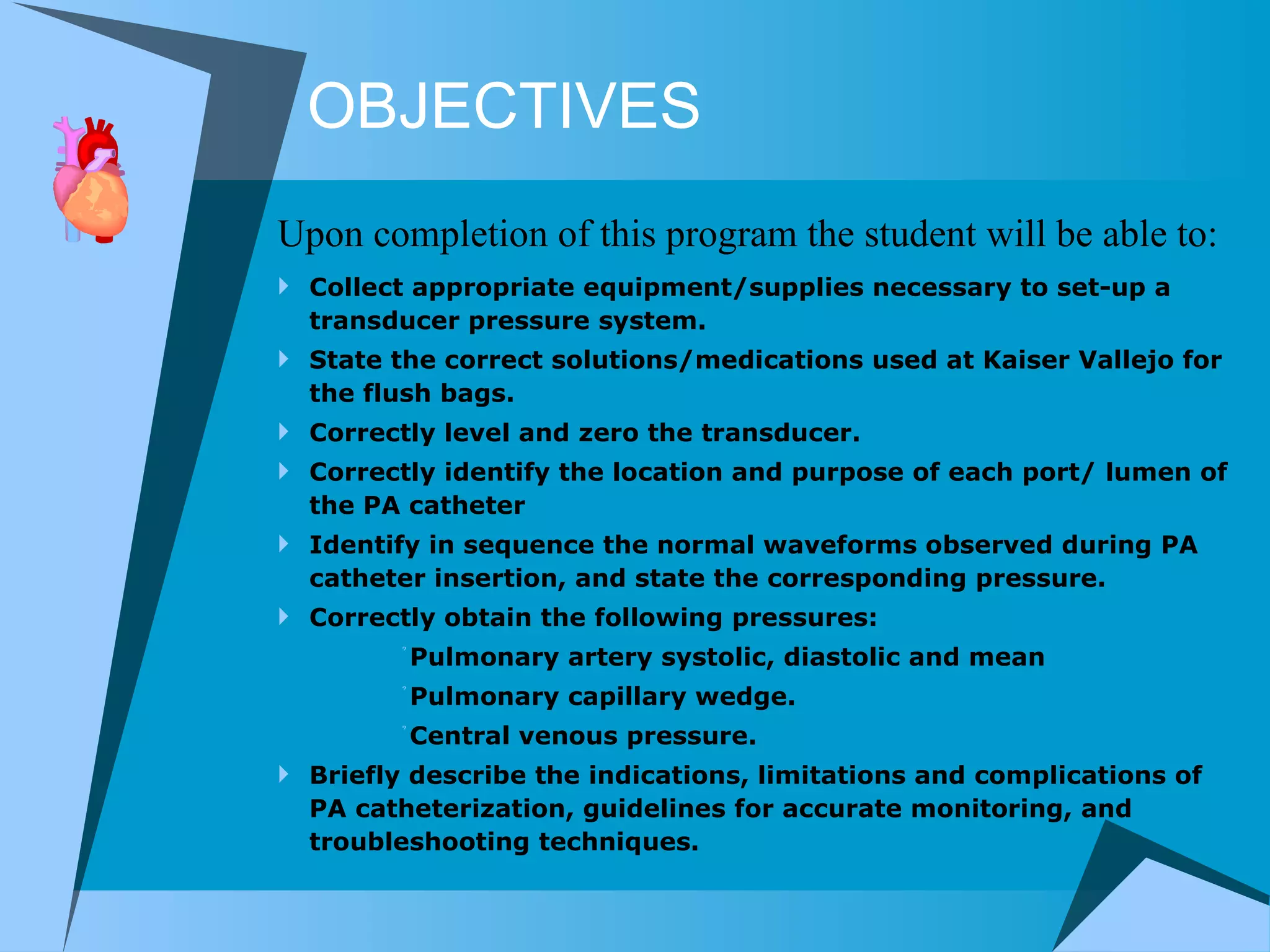

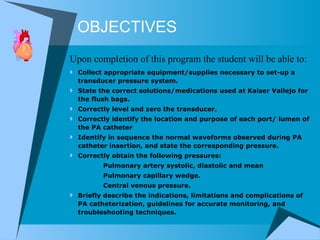

4. OBJECTIVES Collect appropriate equipment/supplies necessary to set-up a transducer pressure system. State the correct solutions/medications used at Kaiser Vallejo for the flush bags. Correctly level and zero the transducer. Correctly identify the location and purpose of each port/ lumen of the PA catheter Identify in sequence the normal waveforms observed during PA catheter insertion, and state the corresponding pressure. Correctly obtain the following pressures: Pulmonary artery systolic, diastolic and mean Pulmonary capillary wedge. Central venous pressure. Briefly describe the indications, limitations and complications of PA catheterization, guidelines for accurate monitoring, and troubleshooting techniques. Upon completion of this program the student will be able to:

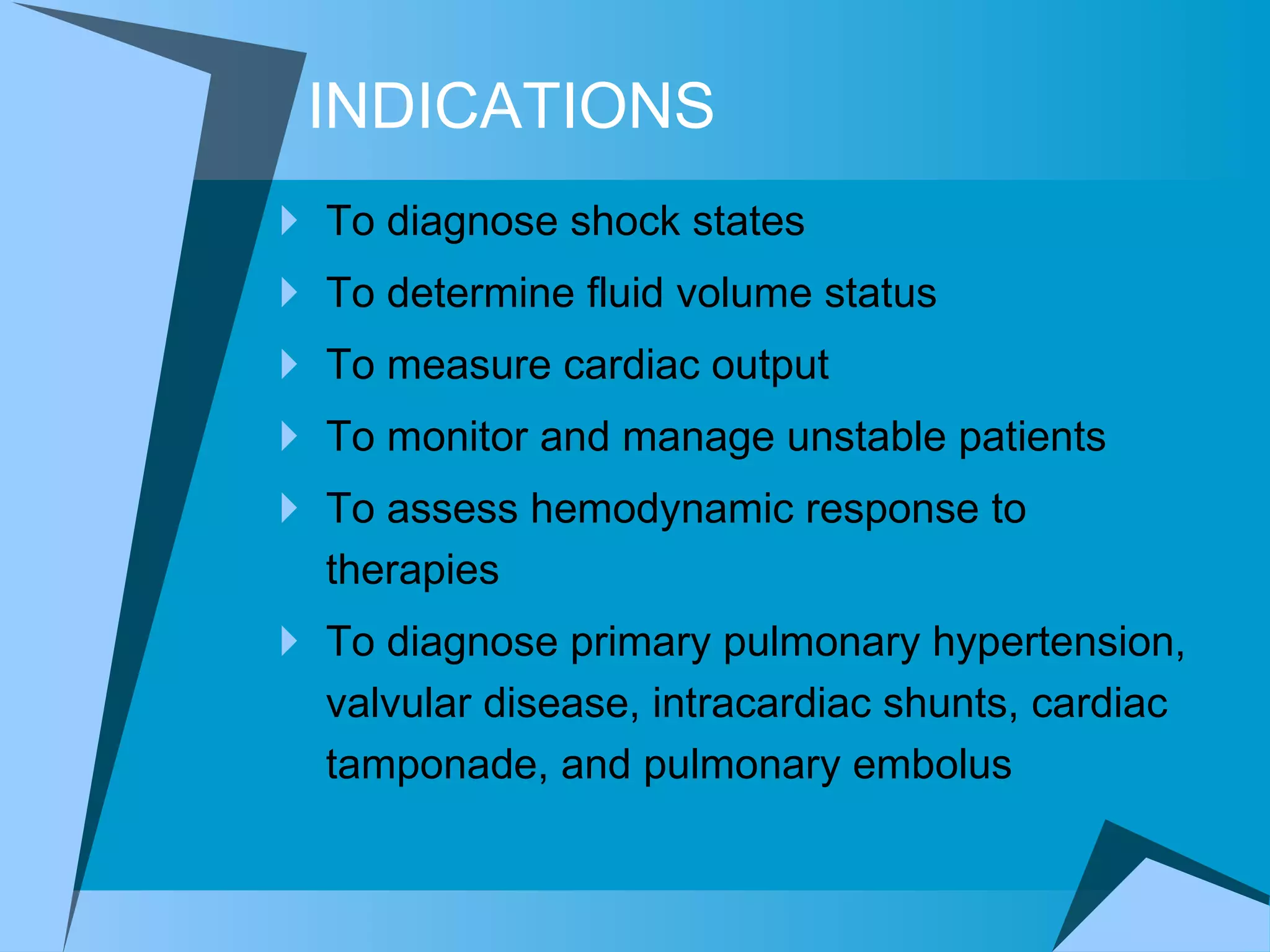

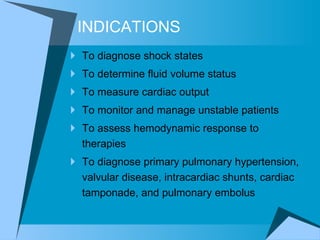

5. INDICATIONS To diagnose shock states To determine fluid volume status To measure cardiac output To monitor and manage unstable patients To assess hemodynamic response to therapies To diagnose primary pulmonary hypertension, valvular disease, intracardiac shunts, cardiac tamponade, and pulmonary embolus

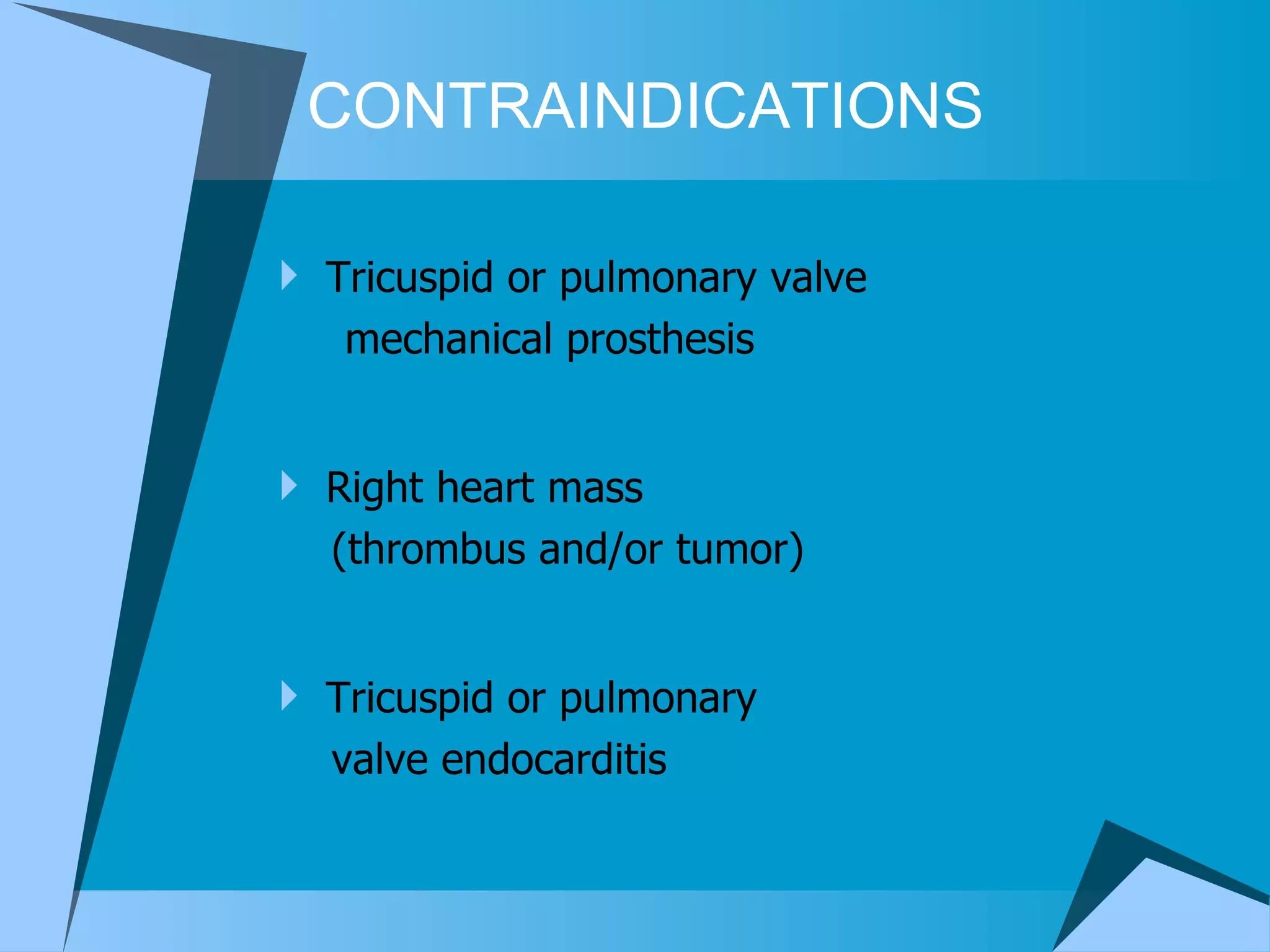

6. CONTRAINDICATIONS Tricuspid or pulmonary valve mechanical prosthesis Right heart mass (thrombus and/or tumor) Tricuspid or pulmonary valve endocarditis

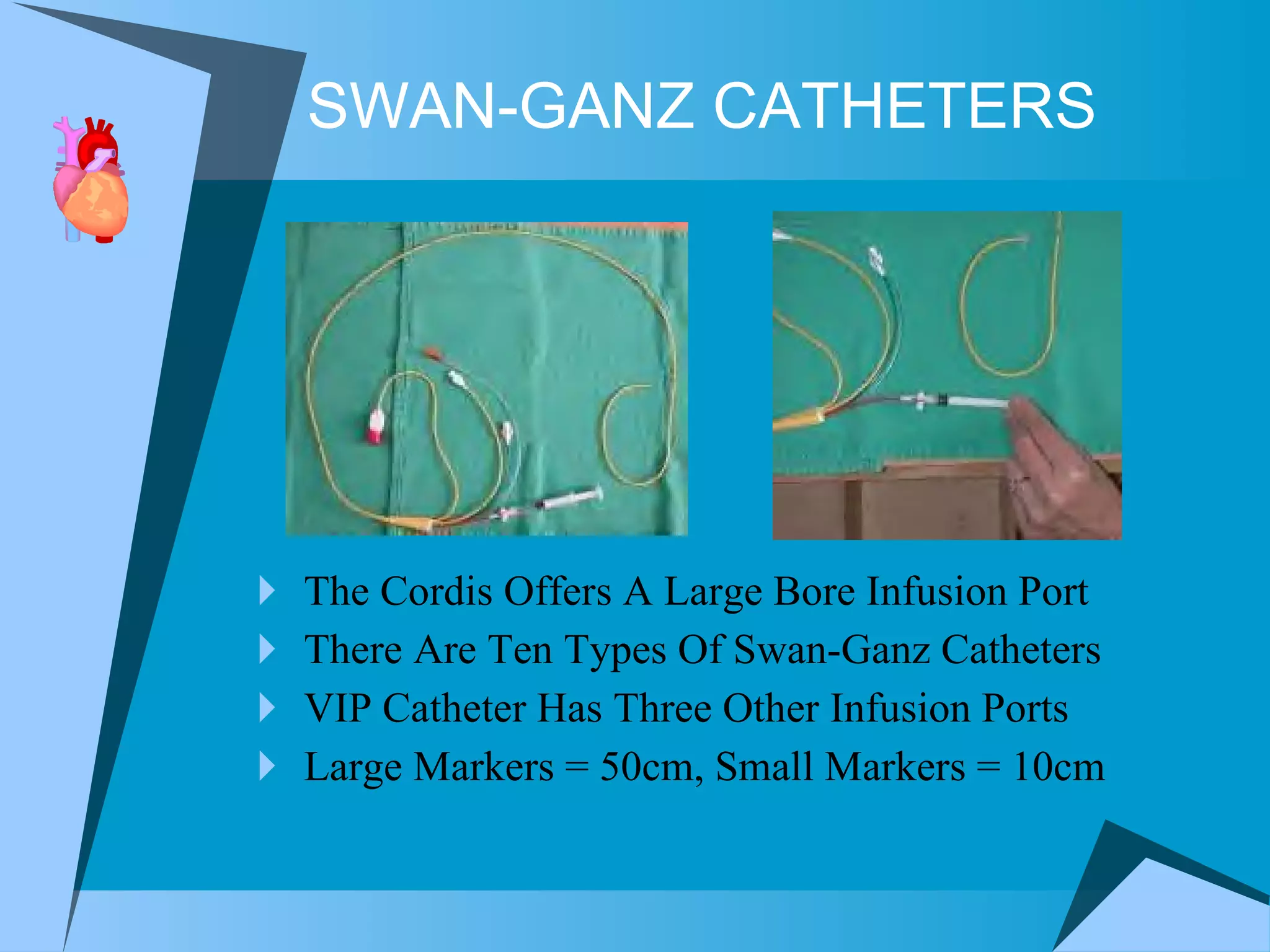

7. SWAN-GANZ CATHETERS The Cordis Offers A Large Bore Infusion Port There Are Ten Types Of Swan-Ganz Catheters VIP Catheter Has Three Other Infusion Ports Large Markers = 50cm, Small Markers = 10cm

8. SWAN GANZ CATHETER

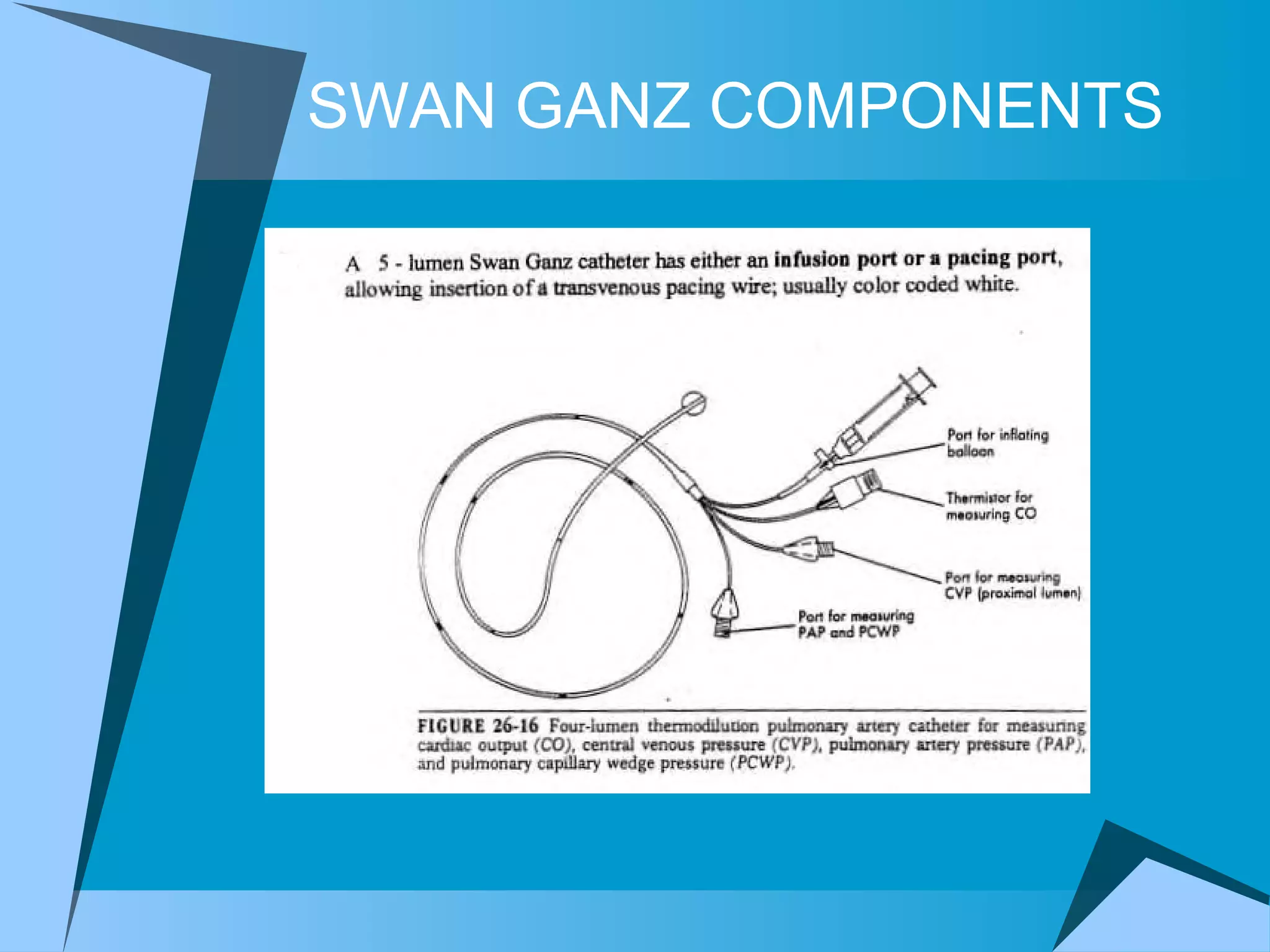

9. SWAN GANZ COMPONENTS

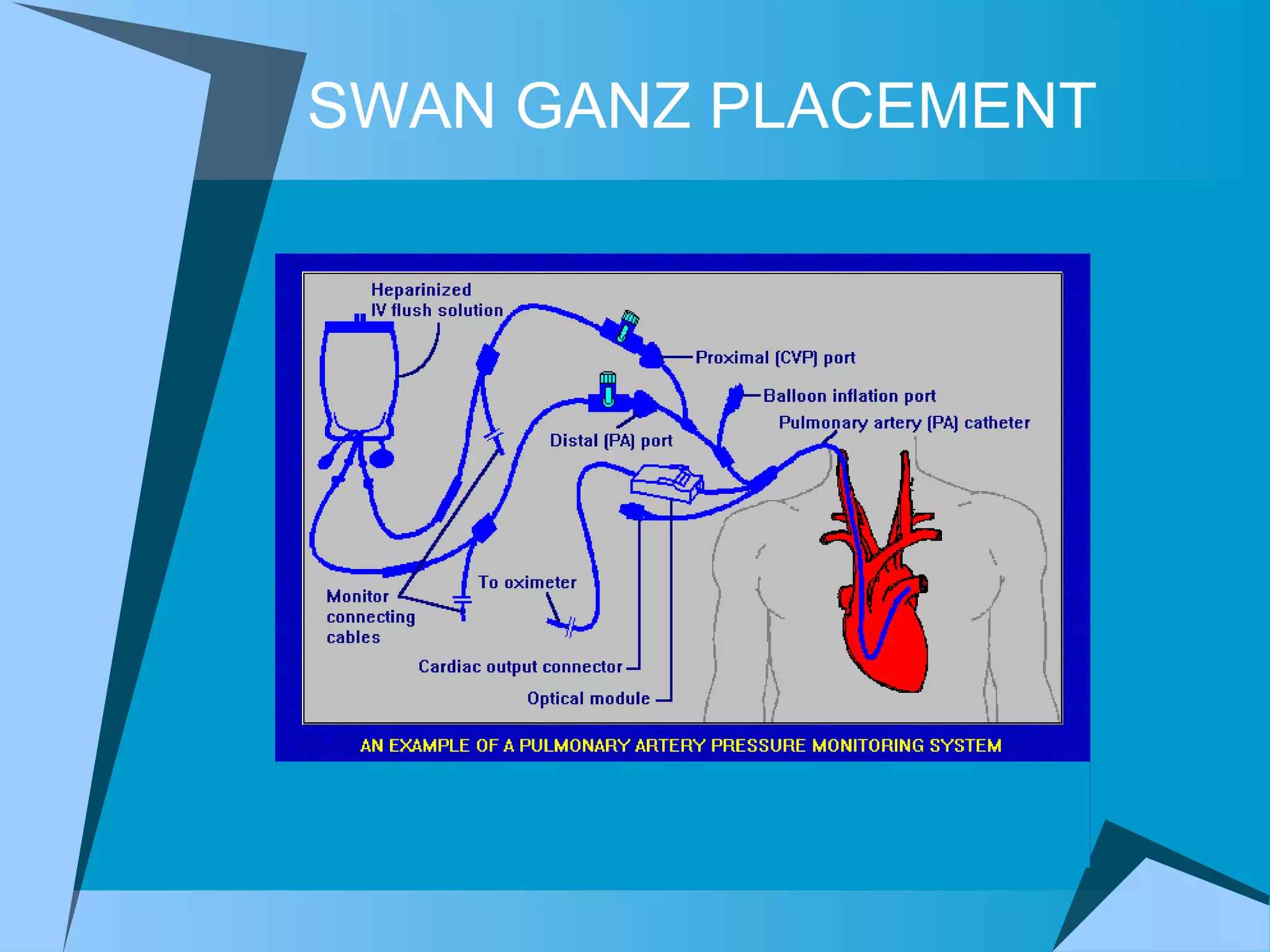

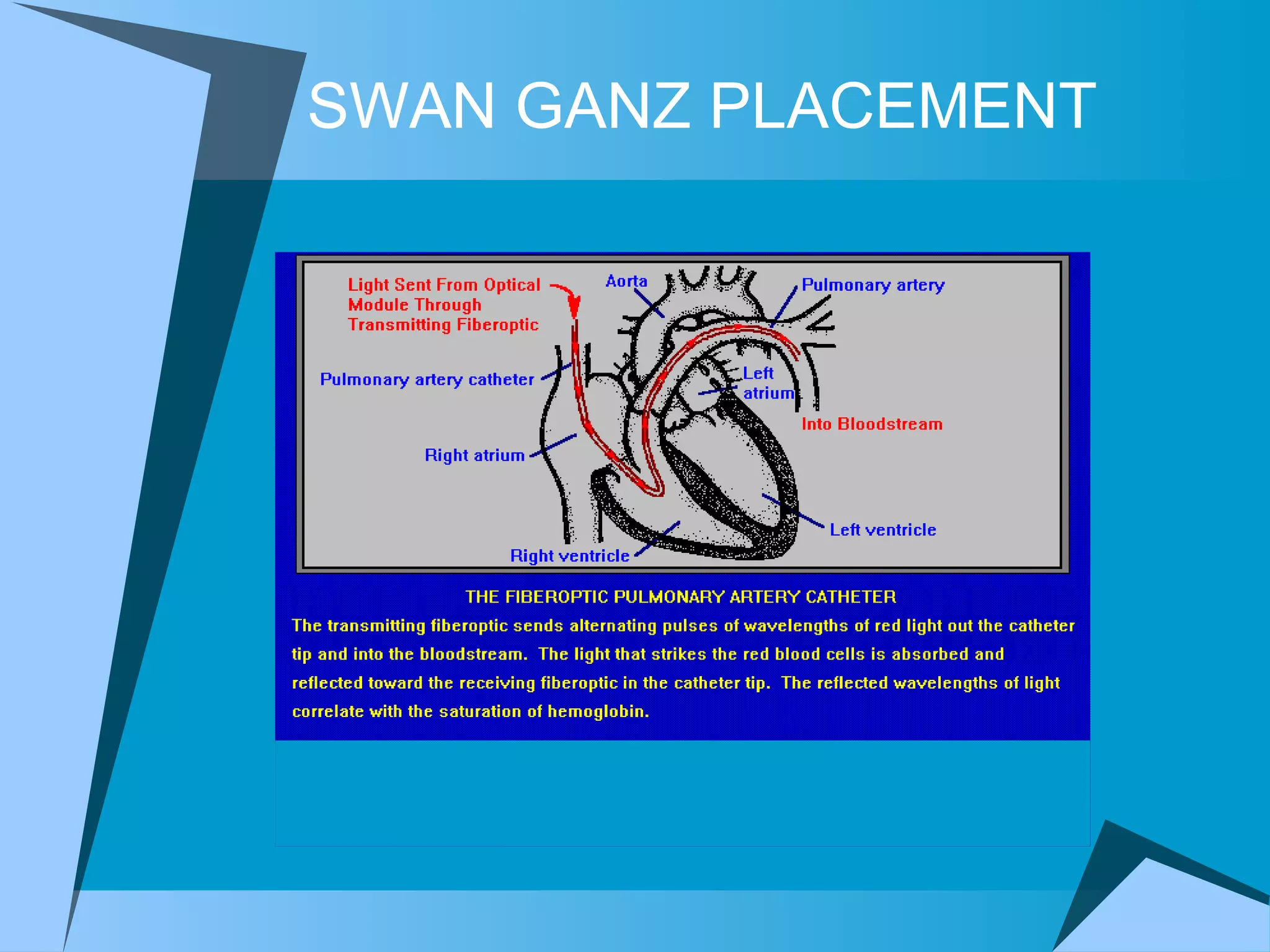

10. SWAN GANZ PLACEMENT

11. SWAN GANZ PLACEMENT

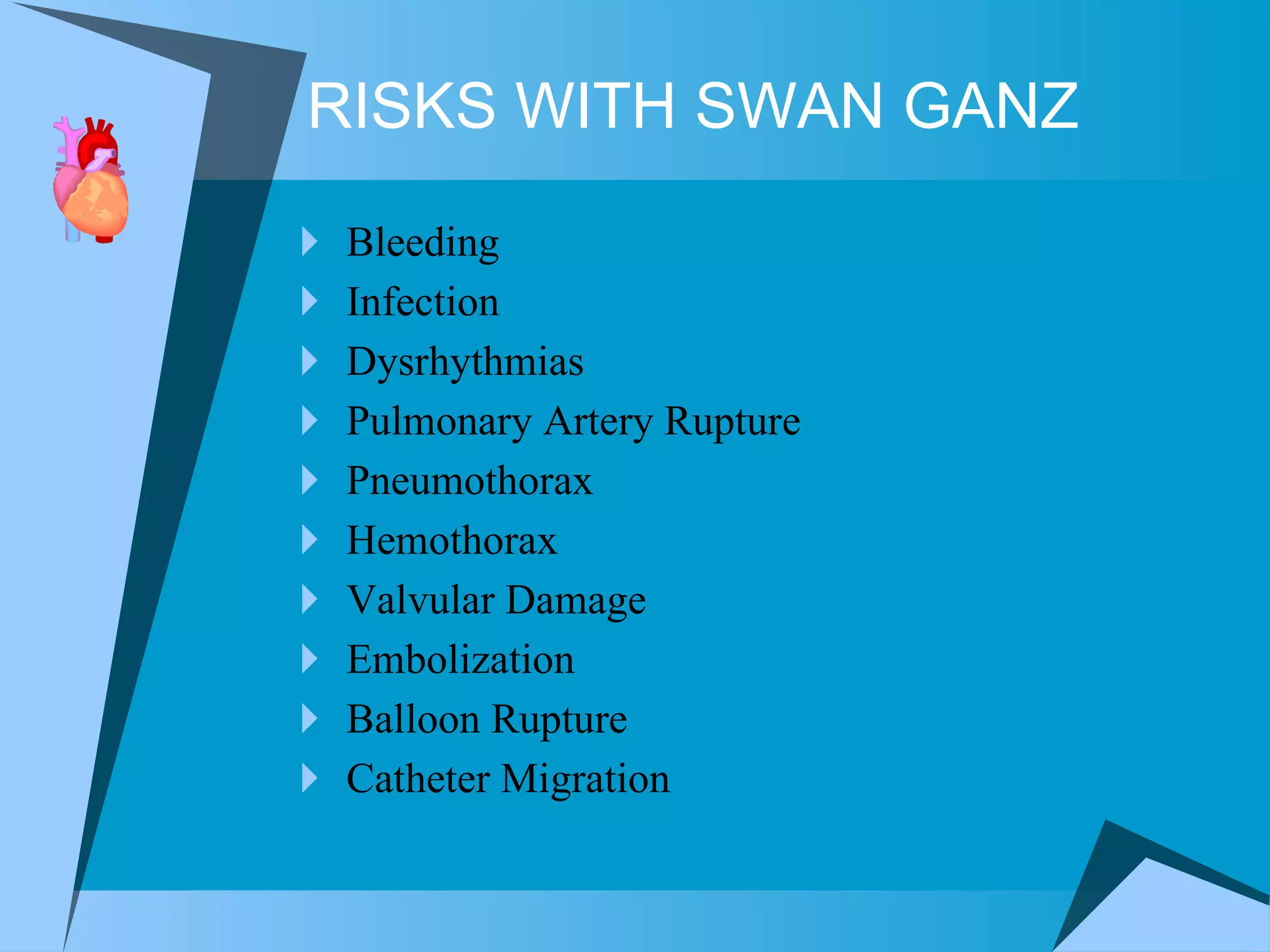

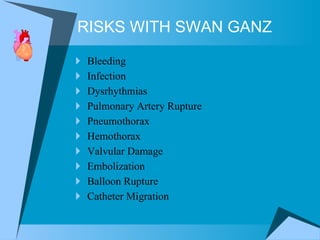

12. Bleeding Infection Dysrhythmias Pulmonary Artery Rupture Pneumothorax Hemothorax Valvular Damage Embolization Balloon Rupture Catheter Migration RISKS WITH SWAN GANZ

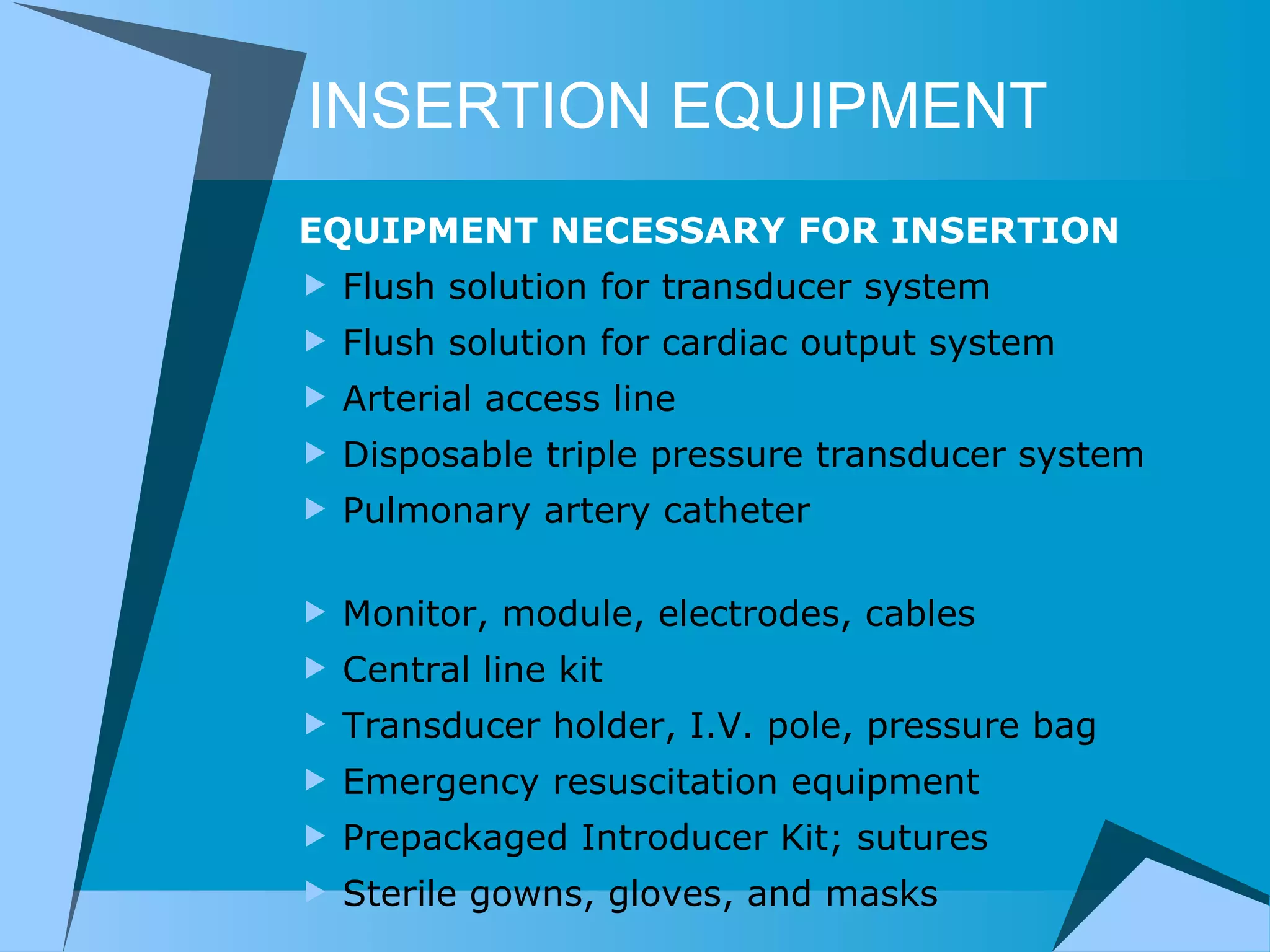

13. INSERTION EQUIPMENT EQUIPMENT NECESSARY FOR INSERTION Flush solution for transducer system Flush solution for cardiac output system Arterial access line Disposable triple pressure transducer system Pulmonary artery catheter Monitor, module, electrodes, cables Central line kit Transducer holder, I.V. pole, pressure bag Emergency resuscitation equipment Prepackaged Introducer Kit; sutures Sterile gowns, gloves, and masks

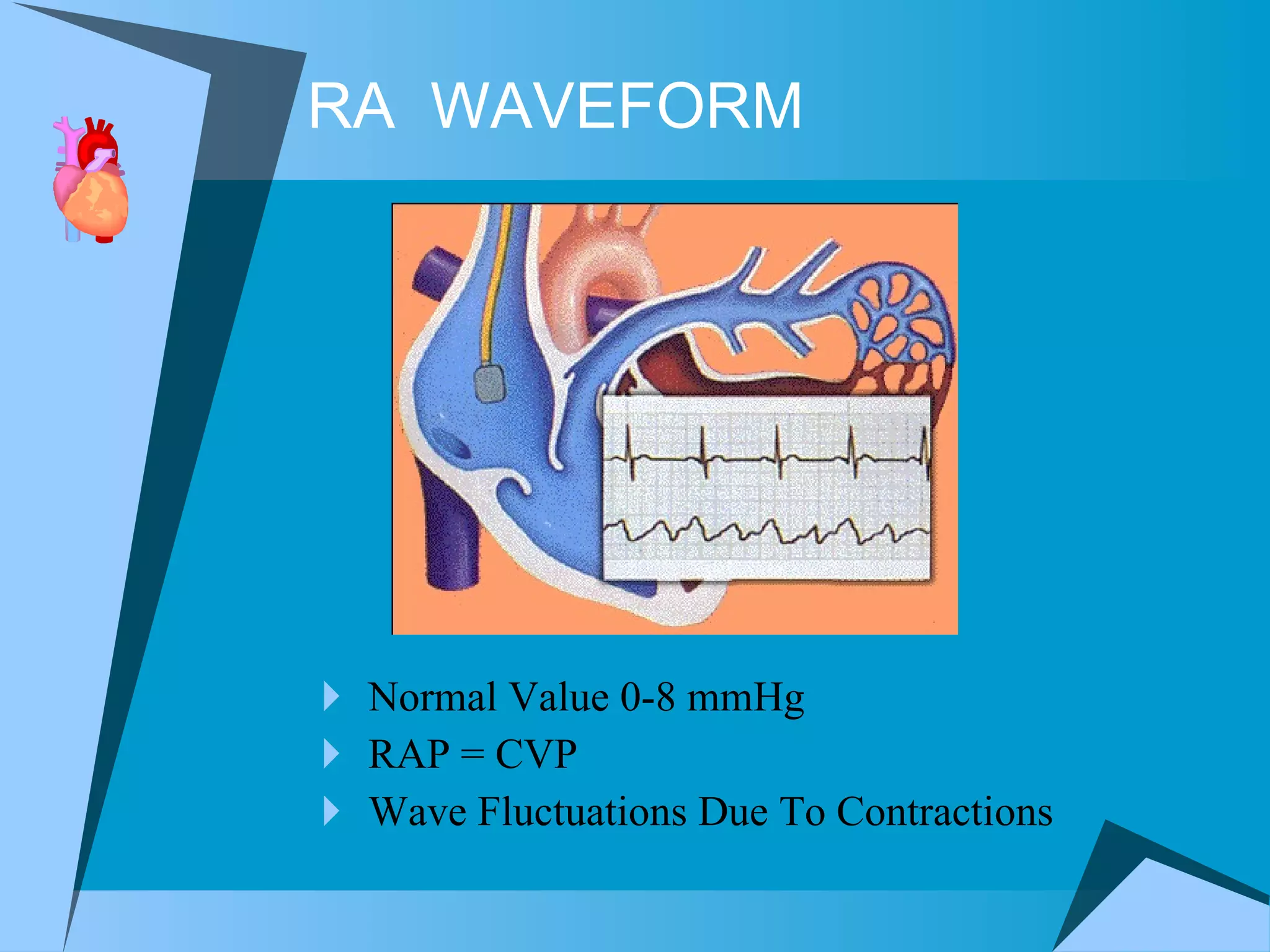

14. RA WAVEFORM Normal Value 0-8 mmHg RAP = CVP Wave Fluctuations Due To Contractions

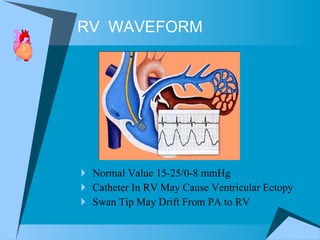

15. RV WAVEFORM Normal Value 15-25/0-8 mmHg Catheter In RV May Cause Ventricular Ectopy Swan Tip May Drift From PA to RV

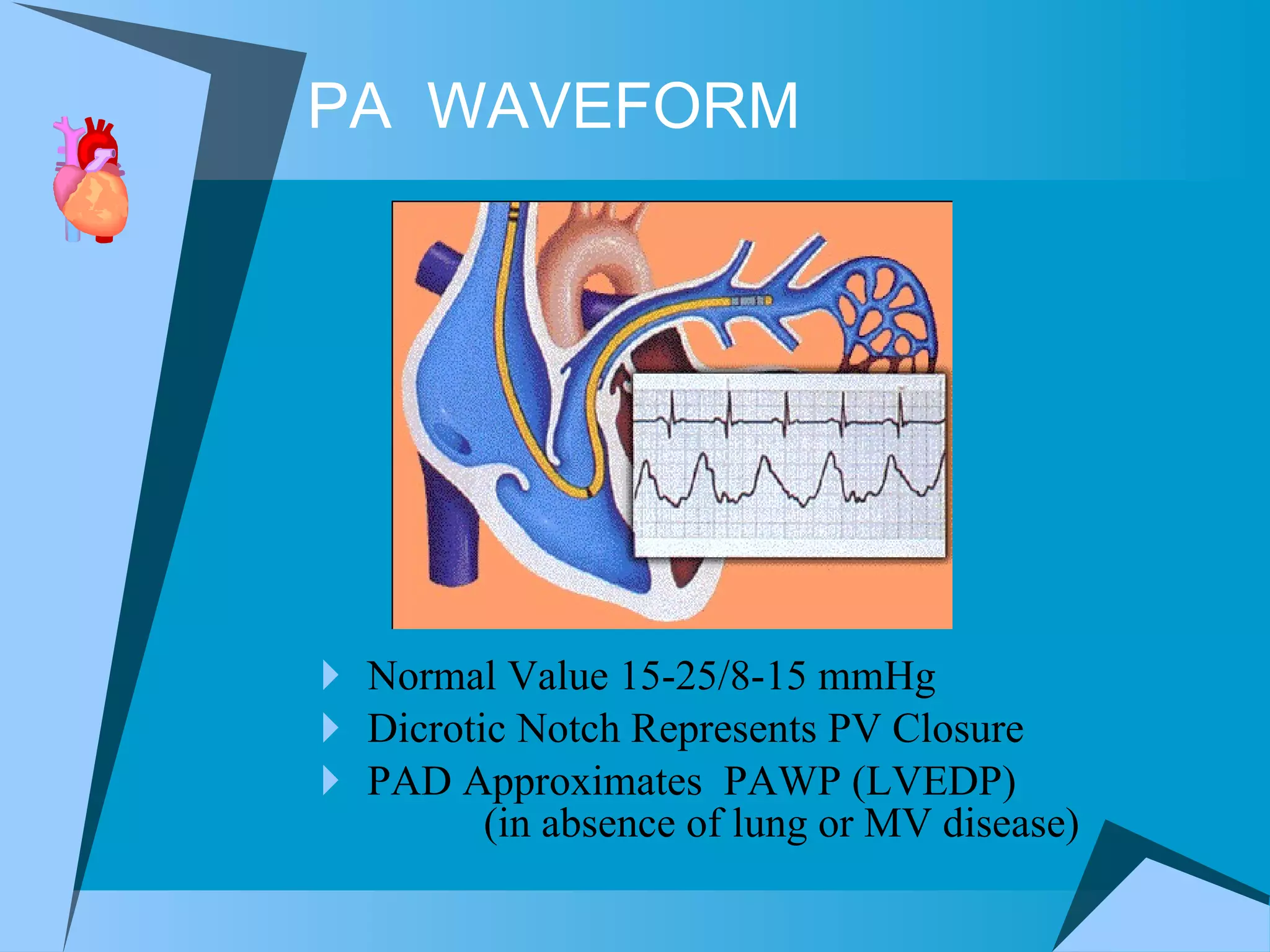

16. PA WAVEFORM Normal Value 15-25/8-15 mmHg Dicrotic Notch Represents PV Closure PAD Approximates PAWP (LVEDP) (in absence of lung or MV disease)

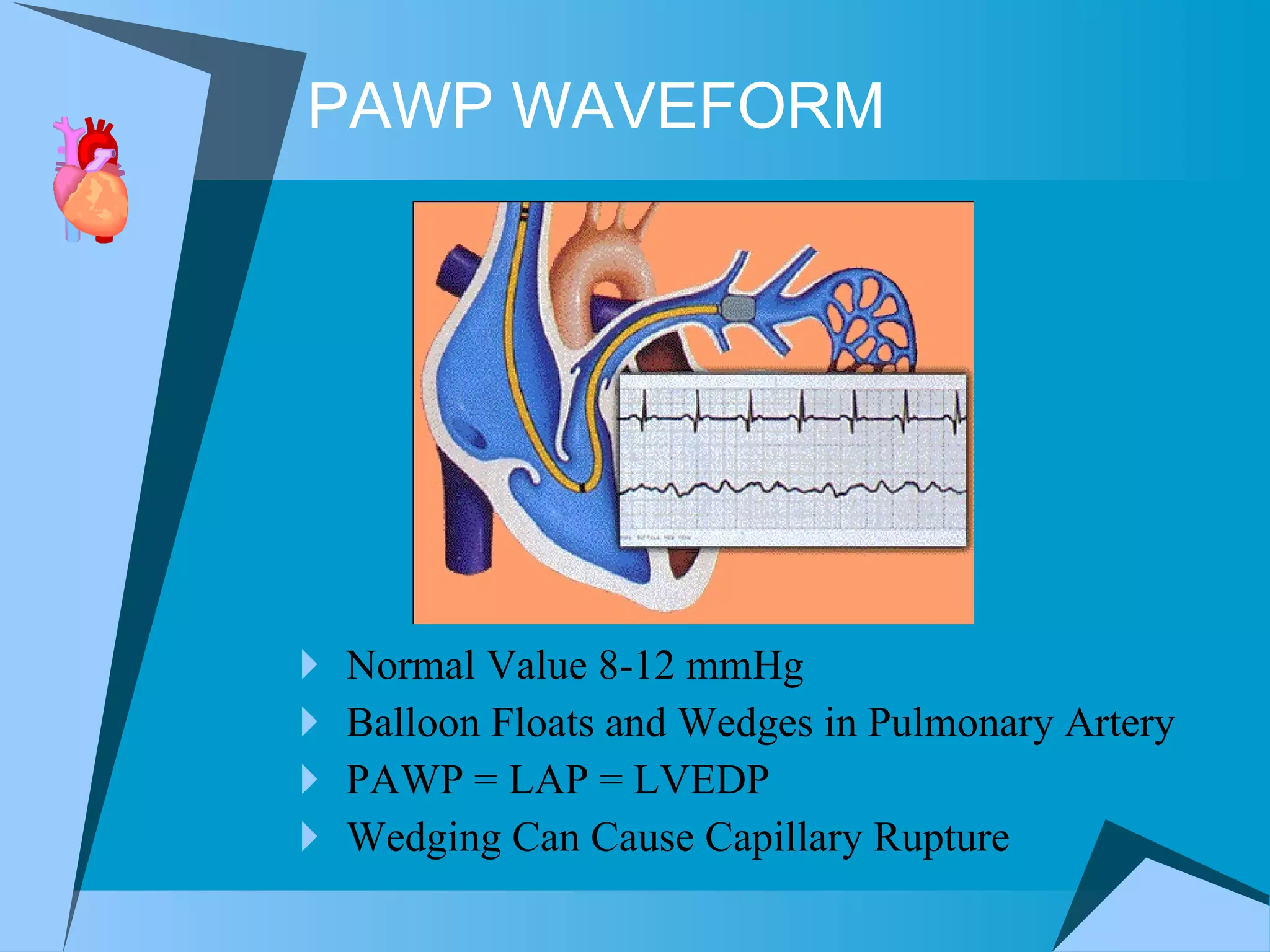

17. PAWP WAVEFORM Normal Value 8-12 mmHg Balloon Floats and Wedges in Pulmonary Artery PAWP = LAP = LVEDP Wedging Can Cause Capillary Rupture

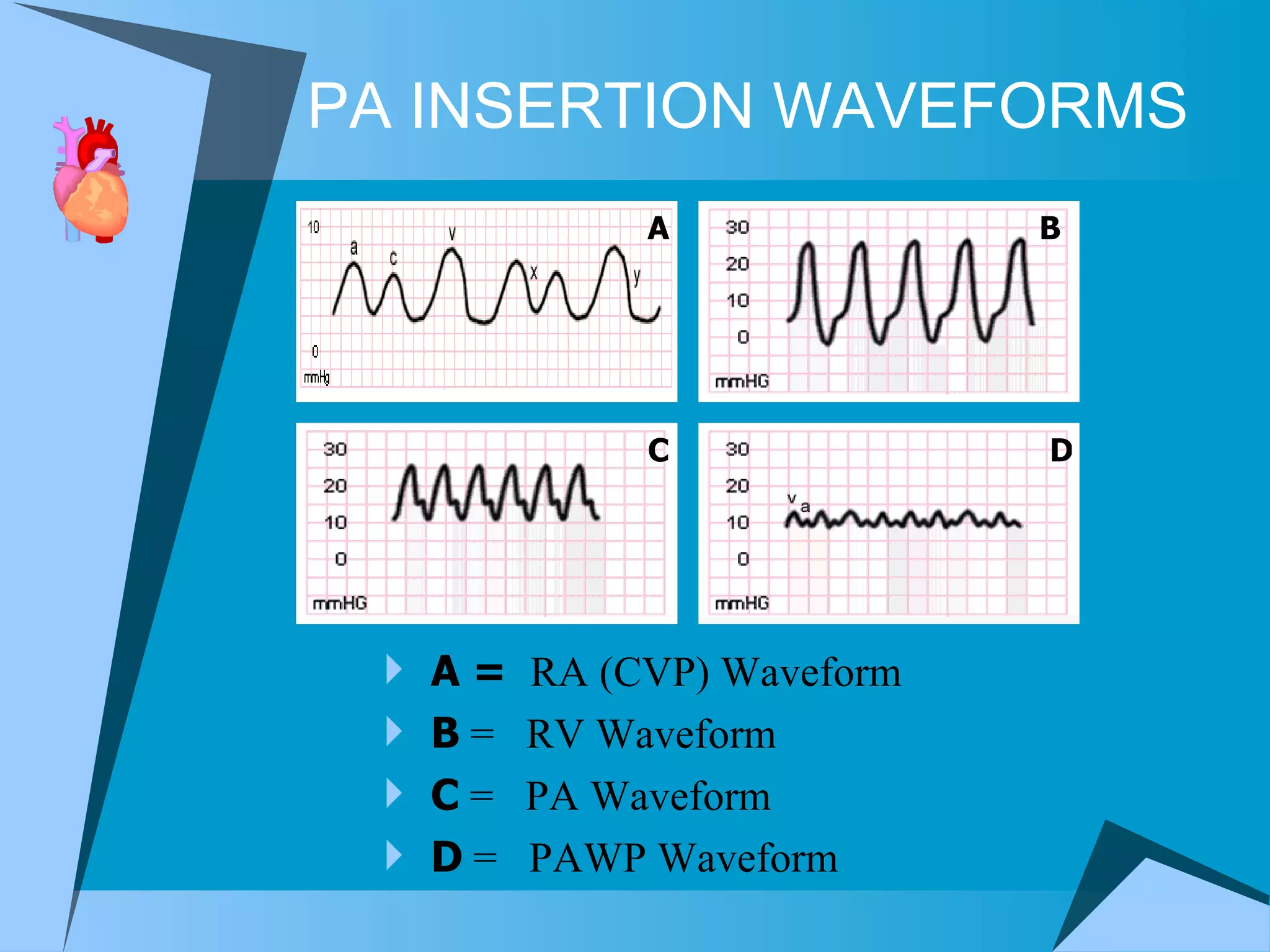

18. PA INSERTION WAVEFORMS A = RA (CVP) Waveform B = RV Waveform C = PA Waveform D = PAWP Waveform B C D A

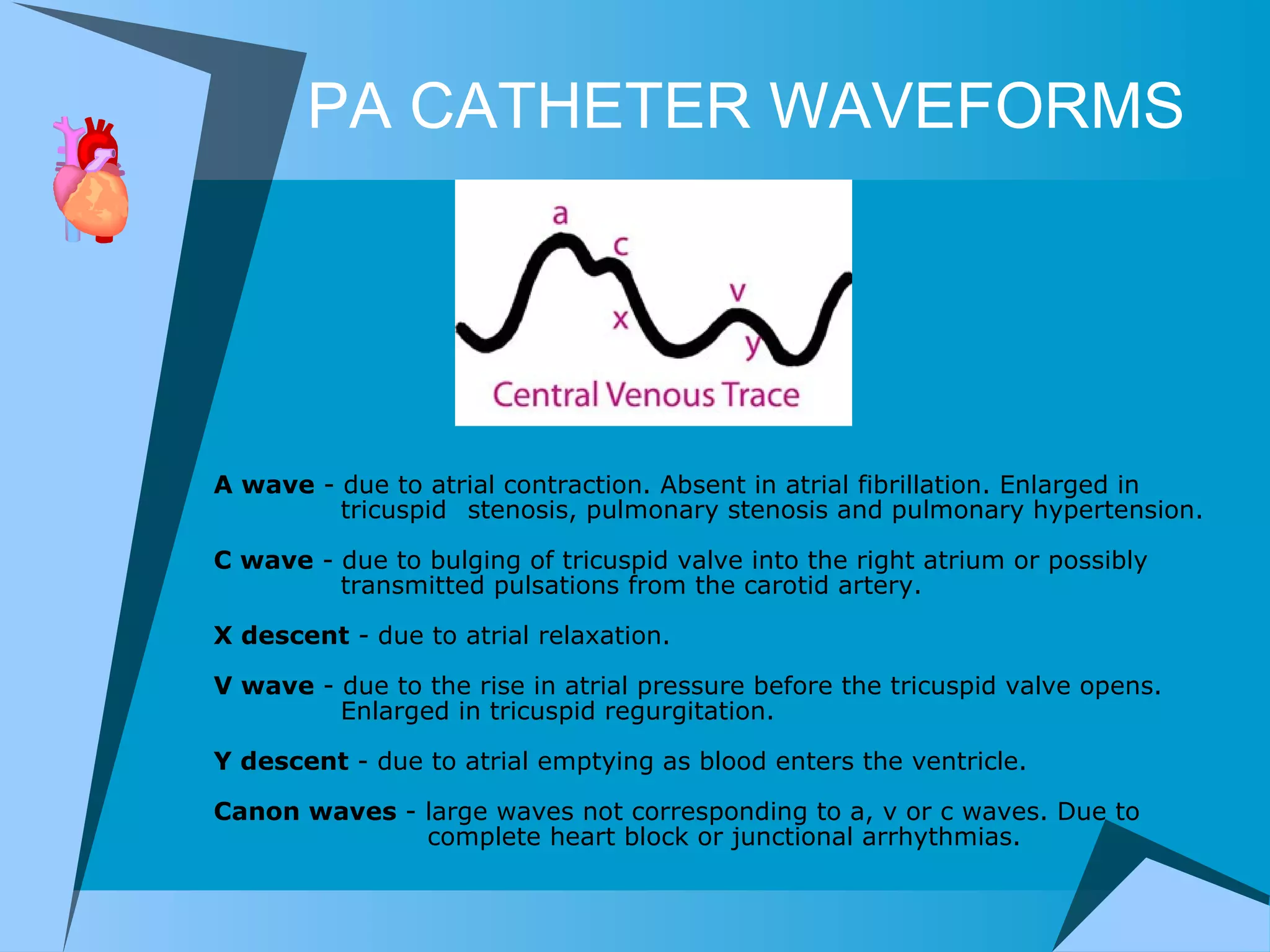

19. PA CATHETER WAVEFORMS A wave - due to atrial contraction. Absent in atrial fibrillation. Enlarged in tricuspid stenosis, pulmonary stenosis and pulmonary hypertension. C wave - due to bulging of tricuspid valve into the right atrium or possibly transmitted pulsations from the carotid artery. X descent - due to atrial relaxation. V wave - due to the rise in atrial pressure before the tricuspid valve opens. Enlarged in tricuspid regurgitation. Y descent - due to atrial emptying as blood enters the ventricle. Canon waves - large waves not corresponding to a, v or c waves. Due to complete heart block or junctional arrhythmias.

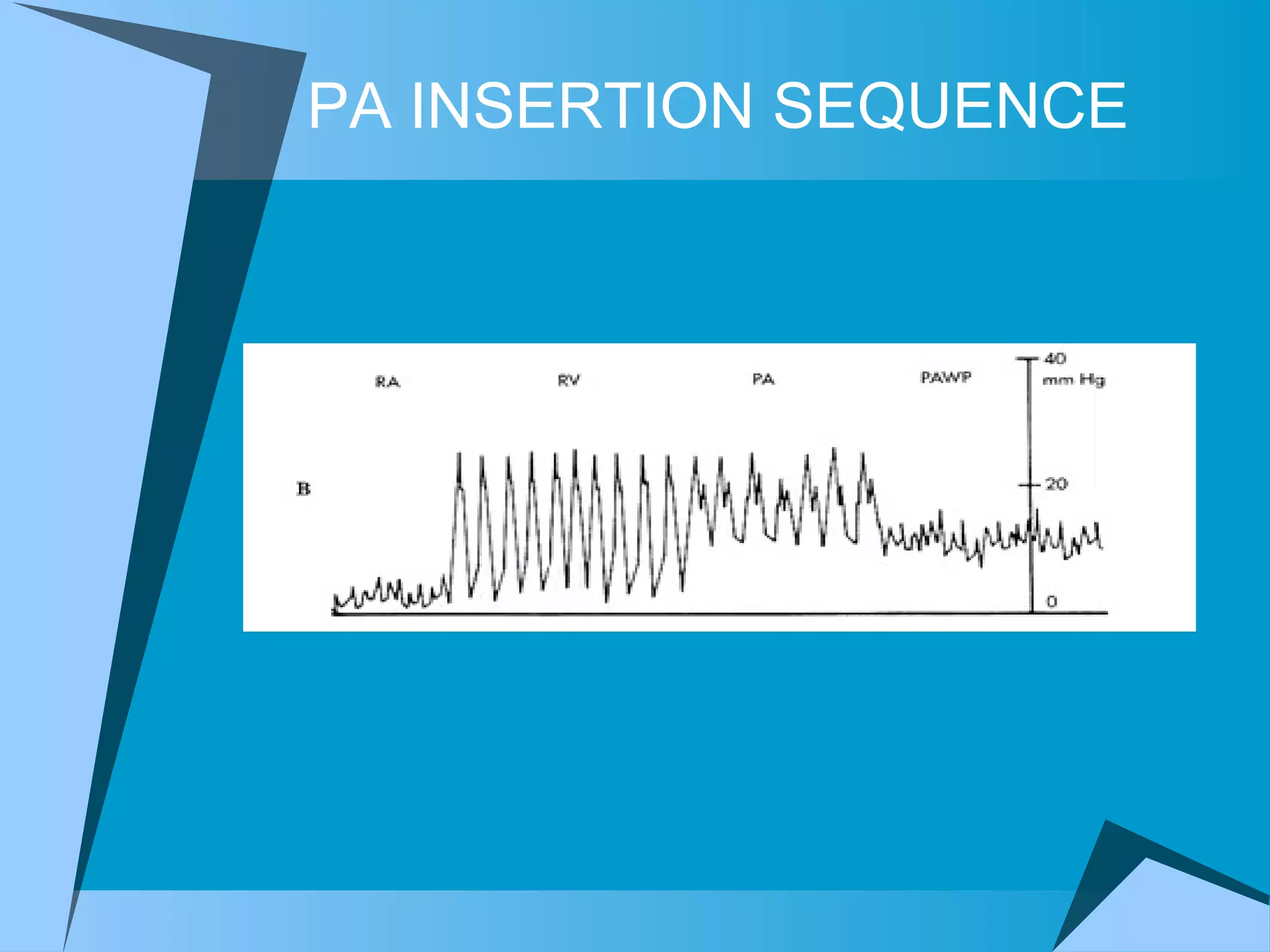

20. PA INSERTION SEQUENCE

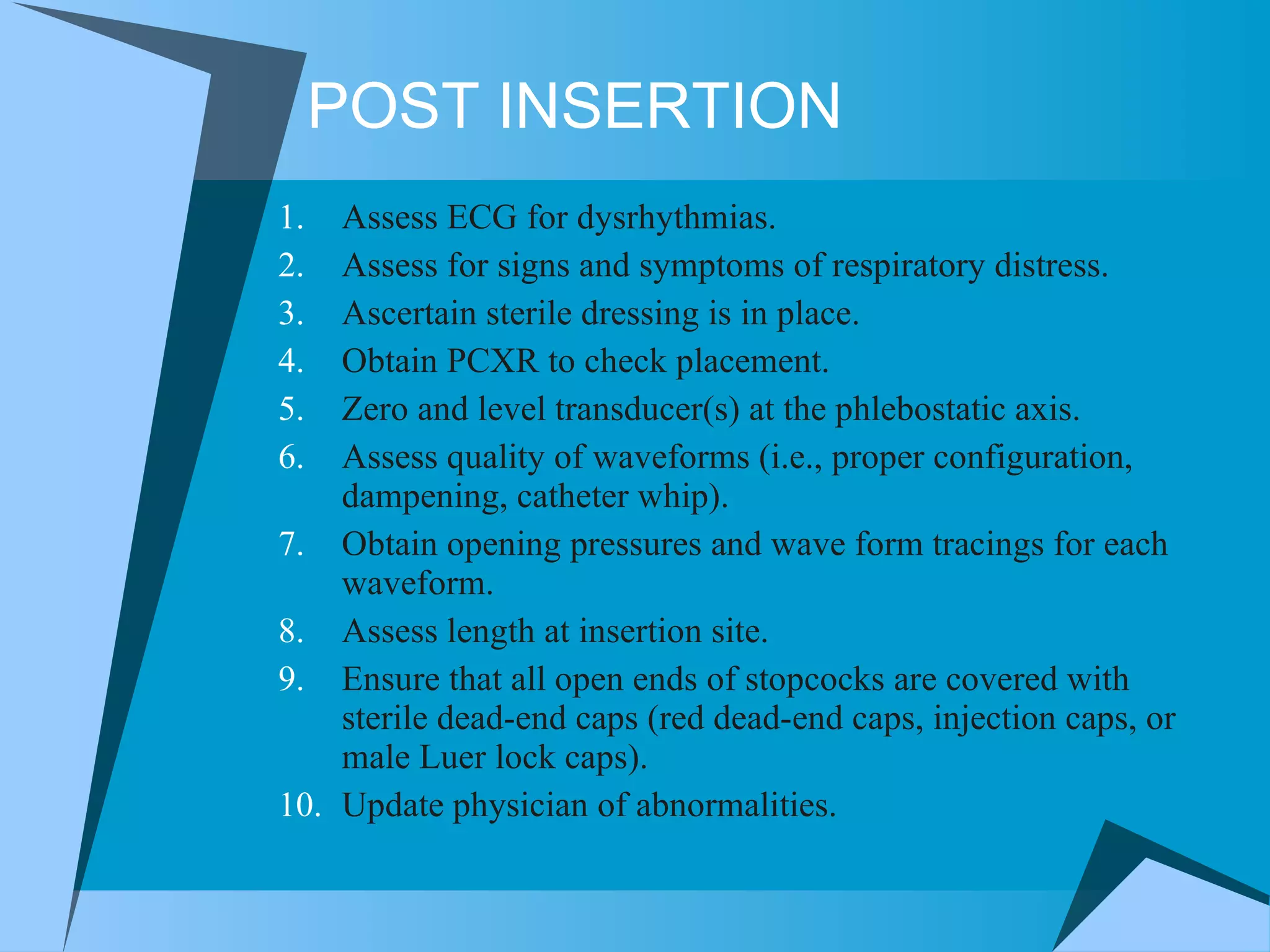

21. POST INSERTION Assess ECG for dysrhythmias. Assess for signs and symptoms of respiratory distress. Ascertain sterile dressing is in place. Obtain PCXR to check placement. Zero and level transducer(s) at the phlebostatic axis. Assess quality of waveforms (i.e., proper configuration, dampening, catheter whip). Obtain opening pressures and wave form tracings for each waveform. Assess length at insertion site. Ensure that all open ends of stopcocks are covered with sterile dead-end caps (red dead-end caps, injection caps, or male Luer lock caps). Update physician of abnormalities.

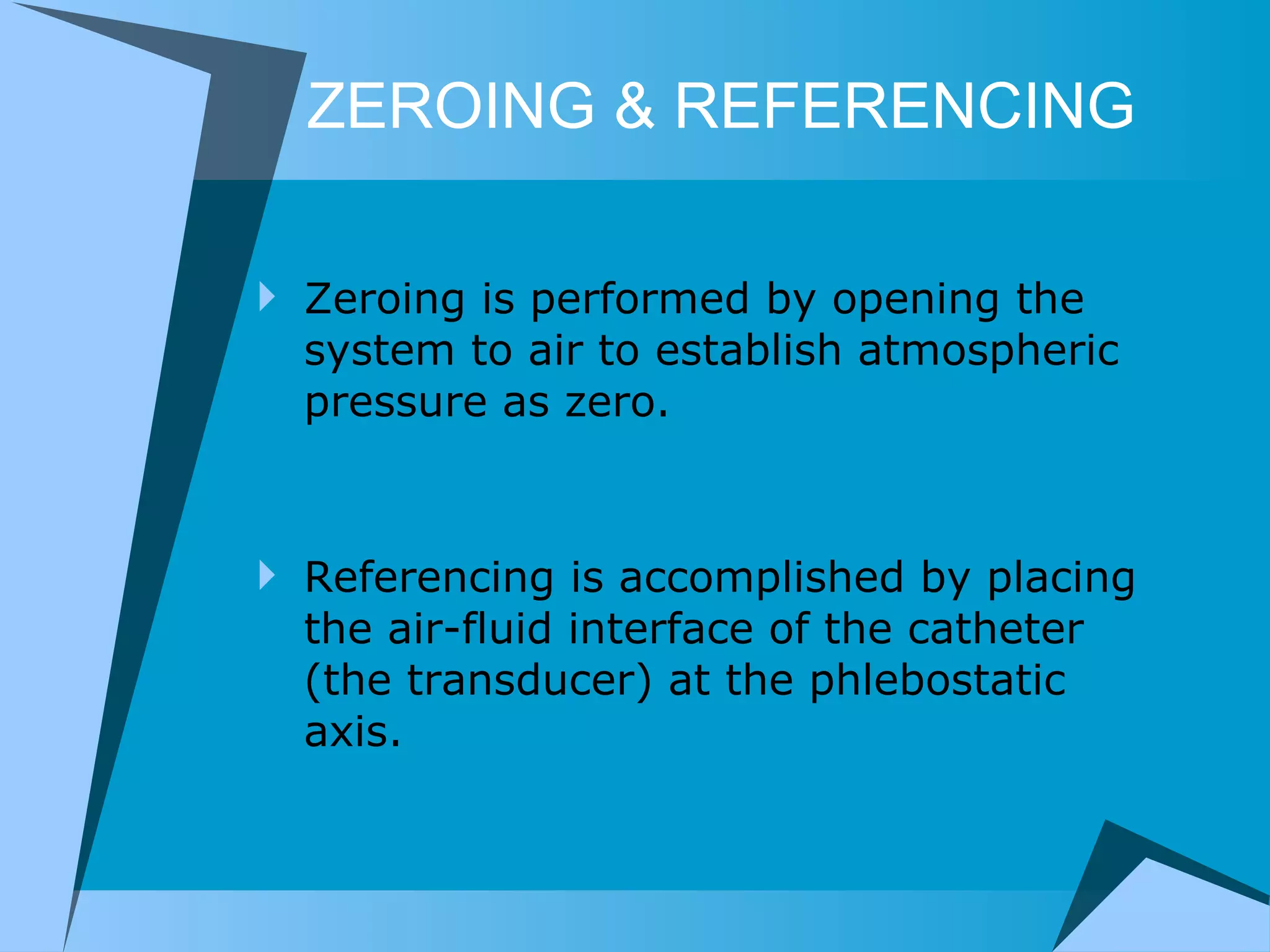

22. ZEROING & REFERENCING Zeroing is performed by opening the system to air to establish atmospheric pressure as zero. Referencing is accomplished by placing the air-fluid interface of the catheter (the transducer) at the phlebostatic axis.

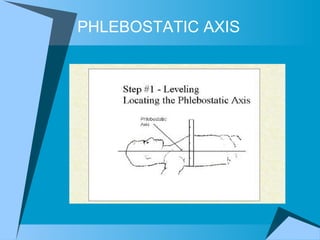

23. PHLEBOSTATIC AXIS

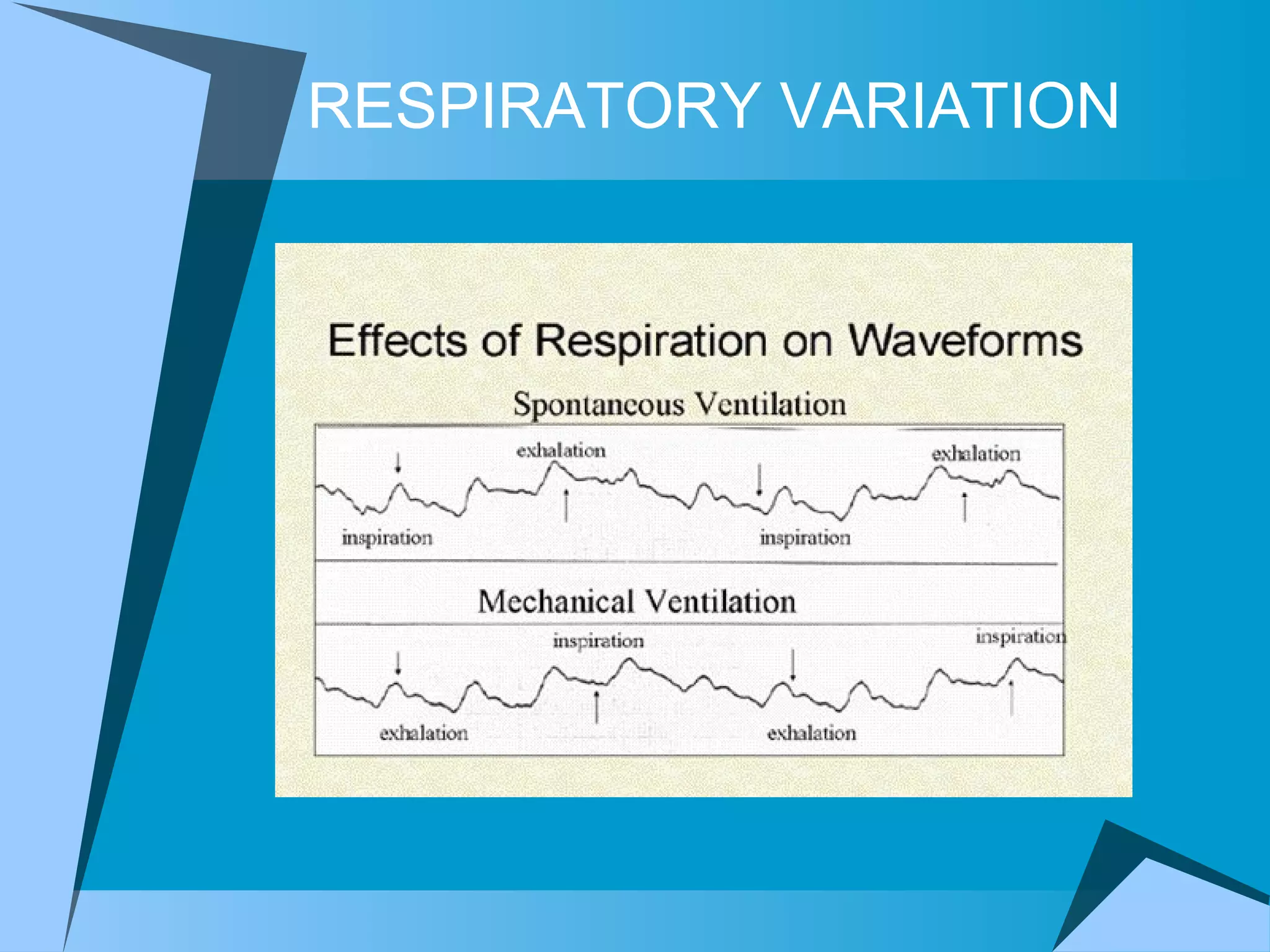

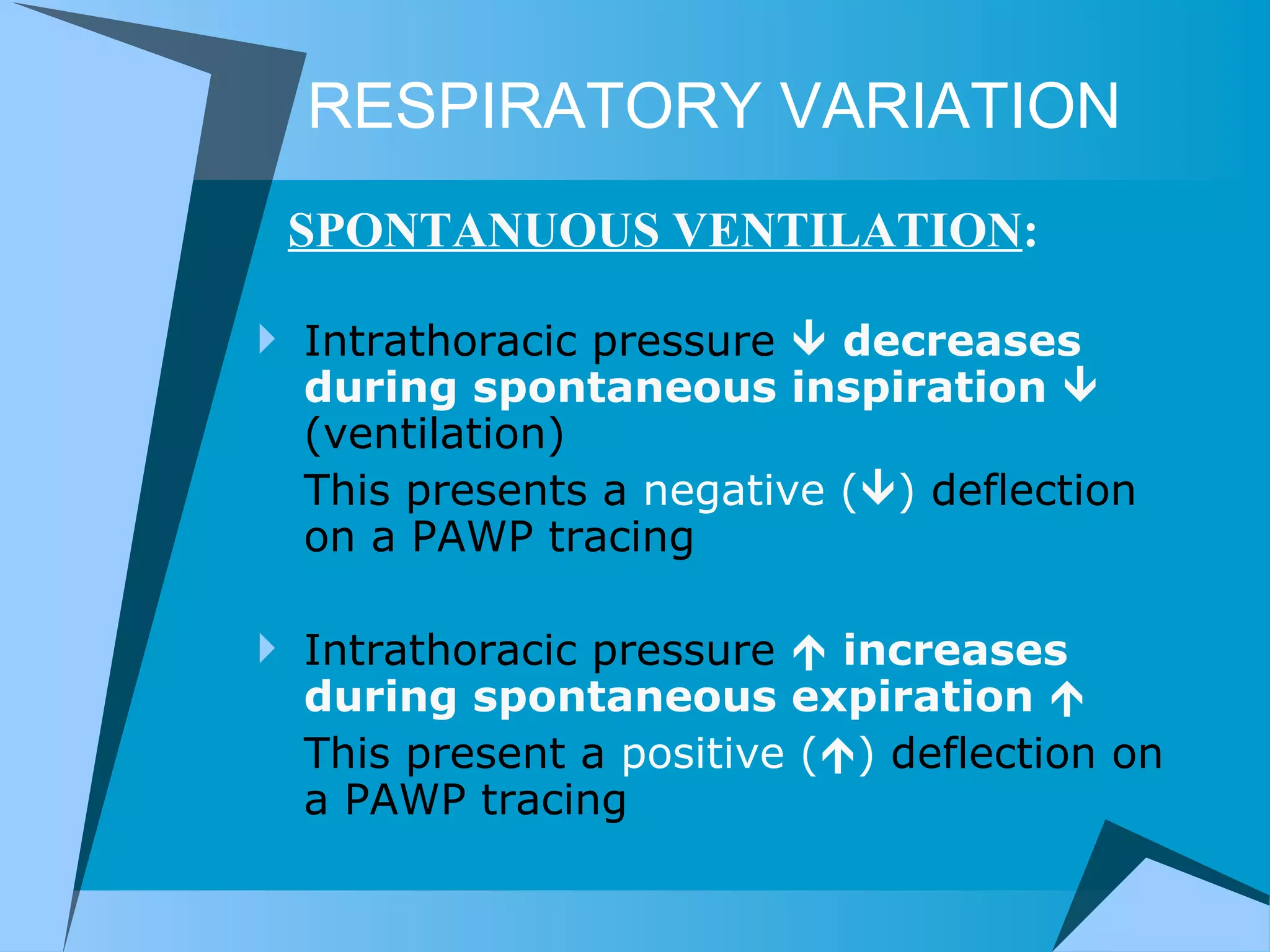

24. RESPIRATORY VARIATION Intrathoracic pressure  decreases during spontaneous inspiration  (ventilation) This presents a negative (  ) deflection on a PAWP tracing Intrathoracic pressure  increases during spontaneous expiration  This present a positive (  ) deflection on a PAWP tracing SPONTANUOUS VENTILATION :

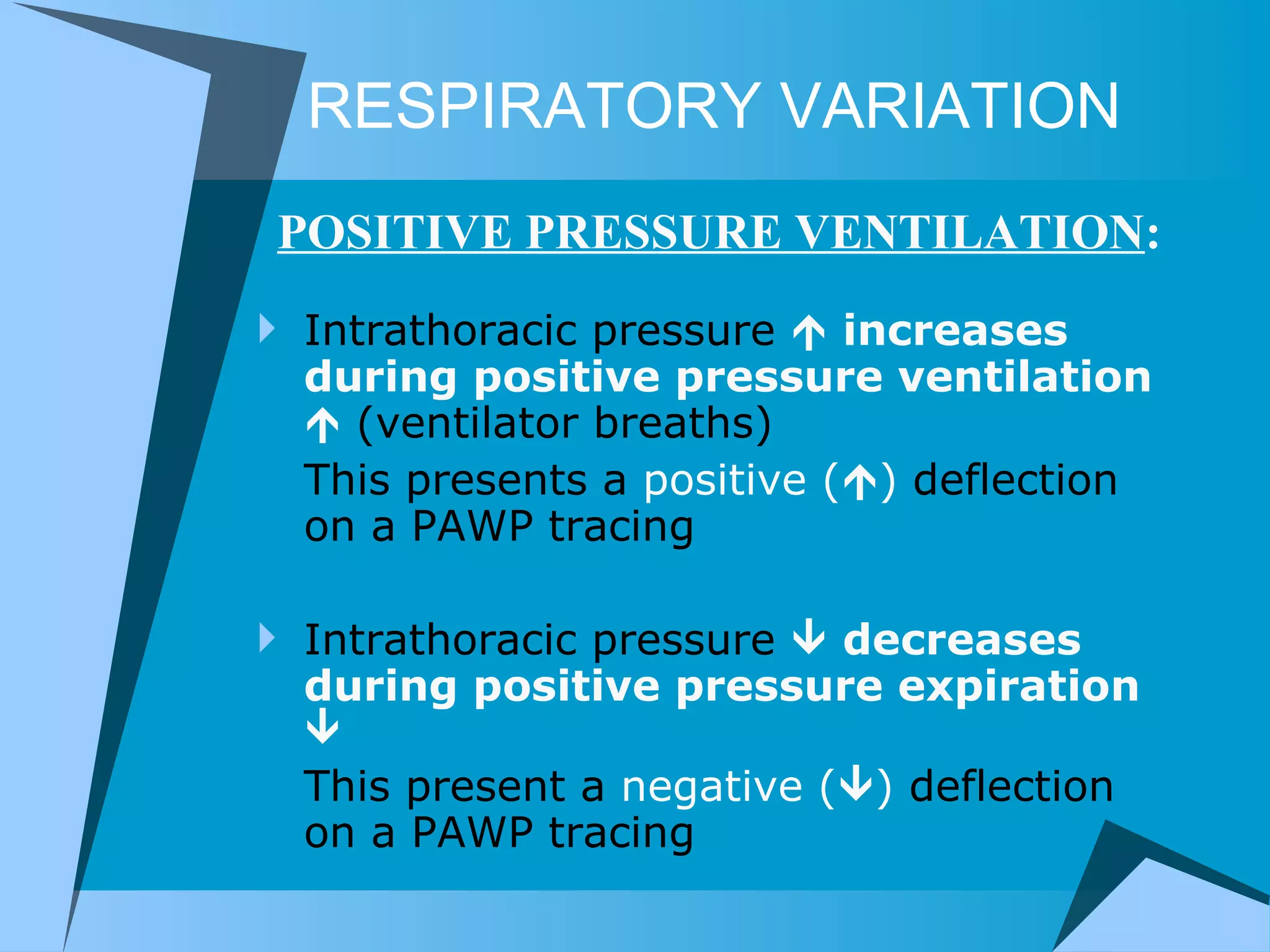

25. RESPIRATORY VARIATION Intrathoracic pressure  increases during positive pressure ventilation  (ventilator breaths) This presents a positive (  ) deflection on a PAWP tracing Intrathoracic pressure  decreases during positive pressure expiration  This present a negative (  ) deflection on a PAWP tracing POSITIVE PRESSURE VENTILATION :

26. RESPIRATORY VARIATION Spontaneous Breathing

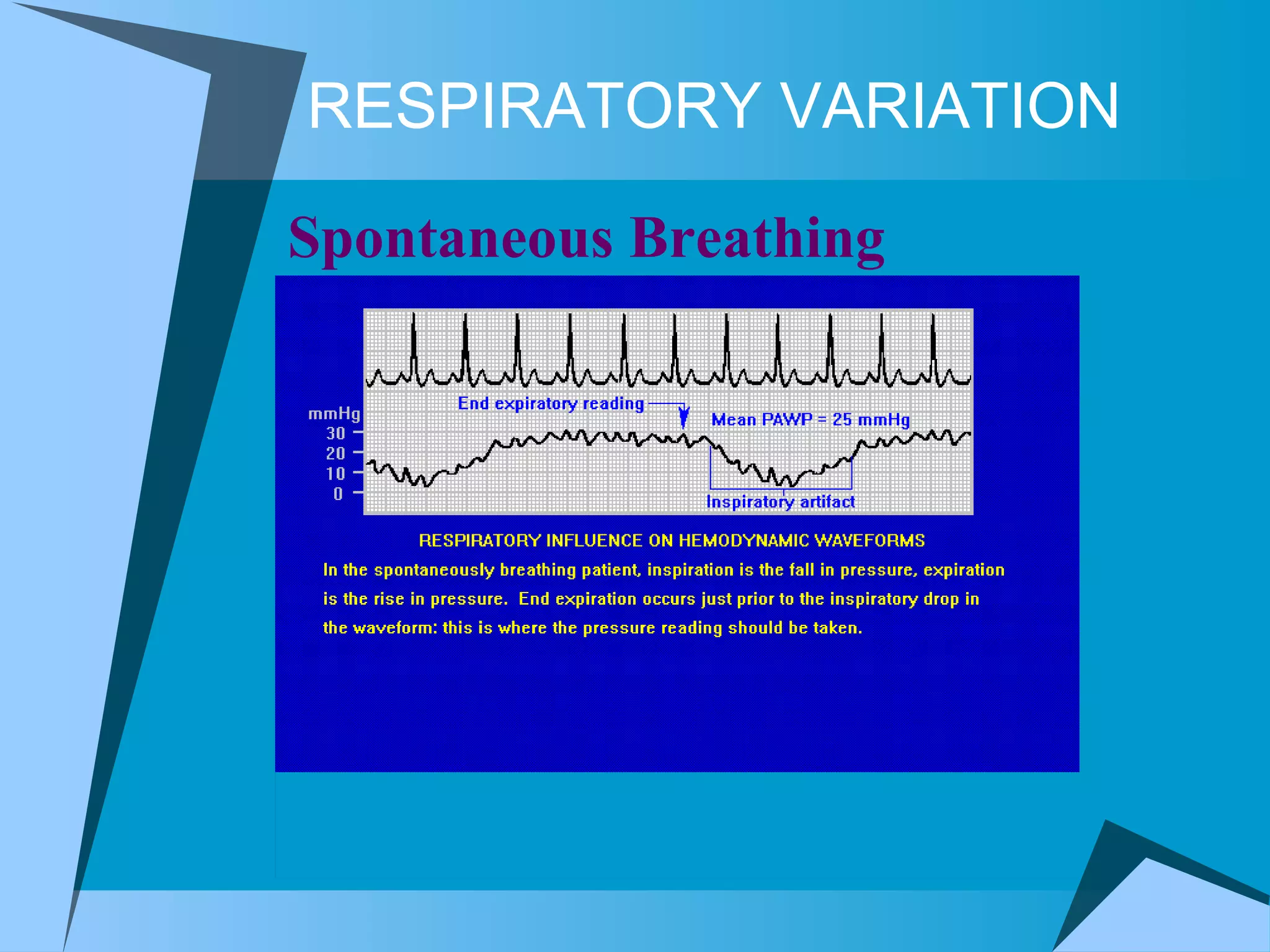

27. RESPIRATORY VARIATION

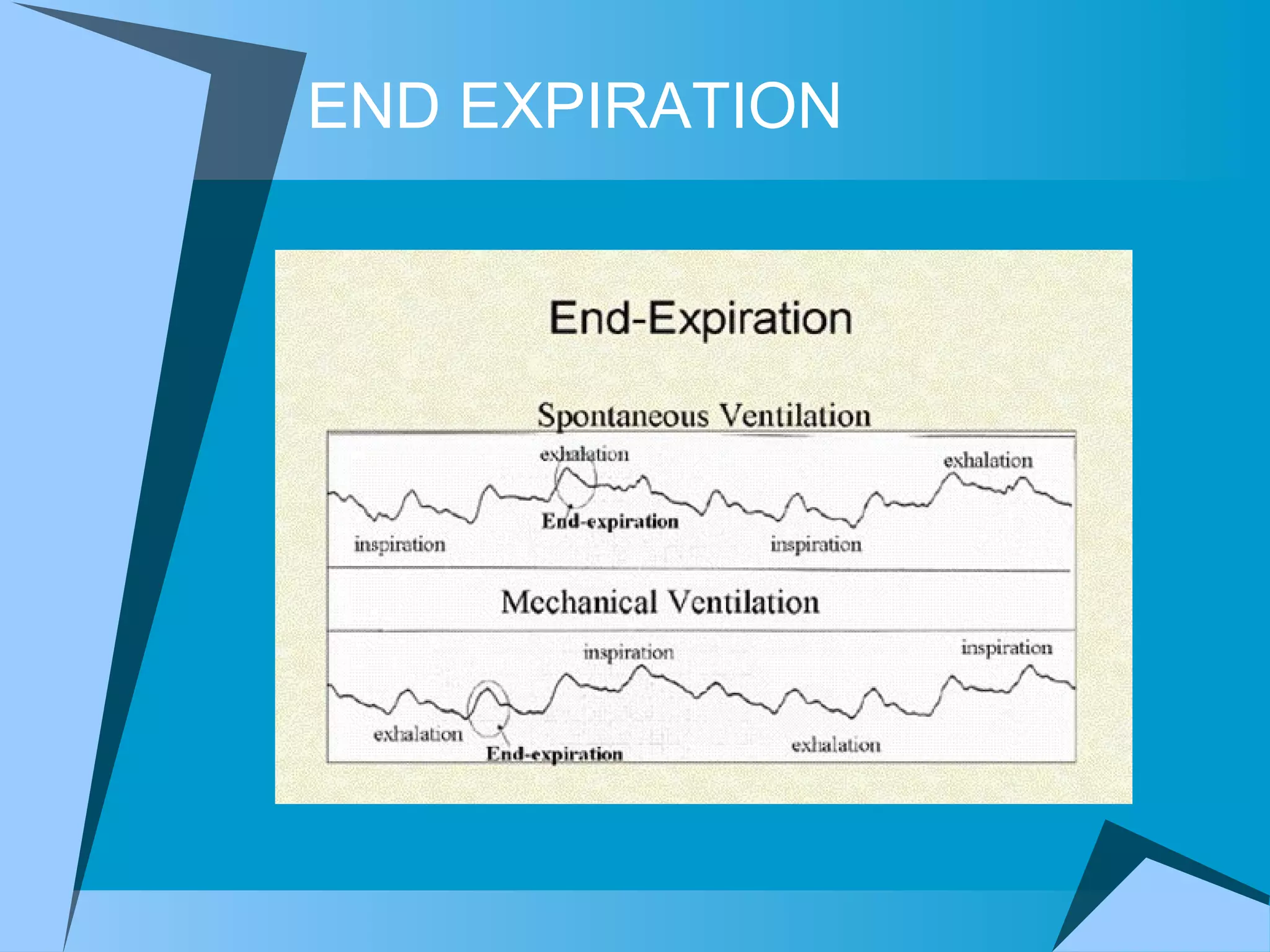

28. END EXPIRATION

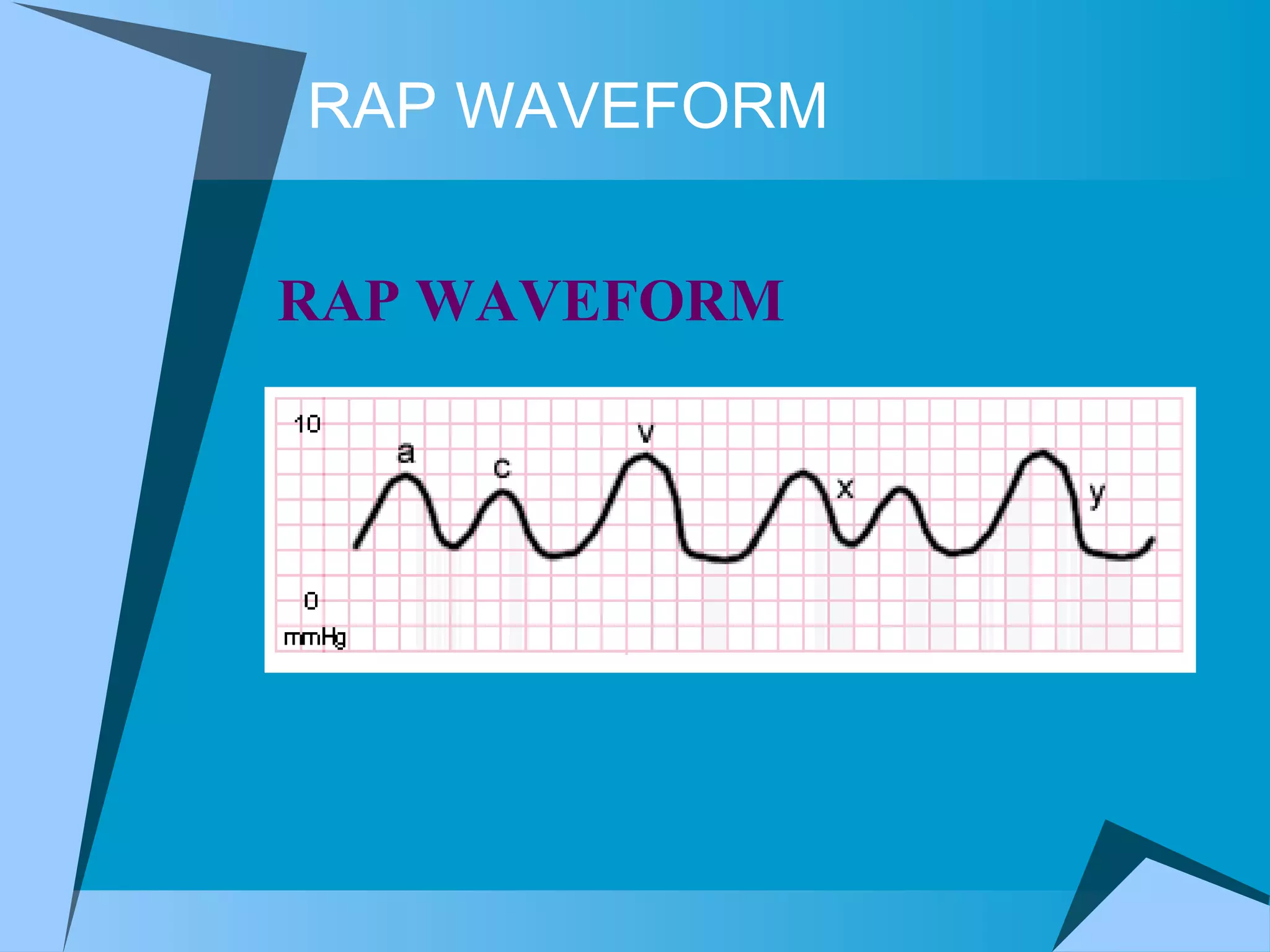

29. RAP WAVEFORM RAP WAVEFORM

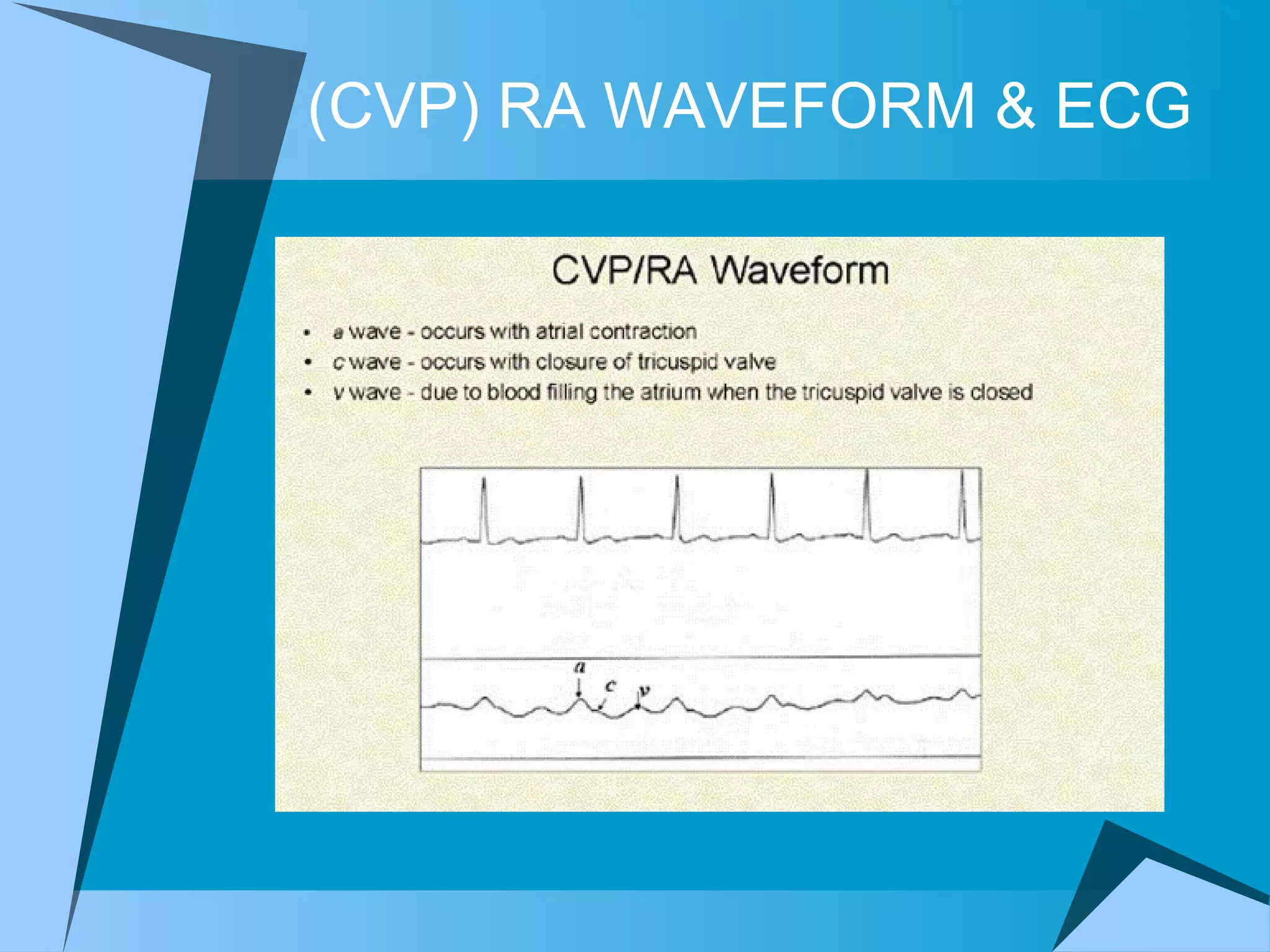

30. (CVP) RA WAVEFORM & ECG

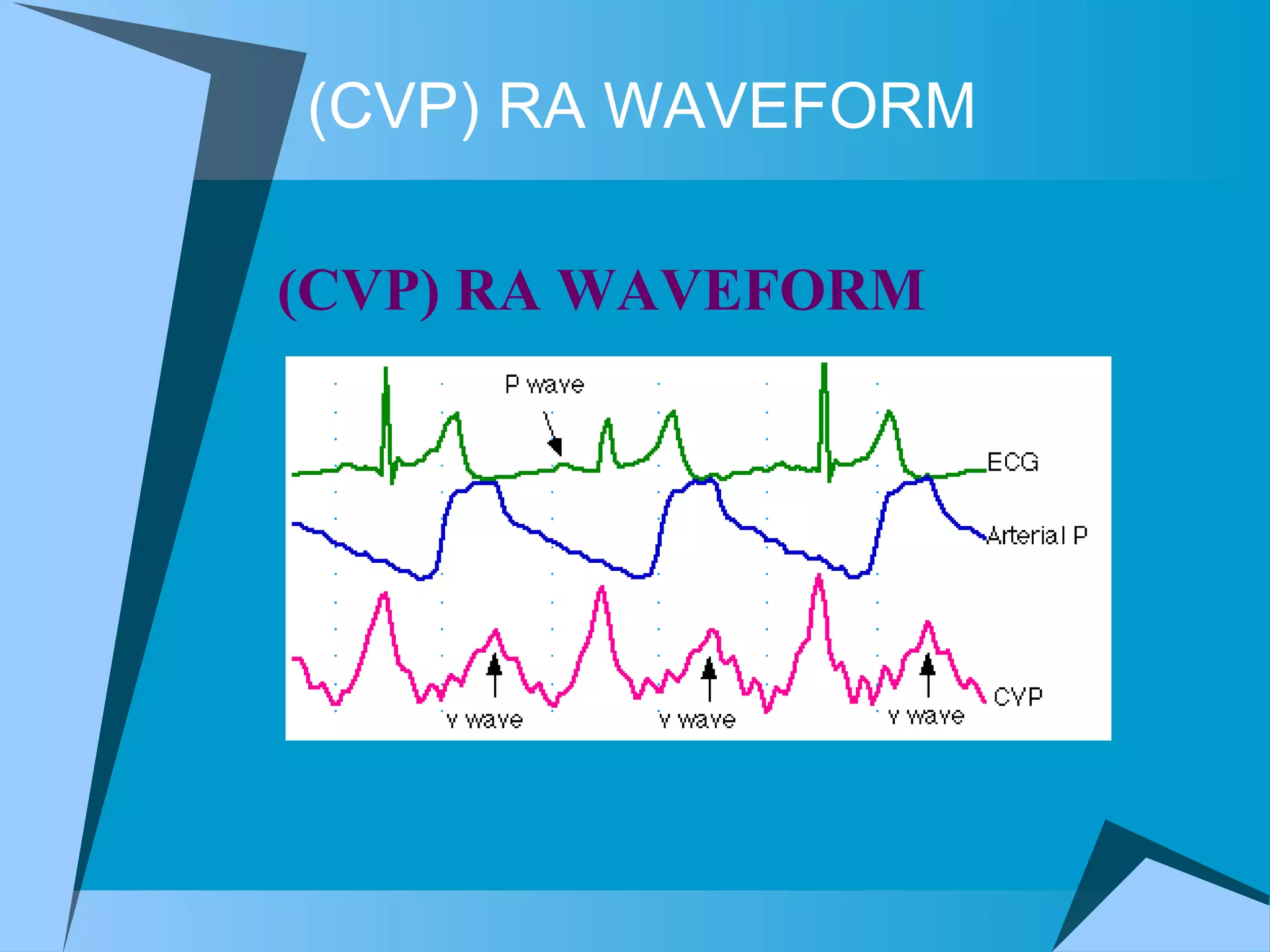

31. (CVP) RA WAVEFORM (CVP) RA WAVEFORM

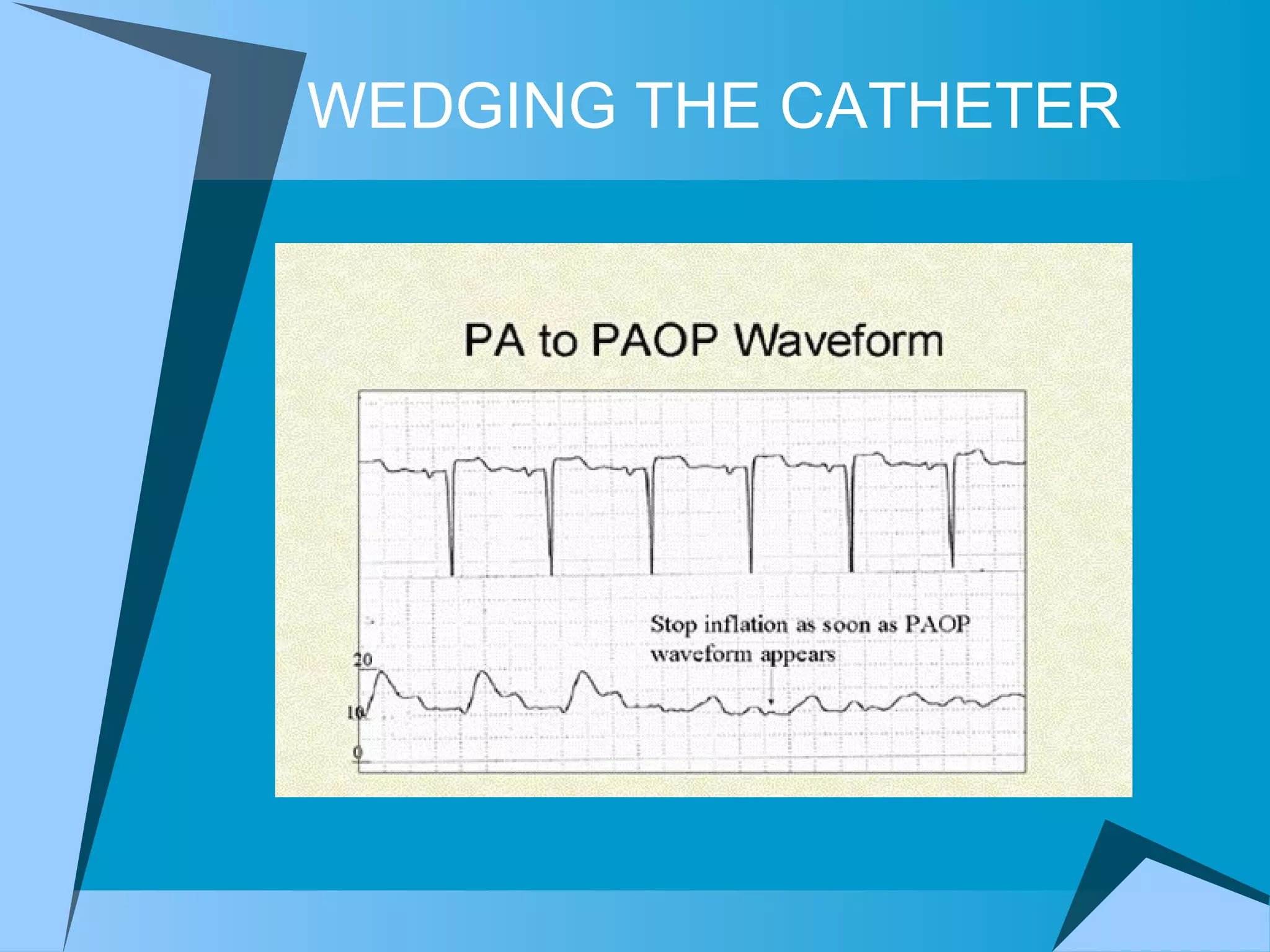

32. WEDGING THE CATHETER

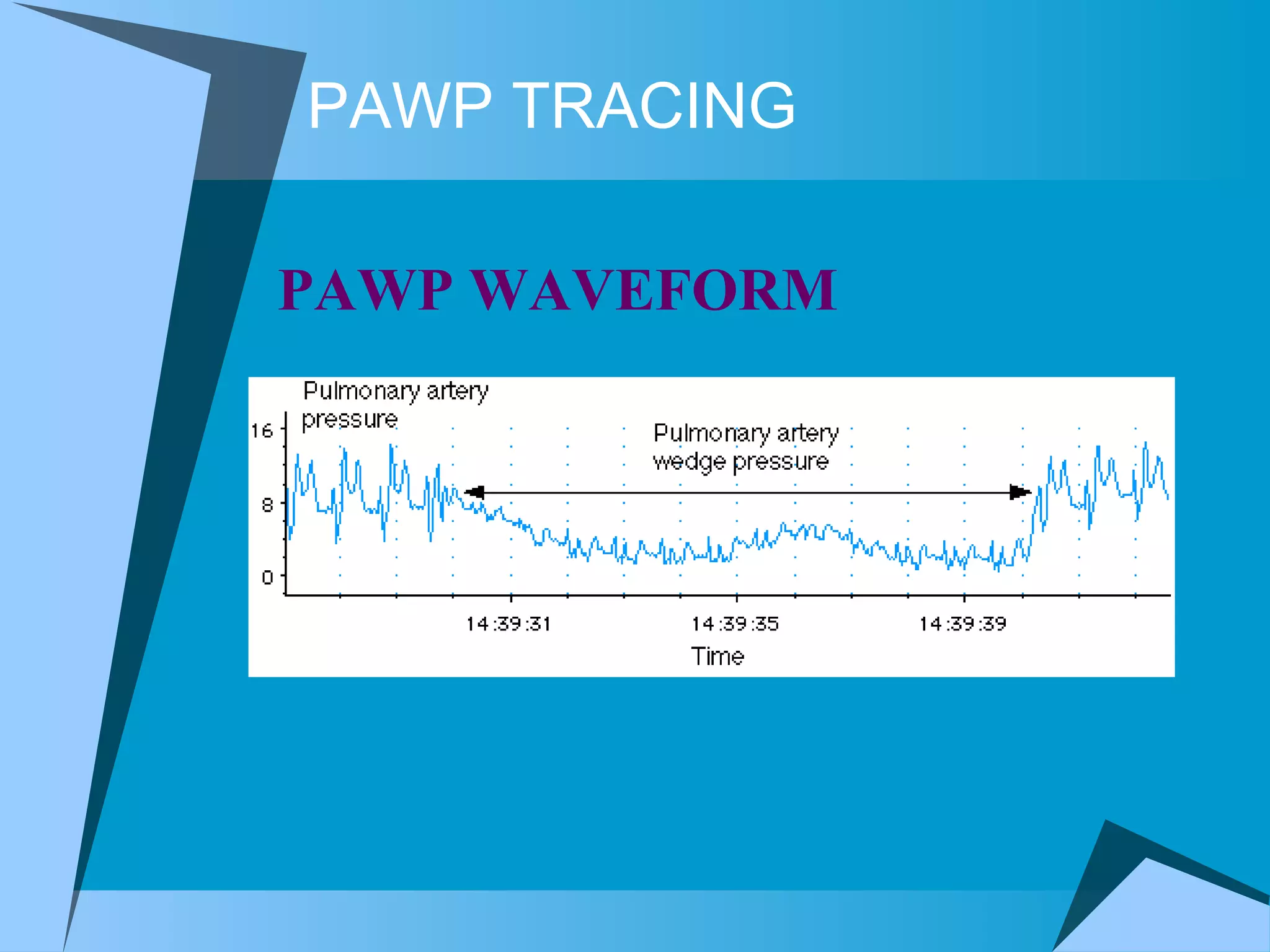

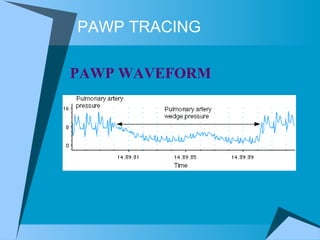

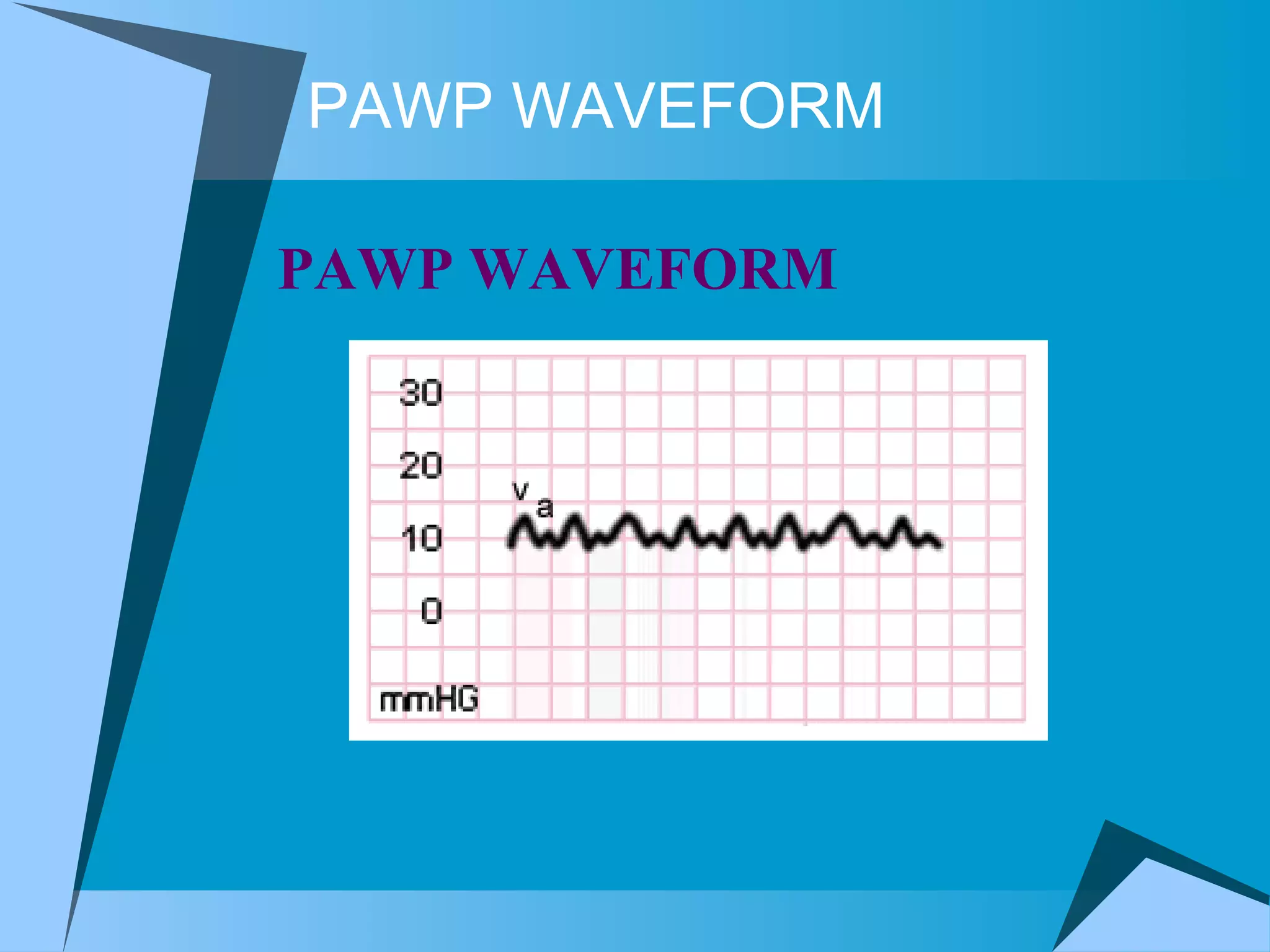

33. PAWP TRACING PAWP WAVEFORM

34. PAWP WAVEFORM PAWP WAVEFORM

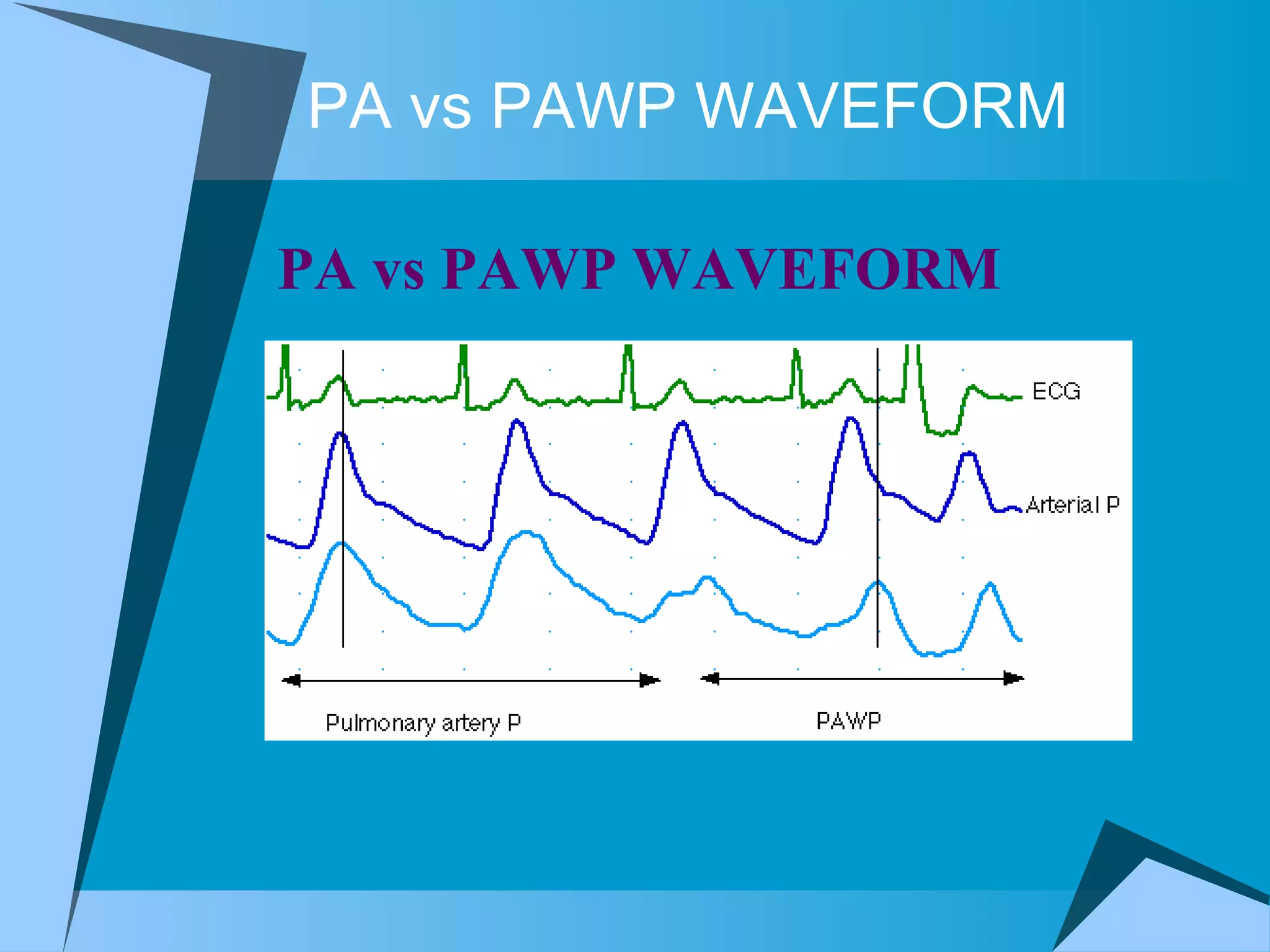

35. PA vs PAWP WAVEFORM PA vs PAWP WAVEFORM

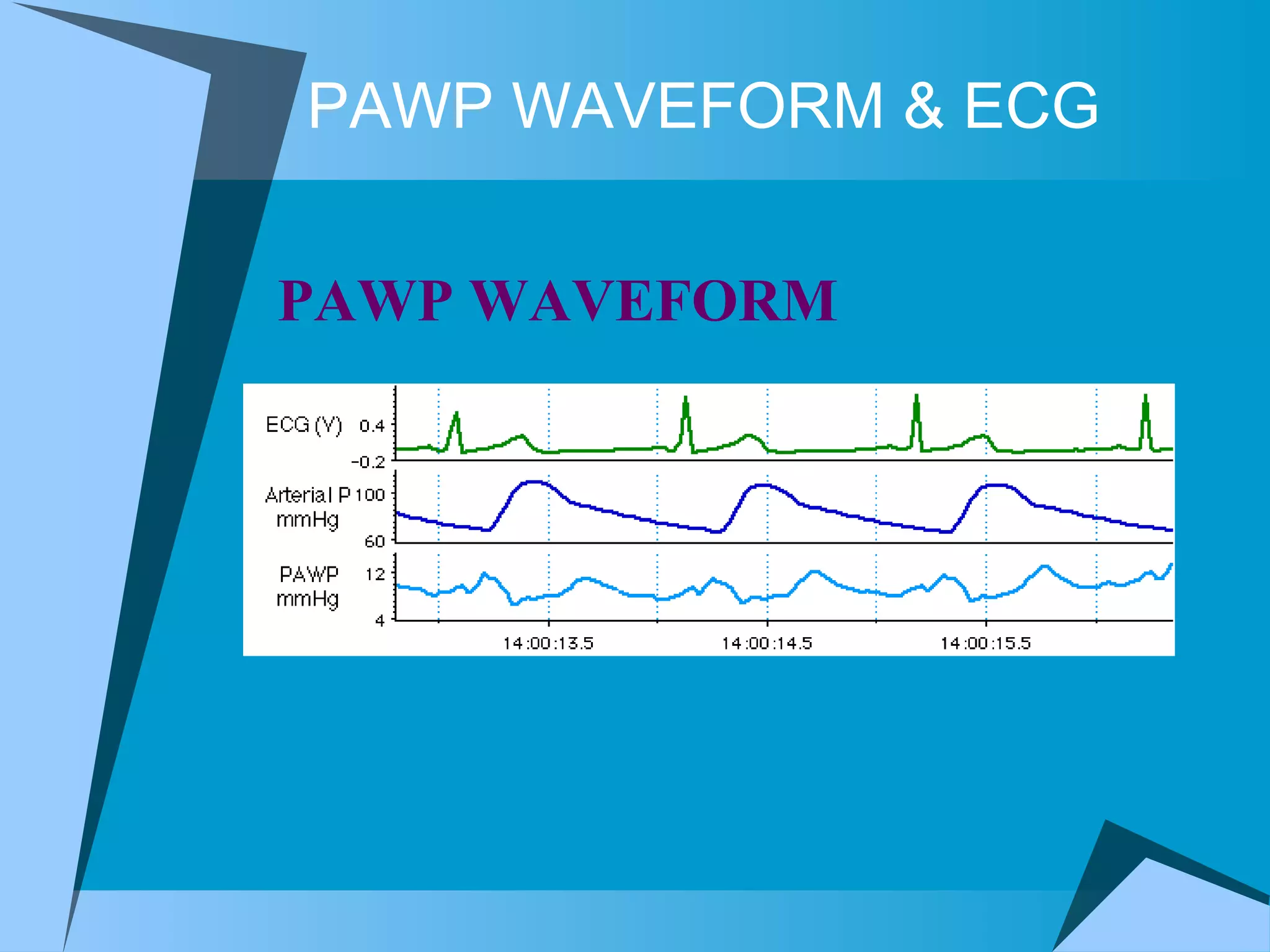

36. PAWP WAVEFORM & ECG PAWP WAVEFORM

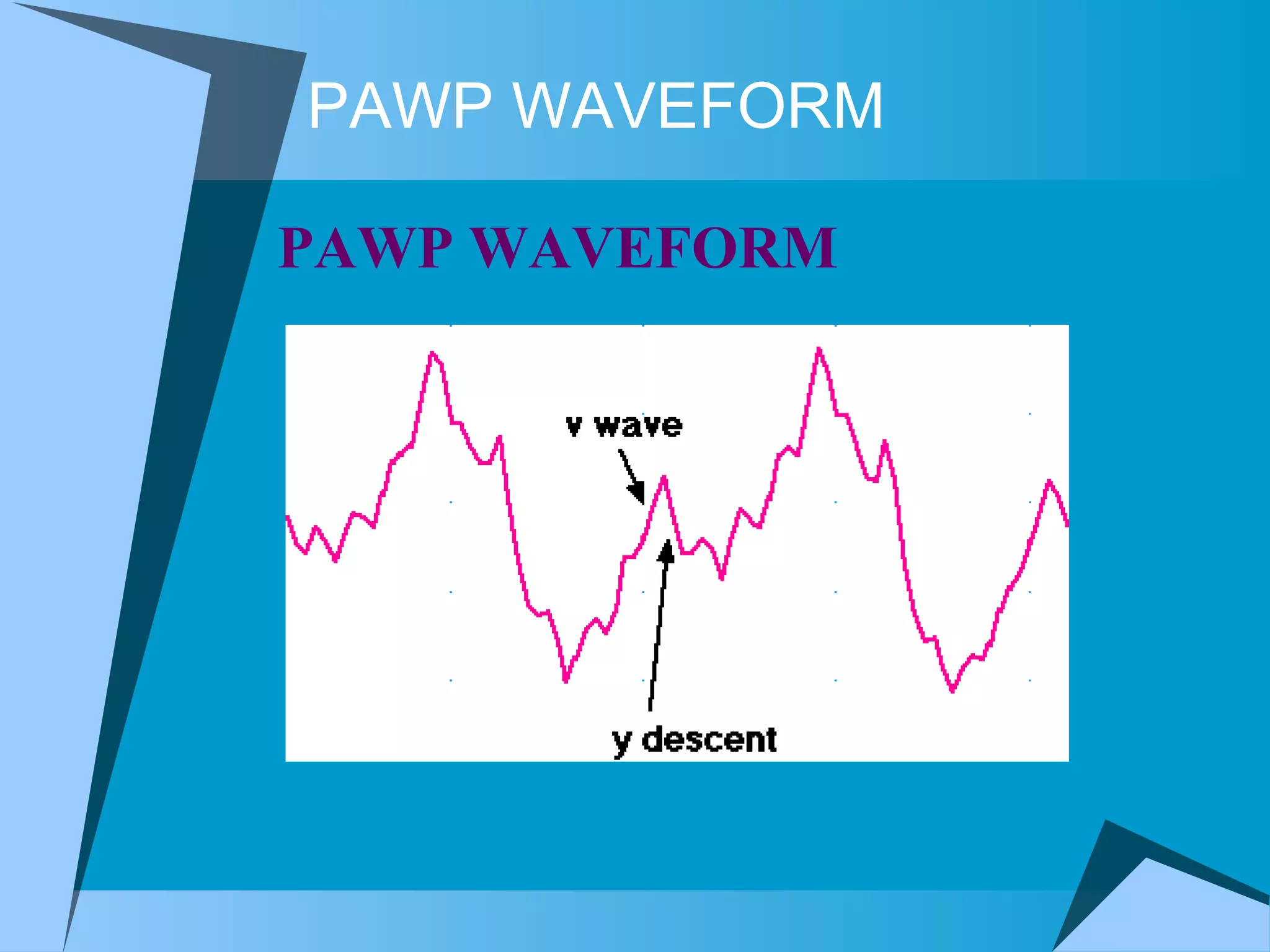

37. PAWP WAVEFORM PAWP WAVEFORM

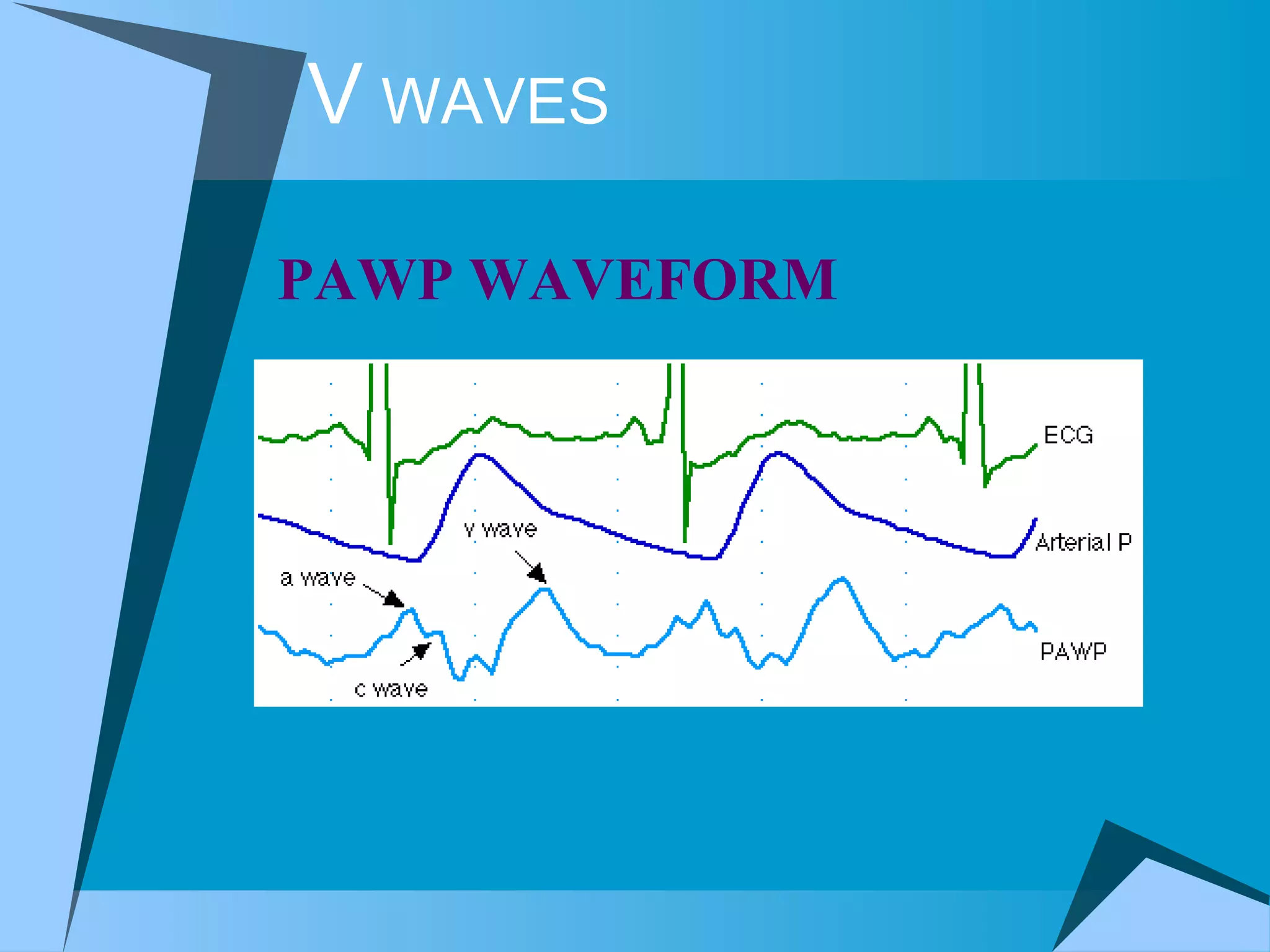

38. V WAVES PAWP WAVEFORM

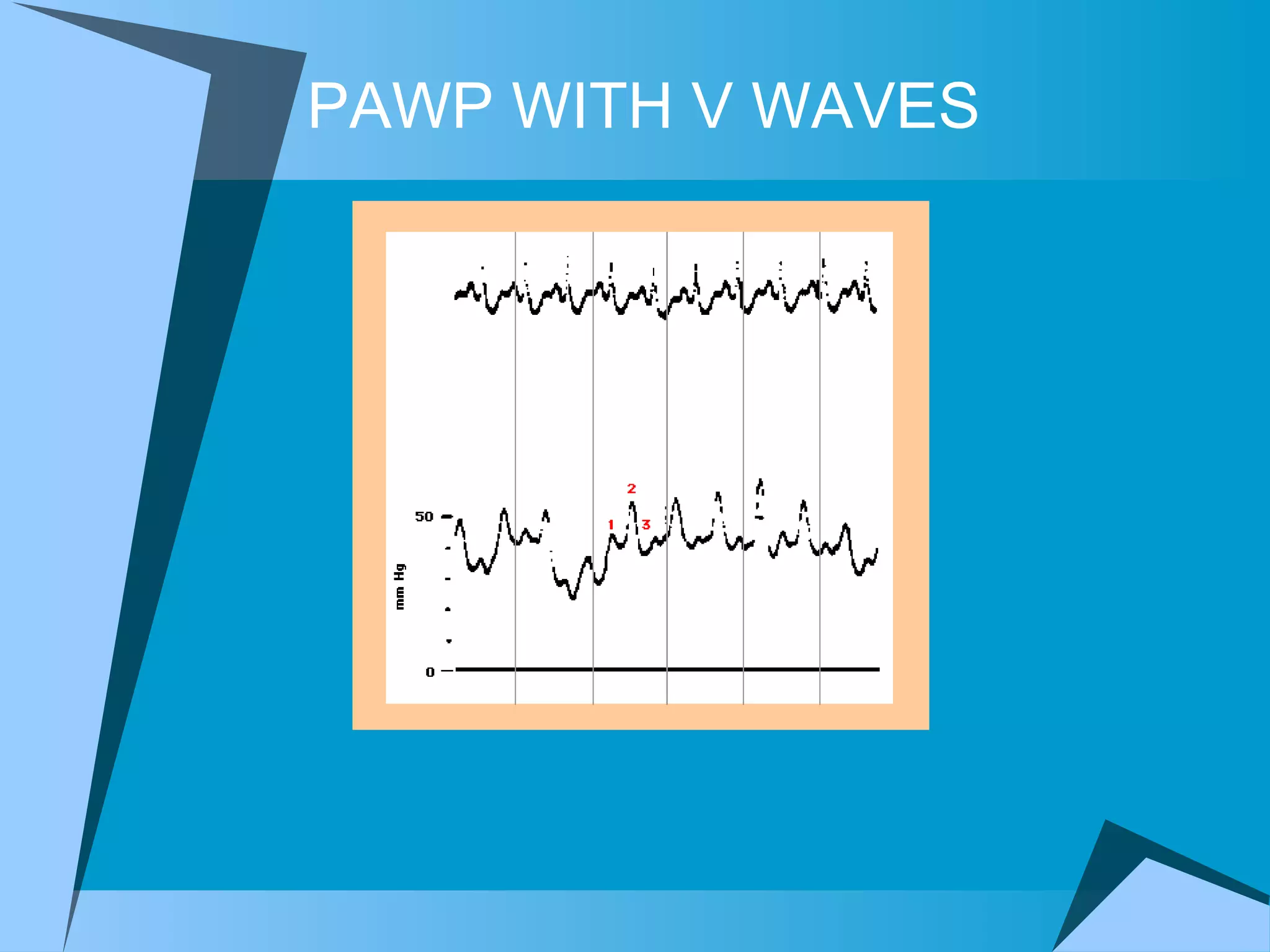

39. PAWP WITH V WAVES

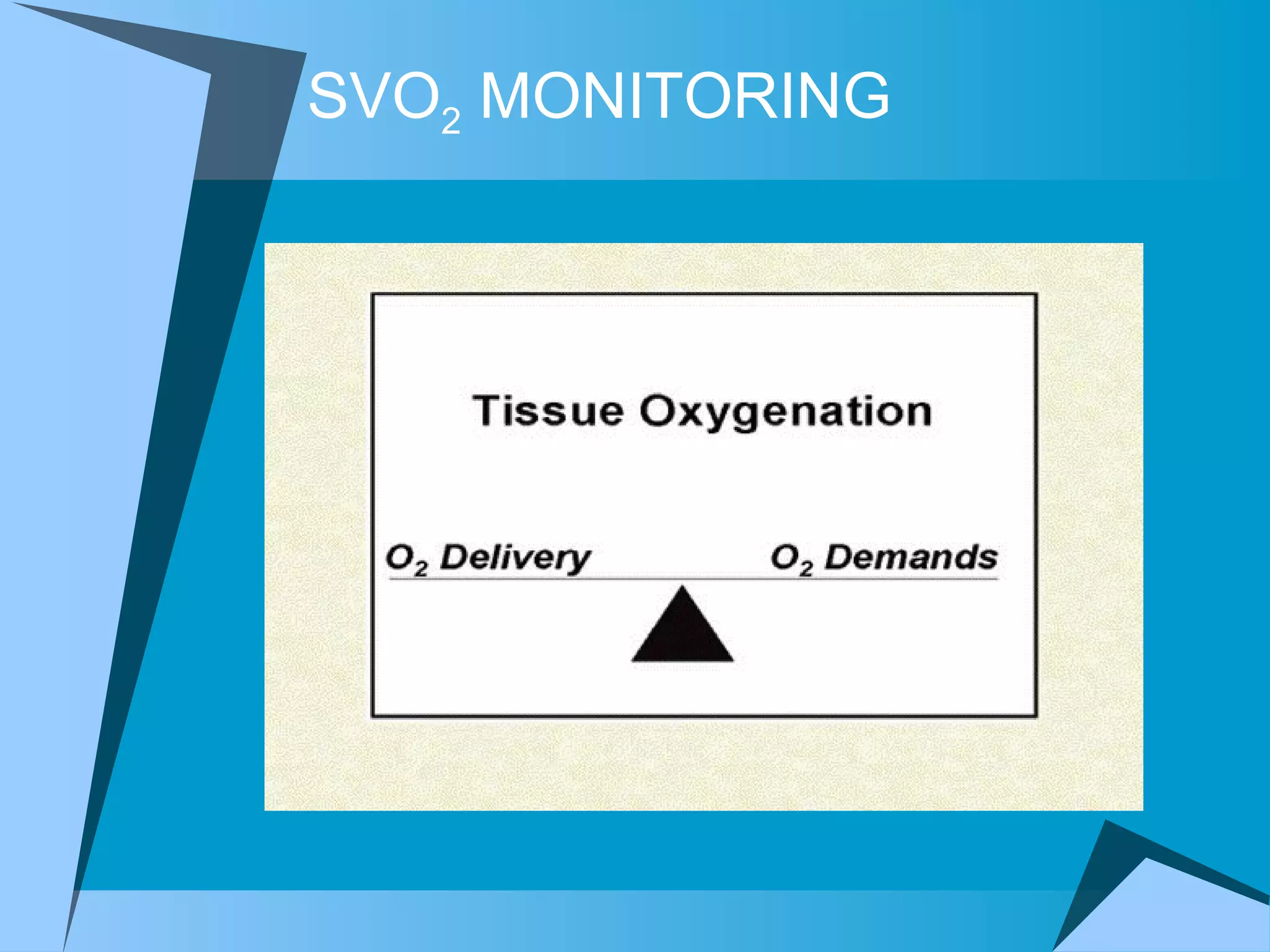

40. SVO 2 MONITORING

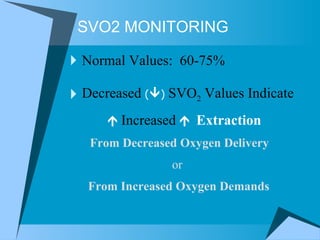

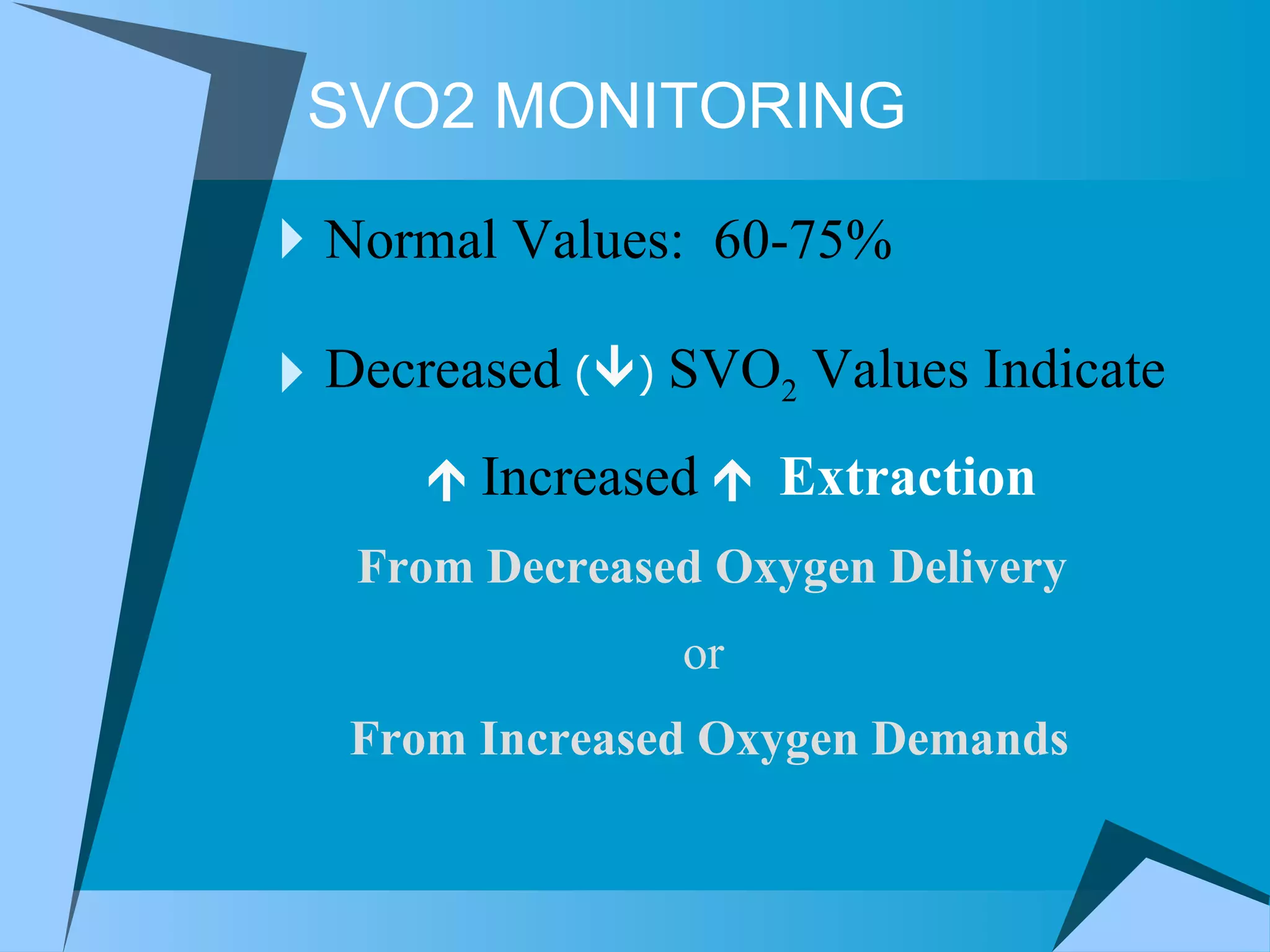

41. SVO2 MONITORING Normal Values: 60-75% Decreased (  ) SVO 2 Values Indicate  Increased  Extraction From Decreased Oxygen Delivery or From Increased Oxygen Demands

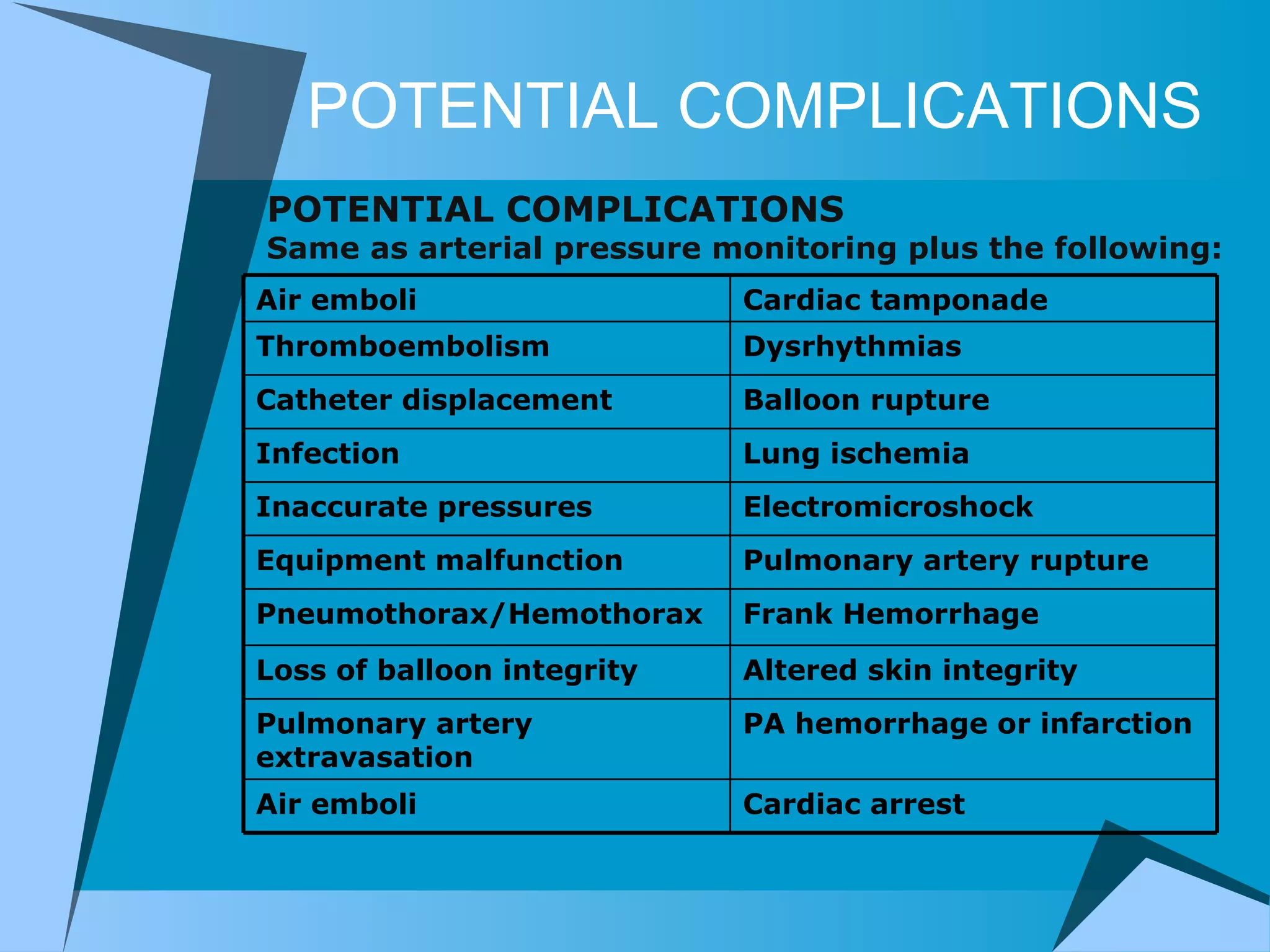

42. POTENTIAL COMPLICATIONS POTENTIAL COMPLICATIONS Same as arterial pressure monitoring plus the following: Cardiac arrest Air emboli PA hemorrhage or infarction Pulmonary artery extravasation Altered skin integrity Loss of balloon integrity Frank Hemorrhage Pneumothorax/Hemothorax Pulmonary artery rupture Equipment malfunction Electromicroshock Inaccurate pressures Lung ischemia Infection Balloon rupture Catheter displacement Dysrhythmias Thromboembolism Cardiac tamponade Air emboli

43. Wedging Can Cause Capillary Rupture Catheter In RV Can Cause Ventricular Ectopy Swan Tip Can Drift From PA to RV POTENTIAL COMPLICATIONS

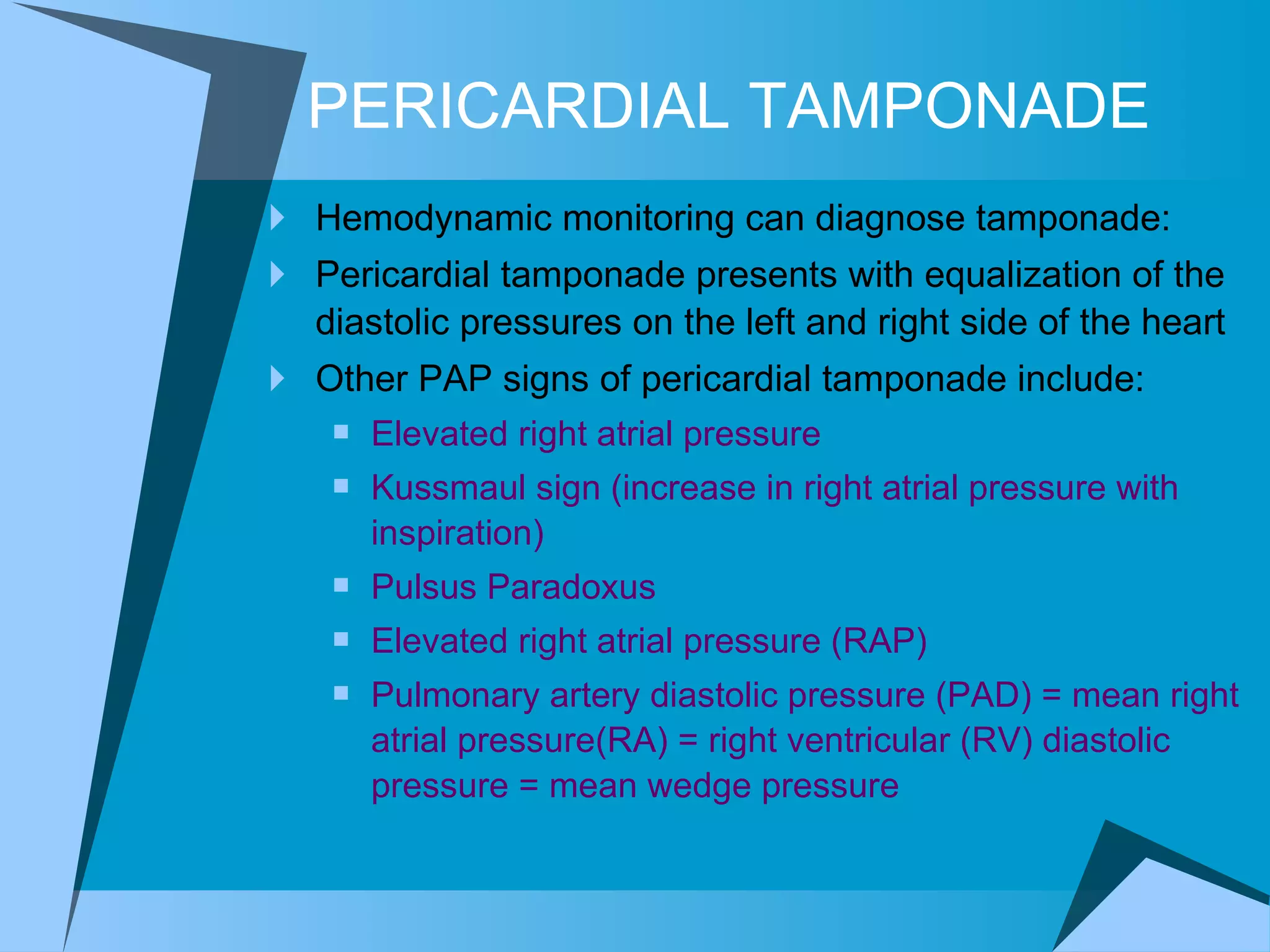

44. PERICARDIAL TAMPONADE Hemodynamic monitoring can diagnose tamponade: Pericardial tamponade presents with equalization of the diastolic pressures on the left and right side of the heart Other PAP signs of pericardial tamponade include: Elevated right atrial pressure Kussmaul sign (increase in right atrial pressure with inspiration) Pulsus Paradoxus Elevated right atrial pressure (RAP) Pulmonary artery diastolic pressure (PAD) = mean right atrial pressure(RA) = right ventricular (RV) diastolic pressure = mean wedge pressure

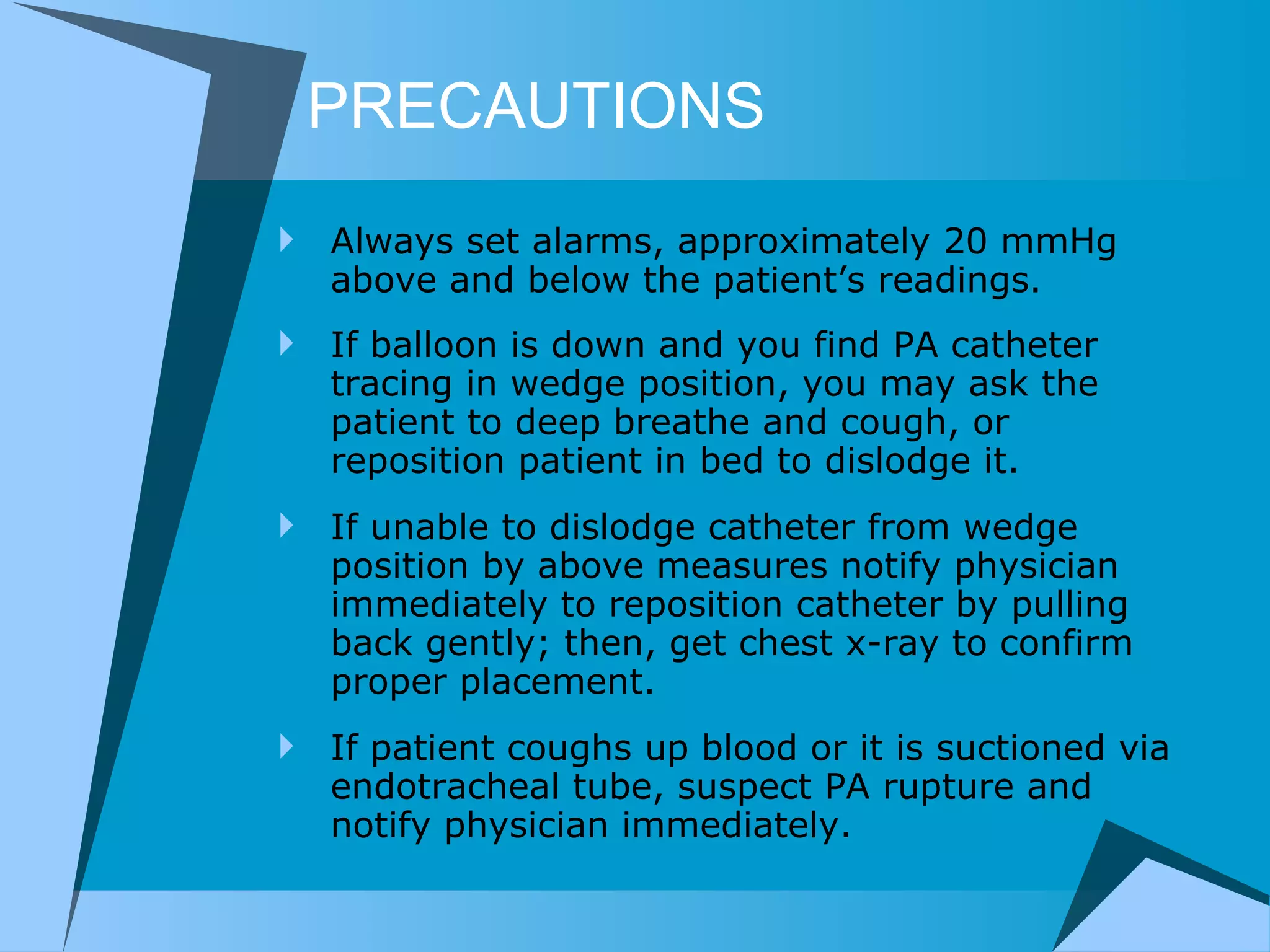

45. PRECAUTIONS Always set alarms, approximately 20 mmHg above and below the patient’s readings. If balloon is down and you find PA catheter tracing in wedge position, you may ask the patient to deep breathe and cough, or reposition patient in bed to dislodge it. If unable to dislodge catheter from wedge position by above measures notify physician immediately to reposition catheter by pulling back gently; then, get chest x-ray to confirm proper placement. If patient coughs up blood or it is suctioned via endotracheal tube, suspect PA rupture and notify physician immediately.

46. TROUBLESHOOTING

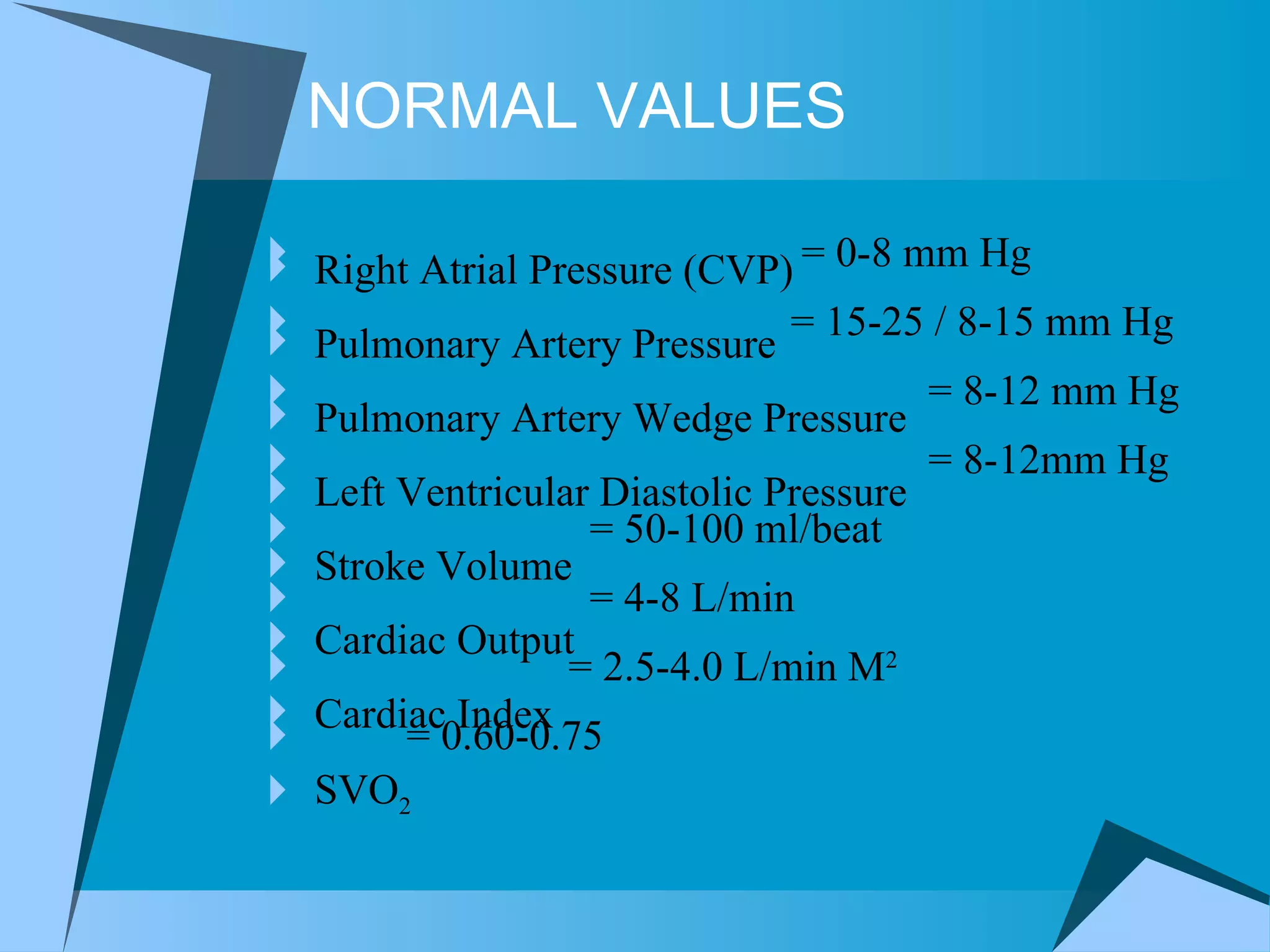

47. = 0-8 mm Hg = 15-25 / 8-15 mm Hg = 8-12 mm Hg = 8-12mm Hg = 50-100 ml/beat = 4-8 L/min = 2.5-4.0 L/min M 2 = 0.60-0.75 NORMAL VALUES Right Atrial Pressure (CVP) Pulmonary Artery Pressure Pulmonary Artery Wedge Pressure Left Ventricular Diastolic Pressure Stroke Volume Cardiac Output Cardiac Index SVO 2

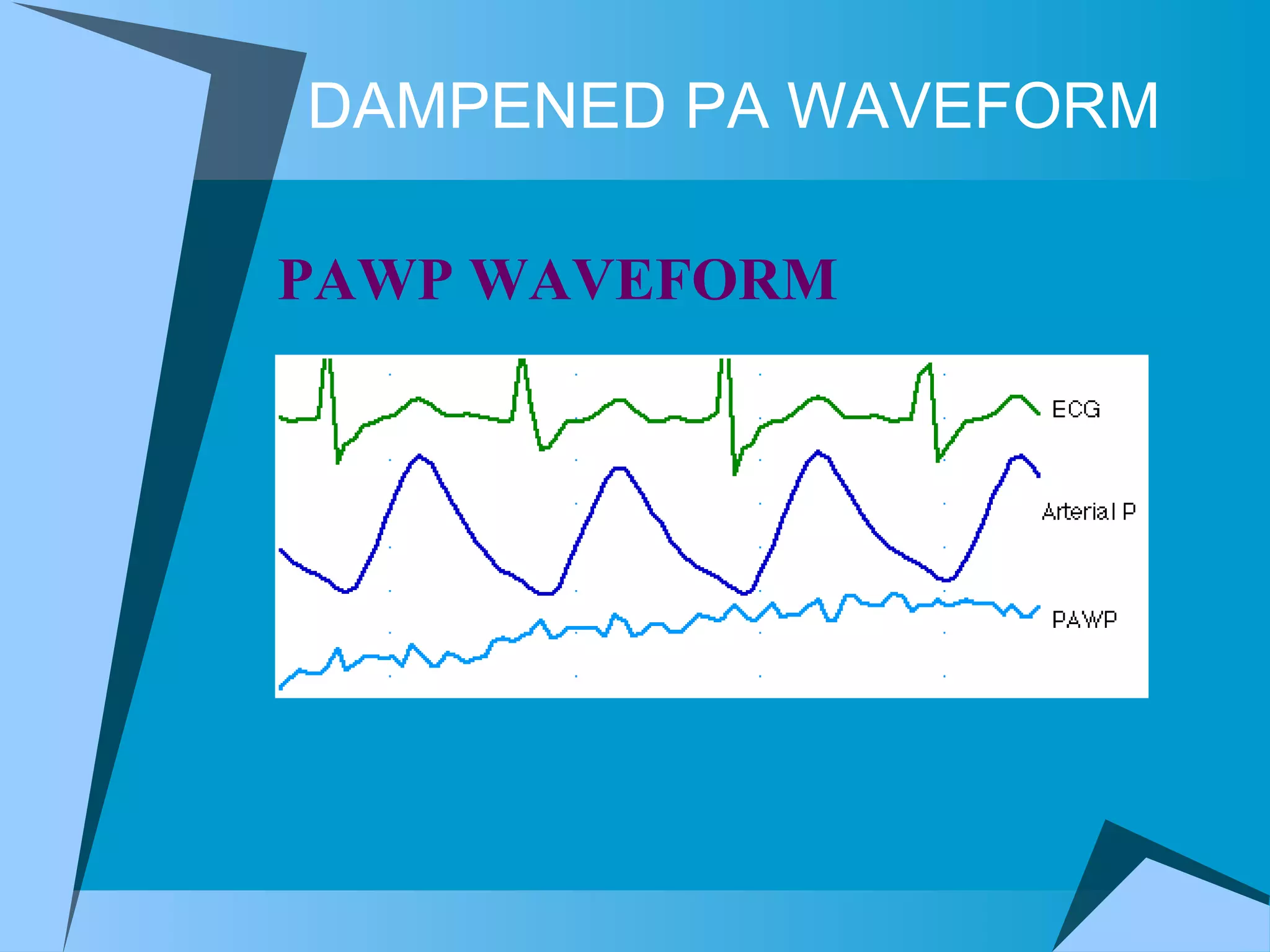

48. DAMPENED PA WAVEFORM PAWP WAVEFORM

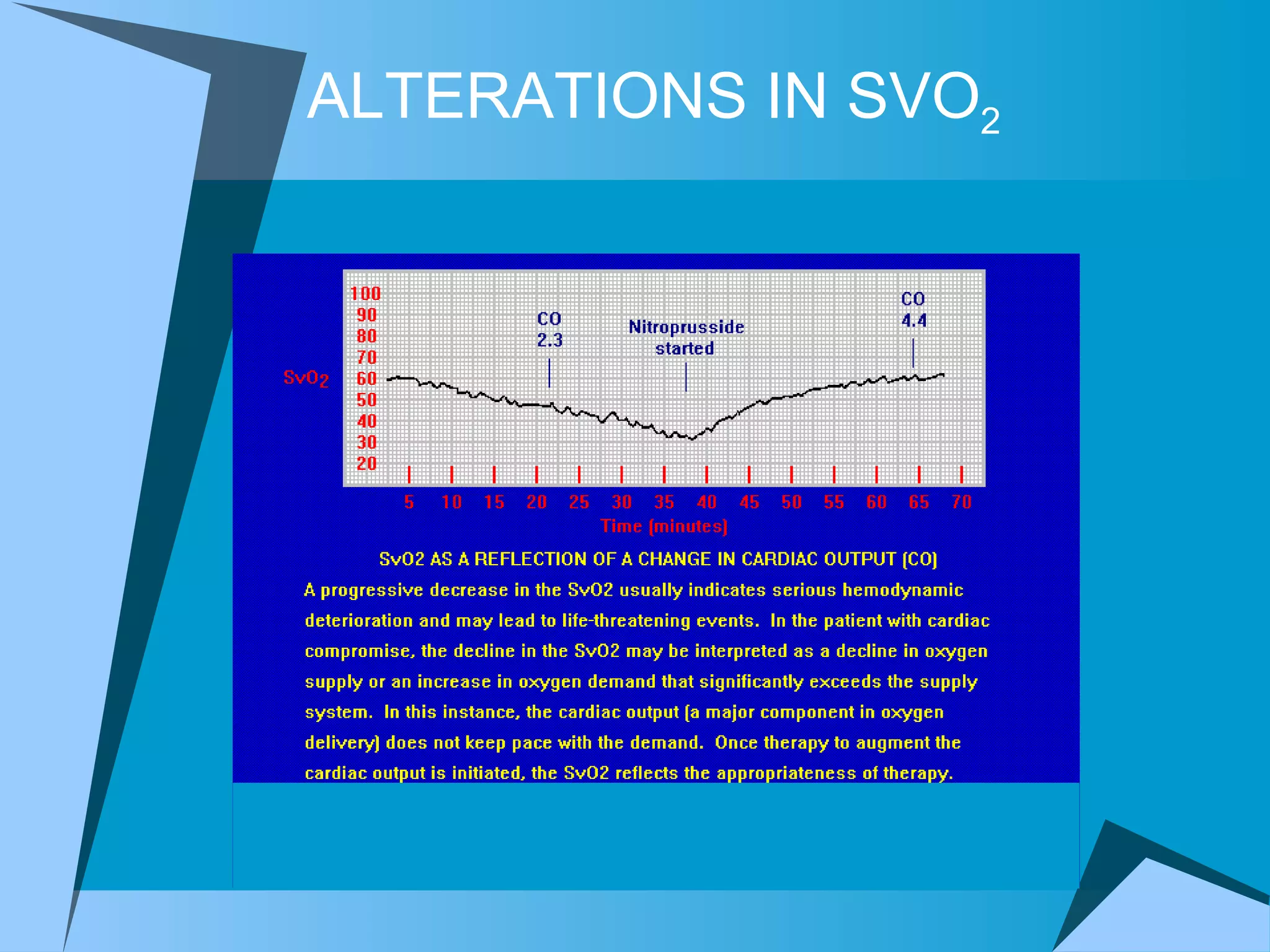

49. ALTERATIONS IN SVO 2

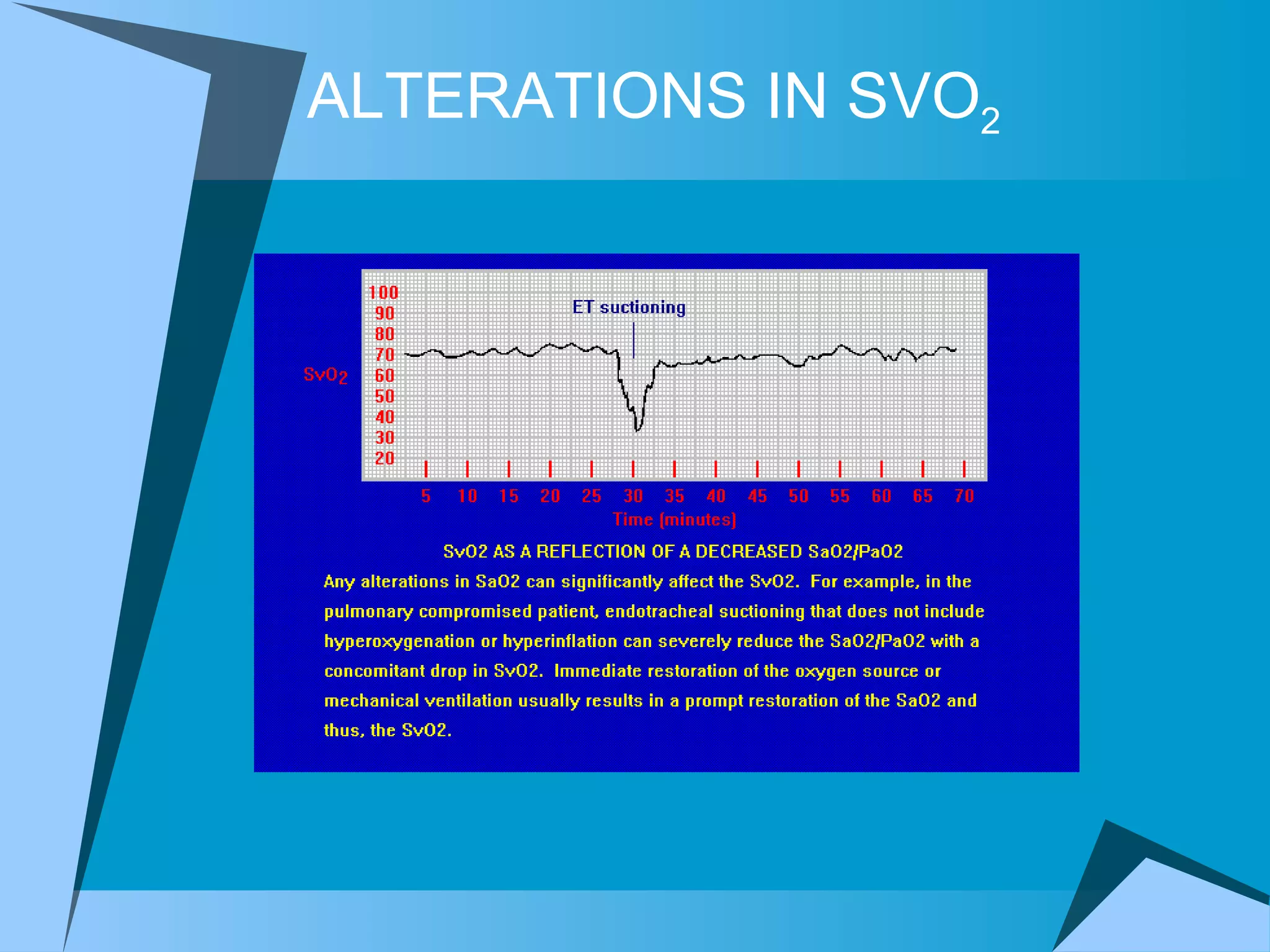

50. ALTERATIONS IN SVO 2

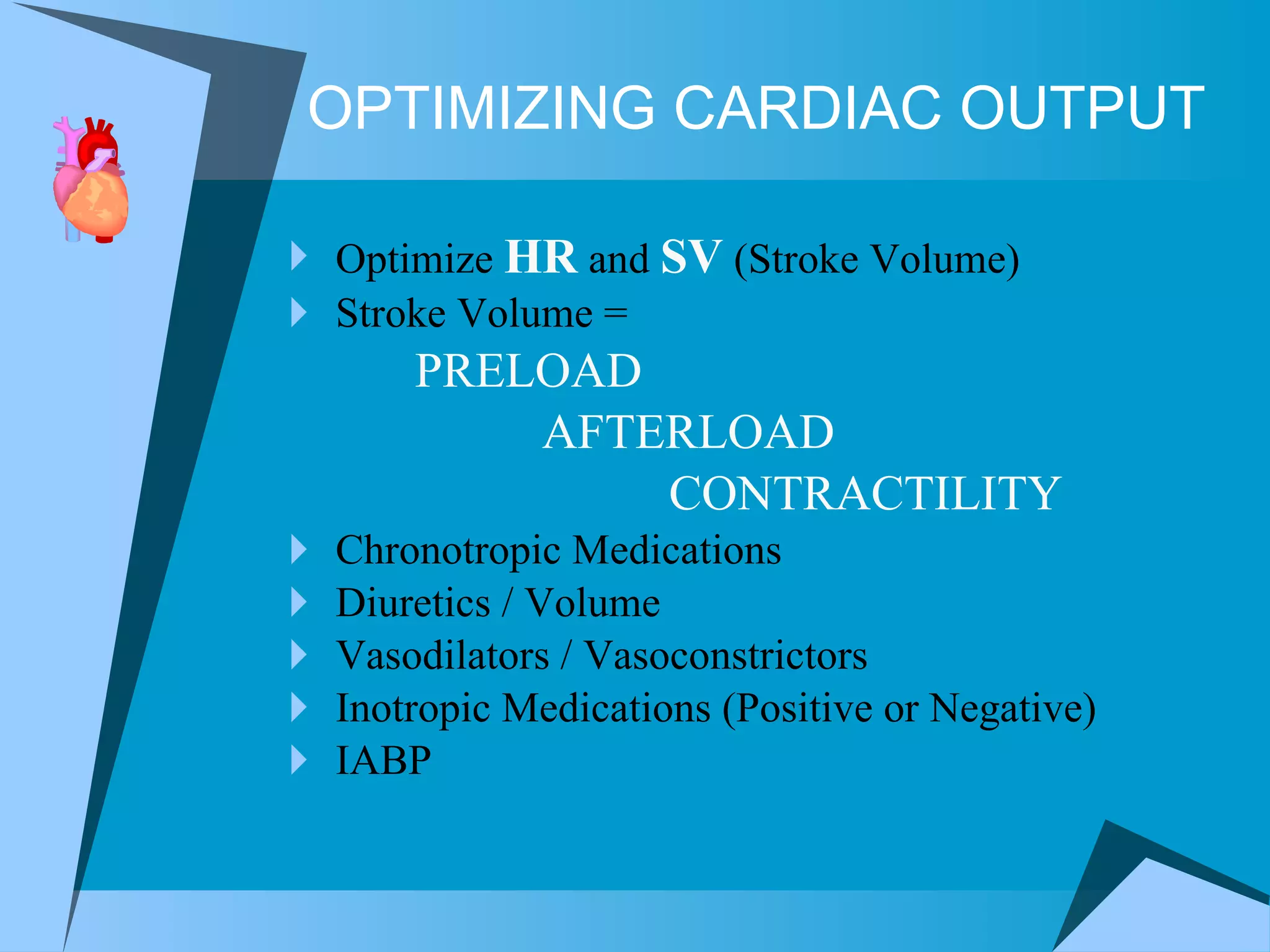

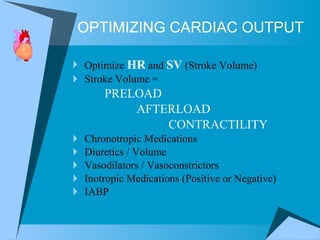

51. Optimize HR and SV (Stroke Volume) Stroke Volume = PRELOAD AFTERLOAD CONTRACTILITY Chronotropic Medications Diuretics / Volume Vasodilators / Vasoconstrictors Inotropic Medications (Positive or Negative) IABP OPTIMIZING CARDIAC OUTPUT

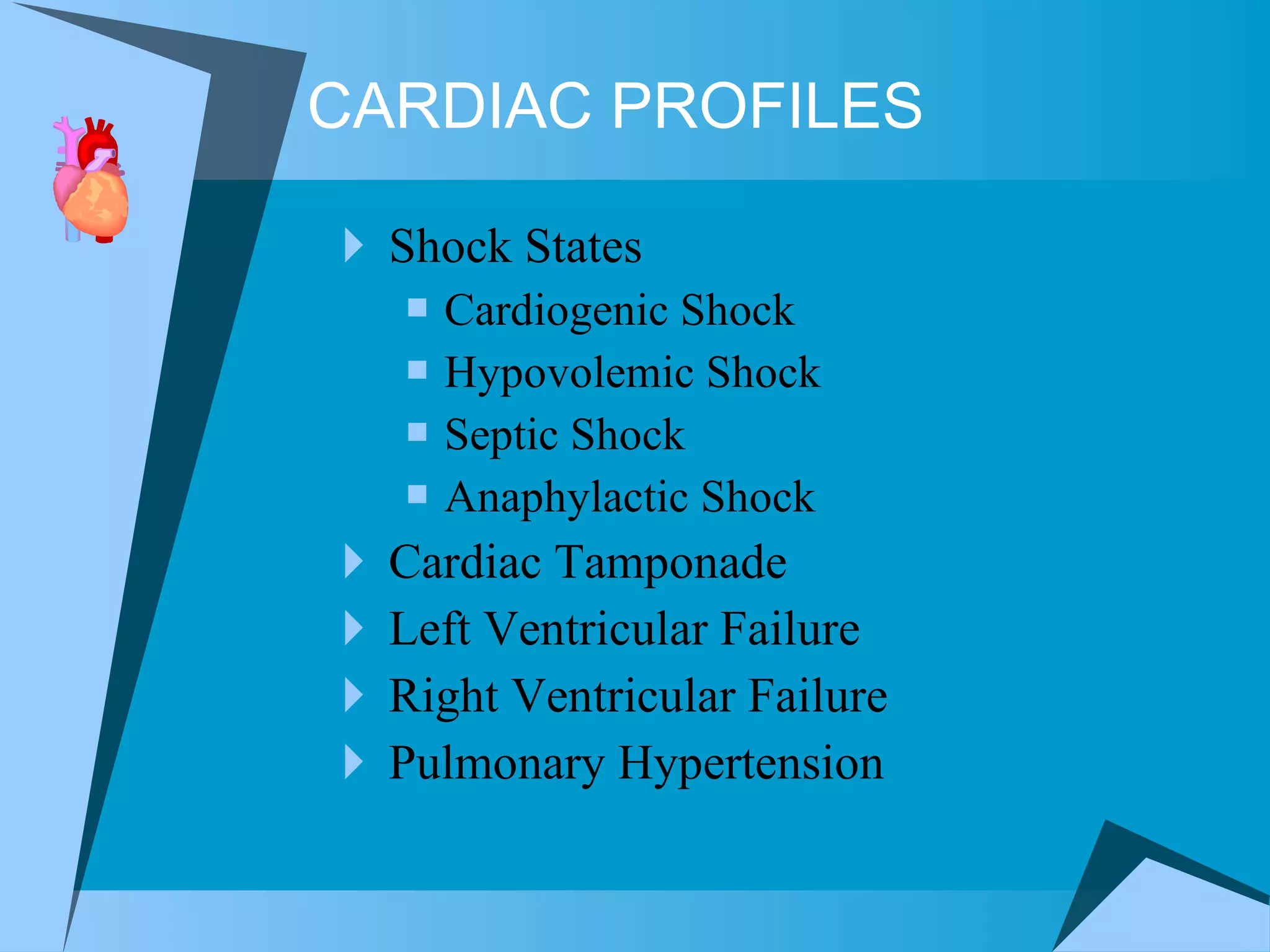

52. Shock States Cardiogenic Shock Hypovolemic Shock Septic Shock Anaphylactic Shock Cardiac Tamponade Left Ventricular Failure Right Ventricular Failure Pulmonary Hypertension CARDIAC PROFILES

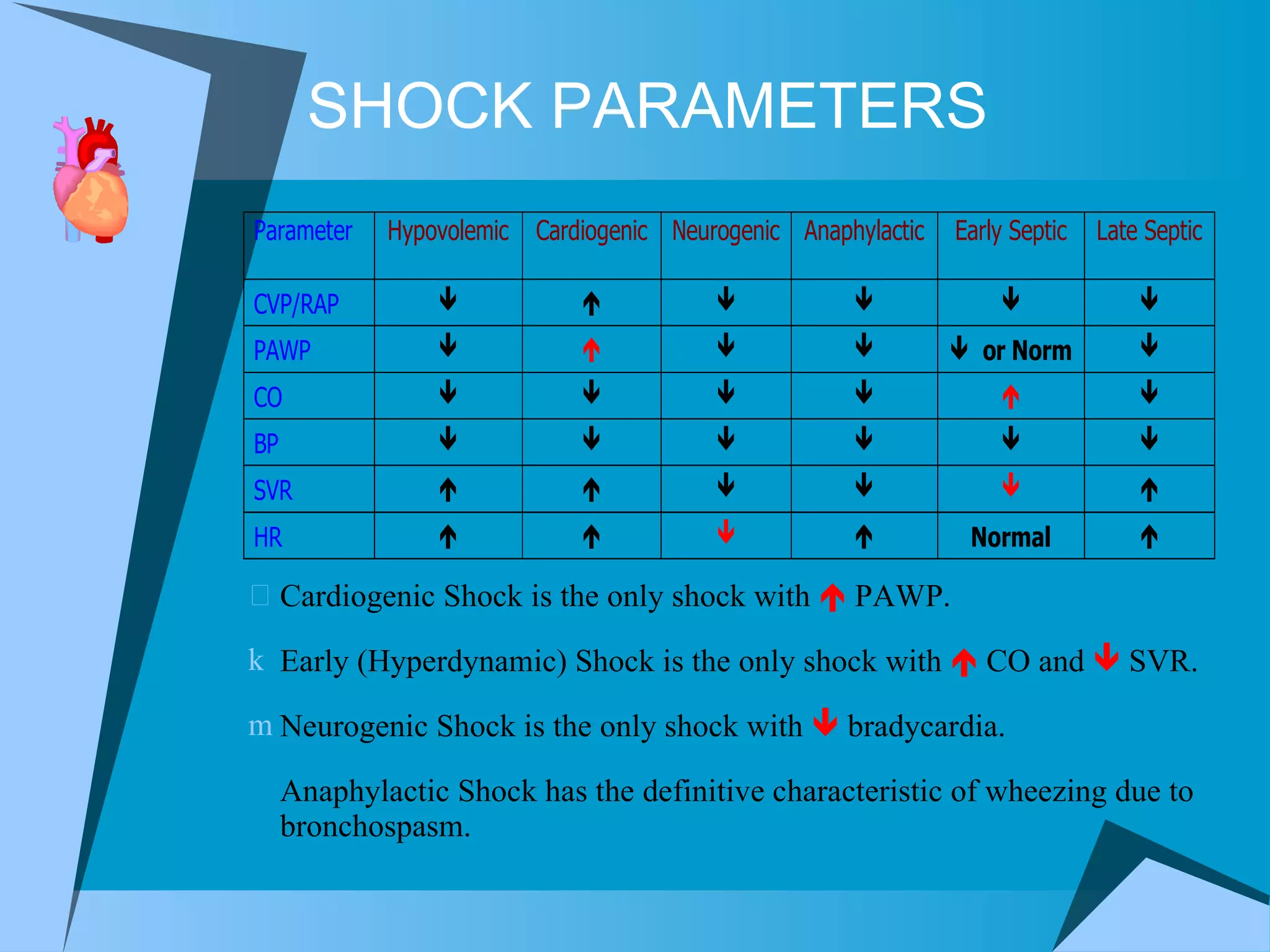

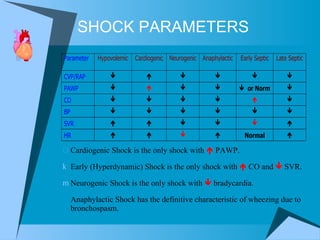

53. SHOCK PARAMETERS Cardiogenic Shock is the only shock with  PAWP. Early (Hyperdynamic) Shock is the only shock with  CO and  SVR. Neurogenic Shock is the only shock with  bradycardia. Anaphylactic Shock has the definitive characteristic of wheezing due to bronchospasm.

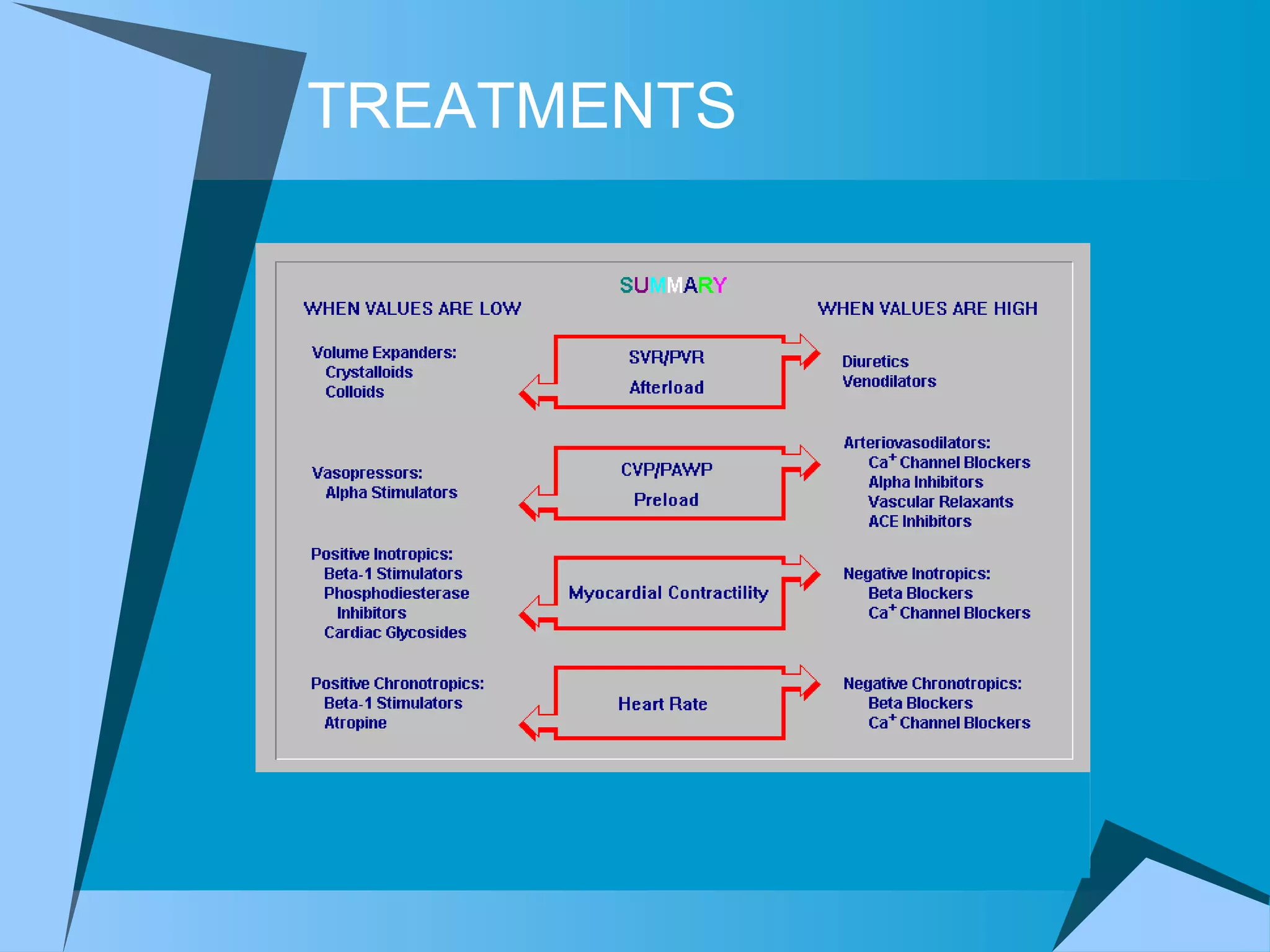

54. TREATMENTS

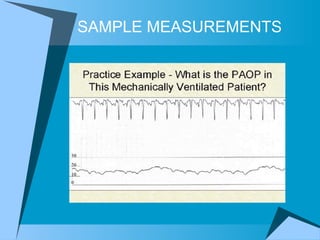

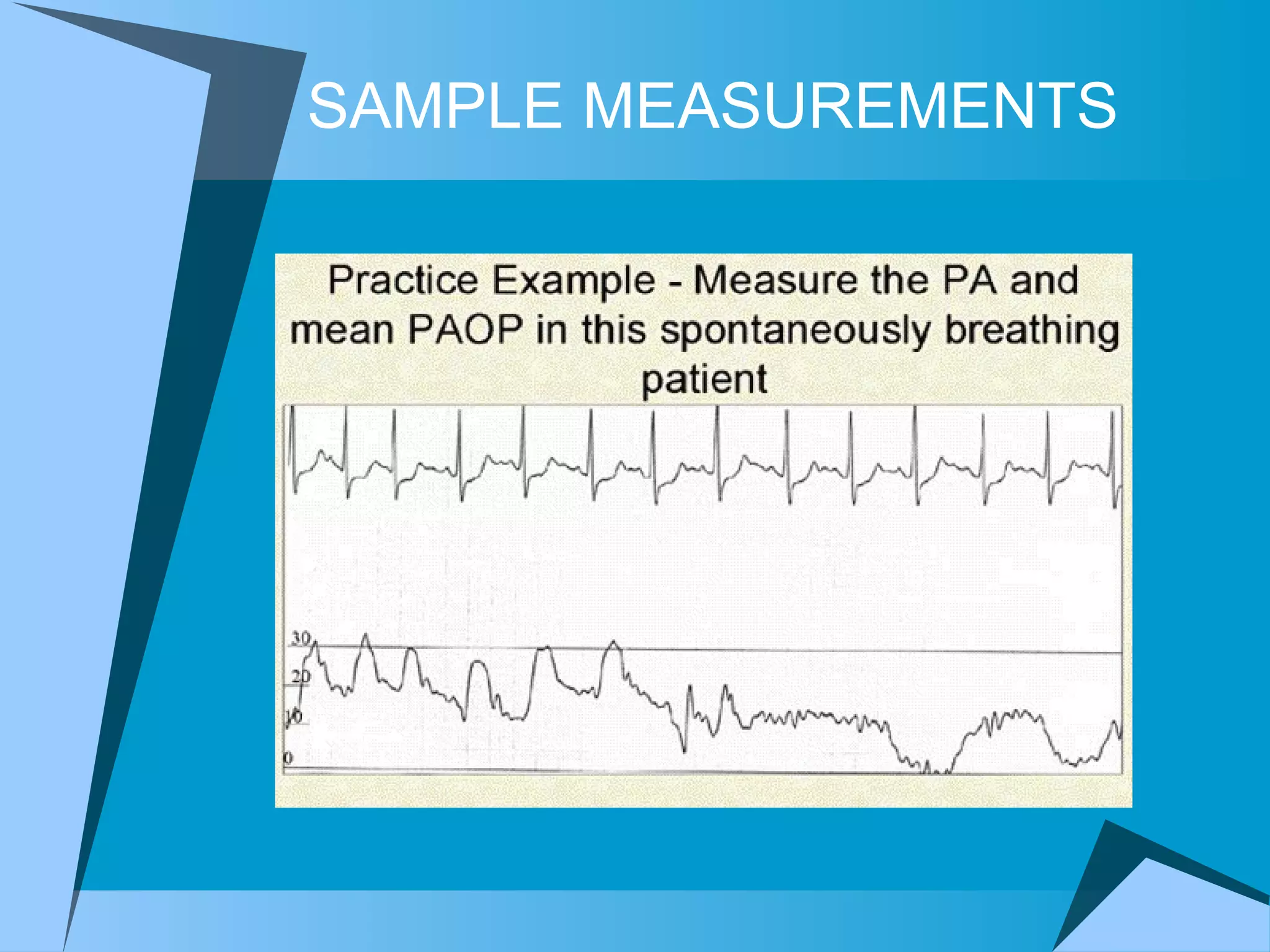

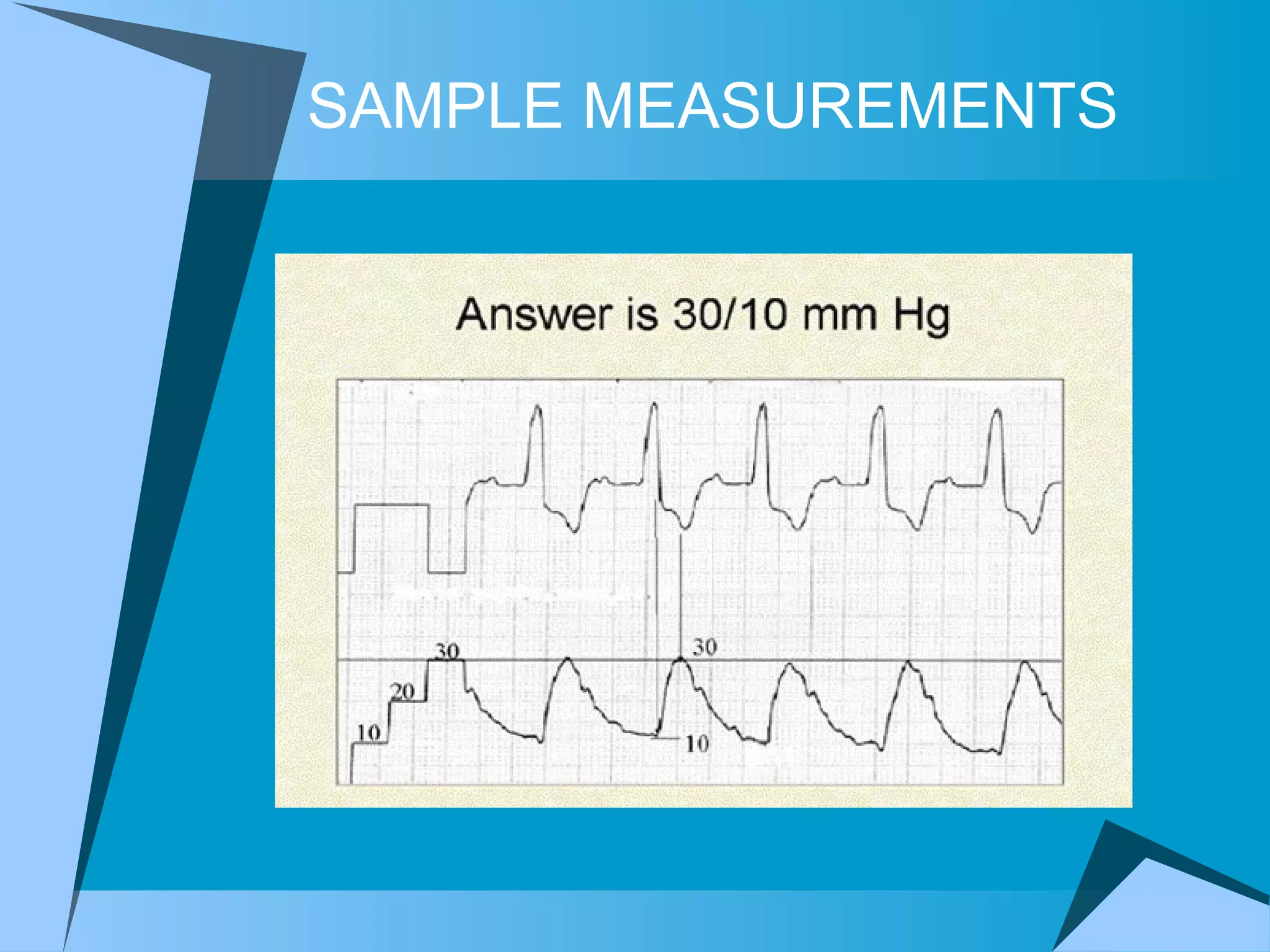

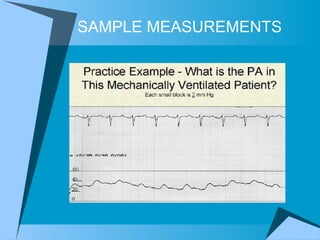

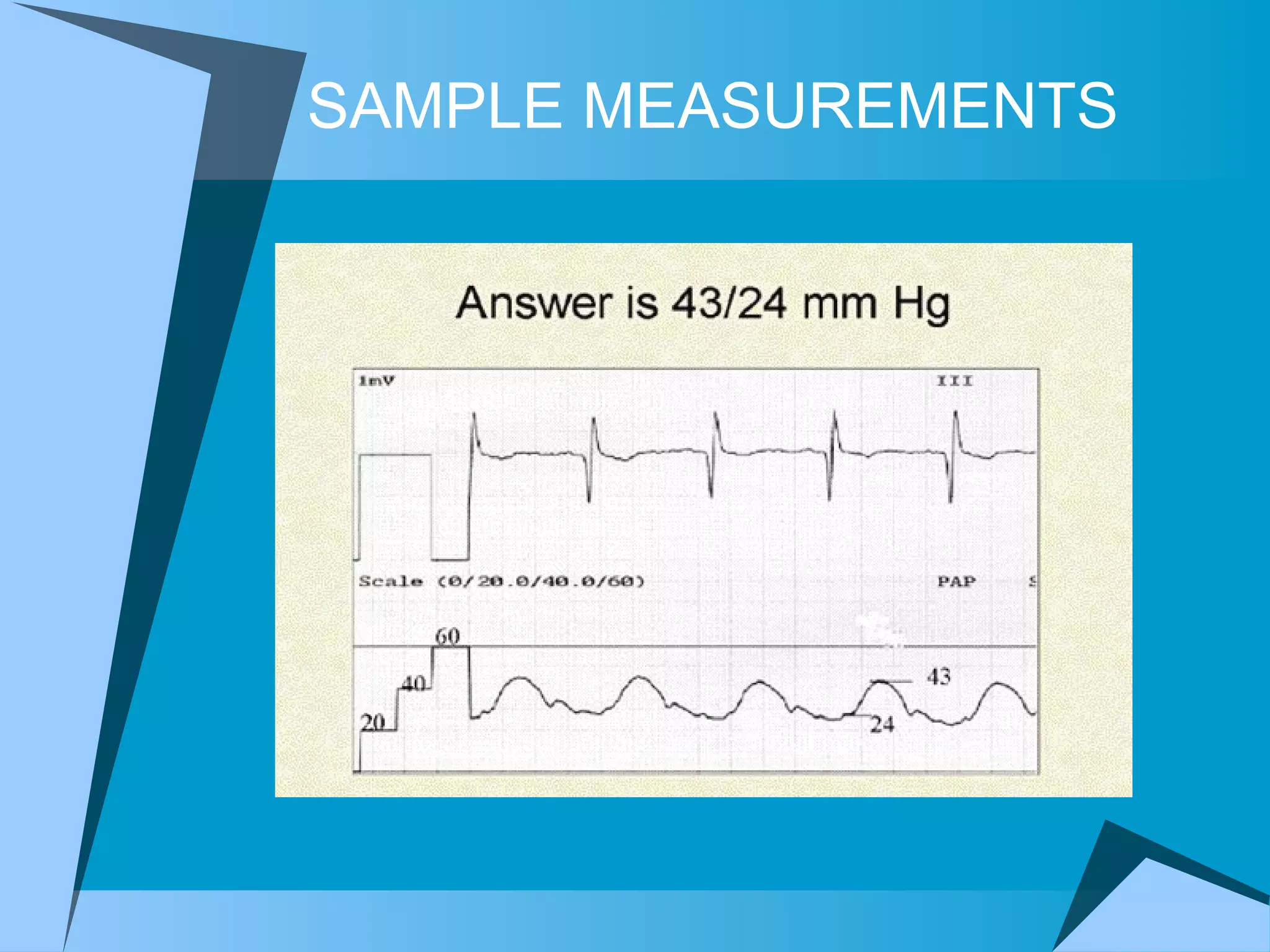

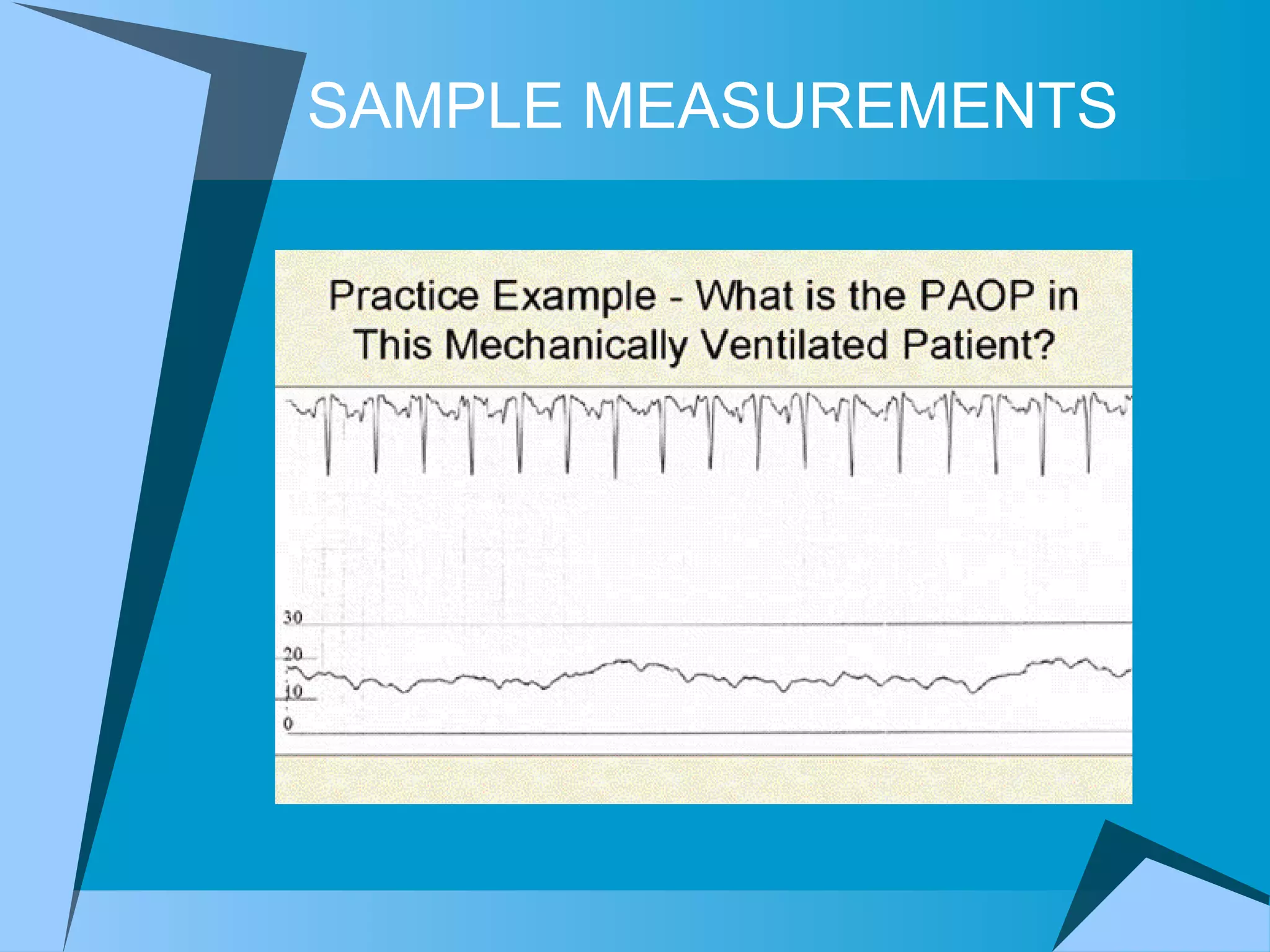

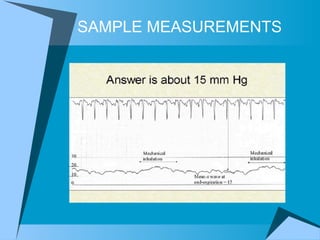

55. SAMPLE MEASUREMENTS

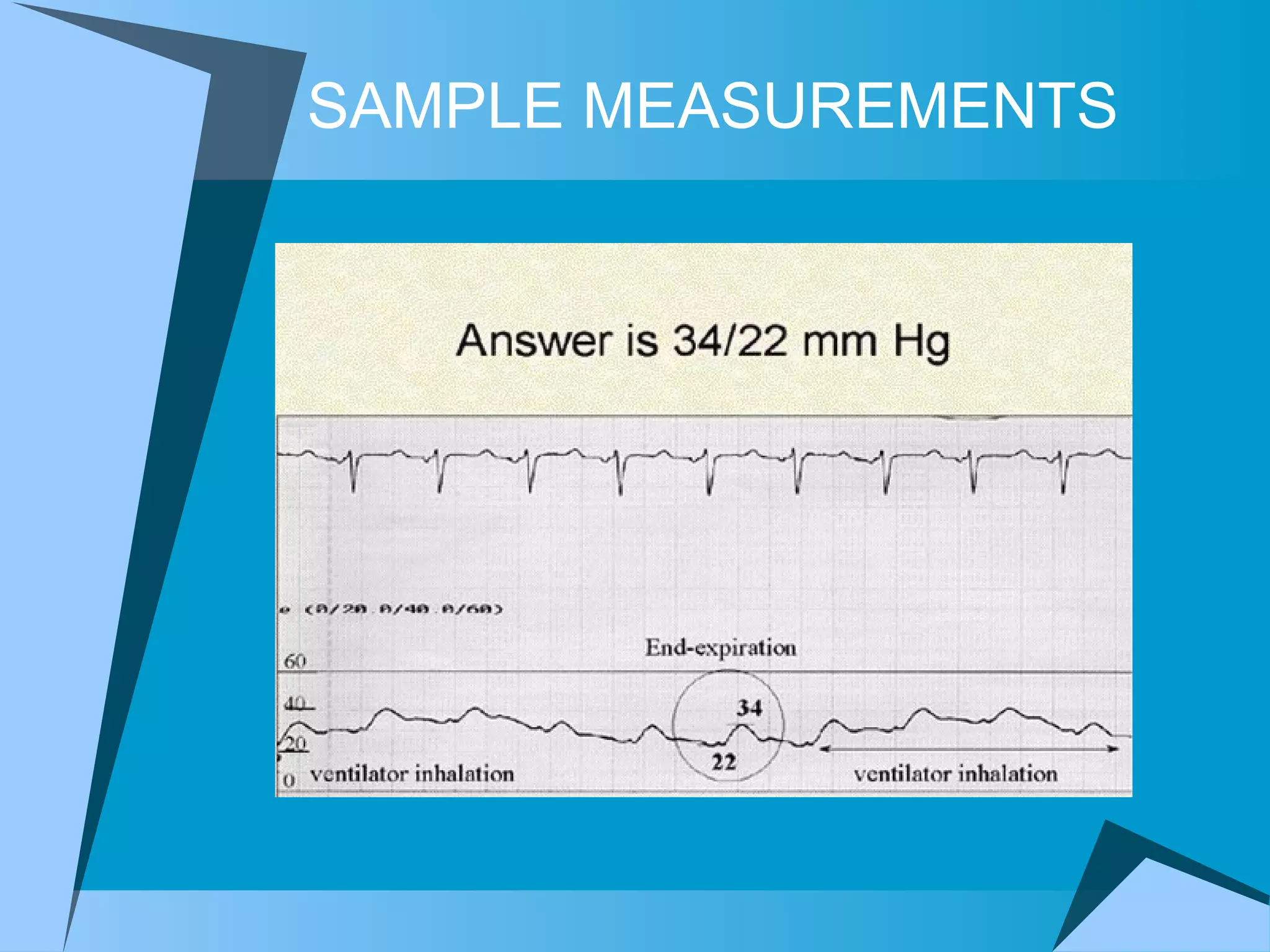

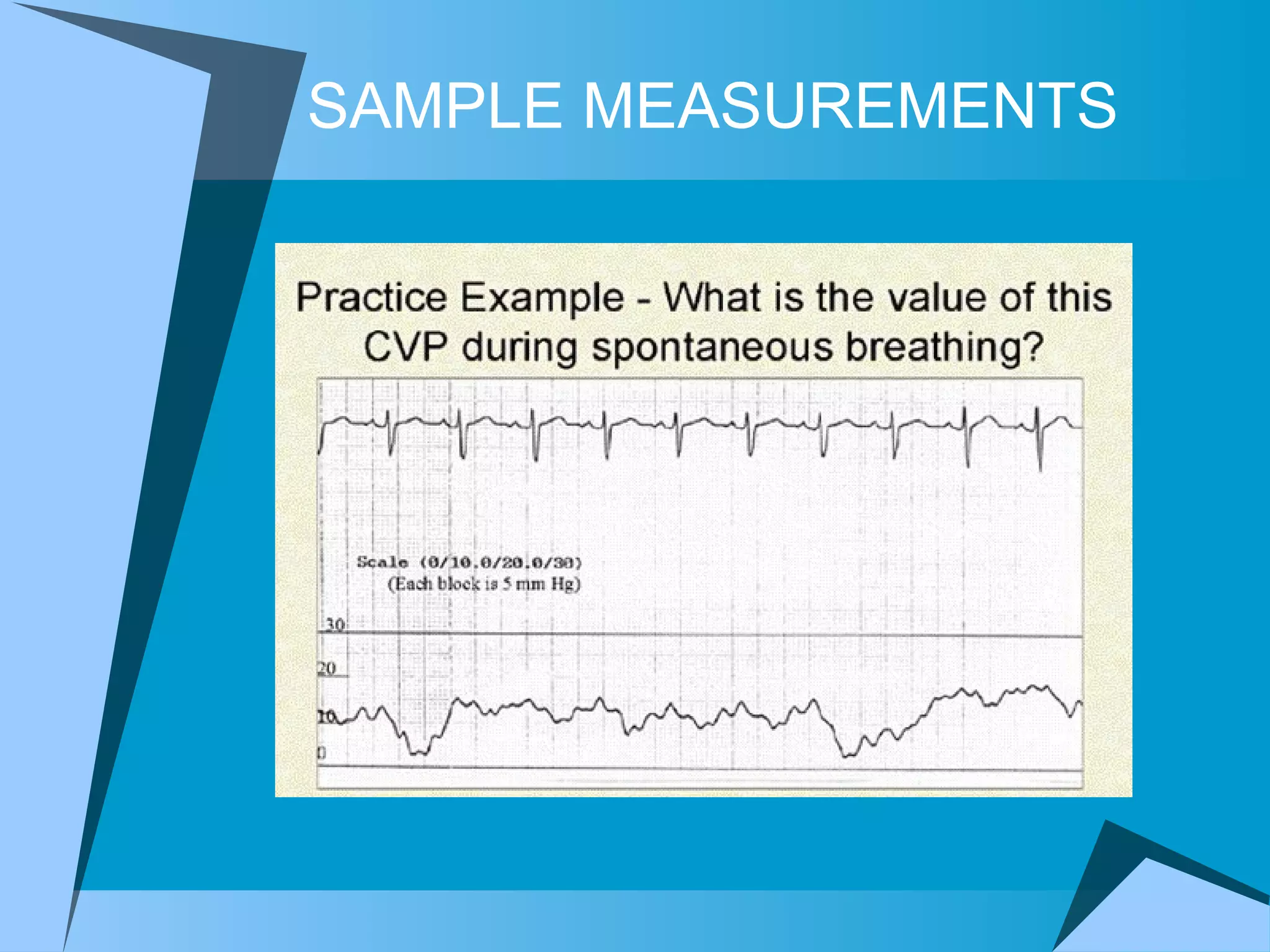

56. MEASUREMENTS

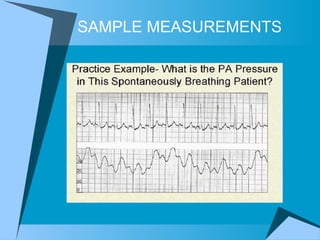

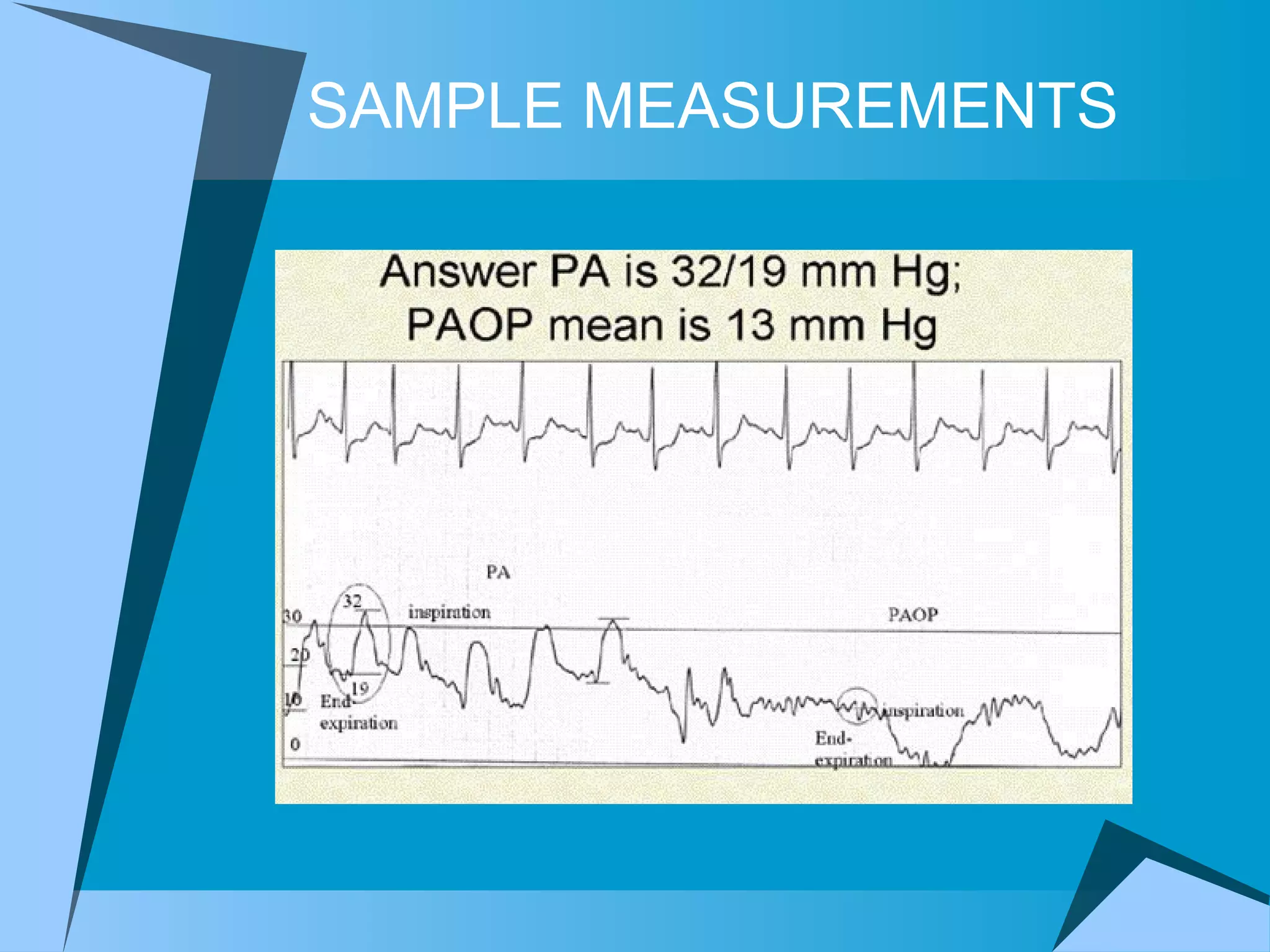

57. SAMPLE MEASUREMENTS

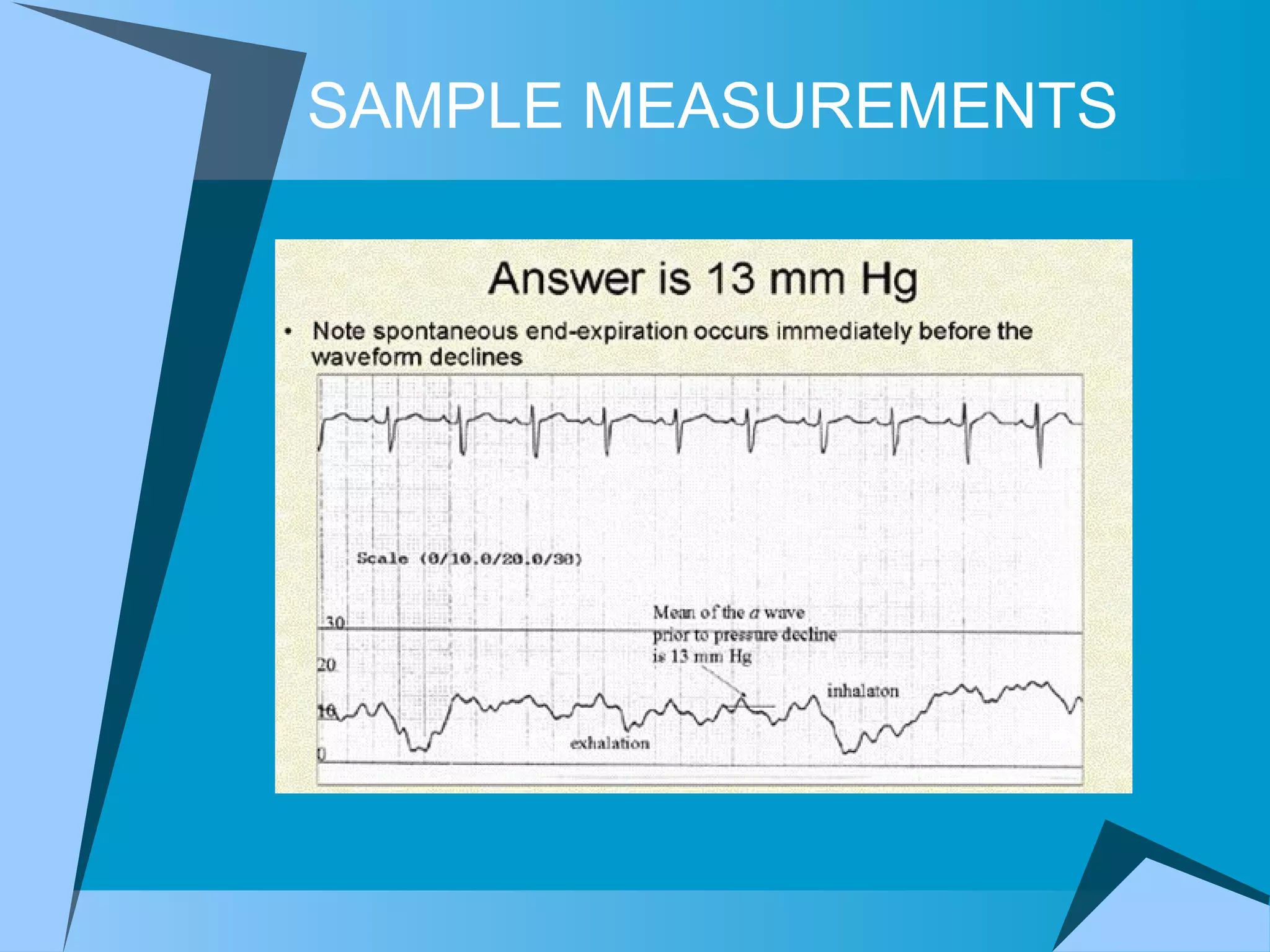

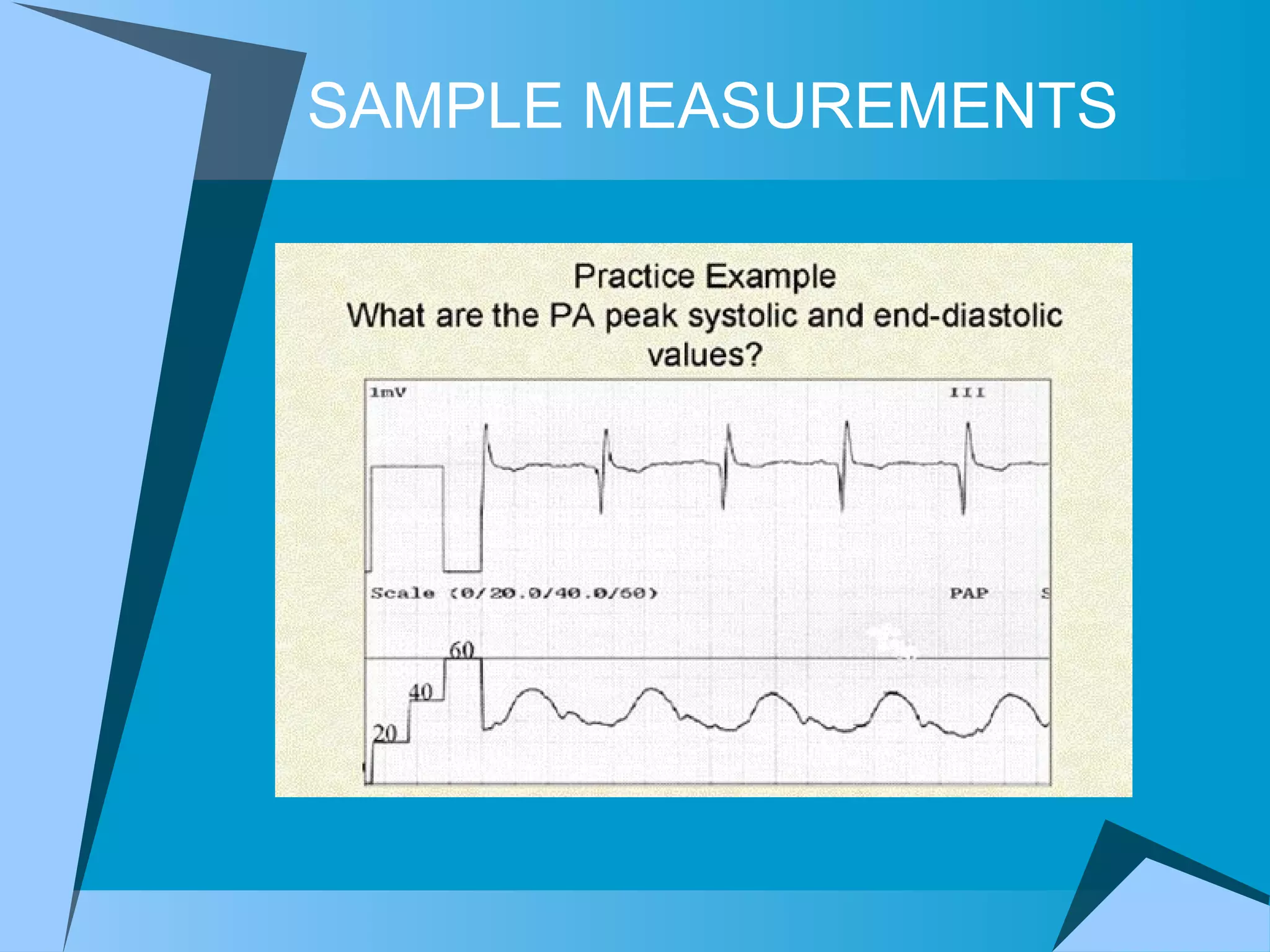

58. SAMPLE MEASUREMENTS

59. SAMPLE MEASUREMENTS

60. SAMPLE MEASUREMENTS

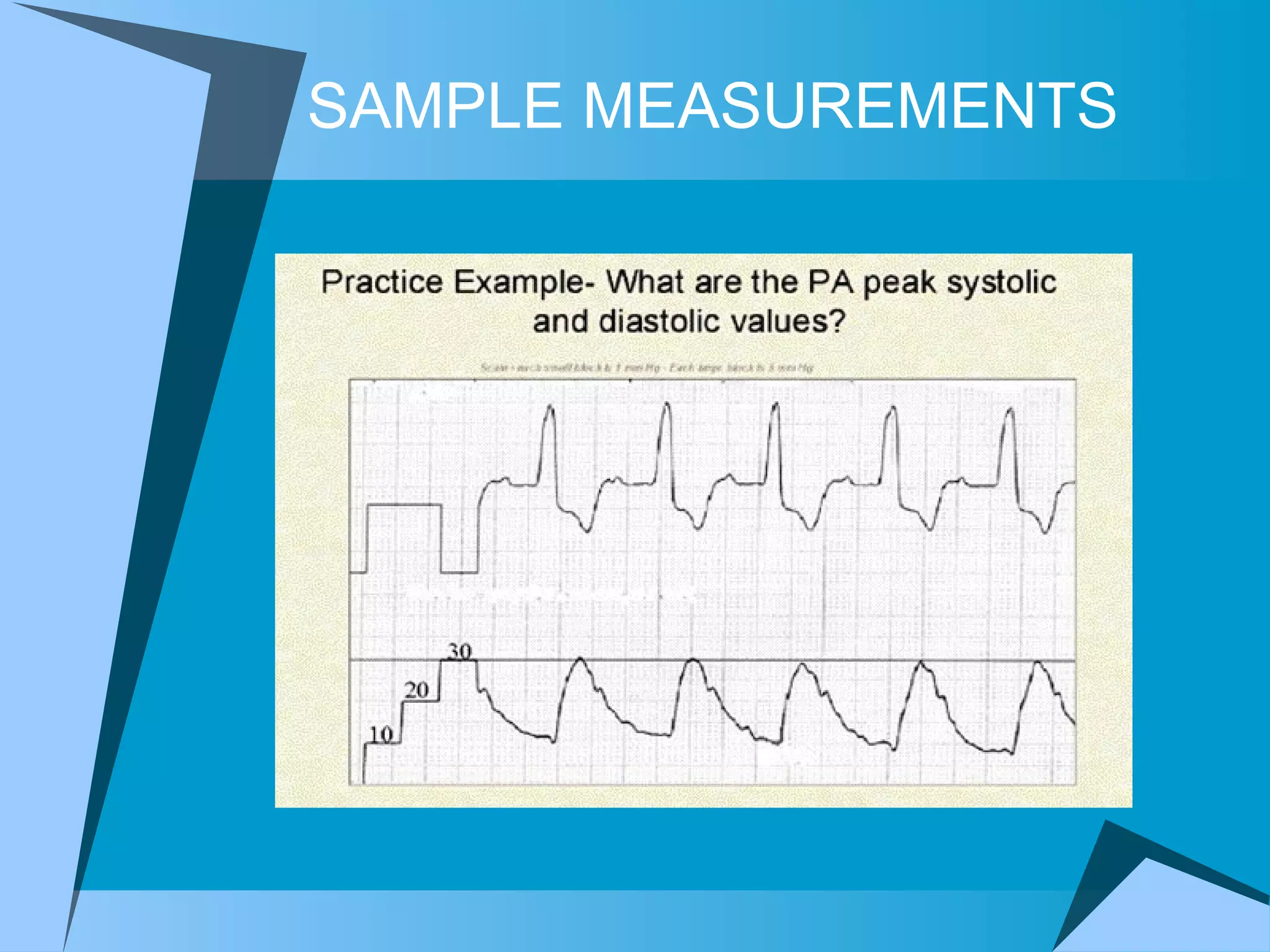

61. SAMPLE MEASUREMENTS

62. SAMPLE MEASUREMENTS

63. SAMPLE MEASUREMENTS

64. SAMPLE MEASUREMENTS

65. SAMPLE MEASUREMENTS

66. SAMPLE MEASUREMENTS

67. SAMPLE MEASUREMENTS

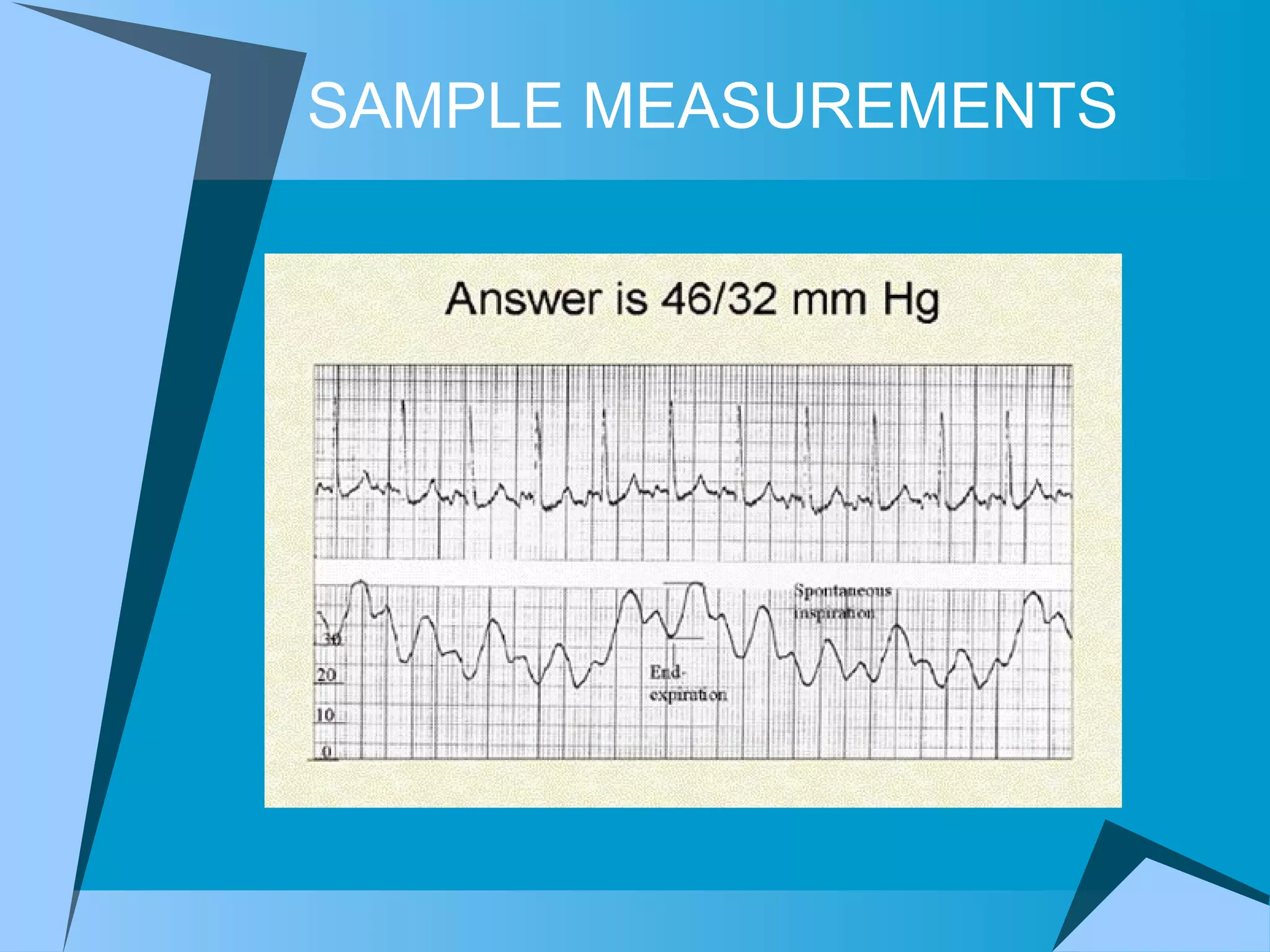

68. SAMPLE MEASUREMENTS

69. SAMPLE MEASUREMENTS

70. SAMPLE MEASUREMENTS

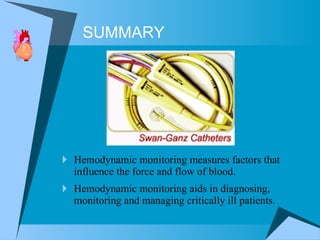

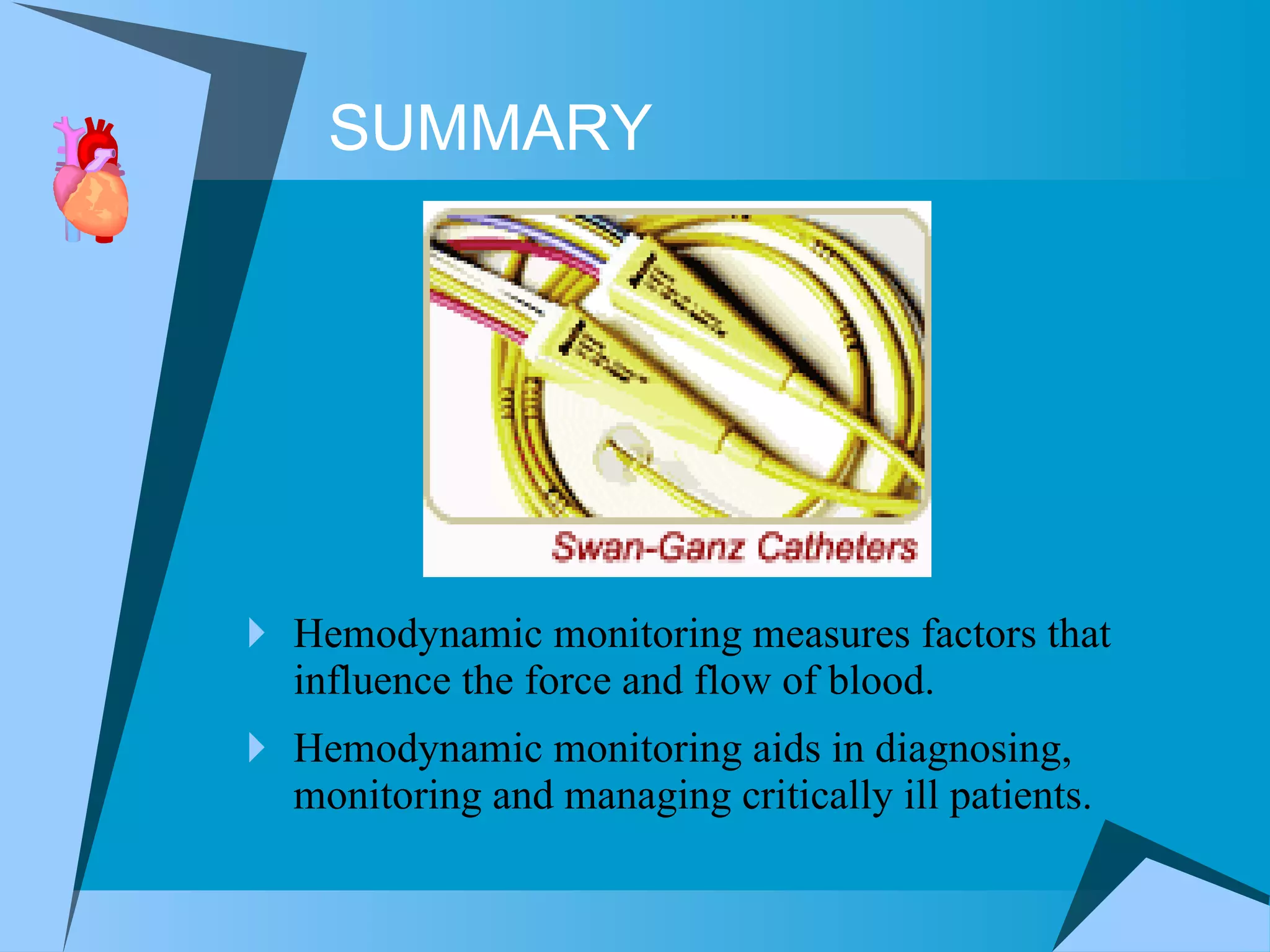

71. Hemodynamic monitoring measures factors that influence the force and flow of blood. Hemodynamic monitoring aids in diagnosing, monitoring and managing critically ill patients. SUMMARY

72. THE END

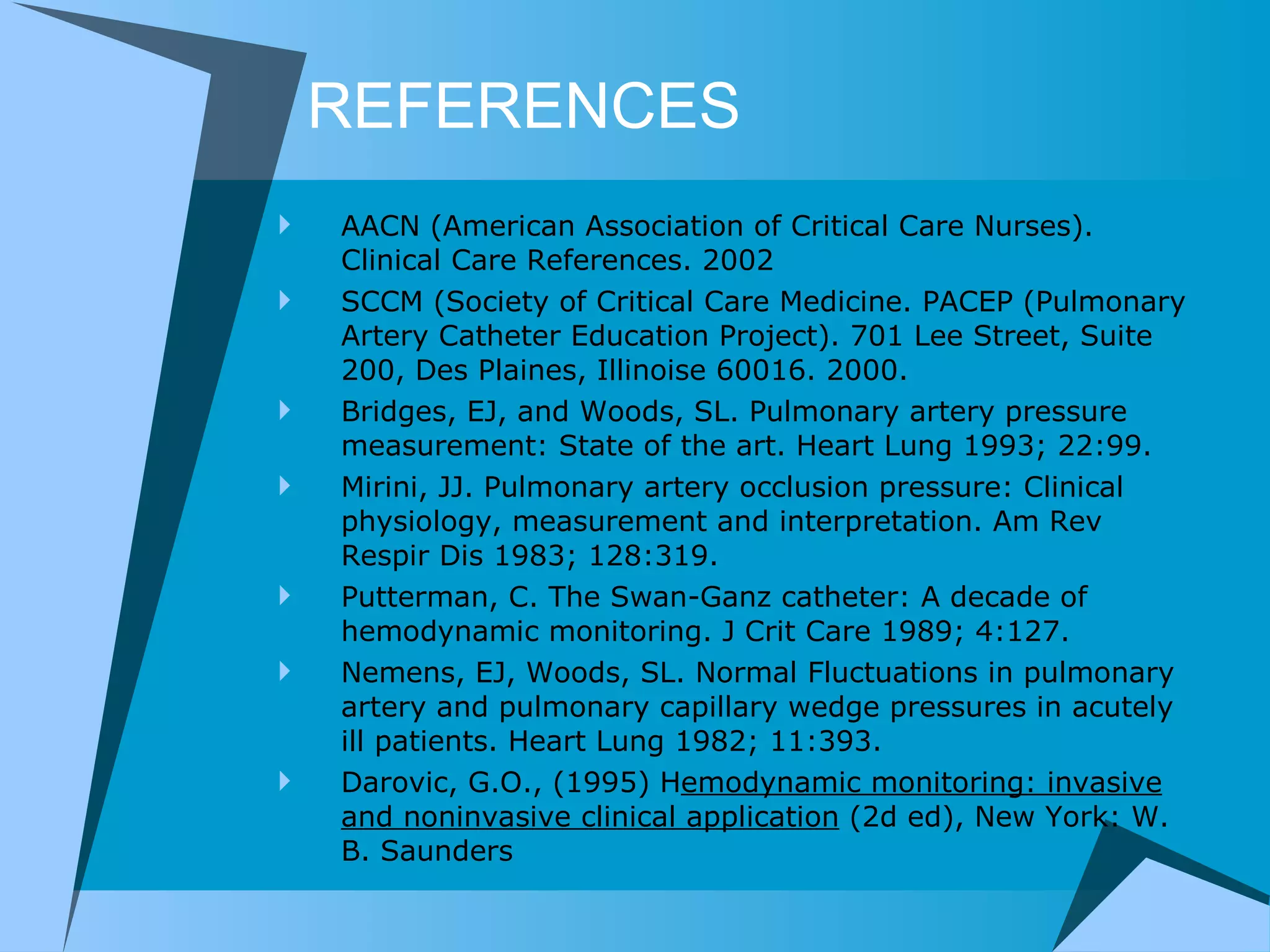

73. REFERENCES AACN (American Association of Critical Care Nurses). Clinical Care References. 2002 SCCM (Society of Critical Care Medicine. PACEP (Pulmonary Artery Catheter Education Project). 701 Lee Street, Suite 200, Des Plaines, Illinoise 60016. 2000. Bridges, EJ, and Woods, SL. Pulmonary artery pressure measurement: State of the art. Heart Lung 1993; 22:99. Mirini, JJ. Pulmonary artery occlusion pressure: Clinical physiology, measurement and interpretation. Am Rev Respir Dis 1983; 128:319. Putterman, C. The Swan-Ganz catheter: A decade of hemodynamic monitoring. J Crit Care 1989; 4:127. Nemens, EJ, Woods, SL. Normal Fluctuations in pulmonary artery and pulmonary capillary wedge pressures in acutely ill patients. Heart Lung 1982; 11:393. Darovic, G.O., (1995) H emodynamic monitoring: invasive and noninvasive clinical application (2d ed), New York: W. B. Saunders
