Pacemaker Overview
The document provides an overview of pacemaker indications, functions, and operation. It discusses normal heart rhythm and conduction, abnormalities that can require pacing like sinus node dysfunction and AV block, pacemaker components, modes and how they work, factors in selecting an optimal pacing mode, and indications for various pacing therapies.
More Related Content
Similar to Pacemaker Overview
Pacemaker Overview
- 1. Pacemaker Overview StuartAllen Technical Head Southampton General Stuart Allen 06

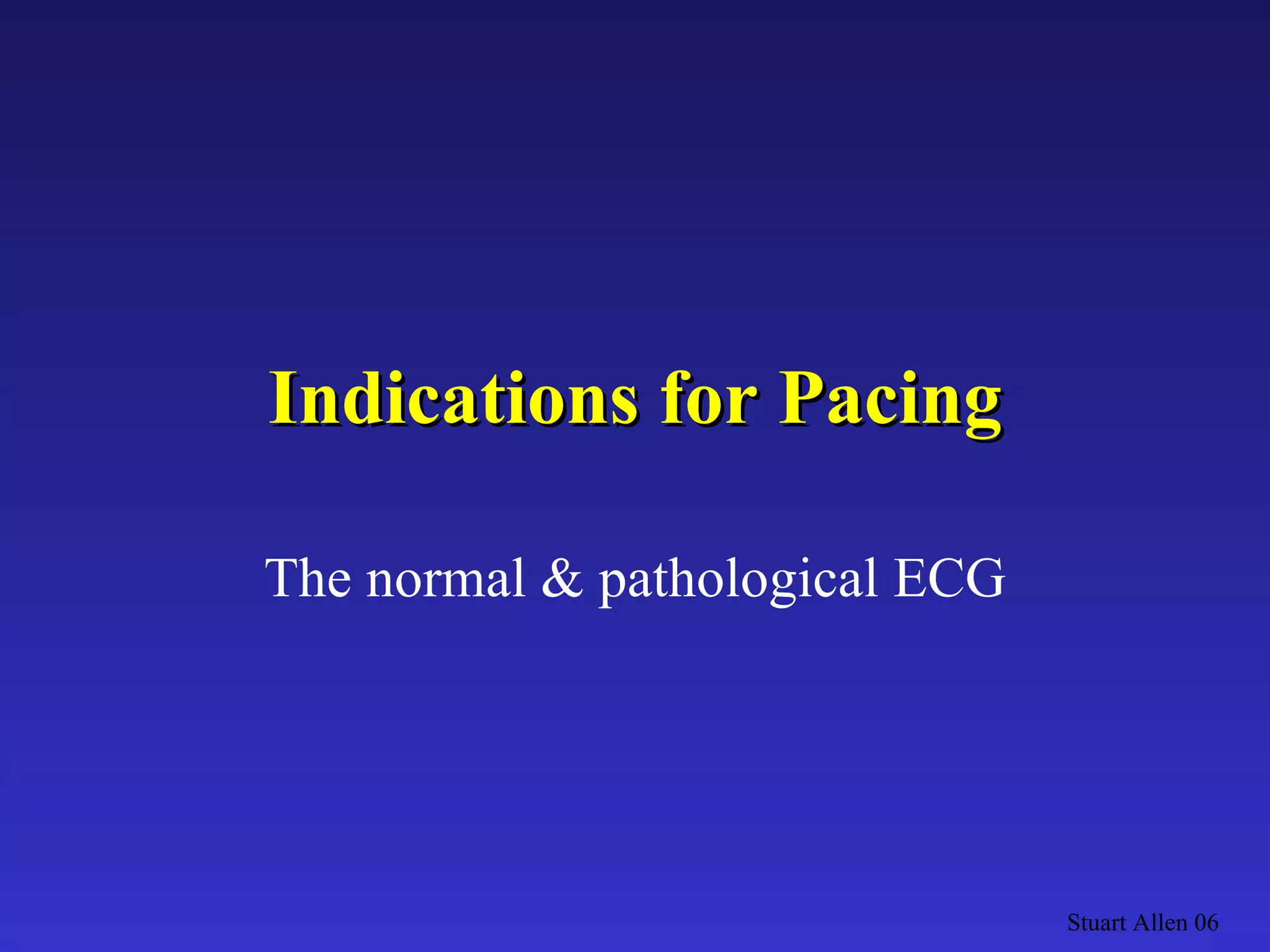

- 2. Indications for PacingThe normal & pathological ECG Stuart Allen 06

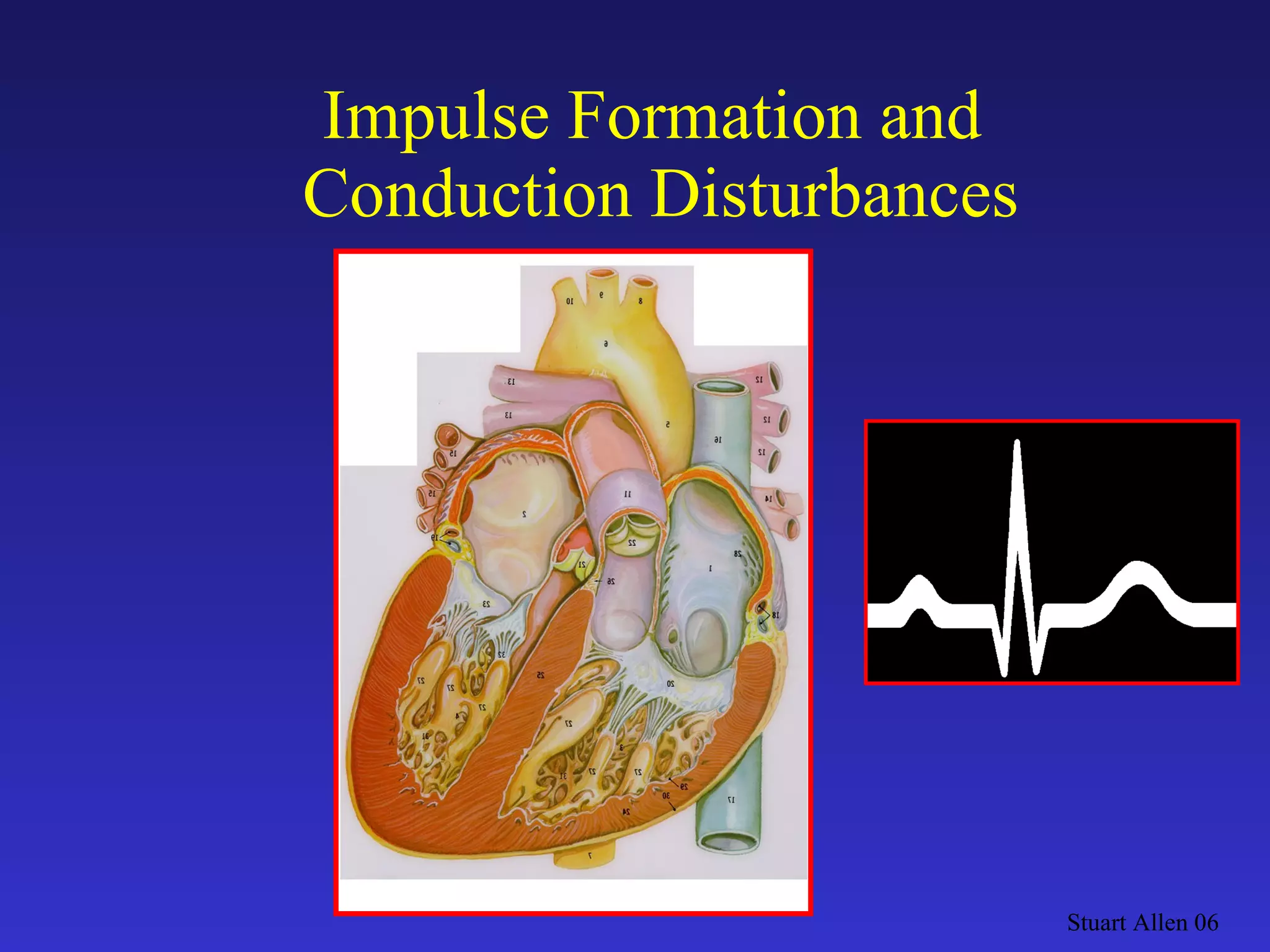

- 3. Impulse Formation and Conduction Disturbances Stuart Allen 06
- 4. “ Normal HeartRhythm” (Function) Stuart Allen 06

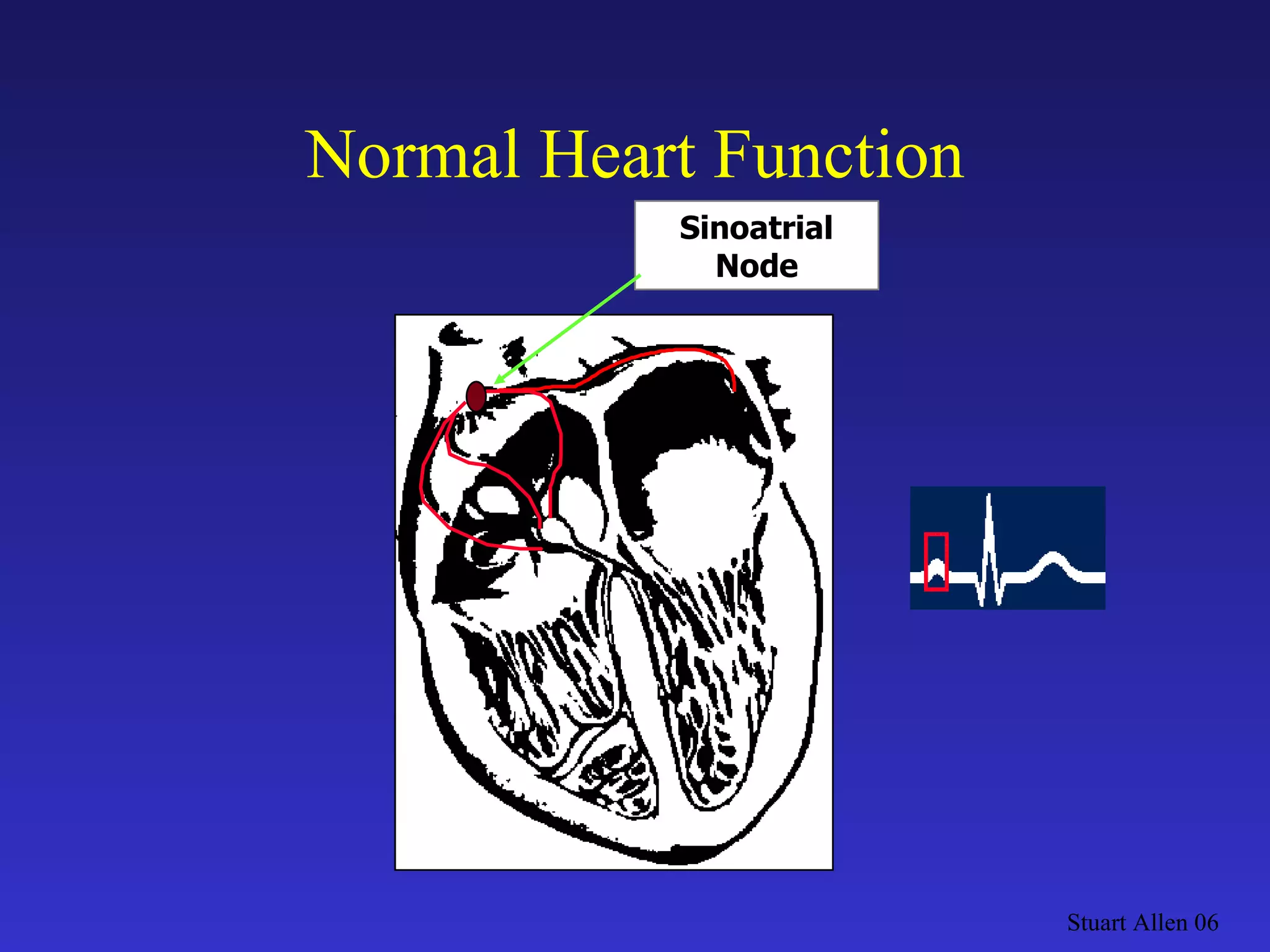

- 5. Normal Heart FunctionStuart Allen 06 Sinoatrial Node

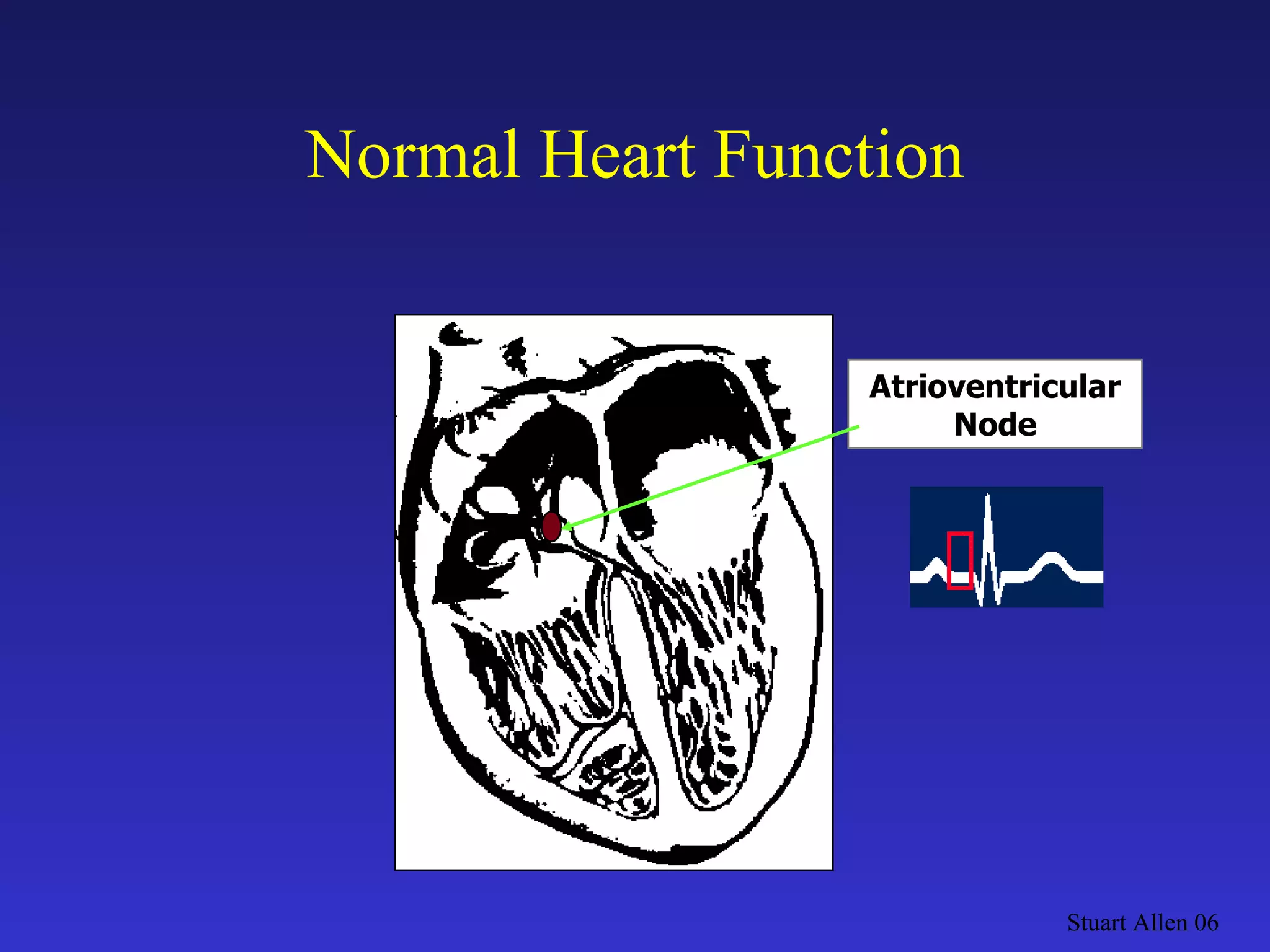

- 6. Normal Heart FunctionStuart Allen 06 Atrioventricular Node

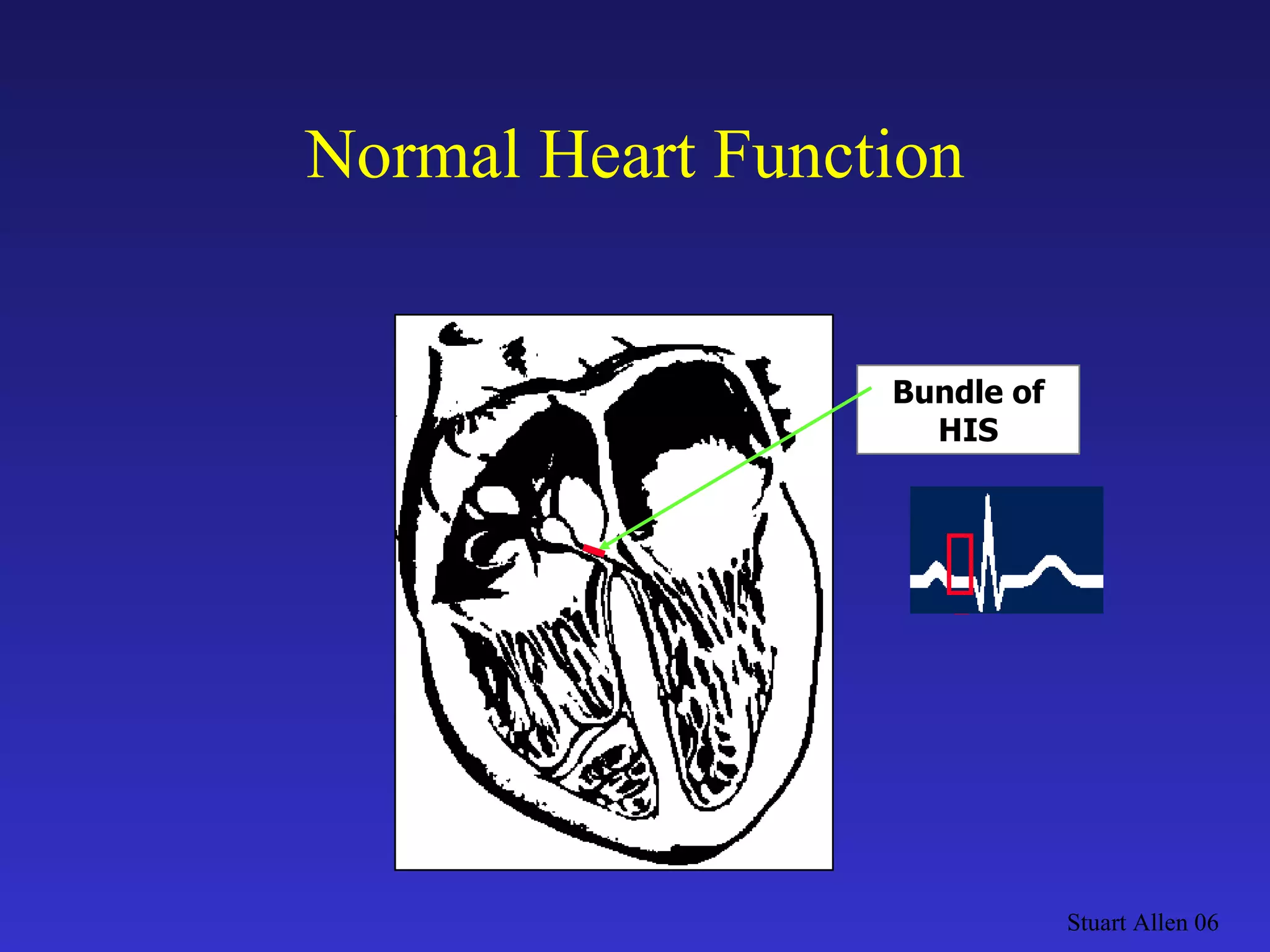

- 7. Normal Heart FunctionStuart Allen 06 Bundle of HIS

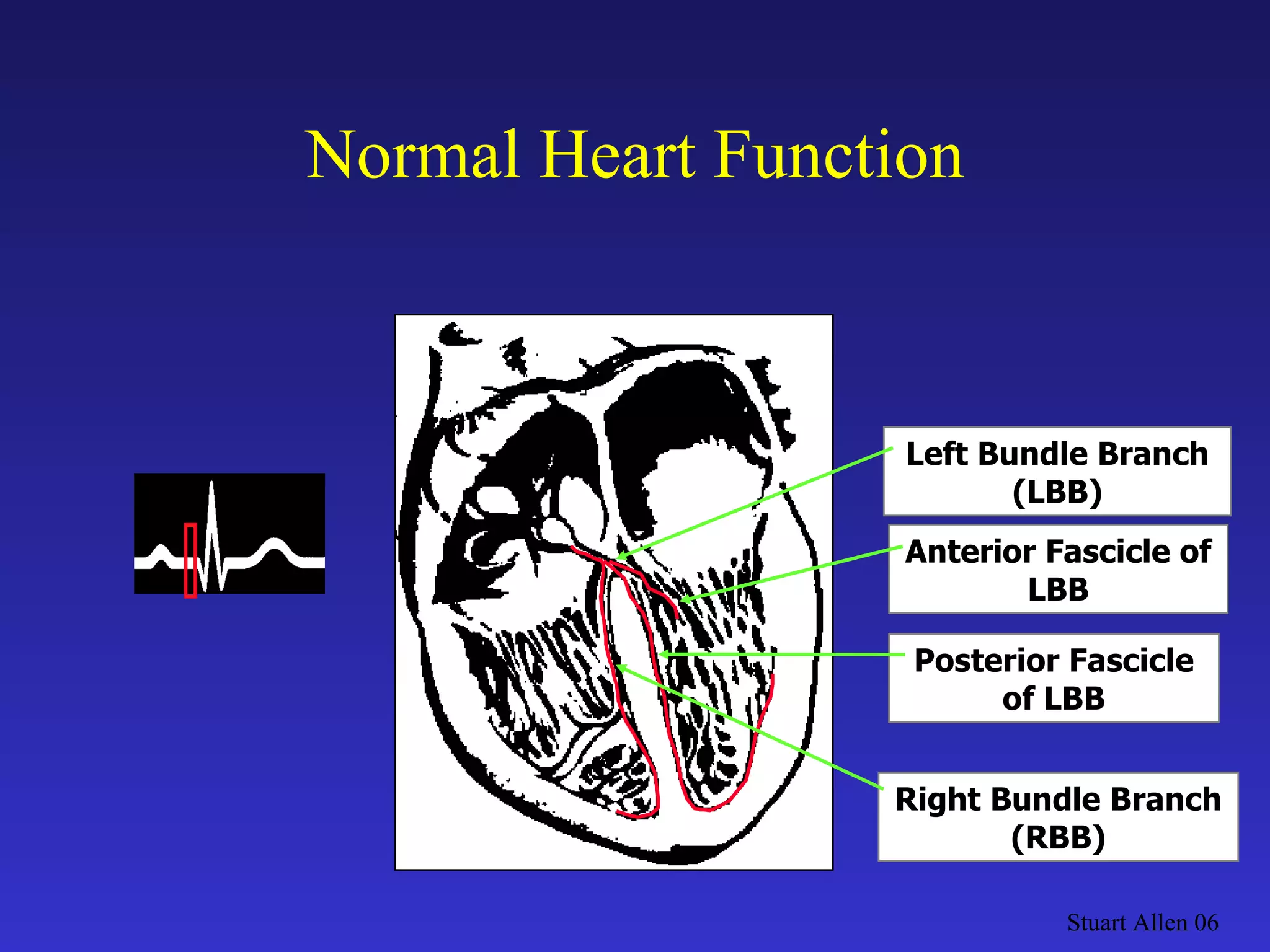

- 8. Normal Heart FunctionStuart Allen 06 Left Bundle Branch (LBB) Anterior Fascicle of LBB Posterior Fascicle of LBB Right Bundle Branch (RBB)

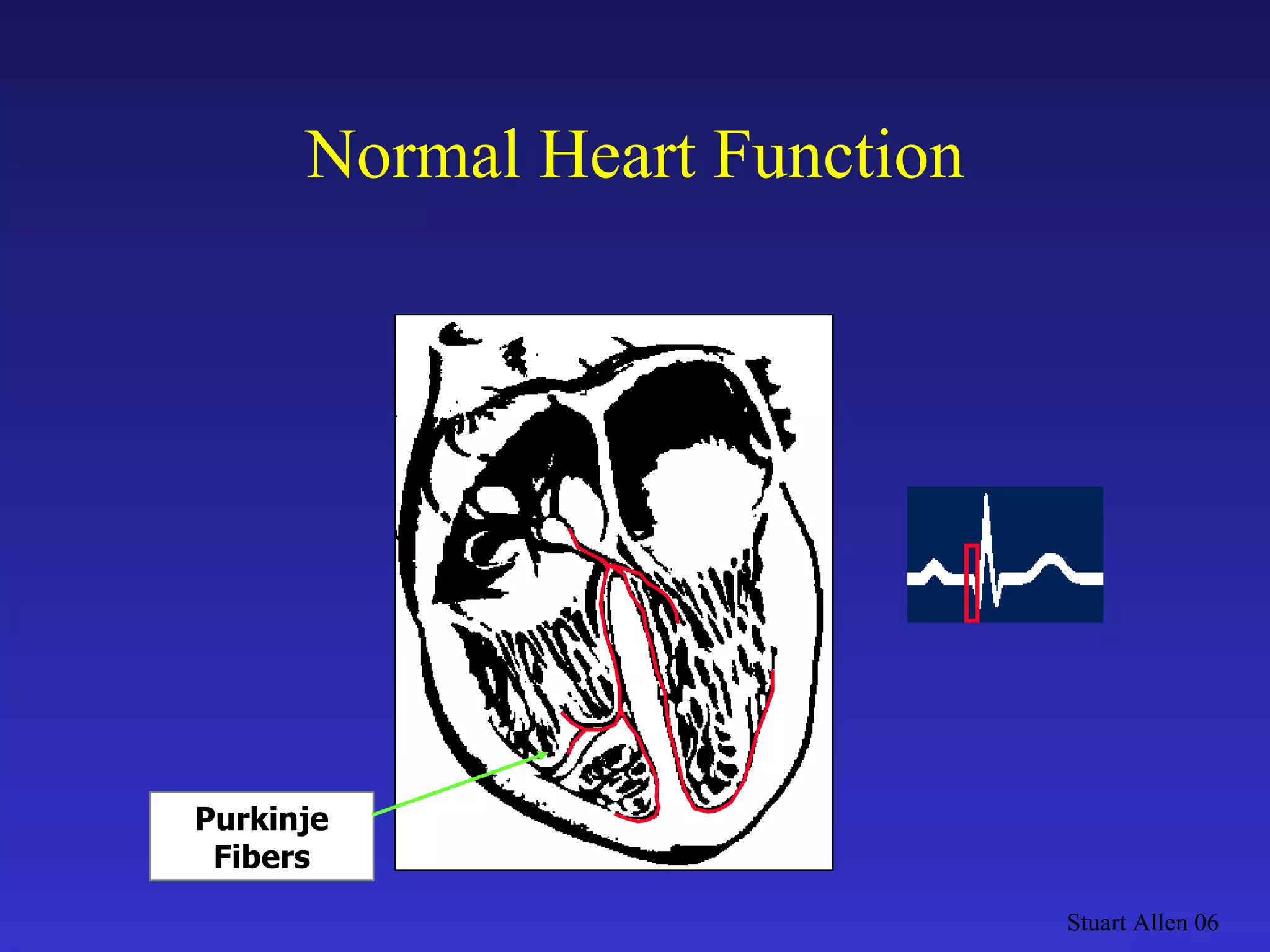

- 9. Normal Heart FunctionStuart Allen 06 Purkinje Fibers

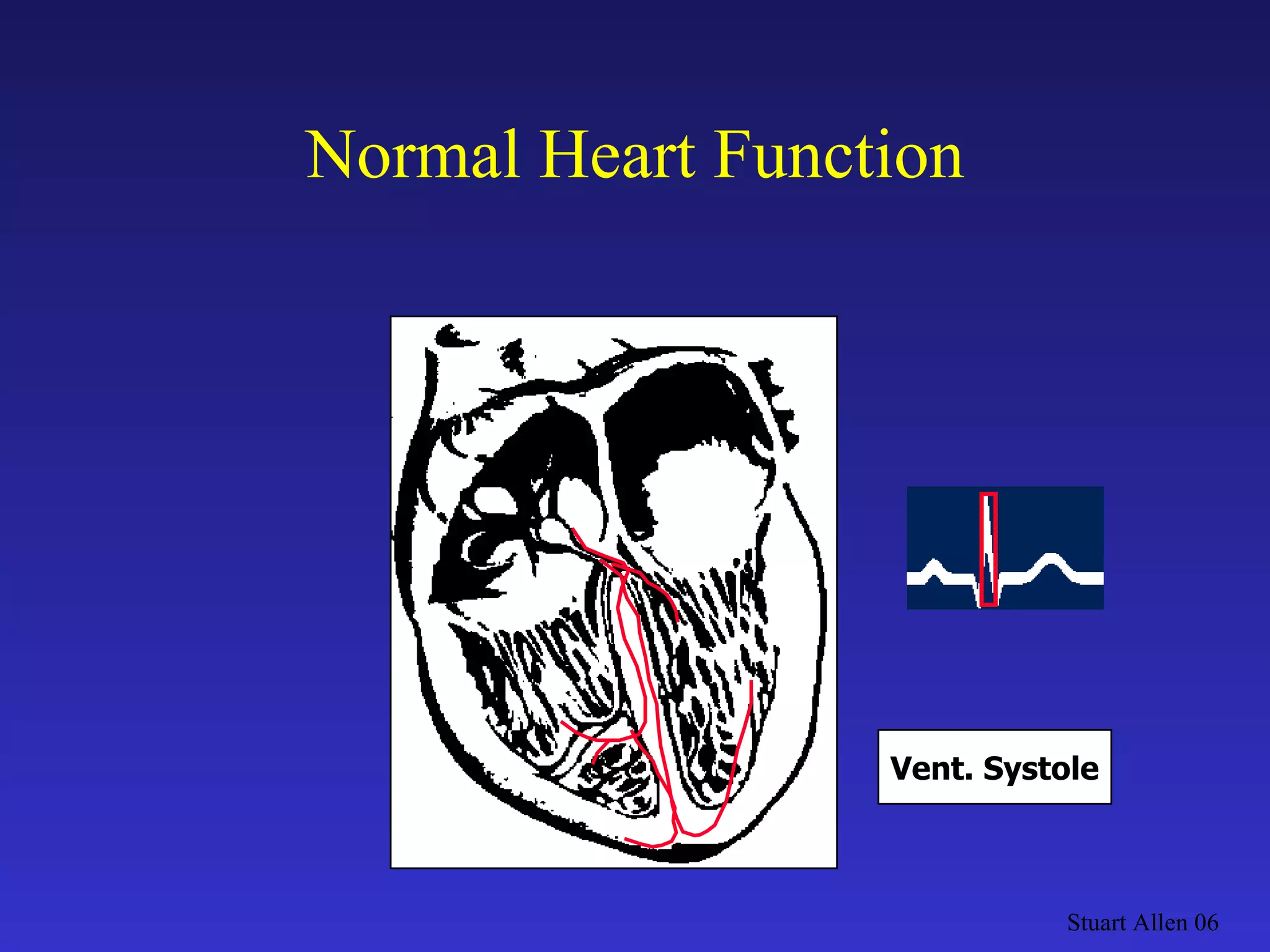

- 10. Normal Heart FunctionStuart Allen 06 Vent. Systole

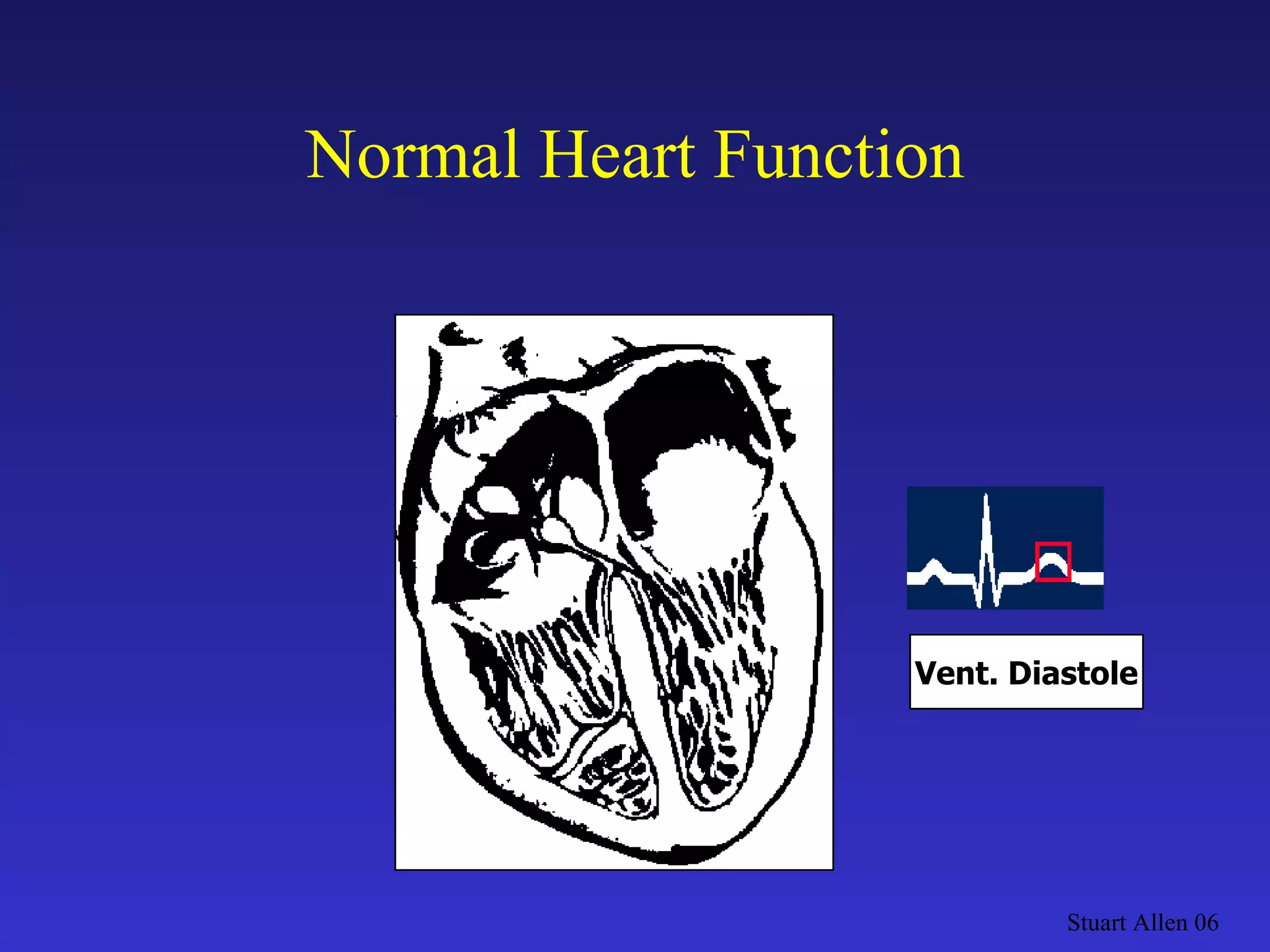

- 11. Normal Heart FunctionStuart Allen 06 Vent. Diastole

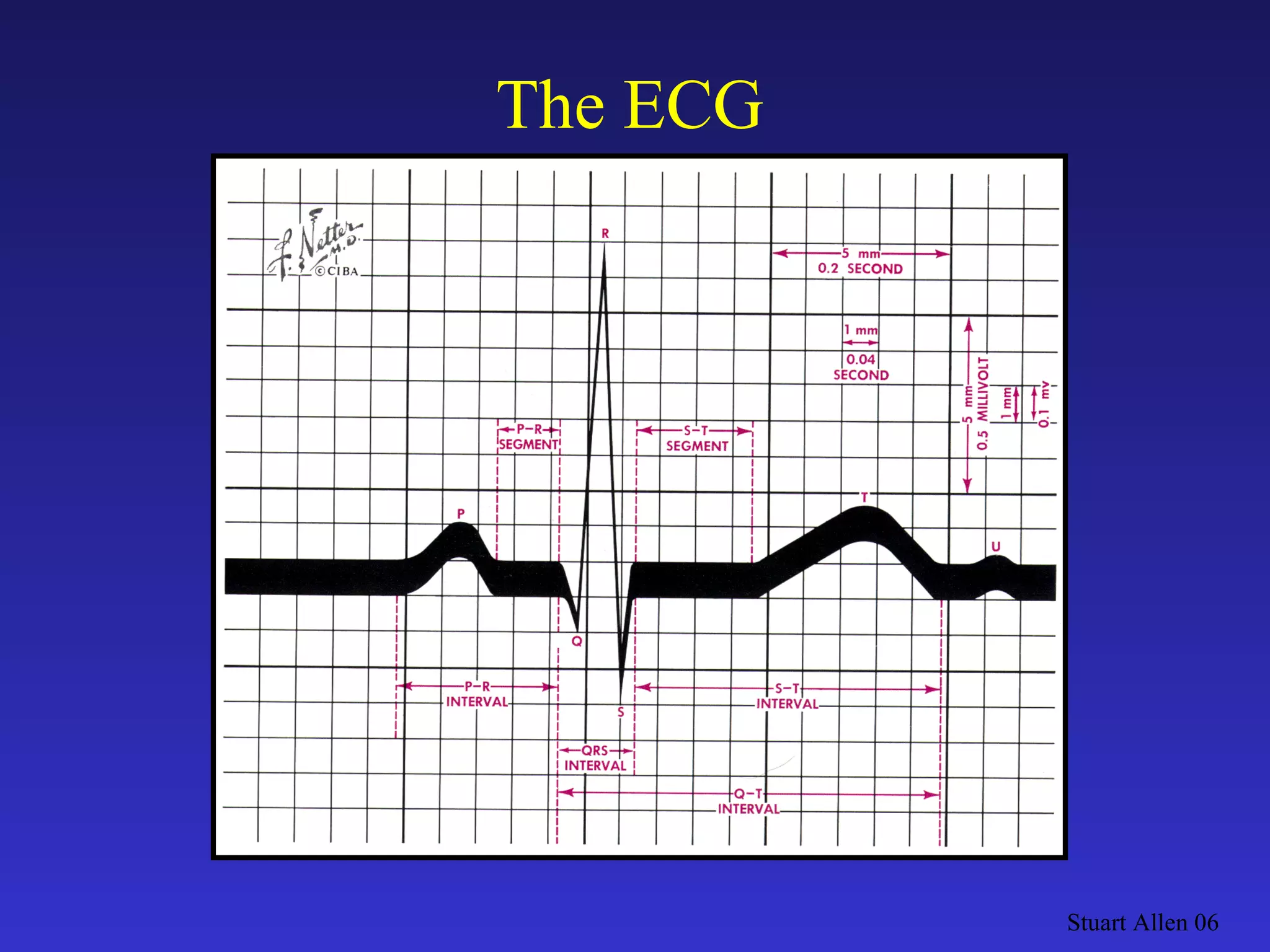

- 12. Stuart Allen 06The ECG

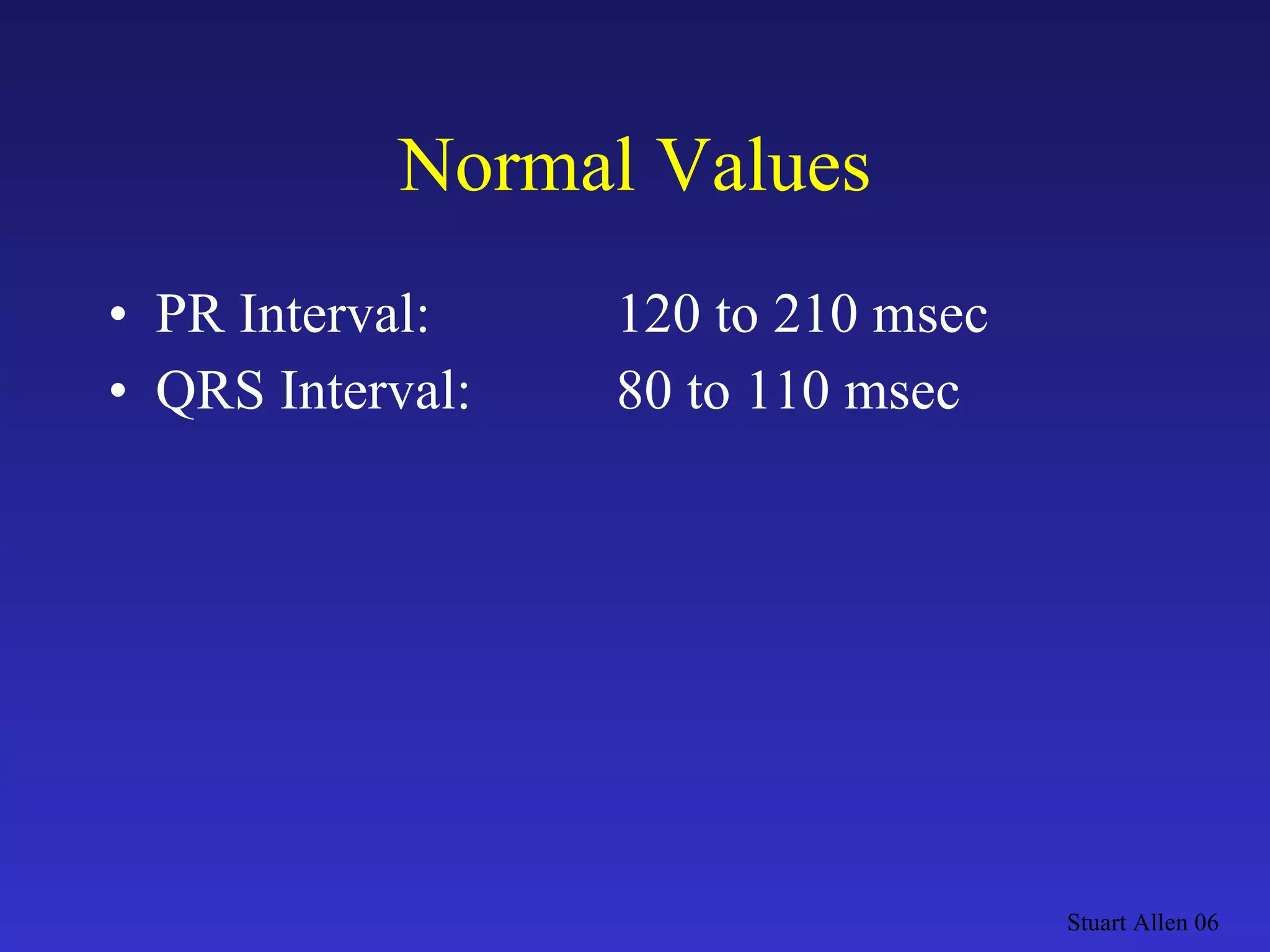

- 13. Normal Values PRInterval: 120 to 210 msec QRS Interval: 80 to 110 msec Stuart Allen 06

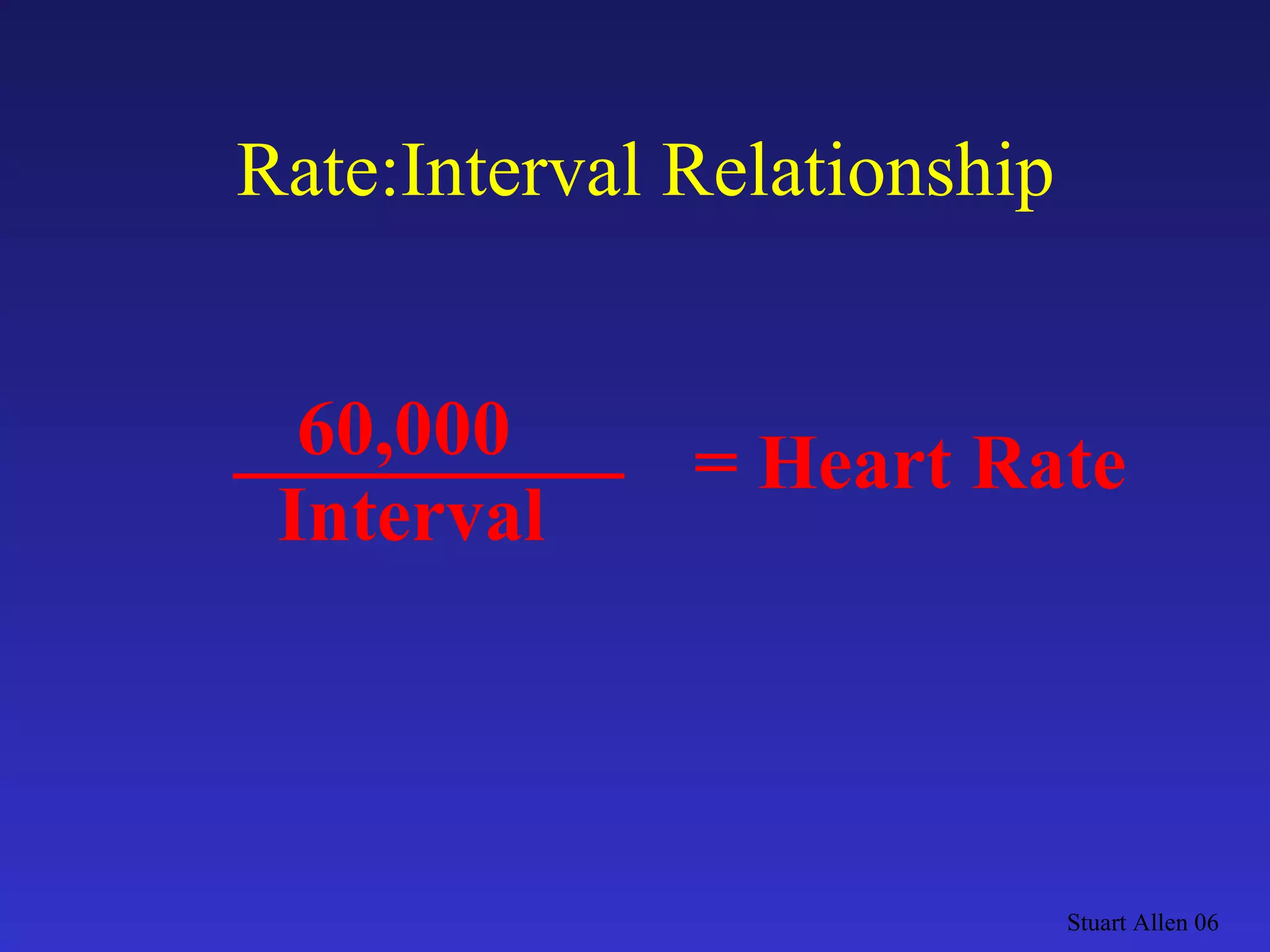

- 14. 60,000 Interval = Heart Rate Stuart Allen 06 Rate:Interval Relationship

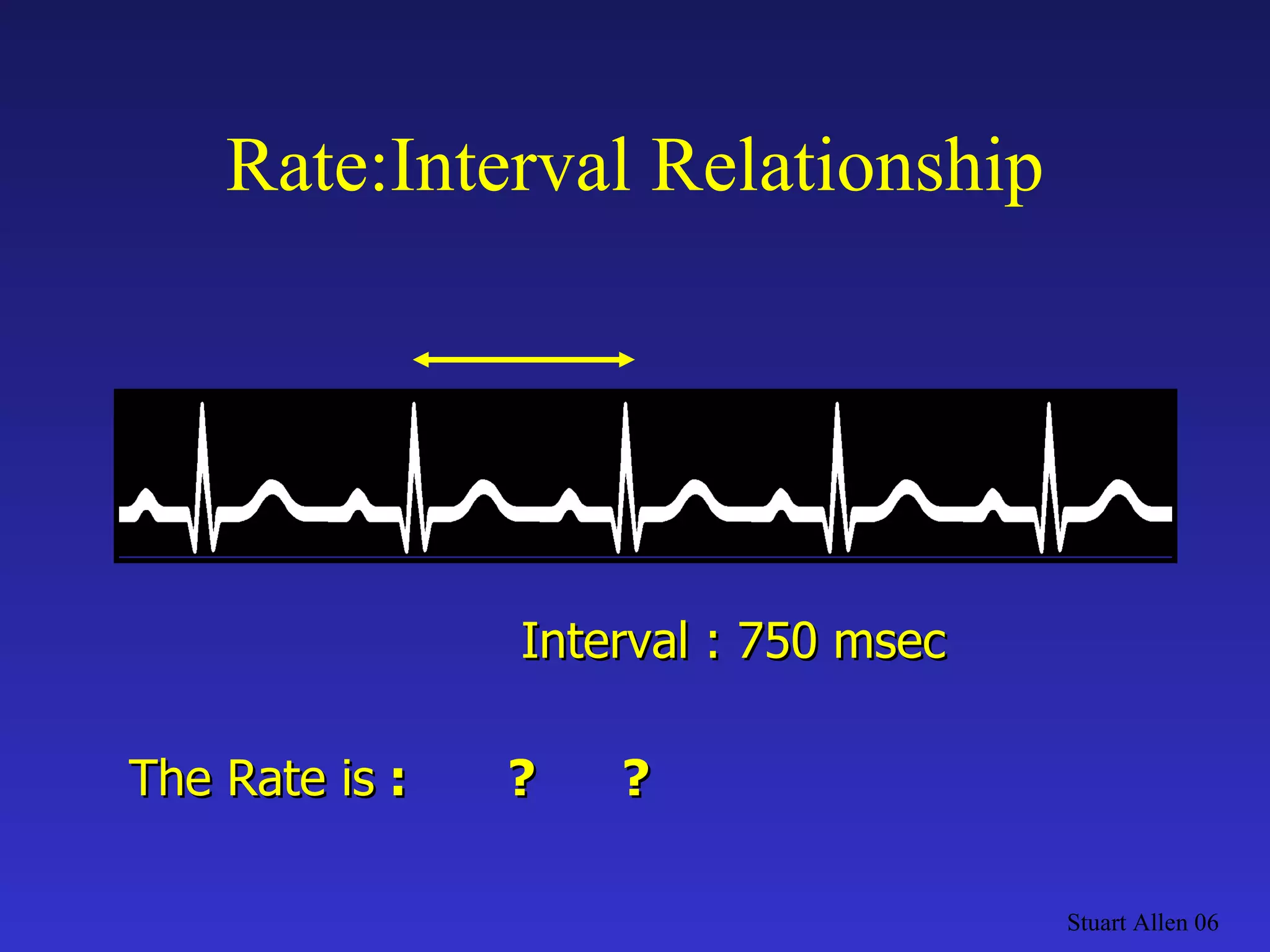

- 15. Rate:Interval Relationship StuartAllen 06 The Rate is : ? ? Interval : 750 msec

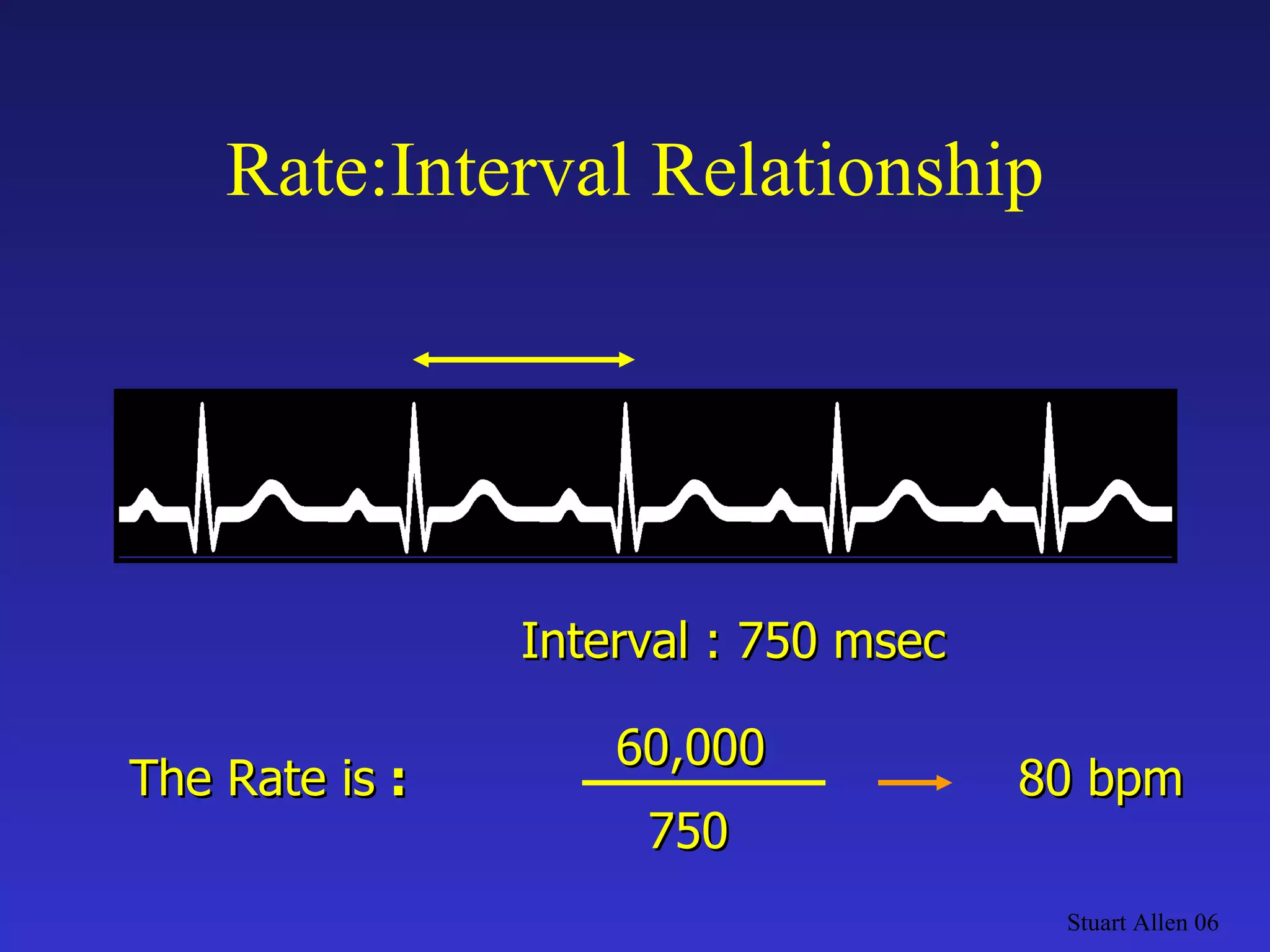

- 16. Stuart Allen 06The Rate is : 750 Interval : 750 msec 60,000 80 bpm Rate:Interval Relationship

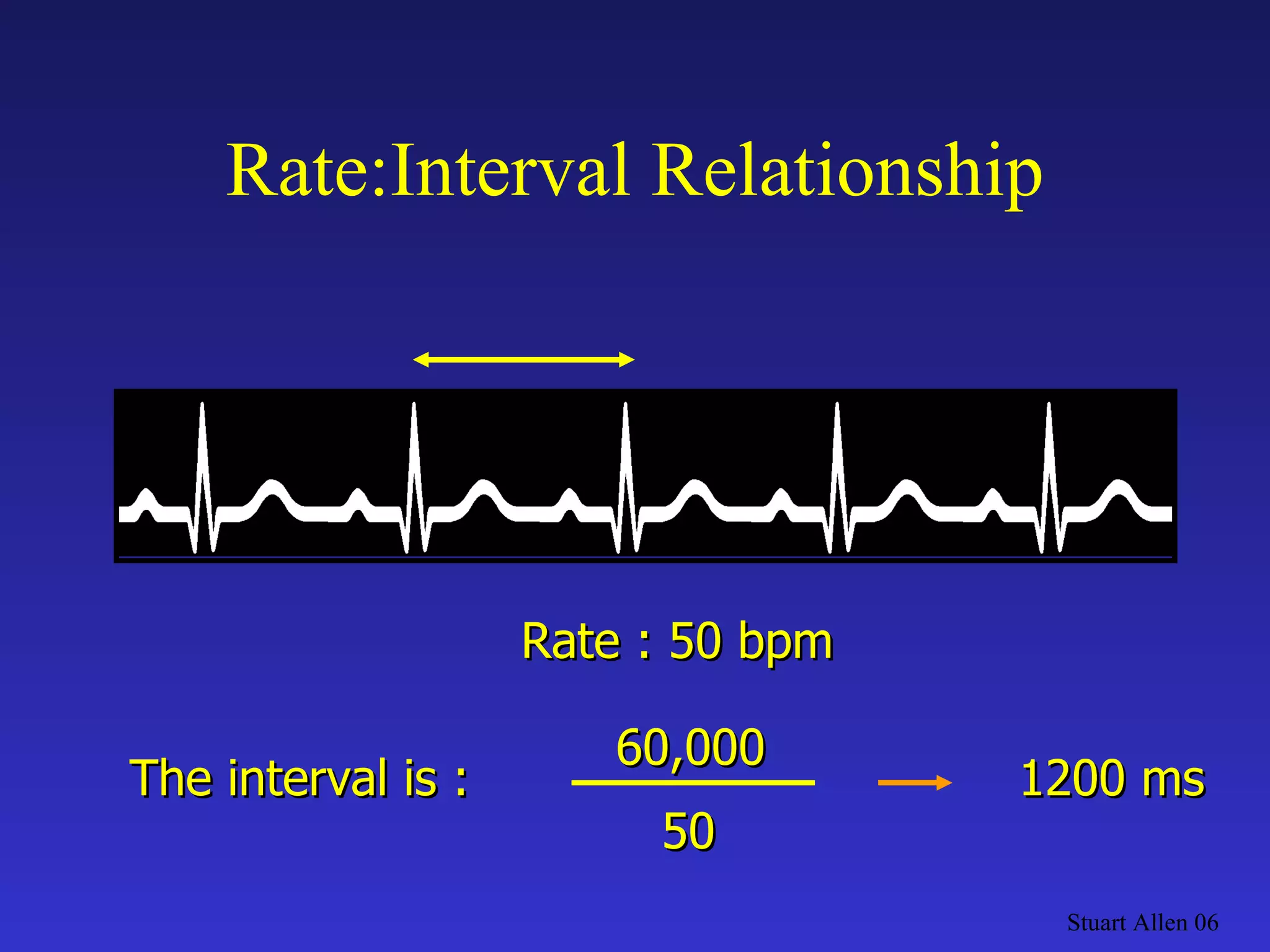

- 17. Stuart Allen 06The interval is : 50 Rate : 50 bpm 60,000 1200 ms Rate:Interval Relationship

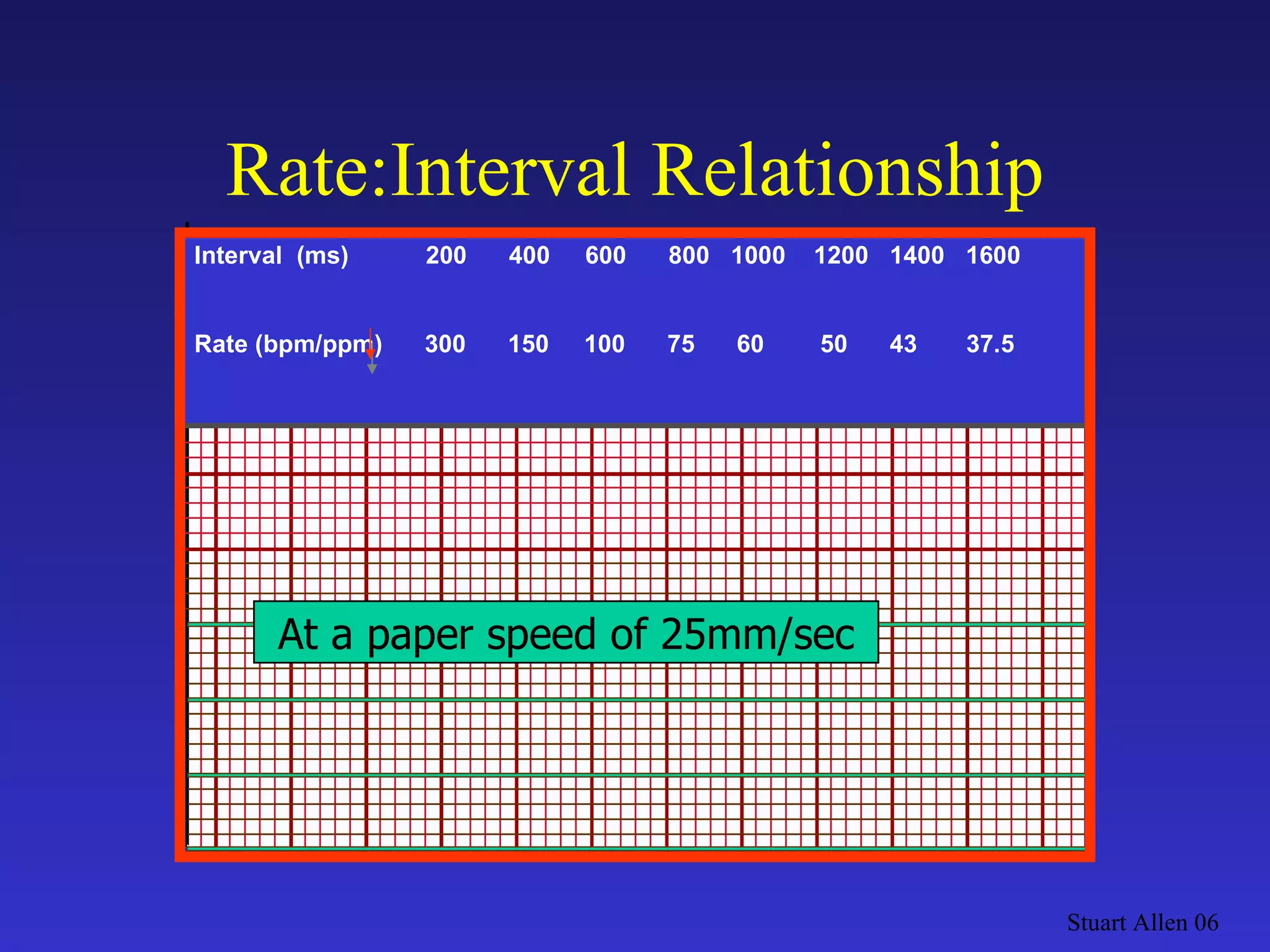

- 18. Stuart Allen 06Rate:Interval Relationship Interval (ms) 200 400 600 800 1000 1200 1400 1600 Rate (bpm/ppm) 300 150 100 75 60 50 43 37.5 At a paper speed of 25mm/sec

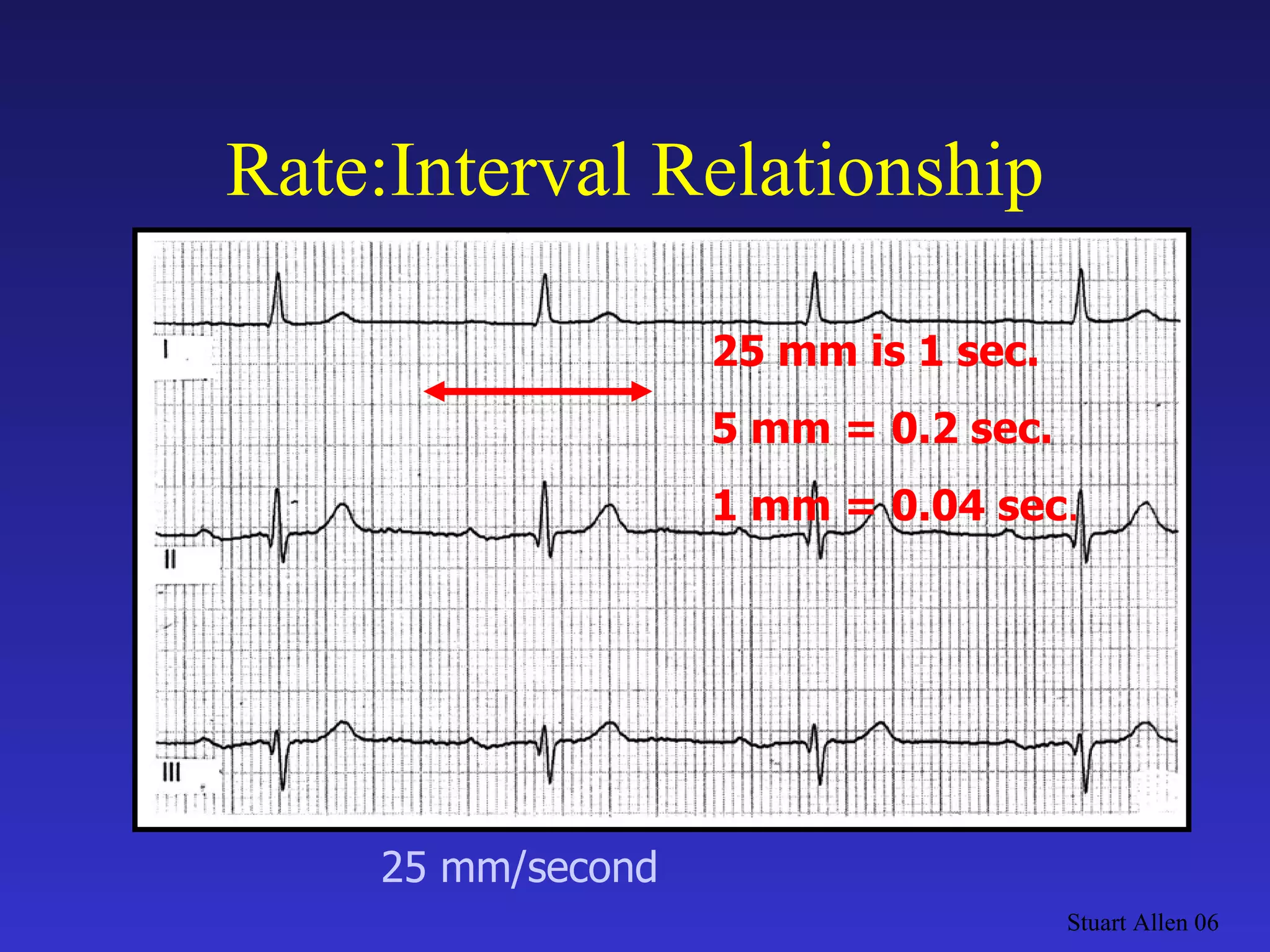

- 19. Stuart Allen 06Rate:Interval Relationship 25 mm is 1 sec. 5 mm = 0.2 sec. 1 mm = 0.04 sec . 25 mm/second

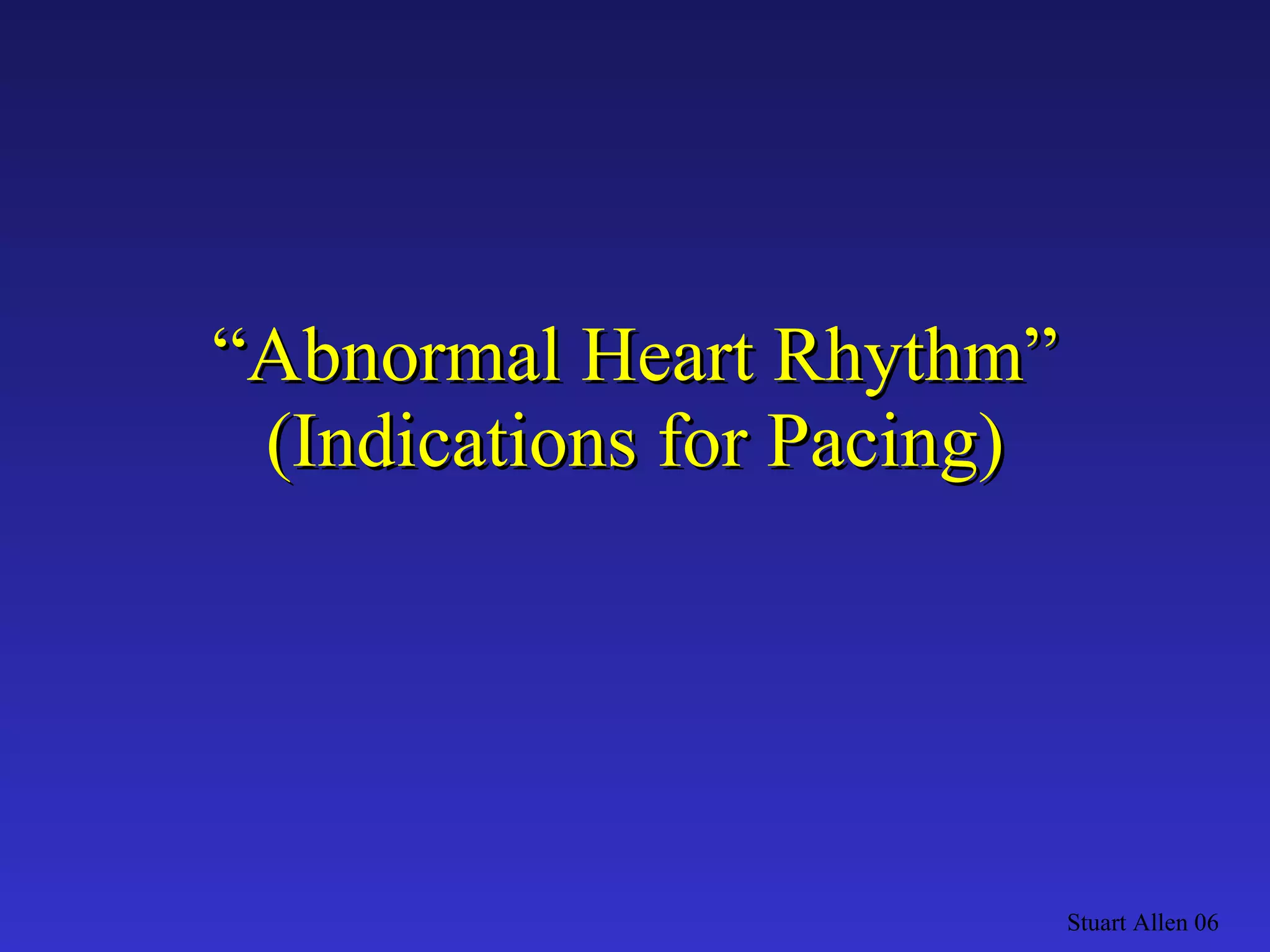

- 20. “ Abnormal HeartRhythm” (Indications for Pacing) Stuart Allen 06

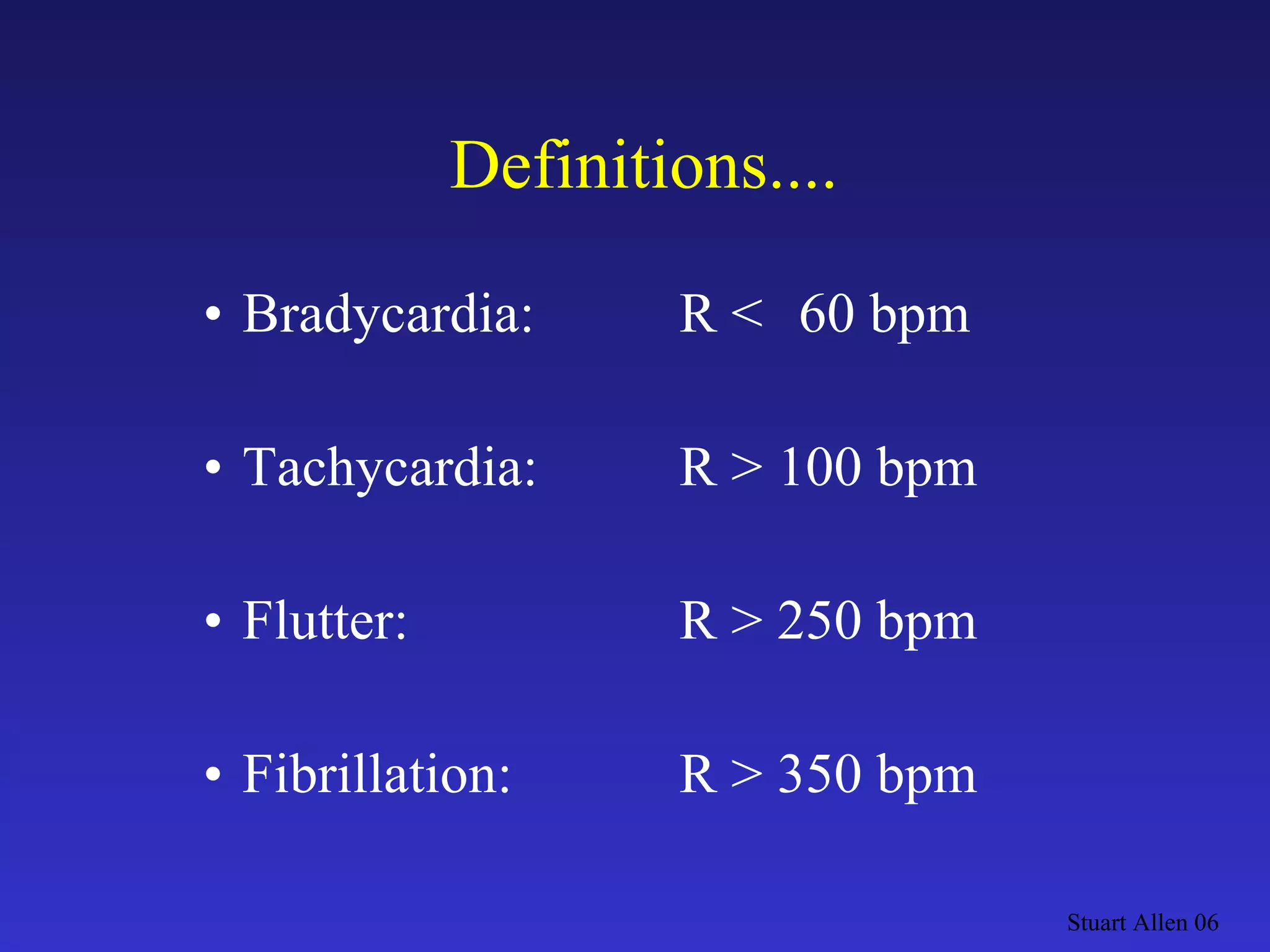

- 21. Definitions.... Bradycardia: R< 60 bpm Tachycardia: R > 100 bpm Flutter: R > 250 bpm Fibrillation: R > 350 bpm Stuart Allen 06

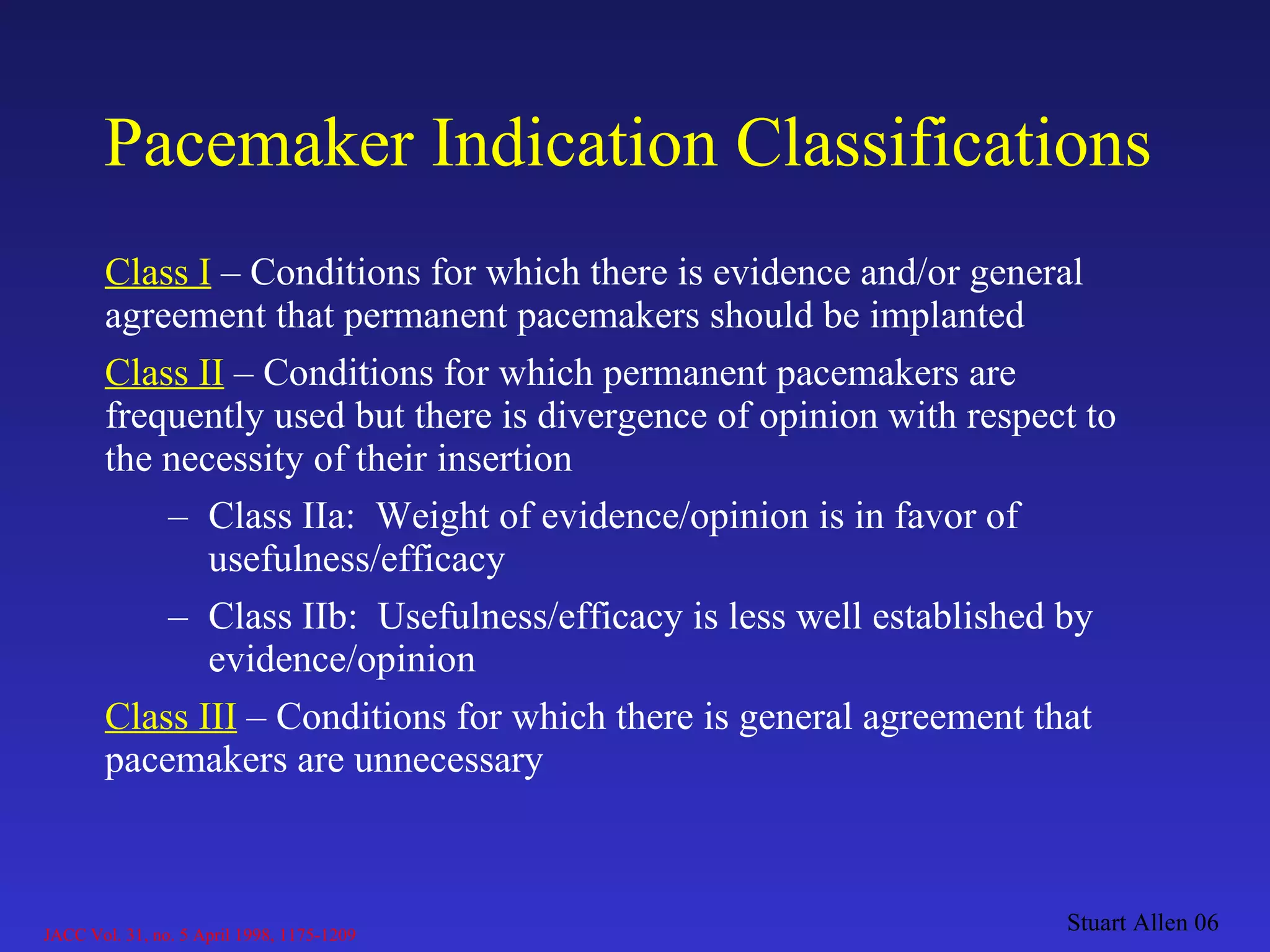

- 22. Pacemaker Indication ClassificationsClass I – Conditions for which there is evidence and/or general agreement that permanent pacemakers should be implanted Class II – Conditions for which permanent pacemakers are frequently used but there is divergence of opinion with respect to the necessity of their insertion Class IIa: Weight of evidence/opinion is in favor of usefulness/efficacy Class IIb: Usefulness/efficacy is less well established by evidence/opinion Class III – Conditions for which there is general agreement that pacemakers are unnecessary Stuart Allen 06 JACC Vol. 31, no. 5 April 1998, 1175-1209

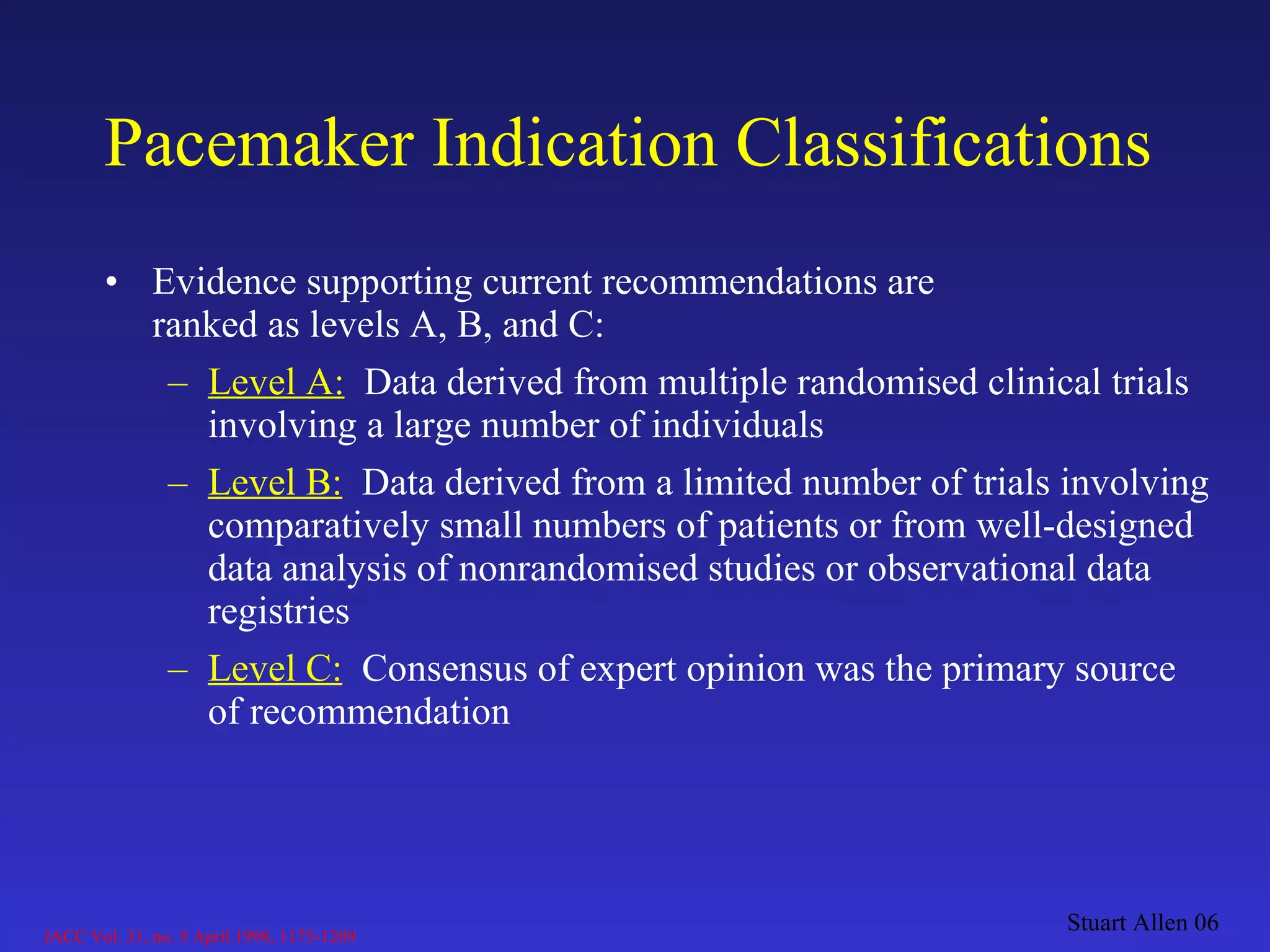

- 23. Pacemaker Indication ClassificationsEvidence supporting current recommendations are ranked as levels A, B, and C: Level A: Data derived from multiple randomised clinical trials involving a large number of individuals Level B: Data derived from a limited number of trials involving comparatively small numbers of patients or from well-designed data analysis of nonrandomised studies or observational data registries Level C: Consensus of expert opinion was the primary source of recommendation Stuart Allen 06 JACC Vol. 31, no. 5 April 1998, 1175-1209

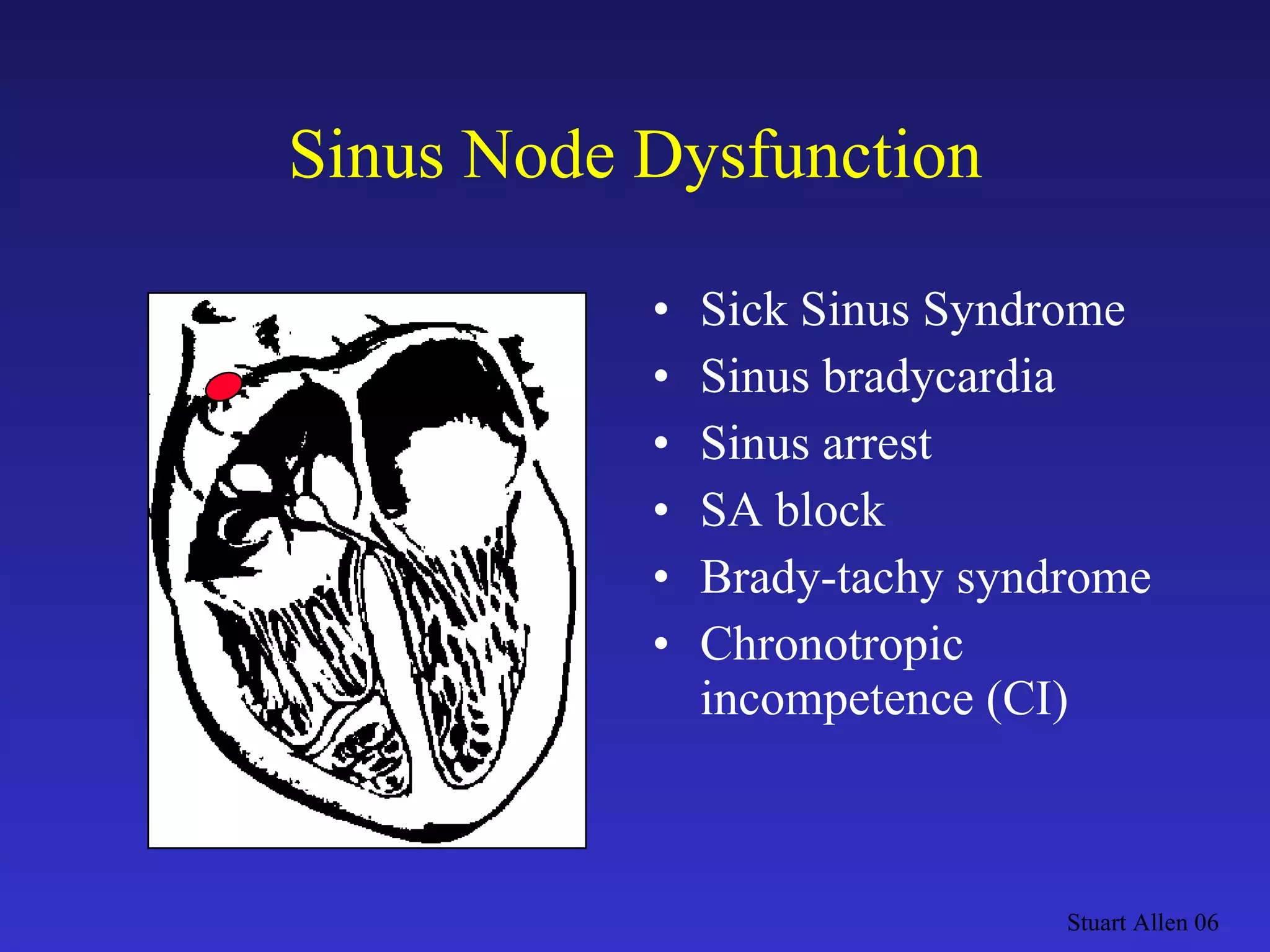

- 24. Sinus Node DysfunctionSick Sinus Syndrome Sinus bradycardia Sinus arrest SA block Brady-tachy syndrome Chronotropic incompetence (CI) Stuart Allen 06

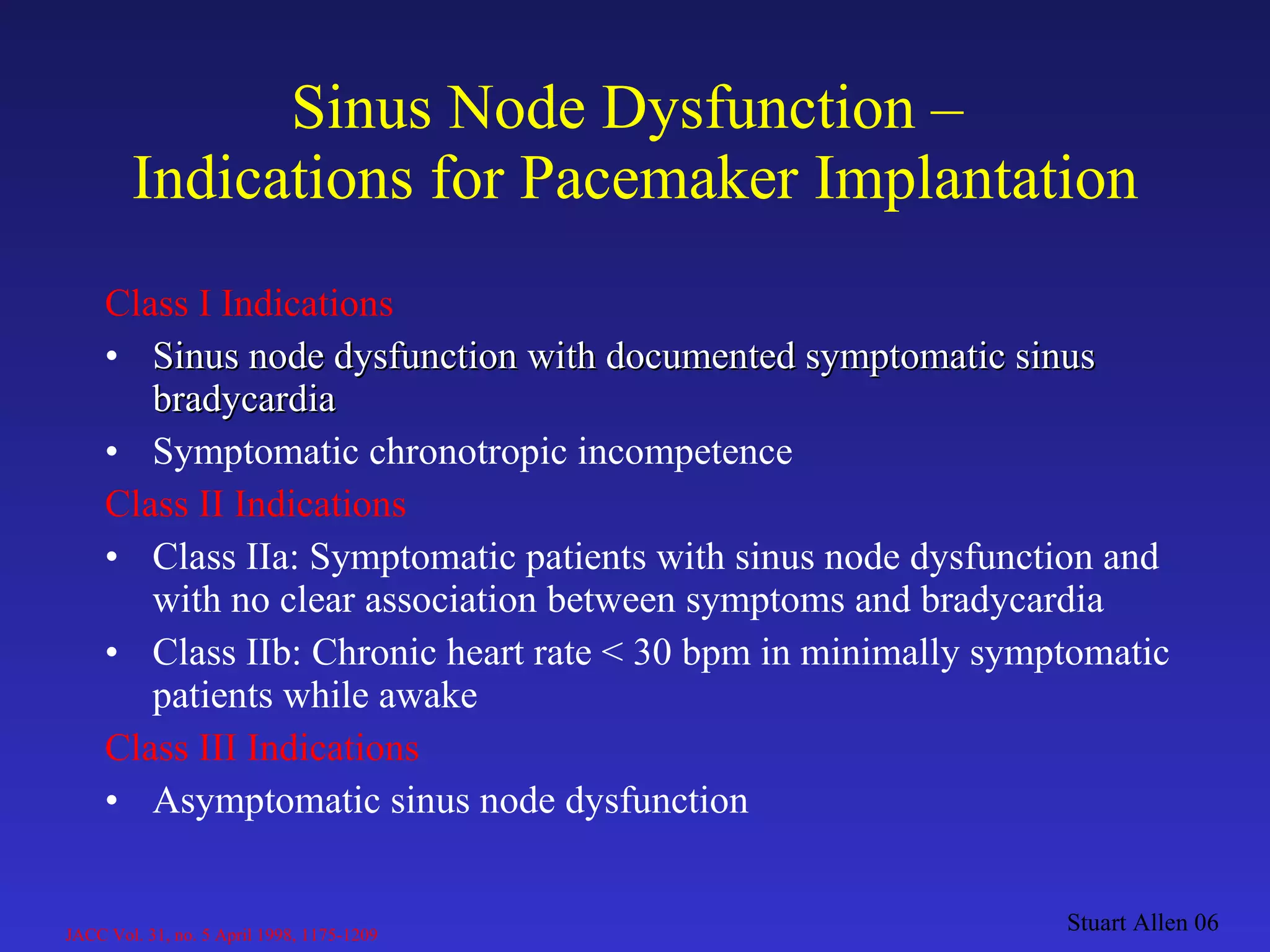

- 25. Class I IndicationsSinus node dysfunction with documented symptomatic sinus bradycardia Symptomatic chronotropic incompetence Class II Indications Class IIa: Symptomatic patients with sinus node dysfunction and with no clear association between symptoms and bradycardia Class IIb: Chronic heart rate < 30 bpm in minimally symptomatic patients while awake Class III Indications Asymptomatic sinus node dysfunction Sinus Node Dysfunction – Indications for Pacemaker Implantation Stuart Allen 06 JACC Vol. 31, no. 5 April 1998, 1175-1209

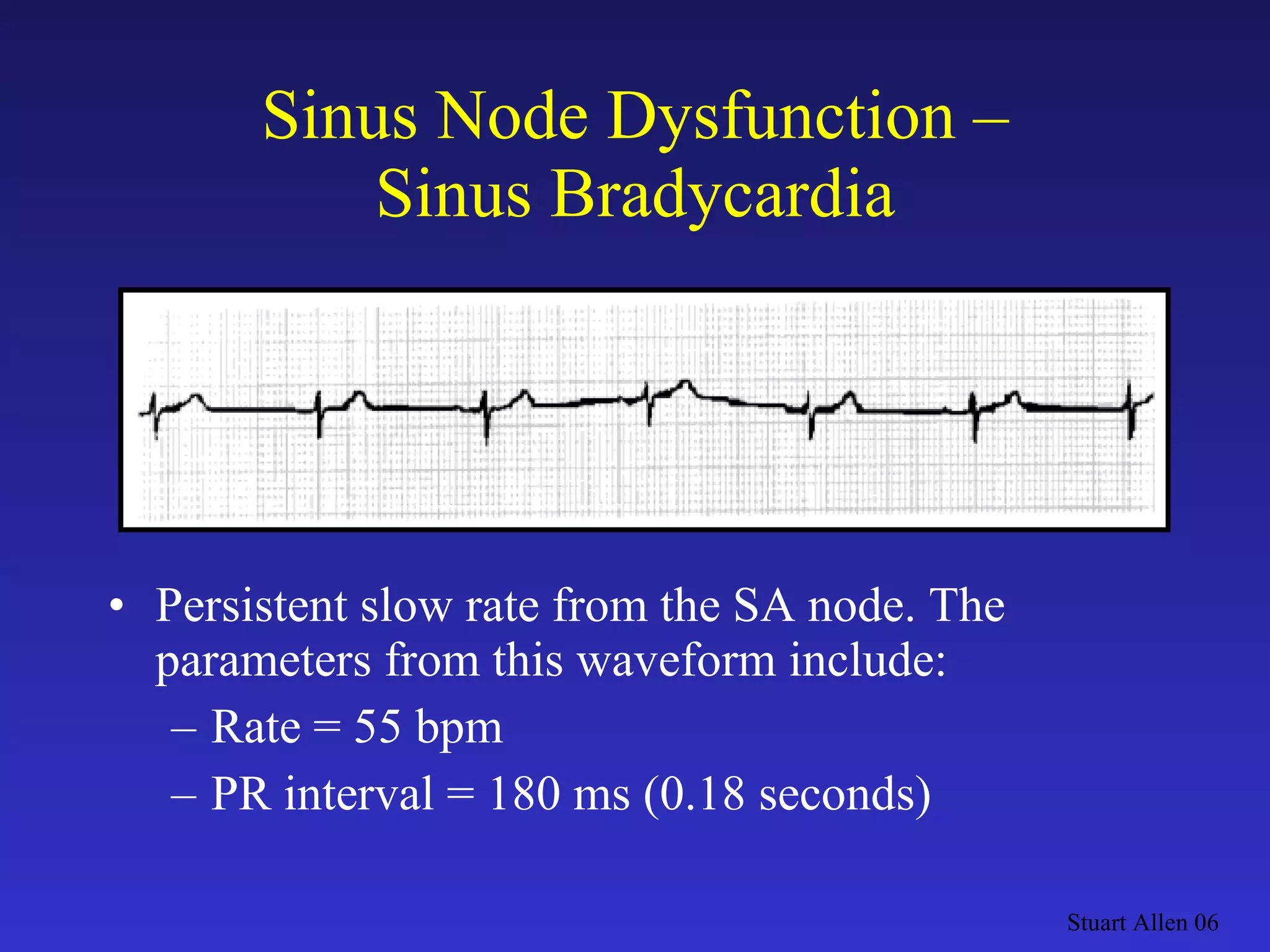

- 26. Sinus Node Dysfunction– Sinus Bradycardia Persistent slow rate from the SA node. The parameters from this waveform include: Rate = 55 bpm PR interval = 180 ms (0.18 seconds) Stuart Allen 06

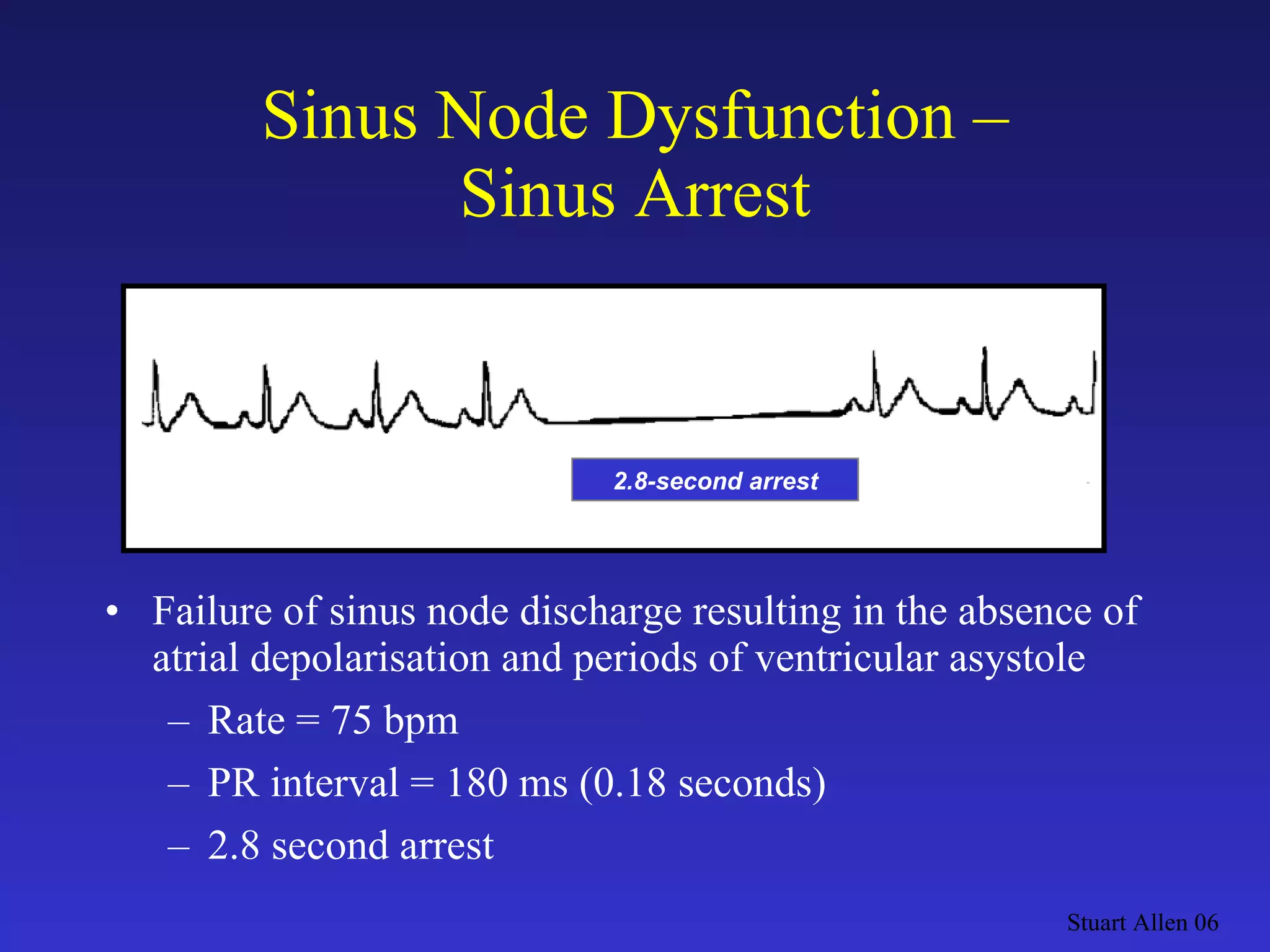

- 27. Sinus Node Dysfunction– Sinus Arrest Failure of sinus node discharge resulting in the absence of atrial depolarisation and periods of ventricular asystole Rate = 75 bpm PR interval = 180 ms (0.18 seconds) 2.8 second arrest Stuart Allen 06 2.8-second arrest

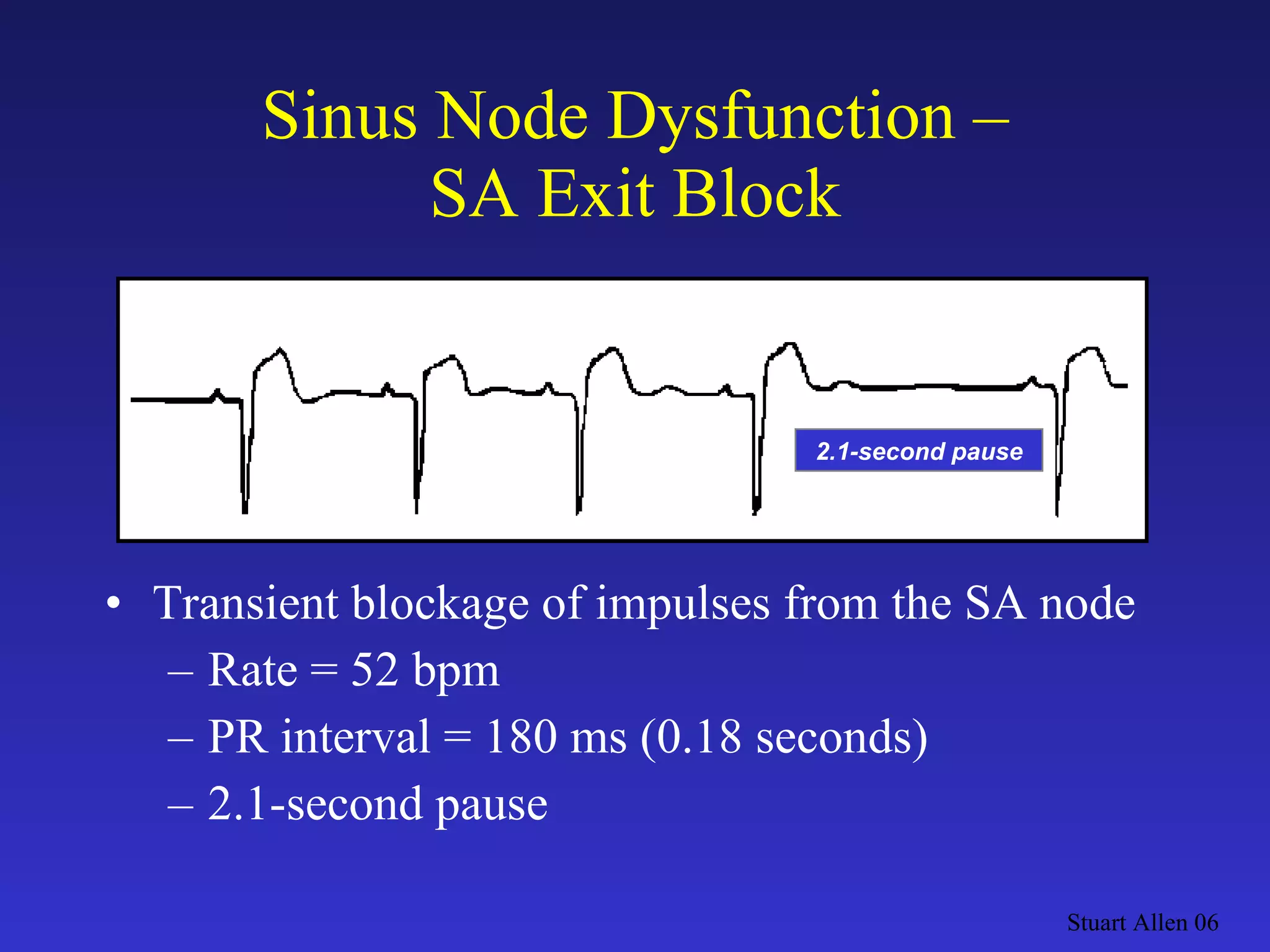

- 28. Sinus Node Dysfunction– SA Exit Block Transient blockage of impulses from the SA node Rate = 52 bpm PR interval = 180 ms (0.18 seconds) 2.1-second pause Stuart Allen 06 2.1-second pause

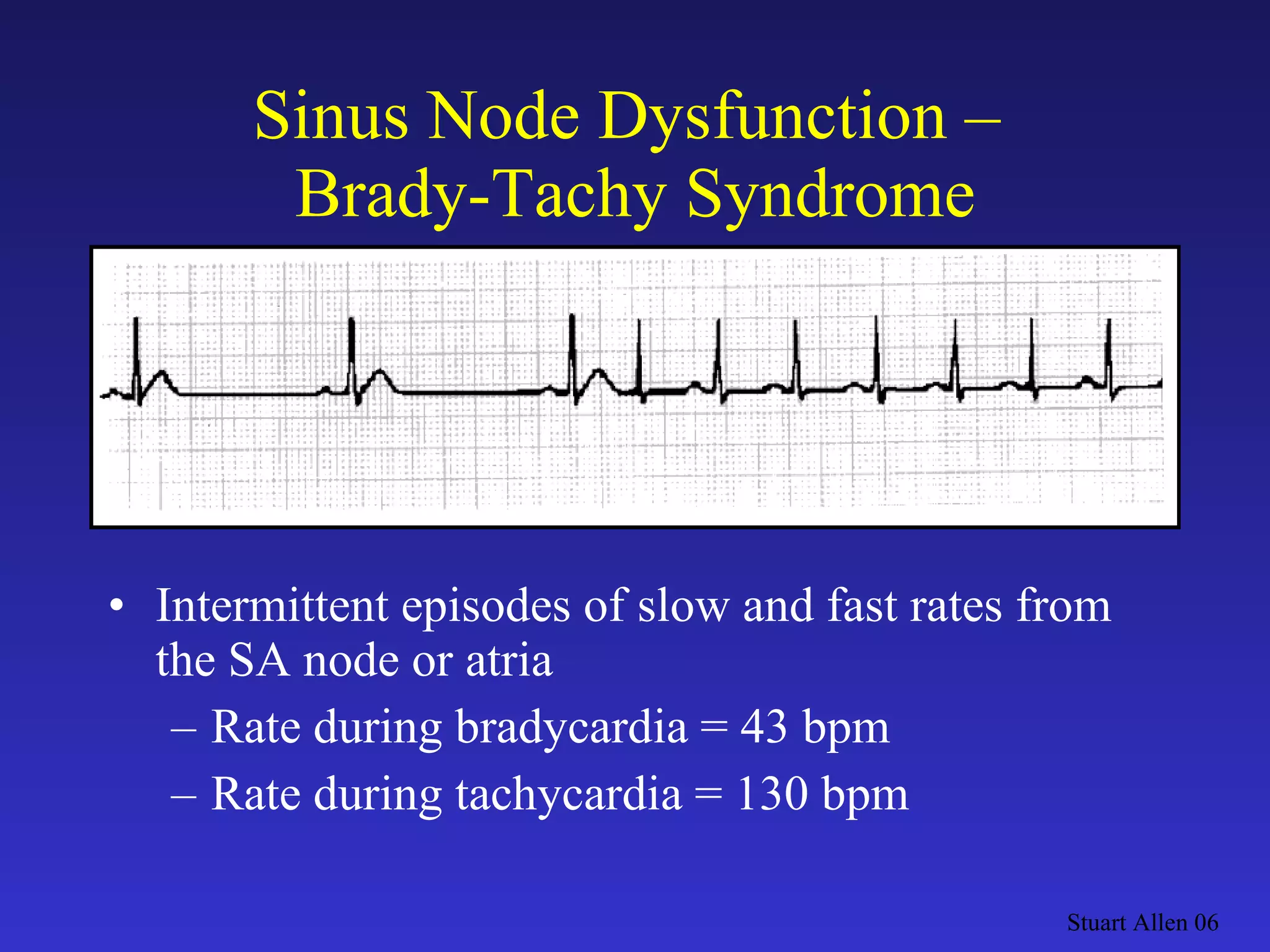

- 29. Sinus Node Dysfunction– Brady-Tachy Syndrome Intermittent episodes of slow and fast rates from the SA node or atria Rate during bradycardia = 43 bpm Rate during tachycardia = 130 bpm Stuart Allen 06

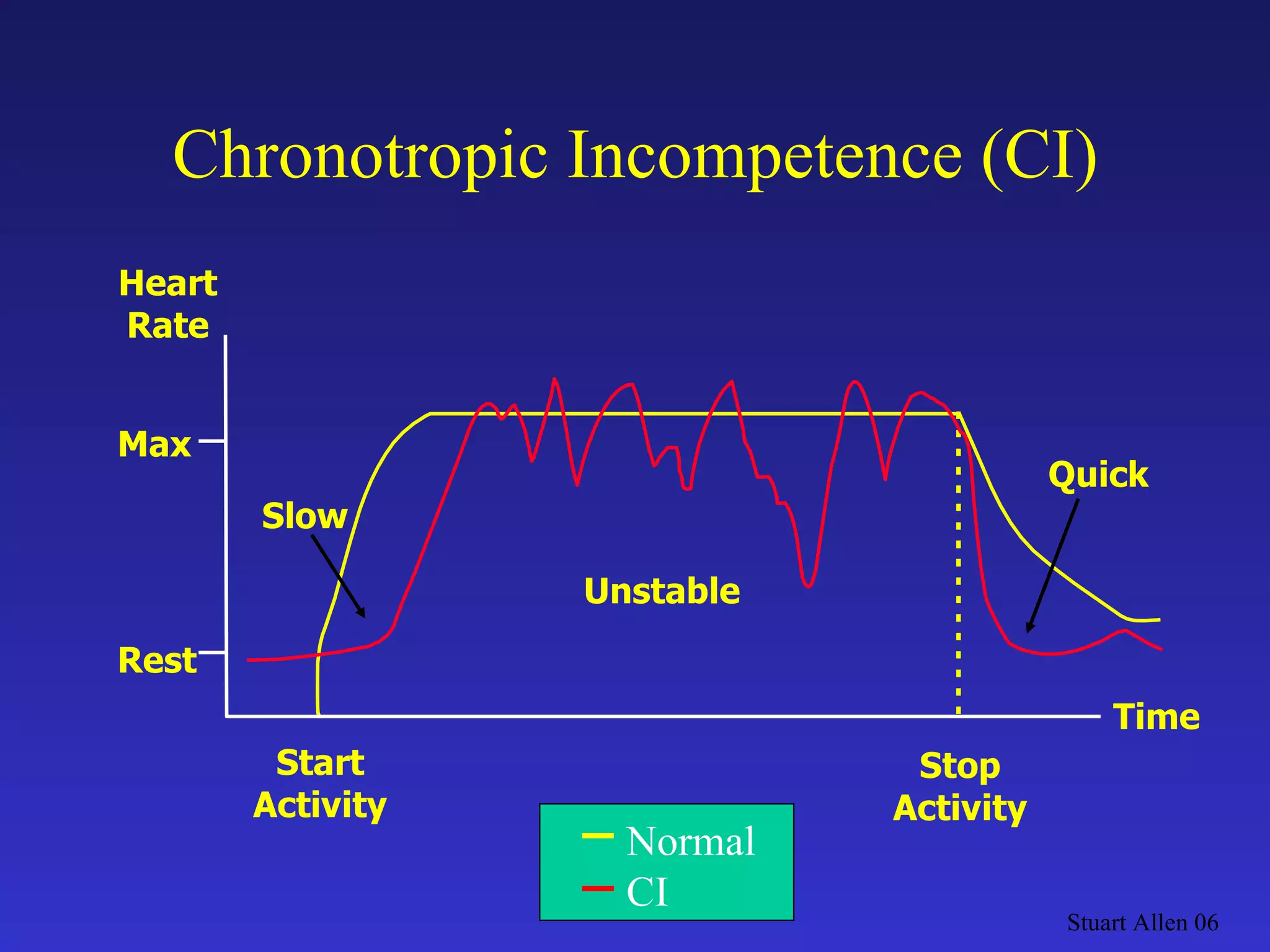

- 30. Chronotropic Incompetence (CI)Stuart Allen 06 Max Rest Heart Rate Time Start Activity Stop Activity Quick Unstable Slow Normal CI

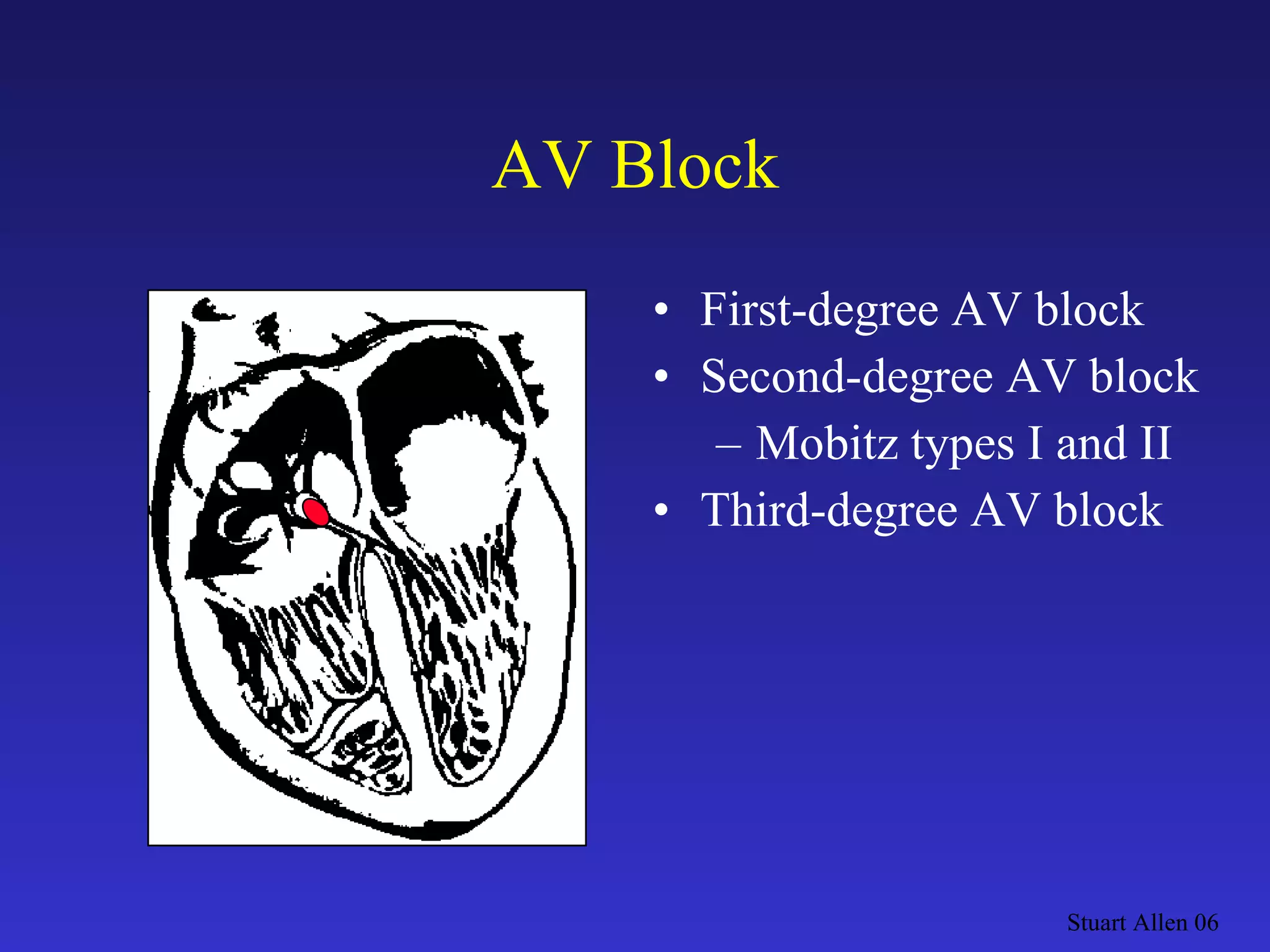

- 31. AV Block First-degreeAV block Second-degree AV block Mobitz types I and II Third-degree AV block Stuart Allen 06

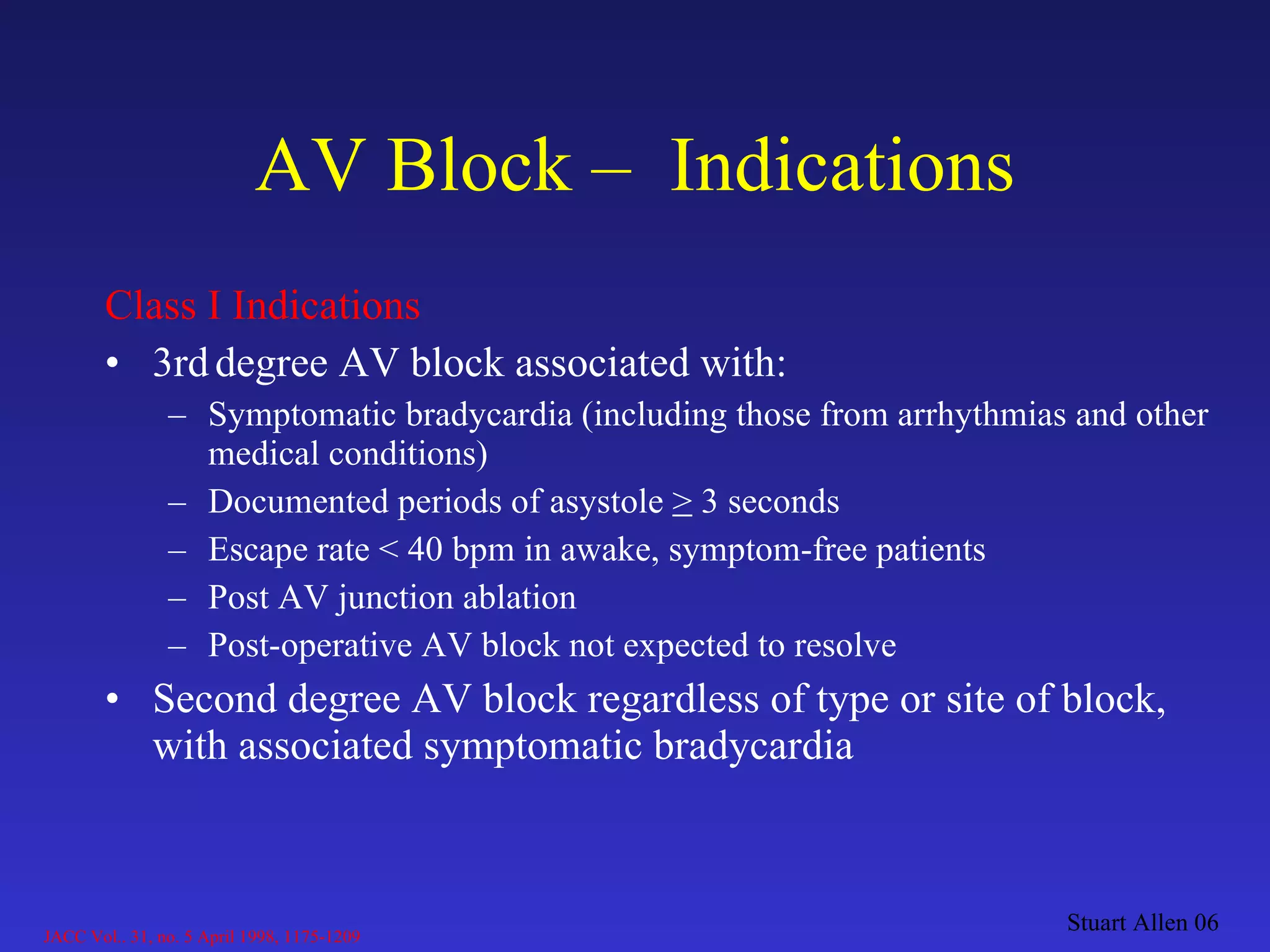

- 32. Class I Indications3rd degree AV block associated with: Symptomatic bradycardia (including those from arrhythmias and other medical conditions) Documented periods of asystole > 3 seconds Escape rate < 40 bpm in awake, symptom-free patients Post AV junction ablation Post-operative AV block not expected to resolve Second degree AV block regardless of type or site of block, with associated symptomatic bradycardia AV Block – Indications Stuart Allen 06 JACC Vol.. 31, no. 5 April 1998, 1175-1209

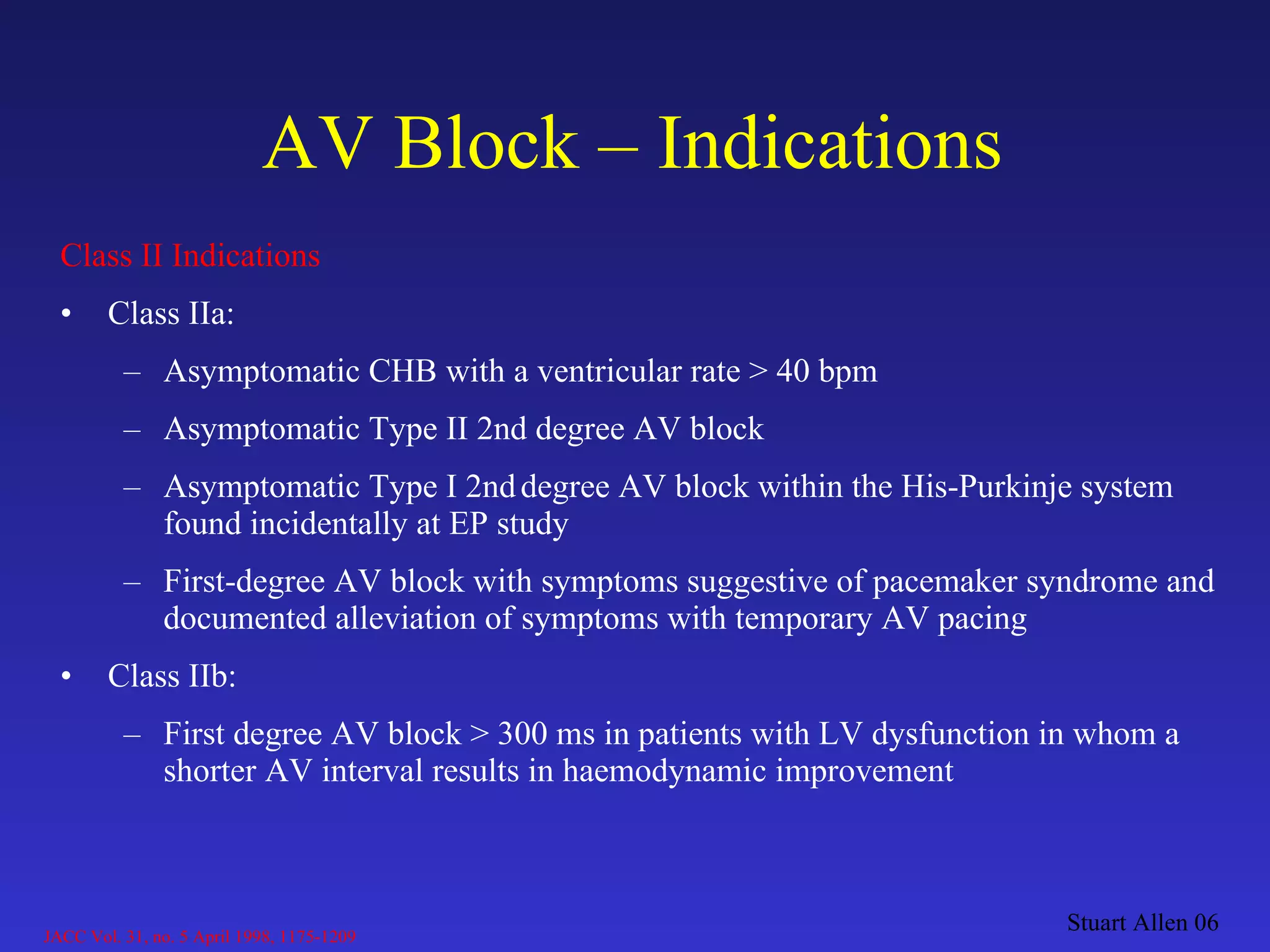

- 33. AV Block –Indications Class II Indications Class IIa: Asymptomatic CHB with a ventricular rate > 40 bpm Asymptomatic Type II 2nd degree AV block Asymptomatic Type I 2nd degree AV block within the His-Purkinje system found incidentally at EP study First-degree AV block with symptoms suggestive of pacemaker syndrome and documented alleviation of symptoms with temporary AV pacing Class IIb: First degree AV block > 300 ms in patients with LV dysfunction in whom a shorter AV interval results in haemodynamic improvement Stuart Allen 06 JACC Vol. 31, no. 5 April 1998, 1175-1209

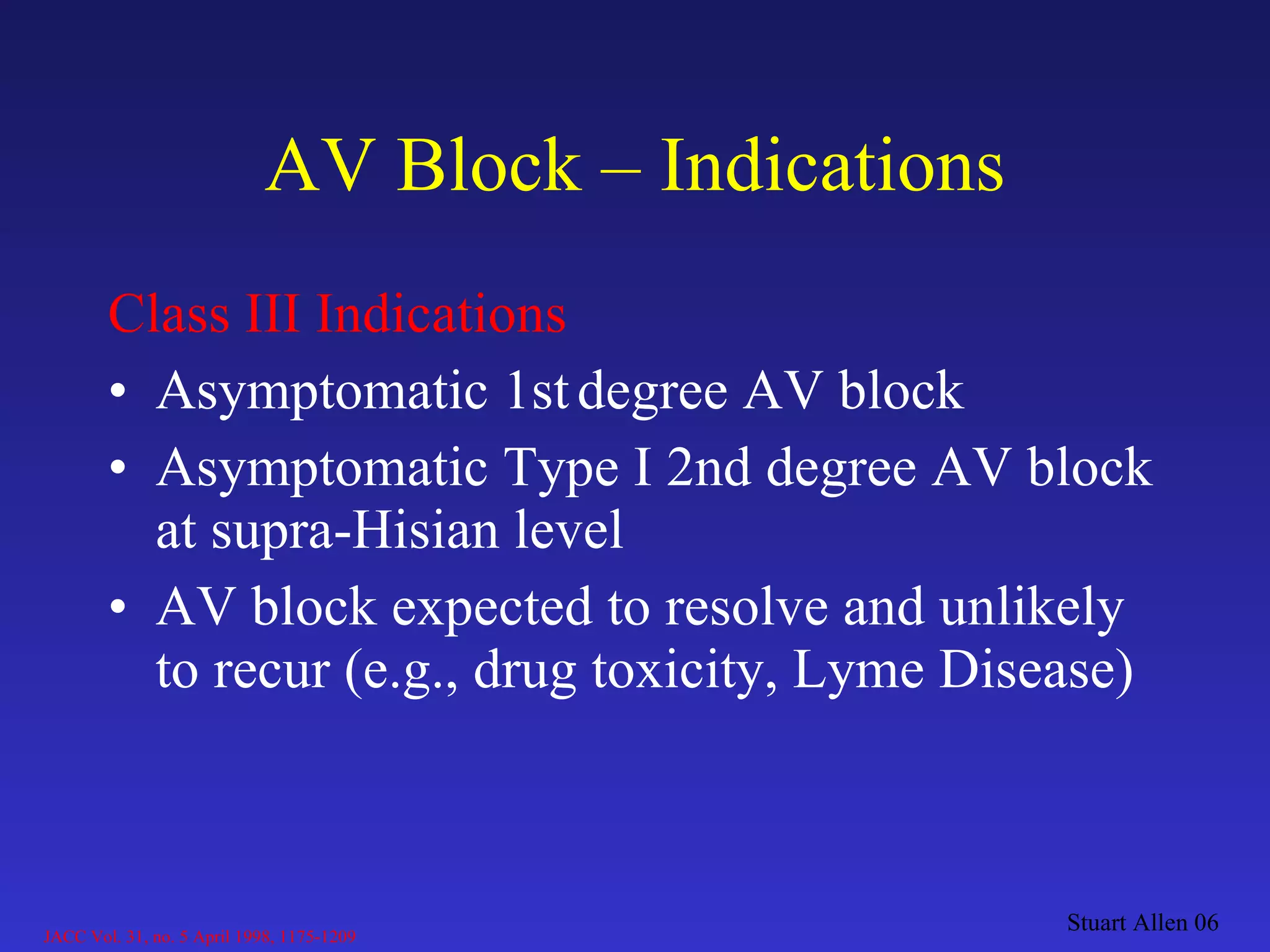

- 34. AV Block –Indications Class III Indications Asymptomatic 1st degree AV block Asymptomatic Type I 2nd degree AV block at supra-Hisian level AV block expected to resolve and unlikely to recur (e.g., drug toxicity, Lyme Disease) Stuart Allen 06 JACC Vol. 31, no. 5 April 1998, 1175-1209

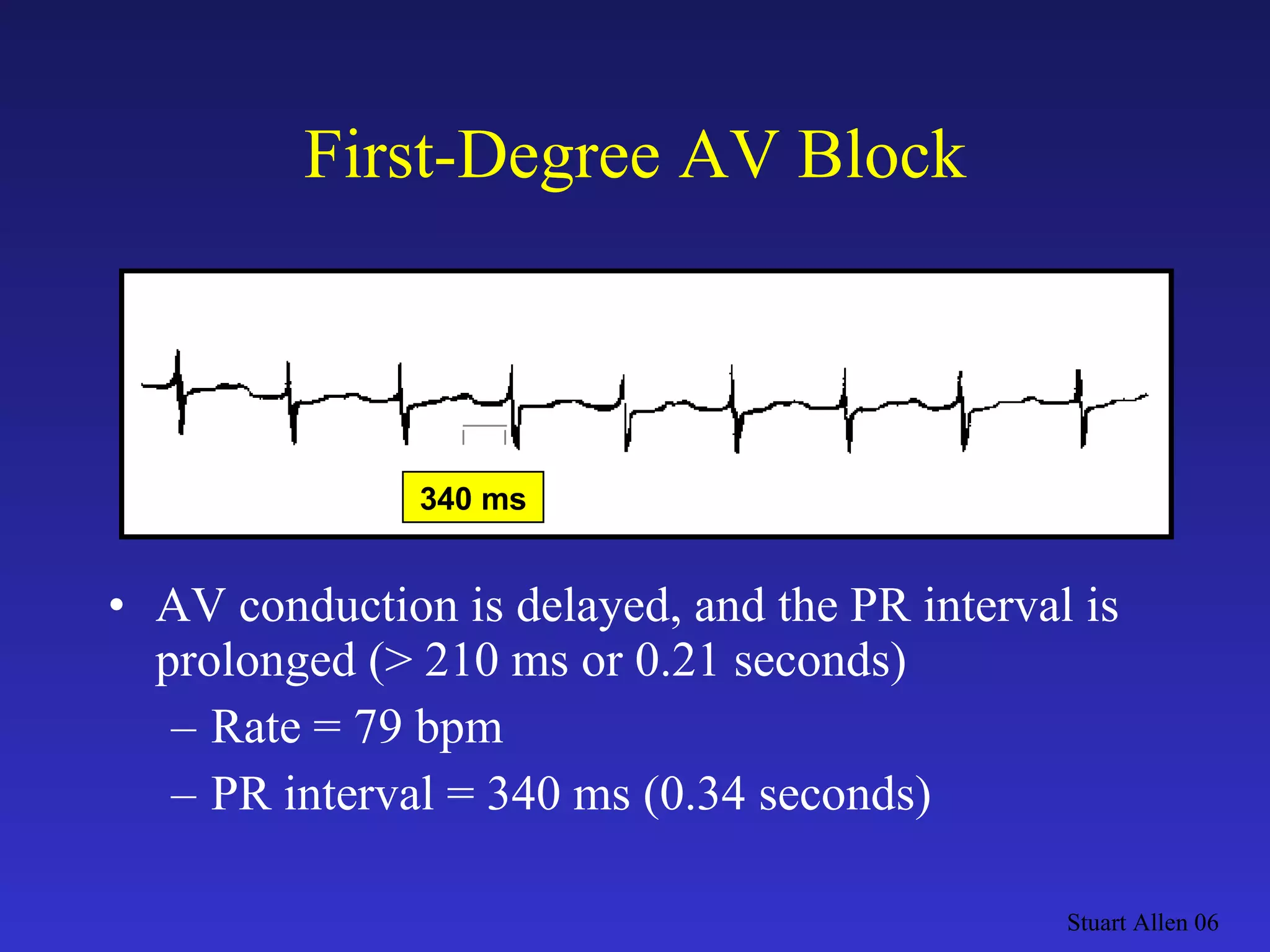

- 35. First-Degree AV BlockAV conduction is delayed, and the PR interval is prolonged (> 210 ms or 0.21 seconds) Rate = 79 bpm PR interval = 340 ms (0.34 seconds) Stuart Allen 06 340 ms

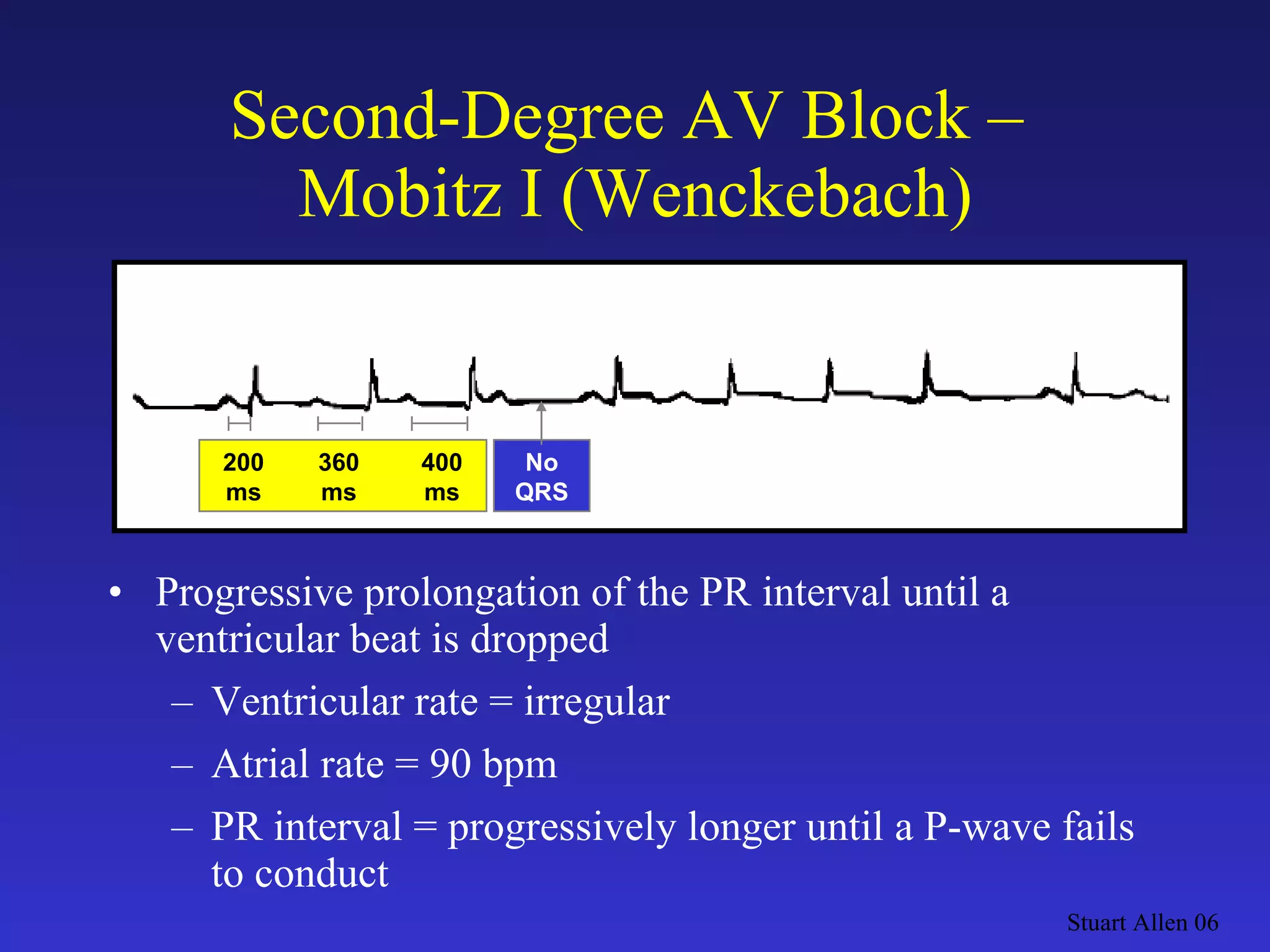

- 36. Second-Degree AV Block– Mobitz I (Wenckebach) Progressive prolongation of the PR interval until a ventricular beat is dropped Ventricular rate = irregular Atrial rate = 90 bpm PR interval = progressively longer until a P-wave fails to conduct Stuart Allen 06 200 360 400 ms ms ms No QRS

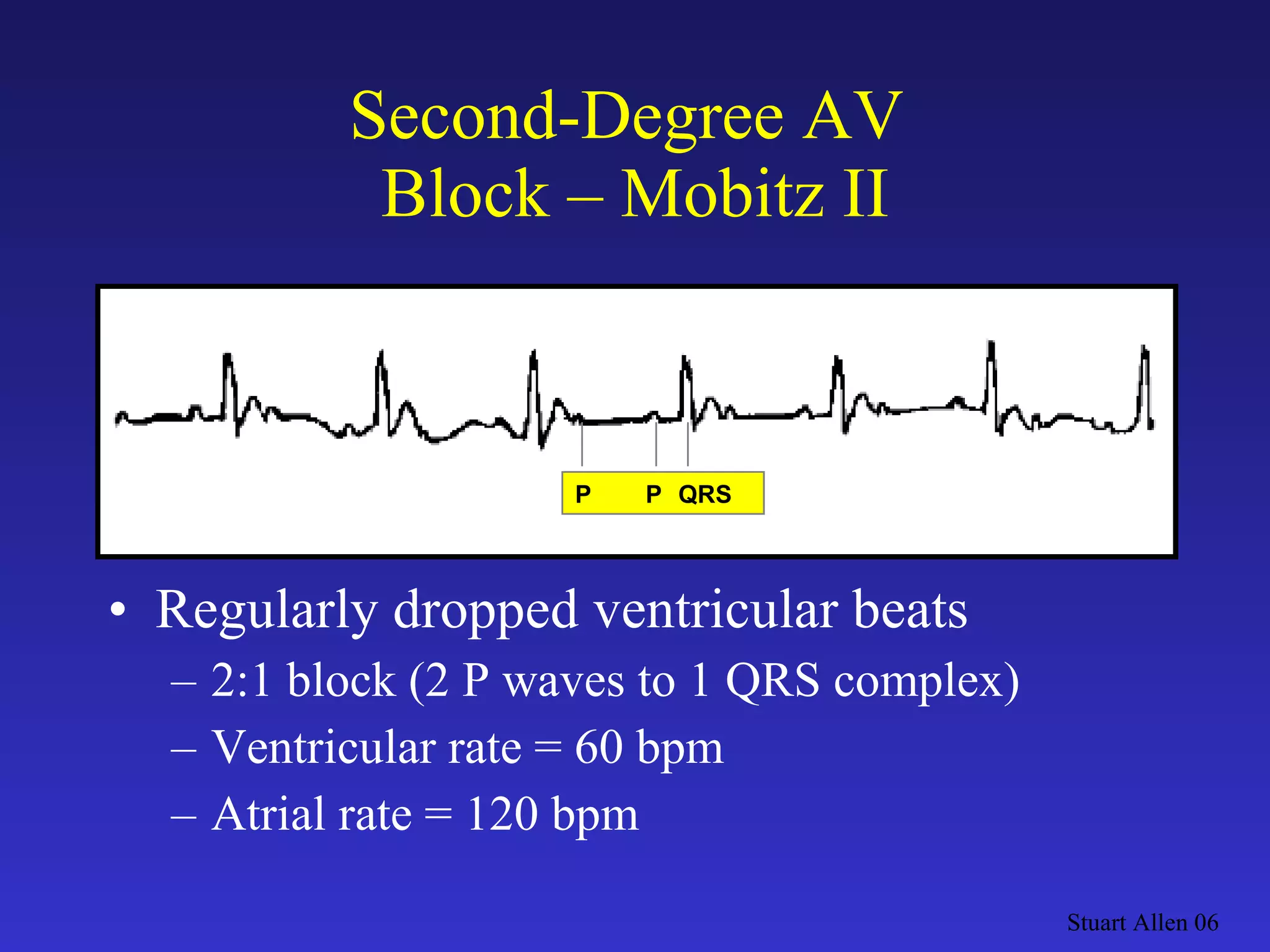

- 37. Second-Degree AV Block – Mobitz II Regularly dropped ventricular beats 2:1 block (2 P waves to 1 QRS complex) Ventricular rate = 60 bpm Atrial rate = 120 bpm Stuart Allen 06 P P QRS

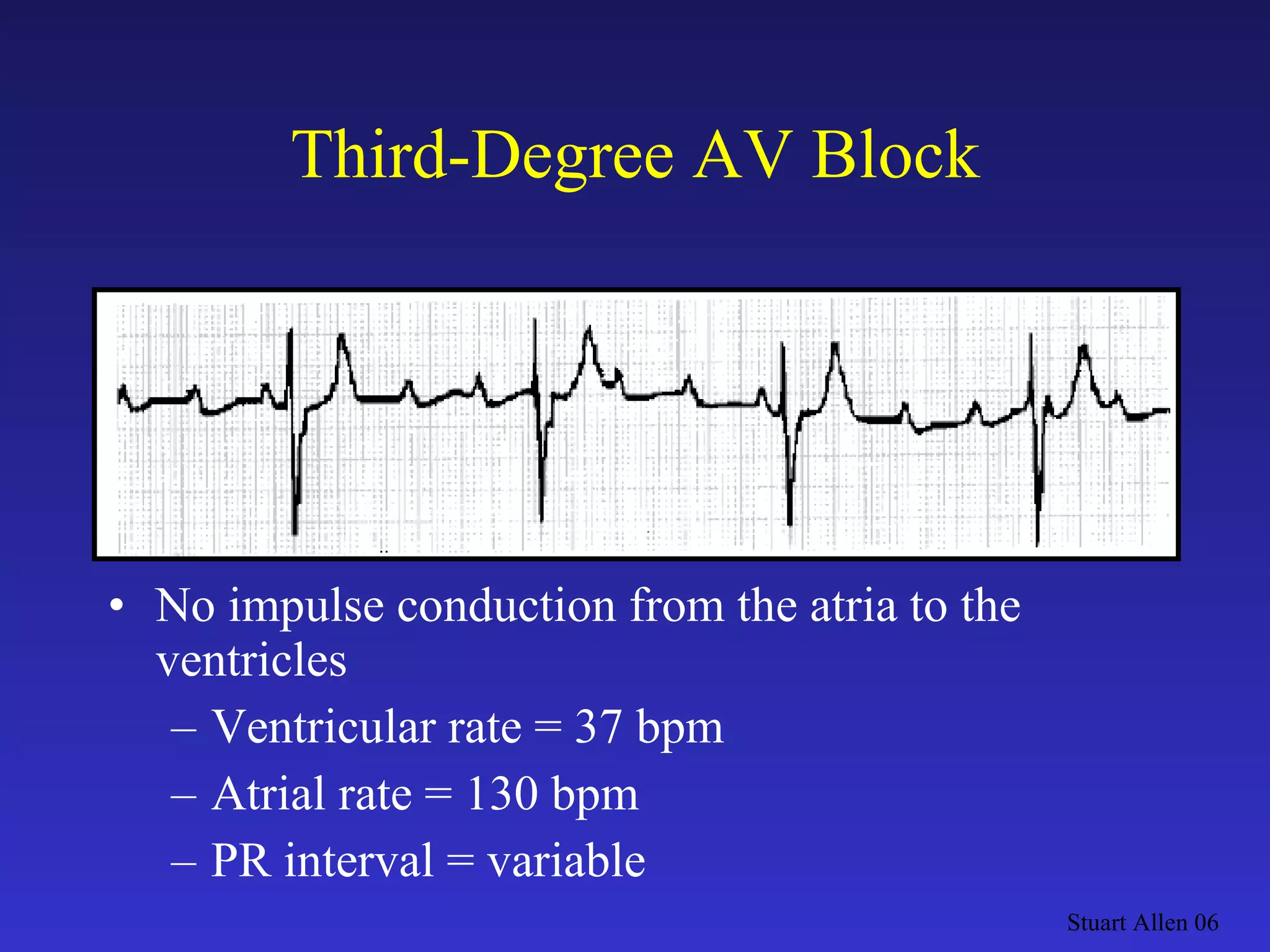

- 38. Third-Degree AV BlockNo impulse conduction from the atria to the ventricles Ventricular rate = 37 bpm Atrial rate = 130 bpm PR interval = variable Stuart Allen 06

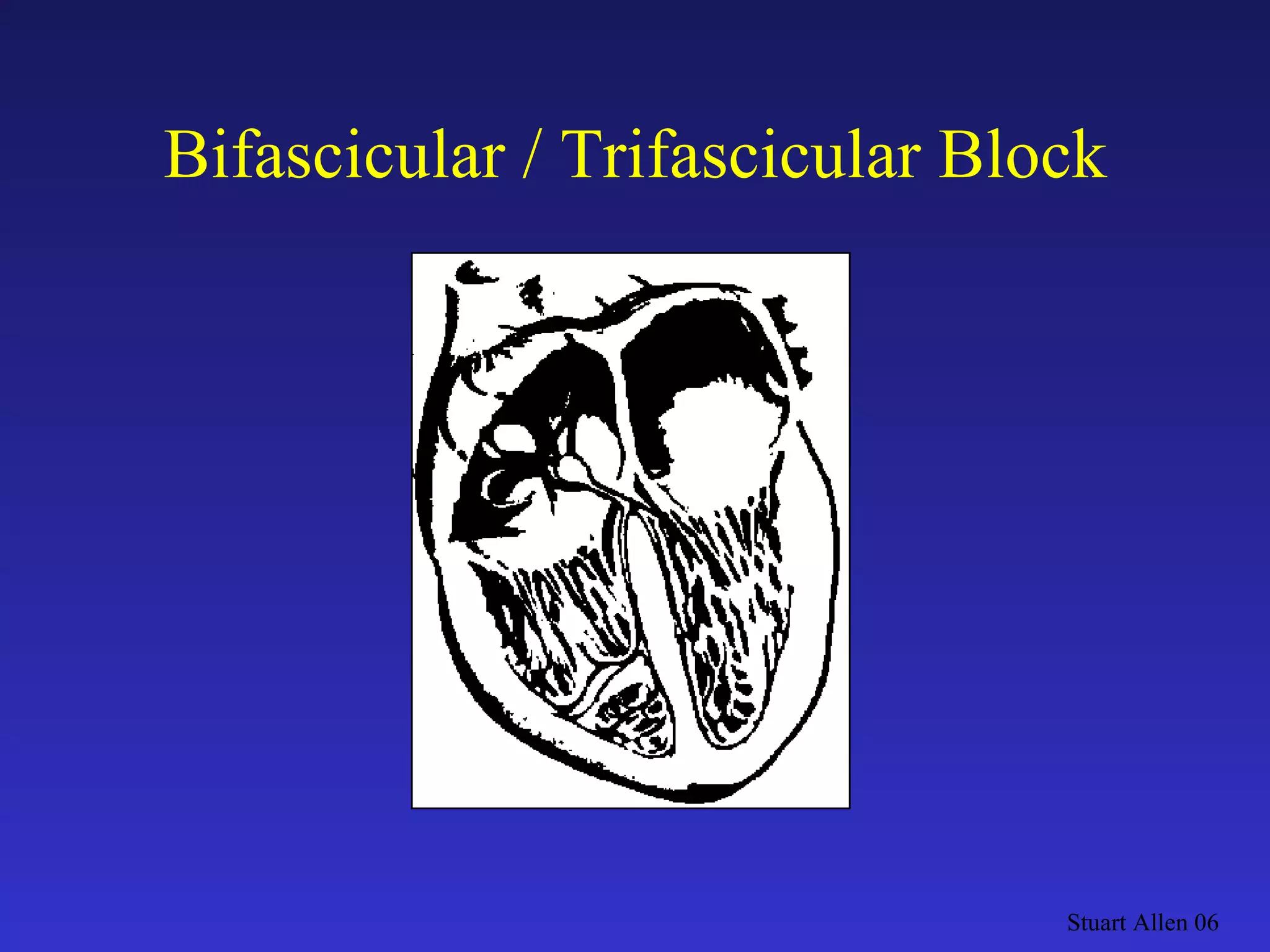

- 39. Bifascicular / TrifascicularBlock Stuart Allen 06

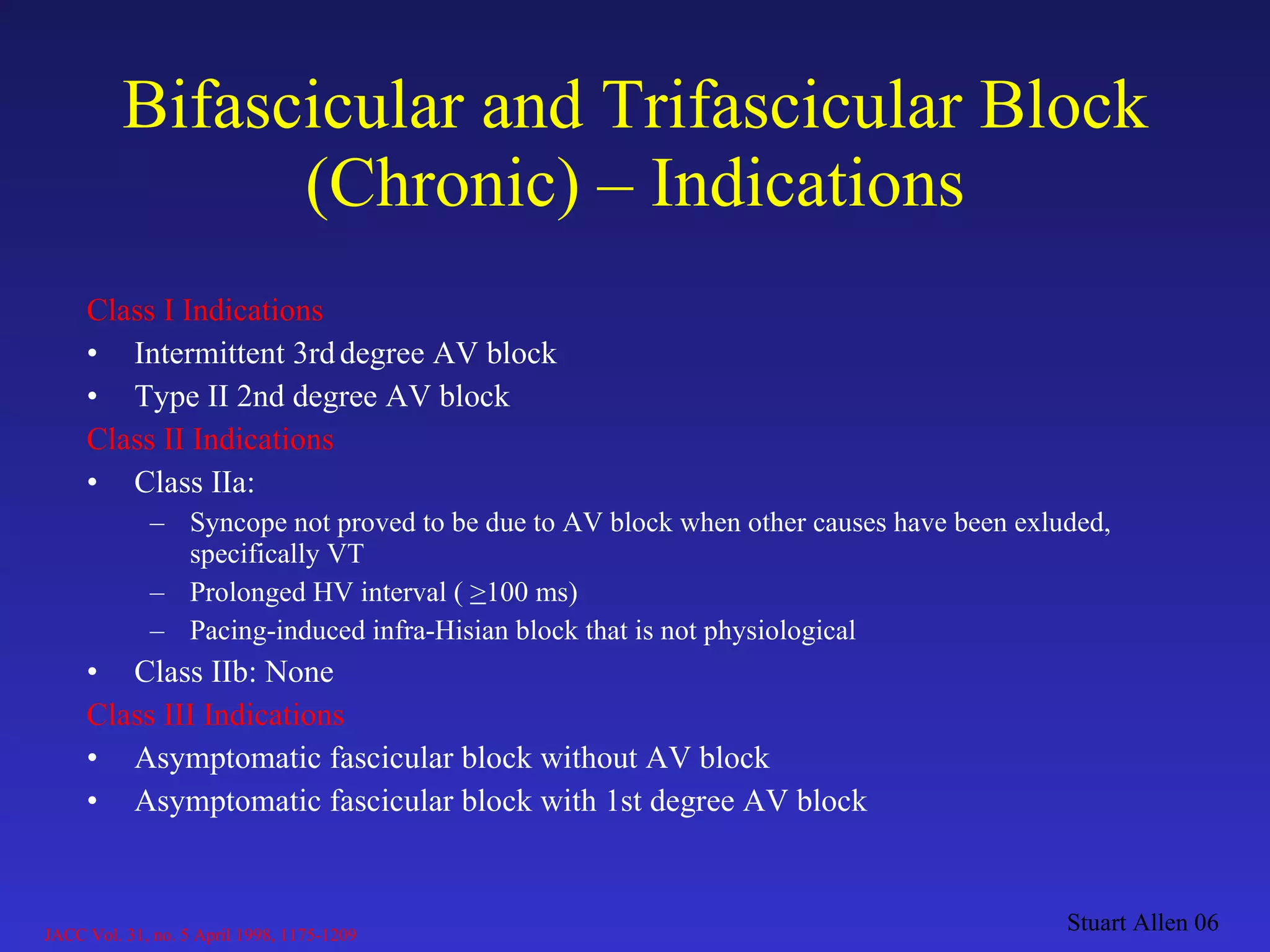

- 40. Class I IndicationsIntermittent 3rd degree AV block Type II 2nd degree AV block Class II Indications Class IIa: Syncope not proved to be due to AV block when other causes have been exluded, specifically VT Prolonged HV interval ( > 100 ms) Pacing-induced infra-Hisian block that is not physiological Class IIb: None Class III Indications Asymptomatic fascicular block without AV block Asymptomatic fascicular block with 1st degree AV block Bifascicular and Trifascicular Block (Chronic) – Indications Stuart Allen 06 JACC Vol. 31, no. 5 April 1998, 1175-1209

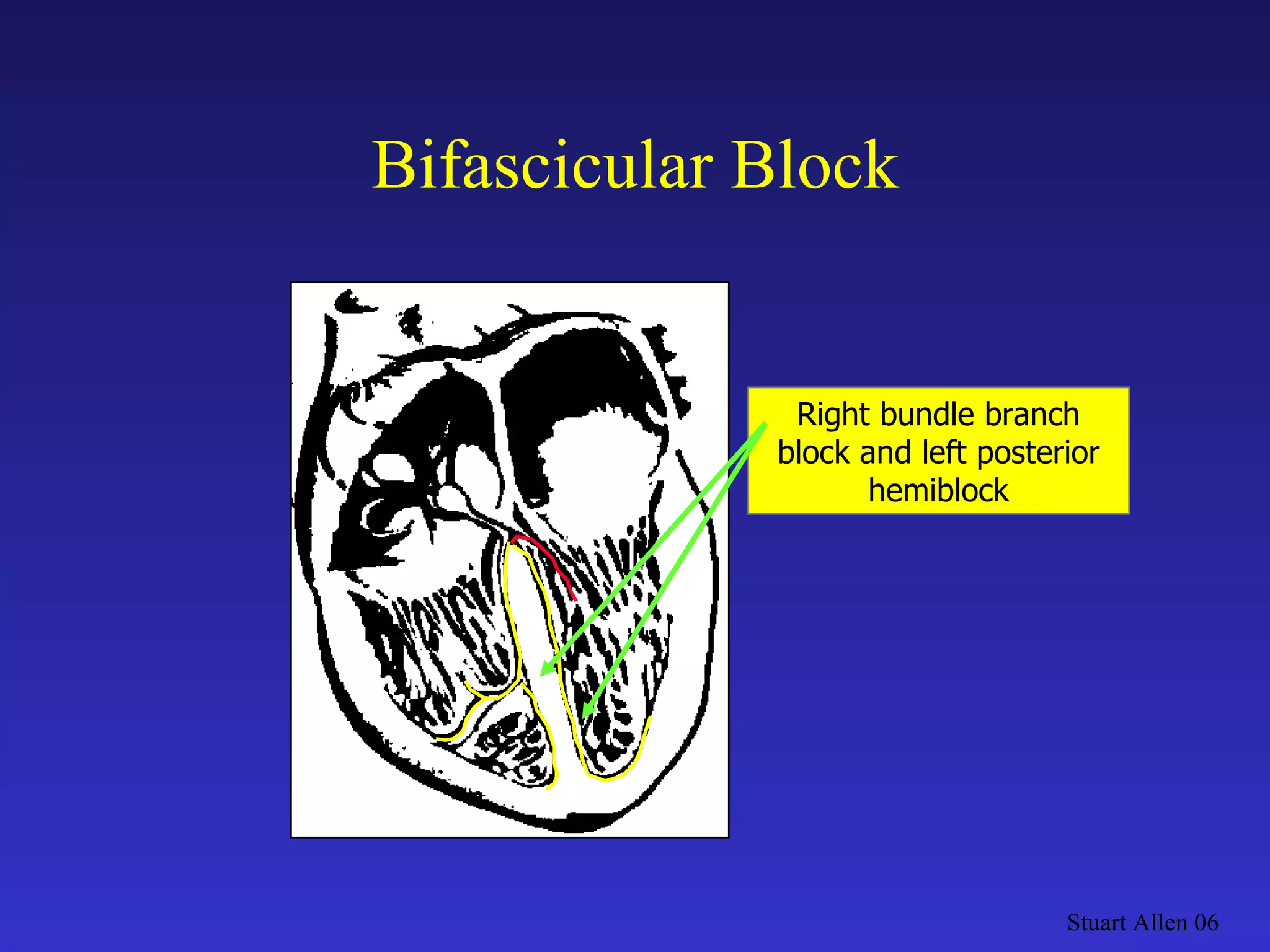

- 41. Bifascicular Block StuartAllen 06 Right bundle branch block and left posterior hemiblock

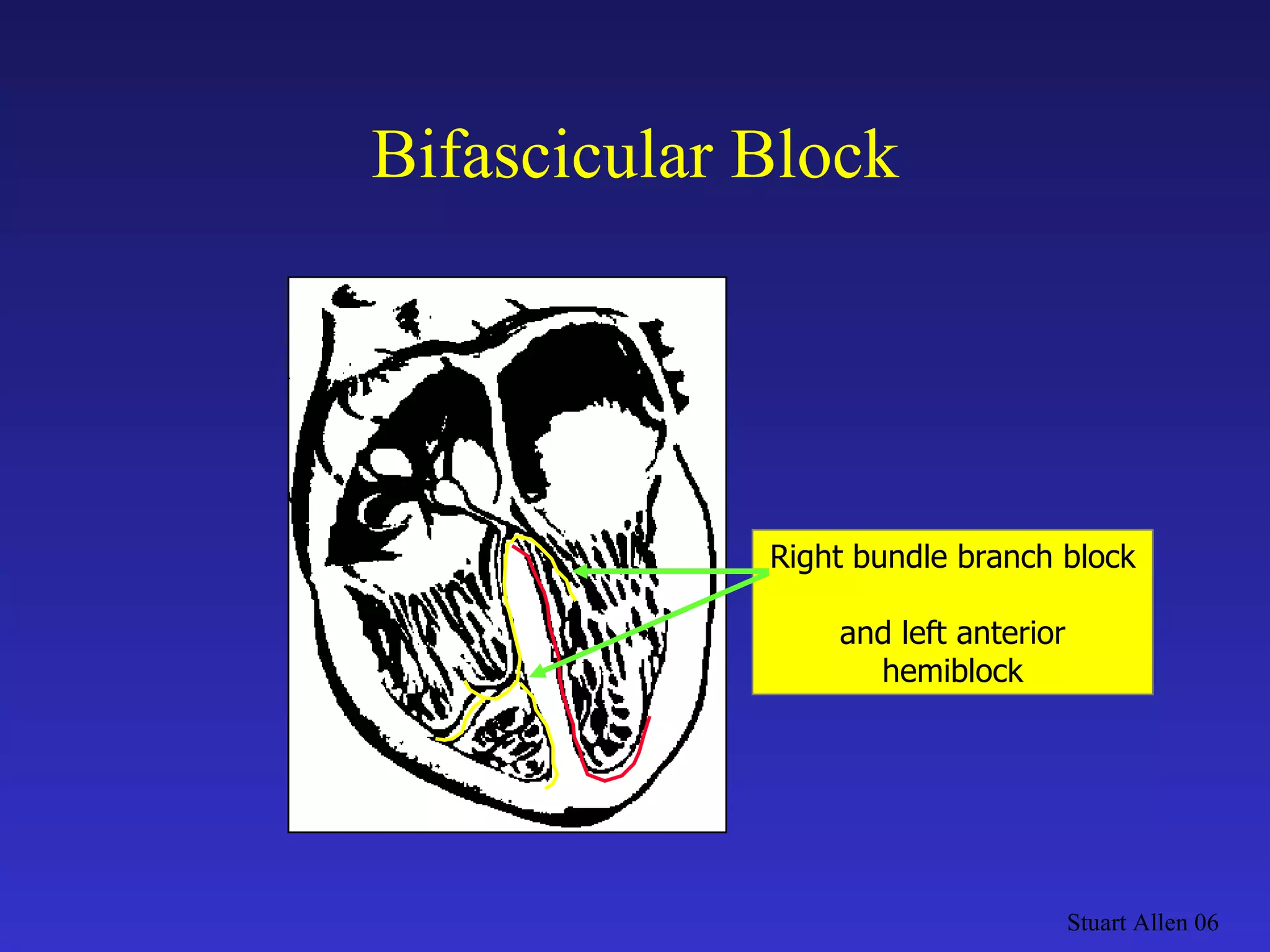

- 42. Bifascicular Block StuartAllen 06 Right bundle branch block and left anterior hemiblock

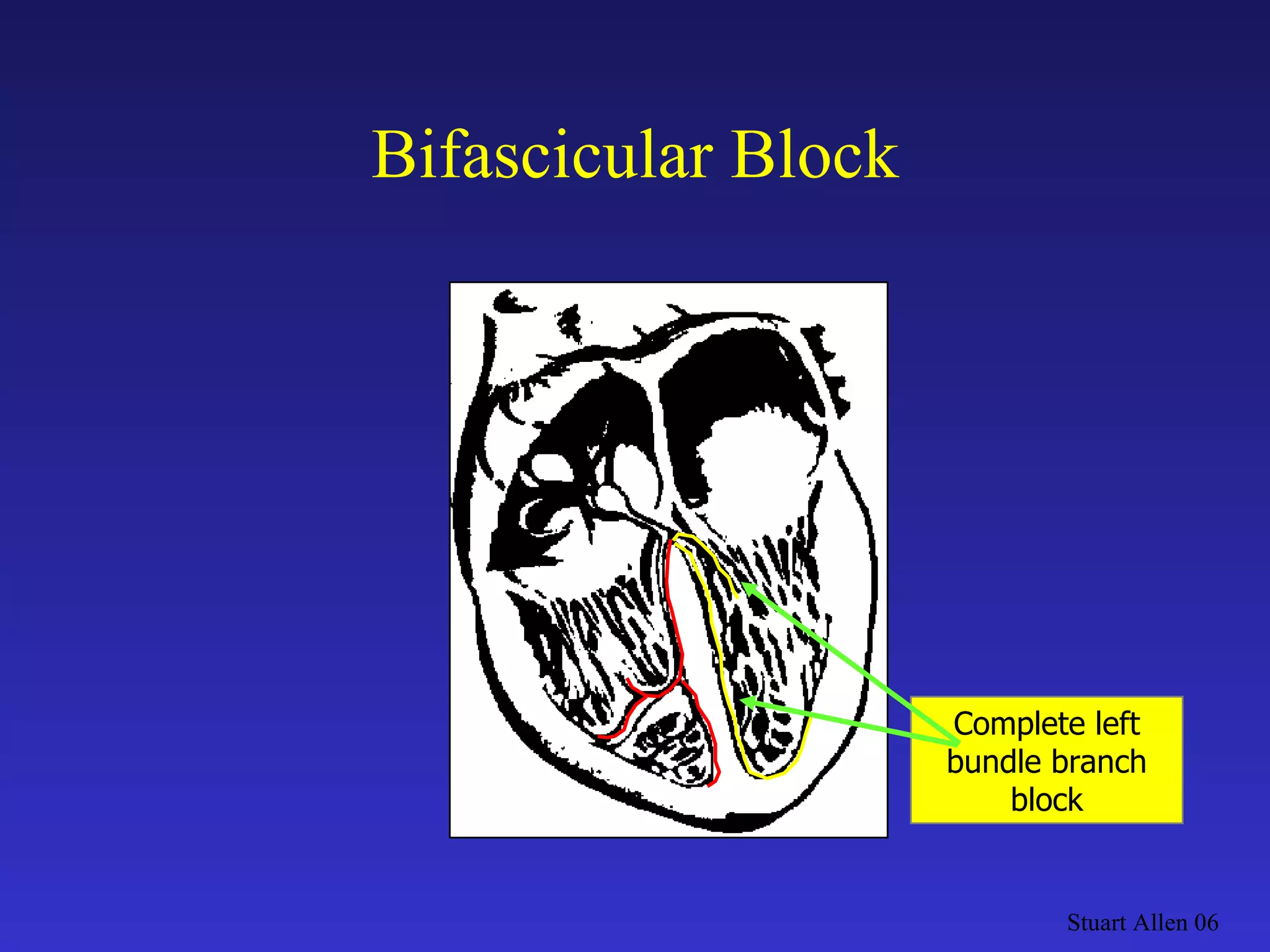

- 43. Bifascicular Block StuartAllen 06 Complete left bundle branch block

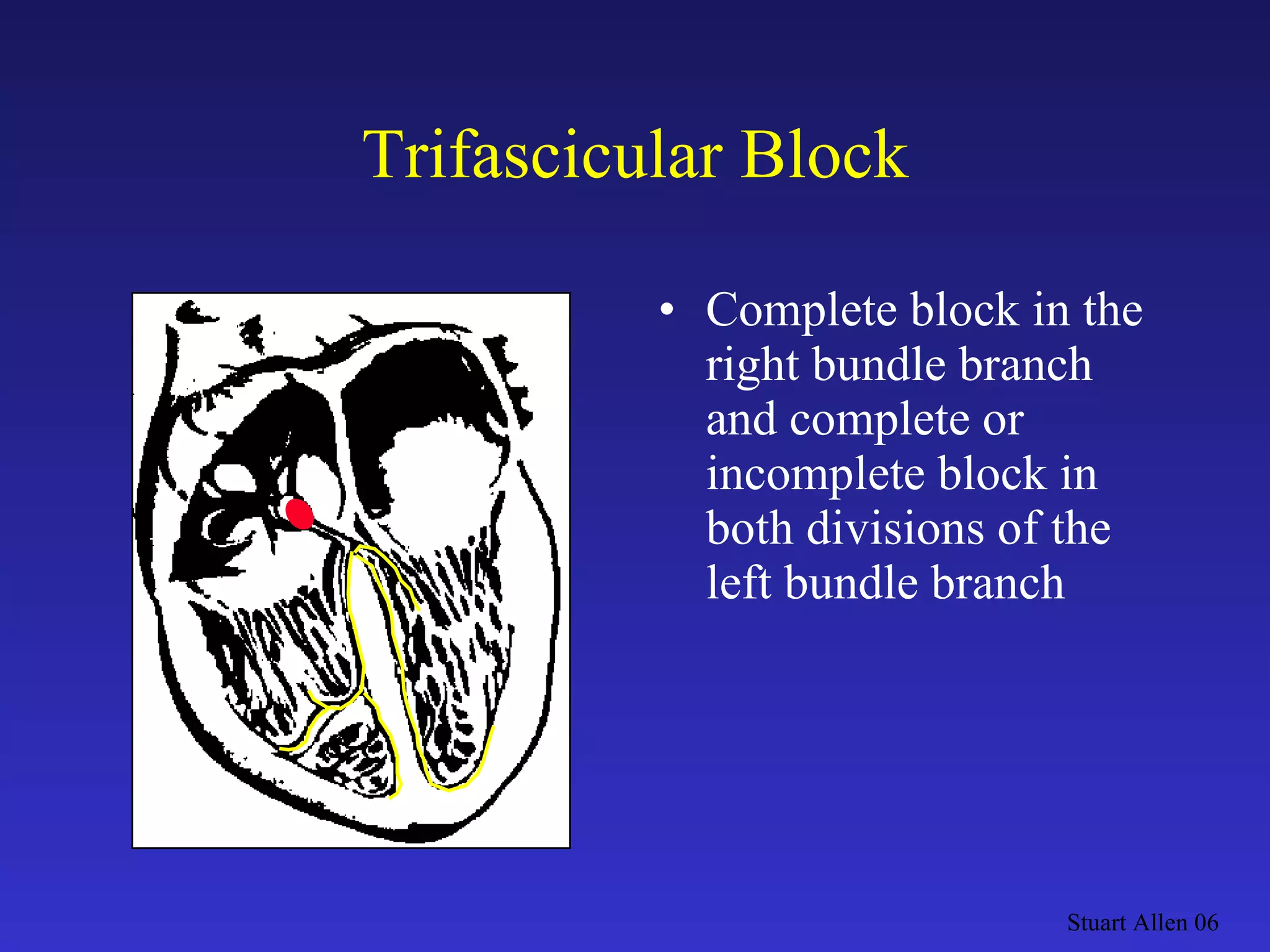

- 44. Trifascicular Block Completeblock in the right bundle branch and complete or incomplete block in both divisions of the left bundle branch Stuart Allen 06

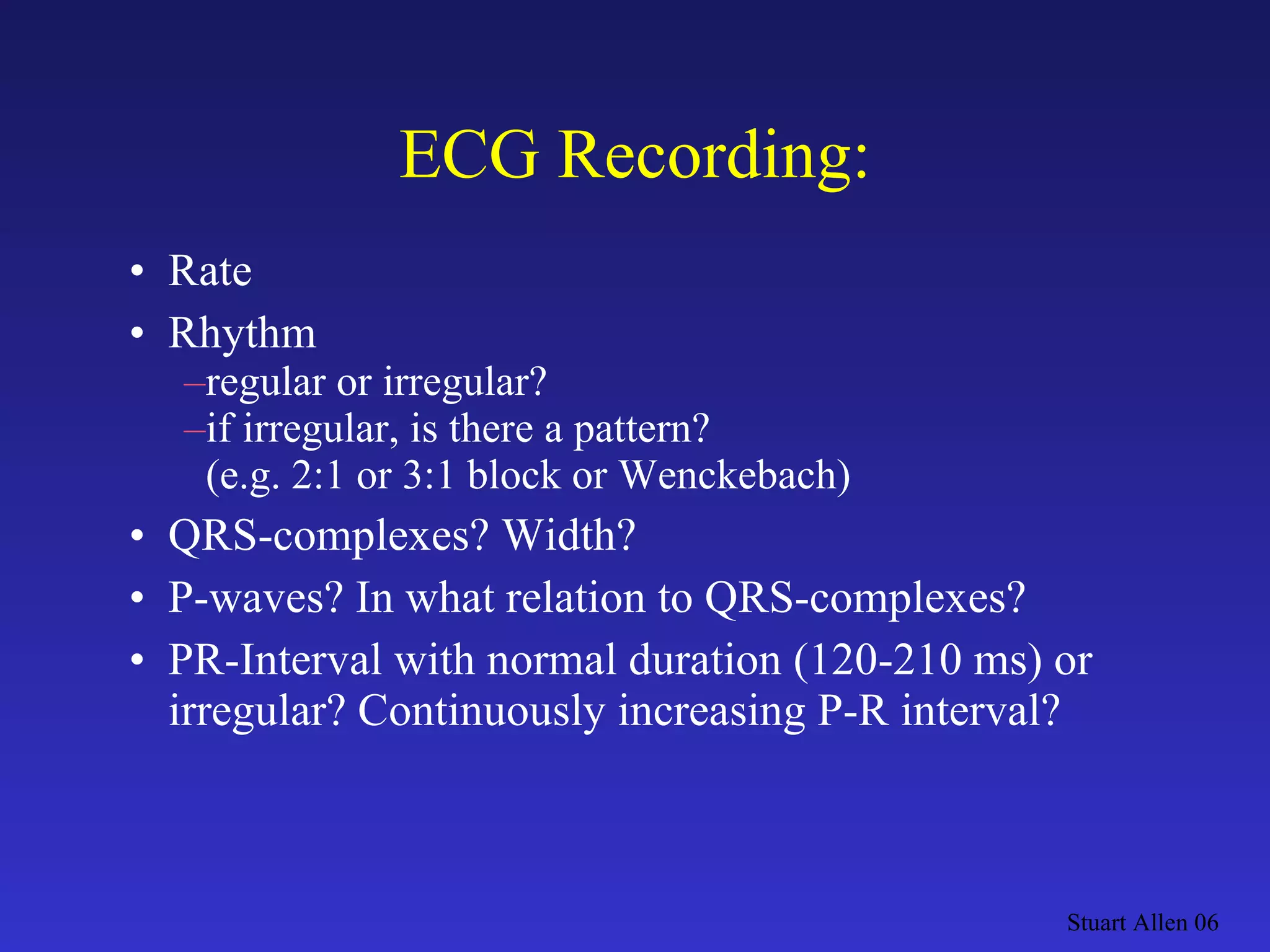

- 45. ECG Recording: RateRhythm regular or irregular? if irregular, is there a pattern? (e.g. 2:1 or 3:1 block or Wenckebach) QRS-complexes? Width? P-waves? In what relation to QRS-complexes? PR-Interval with normal duration (120-210 ms) or irregular? Continuously increasing P-R interval? Stuart Allen 06

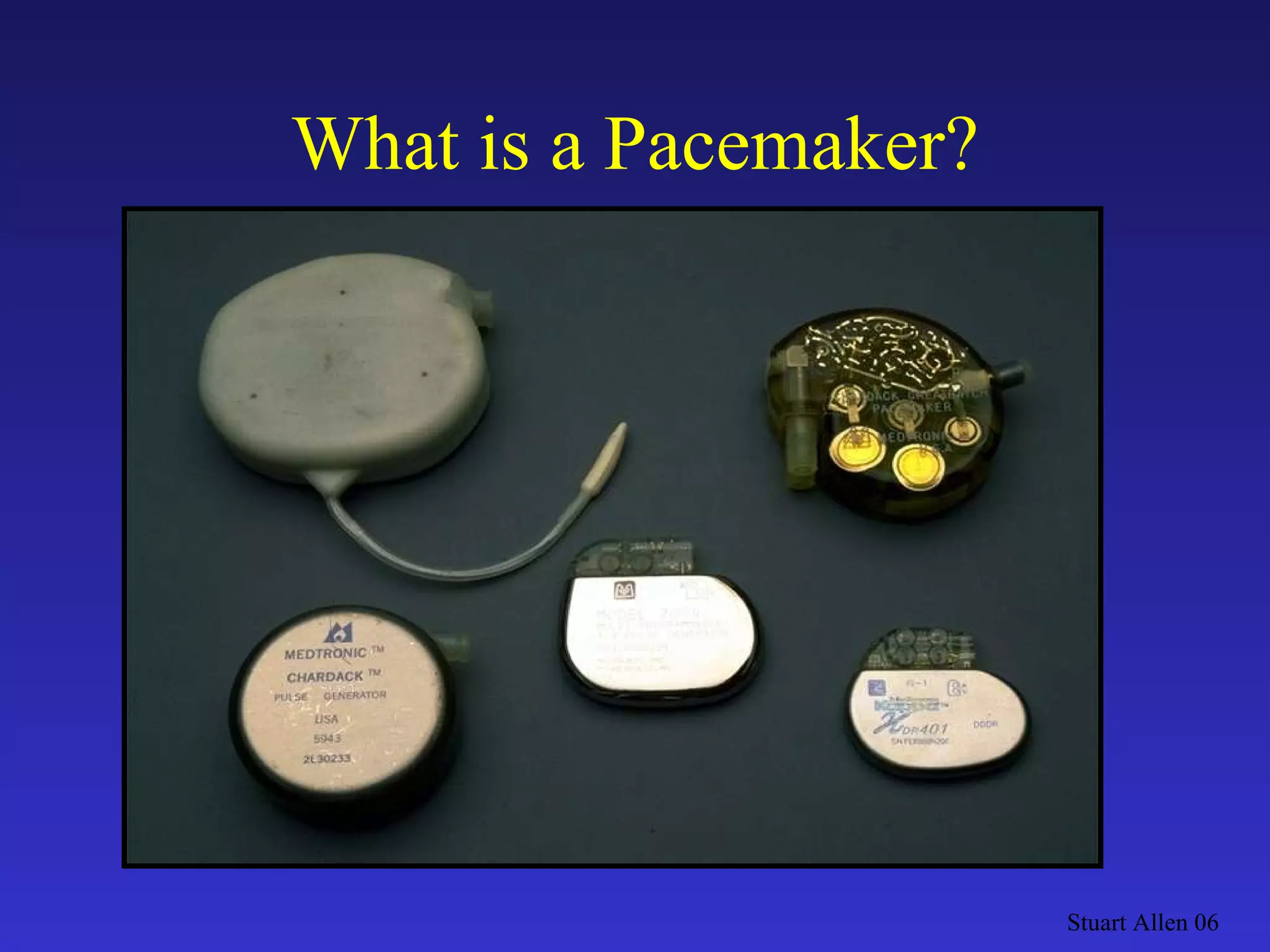

- 46. What is aPacemaker? Stuart Allen 06

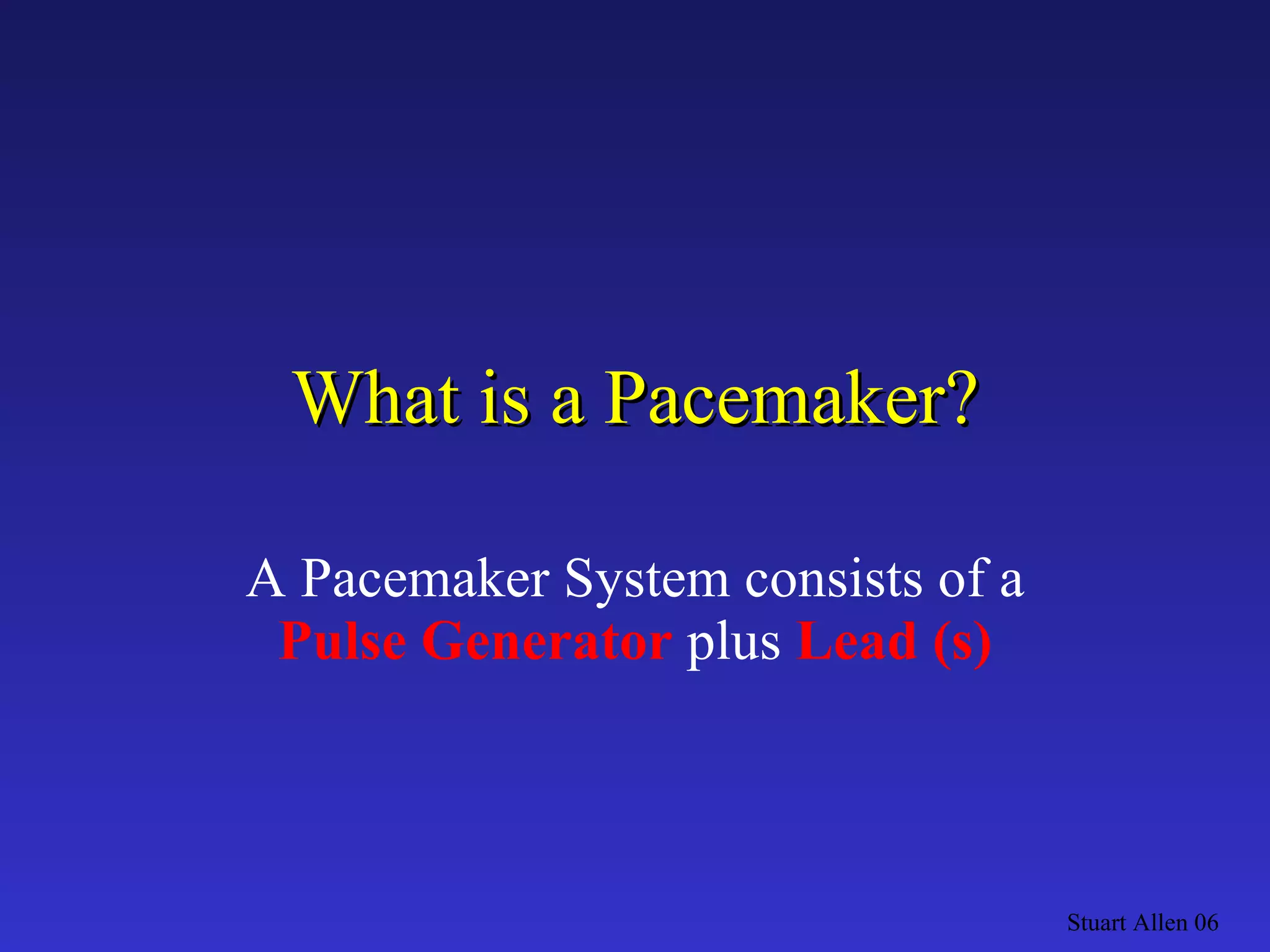

- 47. What is aPacemaker? A Pacemaker System consists of a Pulse Generator plus Lead (s) Stuart Allen 06

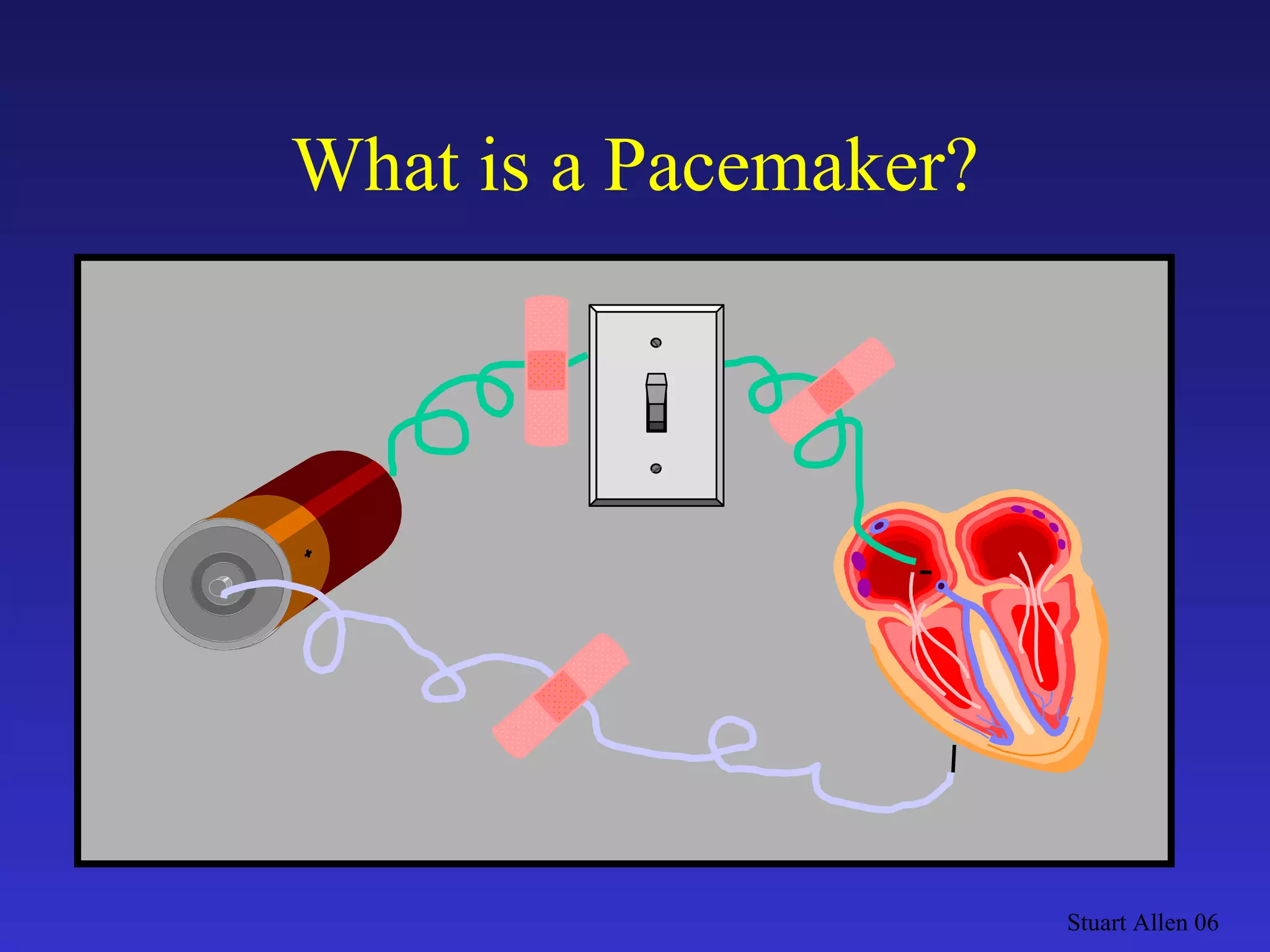

- 48. What is aPacemaker? Stuart Allen 06

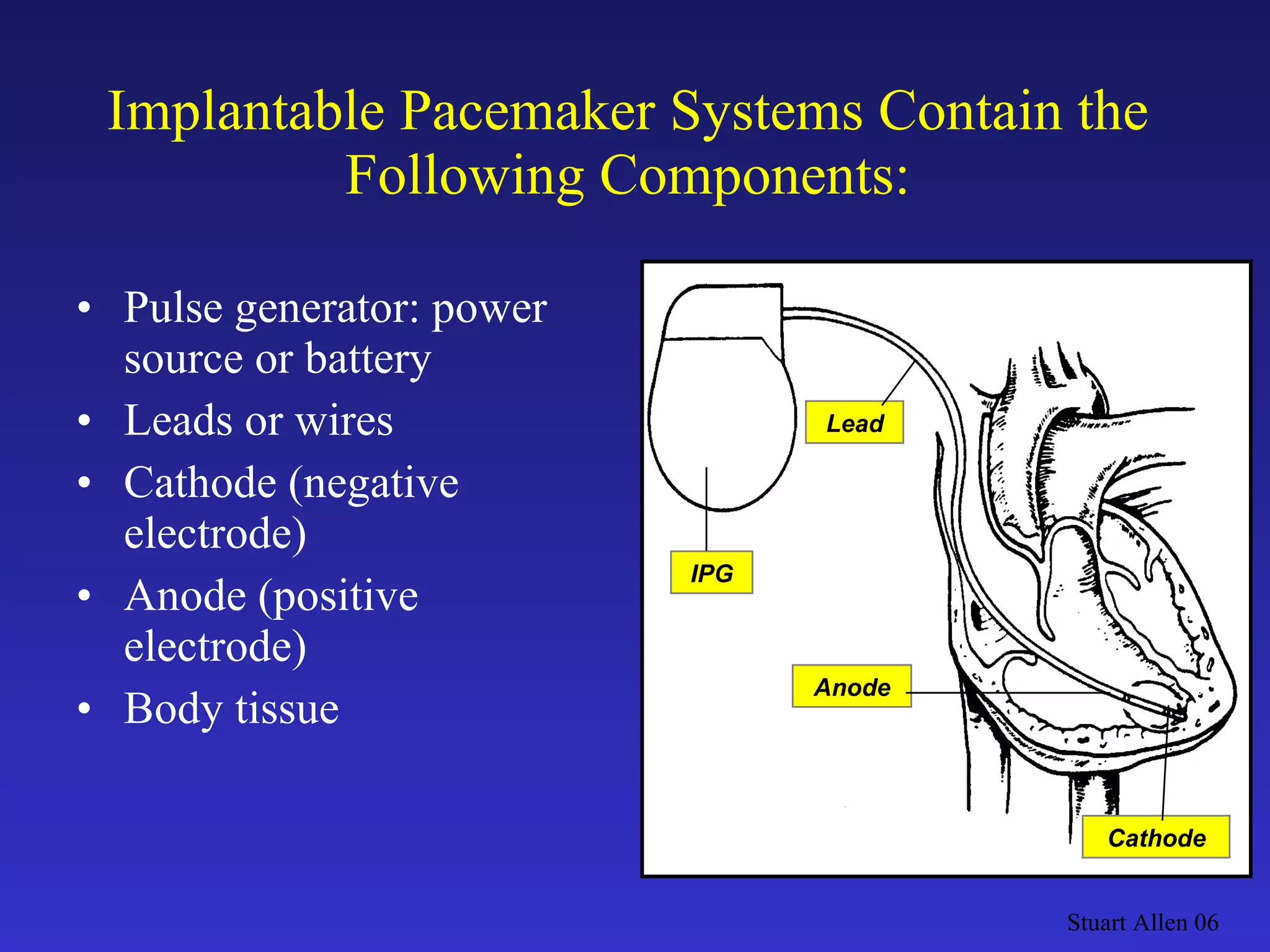

- 49. Pulse generator: powersource or battery Leads or wires Cathode (negative electrode) Anode (positive electrode) Body tissue Implantable Pacemaker Systems Contain the Following Components: Stuart Allen 06 IPG Lead Anode Cathode

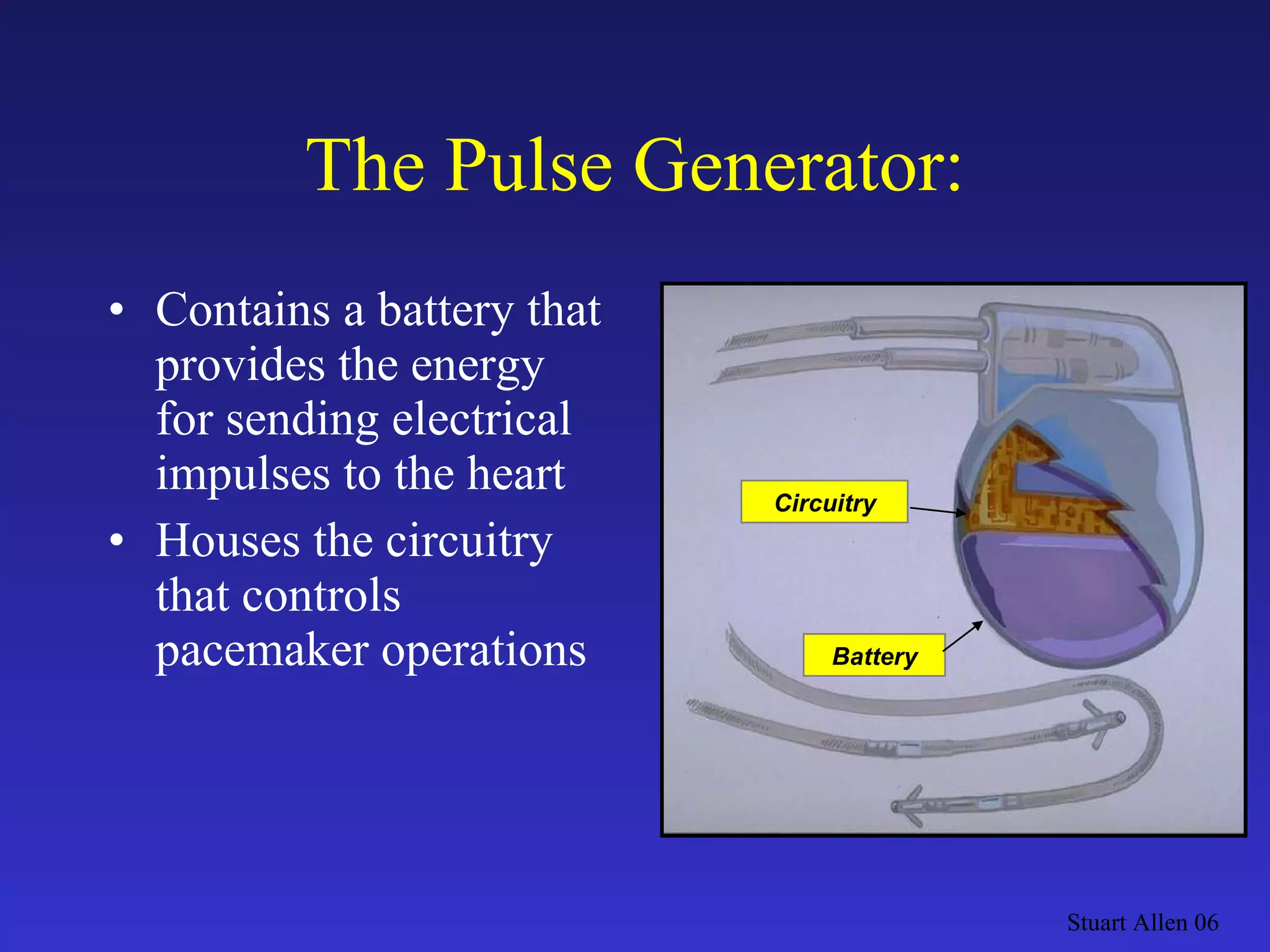

- 50. Contains a batterythat provides the energy for sending electrical impulses to the heart Houses the circuitry that controls pacemaker operations The Pulse Generator: Stuart Allen 06 Circuitry Battery

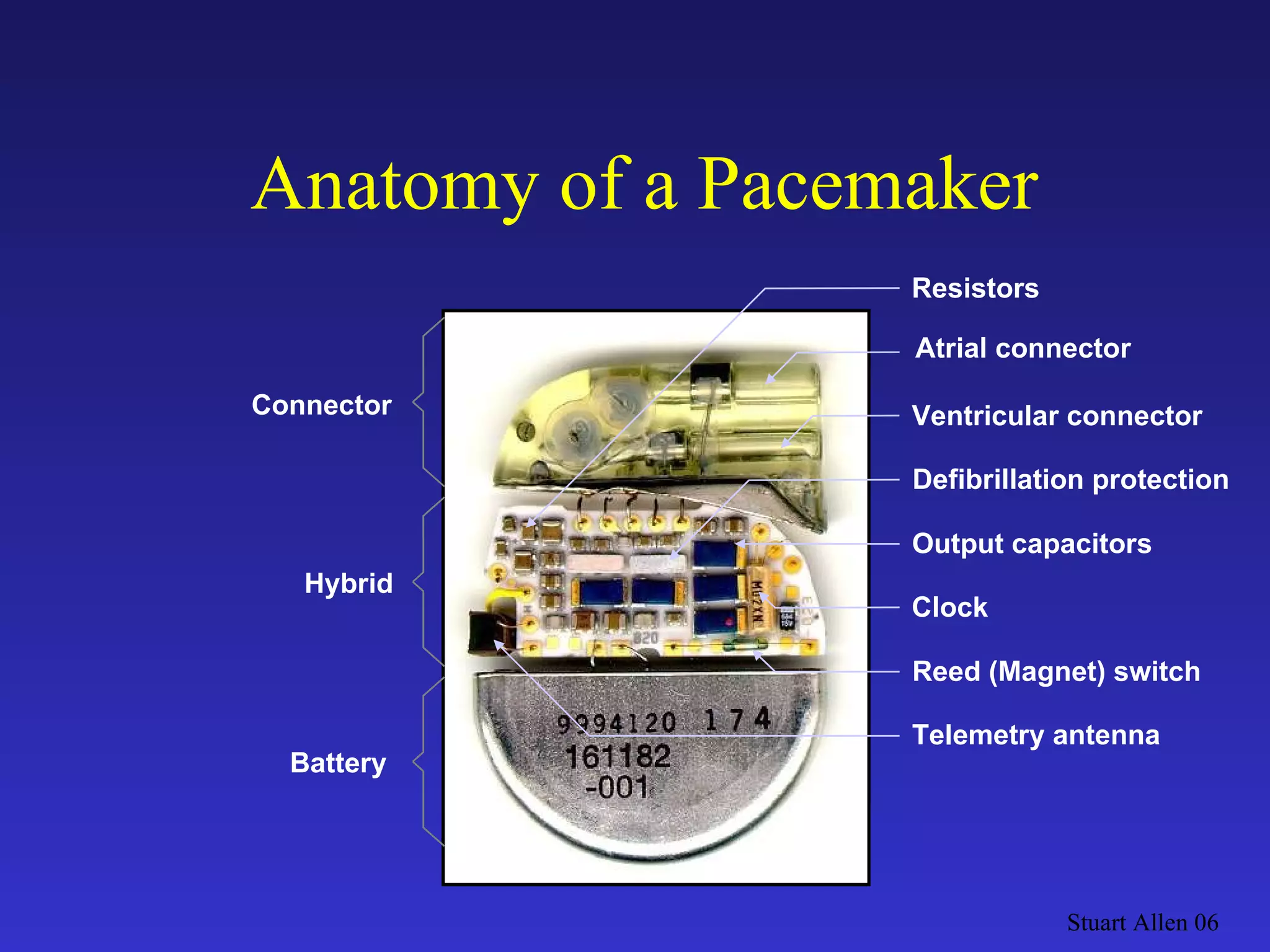

- 51. Stuart Allen 06Battery Connector Hybrid Telemetry antenna Output capacitors Reed (Magnet) switch Clock Defibrillation protection Atrial connector Ventricular connector Resistors Anatomy of a Pacemaker

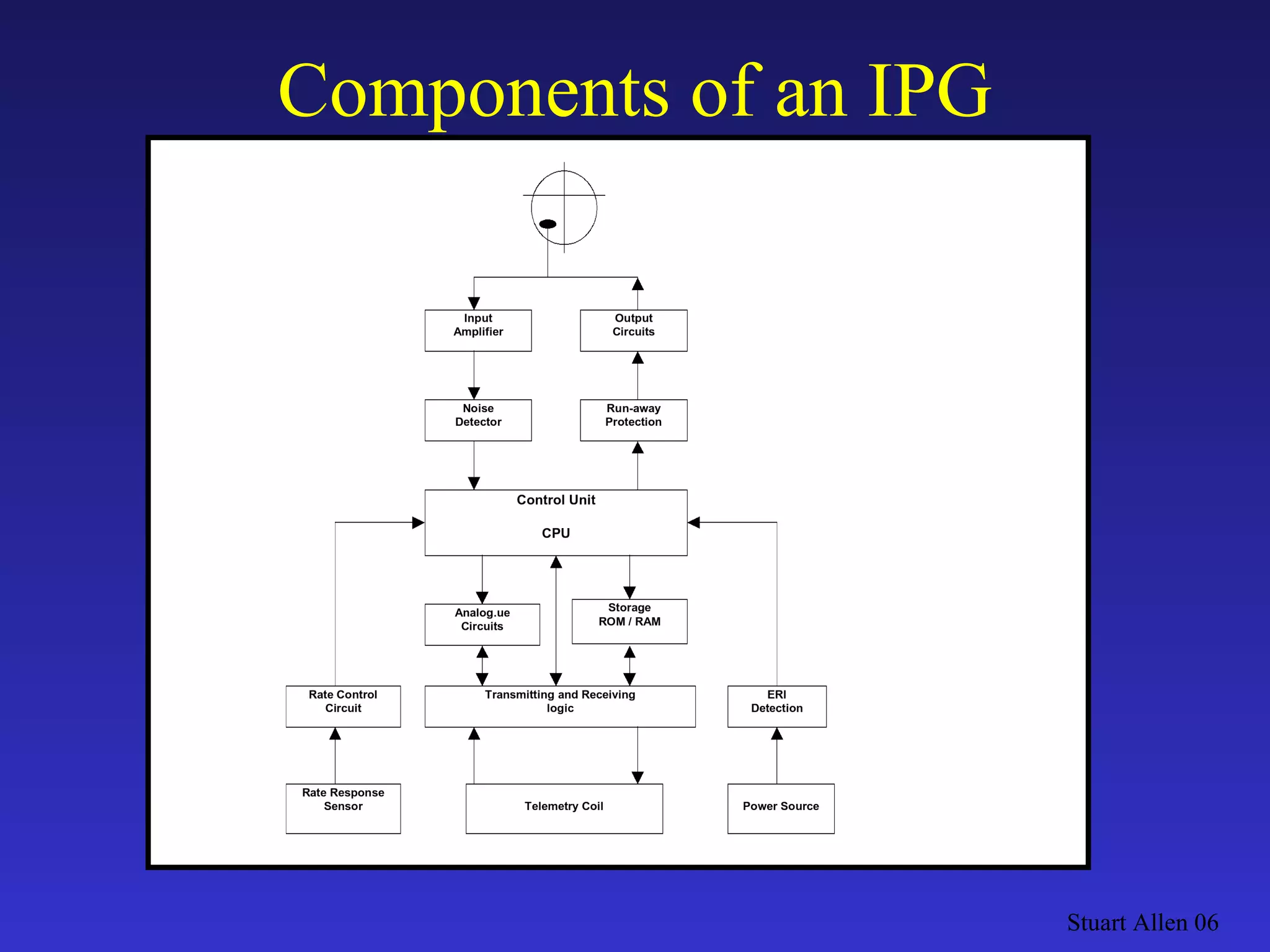

- 52. Stuart Allen 06Components of an IPG
- 53. What is aPacemaker? Stuart Allen 06

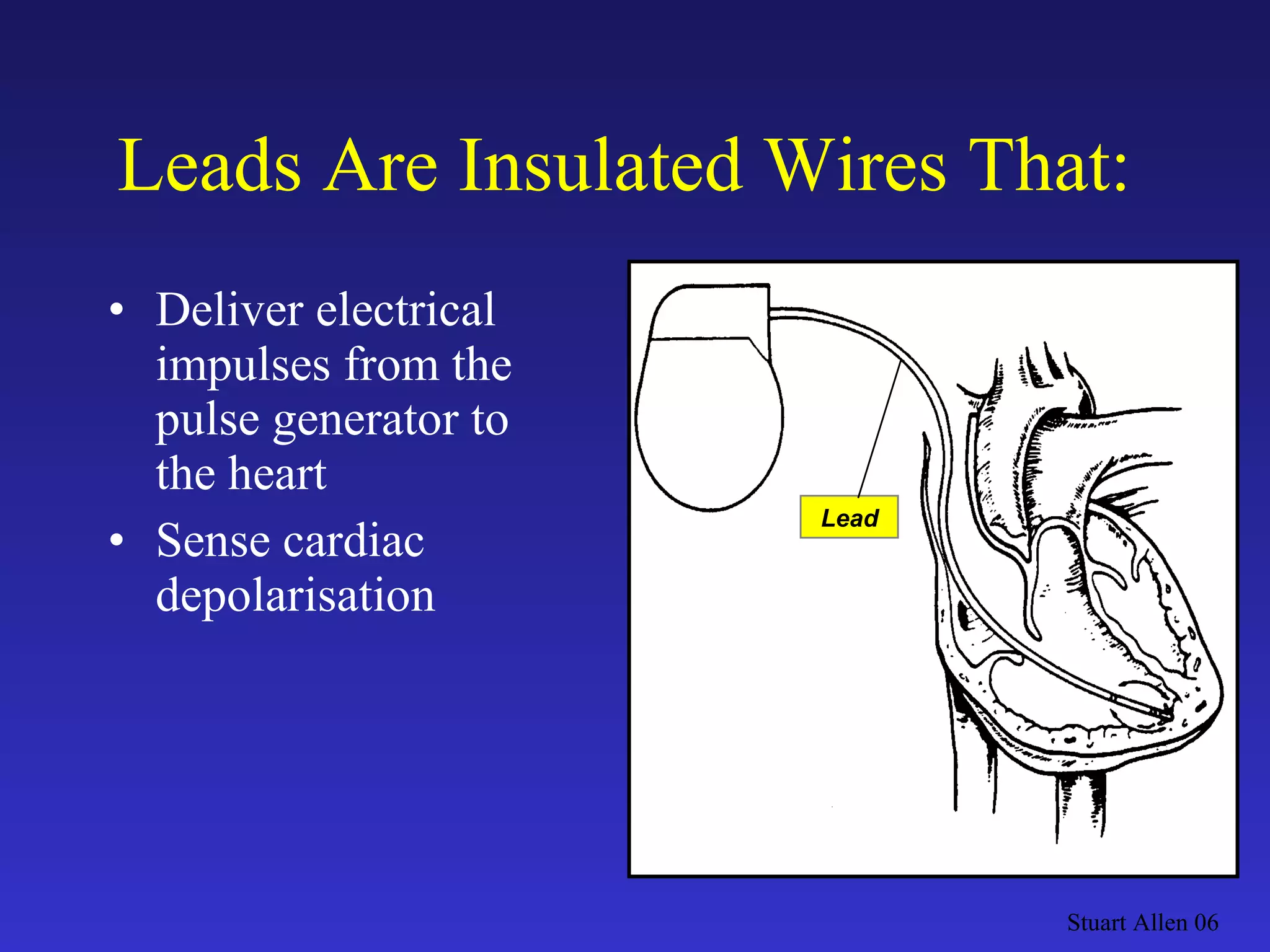

- 54. Deliver electrical impulsesfrom the pulse generator to the heart Sense cardiac depolarisation Leads Are Insulated Wires That: Stuart Allen 06 Lead

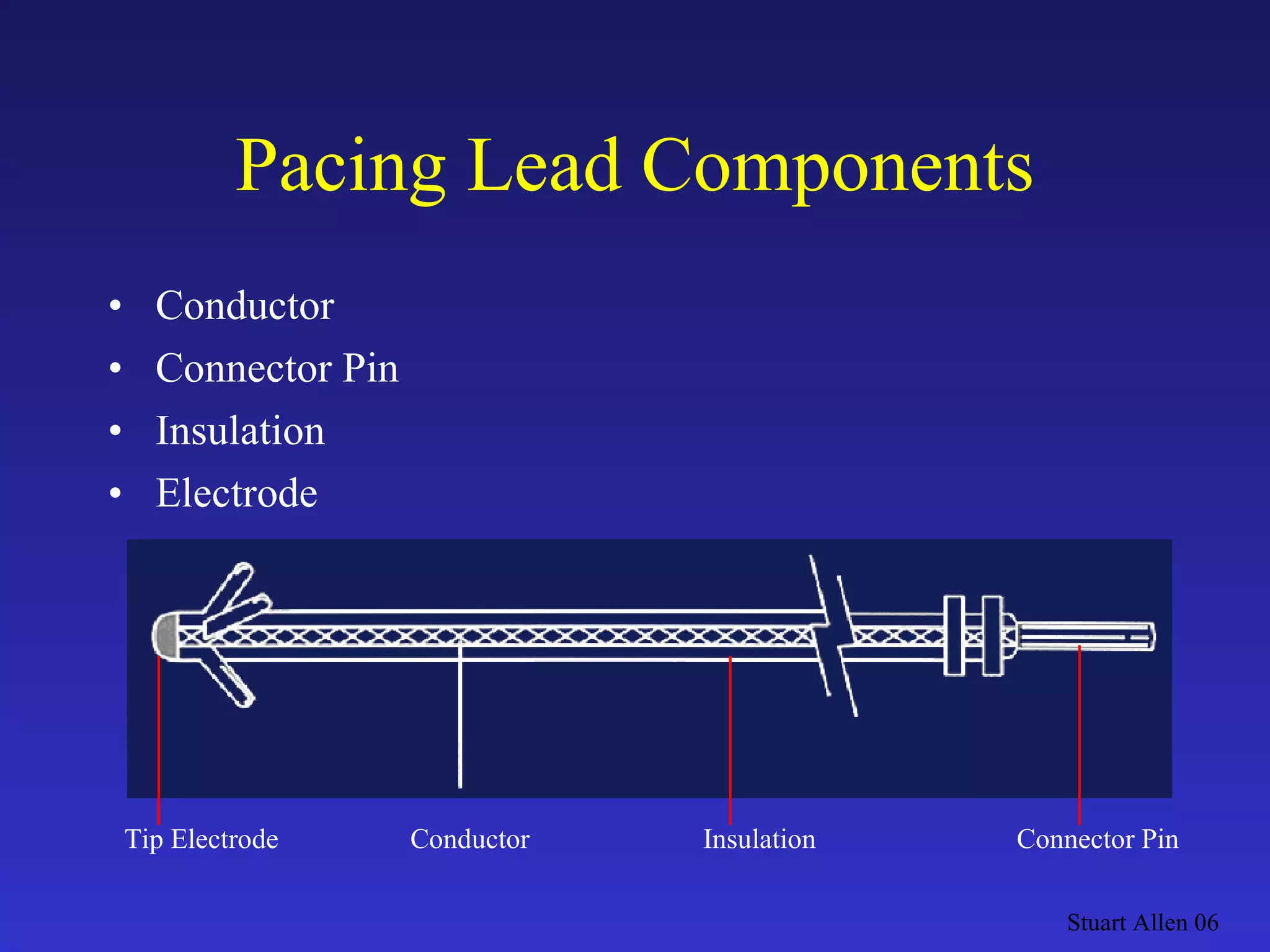

- 55. Pacing Lead ComponentsConductor Connector Pin Insulation Electrode Stuart Allen 06 Conductor Tip Electrode Insulation Connector Pin
- 56. How do pacemakerswork? Stuart Allen 06

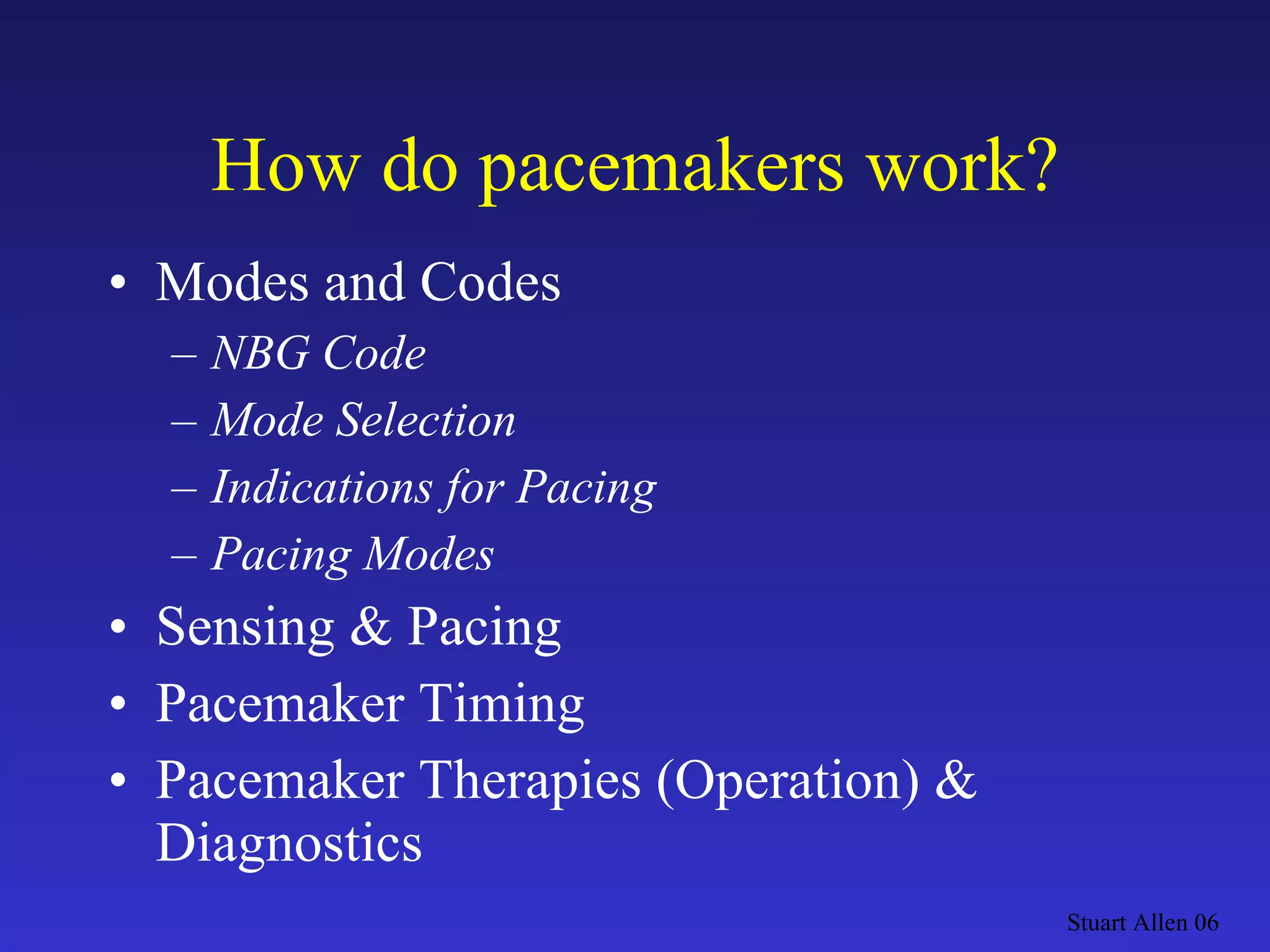

- 57. How do pacemakerswork? Modes and Codes NBG Code Mode Selection Indications for Pacing Pacing Modes Sensing & Pacing Pacemaker Timing Pacemaker Therapies (Operation) & Diagnostics Stuart Allen 06

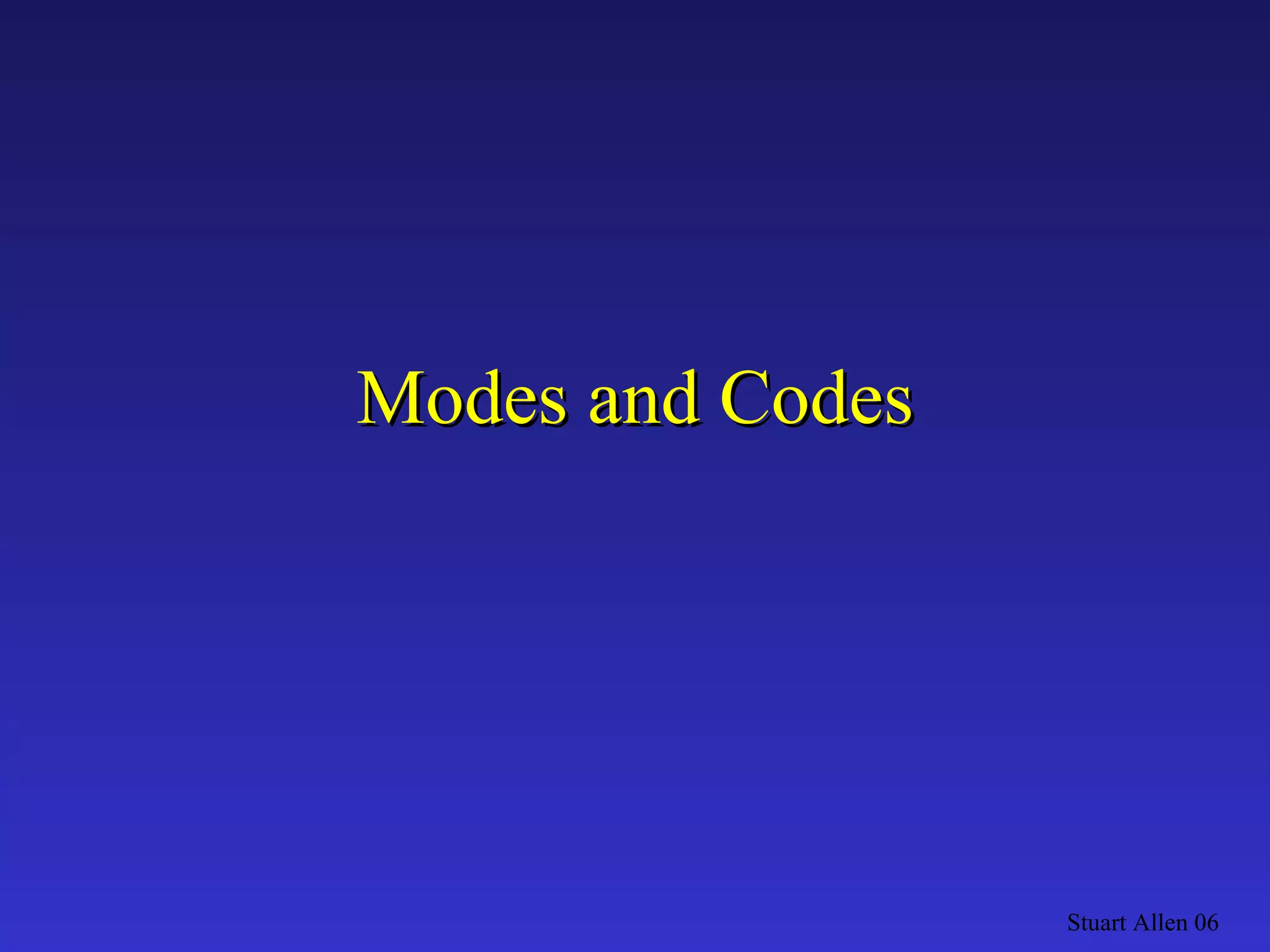

- 58. Modes and CodesStuart Allen 06

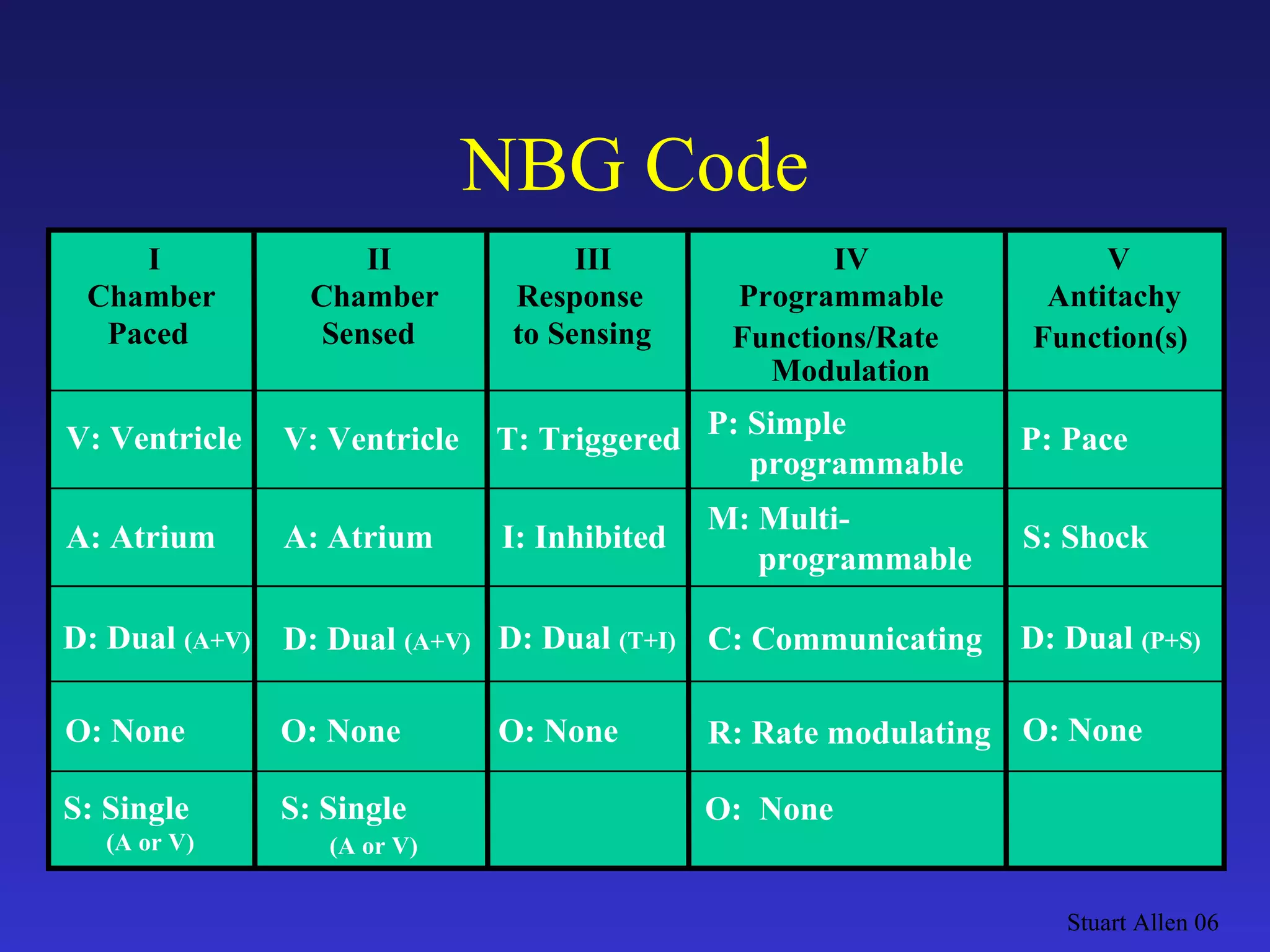

- 59. NBG Code StuartAllen 06 V: Ventricle V: Ventricle T: Triggered P: Simple programmable P: Pace A: Atrium A: Atrium I: Inhibited M: Multi- programmable S: Shock D: Dual (A+V) D: Dual (A+V) D: Dual (T+I) C: Communicating D: Dual (P+S) O: None O: None O: None R: Rate modulating O: None S: Single (A or V) S: Single (A or V) O: None I Chamber Paced II Chamber Sensed III Response to Sensing IV Programmable Functions/Rate Modulation V Antitachy Function(s)

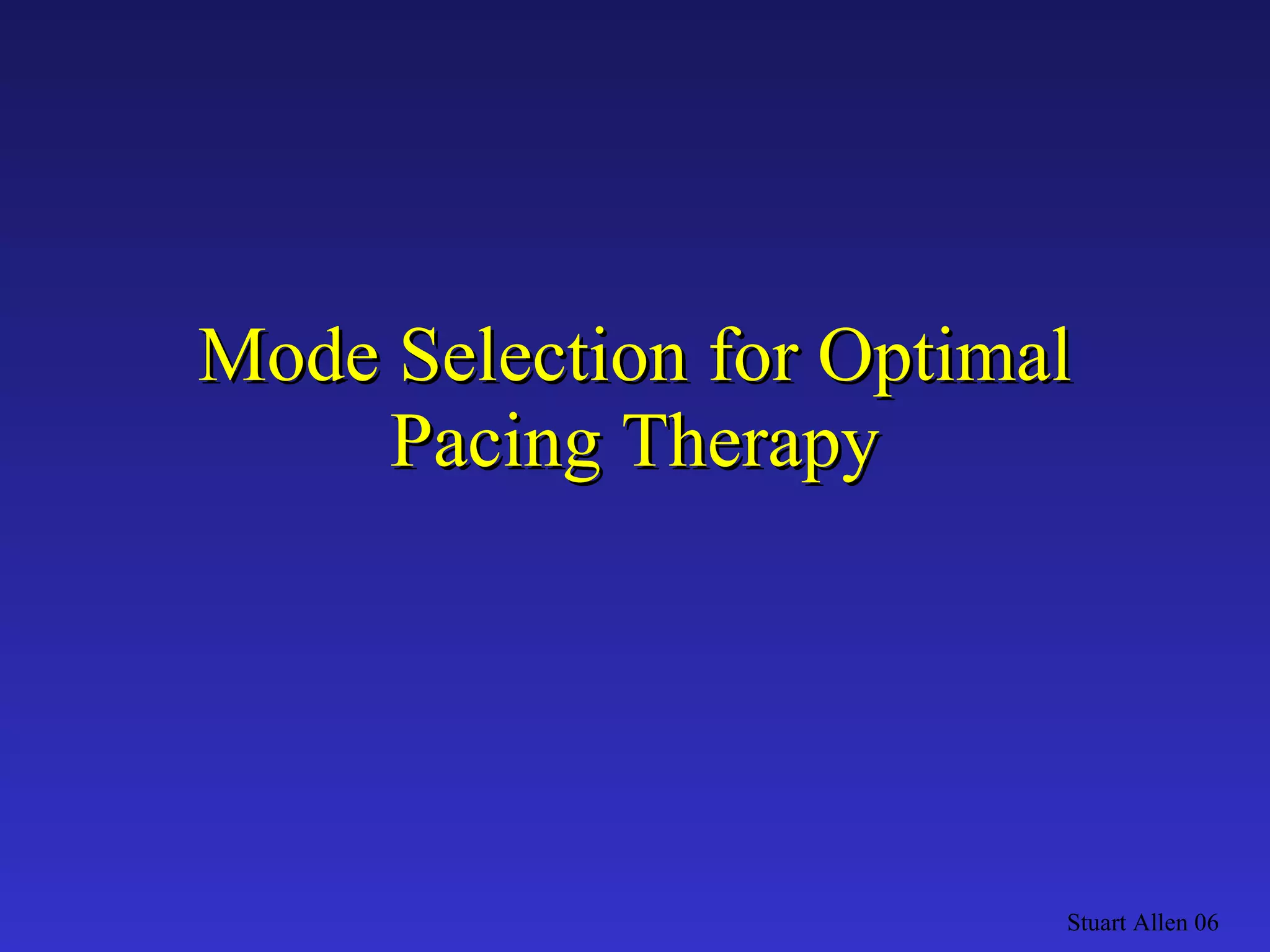

- 60. Mode Selection forOptimal Pacing Therapy Stuart Allen 06

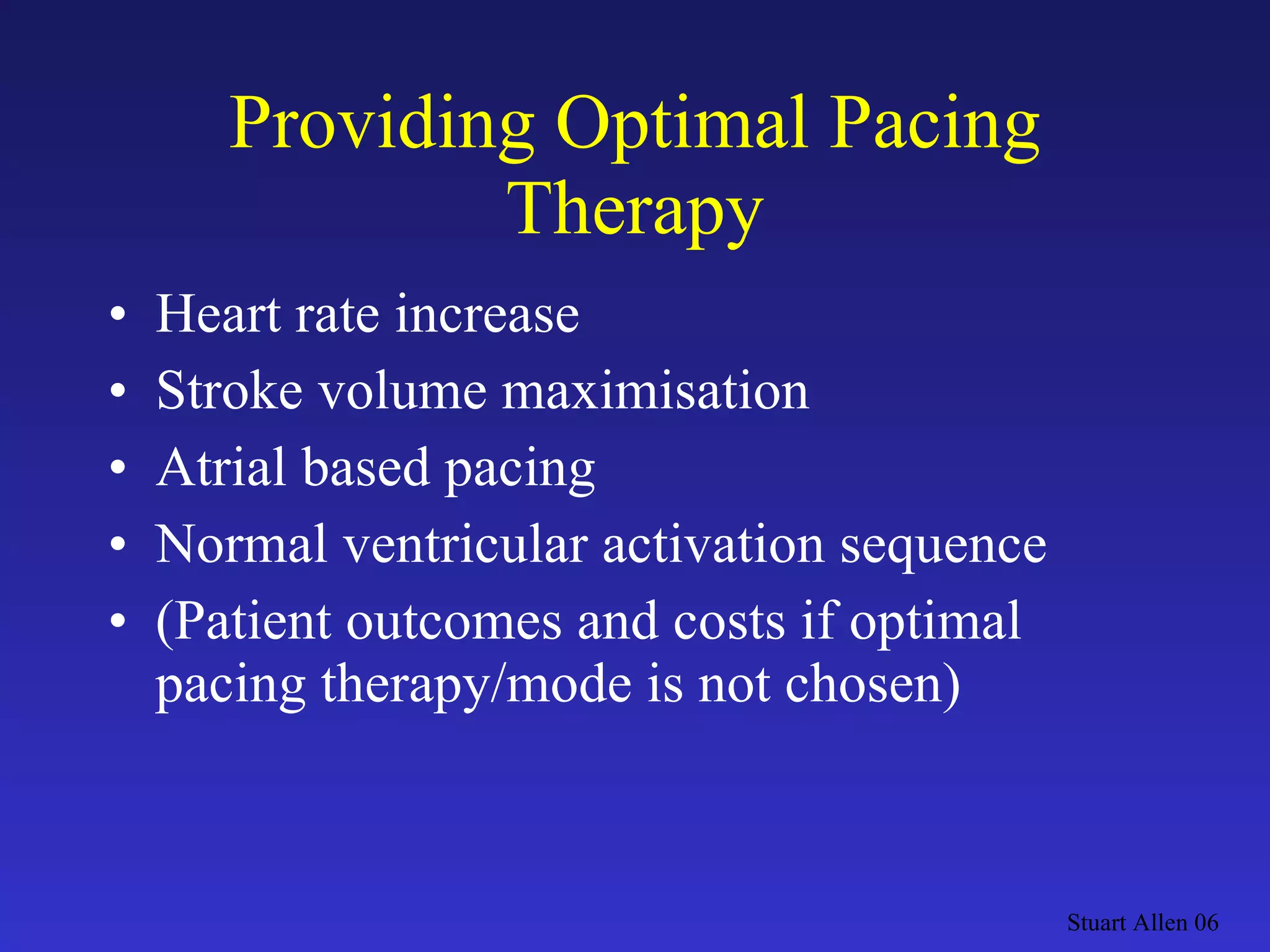

- 61. Providing Optimal PacingTherapy Heart rate increase Stroke volume maximisation Atrial based pacing Normal ventricular activation sequence (Patient outcomes and costs if optimal pacing therapy/mode is not chosen) Stuart Allen 06

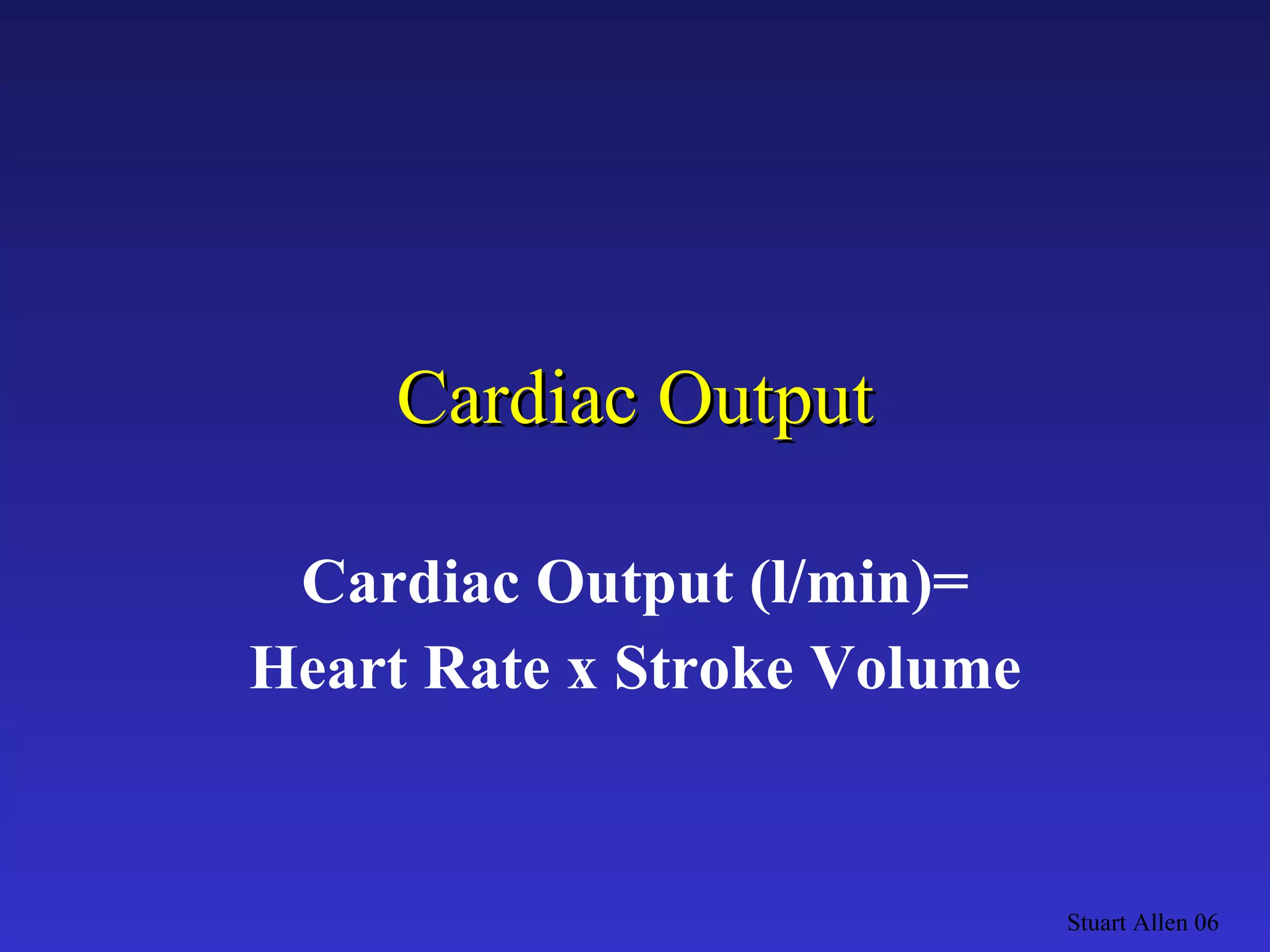

- 62. Cardiac Output CardiacOutput (l/min)= Heart Rate x Stroke Volume Stuart Allen 06

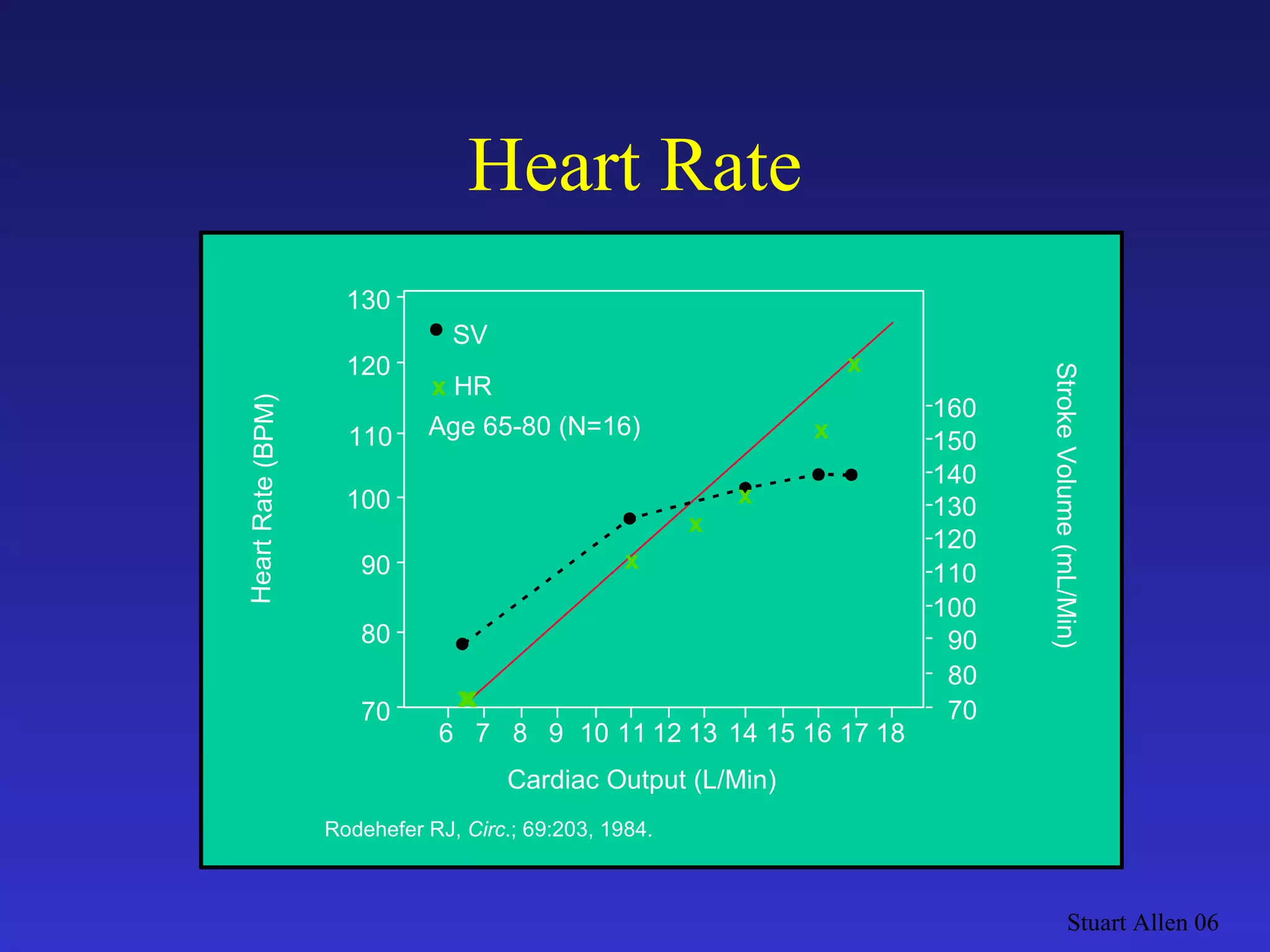

- 63. Heart Rate StuartAllen 06 x x x x SV x HR Age 65-80 (N=16) 130 120 110 100 90 80 70 Heart Rate (BPM) Stroke Volume (mL/Min) Cardiac Output (L/Min) Rodehefer RJ, Circ .; 69:203, 1984. 6 7 8 9 10 11 12 13 14 15 16 13 17 18 70 80 90 100 110 120 130 140 150 160 x

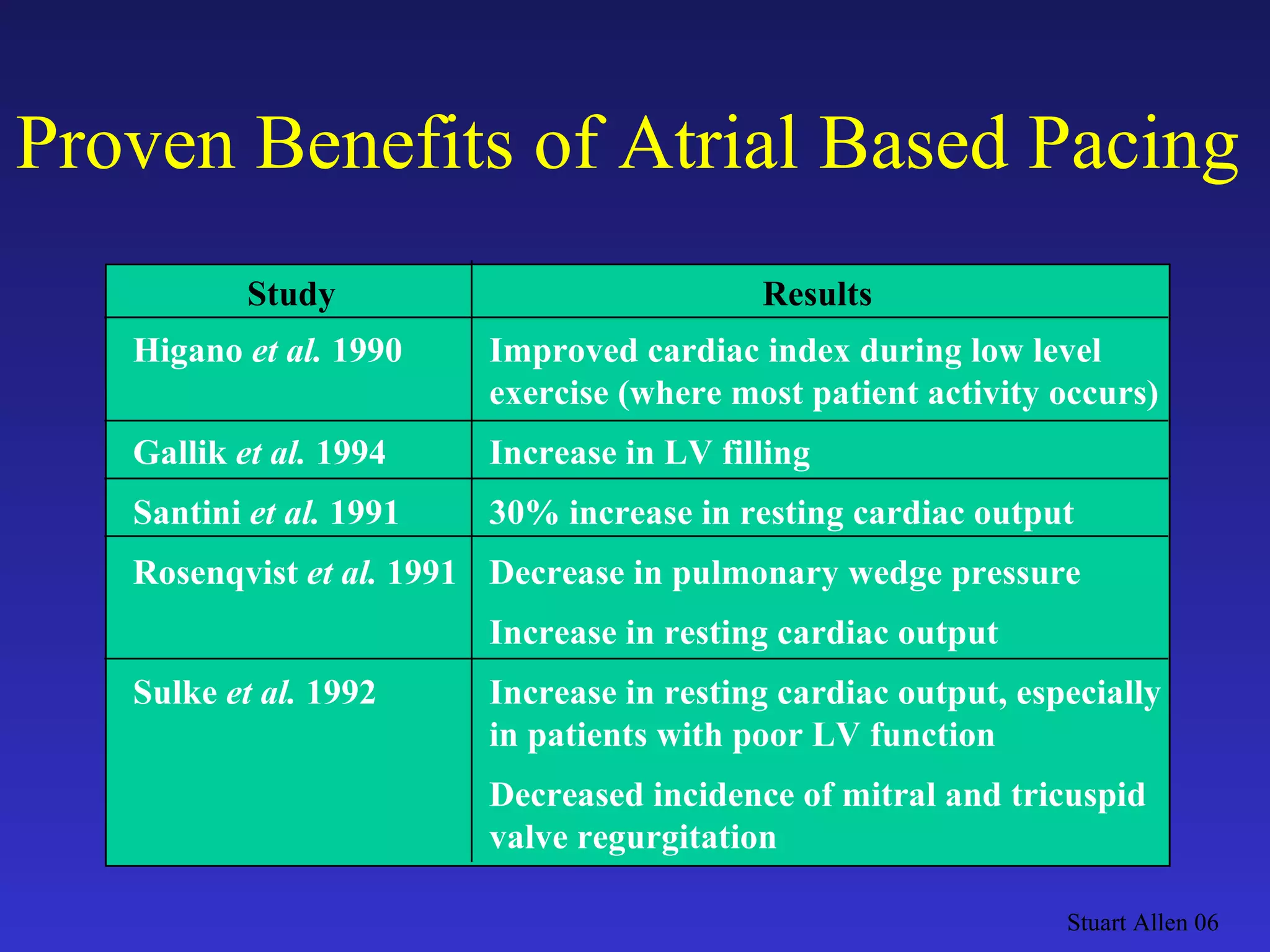

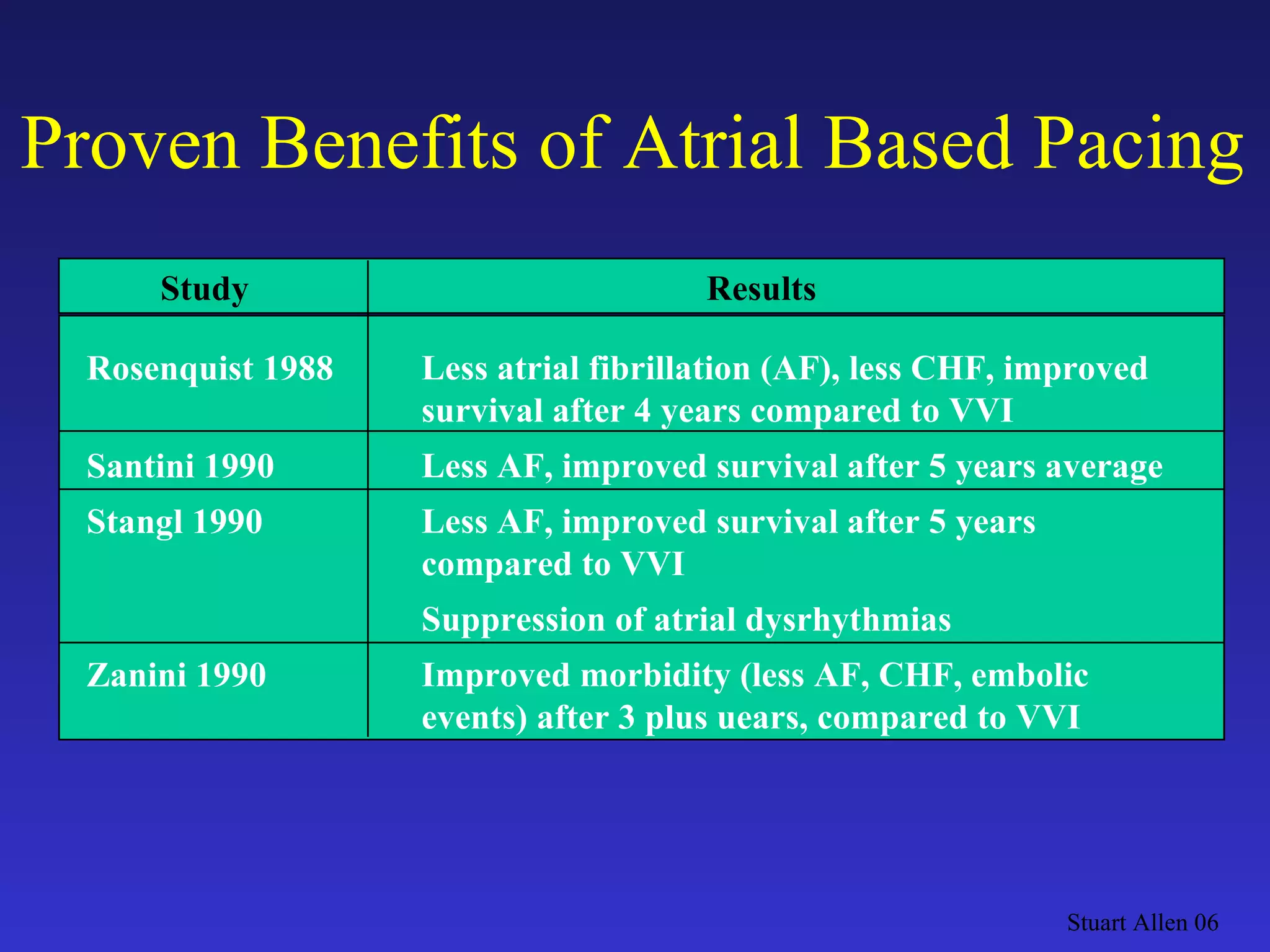

- 64. Proven Benefits ofAtrial Based Pacing Stuart Allen 06 Study Results Higano et al. 1990 Gallik et al. 1994 Santini et al. 1991 Rosenqvist et al. 1991 Sulke et al. 1992 Improved cardiac index during low level exercise (where most patient activity occurs) Increase in LV filling 30% increase in resting cardiac output Decrease in pulmonary wedge pressure Increase in resting cardiac output Increase in resting cardiac output, especially in patients with poor LV function Decreased incidence of mitral and tricuspid valve regurgitation
- 65. Proven Benefits ofAtrial Based Pacing Stuart Allen 06 Study Results Rosenquist 1988 Santini 1990 Stangl 1990 Zanini 1990 Less atrial fibrillation (AF), less CHF, improved survival after 4 years compared to VVI Less AF, improved survival after 5 years average Less AF, improved survival after 5 years compared to VVI Suppression of atrial dysrhythmias Improved morbidity (less AF, CHF, embolic events) after 3 plus uears, compared to VVI

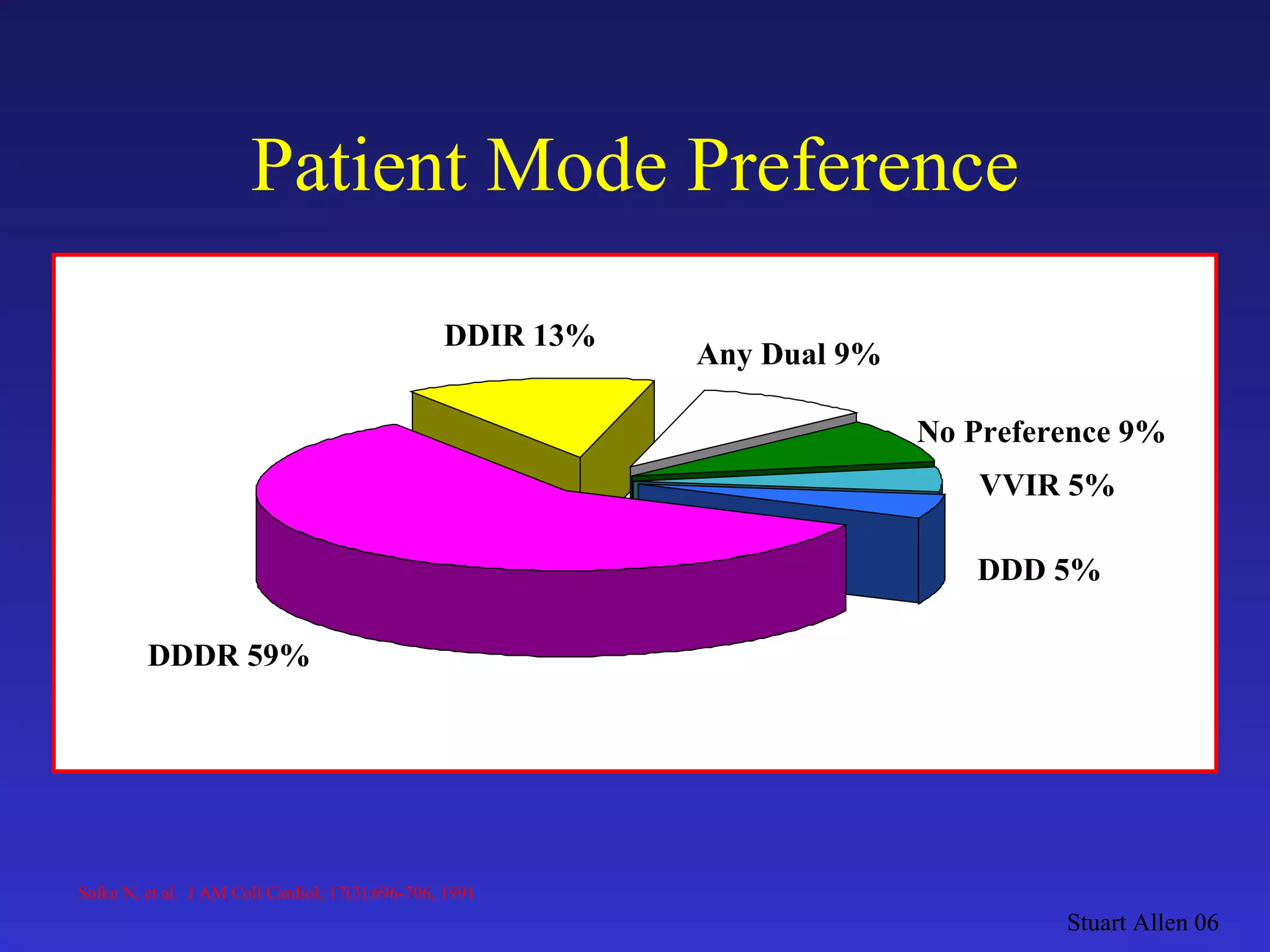

- 66. Patient Mode PreferenceStuart Allen 06 DDDR 59% DDIR 13% Any Dual 9% No Preference 9% DDD 5% VVIR 5% Sulke N, et al. J AM Coll Cardiol; 17(3):696-706, 1991

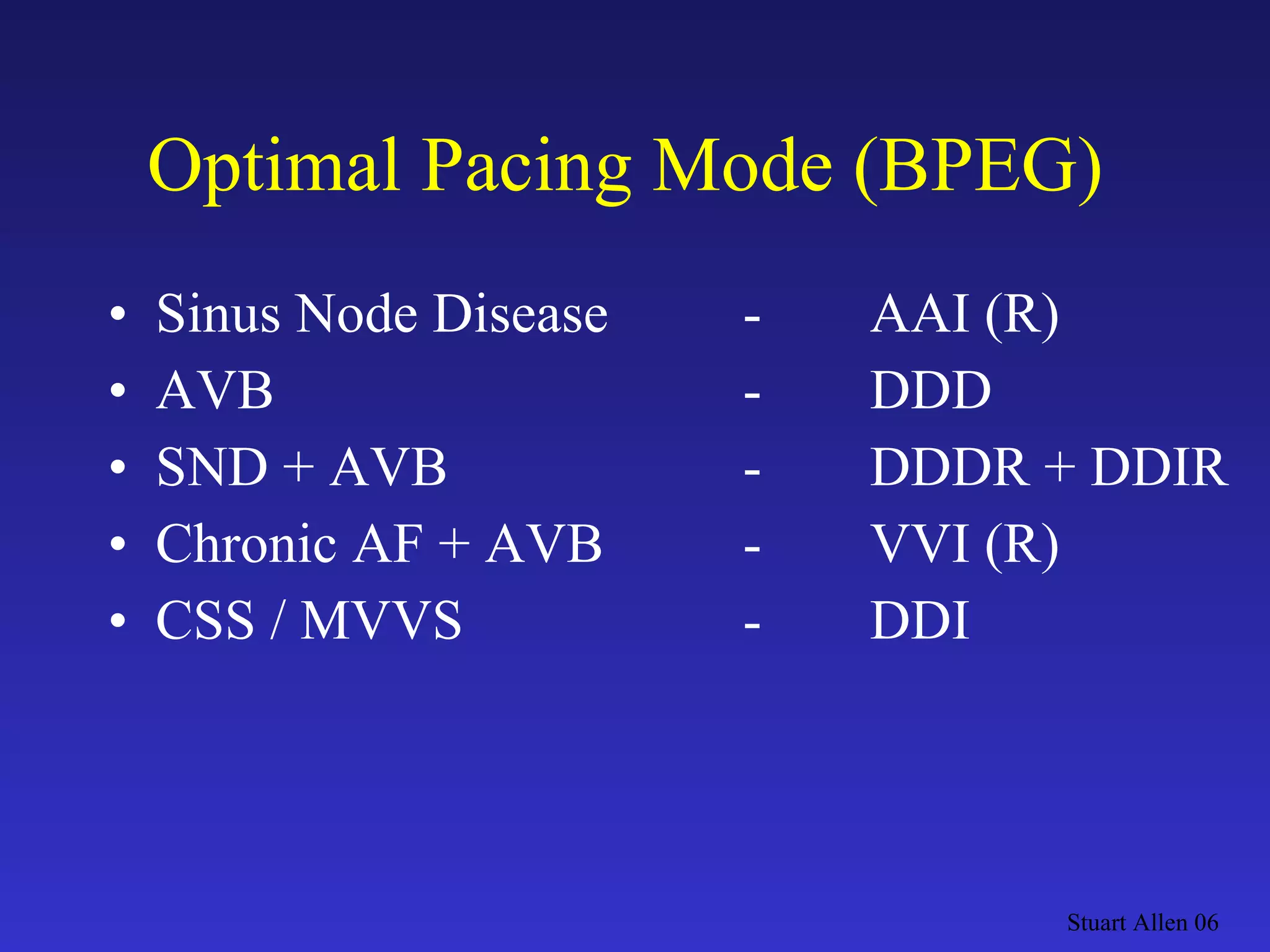

- 67. Optimal Pacing Mode(BPEG) Sinus Node Disease - AAI (R) AVB - DDD SND + AVB - DDDR + DDIR Chronic AF + AVB - VVI (R) CSS / MVVS - DDI Stuart Allen 06

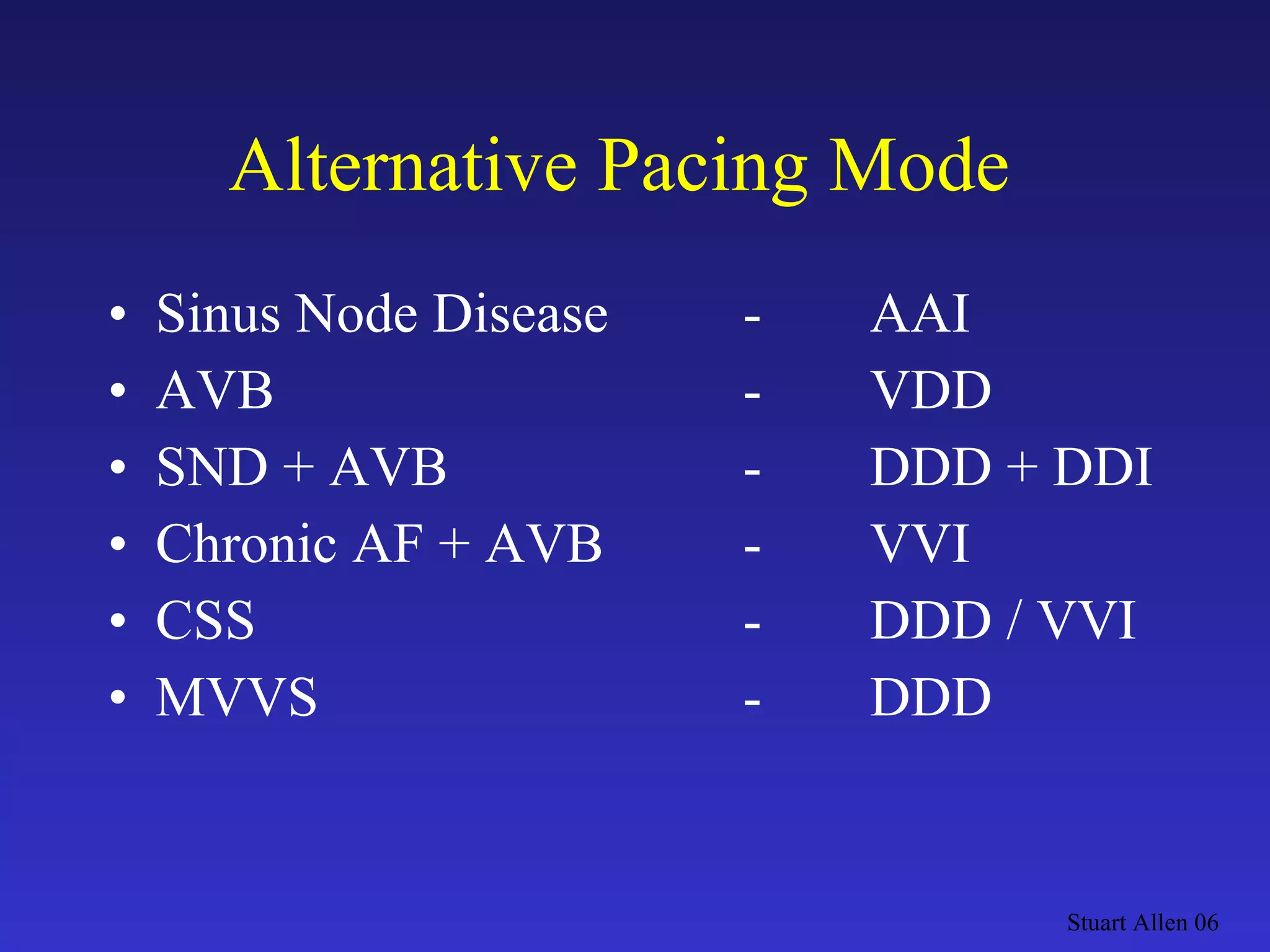

- 68. Alternative Pacing ModeSinus Node Disease - AAI AVB - VDD SND + AVB - DDD + DDI Chronic AF + AVB - VVI CSS - DDD / VVI MVVS - DDD Stuart Allen 06
- 69. Inappropriate Pacing ModeSinus Node Disease - VVI + VDD AVB - AAI + DDI SND + AVB - AAI + VVI Chronic AF + AVB - AAI/DDD/VDD CSS - AAI+VDD MVVS - AAI/VVI/VDD Stuart Allen 06

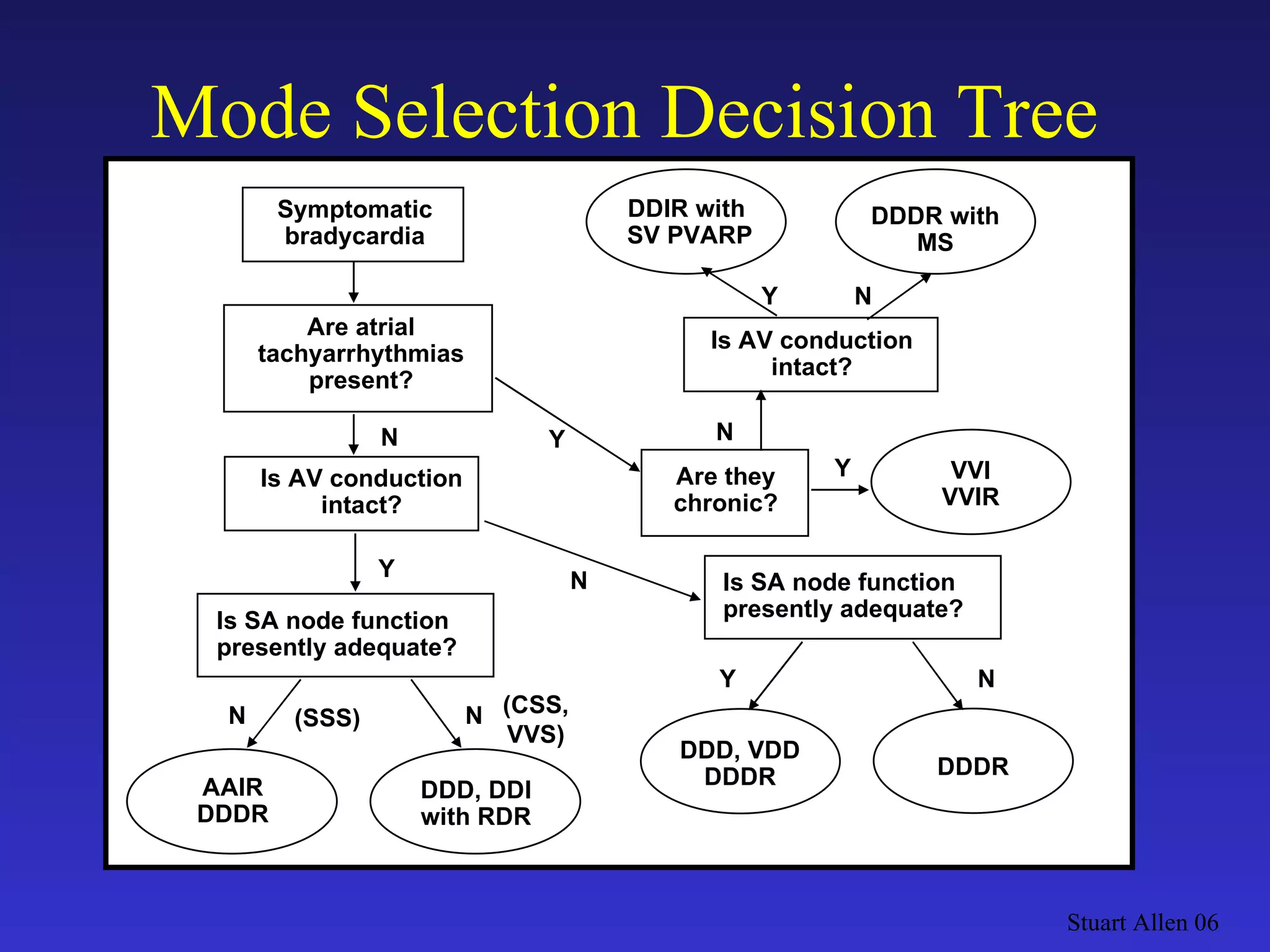

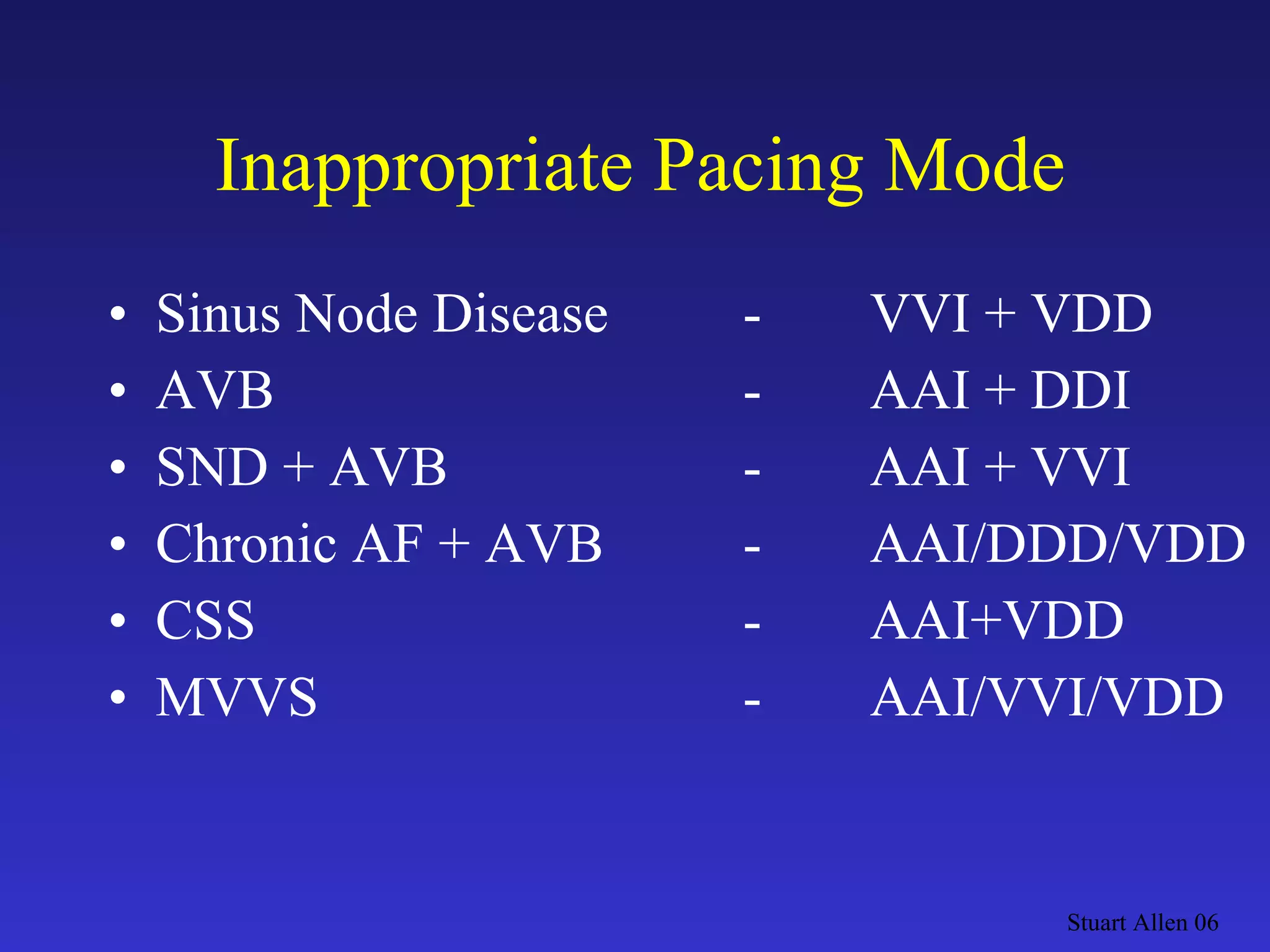

- 70. Mode Selection DecisionTree Stuart Allen 06 DDIR with SV PVARP DDDR with MS N VVI VVIR Are they chronic? Y Y N DDD, VDD DDDR DDDR Y N Is AV conduction intact? Is SA node function presently adequate? Symptomatic bradycardia Are atrial tachyarrhythmias present? Is SA node function presently adequate? Is AV conduction intact? Y Y N AAIR DDDR DDD, DDI with RDR N N (SSS) (CSS, VVS) N

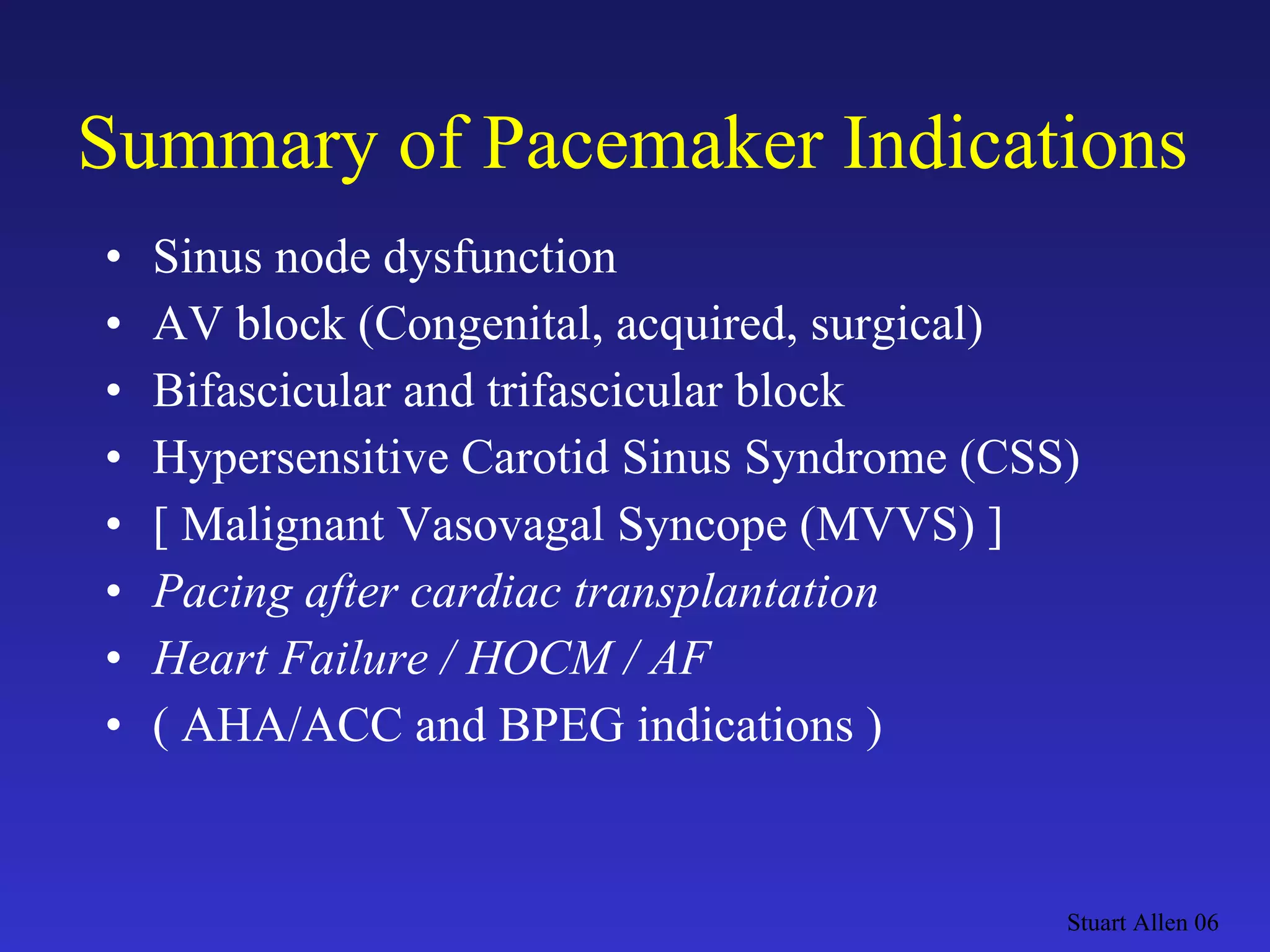

- 71. Summary of PacemakerIndications Sinus node dysfunction AV block (Congenital, acquired, surgical) Bifascicular and trifascicular block Hypersensitive Carotid Sinus Syndrome (CSS) [ Malignant Vasovagal Syncope (MVVS) ] Pacing after cardiac transplantation Heart Failure / HOCM / AF ( AHA/ACC and BPEG indications ) Stuart Allen 06

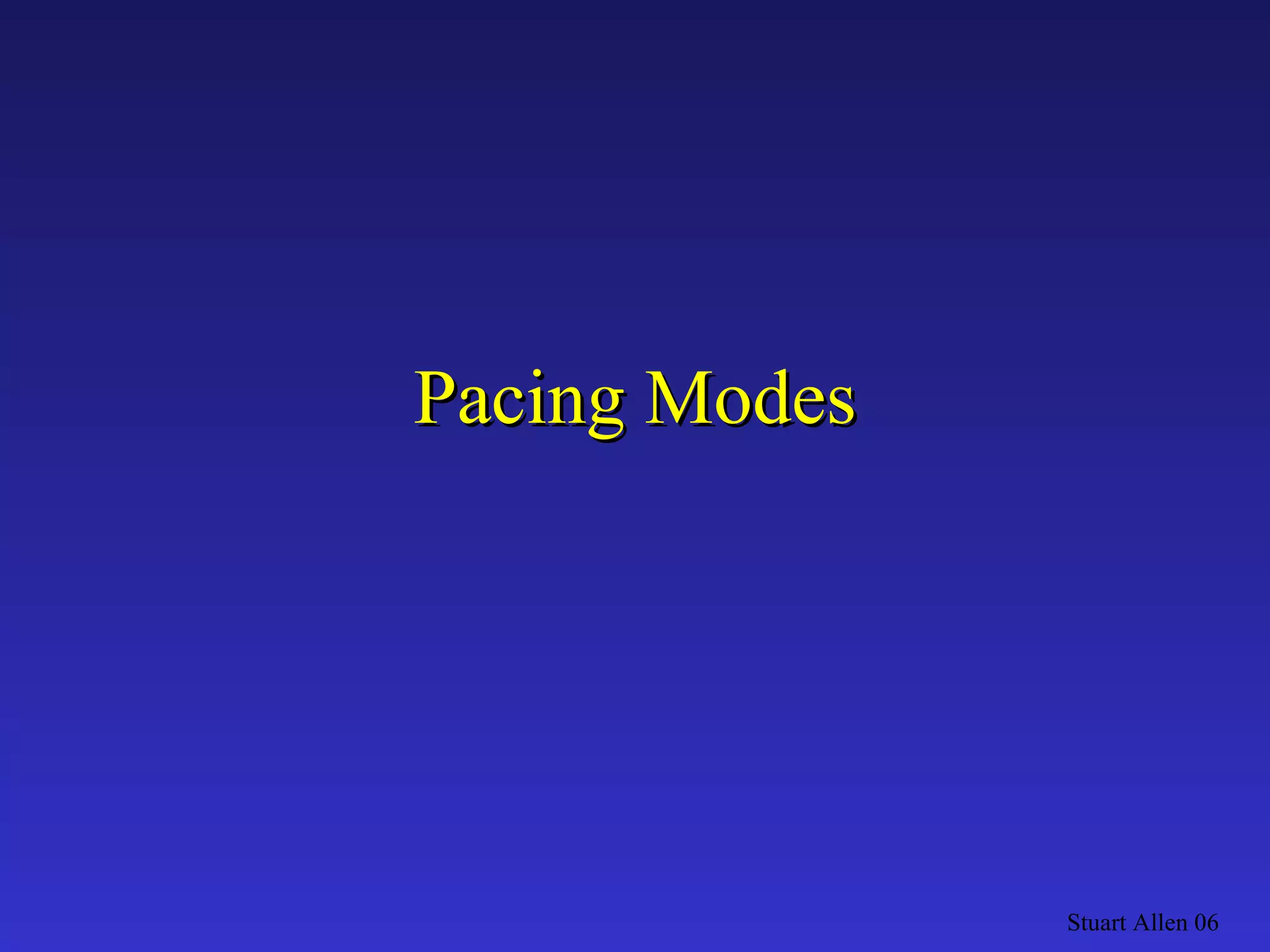

- 72. Pacing Modes StuartAllen 06

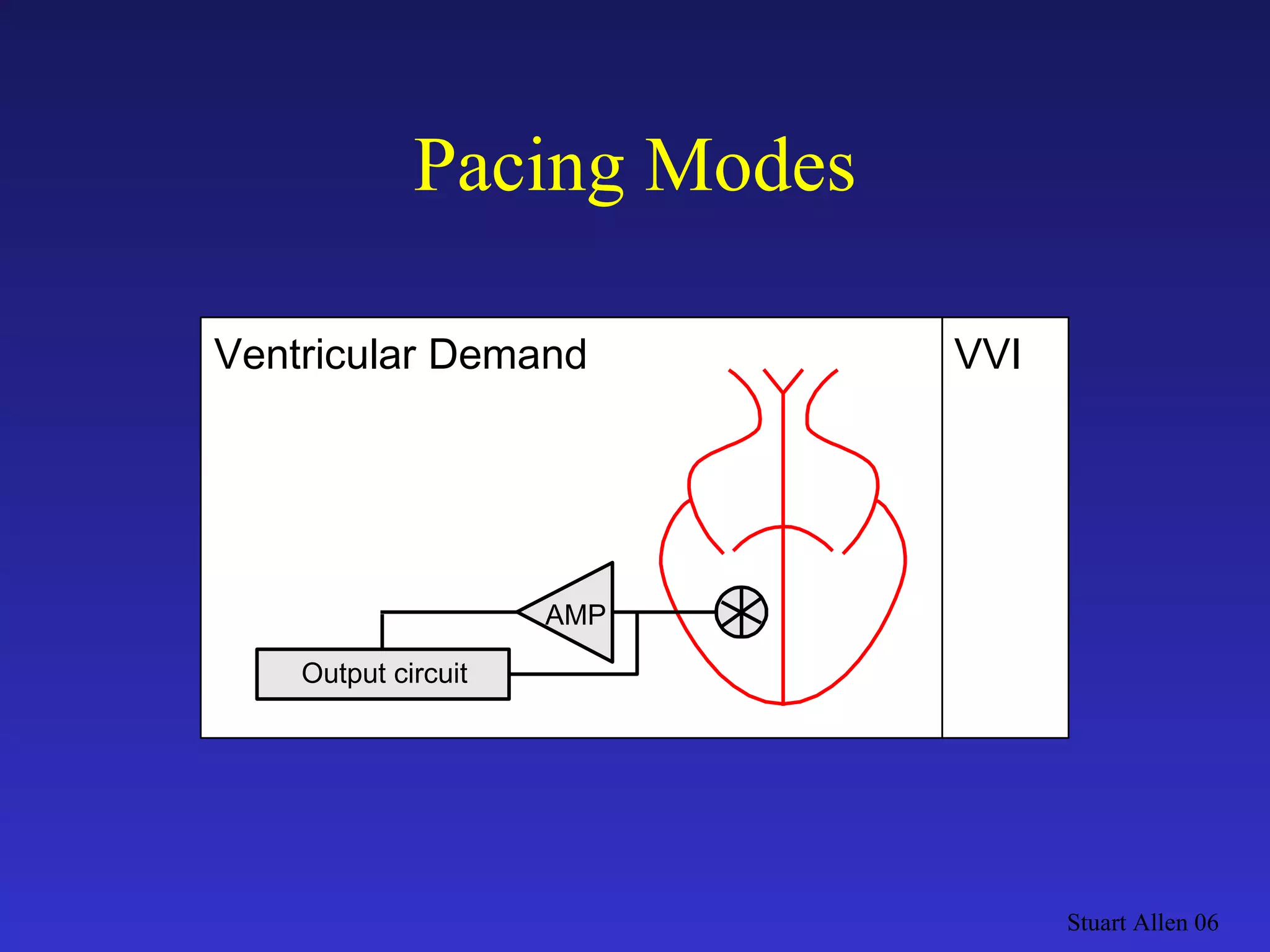

- 73. Pacing Modes StuartAllen 06 Output circuit VVI AMP Ventricular Demand

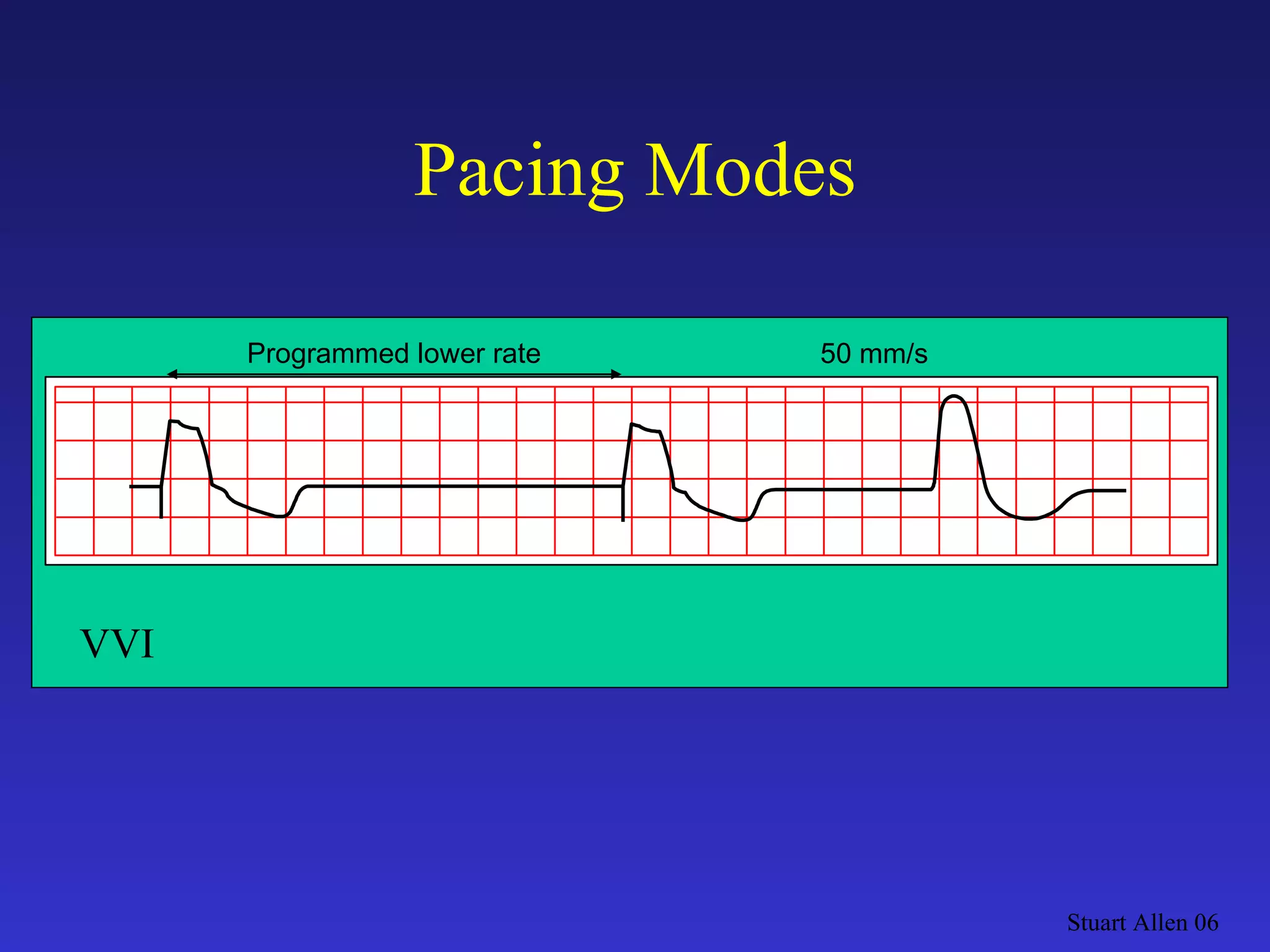

- 74. Stuart Allen 06Pacing Modes Programmed lower rate 50 mm/s VVI

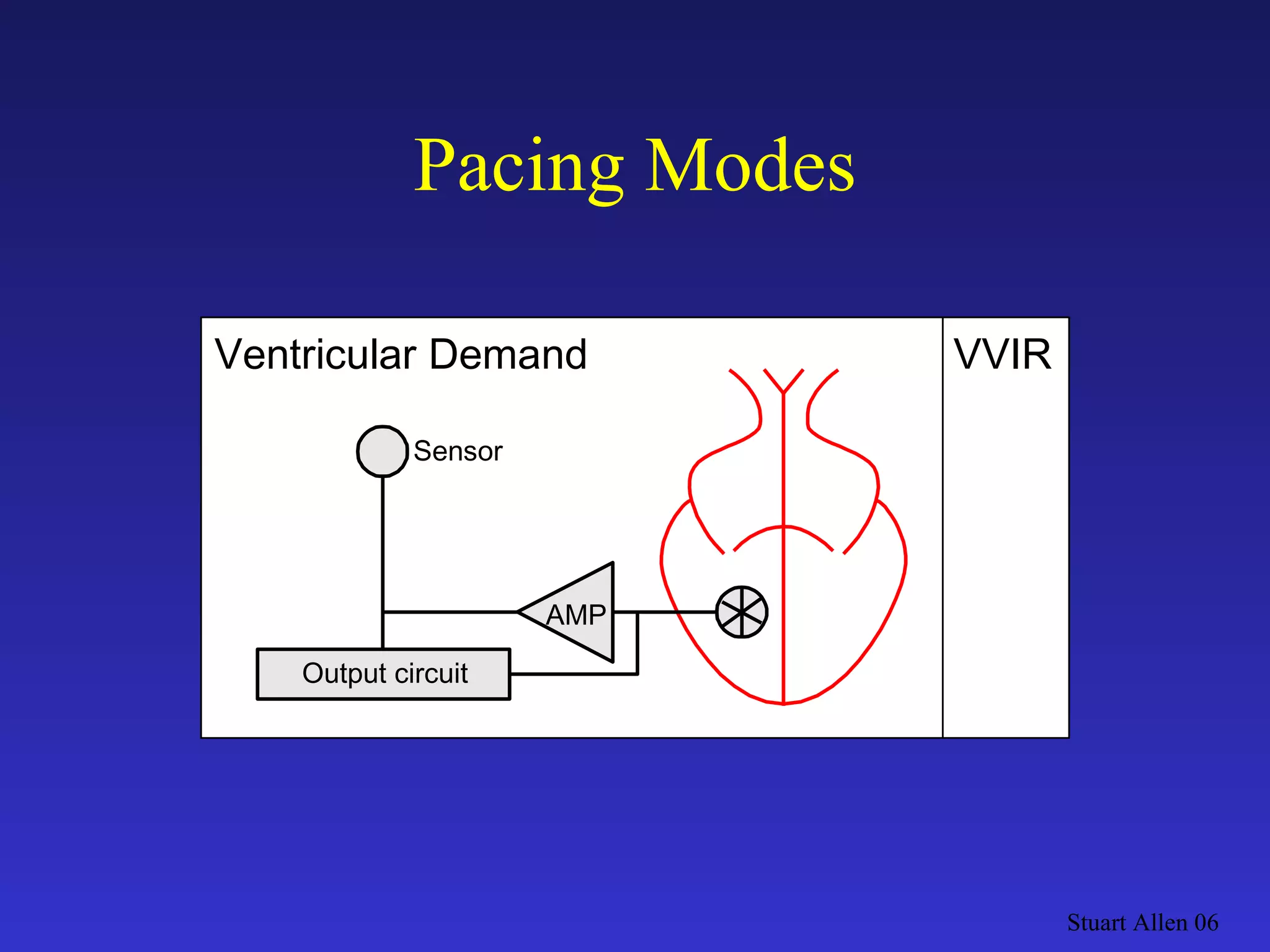

- 75. Pacing Modes StuartAllen 06 Output circuit VVIR AMP Sensor Ventricular Demand

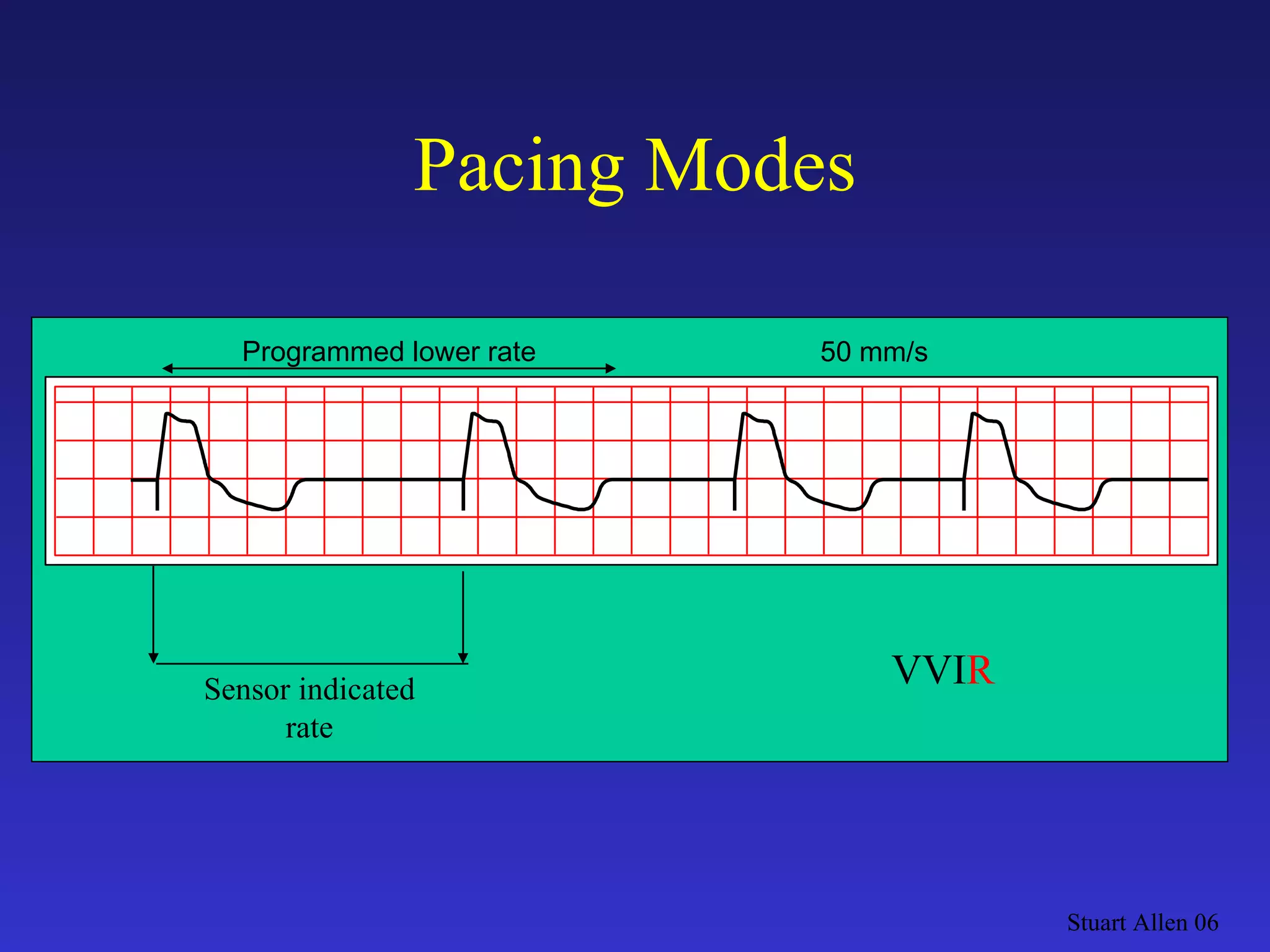

- 76. Pacing Modes StuartAllen 06 VVI R Programmed lower rate 50 mm/s Sensor indicated rate

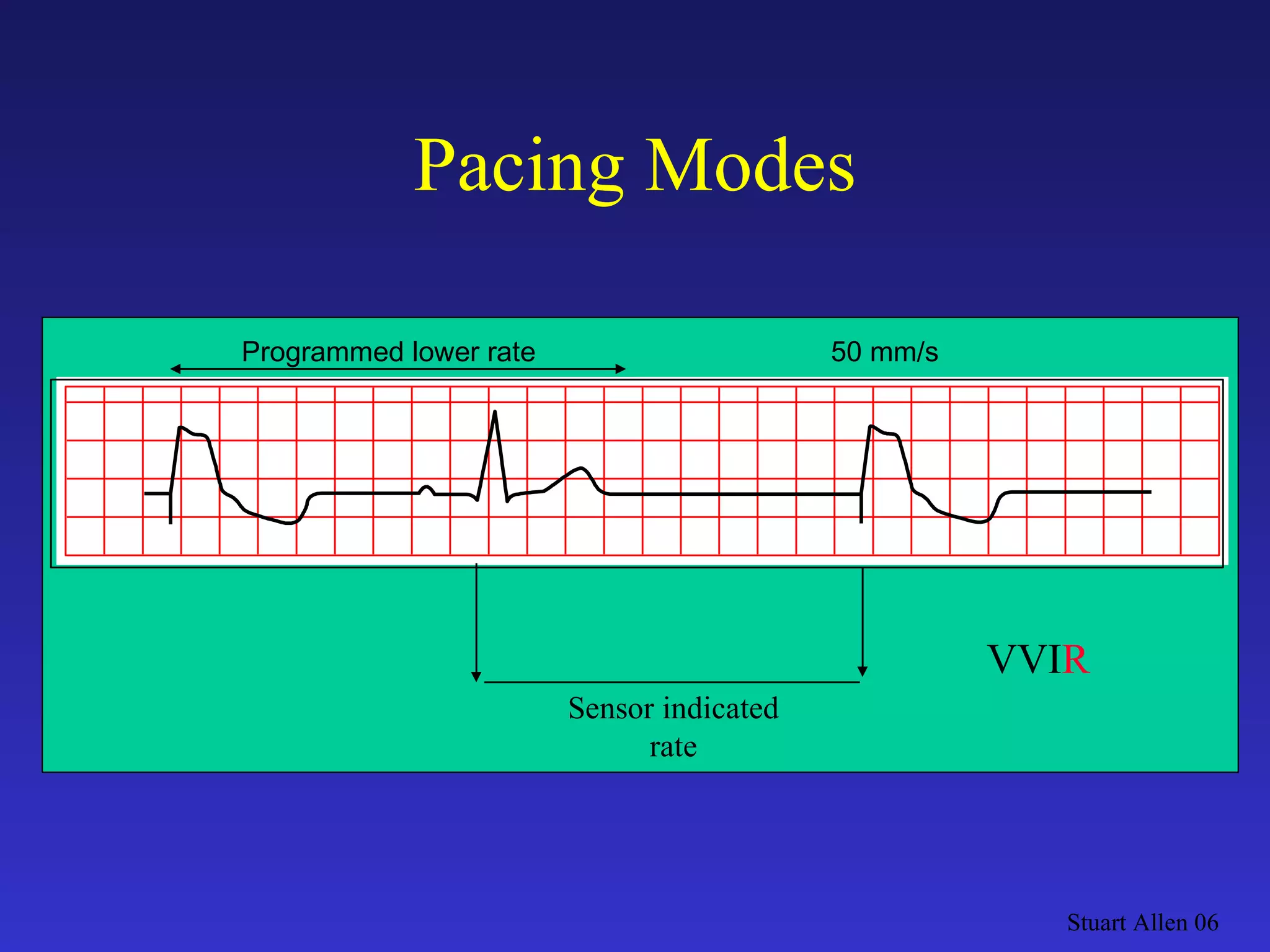

- 77. Pacing Modes StuartAllen 06 Programmed lower rate 50 mm/s Sensor indicated rate VVI R

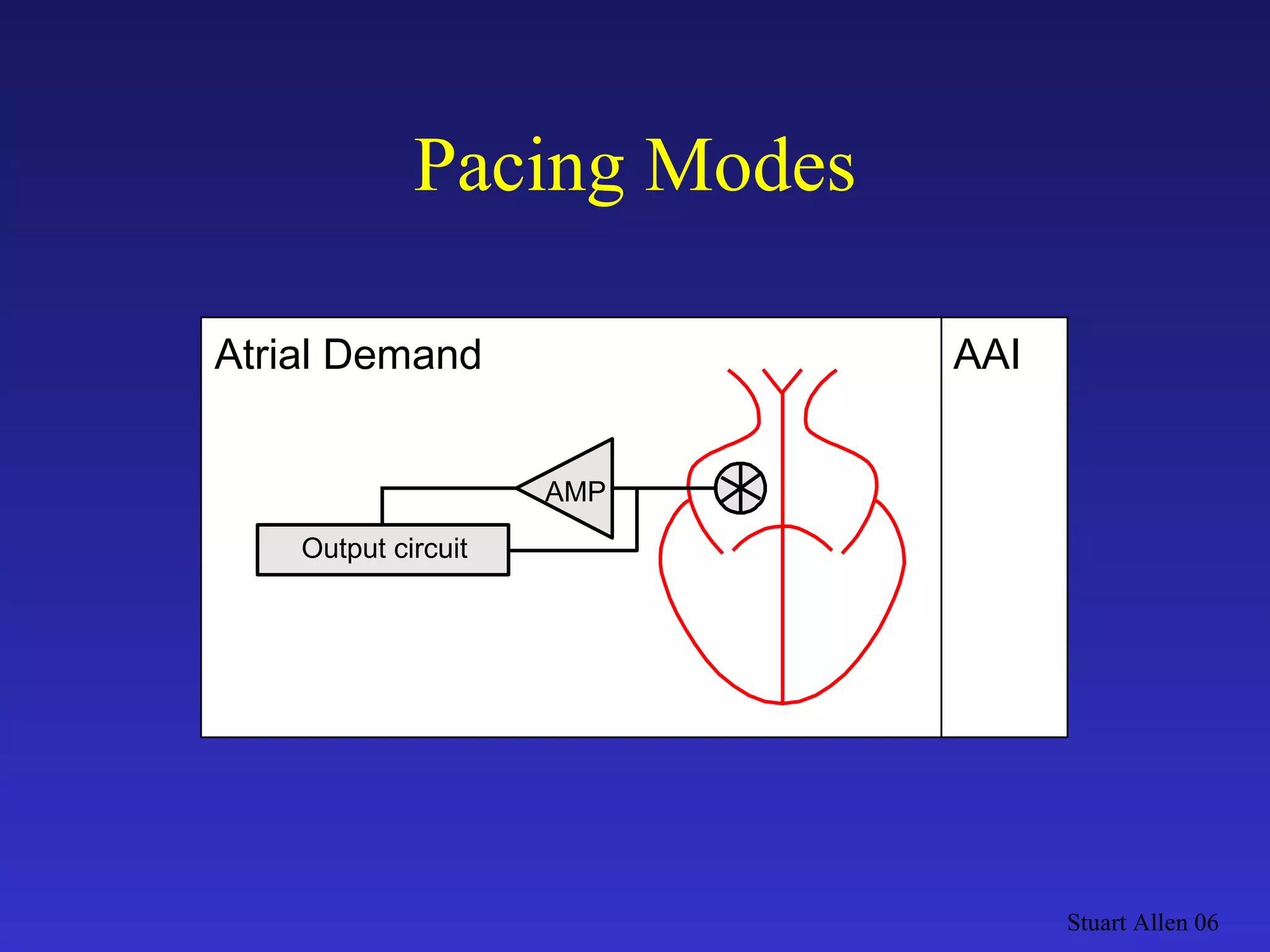

- 78. Pacing Modes StuartAllen 06 Output circuit AAI AMP Atrial Demand

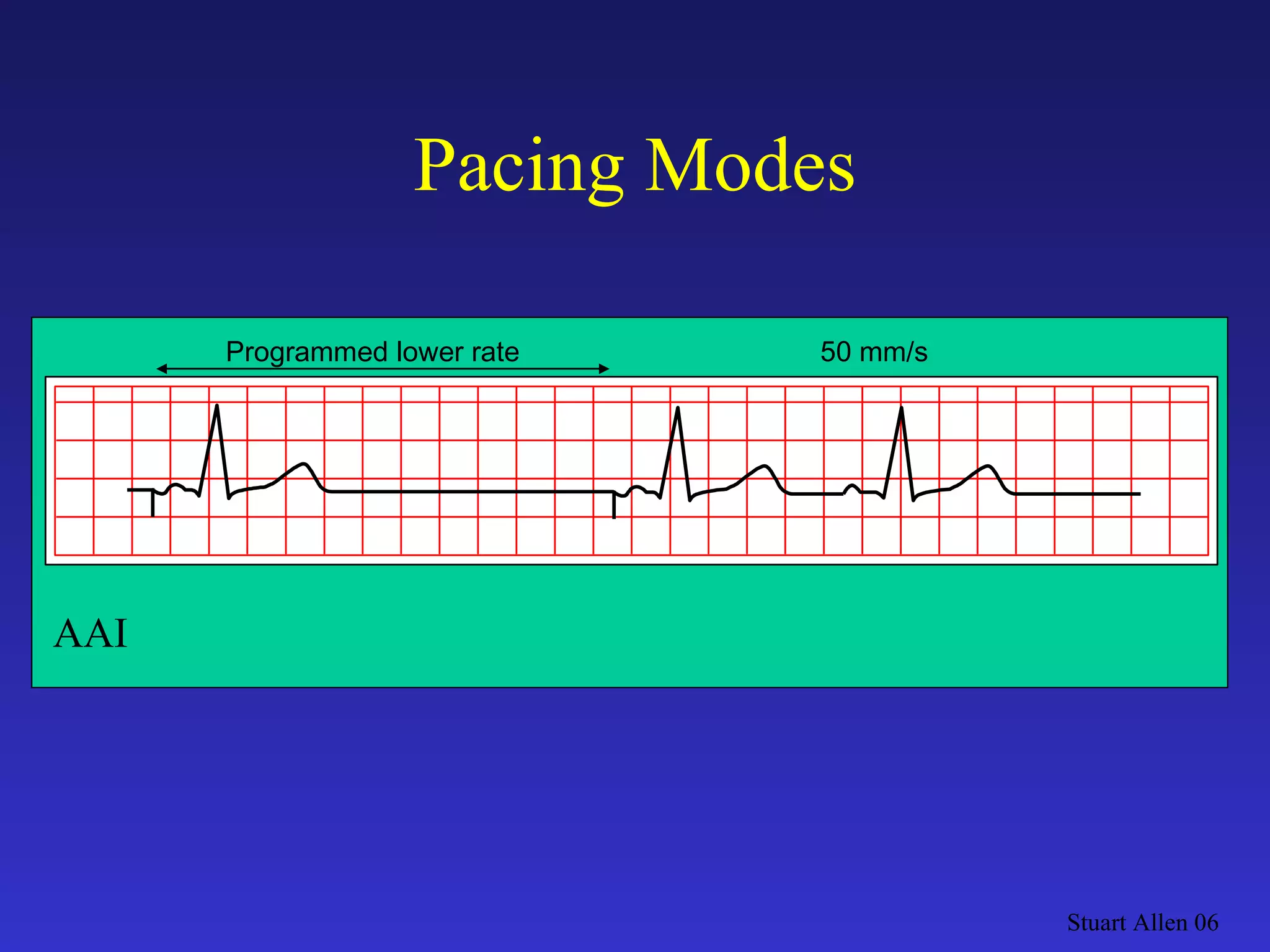

- 79. Pacing Modes StuartAllen 06 Programmed lower rate 50 mm/s AAI

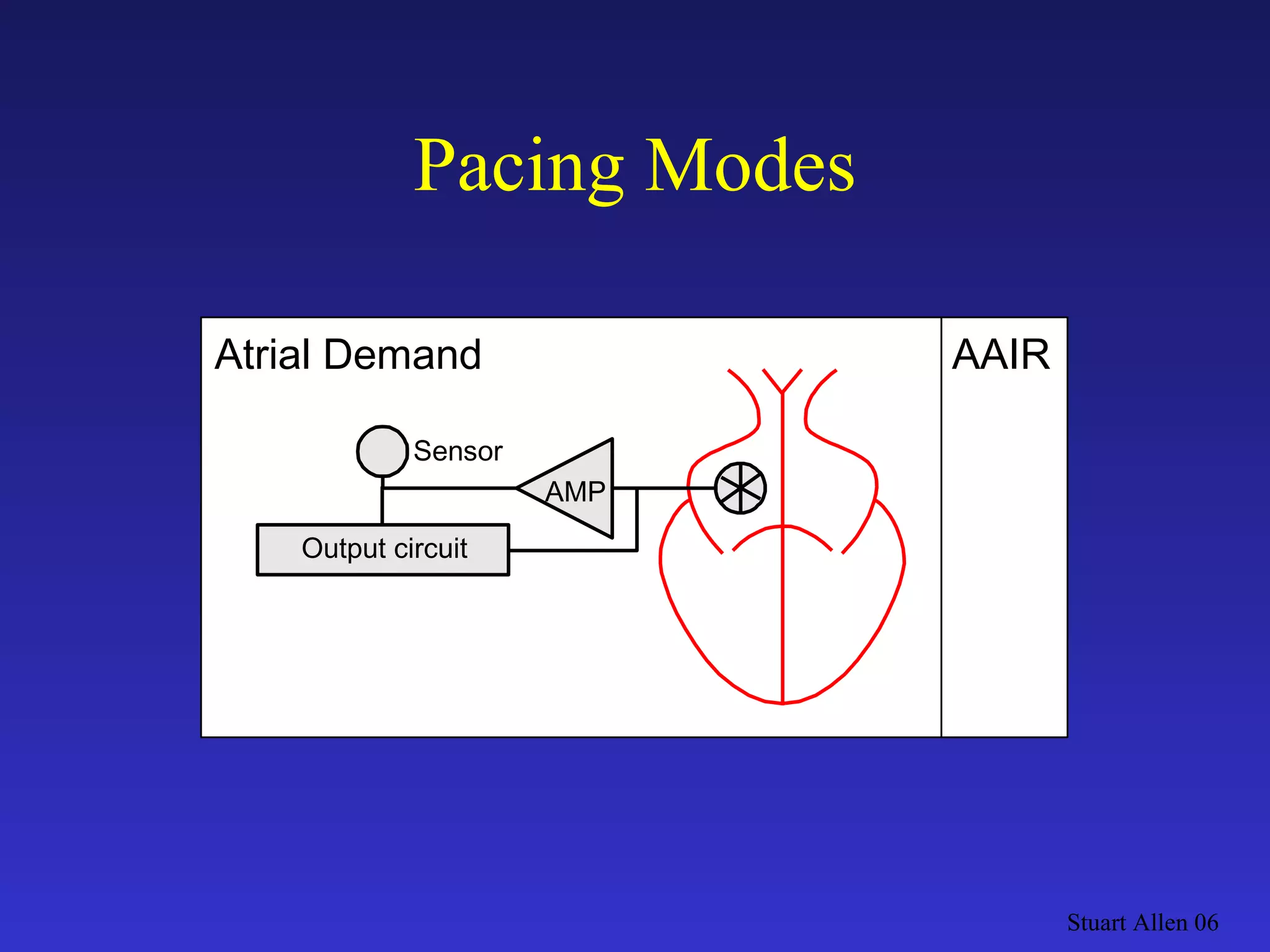

- 80. Pacing Modes StuartAllen 06 Output circuit AAIR AMP Atrial Demand Sensor

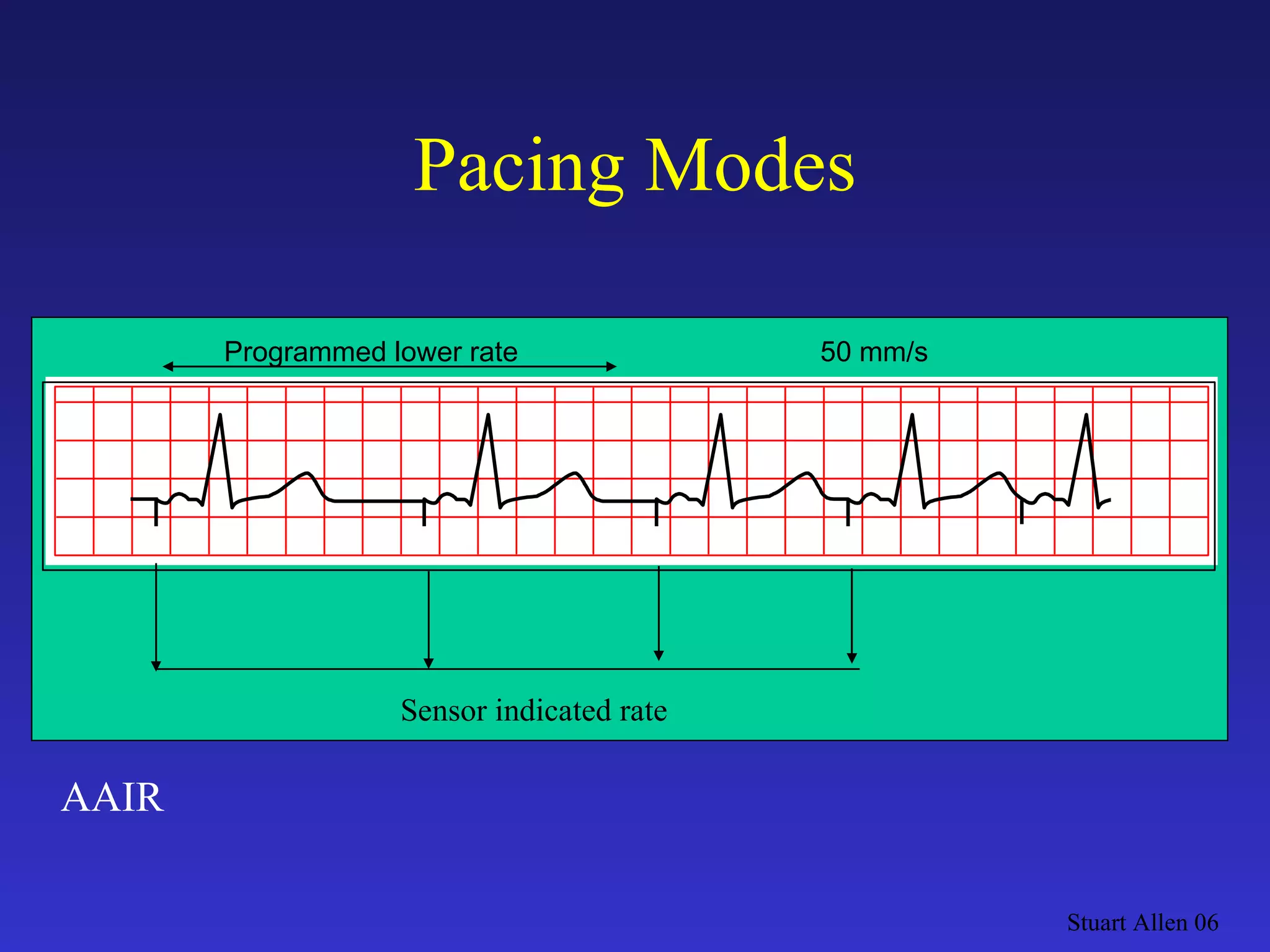

- 81. Pacing Modes StuartAllen 06 Programmed lower rate 50 mm/s AAIR Sensor indicated rate

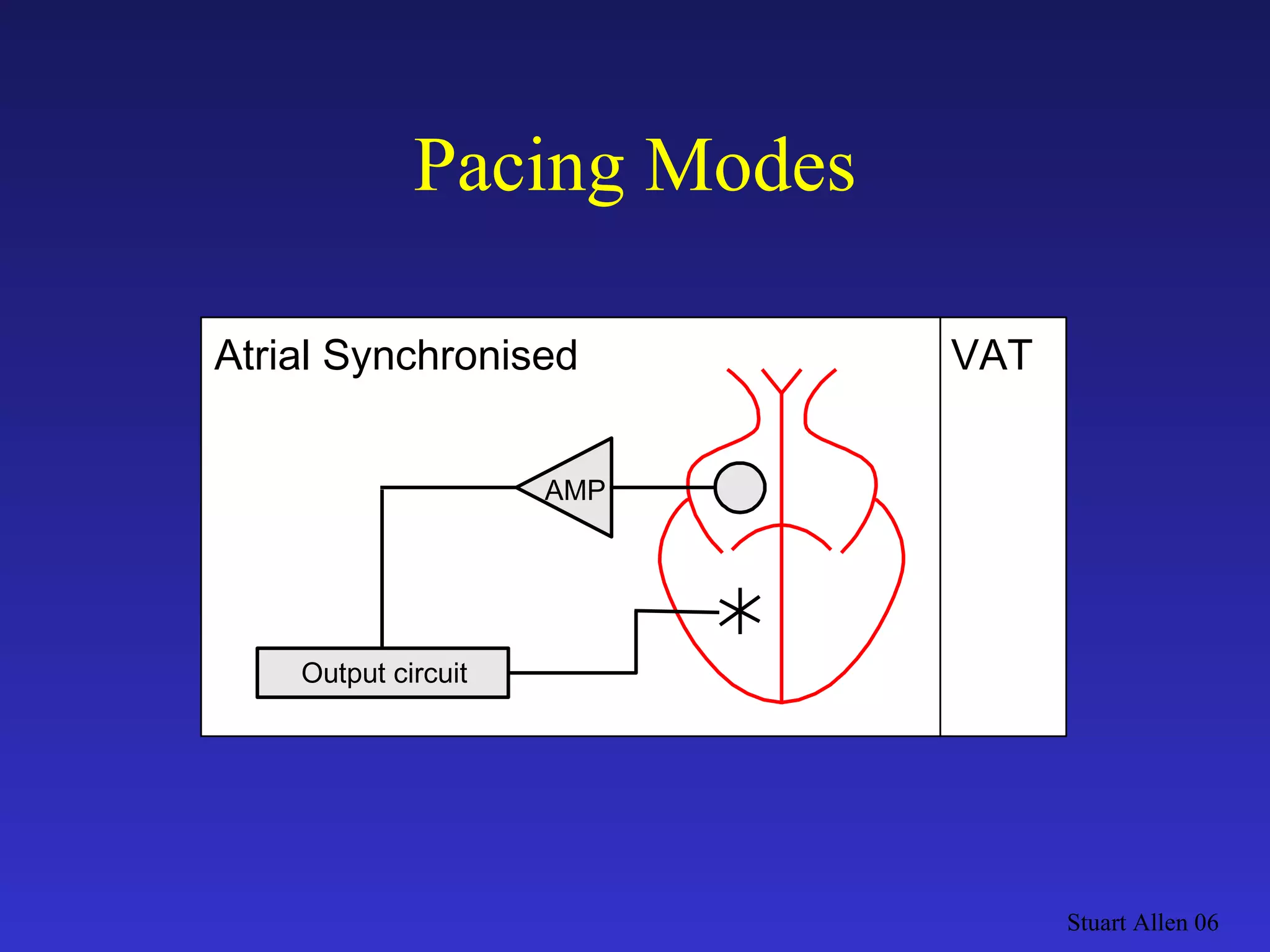

- 82. Pacing Modes StuartAllen 06 Output circuit VAT AMP Atrial Synchronised
- 83. Pacing Modes StuartAllen 06 Output circuit DVI AMP A-V Sequential Output circuit Output circuit VDD AMP AMP

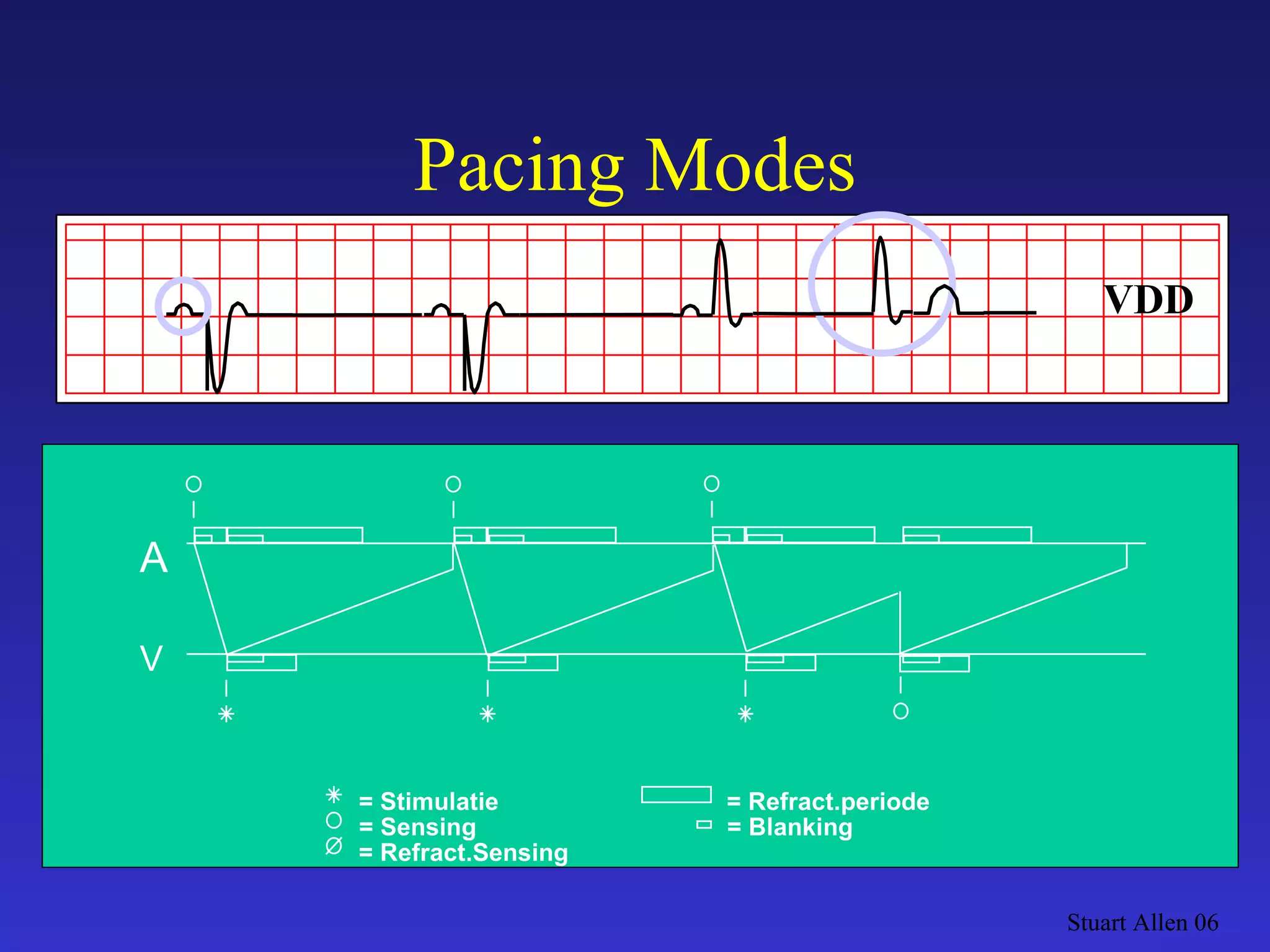

- 84. Pacing Modes StuartAllen 06 VDD = Refract.Sensing = Blanking = Refract.periode = Stimulatie = Sensing V A

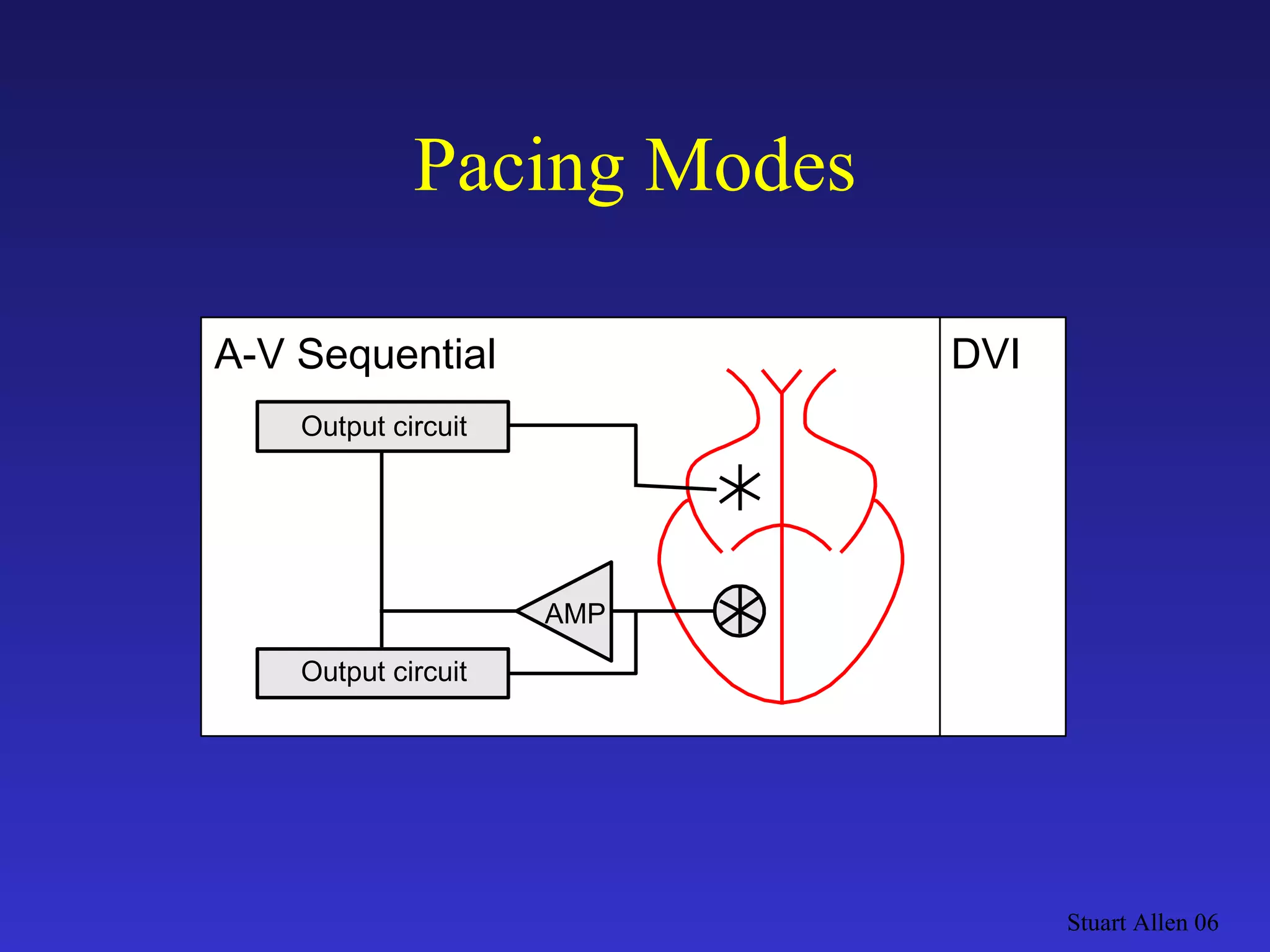

- 85. Pacing Modes StuartAllen 06 Output circuit DVI AMP A-V Sequential Output circuit

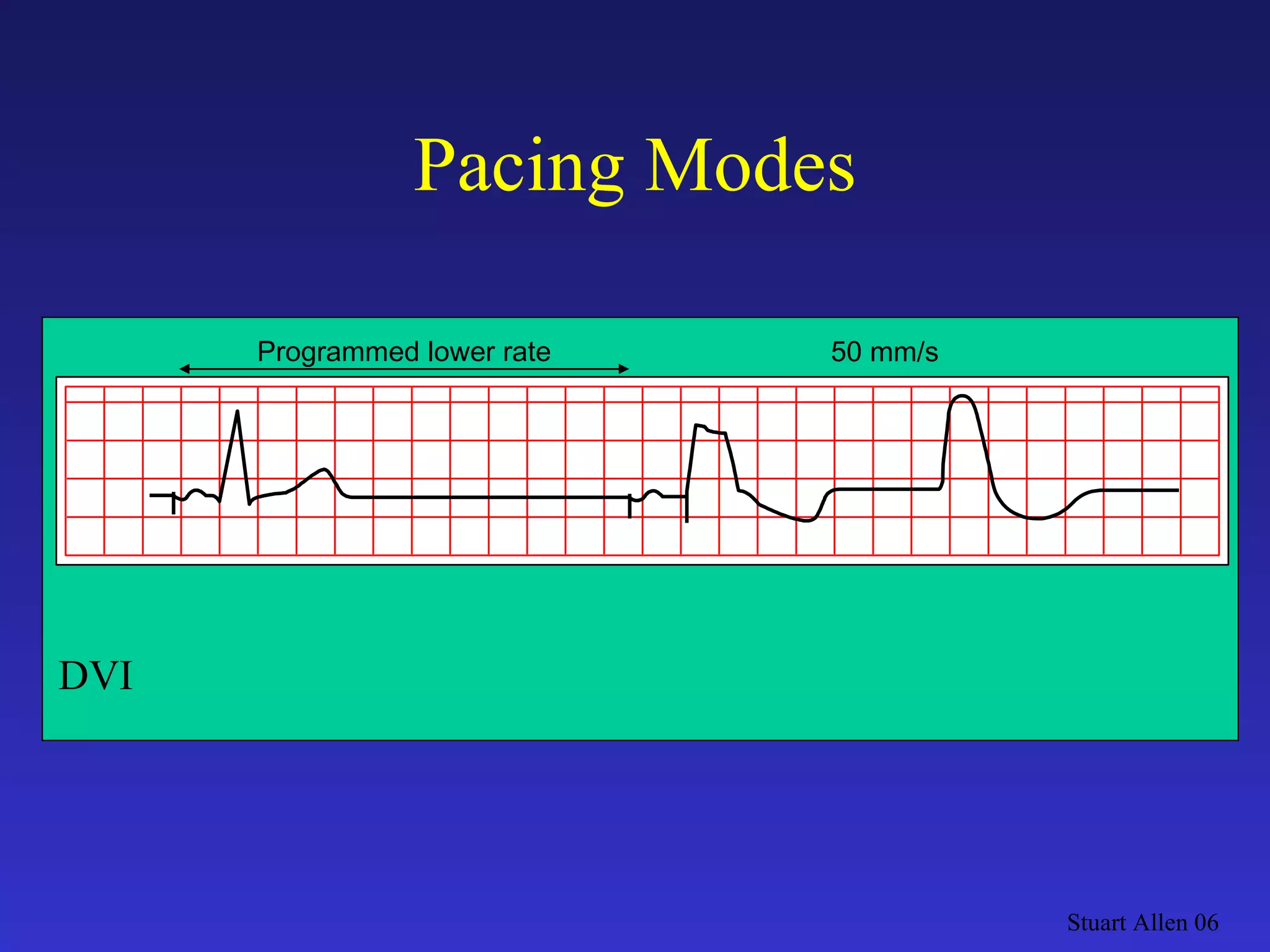

- 86. Pacing Modes StuartAllen 06 Programmed lower rate 50 mm/s DVI

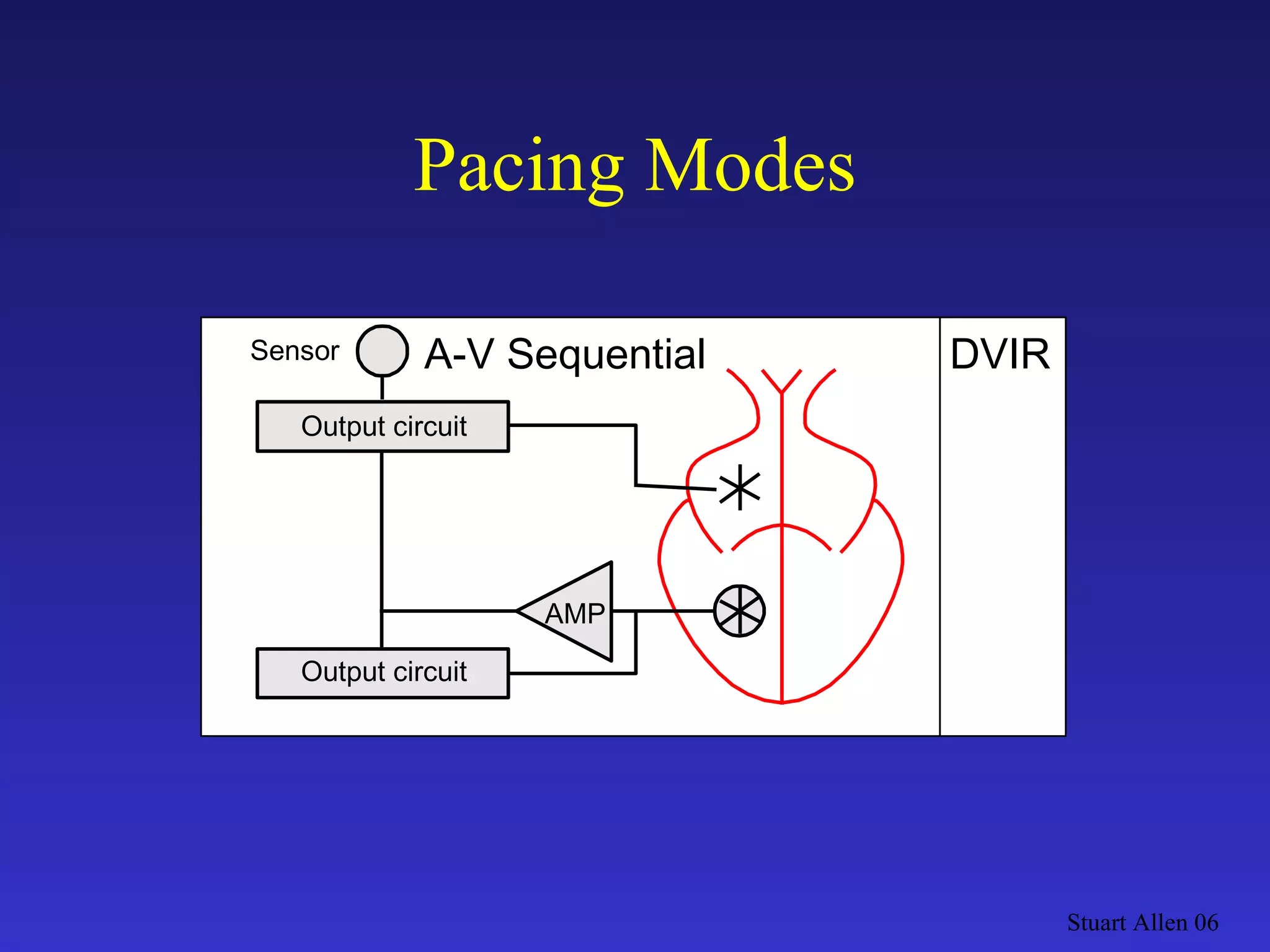

- 87. Pacing Modes StuartAllen 06 Output circuit DVIR AMP A-V Sequential Output circuit Sensor

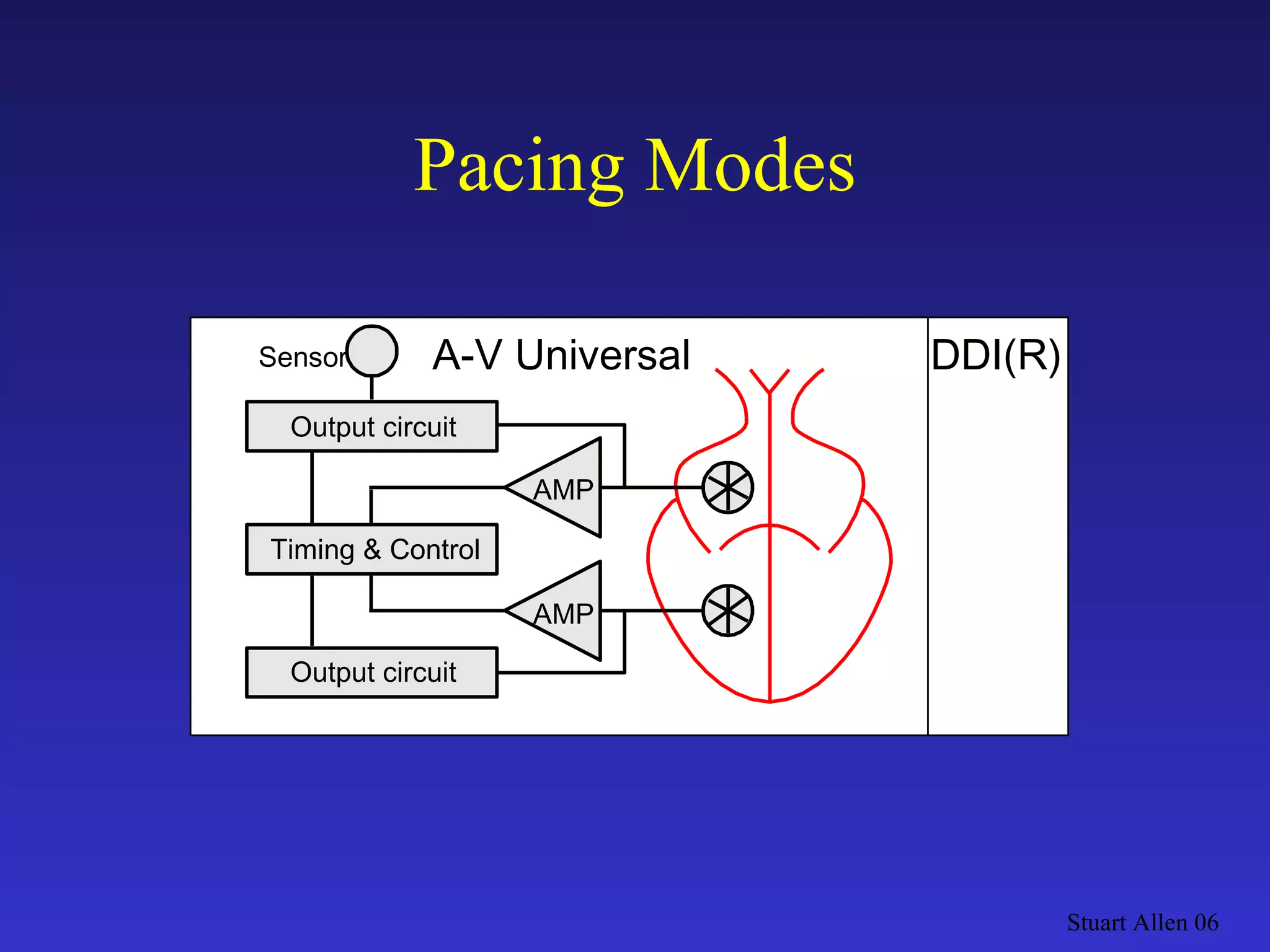

- 88. Pacing Modes StuartAllen 06 Output circuit DDI(R) AMP Output circuit Timing & Control AMP A-V Universal Sensor

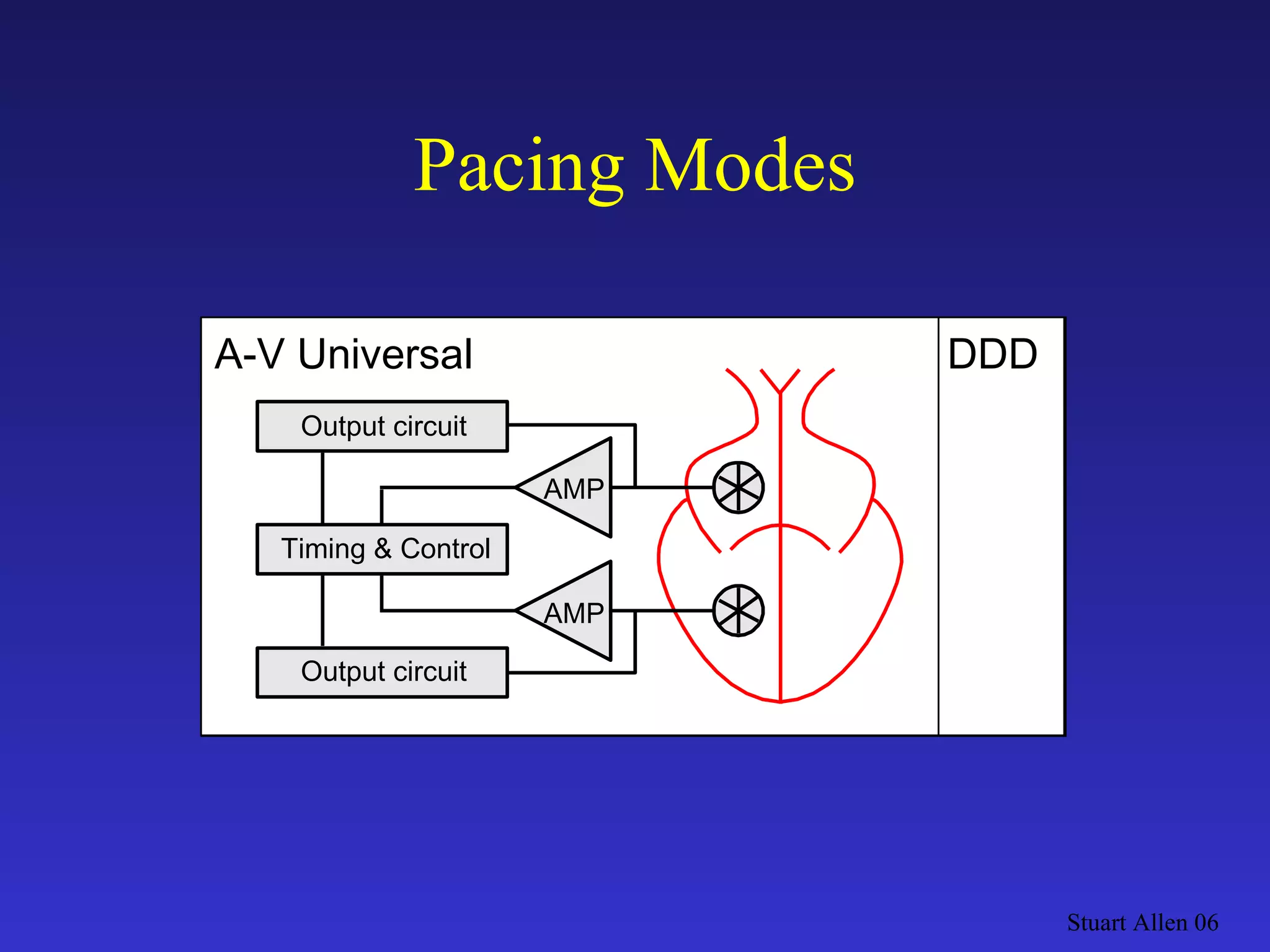

- 89. Pacing Modes StuartAllen 06 Output circuit DVI AMP A-V Sequential Output circuit Output circuit DDD AMP A-V Universal Output circuit Timing & Control AMP

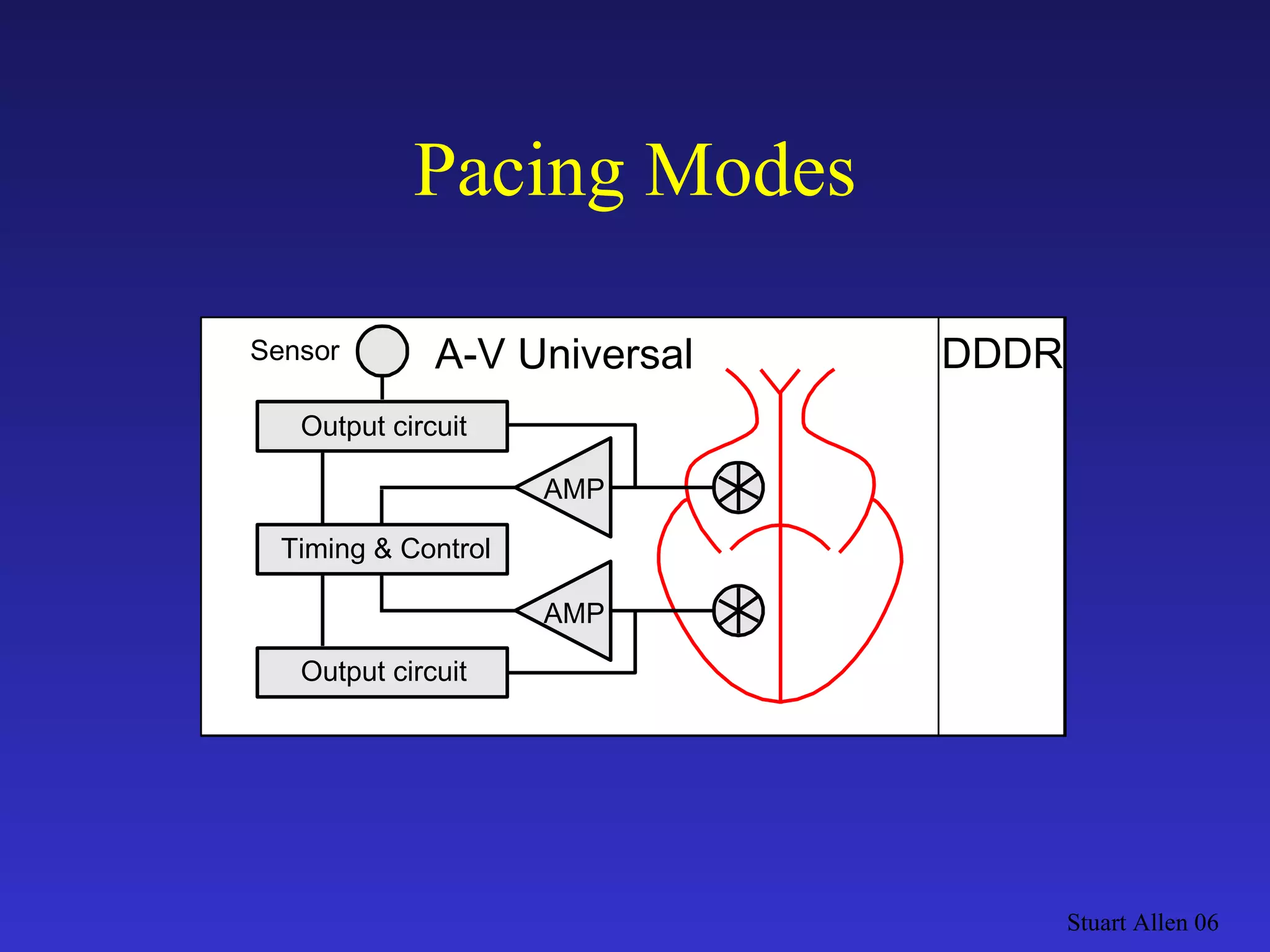

- 90. Stuart Allen 06Pacing Modes Output circuit DVI AMP A-V Sequential Output circuit Output circuit DDDR AMP A-V Universal Output circuit Timing & Control AMP Sensor

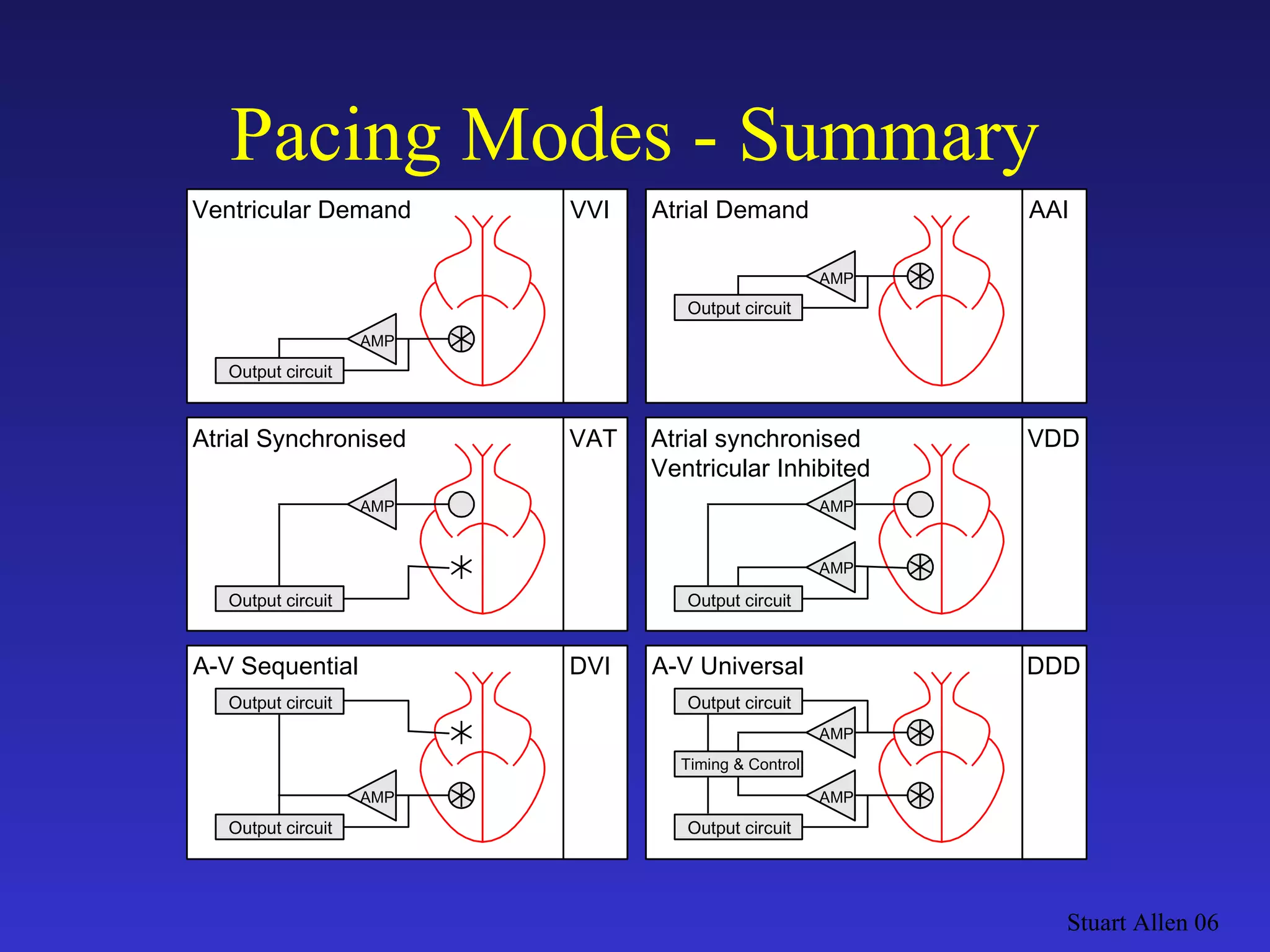

- 91. Pacing Modes -Summary Stuart Allen 06 Output circuit VVI AMP Ventricular Demand Output circuit VAT AMP Atrial Synchronised Output circuit AAI AMP Atrial Demand Output circuit DVI AMP A-V Sequential Output circuit Output circuit VDD AMP Atrial synchronised Ventricular Inhibited AMP Output circuit DDD AMP A-V Universal Output circuit Timing & Control AMP
