This document provides an overview of cardiac catheterization procedures. It discusses indications, contraindications, techniques, views obtained, and interpretation of pressure waveforms. Key points include that cardiac catheterization guides treatment decisions by measuring pressures, outputs, and obtaining images. It is now often used therapeutically for procedures like angioplasty and device closures. The document outlines patient preparation, access methods, catheters used, views obtained, and complications that can occur.

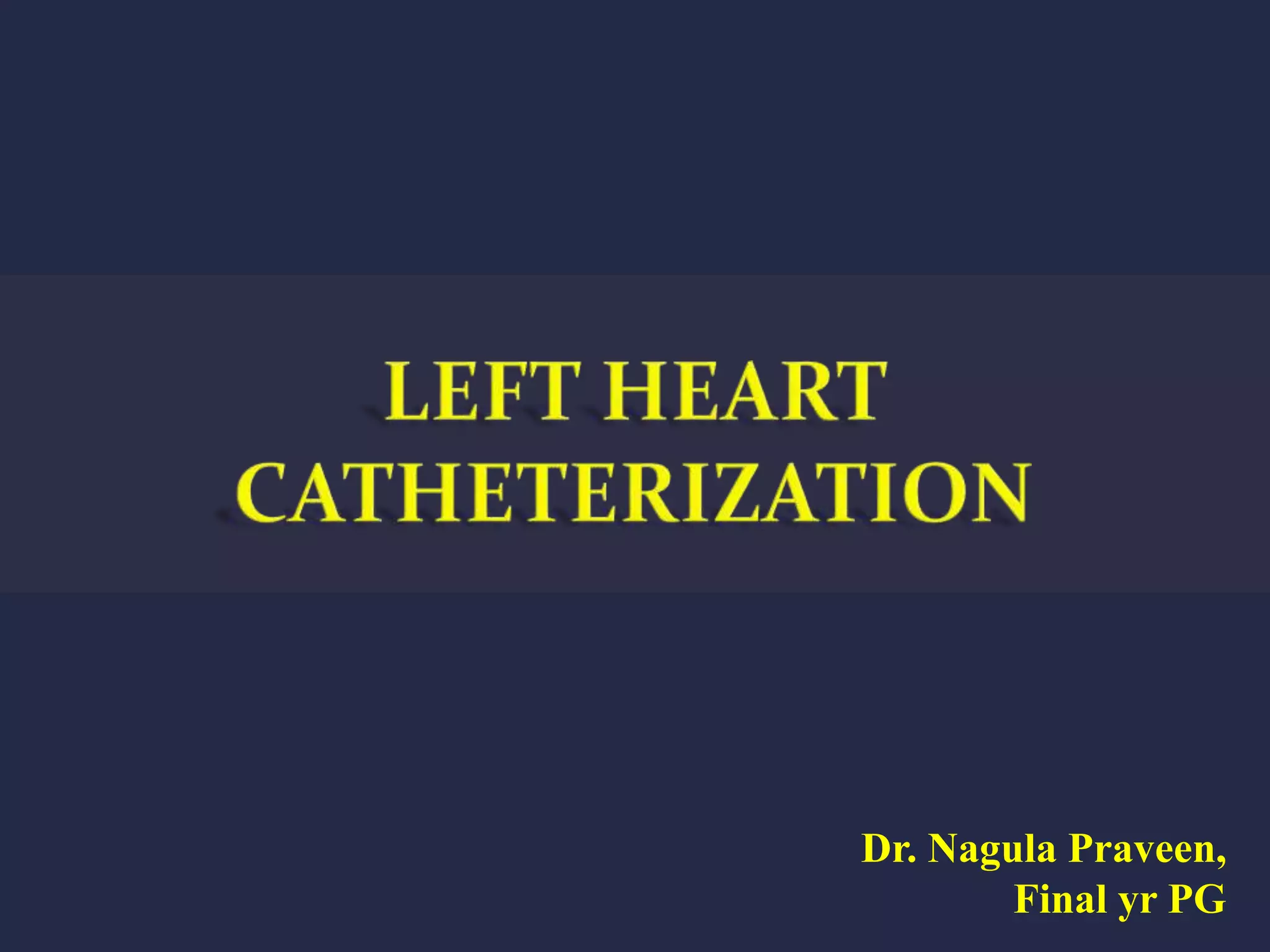

1. Dr. Nagula Praveen,
Final yr PG

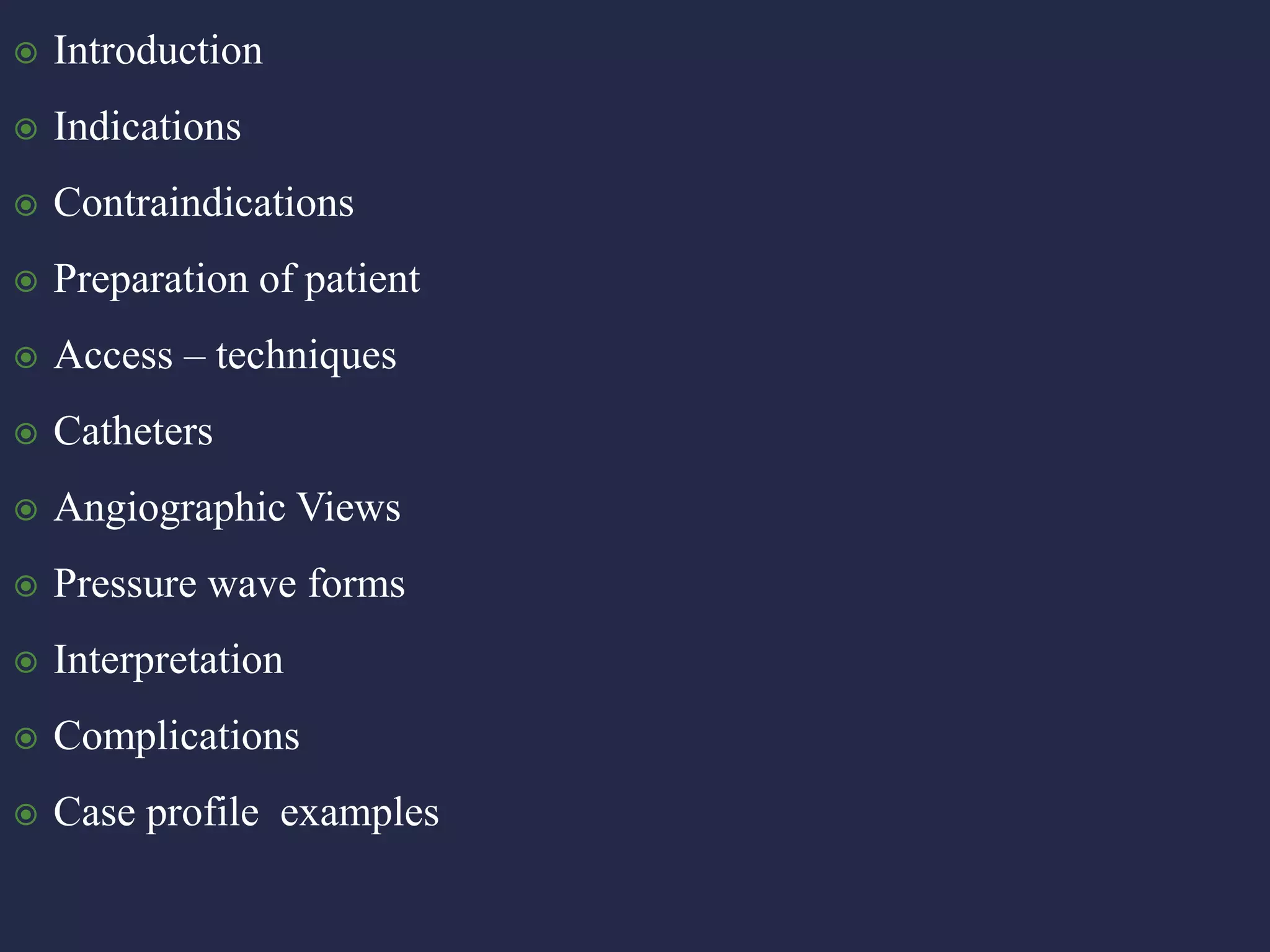

2.  Introduction
 Indications
 Contraindications
 Preparation of patient
 Access – techniques
 Catheters
 Angiographic Views
 Pressure wave forms
 Interpretation
 Complications
 Case profile examples

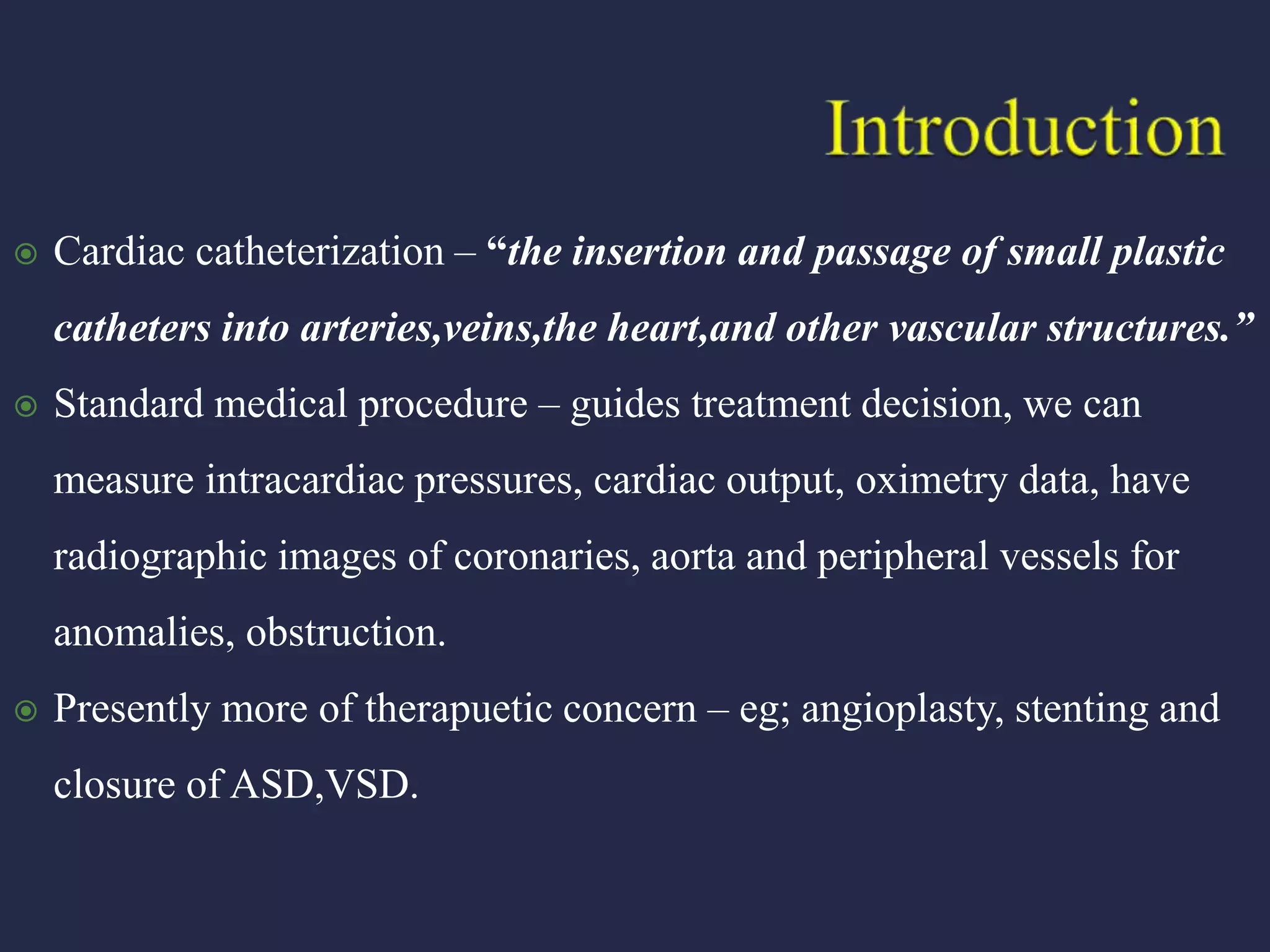

3.  Cardiac catheterization – “the insertion and passage of small plastic
catheters into arteries,veins,the heart,and other vascular structures.”
 Standard medical procedure – guides treatment decision, we can
measure intracardiac pressures, cardiac output, oximetry data, have
radiographic images of coronaries, aorta and peripheral vessels for
anomalies, obstruction.
 Presently more of therapuetic concern – eg; angioplasty, stenting and
closure of ASD,VSD.

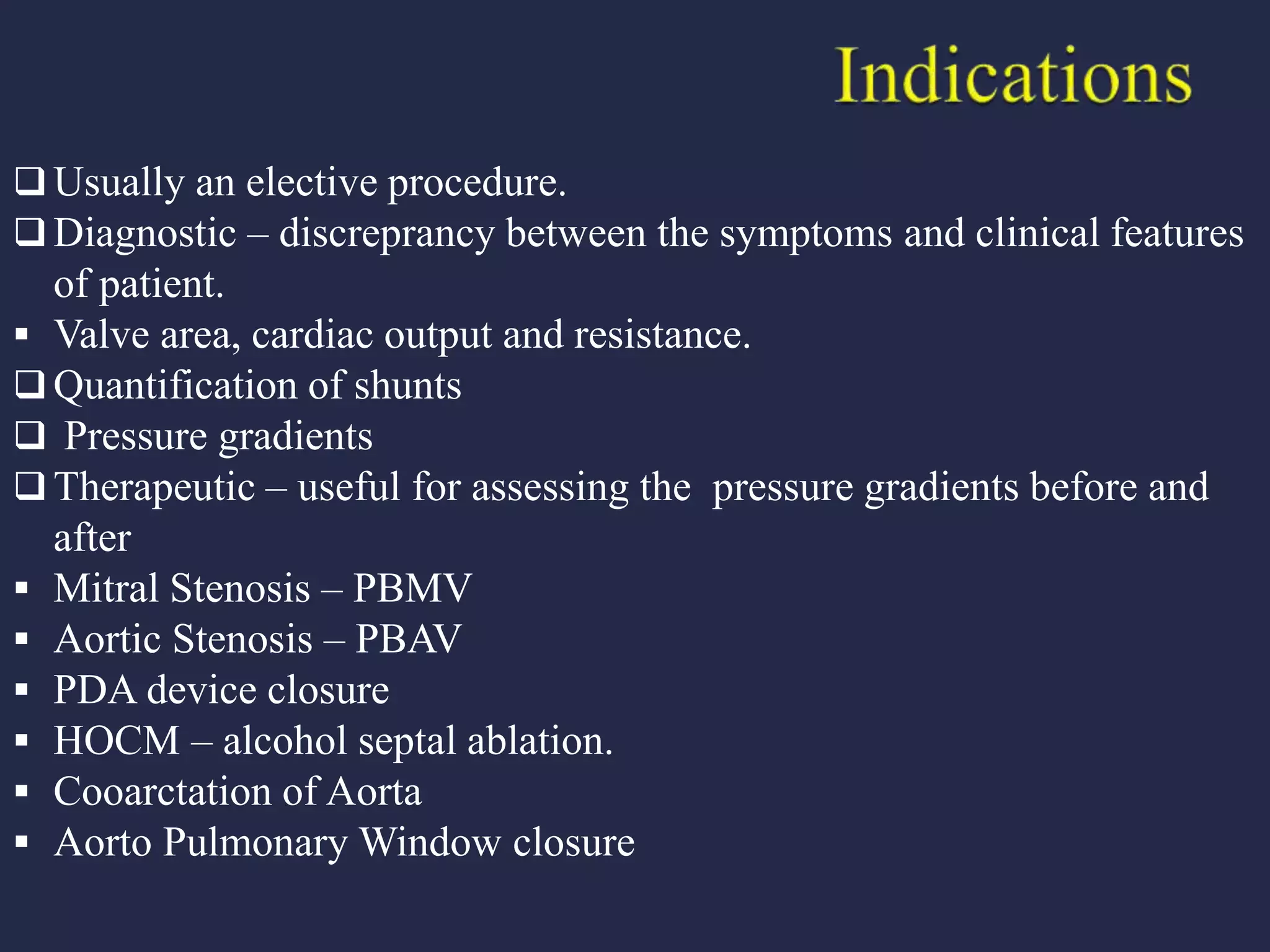

4.  Usually an elective procedure.
 Diagnostic – discreprancy between the symptoms and clinical features
of patient.
 Valve area, cardiac output and resistance.
 Quantification of shunts
 Pressure gradients
 Therapeutic – useful for assessing the pressure gradients before and
after
 Mitral Stenosis – PBMV
 Aortic Stenosis – PBAV
 PDA device closure
 HOCM – alcohol septal ablation.
 Cooarctation of Aorta
 Aorto Pulmonary Window closure

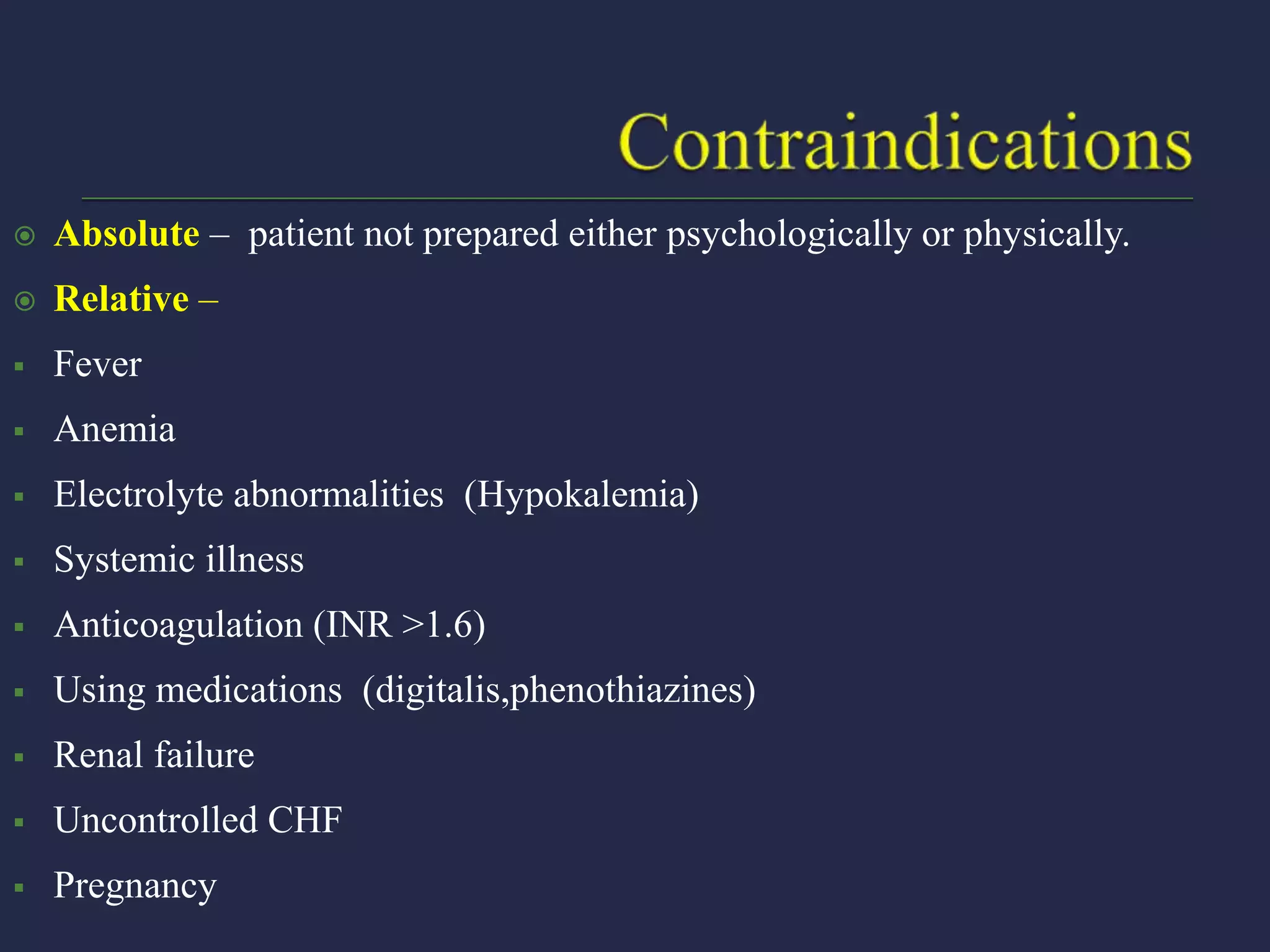

5.  Absolute – patient not prepared either psychologically or physically.
 Relative –
 Fever
 Anemia
 Electrolyte abnormalities (Hypokalemia)
 Systemic illness
 Anticoagulation (INR >1.6)
 Using medications (digitalis,phenothiazines)
 Renal failure
 Uncontrolled CHF
 Pregnancy

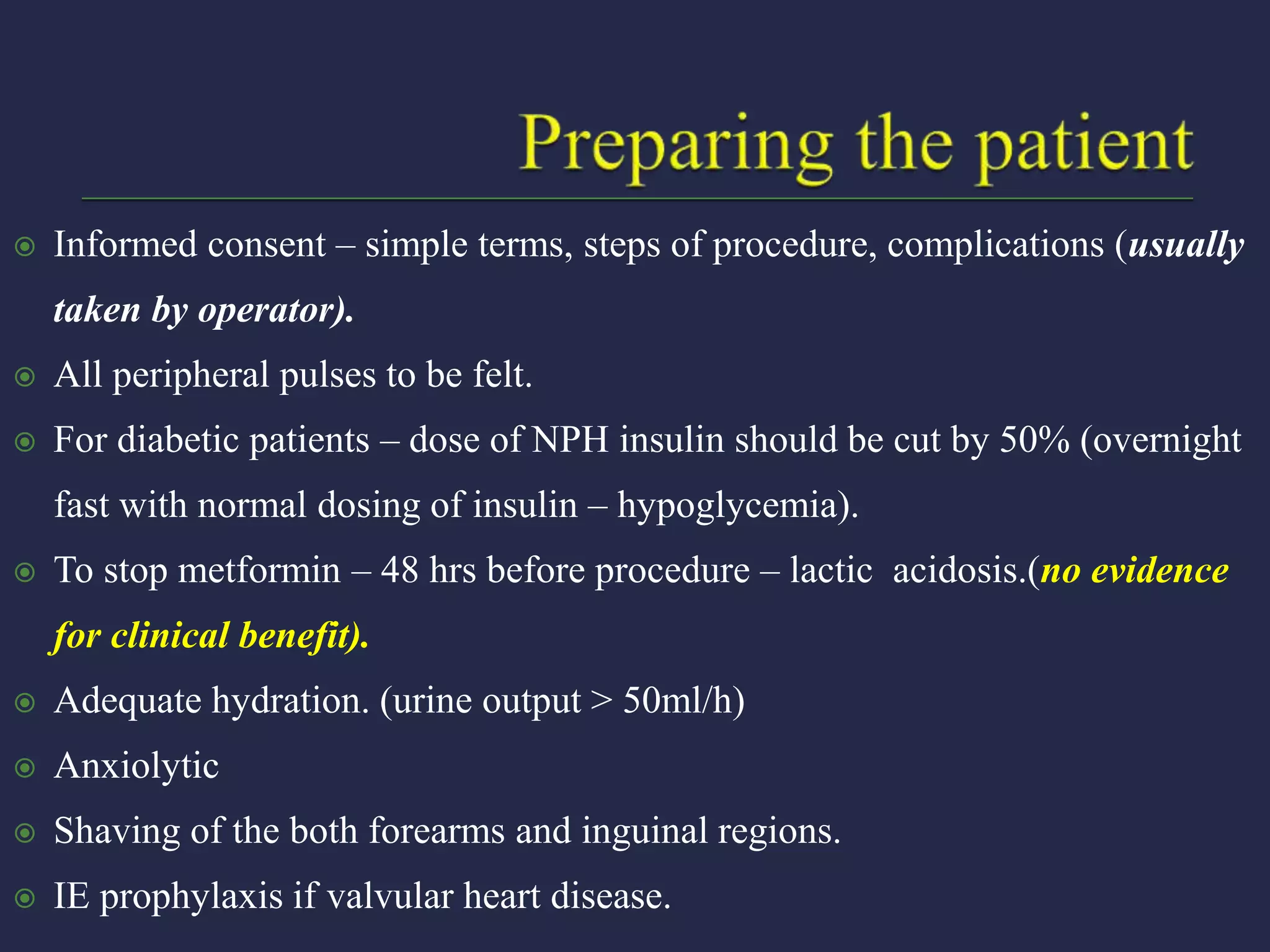

6.  Informed consent – simple terms, steps of procedure, complications (usually
taken by operator).
 All peripheral pulses to be felt.
 For diabetic patients – dose of NPH insulin should be cut by 50% (overnight
fast with normal dosing of insulin – hypoglycemia).
 To stop metformin – 48 hrs before procedure – lactic acidosis.(no evidence
for clinical benefit).
 Adequate hydration. (urine output > 50ml/h)
 Anxiolytic
 Shaving of the both forearms and inguinal regions.
 IE prophylaxis if valvular heart disease.

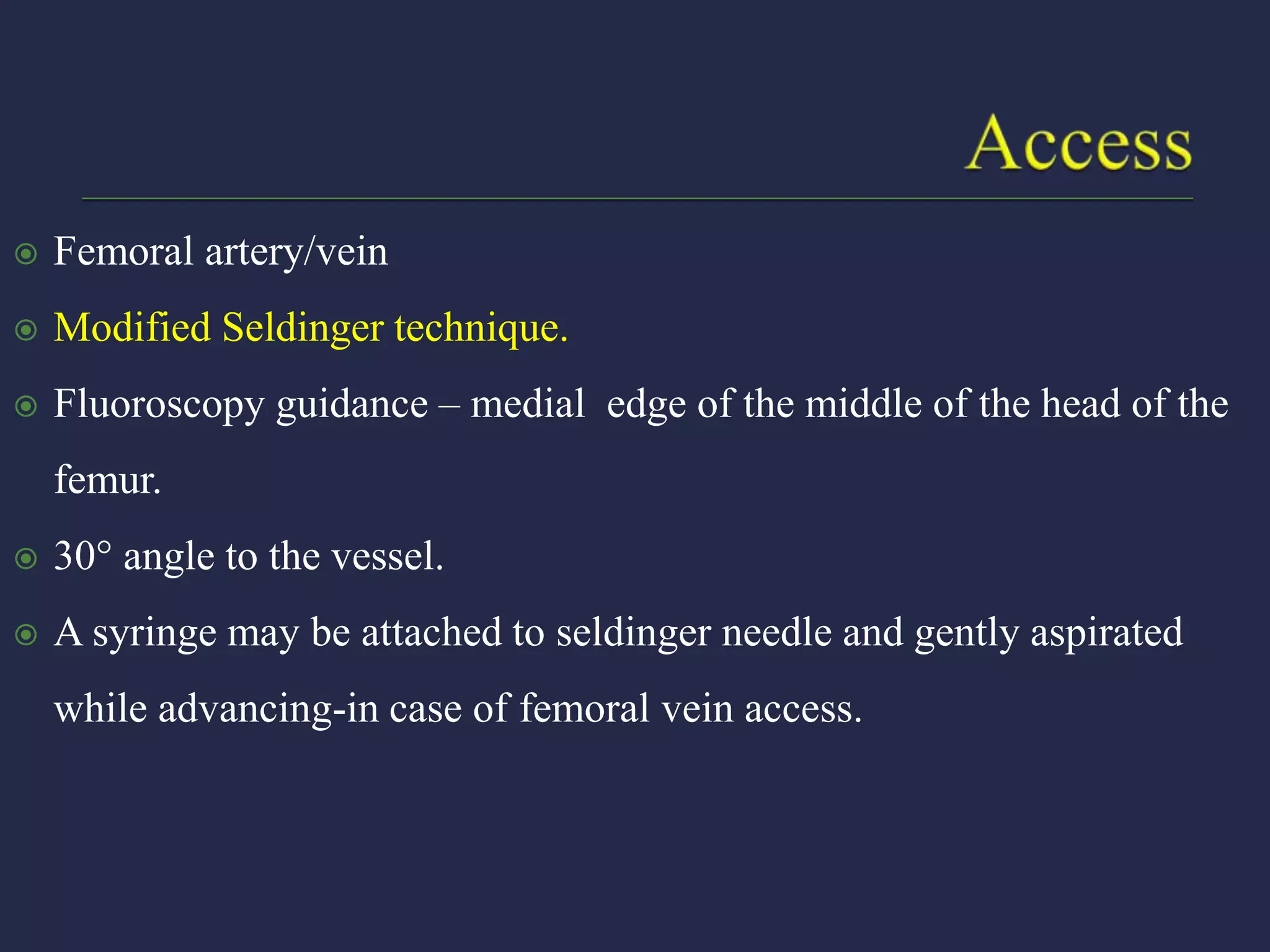

7.  Femoral artery/vein

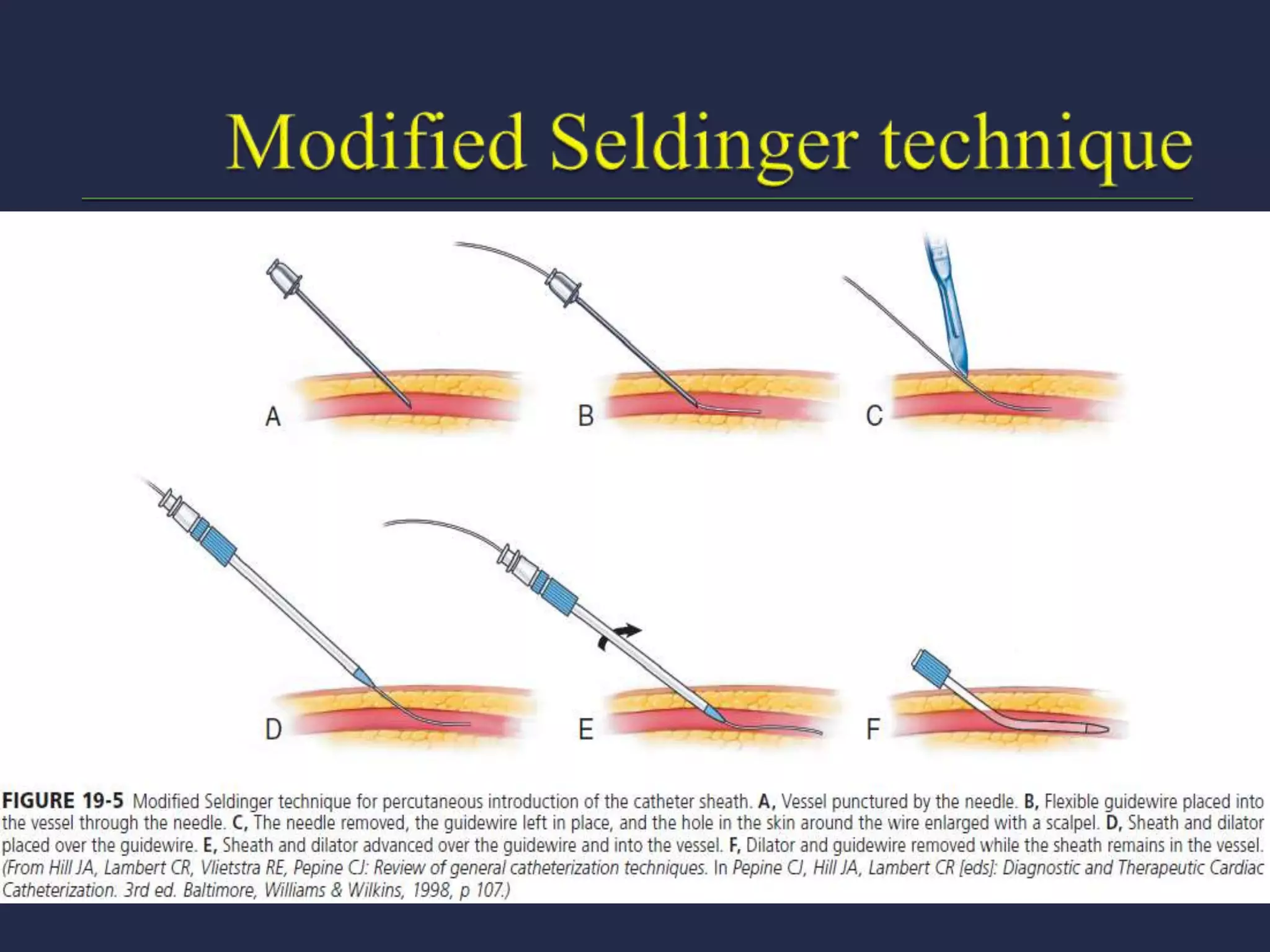

 Modified Seldinger technique.

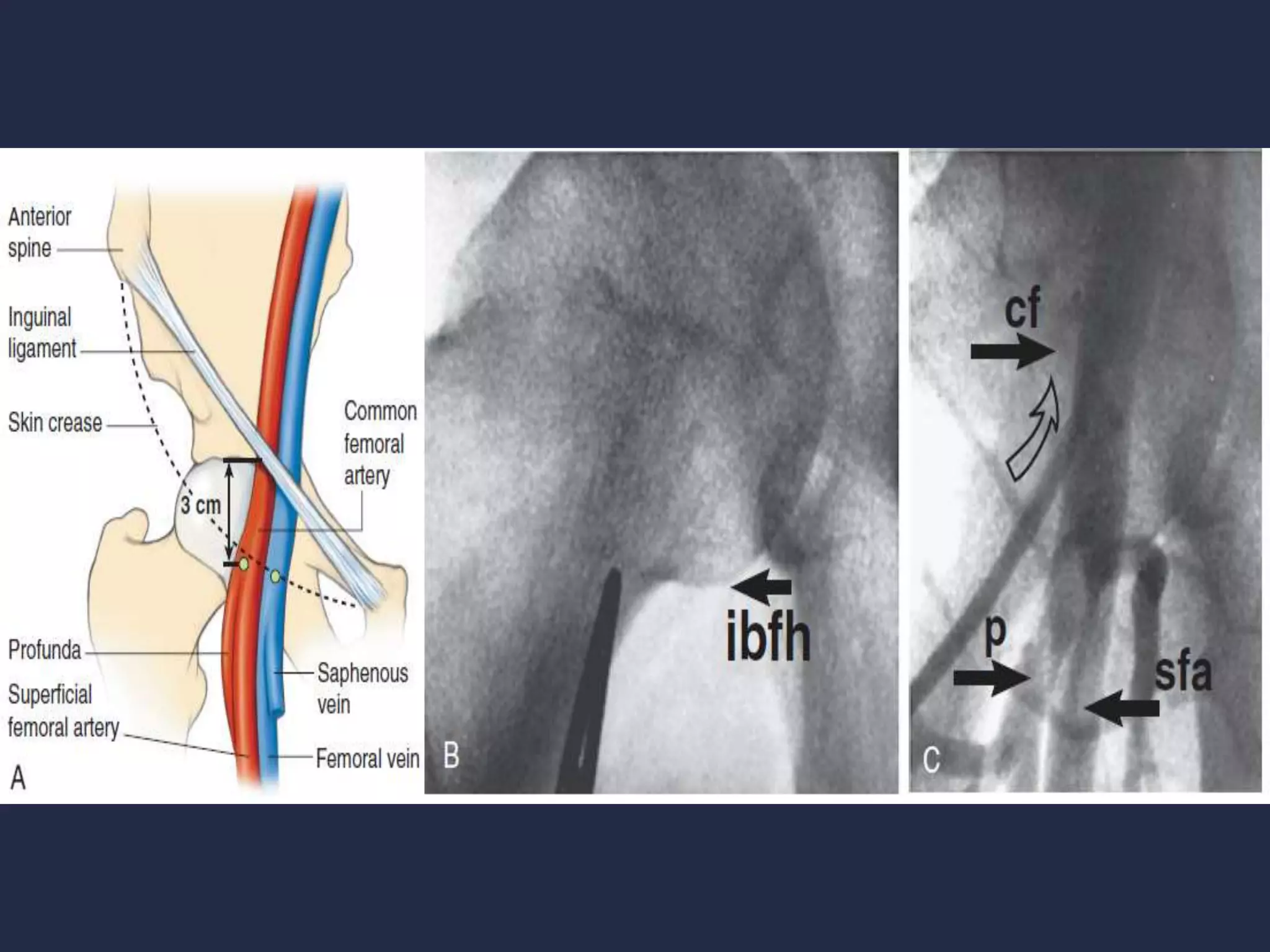

 Fluoroscopy guidance – medial edge of the middle of the head of the
femur.
 30 angle to the vessel.
 A syringe may be attached to seldinger needle and gently aspirated
while advancing-in case of femoral vein access.

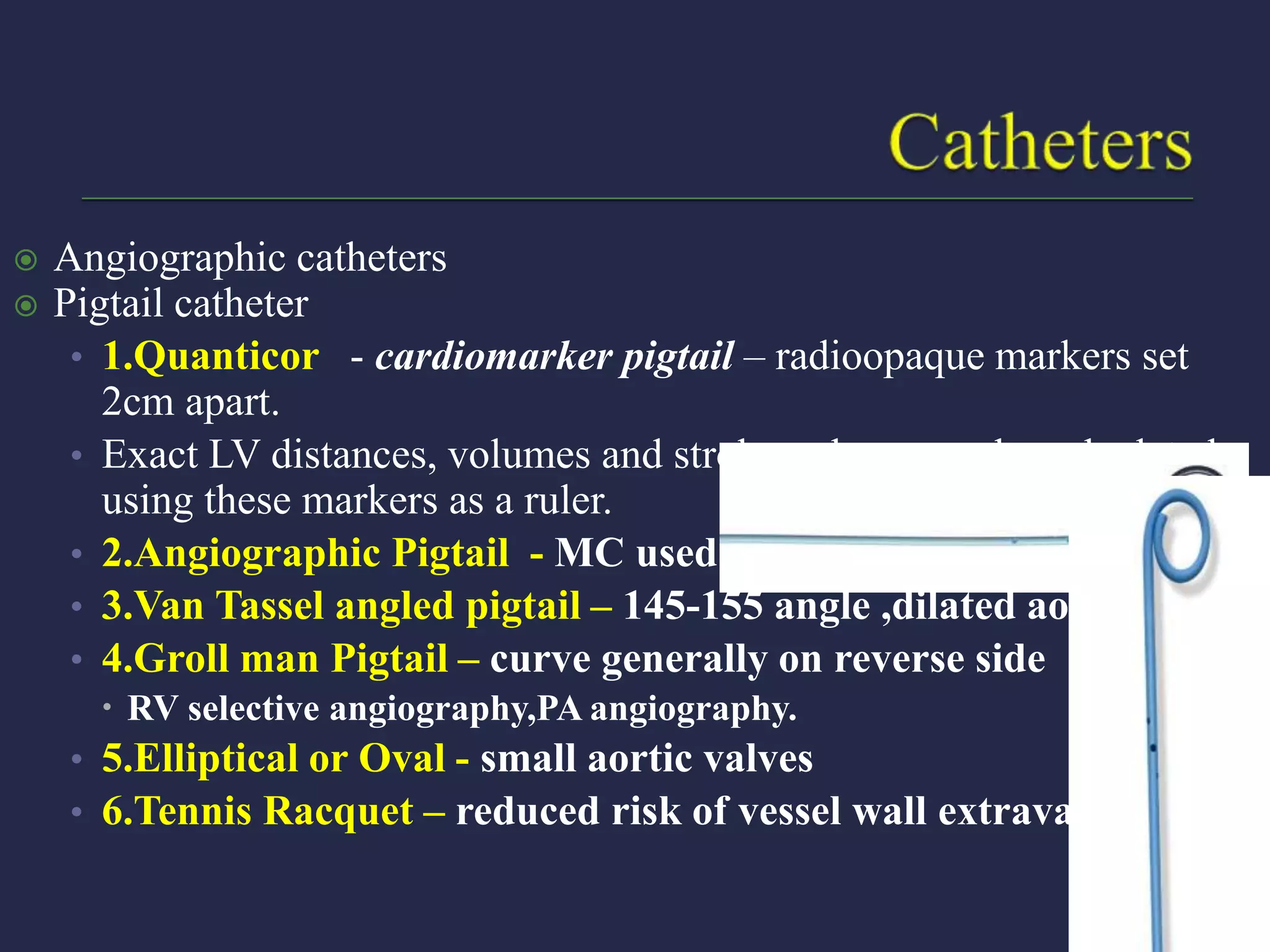

10.  Angiographic catheters
 Pigtail catheter
• 1.Quanticor - cardiomarker pigtail – radioopaque markers set
2cm apart.
• Exact LV distances, volumes and stroke volume can be calculated
using these markers as a ruler.

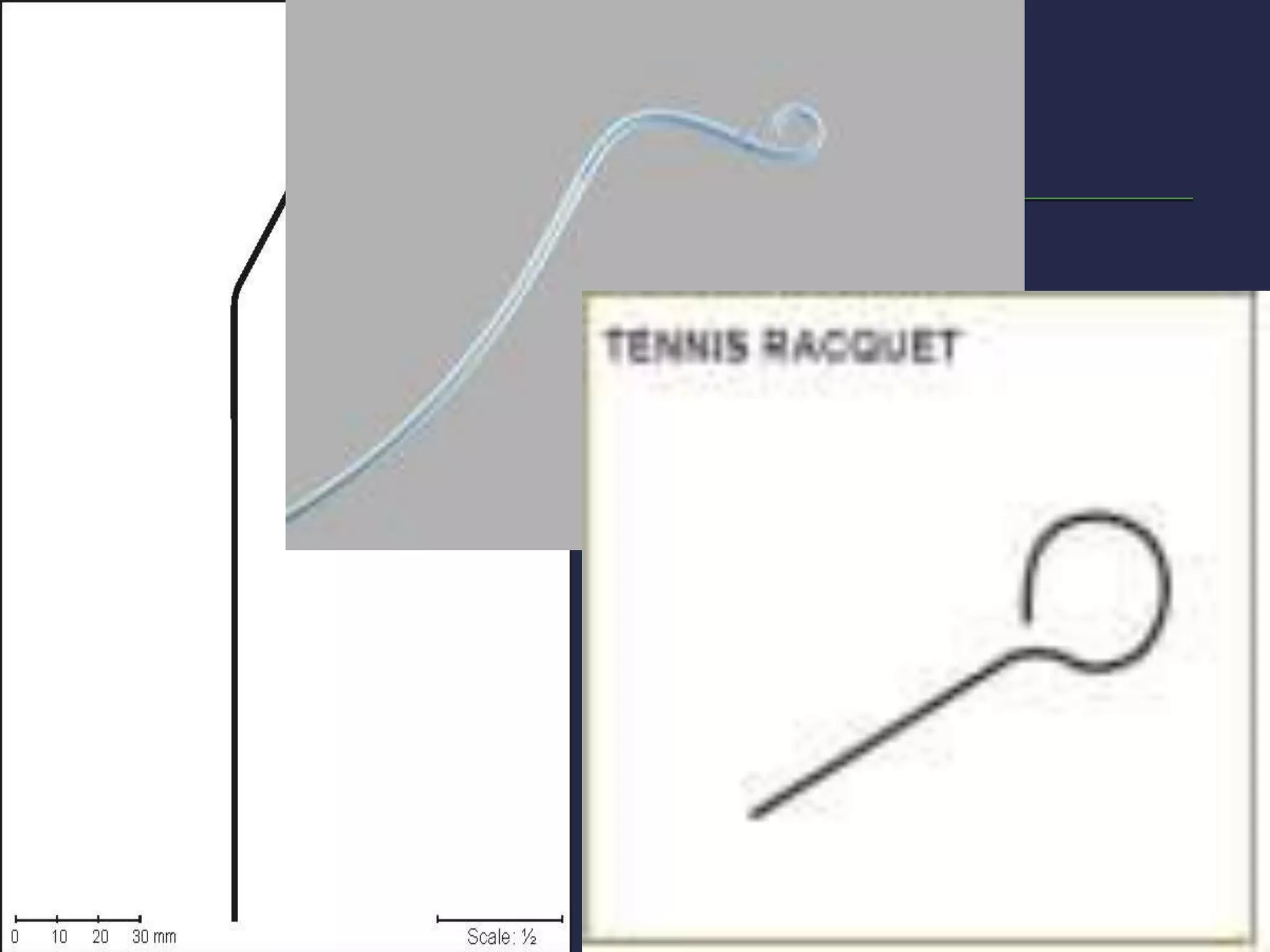

• 2.Angiographic Pigtail - MC used
• 3.Van Tassel angled pigtail – 145-155 angle ,dilated aorta.
• 4.Groll man Pigtail – curve generally on reverse side
 RV selective angiography,PA angiography.
• 5.Elliptical or Oval - small aortic valves
• 6.Tennis Racquet – reduced risk of vessel wall extravasation

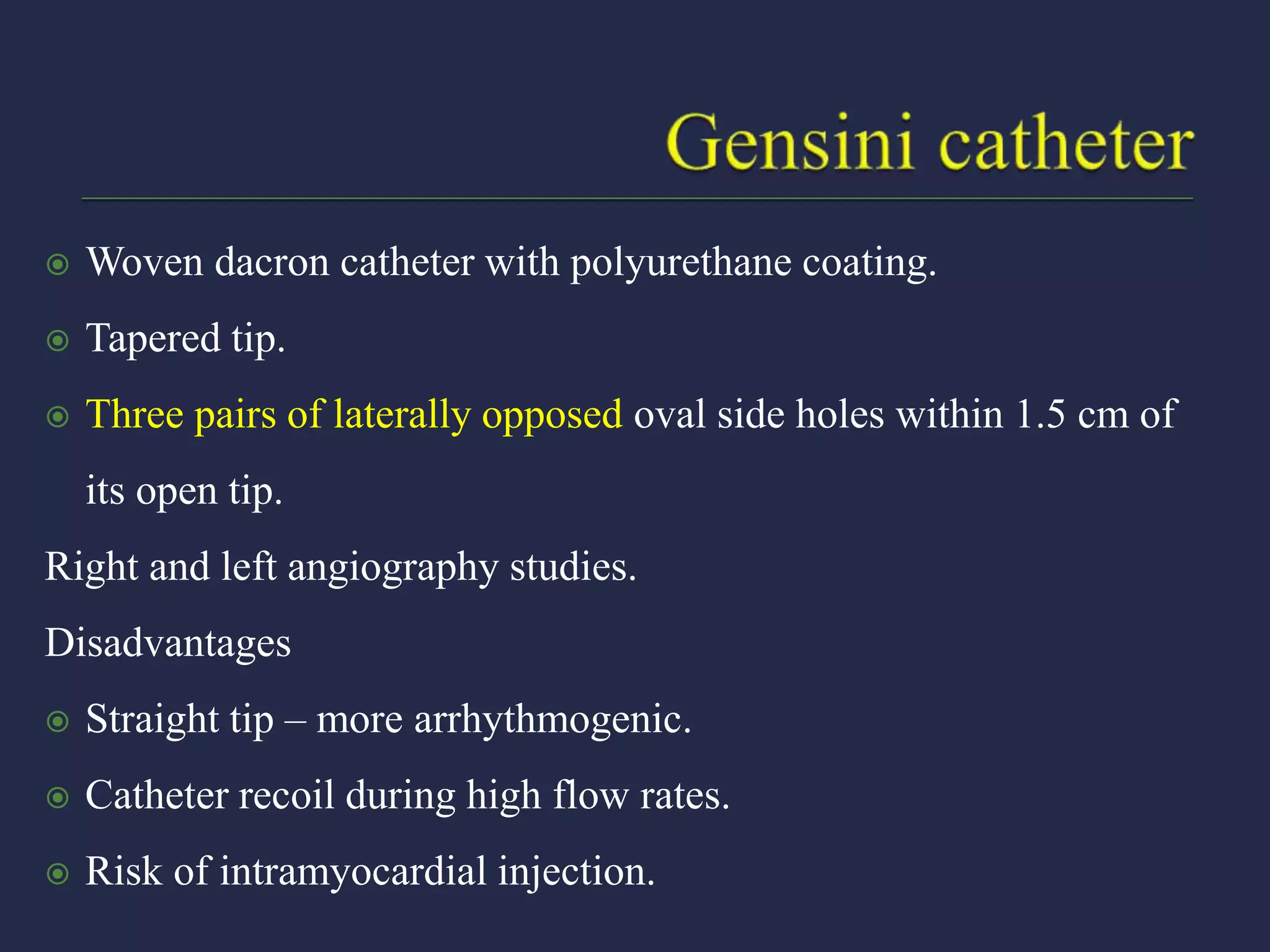

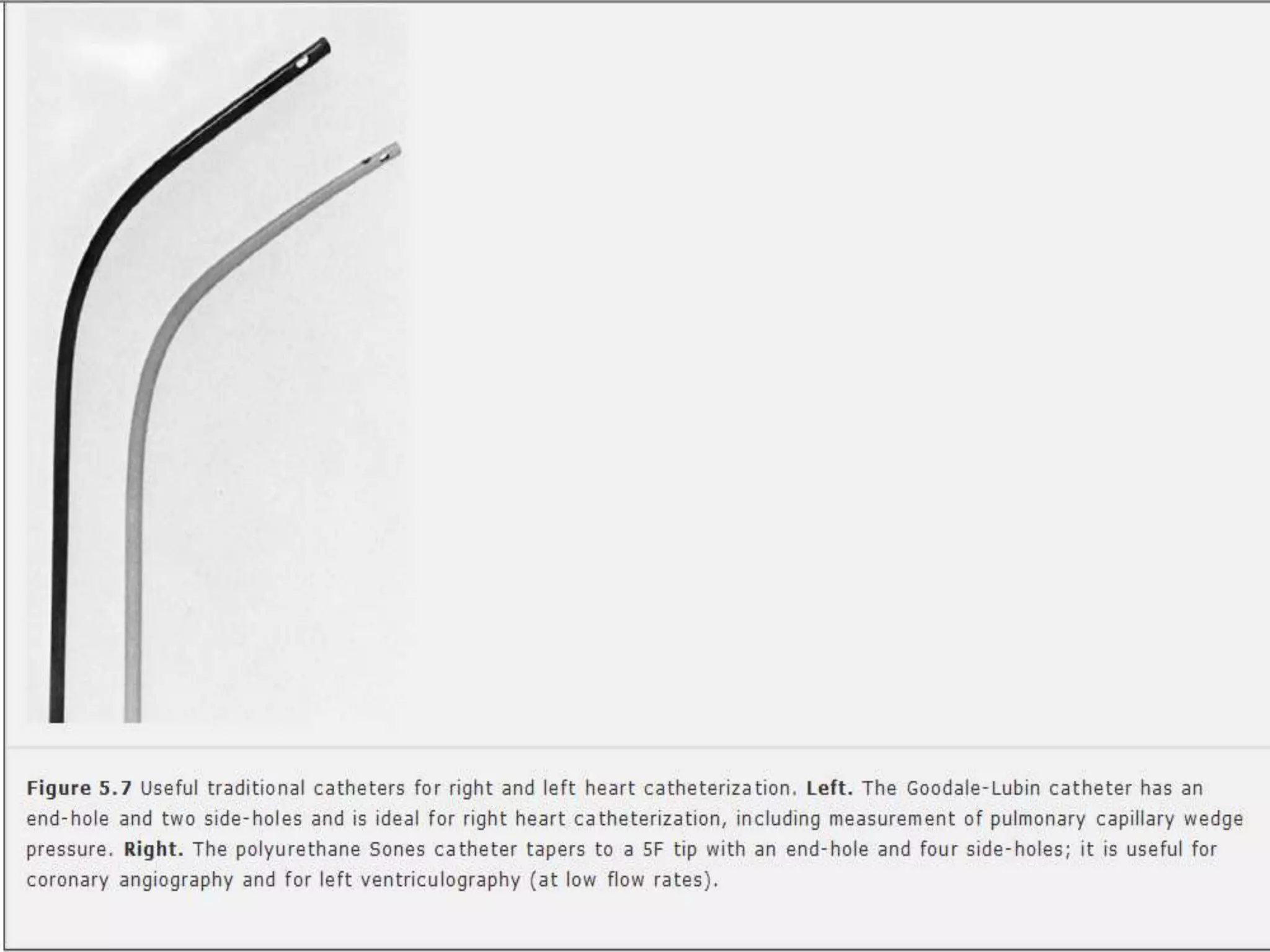

13.  Woven dacron catheter with polyurethane coating.
 Tapered tip.
 Three pairs of laterally opposed oval side holes within 1.5 cm of
its open tip.
Right and left angiography studies.
Disadvantages
 Straight tip – more arrhythmogenic.
 Catheter recoil during high flow rates.
 Risk of intramyocardial injection.

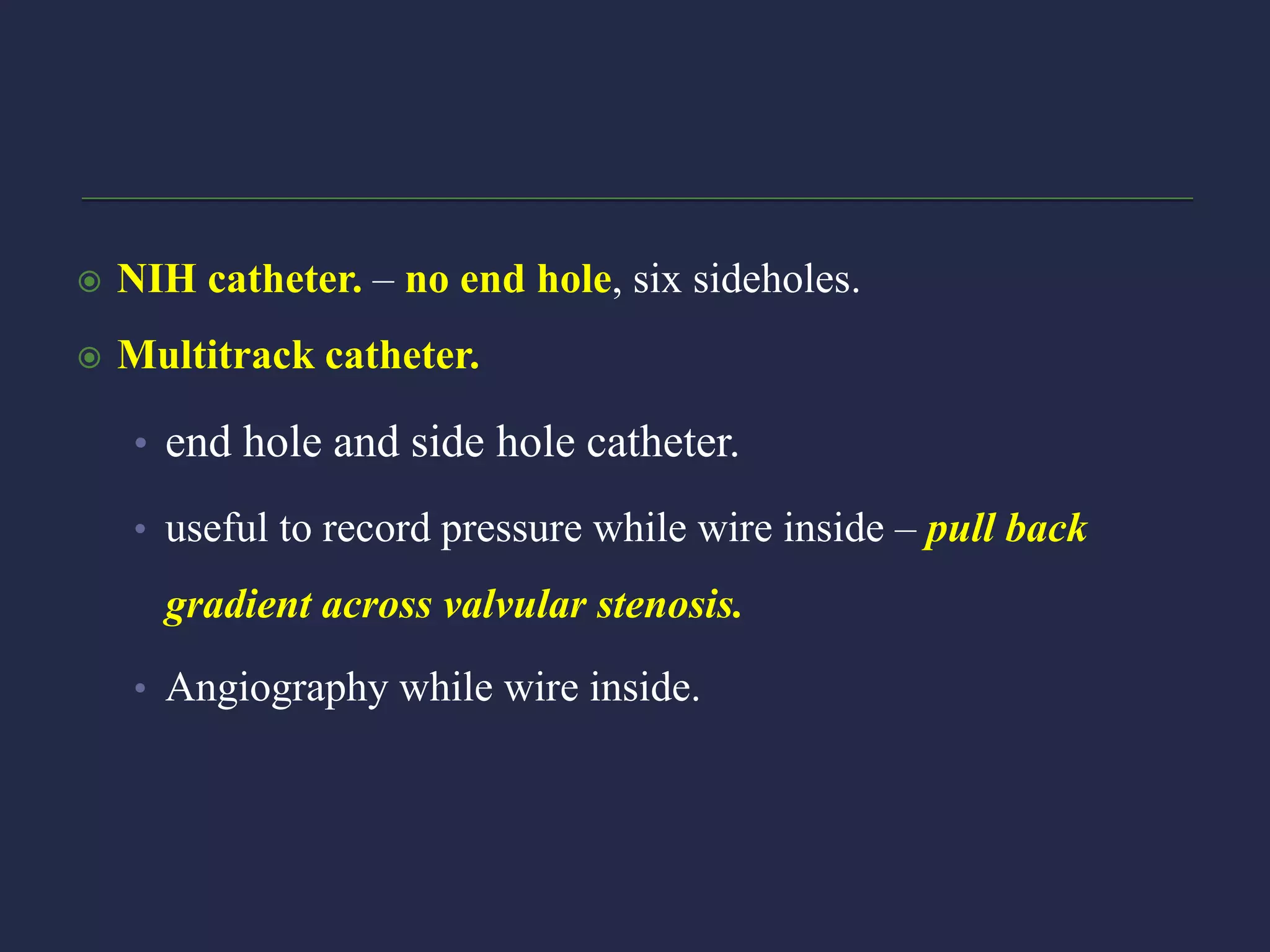

14.  NIH catheter. – no end hole, six sideholes.
 Multitrack catheter.
• end hole and side hole catheter.
• useful to record pressure while wire inside – pull back
gradient across valvular stenosis.
• Angiography while wire inside.

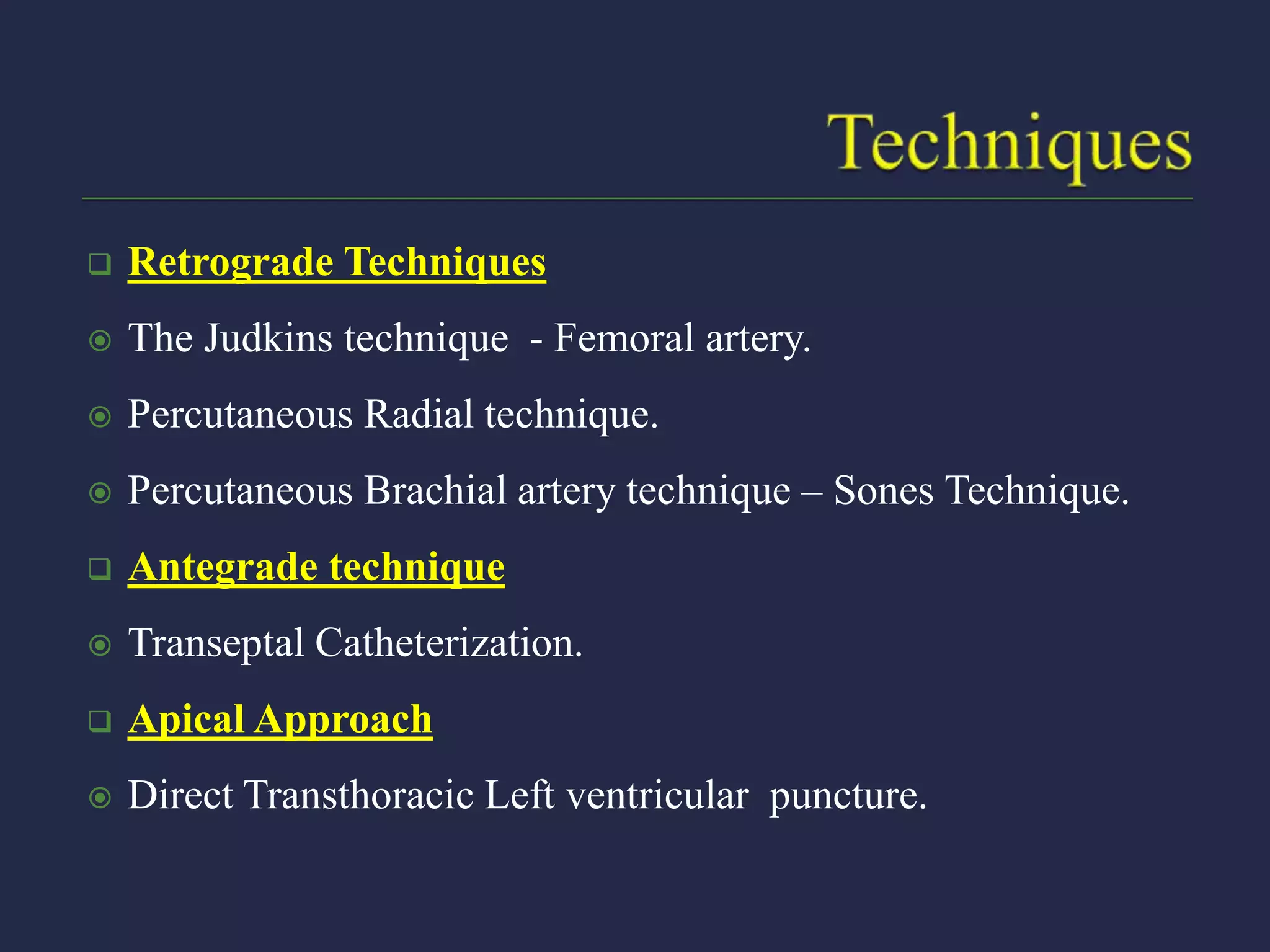

15.  Retrograde Techniques
 The Judkins technique - Femoral artery.
 Percutaneous Radial technique.

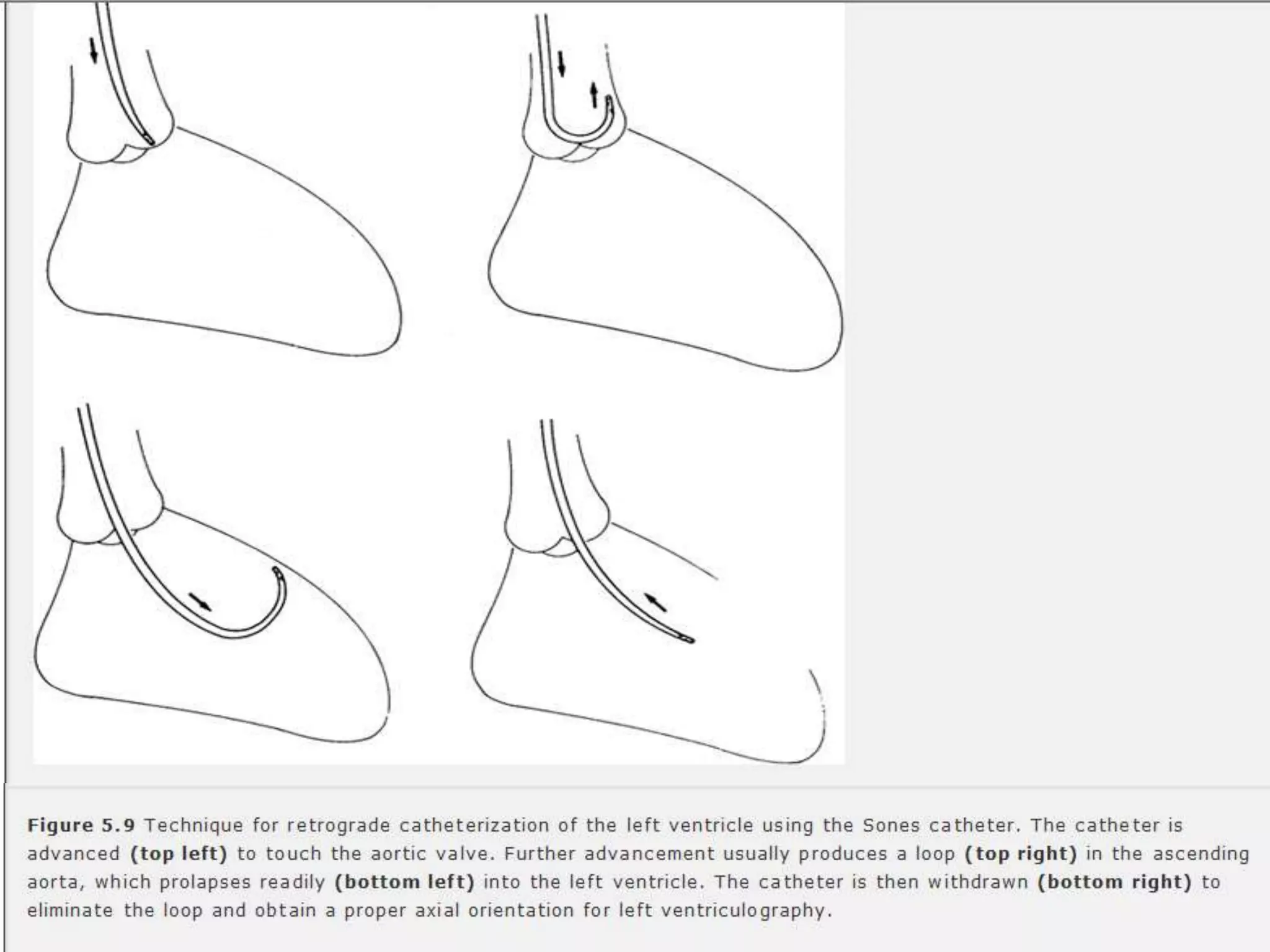

 Percutaneous Brachial artery technique – Sones Technique.
 Antegrade technique
 Transeptal Catheterization.
 Apical Approach
 Direct Transthoracic Left ventricular puncture.

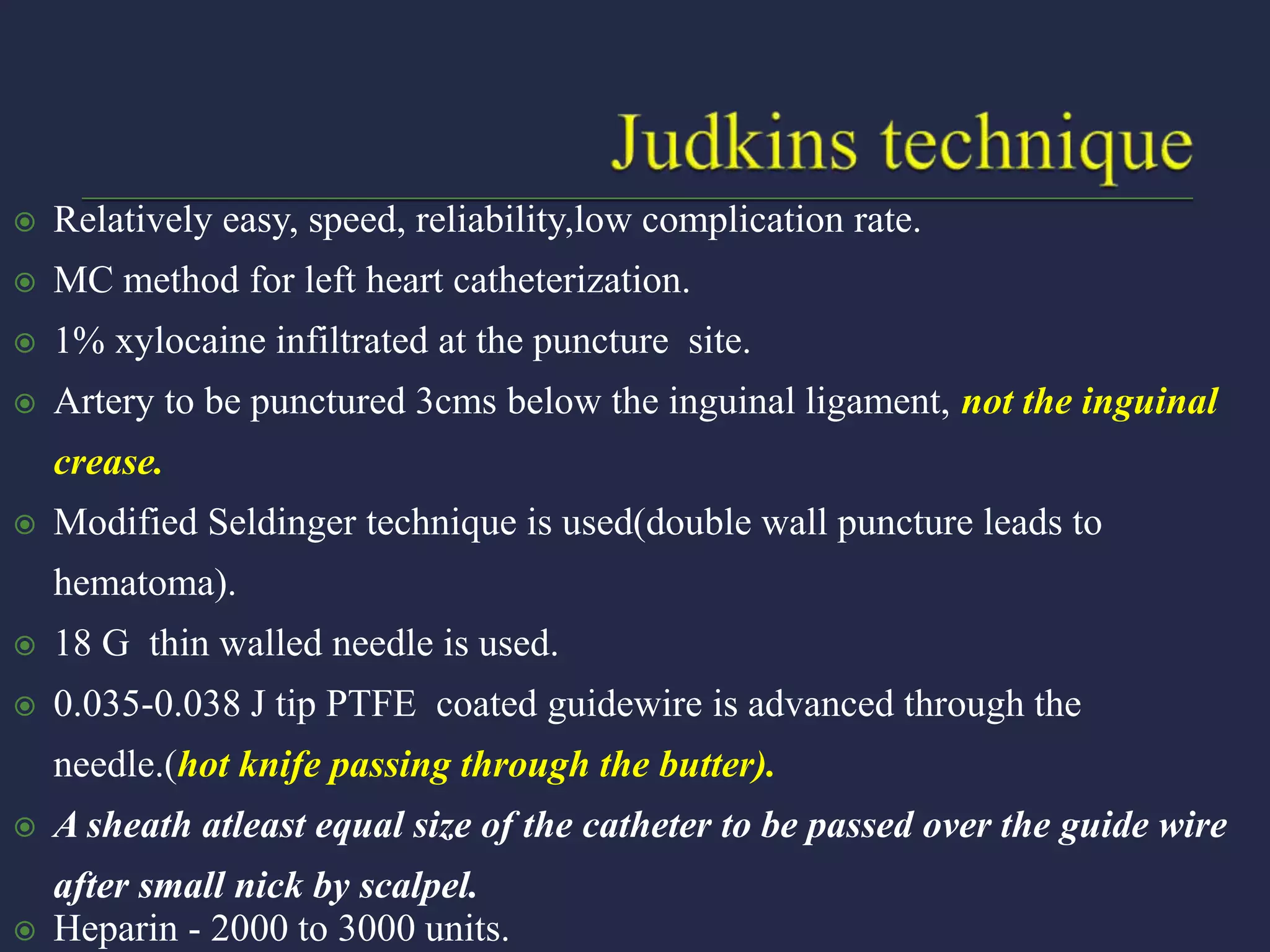

16.  Relatively easy, speed, reliability,low complication rate.
 MC method for left heart catheterization.
 1% xylocaine infiltrated at the puncture site.
 Artery to be punctured 3cms below the inguinal ligament, not the inguinal
crease.
 Modified Seldinger technique is used(double wall puncture leads to
hematoma).
 18 G thin walled needle is used.
 0.035-0.038 J tip PTFE coated guidewire is advanced through the
needle.(hot knife passing through the butter).
 A sheath atleast equal size of the catheter to be passed over the guide wire
after small nick by scalpel.
 Heparin - 2000 to 3000 units.

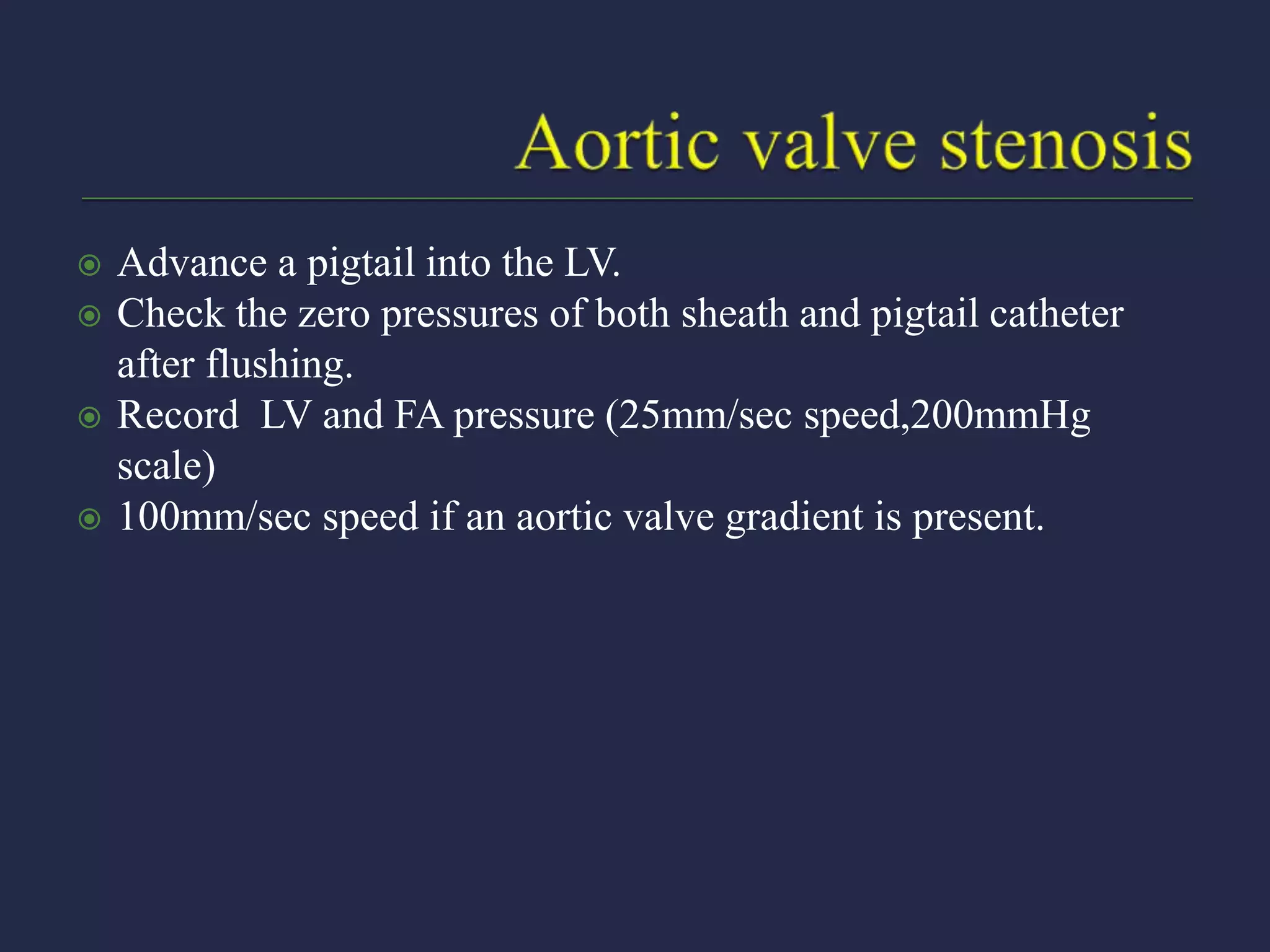

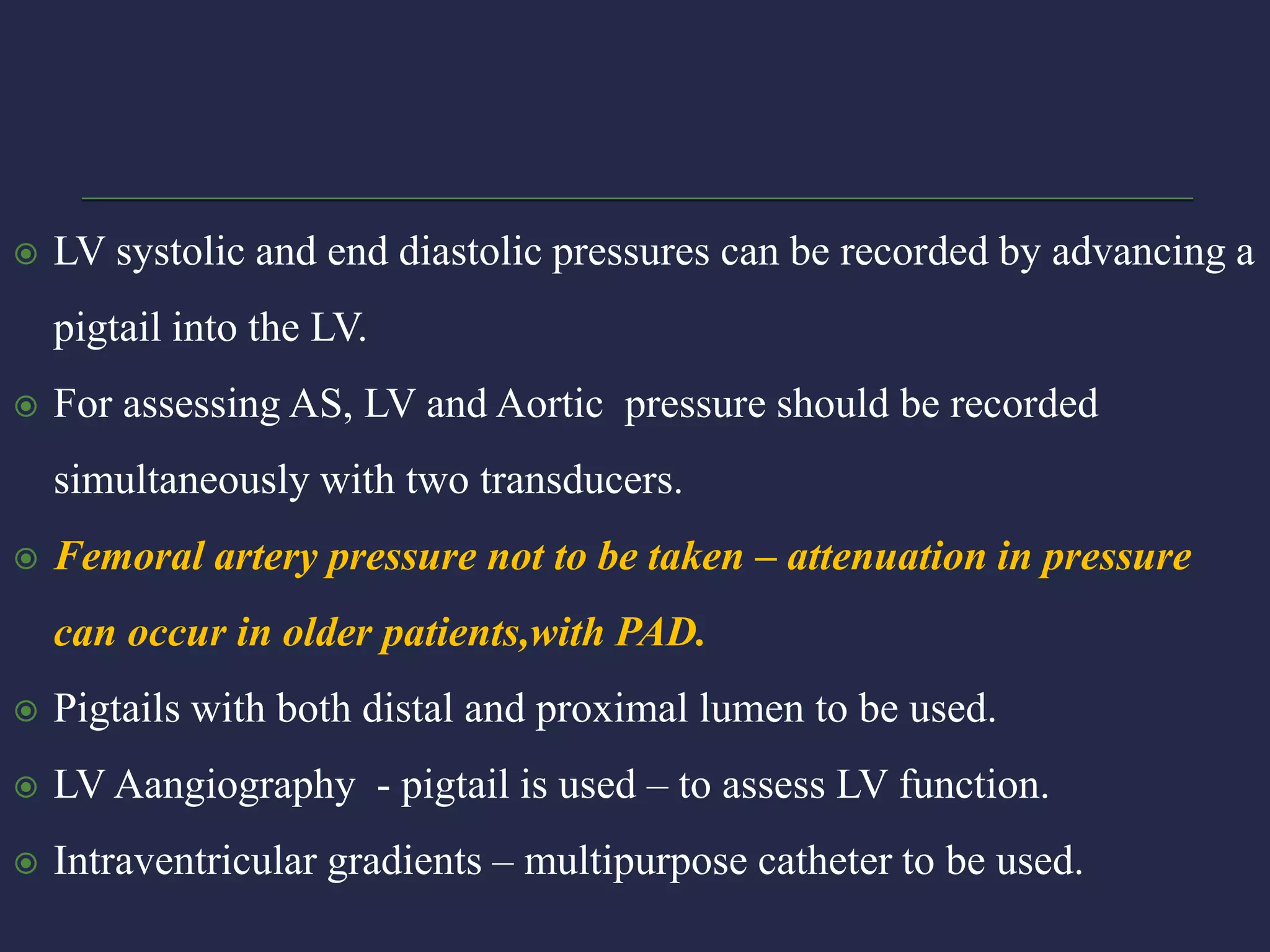

17.  LV systolic and end diastolic pressures can be recorded by advancing a
pigtail into the LV.

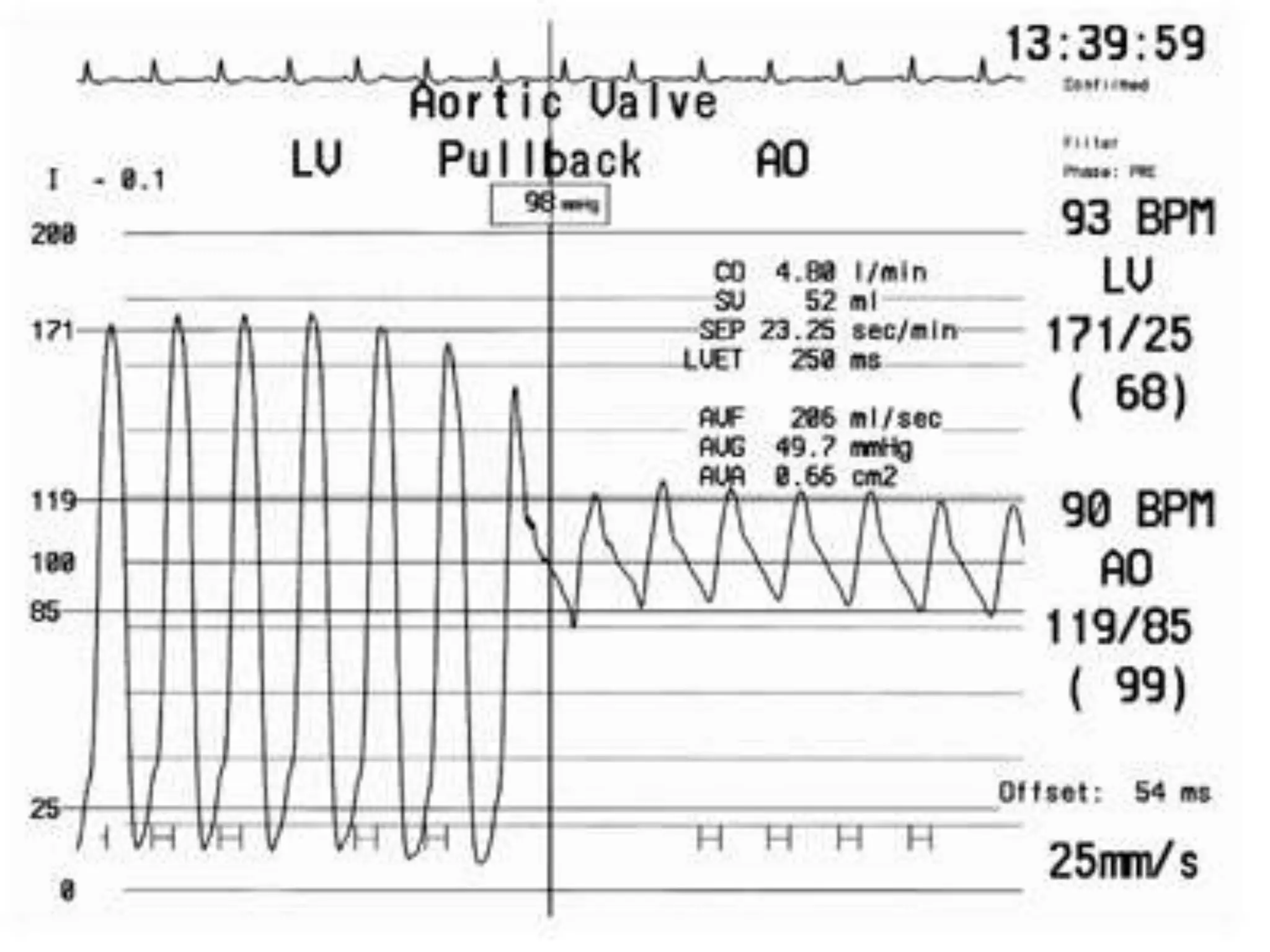

 For assessing AS, LV and Aortic pressure should be recorded
simultaneously with two transducers.

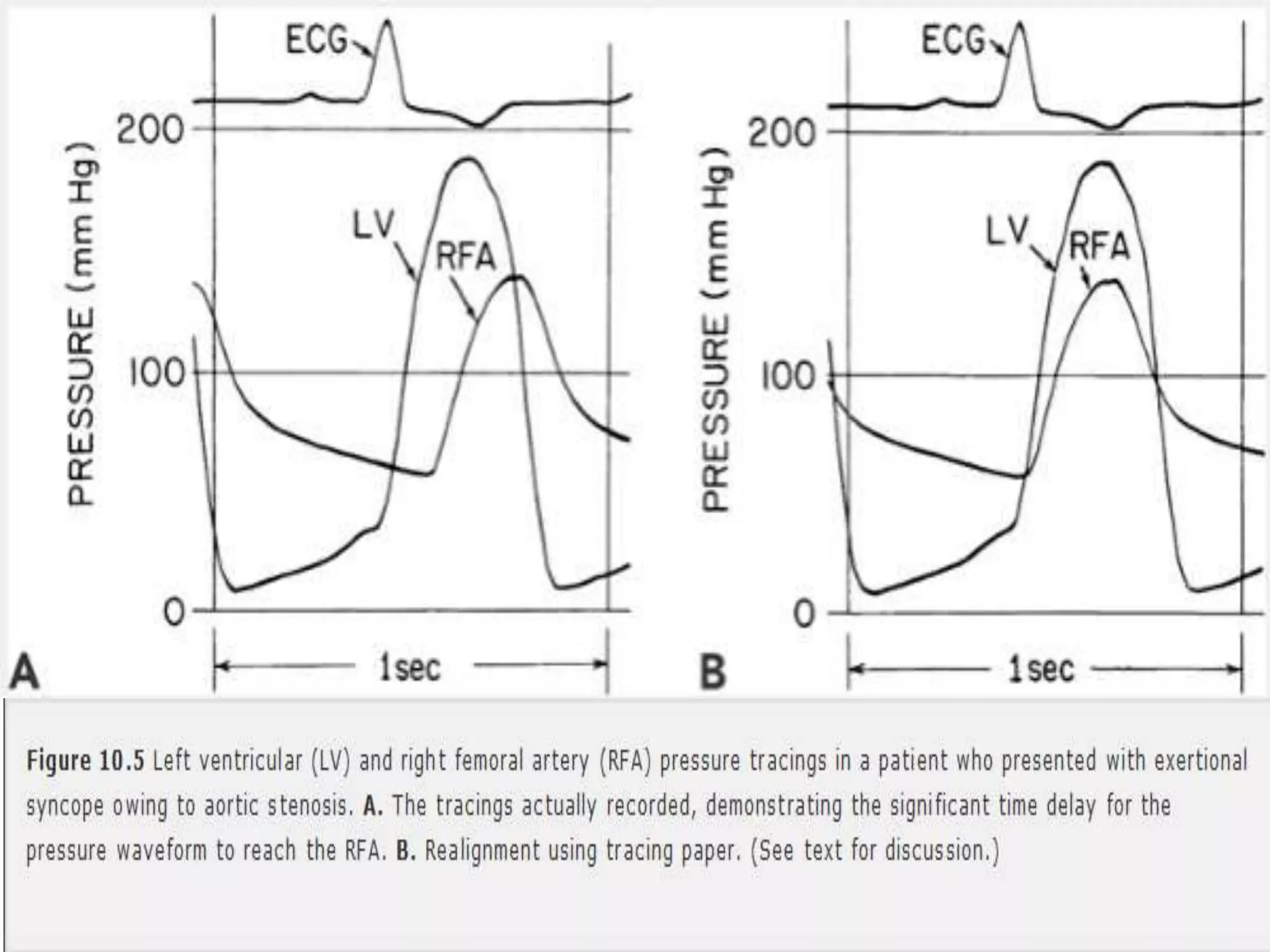

 Femoral artery pressure not to be taken – attenuation in pressure
can occur in older patients,with PAD.
 Pigtails with both distal and proximal lumen to be used.
 LV Aangiography - pigtail is used – to assess LV function.
 Intraventricular gradients – multipurpose catheter to be used.

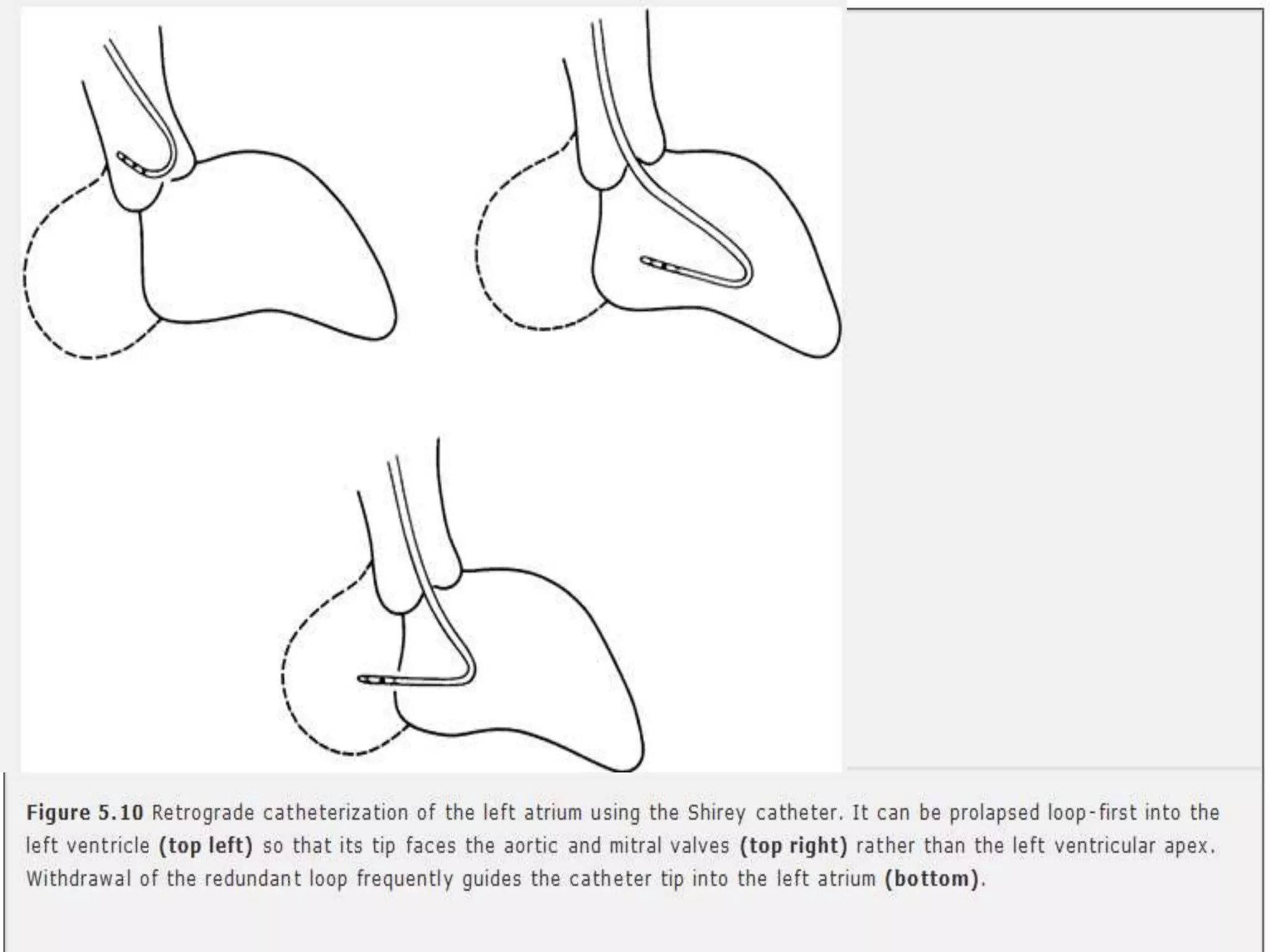

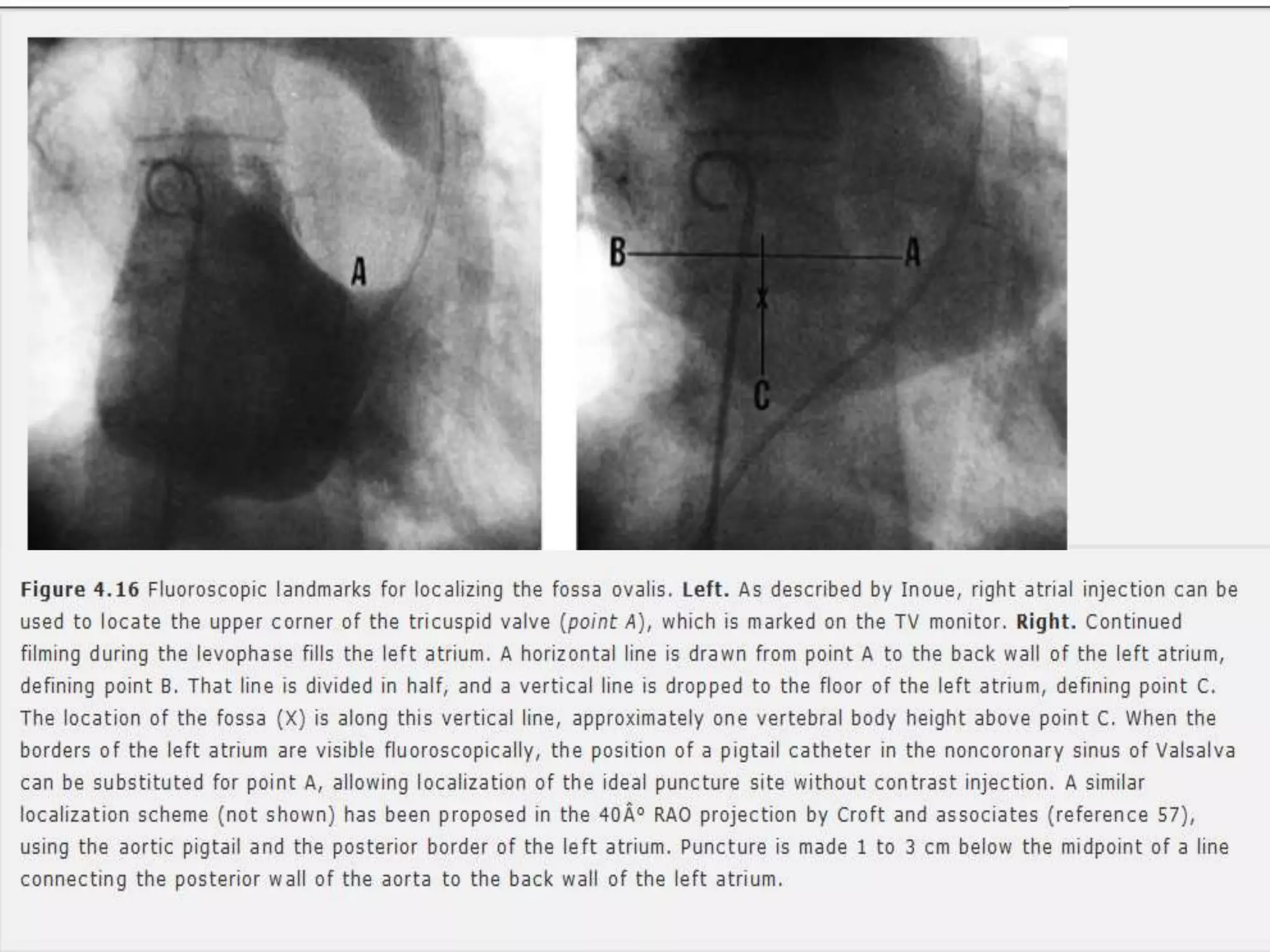

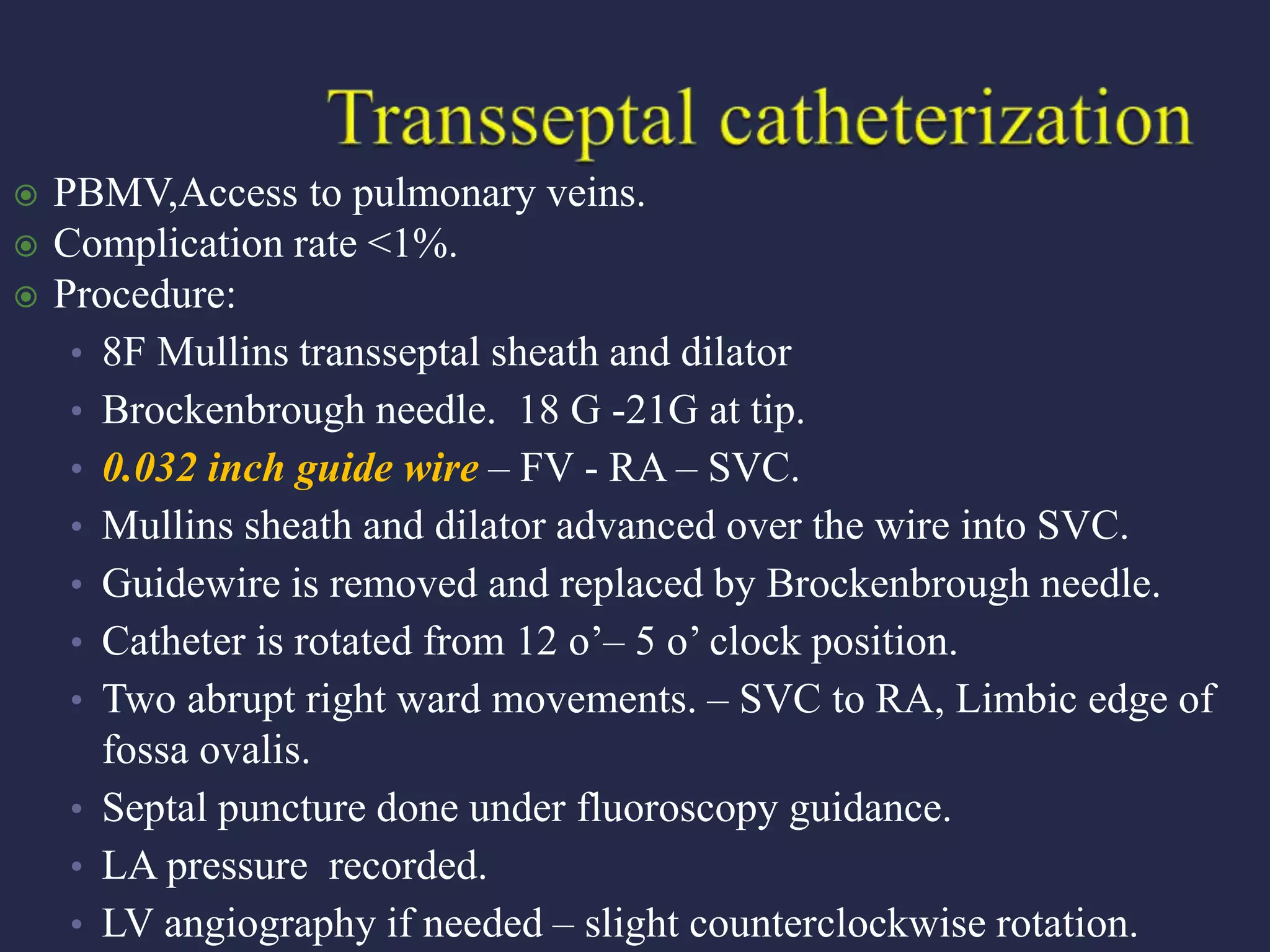

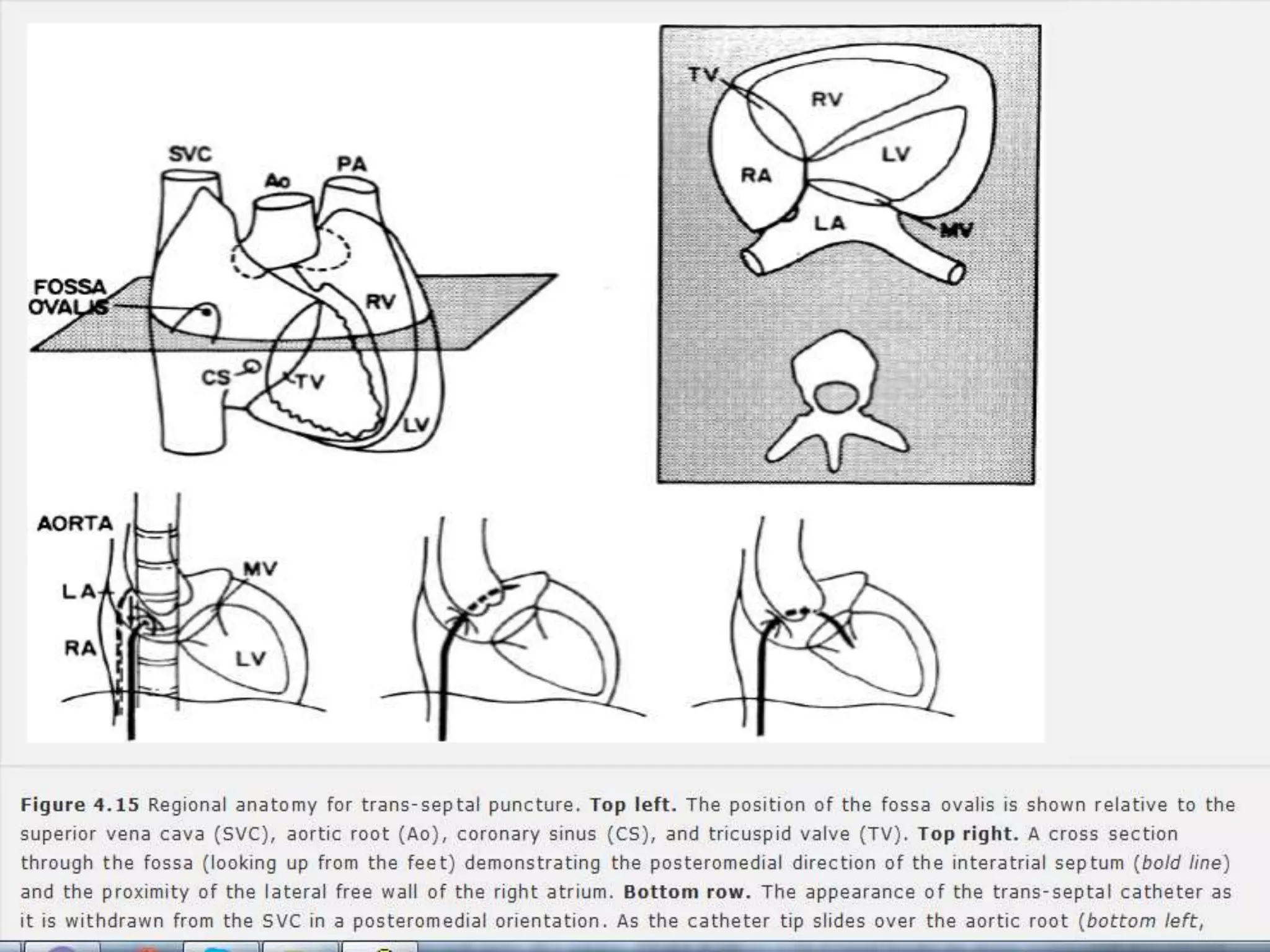

21.  PBMV,Access to pulmonary veins.
 Complication rate <1%.
 Procedure:

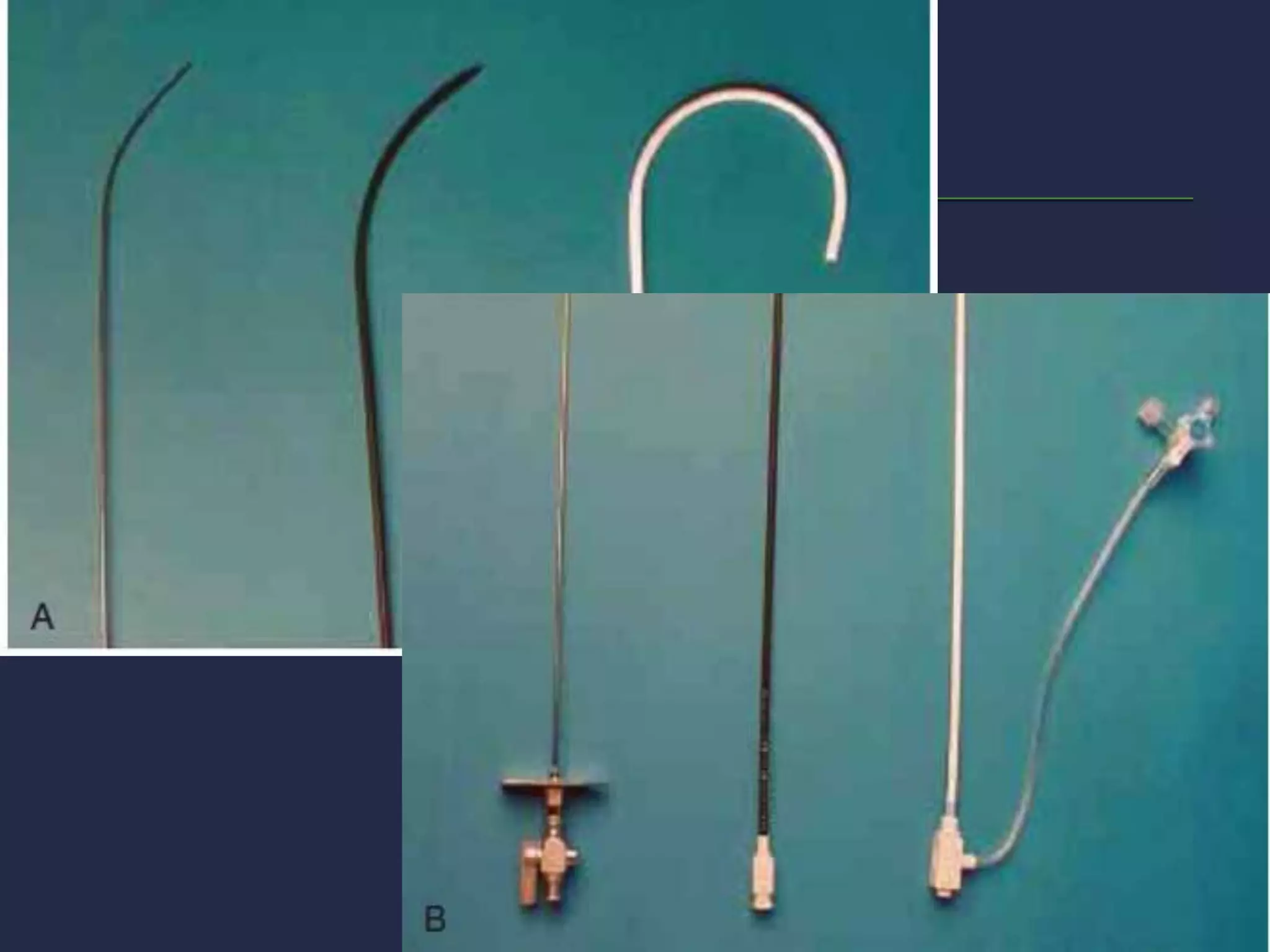

• 8F Mullins transseptal sheath and dilator
• Brockenbrough needle. 18 G -21G at tip.
• 0.032 inch guide wire – FV - RA – SVC.
• Mullins sheath and dilator advanced over the wire into SVC.
• Guidewire is removed and replaced by Brockenbrough needle.
• Catheter is rotated from 12 o’– 5 o’ clock position.
• Two abrupt right ward movements. – SVC to RA, Limbic edge of
fossa ovalis.
• Septal puncture done under fluoroscopy guidance.
• LA pressure recorded.
• LV angiography if needed – slight counterclockwise rotation.

25.  Measure LV pressure and perform ventriculography in patients with
mechanical prosthetic valves in both the mitral and aortic positions that
prevent both retrograde and transseptal catheterization.
 Crossing of tilting disks to be avoided – catheter entrapment, occlusion of the
valve,possible dislodgement and embolization of the disc.
 Localization of LV apex by palpation or by echocardiography.

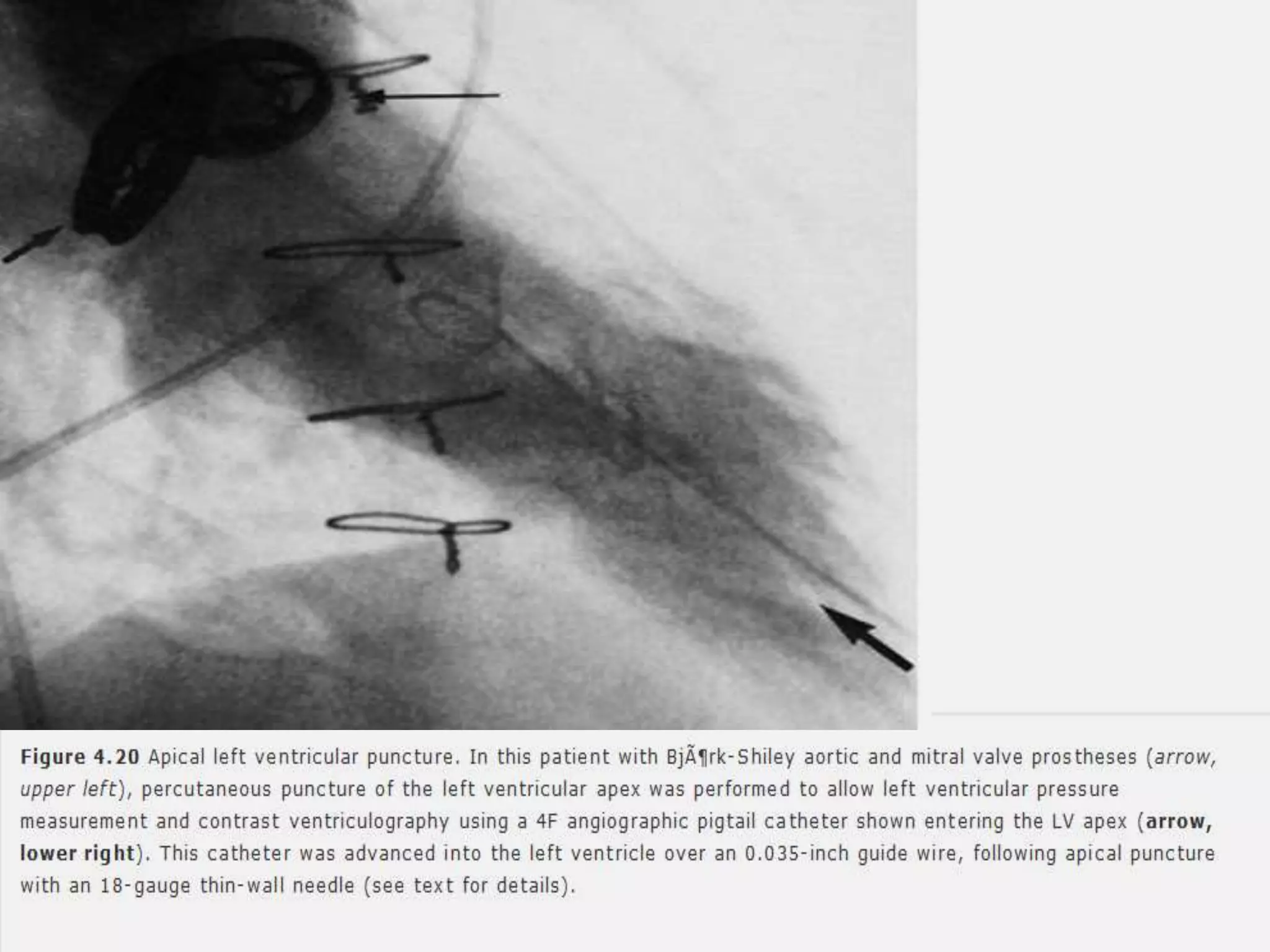

 18 G 6” inch Teflon catheter system is inserted at upper rib margin, directed
slightly posteriorly and toward the right second intercostal space.
 Needle and sheath are advanced into the LV.
 Stylet and the needle removed.
 Sheath connected for pressure measurement.

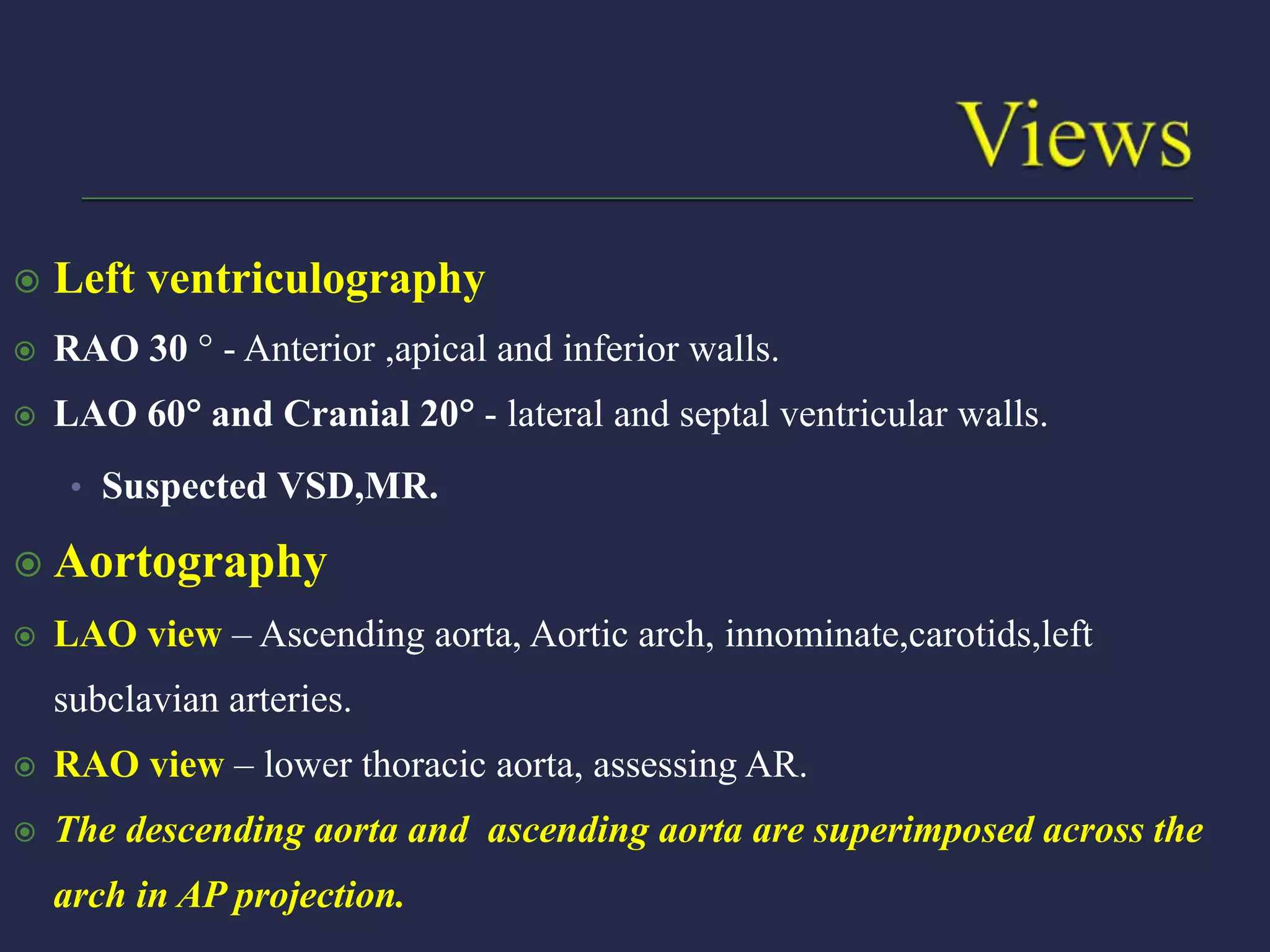

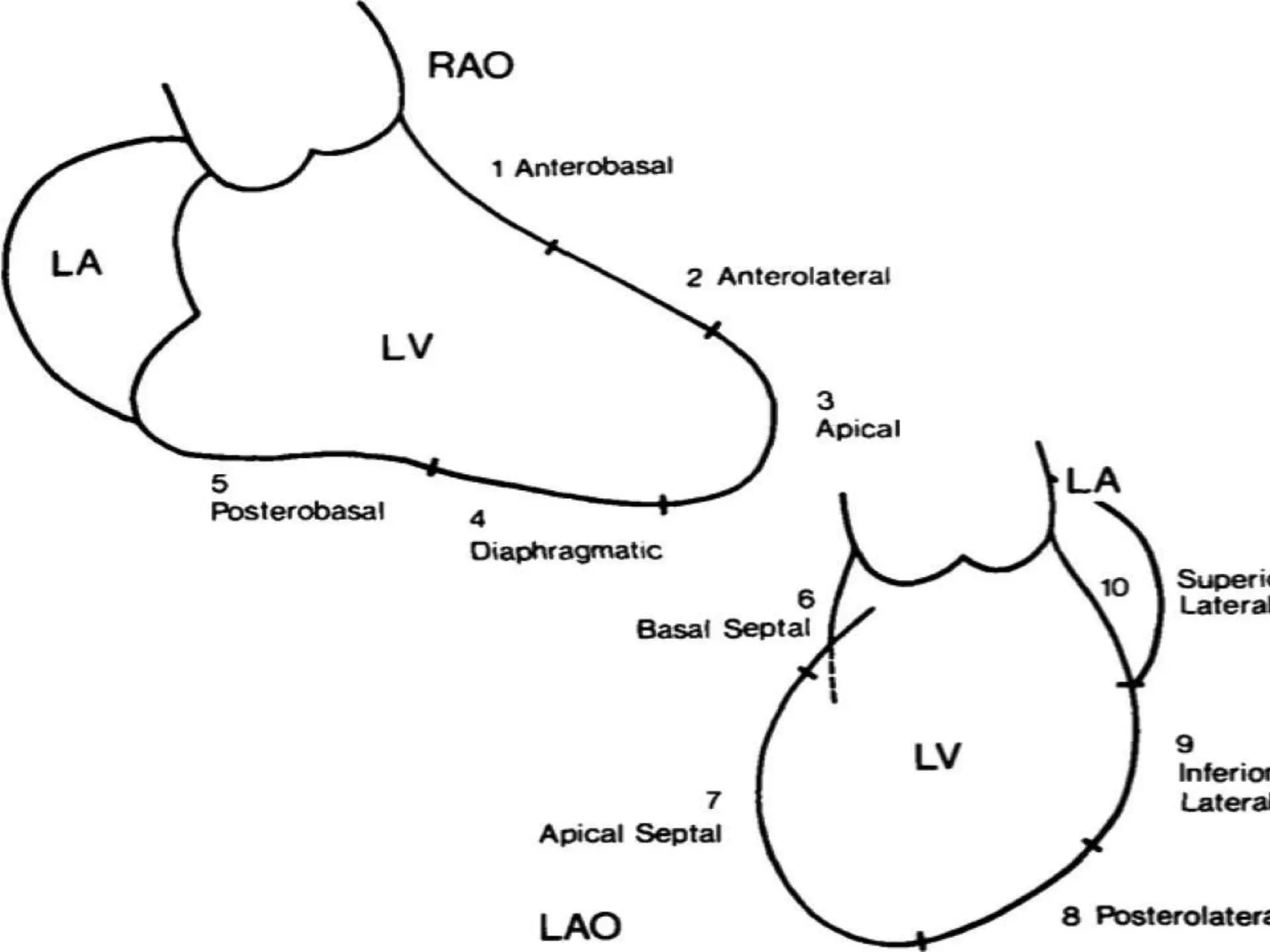

27.  Left ventriculography
 RAO 30  - Anterior ,apical and inferior walls.
 LAO 60 and Cranial 20 - lateral and septal ventricular walls.

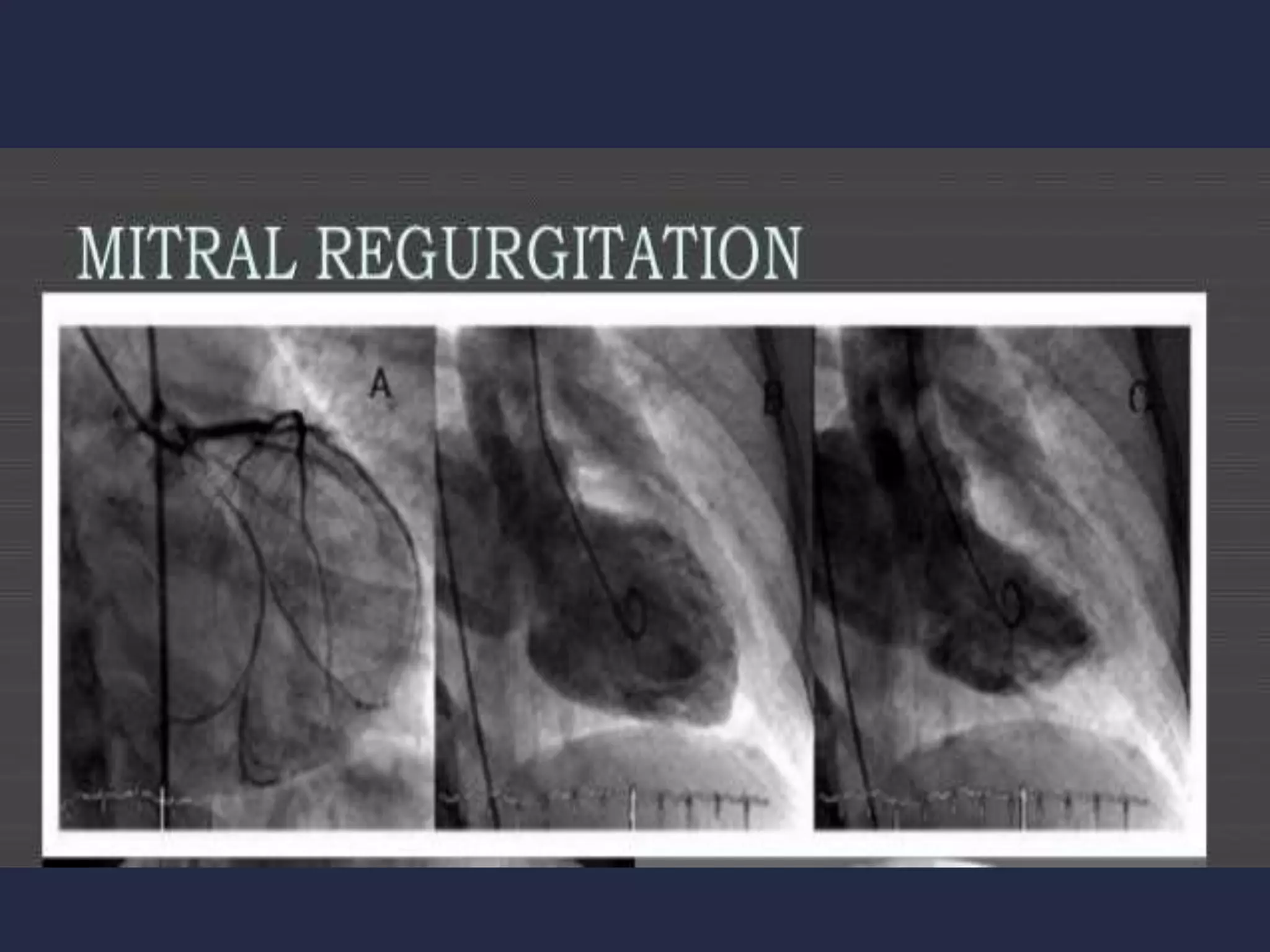

• Suspected VSD,MR.
 Aortography
 LAO view – Ascending aorta, Aortic arch, innominate,carotids,left
subclavian arteries.
 RAO view – lower thoracic aorta, assessing AR.
 The descending aorta and ascending aorta are superimposed across the
arch in AP projection.

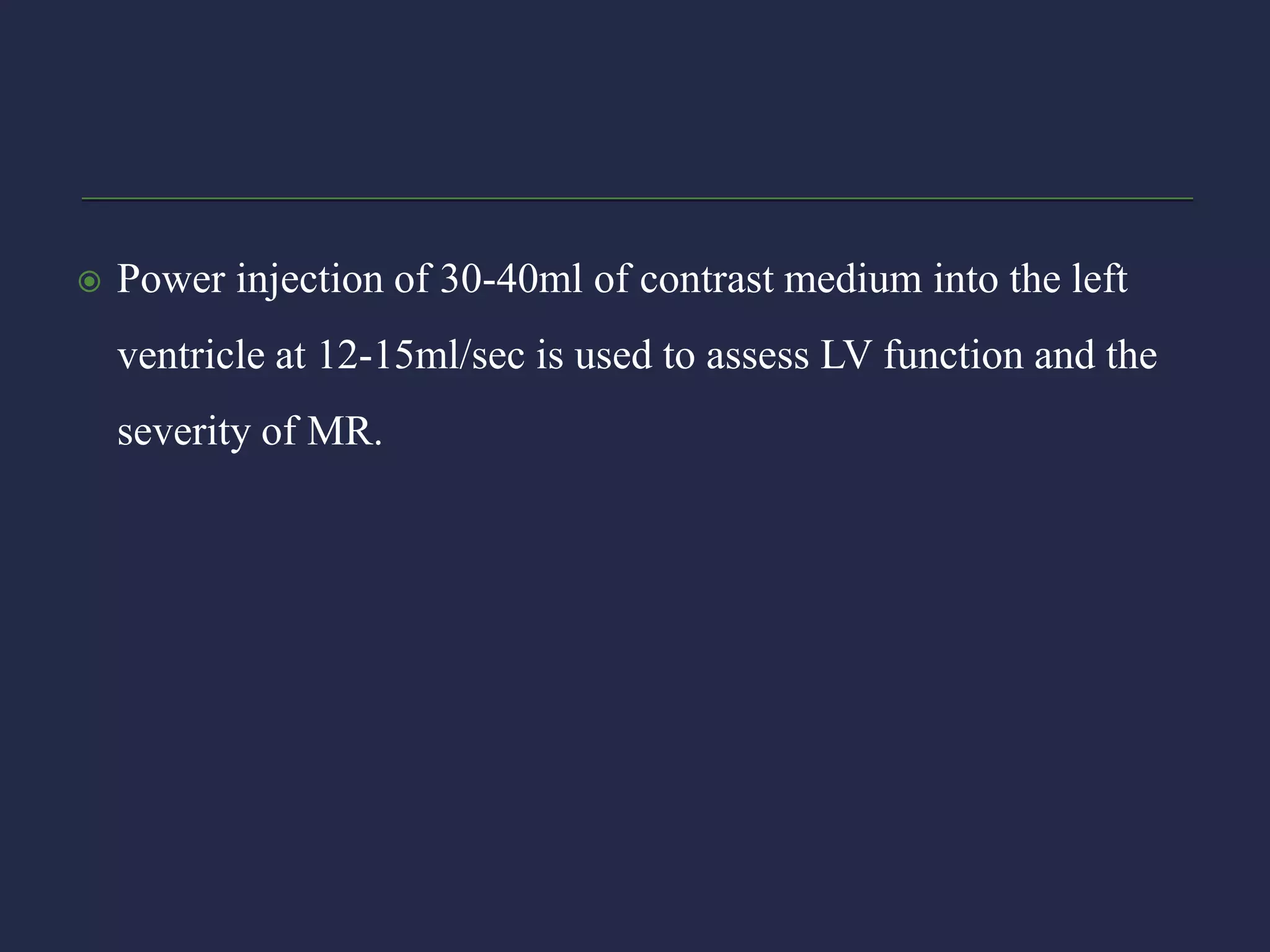

28.  Power injection of 30-40ml of contrast medium into the left
ventricle at 12-15ml/sec is used to assess LV function and the
severity of MR.

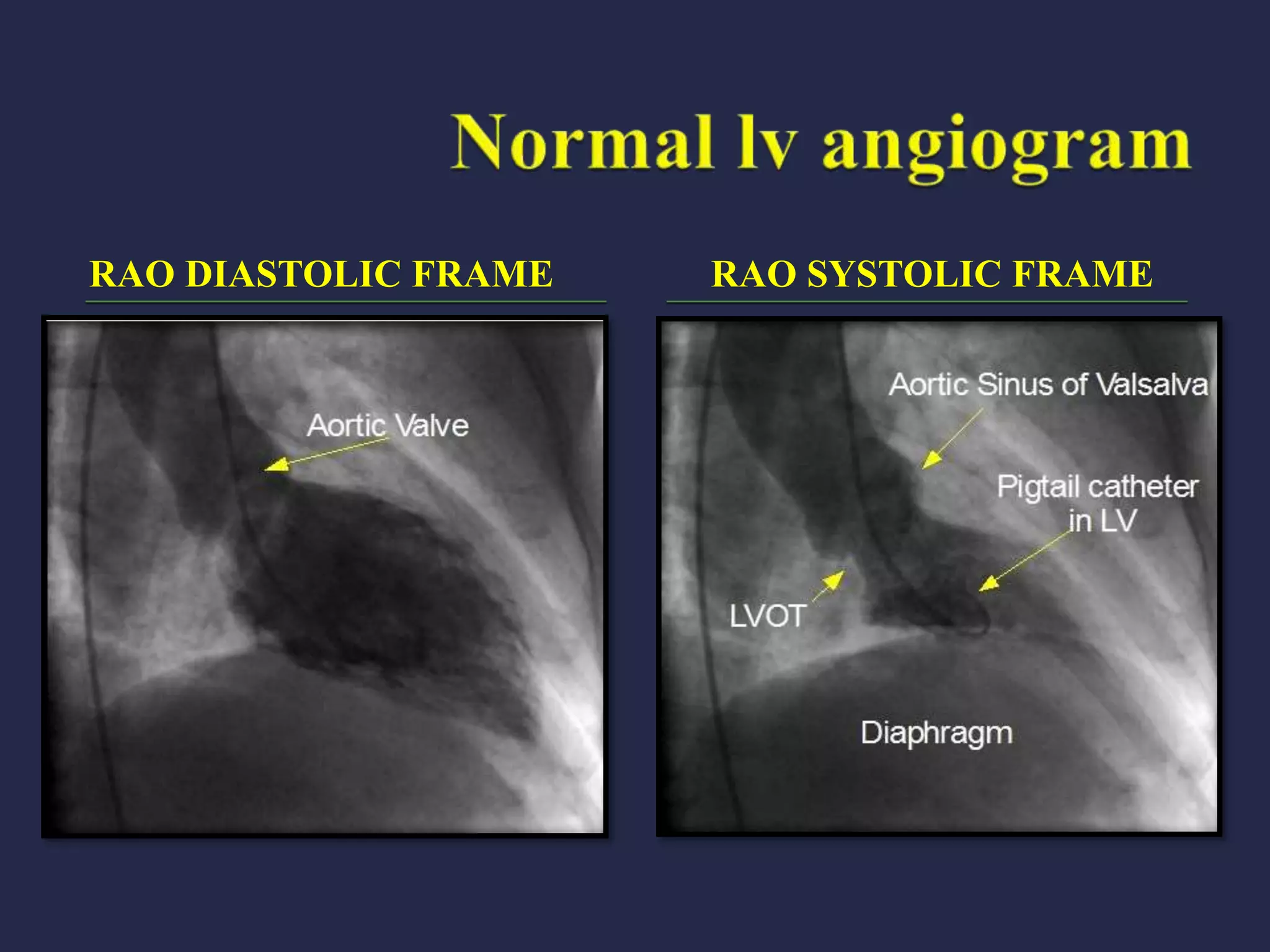

30. RAO DIASTOLIC FRAME RAO SYSTOLIC FRAME

31.  60 LAO
- assess ventricular septal
integrity and motion
- lateral and posterior
segmental function
- aortic valvular anatomy
-15-30 cranial angulation for
profiling entire IVS

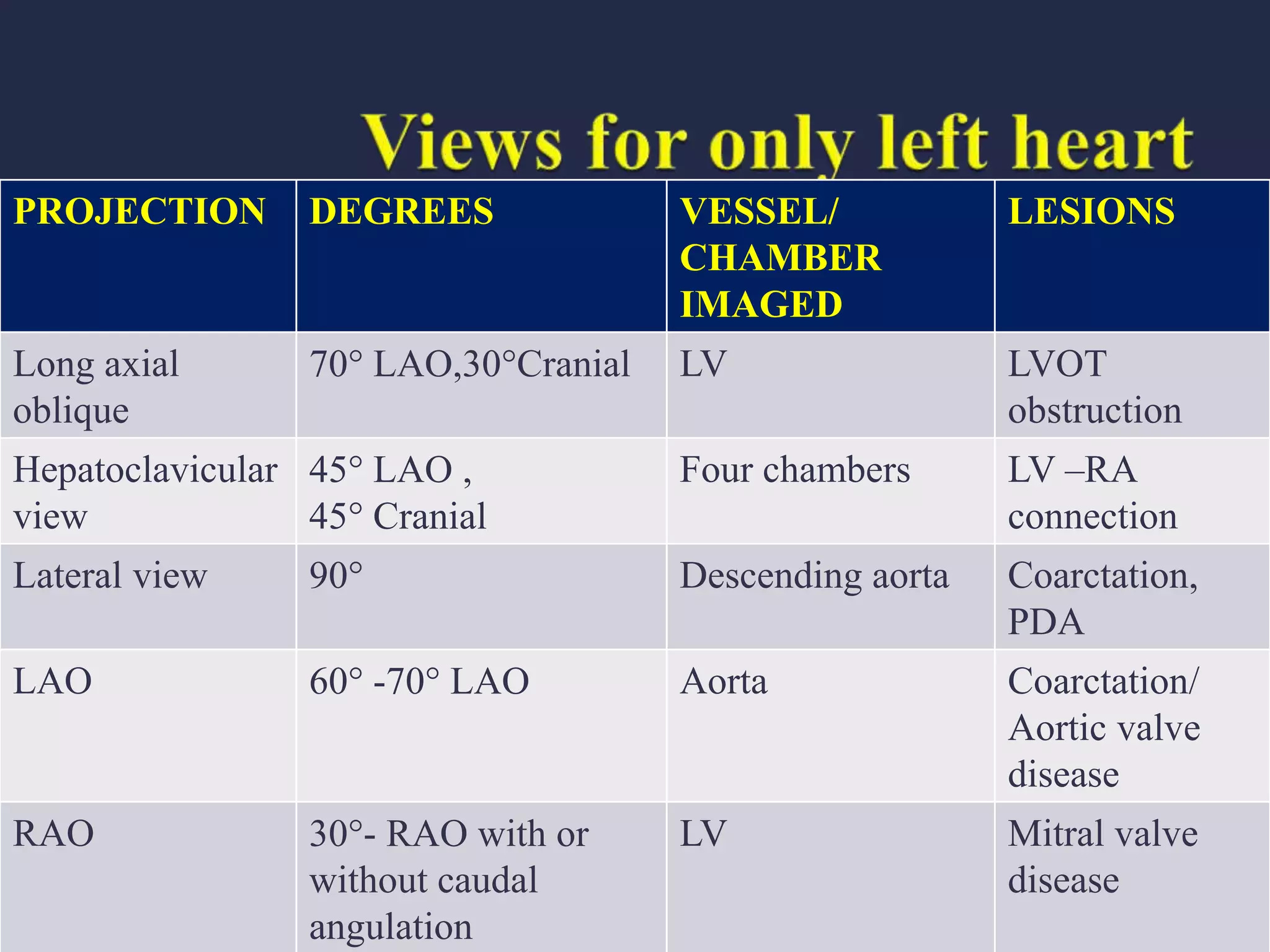

32. PROJECTION DEGREES VESSEL/
CHAMBER
IMAGED
LESIONS
Long axial
oblique
70 LAO,30Cranial LV LVOT
obstruction
Hepatoclavicular
view
45 LAO ,
45 Cranial
Four chambers LV –RA
connection
Lateral view 90 Descending aorta Coarctation,
PDA
LAO 60 -70 LAO Aorta Coarctation/
Aortic valve
disease
RAO 30- RAO with or
without caudal
angulation
LV Mitral valve
disease

33. Judkins:

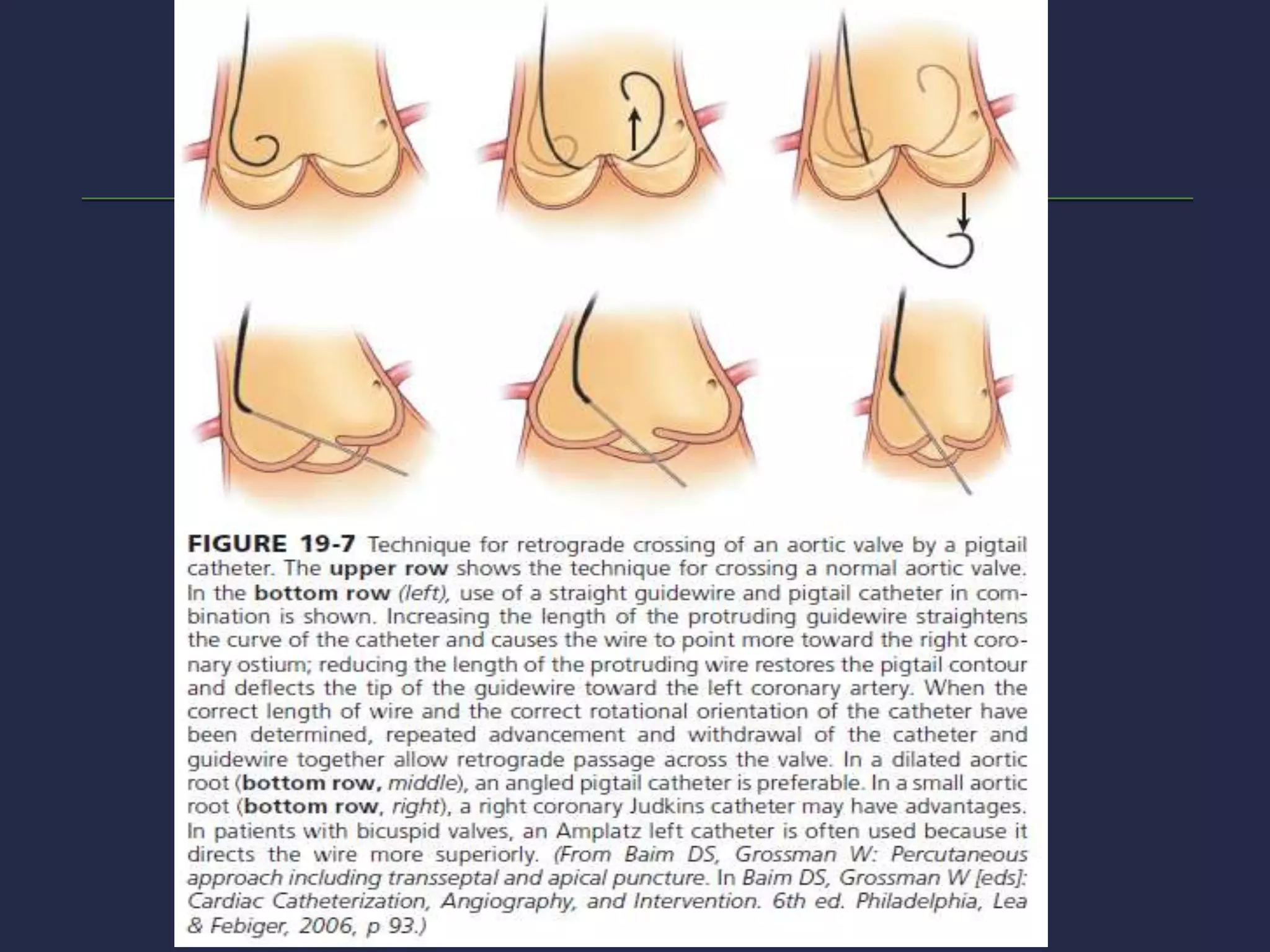

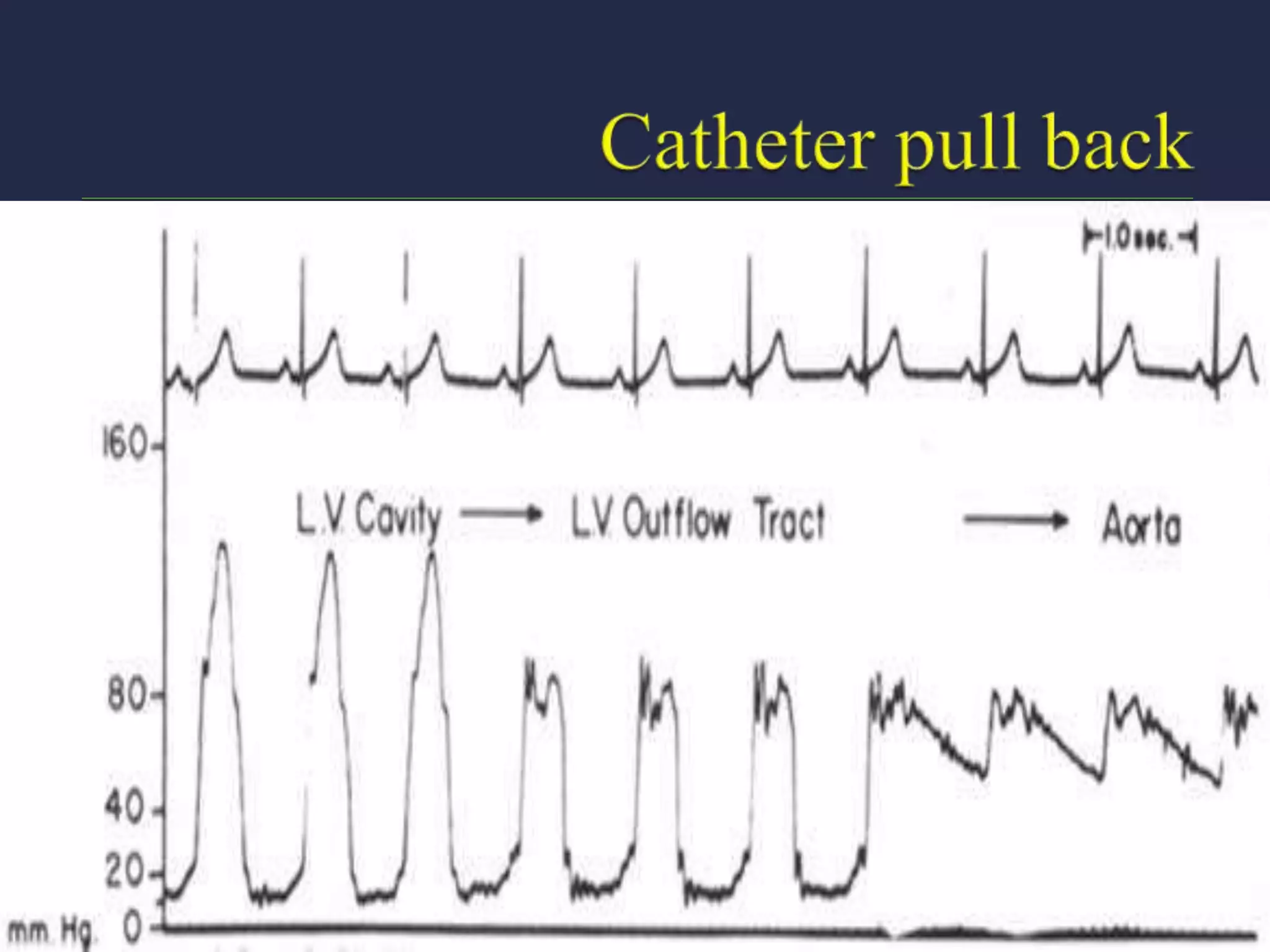

 Pigtail catheter – FA – Abdominal aorta – Thoracic aorta – Aortic arch –
Ascending aorta – Aortic sinus – Aortic valve – LV.
Transseptal Technique
 Femoral vein – IVC - SVC – RA – PFO/Puncture - LA – MV – LV .
Pull BACK
 LV – LVOT – AV – Aortic sinus – Ascending aorta – arch – descending
aorta.

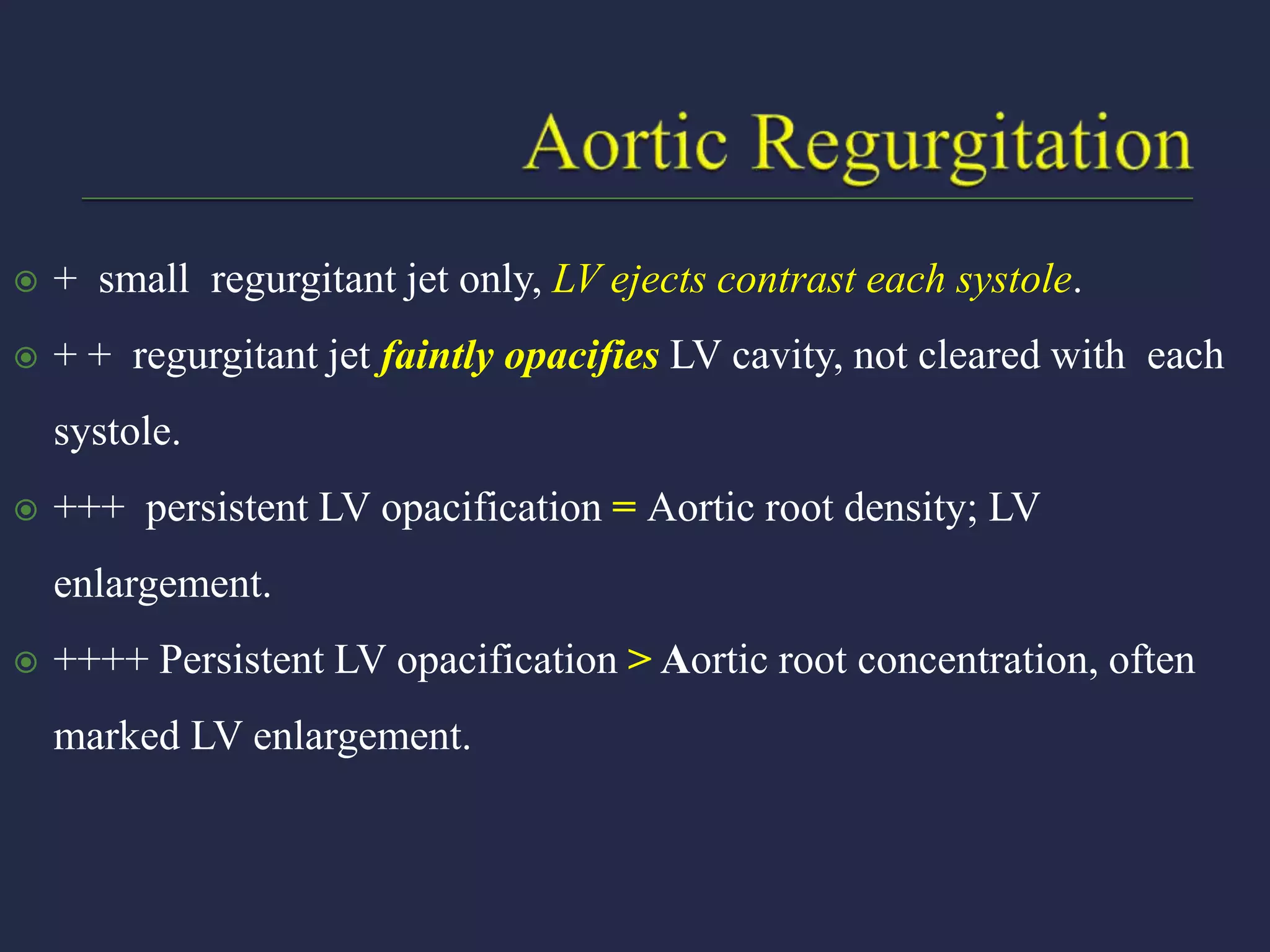

36.  + small regurgitant jet only, LV ejects contrast each systole.
 + + regurgitant jet faintly opacifies LV cavity, not cleared with each
systole.
 +++ persistent LV opacification = Aortic root density; LV
enlargement.
 ++++ Persistent LV opacification > Aortic root concentration, often
marked LV enlargement.

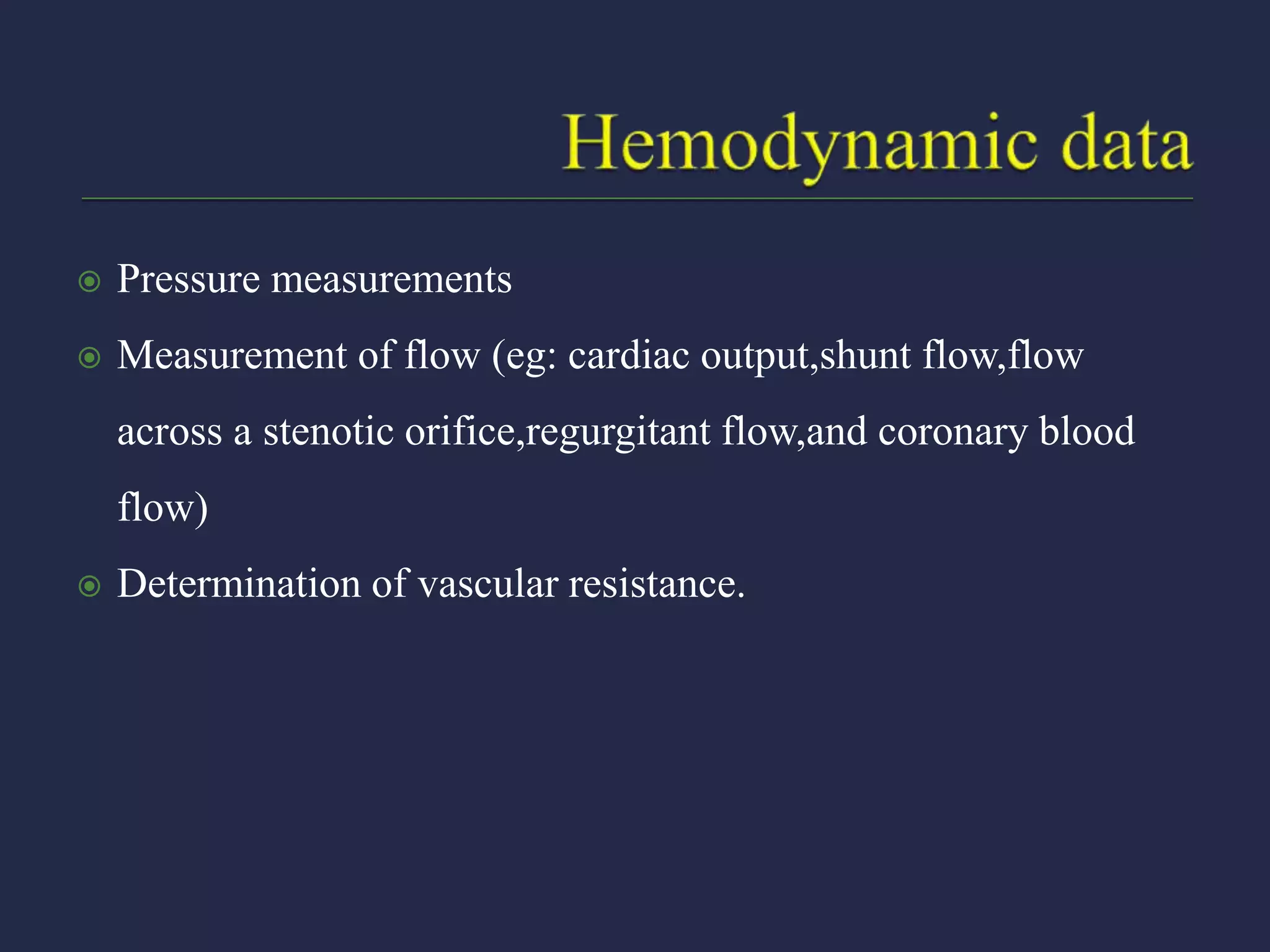

37.  Pressure measurements
 Measurement of flow (eg: cardiac output,shunt flow,flow
across a stenotic orifice,regurgitant flow,and coronary blood
flow)
 Determination of vascular resistance.

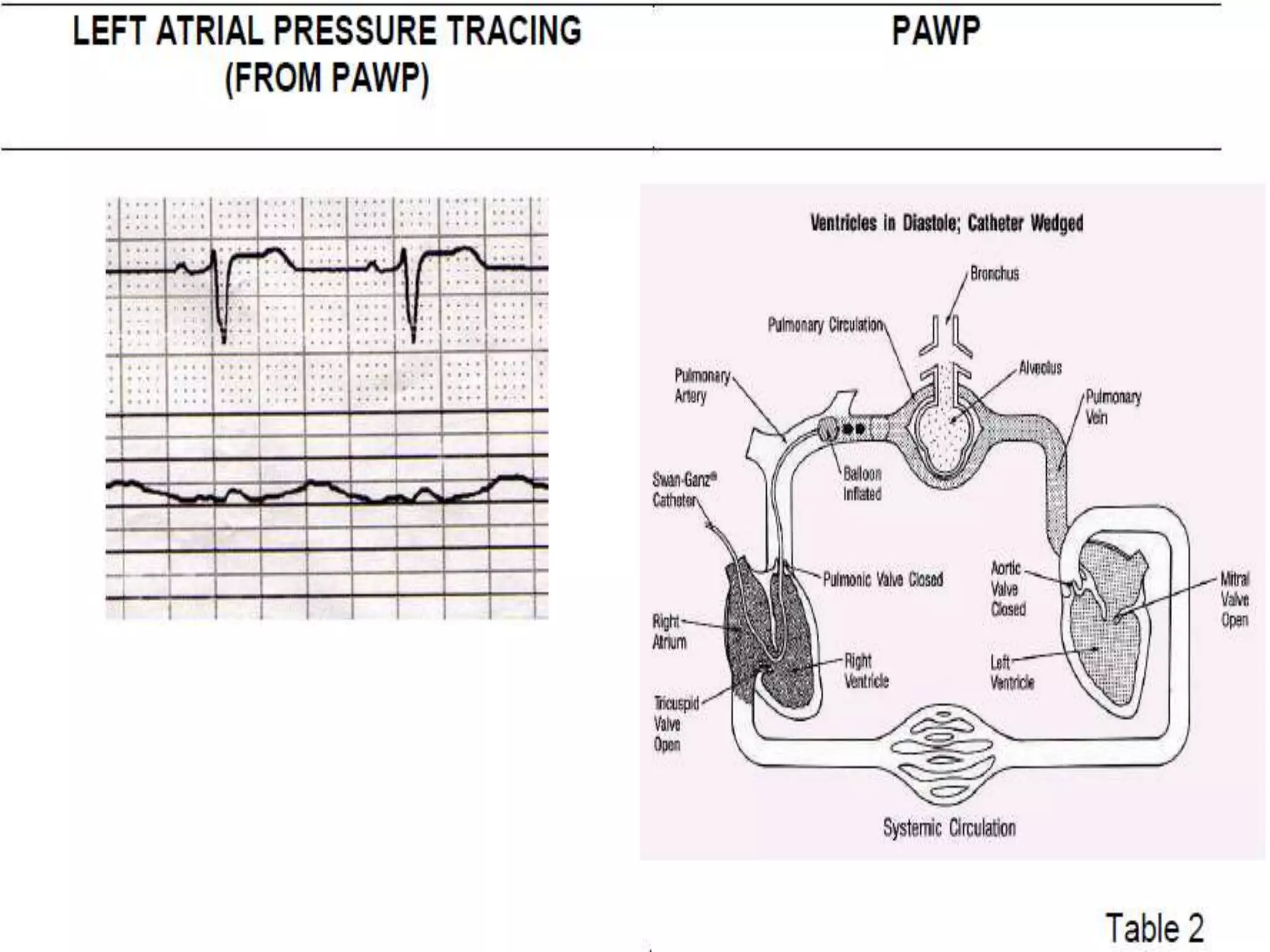

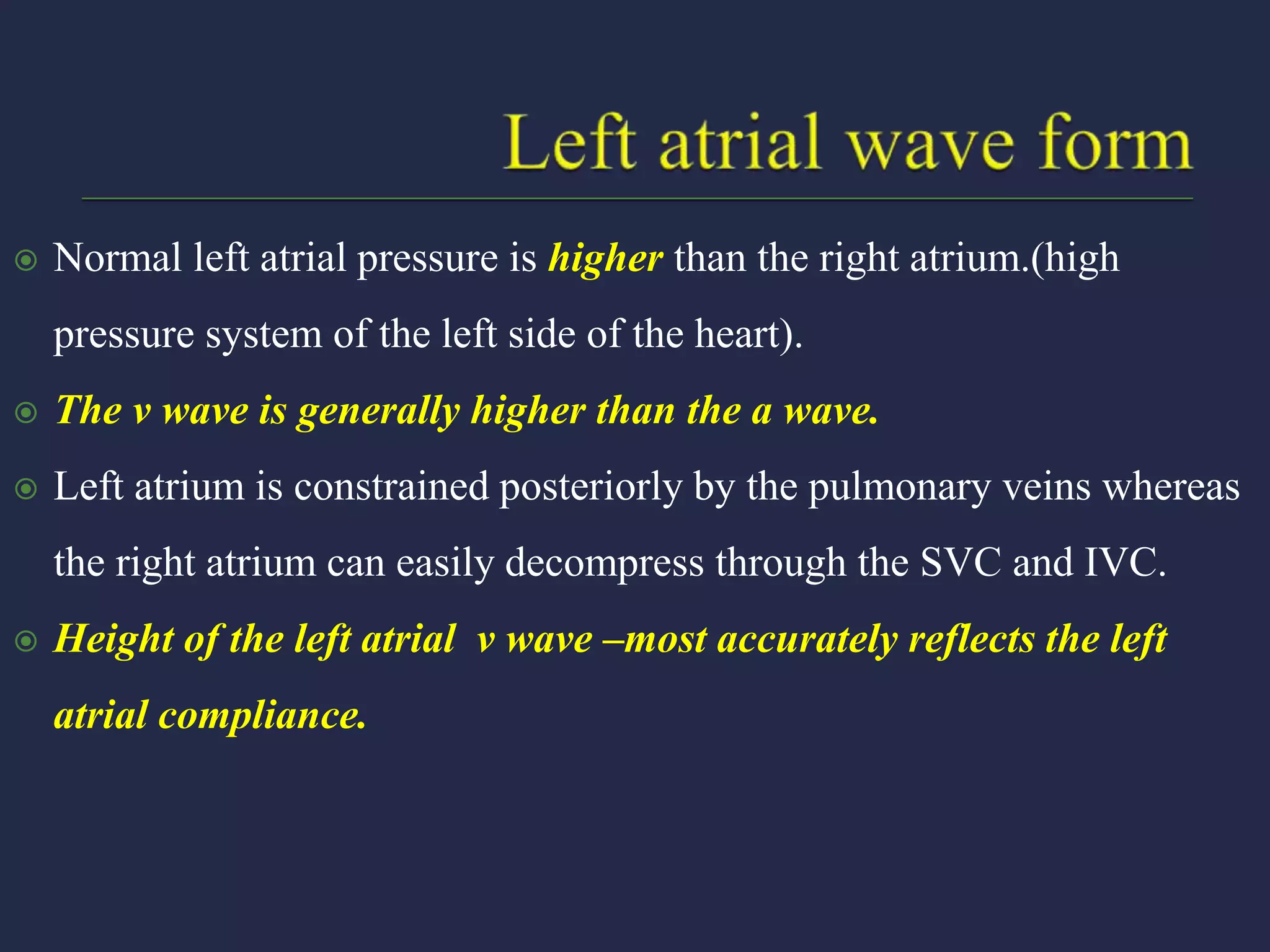

38.  Normal left atrial pressure is higher than the right atrium.(high
pressure system of the left side of the heart).
 The v wave is generally higher than the a wave.
 Left atrium is constrained posteriorly by the pulmonary veins whereas
the right atrium can easily decompress through the SVC and IVC.
 Height of the left atrial v wave –most accurately reflects the left
atrial compliance.

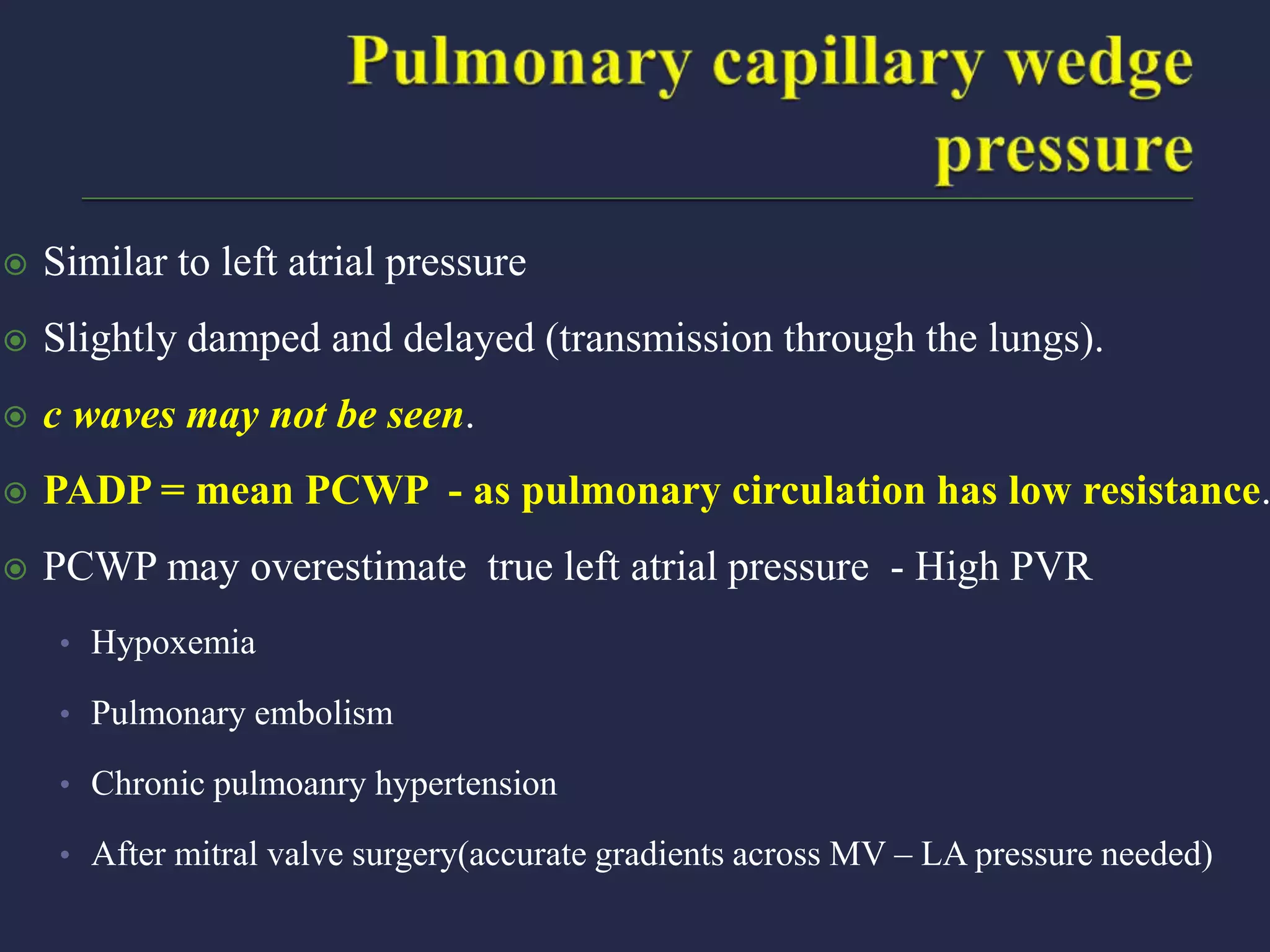

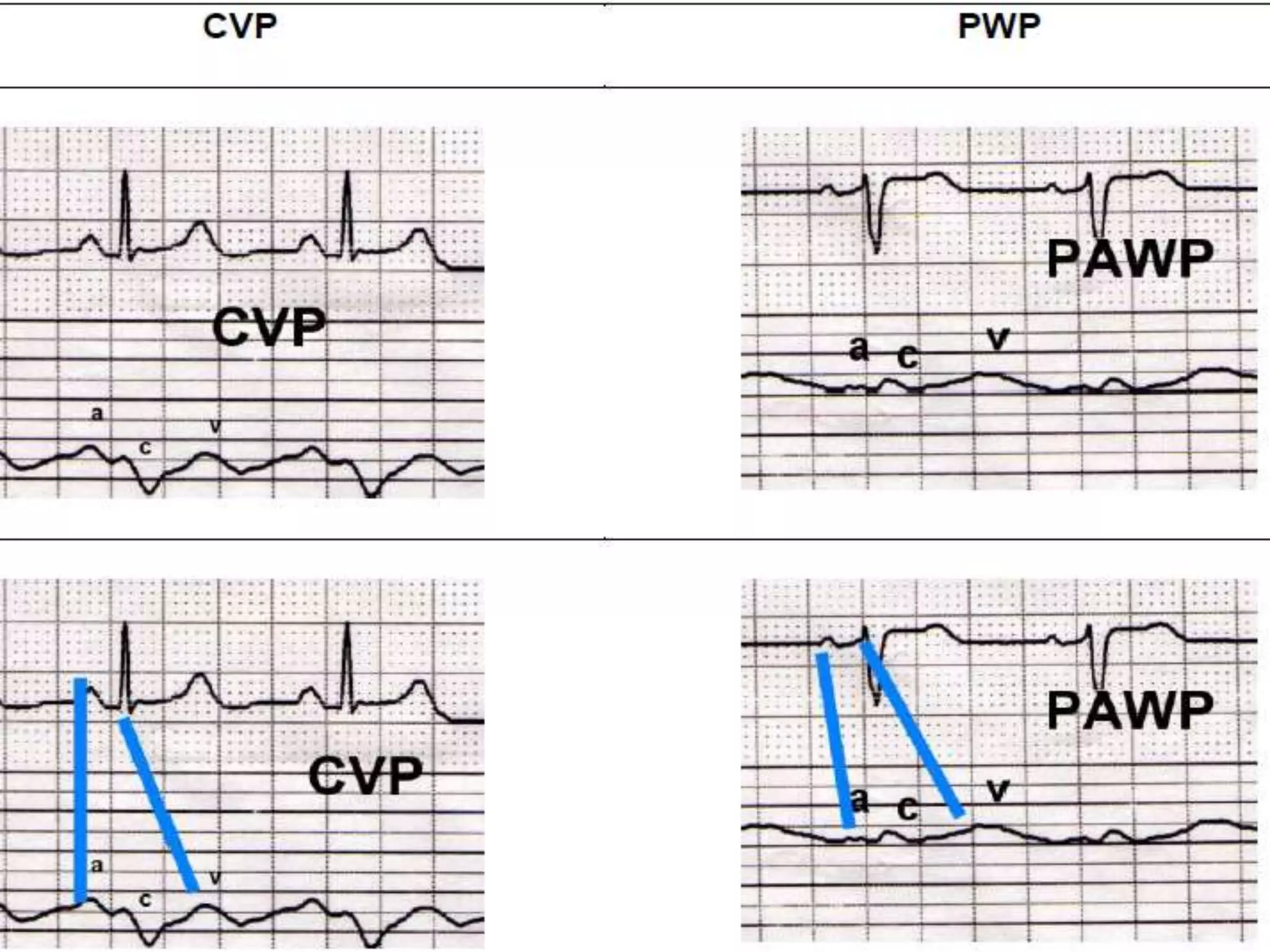

40.  Similar to left atrial pressure
 Slightly damped and delayed (transmission through the lungs).
 c waves may not be seen.
 PADP = mean PCWP - as pulmonary circulation has low resistance.
 PCWP may overestimate true left atrial pressure - High PVR
• Hypoxemia
• Pulmonary embolism
• Chronic pulmoanry hypertension
• After mitral valve surgery(accurate gradients across MV – LA pressure needed)

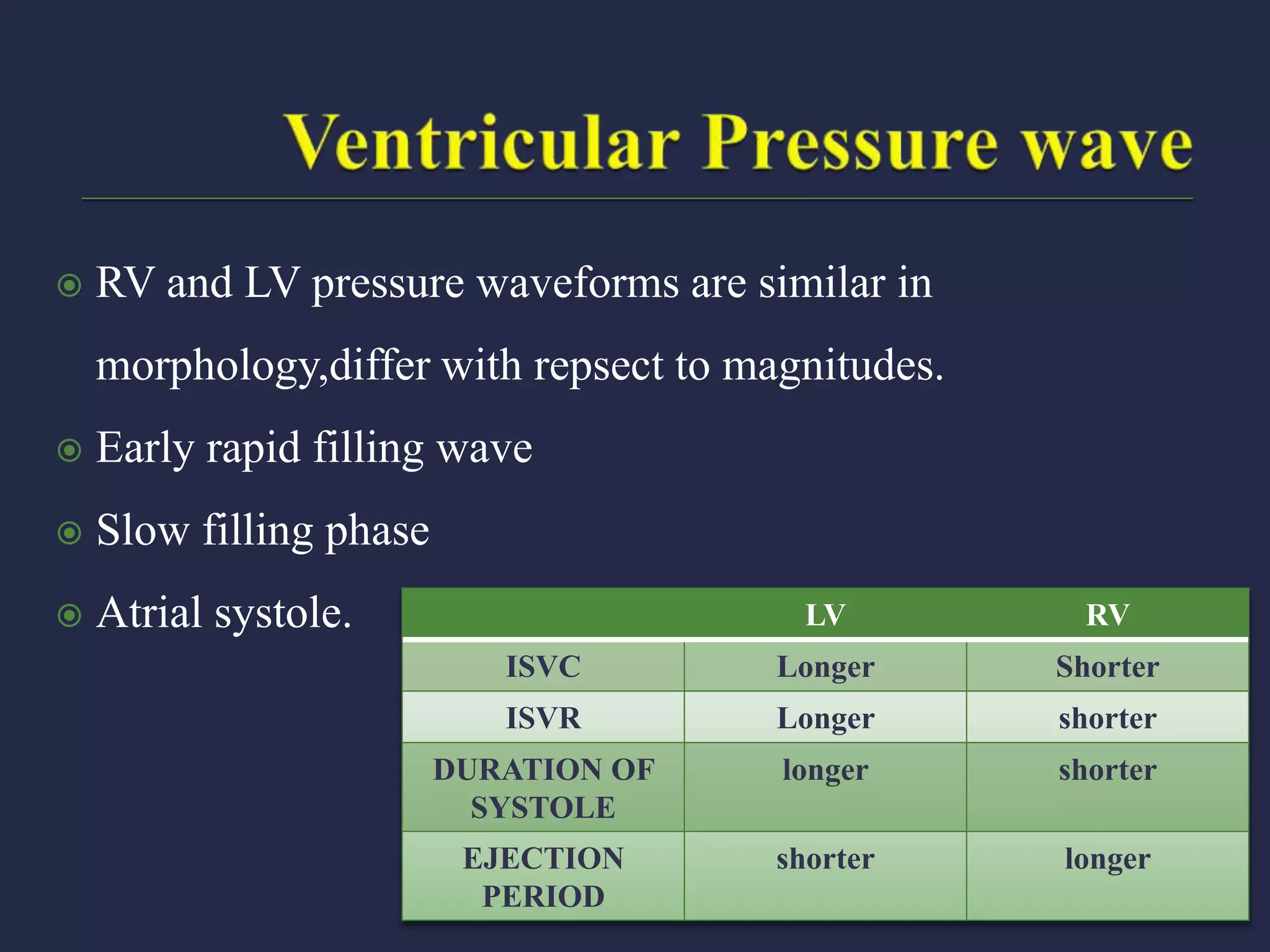

42.  RV and LV pressure waveforms are similar in
morphology,differ with repsect to magnitudes.
 Early rapid filling wave
 Slow filling phase
 Atrial systole. LV RV
ISVC Longer Shorter
ISVR Longer shorter
DURATION OF
SYSTOLE
longer shorter
EJECTION
PERIOD
shorter longer

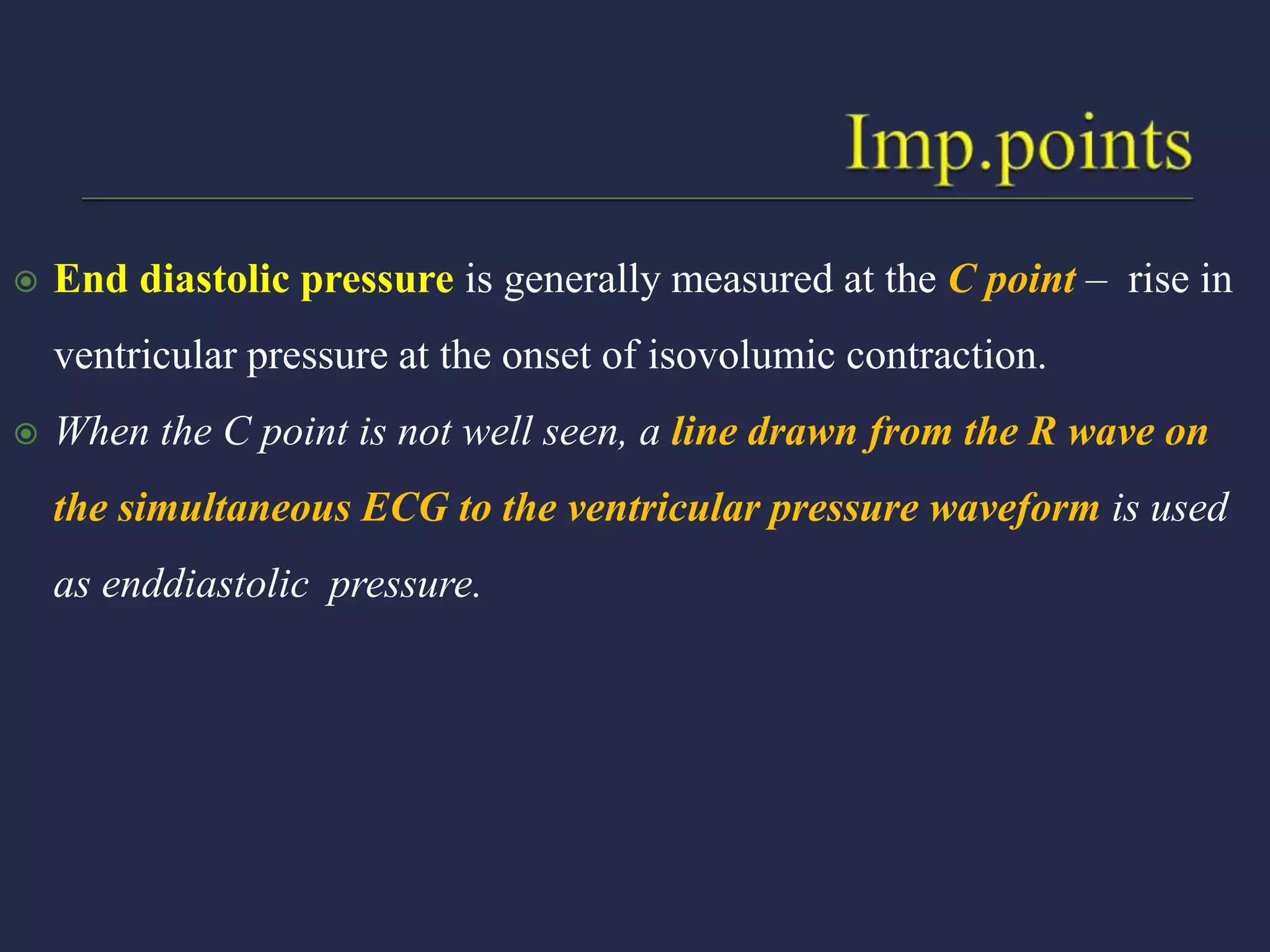

43.  End diastolic pressure is generally measured at the C point – rise in
ventricular pressure at the onset of isovolumic contraction.
 When the C point is not well seen, a line drawn from the R wave on
the simultaneous ECG to the ventricular pressure waveform is used
as enddiastolic pressure.

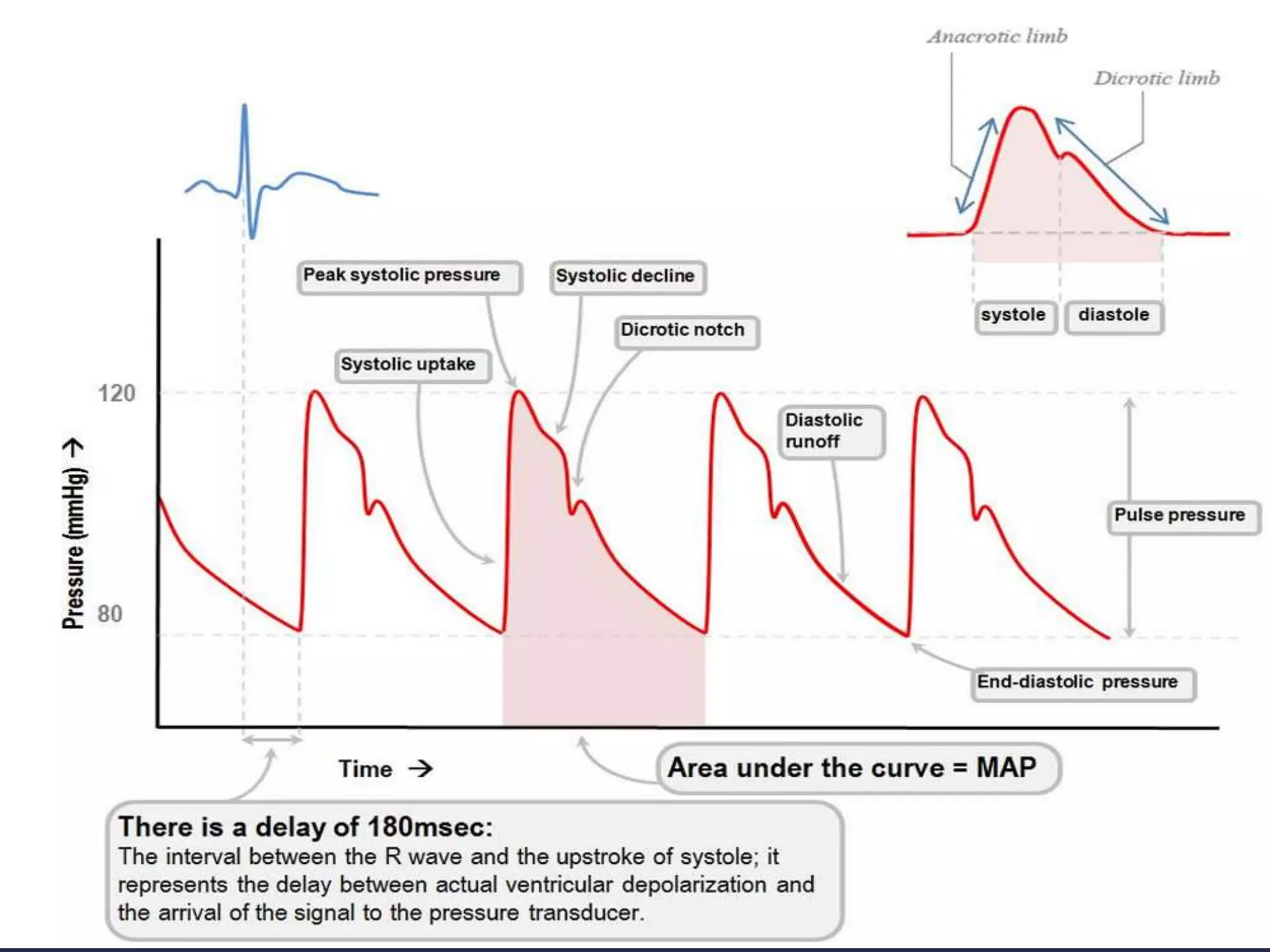

44.  Systolic wave
 The incisura (indicating the closure of the semilunar valves)
 Gradual decline in pressure until the following systole.

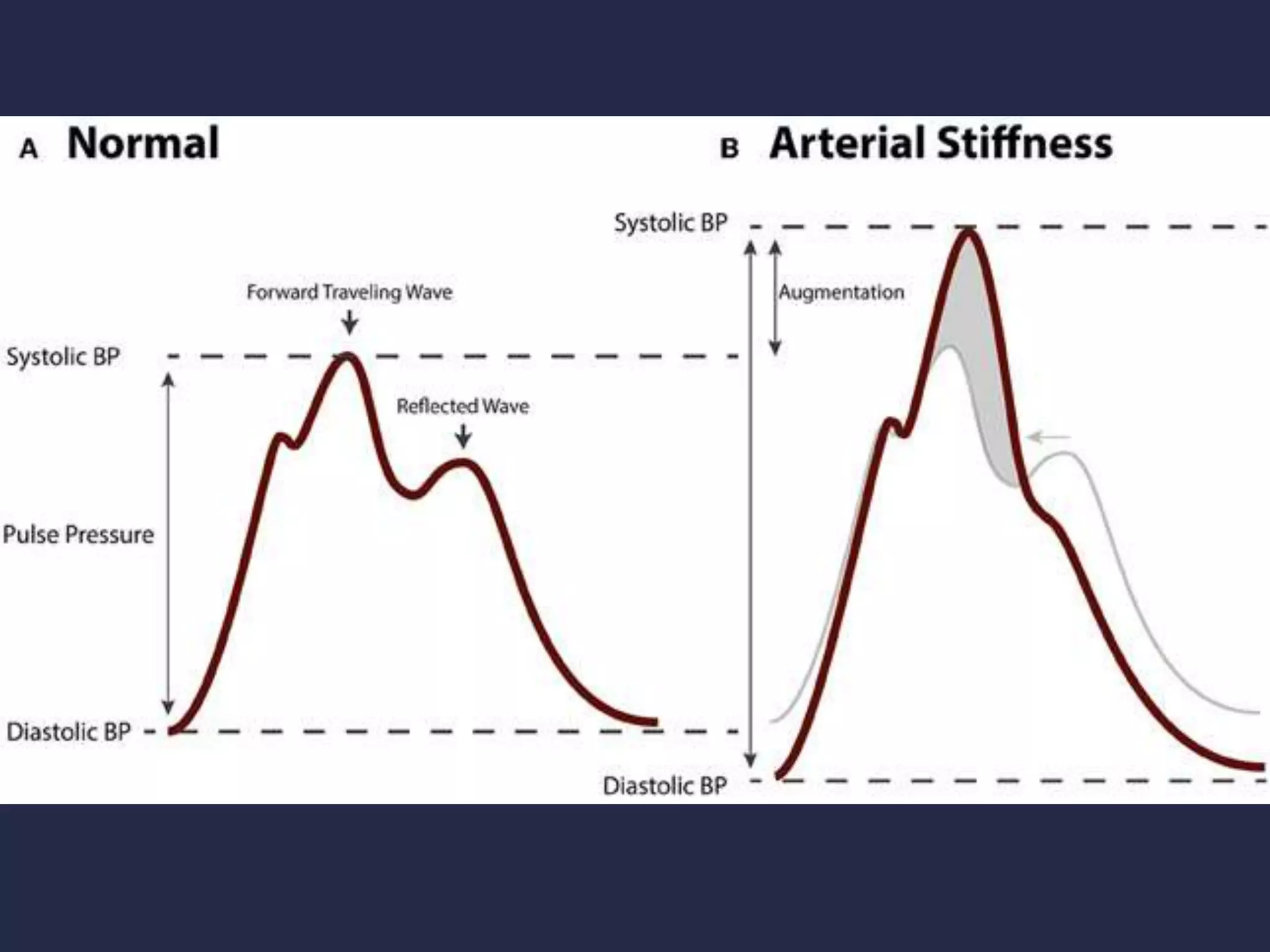

 Pulse pressure – reflects stroke volume and compliance of the
arterial system.
 Mean aortic pressure – peripheral resistance(accurately).

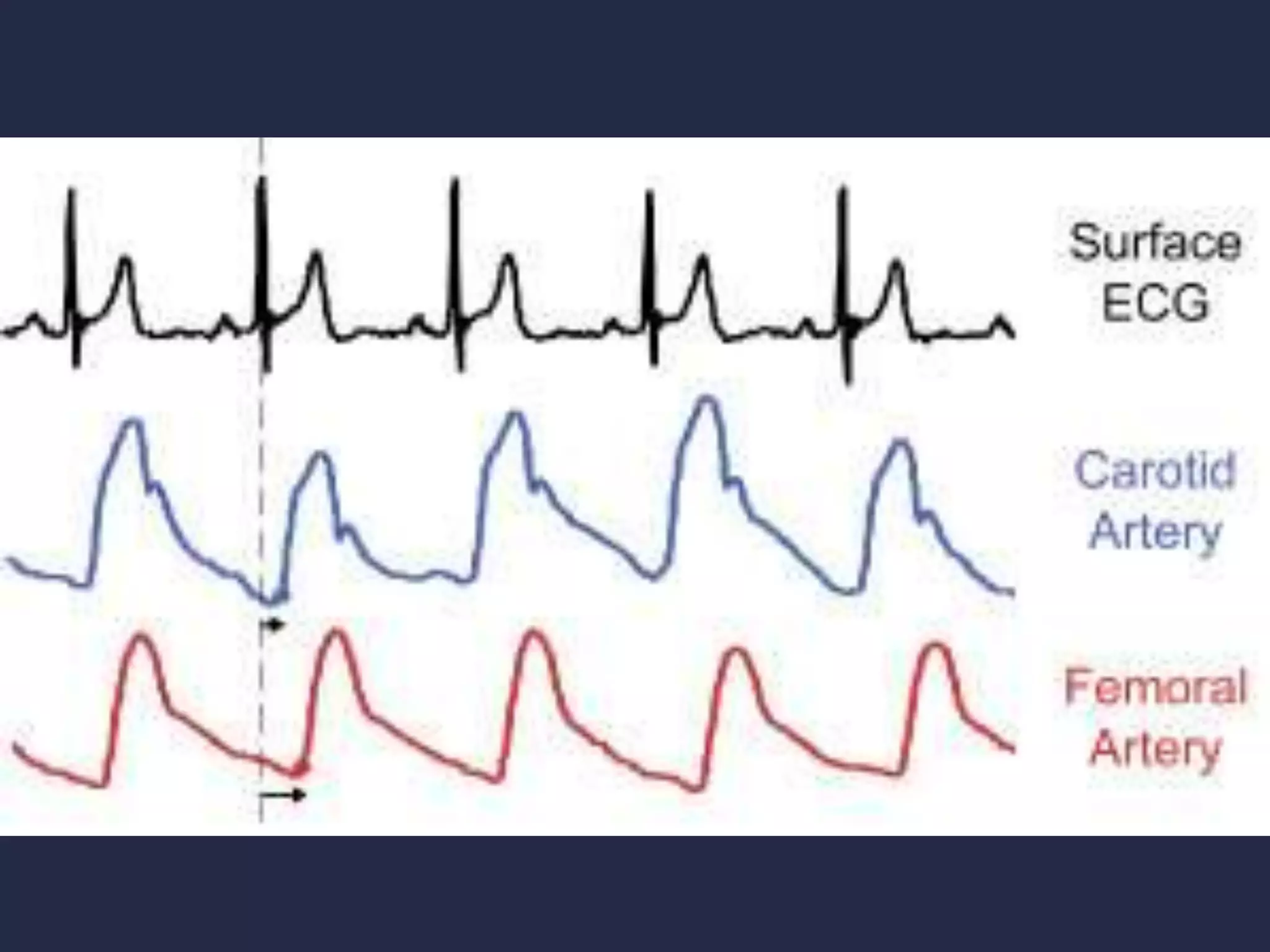

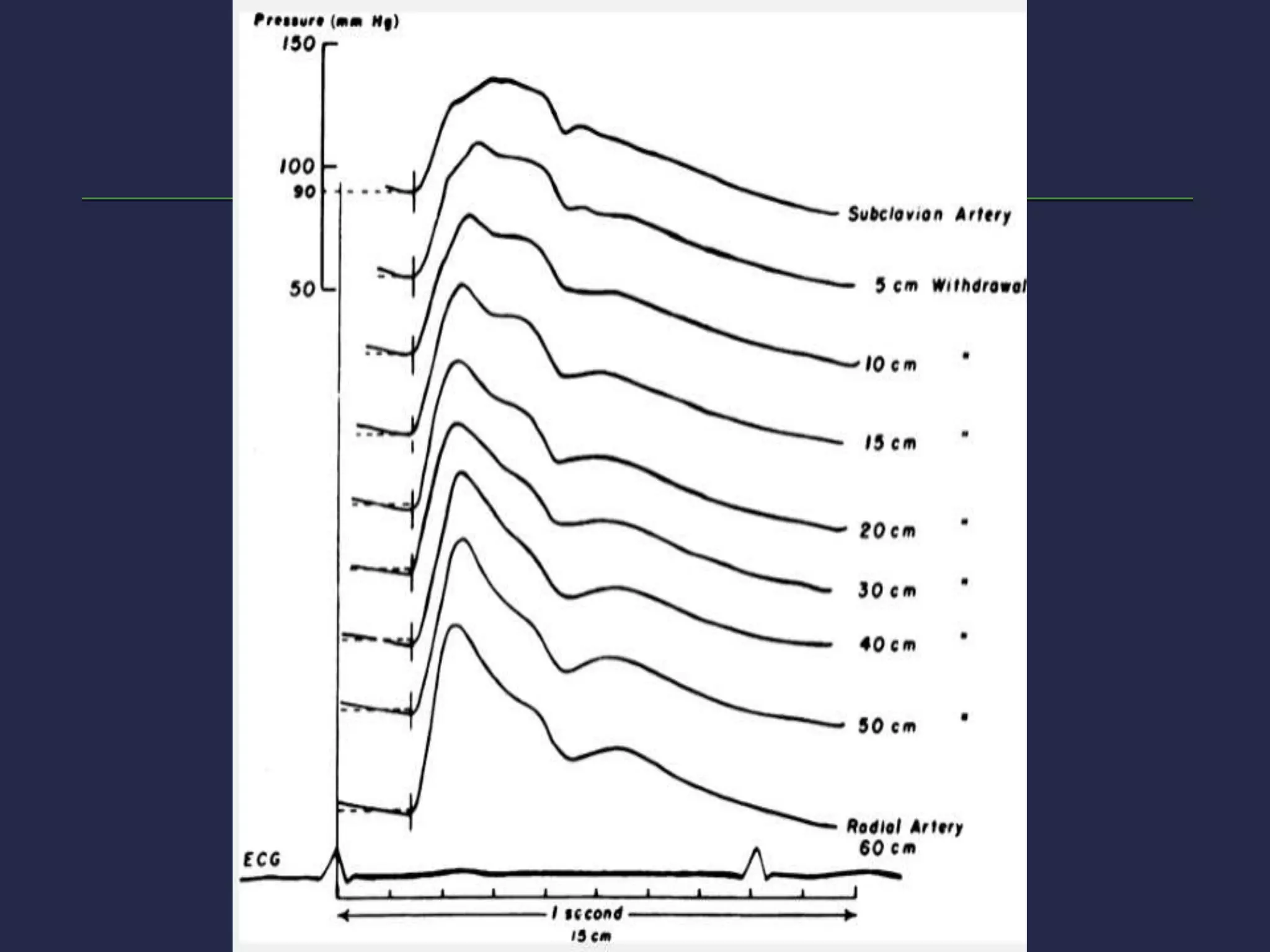

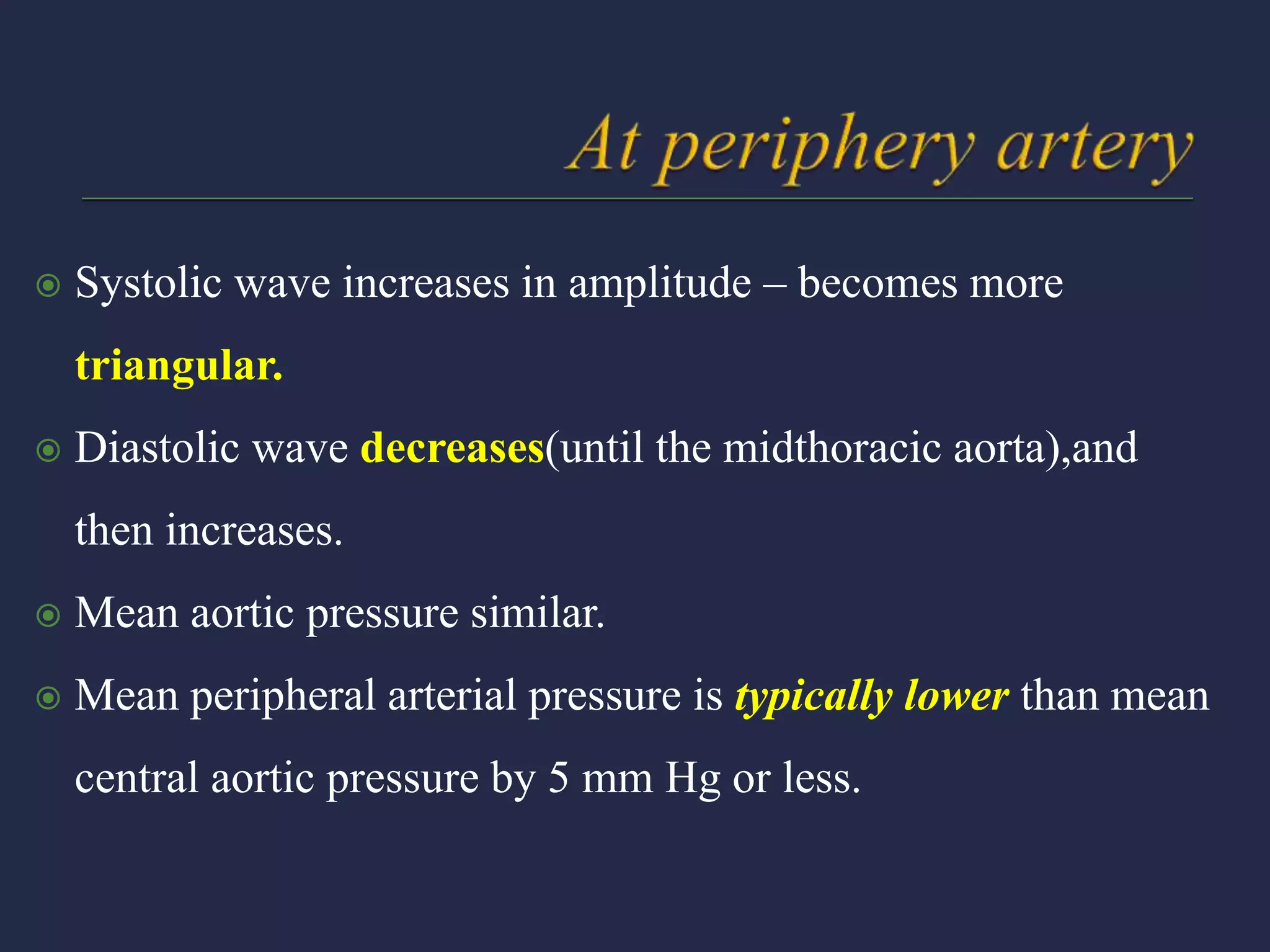

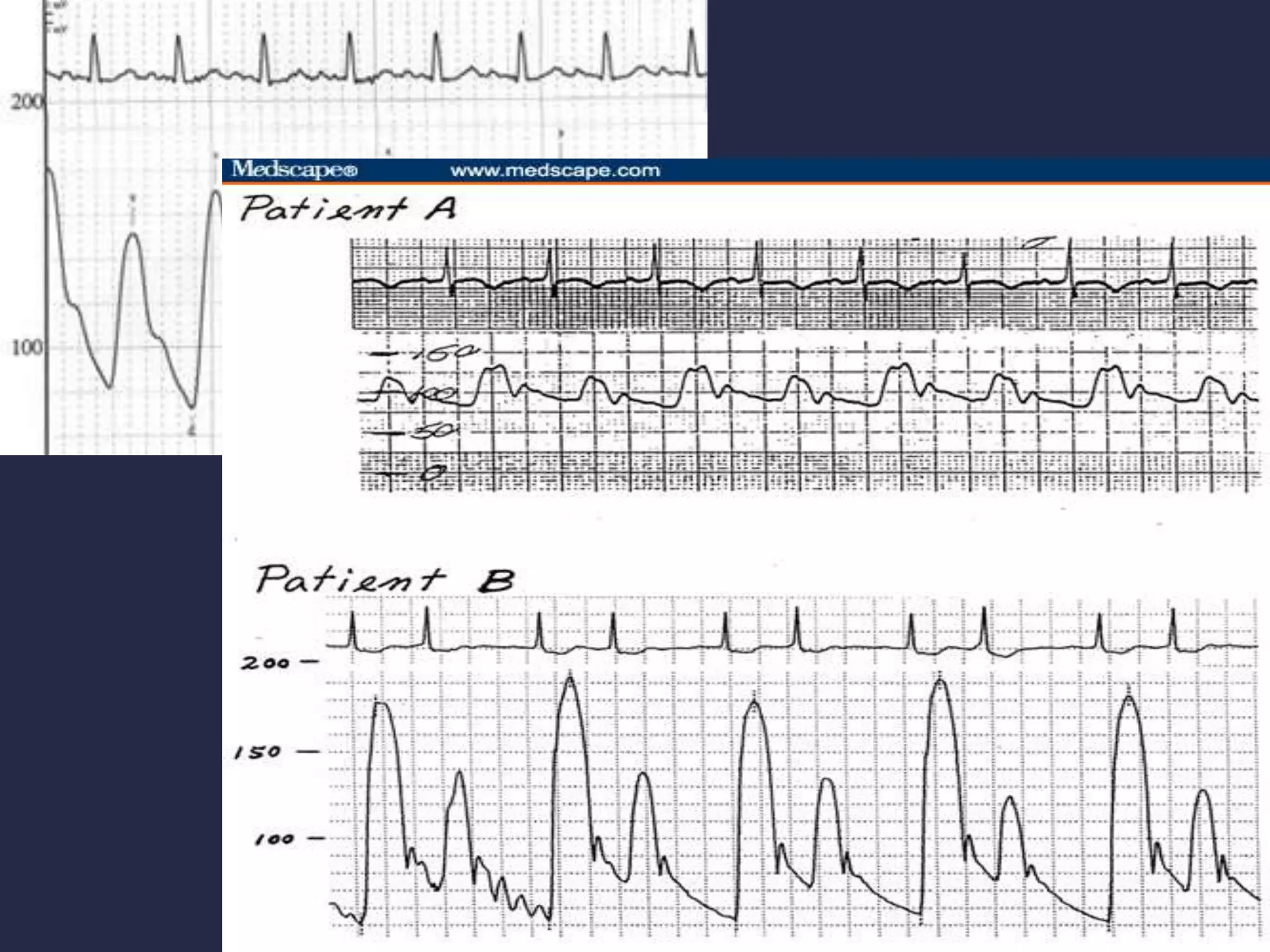

47.  Systolic wave increases in amplitude – becomes more
triangular.
 Diastolic wave decreases(until the midthoracic aorta),and
then increases.
 Mean aortic pressure similar.
 Mean peripheral arterial pressure is typically lower than mean
central aortic pressure by 5 mm Hg or less.

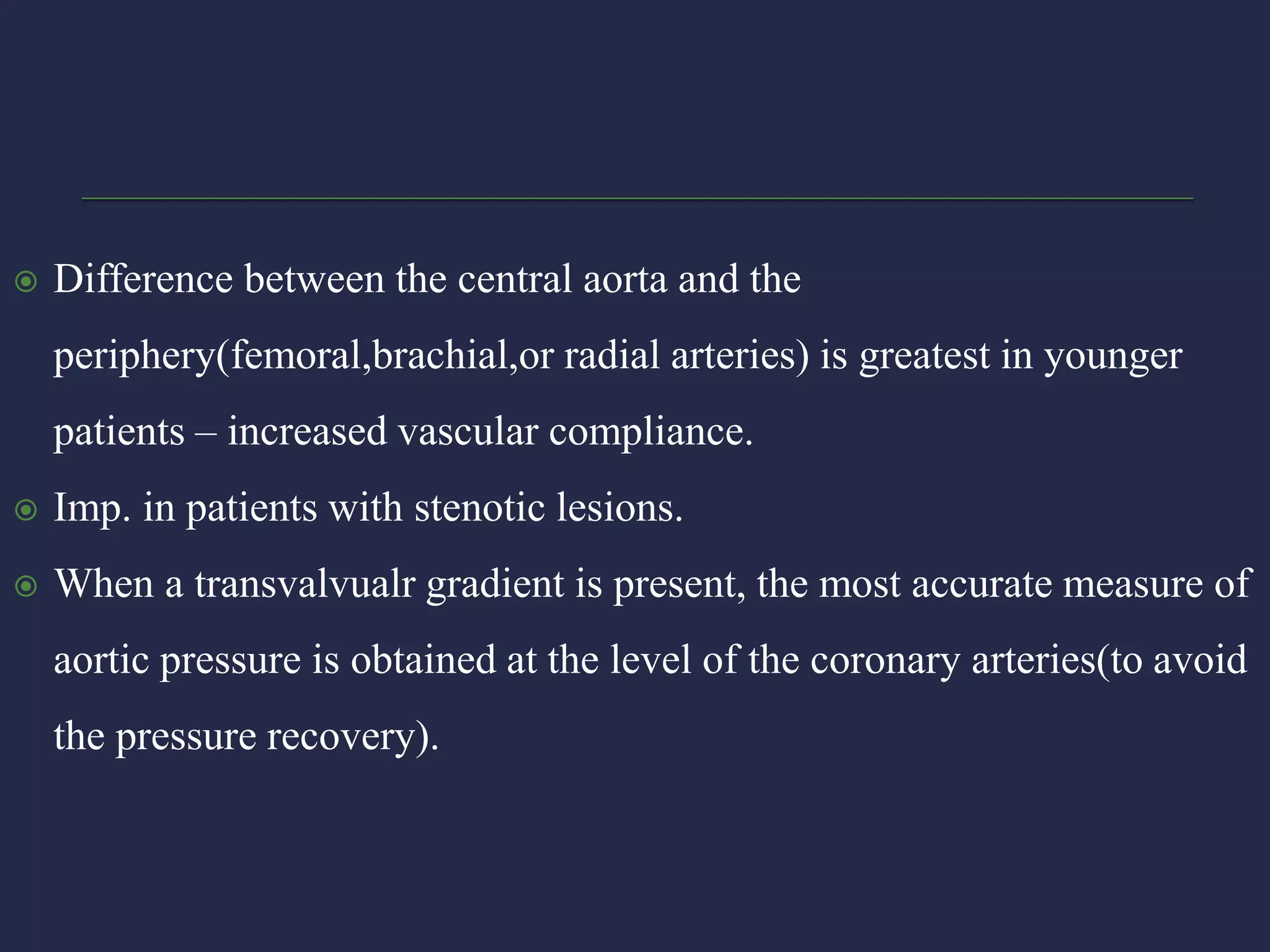

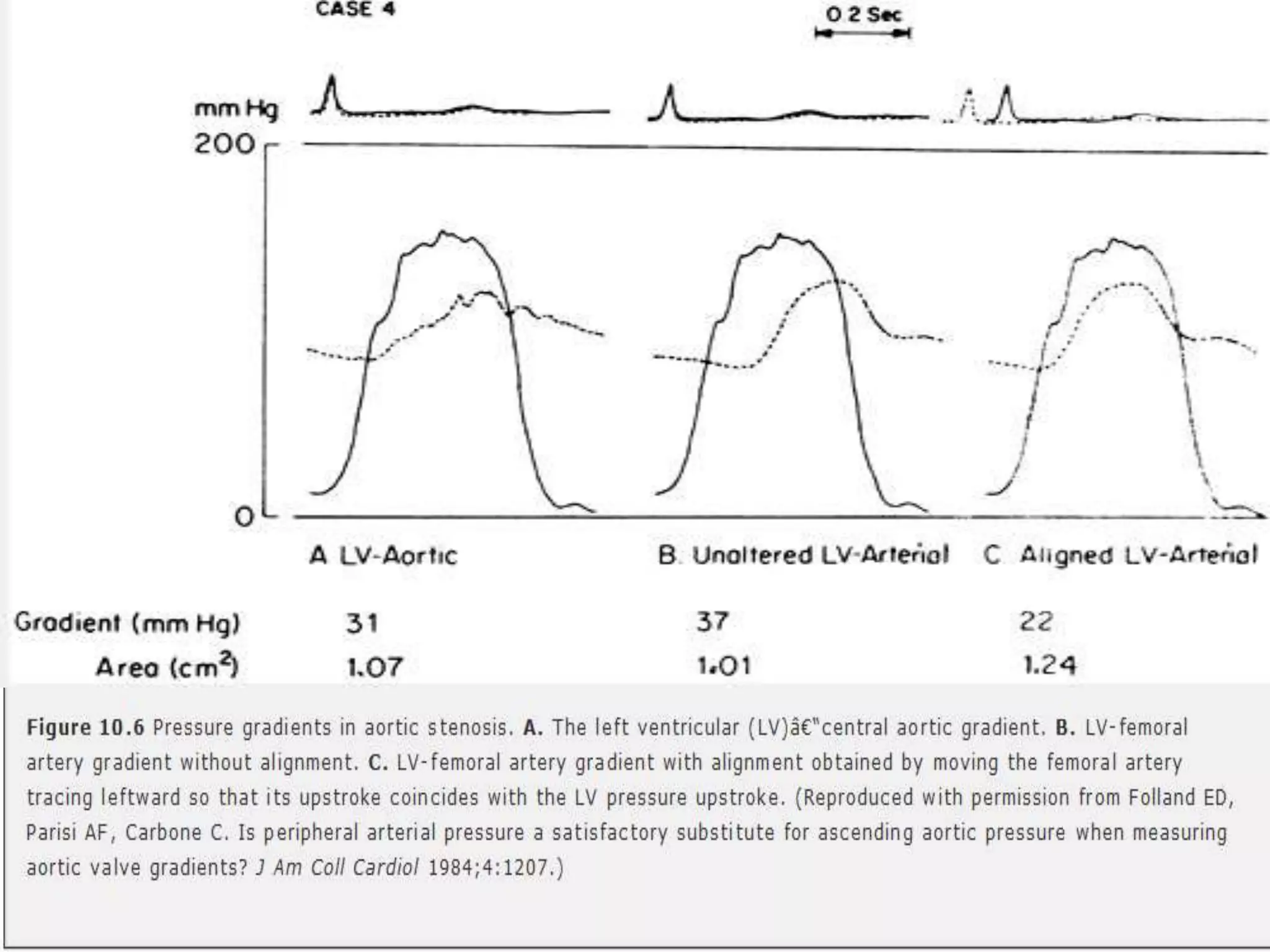

52.  Difference between the central aorta and the
periphery(femoral,brachial,or radial arteries) is greatest in younger
patients – increased vascular compliance.
 Imp. in patients with stenotic lesions.
 When a transvalvualr gradient is present, the most accurate measure of
aortic pressure is obtained at the level of the coronary arteries(to avoid
the pressure recovery).

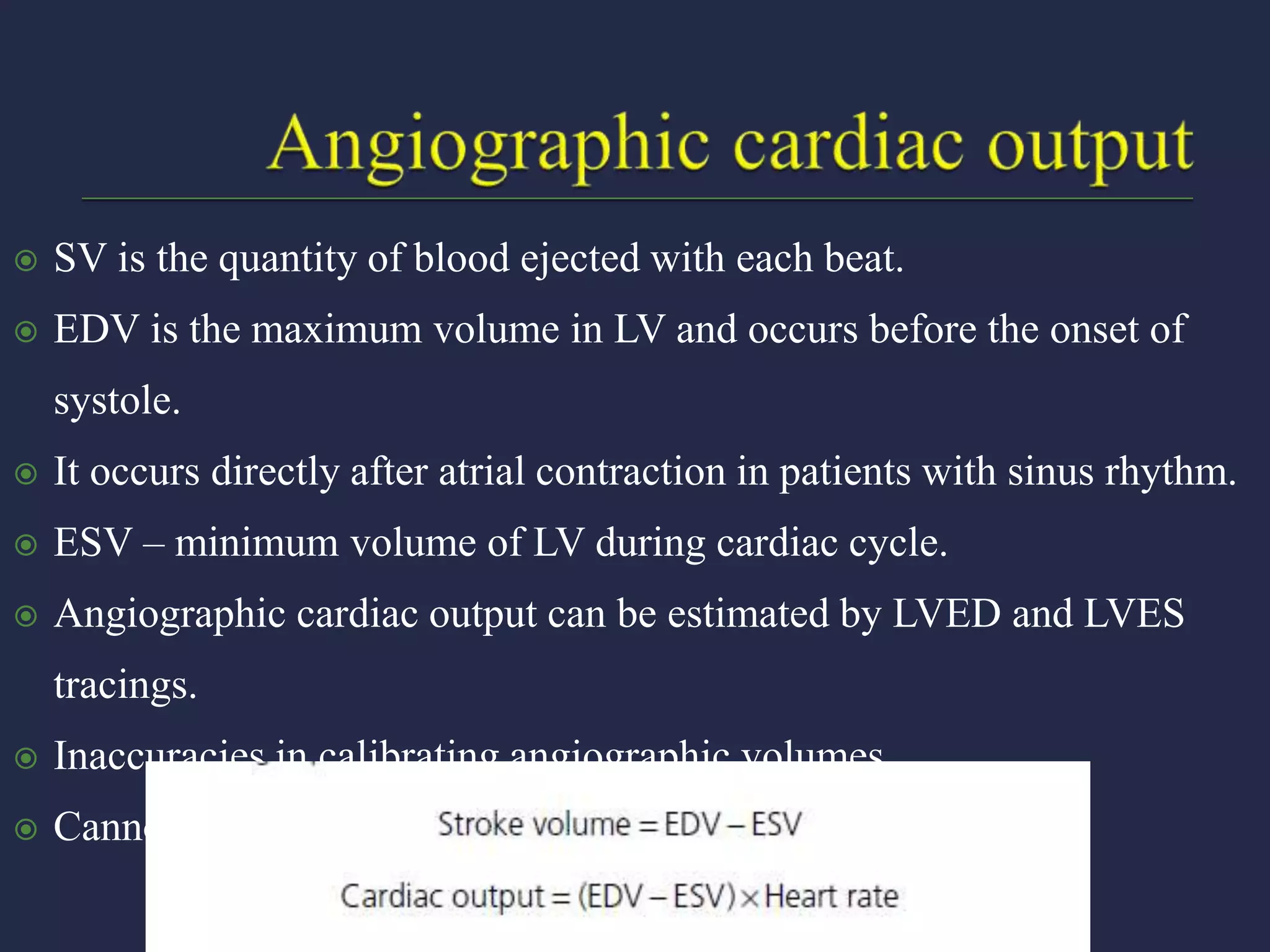

53.  SV is the quantity of blood ejected with each beat.
 EDV is the maximum volume in LV and occurs before the onset of
systole.
 It occurs directly after atrial contraction in patients with sinus rhythm.
 ESV – minimum volume of LV during cardiac cycle.
 Angiographic cardiac output can be estimated by LVED and LVES
tracings.
 Inaccuracies in calibrating angiographic volumes.
 Cannot be used in AF, regurgitant lesions.

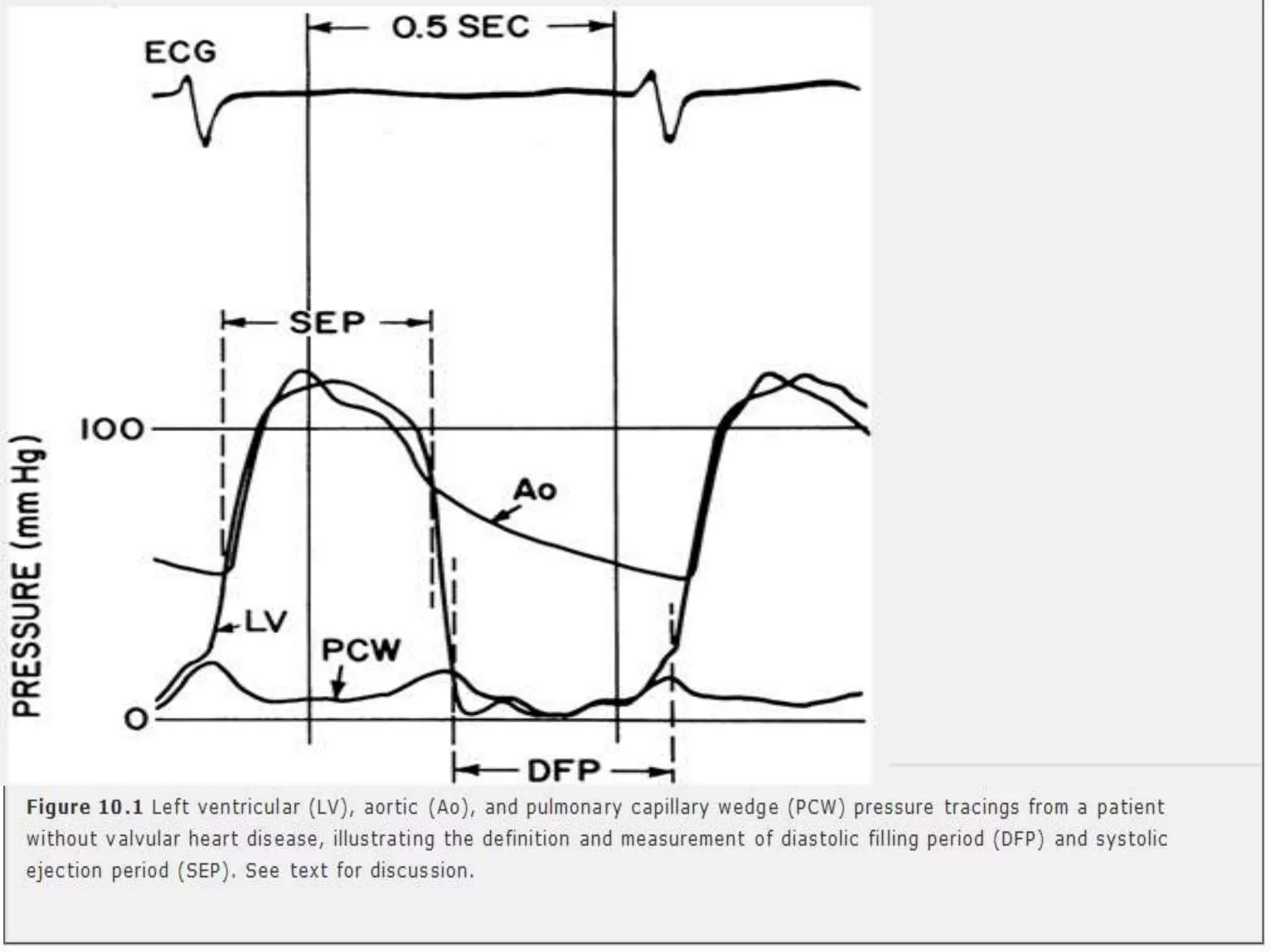

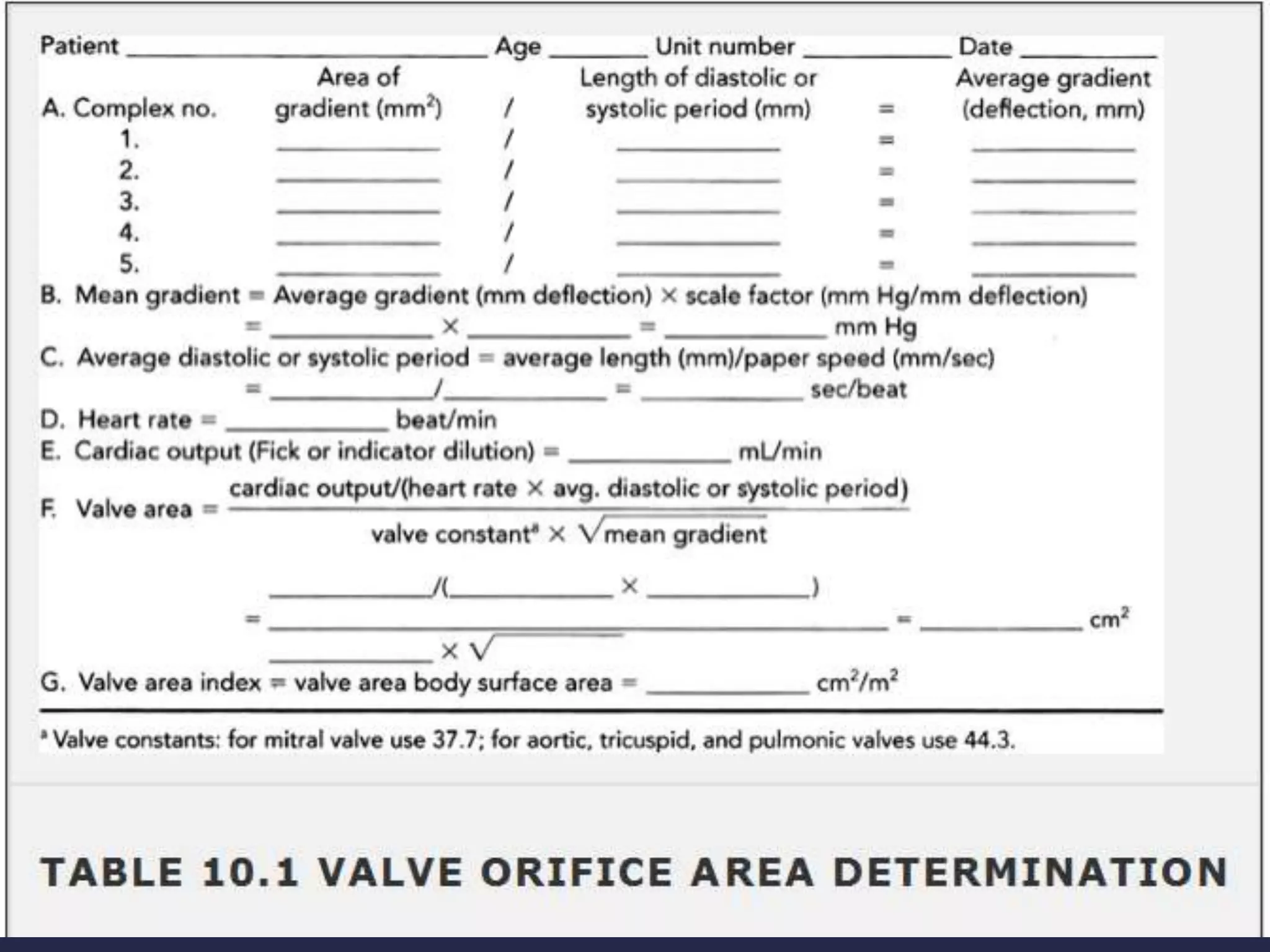

54.  Across the valve –Mitral valve,Aortic valve
 Peripherally – Coarctation of aorta
 Intraventricularly
 Assessing the severity of stenosis,valve area,resistance
 Cardiac output

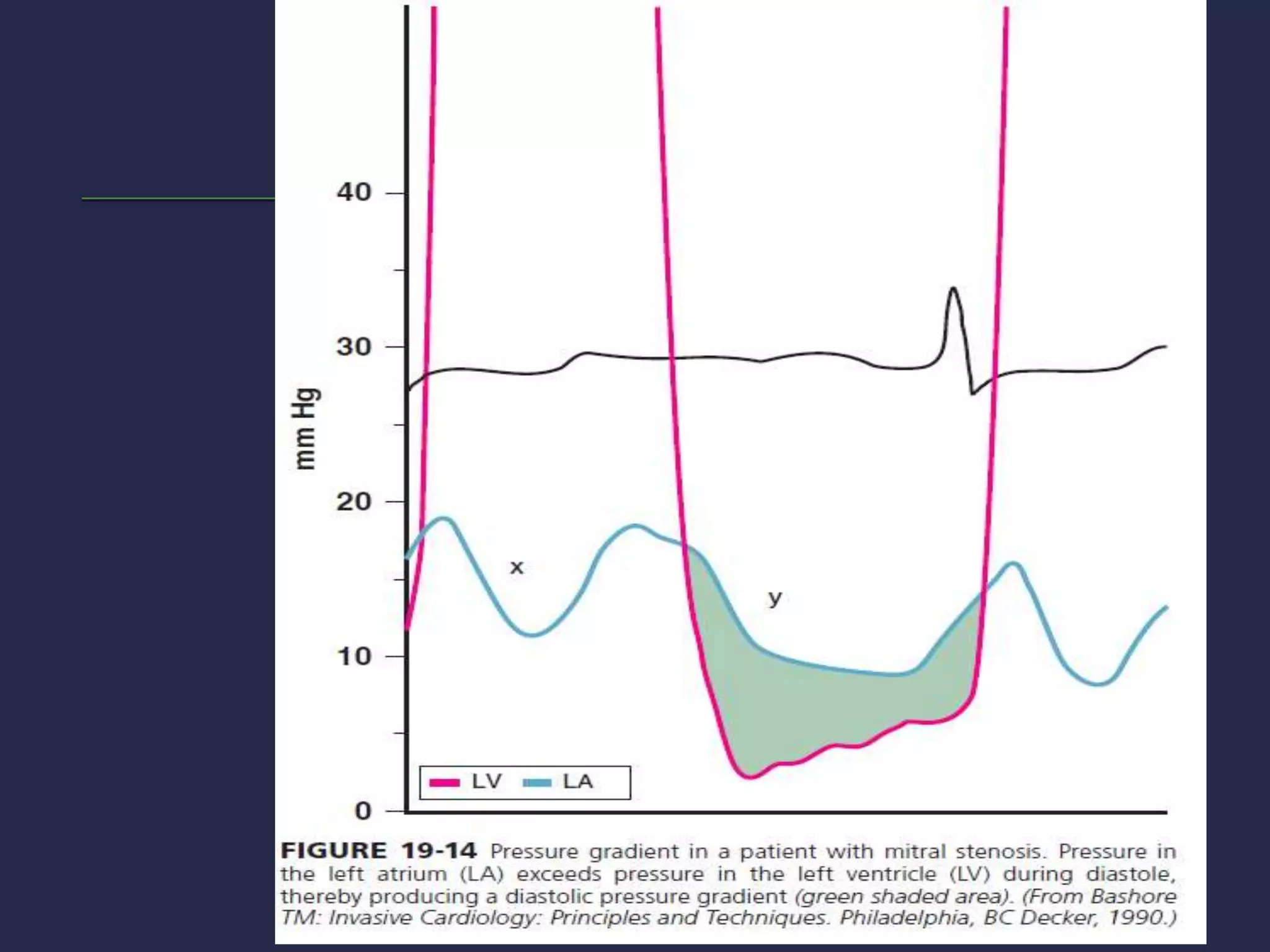

55.  Simultaneous LV,LA pressure tracings.
 Check zero pressures of the PCWP,FA,LV after catheters and
sheath have been flushed.
 LV pressure tracing 200mmHg scale at 50 mm/sec paper speed.
 PCWP pressure tracing 40 mm Hg scales at 50mm/sec paper
speed.
 Use 100mm/sec speed if a mitral valve gradient is present.

57.  Advance a pigtail into the LV.
 Check the zero pressures of both sheath and pigtail catheter
after flushing.
 Record LV and FA pressure (25mm/sec speed,200mmHg
scale)
 100mm/sec speed if an aortic valve gradient is present.

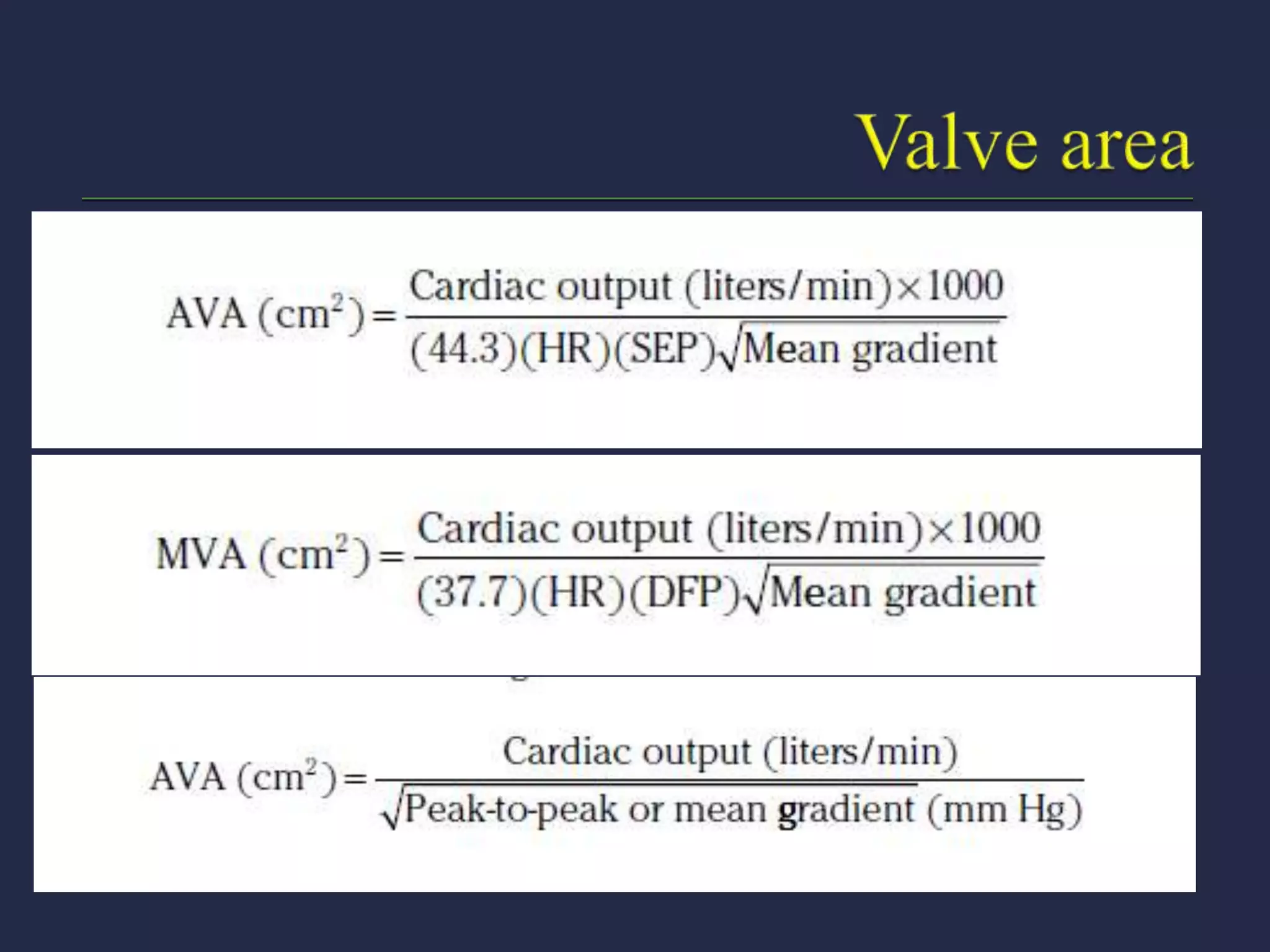

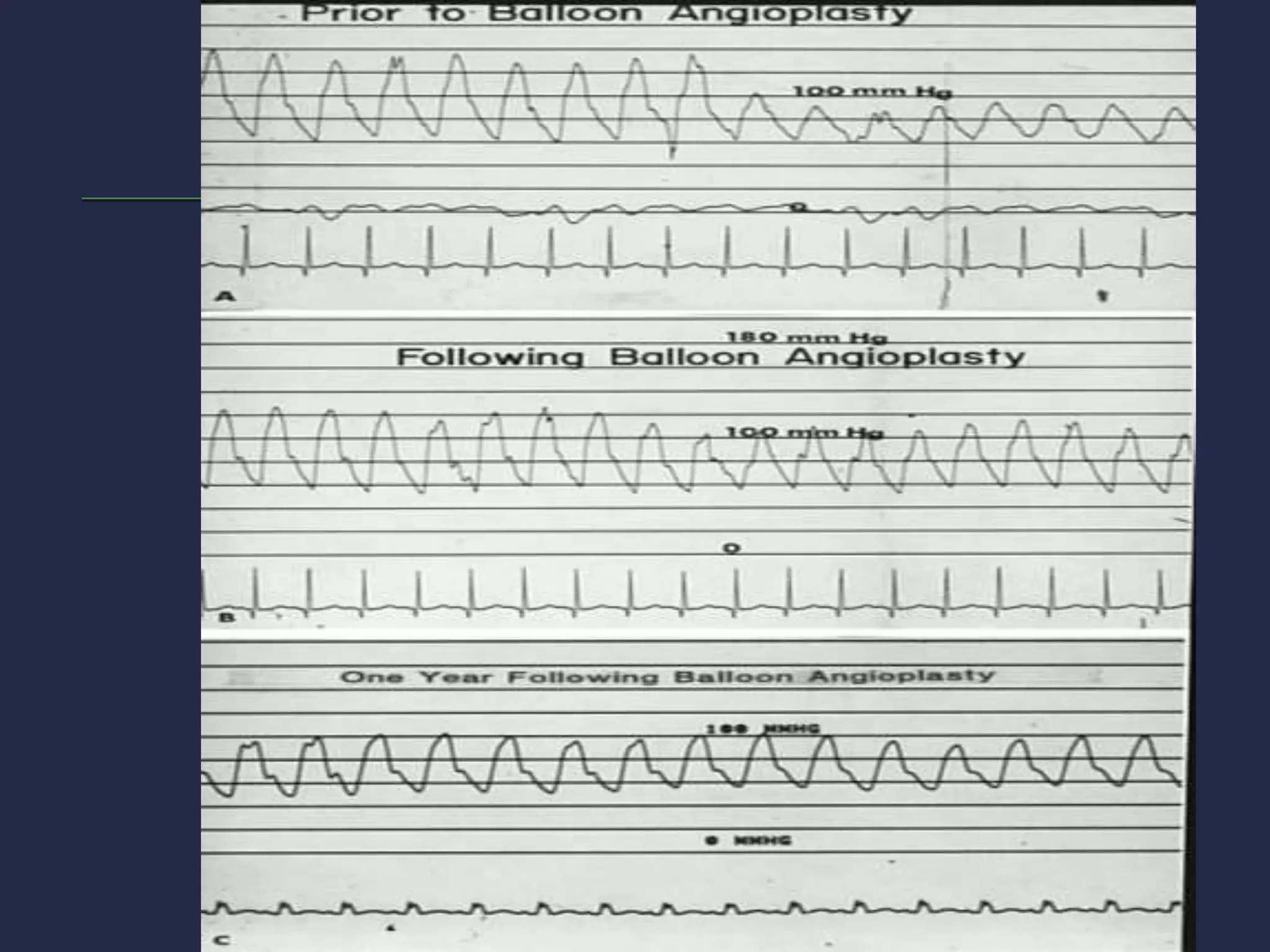

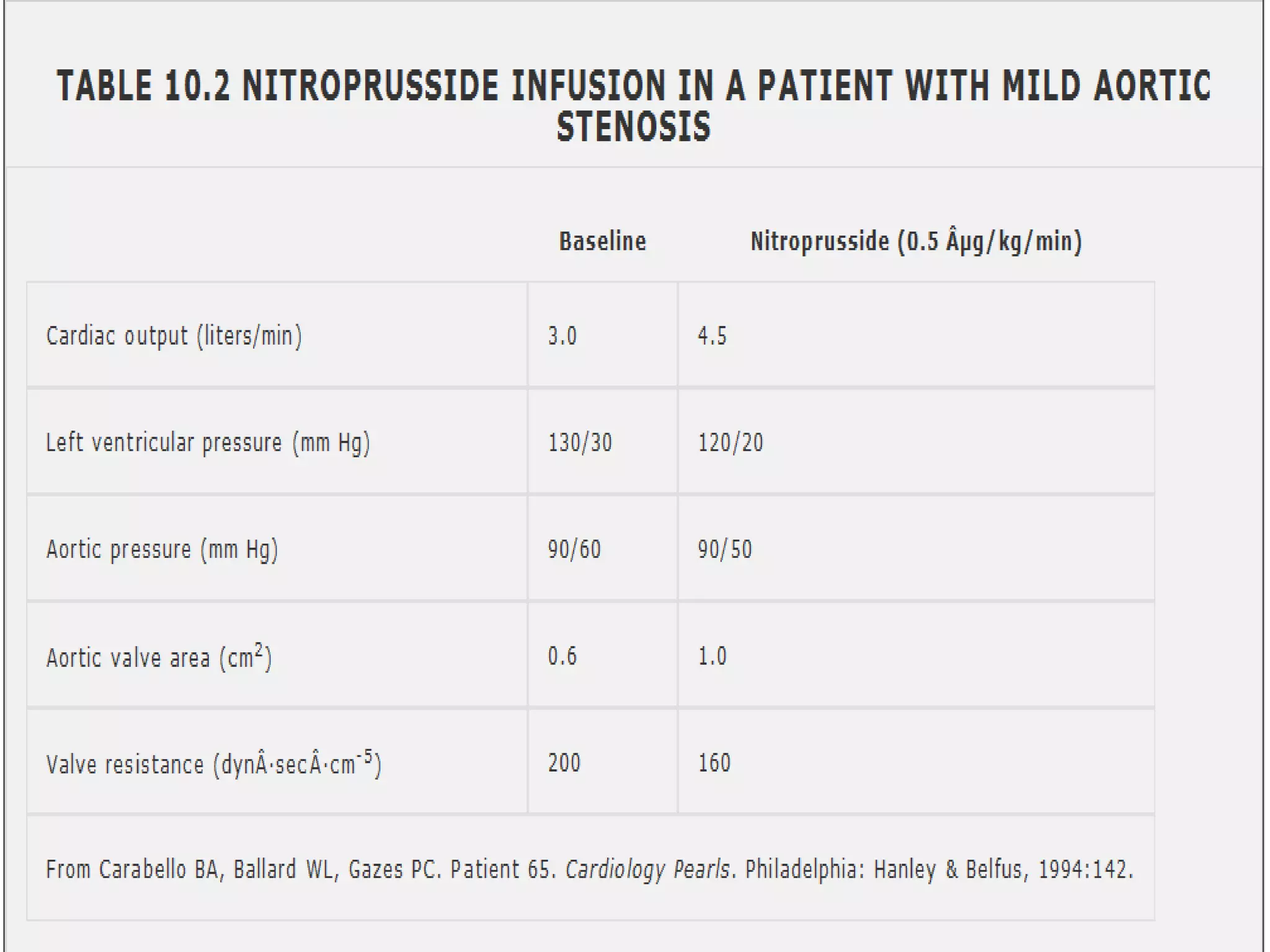

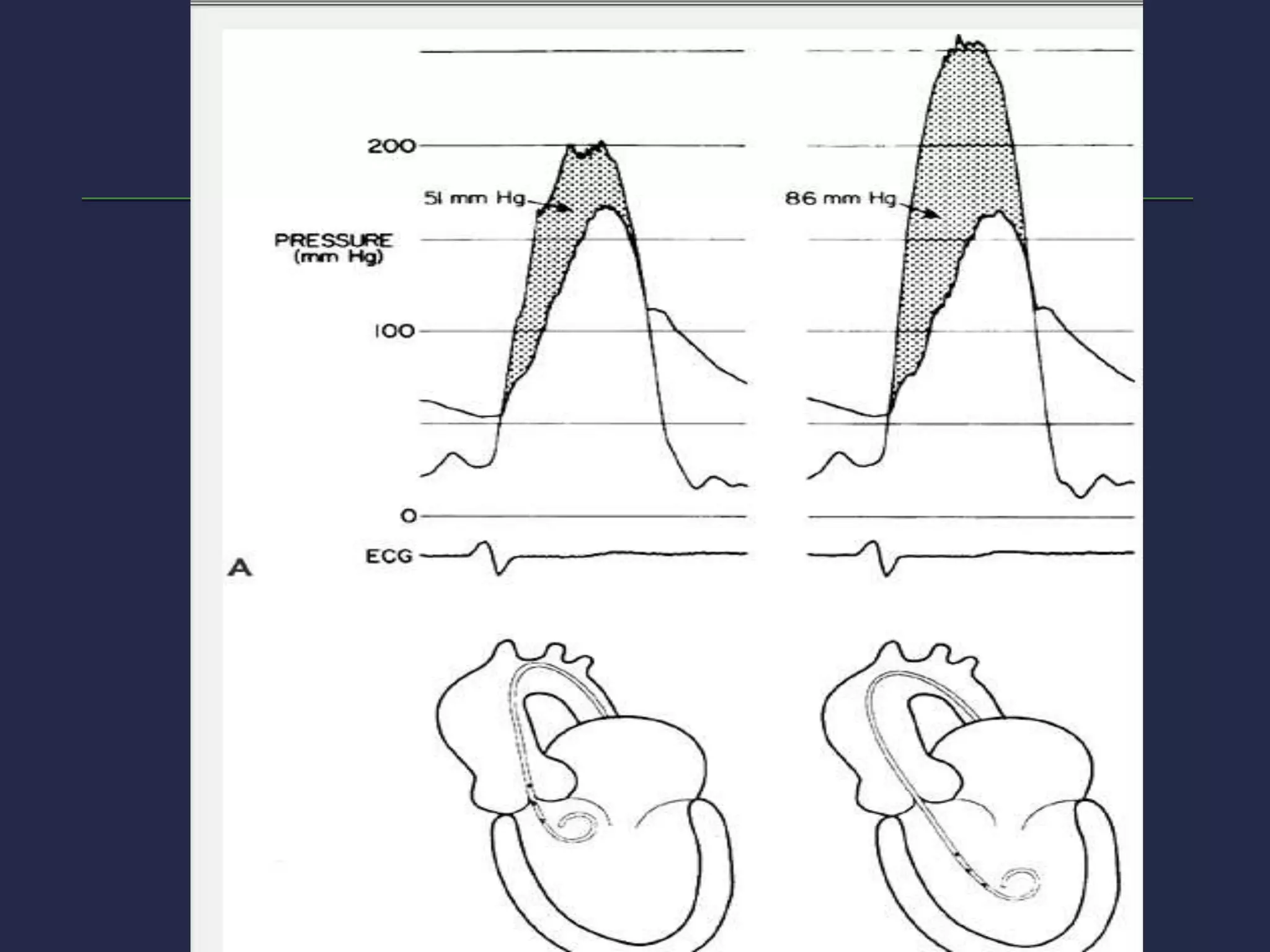

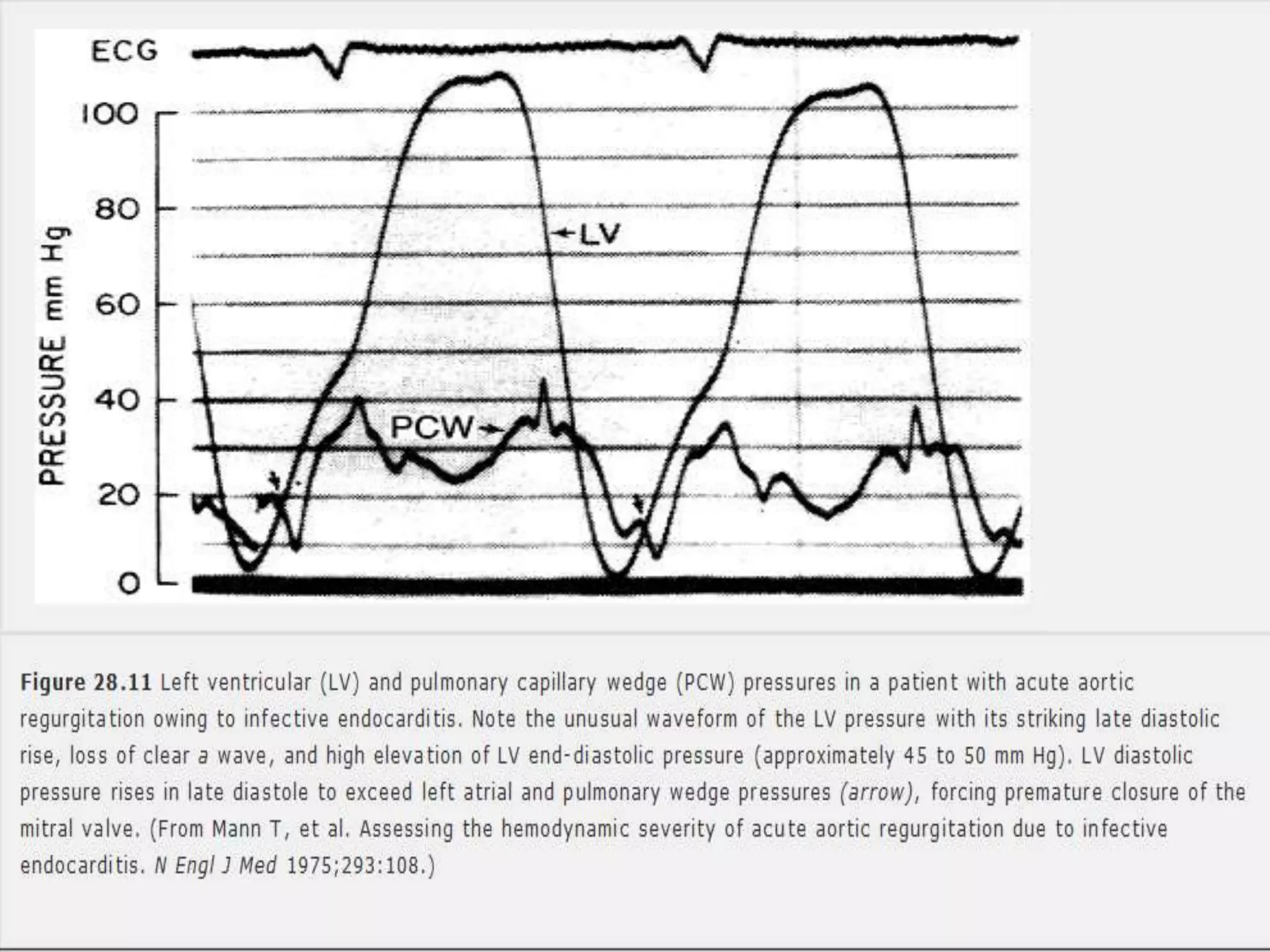

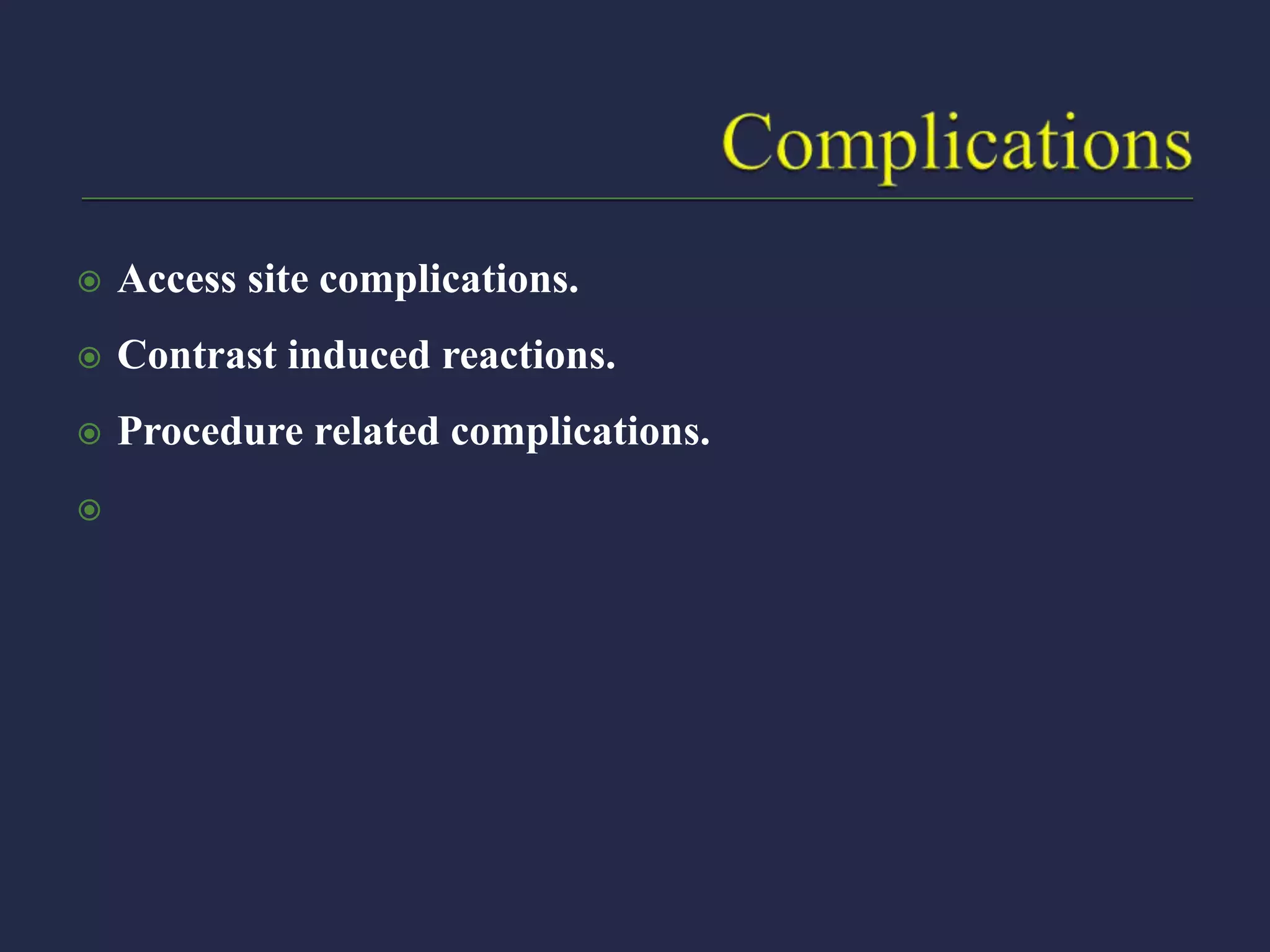

76.  Access site complications.
 Contrast induced reactions.
 Procedure related complications.


77.  Left heart catherization has a significant role in quantifying the
pressure gradients across the valve and within the left ventricle.
 Mostly being used presently during therapeutic indications rather
than diagnostic indications.
 Optimal pressure tracings with all necessary precuations and
knowing the limitations of each helps in judging the severity of
the clinical condition to the nearest accuracy..
