2. OBJECTIVES
 What is cardiac pacemaker
 Pulse distribution
 Types of pace maker
 Why do we need it
 How it functions
 Complications

3. What is cardiac
pacemaker?

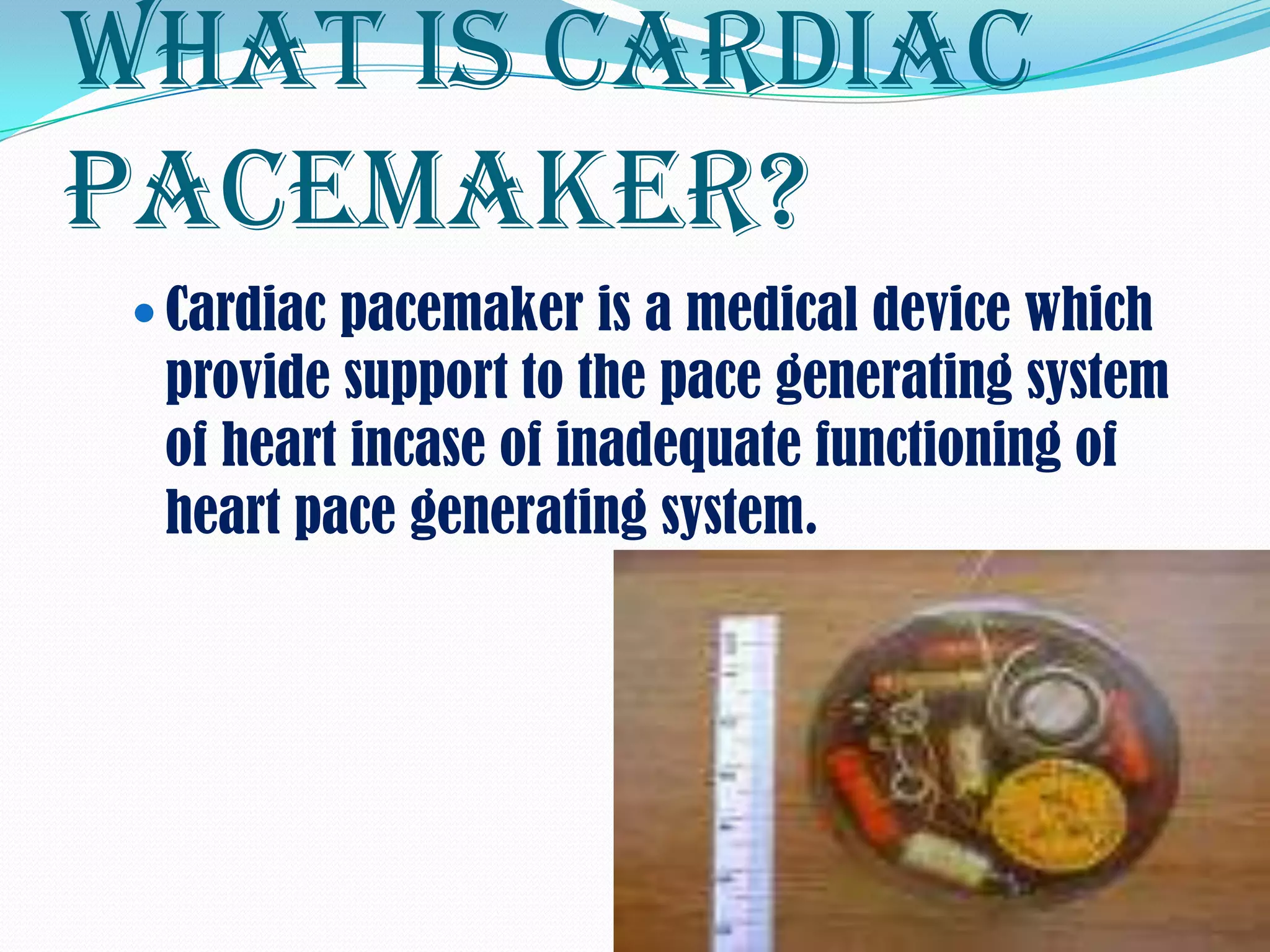

 Cardiac pacemaker is a medical device which
provide support to the pace generating system
of heart incase of inadequate functioning of
heart pace generating system.

4. Why we need it?
WHENEVER SA
NODE,AV NODE
ARE NOT ABLE
TO
GENERATESUFFIC
IENT PACE IN
THAT
CONDITION WE
REQUIRED PACE
MAKER

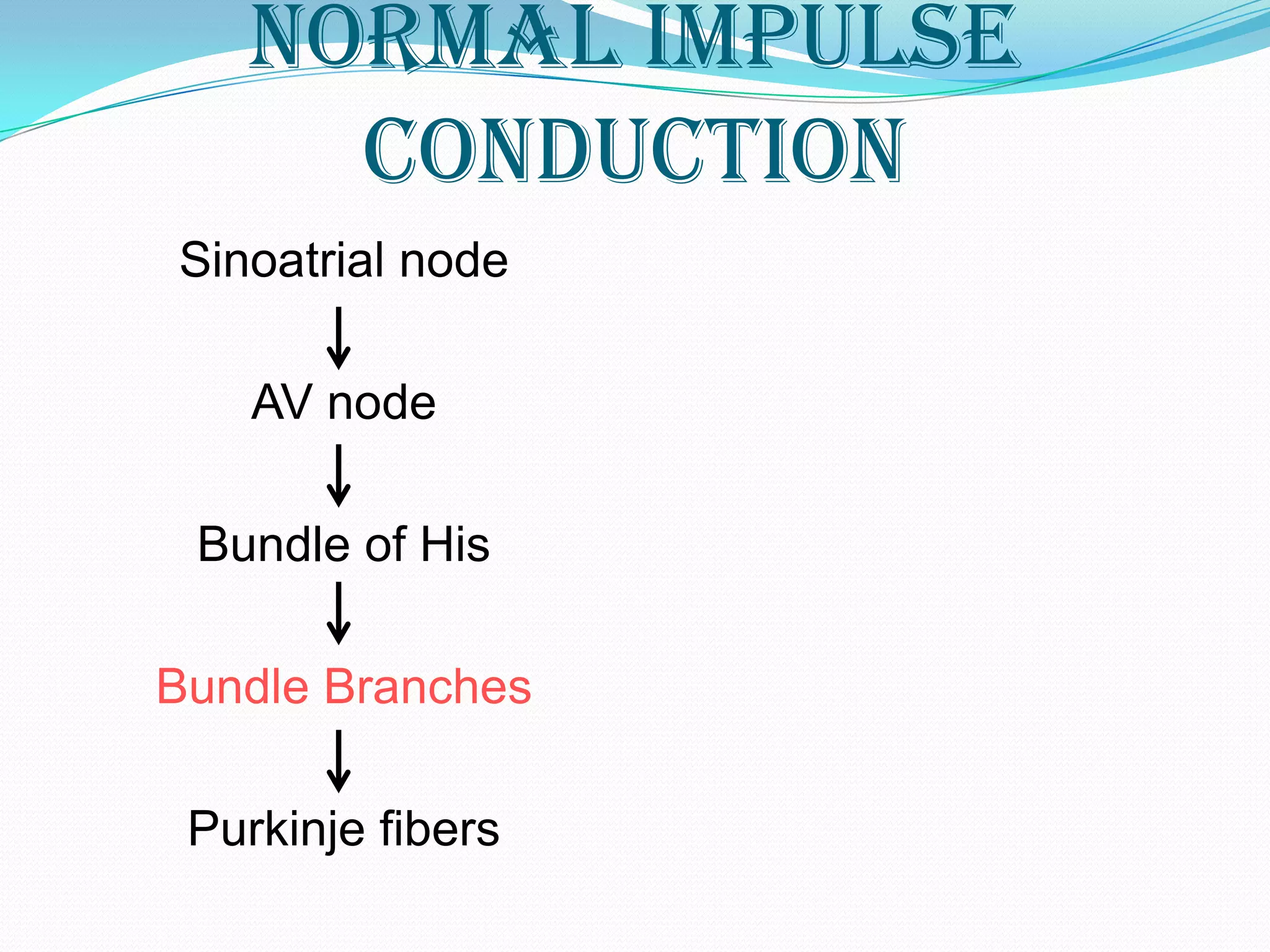

5. Normal Impulse
Conduction
Sinoatrial node
AV node
Bundle of His
Bundle Branches
Purkinje fibers

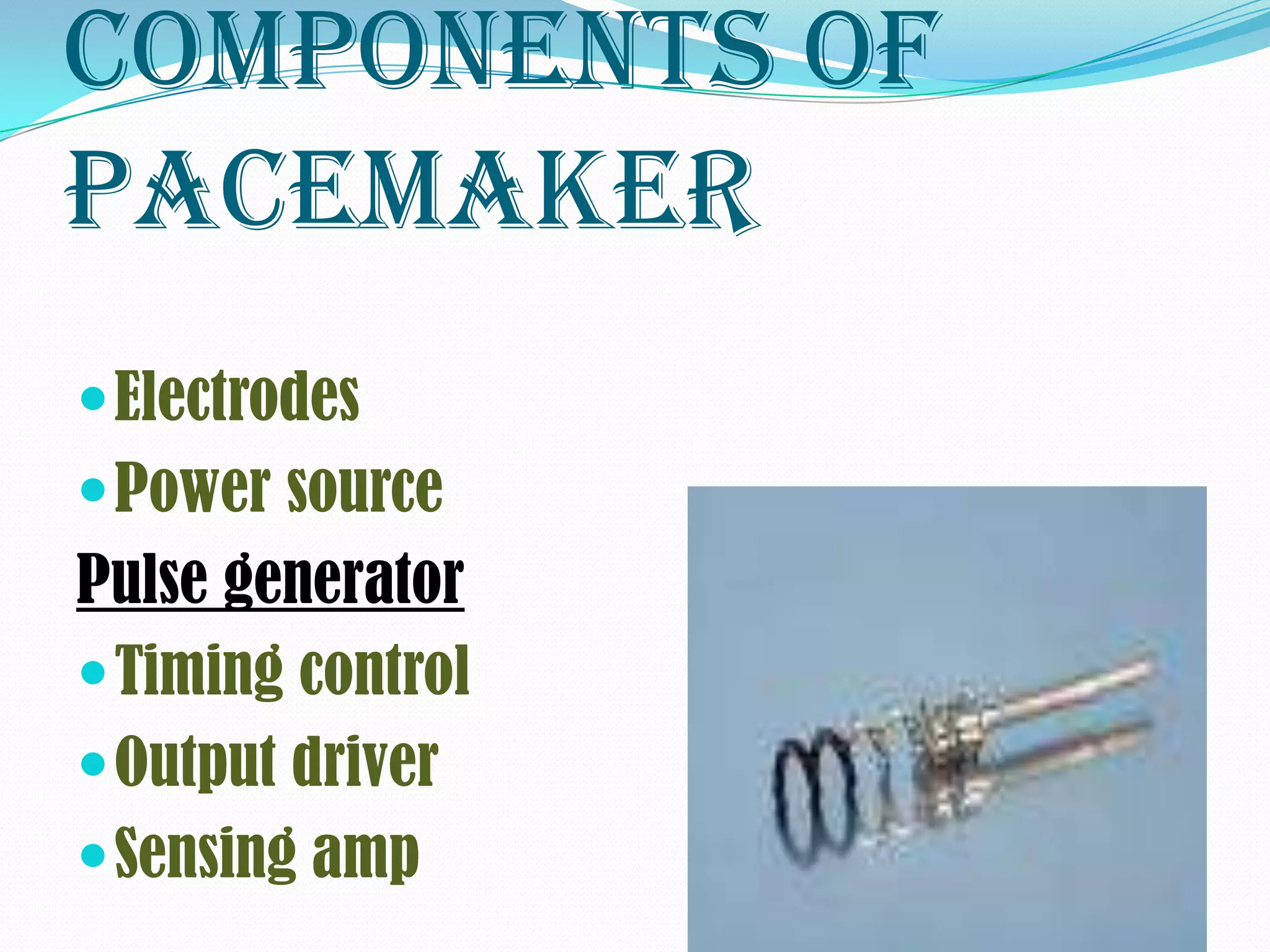

6. Components of
pacemaker
 Electrodes
 Power source
Pulse generator
 Timing control
 Output driver
 Sensing amp

7. Block diagram of
pacemaker

POWER
SOURCE
SENSE TIMING OUTPUT
ELECTRODES
AMPLIFIER CONTROL DRIVER
PULSE GENERATOR

8. Types of cardiac
pacemaker?

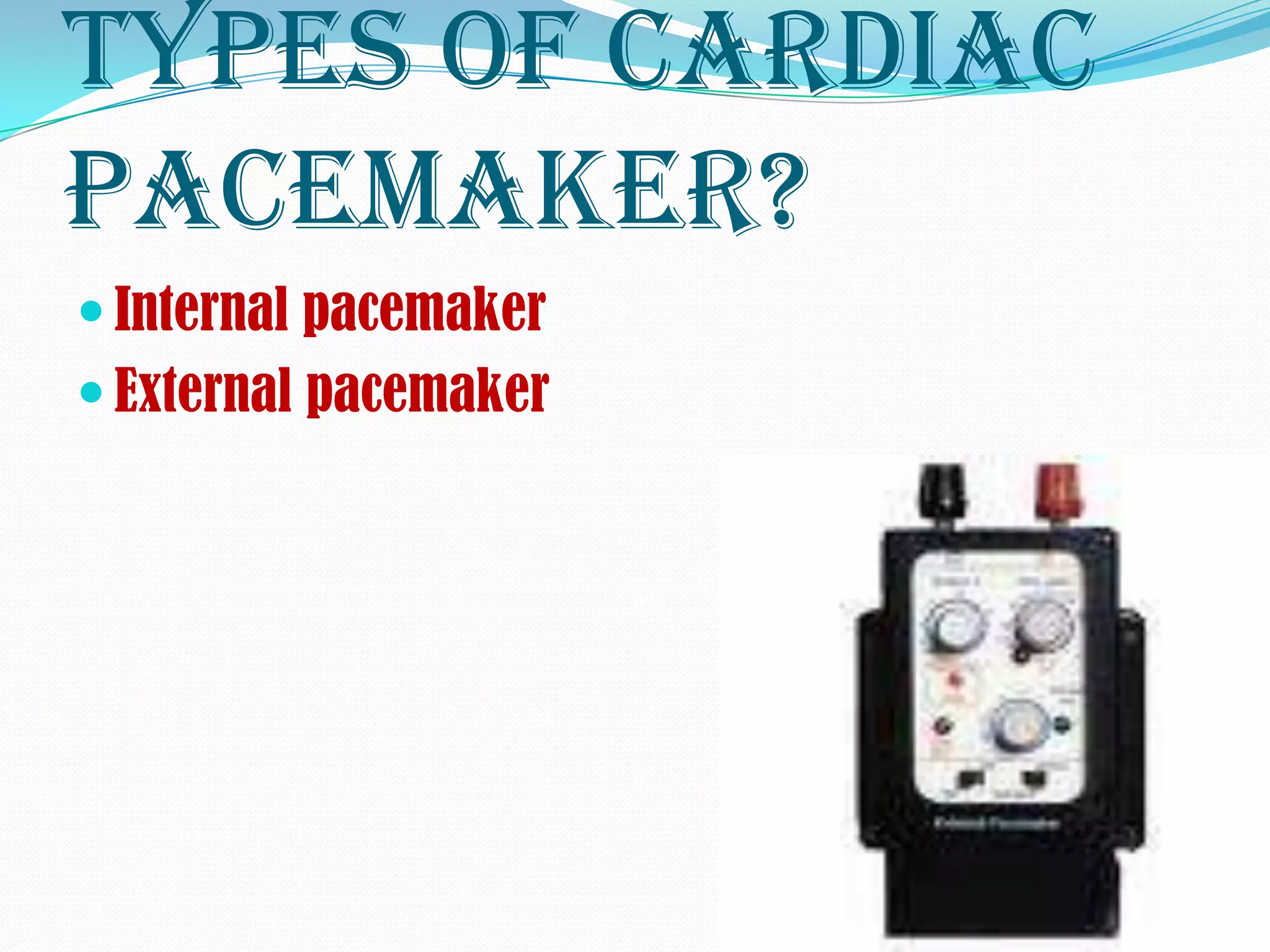

 Internal pacemaker
 External pacemaker

9. Internal
pacemaker
PACE MAKER WHICH
NEED TO BE
IMPLANTED FOR
LONG TIME AND
PATIENT IS SUFFERING
FROM A CHRONIC
PPACE GANERATION
PROBLEM.

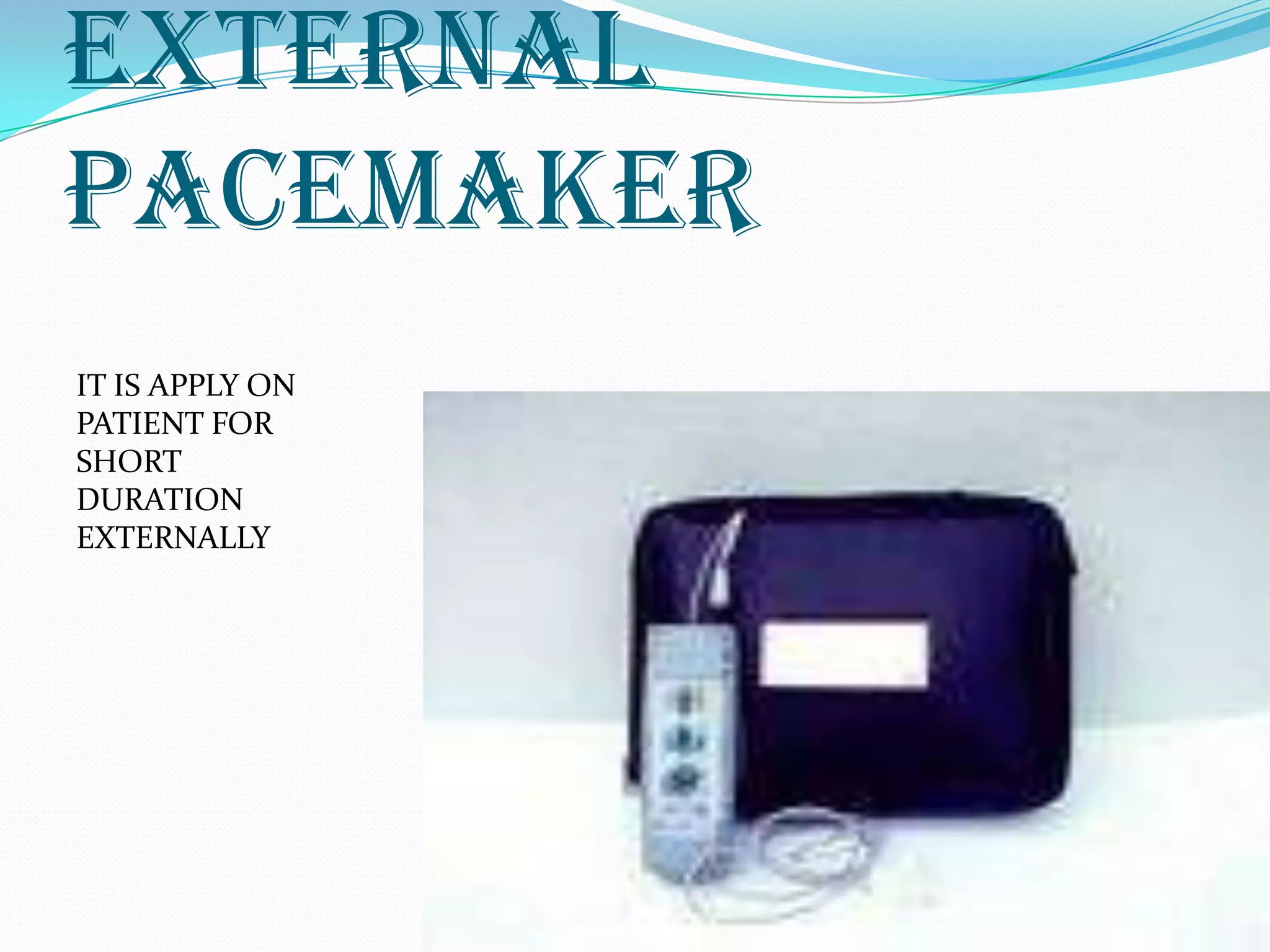

10. External
pacemaker
IT IS APPLY ON
PATIENT FOR
SHORT
DURATION
EXTERNALLY

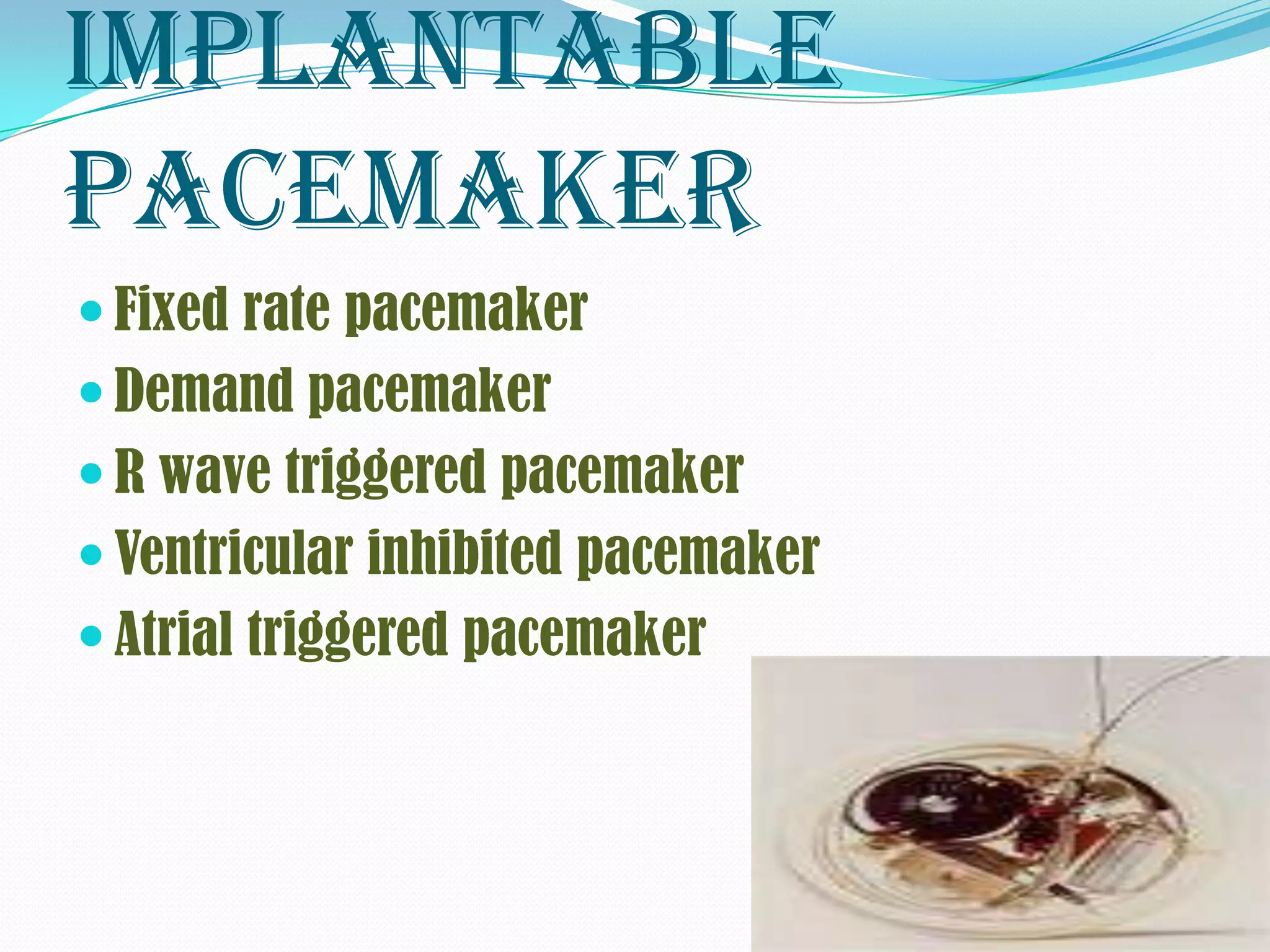

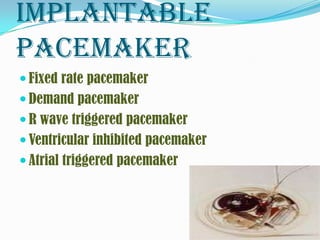

11. Implantable
pacemaker
 Fixed rate pacemaker
 Demand pacemaker
 R wave triggered pacemaker
 Ventricular inhibited pacemaker
 Atrial triggered pacemaker

12. How to use external
pacemaker
1.Pace maker electrodes is placed on the chest at
appropriate position.
2. Electrode jelly is used for better contact and avoiding
burning on skin
3.Set pacing mode as per requirement of the patient
4.Set pacing rate ( in PPM )
5.Turn ON the pacemaker.

13. COMPLICATIONS?
PACE MAKER SYNDROM
EMBOLISM
INTERNAL BLEEDING
