1. A
seminar
on
GRANULATION
Presented by, Under the guidance of,
Mr. NAMDEO SHINDE Dr. N. H. ALOORKAR
M. PHARM. (sem. I) M.PHARM., Ph. D.
SATARA COLLEGE OF PHARMACY,
SATARA.
1/27/2013 1

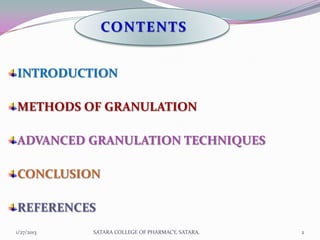

2. CONTENTS
INTRODUCTION
METHODS OF GRANULATION
ADVANCED GRANULATION TECHNIQUES
CONCLUSION
REFERENCES
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 2

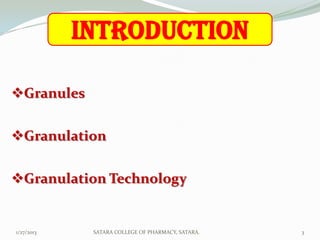

3. Introduction
Granules
Granulation
Granulation Technology
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 3

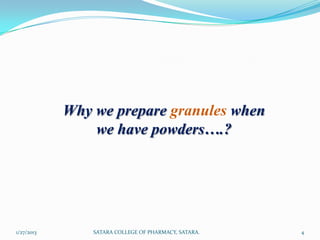

4. Why we prepare granules when
we have powders….?
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 4

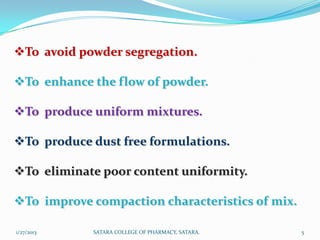

5. To avoid powder segregation.
To enhance the flow of powder.
To produce uniform mixtures.
To produce dust free formulations.
To eliminate poor content uniformity.
To improve compaction characteristics of mix.
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 5

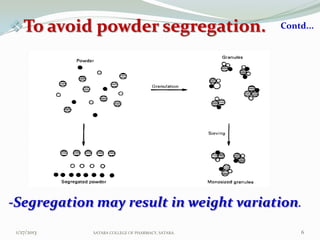

6. To avoid powder segregation. Contd...
-Segregation may result in weight variation.
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 6

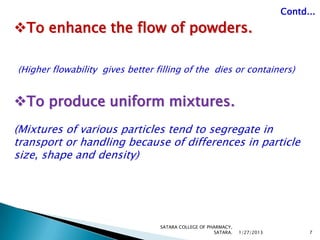

7. Contd...
To enhance the flow of powders.
(Higher flowability gives better filling of the dies or containers)
To produce uniform mixtures.
(Mixtures of various particles tend to segregate in
transport or handling because of differences in particle
size, shape and density)
SATARA COLLEGE OF PHARMACY,
SATARA. 1/27/2013 7

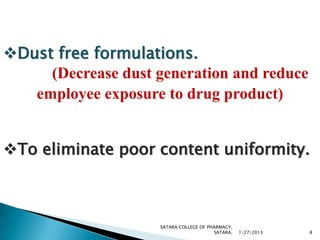

8. Dust free formulations.
(Decrease dust generation and reduce
employee exposure to drug product)
To eliminate poor content uniformity.
SATARA COLLEGE OF PHARMACY,
SATARA. 1/27/2013 8

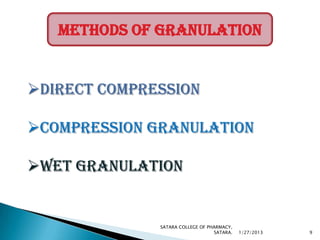

9. Methods of granulation
DIRECT COMPRESSION
COMPRESSION GRANULATION
WET GRANULATION
SATARA COLLEGE OF PHARMACY,
SATARA. 1/27/2013 9

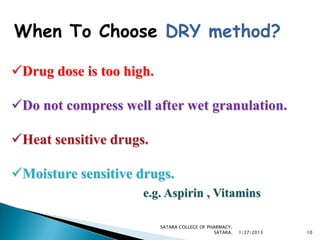

10. When To Choose DRY method?
Drug dose is too high.
Do not compress well after wet granulation.
Heat sensitive drugs.
Moisture sensitive drugs.
e.g. Aspirin , Vitamins
SATARA COLLEGE OF PHARMACY,
SATARA. 1/27/2013 10

11. Steps in Dry Granulation
Compaction of powder
Milling
Screening
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 11

12. Contd…

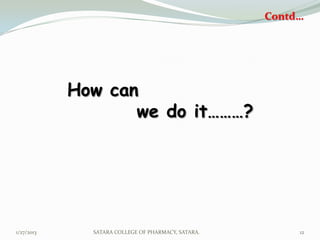

How can
we do it………?
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 12

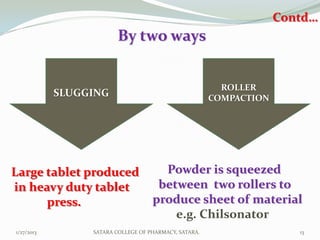

13. Contd…
By two ways
ROLLER
SLUGGING COMPACTION
Large tablet produced Powder is squeezed
in heavy duty tablet between two rollers to
press. produce sheet of material
e.g. Chilsonator
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 13

14. Contd…

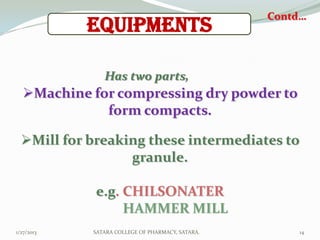

Equipments
Has two parts,
Machine for compressing dry powder to
form compacts.
Mill for breaking these intermediates to
granule.
e.g. CHILSONATER
HAMMER MILL
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 14

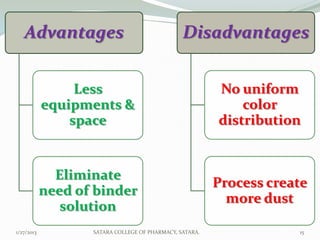

15. Advantages Disadvantages
Less No uniform
equipments & color
space distribution
Eliminate
Process create
need of binder
more dust
solution
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 15

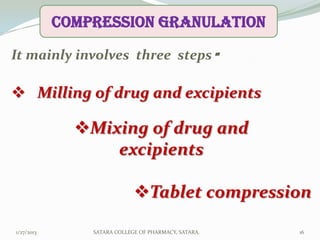

16. COMPRESSION granulation
It mainly involves three steps -
 Milling of drug and excipients
Mixing of drug and
excipients
Tablet compression
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 16

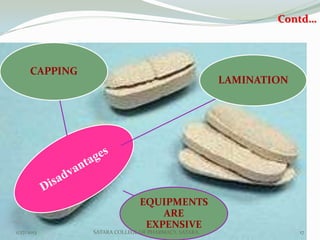

17. Contd…
CAPPING
LAMINATION
EQUIPMENTS
ARE
EXPENSIVE
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 17

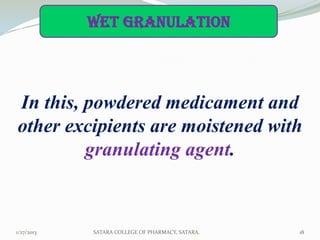

18. wet granulation
In this, powdered medicament and
other excipients are moistened with
granulating agent.
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 18

19. Contd…

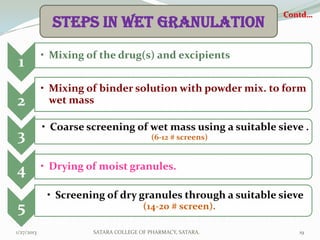

Steps in wet granulation
• Mixing of the drug(s) and excipients
1
• Mixing of binder solution with powder mix. to form
2 wet mass
• Coarse screening of wet mass using a suitable sieve .
3 (6-12 # screens)
4 • Drying of moist granules.
• Screening of dry granules through a suitable sieve
5 (14-20 # screen).
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 19

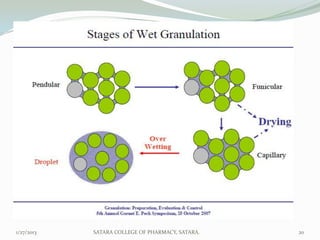

20. 1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 20

21. Contd…

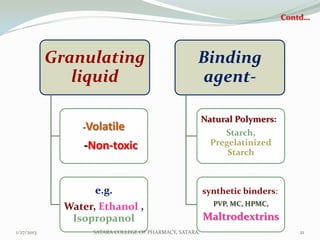

Granulating Binding
liquid agent-
Natural Polymers:
-Volatile
Starch,
-Non-toxic Pregelatinized
Starch
e.g. synthetic binders:
PVP, MC, HPMC,
Water, Ethanol ,
Isopropanol Maltrodextrins
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 21

22. Contd…

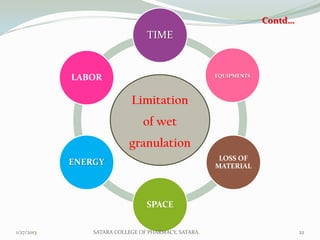

TIME
LABOR EQUIPMENTS
Limitation
of wet
granulation
LOSS OF
ENERGY MATERIAL
SPACE
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 22

23. Methods
Contd…
Single pot granulation
High shear mixture granulation
Fluid bed granulation
Extrusion- Spheronization
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 23

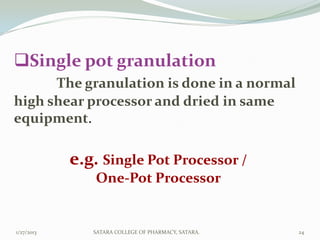

24. Single pot granulation
The granulation is done in a normal
high shear processor and dried in same
equipment.
e.g. Single Pot Processor /
One-Pot Processor
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 24

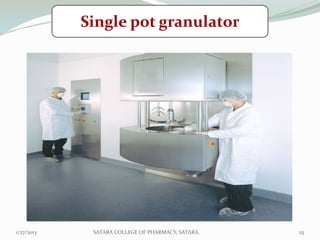

25. Single pot granulator
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 25

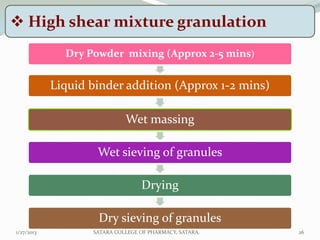

26.  High shear mixture granulation
Dry Powder mixing (Approx 2-5 mins)
Liquid binder addition (Approx 1-2 mins)
Wet massing
Wet sieving of granules
Drying
Dry sieving of granules
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 26

27. Rapid mixer granulator
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 27

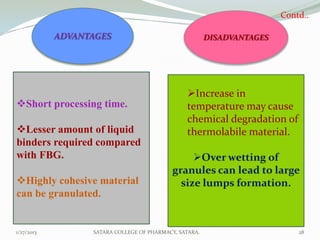

28. Contd..
ADVANTAGES DISADVANTAGES
Increase in
Short processing time. temperature may cause
chemical degradation of
Lesser amount of liquid thermolabile material.
binders required compared
with FBG. Over wetting of
granules can lead to large
Highly cohesive material size lumps formation.
can be granulated.
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 28

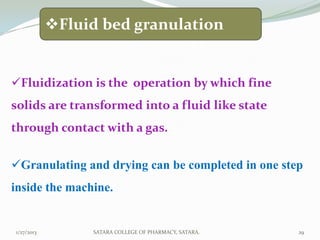

29. Fluid bed granulation
Fluidization is the operation by which fine
solids are transformed into a fluid like state
through contact with a gas.
Granulating and drying can be completed in one step
inside the machine.
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 29

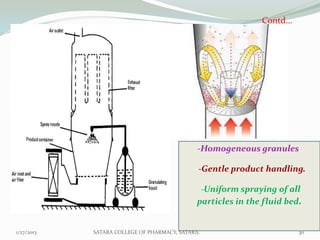

30. Contd…
-Homogeneous granules.
---Gentle product handling.
--Uniform spraying of all
particles in the fluid bed.
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 30

31. Contd…

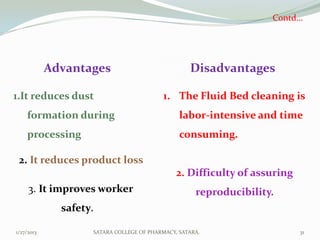

Advantages Disadvantages
1.It reduces dust 1. The Fluid Bed cleaning is
formation during labor-intensive and time
processing consuming.
2. It reduces product loss
2. Difficulty of assuring
3. It improves worker reproducibility.
safety.
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 31

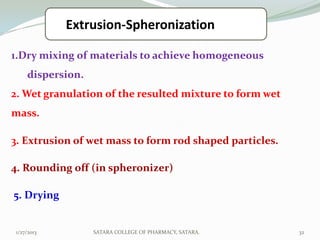

32.  Extrusion-Spheronization
1.Dry mixing of materials to achieve homogeneous
dispersion.
2. Wet granulation of the resulted mixture to form wet
mass.
3. Extrusion of wet mass to form rod shaped particles.
4. Rounding off (in spheronizer)
5. Drying
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 32

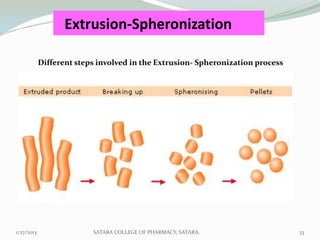

33. Extrusion-Spheronization
Different steps involved in the Extrusion- Spheronization process
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 33

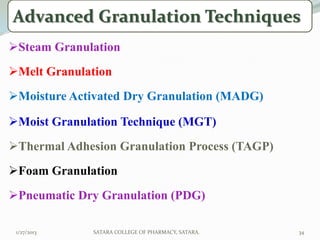

34. Advanced Granulation Techniques
Steam Granulation
Melt Granulation
Moisture Activated Dry Granulation (MADG)
Moist Granulation Technique (MGT)
Thermal Adhesion Granulation Process (TAGP)
Foam Granulation
Pneumatic Dry Granulation (PDG)
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 34

35. Contd…

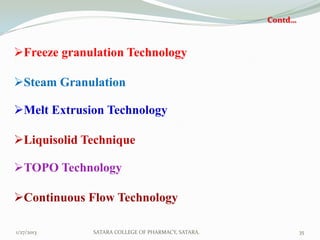

Freeze granulation Technology
Steam Granulation
Melt Extrusion Technology
Liquisolid Technique
TOPO Technology
Continuous Flow Technology
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 35

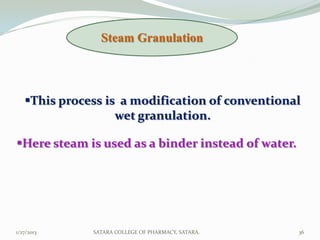

36. Steam Granulation
This process is a modification of conventional
wet granulation.
Here steam is used as a binder instead of water.
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 36

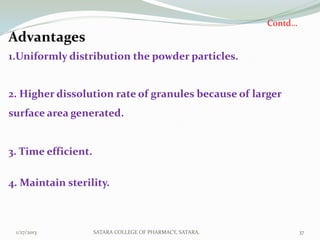

37. Contd…
Advantages
1.Uniformly distribution the powder particles.
2. Higher dissolution rate of granules because of larger
surface area generated.
3. Time efficient.
4. Maintain sterility.
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 37

38. Contd…

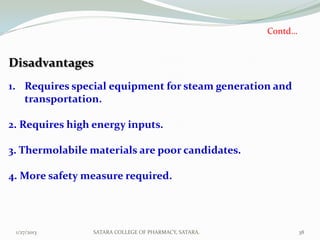

Disadvantages
1. Requires special equipment for steam generation and
transportation.
2. Requires high energy inputs.
3. Thermolabile materials are poor candidates.
4. More safety measure required.
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 38

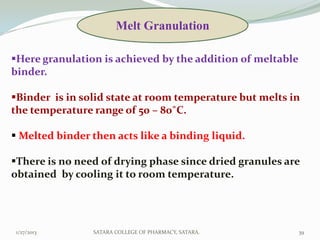

39. Melt Granulation
Here granulation is achieved by the addition of meltable
binder.
Binder is in solid state at room temperature but melts in
the temperature range of 50 – 80˚C.
 Melted binder then acts like a binding liquid.
There is no need of drying phase since dried granules are
obtained by cooling it to room temperature.
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 39

40. Contd…

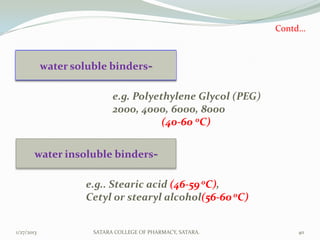

water soluble binders-
e.g. Polyethylene Glycol (PEG)
2000, 4000, 6000, 8000
(40-60 0C)
water insoluble binders-
e.g.. Stearic acid (46-59 0C),
Cetyl or stearyl alcohol(56-60 0C)
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 40

41. Contd…

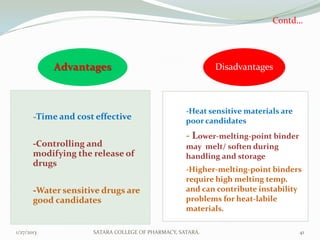

Advantages Disadvantages
-Heat sensitive materials are
-Time and cost effective poor candidates
- Lower-melting-point binder
-Controlling and may melt/ soften during
modifying the release of handling and storage
drugs
-Higher-melting-point binders
require high melting temp.
-Water sensitive drugs are and can contribute instability
good candidates problems for heat-labile
materials.
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 41

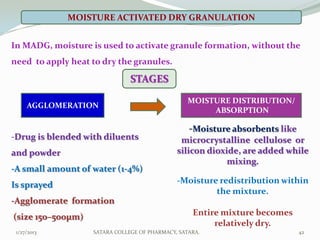

42. MOISTURE ACTIVATED DRY GRANULATION
In MADG, moisture is used to activate granule formation, without the
need to apply heat to dry the granules.
STAGES
MOISTURE DISTRIBUTION/
AGGLOMERATION
ABSORPTION
-Moisture absorbents like
-Drug is blended with diluents microcrystalline cellulose or
and powder silicon dioxide, are added while
mixing.
-A small amount of water (1-4%)
Is sprayed -Moisture redistribution within
the mixture.
-Agglomerate formation
(size 150–500μm) Entire mixture becomes
relatively dry.
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 42

43. Contd…
Advantages:
1.Applicable to more than 90% of the granulation need for
pharmaceutical, food and nutritional industry.
2. Time efficient.
3. Suitable for continuous processing
4. Less energy involved during processing.
Disadvantages:
1. Moisture sensitive and high moisture absorbing API are
poor candidates.
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 43

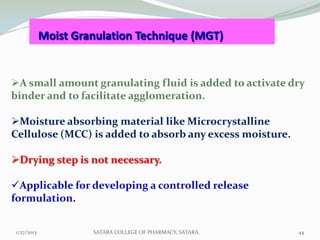

44. Moist Granulation Technique (MGT)
A small amount granulating fluid is added to activate dry
binder and to facilitate agglomeration.
Moisture absorbing material like Microcrystalline
Cellulose (MCC) is added to absorb any excess moisture.
Drying step is not necessary.
Applicable for developing a controlled release
formulation.
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 44

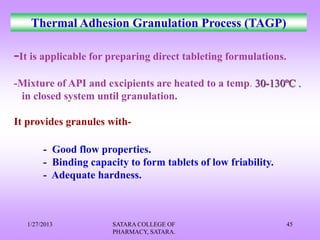

45. Thermal Adhesion Granulation Process (TAGP)
-It is applicable for preparing direct tableting formulations.
-Mixture of API and excipients are heated to a temp. 30-130ºC .
in closed system until granulation.
It provides granules with-
- Good flow properties.
- Binding capacity to form tablets of low friability.
- Adequate hardness.
1/27/2013 SATARA COLLEGE OF 45
PHARMACY, SATARA.

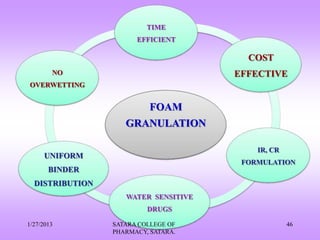

46. TIME
EFFICIENT
COST
NO EFFECTIVE
OVERWETTING
FOAM
GRANULATION
IR, CR
UNIFORM
FORMULATION
BINDER
DISTRIBUTION
WATER SENSITIVE
DRUGS
1/27/2013 SATARA COLLEGE OF 46
PHARMACY, SATARA.

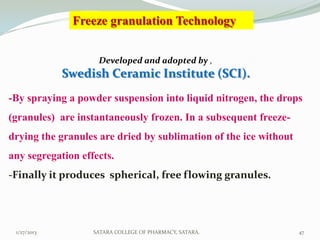

47. Freeze granulation Technology
Developed and adopted by ,
Swedish Ceramic Institute (SCI).
-By spraying a powder suspension into liquid nitrogen, the drops
(granules) are instantaneously frozen. In a subsequent freeze-
drying the granules are dried by sublimation of the ice without
any segregation effects.
-Finally it produces spherical, free flowing granules.
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 47

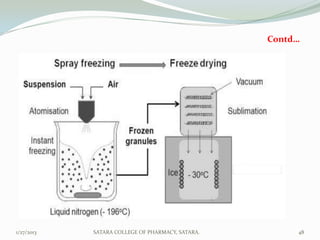

48. Contd…
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 48

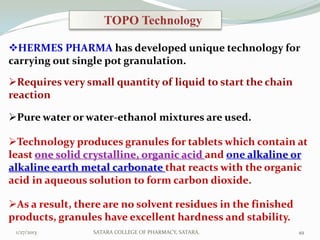

49. TOPO Technology
HERMES PHARMA has developed unique technology for
carrying out single pot granulation.
Requires very small quantity of liquid to start the chain
reaction
Pure water or water-ethanol mixtures are used.
Technology produces granules for tablets which contain at
least one solid crystalline, organic acid and one alkaline or
alkaline earth metal carbonate that reacts with the organic
acid in aqueous solution to form carbon dioxide.
As a result, there are no solvent residues in the finished
products, granules have excellent hardness and stability.
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 49

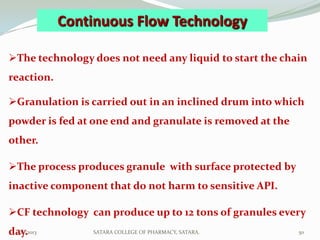

50. Continuous Flow Technology
The technology does not need any liquid to start the chain
reaction.
Granulation is carried out in an inclined drum into which
powder is fed at one end and granulate is removed at the
other.
The process produces granule with surface protected by
inactive component that do not harm to sensitive API.
CF technology can produce up to 12 tons of granules every
day.
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 50

51. Contd…

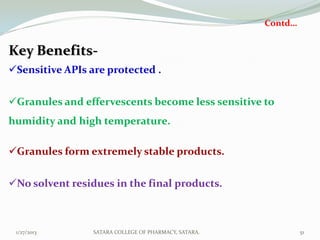

Key Benefits-
Sensitive APIs are protected .
Granules and effervescents become less sensitive to
humidity and high temperature.
Granules form extremely stable products.
No solvent residues in the final products.
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 51

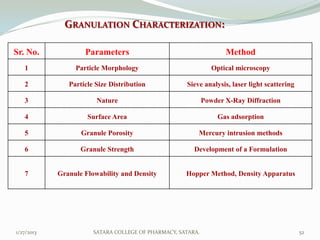

52. GRANULATION CHARACTERIZATION:
Sr. No. Parameters Method
1 Particle Morphology Optical microscopy
2 Particle Size Distribution Sieve analysis, laser light scattering
3 Nature Powder X-Ray Diffraction
4 Surface Area Gas adsorption
5 Granule Porosity Mercury intrusion methods
6 Granule Strength Development of a Formulation
7 Granule Flowability and Density Hopper Method, Density Apparatus
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 52

53. CONCLUSION
SATARA COLLEGE OF PHARMACY,

54. 6th INTERNATIONAL
GRANULATION CONFERENCE
At
Sheffield, UK.
Dates of Event-
26th June 2013 - 28th June 2013.
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 54

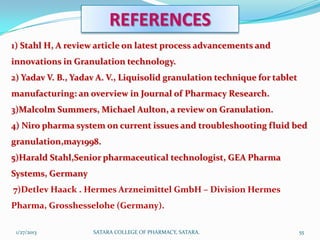

55. REFERENCES
1) Stahl H, A review article on latest process advancements and
innovations in Granulation technology.
2) Yadav V. B., Yadav A. V., Liquisolid granulation technique for tablet
manufacturing: an overview in Journal of Pharmacy Research.
3)Malcolm Summers, Michael Aulton, a review on Granulation.
4) Niro pharma system on current issues and troubleshooting fluid bed
granulation,may1998.
5)Harald Stahl,Senior pharmaceutical technologist, GEA Pharma
Systems, Germany
7)Detlev Haack . Hermes Arzneimittel GmbH – Division Hermes
Pharma, Grosshesselohe (Germany).
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 55

56. THANK
YOU….
1/27/2013 SATARA COLLEGE OF PHARMACY, SATARA. 56
