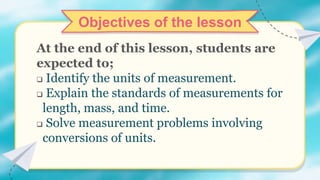

2. Objectives of the lesson
At the end of this lesson, students are
expected to;
Identify the units of measurement.
Explain the standards of measurements for
length, mass, and time.
Solve measurement problems involving
conversions of units.
3. Measurement is a quantitative
description of a fundamental property.
Fundamental Derived

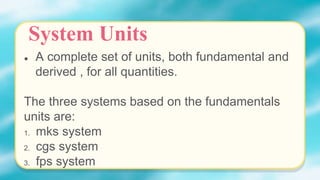

4. ● A complete set of units, both fundamental and
derived , for all quantities.
The three systems based on the fundamentals
units are:
1. mks system
2. cgs system
3. fps system
System Units

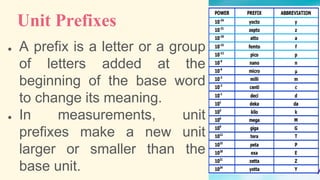

5. ● A prefix is a letter or a group
of letters added at the
beginning of the base word
to change its meaning.
● In measurements, unit
prefixes make a new unit
larger or smaller than the
base unit.
Unit Prefixes

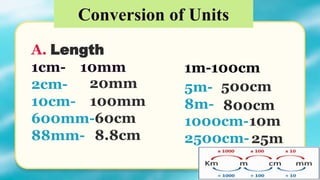

6. Conversion of Units
A. Length
1cm- 10mm
2cm-
10cm-
600mm-
88mm-
20mm
100mm
60cm
8.8cm
1m-100cm
5m-
8m-
1000cm-
2500cm-
500cm
800cm
10m
25m
7. Conversion of Units
A. Length
1km- 1000m
2km-
6km-
800m-
2500m-
2000m
6000m
0.8km
2.5km
1ft-12 inch
5ft-
8ft-
48inch-
120inch-
60 inch
96 inch
4ft
10ft
8. Conversion of Units
B. Mass
1kg- 1000g
2kg-
6kg-
800g-
2500g-
2000g
6000g
0.8kg
2.5kg
1g-1000mg
5g-
8g-
4800mg-
1200mg-
5000 mg
8000 mg
4.8g
1.2 g

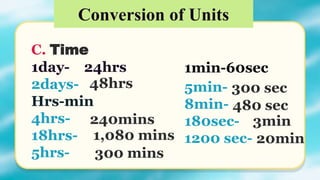

9. Conversion of Units
C. Time
1day- 24hrs
2days-
Hrs-min
4hrs-
18hrs-
5hrs-
48hrs
240mins
1,080 mins
300 mins
1min-60sec
5min-
8min-
180sec-
1200 sec-
300 sec
480 sec
3min
20min

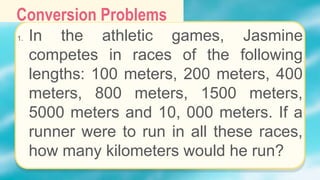

10. Conversion Problems
1. In the athletic games, Jasmine
competes in races of the following
lengths: 100 meters, 200 meters, 400
meters, 800 meters, 1500 meters,
5000 meters and 10, 000 meters. If a
runner were to run in all these races,
how many kilometers would he run?
11. Conversion Problems
1. In the athletic games, Jasmine competes in races of the following lengths:
100 meters, 200 meters, 400 meters, 800 meters, 1500 meters, 5000 meters
and 10, 000 meters. If a runner were to run in all these races, how many
kilometers would he run?
10,000 m
5,000 m
1,500 m
800 m
400 m
200 m
+ 100 m
18, 000 m Remember! 1km- 1000m
=18km
18,000 m 1km
1 X 1000m

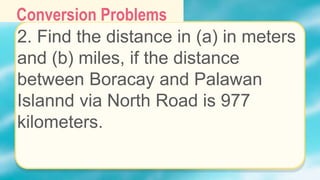

12. Conversion Problems
2. Find the distance in (a) in meters
and (b) miles, if the distance
between Boracay and Palawan
Islannd via North Road is 977
kilometers.

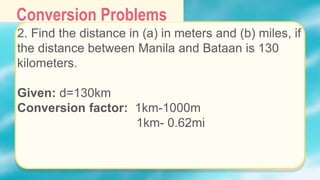

13. Conversion Problems
2. Find the distance in (a) in meters and (b) miles, if
the distance between Manila and Bataan is 130
kilometers.
Given: d=130km
Conversion factor: 1km-1000m
1km- 0.62mi

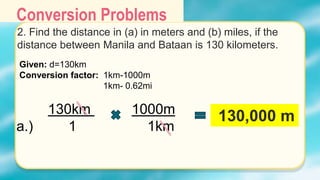

14. Conversion Problems
2. Find the distance in (a) in meters and (b) miles, if the
distance between Manila and Bataan is 130 kilometers.
Given: d=130km
Conversion factor: 1km-1000m
1km- 0.62mi
130km 1000m
a.) 1 1km
130,000 m

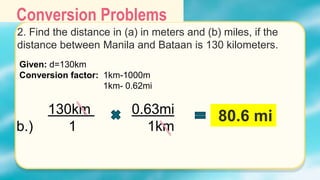

15. Conversion Problems
2. Find the distance in (a) in meters and (b) miles, if the
distance between Manila and Bataan is 130 kilometers.
Given: d=130km
Conversion factor: 1km-1000m
1km- 0.62mi
130km 0.63mi
b.) 1 1km
80.6 mi

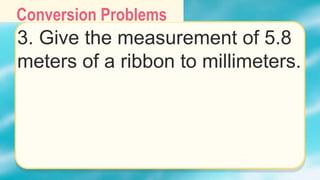

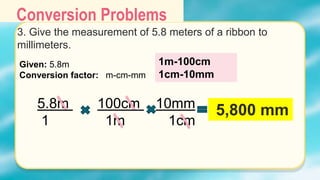

17. Conversion Problems
3. Give the measurement of 5.8 meters of a ribbon to
millimeters.
Given: 5.8m
Conversion factor: m-cm-mm
5.8m 100cm 10mm
1 1m 1cm
5,800 mm
1m-100cm
1cm-10mm

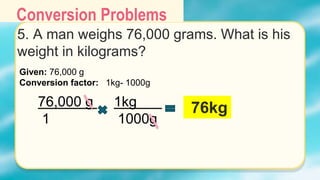

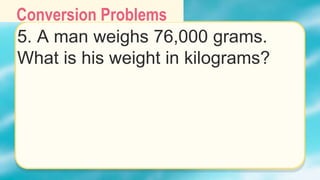

21. Conversion Problems
5. A man weighs 76,000 grams. What is his
weight in kilograms?
Given: 76,000 g
Conversion factor: 1kg- 1000g
76,000 g 1kg
1 1000g
76kg

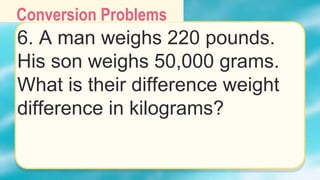

22. Conversion Problems
6. A man weighs 220 pounds.
His son weighs 50,000 grams.
What is their difference weight
difference in kilograms?
23. Conversion Problems
6. A man weighs 220 pounds. His son weighs 50,000
grams. What is their difference weight difference in
kilograms?
Given: 200 lbs
50,000 grams
Conversion factor: 1kg-2.2046lb
1kg- 1000g
a.) 200lb 1kg
1 2.204lb
90.74kg

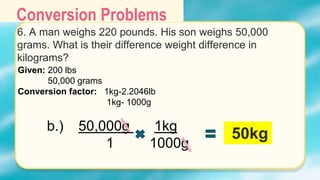

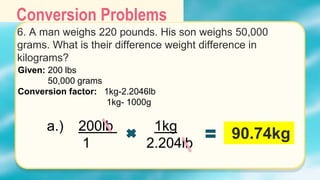

24. Conversion Problems
6. A man weighs 220 pounds. His son weighs 50,000
grams. What is their difference weight difference in
kilograms?
Given: 200 lbs
50,000 grams
Conversion factor: 1kg-2.2046lb
1kg- 1000g
b.) 50,000g 1kg
1 1000g
50kg

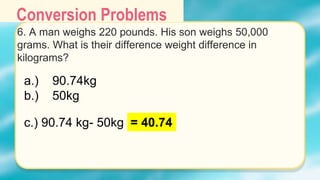

25. Conversion Problems
6. A man weighs 220 pounds. His son weighs 50,000
grams. What is their difference weight difference in
kilograms?
a.) 90.74kg
b.) 50kg
c.) 90.74 kg- 50kg = 40.74

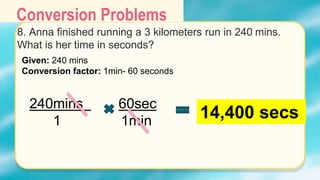

29. Conversion Problems
8. Anna finished running a 3 kilometers run in 240 mins.
What is her time in seconds?
Given: 240 mins
Conversion factor: 1min- 60 seconds
240mins 60sec
1 1min
14,400 secs

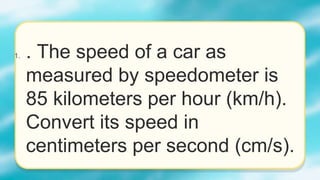

30. 1. . The speed of a car as
measured by speedometer is
85 kilometers per hour (km/h).
Convert its speed in
centimeters per second (cm/s).
31. Conversion Problems
9. The speed of a car as measured by speedometer is 85
kilometers per hour (km/h). Convert its speed in centimeters
per second (cm/s).
Given: 85km/hr
Conversion factor: km-m-cm
hr-min-sec
km 1000m 100cm 1hr 1min
Hr 1km 1m 60min 60sec
85
= 2361cm/s

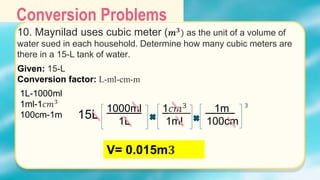

32. Conversion Problems
10. Maynilad uses cubic meter (𝒎𝟑
) as the unit of a volume of
water sued in each household. Determine how many cubic meters are
there in a 15-L tank of water.
Given: 15-L
Conversion factor: L-ml-cm-m
1L-1000ml
1ml-1𝑐𝑚3
100cm-1m
1000ml 1𝑐𝑚3
1m
1L 1ml 100cm
3
15L
V= 0.015m𝟑
33. Conversion Problems
11. Convert 1020 ⁰F to K.
Given: 1020 F⁰
Conversion factor: ⁰ F - ⁰ C- K
a.) 1020 ⁰F - ⁰C
⁰C = (5/9) (1020 -32)
⁰C= ( 5/9) ( 988)
⁰C = 548.9
b.) 548.9 ⁰C - K
K = 548.9 + 273
K= 822

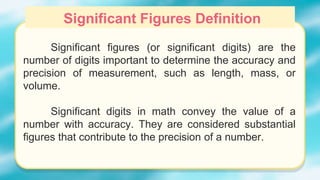

38. Significant figures (or significant digits) are the
number of digits important to determine the accuracy and
precision of measurement, such as length, mass, or
volume.
Significant digits in math convey the value of a
number with accuracy. They are considered substantial
figures that contribute to the precision of a number.
Significant Figures Definition

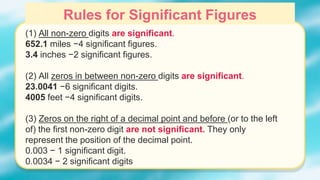

39. Rules for Significant Figures
(1) All non-zero digits are significant.
652.1 miles −4 significant figures.
3.4 inches −2 significant figures.
(2) All zeros in between non-zero digits are significant.
23.0041 −6 significant digits.
4005 feet −4 significant digits.
(3) Zeros on the right of a decimal point and before (or to the left
of) the first non-zero digit are not significant. They only
represent the position of the decimal point.
0.003 − 1 significant digit.
0.0034 − 2 significant digits

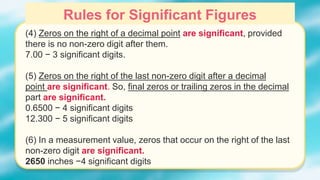

40. Rules for Significant Figures
(4) Zeros on the right of a decimal point are significant, provided
there is no non-zero digit after them.
7.00 − 3 significant digits.
(5) Zeros on the right of the last non-zero digit after a decimal
point are significant. So, final zeros or trailing zeros in the decimal
part are significant.
0.6500 − 4 significant digits
12.300 − 5 significant digits
(6) In a measurement value, zeros that occur on the right of the last
non-zero digit are significant.
2650 inches −4 significant digits

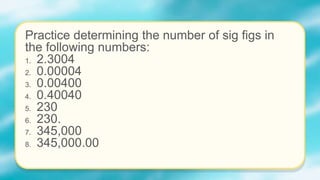

41. Practice determining the number of sig figs in
the following numbers:
1. 2.3004
2. 0.00004
3. 0.00400
4. 0.40040
5. 230
6. 230.
7. 345,000
8. 345,000.00

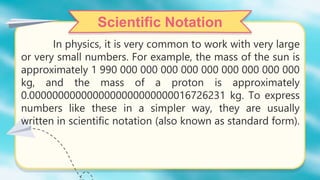

42. Scientific Notation
In physics, it is very common to work with very large
or very small numbers. For example, the mass of the sun is
approximately 1 990 000 000 000 000 000 000 000 000 000
kg, and the mass of a proton is approximately
0.0000000000000000000000000016726231 kg. To express
numbers like these in a simpler way, they are usually
written in scientific notation (also known as standard form).
43. Scientific Notation
The movement of decimal
to the left is a positive
integer of the exponent.
The movement of the
decimal to the right is a
negative integer of the
exponent.

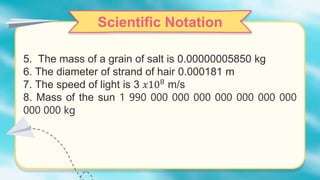

45. Scientific Notation
5. The mass of a grain of salt is 0.00000005850 kg
6. The diameter of strand of hair 0.000181 m
7. The speed of light is 3 𝑥108 m/s
8. Mass of the sun 1 990 000 000 000 000 000 000 000
000 000 kg
