Cyclovertical anomalies refer to vertical deviations of the eyes involving the cyclovertical muscles. There are various types including comitant and incomitant vertical deviations. Patterns of strabismus like V, A, X, Y patterns are classified based on how the horizontal deviation changes between upgaze and downgaze. Conditions like superior oblique overaction, palsy, inferior oblique overaction are described. Dissociated vertical deviation is an innervational disorder seen in infantile strabismus and involves predominately vertical movements of one eye drifting upward and outward. Surgical management of these conditions aims to weaken muscles or transpose them.

1. CYCLOVERTICAL
ANOMALIES
Dr NIKITA JAISWAL
IMS & SUM HOSPITAL

2. GLOSSARY
 DEFINITION
 CLASSIFICATION
 MANAGEMENT

3. CLASSIFICATION
 COMITANT HYPERDEVIATION
 DISSOCIATED VERTICAL DEVIATION
 DISSOCIATED HORIZONTAL DEVIATION

4. CYCLOVERTICAL MUSCLES
 RECTI—
 SUPERIOR RECTUS
 INFERIOR RECTUS
----------------------------------------------------------------------
 OBLIQUES--
 SUPERIOR OBLIQUE
 INFERIOR OBLIQUE

5. S

6. SUPERIOR RECTUS
MUSCLE
MUSCLE ORIGINATES FROM THE
ANNULUS OF ZINN .
INS .7.7 MM BEHIND THE LIMBUS
THIS IS PARALLEL TO THE ORBITAL
AXIS ND FORMS ANGLE OF 23’.
WHEN ABD. TAKES PLACE OPTICAL
& ORBITAL AXIS COINCIDE.
THESE ACT AS ELEVATORS ND
DEPRESSORS.

7. SUPERIOR OBLIQUE
MUSCLE
Both the obliques have oblique
course and inserted into the
posterior and temporal quadrant
sup & inferiorly.
It forms 51’ with the optical axis
in primary gaze position

8. ACTION SUPERIOR
RECTUS
INFERIOR
RECTUS
SUPERIOR
OBLIQUE
INFERIOR
OBLIQUE
PRIMARY ELEVATION DEPRESSION INTORSION EXTORSION
SECONDA
RY
INTORSION EXTORSION DEPRESSION ELEVATION
TERTIARY ADDUCTION ADDUCTION ABDUCTION ABDUCTION

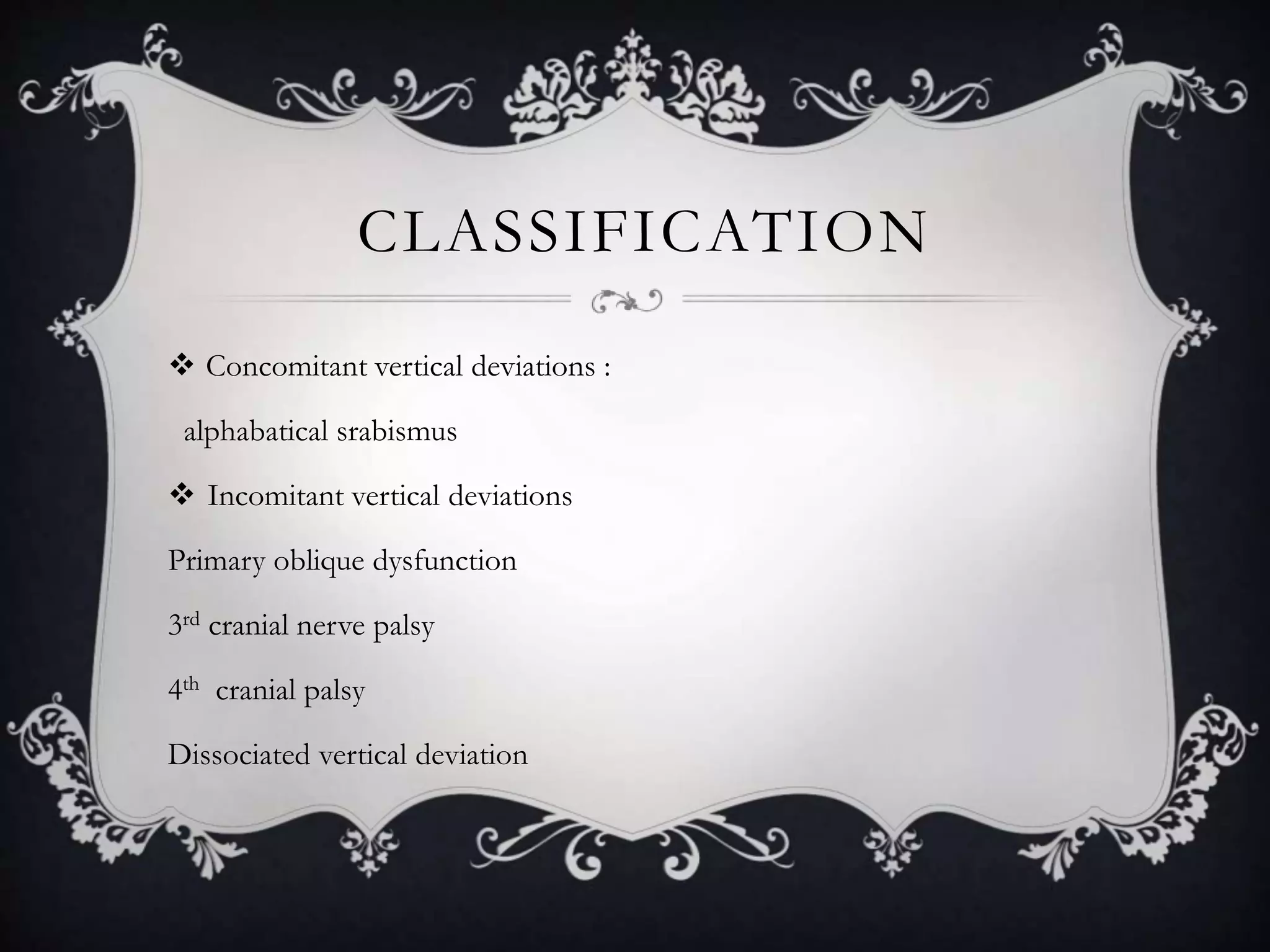

9. CLASSIFICATION
 Concomitant vertical deviations :
alphabatical srabismus
 Incomitant vertical deviations
Primary oblique dysfunction
3rd cranial nerve palsy
4th cranial palsy
Dissociated vertical deviation

10. PATTERN STRABISMUS

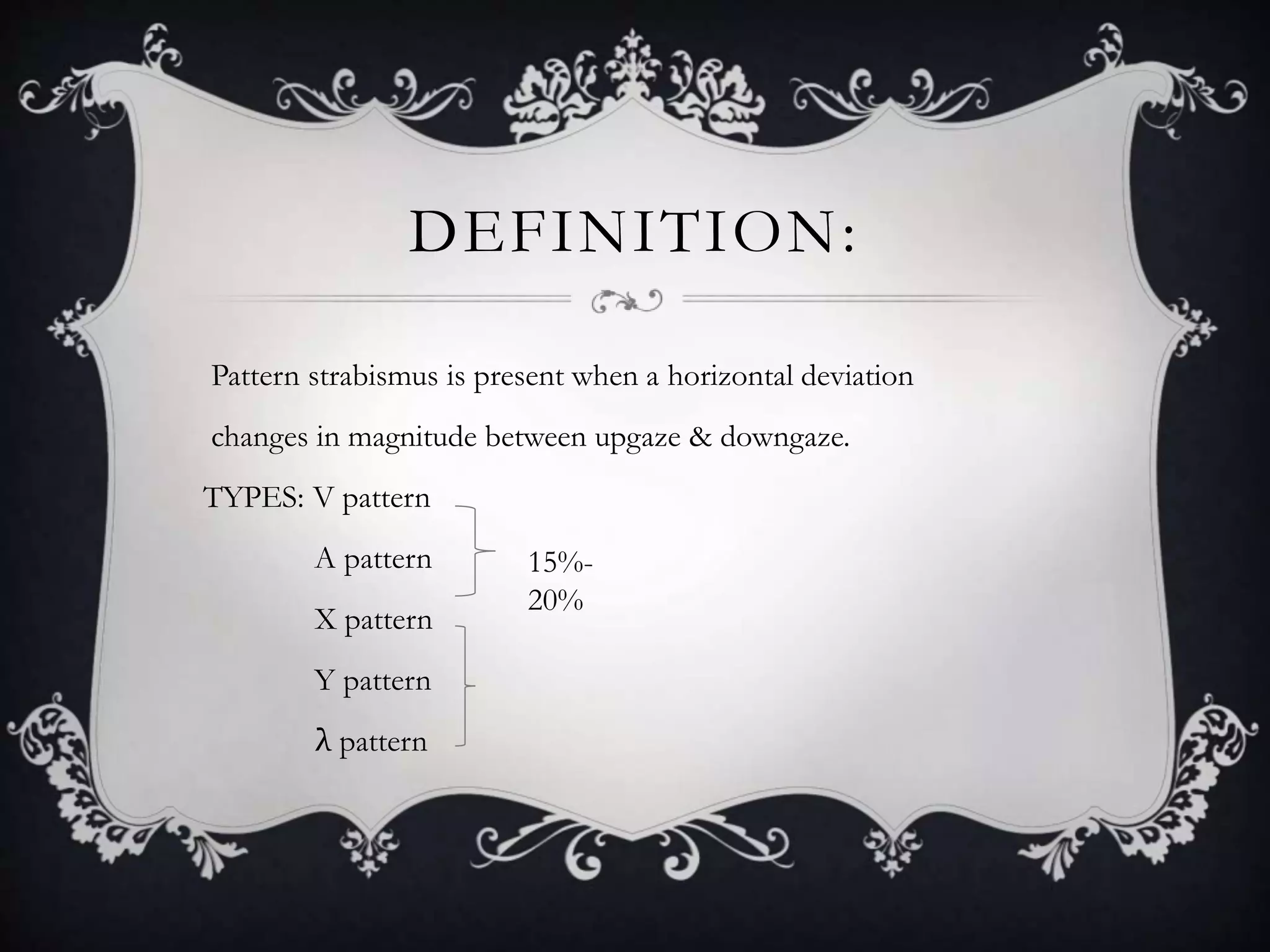

11. DEFINITION:
Pattern strabismus is present when a horizontal deviation
changes in magnitude between upgaze & downgaze.
TYPES: V pattern
A pattern
X pattern
Y pattern
λ pattern
15%-
20%

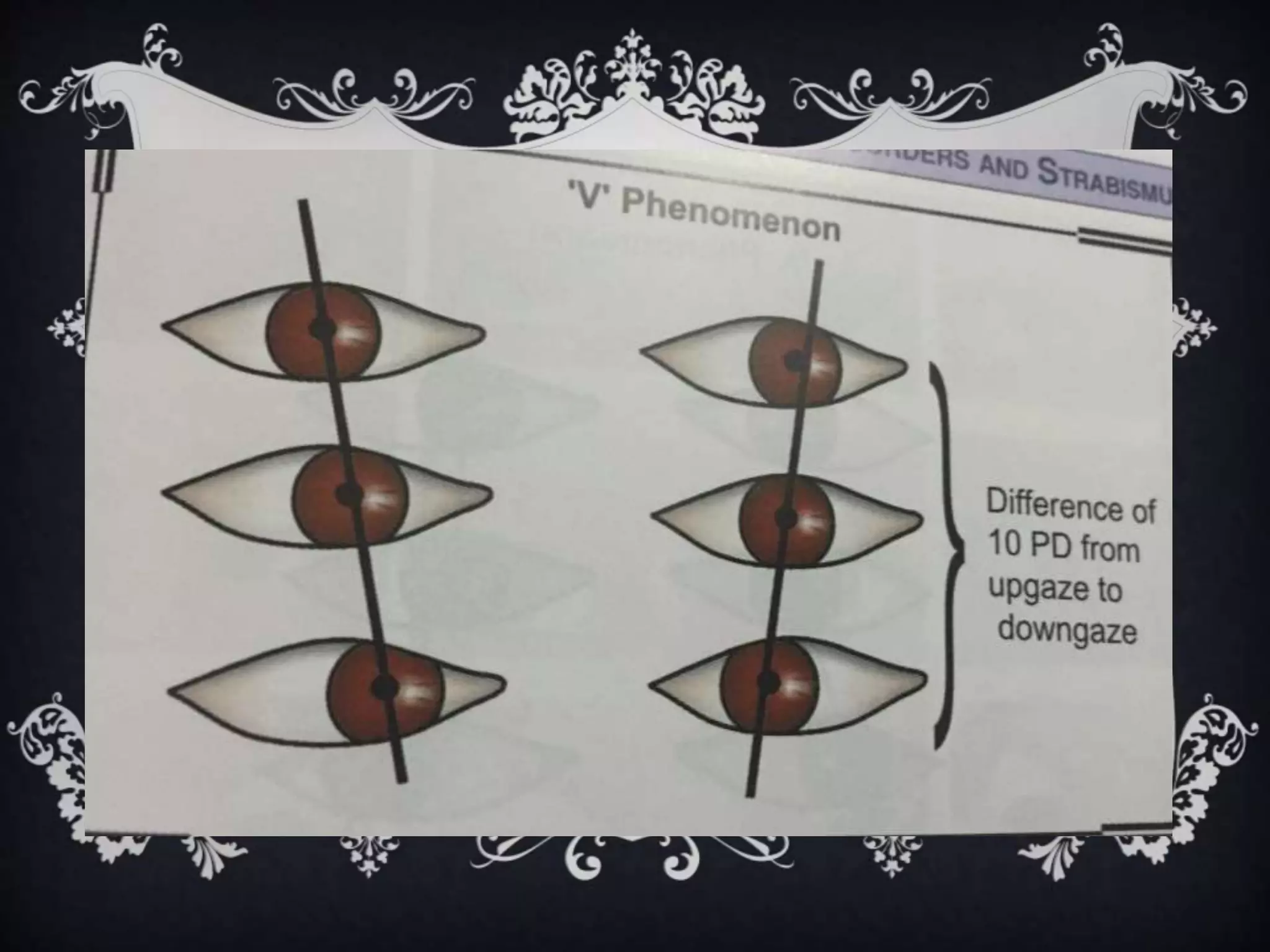

12. “V” PATTERN
 The horizontal deviation is more divergent in upgaze than in downgaze.
 Presents in patient with infantile esotropia.
 It doesn’t develop when esotropia first develops but becomes apparent at
1st yr of life
 Occurs in superior oblique palsies , craniofacial malformations.

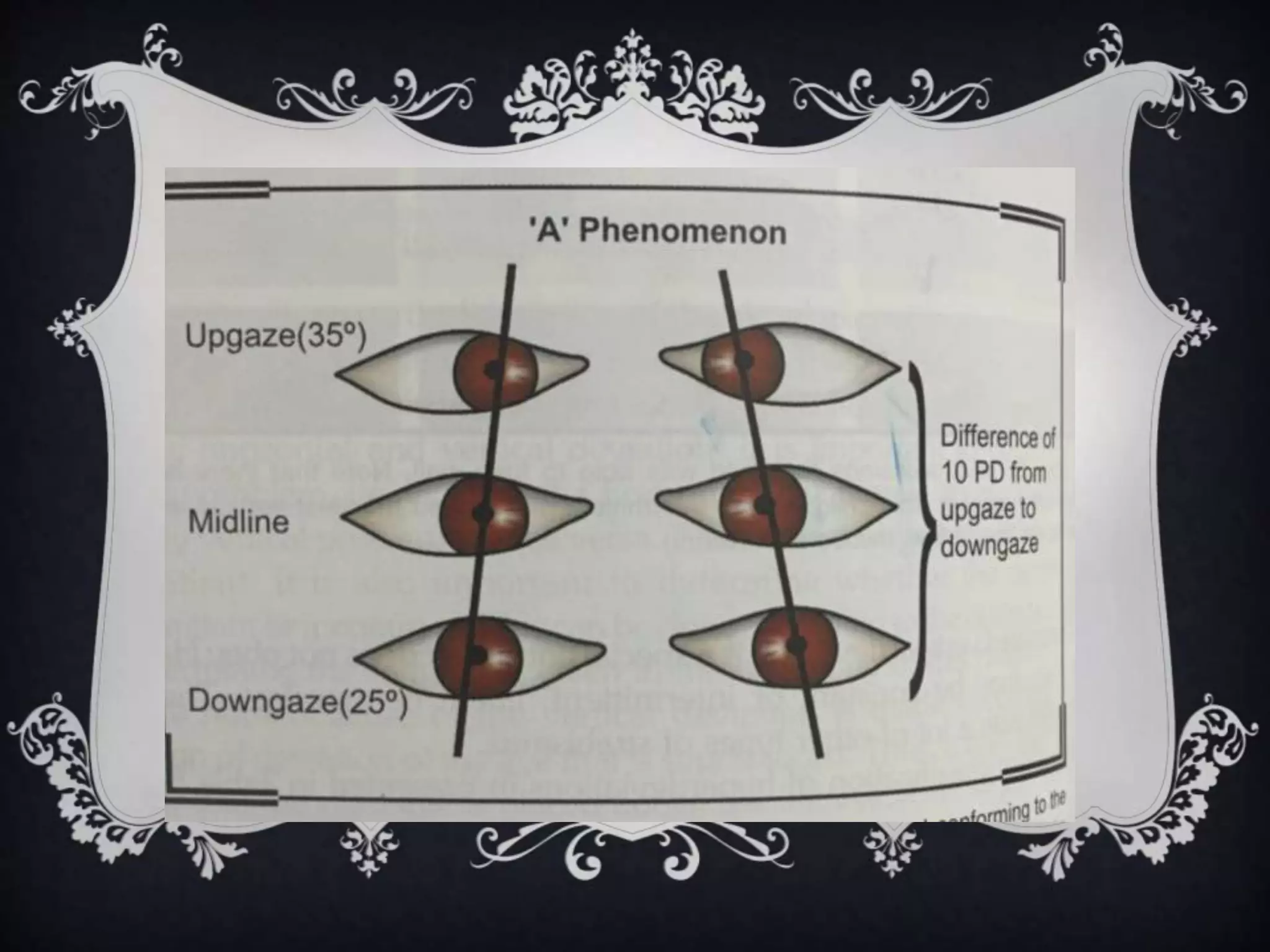

14. “A” PATTERN
 The second most common type of pattern
 Occurs more frequently in patients with exotropia.
 More common in infantile strabismus associated with craniofacial
malformations ,trisomy 21 & myelomeningocele.

16. “Y” PATTERN
 Pseudo –overaction of the IO.
 Normal in primary position & downgaze but diverge in upgaze.
 Clinical: overelevation is not seen when the eyes are moved directly
horizontally but manifested when the eyes are moved medially & slightly
elevated.
 No vertical deviations when the head tilts.

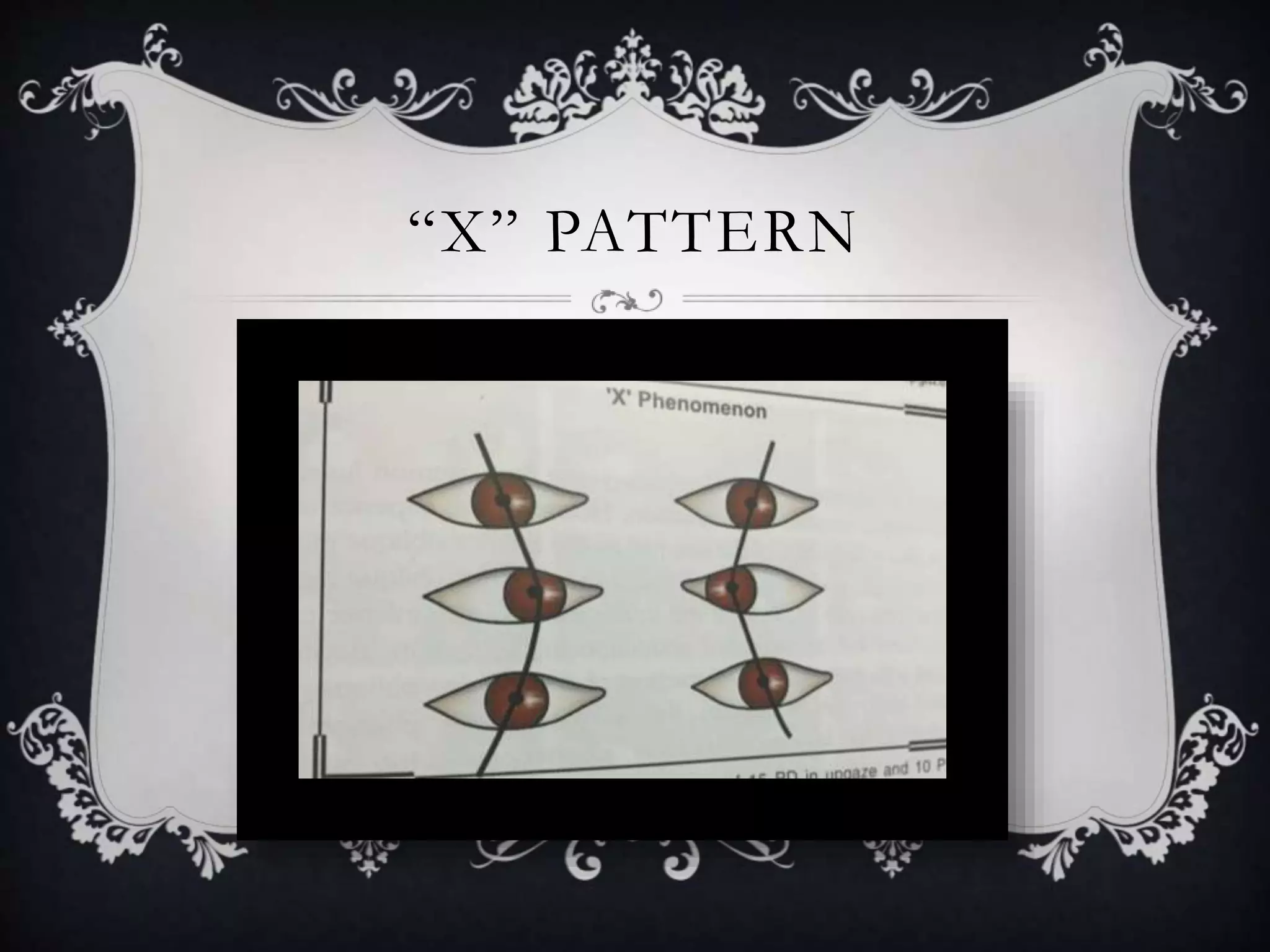

18. “X” PATTERN

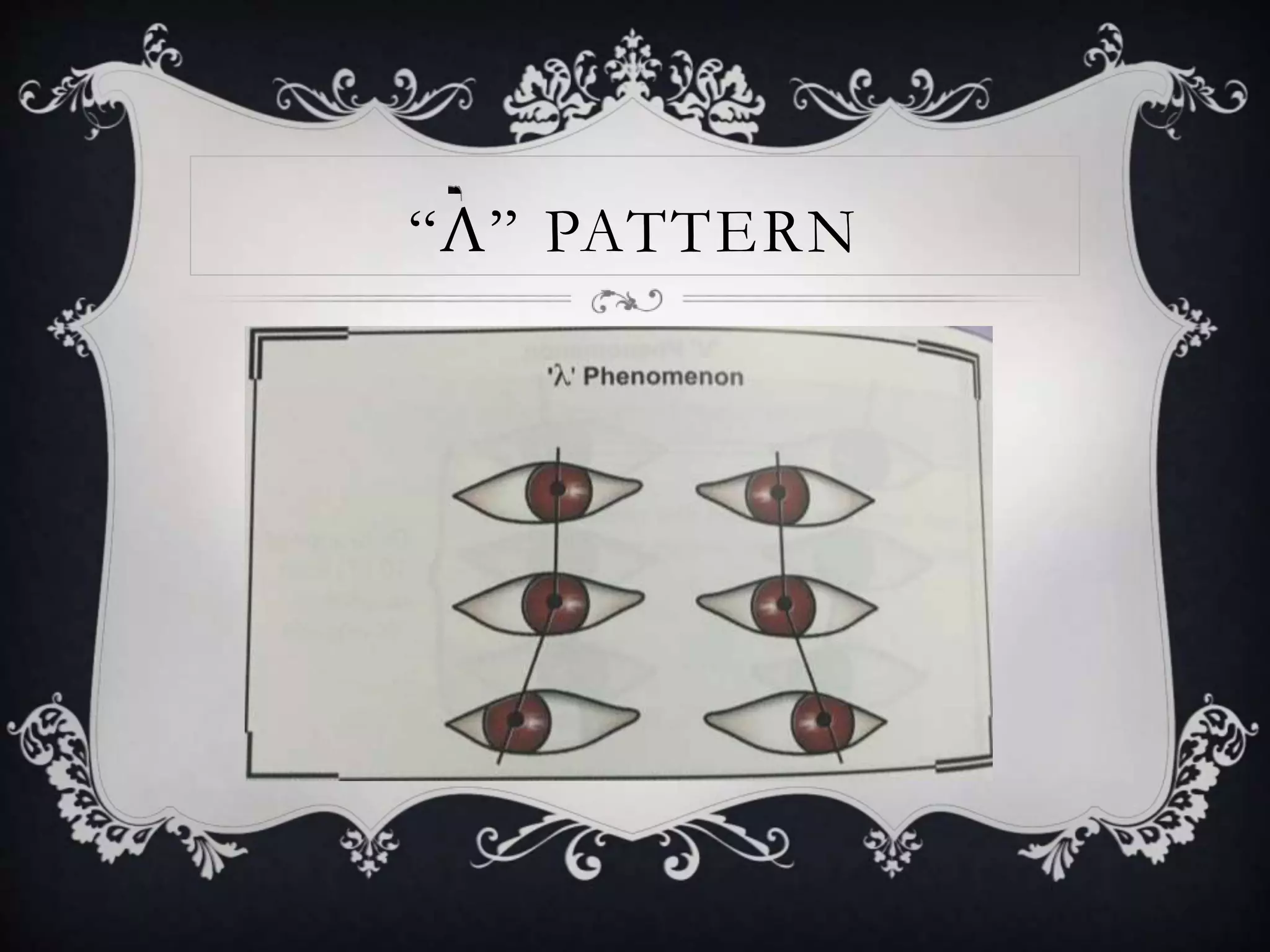

19. “Λ” PATTERN

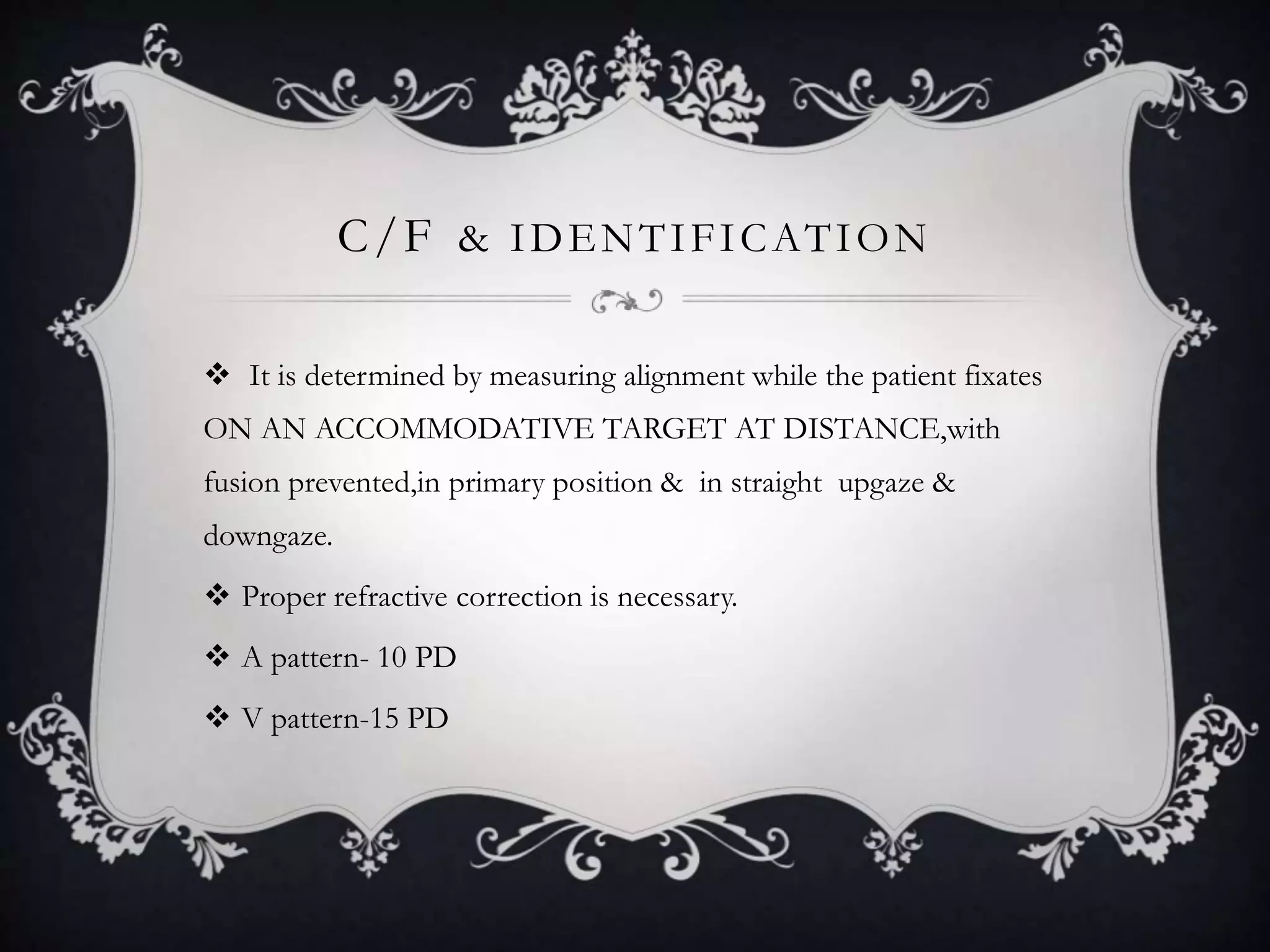

20. C/F & IDENTIFICATION
 It is determined by measuring alignment while the patient fixates
ON AN ACCOMMODATIVE TARGET AT DISTANCE,with
fusion prevented,in primary position & in straight upgaze &
downgaze.
 Proper refractive correction is necessary.
 A pattern- 10 PD
 V pattern-15 PD

22. MANAGEMENT

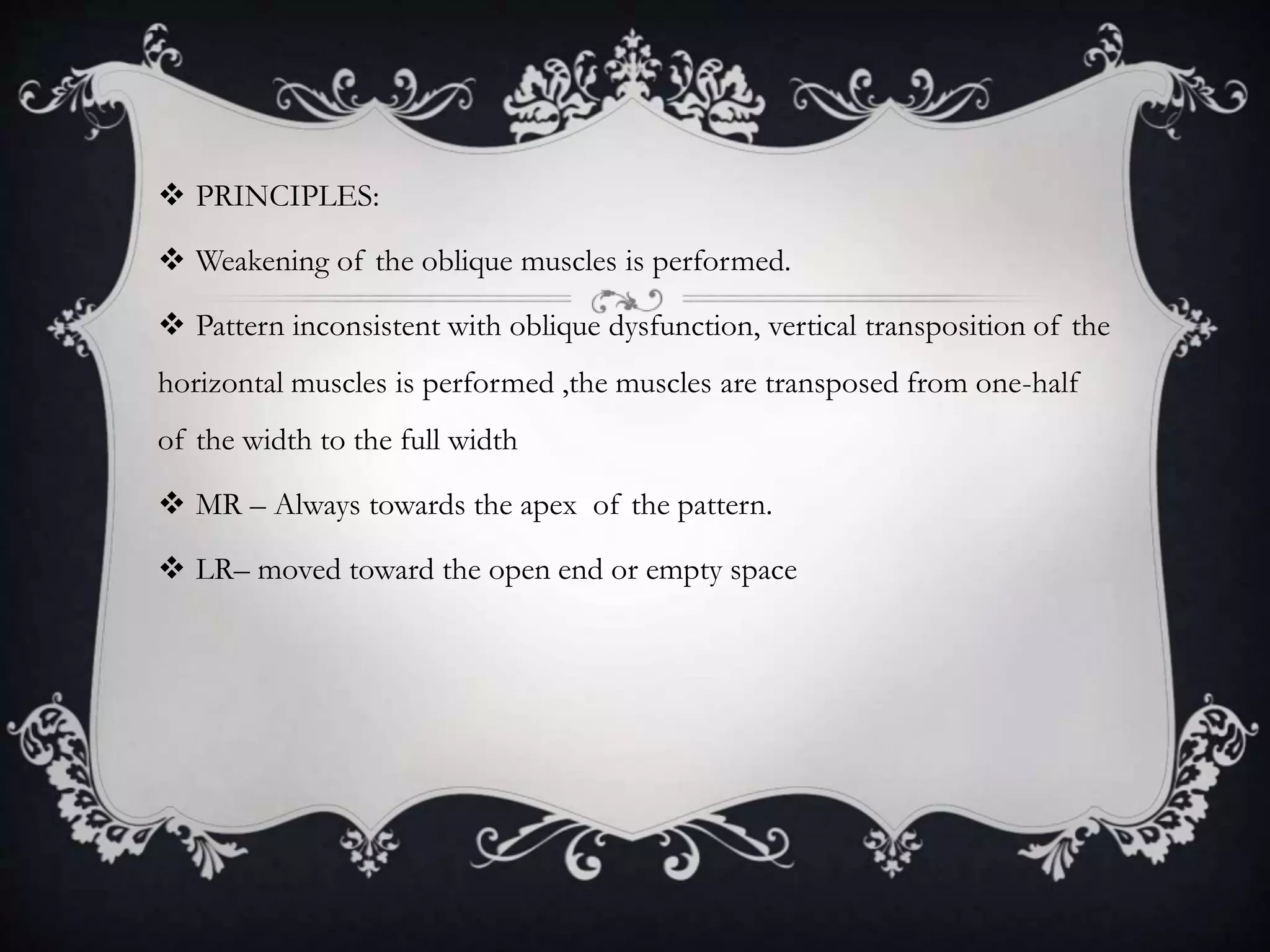

23.  PRINCIPLES:
 Weakening of the oblique muscles is performed.
 Pattern inconsistent with oblique dysfunction, vertical transposition of the
horizontal muscles is performed ,the muscles are transposed from one-half
of the width to the full width
 MR – Always towards the apex of the pattern.
 LR– moved toward the open end or empty space

24. VERTICAL DEVIATIONS

25.  CAN BE HETEROTROPIA OR HETEROPHORIA
 Vertical tropia acc to resting position of the eye.
 Hypertropia: the effected eye is higher than than the fixating eye.
 Hypotropia: if the effected eye is lower than the fixating eye.
 TRUE VERTICAL TROPIA: INNERVATIONS ARE MATCHED
IN BOTH THE EYES “RT HYPERTROPIA=LT HYPOTROPIA”

26. INCOMITANT V.TROPIAS
 INFERIOR OBLIQUE MUSCLE OVERACTION
 SUPERIOR OBLIQUE MUSCLE OVERACTION
 INFERIOR OBLIQUE MUSCLE PALSY
 SUPERIOR OBLIQUE MUSCLE PALSY

27. INF. OBLI. MUSCL E OVER ACTION
 Cause of over elevation in adduction.
 Primary: not associated with sup. Obl .muscle palsy.
 Secondary: when sup ob. Palsy or contralateral sup rectus muscle.
 C/F:-primary IO.OA develop bet 1&6 years
It occurs in acquired ESO & EXOTROPIA
B/L overaction can be asymmetric, poor vision in the eye can lead to
overaction in eye.

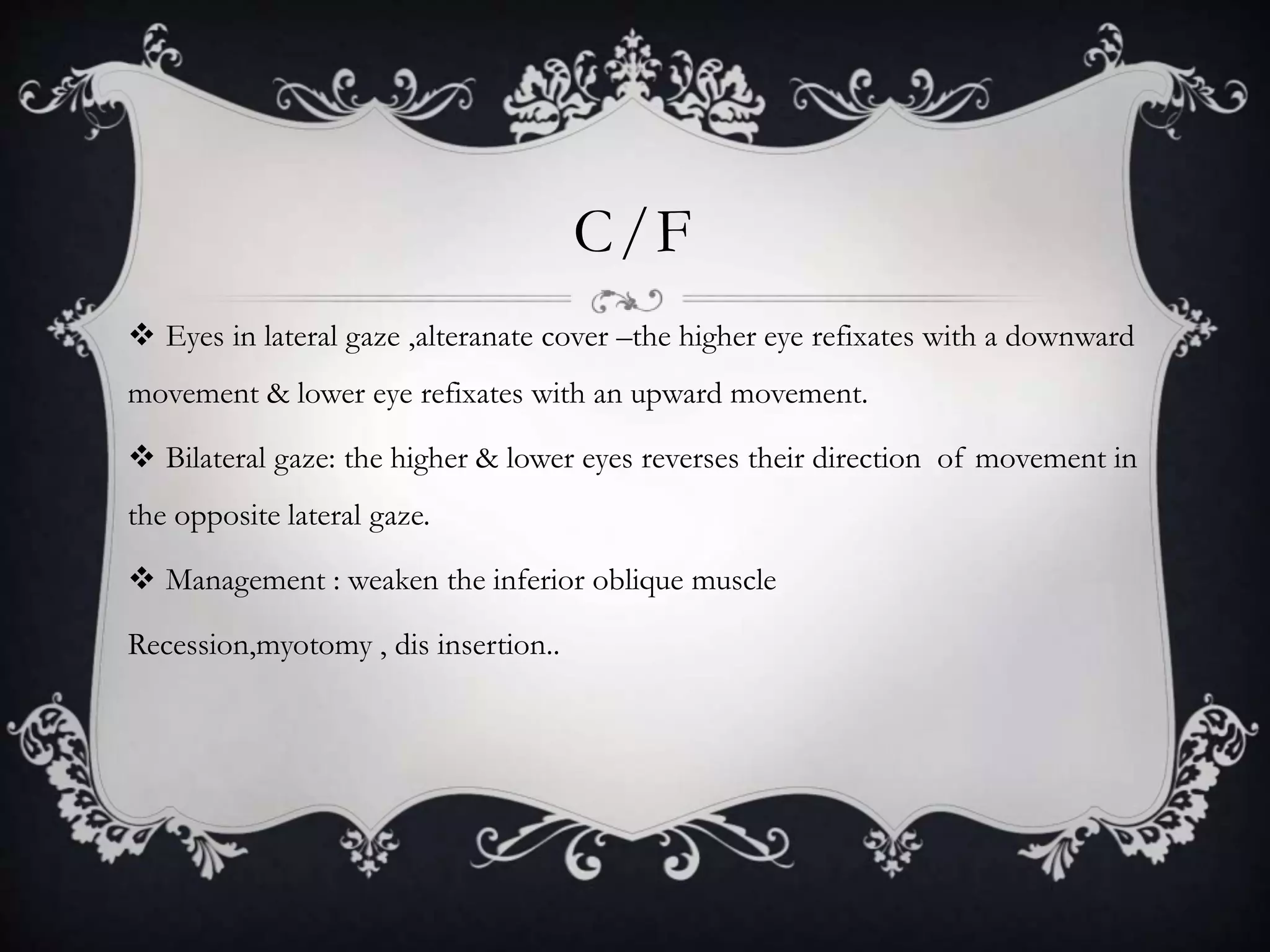

28. C/F
 Eyes in lateral gaze ,alteranate cover –the higher eye refixates with a downward
movement & lower eye refixates with an upward movement.
 Bilateral gaze: the higher & lower eyes reverses their direction of movement in
the opposite lateral gaze.
 Management : weaken the inferior oblique muscle
Recession,myotomy , dis insertion..

29. SUP.OBLI. MUSCL E OVE RACTION
 Cause of overdepression.
 C/F: vertical dev in primary positiom occurs with U/L or
asymmetric B/L overaction
 The muscle causes a hypotropia of the adducting eye.
 Mngt::superior oblique muscle weakening

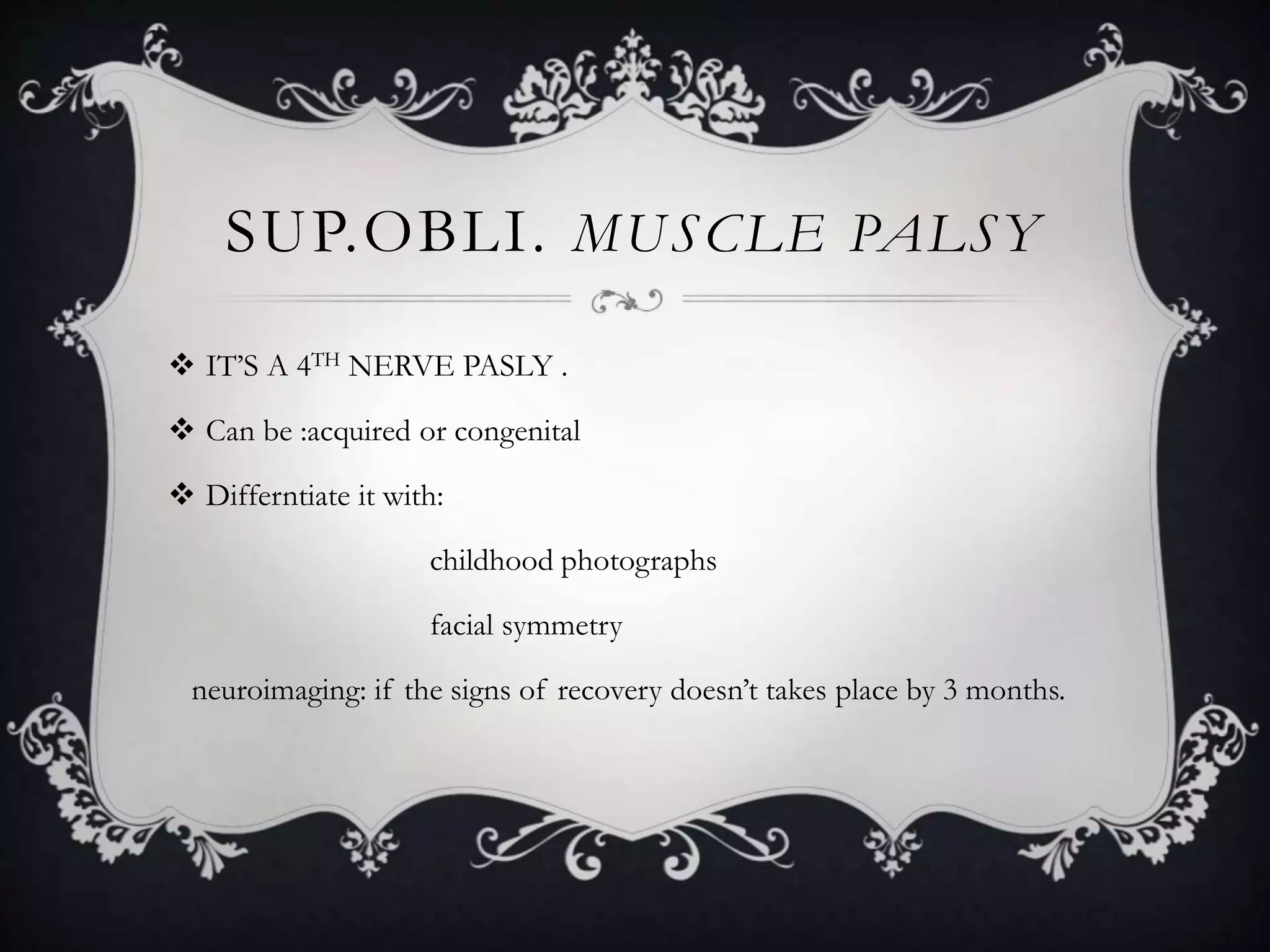

30. SUP.OBLI. MUSCLE PALSY
 IT’S A 4TH NERVE PASLY .
 Can be :acquired or congenital
 Differntiate it with:
childhood photographs
facial symmetry
neuroimaging: if the signs of recovery doesn’t takes place by 3 months.

31. C/F
 Either normal/affected eye can be preferred for fixation.
 U/L cases: the hyperdeviation is typically incomitant.minimal amount
of hypertropia
 Sup oblique func should be tested when the patient look downwards &
inwards,loss of strength—extorsion—incycylodiplopia.

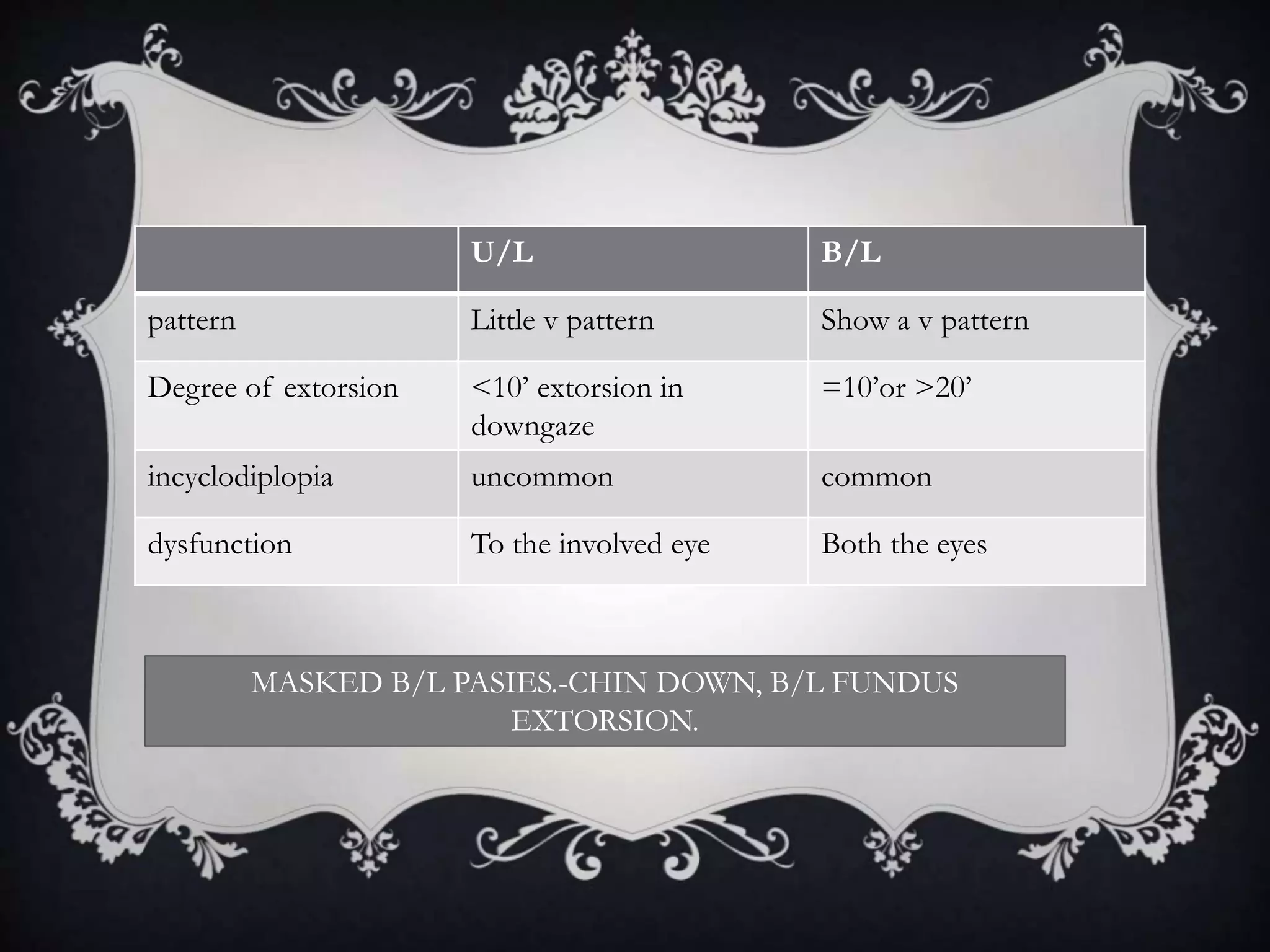

32. U/L B/L
pattern Little v pattern Show a v pattern
Degree of extorsion <10’ extorsion in
downgaze
=10’or >20’
incyclodiplopia uncommon common
dysfunction To the involved eye Both the eyes
MASKED B/L PASIES.-CHIN DOWN, B/L FUNDUS
EXTORSION.

33. INF.OBL. MUSCLE PALSY
Existence is
questioned..

34. COMITANT VERTICAL
TROPIAS
 Commonly exhibits-- Hypertropia or a Hypotropia. that does not change
significantly when gaze is shifted from one side to the other.
MONOCULAR ELEVATION DEFICIENCY: Involves a limitation of upward
gaze with a hypotropia ,this pattern is caused by restriction of the IR or by an
innervational deficit. Pts may have a combination of a restriction & elevator
muscle deficit.

35. C/F
 Hypotropia of the involved eye that increases in upgaze
 A chin-up position with fusion in downgaze/ptosis/pseudoptosis
 C/F of 3 forms of MED
 Restriction
 Elevator muscle innervational deficit
 combination

36. MANAGEMENT
-Indications: a)large vertical deviations in primary position.
b) a chin up head position.
If restrictions: Inferior rectus recessed using an adjustable suture
No restrictions: MR & LR can be transposed toward the superior
rectus muscless.

37. DISSOCIATED VERTICAL DEVIATION

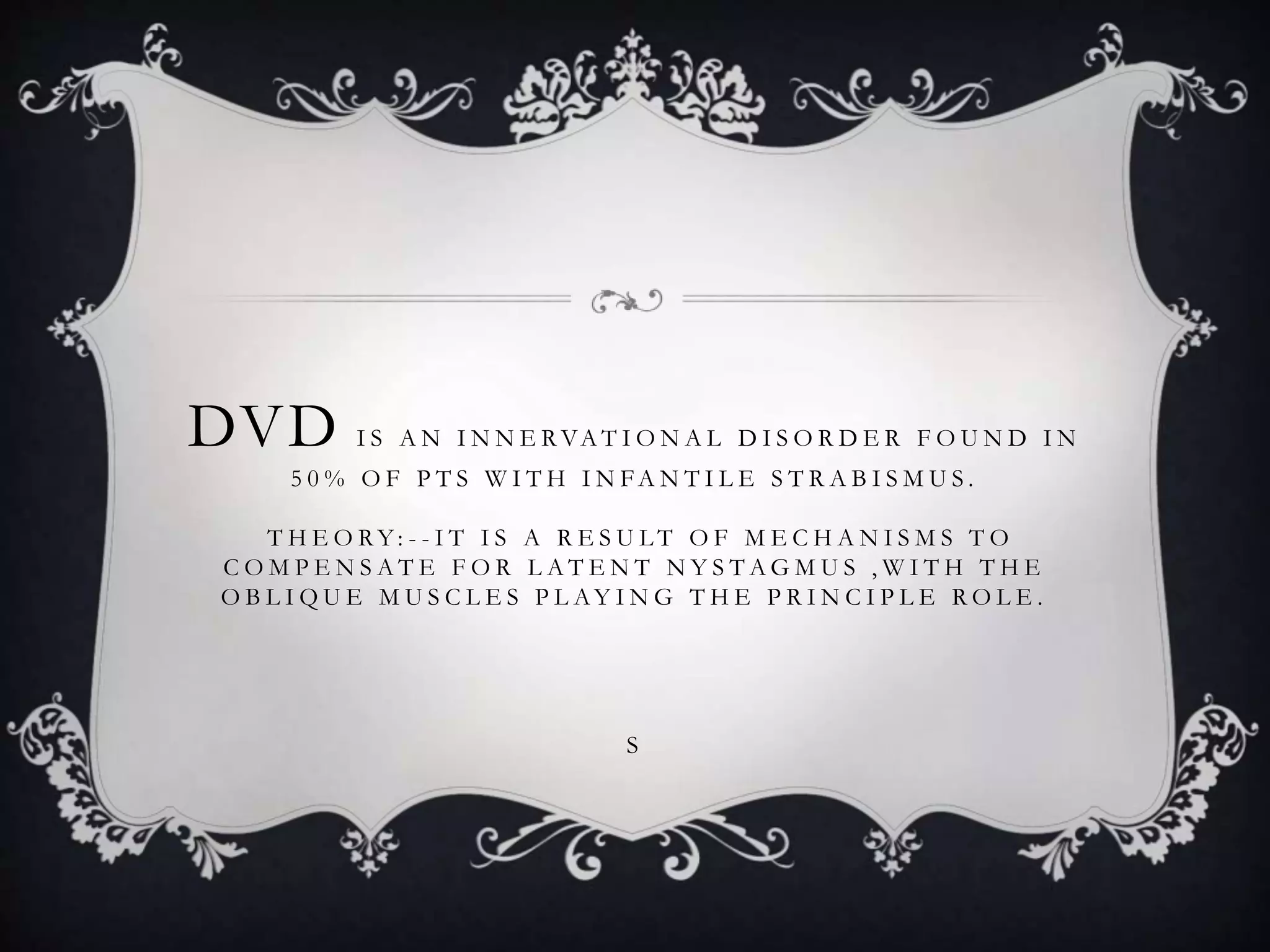

38. DVD I S A N I N N E R VA T I O N A L D I S O R D E R F O U N D I N
5 0 % O F P T S W I T H I N F A N T I L E S T R A B I S M U S .
T H E O R Y : - - I T I S A R E S U L T O F M E C H A N I S M S T O
C O M P E N S A T E F O R L A T E N T N Y S T A G M U S , W I T H T H E
O B L I Q U E M U S C L E S P L A Y I N G T H E P R I N C I P L E R O L E .
S

39. C/F
 The vertical movement usually predominates
 Either eye slowly drifts upward & outward.
 DVD Is usually bilateral but frequently asyymetrical.
 Manifest dvd or latent dvd.
Measurement:a base down prism is placed infront of the upwardly deviating
eye while it is behind occluder., th eoccluder is shifted to the fixating lower
eye nd the prism power is noted when the deviated eye shows no downward
movement to refixate.

40. MANAGEMENT
 Surgery on the vertical muscles improves the condition
 Recessions of thcan be performed.e superior rectus muscle
Range—6 to 10 mm according to the hypertropia
Inf rectus muscle resection
