MADDOX ROD OPTOM FASLU MUHAMMED
 It is based on the principle of dissociation  Maddox Rod consists of a series of plano cylinder lenses about 3mm in diameter, mounted in a trial frame lens or in a refractor head  A spot of light viewed through the Maddox rod appears as an elongated streak  The Maddox rod is often colored usually red.

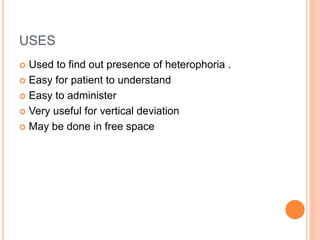

USES  Used to find out presence of heterophoria .  Easy for patient to understand  Easy to administer  Very useful for vertical deviation  May be done in free space
MADDOX ROD TEST  Equipment required are (1) Maddox rod (2) Small fixation light (3) Prism(to asses the degree of deviation)
PROCEDURE  Reduce room illumination  Maddox rod is placed in front of one eye  Measuring horizontal deviations Maddox rod axes are placed horizontal which produces vertical streak  Measuring vertical deviations Maddox rod axes are placed vertical which produces horizontal streak  Patient initially views with both eyes open
PROCEDURE FOR HORIZONTAL DIVIATION  Maddox rod is placed horizontally(vertical streak) in front of right eye  With strabismics,the Maddox Rod is best placed over the fixating eye.  Ensure that patient can see white light and streak simultaneously  Ask if the streak is to the right or to the left of the light.
 With Maddox Rod in front of the right eye  If the vertical streak of line passes directly through the centre of the spot light it indicates orthophoria  If the vertical streak of light appears to the left of the spot light it indicates exophoria.  If the vertical streak of light appears to the right of the streak light it indicates esophoria.

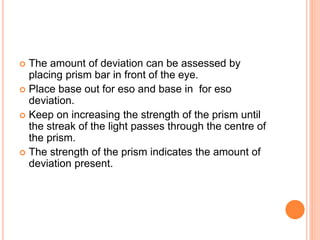

 The amount of deviation can be assessed by placing prism bar in front of the eye.  Place base out for eso and base in for eso deviation.  Keep on increasing the strength of the prism until the streak of the light passes through the centre of the prism.  The strength of the prism indicates the amount of deviation present.

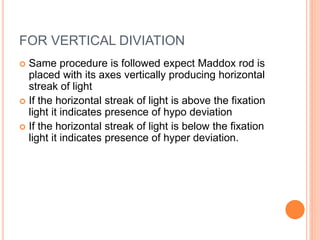

FOR VERTICAL DIVIATION  Same procedure is followed expect Maddox rod is placed with its axes vertically producing horizontal streak of light  If the horizontal streak of light is above the fixation light it indicates presence of hypo deviation  If the horizontal streak of light is below the fixation light it indicates presence of hyper deviation.
