1. www.glcnetworks.com
BGP on Mikrotik
GLC webinar, 6 october 2016
Achmad Mardiansyah
achmad@glcnetworks.com
GLC Networks, Indonesia

2. www.glcnetworks.com
Agenda
● Introduction
● BGP
● BGP on mikrotik
● Demo
● Q & A
2

3. www.glcnetworks.com

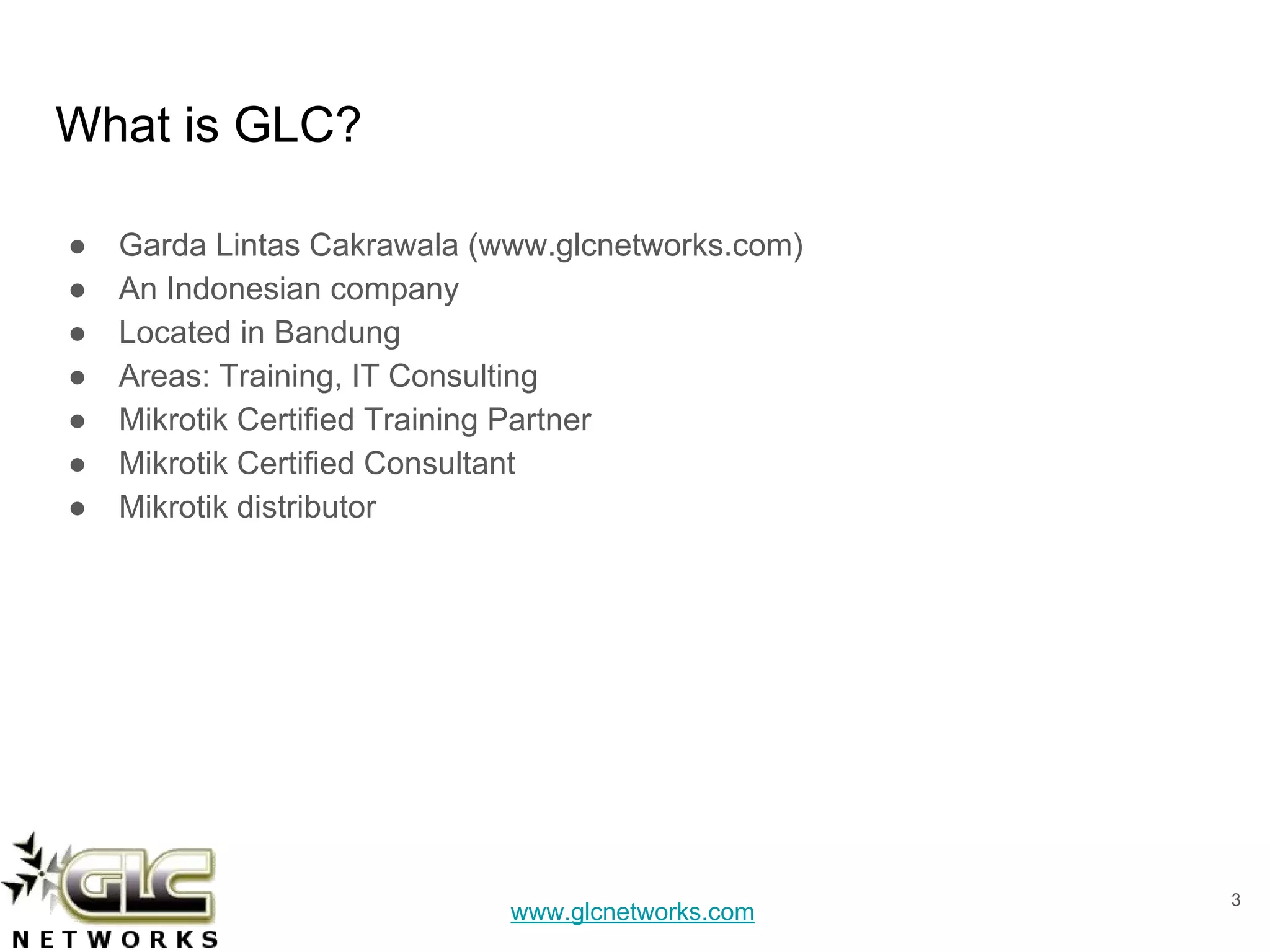

What is GLC?
● Garda Lintas Cakrawala (www.glcnetworks.com)
● An Indonesian company
● Located in Bandung
● Areas: Training, IT Consulting
● Mikrotik Certified Training Partner
● Mikrotik Certified Consultant
● Mikrotik distributor
3

4. www.glcnetworks.com

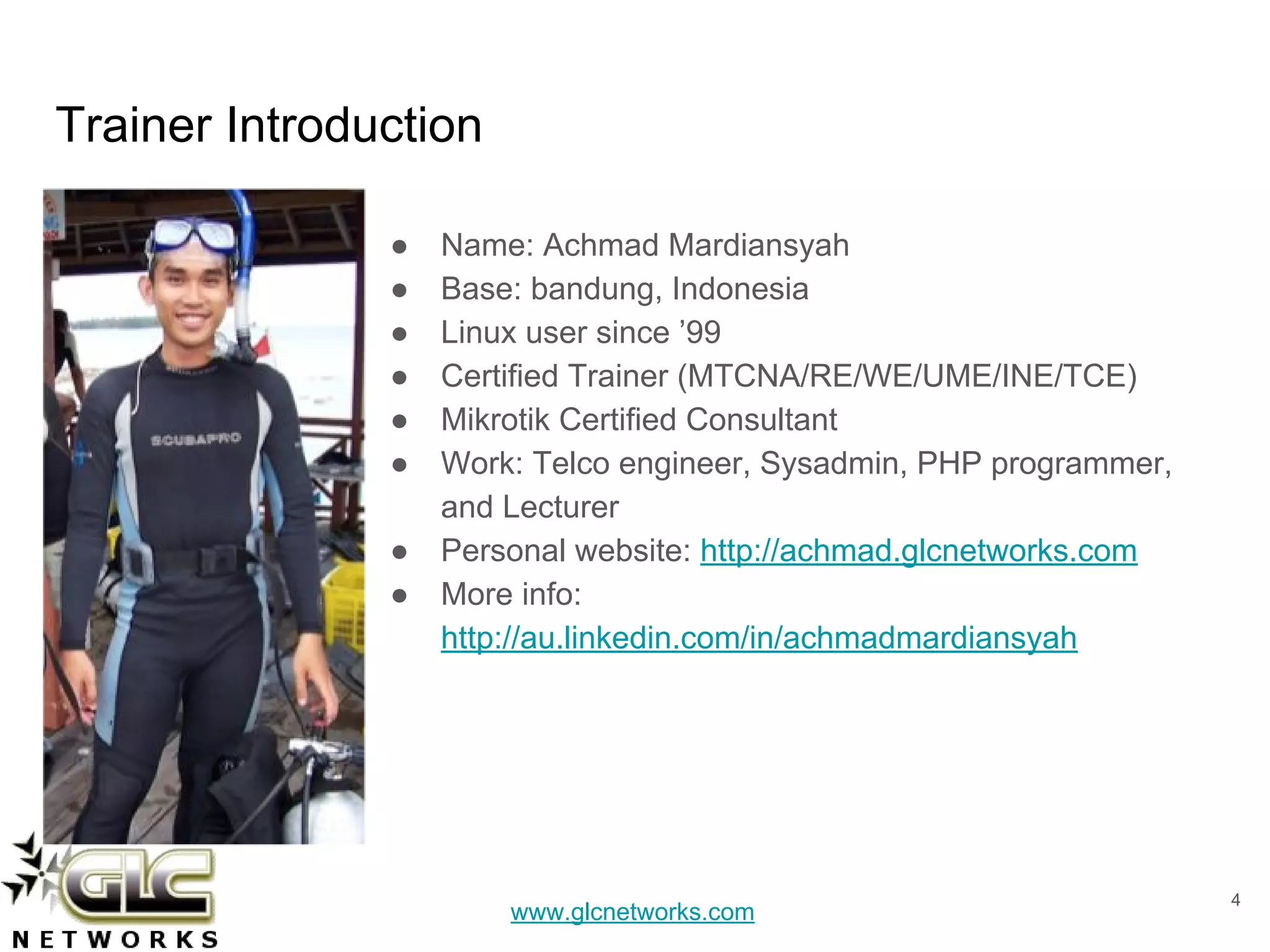

Trainer Introduction
● Name: Achmad Mardiansyah
● Base: bandung, Indonesia
● Linux user since ’99
● Certified Trainer (MTCNA/RE/WE/UME/INE/TCE)
● Mikrotik Certified Consultant
● Work: Telco engineer, Sysadmin, PHP programmer,
and Lecturer
● Personal website: http://achmad.glcnetworks.com
● More info:
http://au.linkedin.com/in/achmadmardiansyah
4

5. www.glcnetworks.com

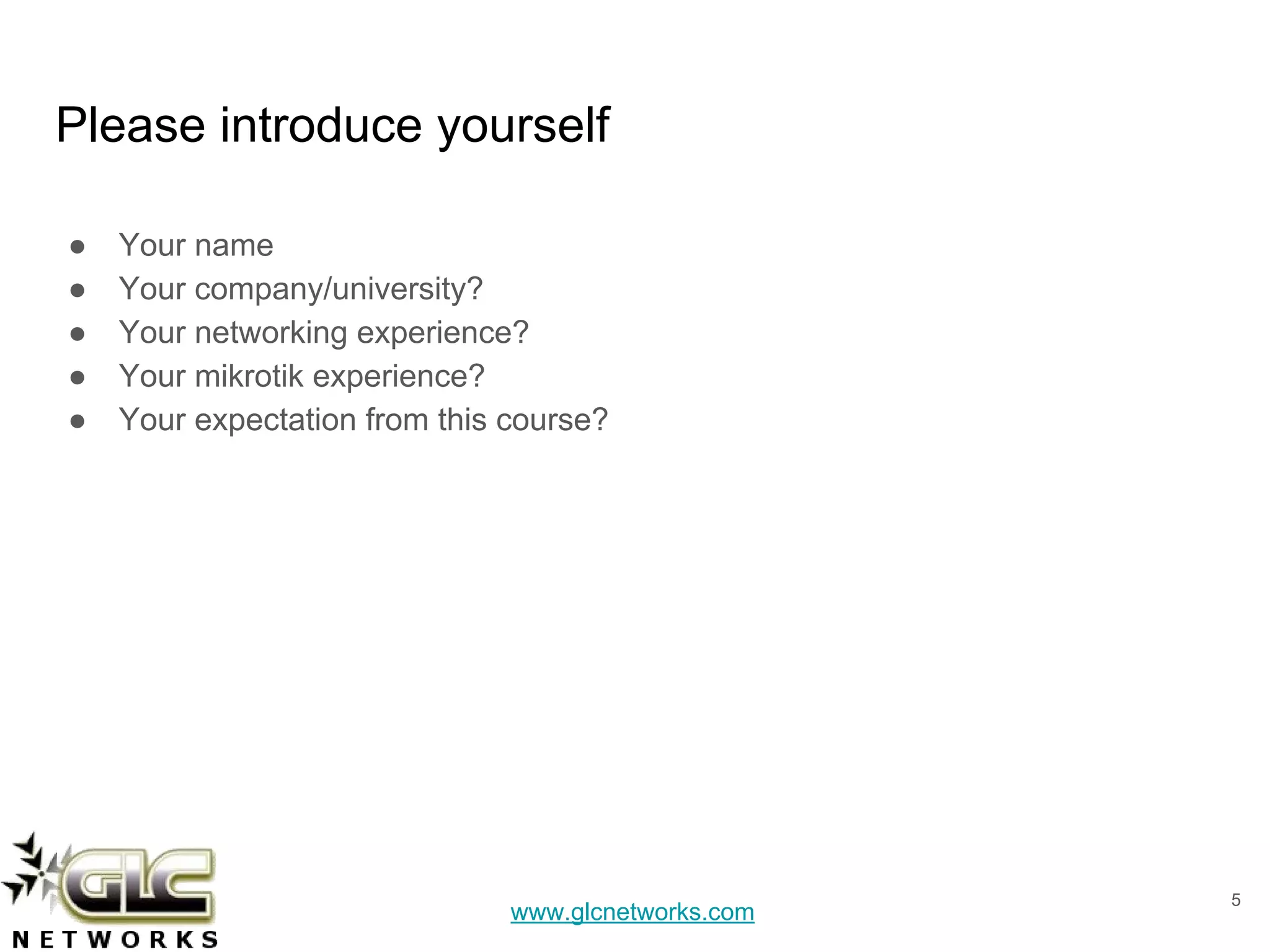

Please introduce yourself
● Your name
● Your company/university?
● Your networking experience?
● Your mikrotik experience?
● Your expectation from this course?
5

6. www.glcnetworks.com
What is Mikrotik?
● Name of a company
● A brand
● A program (e.g. mikrotik academy)
● Headquarter: Riga, Latvia
6

7. www.glcnetworks.com

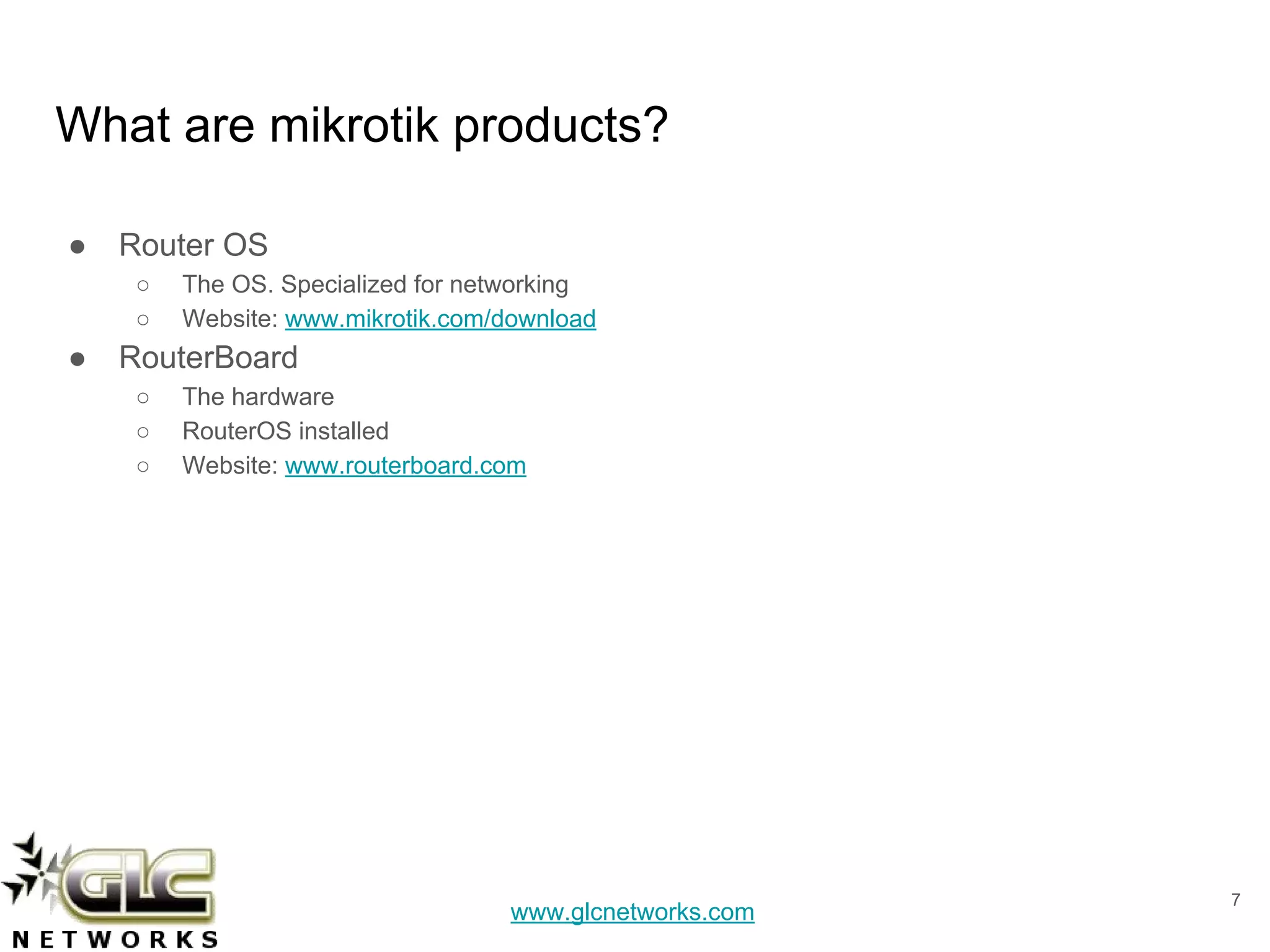

What are mikrotik products?
● Router OS
○ The OS. Specialized for networking
○ Website: www.mikrotik.com/download
● RouterBoard
○ The hardware
○ RouterOS installed
○ Website: www.routerboard.com
7

8. www.glcnetworks.com
What Router OS can do?
● Go to www.mikrotik.com
○ Download: what_is_routeros.pdf
○ Download: product catalog
○ Download: newsletter
8

9. www.glcnetworks.com

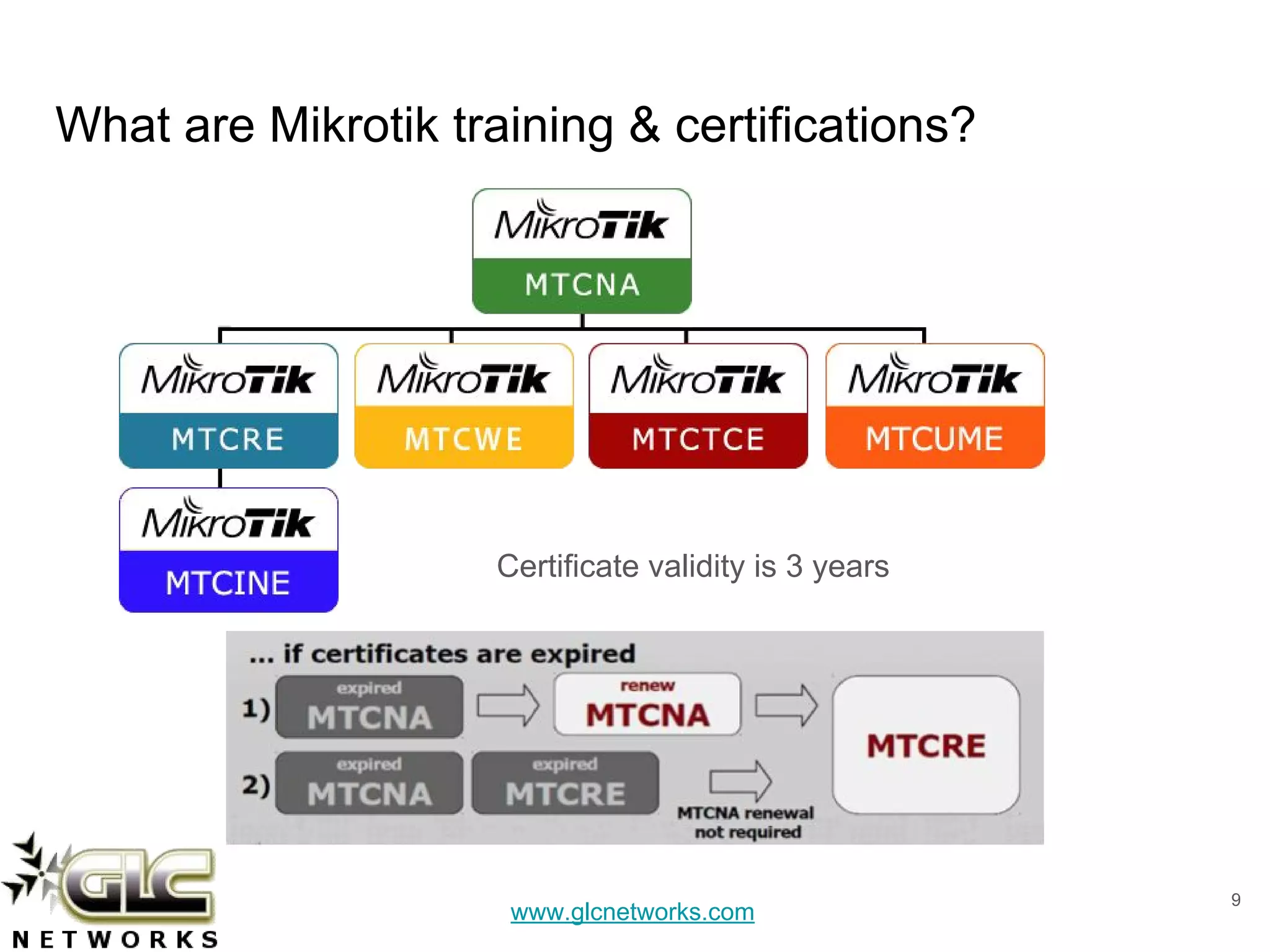

What are Mikrotik training & certifications?
9
Certificate validity is 3 years

10. www.glcnetworks.com
BGP (Border Gateway Protocol)
10

11. www.glcnetworks.com

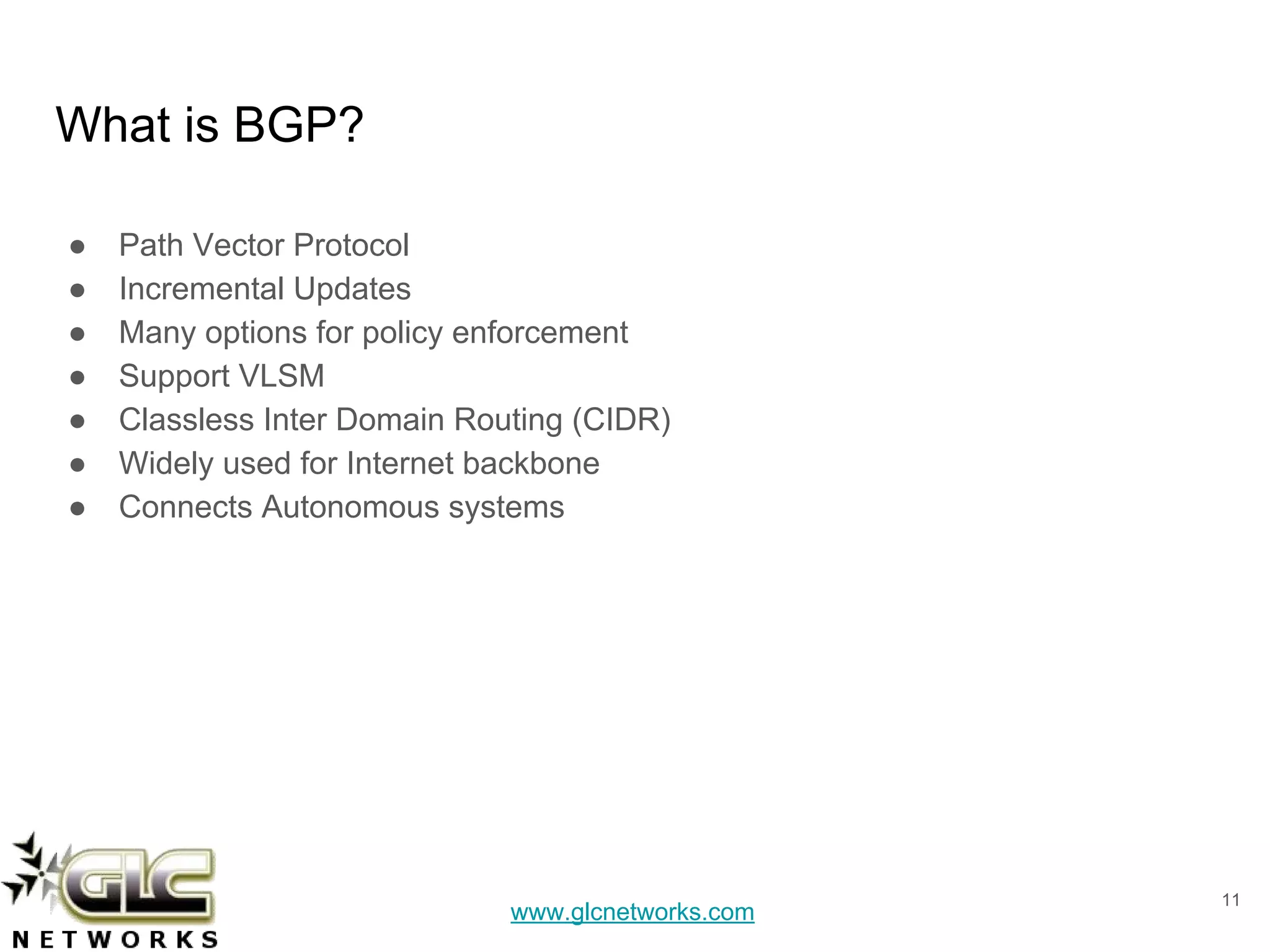

What is BGP?
● Path Vector Protocol
● Incremental Updates
● Many options for policy enforcement
● Support VLSM
● Classless Inter Domain Routing (CIDR)
● Widely used for Internet backbone
● Connects Autonomous systems
11

12. www.glcnetworks.com

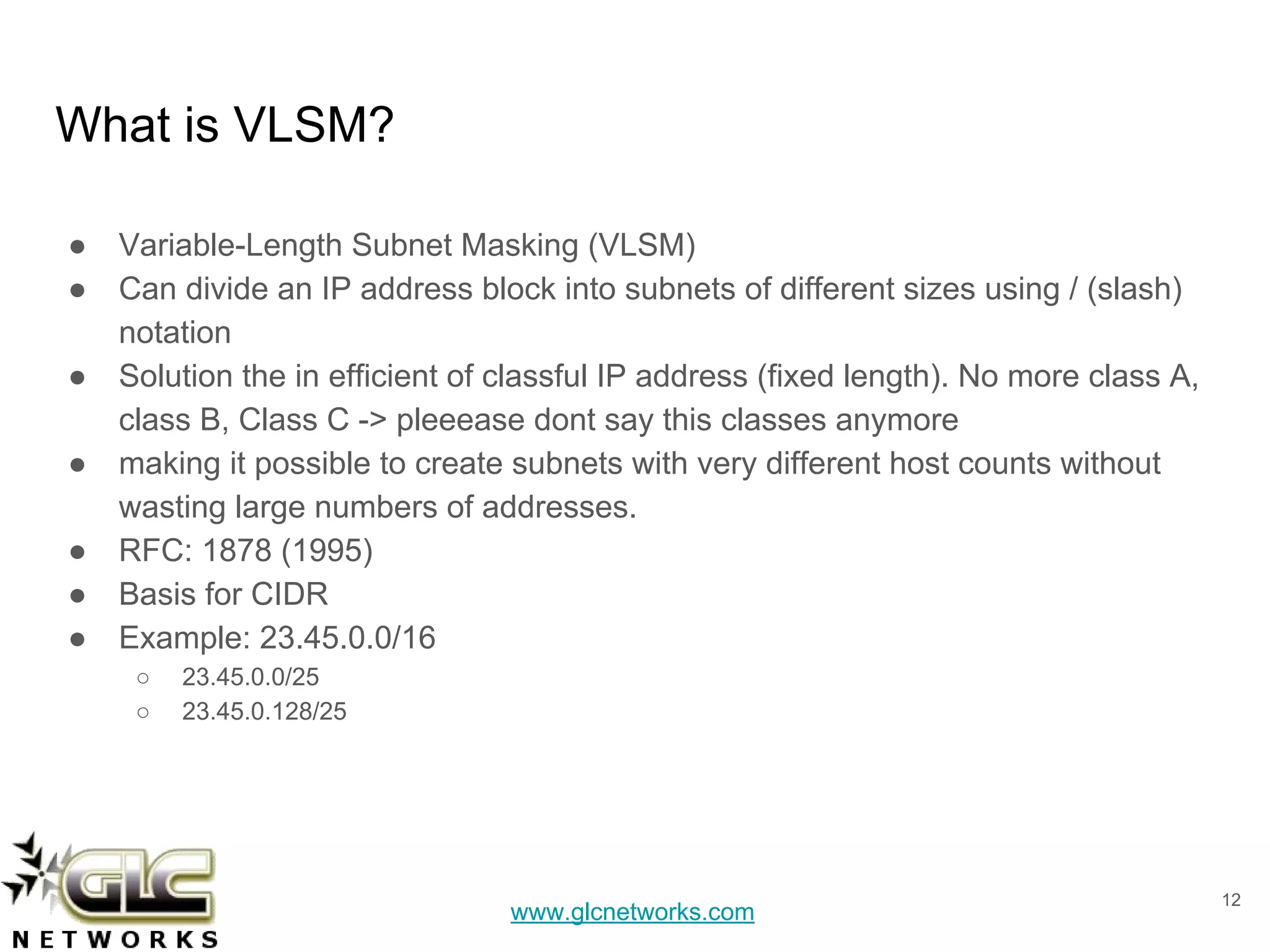

What is VLSM?
● Variable-Length Subnet Masking (VLSM)
● Can divide an IP address block into subnets of different sizes using / (slash)
notation
● Solution the in efficient of classful IP address (fixed length). No more class A,
class B, Class C -> pleeease dont say this classes anymore
● making it possible to create subnets with very different host counts without
wasting large numbers of addresses.
● RFC: 1878 (1995)
● Basis for CIDR
● Example: 23.45.0.0/16
○ 23.45.0.0/25
○ 23.45.0.128/25
12

13. www.glcnetworks.com

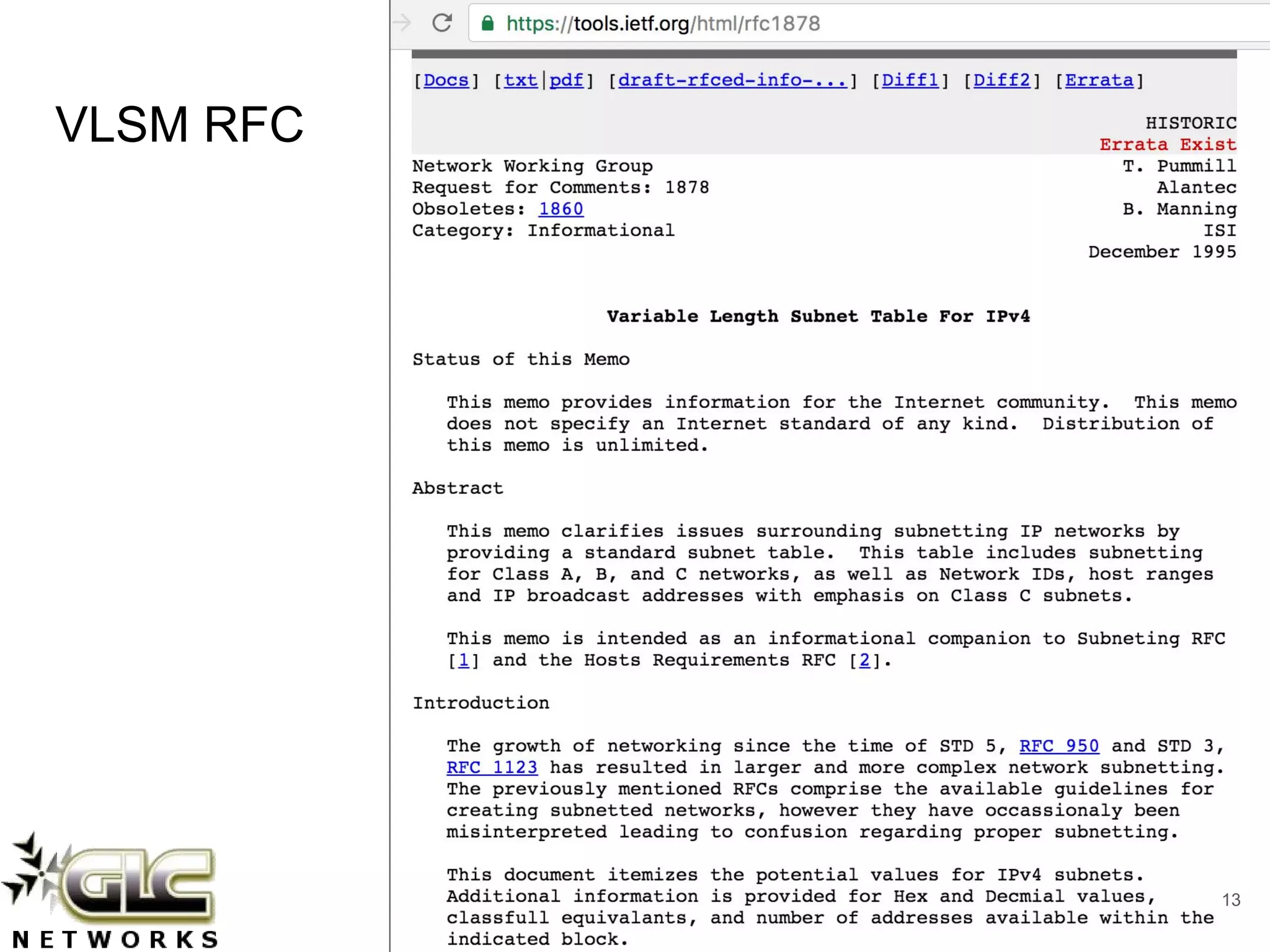

VLSM RFC
13

14. www.glcnetworks.com

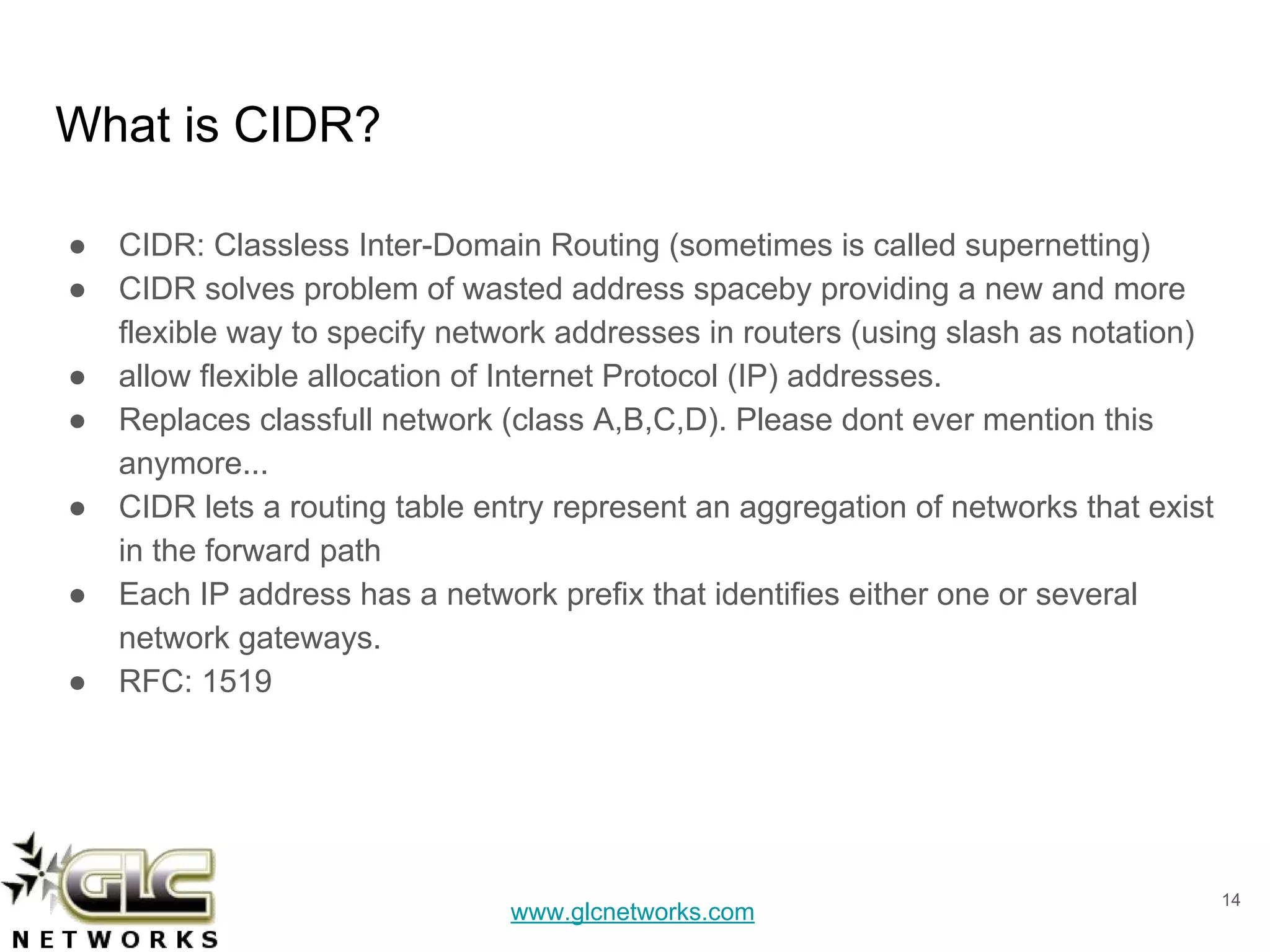

What is CIDR?
● CIDR: Classless Inter-Domain Routing (sometimes is called supernetting)
● CIDR solves problem of wasted address spaceby providing a new and more
flexible way to specify network addresses in routers (using slash as notation)
● allow flexible allocation of Internet Protocol (IP) addresses.
● Replaces classfull network (class A,B,C,D). Please dont ever mention this
anymore...
● CIDR lets a routing table entry represent an aggregation of networks that exist
in the forward path
● Each IP address has a network prefix that identifies either one or several
network gateways.
● RFC: 1519
14

15. www.glcnetworks.com

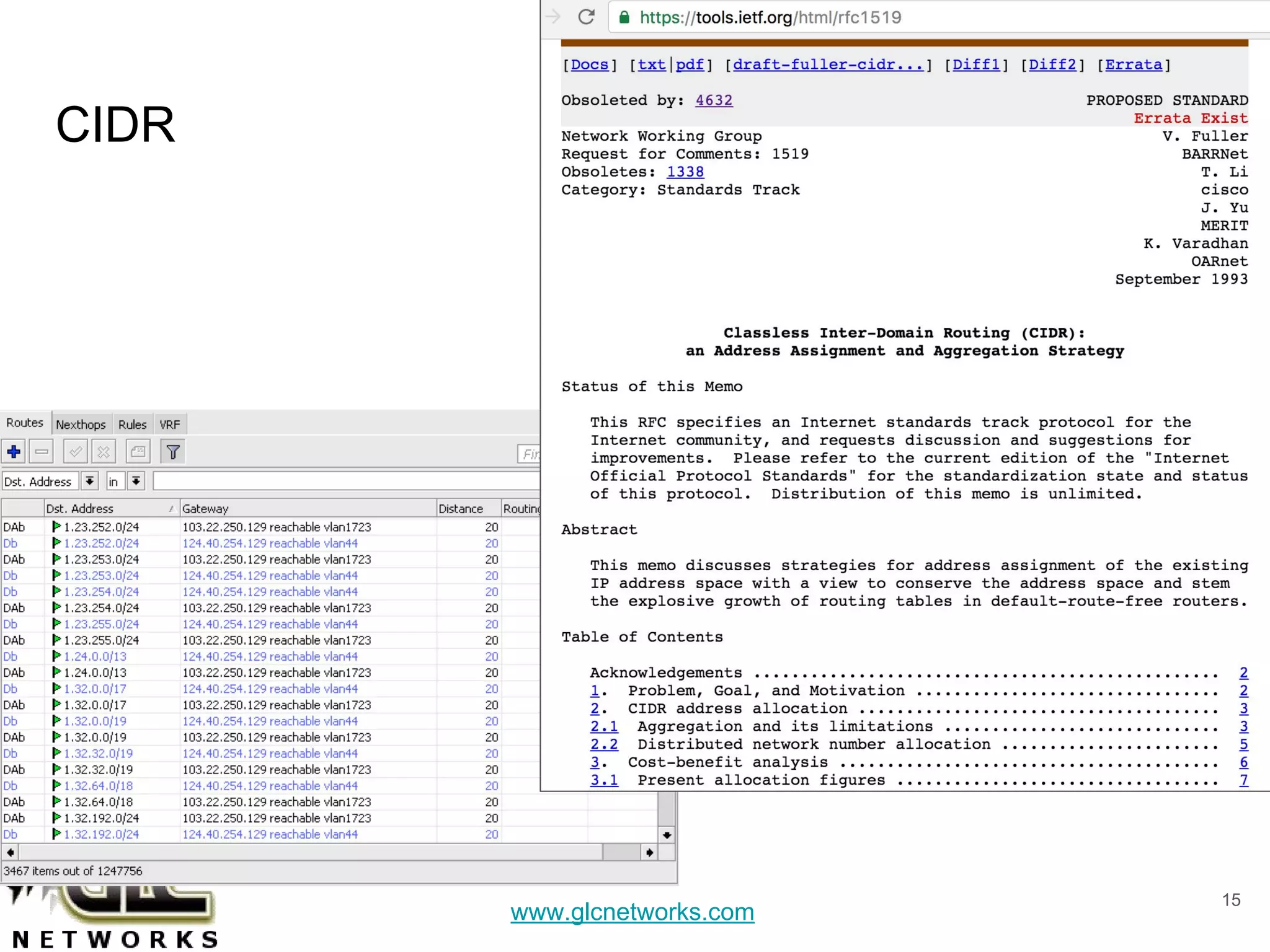

CIDR
15

16. www.glcnetworks.com

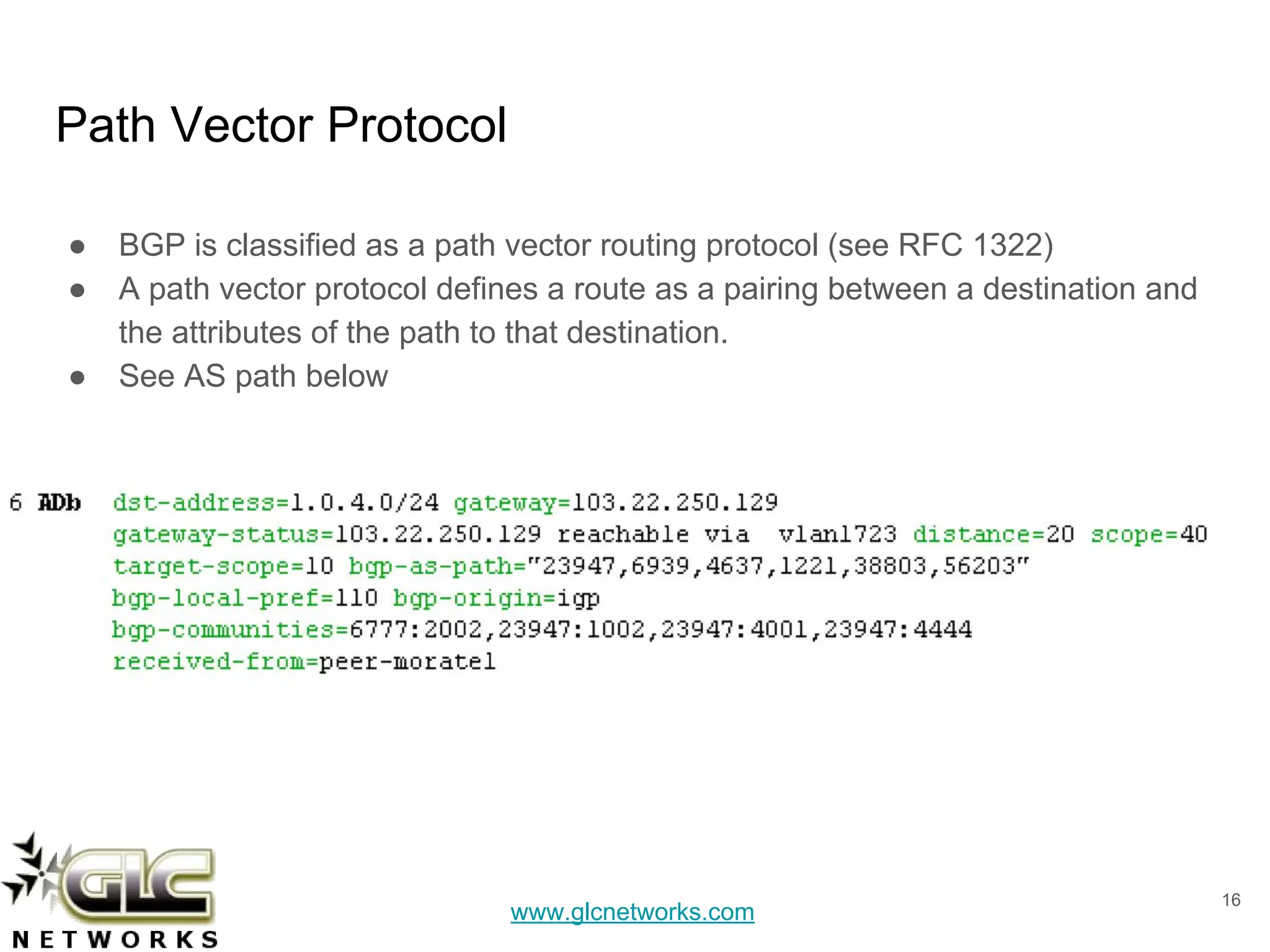

Path Vector Protocol
● BGP is classified as a path vector routing protocol (see RFC 1322)
● A path vector protocol defines a route as a pairing between a destination and
the attributes of the path to that destination.
● See AS path below
16

17. www.glcnetworks.com

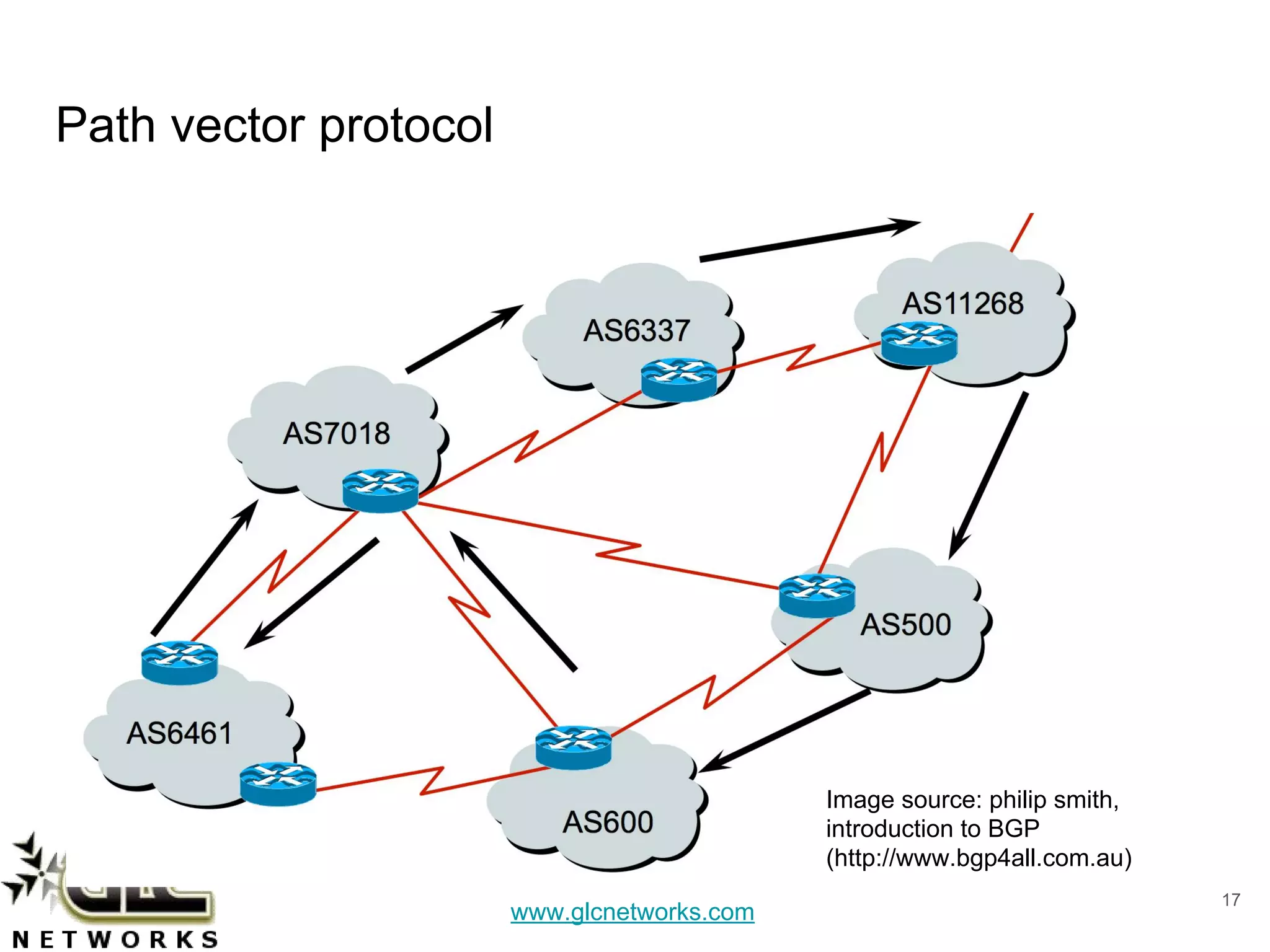

Path vector protocol
17
Image source: philip smith,
introduction to BGP
(http://www.bgp4all.com.au)

18. www.glcnetworks.com

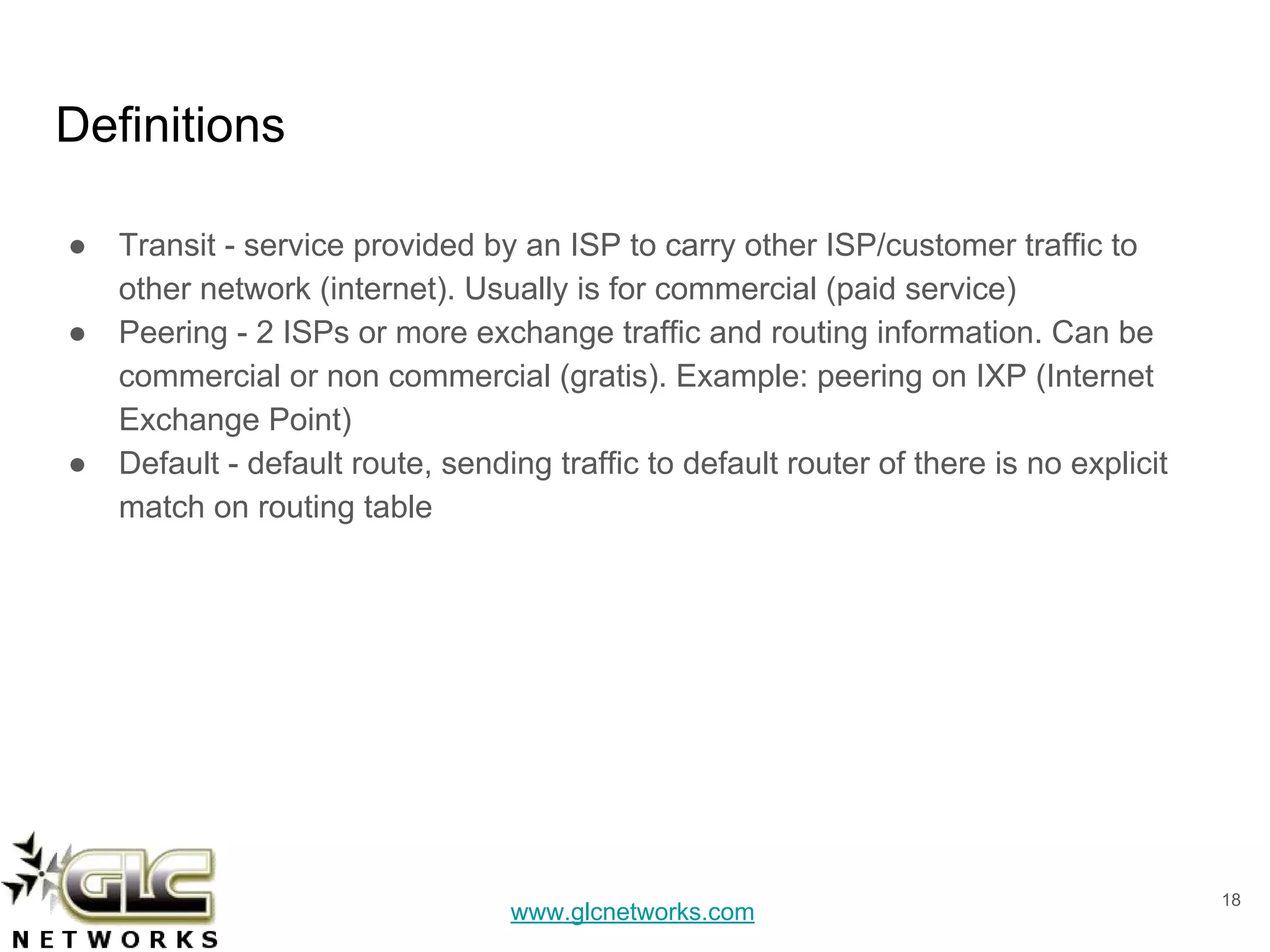

Definitions
● Transit - service provided by an ISP to carry other ISP/customer traffic to
other network (internet). Usually is for commercial (paid service)
● Peering - 2 ISPs or more exchange traffic and routing information. Can be
commercial or non commercial (gratis). Example: peering on IXP (Internet
Exchange Point)
● Default - default route, sending traffic to default router of there is no explicit
match on routing table
18

19. www.glcnetworks.com

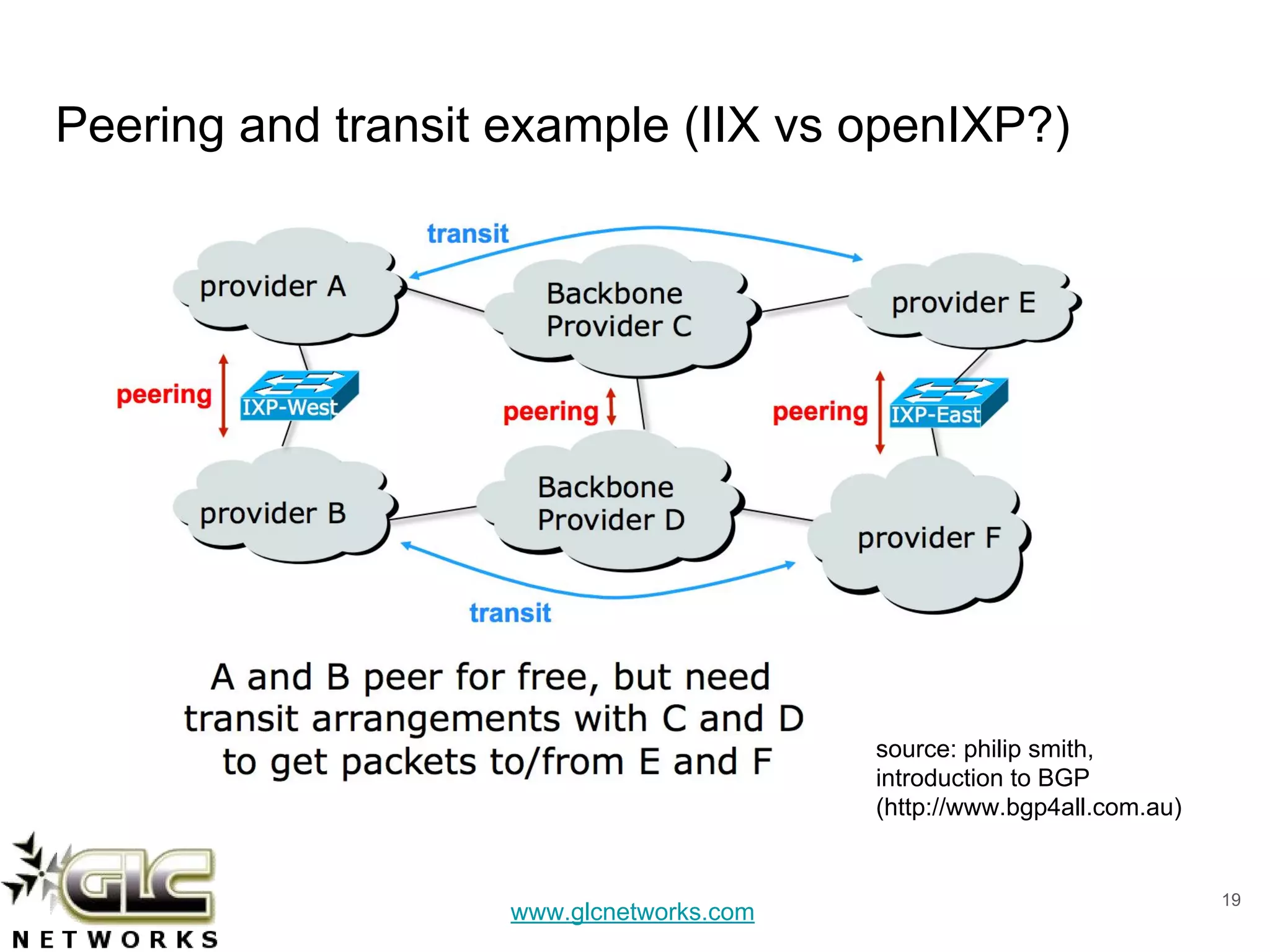

Peering and transit example (IIX vs openIXP?)
19
source: philip smith,
introduction to BGP
(http://www.bgp4all.com.au)

20. www.glcnetworks.com

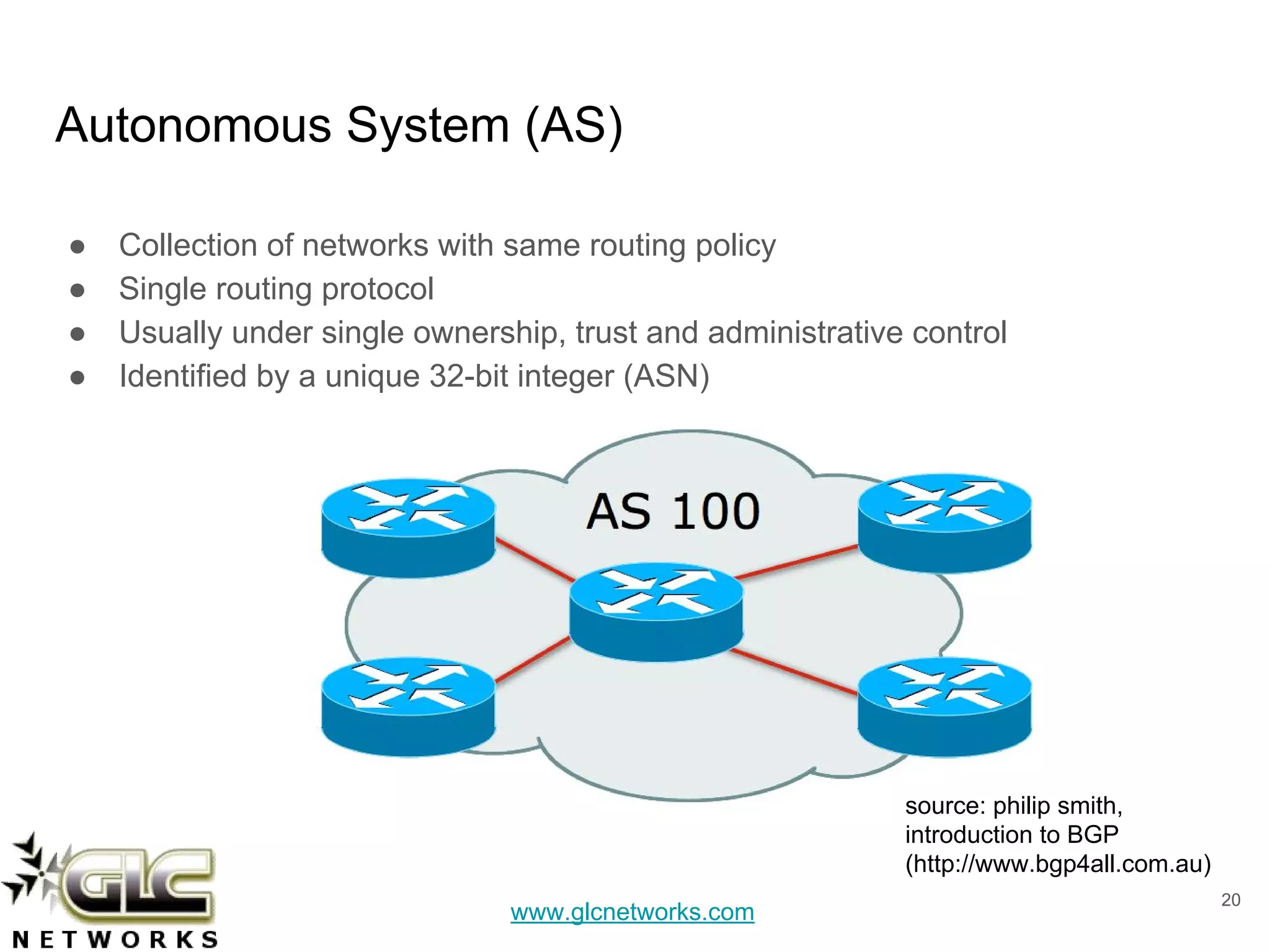

Autonomous System (AS)
● Collection of networks with same routing policy
● Single routing protocol
● Usually under single ownership, trust and administrative control
● Identified by a unique 32-bit integer (ASN)
20
source: philip smith,
introduction to BGP
(http://www.bgp4all.com.au)

21. www.glcnetworks.com

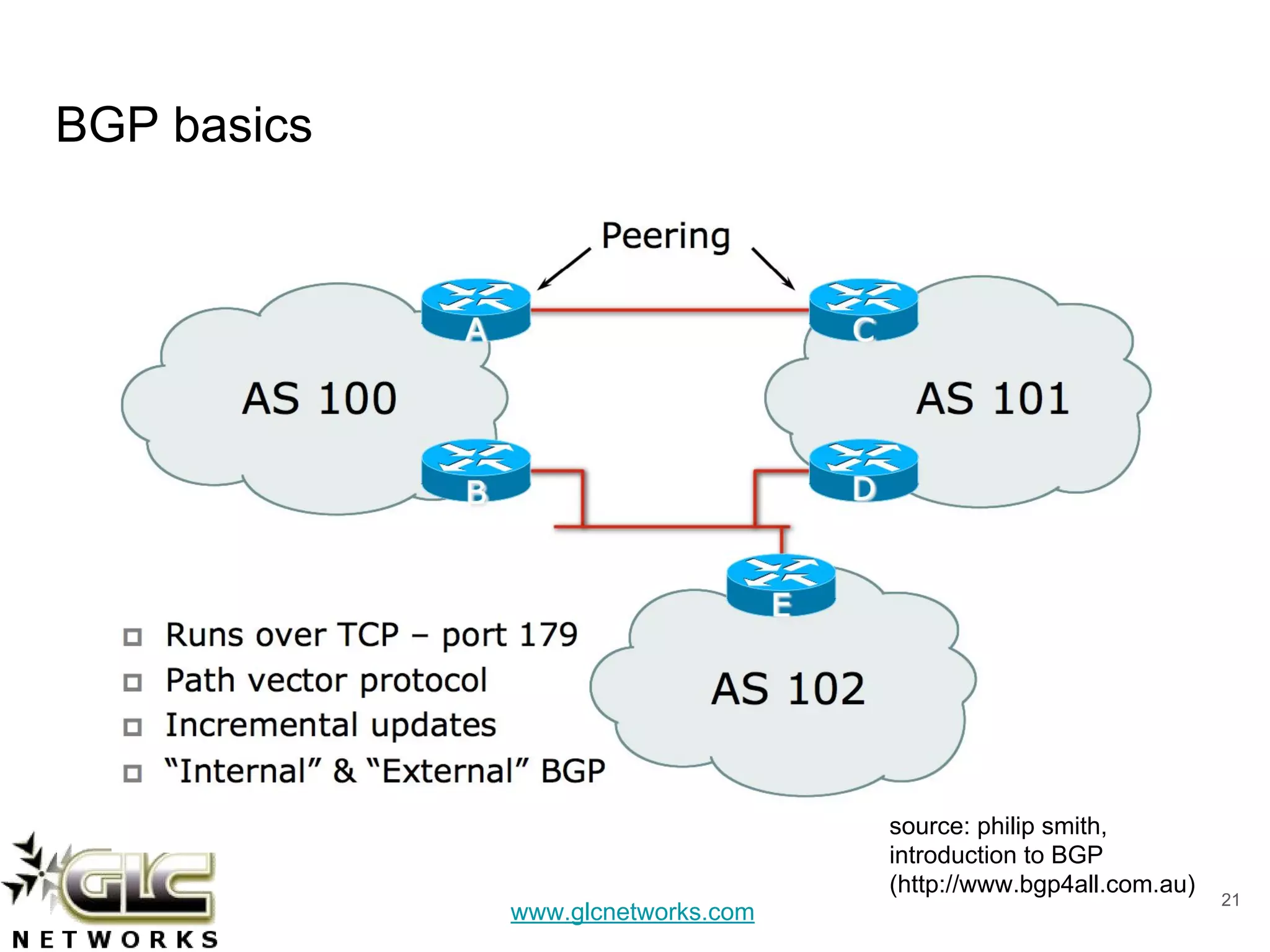

BGP basics
21
source: philip smith,
introduction to BGP
(http://www.bgp4all.com.au)

22. www.glcnetworks.com
Building forwarding table for BGP
22
source: philip smith,
introduction to BGP
(http://www.bgp4all.com.au)

23. www.glcnetworks.com

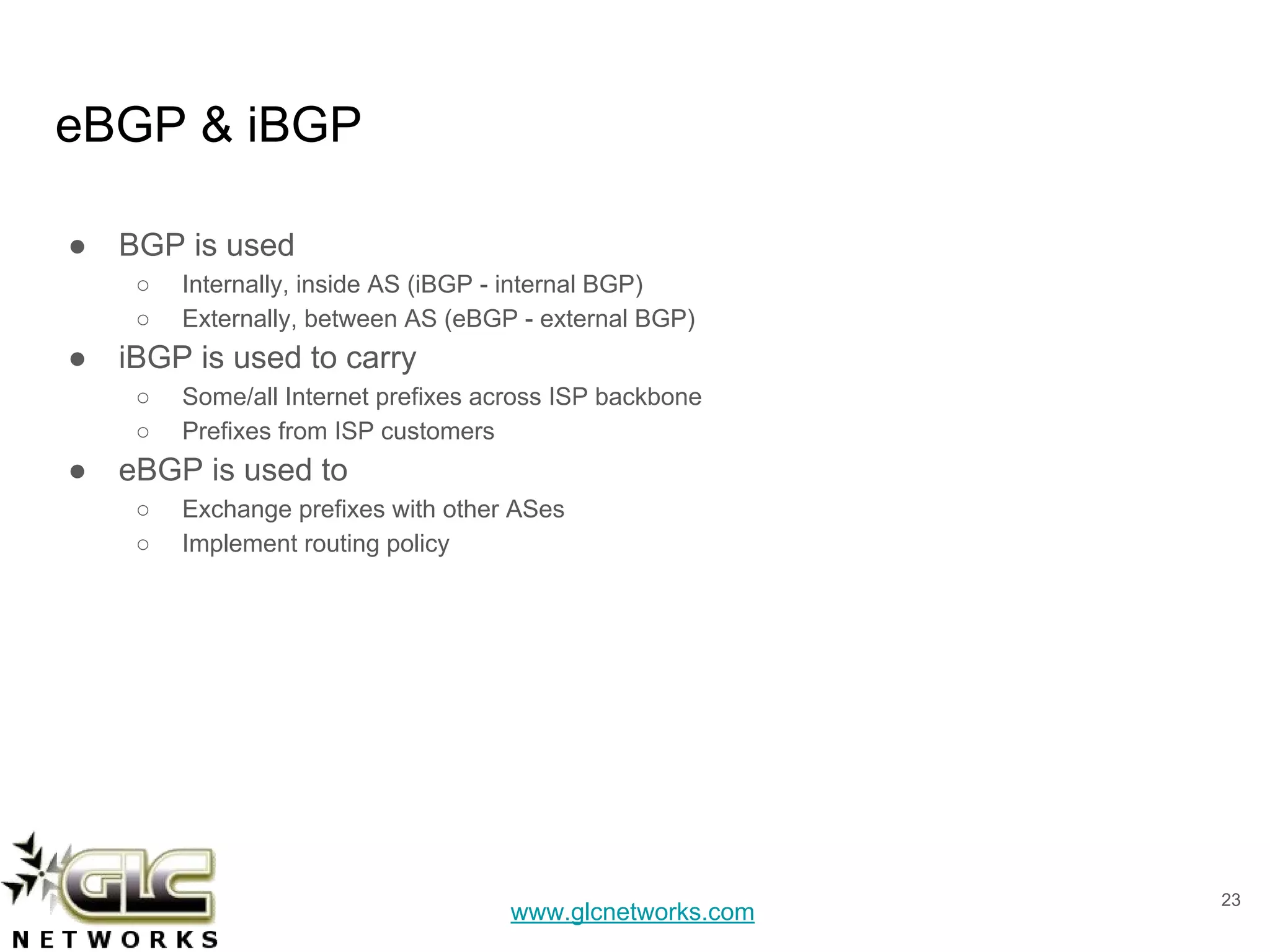

eBGP & iBGP
● BGP is used
○ Internally, inside AS (iBGP - internal BGP)
○ Externally, between AS (eBGP - external BGP)
● iBGP is used to carry
○ Some/all Internet prefixes across ISP backbone
○ Prefixes from ISP customers
● eBGP is used to
○ Exchange prefixes with other ASes
○ Implement routing policy
23

24. www.glcnetworks.com

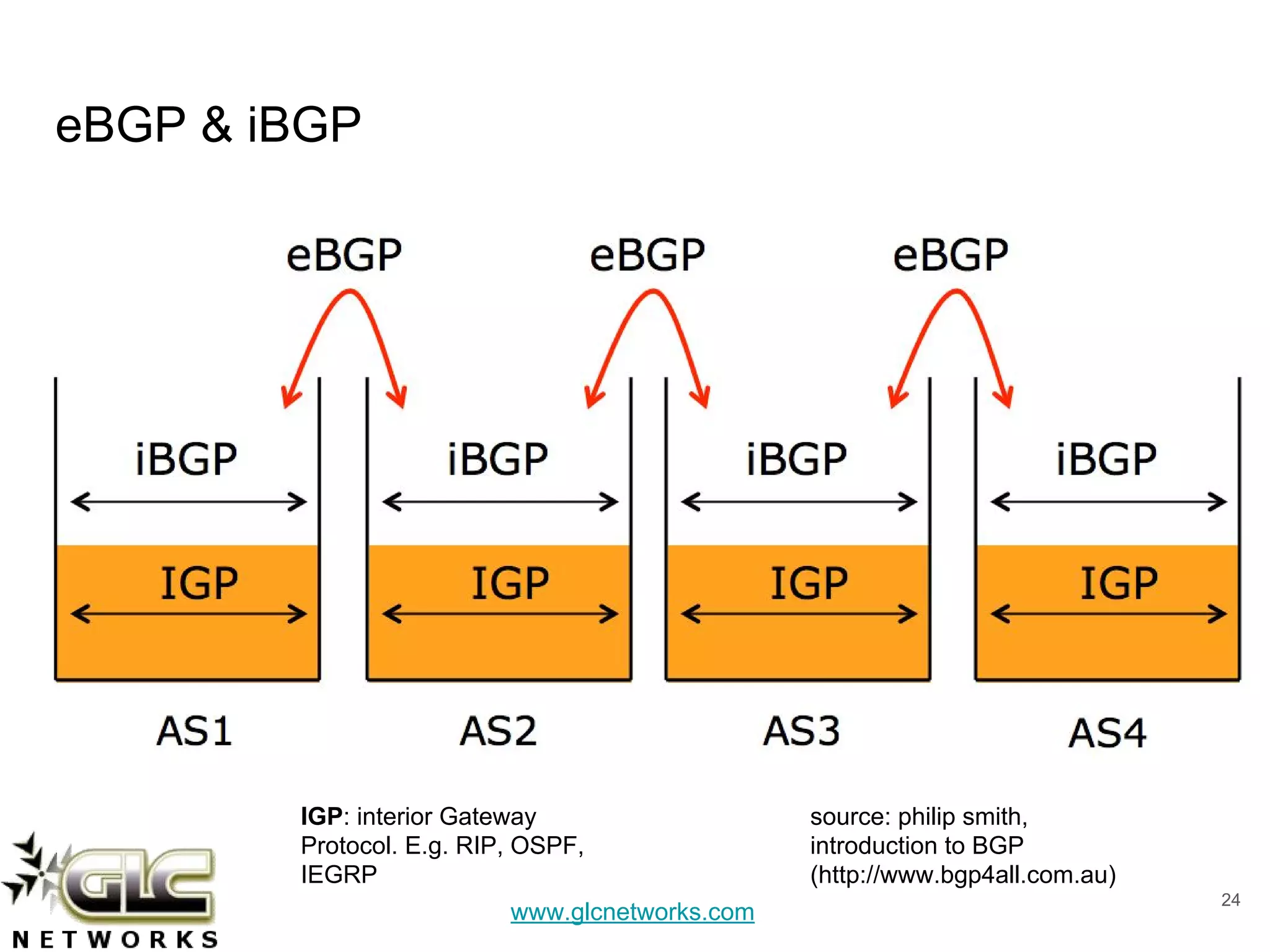

eBGP & iBGP
24
source: philip smith,
introduction to BGP
(http://www.bgp4all.com.au)
IGP: interior Gateway
Protocol. E.g. RIP, OSPF,
IEGRP

25. www.glcnetworks.com
External BGP Peering (eBGP)
● Between BGP speakers in different AS
● Should be directly connected
● Never run an IGP between eBGP peers
25
source: philip smith,
introduction to BGP
(http://www.bgp4all.com.au)

26. www.glcnetworks.com

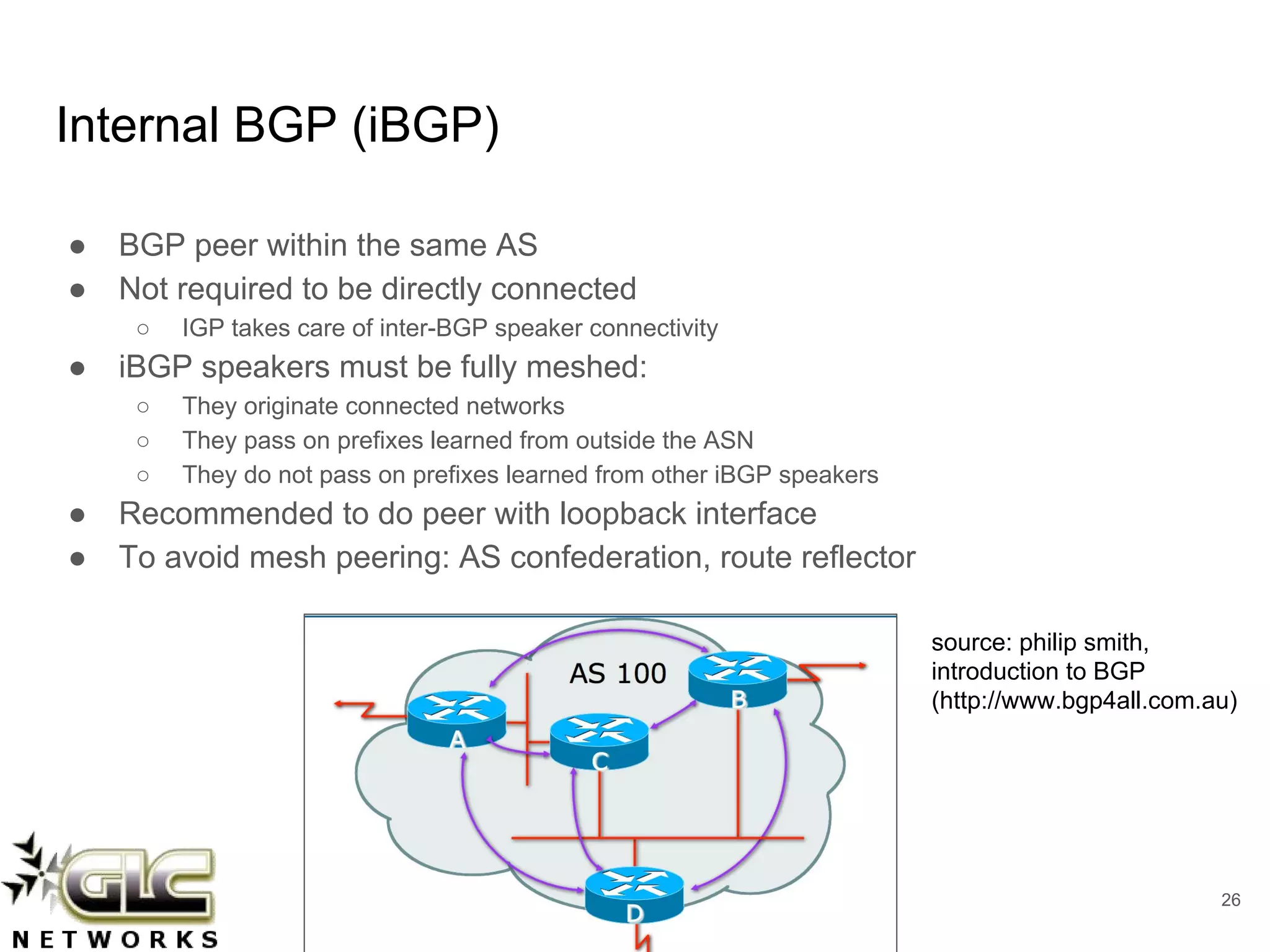

Internal BGP (iBGP)
● BGP peer within the same AS
● Not required to be directly connected
○ IGP takes care of inter-BGP speaker connectivity
● iBGP speakers must be fully meshed:
○ They originate connected networks
○ They pass on prefixes learned from outside the ASN
○ They do not pass on prefixes learned from other iBGP speakers
● Recommended to do peer with loopback interface
● To avoid mesh peering: AS confederation, route reflector
26
source: philip smith,
introduction to BGP
(http://www.bgp4all.com.au)

27. www.glcnetworks.com

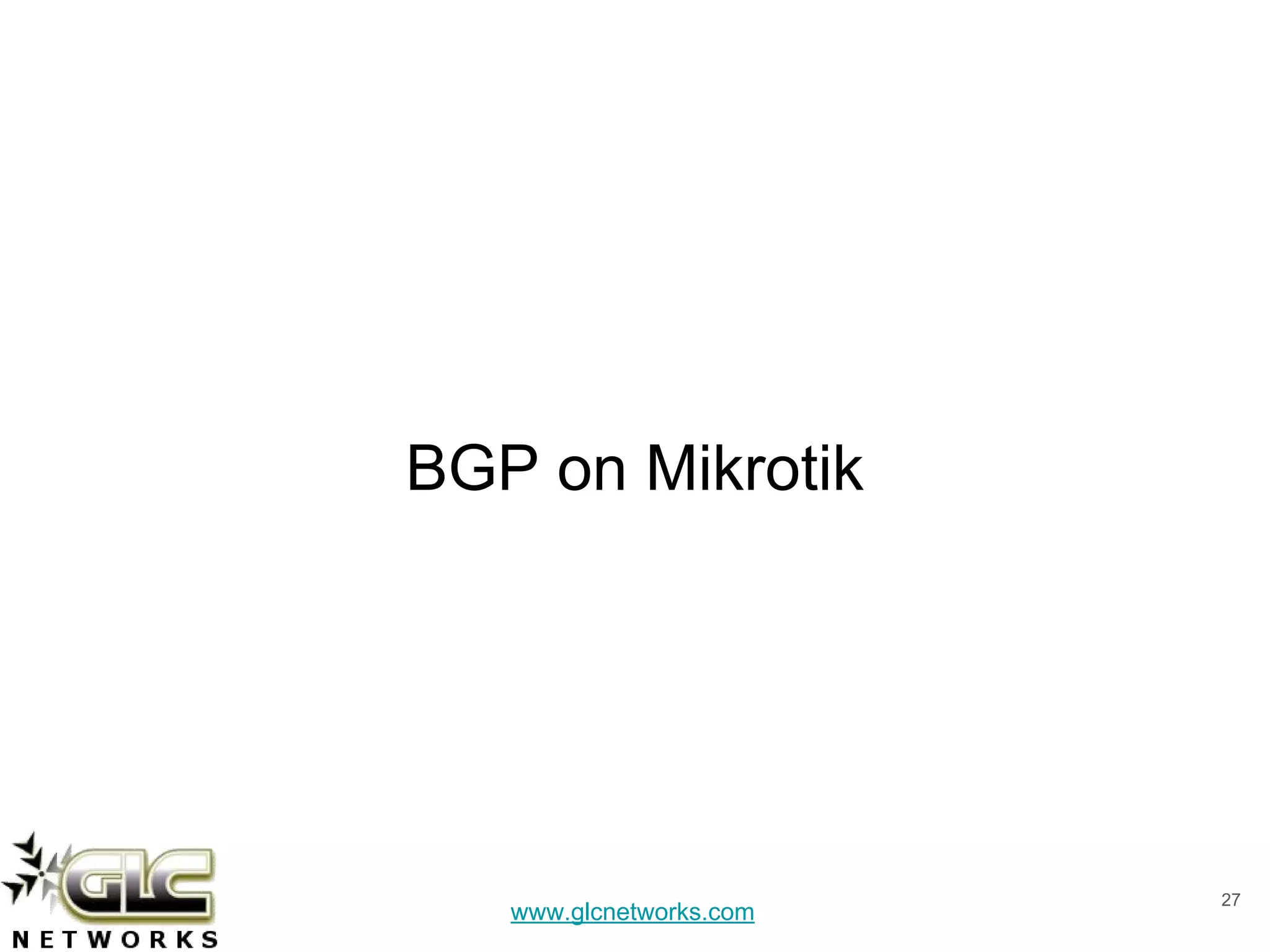

BGP on Mikrotik
27

28. www.glcnetworks.com

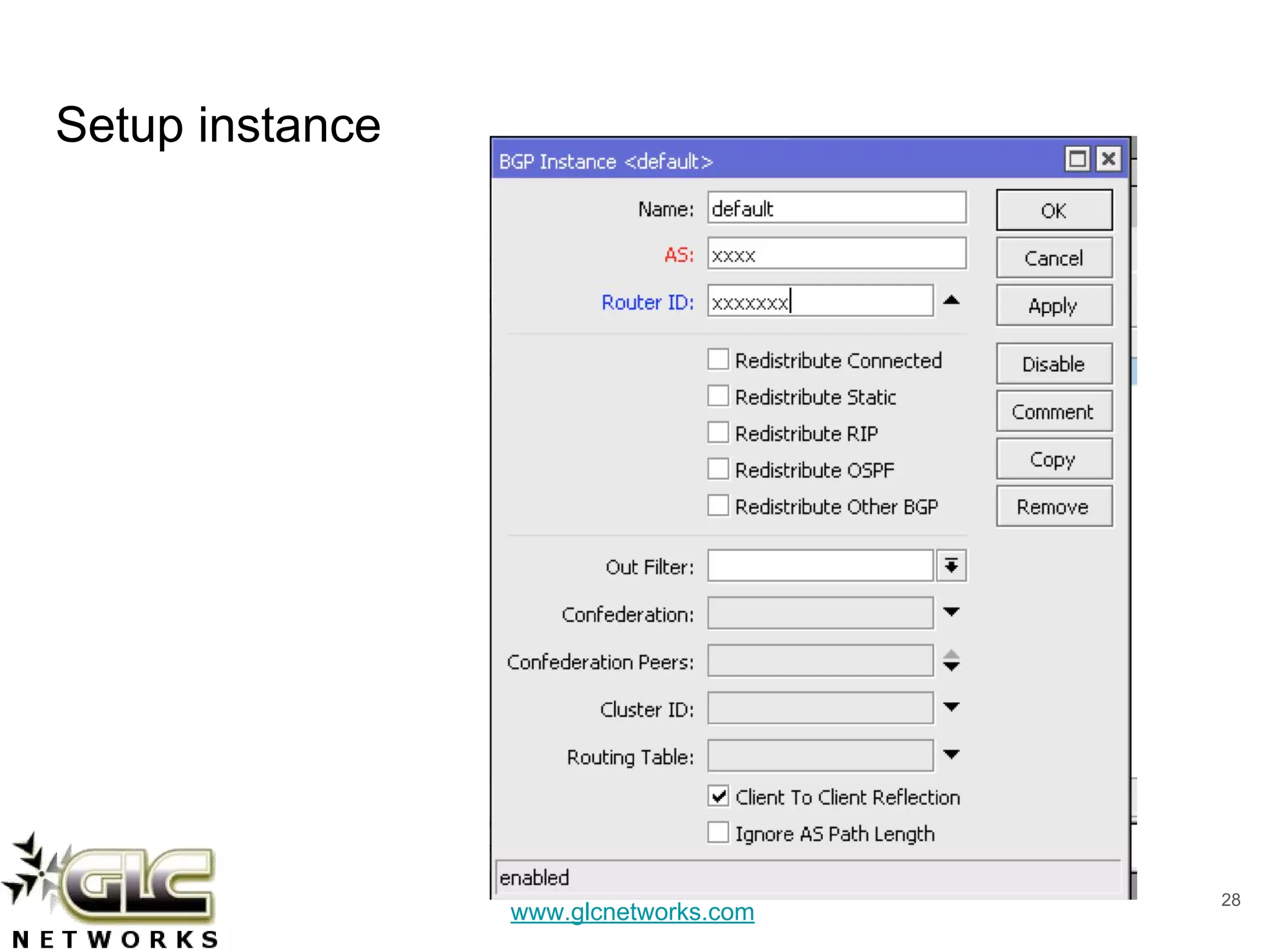

Setup instance
28

29. www.glcnetworks.com

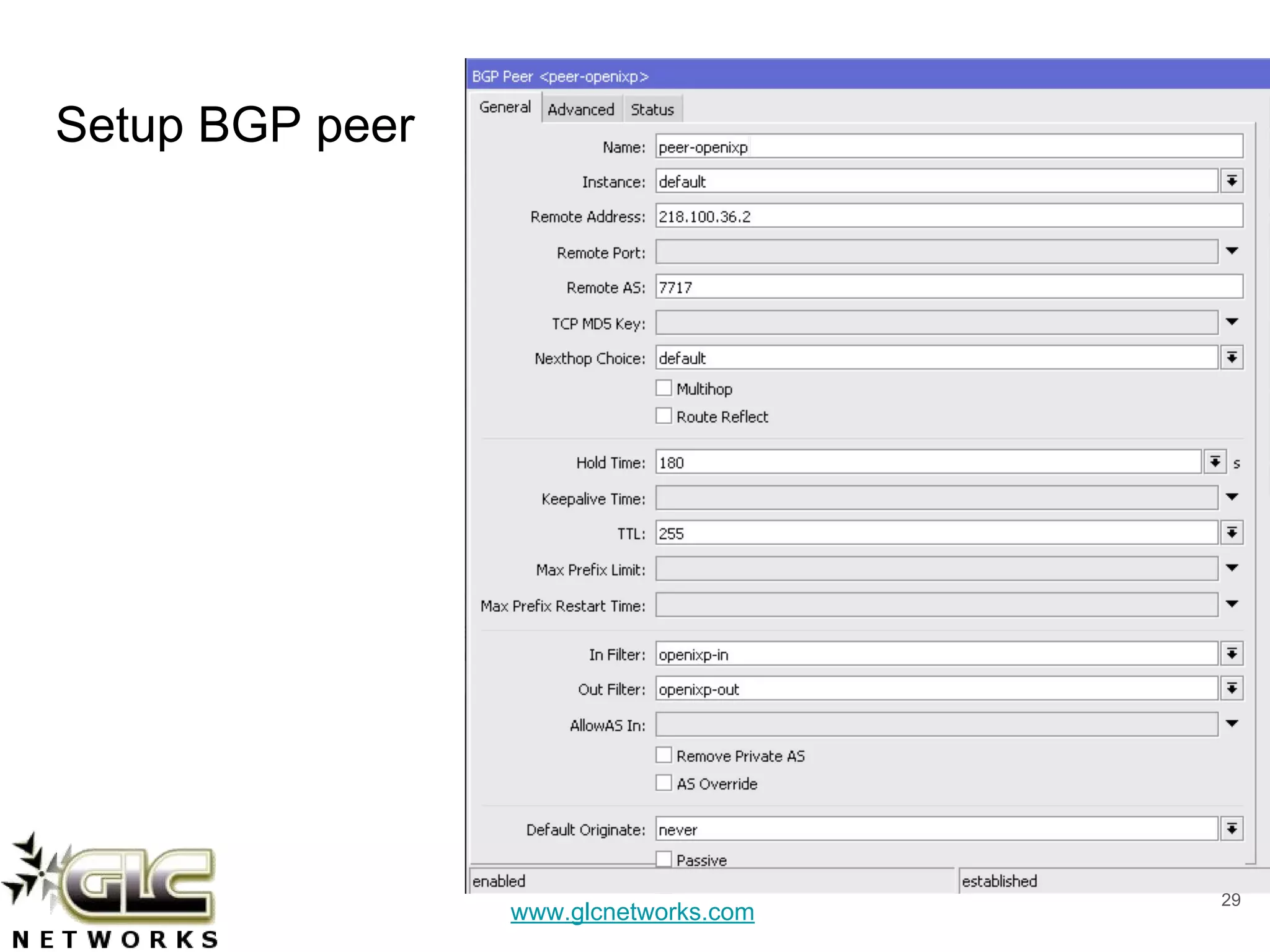

Setup BGP peer
29

30. www.glcnetworks.com

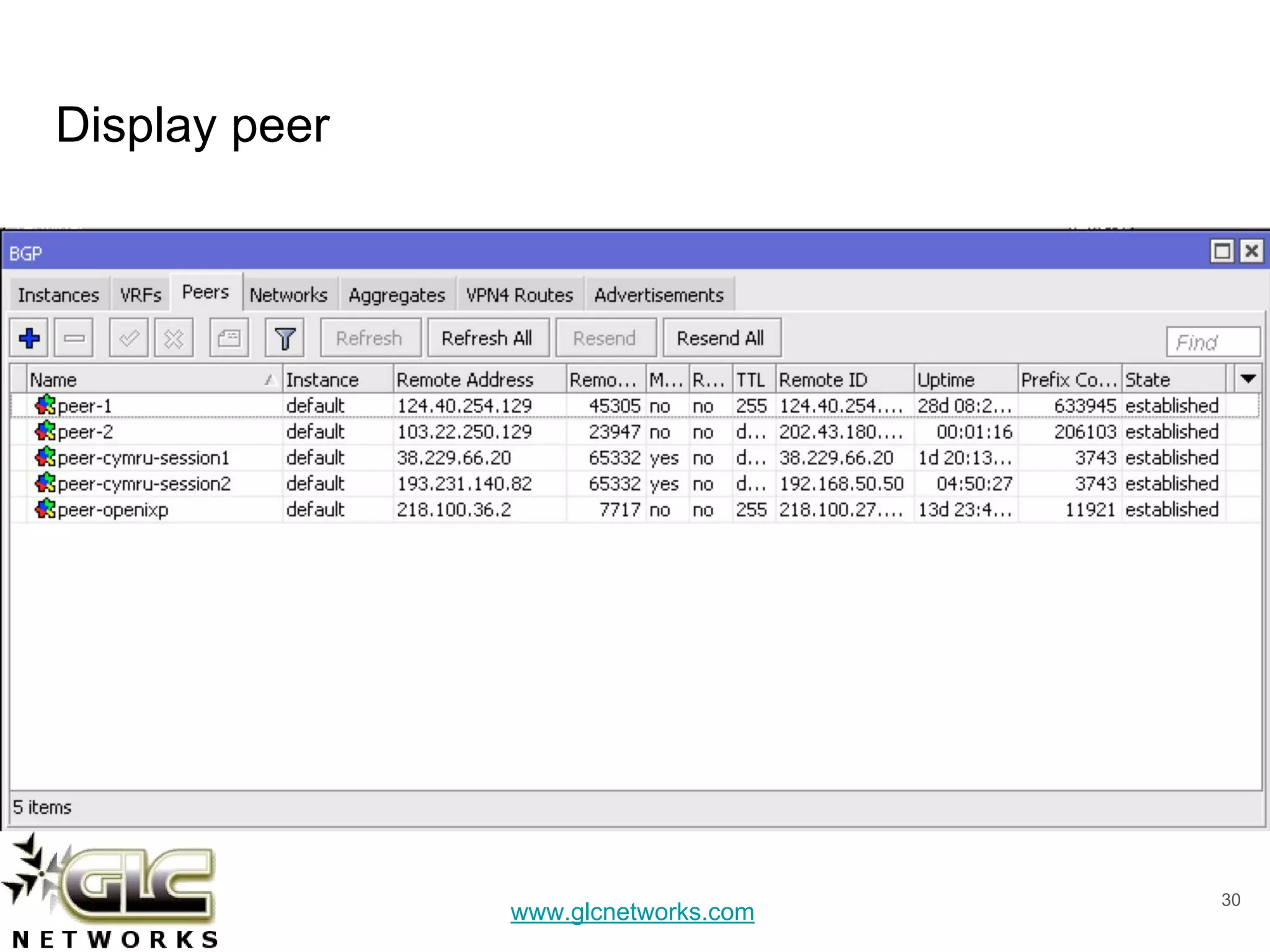

Display peer
30

31. www.glcnetworks.com

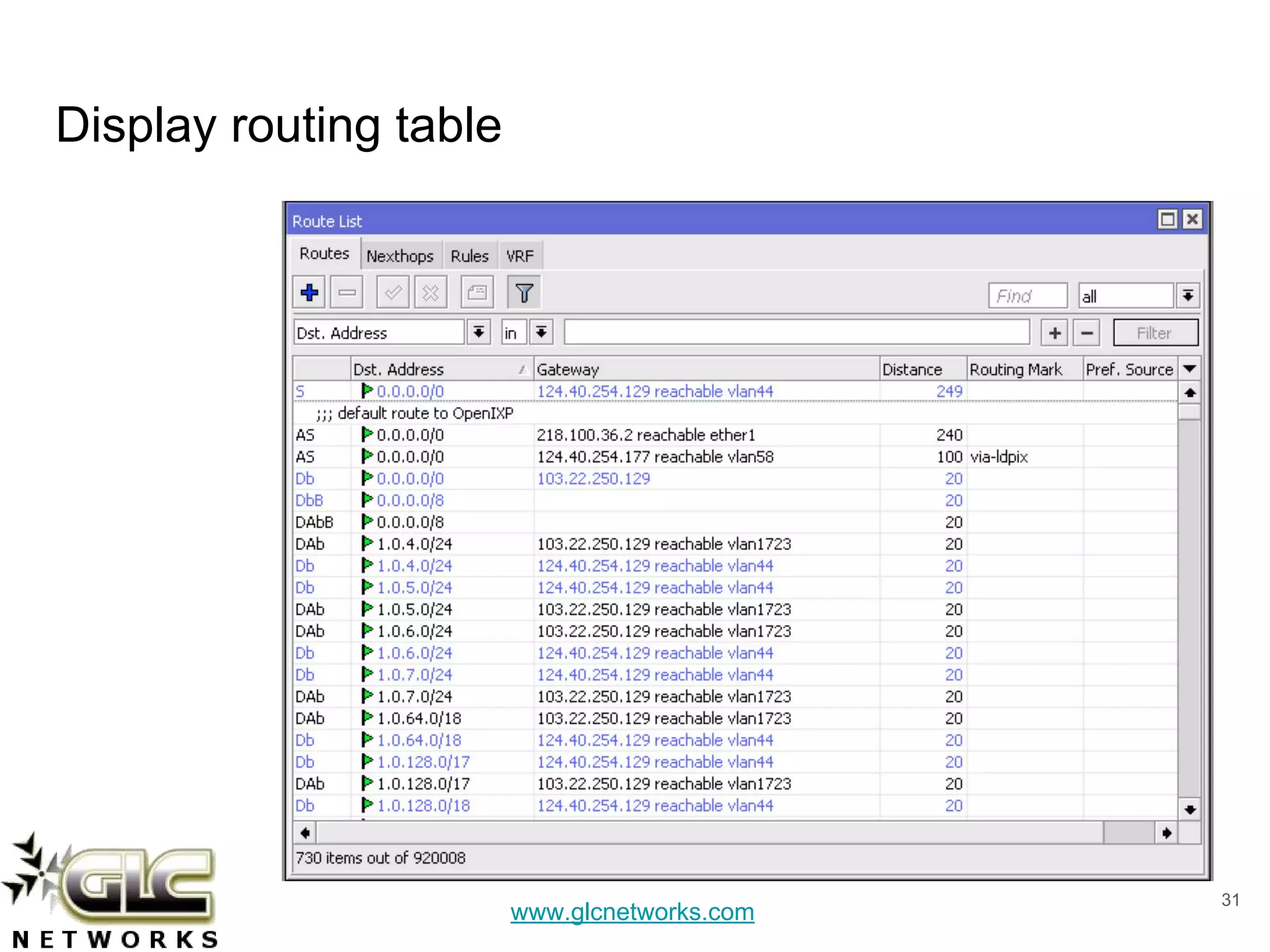

Display routing table
31

32. www.glcnetworks.com

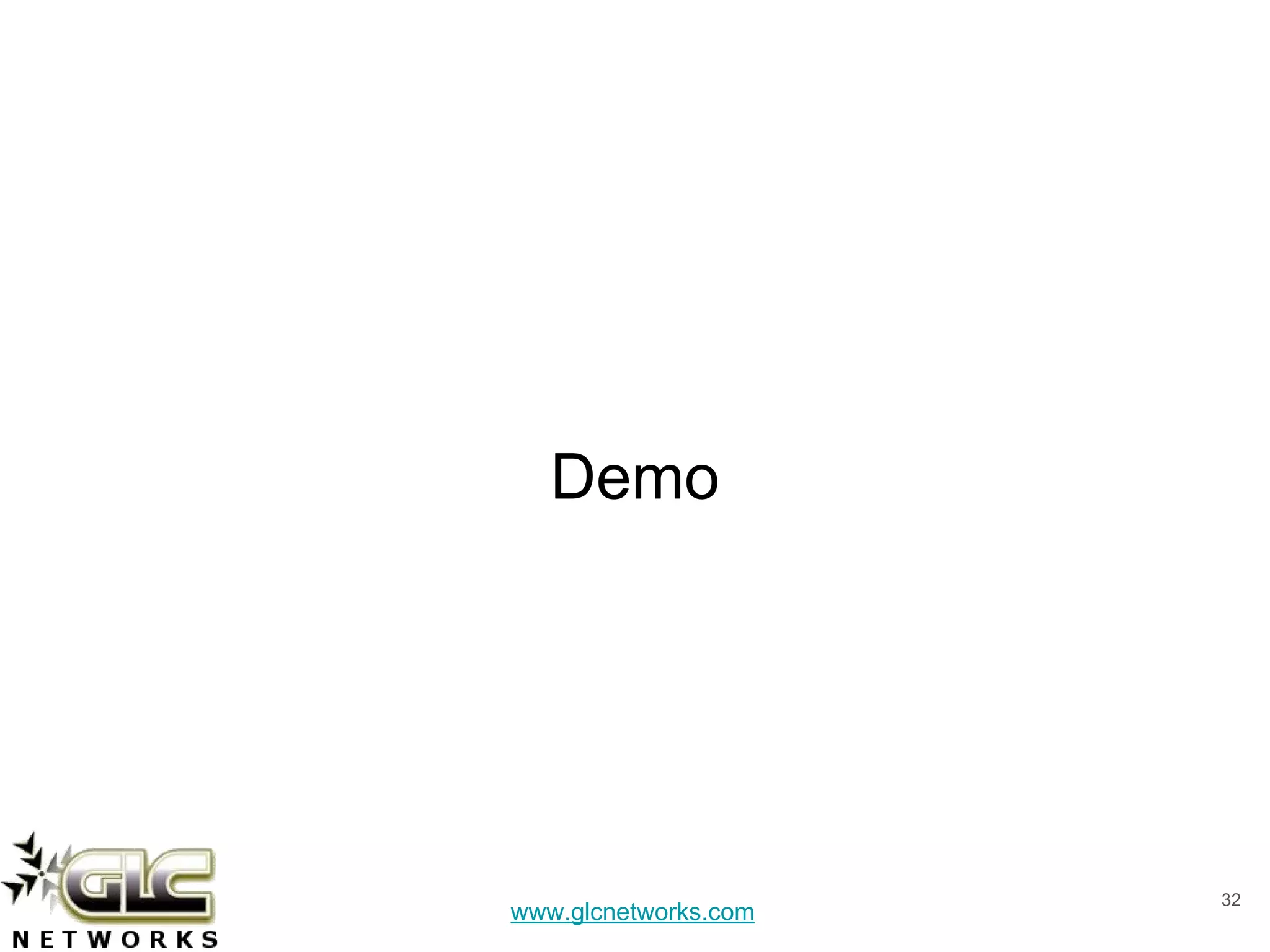

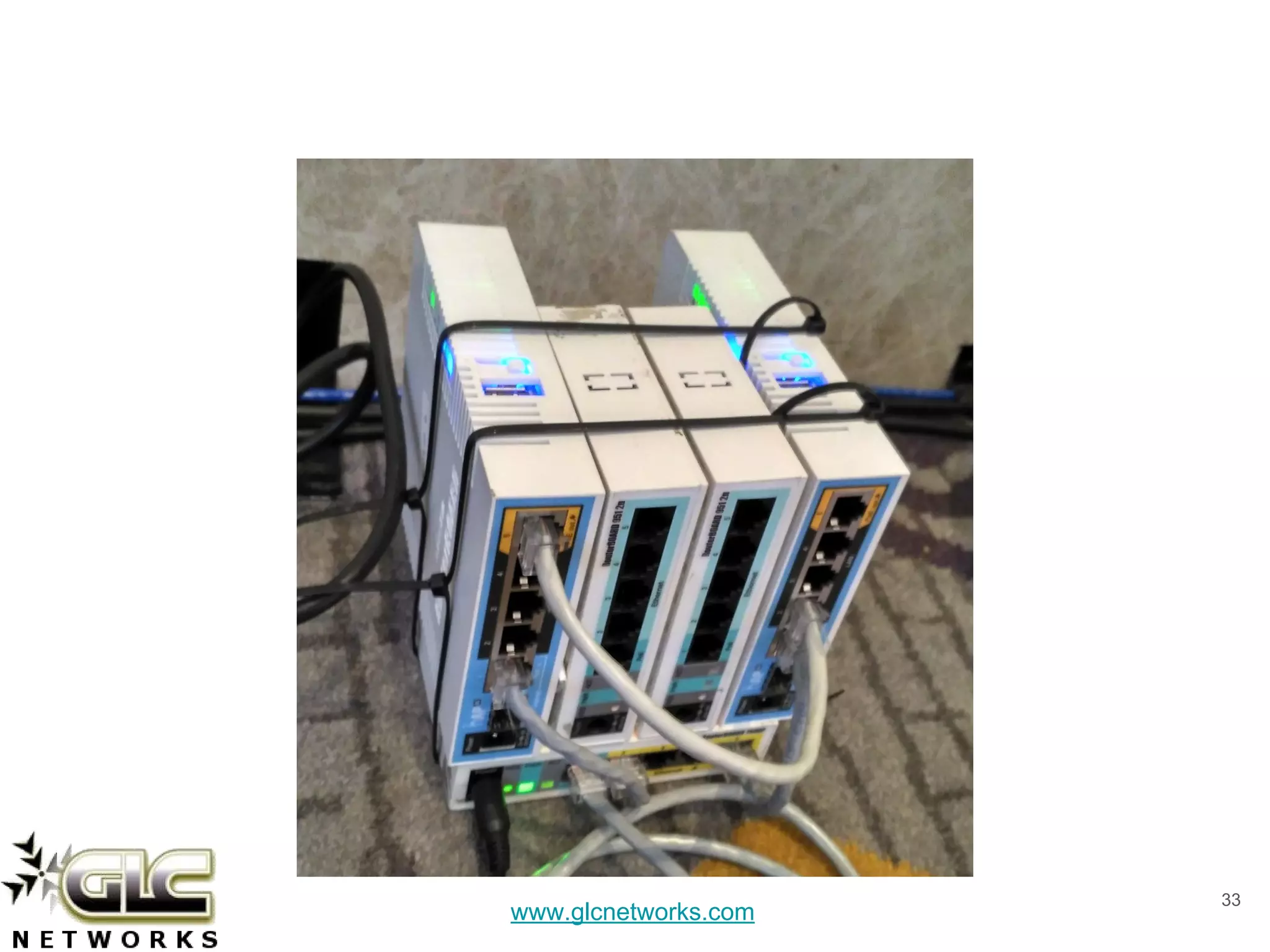

Demo
32

33. www.glcnetworks.com
33

34. www.glcnetworks.com
QA
34

35. www.glcnetworks.com

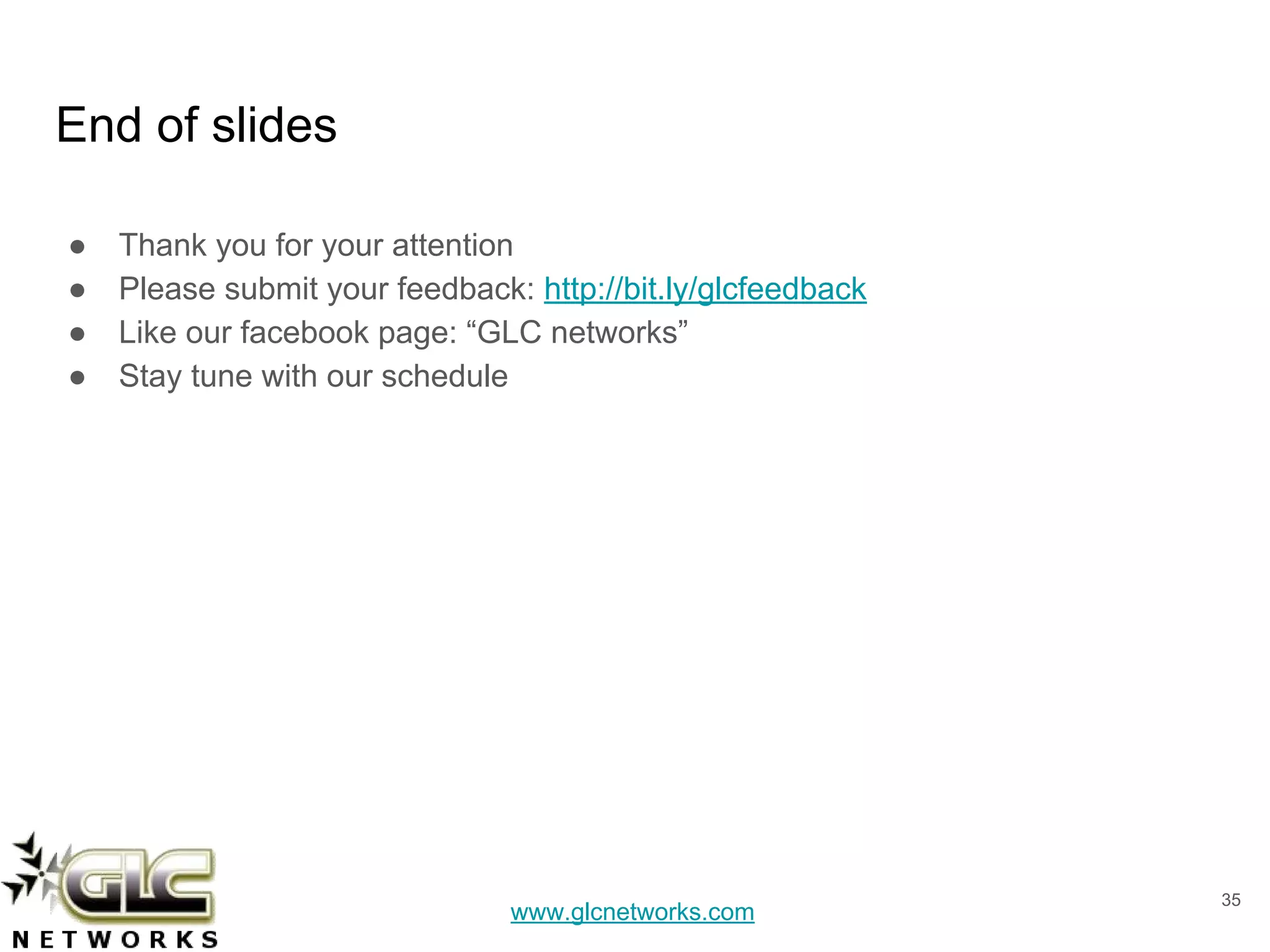

End of slides
● Thank you for your attention
● Please submit your feedback: http://bit.ly/glcfeedback
● Like our facebook page: “GLC networks”
● Stay tune with our schedule
35
