www.glcnetworks.com
Routing fundamentals
with Mikrotik
GLC webinar, 1 December 2016
Achmad Mardiansyah
achmad@glcnetworks.com
GLC Networks, Indonesia
www.glcnetworks.com

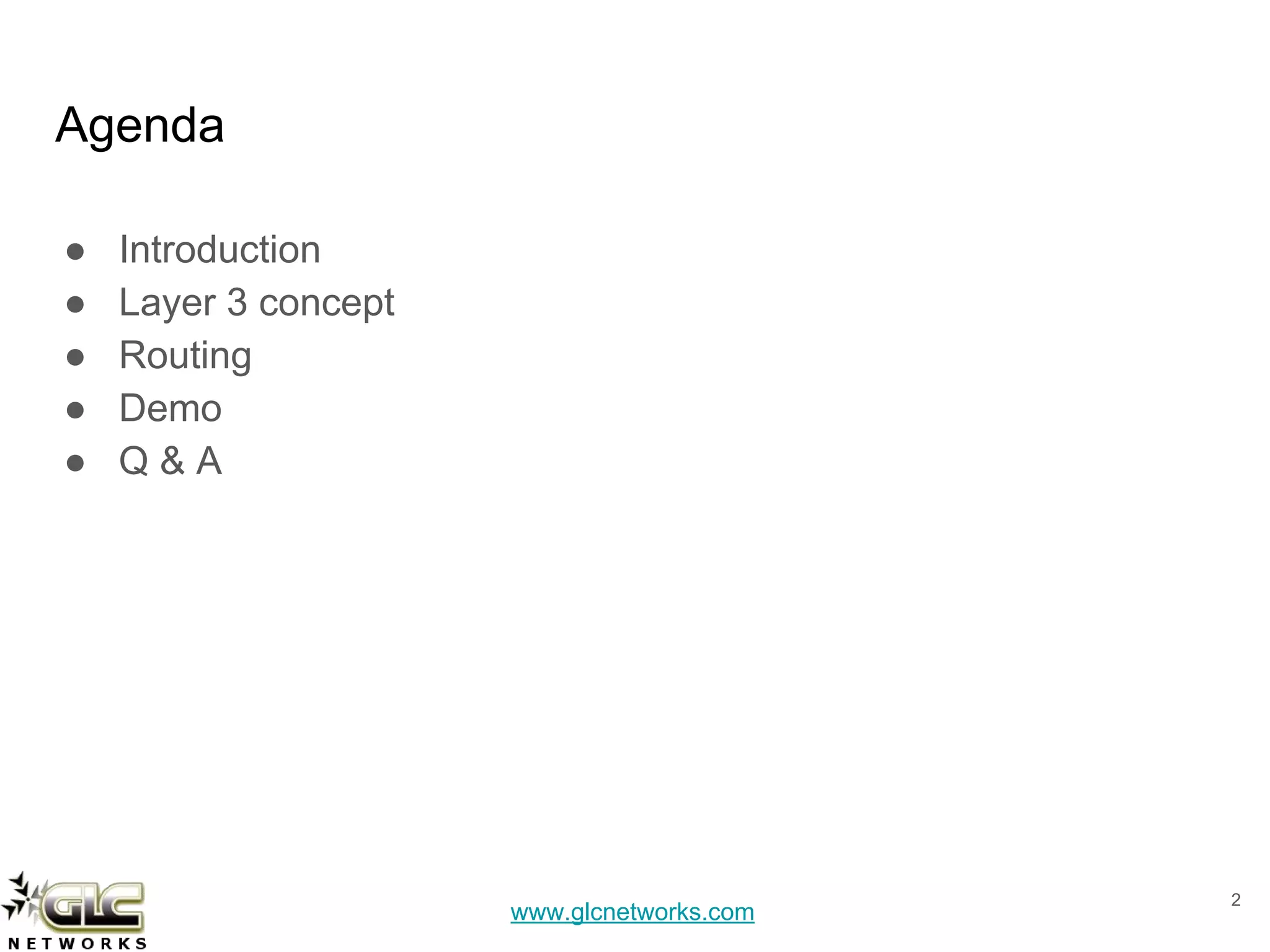

Agenda
● Introduction
● Layer 3 concept
● Routing
● Demo
● Q & A
2
www.glcnetworks.com
What is GLC?
● Garda Lintas Cakrawala (www.glcnetworks.com)
● An Indonesian company
● Located in Bandung
● Areas: Training, IT Consulting
● Mikrotik Certified Training Partner
● Mikrotik Certified Consultant
● Mikrotik distributor
3
www.glcnetworks.com
About GLC webinar?
● First webinar: january 1, 2010 (title:
tahun baru bersama solaris - new
year with solaris OS)
● As a sharing event with various
topics: linux, networking, wireless,
database, programming, etc
● Regular schedule: every 2 weeks
● Irregular schedule: as needed
● Checking schedule:
http://www.glcnetworks.com/main/sc
hedule
● You are invited to be a presenter
○ No need to be an expert
○ This is a forum for sharing: knowledge,
experiences, information
4
www.glcnetworks.com
Trainer Introduction
● Name: Achmad Mardiansyah
● Base: bandung, Indonesia
● Linux user since ’99
● Mikrotik user since 2007
● Certified Trainer (MTCNA/RE/WE/UME/INE/TCE)
● Mikrotik Certified Consultant
● Work: Telco engineer, Sysadmin, PHP programmer,
and Lecturer
● Personal website: http://achmad.glcnetworks.com
● More info:
http://au.linkedin.com/in/achmadmardiansyah
5
www.glcnetworks.com
Please introduce yourself
● Your name
● Your company/university?
● Your networking experience?
● Your mikrotik experience?
● Your expectation from this course?
6
www.glcnetworks.com
What is Mikrotik?
● Name of a company
● A brand
● A program (e.g. mikrotik academy)
● Headquarter: Riga, Latvia
7
www.glcnetworks.com
What are mikrotik products?
● Router OS
○ The OS. Specialized for networking
○ Website: www.mikrotik.com/download
● RouterBoard
○ The hardware
○ RouterOS installed
○ Website: www.routerboard.com
8
www.glcnetworks.com
What Router OS can do?
● Go to www.mikrotik.com
○ Download: what_is_routeros.pdf
○ Download: product catalog
○ Download: newsletter
9
www.glcnetworks.com
What are Mikrotik training & certifications?
10
Certificate validity is 3 years
www.glcnetworks.com
Layer 3 concept
11
www.glcnetworks.com
Layer 3
● Logical address
● 2 versions: IPv4 (our focus) and IPv6
● IPv4 32 bit long
● Consist of network part & host part
● Can be class based IP address (without subnet)
● Now it is classless IP address -> VLSM (variable
length subnet mask)
● CIDR (classless inter domain routing)
12
www.glcnetworks.com
IP spec (RFC 791)
● Defined long time ago (what 1981?)
● Defines how the IP header looks like
● Still used up to know
● New version -> IPv6
13
www.glcnetworks.com
How the layer 3 address look like?
● IPv4 address is 32 bit
● Written in binary
● Displayed to human in decimal every 8 bit (octet).
● Has 2 parts: network part and host part
● Like a phone number 0812 XXXXXXXX -> hierarchical
● All devices in the network will have same network address
● First and last address cannot be used (for network id and broadcast id)
14
Network part host part
www.glcnetworks.com
Layer 3 connection and addressing
● Devices that uses layer 3 information: router and host
● All devices must have a layer 3 address
● address is hierarchical
○ Network part (e.g. 192.168.0.2/26 -> the first 26 bit of all host in the network will be
the same) -> show the grouping identity
○ Host part
15
192.168.0.0/26
R1
192.168.0.1/26
192.168.0.3/26
192.168.0.2/26
R3
R2
192.168.1.0/24
192.168.2.0/24
192.168.3.0/24
192.168.3.3/24
192.168.3.9/24
192.168.2.9/24
192.168.2.2/24
192.168.1.1/24
192.168.1.9/24
www.glcnetworks.com
What is VLSM?
● Variable-Length Subnet Masking (VLSM)
● Can divide an IP address block into subnets of different sizes using / (slash)
notation
● Solution the in efficient of classful IP address (fixed length). No more class A,
class B, Class C -> pleeease dont say this classes anymore
● making it possible to create subnets with very different host counts without
wasting large numbers of addresses.
● RFC: 1878 (1995)
● Basis for CIDR
● Example: 23.45.0.0/16
○ 23.45.0.0/25
○ 23.45.0.128/25
16
www.glcnetworks.com
VLSM RFC
17
www.glcnetworks.com
What is CIDR?
● CIDR: Classless Inter-Domain Routing (sometimes is called supernetting)
● CIDR solves problem of wasted address space by providing a new and more
flexible way to specify network addresses in routers (using slash as notation)
● allow flexible allocation of Internet Protocol (IP) addresses.
● Replaces classfull network (class A,B,C,D). Please dont ever mention this
anymore...
● CIDR lets a routing table entry represent an aggregation of networks that exist
in the forward path
● Each IP address has a network prefix that identifies either one or several
network gateways.
● RFC: 1519
18
www.glcnetworks.com
CIDR RFC
19
www.glcnetworks.com
Routing
20
www.glcnetworks.com
What is routing table?
● A table at router that is used to
forward packet
● Available on every devices (router
and host)
● Entry is executed sequentially
21
192.168.0.0/26
R1
192.168.0.1/26
192.168.0.3/26
192.168.0.2/26
R3
R2
192.168.1.0/24
192.168.2.0/24
192.168.3.0/24
192.168.3.3/24
192.168.3.9/24
192.168.2.9/24
192.168.2.2/24
192.168.1.1/24
192.168.1.9/24
destination gateway
192.168.0.0/26 direct
192.168.1.0/24 direct
192.168.2.0/24 192.168.0.2
192.168.3.0/24 192.168.0.3
192.168.16.3/32 192.168.0.2
0.0.0.0/0 192.168.0.3
www.glcnetworks.com
When router receive a packet…
(setup priority on routing table)
● Router will analyse the destination IP address
● Router will rearrange the routing entry and put priority
○ Longest prefix wins
○ Lowest distance wins
22
destination gateway
192.168.0.0/26 direct
192.168.1.0/24 direct
192.168.2.0/24 192.168.0.2
192.168.3.0/24 192.168.0.3
192.168.16.3/32 192.168.0.2
0.0.0.0/0 192.168.0.3
destination gateway
192.168.16.3/32 192.168.0.2
192.168.0.0/26 direct
192.168.1.0/24 direct
192.168.2.0/24 192.168.0.2
192.168.3.0/24 192.168.0.3
0.0.0.0/0 192.168.0.3
www.glcnetworks.com
How the routing table works (R1)?
● It works like a firewall: match and action
● You should think in binary to understand how it works
23
destination gateway
192.168.16.3/32
11000000 10101000 00001000 00000011
192.168.0.2
192.168.0.0/26
11000000 10101000 00000000 00
direct
192.168.1.0/24
11000000 10101000 00000001
direct
192.168.2.0/24
11000000 10101000 00000010
192.168.0.2
192.168.3.0/24
11000000 10101000 00000011
192.168.0.3
0.0.0.0/0 192.168.0.3
www.glcnetworks.com
A packet arrived… (part 1)
Destination IP address of the packet is 192.168.16.3, which gateway do we use?
A: 192.168.16.3 = (11000000 10101000 00001000 00000011)
24
destination gateway
192.168.16.3/32
11000000 10101000 00001000 00000011
192.168.0.2
192.168.0.0/26
11000000 10101000 00000000 00
direct
192.168.1.0/24
11000000 10101000 00000001
direct
192.168.2.0/24
11000000 10101000 00000010
192.168.0.2
192.168.3.0/24
11000000 10101000 00000011
192.168.0.3
0.0.0.0/0 192.168.0.3
MATCH
www.glcnetworks.com
A packet arrived… (part 2)
Destination IP address of the packet is 192.168.2.6, which gateway do we use?
A: 192.168.2.6 = (11000000 10101000 00000010 00000110)
25
destination gateway
192.168.16.3/32
11000000 10101000 00001000 00000011
192.168.0.2
192.168.0.0/26
11000000 10101000 00000000 00
direct
192.168.1.0/24
11000000 10101000 00000001
direct
192.168.2.0/24
11000000 10101000 00000010
192.168.0.2
192.168.3.0/24
11000000 10101000 00000011
192.168.0.3
0.0.0.0/0 192.168.0.3
NOT MATCH
NOT MATCH
NOT MATCH
MATCH
www.glcnetworks.com
A packet arrived… (part 3)
Destination IP address of the packet is 192.168.8.6, which gateway do we use?
A: 192.168.8.6 = (11000000 10101000 00001000 00000110)
26
destination gateway
192.168.16.3/32
11000000 10101000 00001000 00000011
192.168.0.2
192.168.0.0/26
11000000 10101000 00000000 00
direct
192.168.1.0/24
11000000 10101000 00000001
direct
192.168.2.0/24
11000000 10101000 00000010
192.168.0.2
192.168.3.0/24
11000000 10101000 00000011
192.168.0.3
0.0.0.0/0 192.168.0.3
NOT MATCH
NOT MATCH
NOT MATCH
MATCH
NOT MATCH
NOT MATCH
www.glcnetworks.com
Static routing
● Entries on routing table is created
manually
● Admin must manage routing table
in all routers
● Admin have full control
27
192.168.0.0/26
R1
192.168.0.1/26
192.168.0.3/26
192.168.0.2/26
R3
R2
192.168.1.0/24
192.168.2.0/24
192.168.3.0/24
192.168.3.3/24
192.168.3.9/24
192.168.2.9/24
192.168.2.2/24
192.168.1.1/24
192.168.1.9/24
destination gateway
192.168.0.0/26 direct
192.168.1.0/24 direct
192.168.2.0/24 192.168.0.2
192.168.3.0/24 192.168.0.3
192.168.16.3/32 192.168.0.2
0.0.0.0/0 192.168.0.3
www.glcnetworks.com
Dynamic routing
● Entries on routing table is created
automatically using routing protocol
(RIP, OSPF, BGP)
● Admin must have a good
knowledge about routing protocol
28
192.168.0.0/26
R1
192.168.0.1/26
192.168.0.3/26
192.168.0.2/26
R3
R2
192.168.1.0/24
192.168.2.0/24
192.168.3.0/24
192.168.3.3/24
192.168.3.9/24
192.168.2.9/24
192.168.2.2/24
192.168.1.1/24
192.168.1.9/24
destination gateway
192.168.0.0/26 direct
192.168.1.0/24 direct
192.168.2.0/24 192.168.0.2
192.168.3.0/24 192.168.0.3
192.168.16.3/32 192.168.0.2
0.0.0.0/0 192.168.0.3
www.glcnetworks.com
DEMO
29
www.glcnetworks.com
Mikrotik routing table
30
www.glcnetworks.com
QA
31
www.glcnetworks.com
Interested?
Just come to our
training...
Special price for webinar attendees...
32
www.glcnetworks.com
End of slides
● Thank you for your attention
● Please submit your feedback: http://bit.ly/glcfeedback
● Like our facebook page: “GLC networks”
● Stay tune with our schedule
33

More Related Content

What's hot

BGP on RouterOS7 -Part 1
BGP on RouterOS7 -Part 1BGP on RouterOS7 -Part 1
BGP on RouterOS7 -Part 1
GLC Networks

Connection load balancing with mikrotik [workshop]
Connection load balancing with mikrotik [workshop]Connection load balancing with mikrotik [workshop]
Connection load balancing with mikrotik [workshop]
Achmad Mardiansyah

MikroTik Security
MikroTik SecurityMikroTik Security
MikroTik Security
Rofiq Fauzi

ISP Load Balancing with Mikrotik ECMP
ISP Load Balancing with Mikrotik ECMPISP Load Balancing with Mikrotik ECMP
ISP Load Balancing with Mikrotik ECMP
GLC Networks

Tunnel vs VPN on Mikrotik
Tunnel vs VPN on MikrotikTunnel vs VPN on Mikrotik
Tunnel vs VPN on Mikrotik
GLC Networks

Network Monitoring with The Dude and Whatsapp
Network Monitoring with The Dude and WhatsappNetwork Monitoring with The Dude and Whatsapp
Network Monitoring with The Dude and Whatsapp
GLC Networks

Mikrotik firewall raw table
Mikrotik firewall raw tableMikrotik firewall raw table
Mikrotik firewall raw table
Achmad Mardiansyah

Using mikrotik with radius
Using mikrotik with radiusUsing mikrotik with radius
Using mikrotik with radius
Achmad Mardiansyah

BGP on mikrotik
BGP on mikrotikBGP on mikrotik
BGP on mikrotik
Achmad Mardiansyah

Policy Based Routing (PBR) on Mikrotik
Policy Based Routing (PBR) on MikrotikPolicy Based Routing (PBR) on Mikrotik
Policy Based Routing (PBR) on Mikrotik
GLC Networks

Mikrotik IP Settings For Performance and Security
Mikrotik IP Settings For Performance and SecurityMikrotik IP Settings For Performance and Security
Mikrotik IP Settings For Performance and Security
GLC Networks

GLC webinar: limiting bandwidth using mikrotik
GLC webinar: limiting bandwidth using mikrotikGLC webinar: limiting bandwidth using mikrotik
GLC webinar: limiting bandwidth using mikrotik
Achmad Mardiansyah

Mikrotik fastpath
Mikrotik fastpathMikrotik fastpath
Mikrotik fastpath
Achmad Mardiansyah

BGP vs OSPF on Mikrotik
BGP vs OSPF on MikrotikBGP vs OSPF on Mikrotik
BGP vs OSPF on Mikrotik
GLC Networks

Mikrotik Hotspot
Mikrotik HotspotMikrotik Hotspot
Mikrotik Hotspot
GLC Networks

Mikrotik the dude
Mikrotik the dudeMikrotik the dude
Mikrotik the dude
Achmad Mardiansyah

Routing Information Protocol (RIP) on Mikrotik
Routing Information Protocol (RIP) on MikrotikRouting Information Protocol (RIP) on Mikrotik
Routing Information Protocol (RIP) on Mikrotik
Achmad Mardiansyah

Limiting bandwidth of specific destination based on address list
Limiting bandwidth of specific destination based on address listLimiting bandwidth of specific destination based on address list
Limiting bandwidth of specific destination based on address list
Achmad Mardiansyah

MTCNA Intro to routerOS
MTCNA Intro to routerOSMTCNA Intro to routerOS
MTCNA Intro to routerOS
GLC Networks

Using Mikrotik Switch Features to Improve Your Network
Using Mikrotik Switch Features to Improve Your Network Using Mikrotik Switch Features to Improve Your Network
Using Mikrotik Switch Features to Improve Your Network
GLC Networks


What's hot (20)

BGP on RouterOS7 -Part 1
BGP on RouterOS7 -Part 1BGP on RouterOS7 -Part 1
BGP on RouterOS7 -Part 1

Connection load balancing with mikrotik [workshop]
Connection load balancing with mikrotik [workshop]Connection load balancing with mikrotik [workshop]
Connection load balancing with mikrotik [workshop]

MikroTik Security
MikroTik SecurityMikroTik Security
MikroTik Security

ISP Load Balancing with Mikrotik ECMP
ISP Load Balancing with Mikrotik ECMPISP Load Balancing with Mikrotik ECMP
ISP Load Balancing with Mikrotik ECMP

Tunnel vs VPN on Mikrotik
Tunnel vs VPN on MikrotikTunnel vs VPN on Mikrotik
Tunnel vs VPN on Mikrotik

Network Monitoring with The Dude and Whatsapp
Network Monitoring with The Dude and WhatsappNetwork Monitoring with The Dude and Whatsapp
Network Monitoring with The Dude and Whatsapp

Mikrotik firewall raw table
Mikrotik firewall raw tableMikrotik firewall raw table
Mikrotik firewall raw table

Using mikrotik with radius
Using mikrotik with radiusUsing mikrotik with radius
Using mikrotik with radius

BGP on mikrotik
BGP on mikrotikBGP on mikrotik
BGP on mikrotik

Policy Based Routing (PBR) on Mikrotik
Policy Based Routing (PBR) on MikrotikPolicy Based Routing (PBR) on Mikrotik
Policy Based Routing (PBR) on Mikrotik

Mikrotik IP Settings For Performance and Security
Mikrotik IP Settings For Performance and SecurityMikrotik IP Settings For Performance and Security
Mikrotik IP Settings For Performance and Security

GLC webinar: limiting bandwidth using mikrotik
GLC webinar: limiting bandwidth using mikrotikGLC webinar: limiting bandwidth using mikrotik
GLC webinar: limiting bandwidth using mikrotik

Mikrotik fastpath
Mikrotik fastpathMikrotik fastpath
Mikrotik fastpath

BGP vs OSPF on Mikrotik
BGP vs OSPF on MikrotikBGP vs OSPF on Mikrotik
BGP vs OSPF on Mikrotik

Mikrotik Hotspot
Mikrotik HotspotMikrotik Hotspot
Mikrotik Hotspot

Mikrotik the dude
Mikrotik the dudeMikrotik the dude
Mikrotik the dude

Routing Information Protocol (RIP) on Mikrotik
Routing Information Protocol (RIP) on MikrotikRouting Information Protocol (RIP) on Mikrotik
Routing Information Protocol (RIP) on Mikrotik

Limiting bandwidth of specific destination based on address list
Limiting bandwidth of specific destination based on address listLimiting bandwidth of specific destination based on address list
Limiting bandwidth of specific destination based on address list

MTCNA Intro to routerOS
MTCNA Intro to routerOSMTCNA Intro to routerOS
MTCNA Intro to routerOS

Using Mikrotik Switch Features to Improve Your Network
Using Mikrotik Switch Features to Improve Your Network Using Mikrotik Switch Features to Improve Your Network
Using Mikrotik Switch Features to Improve Your Network


Viewers also liked

SETING DAN KONFIGURASI ROUTERBOARD MIKROTIK RB 750 METODE TEX
SETING DAN KONFIGURASI ROUTERBOARD  MIKROTIK RB 750 METODE TEXSETING DAN KONFIGURASI ROUTERBOARD  MIKROTIK RB 750 METODE TEX
SETING DAN KONFIGURASI ROUTERBOARD MIKROTIK RB 750 METODE TEX
Kadek Kamastika

cara membuat hotspot dengan MikroTik di VirtualBox
cara membuat hotspot dengan MikroTik di VirtualBoxcara membuat hotspot dengan MikroTik di VirtualBox
cara membuat hotspot dengan MikroTik di VirtualBox
ariweda2323

Setting mikrotik untuk game online campur browsing
Setting mikrotik untuk game online campur browsingSetting mikrotik untuk game online campur browsing
Setting mikrotik untuk game online campur browsing
imanariepin24

Mikrotik API
Mikrotik APIMikrotik API
Mikrotik API
Achmad Mardiansyah

Jurnal manajemen bandwidth internet dengan router mikrotik di sma negeri sari...
Jurnal manajemen bandwidth internet dengan router mikrotik di sma negeri sari...Jurnal manajemen bandwidth internet dengan router mikrotik di sma negeri sari...
Jurnal manajemen bandwidth internet dengan router mikrotik di sma negeri sari...
Rudy Hendrawan

Setting mikrotik warnet i
Setting mikrotik warnet iSetting mikrotik warnet i
Setting mikrotik warnet i
Denny Hotspot

Mikrotik metarouter
Mikrotik metarouterMikrotik metarouter
Mikrotik metarouter
Achmad Mardiansyah

Konfigurasi mikrotik (virtualbox)
Konfigurasi mikrotik (virtualbox) Konfigurasi mikrotik (virtualbox)
Konfigurasi mikrotik (virtualbox)
Mas Tobel

7 superchannel mikrotik sutiyo
7 superchannel mikrotik sutiyo7 superchannel mikrotik sutiyo
7 superchannel mikrotik sutiyo
Ade Tamin

VLAN on mikrotik
VLAN on mikrotikVLAN on mikrotik
VLAN on mikrotik
Achmad Mardiansyah

IPv6 on Mikrotik
IPv6 on MikrotikIPv6 on Mikrotik
IPv6 on Mikrotik
Achmad Mardiansyah

Konfigurasi mikrotik-dasar-hotspot-dan-warnet
Konfigurasi mikrotik-dasar-hotspot-dan-warnetKonfigurasi mikrotik-dasar-hotspot-dan-warnet
Konfigurasi mikrotik-dasar-hotspot-dan-warnet
R Arju Damar

WIRELESS SECURITY ON MIKROTIK TUGAS 1 KOMUNIKASI NIRKABEL
WIRELESS SECURITY ON MIKROTIK TUGAS  1  KOMUNIKASI NIRKABELWIRELESS SECURITY ON MIKROTIK TUGAS  1  KOMUNIKASI NIRKABEL
WIRELESS SECURITY ON MIKROTIK TUGAS 1 KOMUNIKASI NIRKABEL
Sutni_Wulan_Sari_Puasa

Sistem Keamanan dan Optimalisasi Bandwidth menggunakan MikroTik RB750
Sistem Keamanan dan Optimalisasi Bandwidth menggunakan MikroTik RB750 Sistem Keamanan dan Optimalisasi Bandwidth menggunakan MikroTik RB750
Sistem Keamanan dan Optimalisasi Bandwidth menggunakan MikroTik RB750
Arif Wahyudi

Langkah langkah membuat hotspot MikroTik di virtualbox
Langkah langkah membuat hotspot MikroTik di virtualboxLangkah langkah membuat hotspot MikroTik di virtualbox
Langkah langkah membuat hotspot MikroTik di virtualbox
rizky dk

Laporan PRAKERIN MIKROTIK
Laporan PRAKERIN MIKROTIKLaporan PRAKERIN MIKROTIK
Laporan PRAKERIN MIKROTIK
Bayu Febry Valentino

10.1. perjanjian sewa menyewa
10.1. perjanjian sewa menyewa10.1. perjanjian sewa menyewa
10.1. perjanjian sewa menyewa
Denny Hotspot


Viewers also liked (17)

SETING DAN KONFIGURASI ROUTERBOARD MIKROTIK RB 750 METODE TEX
SETING DAN KONFIGURASI ROUTERBOARD  MIKROTIK RB 750 METODE TEXSETING DAN KONFIGURASI ROUTERBOARD  MIKROTIK RB 750 METODE TEX
SETING DAN KONFIGURASI ROUTERBOARD MIKROTIK RB 750 METODE TEX

cara membuat hotspot dengan MikroTik di VirtualBox
cara membuat hotspot dengan MikroTik di VirtualBoxcara membuat hotspot dengan MikroTik di VirtualBox
cara membuat hotspot dengan MikroTik di VirtualBox

Setting mikrotik untuk game online campur browsing
Setting mikrotik untuk game online campur browsingSetting mikrotik untuk game online campur browsing
Setting mikrotik untuk game online campur browsing

Mikrotik API
Mikrotik APIMikrotik API
Mikrotik API

Jurnal manajemen bandwidth internet dengan router mikrotik di sma negeri sari...
Jurnal manajemen bandwidth internet dengan router mikrotik di sma negeri sari...Jurnal manajemen bandwidth internet dengan router mikrotik di sma negeri sari...
Jurnal manajemen bandwidth internet dengan router mikrotik di sma negeri sari...

Setting mikrotik warnet i
Setting mikrotik warnet iSetting mikrotik warnet i
Setting mikrotik warnet i

Mikrotik metarouter
Mikrotik metarouterMikrotik metarouter
Mikrotik metarouter

Konfigurasi mikrotik (virtualbox)
Konfigurasi mikrotik (virtualbox) Konfigurasi mikrotik (virtualbox)
Konfigurasi mikrotik (virtualbox)

7 superchannel mikrotik sutiyo
7 superchannel mikrotik sutiyo7 superchannel mikrotik sutiyo
7 superchannel mikrotik sutiyo

VLAN on mikrotik
VLAN on mikrotikVLAN on mikrotik
VLAN on mikrotik

IPv6 on Mikrotik
IPv6 on MikrotikIPv6 on Mikrotik
IPv6 on Mikrotik

Konfigurasi mikrotik-dasar-hotspot-dan-warnet
Konfigurasi mikrotik-dasar-hotspot-dan-warnetKonfigurasi mikrotik-dasar-hotspot-dan-warnet
Konfigurasi mikrotik-dasar-hotspot-dan-warnet

WIRELESS SECURITY ON MIKROTIK TUGAS 1 KOMUNIKASI NIRKABEL
WIRELESS SECURITY ON MIKROTIK TUGAS  1  KOMUNIKASI NIRKABELWIRELESS SECURITY ON MIKROTIK TUGAS  1  KOMUNIKASI NIRKABEL
WIRELESS SECURITY ON MIKROTIK TUGAS 1 KOMUNIKASI NIRKABEL

Sistem Keamanan dan Optimalisasi Bandwidth menggunakan MikroTik RB750
Sistem Keamanan dan Optimalisasi Bandwidth menggunakan MikroTik RB750 Sistem Keamanan dan Optimalisasi Bandwidth menggunakan MikroTik RB750
Sistem Keamanan dan Optimalisasi Bandwidth menggunakan MikroTik RB750

Langkah langkah membuat hotspot MikroTik di virtualbox
Langkah langkah membuat hotspot MikroTik di virtualboxLangkah langkah membuat hotspot MikroTik di virtualbox
Langkah langkah membuat hotspot MikroTik di virtualbox

Laporan PRAKERIN MIKROTIK
Laporan PRAKERIN MIKROTIKLaporan PRAKERIN MIKROTIK
Laporan PRAKERIN MIKROTIK

10.1. perjanjian sewa menyewa
10.1. perjanjian sewa menyewa10.1. perjanjian sewa menyewa
10.1. perjanjian sewa menyewa


Similar to Routing fundamentals with mikrotik

Best Current Practice (BCP) 38 Ingress Filtering for Security
Best Current Practice (BCP) 38 Ingress Filtering for SecurityBest Current Practice (BCP) 38 Ingress Filtering for Security
Best Current Practice (BCP) 38 Ingress Filtering for Security
GLC Networks

Internet Protocol Deep-Dive
Internet Protocol Deep-DiveInternet Protocol Deep-Dive
Internet Protocol Deep-Dive
GLC Networks

BGP Services IP Transit vs IP Peering
BGP Services  IP Transit vs IP PeeringBGP Services  IP Transit vs IP Peering
BGP Services IP Transit vs IP Peering
GLC Networks

Controlling Access Between Devices in the same Layer 2 Segment
Controlling Access Between Devices in the same Layer 2 SegmentControlling Access Between Devices in the same Layer 2 Segment
Controlling Access Between Devices in the same Layer 2 Segment
GLC Networks

MPLS on Router OS V7 - Part 1
MPLS on Router OS V7 - Part 1MPLS on Router OS V7 - Part 1
MPLS on Router OS V7 - Part 1
GLC Networks

MTCNA : Intro to RouterOS - Part 1
MTCNA : Intro to RouterOS - Part 1MTCNA : Intro to RouterOS - Part 1
MTCNA : Intro to RouterOS - Part 1
GLC Networks

Zabbix for Monitoring
Zabbix for MonitoringZabbix for Monitoring
Zabbix for Monitoring
GLC Networks

Firewall mangle PBR: steering outbound path similar to inbound
Firewall mangle PBR: steering outbound path similar to inboundFirewall mangle PBR: steering outbound path similar to inbound
Firewall mangle PBR: steering outbound path similar to inbound
GLC Networks

VLAN vs VXLAN
VLAN vs VXLANVLAN vs VXLAN
VLAN vs VXLAN
GLC Networks

Tuning OSPF: Bidirectional Forwarding Detection (BFD)
Tuning OSPF: Bidirectional Forwarding Detection (BFD)Tuning OSPF: Bidirectional Forwarding Detection (BFD)
Tuning OSPF: Bidirectional Forwarding Detection (BFD)
GLC Networks

Tuning OSPF: Prefix Aggregate
Tuning OSPF: Prefix AggregateTuning OSPF: Prefix Aggregate
Tuning OSPF: Prefix Aggregate
GLC Networks

RouterOS Migration From v6 to v7
RouterOS Migration From v6 to v7RouterOS Migration From v6 to v7
RouterOS Migration From v6 to v7
GLC Networks

Mikrotik firewall NAT
Mikrotik firewall NATMikrotik firewall NAT
Mikrotik firewall NAT
Achmad Mardiansyah

Stable OSPF: choosing network type.pdf
Stable OSPF: choosing network type.pdfStable OSPF: choosing network type.pdf
Stable OSPF: choosing network type.pdf
GLC Networks

Tuning OSPF: area hierarchy, LSA, and area type
Tuning OSPF:  area hierarchy, LSA, and area typeTuning OSPF:  area hierarchy, LSA, and area type
Tuning OSPF: area hierarchy, LSA, and area type
GLC Networks

Network LACP/Bonding/Teaming with Mikrotik
Network LACP/Bonding/Teaming with MikrotikNetwork LACP/Bonding/Teaming with Mikrotik
Network LACP/Bonding/Teaming with Mikrotik
GLC Networks

Networking in Telecommunication (signalling, tcp, ucp, ss7, sctp, sigtran)
Networking in Telecommunication (signalling, tcp, ucp, ss7, sctp, sigtran)Networking in Telecommunication (signalling, tcp, ucp, ss7, sctp, sigtran)
Networking in Telecommunication (signalling, tcp, ucp, ss7, sctp, sigtran)
GLC Networks

Steering traffic in OSPF: Interface cost
Steering traffic in OSPF: Interface costSteering traffic in OSPF: Interface cost
Steering traffic in OSPF: Interface cost
GLC Networks

Internal BGP tuning: Mesh peering to avoid loop
Internal BGP tuning: Mesh peering to avoid loopInternal BGP tuning: Mesh peering to avoid loop
Internal BGP tuning: Mesh peering to avoid loop
GLC Networks

Using protocol analyzer on mikrotik
Using protocol analyzer on mikrotikUsing protocol analyzer on mikrotik
Using protocol analyzer on mikrotik
Achmad Mardiansyah


Similar to Routing fundamentals with mikrotik (20)

Best Current Practice (BCP) 38 Ingress Filtering for Security
Best Current Practice (BCP) 38 Ingress Filtering for SecurityBest Current Practice (BCP) 38 Ingress Filtering for Security
Best Current Practice (BCP) 38 Ingress Filtering for Security

Internet Protocol Deep-Dive
Internet Protocol Deep-DiveInternet Protocol Deep-Dive
Internet Protocol Deep-Dive

BGP Services IP Transit vs IP Peering
BGP Services  IP Transit vs IP PeeringBGP Services  IP Transit vs IP Peering
BGP Services IP Transit vs IP Peering

Controlling Access Between Devices in the same Layer 2 Segment
Controlling Access Between Devices in the same Layer 2 SegmentControlling Access Between Devices in the same Layer 2 Segment
Controlling Access Between Devices in the same Layer 2 Segment

MPLS on Router OS V7 - Part 1
MPLS on Router OS V7 - Part 1MPLS on Router OS V7 - Part 1
MPLS on Router OS V7 - Part 1

MTCNA : Intro to RouterOS - Part 1
MTCNA : Intro to RouterOS - Part 1MTCNA : Intro to RouterOS - Part 1
MTCNA : Intro to RouterOS - Part 1

Zabbix for Monitoring
Zabbix for MonitoringZabbix for Monitoring
Zabbix for Monitoring

Firewall mangle PBR: steering outbound path similar to inbound
Firewall mangle PBR: steering outbound path similar to inboundFirewall mangle PBR: steering outbound path similar to inbound
Firewall mangle PBR: steering outbound path similar to inbound

VLAN vs VXLAN
VLAN vs VXLANVLAN vs VXLAN
VLAN vs VXLAN

Tuning OSPF: Bidirectional Forwarding Detection (BFD)
Tuning OSPF: Bidirectional Forwarding Detection (BFD)Tuning OSPF: Bidirectional Forwarding Detection (BFD)
Tuning OSPF: Bidirectional Forwarding Detection (BFD)

Tuning OSPF: Prefix Aggregate
Tuning OSPF: Prefix AggregateTuning OSPF: Prefix Aggregate
Tuning OSPF: Prefix Aggregate

RouterOS Migration From v6 to v7
RouterOS Migration From v6 to v7RouterOS Migration From v6 to v7
RouterOS Migration From v6 to v7

Mikrotik firewall NAT
Mikrotik firewall NATMikrotik firewall NAT
Mikrotik firewall NAT

Stable OSPF: choosing network type.pdf
Stable OSPF: choosing network type.pdfStable OSPF: choosing network type.pdf
Stable OSPF: choosing network type.pdf

Tuning OSPF: area hierarchy, LSA, and area type
Tuning OSPF:  area hierarchy, LSA, and area typeTuning OSPF:  area hierarchy, LSA, and area type
Tuning OSPF: area hierarchy, LSA, and area type

Network LACP/Bonding/Teaming with Mikrotik
Network LACP/Bonding/Teaming with MikrotikNetwork LACP/Bonding/Teaming with Mikrotik
Network LACP/Bonding/Teaming with Mikrotik

Networking in Telecommunication (signalling, tcp, ucp, ss7, sctp, sigtran)
Networking in Telecommunication (signalling, tcp, ucp, ss7, sctp, sigtran)Networking in Telecommunication (signalling, tcp, ucp, ss7, sctp, sigtran)
Networking in Telecommunication (signalling, tcp, ucp, ss7, sctp, sigtran)

Steering traffic in OSPF: Interface cost
Steering traffic in OSPF: Interface costSteering traffic in OSPF: Interface cost
Steering traffic in OSPF: Interface cost

Internal BGP tuning: Mesh peering to avoid loop
Internal BGP tuning: Mesh peering to avoid loopInternal BGP tuning: Mesh peering to avoid loop
Internal BGP tuning: Mesh peering to avoid loop

Using protocol analyzer on mikrotik
Using protocol analyzer on mikrotikUsing protocol analyzer on mikrotik
Using protocol analyzer on mikrotik


More from Achmad Mardiansyah

01 introduction to mpls
01 introduction to mpls 01 introduction to mpls
01 introduction to mpls
Achmad Mardiansyah

Solaris 10 Container
Solaris 10 ContainerSolaris 10 Container
Solaris 10 Container
Achmad Mardiansyah

Backup & Restore (BR) in Solaris OS
Backup & Restore (BR) in Solaris OSBackup & Restore (BR) in Solaris OS
Backup & Restore (BR) in Solaris OS
Achmad Mardiansyah

Mikrotik User Meeting Manila: bgp vs ospf
Mikrotik User Meeting Manila: bgp vs ospfMikrotik User Meeting Manila: bgp vs ospf
Mikrotik User Meeting Manila: bgp vs ospf
Achmad Mardiansyah

PHPID online Learning #6 Migration from procedural to OOP
PHPID online Learning #6 Migration from procedural to OOPPHPID online Learning #6 Migration from procedural to OOP
PHPID online Learning #6 Migration from procedural to OOP
Achmad Mardiansyah

Troubleshooting load balancing
Troubleshooting load balancingTroubleshooting load balancing
Troubleshooting load balancing
Achmad Mardiansyah

ISP load balancing with mikrotik nth
ISP load balancing with mikrotik nthISP load balancing with mikrotik nth
ISP load balancing with mikrotik nth
Achmad Mardiansyah

Wireless CSMA with mikrotik
Wireless CSMA with mikrotikWireless CSMA with mikrotik
Wireless CSMA with mikrotik
Achmad Mardiansyah

SSL certificate with mikrotik
SSL certificate with mikrotikSSL certificate with mikrotik
SSL certificate with mikrotik
Achmad Mardiansyah

BGP filter with mikrotik
BGP filter with mikrotikBGP filter with mikrotik
BGP filter with mikrotik
Achmad Mardiansyah

Mikrotik VRRP
Mikrotik VRRPMikrotik VRRP
Mikrotik VRRP
Achmad Mardiansyah

Mikrotik fasttrack
Mikrotik fasttrackMikrotik fasttrack
Mikrotik fasttrack
Achmad Mardiansyah

Jumpstart your router with mikrotik quickset
Jumpstart your router with mikrotik quicksetJumpstart your router with mikrotik quickset
Jumpstart your router with mikrotik quickset
Achmad Mardiansyah

VPN on Mikrotik
VPN on MikrotikVPN on Mikrotik
VPN on Mikrotik
Achmad Mardiansyah


More from Achmad Mardiansyah (14)

01 introduction to mpls
01 introduction to mpls 01 introduction to mpls
01 introduction to mpls

Solaris 10 Container
Solaris 10 ContainerSolaris 10 Container
Solaris 10 Container

Backup & Restore (BR) in Solaris OS
Backup & Restore (BR) in Solaris OSBackup & Restore (BR) in Solaris OS
Backup & Restore (BR) in Solaris OS

Mikrotik User Meeting Manila: bgp vs ospf
Mikrotik User Meeting Manila: bgp vs ospfMikrotik User Meeting Manila: bgp vs ospf
Mikrotik User Meeting Manila: bgp vs ospf

PHPID online Learning #6 Migration from procedural to OOP
PHPID online Learning #6 Migration from procedural to OOPPHPID online Learning #6 Migration from procedural to OOP
PHPID online Learning #6 Migration from procedural to OOP

Troubleshooting load balancing
Troubleshooting load balancingTroubleshooting load balancing
Troubleshooting load balancing

ISP load balancing with mikrotik nth
ISP load balancing with mikrotik nthISP load balancing with mikrotik nth
ISP load balancing with mikrotik nth

Wireless CSMA with mikrotik
Wireless CSMA with mikrotikWireless CSMA with mikrotik
Wireless CSMA with mikrotik

SSL certificate with mikrotik
SSL certificate with mikrotikSSL certificate with mikrotik
SSL certificate with mikrotik

BGP filter with mikrotik
BGP filter with mikrotikBGP filter with mikrotik
BGP filter with mikrotik

Mikrotik VRRP
Mikrotik VRRPMikrotik VRRP
Mikrotik VRRP

Mikrotik fasttrack
Mikrotik fasttrackMikrotik fasttrack
Mikrotik fasttrack

Jumpstart your router with mikrotik quickset
Jumpstart your router with mikrotik quicksetJumpstart your router with mikrotik quickset
Jumpstart your router with mikrotik quickset

VPN on Mikrotik
VPN on MikrotikVPN on Mikrotik
VPN on Mikrotik


Recently uploaded

快速办理(新加坡SMU毕业证书)新加坡管理大学毕业证文凭证书一模一样
快速办理(新加坡SMU毕业证书)新加坡管理大学毕业证文凭证书一模一样快速办理(新加坡SMU毕业证书)新加坡管理大学毕业证文凭证书一模一样
快速办理(新加坡SMU毕业证书)新加坡管理大学毕业证文凭证书一模一样
3a0sd7z3

快速办理(Vic毕业证书)惠灵顿维多利亚大学毕业证完成信一模一样
快速办理(Vic毕业证书)惠灵顿维多利亚大学毕业证完成信一模一样快速办理(Vic毕业证书)惠灵顿维多利亚大学毕业证完成信一模一样
快速办理(Vic毕业证书)惠灵顿维多利亚大学毕业证完成信一模一样
3a0sd7z3

一比一原版(USYD毕业证)悉尼大学毕业证如何办理
一比一原版(USYD毕业证)悉尼大学毕业证如何办理一比一原版(USYD毕业证)悉尼大学毕业证如何办理
一比一原版(USYD毕业证)悉尼大学毕业证如何办理
k4ncd0z

HijackLoader Evolution: Interactive Process Hollowing
HijackLoader Evolution: Interactive Process HollowingHijackLoader Evolution: Interactive Process Hollowing
HijackLoader Evolution: Interactive Process Hollowing
Donato Onofri

怎么办理(umiami毕业证书)美国迈阿密大学毕业证文凭证书实拍图原版一模一样
怎么办理(umiami毕业证书)美国迈阿密大学毕业证文凭证书实拍图原版一模一样怎么办理(umiami毕业证书)美国迈阿密大学毕业证文凭证书实拍图原版一模一样
怎么办理(umiami毕业证书)美国迈阿密大学毕业证文凭证书实拍图原版一模一样
rtunex8r

Bengaluru Dreamin' 24 - Personal Branding
Bengaluru Dreamin' 24 - Personal BrandingBengaluru Dreamin' 24 - Personal Branding
Bengaluru Dreamin' 24 - Personal Branding
Tarandeep Singh

Discover the benefits of outsourcing SEO to India
Discover the benefits of outsourcing SEO to IndiaDiscover the benefits of outsourcing SEO to India
Discover the benefits of outsourcing SEO to India
davidjhones387

一比一原版新西兰林肯大学毕业证(Lincoln毕业证书)学历如何办理
一比一原版新西兰林肯大学毕业证(Lincoln毕业证书)学历如何办理一比一原版新西兰林肯大学毕业证(Lincoln毕业证书)学历如何办理
一比一原版新西兰林肯大学毕业证(Lincoln毕业证书)学历如何办理
thezot

Securing BGP: Operational Strategies and Best Practices for Network Defenders...
Securing BGP: Operational Strategies and Best Practices for Network Defenders...Securing BGP: Operational Strategies and Best Practices for Network Defenders...
Securing BGP: Operational Strategies and Best Practices for Network Defenders...
APNIC

Should Repositories Participate in the Fediverse?
Should Repositories Participate in the Fediverse?Should Repositories Participate in the Fediverse?
Should Repositories Participate in the Fediverse?
Paul Walk

办理新西兰奥克兰大学毕业证学位证书范本原版一模一样
办理新西兰奥克兰大学毕业证学位证书范本原版一模一样办理新西兰奥克兰大学毕业证学位证书范本原版一模一样
办理新西兰奥克兰大学毕业证学位证书范本原版一模一样
xjq03c34

Honeypots Unveiled: Proactive Defense Tactics for Cyber Security, Phoenix Sum...
Honeypots Unveiled: Proactive Defense Tactics for Cyber Security, Phoenix Sum...Honeypots Unveiled: Proactive Defense Tactics for Cyber Security, Phoenix Sum...
Honeypots Unveiled: Proactive Defense Tactics for Cyber Security, Phoenix Sum...
APNIC


Recently uploaded (12)

快速办理(新加坡SMU毕业证书)新加坡管理大学毕业证文凭证书一模一样
快速办理(新加坡SMU毕业证书)新加坡管理大学毕业证文凭证书一模一样快速办理(新加坡SMU毕业证书)新加坡管理大学毕业证文凭证书一模一样
快速办理(新加坡SMU毕业证书)新加坡管理大学毕业证文凭证书一模一样

快速办理(Vic毕业证书)惠灵顿维多利亚大学毕业证完成信一模一样
快速办理(Vic毕业证书)惠灵顿维多利亚大学毕业证完成信一模一样快速办理(Vic毕业证书)惠灵顿维多利亚大学毕业证完成信一模一样
快速办理(Vic毕业证书)惠灵顿维多利亚大学毕业证完成信一模一样

一比一原版(USYD毕业证)悉尼大学毕业证如何办理
一比一原版(USYD毕业证)悉尼大学毕业证如何办理一比一原版(USYD毕业证)悉尼大学毕业证如何办理
一比一原版(USYD毕业证)悉尼大学毕业证如何办理

HijackLoader Evolution: Interactive Process Hollowing
HijackLoader Evolution: Interactive Process HollowingHijackLoader Evolution: Interactive Process Hollowing
HijackLoader Evolution: Interactive Process Hollowing

怎么办理(umiami毕业证书)美国迈阿密大学毕业证文凭证书实拍图原版一模一样
怎么办理(umiami毕业证书)美国迈阿密大学毕业证文凭证书实拍图原版一模一样怎么办理(umiami毕业证书)美国迈阿密大学毕业证文凭证书实拍图原版一模一样
怎么办理(umiami毕业证书)美国迈阿密大学毕业证文凭证书实拍图原版一模一样

Bengaluru Dreamin' 24 - Personal Branding
Bengaluru Dreamin' 24 - Personal BrandingBengaluru Dreamin' 24 - Personal Branding
Bengaluru Dreamin' 24 - Personal Branding

Discover the benefits of outsourcing SEO to India
Discover the benefits of outsourcing SEO to IndiaDiscover the benefits of outsourcing SEO to India
Discover the benefits of outsourcing SEO to India

一比一原版新西兰林肯大学毕业证(Lincoln毕业证书)学历如何办理
一比一原版新西兰林肯大学毕业证(Lincoln毕业证书)学历如何办理一比一原版新西兰林肯大学毕业证(Lincoln毕业证书)学历如何办理
一比一原版新西兰林肯大学毕业证(Lincoln毕业证书)学历如何办理

Securing BGP: Operational Strategies and Best Practices for Network Defenders...
Securing BGP: Operational Strategies and Best Practices for Network Defenders...Securing BGP: Operational Strategies and Best Practices for Network Defenders...
Securing BGP: Operational Strategies and Best Practices for Network Defenders...

Should Repositories Participate in the Fediverse?
Should Repositories Participate in the Fediverse?Should Repositories Participate in the Fediverse?
Should Repositories Participate in the Fediverse?

办理新西兰奥克兰大学毕业证学位证书范本原版一模一样
办理新西兰奥克兰大学毕业证学位证书范本原版一模一样办理新西兰奥克兰大学毕业证学位证书范本原版一模一样
办理新西兰奥克兰大学毕业证学位证书范本原版一模一样

Honeypots Unveiled: Proactive Defense Tactics for Cyber Security, Phoenix Sum...
Honeypots Unveiled: Proactive Defense Tactics for Cyber Security, Phoenix Sum...Honeypots Unveiled: Proactive Defense Tactics for Cyber Security, Phoenix Sum...
Honeypots Unveiled: Proactive Defense Tactics for Cyber Security, Phoenix Sum...


Routing fundamentals with mikrotik

  • 1. www.glcnetworks.com Routing fundamentals with Mikrotik GLC webinar, 1 December 2016 Achmad Mardiansyah achmad@glcnetworks.com GLC Networks, Indonesia
  • 2. www.glcnetworks.com Agenda ● Introduction ● Layer 3 concept ● Routing ● Demo ● Q & A 2
  • 3. www.glcnetworks.com What is GLC? ● Garda Lintas Cakrawala (www.glcnetworks.com) ● An Indonesian company ● Located in Bandung ● Areas: Training, IT Consulting ● Mikrotik Certified Training Partner ● Mikrotik Certified Consultant ● Mikrotik distributor 3
  • 4. www.glcnetworks.com About GLC webinar? ● First webinar: january 1, 2010 (title: tahun baru bersama solaris - new year with solaris OS) ● As a sharing event with various topics: linux, networking, wireless, database, programming, etc ● Regular schedule: every 2 weeks ● Irregular schedule: as needed ● Checking schedule: http://www.glcnetworks.com/main/sc hedule ● You are invited to be a presenter ○ No need to be an expert ○ This is a forum for sharing: knowledge, experiences, information 4
  • 5. www.glcnetworks.com Trainer Introduction ● Name: Achmad Mardiansyah ● Base: bandung, Indonesia ● Linux user since ’99 ● Mikrotik user since 2007 ● Certified Trainer (MTCNA/RE/WE/UME/INE/TCE) ● Mikrotik Certified Consultant ● Work: Telco engineer, Sysadmin, PHP programmer, and Lecturer ● Personal website: http://achmad.glcnetworks.com ● More info: http://au.linkedin.com/in/achmadmardiansyah 5
  • 6. www.glcnetworks.com Please introduce yourself ● Your name ● Your company/university? ● Your networking experience? ● Your mikrotik experience? ● Your expectation from this course? 6
  • 7. www.glcnetworks.com What is Mikrotik? ● Name of a company ● A brand ● A program (e.g. mikrotik academy) ● Headquarter: Riga, Latvia 7
  • 8. www.glcnetworks.com What are mikrotik products? ● Router OS ○ The OS. Specialized for networking ○ Website: www.mikrotik.com/download ● RouterBoard ○ The hardware ○ RouterOS installed ○ Website: www.routerboard.com 8
  • 9. www.glcnetworks.com What Router OS can do? ● Go to www.mikrotik.com ○ Download: what_is_routeros.pdf ○ Download: product catalog ○ Download: newsletter 9
  • 10. www.glcnetworks.com What are Mikrotik training & certifications? 10 Certificate validity is 3 years
  • 12. www.glcnetworks.com Layer 3 ● Logical address ● 2 versions: IPv4 (our focus) and IPv6 ● IPv4 32 bit long ● Consist of network part & host part ● Can be class based IP address (without subnet) ● Now it is classless IP address -> VLSM (variable length subnet mask) ● CIDR (classless inter domain routing) 12
  • 13. www.glcnetworks.com IP spec (RFC 791) ● Defined long time ago (what 1981?) ● Defines how the IP header looks like ● Still used up to know ● New version -> IPv6 13
  • 14. www.glcnetworks.com How the layer 3 address look like? ● IPv4 address is 32 bit ● Written in binary ● Displayed to human in decimal every 8 bit (octet). ● Has 2 parts: network part and host part ● Like a phone number 0812 XXXXXXXX -> hierarchical ● All devices in the network will have same network address ● First and last address cannot be used (for network id and broadcast id) 14 Network part host part
  • 15. www.glcnetworks.com Layer 3 connection and addressing ● Devices that uses layer 3 information: router and host ● All devices must have a layer 3 address ● address is hierarchical ○ Network part (e.g. 192.168.0.2/26 -> the first 26 bit of all host in the network will be the same) -> show the grouping identity ○ Host part 15 192.168.0.0/26 R1 192.168.0.1/26 192.168.0.3/26 192.168.0.2/26 R3 R2 192.168.1.0/24 192.168.2.0/24 192.168.3.0/24 192.168.3.3/24 192.168.3.9/24 192.168.2.9/24 192.168.2.2/24 192.168.1.1/24 192.168.1.9/24
  • 16. www.glcnetworks.com What is VLSM? ● Variable-Length Subnet Masking (VLSM) ● Can divide an IP address block into subnets of different sizes using / (slash) notation ● Solution the in efficient of classful IP address (fixed length). No more class A, class B, Class C -> pleeease dont say this classes anymore ● making it possible to create subnets with very different host counts without wasting large numbers of addresses. ● RFC: 1878 (1995) ● Basis for CIDR ● Example: 23.45.0.0/16 ○ 23.45.0.0/25 ○ 23.45.0.128/25 16
  • 18. www.glcnetworks.com What is CIDR? ● CIDR: Classless Inter-Domain Routing (sometimes is called supernetting) ● CIDR solves problem of wasted address space by providing a new and more flexible way to specify network addresses in routers (using slash as notation) ● allow flexible allocation of Internet Protocol (IP) addresses. ● Replaces classfull network (class A,B,C,D). Please dont ever mention this anymore... ● CIDR lets a routing table entry represent an aggregation of networks that exist in the forward path ● Each IP address has a network prefix that identifies either one or several network gateways. ● RFC: 1519 18
  • 21. www.glcnetworks.com What is routing table? ● A table at router that is used to forward packet ● Available on every devices (router and host) ● Entry is executed sequentially 21 192.168.0.0/26 R1 192.168.0.1/26 192.168.0.3/26 192.168.0.2/26 R3 R2 192.168.1.0/24 192.168.2.0/24 192.168.3.0/24 192.168.3.3/24 192.168.3.9/24 192.168.2.9/24 192.168.2.2/24 192.168.1.1/24 192.168.1.9/24 destination gateway 192.168.0.0/26 direct 192.168.1.0/24 direct 192.168.2.0/24 192.168.0.2 192.168.3.0/24 192.168.0.3 192.168.16.3/32 192.168.0.2 0.0.0.0/0 192.168.0.3
  • 22. www.glcnetworks.com When router receive a packet… (setup priority on routing table) ● Router will analyse the destination IP address ● Router will rearrange the routing entry and put priority ○ Longest prefix wins ○ Lowest distance wins 22 destination gateway 192.168.0.0/26 direct 192.168.1.0/24 direct 192.168.2.0/24 192.168.0.2 192.168.3.0/24 192.168.0.3 192.168.16.3/32 192.168.0.2 0.0.0.0/0 192.168.0.3 destination gateway 192.168.16.3/32 192.168.0.2 192.168.0.0/26 direct 192.168.1.0/24 direct 192.168.2.0/24 192.168.0.2 192.168.3.0/24 192.168.0.3 0.0.0.0/0 192.168.0.3
  • 23. www.glcnetworks.com How the routing table works (R1)? ● It works like a firewall: match and action ● You should think in binary to understand how it works 23 destination gateway 192.168.16.3/32 11000000 10101000 00001000 00000011 192.168.0.2 192.168.0.0/26 11000000 10101000 00000000 00 direct 192.168.1.0/24 11000000 10101000 00000001 direct 192.168.2.0/24 11000000 10101000 00000010 192.168.0.2 192.168.3.0/24 11000000 10101000 00000011 192.168.0.3 0.0.0.0/0 192.168.0.3
  • 24. www.glcnetworks.com A packet arrived… (part 1) Destination IP address of the packet is 192.168.16.3, which gateway do we use? A: 192.168.16.3 = (11000000 10101000 00001000 00000011) 24 destination gateway 192.168.16.3/32 11000000 10101000 00001000 00000011 192.168.0.2 192.168.0.0/26 11000000 10101000 00000000 00 direct 192.168.1.0/24 11000000 10101000 00000001 direct 192.168.2.0/24 11000000 10101000 00000010 192.168.0.2 192.168.3.0/24 11000000 10101000 00000011 192.168.0.3 0.0.0.0/0 192.168.0.3 MATCH
  • 25. www.glcnetworks.com A packet arrived… (part 2) Destination IP address of the packet is 192.168.2.6, which gateway do we use? A: 192.168.2.6 = (11000000 10101000 00000010 00000110) 25 destination gateway 192.168.16.3/32 11000000 10101000 00001000 00000011 192.168.0.2 192.168.0.0/26 11000000 10101000 00000000 00 direct 192.168.1.0/24 11000000 10101000 00000001 direct 192.168.2.0/24 11000000 10101000 00000010 192.168.0.2 192.168.3.0/24 11000000 10101000 00000011 192.168.0.3 0.0.0.0/0 192.168.0.3 NOT MATCH NOT MATCH NOT MATCH MATCH
  • 26. www.glcnetworks.com A packet arrived… (part 3) Destination IP address of the packet is 192.168.8.6, which gateway do we use? A: 192.168.8.6 = (11000000 10101000 00001000 00000110) 26 destination gateway 192.168.16.3/32 11000000 10101000 00001000 00000011 192.168.0.2 192.168.0.0/26 11000000 10101000 00000000 00 direct 192.168.1.0/24 11000000 10101000 00000001 direct 192.168.2.0/24 11000000 10101000 00000010 192.168.0.2 192.168.3.0/24 11000000 10101000 00000011 192.168.0.3 0.0.0.0/0 192.168.0.3 NOT MATCH NOT MATCH NOT MATCH MATCH NOT MATCH NOT MATCH
  • 27. www.glcnetworks.com Static routing ● Entries on routing table is created manually ● Admin must manage routing table in all routers ● Admin have full control 27 192.168.0.0/26 R1 192.168.0.1/26 192.168.0.3/26 192.168.0.2/26 R3 R2 192.168.1.0/24 192.168.2.0/24 192.168.3.0/24 192.168.3.3/24 192.168.3.9/24 192.168.2.9/24 192.168.2.2/24 192.168.1.1/24 192.168.1.9/24 destination gateway 192.168.0.0/26 direct 192.168.1.0/24 direct 192.168.2.0/24 192.168.0.2 192.168.3.0/24 192.168.0.3 192.168.16.3/32 192.168.0.2 0.0.0.0/0 192.168.0.3
  • 28. www.glcnetworks.com Dynamic routing ● Entries on routing table is created automatically using routing protocol (RIP, OSPF, BGP) ● Admin must have a good knowledge about routing protocol 28 192.168.0.0/26 R1 192.168.0.1/26 192.168.0.3/26 192.168.0.2/26 R3 R2 192.168.1.0/24 192.168.2.0/24 192.168.3.0/24 192.168.3.3/24 192.168.3.9/24 192.168.2.9/24 192.168.2.2/24 192.168.1.1/24 192.168.1.9/24 destination gateway 192.168.0.0/26 direct 192.168.1.0/24 direct 192.168.2.0/24 192.168.0.2 192.168.3.0/24 192.168.0.3 192.168.16.3/32 192.168.0.2 0.0.0.0/0 192.168.0.3
  • 32. www.glcnetworks.com Interested? Just come to our training... Special price for webinar attendees... 32
  • 33. www.glcnetworks.com End of slides ● Thank you for your attention ● Please submit your feedback: http://bit.ly/glcfeedback ● Like our facebook page: “GLC networks” ● Stay tune with our schedule 33
