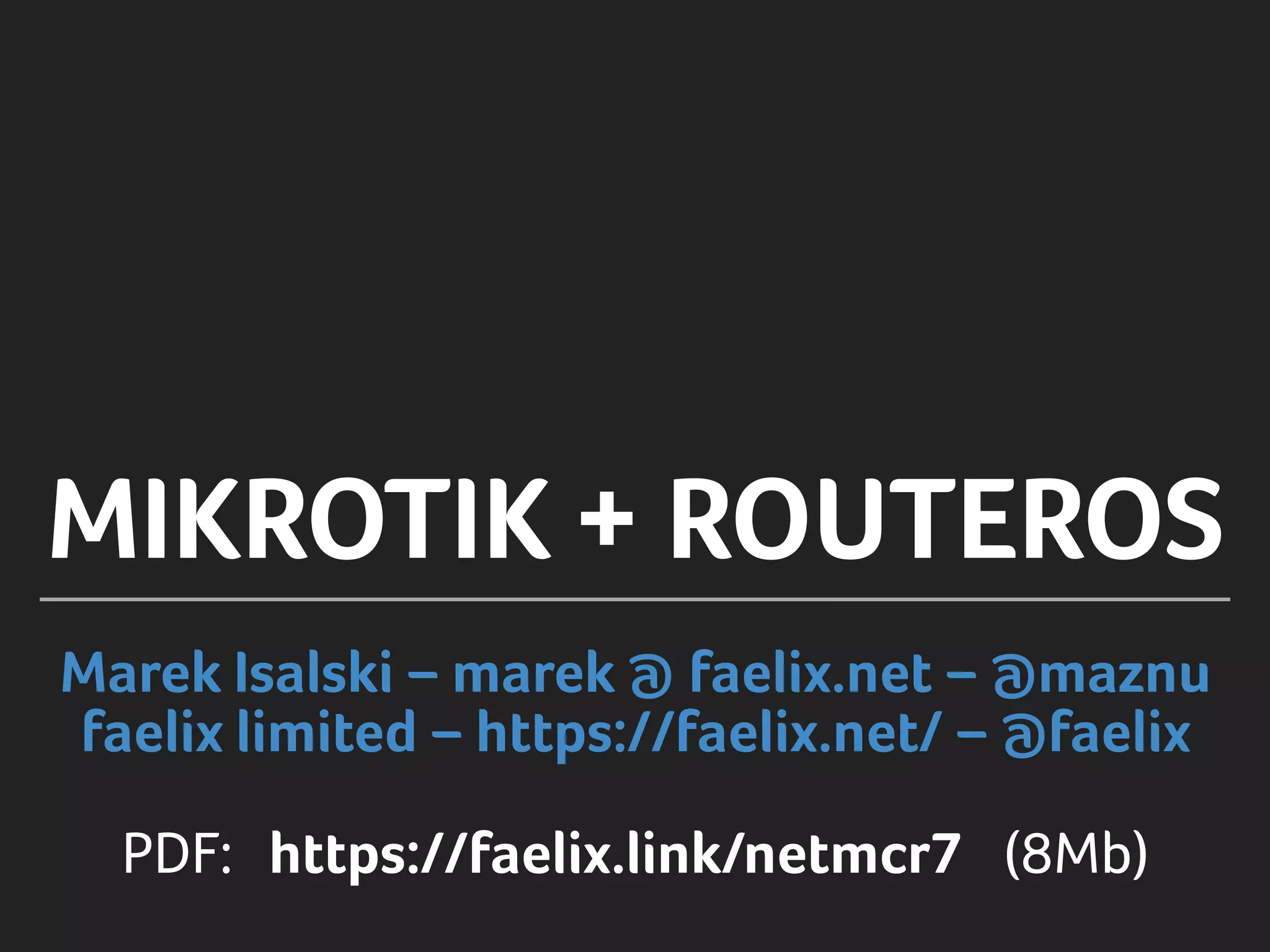

MIKROTIK + ROUTEROS

2. 2500+ PEOPLEMUM INDONESIA 2015

3. MIKROTIK + ROUTEROS

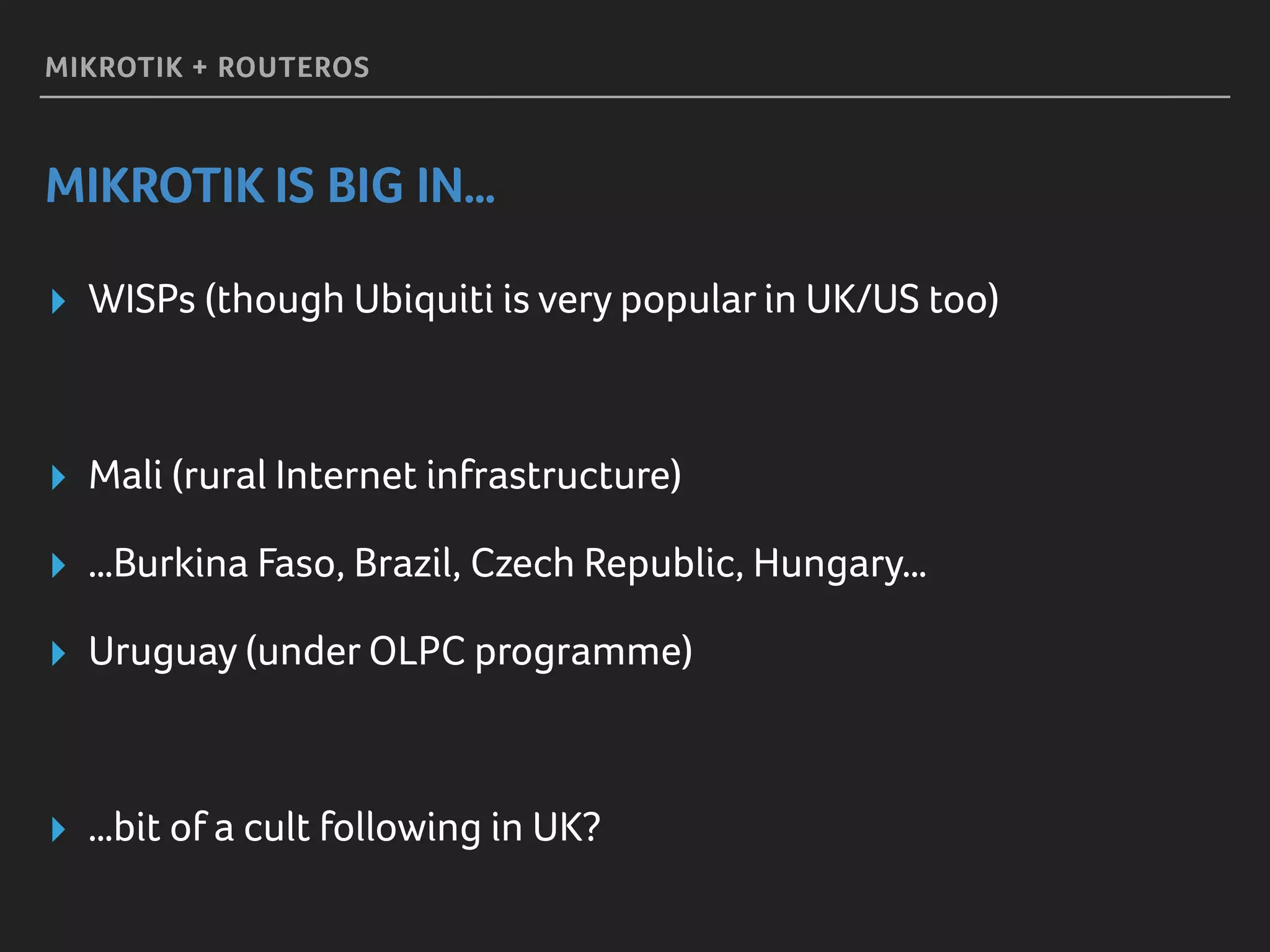

MIKROTIK IS BIG IN…
▸ WISPs (though Ubiquiti is very popular in UK/US too)
▸ Mali (rural Internet infrastructure)
▸ …Burkina Faso, Brazil, Czech Republic, Hungary…
▸ Uruguay (under OLPC programme)
▸ …bit of a cult following in UK?

5. MIKROTIK + ROUTEROS

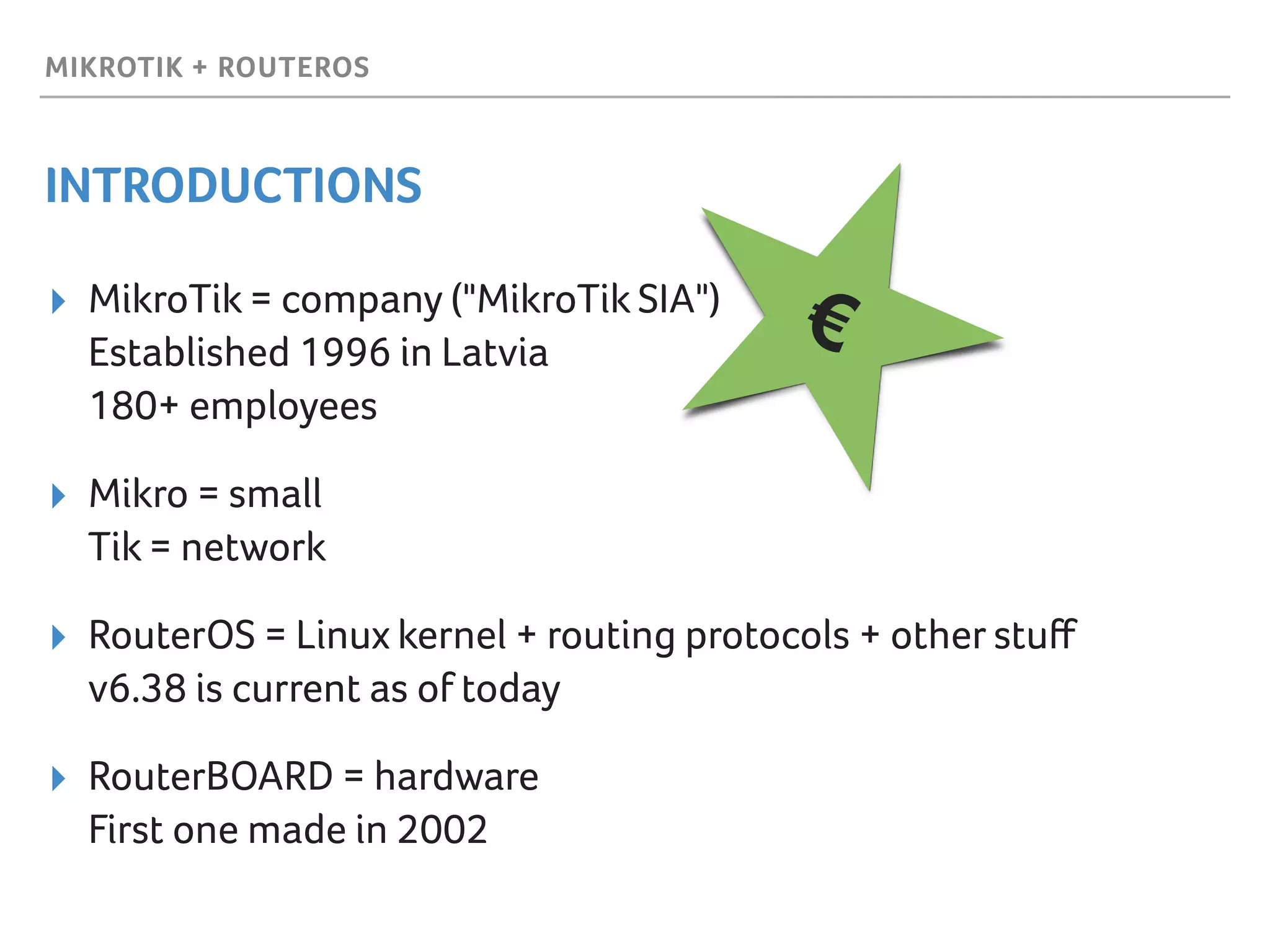

INTRODUCTIONS
▸ MikroTik = company ("MikroTik SIA")
Established 1996 in Latvia
180+ employees
▸ Mikro = small
Tik = network
▸ RouterOS = Linux kernel + routing protocols + other stuff
v6.38 is current as of today
▸ RouterBOARD = hardware
First one made in 2002
€

6. MIKROTIK + ROUTEROS

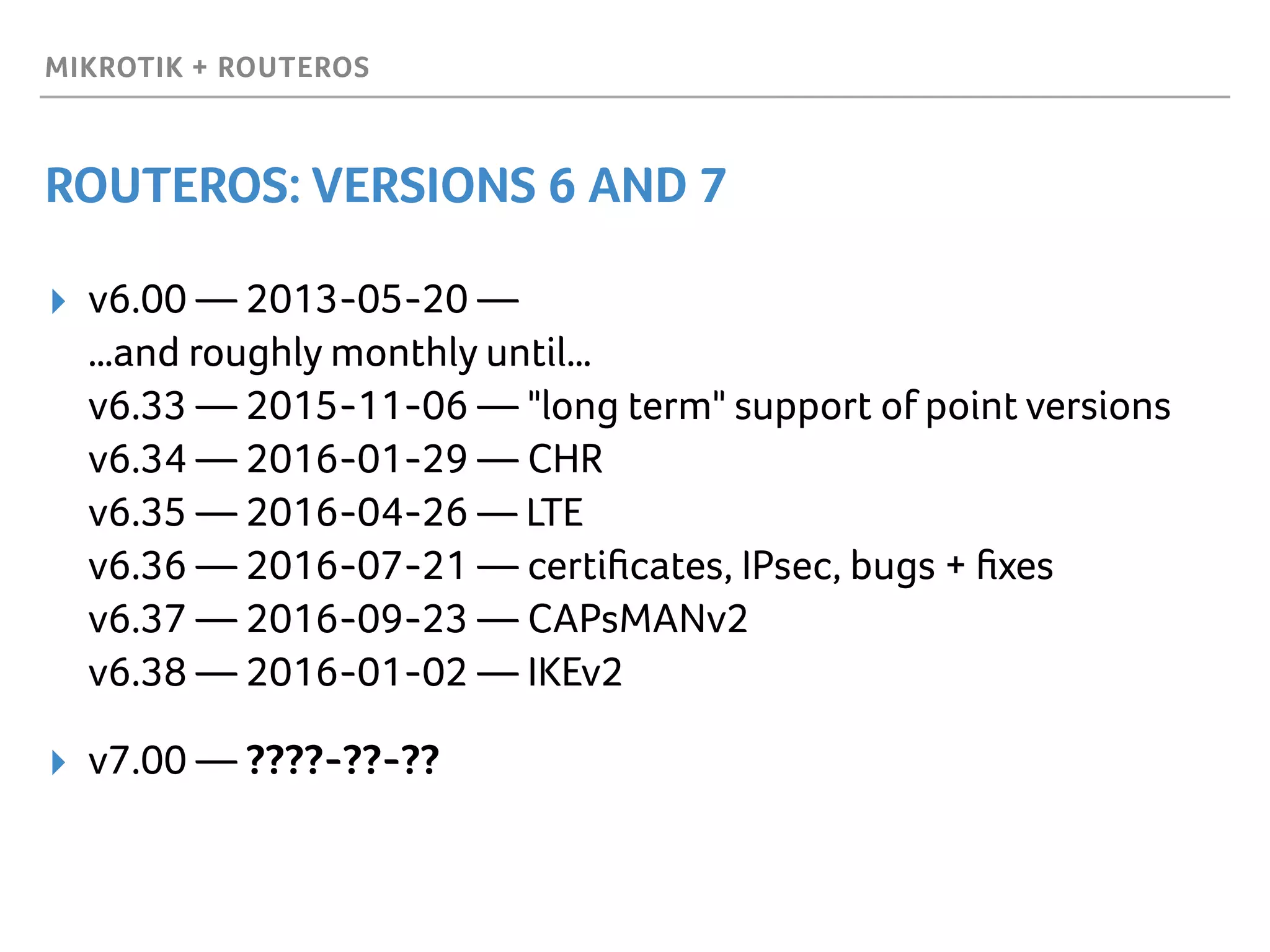

ROUTEROS: VERSIONS 6 AND 7
▸ v6.00 — 2013-05-20 —
…and roughly monthly until…
v6.33 — 2015-11-06 — "long term" support of point versions
v6.34 — 2016-01-29 — CHR
v6.35 — 2016-04-26 — LTE
v6.36 — 2016-07-21 — certificates, IPsec, bugs + fixes
v6.37 — 2016-09-23 — CAPsMANv2
v6.38 — 2016-01-02 — IKEv2
▸ v7.00 — ????-??-??

7. TEXT

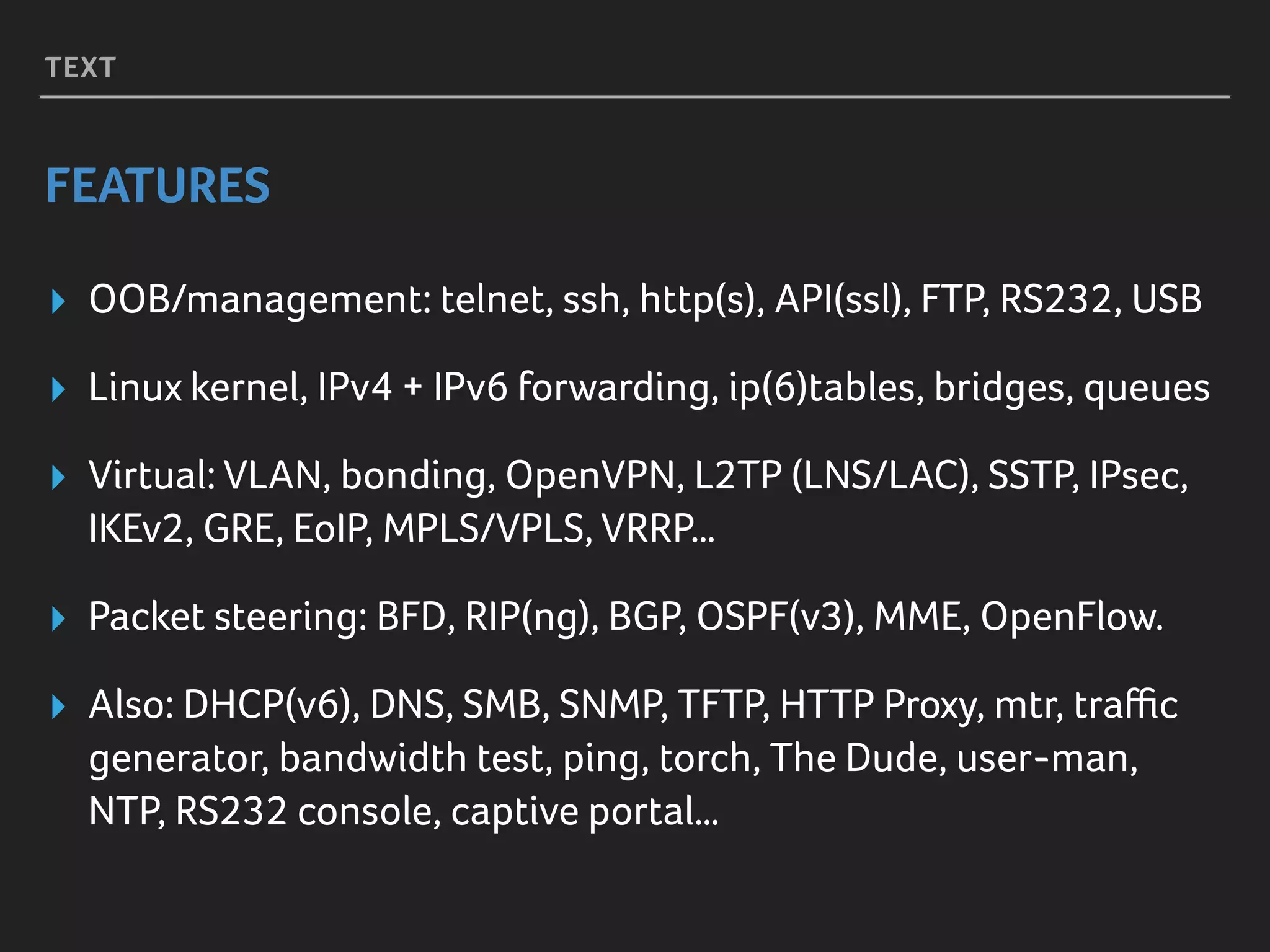

FEATURES
▸ OOB/management: telnet, ssh, http(s), API(ssl), FTP, RS232, USB
▸ Linux kernel, IPv4 + IPv6 forwarding, ip(6)tables, bridges, queues
▸ Virtual: VLAN, bonding, OpenVPN, L2TP (LNS/LAC), SSTP, IPsec,
IKEv2, GRE, EoIP, MPLS/VPLS, VRRP…
▸ Packet steering: BFD, RIP(ng), BGP, OSPF(v3), MME, OpenFlow.
▸ Also: DHCP(v6), DNS, SMB, SNMP, TFTP, HTTP Proxy, mtr, traffic
generator, bandwidth test, ping, torch, The Dude, user-man,
NTP, RS232 console, captive portal…

8. MIKROTIK + ROUTEROS

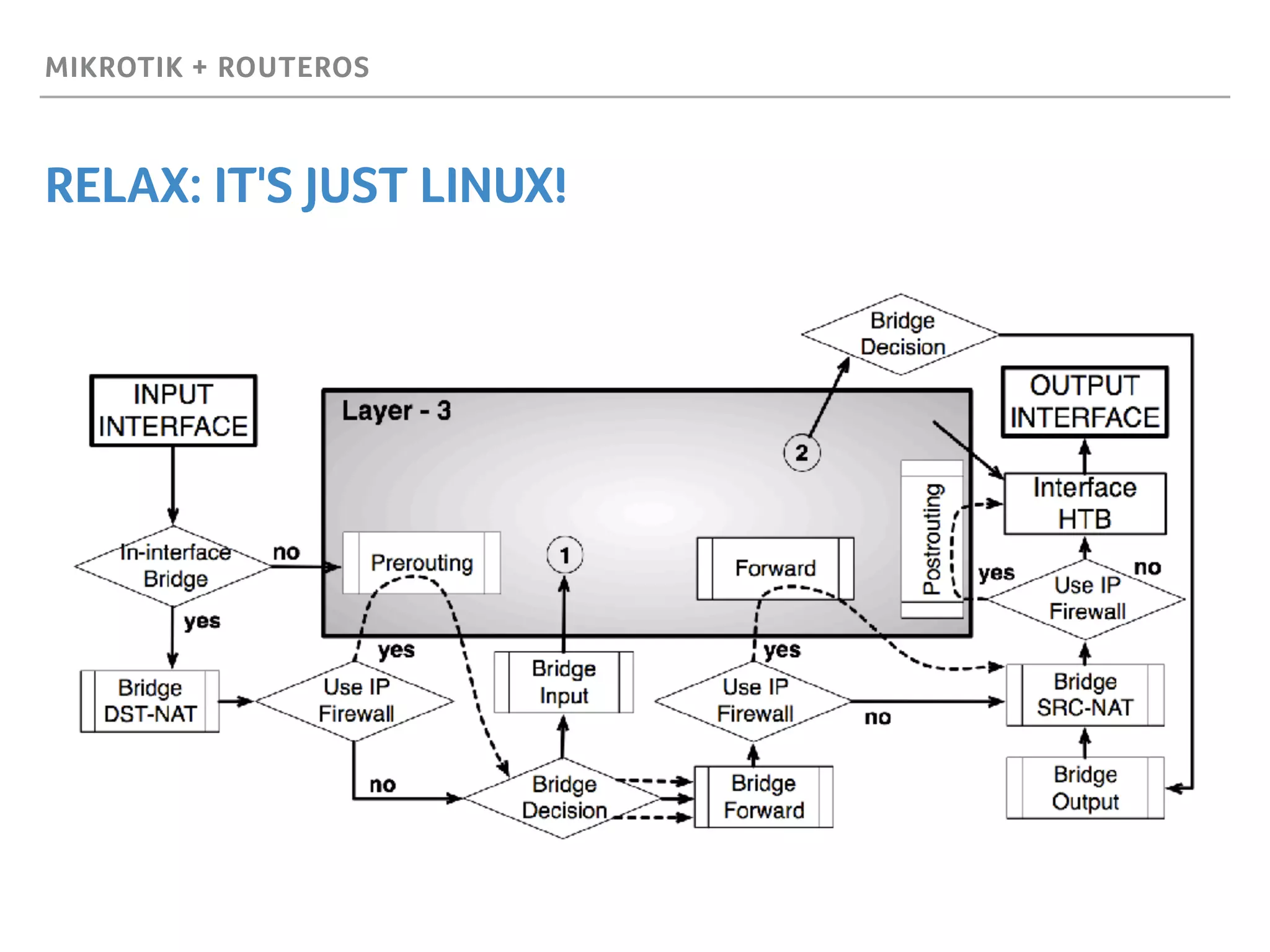

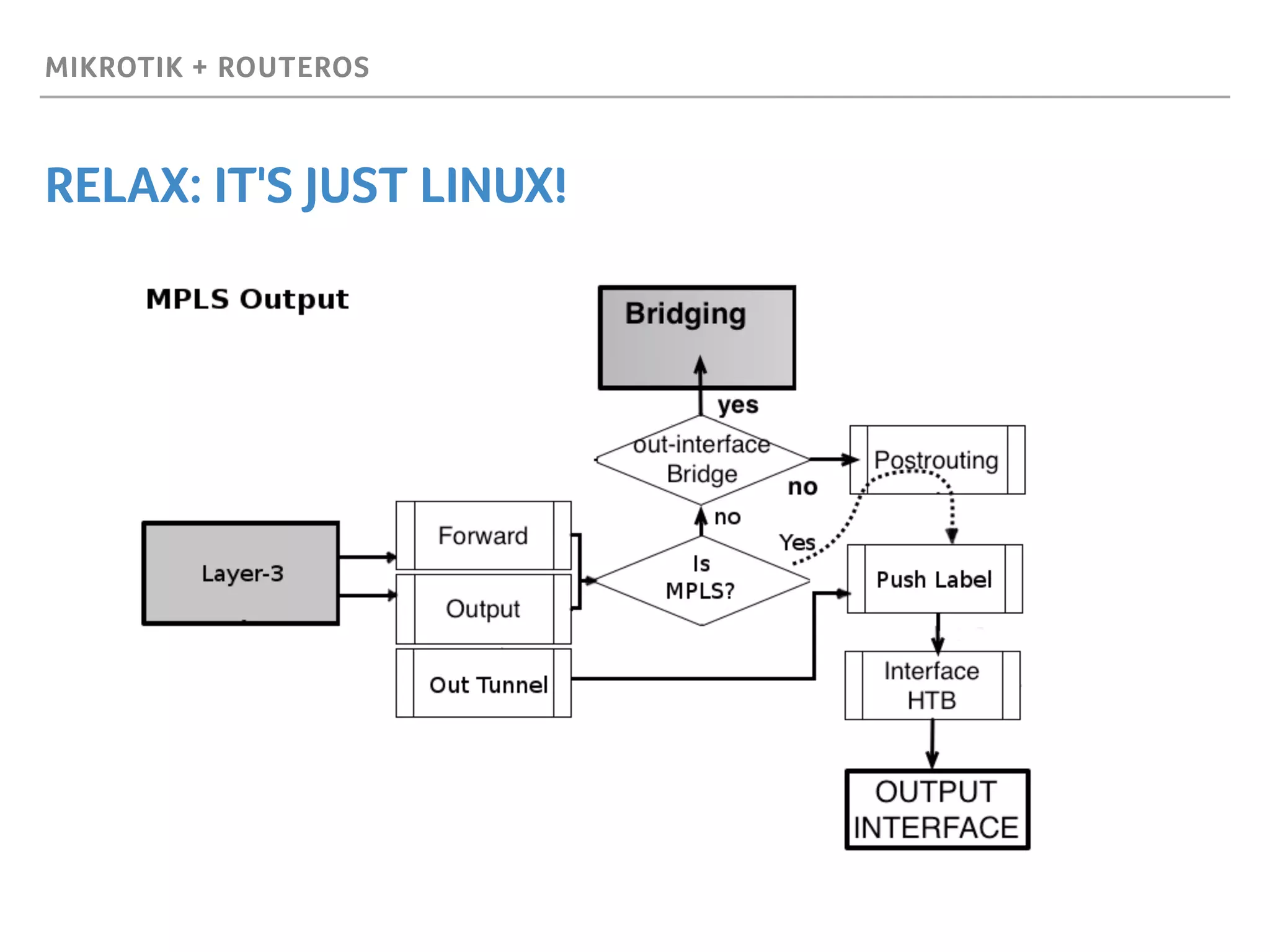

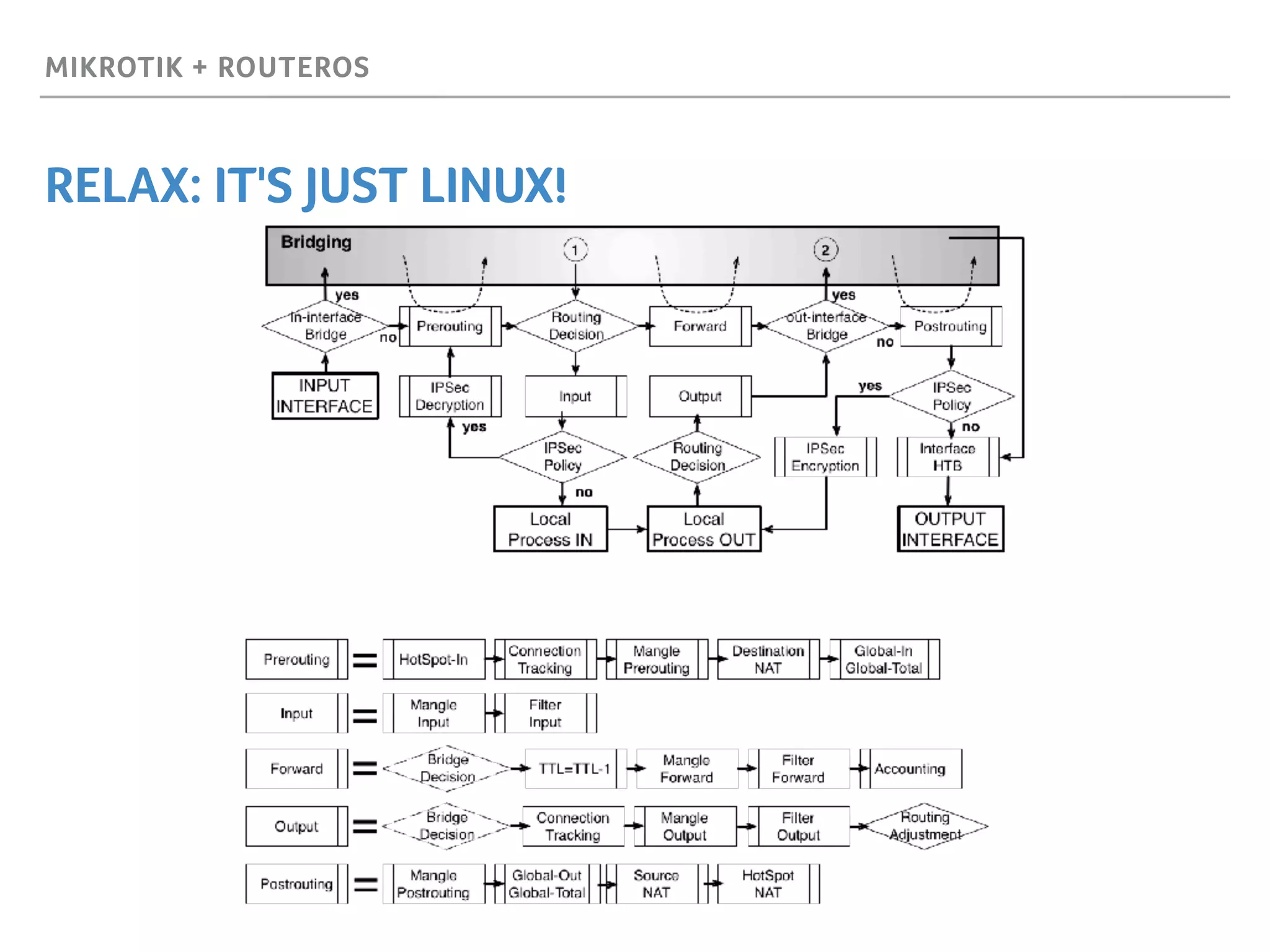

RELAX: IT'S JUST LINUX!

9. MIKROTIK + ROUTEROS
RELAX: IT'S JUST LINUX!

10. MIKROTIK + ROUTEROS
RELAX: IT'S JUST LINUX!

11. MIKROTIK + ROUTEROS
RELAX: IT'S JUST LINUX!

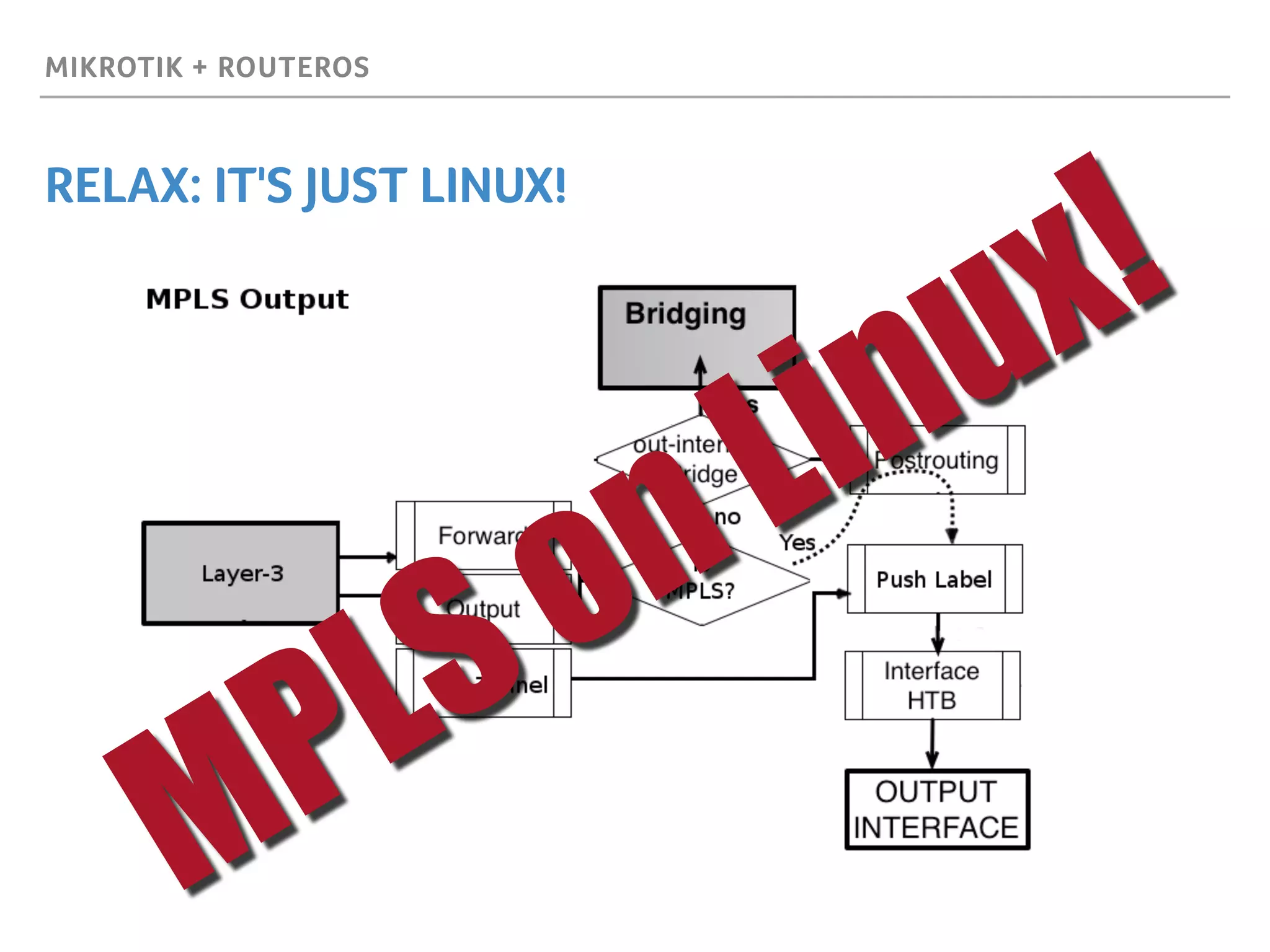

MPLS on Linux!

12. MIKROTIK + ROUTEROS

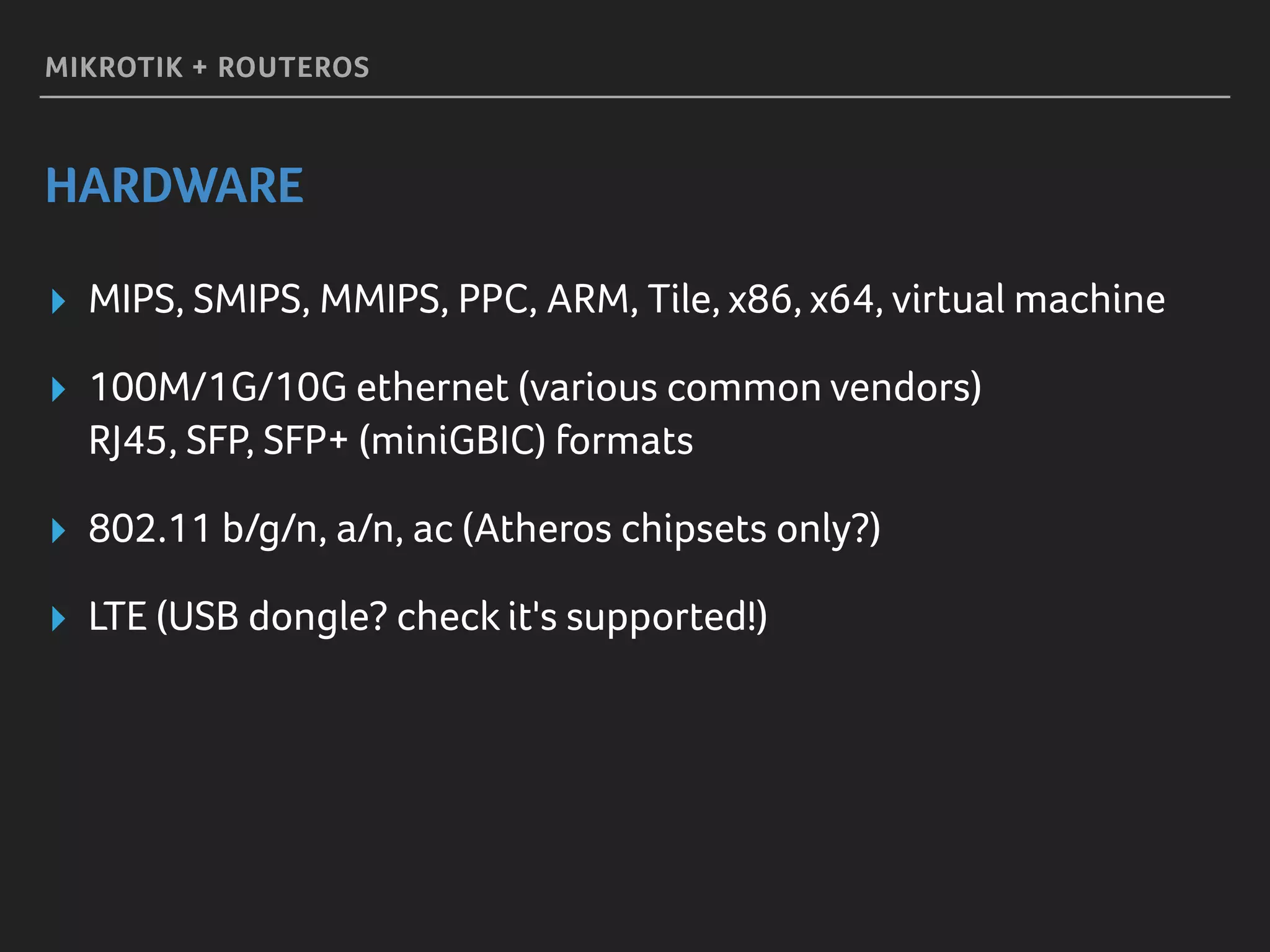

HARDWARE
▸ MIPS, SMIPS, MMIPS, PPC, ARM, Tile, x86, x64, virtual machine
▸ 100M/1G/10G ethernet (various common vendors)
RJ45, SFP, SFP+ (miniGBIC) formats
▸ 802.11 b/g/n, a/n, ac (Atheros chipsets only?)
▸ LTE (USB dongle? check it's supported!)

13. MIKROTIK + ROUTEROS

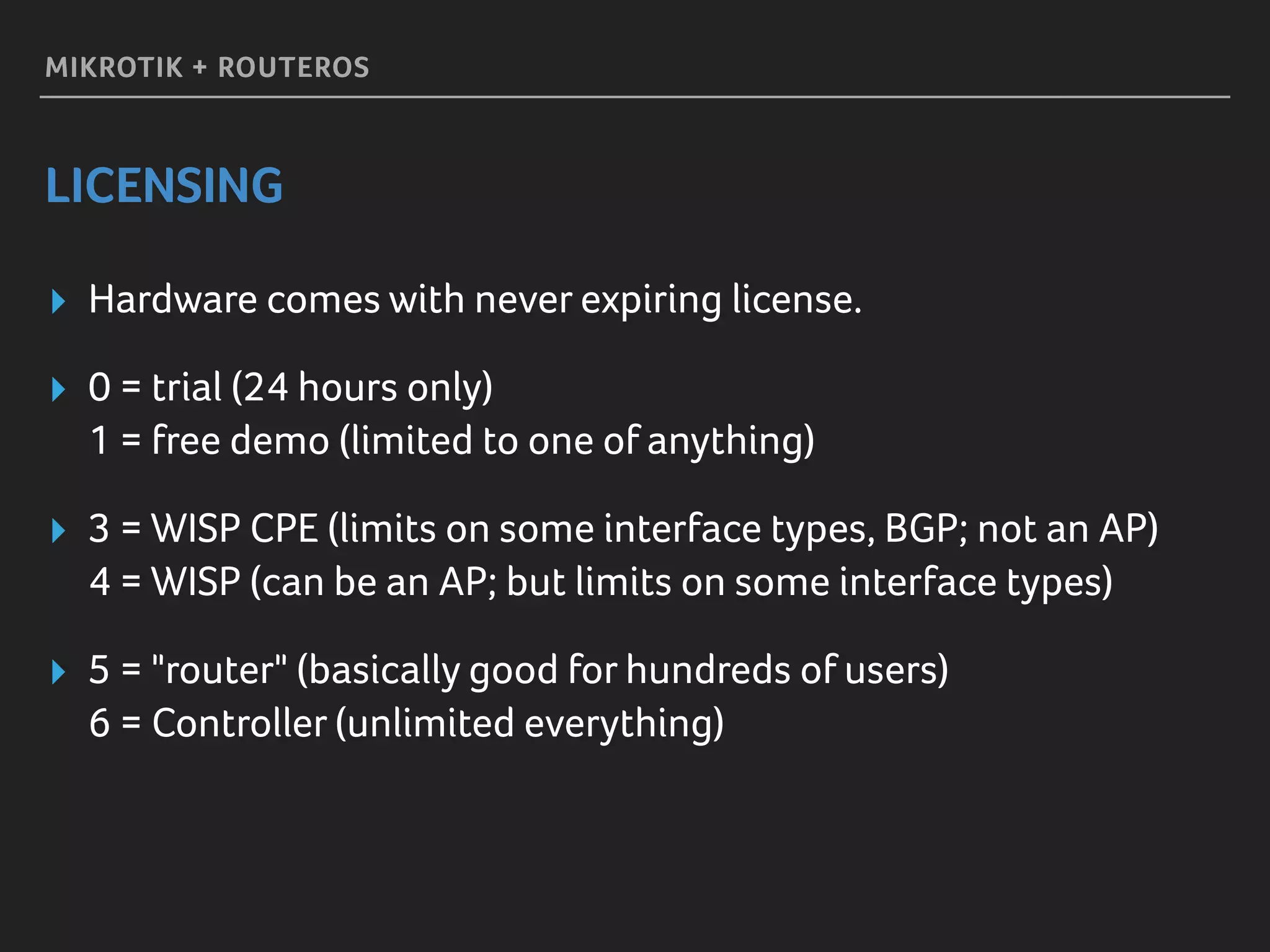

LICENSING
▸ Hardware comes with never expiring license.
▸ 0 = trial (24 hours only)
1 = free demo (limited to one of anything)
▸ 3 = WISP CPE (limits on some interface types, BGP; not an AP)
4 = WISP (can be an AP; but limits on some interface types)
▸ 5 = "router" (basically good for hundreds of users)
6 = Controller (unlimited everything)

14. "GPL VIOLATIONS!"
mailing lists, etc
MIKROTIK + ROUTEROS
CONTROVERSY!

15. MIKROTIK + ROUTEROS

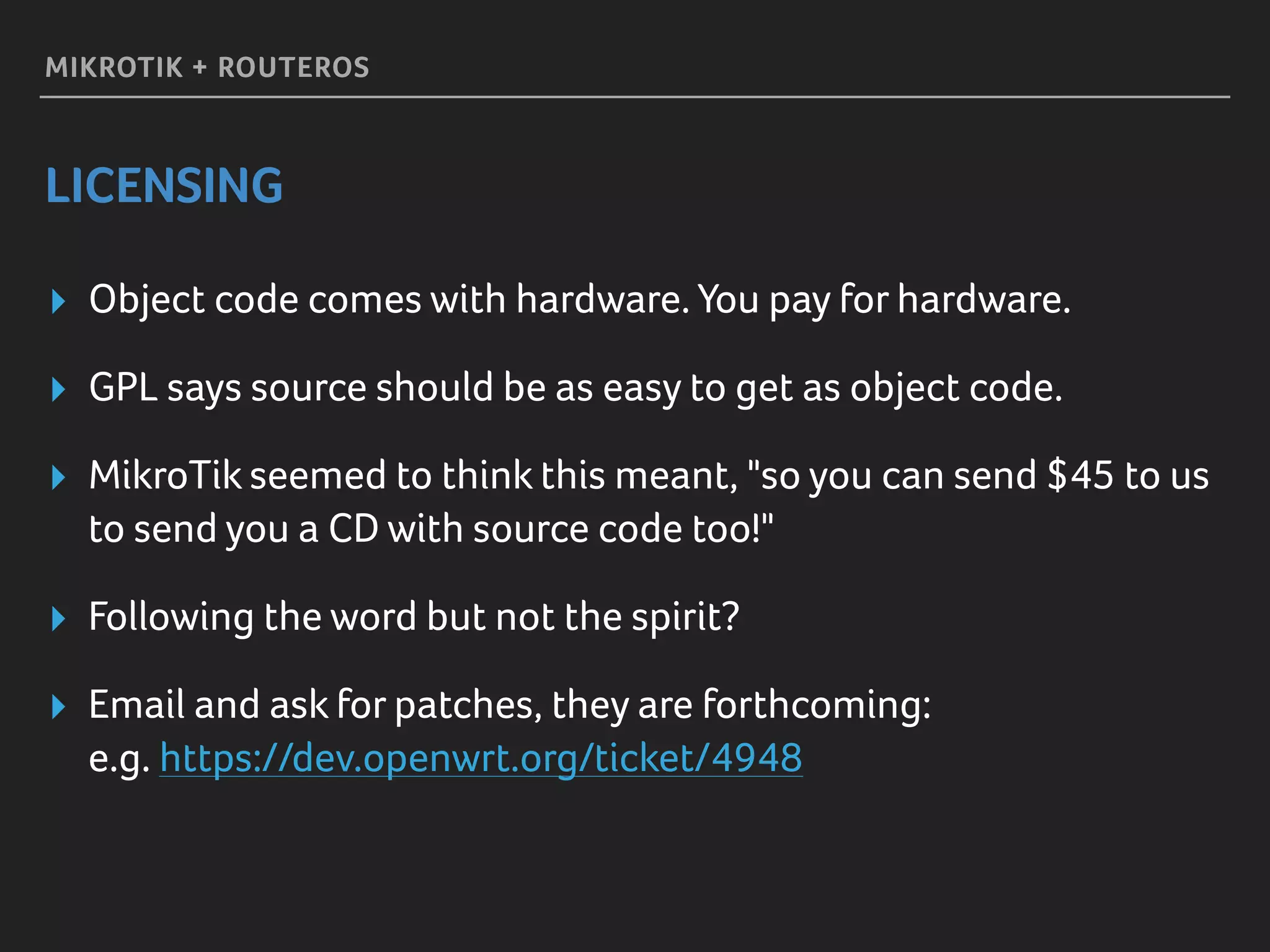

LICENSING
▸ Object code comes with hardware. You pay for hardware.
▸ GPL says source should be as easy to get as object code.
▸ MikroTik seemed to think this meant, "so you can send $45 to us
to send you a CD with source code too!"
▸ Following the word but not the spirit?
▸ Email and ask for patches, they are forthcoming:
e.g. https://dev.openwrt.org/ticket/4948

16. "MIKROTIKS ARE THE BREXIT OF ROUTERS!"
UKNOT passim
MIKROTIK + ROUTEROS
CONTROVERSY!

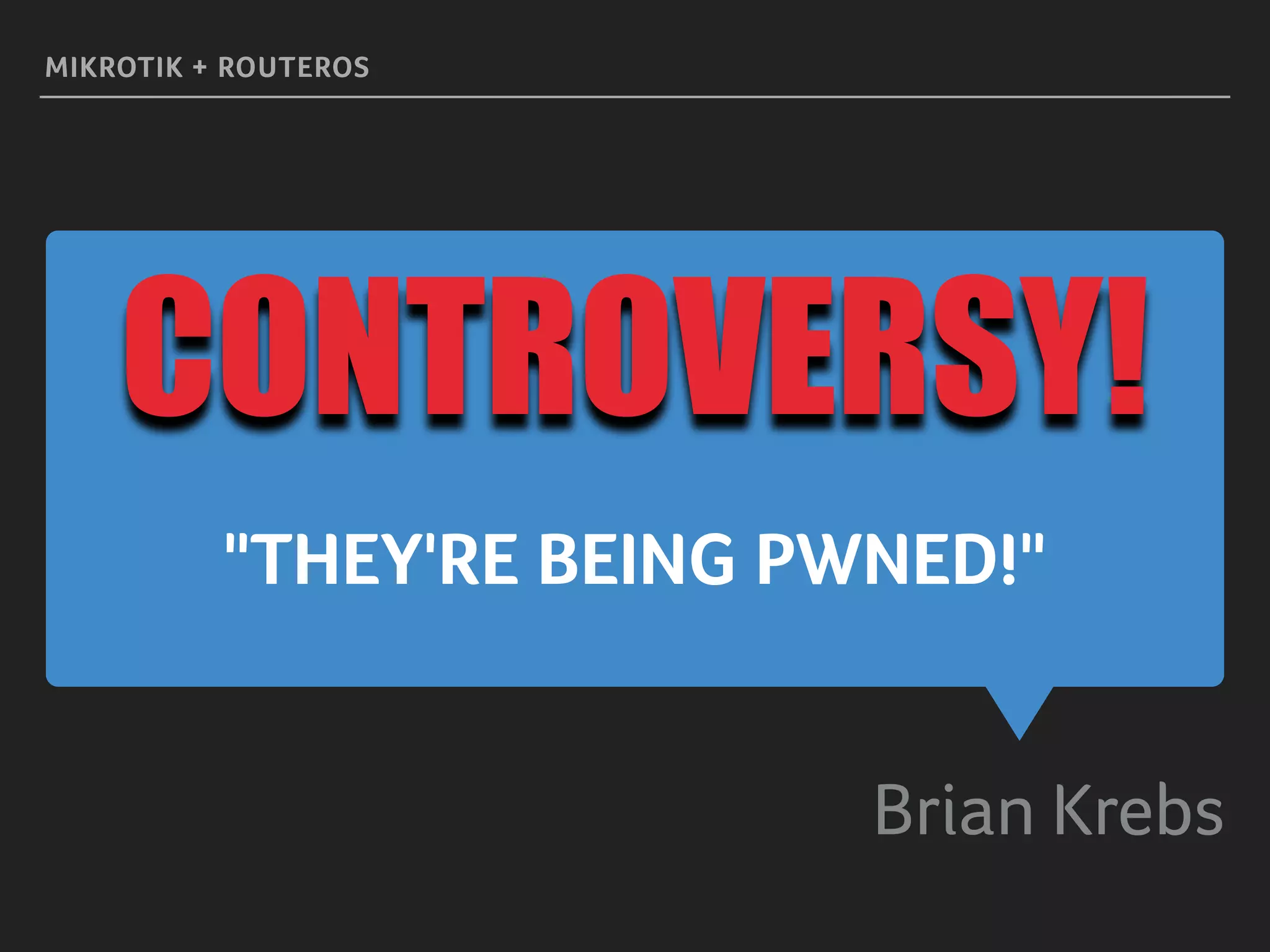

17. "THEY'RE BEING PWNED!"
Brian Krebs
MIKROTIK + ROUTEROS
CONTROVERSY!

18. Marek Isalski
MIKROTIK + ROUTEROS

19. MIKROTIK + ROUTEROS

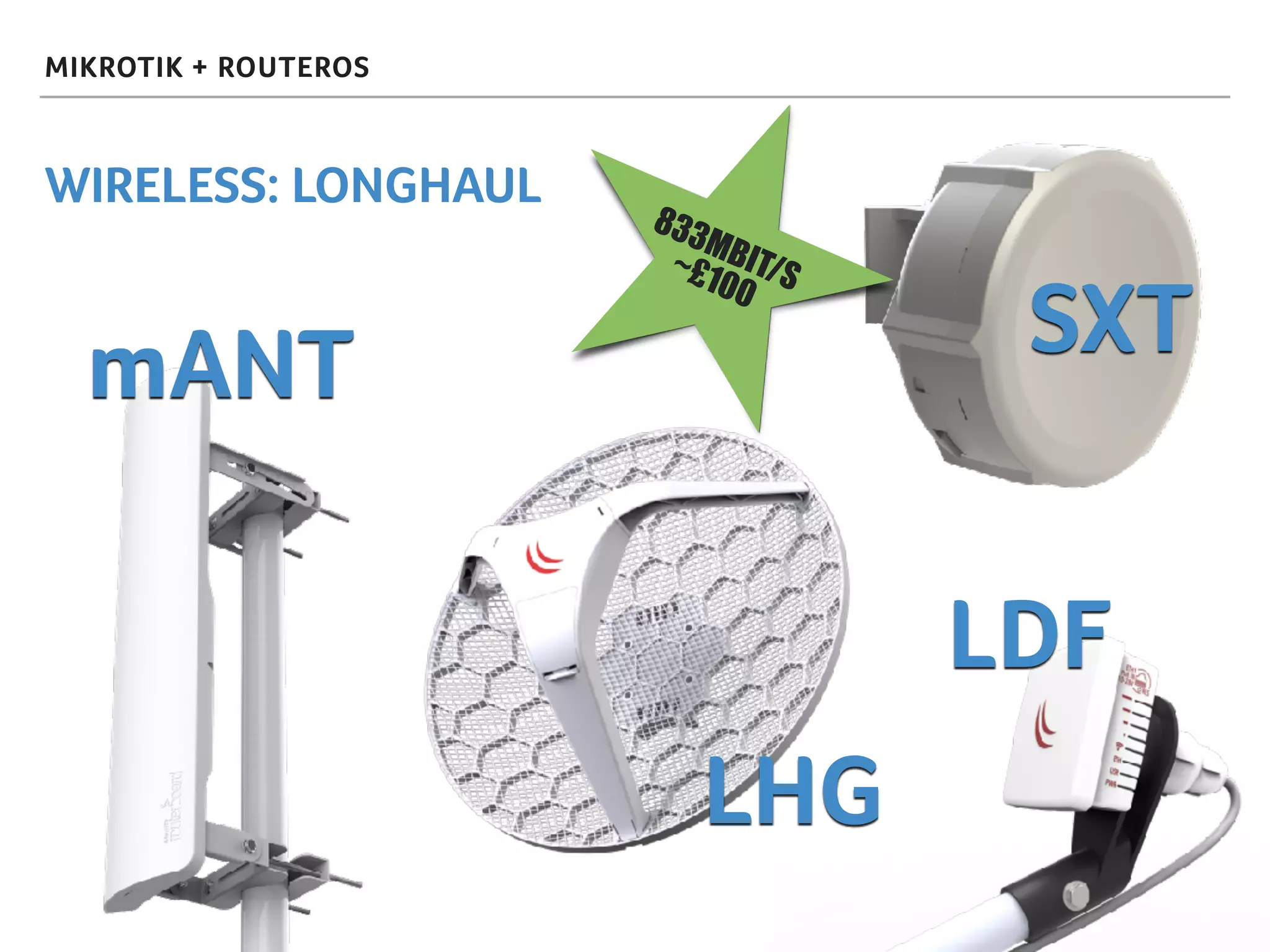

WIRELESS: LONGHAUL
LHG
SXTmANT
LDF
833MBIT/S~£100

20. MIKROTIK + ROUTEROS

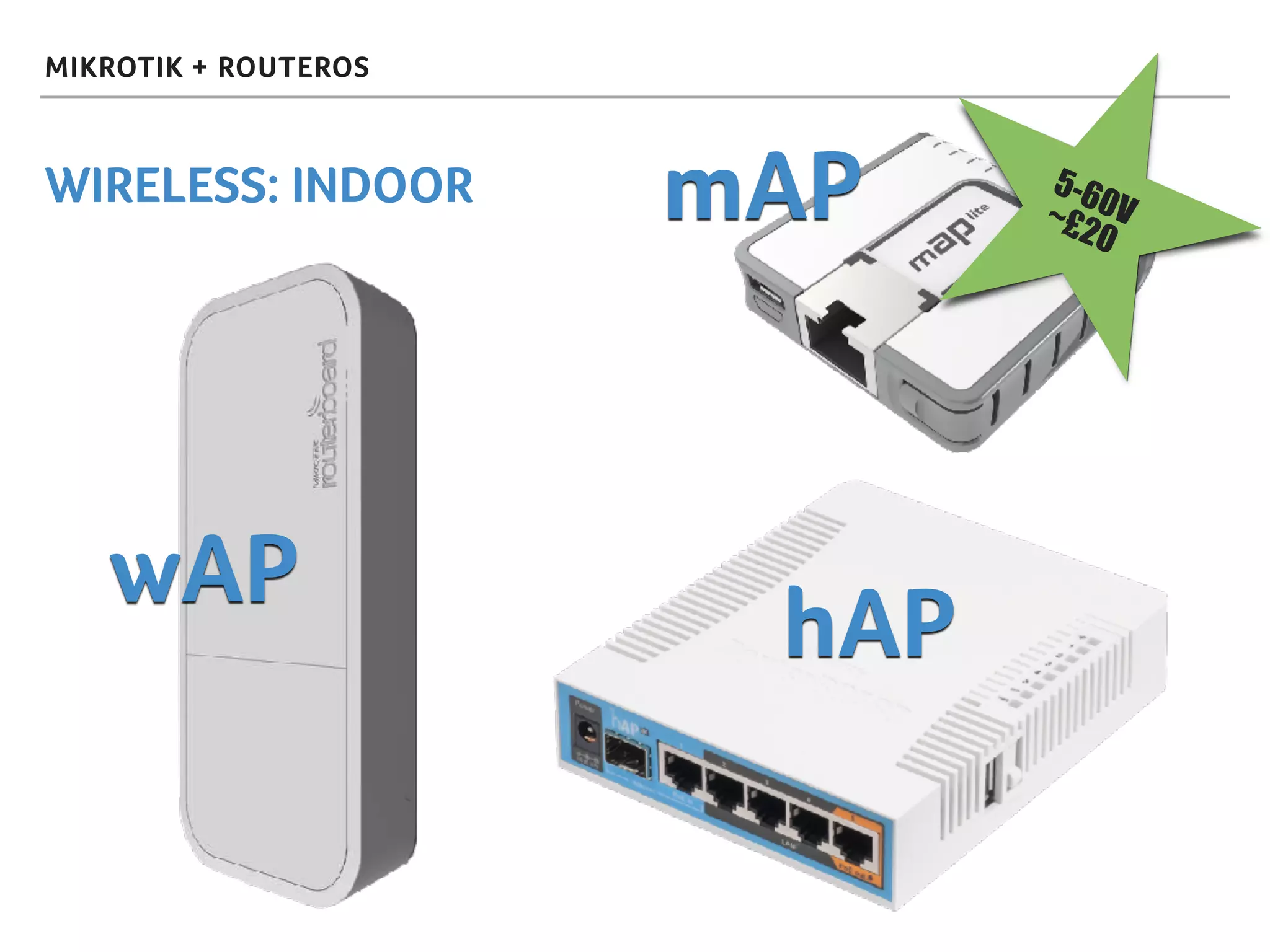

WIRELESS: INDOOR
wAP
mAP
hAP
5-60V~£20

21. MIKROTIK + ROUTEROS

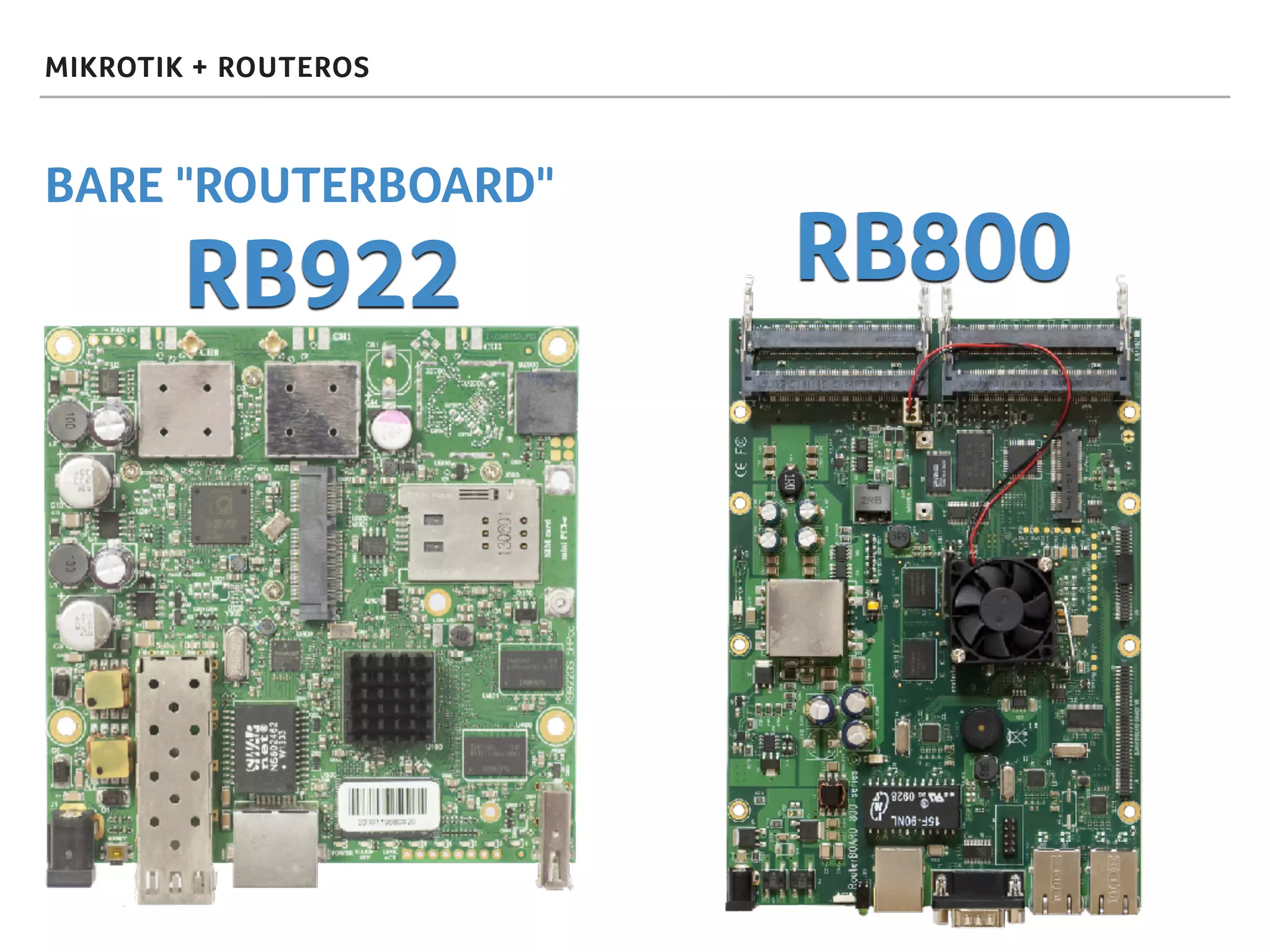

BARE "ROUTERBOARD"
RB922 RB800

22. MIKROTIK + ROUTEROS

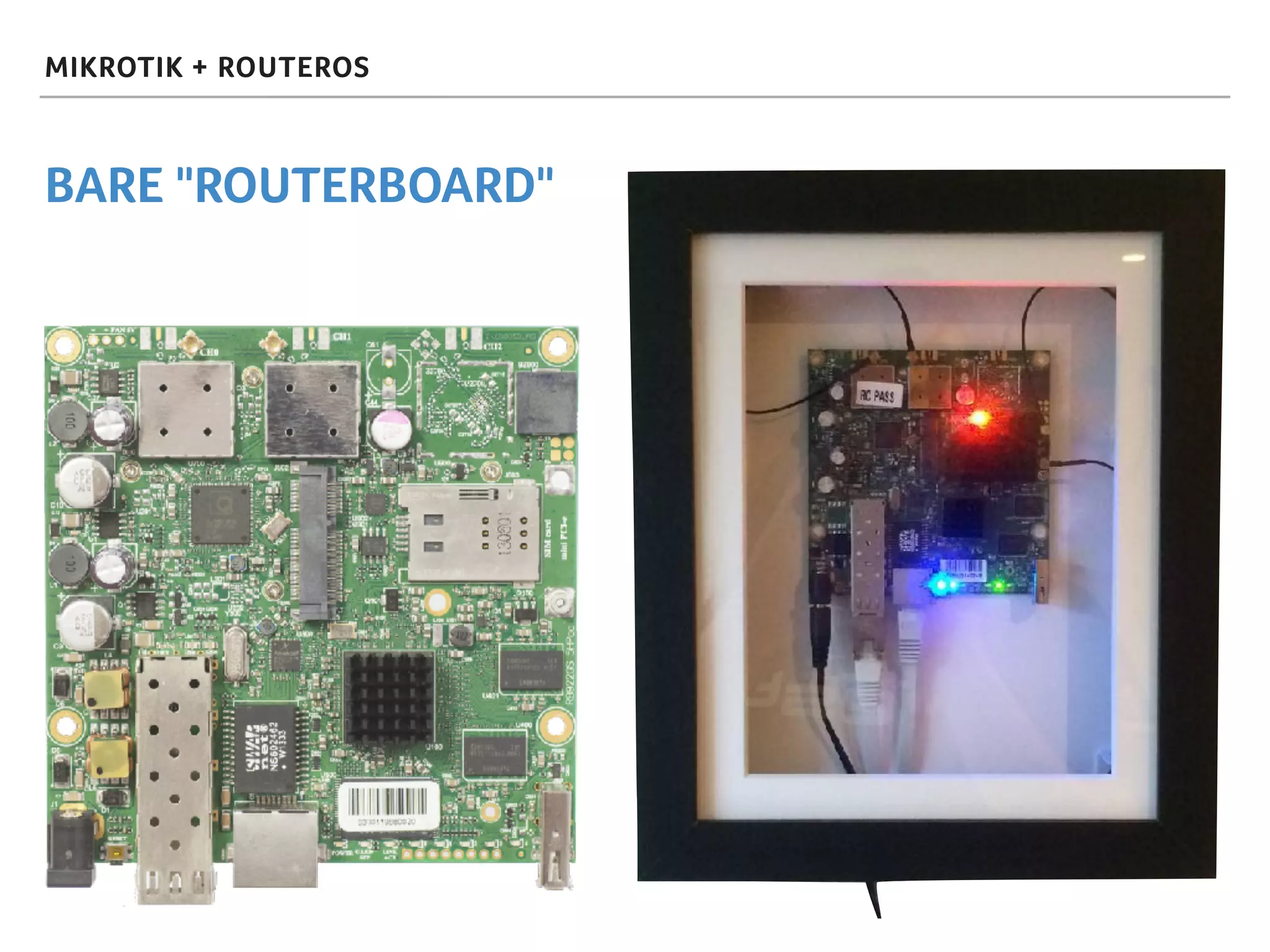

BARE "ROUTERBOARD"

23. MIKROTIK + ROUTEROS

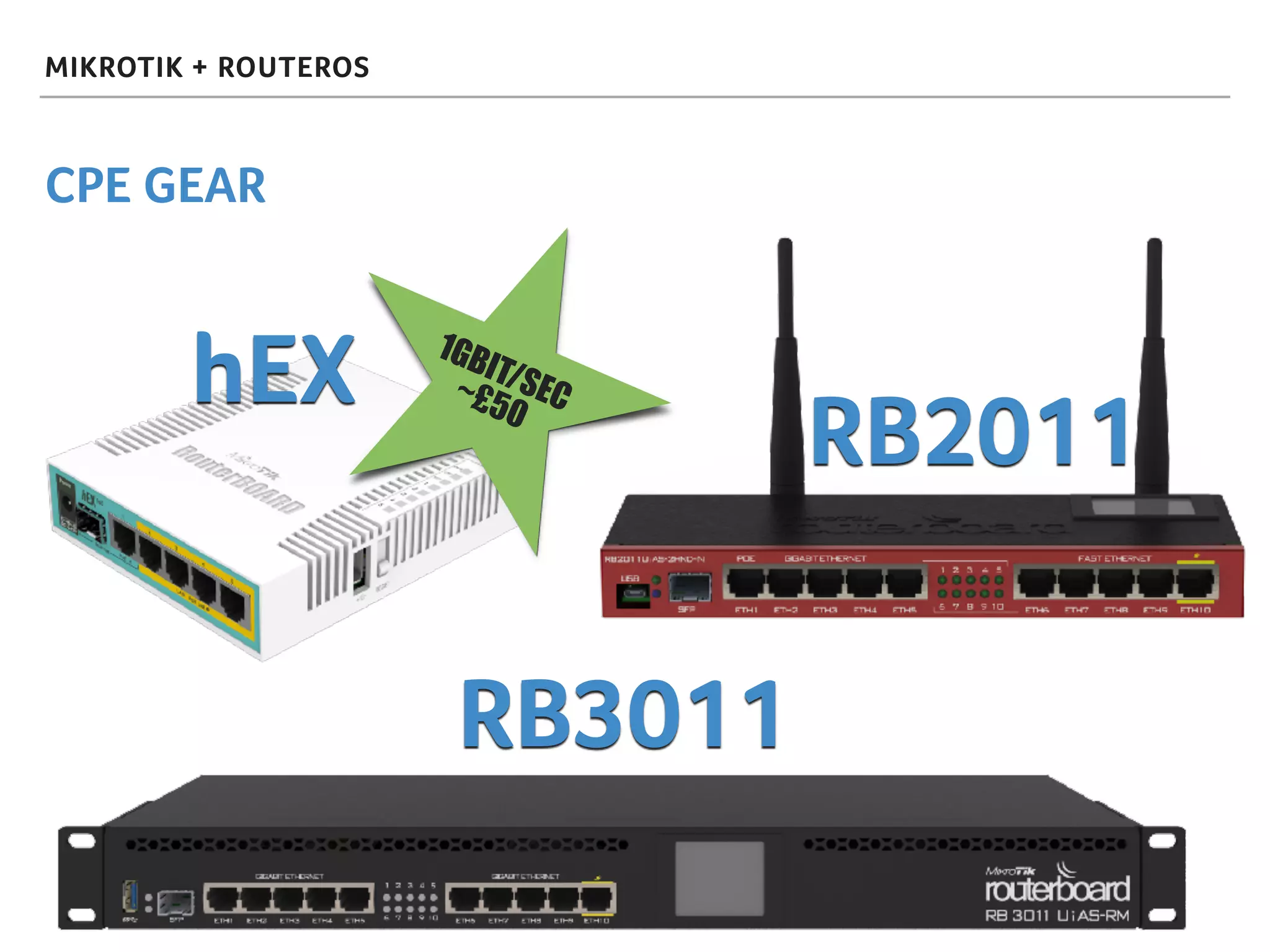

CPE GEAR
hEX
RB2011
RB3011
1GBIT/SEC~£50

24. MIKROTIK + ROUTEROS

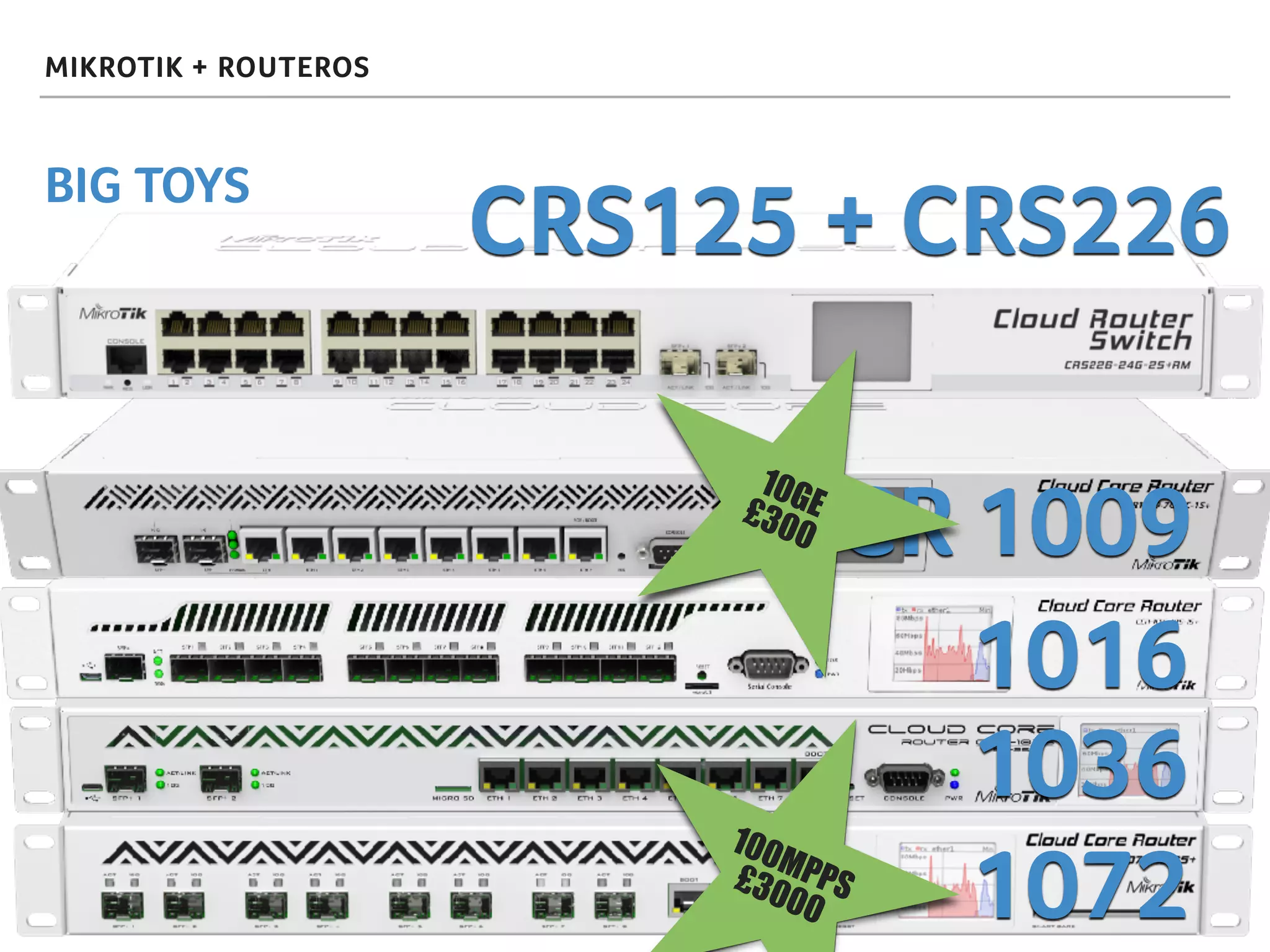

BIG TOYS
CRS125 + CRS226
1016
1036
1072
100MPPS£3000
CCR 1009
10GE£300

25. MIKROTIK + ROUTEROS

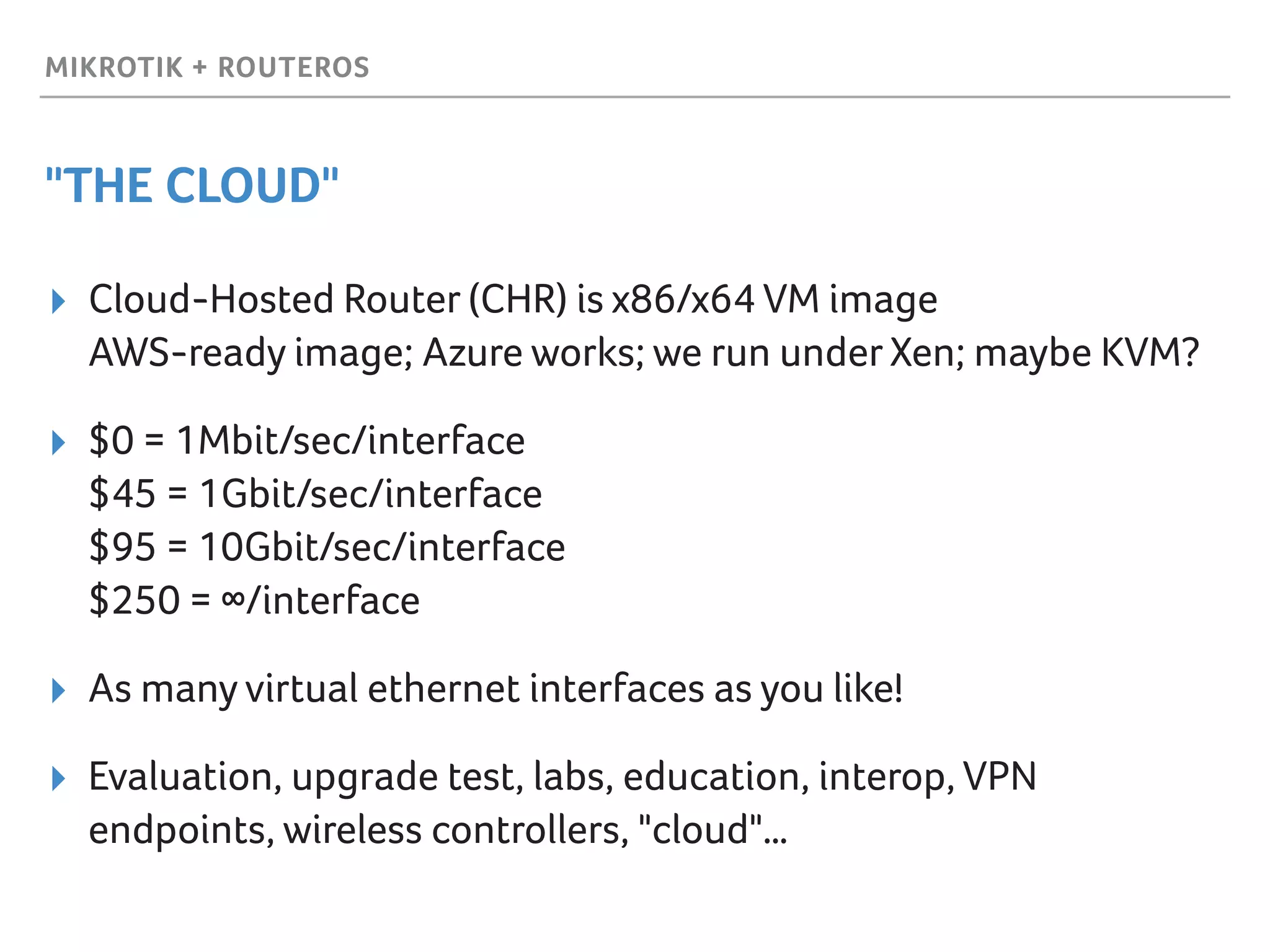

"THE CLOUD"
▸ Cloud-Hosted Router (CHR) is x86/x64 VM image
AWS-ready image; Azure works; we run underXen; maybe KVM?
▸ $0 = 1Mbit/sec/interface
$45 = 1Gbit/sec/interface
$95 = 10Gbit/sec/interface
$250 = ∞/interface
▸ As many virtual ethernet interfaces as you like!
▸ Evaluation, upgrade test, labs, education, interop, VPN
endpoints, wireless controllers, "cloud"…

26. MIKROTIK + ROUTEROS

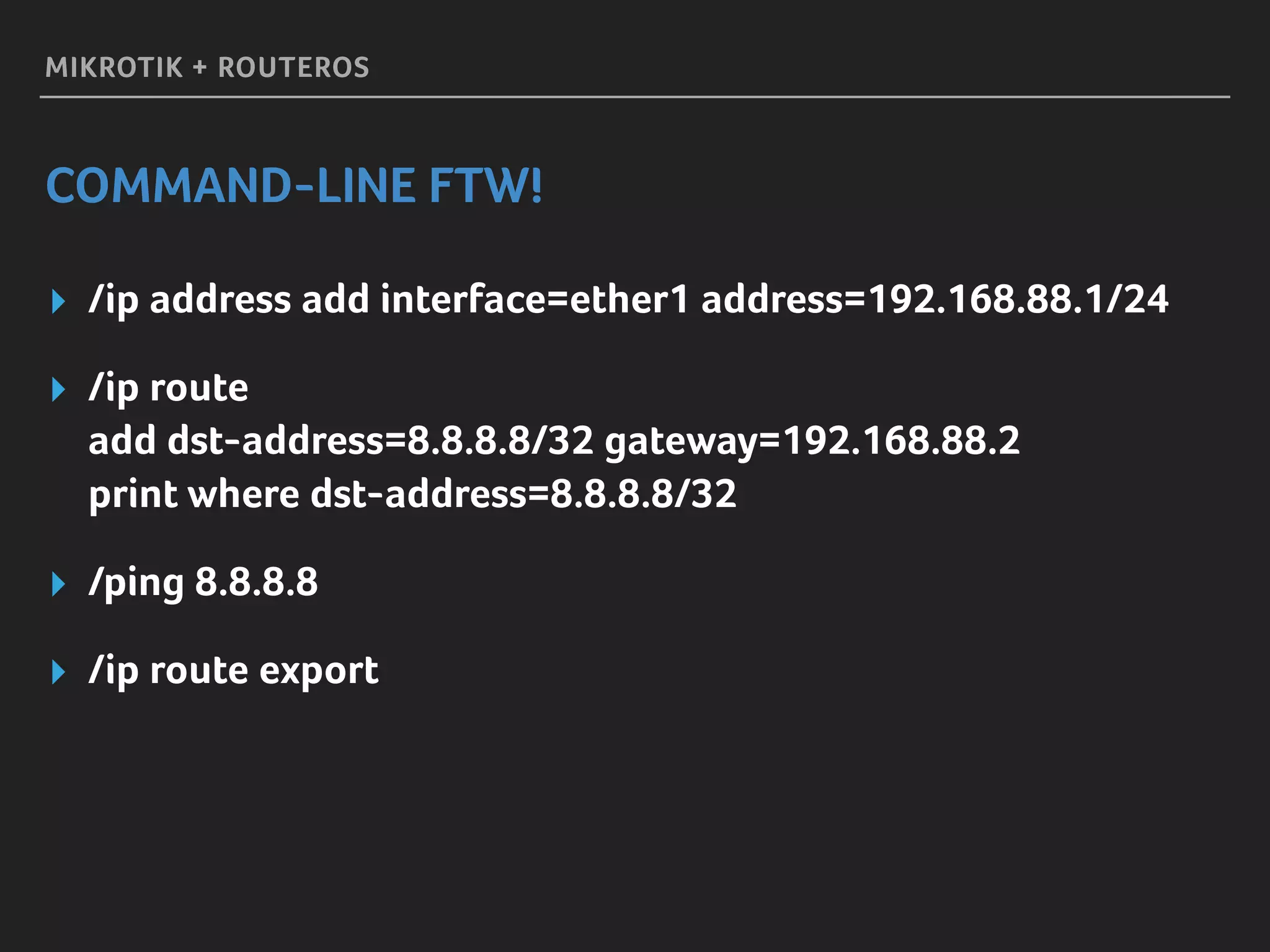

COMMAND-LINE FTW!
▸ /ip address add interface=ether1 address=192.168.88.1/24
▸ /ip route
add dst-address=8.8.8.8/32 gateway=192.168.88.2
print where dst-address=8.8.8.8/32
▸ /ping 8.8.8.8
▸ /ip route export

27. MIKROTIK + ROUTEROS

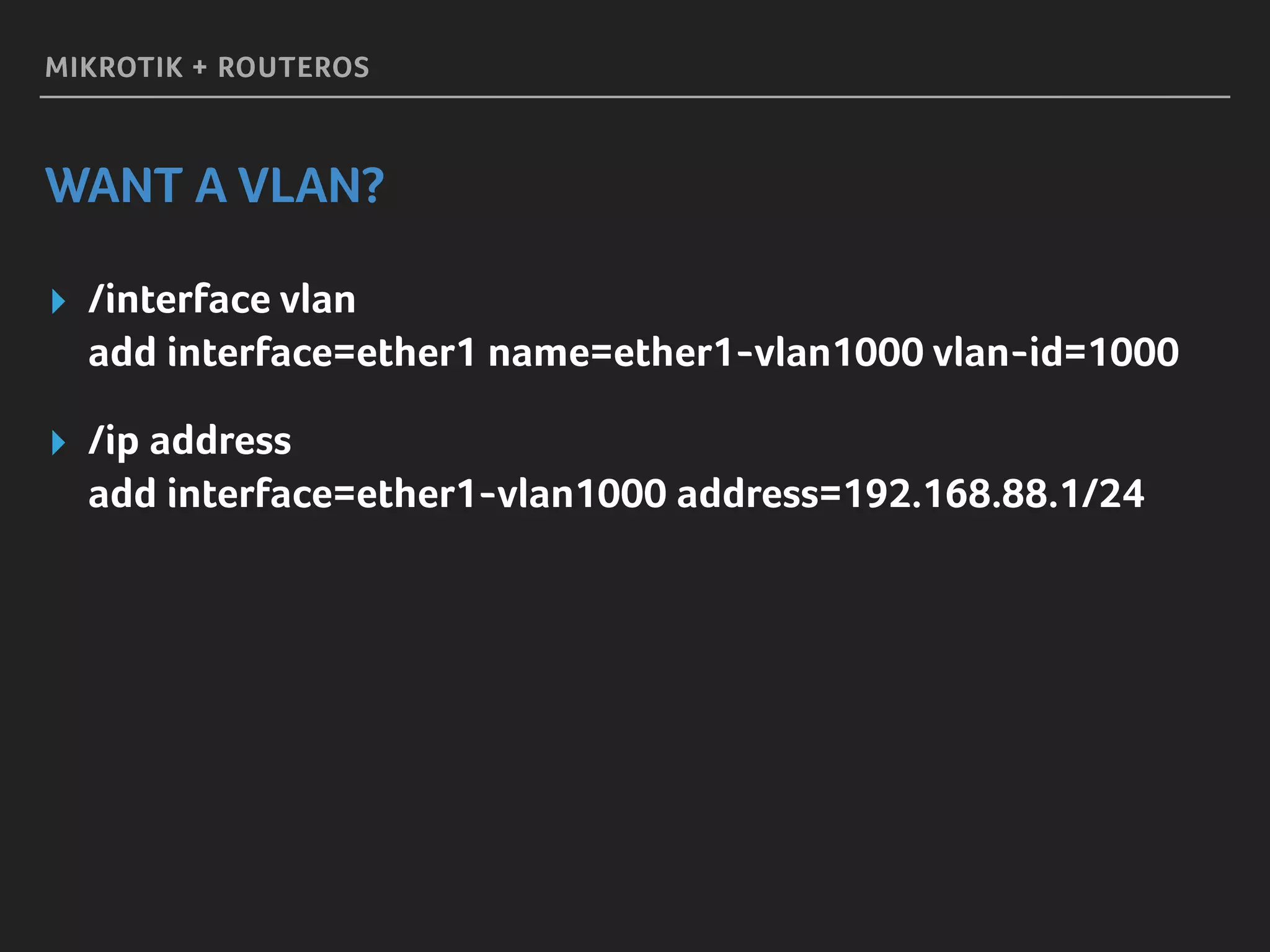

WANT A VLAN?
▸ /interface vlan
add interface=ether1 name=ether1-vlan1000 vlan-id=1000
▸ /ip address
add interface=ether1-vlan1000 address=192.168.88.1/24

28. MIKROTIK + ROUTEROS
WANT A LOOPBACK?
▸ /interface bridge
add name=loopy protocol-mode=none
▸ /ip address
add interface=loopy address=127.0.0.42/32

29. MIKROTIK + ROUTEROS

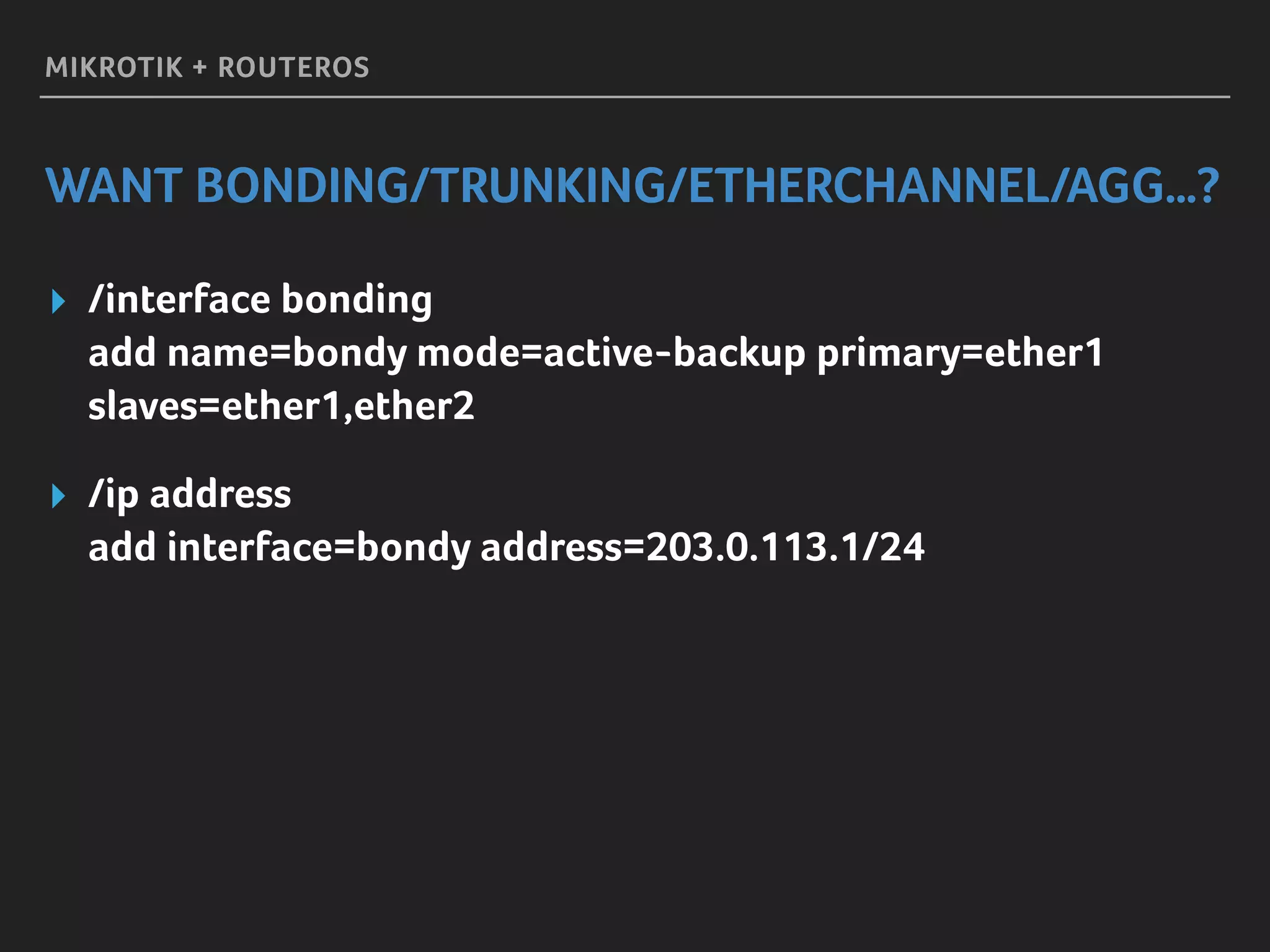

WANT BONDING/TRUNKING/ETHERCHANNEL/AGG…?
▸ /interface bonding
add name=bondy mode=active-backup primary=ether1
slaves=ether1,ether2
▸ /ip address
add interface=bondy address=203.0.113.1/24

30. MIKROTIK + ROUTEROS

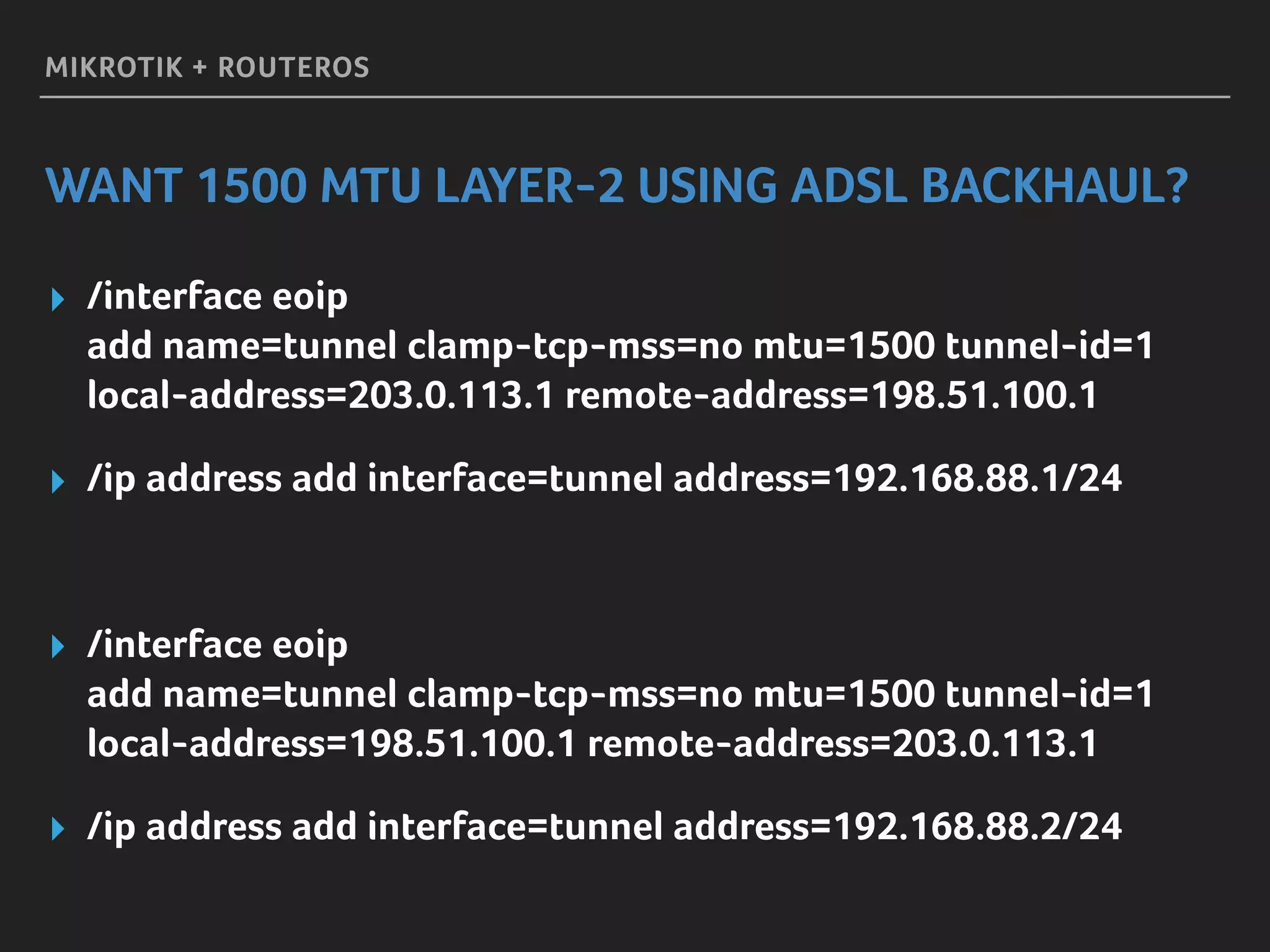

WANT 1500 MTU LAYER-2 USING ADSL BACKHAUL?
▸ /interface eoip
add name=tunnel clamp-tcp-mss=no mtu=1500 tunnel-id=1
local-address=203.0.113.1 remote-address=198.51.100.1
▸ /ip address add interface=tunnel address=192.168.88.1/24
▸ /interface eoip
add name=tunnel clamp-tcp-mss=no mtu=1500 tunnel-id=1
local-address=198.51.100.1 remote-address=203.0.113.1
▸ /ip address add interface=tunnel address=192.168.88.2/24

31. MIKROTIK + ROUTEROS

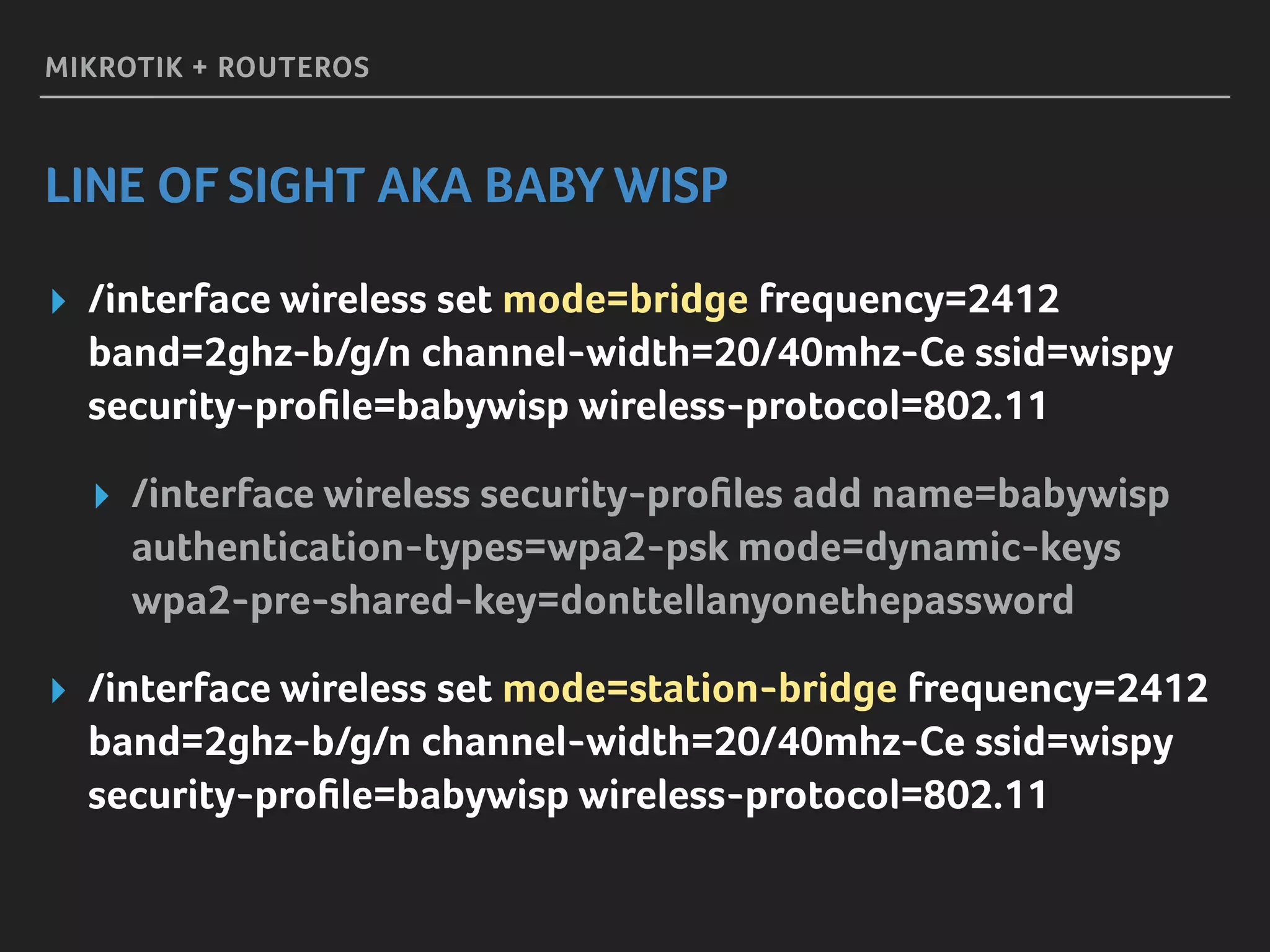

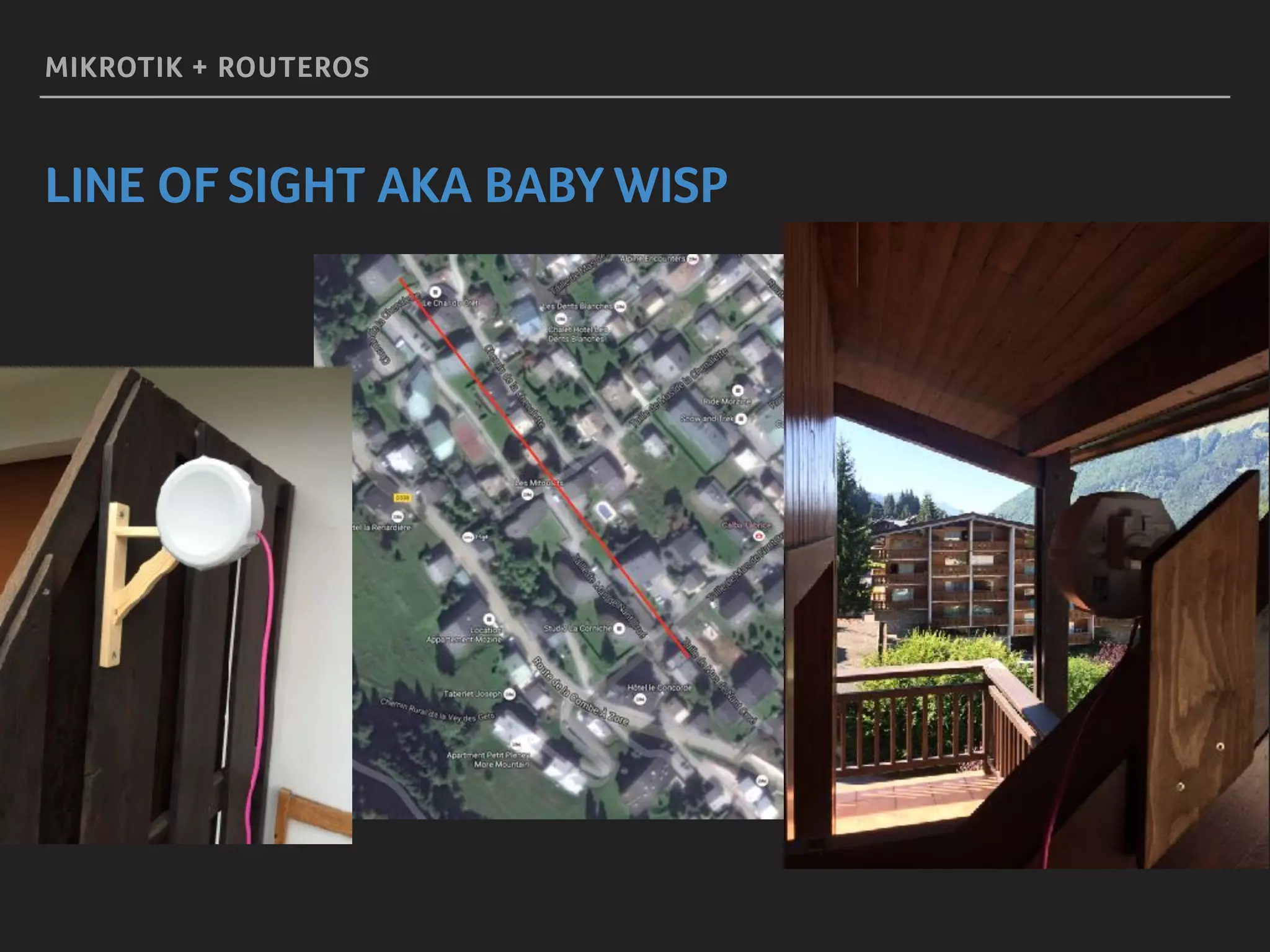

LINE OF SIGHT AKA BABY WISP
▸ /interface wireless set mode=bridge frequency=2412
band=2ghz-b/g/n channel-width=20/40mhz-Ce ssid=wispy
security-profile=babywisp wireless-protocol=802.11
▸ /interface wireless security-profiles add name=babywisp
authentication-types=wpa2-psk mode=dynamic-keys
wpa2-pre-shared-key=donttellanyonethepassword
▸ /interface wireless set mode=station-bridge frequency=2412
band=2ghz-b/g/n channel-width=20/40mhz-Ce ssid=wispy
security-profile=babywisp wireless-protocol=802.11

32. MIKROTIK + ROUTEROS
LINE OF SIGHT AKA BABY WISP

33. MIKROTIK + ROUTEROS
LINE OF SIGHT AKA WARDRIVING

34. MIKROTIK + ROUTEROS

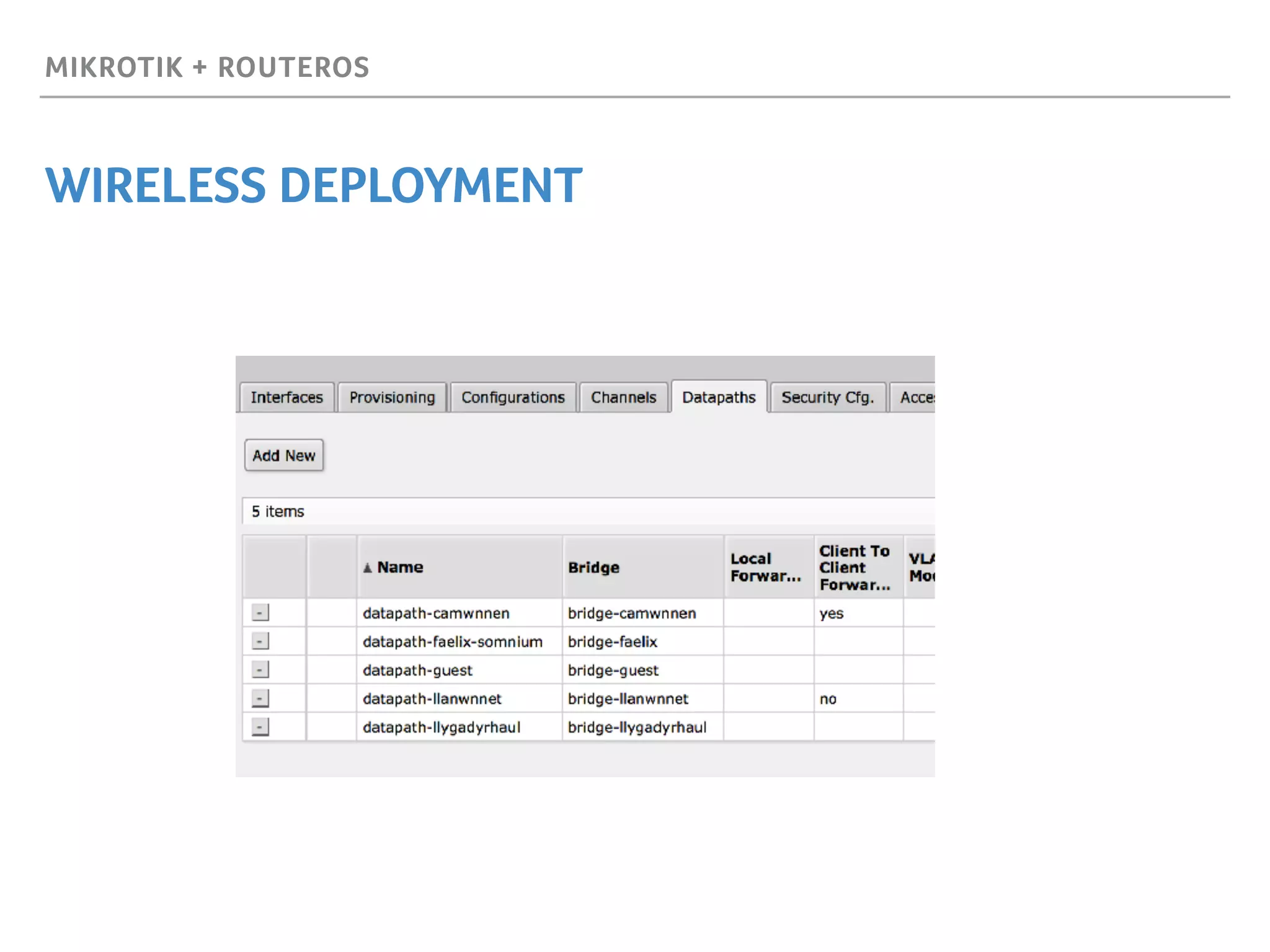

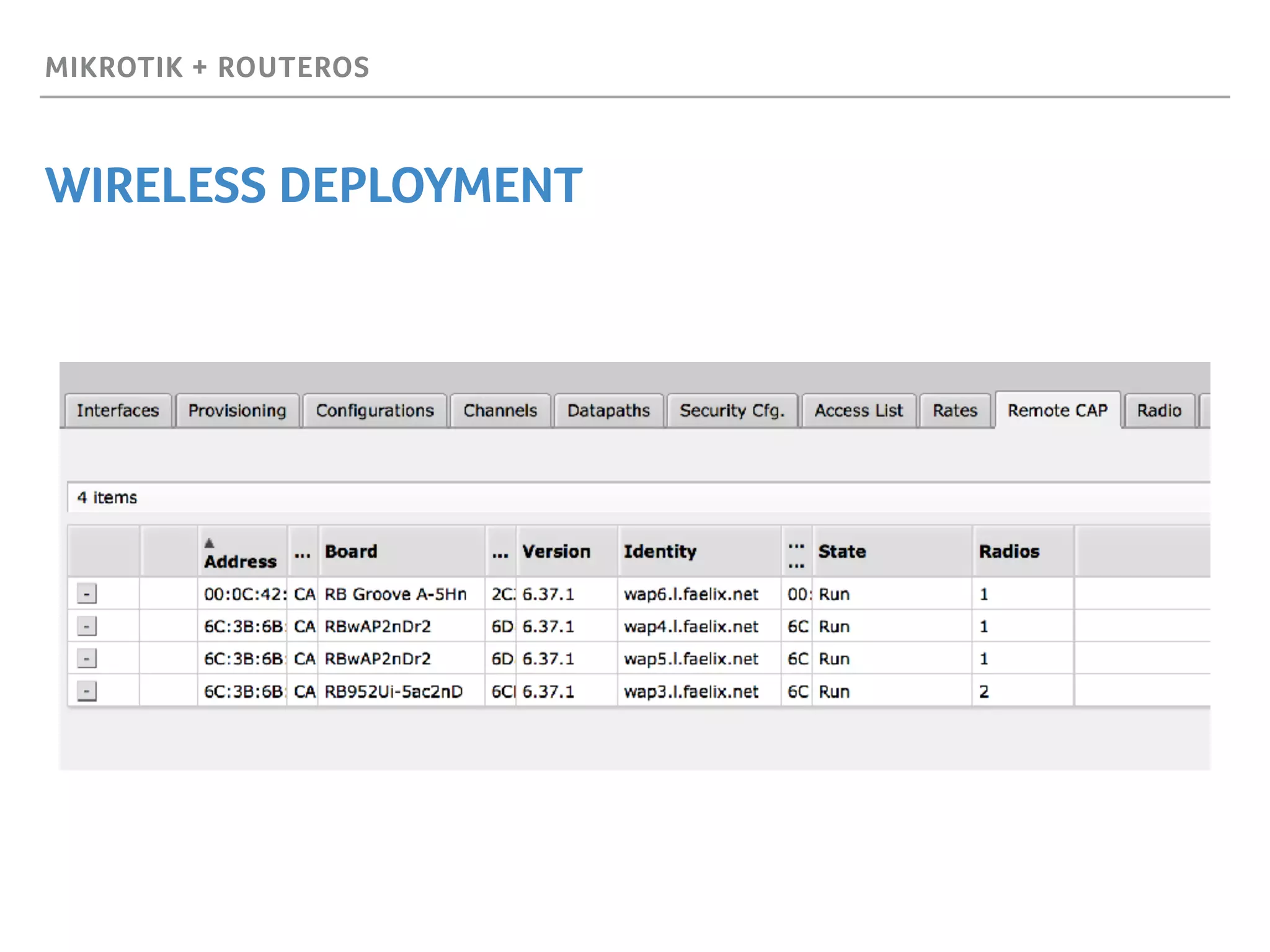

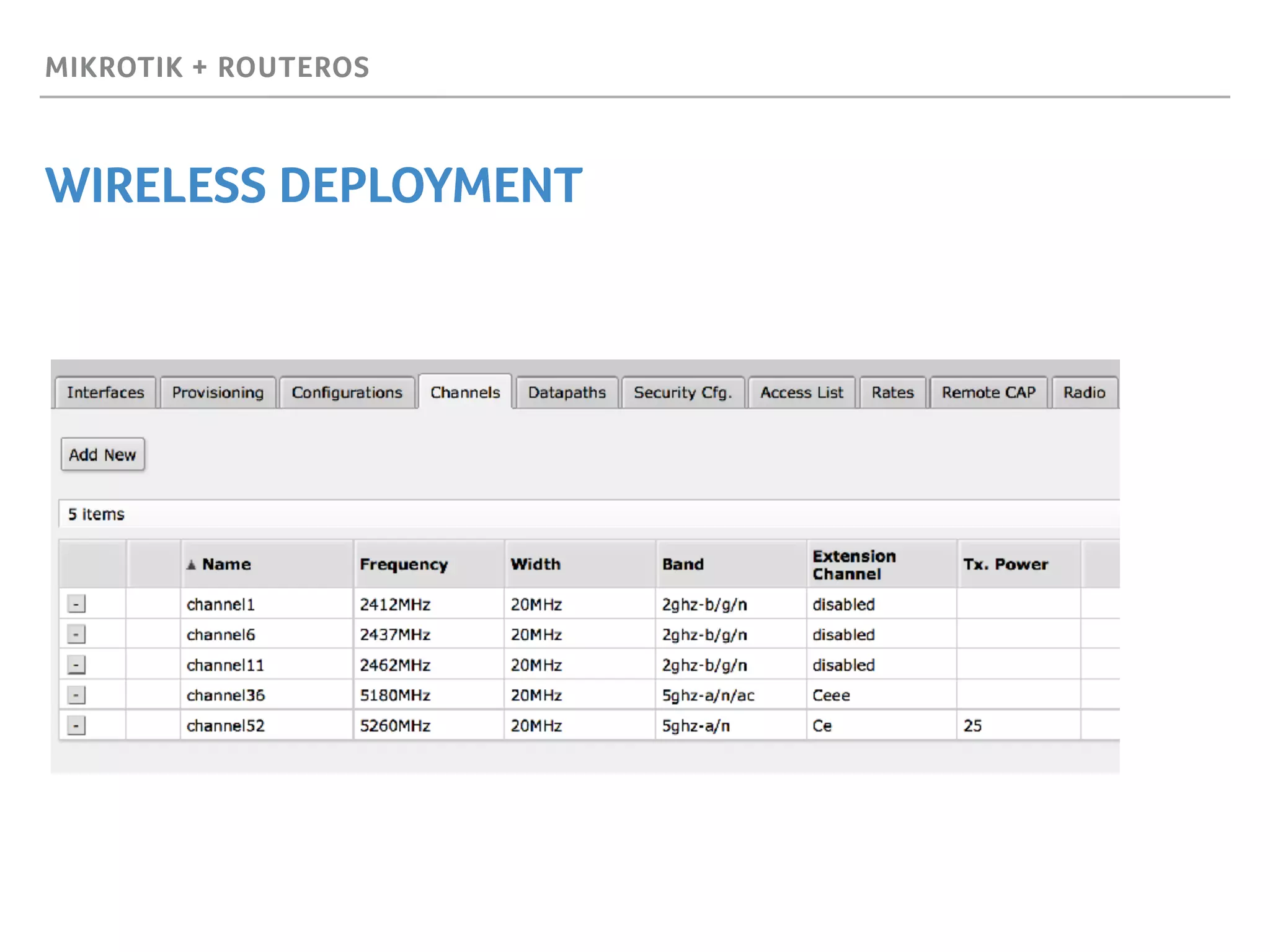

WIRELESS DEPLOYMENT

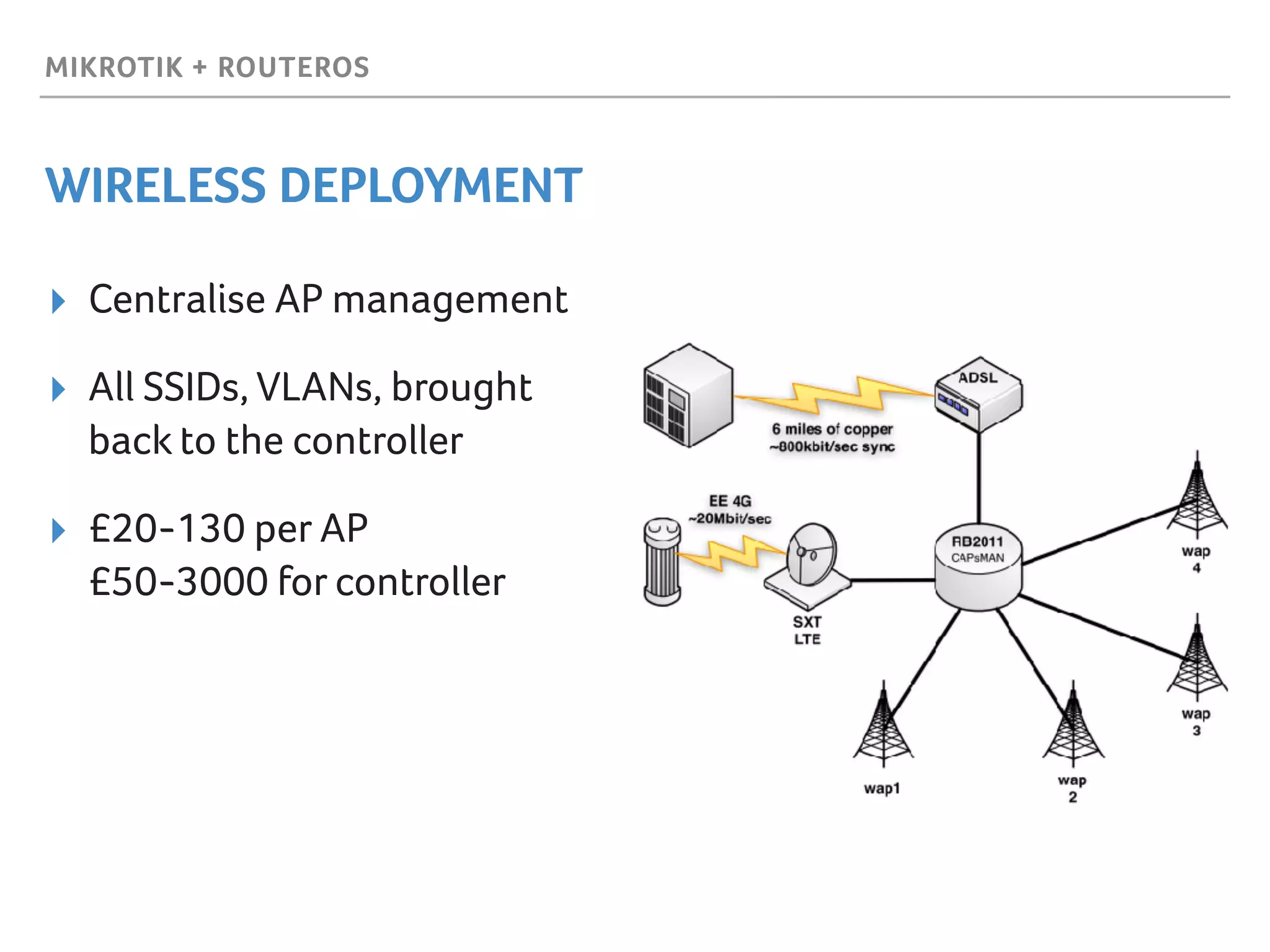

▸ Centralise AP management
▸ All SSIDs, VLANs, brought
back to the controller
▸ £20-130 per AP
£50-3000 for controller

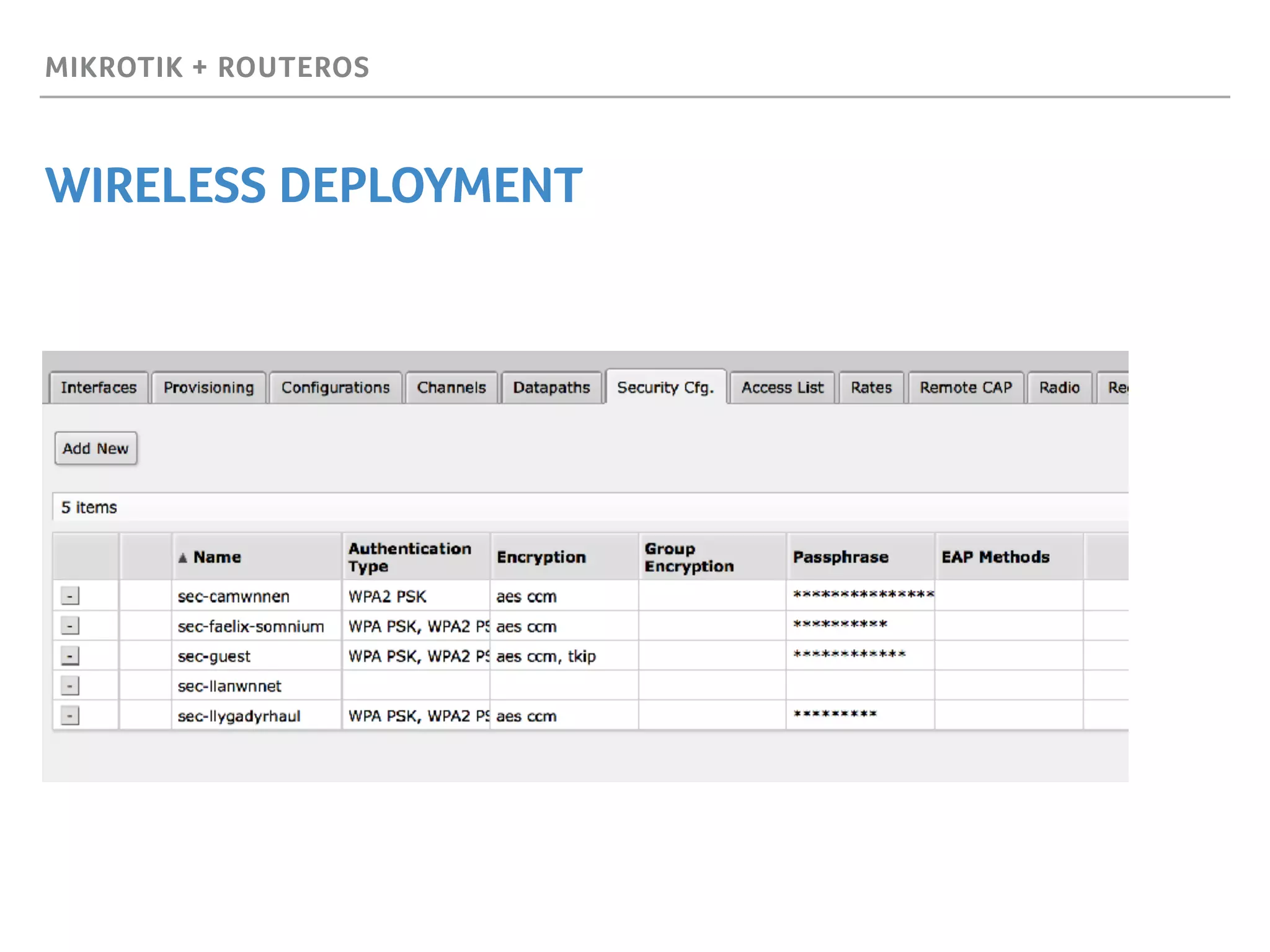

35. MIKROTIK + ROUTEROS
WIRELESS DEPLOYMENT

36. MIKROTIK + ROUTEROS
WIRELESS DEPLOYMENT

37. MIKROTIK + ROUTEROS
WIRELESS DEPLOYMENT

38. MIKROTIK + ROUTEROS
WIRELESS DEPLOYMENT

39. MIKROTIK + ROUTEROS
WIRELESS DEPLOYMENT

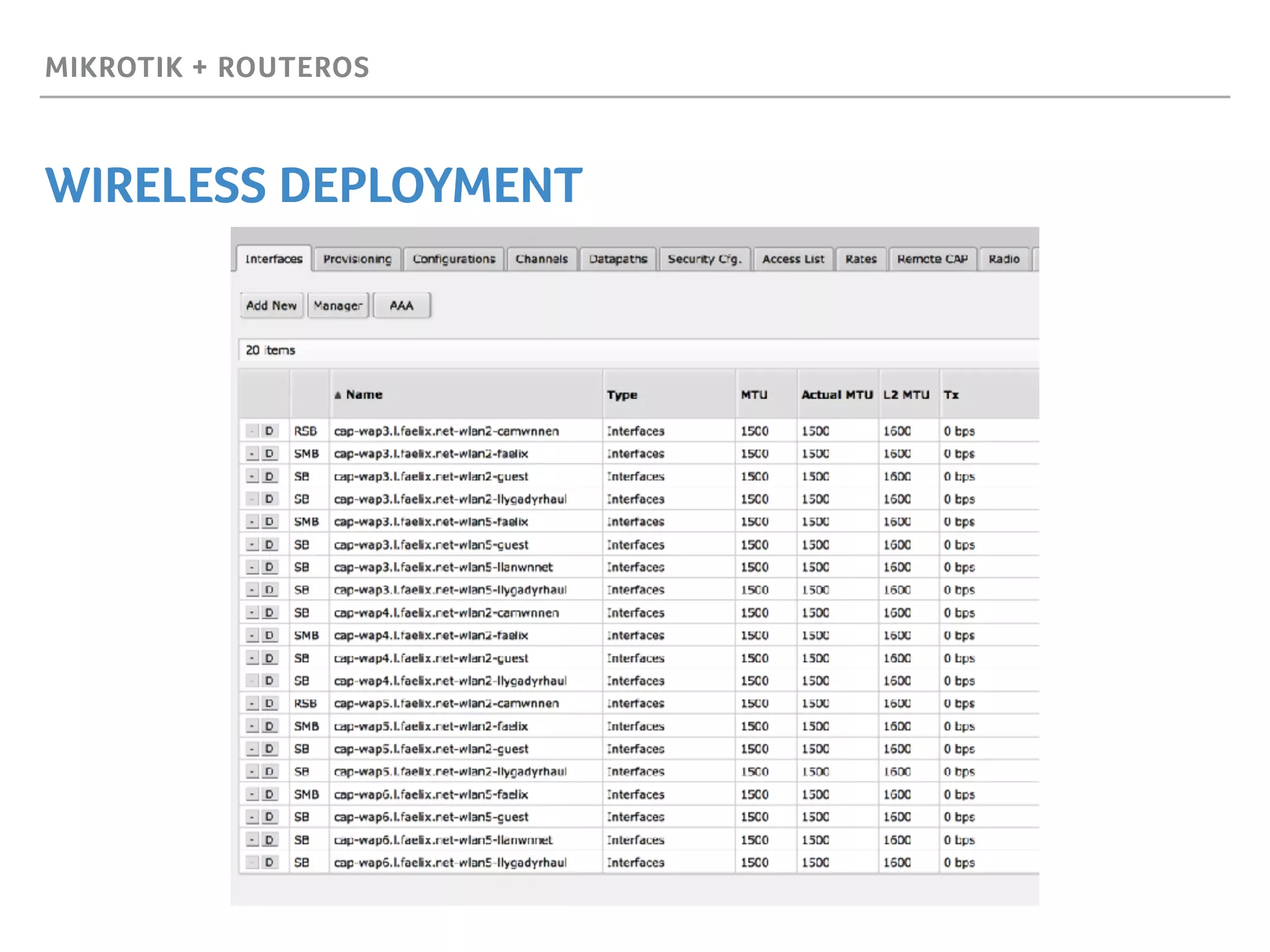

40. MIKROTIK + ROUTEROS
WIRELESS DEPLOYMENT

41. MIKROTIK + ROUTEROS

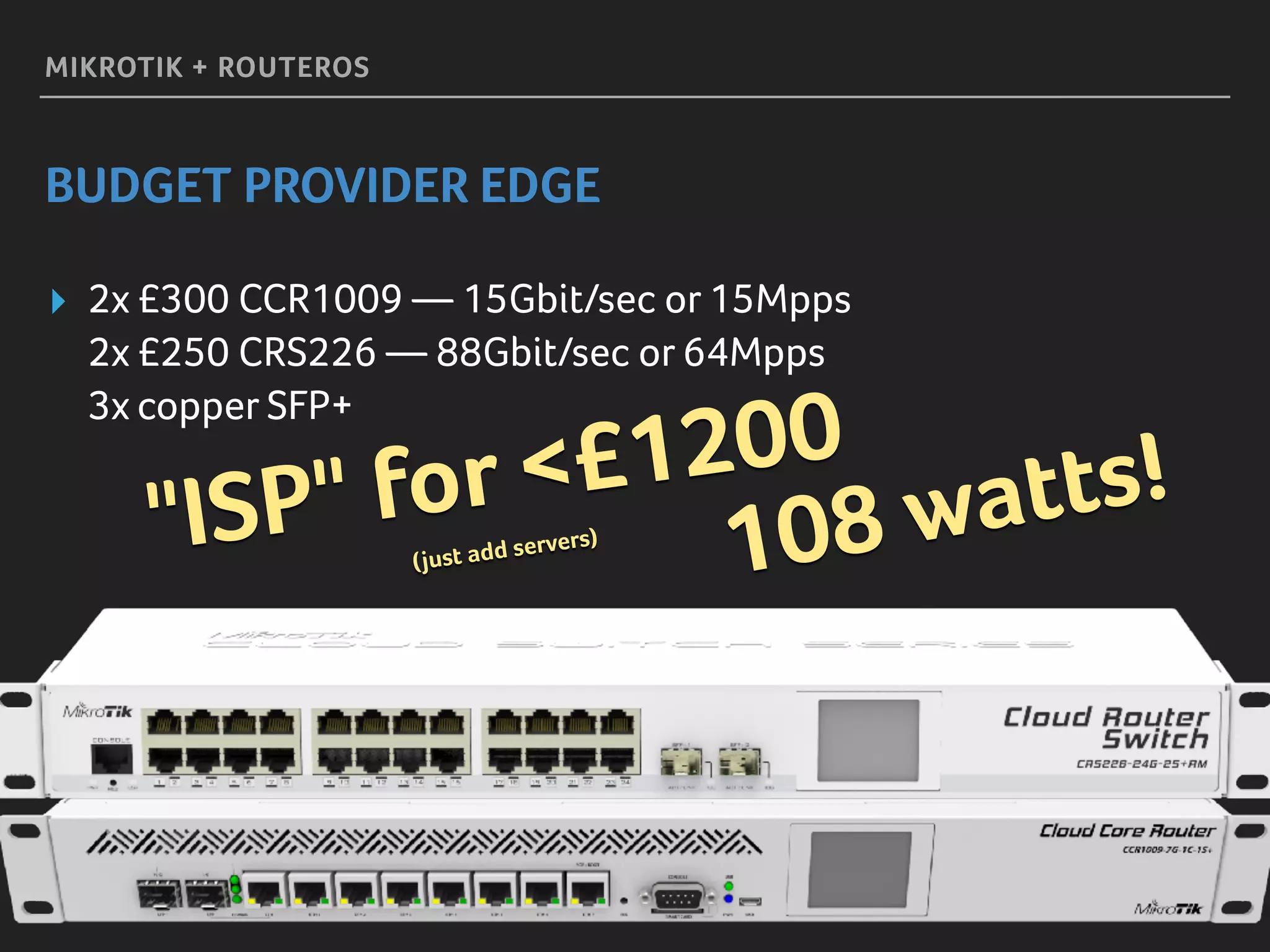

BUDGET PROVIDER EDGE
▸ 2x £300 CCR1009 — 15Gbit/sec or 15Mpps
2x £250 CRS226 — 88Gbit/sec or 64Mpps
3x copper SFP+
108 watts!
"ISP" for <£1200
(just add servers)

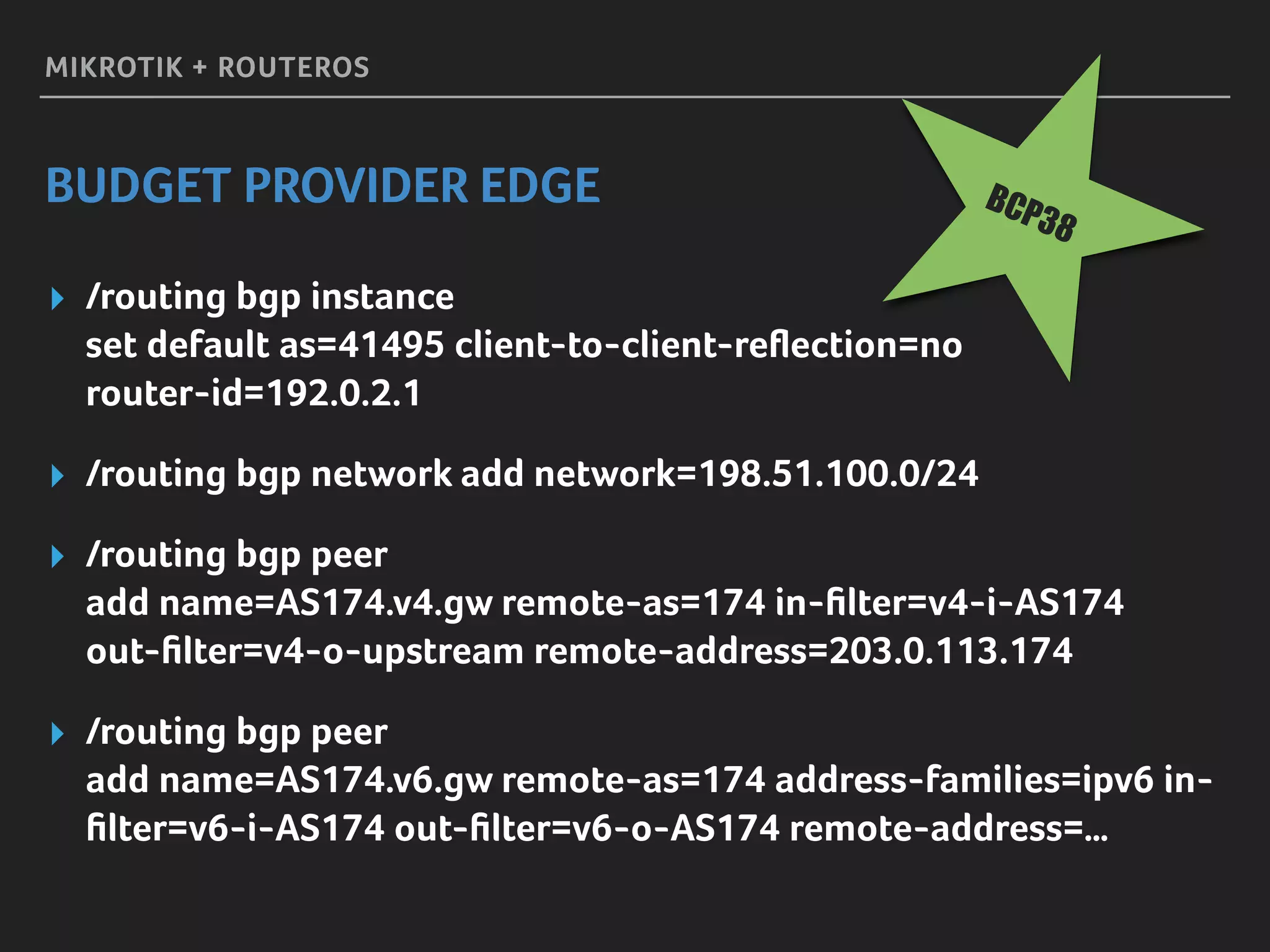

42. MIKROTIK + ROUTEROS
BUDGET PROVIDER EDGE
▸ /routing bgp instance
set default as=41495 client-to-client-reflection=no
router-id=192.0.2.1
▸ /routing bgp network add network=198.51.100.0/24
▸ /routing bgp peer
add name=AS174.v4.gw remote-as=174 in-filter=v4-i-AS174
out-filter=v4-o-upstream remote-address=203.0.113.174
▸ /routing bgp peer
add name=AS174.v6.gw remote-as=174 address-families=ipv6 in-
filter=v6-i-AS174 out-filter=v6-o-AS174 remote-address=…
BCP38

43. MIKROTIK + ROUTEROS

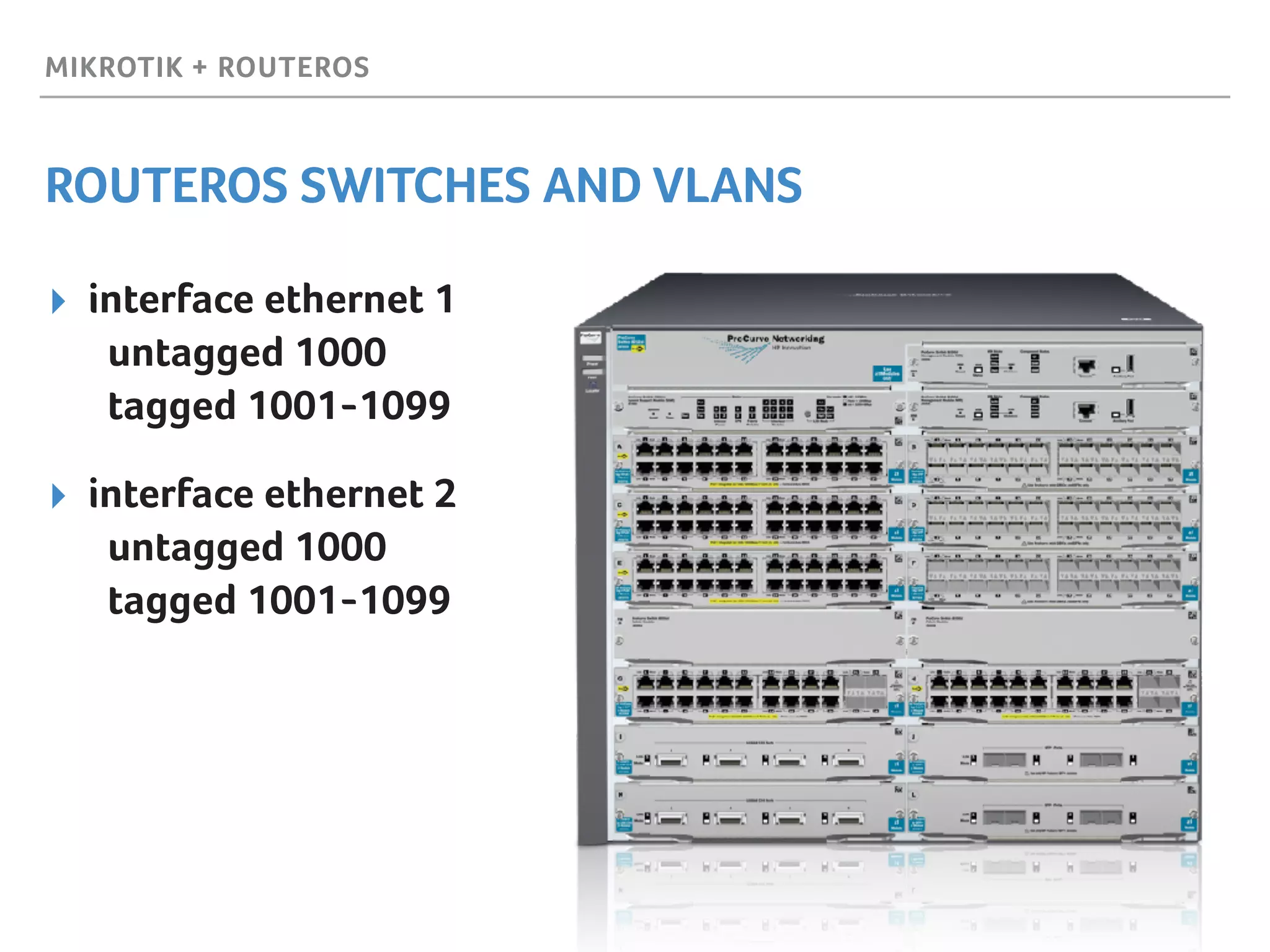

ROUTEROS SWITCHES AND VLANS

44. MIKROTIK + ROUTEROS
ROUTEROS SWITCHES AND VLANS
▸ interface ethernet 1
untagged 1000
tagged 1001-1099
▸ interface ethernet 2
untagged 1000
tagged 1001-1099

45. MIKROTIK + ROUTEROS
ROUTEROS SWITCHES AND VLANS

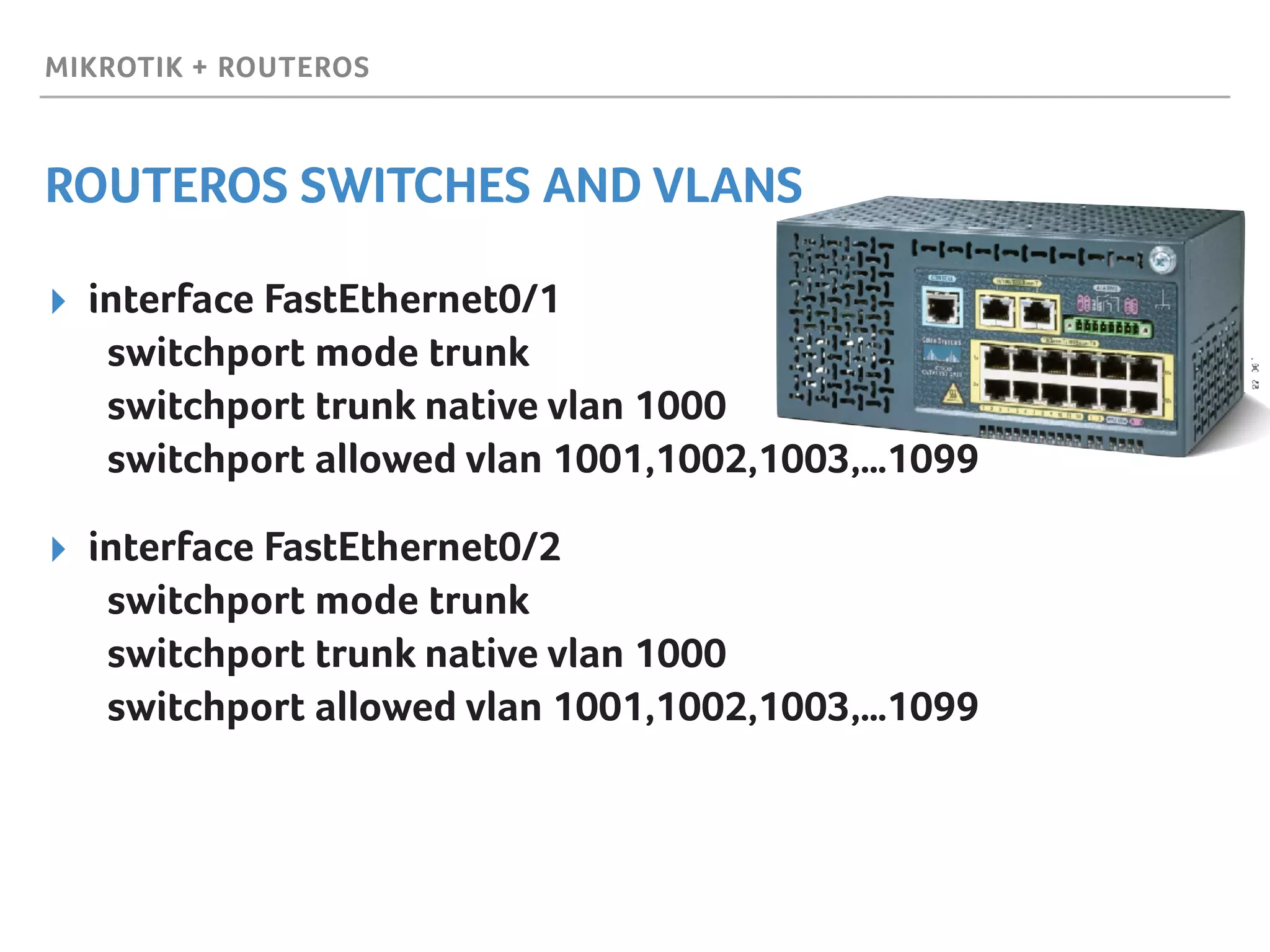

▸ interface FastEthernet0/1
switchport mode trunk
switchport trunk native vlan 1000
switchport allowed vlan 1001,1002,1003,…1099
▸ interface FastEthernet0/2
switchport mode trunk
switchport trunk native vlan 1000
switchport allowed vlan 1001,1002,1003,…1099

46. MIKROTIK + ROUTEROS
ROUTEROS SWITCHES AND VLANS

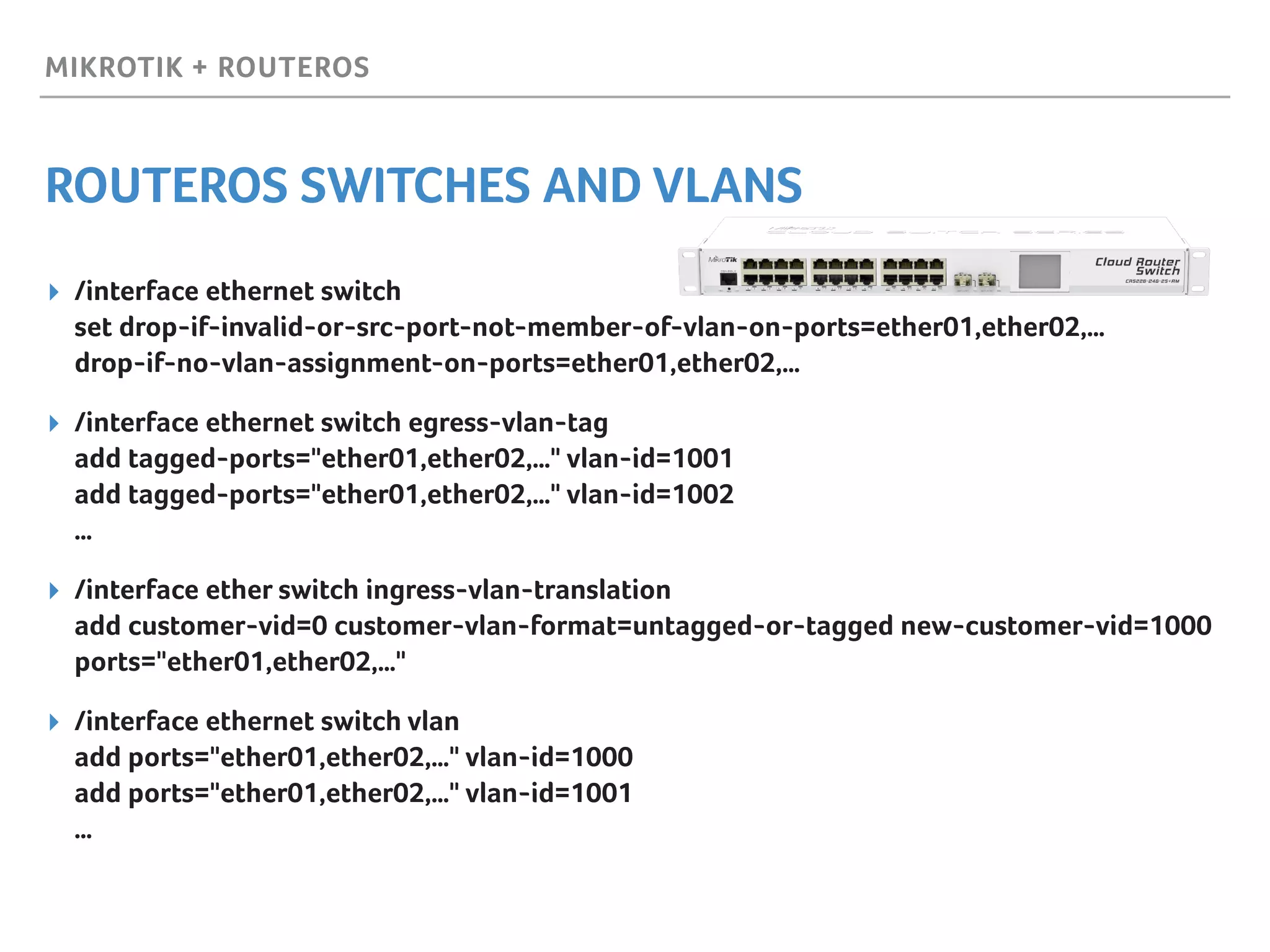

▸ /interface ethernet switch
set drop-if-invalid-or-src-port-not-member-of-vlan-on-ports=ether01,ether02,…
drop-if-no-vlan-assignment-on-ports=ether01,ether02,…
▸ /interface ethernet switch egress-vlan-tag
add tagged-ports="ether01,ether02,…" vlan-id=1001
add tagged-ports="ether01,ether02,…" vlan-id=1002
…
▸ /interface ether switch ingress-vlan-translation
add customer-vid=0 customer-vlan-format=untagged-or-tagged new-customer-vid=1000
ports="ether01,ether02,…"
▸ /interface ethernet switch vlan
add ports="ether01,ether02,…" vlan-id=1000
add ports="ether01,ether02,…" vlan-id=1001
…

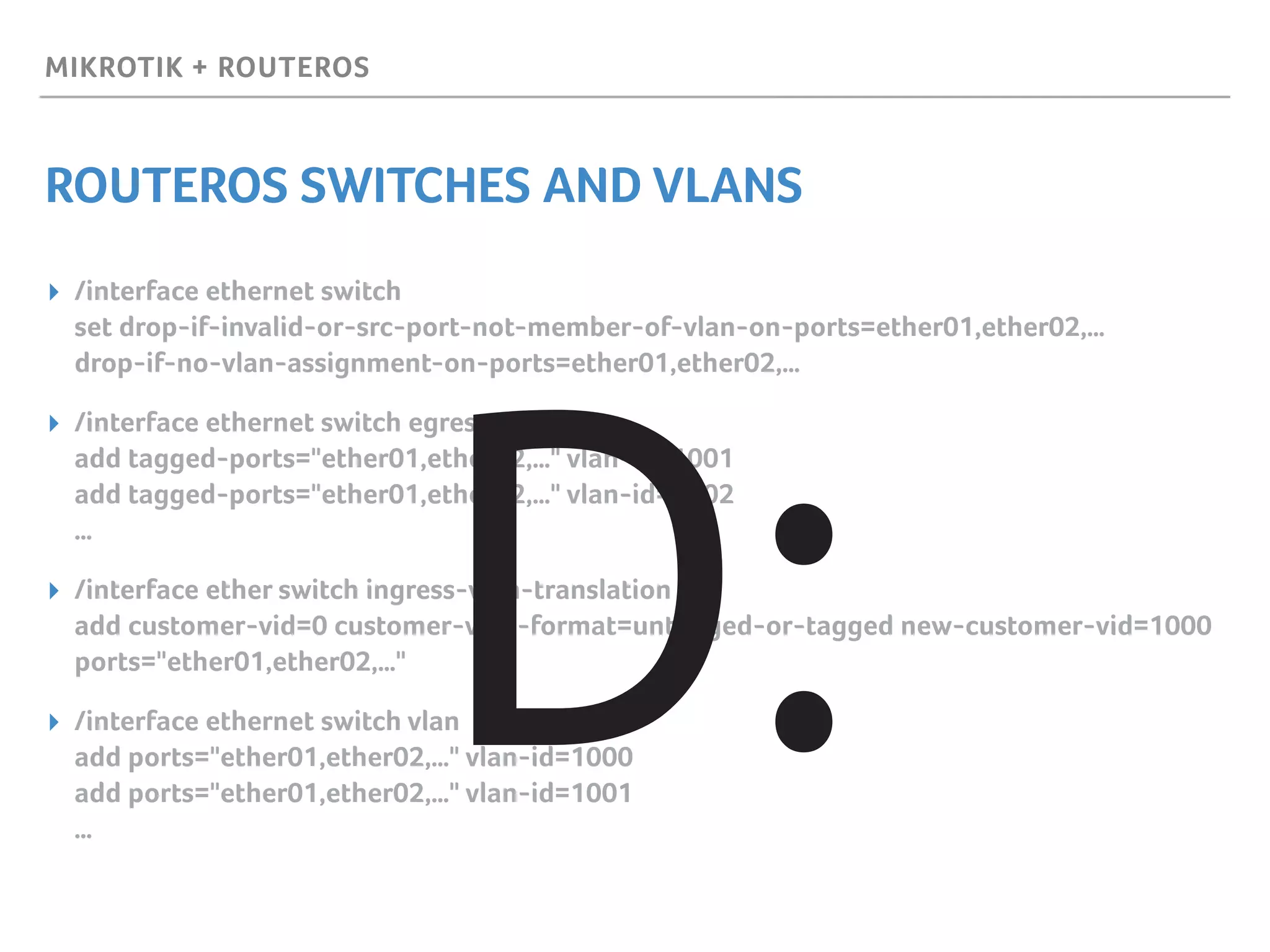

47. MIKROTIK + ROUTEROS
ROUTEROS SWITCHES AND VLANS
▸ /interface ethernet switch
set drop-if-invalid-or-src-port-not-member-of-vlan-on-ports=ether01,ether02,…
drop-if-no-vlan-assignment-on-ports=ether01,ether02,…
▸ /interface ethernet switch egress-vlan-tag
add tagged-ports="ether01,ether02,…" vlan-id=1001
add tagged-ports="ether01,ether02,…" vlan-id=1002
…
▸ /interface ether switch ingress-vlan-translation
add customer-vid=0 customer-vlan-format=untagged-or-tagged new-customer-vid=1000
ports="ether01,ether02,…"
▸ /interface ethernet switch vlan
add ports="ether01,ether02,…" vlan-id=1000
add ports="ether01,ether02,…" vlan-id=1001
…
D:

48. MIKROTIK + ROUTEROS

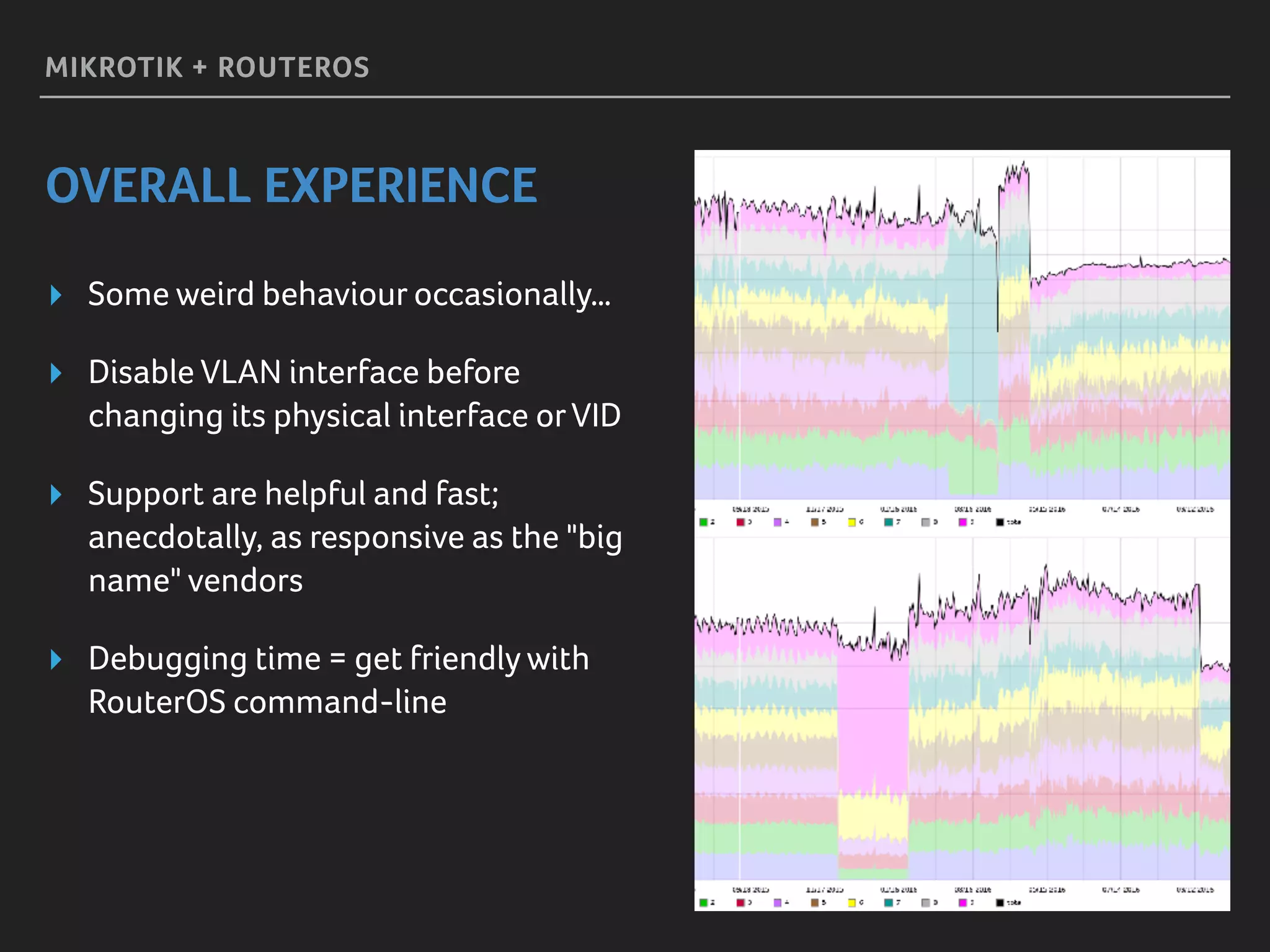

OVERALL EXPERIENCE
▸ Some weird behaviour occasionally…
▸ Disable VLAN interface before
changing its physical interface orVID
▸ Support are helpful and fast;
anecdotally, as responsive as the "big
name" vendors
▸ Debugging time = get friendly with
RouterOS command-line

49. MIKROTIK + ROUTEROS

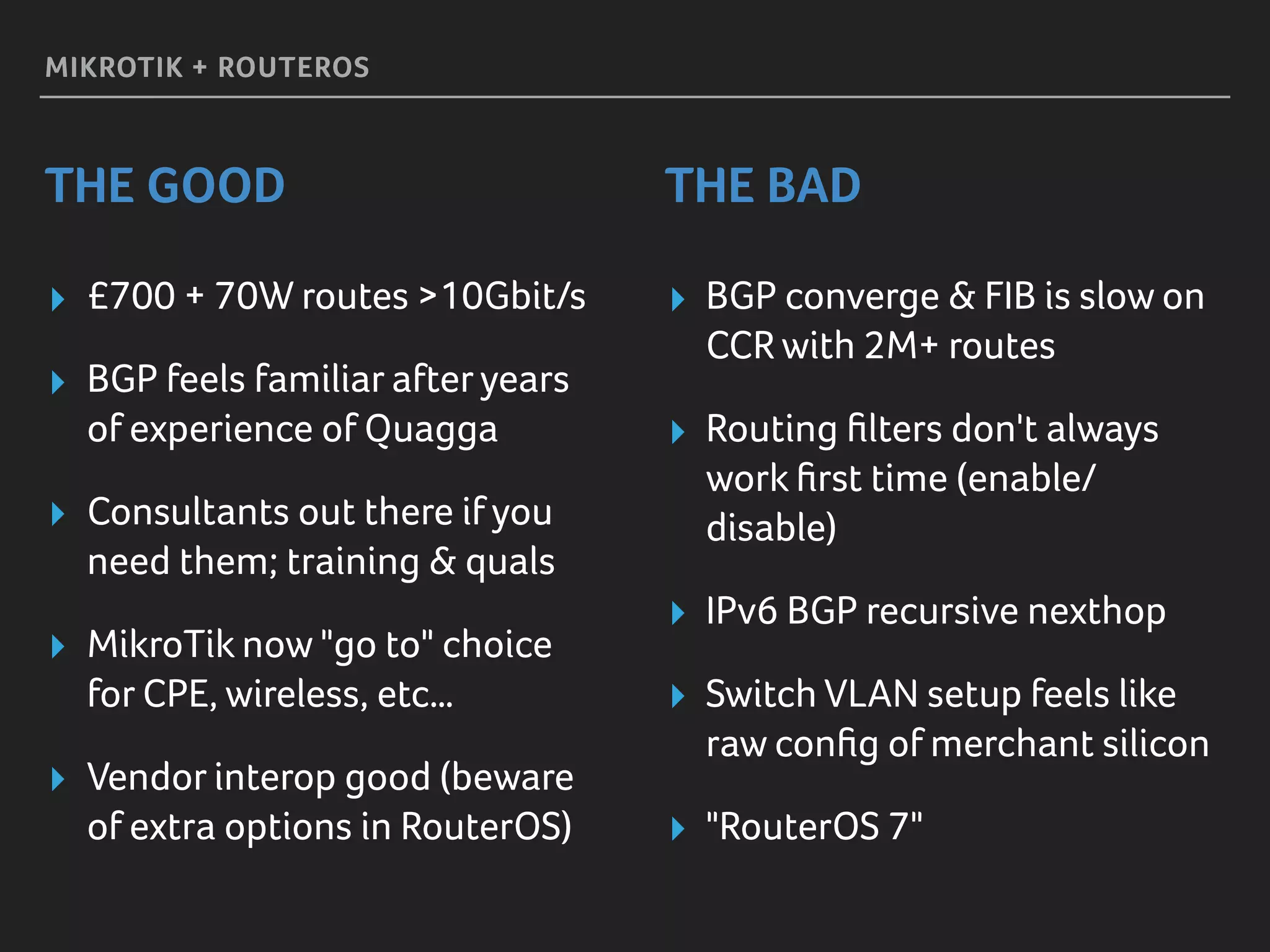

THE GOOD THE BAD
▸ £700 + 70W routes >10Gbit/s
▸ BGP feels familiar afteryears
of experience of Quagga
▸ Consultants out there if you
need them; training & quals
▸ MikroTik now "go to" choice
for CPE, wireless, etc…
▸ Vendor interop good (beware
of extra options in RouterOS)
▸ BGP converge & FIB is slow on
CCR with 2M+ routes
▸ Routing filters don't always
work first time (enable/
disable)
▸ IPv6 BGP recursive nexthop
▸ Switch VLAN setup feels like
raw config of merchant silicon
▸ "RouterOS 7"
